Car DVR
Model: VA-CD001
SKU: 28-25001-001
Car DVR
User Guide
Thank you for choosing the Car DVR. Please read this user manual carefully, and keep it for future
reference. If you have any questions or concerns, please contact our customer support team by
email at support.info@vava.com.
What’s In the Box:
1 x Car DVR
1 x Car Mount
1 x Snapshot Button
1 x VAVA Power Bank (With Charger)
1 x Micro USB Cable with GPS Module
1 x Micro SD Card
1 x User Guide
1 x Quick Start Guide
1 x Thank You Card
Product Diagram
1
2
3
4
5
6
7
![](/img.php?id=3304756&img=bg2.png)

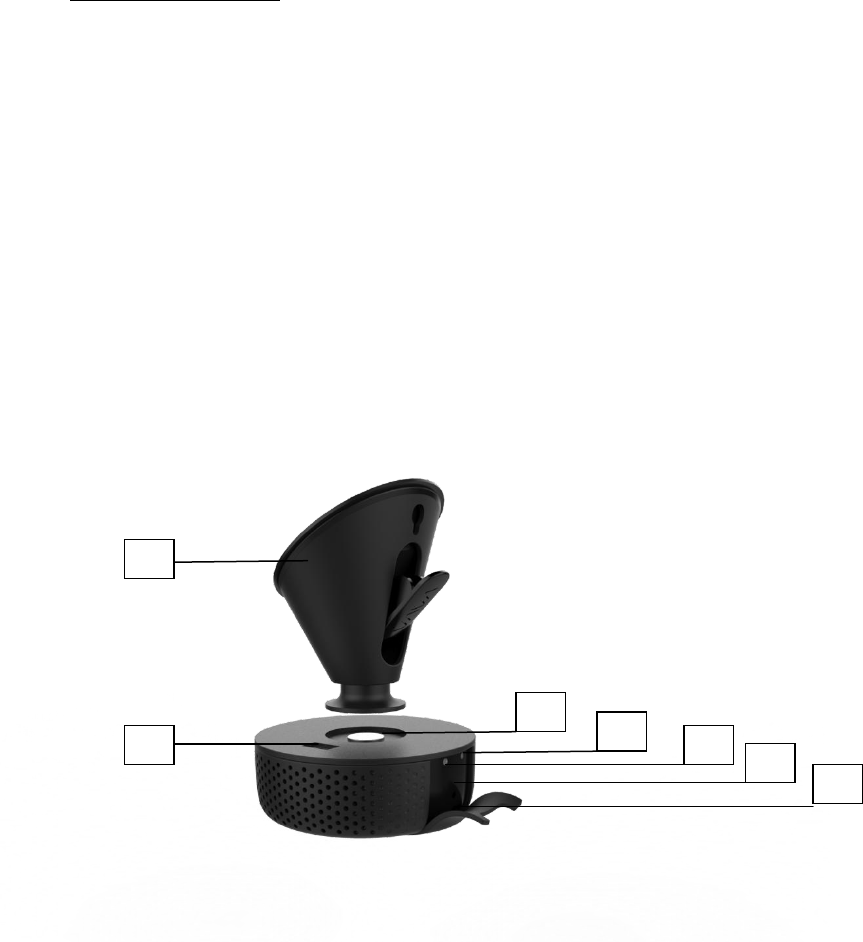

① Car Mount
② Micro USB Port
③ Magnet
④ Blue/Red double color LED Light (Power / Work Status)
⑤ White LED Light (WiFi Status)
⑥ Reset Button
⑦ Micro SD Card Slot
⑧ Snapshot Button

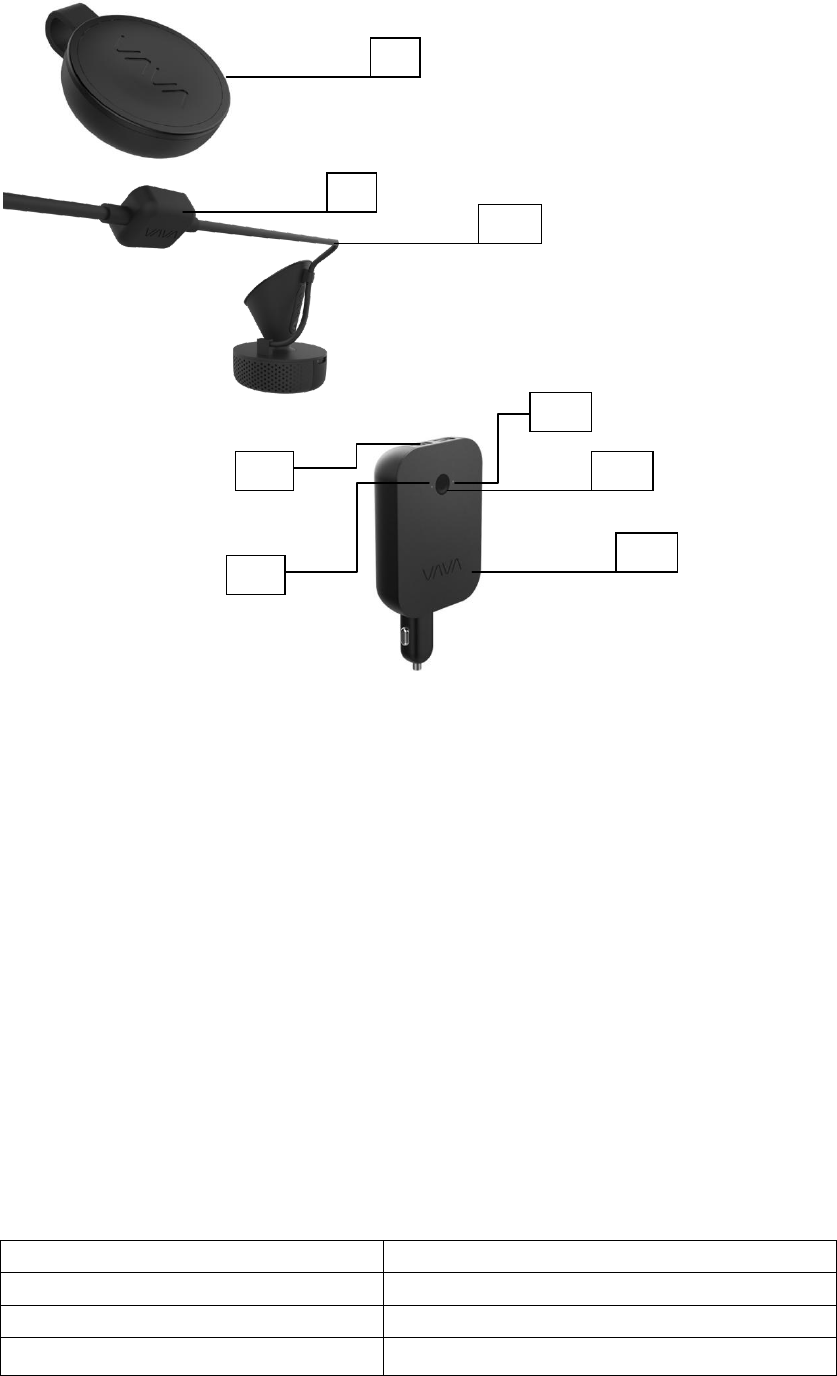

⑨ GPS Module
⑩ Micro USB Cable
⑪ VAVA Power Bank (With Charger)
⑫ Power Button
⑬ LED Status Indicator
⑭ LED Battery Indicator
⑮ USB Port of the Power Bank
Specifications
CPU
NT96660
Vision Processor
Sony IMX291, 1/2.8 in
Lens
Full 6G + 1 IR lens
Angle
140°F1.8 Aperture
8
9
11
10
12
13
14
15
![](/img.php?id=3304756&img=bg3.png)
G-Sensor
3-axis accelerometer
Resolution
1920*1080/60fps (Default);
1920*1080/30fps;
1280*720/30fps;
840*480/30fps
Storage
Supports up to 128GB, Class 10 TF Card
Connection
WiFi for phone and dash cam connection
2.4G for phone and Snapshot Button connection
RAM
2Gb
Recycle Record Time
1 minute / 3 minutes / 5 minutes
Operating Temperature
-20℃ to 70℃
-4°F to 158°F
Power Bank Capacity
2300mAh
Note: The built-in super-capacitor in the dash cam will keep it powered for 10 seconds after
being disconnected from a power source.
Dash Cam
LED Indicator
Status
Blue LED light slowly blinks
Working
Blue LED light ON
Stop Working
Red LED light slowly blinks 20 seconds
Recording a emergency video clip
Red LED light slowly blinks 15 seconds
Recording a emergency video clip
while on parking mode
Red LED light fast flashes
Error
Red LED light flashes once
A snapshot photo is taken
White LED light ON
Connected to Wifi
White LED light OFF
Not connected to Wifi
Power Bank
LED Indicator
Status
LED status indicator lights up in Blue
Connected to power
LED status indicator OFF
Disconnected from power
LED battery indicator lights up in red
Battery level lower than 20%
LED battery indicator lights up in
orange
Battery level from 20% to 99%
LED battery indicator lights up in green
Battery level up to 100%
LED battery indicator blinks twice
Enter the always recording parking
mode
Note: You can press the Power Button on the power bank to check the remaining battery.
![](/img.php?id=3304756&img=bg4.png)
Installing the Car DVR
1. Insert the TF card into the micro SD card slot.
2. Stick the car mount onto your car windshield (ideally right in the middle).
3. Fix the Car DVR onto the mount via the magnet.
4. Connect the USB cable to the micro USB port of the dash cam, run the cable along the edge
of the windshield, tuck it away in the seams, all the way to the USB port of the power bank
(Keep away from the airbag area).
5. Insert the power bank (with charger) to the cigarette lighter, connect the USB 2.0 to the USB
port of power bank.
6. Start your car to turn on the Car DVR. Connect it with your phone (refer to the “VAVA Dash
App” section) and open the VAVA Dash App to view a real-time feed. Adjust the dash cam to
achieve the ideal shooting angle.
7. Open the snapshot button rear cover, and pull out the cell box, then put the button cell into
the box. Cover the rear cover and press once, you can hear a click sound and then the
snapshot button connect to the dash cam. (If no any respond, please take out the button cell
and put it into the box again or long press the button for 5 second to reset the button.)
Note:
The dash cam supports up to a 128GB Class 10 TF card. Do not remove or insert a TF card
when the camera is working.
Stick the Snapshot Button with a 3M adhesive tape on the dashboard or besides the steering
wheel. Do not put it on the airbag.
Please don’t connect the devices which have Quick Charge function.
Park Mode
1. When your car is running, the car charger provides power to the Car DVR and charges the
power bank simultaneously. When your car is not running, i.e. engine being shut down, the

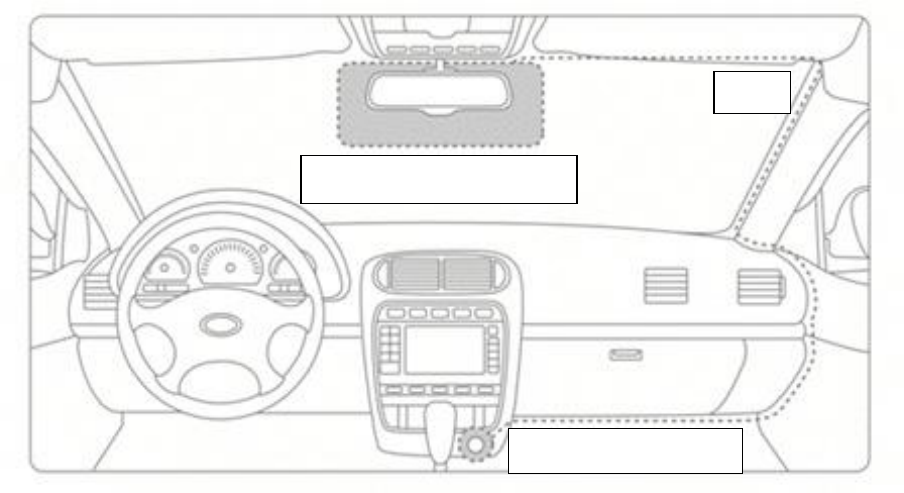

The Best Mounting Position
Power Bank / Car Charger
GPS
charger is disabled and power to the Car DVR is then provided by the power bank.
2. There will be 3 minutes for your choosing. When you want the dash cam keeping working,
you should long press the button on the power bank for 3 seconds, then the dash cam will
keep on working about 30 minutes. If you aren’t back to the car to restart the car in 30
minutes, the dash cam will get into the Park Mode automatically, only when a shock or crash
is detected, cause the G-sensor to activate the dash cam and record a 15 second video
footage.
3. If you don’t do any action in 3 minutes after the car is not running, the dash cam will get into
the Park Mode automatically, only when a shock or crash is detected, cause the G-sensor to
activate the dash cam and record a 15 second video footage.
VAVA Dash App
Downloading the VAVA Dash App
For Android / iOS phones, please search for “VAVA Dash” in Google Play or the Apple App Store.
Download the app and install it on your phone.
Connecting the VAVA Dash to Your Phone
Connect your Android / iOS smartphone with the Car DVR through the below steps:
Settings > WLAN > Select “VAVA WiFi” > Enter password > Open the VAVA Dash App
Note: The initial WiFi password is 12345678.
Live Preview
Once your phone and the dash cam is connected, open the app to view a real-time video feed
and configure the dash cam.
Take Photos and Video Clips
Press the Snapshot Button or tap the snapshot icon in the app to make the camera take a photo
or record a video from 5 seconds before the pressing or tapping to 15 seconds afterwards. The
photo and the video clip will be automatically downloaded from the Car DVR onto the VAVA Dash
App.
Photo Gallery Management
You can check all the photos and videos in the app photo gallery and choose one or several
photos or videos to preview or edit.
Path
You can check all the information about the drive routs and real-path. The drive routs record and
present your driving journal.
Travel Log
Select interesting photos and drive routes, edit and turn them a Travel Log. Click the share icon to
post it on your favorite social networks (Facebook, Twitter, Instagram, etc.)!
Other Settings
![](/img.php?id=3304756&img=bg6.png)
Once your phone is connected to the camera, you can modify the camera settings, including
resolution, volume, mute, micro SD card management, firmware update, etc.
Attention
Our apps and camera firmware will be updated regularly, you can update the firmware via
apps.
Do not use cardboard, paper towel, or napkin to clean the lens.
Do not attempt to repair, dismantle, or modify the dash camera hardware by yourself.
When no longer needed, dispose of the dash camera according to local policies.
Warranty
This product is covered by the VAVA Parts and Labor Warranty for 18+12 months from the
date of its original purchase (from authorized retailers and distributors only). If the product
has become defective, please contact VAVA Support for assistance or to launch a warranty
claim.
Support and Enquiry
For further enquiry and technical support, please email at support.info@vava.com with
details. We normally respond to enquiries within 24 hours.
