SUPERSONIC GATE AND DOOR AUTOMATION MC300 Remote transmitter User Manual

SUPERSONIC GATE AND DOOR AUTOMATION CO., LIMITED Remote transmitter

User Manual

OPERATIONAL CHECK
To check operation, move back a reasonable distance (about 50 ft.) and press
the transmitter button. Operation should be reliable at this distance but
environment and location of both the transmitter and receiver will affect the range.
If the transmitter is stowed well out of sight, it may be necessary to remove it
from its mounting and hold near the windshield. Try different locations and
positions. If operation is still unsatisfactory, the problem may be isolated by:
1. Checking the door operator. If the door will not open when the wall button is
pressed, the problem is likely to be the operator. If the door will open by
pressing the wall button, but not when the radio control button is pressed, the
problem is probably in the radios.
2. Replacing the transmitter battery. If after performing the above operational
checks, the controls still do not function, they should be returned to your dealer
for repair or replacement.
SUPERSONIC GATE AND DOOR AUTOMATION CO.,LIMITED
INSTALLATION INSTRUCTIONS
DIGITAL TRANSMITTER MODEL MUC300
Congratulations! You have just purchased a MUC300 Digital Transmitter, which
we believe to be the finest product of its kind on the market. With a little care this
transmitter should provide you with many years of excellent service. Please take
a moment to read the following instructions and you will find that setting your new
transmitter will be quite an easy matter. The user can Switch the working frequency
between 300MHz and 310MHz by pressing the key(3s)

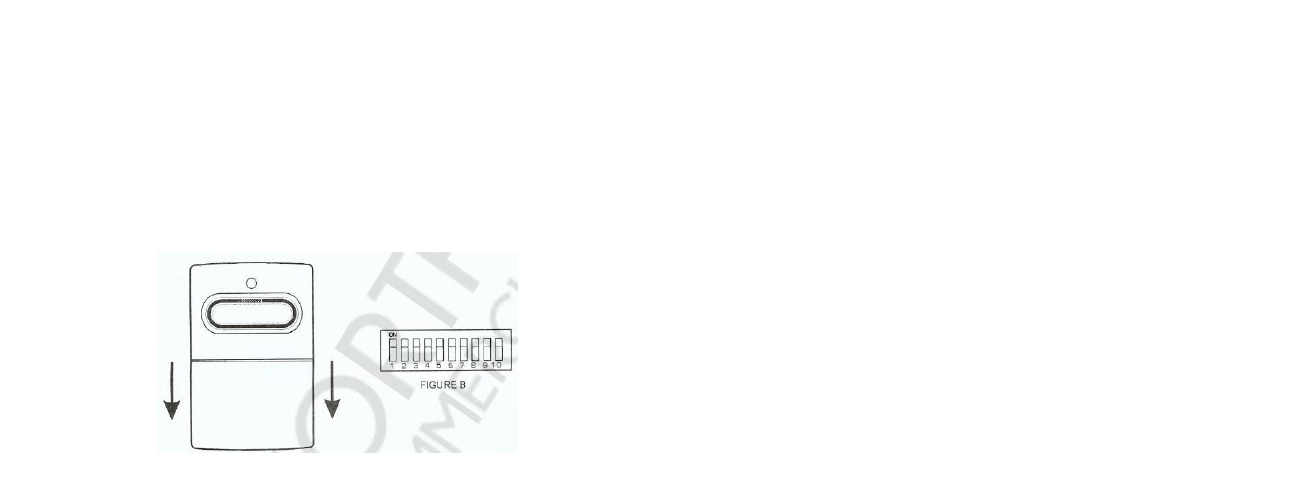

ACCESSING THE CODE SWITCH
Insert a small coin into the slot located at the bottom end of the transmitter. Twist
the coin and remove the access cover to expose the code switch and battery
compartment.
SELECTING A CODE
You may set your transmitter to any code you desire but be sure that the code
you set matches the code that has been set on your radio receiver. The digital
code is determined by the positions of the 10 small switches numbered 1 through
10 located in the receiver and transmitter. Any combination of ON (CLOSED) or
OFF (OPEN) positions can be selected by using a small screwdriver or ball point
pen. (NOTE: The switches are in the “On” position when the side next to the
number is pressed in.) In setting your own personal code we strongly urge that
several coding schemes be avoided: ALL ON; ALL OFF; 2,4,6,8,10 ON; 1,3,5,7,9
ON. These positions are similar to our or other manufacturer’s test positions, or
are frequently used. Once the code has been set, check the operation and
replace the hatches.
TRANSMITTER INSTALLATION
The transmitter is completely self contained, including battery, and can be
operated while mounted in the car. It is supplied with a clip for attaching to the
sun visor, if desired. If the clip is used attach to the case by sliding it into the
recess provided on the back of the transmitter until the small dimples fit into the
holes in the clip.
TRANSMITTER BATTERY REPLACEMENT
Replacement battery - 9 volt NEDA 1604 (Eveready 216 or equivalent).
The battery in the transmitter can be checked or changed by removing the front
lower half of the transmitter. Refer to the directions under “accessing the code
switch” for battery replacement.
TO REPLACE OR ADD A SET
A replacement or new transmitter or receiver may be purchased by specifying the
Model Number and the RF frequency designated on the identification label. The
RF frequency is set at the factory and must not be adjusted in the field. The
digital code can be matched to the companion receiver or transmitter by following
the above procedure.
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2)
this device must accept any interference received, including
interference that may cause undesired operation.
Any Changes or modifications not expressly approved by
the party responsible for compliance could void the user's
authority to operate the equipment.
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to part 15 of
the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates uses and
can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause
harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more
of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and
receiver.
-Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician
for help.
