TD530X_/601XB 01-36 02.8.26 11:44 AM Page 1

SYLVANIA

COLOR TV/DVD/VHS

SRCD223

(23 inch)

SRCD227

(27 inch)

_oo o_.o_o _1

_0=_2 001-_-_ _ TruSurround'/llp:l

.,a,TAL_SRSCe)"

This Owner's Manual is

made of recycled paper.

IINSTRUCCIONES EN ESPAI_IOL INCLUIDAS. I

_,_. AS an ENERGY STAR

Padner, our company has

determined that this product meets

the ENERGY STAR ® guidelines for

energy efficiency ENERGY STAR ® is

a US registered mark.

,%__ PPL[E' _) A('(:7;,S',S'O/{dE',S'

I ACCESSORIES _ PAffFNO.

Remote Control Unit |NE204UD

!

Batteries | 2 AA Batteries 1

TD530XA/601XB 01-36 02.8.26 11:44 AM Page 2

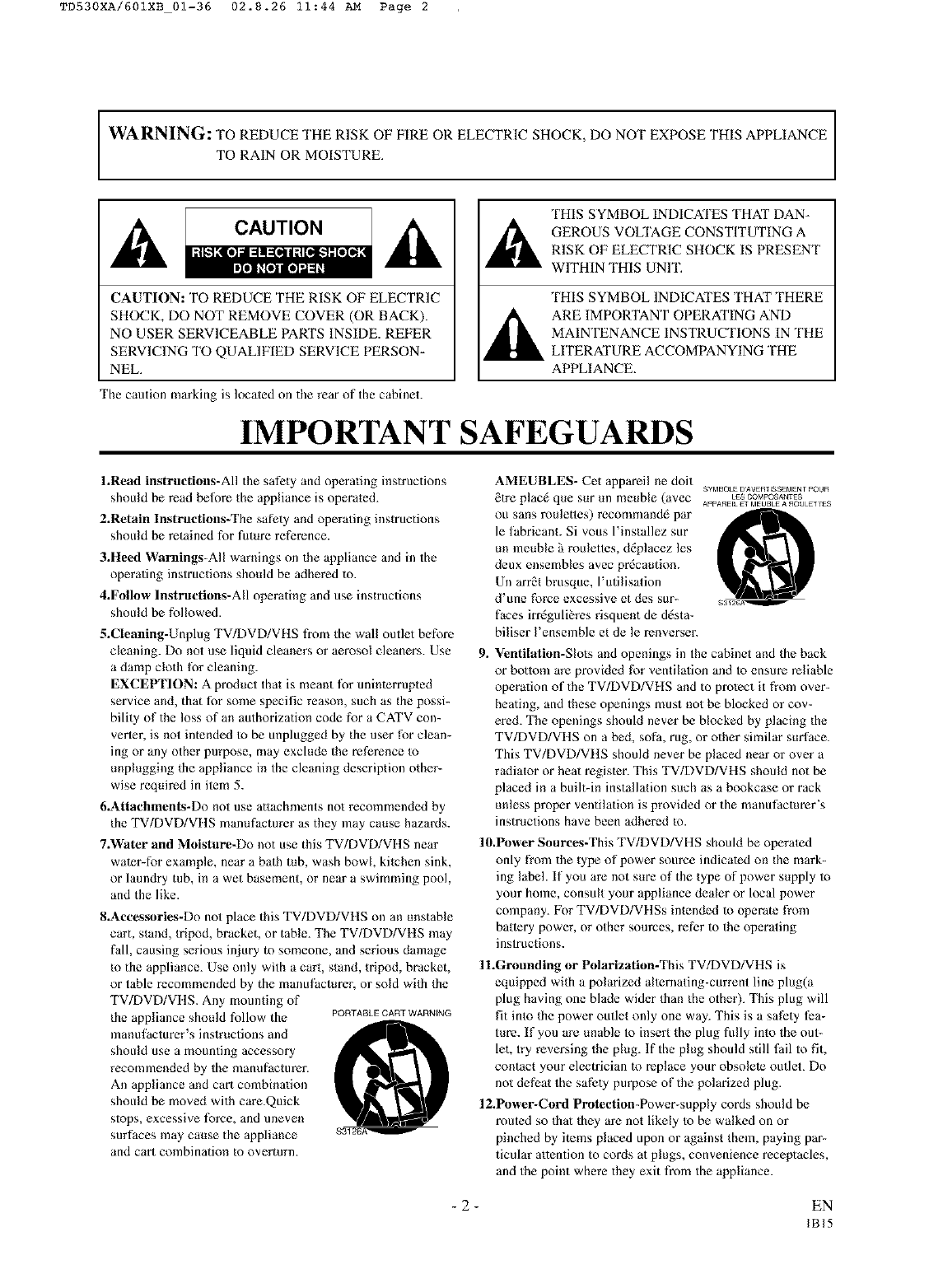

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTP, IC SHOCK, DO NOT EXPOSE THIS APPLIANCE

TO RAIN OR MOIS FURL

CAUTION

CAUTION: TO REDUCE THE RISK OF ELECTRIC

SHOCK, DO NOT REMOVE COVER (OR BACK).

NO USER SERVICEABLE PARTS INSIDE. REFER

SERVICING TO QUALIFIED SERVICE PERSON-

NEL.

The caution marking is located on the rear of the cabinet.

THIS SYMBOL INDICATES THAT DAN-

GEROUS VOLTAGE CONSTITUTING A

RISK OF ELECTRIC SHOCK IS PRESENT

WITHIN THIS UNIT.

THIS SYMBOL INDICATES THAT THERE

ARE IMPOKFANT OPERATING AND

MAINTENANCE INSTRUCTIONS IN THE

LITERATURE ACCOMPANYING THE

APPLIANCE,

IMPORTANT SAFEGUARDS

l.Read instructions-All the sal)ty and operating instructions

should be read belbre the appliance is operated.

2.Retain Instructions-The safely and operating instructions

should be retained for furore reference.

3.Heed Warnings-All warnings on lhe appliance and in the

operating instructions should be adhered to.

4.Follow Instructions-All operating and use instructions

should be followed.

5.Cleaning-Unplug TV/DVD/VHS from the wall outlet before

cleaning. Do not use liquid cleaners or aerosol cleaners. Use

a damp cloth lbr cleaning.

EXCEPTION: A product that is meant Ibr uninterrupted

service and, that for some specific reason, such as the possi-

bilily of the loss of an authorization code for a CATV con-

verter, is not in|ended to be unplugged by the user for clean-

ing or any other purpose, may exclude the reference to

unplugging the appliance in the cleaning description other-

wise required in item 5.

6.Allaehments-Do not use auachments not recommended by

the TV/DVD/VttS manufacturer as they may cause hazards.

7.Water and Moisture-Do not use this TV/DVD/VttS near

water-for example, near a balh lub, wash bowl, kitchen sink,

or laundry tub, in a wet basement, or near a swimming pool,

and the like.

8.Accessories-Do not place lhis TV/DVD/VtlS on an unstable

cart, stand, tripod, bracket, or table. The TV/DVD/VttS may

fall, causing serious injury to someone, and serious damage

to the appliance. Use only with a cart, stand, tripod, bracket,

or table recommended by the manuihcmrer, or sold with the

TV/DVD/VttS. Any mounting of

the appliance should follow the PORTASLE_CARTWAaNmNG

manufacturer's instructions and _b,

should use a mounting accessory

recommended by the manufacturer.

An appliance and cart combination

should be moved with care.Quick

stops, excessive force, and uneven

surfaces may cause the appliance

and cart combination to overturn.

AMEUBLES- Cet appareil ne doit SYMBOLE D AVER_'ISSEMENT p(?UR

_tre plac_ que sur ul] meuble (avec LESCOMPOSA_TES

APPAREEL _T MEUBL£ A }qOI- LET rES

ou sans roulettes) recommandd par

le fabricant Si vous Pinstallez sur

un meuble 'aroulettes, d@lacez les

deux ensembles avec precaution.

Un arr6t brusque, l'utilisation

d'une force excessive et des sur-

faces irr_gulibres risquent de d_sta-

biliser I'ensemble et de le renverser.

9. Ventilation-Slots and openings in the cabinet and the back

or bottom are provided lbr ventilation and to ensure reliable

operation of the TV/DVD/VtlS and to protect it from over-

heating, and these openings must not be blocked or cov-

ered. The openings should never be blocked by placing the

TV/DVD/VItS on a bed, sofa, rug, or other similar surface.

This TV/DVD/VItS should never be placed near or over a

radiator or heat register. This TV/DVD/VHS should not be

placed in a built-in installation such as a bookcase or rack

unless proper ventilation is provided or the manufacturer's

instructions have been adhered to.

10.Power Sources-This TV/DVD/VHS should be operated

only from the type of power source indicated on the mark-

ing label. IIyou are not sure of the type of power supply to

your home, consult your appliance dealer or local power

company. For TV/DVD/VItSs intended to operate from

battery power, or other sources, refer to the operating

instructions.

ll.Grounding or Polarization-This TV/DVD/VHS is

equipped with a polarized alternating-current line plug(a

plug having one blade wider than the other). This plug will

fit into the power outlet only one way. This is a safety i_a-

ture. If you are unable to insert the plug fully into the out-

let, try reversing the plug. lfthe plug should still fail to fit,

contact your elecwician to replace your obsolete outlet. Do

not defeat the safety purpose of the polarized plug.

12.Power-Cord Protection-Power-supply cords should be

routed so that they are not likely to be walked on or

pinched by items placed upon or against them, paying par-

ticular attention to cords at plugs, convenience receptacles,

and the point where they exit from the appliance.

- 2 - EN

IBI5

TD530XA/601XB 01-36 02.8.26 11:44 AM Page 3

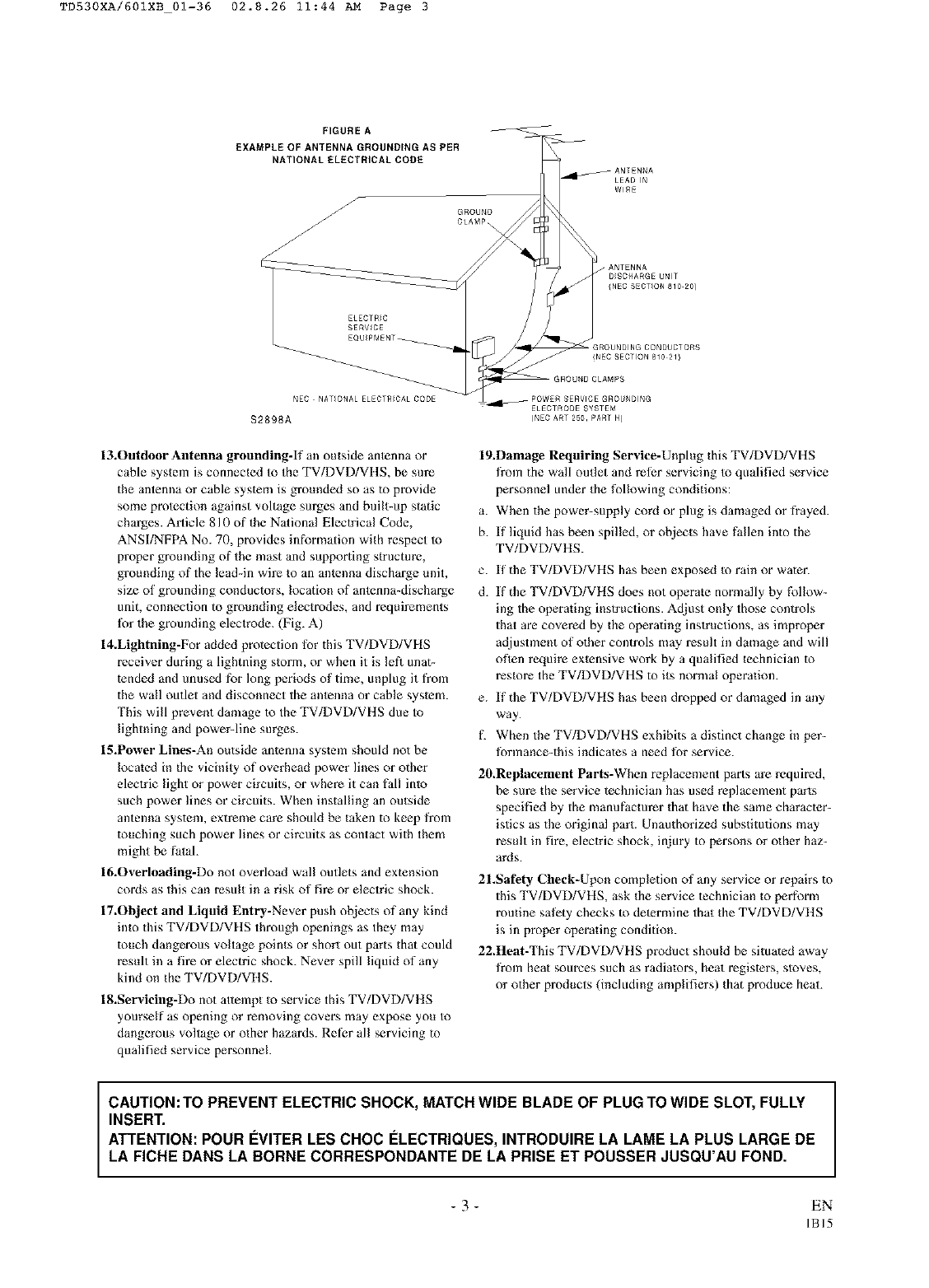

FIGURE A

EXAMPLE OF ANTENNA GROUNDING AS PER

NATIONAL ELECTRICAL CODE

EtECTRIC

SERVICE

EQUIPMENT_

D_SCHARGE UNiT

(NEC SECTION 810 201

_NEC SECTION 810 211

NEC NATIONAL ELECTRICAL CODE

S2898A

ELECTRODE SYSTEM

(NEC ART 250 PART H]

13.Outdoor Antenna grounding-if an outside antenna or

cable system is connected to the TV/DVD/VIiS, be sure

the antenna or cable system is grounded so as to provide

some protection against voltage surges and built-up static

charges. Article 810 of the National Elecvrical Code,

ANSI/NFPA No. 70, provides information with respect to

proper grounding of the mast and supporting structure,

grounding of the lead-in wire to an antenna discharge unit,

size of grounding conductors, location of antenna-discharge

unit, connection to grounding electrodes, and requirements

lbr the grounding eleclrode. (Fig. A)

14.Lightning-For added protection lbr this TV/DVD/VHS

receiver during a lightning storm, or when it is lefv unat-

tended and unused for long periods of time, unplug it lhom

the wall outlet and disconnect the antenna or cable system.

This will prevent damage m the TV/DVD/VHS due to

lightning and power-line surges.

15.Power Lines-An outside antenna system should not be

located in the vicinity of overhead power lines or other

eleclric light or power circuits, or where it can fall into

such power lines or circuits. When installing an outside

antenna system, extreme care should be taken to keep lhom

touching such power lines or circuits as contact with them

might be fatal.

16.Overloading-Do not overload wall outlets and extension

cords as this can result in a risk of fire or elec/ric shock.

17.Obj_ct and Liquid Entry-Never push objects of any kind

into this TV/DVD/V}tS through openings as they may

touch dangerous voltage points or short out parts that could

result in a fire or electric shock. Never spill liquid of any

kind on the TV/DVD/V}tS.

18.Servicing-Do not attempt to service this TV/DVD/VHS

yourself as opening or removing covers may expose you to

dangerous voltage or other hazards. Rei)r all servicing to

qualified service personnel.

19.Damage Requiring Service=Unplug this TV/DVD/VHS

I?om the wall outlet and rel_r servicing to qualified service

personnel under the following conditions:

a. When the power-supply cord or plug is damaged or frayed.

b. If liquid has been spilled, or objects have fallen into the

TV/DVD/VHS.

c. If the TV/DVD/VHS has been exposed to rain or water.

d. If the TV/DVD/VHS does not operate normally by follow-

ing the operating ins/ructions. Adjust only those controls

that are covered by the operating insvructions, as improper

adjustment of ovber con/rols may result in damage and will

often require extensive work by a qualified technician m

restore the TV/DVD/VHS to its normal operation.

e. If the TV/DVD/VHS has been dropped or damaged in any

way.

IL When the TV/DVD/VHS exhibits a distinct change in per-

lbrmance-this indicates a need lbr service.

20.Replacernent Parts-When replacement parts are required,

be sure the service technician has used replacement parts

specified by the manufacturer that have the same character-

istics as the original part. Unauthorized substitutions may

result in fire, elecvric shock, injury to persons or other haz-

ards.

21.Safety Check-Upon completion of any service or repairs to

this TV/DVD/VtlS, ask the service technician to perform

routine sal)/y checks m determine that the TV/DVD/V}tS

is in proper operating condition.

22.Heat-This TV/DVD/V}tS product should be situated away

I?om heat sources such as radiators, heat registers, stoves,

or other products (including amplifiers) that produce heat.

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY

INSERT.

ATTENTION: POUR I_VITER LES CHOC I_LECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE

LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU'AU FOND.

- 3 - EN

IBI5

TD530XA/601XB 01-36 02.8.26 11:44 AM Page 4

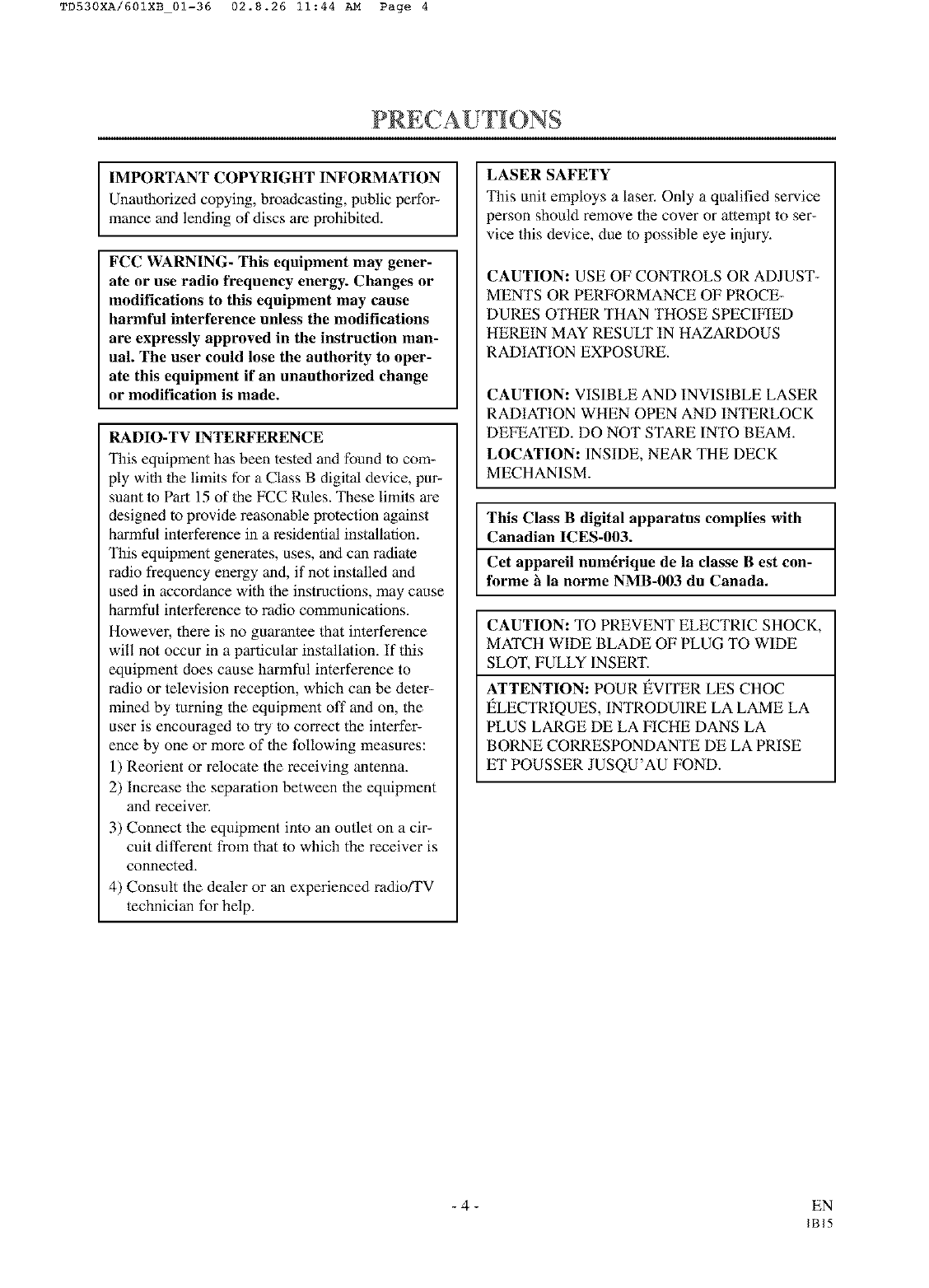

IMPORTANT COPYRIGHT INFORMATION

Unauthorized copying, broadcasting, public perfor-

mance and lending of discs are prohibited.

FCC WARNING- This equipment may gener-

ate or use radio frequency energy. Changes or

modifications to this equipment may cause

harmful interference unless the modifications

are expressly approved in the instruction man-

ual. The user could lose the authority to oper-

ate this equipment if an unauthorized change

or modification is made.

RADIO-TV INTERFERENCE

This equipment has been tested and found to com-

ply with the limits for a Class B digital device, pur-

suant to Part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against

harmful interference in a residential installation.

This equipment generates, uses, and can radiate

radio frequency enmgy and, if not installed and

used in accoMance with the instructions, may cause

harmful interference to radio communications.

Howevm; there is no guarantee that interference

will not occur in a particular installation. If this

equipment does cause harmful interference to

radio or television reception, which can be deter-

mined by turning the equipment off and on, the

user is encouraged to try to correct the interfer-

ence by one or more of the following measures:

1) Reorient or relocate the receiving antenna.

2) Increase the separation between the equipment

and receivm_

3) Connect the equipment into an outlet on a cir-

cuit different from that to which the receiver is

connected.

4) Consult the dealer or an experienced radio/TV

technician for help.

LASER SAFETY

This unit employs a laser. Only a qualified service

person should remove the cover or attempt to ser-

vice this device, due to possible eye injury:

CAUTION: USE OF CONTROLS OR ADJUST-

MENTS OR PERFORMANCE OF PROCE-

DURES OTHER THAN THOSE SPECIHED

HEREIN MAY RESULT IN HAZARDOUS

RADIATION EXPOSURE.

CAUTION: VISIBLE AND INVISIBLE LASER

RADIATION WHEN OPEN AND INTERLOCK

DEBATED. DO NOT STARE INTO BEAM.

LOCATION: INSIDE, NEAR THE DECK

MECHANISM.

This Class B digital apparatus complies with

Canadian ICES-003.

Cet appareil num4rique de la classe B est con-

forme _ la norme NMB-003 du Canada.

CAUTION: TO PREVENT ELECTRIC SHOCK,

MATCH WIDE BLADE OF PLUG TO WIDE

SLOT, FULLY INSERT.

ATTENTION: POUR EVITER LES CHOC

ELECTRIQUES, INTRODUIRE LA LAME LA

PLUS LARGE DE LA FICHE DANS LA

BORNE CORRESPONDANTE DE LA PRISE

ET POUSSER JUSQU'AU FOND.

- 4 - EN

IBI5

TD530XA/601XB 01-36 02.8.26 11:44 AM Page 5

For safe operation and satisfactory performance of

your TV/DVD/VHS, keep the following in mind

when selecting a place for its installation:

• Shield it fi'om direct sunlight and keep it away from

sources of intense heat.

• Avoid dusty or humid places.

• Avoid places with insufficient ventilation for proper

heat dissipation. Do not block tile ventilation holes at

the top and bottom of tile unit. Do not place tile unit

on a carpet because this will block the ventilation

holes.

• Install unit in a horizontal position.

• Avoid locations subject to strong vibration.

• Do not place the TV/DVD/VHS new strong magnetic

fields.

• Avoid moving TV/DVD/VHS to locations where

temperature differences are extreme.

Moisture condensation may occur inside the unit

when it is moved from a cold place to a warm place,

or after heating a cold room or under conditions of

high humidity: If a DVD is played in a TV/DVD/

VHS which has moisture, it may damage the DVD

and TV/DVD/VHS. Therefore when the condensation

occurs inside the unit, turn the POWER button on

and allow at least 2 hours for the unit to dry out.

• Do not handle the power cord with wet hands.

• Do not pull on the power cord when disconnecting

it from an AC wall outlet. Grasp it by the plug.

• If, by accident, water is spilled on your unit, unplug

the power cord immediately and take the unit to our

Authorized Service Center for servicing.

• Do not put your fingers or objects into the

TV/DVD/VHS disc loading tray:

• Do not place anything directly on top of the unit.

A NOTE ABOUT RECYCLING

This product's packaging materials are recyclable and can be reused. Please dispose of any materials in

accordance with your local recycling regulations.

Batteries should never be thrown away or incinerated but disposed of in accordance with your local regula-

tions concerning chemical wastes.

The serial number of this product may be found on the back of the unit. No other TV/DVD/VHS has the same

serial number as yours. You should record the number and other vital intbrmation here and retain this book as

a permanent record of your purchase to aid identification in case of thefi. Serial numbers are not kept on file.

Date of Purchase

Dealer Purchase from

Dealer Address

Dealer Phone No.

Model No.

Serial No.

- 5 - EN

1c29

TD530XA/601XB 01-36 02.8.26 11:44 AM Page 6

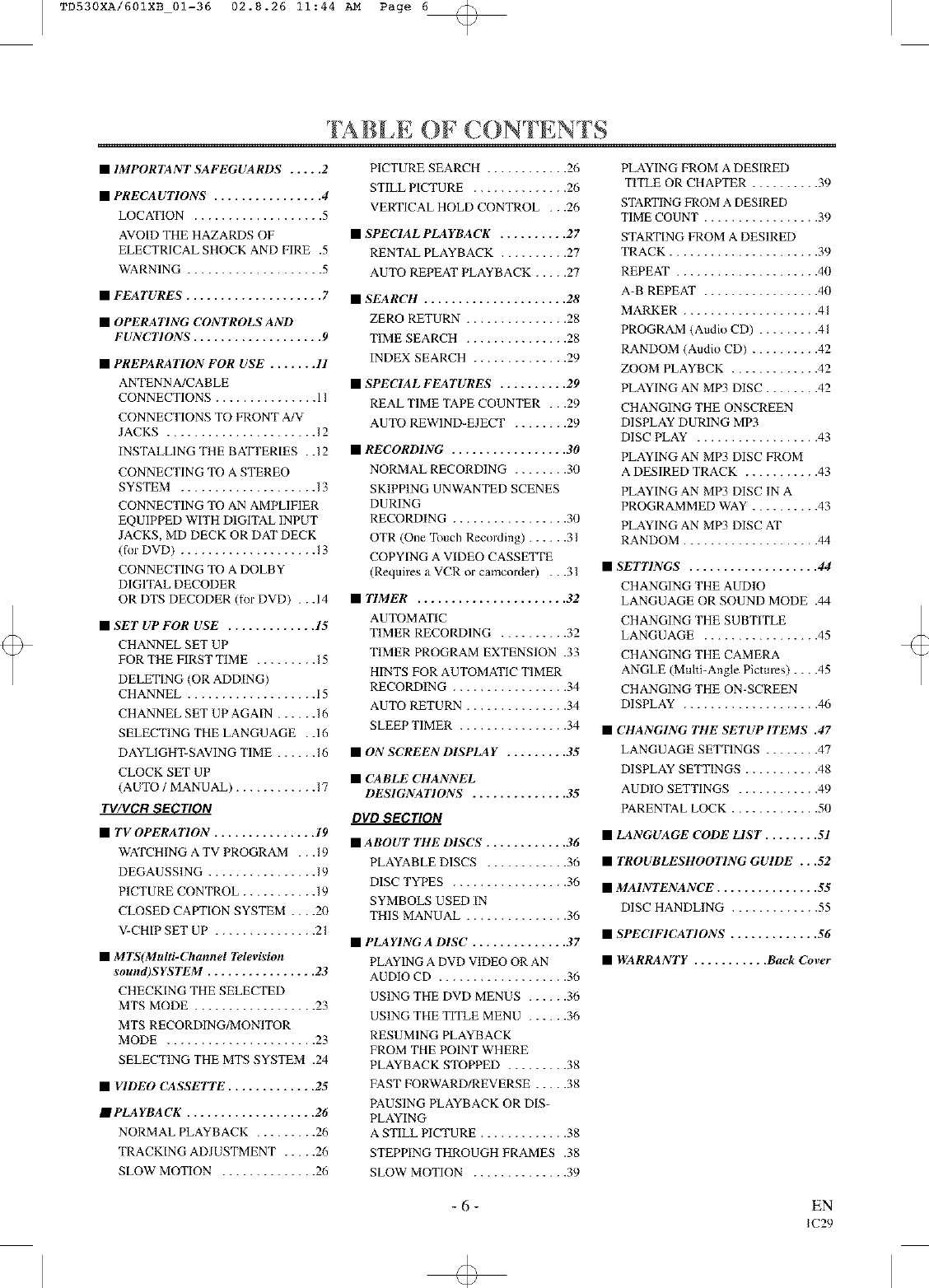

TABI E OF CONTENTS

•IMPORTANT SAFEGUARDS ..... 2

•PRECAUTIONS ................ 4

LOCATION ................... 5

AVOID THE HAZARDS OF

ELECTRICAL SHOCK AND FIRE .5

WARNING .................... 5

•FEATURES .................... 7

•OPERATING CONTROLS AND

FUNCTIONS ................... 9

•PREPARATION FOR USE ....... II

ANTENNA/CABLE

CONNECTIONS ............... 11

CONNECTIONS TO FRONT A/V

JACKS ...................... 12

INSTALLING THE BATTERIES . .12

CONNECTING TO A STEREO

SY STEM .................... 13

CONNECTING TO AN AMPLIFIER

EQUIPPED WITH DIGITAL INPUT

JACKS, MD DECK OR DAT DECK

(lot DVD) .................... 13

CONNECTING TO A DOLBY

DIGITAL DECODER

OR DTS DECODER (Ior DVD) . . .14

•SET UP FOR USE ............. 15

CHANNEL SET UP

FOR THE FIRST TIME ......... 15

DELETING (OR ADDING)

CHANNEL ................... 15

CHANNEL SET UP AGAIN ...... 16

SELECTING THE LANGUAGE . .16

DAYLIGHT- SAVING TIME ...... 16

CLOCK SET UP

(AUTO /MANUAL) ............ 17

TV/VCR SECTION

•TV OPERATION ............... 19

WATCHING ATV PROGRAM . . .19

DEGAUSSING ................ 19

PICTURE CON TROL ........... 19

CLOSED CAPTION SYSTEM .... 20

V-CHIP SET UP ............... 21

•MTS(Mu/ti-Cha.nel Television

sound)SYSTEM ................ 23

CHECKING THE SELECTED

MTS MODE .................. 23

MTS RECORDING/MONITOR

MODE ...................... 23

SELECTING THE MTS SYSTEM .24

• VIDEO CASSETTE ............. 25

•PLA YBA CK ................... 26

NORMAL PLAYBACK ......... 26

TRACKING ADJUSTMENT ..... 26

SLOW MOTION .............. 26

PICTURE SEARCH ............ 26

STILL PICTURE .............. 26

VERTICAL HOLD CONTROL . . .26

•SPECIAL PLAYBACK .......... 27

RENTAL PLAYBACK .......... 27

AUTO REPEAT PLAYBACK ..... 27

•SEARCH ..................... 28

ZERO RETURN ............... 28

TIME SEARCH ............... 28

INDEX SEARCH .............. 29

•SPECIAL FEATURES .......... 29

REAL TIME TAPE COUNTER . . .29

AUTO REWIND-EJECT ........ 29

• RECORDING ................. 30

NORMAL RECORDING ........ 30

SKIPPING UNWANTED SCENES

DURING

RECORDING ................. 30

OTR (One Touch Recording) ...... 31

COPYING A VIDEO CASSETTE

(Requires a VCR or camcorder) ...31

•TIMER ...................... 32

AUTOMATIC

TIMER RECORDING .......... 32

TIMER PROGRAM EXTENSION .33

HINTS FOR AUTOMATIC TIMER

RECORDING ................. 34

AUTO RETURN ............... 34

SLEEP TIMER ................ 34

• ON SCREEN DISPLAY ......... 35

• CABLE CHANNEL

DESIGNATIONS .............. 35

DVD SECTION

•ABOUT THE DISCS ............ 36

PLAYABLE DISCS ............ 36

DISC TYPES ................. 36

SYMBOLS USED IN

THIS MANUAL ............... 36

• PLAYING A DISC .............. 37

PLAYING A DVD VIDEO OR AN

AUDIO CD ................... 36

USING THE DVD MENUS ...... 36

USING THE TITLE MENU ...... 36

RESUMING PLAYBACK

FROM THE POINT WHERE

PLAYBACK STOPPED ......... 38

FAST FORWARD/REVERSE ..... 38

PAUSING PLAYBACK OR DIS-

PLAYING

A STILL PICTURE ............. 38

STEPPING THROUGH FRAMES .38

SLOW MOTION .............. 39

PLAYING FROM ADESIRED

TITLE OR CHAPTER .......... 39

STARTING FROM A DESIRED

TIME COUNT ................. 39

STARTING FROM A DESIRED

TRACK ...................... 39

REPEAT ..................... 40

A-B REPEAT ................. 40

MARKER .................... 41

PROGRAM (Audio CD) ......... 41

RANDOM (Audio CD) .......... 42

ZOOM PLAYBCK ............. 42

PLAYING AN MP3 DISC ........ 42

CHANGING THE ONSCREEN

DISPLAY DURING MP3

DISC PLAY .................. 43

PLAYING AN MP3 DISC FROM

A DESIRED TRACK ........... 43

PLAYING AN MP3 DISC IN A

PROGRAMMED WAY .......... 43

PLAYING AN MP3 DISC AT

RANDOM .................... 44

•SETTINGS ................... 44

CHANGING THE AUDIO

LANGUAGE OR SOUND MODE .44

CHANGING THE SUBTITLE

LANGUAGE ................. 45

CHANGING THE CAMERA

ANGLE (Multi-Angle Pictures)....45

CHANGING THE ON-SCREEN

DISPLAY .................... 46

•CHANGING THE SETUP ITEMS .47

LANGUAGE SETTINGS ........ 47

DISPLAY SE_U'INGS ........... 48

AUDIO SETTINGS ............ 49

PARENTAL LOCK ............. 50

• LANGUAGE CODE LIST ........ 5I

•TROUBLESHOOTING GUIDE ...52

• MAINTENANCE ............... 55

DISC HANDLING ............. 55

• SPECIFICATIONS ............. 56

•WARRANTY ........... Back Cover

- 6 - EN

IC29

TD530XA/601XB 01-36 02.8.26 11:44 AM Page 7

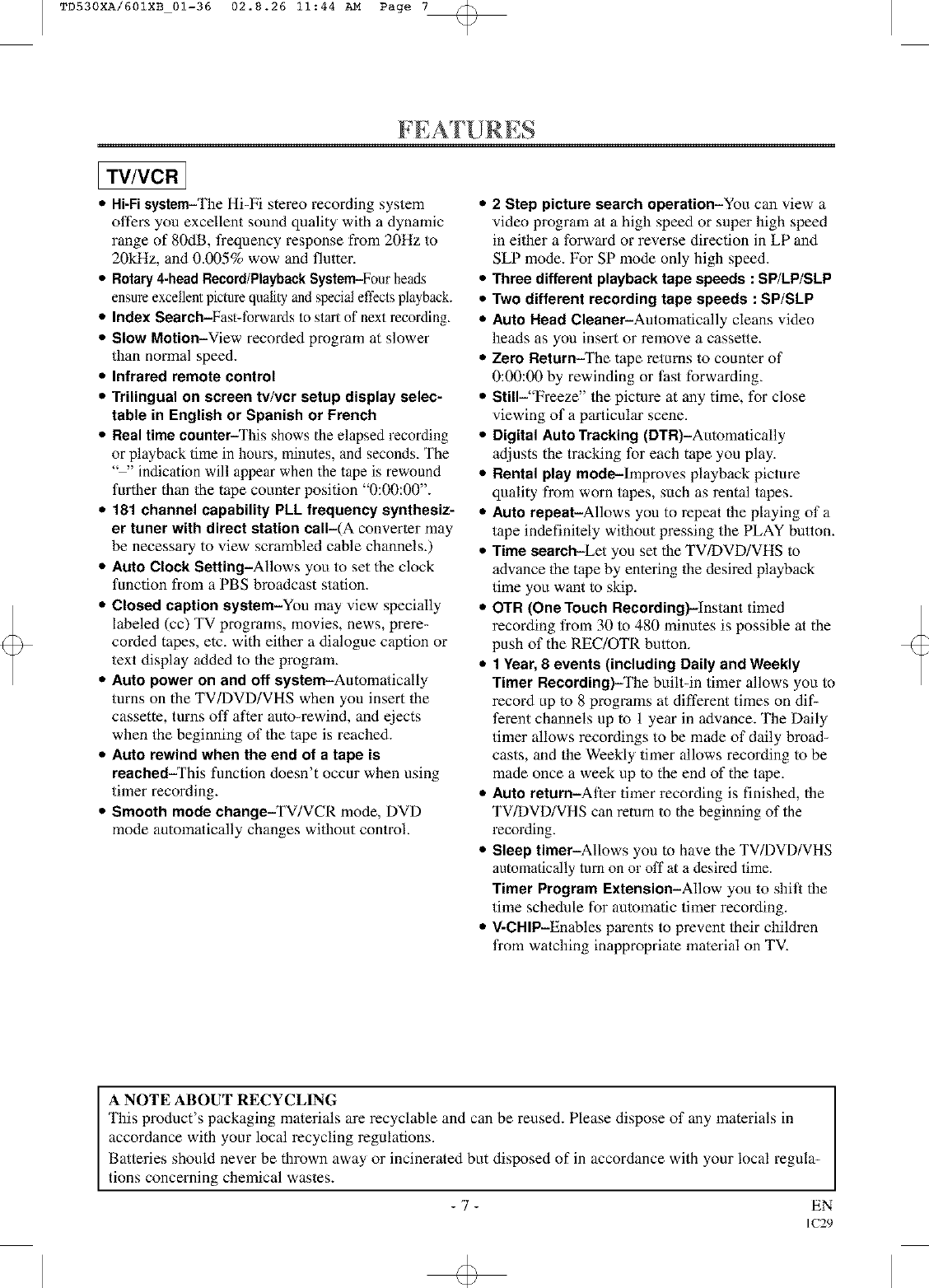

[ TV/VCR I

•Hi-Fisystem-The Hi-Fi stereo recording system

offers you excellent sound quality with a dynamic

range of 80dB, fi'equency response from 20Hz to

20kHz, and 0.005% wow and flutter.

•Rotary 4-head Record/PlaybackSystem-Four heads

ensure excellent picture quality and special effects playback.

• Index Search-Fast-forwards to start of next recording.

•Slow Motion-View recorded program at slower

than normal speed.

•Infrared remote control

•Trilingual on screen tv/vcr setup display eelec-

table in English or Spanish or French

•Real time counter-This shows the elapsed recording

or playback time in hours, minutes, and seconds The

"" indication will appear when the tape is rewound

further than the tape counter position "0:00:00".

•181 channel capability PLL frequency synthesiz-

er tuner with direct station call-(A converter may

be necessary to view scrambled cable channels.)

• Auto Clock Seffing-Allows you to set the clock

function from a PBS broadcast station.

•Closed caption system-You may view specially

labeled (cc) TV programs, movies, news, prere-

corded tapes, etc. with either a dialogue caption or

text display added to the program.

•Auto power on and off system-Automatically

turns on the TV/DVD/VHS when you insert the

cassette, turns off after auto-rewind, and ejects

when the beginning of the tape is reached.

•Auto rewind when the end of a tape is

reached-This function doesn't occur when using

timer recording.

• Smooth mode change-TV/VCR mode, DVD

mode automatically changes without control.

•2 Step picture search operation-You can view a

video program at a high speed or super high speed

in either a forward or reverse direction in LP and

SLP mode. For SP mode only high speed.

•Three different playback tape speeds : SP/LP/SLP

• Two different recording tape speeds : SP/SLP

•Auto Head Cleaner-Automatically cleans video

heads as you insert or remove a cassette.

•Zero Return-The tape returns to counter of

0:00:00 by rewinding or fast forwarding.

•Still-"Freeze" the picture at any time, for close

viewing of a particular scene.

•Digital Auto Tracking (DTR)-Automatically

adjusts the tracking for each tape you play:

• Rental play mode-Improves playback picture

quality from worn tapes, such as rental tapes.

•Auto repeat-Allows you to repeat the playing of a

tape indefinitely without pressing the PLAY button.

•Time search-Let you set flae TV/DVD/VHS to

advance the tape by entering the desired playback

time you want to skip.

•OTR (One Touch Recording)-lnstant timed

recording from 30 to 480 minutes is possible at the

push of the REC/OTR button.

•1 Year, 8 events (including Daily and Weekly

Timer Recording)-The built-in timer allows you to

record up to 8 programs at different times on dif-

ferent channels up to 1 year in advance. The Daily

timer allows recordings to be made of daily broad-

casts, and the Weekly timer allows recording to be

marie once a week up to the end of the tape.

•Auto return-At).er timer recording is finished, the

TV/DVD/VHS can return to the beginning of the

recording.

•Sleep timer-Allows you to have the TV/DVD/VHS

automatically tum on or off at a desired time.

Timer Program Extension-Allow you to shift the

time schedule for automatic timer recording.

•V-CHIP-Enables parents to prevent their children

from watching inappropriate material on TV.

A NOTE ABOUT RECYCLING

This product's packaging materials are recyclable and can be reused. Please dispose of any materials in

accordance with your local recycling regulations.

Batteries should never be thrown away or incinerated but disposed of in accordance with your local regula-

tions concerning chemical wastes.

- 7 - EN

1c29

TD530XA/601XB 01-36 02.8.26 11:44 AM Page S

DVD]

•Dolby Digital surround

This player can handle Dolby Digital surround sound

having 5.1 channels when connected to a Dolby Digital

decoder.

•Still/fast!slow/step playback

Various playback modes are availahle including still pic-

tures, fast forward/reverse, slow motion and step fi-ames.

•Random playback for audio CD and MP3

'Ibis player can shuffle the order of tracks to play them ill

random order.

•Program playback for audio CD and MP3

You call program the oMer of tracks to play them in any

desired oMer.

•DVD menus in a desired language

You can display DVD menus ill a desired language, if

available on a DVD.

•Screen saver/Auto power-off functions

'Ihe screen saver program starts when there is no input

fiom the player for five minules in the stop mode. When

the screen saver program is activated for 30 minules, the

DVD power is automa/ically turned off, and "DVD"

appears on the screen.

•Subtitles in a desired language

You can select a desired language for the display subtitles,

if that language is available on a disc.

•Selecting acamera angle

You can select the desired camera angle, ifa disc contains

sequences recorded from different angles.

•Choices for audio language and sound mode

You can select the desired audio language and sound

mode, if different languages and modes are available on a

disc.

•Parental lock

You can set the control level to limit playhack of discs

which may not be suitable for children.

•Automatic detection of discs

'Ibis player automatically detects if a loaded disc is DVD,

audio CD or MP3 on disc.

•Playing an MP3 disc

You can enjoy MP3 files which are recorded on CD-

R/RW.

•Direct Search

You can search the desired title, chapter, and track with

numeric button during playback or in stop mode.

Manufactured under license from Dolby ]

Laboratories. !!Doiby!' and the double,D sym-

bol are trademarks of Dolby Laboratories.

!_DTS'!and "DTS Digital Out!' are trademarks

of D g tal Theater Systems, Inc.

•On-screen display

lnforma/ion about the cunent operation can be displayed

on a TV screen, allowing you 1o confirm the currently

active functions (such as program playback), on the TV

screen using the remote control.

•Sleep timer

Allows you to have the TV/DVD/VHS automatically

turn off at a desired time.

•DTS (Digital Theater System)

You can enjoy 5.1channel surround syslem developed by

the Digital Theater System co. which reproduces the orig-

inal sound as truthfully as possible.

•Search

Chapter search: Search for the chapter designated by user

is possible.

Search for the title designated by user is

possible.

Search for the track designated by user is

possible.

Search for the time designated by user is

possible.

Title search:

Track seamh:

Time semvh:

•Repeat

Chapter:

Title:

Track:

Disc(audio CD):

(MP3)

A-B:

Album:

Repeated playback of the chapter of the

disc being played is possible.

Repeated playback of the title of the disc

being played is possible.

Repeated playback of the track of the disc

being played is possible.

Repeated playback of the entire disc being

played is possible.

'Ihe part between A and B designated by

user is possible.

Repeated playback of the folder of the

MP3 disc being played is possible.

• Zoom

2-time and 4-time magnified screen can be displayed.

•Marker

The part designated hy user can he called back.

•Resume Play

User can resume to playhack from the part at which the

play was stopped.

•SRS TruSurround

You can r!!joy swreophonic virtual space on your existing

stereo sys/em.

•Bit rate indication

•DRC (Dynamic range control)

This unit employs TruSurround system

'][_I[IIRI__I_CO3---" of SRS Labs, Inc. as vi,qtual

technology.

TruSurround and the (O)'symbol are trademarks of

SRS Labs, Inc.

TruSurround technology is incorporated under license

fiom SRS Labs, Inc.

NOTE:

• We do not recommend the use of universal remote controls. Not all of the functions may be controlled with

a universal remote control.

If you decide to use a universal remote control with this unit, please be aware that the code number given

may not operate this unit. In this case, please call the manufacturer of the universal remote control.

- 8 - EN

IC29

TD530XA/601XB 01-36 02.8.26 11:44 AM Page 9

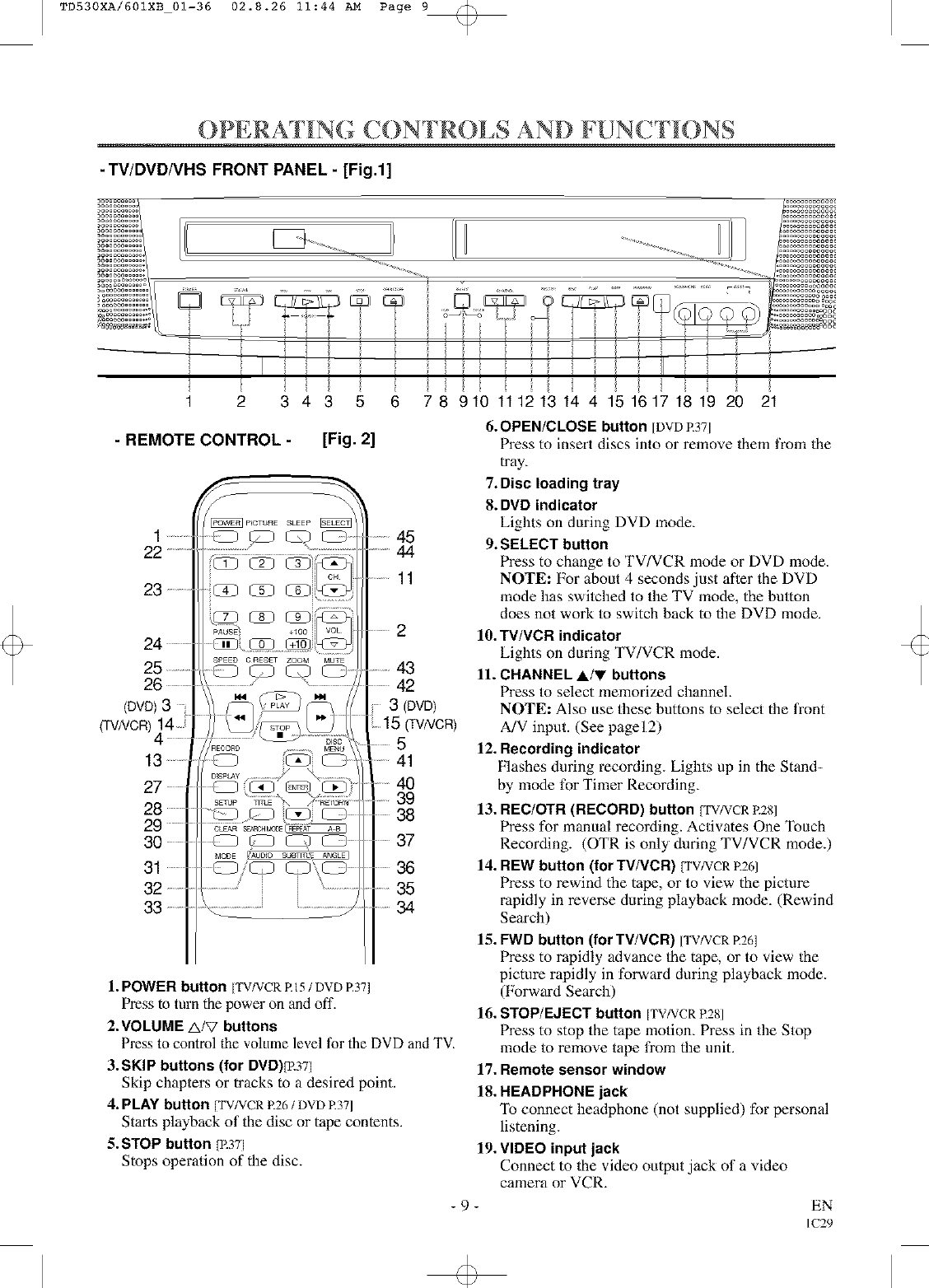

ERA ING CONTROI S AND FUNCTIONS

-TV/DVD/VHS FRONT PANEL - [Fig.l]

343 6 78 910 11121314 4 1516171819 20 21

-REMOTE CONTROL -[Fig. 2]

........

22 .............

3 .............

4 .............

25 ........

26 ............

(DVD)3

13 ..........

27 ..........

28 ....

29 ......

30 ..........

31 .....

32 ..........

33 ..........

P_CTURE SLEEP

SPEED CRESET ZOOM MUTE

MODE I_mDIO SUBTI_ ANGLEI

.....oio .....

.......45

........... 4

...........11

...........

.......... 3

........... 2

3 DVD

....15 (TV/VCR)

...........

........41

........40

........ 9

........38

........ 7

........36

........ 5

........ 4

1. POWER button [TV/VCRm5 /DVD R371

Press to turn the power on and off.

2.VOLUME A/V buttons

Press to control the volume level for the DVD and TV.

3.SKIP buttons (for DVD)lR371

Skip chapters or tracks to a desired point.

4. PLAY button [TV/VCRR26/DVDR371

Starts playback of the disc or tape contents.

5.STOP button 1R371

Stops operation of the disc.

6.OPEN/CLOSE button [DVDE371

Press to insert discs into or remove them t¥om the

tray.

7. Disc loading tray

8. DVD indicator

Lights on during DVD mode.

9. SELECT button

Press to change to TV/VCR mode or DVD mode.

NOTE: For about 4 seconds just after the DVD

mode has switched to the TV mode, the button

does not work to switch back to the DVD mode.

10. TV/VCR indicator

Lights on during TV/VCR mode.

ll. CHANNEL AIW buttons

Press to select memorized channel.

NOTE: Also use these buttons to select the front

A/V input. (See pagel 2)

12. Recording indicator

Flashes dining recording. Lights up in the Stand-

by mode for Timer Recording.

13. REC/OTR (RECORD) button ITV/VCRP.2S]

Press for manual recording. Activates One Touch

Recording. (OTR is only during TV/VCR mode.)

14. REW button (for TV/VCR) [TV/VCRP261

Press to rewind the tape, or to view the picture

rapidly in reverse during playback mode. (Rewind

Search)

15. FWD button (for TV/VCR) [TVNCR R261

Press to rapidly advance the tape, or to view the

picture rapidly in forward during playback mode.

(Forward Search)

16. STOP/EJECT button [TVNCR R281

Press to stop the tape motion. Press in the Stop

mode to remove tape from the unit.

17. Remote sensor window

18. HEADPHONE jack

To connect headphone (not supplied) for personal

listening.

19. VIDEO input jack

Connect to the video output jack of a video

camera or VCR.

-9- EN

IC29

TD530XA/601XB 01-36 02.8.26 11:44 AM Page i0

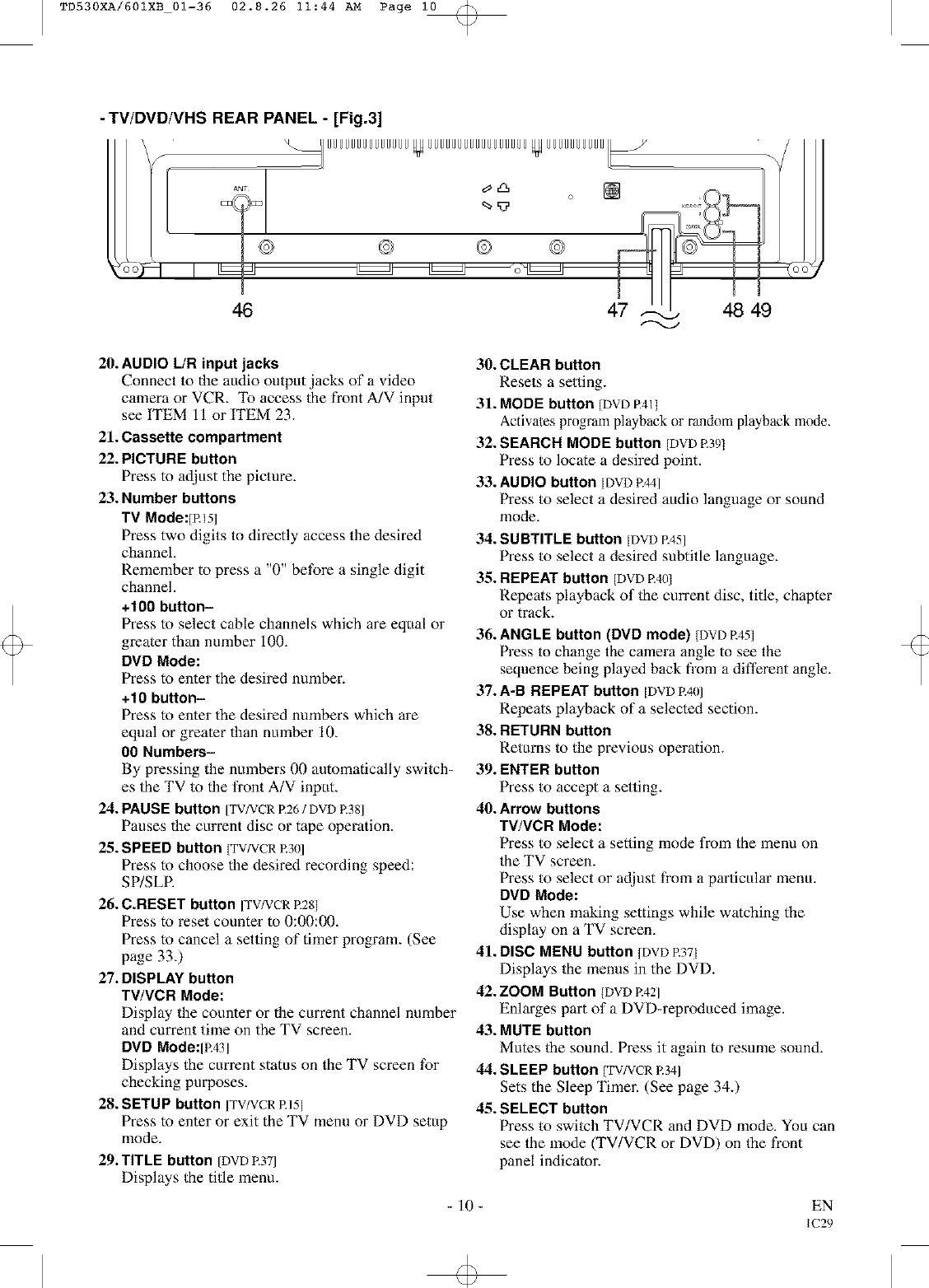

-TV/DVD/VHS REAR PANEL - [Fig.3]

/

l®

IC

46

20. AUDIO L/R input jacks

Connect to the audio output jacks of a video

camera or VCR. To access the front A/V input

see ITEM 11 or ITEM 23.

21. Cassette compartment

22. PICTURE button

Press to adjust the picture.

23. Number buttons

TV Mode:lR151

Press two digits to directly access tile desired

channel.

Remember to press a "0" before a single digit

channel.

+100 button-

Press to select cable channels which are equal oi"

greater than number 100.

DVD Mode:

Press to enter the desired number.

+10 button-

Press to enter the desired numbers which are

equal or greater than number 10.

00 Numbers-

By pressing the numbers 00 automatically switch-

es the TV to tile front A/V input.

24. PAUSE button ITV/VCRR26/DVD P.381

Pauses the current disc or tape operation.

25.SPEED button [TV/VCRP.30]

Press to choose tile desired recording speed:

SP/SLR

26. C.RESET button ITV/VCRR281

Press to reset counter to 0:00:00.

Press to cancel a setting of timer program. (See

page 33.)

27.DISPLAY button

TV/VCR Mode:

Display" the counter or the current channel number

and current time on the TV screen.

DVD Mode:lR431

Displays the current status on the TV screen for

checking purposes.

28. SETUP button [TV/VCRR15]

Press to enter or exit the TV menu or DVD setup

mode.

29. TITLE button IDVDR371

Displays the title menu.

30. CLEAR button

P,esets a setting.

31.MODE button [DVD R411

Activates program playback or random playback mode.

32.SEARCH MODE button [DVDR391

Press to locate a desired point.

33. AUDIO button [DVD R441

Press to select a desired audio language or sound

mode.

34. SUBTITLE button [DVDP.451

Press to select a desired subtitle language.

35. REPEAT button [DVDP.40t

Repeats playback of the cmTent disc, title, chapter

or track.

36. ANGLE button (DVD mode) [DVD R451

Press to change the camera angle to see the

sequence being played back from a different angle.

37. A-B REPEAT button [DVDPA0/

Repeats playback of a selected section.

38. RETURN button

Returns to the previous operation.

39. ENTER button

Press to accept a setting.

40. Arrow buttons

TV/VCR Mode:

Press to select a setting mode from the menu on

the TV screen.

Press to select or adjust from a particular menu.

DVD Mode:

Use when making settings while watching the

display on a TV screen.

41. DISC MENU button IDVD R37I

Displays the menus in the DVD.

42. ZOOM Button [DVDR421

Enlarges part of a DVD-reproduced image.

43. MUTE button

Mutes the sound. Press it again to resume sound.

44. SLEEP button [TV/VCRR341

Sets the Sleep Timm_ (See page 34.)

45. SELECT button

Press to switch TV/VCR and DVD mode. You can

see the mode (TV/VCR or DVD) on the front

panel indicator.

-10- EN

IC29

TD530XA/601XB 01-36 02.8.26 11:44 AM Page ii

46. ANT. in jack

Connect to an antenna, cable system, or satellite

system.

4% Power cord

Connect to a standard AC outlet (120V/60Hz).

NOTE: Remove the power cord from the hook to

avoid breaking a wire before you connect

to a standard AC outlet.

48. COAXIAL digital audio out jack

Connect to the digital input of an external

amplifier or decoder.

49. AUDIO I.JR output jack

Connect to the analog audio input of an external

amplifier or decoder.

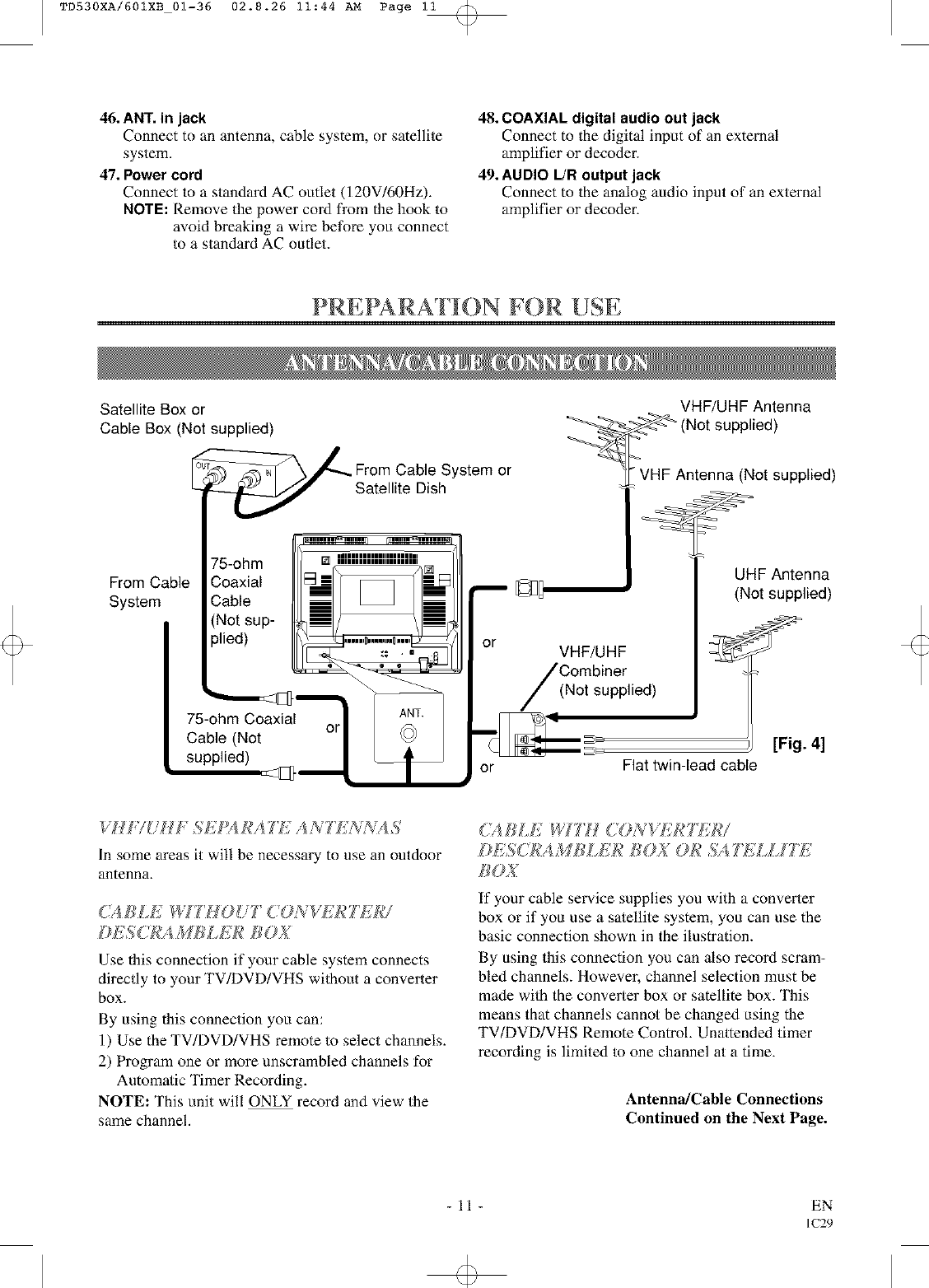

PREPARATI©N FOR USE

Satellite Box or

Cable Box (Not supplied)

From Cable System or

Satellite Dish

½VHF/UHF Antenna

_ (Not supplied)

"VHF Antenna (Not supplied)

75-ohm [] lllllllllllllllgllill

Fromeable Coaxial II/I L

System Cable till

(Not sup- _m/_ m

plied)

Cab,etNet°1

suppled' 4

or VHF/UHF

Combiner

(Not supplied)

or

UHF Antenna

(Not supplied)

J[Fig. 41

Flat twin-lead cable

_H_/L' H_ ,5Lt ARA f _: AA ?AA'A'AS

In some areas it will be necessary to use an outdoor

antenna.

LS( RA,'_f) Lf:N Y(Z_

Use this connection if your cable system connects

directly to your TV/DVD/VHS without a converter

box.

By using this connection you can:

1) Use the TV/DVD/VHS remote to select channels.

2) Program one or more unscrambled channels f'or

Automatic Timer Recording.

NOTE: This unit will ONLY record and view the

same channel.

(,4BLI: _I_H (.O:%! AA'TA/¢/

f AS(JCA,,_IffLf:_' f_O,_ OA' SA'LT_LLI'H_

f ox

If your cable service supplies you with a converter

box or if you use a satellite system, you can use the

basic connection shown in the ilustratiom

By using this connection you can also record scram-

bled channels. However, channel selection must be

made with the converter box or satellite box. This

means that channels cannot be changed using the

TV/DVD/VHS Remote Control. Unattended timer

recording is limited to one channel at a time.

Antenna/Cable Connections

Continued on the Next Page.

- 11 - EN

IC29

TD530XA/601XB 01-36 02.8.26 11:44 AM Page 12

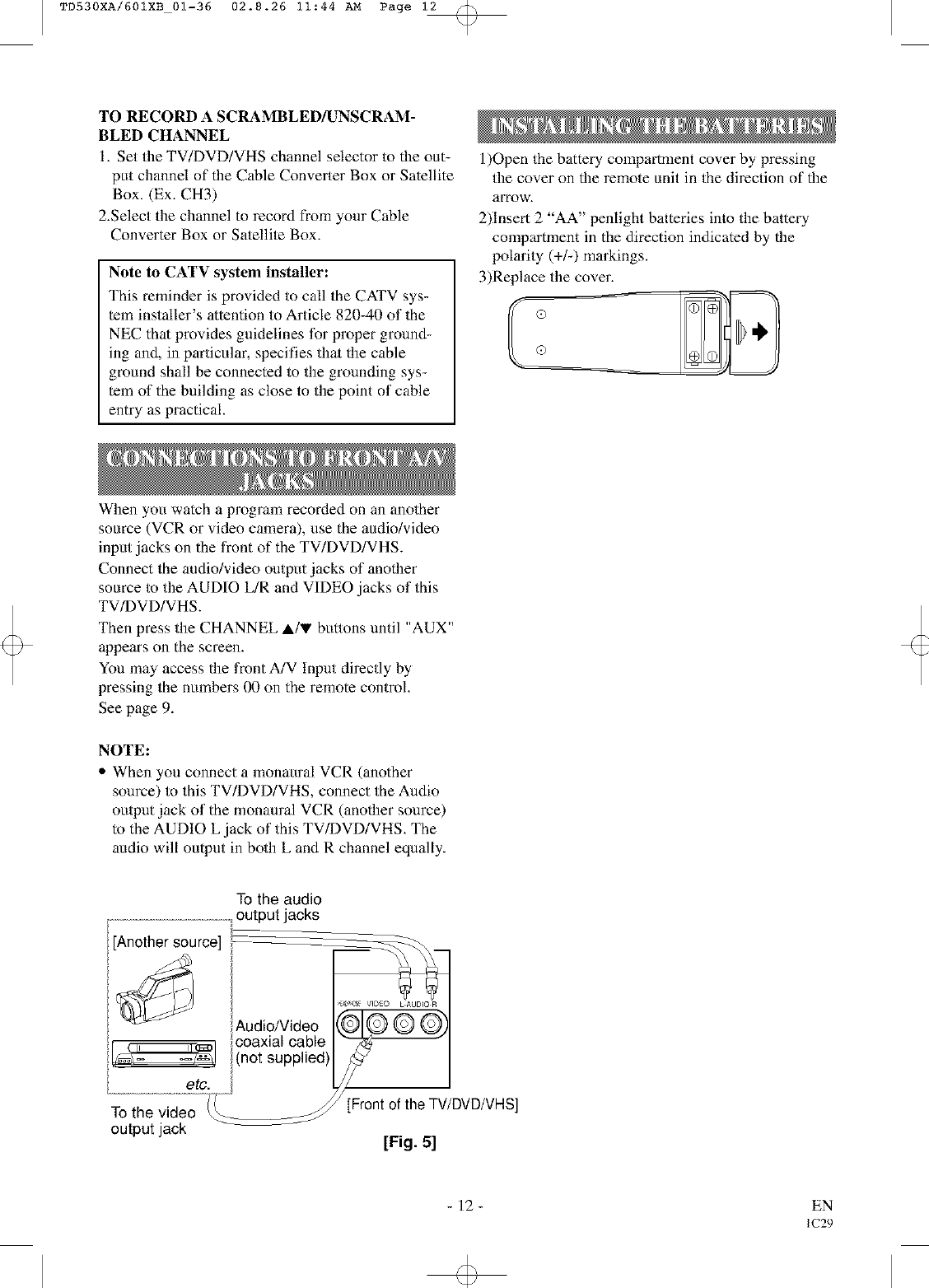

TO RECORD A SCRAMBLED/UNSCRAM-

BLED CHANNEL

1. Set the TV/DVD/VHS channel selector to the out-

put channel of the Cable Converter Box or Satellite

Box. (Ex. CH3)

2.Select the channel to record from your Cable

Converter Box or Satellite Box.

Note to CATV system installer:

This reminder is provided to call the CATV sys-

tem installer's attention to Article 820-40 of the

NEC that provides guidelines for proper ground-

ing and, in particular, specifies that the cable

ground shall be connected to the grounding sys-

tem of the building as close to the point of cable

entry as practical.

1)Open the battery compartment cover by pressing

the cover on the remote unit in the direction of the

arrow.

2)Insert 2 "AA" penlight batteries into the battery

compartment in the direction indicated by the

polarity (+/-) markings.

3)Replace the covet:

When you watch a program recorded on an another

source (VCR or video camera), use the audio/video

input jacks on the front of the TV/DVD/VHS.

Connect the audio/video output jacks of another

source to the AUDIO L/R and VIDEO jacks of this

TV/DVD/VHS.

Then press the CHANNEL A/V buttons until "AUX"

appears on the screen.

You may access the front A/V Input directly by

pressing the numbers 00 on the remote control.

See page 9.

NOTE:

• When you connect a monaural VCR (another

source) to this TV/DVD/VHS, connect the Audio

output jack of the monaural VCR (another source)

to the AUDIO L jack of this TV/DVD/VHS. The

audio will output in both L and R channel equally.

To the audio

output jacks

Another source

Audio/Video

coaxial cable

(not supplied)

etc.

[Front of the TV/DVD/VHS]

output jack [Fig. 51

- 12- EN

1(229

TD530XA/601XB 01-36 02.8.26 11:44 AM Page 13

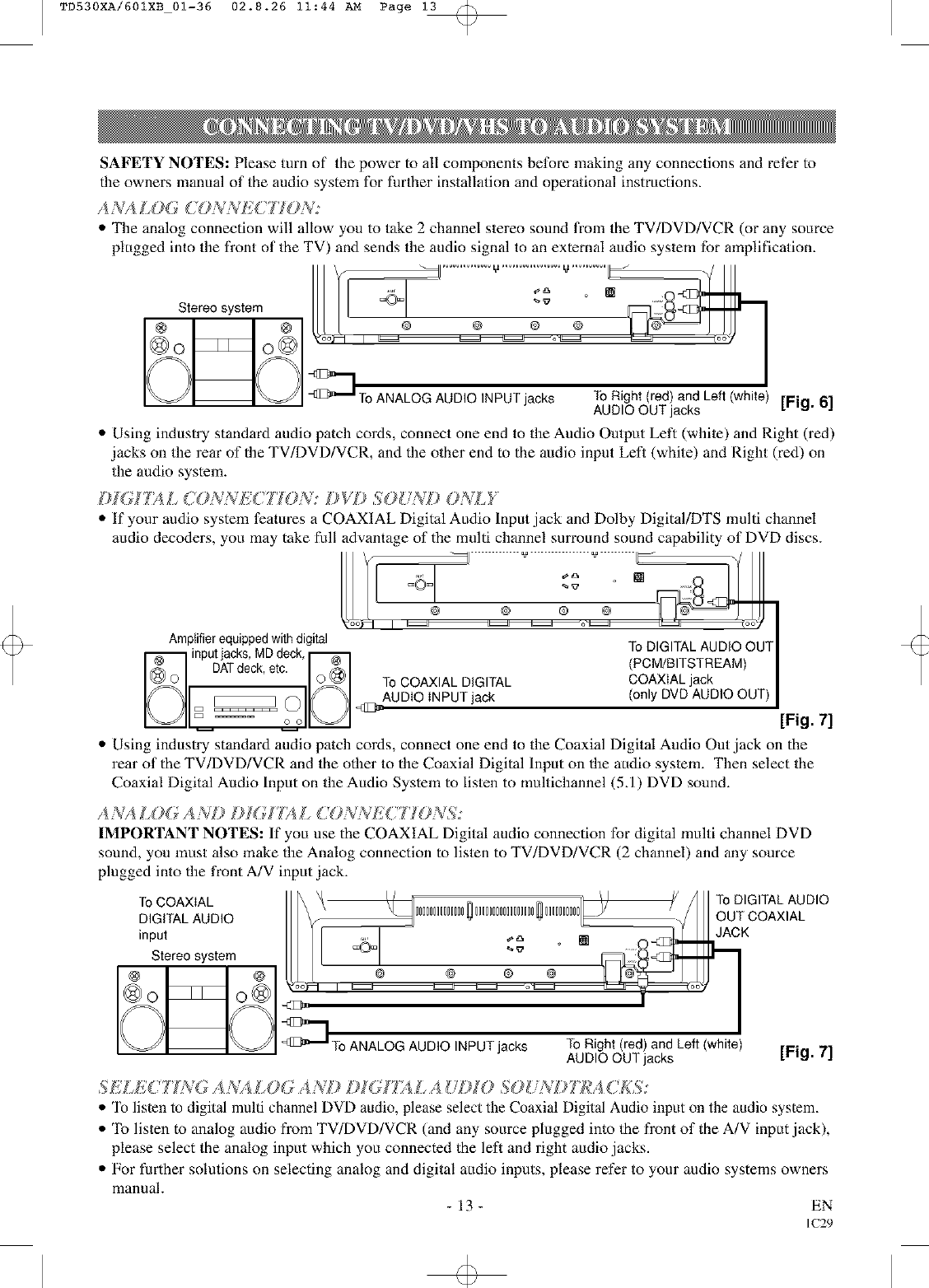

SAFETY NOTES: Please turn of the power to all components before making any connections and retEr to

the owners manual of the audio system for further installation and operational instructions.

ANA LOG CONNEC'HOAY

• The analog connection will allow you to take 2 channel stereo sound from the TV/DVD/VCR (or any source

plugged into the front of the TV) and sends the audio signal to an external audio system for amplification.

Stereo system

hitAUDIOOUT jacks [Fig. 6]

•Using industry standard audio patch cords, connect one end to the Audio Output Left (white) and Right (red)

jacks on the rear of the TV/DVD/VCR, and the other end to the audio input Left (white) and Right (red) on

the audio system.

DI<_J?>_ L CONNA'_ ?7()N: _VD S()UN_) _OA,'LY

• If your audio system features a COAXIAL Digital Audio Input jack and Dolby Digital/DTS multi channel

audio decoders, you may take full advantage of the multi channel surround sound capability of DVD discs.

Amplifierequippedwithdigital To DIGITAL AUDIO OUT

_ inputjacks,MD desk,

OA deok,oto.I ®l (PC ,O,TST A

To COAXIAL DIGITAL COAXIAL jack

1OI ,oo,.ovo oo,oo.

[_ AUDIO INPUTjack [Fig. 7]

•Using industry standard audio patch cords, connect one end to the Coaxial Digital Audio Out jack on the

rear of the TV/DVD/VCR and the other to the Coaxial Digital Input on the audio system. Then select the

Coaxial Digital Audio Input on the Audio System to listen to multichannel (5.1) DVD sound.

ANALO( AND DYGFFAL COA:i%WC?70N,g:

IMPORTANT NOTES: If you use the COAXIAL Digital audio connection for digital multi channel DVD

sound, you must also make the Analog connection to listen to TV/DVD/VCR (2 channel) and any source

plugged into the front A/V input jack.

To COAXIAL

DIGITAL AUDIO

input ._

Stereo system

®I I ® 2 2

I©o o©1o =

__'_ To ANALOG AUDIO INPUT jacks

[]

To DIGITAL AUDIO

OUT COAXIAL

JACK

To Right (red) and Left (white) [Fig. 7]

AUDIO OUT jacks

$EIJ{( ?TNG A NA LO( AND DJGFYA LAUDlO $OUND?7(_A CKS::

•To listen to digital multi channel DVD audio, please select the Coaxial Digital Audio input on the audio system.

• To listen to analog audio from TV/DVD/VCR (and any source plugged into the front of the A/V input jack),

please select the analog input which you connected the left and right audio jacks.

• For further solutions on selecting analog and digital audio inputs, please refer to your audio systems owners

manual.

- 13 - EN

1C29

TD530XA/601XB 01-36 02.8.26 11:44 AM Page 14

If using this TV/DVD/VHS to play back a TV/DVD/VHS in a 5.1 channel Dolby Digital surround, DTS sur-

round, or MPEG surround format, the TV/DVD/VHS outputs a Dolby Digital, DTS, or MPEG data stream

from its COAXIAL DIGITAL AUDIO OUT jack. By hooking the player up to a Dolby Digital or DTS

decoder, you can enjoy a more convincing, realistic ambience with powerful and high-quality surround sound

of a professional standard such as can be heard in movie theaters.

Use an audio coaxial digital cables (not included) for the audio connections.

NOTES:

•Be sure to turn off the power to all components in the system before connecting another component.

• Ret_r to the Owner's Manuals for the components to be connected to the TV/DVD/VHS.

• If output Dolby Digital audio, connect to a Dolby Digital decoder, and set Dolby Digital to on for audio

output in the setup mode.

• If output DTS audio, connect to a DTS decoder, and set DTS to ON for audio output in the setup mode.

• If you want to enjoy DTS audio, use a DIGITAL AUDIO OUT jack for the connection. (DTS can only be

output through the DIGITAL AUDIO OUT jacks.)

• If played a disc indicated MPEG audio, connect to a MPEG decoder, and set MPEG to ON for audio output

in the setup mode.

• Unless connected to a Dolby Digital decoder, a DTS decoder, or a MPEG decoder, set Dolby Digital, DTS,

or MPEG to off for audio output in the setup mode. Playing a TV/DVD/VHS using incorrect settings may

generate noise distortion, and may also damage the speakers.

• When Dolby Digital is set to OFF and VIRTUAL 3D to ON for audio output in the setup mode and you

select the audio source in a 5.1 channel Dolby Digital surround format, the audio will be muted.

- 14- EN

IC29

TD530XA/601XB 01-36 02.8.26 11:44 AM Page 15

SET UP FOR USE

You can program the tuner to scan all the channels you receive in your area.

NOTE: Channel memory programming is NOT needed when connected to a cable box or satellite box. Just

select the TV/DVD/VHS channel selector to the output channel of the cable box or satellite box (Ex CH3).

Then select the channel to be viewed on the Cable Box or Satellite Box.

Phg r, Ih,eTViDVI!I,'VHS _o_÷,' cord

Plug the TV/DVD/VHS power cord

into a standard AC outlet.

NOTE:

• If some digits appear in the corner of

the screen, press the POWER button

without unplugging the power cord.

2Turn or_ th,÷ TViDVI!},'VHS

Press the POWEP, bntton to turn on the TV/DVD/VHS.

3S÷llect ' II!!NGI!.I!SI_I'' o,' I!_:SRAI)OL"o,'

H_AHgAHS [" ..... 1

Select "ENGLISH" or .......

[[NGLISt_] £SP FRA

"ESPANOL"=Spanish or

"FRAN(_AIS" =French using file ...........

Arrow _ or _1 button. "[ ]" indi-

cate the selected language.

,4 IBegi_ auto Usrese_ SaT UP

Press the Arrow • or • button to LANGU,_GE

point to "AUTO PRESET". L_.] ......

Then press the Arrow I_ button. _ ..........

The tuner scans and memorizes all

active channels in your area.

NOTES:

• The TV/DVD/VHS distinguishes between standard

TV channels and cable channels.

• If you want to play or record a video tape

BEFORE presetting the tuner, you must press the

SETUP button on the remote control. To preset the

tuner again, see "CHANNEL SET UP AGAIN" on

page 16.

• The TV/DVD/VHS may memorize TV channels as

CATV channels if reception conditions is poor. If

this happens, try AUTO MEMO action again when

reception conditions are better.

_" Alto, sea,w, rli9

The tuner stops on the lowest memorized channel

If you want to recall the selected channels, you can

select the desired channel directly with the remote

control number buttons or CHANNEL • or •.

The channels you no longer receive or seldom watch

can be deleted from the memory. (Of course, you can

add the deleted channel into the memory again.)

Selecl OI/ANNIEL SET UP'

Press the SETUP button on the

remote control.

Press the Arrow • or • button to

point to "CHANNEL SET UP".

Then, press the Arrow I_ button.

TVNCR S£TUP 1

TIME_ pROGraMmING

S£TTING CLOCK

CH_NN£L S_T U_'

US£rVS S£T UP

VCHIP S£_ UP

ZlRO RE_Ur_N

2c_elec_ ADD, DELETE ,---CIq

_' I]% C_ANNEL SET Up

Press the Arrow • or • button to _ooo=_F=o_

,_UTO pReSeT

point to "ADD/DELETE CH".

Press flae Arrow _ button.

3IEnier tile desired cl_sl]r_el rl_uml!'}elr

Press the Arrow • or • button until

your desired channel number

appears. (You can also use the num- 0_

bet buttons or the CHANNEL •/• .........

button to enter it) (Example: CH8)

,4 I!}elete {or add) ii firom (i,'_to} memory

Press the Arrow _ or _1 button. The channel number

changes to light red. The channel is deleted from

memory.

• To delete another channel, repeat steps [3] and [4].

• If you press the Arrow I_ or _1 button again, the

channel is memorized again.

5I!!xiiI be cI_at',,sel sn_p mode

Added channel: Light blue.

Deleted channel: Light red.

Press the SETUP button on the remote control to

returns to TV mode.

NOTE: To confirm that channel(s) has been deleted

or added, press the CHANNEL • or • button.

- 15 - EN

IC29

TD530XA/601XB 01-36 02.8.26 11:44 AM Page 16

Make sure ...

•Press the POWER button to turn on the

TV/DVD/VHS.

Selec_ CHANNEL SET UIP'

Press the SETUP button on the

remote control.

Press the Arrow • or • button to

point to "CHANNEL SET UP".

Then, press the Arrow I_ button.

f TWVCR SETUP

T_MERPROGRAMMIr_G

SE371_IG CLOCK

CHA_mlELS£T UP

USER'S SET Up

VOHIP SETUP

_NGUAG£ [ENGUSH]

Os_PT_ON _OFFI

ZERO RETURN

T_MESEARCH

INOEXSEARCH

2 Begii,_ a_to _reset CHANNE BET UP

Press the Arrow • or • button to ADD DELETE CH ITV_

AUTO PRESET

point to "AUTO PRESET".

Then, press the Arrow I_ button.

The tuner scans and memorizes all

the active channels in your area.

3Agter scarmiir_

The tuner stops on flae lowest memorized channeh

Make sure ...

•Press the POWER button to turn on the

TV/DVD/VHS.

NOTE: This function effects only the language on

the screen ment_ and not the audio source.

Selec_ I!.ANGL AGII!!'

Press the SETUP button on the

remote control.

Press the Arrow • or • button to

point to "LANGUAGE".

f TV,VC_ S£TUP

TIMER pROgRAMMING

SETT_r_G CLOCK

¢HAr_r_Ek SET UP

USER'S _ET UP

LANGUAGE*,ENGLISH

CAPTIOr_ /O_PI i

Z£RO RETURr_

TIME SEARCH

INDEXS£ARCH

2Select "ENGLISH" or "ESPANOL" or

Select "ENGLISH" or "ESPANOL"= Spanish or

"FRAN(_AIS"= French using the Arrow I_ or _1

button.

3Ex/L/,_÷ I!,_g_<1uage mode

Press the SETUP button on the remote control to

return to TV mode.

NOTE: If Spanish or French is selected accidentally,

press the SETUP button on the remote control, press

the Arrow • button to point to "IDIOMA

[ESPANOL]" or "LANGAGE" [FRAN(_AIS], then

press the Arrow I_ button, then press the SETUP

button on the remote control.

Select this feature and the TV/DVD/VHS's clock

automatically will advance one hour in April, then

reverse one hour in October:

When Daylight-Saving Time is ON, the clock will

change automatically as follows:

•First Sunday of April : At 2 AM the clock imme-

diately changes to 3 AM. Any timer programming

you have set to occur between 2 AM and 3 AM

will not recm'd.

•Last Sunday of October : At 2 AM the clock

immediately changes to 1 AM.

Make sure ...

• Press the POWER button to turn on the

TV/DVD/VHS.

Se_÷c_ S£°I'[IING CLOCK' • ..........

TIMER P_©GRAMMING 1

Press the SETUP button on the ............

CHANNEL SET UP

remote control, v°_so.__T_T0_0_

L/_NGUAGE ENG LIBN]

Press the Arrow • or • button to ZEoG_PTIONRETURN[OFF]

TIME 9£ARCN

point to "SETTING CLOCK". ...........

Then, press the Arrow I_ button.

2Set.......1_3S f" {©ayli{? '_%Ssvir_C.9 "lime, _o [ON]

Press the arrow • or . button to [ ........... 1

point to "D.S.T.". AUTOCLQ, CK............... [ON

Then, press the Arrow I_ or _1 but- ,- _? ........ 8&

ton until [ON] appears.

E:xiitth÷ _ayl _ ',t_Ssv _',9 _Y,÷ mode

Press the SETUP button on the remote control to

return to TV mode.

77MI_

Repeat steps [1] to [2], select [OFF'] using the Arrow

I_ or _1 button.

- 16- EN

IC29

TD530XA/601XB 01-36 02.8.26 11:44 AM Page 17

The TV/DVD/VHS clock must be set correctly

before VCR timer recording is possible. It is sug-

gested that the clock be set manually when first set-

ting up the TV/DVD/VHS. Then, setup auto clock

correction which will periodically correct the setting

if necessary.

NOTE: If you cannot receive a station with time

signals, auto clock setting cannot be performed. Use

manual setting only.

M_NUA L ('LO(7( Sk'777N(

Make sure ...

• TV/DVD/VHS power is turned on.

In the example below, the clock is to be set to."

DATE May 7tb, 2002

SETTING TIME 5:40PM

Sellect SETFIING CLOCK'

Press the SETUP button on the ..........

TMER PROGRAMM NG

remote control. ,- s_,.oo_o':_

CH4NNEL SET UP

USERS SET UP

Press the Arrow • or • button to _o,,_s_,o_

LANGUAGE [ENGLIS H]

CAPT_ON OFF]

point to "SETTING CLOCK". ..........

TME SEARCH

Then, press the Arrow I_ button. ...........

2S÷IIec{ _dIANUAL CLOCK

SII!!T'

Press the Arrow • or • button to

point to "MANUAL CLOCK SET".

Then, press the Arrow I_ button.

S£TTING CLOCK 1

AUTO CLOCK [ON

AUTO CLOCK CH SEA_C_

t,UTO CLOCK CH [ I

MANUALCLOO< BET

DSZ [OFF]

3S÷ll÷ot the mot'_U_ _ ..............

Press the Arrow • or • button until | MOIST.DAy yEAR

your desired month appears. |

(Example: May --, 05) / ..........

Then, press the Arrow I_ button.

,4 Selleet the day _ ..............

Press the Arrow • or • button until | _o,_,D,, YEAR

your desired day appears. | o_ ....

(Example: 7th --" 07) / ..........

Then, press the Arrow I_ button. (

5S÷ll÷ot the y÷ar

Press the Arrow • or • button until [ .............. /

your desired year appears. /°7;7 .....

(Example: 2002) / ..........

Then, press the Arrow I_ button.

C _"c,eHeel _itl-_e_our ...............

Press file Arrow • or • button until MONTH DAy yEAR

your desired hour appears. ...........

(Example: 5, PM) ..........

05 0_ ....

Then, press the Arrow I_ button.

Press the Arrow • or • button until .............

the desired minute appears, o..........

(Example: 40) ...........

°5 40 PM

Sta,/./,he cl!ock #

Press fl_e SETUP button on the /

/

remote control. /

Although seconds are not displayed,/

they begin counting fi'om 00 when [

you press the SETUP button on the

remote control. Use this tbature to synchronize the

clock with the correct time.

NOTE:

When unplugging the AC cord or if there is a power

failure for more than 3 seconds, you may have to

reset the clock.

gYP CHAN( E CLOCK SbJ777N(

If you want to change the clock,

l)Follow steps [1 ] and [2].

2)Select where you want to change using the Arrow

I_ or _1 button.

3)Enter correct numbers using the Arrow • or •

button.

4)Press the SETUP button on the remote control to

start the clock.

PLEASE NOTE:

If there is no local PBS station in your area or on

your cable system, select "AUTO CLOCK" and

press the Arrow I_ or _1 button to turn [OFF] this

function. Then you can manually adjust the clock.

- 17 - EN

IC29

TD530XA/601XB 01-36 02.8.26 11:44 AM Page 18

A[_TZ)ALU]7{. {LO{K S]_']"HN(}

Make sure ...

• The TV/DVD/VHS isturnedon.

•Confirm the TV/DVD/VHS is receiving a RF

(Radio Frequency) signal from either an antenna or

cable system connection using the ANT IN jack on

the rear of theTV/DVD/VHS.

NOTE:

•If a cable converter box is being used, make sure it

is powered on.

• You must use the TV/DVD/VHS remote control to

perform the clock setting procedure.

Seeet SEITING CLOCK"

Press the SETUP button on the

remote control. Twvo_sE,oP

TINER p R{SGRAM MING

_* SETTr_C, CLOCK

Press the Arrow• or • button to O._,,EL_ P

USERS _ET UP

select "SETTING CLOCK". ..........

LANGUAGE [ENGLISH

CAPTIOr_ /OFF_

zEno neTum_

Press the Arrow I_ button to enter _,_E_E,,_o.

INDEX _EAROH

"SETTING CLOCK" menu.

2S÷/, AU'IO (]LOCI<"{o [O11]

Press the Arrow I_ button until

AUTO CLOCK [ON] appears.

3B@@iinAUTO OII.OCK CH SII!!AII_CH"

Press the Arrow • button to select "AUTO CLOCK

CH SEARCH".

Press the Arrow I_ button. BE_ING CLOCK

• The TV/DVD/VHS is now ,_UTO OLOCK _ON]

searching for the station which _o_oooo_o_................. ]

MANUALCLOCK SET

contain the auto clock set signal. O_T _o_

The search for a signal may take

up to 20 seconds per channel.

• "_ _" appears at the lower left of

the screen when the search has ' _.................

ended. 0_ ,0 ,_

• Auto Clock station- write down

the number(s) that appear on the

screen. These are the auto clock ,

station(s) in your area. See item

4below.

• If no number(s) appear on the TV screen, there are

no stations in your area which contain the Auto

Clock signal. Auto Clock Setting is not possible.

Please use Manual Clock Setting on page 17.

Press the SETUP button to exit the screen.

,r_ t'lltell [he Cb+_t'll+++e t'llHmb@ll @llg=t COIIN{+2r Y'_+ {I'Ve

Autom,a_ic C{oek Setting SgnaH

Press the SETUP button on the

remote control.

Press the Arrow • or • button to

select "SETTING CLOCK".

Press the Arrow I_ button to enter

"SETTING CLOCK" menu.

Press the Arrow • button to select

"AUTO CLOCK CH".

Press the Arrow I_ or _1 buttons

until you locate Auto Clock Set

station numbm: See item 3 above.

Press the SETUP button to exit the

screen.

Tvvcn SETUP

T_MER _,noGRAM M_r_C,

,_ SEqTI_IG CLOCK

°Hs_I_IEL S£T UP

USER'S SET UP

V CHIP SET U_,

_NC, U_G£ [ENGLISHI

Cs_PT_ON [O_FI

ZERO nETU_N

T_MES_t,nCH

_r_DEXSE^nCH

B£TTING °_OC_<

AUqO CLOCK [O_

AUqO CLOCK CH SEt, RCH

,_ t, UqOCLOCKCH [ 451

M,_NUS_LCLOO< S£T

DST [OFF]

g¢rn o_{ H_e _Vi©V©iV_IS

Once the TV/DVD/VHS is turned off, it will periodi-

cally check and set the correct date and time.

- 18 - EN

IC29

TD530XA/601XB 01-36 02.8.26 11:44 AM Page 19

TV OPERATION

rur,_ o___he TViDVID, VHS

Press the POWER button to turn on the

TV/DVD/VHS.

2S÷lleot 1be oha,'_eH i_u_,'_ber

Press the CHANNEL • or •button to select your

desired channel number or press the number buttons

on the remote control.

Remember: If the TV/DVD/VHS is connected to a

cable box or satellite box, the TV/DVD/VHS must be

on CH3 or CH4, then the channel to be viewed must

be selected on the cable box or satellite box.

3Adi_st o_'_d

Press the VOLUME A or V button

to adjust the volume.

NOTES:

• If you press the CHANNEL A or Vin the DVD

mode, you can change the TV channels.

Even if you turn off the TV/DVD/VHS in the DVD

mode, when you turn it on again, it will go into the

TV/VCR mode.

The TV/DVD/VHS's picture controls BRIGHT,

CONTRAST, COLOR, TINT and SHARPNESS

are preset to factory specifications. Although they are

usually the best, you may need to make some further

adjustments for a natural looking image.

NOTES:

•Procedures must be followed within 5 seconds or

the Picture Control mode will be cancelled.

• When setting the Picture Control, the Game mode

will be cancelled.

Make sure ...

• TV/DVD/VHS power must be turned on.

SeHect PI!O1AR CONTROL"

Press the PICTURE button on the remote control.

2$eHec_ i_em you wat'_/,o _@._s

Press flae Arrow • or • button until desired control

is displayed.

BRIGHT

CONTRAST

COLOR

TINT ................

SHARPNESS

Adiu _<_li_epicture_ott_rd

Press the Arrow I_ or _1 button to adjust to your

desired level.

Arrow _1 Arrow I_

BRIGHT to decrease to increase

brightness brightness

CONTRAST to decrease to increase

contrast contrast

COLOR to pale to brilliant

TINT to purple to green

SHARPNESS to soft to clear

•If there is apower failure of any kind, the unit will

retain its memory for this feature.

- 19 - EN

IC29

TD530XA/601XB 01-36 02.8.26 11:44 AM Page 20

You can view specially labeled (cc) TV programs,

movies, news, pro-recorded tapes with either a dia-

logue caption or text display.

CAPTION mode: By choosing the caption mode, you

can watch dramas, movies and news while captioning

the dialogues and the contents of news.

TEXT mode: By choosing the text mode, you can

watch half screen text information if you want.

1-2: You may get these captions or text information

by selecting either "1" or "2". Caption "2" is used,

usually for a second language if available.

NOTE:

Not all programs are broadcast with closed captions.

Your television is designed to provide error free

closed captions from high quality antenna, cable and

VCR signals. Conversely, poor quality signals are

likely to result in caption errors or no captions at all.

Common signal conditions which may cause captions

errors are listed below:

• Automobile ignition noise

• Electric motor brush noise

• Weak snowy reception on TV screen

• Multiplex signal reception displaying picture

ghosts or airplane flutter.

• Playback of poorly recorded or worn VCR tapes.

NOTE:

If the TV/DVD/VHS displays a I

black box on the TV screen, this /

means that the TV/DVD/VHS is set /

to the TEXT mode. To clear screen, /

select [CAPTIONI], [CAPTION2] k

or [OFF].

Make sure ...

• TV/DVD/VHS power must be turned on.

SeHee_ CAIIS'T!ON'' •..........

TMER _,noGRAMM r_C,

Press the SETUP button on the ...........

CHt_I_IEL S£T UP

USERS SET UP

remote control, voH,PsE,,_

LANGUAG E, _MSH I

Press the Arrow • or • button to _ERO,__,::_

TME SEt,riCH

point to "CAPTION". ...........

2Selieet your desi,ed e_ pinion menu

Press the Arrow I_ or _1 button ...........

T}MER F'ROGRAMM NG

until your desired caption menu ...........CHt_I_IEL SET UP

USERS SET UP

appears, voH,P_, o_

LANGUAGE !EN)U H]

,_ CA Pr_o_ ICAPTIONI } .....

([CAPTIONI], [CAPTION2], ,M_•..............._o_

[TEXT1 [ or [TEXT2[) ..........

IExiitthe eapf_on set{ieg ,'_ede

Press the SETUP button on the remote control to

return to TV mode.

TO (½N(7_L ?HE CLOSED C½P_HON

S}$77_M

Repeat steps [1] and [2], select [O_'] using the

Arrow _ or _1 button. Press the SETUP button on

the remote control to return to TV mode.

WH[/N ?HE CLOSED CAP_HON MODE

IS ON

The On-Screen Display will disappear after 5 sec-

onds.

• This is also true when the MUTE button is pressed,

and when the PAUSE button is pressed while

recording.

• If there is a power failure of any kind, the unit will

retain its memory for this feature.

- 20 - EN

IC29

TD530XA/601XB 01-36 02.8.26 11:44 AM Page 21

_:( H1P ,S'ET UP

Make sure ...

• TV/DVD/VHS is turned on.

• You have the TV/DVD/VHS remote control.

Selecl V.OIIIPS I UP' IVCR IITUP

Press the SETUP button on the ==_,=G..................oLoo=

CHANNEL SET UP

remote control, os==s=_TOP

p v ct_p SET UP

L/4NGUAGE ENG LIBN]

Press the Arrow • or • button to O_T,O,[OFF]

ZE O RETURN

select "V-CHIP SET UP". ...........INDEX SEARCH

Then, press the Arrow I_ button.

2I!!!:lr_/e"rAcceu£_ eodn /

/

Use the numbers on the remote ] ....

control to enter the access code. / L-_

• For the first time set-up or in the [

event the TV/DVD/VHS has lost power, enter the

default code of the numbers: 0000.

S÷llect IV IR_TIi!/G ........... TV RAT]N°

Press the Arrow • or • button to M_*_,,T,,_CHANGE CODE

select "TV RATING".

Then, press the Arrow I_ button.

,4 IBIockir_g'lV programs

Press the Arrow • or • button to _ _ ,,,=w_

EW_

TV_GTVY7 ( [_EW

select "TV rating" fllat you wish to .... _ ,,=w_

TV14(

block. _ '_ [_I_

• When you select the rating catego-

ry and turn it [BLOCK], the higher rating will turn

[BLOCK] automatically: Also, the lower rating will

turn [VIEW] automatically.

• When you turn "TV-Y" to [VIEW], then all ratings

will turn to [VIEW] automatically:

Selection Rating Category Explanations

TV-Y Appropriate for all children

TV-Y7 Appropriate fi)r children seven and older

TV-G General Audience

TV-PG Parental Guidance suggested.

TV-14 Unsuitable for children under 14

TV-MA Mature audience only

I!!:xiitthe V.OMp settit'_ 9 rood

Press the SETUP button on the remote control to

enter the setting and exit the screen.

_&<;HYP SET UP S UII I_A ?TNGS

When you select the ratings of TV-Y7,TV-PG,TV-14

or TV-MA you will have the option of selecting sub

rating categories.

S_elecl V,OIIIP S£'I UIP' _.........

TIMIR PROGRAMMING

Press fl_e SETUP button on the ...........CHANNEL NET UP

USERS SET UP

remote control. _ v°,,_SETuP

L/_NGUAGE Er_GL SH]

°APTION [OFF]

Press fl_e Arrow • or • button to z==o==T_==

TIME 8£ARON

INDEXSEARCH

select "V-CHIP SET UP". Then,

press the Arrow I_ button.

2,r/_er Aece_SaccesseOde ]_ ........... ]

Use the numbers on file remote con-|

trol to enter the code.

(Default code is 0000.) [.

3Selecl "IV IRA[liNG' _.........

TV RATINe

Press fl_e Arrow • or • button to M_,,=_t,._

CHt_'IGE CODE

select "TV RATING".

Then, press the Arrow _ button.

,4 Selectii!_9 Sul>lRati,_gs" I-

Press fl_e Arrow • button to select [. ,__

the sub-rating you wish to block. _

Then, press the Arrow _ button.

• When you select [TV-Y7I:

Press the Arrow • or • button to select "FV"

(Fantasy Violence).

Then, press the Arrow _ button to select

[BLOCK] or [VIEW].

• When you select [TV-PG], [TV-14] or [TV-MA]:

Press the Arrow • or • button to

select "D"(Suggestive Dialog),

"L"(Coarse Language),

"S"(Sexual Situation), or

"V'(Violence). Then, press the

An'ow I_ button to select

[BLOCK] or [VIEW].

Note: When you select [TV-MA],

"D" does not appear on the TV

screen.

rv pc,

I

TrY _=w,/

rv _y7 ( ) IEWl

rv G IVlEWl /

TWPc, (DLSV) _BLCCK] J

rv 14 (DLSV) _BLCCK]

TV MA(LSV) _BLCCK]

•The sub-ratings which set to [BLOCK] appears

next to the rating category in the TV rating menu.

5xiI/,li'_e V,CII'_ip_el rKI I_l[iodn

Press the SETUP button on the remote control to

enter the setting and exit the screen.

-21- EN

IC29

TD530XA/601XB 01-36 02.8.26 11:44 AM Page 22

<'HA N<}/N<i _,cCHYP BLOCKA'D PROo

G£'AMML%r(_

Note: To change the rating, the TV must be turned to

a station that is not protected. If the (PROTECTED)

appears on the screen, please change the channel to a

station that is not protected.

l)Follow steps [1] and [2].

2)Press the Arrow _ button to select "TV RATING".

Select a TV rating to he unblocked by pressing the

Arrow • or • button.

Then press the Arrow I_ button to unblock the rat-

ing.

3)Press the SETUP button on the remote control to

exit the screen.

MPAA A'A77NG 57E'P' UP

Seee_ V_C_I_R SI1!!_1UIP'

Press the SETUP button on the

remote control.

Press the Arrow • or • button to

select "V-CHIP SET UP". Then,

press the Arrow _ button.

TV/VCR SETUP 1

TIMER pRCX=RAMMING

SETT_r_C,CLOCK

¢HAr_r_EL SET UP

USER'S SET UP

VCHIPSET UP

LANGUAGE [£NGUSH_

¢APTIOr_ /OF_

ZERO RaTUnr_

TIMa SEARCH

INOE× SEARCH

2£_te,' Access cede ACCESS CODE

Use the numbers on the remote

control to enter the access code.

3Seect MIUAA IRA_NG ............

TV RATING

Press the Arrow • or • button to _A_R_,_

C_,_NGE COOE

point to "MPAA RATING".

Then, press the Arrow _ button.

,4 Seee_ you,' dee red item

Press the Arrow • or • button to

point to your desired item ......

_c _7

Then, press the Arrow _ button to

select [BLOCK] or [VIEW].

Selection Rating Category Explanations

G General Audience

PG Parental Guidance suggested.

PG-I 3 Unsuitable for children under 13

R Restricted; under 17 requires accompa-

nying parent or adult guardian

NCd7 No one under 17 admitted

X Mature audience only

•When you select the rating category and turn it

[BLOCK], the higher rating will turn [BLOCK]

automatically. Also, the lower rating will turn

[VIEW[ automatically:

• When you turn "G" to [VIEW], then all ratings

will turn to [VIEW] automatically.

IExit t_*s V_Oll'*ipsett t'_{3mode

Press the SETUP button on the remote control to

enter the setting and exit the screen.

C/IAN( E AC(:'ESSi CO_YE

To change access code, follow the steps.

SelJect V_CNP S£T UIP'

Press the SETUP button on the remote control.

Press the Arrow • or • button to select "V-CHIP

SET UP".

Then, press the Arrow I_ button.

2I!_r_er Assess cede ..........

Use the number on the remote con-

trol to enter the access code.

The default code is 0000.

3Se_ec_ OHAIk_G_!! OOI!}IE' " .........

TV _ATING

Press the Arrow • or • button to M_,,^_AT,N_

CHAr_Ga ¢OO£

select "CHANGE CODE". Then,

press the Arrow I_ button.

4IE_r_erNew cede

Use the number buttons to enter

your desired access code in the .......

NEW CODE space. Then enter tlae ....

CON FI_M CODE

same code in the CONFIRM

CODE space. V_CHIP SET UP

screen appear on the screen.

• If you enter wrong code, repeat step 5, making

sure you enter the same new code exactly in the

confirm code space.

IExit t_*s V_Oll'*ipsett t'_{_mode

Press the SETUP button on the remote control to

exit the screen.

Note: If you unplug the power code or power failure

occurs, the changed access code will be lost and will

return to default (0000). Change your access code

again as necessary.

- 22 - EN

IC29

TD530XA/601XB 01-36 02.8.26 11:44 AM Page 23

MTS(M d ioChannel 7>levisio so md)SYSTEM

You can recoM or listen to a program in MTS stereo.

When you play a VHS tape, or receive a broadcast

on the TV/DVD/VHS tuner channel you are watching,

the status shown below will appear when you press

the DISPLAY button on the remote control.

41m PLAY _ 12:00AM

'HIFI CH 123 3]

2]

--1]

SP COUNT 0:00:00,

SAP Second Audio Program, which means your

program, can also be received in a second

language or sometimes a radio station.

HIFI High Fidelity which produces better sound

than standaM stereo TV/DVD/VHSs.

1] When a program is broadcast in stereo, STEREO

appears on the TV screen.

2] When a program is broadcast in second audio,

SAP appears on the TV screen.

3] When a program broadcast both in stereo and sec-

ond audio, STEREO and SAP appear on the TV

screen.

NOTE: Although a program may be broadcast in

both stereo and second audio, you cannot

record in both stereo and second audio at

the same time.

4] While the TV/DVD/VHS is set in HIH stereo

mode and playback mode. HtFI appears on the

TV screen. While the TV/DVD/VHS is set in

monaural(MONO) mode, HtFI disappears from

the TV screen.

NOTE: If you play non-HIH tapes while the

TV/DVD/VHS is set in HIFI, HIll will dis-

appear from the TV screen and the

TV/DVD/VHS will play automatically in

monaural.

Type of broadcast Display on

the TV screen

-None-

Regular

(monaural audio)

Stereo broadcast STEREO -Invalid-

Bilingual broadcast SAP STEREO*

Stereo&Bilingual

broadcast

STEREO

SAP

STEREO/SAP

SELECTION

-Invalid-

SAP*

STEREO*

SAP*

Hi-Fi audio track(2-channel)

L-channel R-channel

Mono Mono

L R

Main audio Main audio

program program

Sub audio Sub audio

program program

L R

sub audio sub audio

program program

Normal audio

track

Mono

L+R

Main audio

program

Sub audio

program

L+R

sub audio

program

*You must select the recording mode in TV AUDIO [STEREO] or [SAP] when you record a broadcast.

- 23 - EN

1c29

TD530XA/601XB 01-36 02.8.26 11:44 AM Page 24

Make sure ...

•TV/DVD/VHS power must be turned on.

TO SEIJ_Y T Hll f M@DE

Select L/Sl!!iB S SE[ UP" TVVCR SETUP

TINER p RO(aRAM MING

Press the SETUP button on the ...........

GHANNEL SET UP

USERS _ET UP

remote control. _o.,_s=Jup

LANGUAGE [£NGLINH

CAPTION tOFF]

Press the Arrow • or • button to z==o==,u=_

TIME SEARCH

INDEX _EARCH

point to "USER'S SET UP". Then, ,

press the Arrow _button.

2S@leo{' VOIB ALI©IO' [ .... ...... ]

Press the Arrow • or V button to /..... [OFF]

point to VCR AUDIO . Then, press[ 11_o%_%_=_[_I] ....

the Arrow I_button. "VVC_I[O0 [_'ER ;

/

3Select I}HIFI!}

Press the Arrow I_ or _1 button

until [HIFI] appears.

,4 ]b retur_/,0 TV mode

Press the SETUP button on the remote control to

return to TV mode.

NOTES:

•Normally; "HIEI" should be selected for playback-

with HIFI sound.

• When you play non-HIP[ tapes, the TV/DVD/VHS

will play automatically in the monaural mode.

• The TV/DVD/VHS records automatically MTS

broadcasts in HIFt stereo sound unless you select

SAP mode recording before you begin recording.

7'O SEIJ_{ TMONO MODE

You can change the selection to "MONO" if you

want to listen to HIEI tapes in normal audio play-

back.

1) Press the SETUP button on the remote control.

Press the Arrow • or • button to point to

"USER'S SET UP".Then, press the Arrow I_

button.

2) Press the Arrow • or • button to point to

"VCR AUDIO". Then, press Arrow II,-button.

3) Press the Arrow I_ or _1 button until [MONO]

appears.

4) Press the SETUP button on the remote control to

return to TV mode.

TO ,t;L7 £('T ,UH_A"LO_ ,'fA_ ()[(" MONO

_ekt_ct US _t8 II![] LNP'

Press the "SETUP" button on the ...........

TMER _'ROGRa_M r_C,

remote control, s=w,,oo_o,_

,_ USER s SET UP

Press the Arrow • or • button to _°"_=='°_

LANGUAGE [ENGLIS H]

OAPTION lOaF]

point to "USER'S SET UP".Then, ,==•.........==_=o_

press the Arrow _ ...........

button.

2Select TV A_DI!O"

Press the Arrow • or • button to

point to"TV AUDIO". Then, press

the Arrow _button.

Selioot [STEIBEO], I AP}, m" [l@ONOl

Press the Arrow I_ or _1 button until [STEREO],

[SAP], or [MONO] appears.

Press the SETUP button on the remote control to

return to TV mode.

NOTES:

• You must select the recording mode,either TV

AUDIO [STEREO] or [SAP] when you record a

broadcast.

Refer to "MTS RECORDING/MONITOR MODE".

• If you select second audio when second audio is not

available, the TV/DVD/VHS will record normal

audio.

- 24 - EN

IC29

TD530XA/601XB 01-36 02.8.26 11:44 AM Page 25

VIDEO CASSETTE

This TV/DVD/VHS will operate with any cassette that has the [VIiN mark. For best results,

we recommend the use of high-quality tapes. Do not use poor quality or damaged tapes.

P?_'ECAU770NS

•Avoid moisture. Moisture condensation may occur

on the tape if it is moved from a cold place to a

warm place or visa versa. Before using a tape with

tllese conditions, to avoid damage of the tape and

your TV/DVD/VHS, wait until the tape has

warmed to room temperature and the moisture has

evaporated.

• Avoid extreme heat, high humidity and magnetic

fields.

• Do not tamper with the cassette mechanism.

• Do not touch the tape with your fingers.

INSEX_77N( A_½SSETg77

Insert tile cassette in the direction as shown. Push in

gently, but continuously, on the center-back of the

cassette until it is drawn into the TV/DVD/VHS. The

TV/DVD/VHS will automatically turn on.

Wind_

CORRECT WRONG

TWO DH'I'EIEN7 ?XPE SPEEDS

Before recording, select the tape speed from :SP

mode (Standard Play) or SLP mode (Super Long

Play).

The table below shows the maximum recording/play-

back time using T60, T120 or T 160 tapes in each

mode.

Tape Speed Recording/Playback Time

]1_pe of T60 T 120 T 160

tape

SP mode 1 hour 2 hours 2-2/3 hours

SLP mode 3 hours 6 hours 8 hours

Note: You can play back a tape recorded in LP mode

(Long Play).

R_'EMOWNG A CASSET77?

l)In the Stop mode, press the EJECT button on the

remote control or press the STOP/EJECT button on

the TV/DVD/VHS. The cassette will eject.

2)Pull the cassette out of the cassette compartment.

3)Store the cassette in its case as shown.

EX_'A5"E PRE VEN770N

You can prevent accidental

erasing of recording by

breaking off the tab on the

back edge of the cassette.

If you decide to record on

the tape again, cover the

hole with plastic tape.

Transparent Tape

NOTE:

• In DVD mode, Whether the cassette is with tab or

without tab you insert, it doesn't start playing until

you press the PLAY button.

In TV/VCR mode, if th cassette without tab is

inserted, playback will automatically start.

25 EN

1C29

TD530XA/601XB 01-36 02.8.26 11:44 AM Page 26

Make sure ...

•TV/DVD/VHS power must be turned on.

Ihr_se,la p,erecorded _ape

If the erase-protection tab has been removed, the

TV/DVD/VHS will start playback automatically.

2_lb be_in? pli_yback

Press the PLAY button.

3_lb _dop pll_¢yba©k

Press the STOP button when play-

back is completed.

NOTES:

• If you press the TV/VCR side PLAY button in the

DVD mode, you can start the VCR playback.

• If you press the SELECT button in the VCR

playback, it will stop and the mode will

change to the DVD mode. In addition, the

same function operates with the DVD side

PLAY button or OPEN/CLOSE button.

During pause, press the FWD button to reduce the

playback speed. The TV/DVD/VHS mutes the sound

during slow motion. Press the PLAY button to return

to normal playback.

NOTE: If it is left in the Slow mode for more than

five minutes, the TV/DVD/VHS will automatically

go into the Stop mode.

This feature is very useful in finding or skipping over

a particular scene on a tape. In this mode, the sound

will be muted.

1)You may view a video tape at a high speed in

either a forward or reverse direction by pressing

the F.FWD or REW button. (in the SP /LP /SLP

modes)

NOTE:

• If you press the EFWD or REW button on the

front panel in the DVD mode, the VCR forward

or reverse will start. Please press the STOP /

EJECT button once to stop it, twice to eject it.

2)Press it again and the TV/DVD/VHS will now

search in super high speed. (in the LP /SLP modes

only)

NOTE:

• Tapes recorded in the SP or LP mode will dis-

play a noise bar on the TV screen and the picture

may revert to Black and White. This is normal.

3)Press the PLAY button to return to normal speed.

•Tracking adjustment will be set automatically

(Digital Tracking function) when you start play-

back.

• However when playing pre-recorded tapes or tapes

recorded on units other than your own, noise lines

(black and white streaks) may appear on the play-

back picture. If this occurs, you can adjust the

tracking control manually by pressing the CHAN-

NEL • or • button until the streaks disappean To

return to the DTR function, stop the tape once and

start playback again.

• You can reduce the noise lines by pressing the

CHANNEL • or • button in slow mode, too.

Tracking adjustment in Slow mode will not be set

automatically_

NOTE:

•In Still mode, press the SLOW button and press the

CHANNEL • or • button until streaks disappear.

To return to Still mode, press the PAUSE button

again.

- 26 -

You can view a still picture on the TV screen dining

playback (the Still mode). Press the PAUSE button

during playback. Only tapes recorded in the SLP

mode will show the least amount of lines.Press the

PLAY button to return to playback.

NOTES:

•You can advance the picture one frame at a time by

pressing the PAUSE button during the Still mode.

• If it is left in the Pause mode for more than five

minutes, the TV/DVD/VHS will automatically

switch to the Stop mode.

In the Pause!Still mode only, when the picture begins

to vibrate vertically; stabilize the picture by pressing

the CHANNEL • or • button.

NOTE:

If there are video noise lines on the screen, see Tracking

Adjustment section.

EN

IC29

TD530XA/601XB 01-36 02.8.26 11:44 AM Page 27

Make sure ...

•TV/DVD/VHS power must be turned on.

•Insert a prerecorded tape.

• Before playback, follow steps below.

This function enables you to improve the picture

quality when playing back worn cassettes such as

rented tapes.

S@H÷otUSEII_'S 9£7 UIP'

Press the SETUP button on the ...........

TIME pROG AMMING

S£TT NG CLOCK

remote control. OHA,,=CS=TO_

US£RB SET UP

V CHIP S£T UP

Press the Arrow • or • button to _,_ A_=[=,=,_

CAPTION [O_FI

ZERO RETURN

point to "USER'S SET UP". ..........

INDEXSEARCH

Then, press the Arrow _ button.

2Set IRII!?NTAII?' /,o [ON[_

Press the Arrow • or • button to

point to "RENTAL".

Press the Arrow _ or _l button

until [ON] appears.

3 I!£:xiitthe Re,'_l_ sell r,g

Press the SETUP button on the remote control to

return to the TV mode.

,4 Stad pHaylbsck

Press the PLAY button to start playback. "RENTAL

PLAY I_" appears.

• Once you select the Rental mode, it stays in effect

even after you turn off the TV/DVD/VHS.

7'0 CANC_L THE A'ENT'A L z}[ODE

Repeat steps [1] and [2], select [O_'] using the

Arrow _ or _1 button on the remote control. Press

the SETUP button on the remote control to return to

TV mode.

If there is a power failure of any kind, the unit

will retain its memory for this feature.

The TV/DVD/VHS has the auto repeat function that

allows you to repeat a tape indefinitely without

touching the PLAY button.

ALL REPEAT: Repeat playback from the beginning

to the end of the tape.

BLANK REPEAT: Repeat playback from the begin-

ning to a blank part, which is blank for more than

10 seconds.

SeHect USEFISS£TtlP'

Press the SETUP button on the

remote control.

Press the Arrow • or • button to

point to "USER'S SET UP".

Then, press the Arrow It" button.

TVNCR SETUP 1

TIMERPROGRAMMING

SE _'TINGCLOCK

¢ H_INEL SET Up

USER'S SET UP

VCHIPSETUP

t_NGUAGE [ENGLISH]

CAPTION IOFFI

ZERO RETURN

TIME SEARCH

INDEXSEARCH

2S÷llect'ALl?' or 1131!,ANK'

Press the Arrow • or • button to

point to "REPEAT PLAY".

Press the Arrow I_ or _1 button

repeatedly until your desired selec-

tion [ALL] or [BLANK] appears.

fUSER_ SET Up 1

RENTAL [C_

REPEAT pt_¥ ¸¸¸¸¸¸¸ALL

AUTO RETURN _O_F_

VCR AUDIO [HIFII

TV AUDIO [STEREO

3IExiitthe Rel_e_I Play 5(-I,tHIl'/9

Press the SETUP button on the remote control to

return to the TV mode.

,4 Star_ playback

Press the PLAY button to start the Repeat Play.

"REPEAT PLAY I_" appears.

• Once you select the Repeat Play mode, it stays in

effect even after you turn off the TV/DVD/VHS.

• If the Rental mode is set [ON], the "RENTAL

PLAY _" display has priority.

7'(,) CAN(;WL 7:HE A'EPI{A7" PIJl} MODE

Repeat steps [1] and [2], select [OFF] using the

Arrow _ or _1 button on the remote control. Press

the SETUP button on the remote control to return to

TV mode.

If there is apower failure of any kind, the unit

will retain its memory for this feature.

-27- EN

IC29

TD530XA/601XB 01-36 02.8.26 11:44 AM Page 28

Make sure ...

•TV/DVD/VHS power must be turned on.

• Insert a tape.

This function allows you to search easily a beginning

point that you want to review by rewinding or fast

forwarding.

NOTE:

Zero Return WILL NOT wnrk nn a blank tape or a

blank portion of a tape.

S/Lop a _ape sl you, des red ksoel(

Rewind or fast forward the tape to the beginning

point at which you want to review.

2Reset/,Ibe eom'_ter o 0:00:00

Press the COUNTER RESET button repeatedly.

3Be@!s lee_dii_g or pllayback

Press the RECORD or PLAY button.

Press the STOP button when recording or playback is

completed.

,4_lb act rate ' Zll!!RO VIE] JRN' mode

Press the SETUP button on the ...........

TIMER p_OGRAMMING

remote control. _,_ o_oo_

G_NN EL SET UP

us£Rs SET UP

Press the Arrow • or • button to vo_ _

LANGUAGE £NGLIBN]

point to "ZERO RETURN". zEo......._E_R_E°_

TIME _£AROH

Then, press the Arrow _ button. ..........

The counter will appear on the TV screen.

The tape will automatically stop when the counter

returns to 0:00:00.

The Time Search function makes it possible to quick-

ly advance the tape to your desired position simply

by entering the exact amount of playback time you

want to skip.

NOTES:

• Time Search can be set up to a maximum of 9

hours 50 minutes (9:50) by 10 minutes at a time.

•This function will not operate in recording mode.

• This function is not operative when a cassette tape

is not inserted in the TV/DVD/VHS.

In the example below: To watch a program after 2

hour 50 minutes from the present position, in either

direction.

nser_ s/,_@e.

2Sebc_ _1D_I!£SEAg)Oli_' mode

Press the SETUP button on the

remote control.

Press the Arrow • or • button to

point to "TIME SEARCH".

Then, press the Arrow _ button.

TWVCR SETUP 1

TIME_ pRC_m_M4NG

SETTING CLOCK

CHAr_NELSET U_,

USER'S _£T UP

V CHIP SET UP

tJ, NGU,_GE [£_IGLISH_

CAPTIOr_ [O_FI

Zl _O RETURN

,_ TI_E SEarCH

INDEXSEAr_C_I

lecher you, des red _iime

Press the Arrow • or • button until I _'- ,_o_

your desired time appears. /

(Example: "2:50" stands for 2 hours/

50 minutes) /

If you wish to cancel the Time

Search at this point, press the SETUP button on the

remote control.

,4 IBeginTime Sesr¢_

By pressing the Arrow _1 or _ button, the

TV/DVD/VHS will rewind or fast forward to the

specified point.

The time counts down as the searching progresses.

When 0:00 is reached, the tape will start playback

automatically.

TO (;½NC£iL ?HE "H,WE $EAR( H ¢_t _/_i,_

Press the STOP/EJECT button on the TV/DVD/VHS

or the remote control. This will delete the selected

time.

- 28 - EN

IC29

TD530XA/601XB 01-36 02.8.26 11:44 AM Page 29

This feature provides a method of indexing the start-

ing point so that it can be easily returned to in either

fast forward or rewind mode.

• The index mark will be made automatically when

the REC button is pressed. It will also be marked at

the starting point of Timer recording and OTR.

• The index mark will not be recorded if the PAUSE

button is pressed and released during recording.

• The time gap between making the index marks on

the tape should be greater than 1 minute for SP

recording, 2 minutes for LP recording and 3 min-

utes for SLP recording.

• In some cases, the index mark at the beginning of

video tape cannot be detected.

Example: You are watching program number 4 and

want to fast forward to program number 7. You

must skip three programs.

CURRENT PLAYBACK PROGRAM

I

Beginning of tape _' End of tape

r4 3 2 1 1 2 3

INDEX MARK

Press the SETUP button on the

remote control.

Press the Arrow • or • button to

point to "INDEX SEARCH". Then,

press the Arrow I_button

SelJec_I!NDEX SEAIF:tCH"

1WVCR SETUP 1

TIME pRO{aRAM MING

SETT NG CLOCK

CHANNEL SET UP

usERs SET UP

VCHIP S£T UP

LANGUAGE [ENGLI5 N

CAPTION _FF]

ZERO nET nN

TIME SEARCH

INDE× 8£ARCH

2IEnter your desi,ed nu,rfll'_or

Press file Arrow • or • button until( ,_D_ ,,o.

the number of programs that you |

want to skip appears. /

(Example: ' 03 for 3 programs) ]

• The Index Search mode will be

canceled if the procedures are not activated in 30

seconds.

3IBe9 _'_ndex Search

Press the Arrow _1 or I_ button. The TV/DVD/VHS

begins rewinding or fast forwarding to the beginning

of desired program.

NOTE: Every time an index signal is skipped, the

number in the program indicator decreases by one.

,4 ARe, Ihr_dexSea, oh

When the preset program is reached, the

TV/DVD/VHS will start playback automatically:

• A video cassette nmst be inserted in the

TV/DVD/VHS for this function to work.

• The number of Index Searches can be set up to 20.

• This function will not operale in lhe recording mode

• When you want to cancel the Index Search while

in progress, press the STOP button.

SPECIAL FEATURES

This shows the elapsed recording or playback time in

hours, minutes, and seconds. (The displayed time will

not change on a blank tape or blank portions on the

tape.)The .... indication will appear when the tape has

rewound further than "0:00:00" on the tape countel:

•When the end of a tape is reached during record-

ing, playback, or fast-forward, the tape will auto-

matically rewind to the beginning. After rewinding

finishes, the TV/DVD/VHS will eject the tape and

turn itself to off.

• This function is operative when Repeat Play is set

to the [OFF] position.

• The tape will not auto-rewind during timer record-

ing or One Touch Recording.

- 29 - EN

IC29

TD530XA/601XB 01-36 02.8.26 11:44 AM Page 30

Make sure ...

•TV/DVD/VHS power must be turned on.

• Insert a cassette tape with its erase prevention tab in place. (If necessary; rewind or fast forward the tape to

the point at which you want to begin recording.)

NOTES:

• This unit will ONLY record and view the same channel.

• This unit cannot record the contents from the built-in DVD.

You can ONLY watch the same TV program th_ is

being recorded.

SeHect the cha_'_÷H to Ibe ,ecorded

Press the number buttons on the !

remote control or the CHANNEL |

/

• or • button. |

!

Remember: if the TV/DVD/VHS is |

/

connected to a cable box or satellite L

box, the TV/DVD/VHS nmst be on CH3 or CH4,

then the channel to be recorded must be selected on

the cable box or satellite box.

2Seeet the Sap÷ s_t_÷_d

Press the SPEED button to select

the desired tape speed (SP/SLP).

Press the PAUSE button to tem-

porarily stop recording. / .....

Press the PAUSE or RECORD but- /

ton to resume recording.

NOTES: sP

•After five minutes, the

TV/DVD/VHS will automatically switch to the

Recording mode to prevent tape damage.

• If "CLOSED CAPTION (ON)" is selected, the On-

Screen Display will appear for 5 seconds, then dis-

appeal_

Press the RECORD button.

,4 Stop reco,d ,'_

Press the STOP button when recording is completed.

- 30 - EN

IC29

TD530XA/601XB 01-36 02.9.4 11:20 AM Page 31

This function enables you to set a recording length

simply by pressing the REC!OTR button on the

TViDVDiVHS,

Make sure ...

• TViDVD/VHS power must be talned on,

• Insert a cassette tape with its erase prevention tab

in place, (If necessary, rewind or fast fnrward the

tape to the point at which you want to begin

recording.)

NOTES:

• This function CANNOT be done from the remole

control,

• Recording starts immedialely when the RECiOTR

button is pressed.

• When the REC/OTR button is pressed 18 times, the

TV/DVDiVHS returns to the Normal Recording

mode.

• To stop the OTR opera/ion, press the STOP button

on the TViDVDiVHS or on the remote control.

• To show the remaining time, press the DISPLAY

button on the remole control so thai "OTR"

appears on the TV screen. (It will show up momen-

tarily then disappear,)

• Recording stops when 0:00 is reached.

• Please note thai in the SLP mode maximum record-

ing time, assuming the tape is started at the begin+

ning, is 8 hours using T-160 (or 6 houn9 using T-

120).

• If the tape runs out before the end time, the

TV/DVD/VHS will switch to the Stop mode imme-

dia/ely, ejects the tape and turns itself off,

_ 9®k_n be cll_a{_+_el<_ be recorded

Press the number buttons on the remote control or

the CHANNEL • or • button,

Remember: If the TV/DVDiVHS is connected to a

cable box or satellite box, the TViDVD/VHS mast be

on CH3 or CH4, then the channel to be recorded is

selected on the cable box or sa/ellite box.

29ebc [e ape spe÷d

Press lhe SPEED button to select the desired tape

speed (SPi SLP),

+++o+I 1.........

Press the REC/OTR button on the

TViDVDiVHS as many times as

needed. The recording length will

be determined by the number of +P

times you press the REC/OTR button, Each addition-

al push will increase the recording time by 30 min-

utes. It is set up to 8 hours,

Push(es)

1 push

2 pushes

3 pushes

4,

17 pushes

Display Recording length

normal recording)

0:30 30 minutes

1:00 60 minutes

4, 4,

8:00 480 minutes

You can make copies of video tapes made by friends

or relatives for your enjoyment.

WARNING: Unauthorized recordings of

copyrighted video tapes may be an

infringement of copyright laws,

Connect your TViDVDiVHS and a Source (Playing)

VCR using the fnllowing diagram,

[The TV/DVD/VHS] [Fig.8]

#_ [Ex: Source (playing)

@L@

adapter cable _

l)lnsert a pre-recorded video cassetle into the Source

(Playing) VCR or camcorder.

2)Insert a blank video cassetle, or one you want to

record over, into the TViDVD!VHS's cassetle com-

partment.

3)Press the SPEED button on remote control fnr the

TV/DVD/VHS to select the desired recording

speed (SP/SLP),

4)Press the CHANNEL • or • button on the

TV/DVD/VHS until "AUX" appears on the screen,

5)Press the RECORD button on the TV/DVD/VHS.

6) Begin playback of the tape in the source (Playing)

VCR or camcorder,

NOTE: For best results during copying, use the

TV/DVD/VHS's front panel controls whenever pos-

sible, The remole control might affect the source

(Playing) VCR's playback operation,

- 31 - EN

1c29

TD530XA/601XB 01-36 02.8.26 11:44 AM Page 32

You may set the TV/DVD/VHS to start and end a

recording while you are away. You can set 8 pro-

grams to record on specific days, daily or weekly

within a 1 year period.

In the example below, the titrwr is being set to record:

DATE: July 6th, 2001

SETTING TIME: from 7:30PM to 8:50PM

CHANNEL: CH61

TAPE SPEED: SP

Make sure ...

•If a cable box or satellite box is connected with the

TV/DVD/VHS you will be limited to record only

one channel. And the channel selector on the

TV/DVD/VHS nmst be selected to the output

channel of the boxes CH 3 or CH 4 and then the

actual channel to be recorded must be selected on

the boxes.

• Clock must be set to the correct time and date

before setting the timer.

• TV/DVD/VHS power must be turn on to program

it.

• Insert a cassette tape with its erase prevention tab

in place. (ff necessary, rewind or fast forward the

tape to the point at which you want to begin

recording.)

• The channel you want to record is properly set in

advance. (See page 16.)

Avoid over lap of programs ...

There is a chance that a program will not be record-

ed. when programs overlap;

• The program with an earlier start has priority.

• Once the earliest program finishes, the overlapping

programs will begin recording in sequence.

• The illustration below demonstrates the sequence

of recordings.

Program 1 10:00AM - lh00AM

Program 2 9:00AM - 10:00AM

Program 3 9:30AM - 12:00PM

ROCoi_dlPg Sequo_o

i

Pro0_am 1 n

10:00AM-I 1:00AM I

Program 2

9:00AM-10:00AM I

P,og+3 : I i I I

9:30AM-12:00pM ,

9_0AM 10:00AM 11:06AM 12:66PM

_RocO_dlngperlod ls SHADED

Seec_ +IIIU_H!!IB PlROGRAII_MHNG'

Press the SETUP button on the remote control.

Confirm "TIMER PROGRAMMING" is pointed by

pressing the Arrow • button. And press the Arrow I_

button. (_o_ +_u_

• /'_ TIldE pROG AIdMING

If you have not yet set the clock, _,+2_7;_2f_

"MANUAL CLOCK SET" / _$_Yg#;_$

LANGUAGE [ENGLISH

• • 3 OAPTIO[_ [OFF]

appears. If so, follow stops [+] to / ..........

[8] on page 17. Then set the timer _ ,_g-_a_",

recording.

select flae desired program position.

Then, press the Arrow I_ button. :7: ::'

(Example: CH61)

Then, press the Arrow I_ button.

Remember: If the TV/DVD/VHS is connected to a

cable box or satellite box, the TV/DVD/VHS must be

on CH3 or CH4, then the channel to be recorded is

selected on the cable box or satellite box.

,4 Sellee{ or_ee, every day or .,_o_,,_M._

weekHy ,÷eo,d ir_

For once recording :

Press the Arrow • (up) button

until the desired date appears.

(Example: "7/06" for July 6th). Then, press the

Arrow I_ button.

For every day recording : To record a TV program

at the same time on the same chan- r,_R+,_O_R,,,*_N_

nel every day. (Example: Monday ............

through Sunday)

Press the Arrow • (down) button

until "EVRY DAY" appears.

Then, press the Arrow I_ button.

For weekly recording : To regord a 7V program at

the same time on the sanw _hannel ,c _,_+,_O_R,,,*_N_"

eve 0week. (Example: eve 0 ] ............

Monday) ] :

Press flae Arrow • (down) button/ :: 8: ::::::

until "EVRY and your desired [ :: :::: ::7::

day of flae week appear together. Then, press the

Arrow I_ button.

- 32 - EN

IC29

TD530XA/601XB 01-36 02.8.26 11:44 AM Page 33

5Set Ibeg rmi,'_g Ibou,

Press the Arrow • or •button until

the desired hour appears.

(Example: " 7, PM" for 7:30PM)

Then, press the Arrow I1_ button.

Set II'se_ _wd,'_g ,}_t'_u_@

Press the Arrow • or • button until

the desired minute appears.

(Example: "30" for 7:30PM)

Then, press the Arrow I1_ button.

Set ÷r_@Ihou,'

Press the Arrow • or • button until

the desired hour appears.

(Example: "8, PM" for 8:50PM)

Then, press the Arrow I_ button.

8Set end m t',uU:e

Press the Arrow • or • button

until the desired minute appears.

(Example: "50" for 8:80PM)

Then, press the Arrow I_ button.

9 Set the ts_e speed

Press the Arrow • or • button

until the desired tape speed

appears. (Example: SP)

1() Fnsh settirtg the progh_m

Press the Arrow I_ or <1 button. The program is now

completed.

• To set another program, repeat steps [21 to [10].

• Press the SETUP button on the remote control to

return to original mode.

_ Set he tiim÷r

Press the POWEP, button to set automatic timer

recording. The TIMER REC indicator lights up.

• You must turn off the TV/DVD/VHS to activate

automatic timer recording.

If power is not turned off and you continue watch-

ing TV, "TIMER REC STANDBY" starts flashing

on the TV screen 2 minutes before the programmed

start time.

To shift the time schedule of an automatic timer

recording.

l)Press the POWER button.

2)Repeat step [1] on page 32.

3)Press the RECORD button and select the desired

program using the Arrow • or • button.

4)Press the RECORD button again.

Each additional push will shift forward the

begin/end time for recording by 10 minutes. When

the recording is already in progress, each additional

push will shift forward the end time only. If you

want to cancel while setting, press the PAUSE but-

ton on the remote control. The recording time

returns to the original time.

NOTE: When you shift forward the time schedule

during recording, the recording speed will automati-

cally be set to the SLP mode.

5)Press the Arrow _ or <1 button to exit the setting

menu. Then press the SETUP button on the remote

control to return to original mode.

70 CO]?RE_ 'F A H_,_O( f{'AM

•While setting a program; press the Arrow <1 but-

ton to go back one step and enter the correct num-

bers using the Arrow • or • button.

•After setting a program;

l)Press the POWER button.

2)Repeat steps [1] - [2] on page 32.

3)Press the Arrow I_ button (or press the Arrow <1

button to go back one step) until the part you

want to correct begins flashing, then make the

changes pressing the Arrow • or • button.

4)Press the POWER button to set automatic timer

recording.

ZV?CAN(;Ts'L AN A UZ'OMAZ7_: ZT,WER

R_'ECOIH _Y?d(

•After setting a program;

l)Press the POWER button.

2)Repeat steps [1] _ [2] on page 32 and select a

program you want to cancel.

3)Press the C.RESET button.

4)Press the SETUP button on the remote control to

return to TV mode.

•While recording is in progress;

l)Press POWER button.

2)Press the STOP/EJECT button on the

TV/DVD/VHS.

-33- EN

IC29

TD530XA/601XB 01-36 02.8.26 11:44 AM Page 34

7'0 (.HL'( £ 7 H[_ BE( L%7£ND 77,WE

l)Press the POWER button so that the REC indicator

goes of['.

2)Press the SETUP button on the remote control.

3)Confirm "TIMER PROGRAMMING" is pointed.

4)Press the Arrow I_ button. The details of programs

appear on the TV screen.

5)Press the SETUP button on the remote control to

return to TV mode.

•Make sure the channel you want to record is prop-

erly set in advance.

• It is not necessary to press the RECORD button for

timer recording.

• Recording begins automatically at the Start time.

• If you are recording using a Timer mode, you may

not operate the unit manually.

• The erase-prevention tab on the cassette must be in

place (or you must put tape over the hole).

• if the erase-prevention tab is removed, the cassette

will be ejected when the POWER button is pressed

to off.

• if the tape runs out before the end time, the

TV/DVD/VHS will switch to the Stop mode imme-

diately, and the tape will be ejected.

With this feature, after timer recording is finished,

the beginning of the recorded program(s) can be

searched for automatically.

S÷l@@_L/S£RS SE_ L_I!_'

Press the SETUP button on the

remote control.

Press the Arrow • or • button to

point to "USER'S SET UP".

Then, press the Arrow _ button.

TV/VCR SETUP 1

rIMER PROGRAMMING

S£_ING CLOCK

O_NNEL SeT UP

USER'S SET UP

V 0H!_' SET UP

LA_IGUS_GEf EriC, LIBelI

OA_TION [OFFI

ZERO RETURN

riME SEAROH

Ir_OE× Se4RCH

Press the Arrow I_ or _1 button

until [ON] appears.

2Self ALI'IO RETtJRIk! '/<o [ON[_

point to "AUTO RETURN". ....... o_

REPEAT PLAY fcFEr

_UTO R£TURN iON

VCR aUOIO {Hg,

rV AUOO fSrER£OI

3A_{o Ii:::leltumwHIibegi,'_

When all the timer recordings are completed, the

TV/DVD/VHS will rewind to the beginning of the

recorded program(s).

NOTE:

• If you press the POWER button while tape is

rewinding, the Auto Return will stop.

,4 Watch the _reco,ded progra,s

Press the PLAY button.

7'0 (.½ NC£_L 7HE A{/7'0 £ET'URN

MODE

Repeat steps [1] and [2], select [O_'] using the

Arrow _ or _1 button.

If there is a power failure of any kind, the unit

will retain its memory for this feature.

The Sleep Timer function turns off the

TV/DVD/VHS without using the POWER button

after a desired period of time.

NOTE:

•This function does not operate during Recording

mode.

Sellect SLII!!EP _11_311!!R '

Press the SLEEP button on the remote control until

"SLEEP TIMER" appears.

2Set sbep _ir_e

Press the SLEEP button until your

desired sleep time appears.

Each additional push will increase

the time by 30 minutes up to 120

minutes. _LEEP 120 MIN_JTE_

After 5 seconds, exit the Sleep

Timer setting.

7'0 CXNCk'L ?HE NL££P 77ME£

Press the SLEEP button on the remote control until

"SLEEP TIMER" appears. Press the SLEEP button

until "SLEEP 0 MINUTES" appears.

- 34 - EN

IC29

TD530XA/601XB 01-36 02.8.26 11:44 AM Page 35

ON SCREEN DISPLAY

To check the Counter, Clock and Channel number on the TV screen, press the DISPLAY button on the remote

control. Each time you press the DISPLAY button on the remote control, the TV screen will change as follows:

Wh_.'_ t'h_, Ch*,vcJd C?gpdo_ rood<: iv OII:

•Counter mode: Alter 5 seconds, only the counter

remains. To clear it, press the DISPLAY button.

• Clock mode: After 5 seconds, only the clock and

the channel number remain. To clear them, press

the DISPLAY button.

Wh_m Ih¢.[.?o,ved (?gpghm retch' i_ ON:

• The On Screen Display disappear alter 5 seconds.

• This is true even if the MUTE button is pressed, or

the PAUSE button is pressed while recording.

OFF mode

r

T

Counter mode Clock mode

, After5 seconds -,_ , After5 seconds

_ 4opr_

c_

L_OdN _ 1234

Counter Clock& Channel

remains remains

OFF mode Clock/Counter mode

5:4o PM

cHa

COUNT 012_4

CABLE CHANNEL DES:GNAT:ONS

If you subscribe to cable TV, the channels are displayed as 1-125. Cable companies often designate channels

with letters or letter-number combinations. Please check with your local cable company. The following is a

chart of common cable channel designations.

CATVchannel 5A 2 3 4 5 6 7 8 9 10 11 12 13 A B

TVDisplay 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15

CATVchannel C D E F G H I d K L M N O P Q

TVDisplay 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30

CATVchannel R S T U V W W+l W+2 W+3 W+4 W+5 W+6 W+7 W+8 W+9

TVDisplay 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45

CATVchannelW+10 W+11 W+12 W+t3 W+14 W+t5 W+16 W+t7 W+18 W+19 W+20 W+21 W+22 W+23 W+24

TVDisplay 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60

CATVchannelW+25 W+26 W+27 W+28 W+29 W+30 W+31 W+32 W+33 W+34 W+35 W+36 W+37 W+38 W+39

TVDisplay 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75

CATVchannelW+40 W+41 W+42 W+43 W+44 W+45 W+46 W+47 W+48 W+49 W+50 W+51 W+52 W+53 W+54

TVDisplay 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90

CATVchannelW+55 W+56 W+57 W+58 A-5 A-4 A-3 A-2 A-1 W+59 W+60 W+61 W+62 W+63 W+64

TVDisplay 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105

CATVchannelW+65 W+66 W+67 W+68 W+69 W+70 W+71 W+72 W+73 W+74 W+75 W+76 W+77 W+78 W+79

TVDisplay 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120

CATVchannelW+80 W+81 W+82 W+83 W+84

TVDisplay 121 122 123 124 125

- 35 - EN

IC29

TD530XA/601XB 36-55 02.8.26 11:48 AM Page 36

A[}()UT THE DIS ,_S

The following discs can be played back on this DVD

player.

!glaxinluin

Disc Type Logo Contents Disc Size Playback Time

Applox. 4 h

12 cm

(single sided)

Approx. 8 h

Sound (double sided)

DVD and

Video Pictures __slngle

A_prox. 80min

sided)

8 cnl A_ rox. 16X/min

l_?uble sided)

12 cm 74 rain

Audio [_ Sound

CD _Qn_. _ 8 cm

(singles) 20 rain

This player conforms to the NTSC color system. You can-

not play discs recorded in other color systems such as

PAL or SECAM.

• Some discs include region codes as shown below.

• The number inside the symbol refers to a region of the

world, and a disc encoded in a specific region format

can only be played back on DVD players with the same

region code.

The following discs cannot be played back on this

DVD player.

•DVD with region codes other than 1 or ALL.

•DVD-ROM

•DVD-RAM (Never play back, otherwise

malfunction may result.)

•CD-ROM

,VSD

•CDV (Only plays back the audio part.)

•CD-G (Only plays back the sound.)

•CD-R/CD-RW

(Only plays back the discs which audio CD and

MP3 is recorded.)

oCD-I

(Never play back, otherwise malfunction may

result.)

•SACD

•Photo CD

(Never play back, otherwise malfunction may

result.)

Any other discs without compatibility indications

[DVDI

Data on a DVD is divided into sections called "titles", and

then into subsections called "chapters", each of which is

given a title or chapter number. Playback conditions are

preset on some DVD video discs, and these playback con-

ditions take priority over user operations on this player. [f

a function you selected do not run as desired, refer to the

manual accompanying the disc.

[AUDIO CD]

Data on an audio CD is divided into sections called

"tracks", each of which is given a track number.

Example

Track Ii_Track 2 ITrack 3d Track 4 LTrack 5 LTrack 6

I_ _l" "l _ _l" _l" _l"

[MP3]

Data on aMP3 is divided into sections called "albums",

and then into subsections called "tracks", each of which is

given an album or track number.

Example

Album l _l_ Album 2 _

36 EN

01All

TD530XA/601XB 36-55 02.8.26 11:48 AM Page 37

PI AYING A DIS(;

Turn on the power of the TV, amplifier and any other

components which m'e connected to the DVD player.

(Change the input system to suit the DVD player, and

check that the snund volume is correct.)

•The power will turn om

2Press t}÷ OPEb_,'OLOSEbu{ton_

• The disc loading tray will open.

3Pilate a diso i_to the tra%

• Make sure tile disc is sitting properly in tile correct

recess, with the label side up.

• If a disc is dirty oi" has scratches, the pictures may

appear distorted and the playback operation may

stop. In such cases, clean the disc and unplug the

power cord and then plug it again before resuming

playback.

• With DVDs that use some titles for playback

program signals, playback may start from the second

fl0e, or it may skip these titles.

• Dm'ing the playback of two layered disc, pictures

may stop for a moment. Tlris happens when the I st

layer switches to the 2nd laym: This is not a mal-

function.

Some DVDs contain their own menus, such as a

guidance menu wlrich describes the contents of the

disc or a selection menu for sound, language and other

customized settings.

P_essle ©ngO_IEIUU_u_tot_

• The DVD menu will appem:

2t;;÷lecl/,_e desired ti/e_

4P_÷sstiePLAY _ulk2n.

•Press the arrow bunons (Y/A/IP'/4) to change the

setting, and then press the ENTER bunon.

3Playback w stacL from _'_eseleced tile.

• The tray will close automatically, and playback will

then start from the first chapter or track nf the disc.

You need to press the PLAY button only when the

tray has been dosed by pressing the OPEN/CLOSE

button.

•When you playback the DVD which a title menu is

recorded, itmay appear on tile screem In this case,

ret_r to "USING THE TITLE MENU".

P_ess {_'_e8TOP butto_ {o s_op _fla_

With a DVD containing a title menu, you can select

desired floes from tile menu.

• The title menu will appem:

2S÷locl/,_ d_Nred ti/e_

Notes

•If you press the OPEN/CLOSE button in the

TV/VCR mode or power-off, the DVD tray will

open.

• If you press the DVD side PLAY button in the

TV/VCR mode or power off, you can start the DVD

playback.

• A "prnhibited icon'' may appear at

the top-right on the TV screen

during operation, warning that a

prohibited nperation has been

encountered by the DVD player

nr tile disc.

•Press the arrow buttons (V/A/_/4) to change the

setting, and then press the ENTER bunon.

CA !,I I:Y( UBA MI_'NU K('I('I:'ICN

DL'II'I:YG I_IA YBA ('I<

For DVDs

• Press the DISC MENU button to call up the DVD

n]enu.

• Press the TITLE button to call up the title menu.

Note

•Contents of menus and corresponding menu

nperations may vary between discs. Ret_r to the

manual accompanying the disc for details.

37 EN

01All

TD530XA/601XB 36-55 02.8.26 11:48 AM Page 38

Pes5 RliseIPAUSlI!!Ibuttot'_ d_ ,ilr_@p syback_

IPess _'_e 8TOP Ibut/@,'l dur t'_g pllaybsek • Playback will pause, with sound

• Playback will stop, and then muted.

appear the resuming message at

the centm_

2IPres5 the PLAY buboes, IPHaybaclk w s{a_t

I,om _he po_t wh(-,_e _'_e _revious _llaybsek

sessiot'_ _as s_qsped

' I

2Press i've IPLAY Ibutto,_ {o iresu,_ e _l,ayl,:_aek

Notes

• Resuming playback is not available with some discs.

• It is possible to switch from the DVD play mode to

the TV mode. Even if the power is turned off', the

resume function enables to playback on from the

previously interrupted point. But note that the

Marker commands are not saved.

• The resume function can be reset by pressing the STOP

bu/lon twice or by opening lhe disc loading tray.

( ,: c_< A 3 )

> >_ei)}, ;_g ))ec (/> r?>ie > e h_

E3 3

IP,ess tBe IP_LISEiSTH.L Ibu_tor, wbe plJay_

back s paused

• The next picture frame is dis-

played with sound muted each

time the button is pressed.

IPress amid l_olldtlbe >11,,,,oor -_,q Ib_,4Io,sio,'

moll@_:'_a_s1 second dull IW_ plJaybscL

• For DVDs, pressing the FWD I_1_ or P.EV _ but-

ton cycles the playback speed in four steps. In case

of DVDs, the sound will mute.

• For audio CDs, the playback speed is xl6 fixed.

v

v

v

v

2IPress ffe PLAY but{on _o re_urn {o ir_ormsl

_ Iiaylbaek st#÷ed 38

' I

2Press i've IPLAY Ibutto,? {o iresu,_ e _l,ayl,:_aek

EN

OIAII

TD530XA/601XB 36-55 02.8.26 11:48 AM Page 39

seeo,_d _he psybaek i U_a_sed {Sour,d

emaiH'_smuted )

•Slow motion mode willbe activated.

• Pressing and holding the _1_ button for more than

1 second cycles tile playback speed in three steps.

Select an appropriate speed while ret?rring to the

speed indication on tile screen.

2P, ess _he PLAY but_ot'__o letur,'__o t_ormal

_ aybaek speed.

Notes

• Slow playback is not available with audio CDs.

• The reverse of slow playback is not available.

• If you press the m.-I_ button and release immediate-

ly during playback is paused or slow, it returns to

normal playback.

IP,÷SS tt°_e SEAIBOIq H_90©H!!but_(_r_srl,d H_e,s

_ess the _ume, c Ibutto,ss _0 selec s _le o

• Perform the title search and the

chapter search after setting them on

the same screen at the same time

Changeover by &/V buttons.

• During playback,press the numeric buttons to select a

Chapter. The Chapter will be located and playback will

start.

• When playback is stopped, press the numeric buttons to

select a Title The Title will be located and playback

will start.

Notes

• Playback from a desired title or chapter is not avail-

able with some DVDs.

• Some discs which the chapter number isn't dis-

played cannot playback from a desired chapter.

TRICKS WITH THE SKIP BUTTONS (l'ql_, I*!_'t)

If the SKIP button _ is pressed during playback or

while playback is paused, the current chapter will be

skipped and the next chapter will be played. When the

SKIP bulton _ is pressed once, tlae top of the current

chapter will be located for replaying. When the SKIP

bu_ton _ is pressed again within 2-seconds after

playback begins, {he previous chapter will be located.

39

P_ress _h÷ 911!!AII_CH MOt:}IE Ibs_to,s _wee

•Example: 1 hour, 23 minutes and

30 seconds

1-,2--,3-,3--,0

Notes

• In the case of DVD, Time Search in Title is effec-

tive. (But Time Search in Chapter is ineffective.)

• In the case of CD, Time Search in Track is effective.

(But Time Search in the entire disc is ineffective.)

• Playback from a desired time count is not available

with some discs or if the unit is in stop mode.

• If wrong numbers are entered, press the CLEAR

button and re-enter the correct numbers.

• The selec/ed track will be located, and playback will start.

You can also press the SEARCH

MODE button, use the numeric

buttons to enter the track numbe_:

When the track number is entered

in the entry box, playback of the

desired track will start automatically.

TRICKS WITH THE SKIP BUTTONS (_'_, _)

If the SKIP button _ is pressed during playback or

while playback is paused, the current track is

skipped and the next track is played. When the SKIP

button I_1 is pressed once, the top of the cmTent

track is located for replaying. When the SKIP button

is pressed again while Within 2-second

playback, the previous track is located.

EN

01All

TD530XA/601XB 36-55 02.8.26 11:48 AM Page 40

IPess RIi'_eIRII!!IP_X buttor_.

For DVDs

•A single title or chapter is played back repeatedly:

• Pressing the REPEAT button cycles the display on

You can define a section to be played back repeatedly.

Iir_<_st'_e A, IB Ii:{1!!!PleAT bt ttoM'_duti_'_g]p a}'baek,

• The starting point (A) will then be

selected.

the screen as follows.

2IPI!eSStbe A,,B g{ll!!Pll!!_T buttons a¢;_aiill'_a_ be

er_d _}oiiH'_(ll!!i)of the deSil!ed sect or_.

• The selected section will be

played back repeatedly.

For audio CDs

• The whole disc or a single track is played back

repeatedly: 3"lb ex_ AIB ,og_eat p _*yb_ok_ press _'_e AIB

Ii:::lll!!P_X but$ol!_ a!ld set it o OFF,

• Pressing the REPEAT button cycles the display on

the screen through Off', Track and All.

Notes

•With DVDs, tile A-B repeat section can be set only

within the current title.

• With audio CDs, the A-B repeat section can be set

within the current track.

• A-B repeat is not available with some scenes in

DVD.

• To cancel the A point which was set, press RETURN

button.

• A-B repeat playback is not function during title,

chapter, track or all repeat playback had set.

Notes

• Repeat playback is not available with some discs.

• The REPEAT setting will be cleared when moving

to other title, chapter or track.

• Repeat playback is not function during A-B repeat

playback.

4O EN

01All

TD530XA/601XB 36-55 02.8.26 11:48 AM Page 41

You can define the part to be called back.

Pile_ the SHAII_CH HcgOIlIIEbutton _li_ree

I n'_esdurng _ Iisybaek

Set the marker

•Using the cursor ("9/1_) button, position the cursor

on to the marker number shown as "NOT SET".

Press the ENTER button when the screen to be

reviewed appears. The maned

time will be displayed. Up to 5

points can be marked.

Call back the marker

•Using the cursor ("9/_) button, position the cursor

on to the marker number to be called back and press

the ENTER button.

Clear the marker

•Using the cursor ("9/_) button, position the cursor

on to the marker number to be cleared and press the

CLEAR button.

To clem" all markers, place the cursor on "AC" (All

clear markers) and press the ENTER button.

2II_neSs_he Sll AIl_OIq I_gOI!)ll!!Iba_Oli'_Oil _'ue

B ]URN button to ex_ _'_e dispHay.

P_ess llPo 11710©Ebutor in stop f '_ode+

• The program screen will appear.

2PlIII Ive l"_Umel'ioblttOlSS _o el'_er_'_e

I 1......................

• 50 programs can be displayed at .................

once on the screen+ Press "V" to ,_ _0s_,_= _ 0 0_

go to the next page. _,_=,_ .....

3Rires be PLAY button.

• Playback will start in the programmed order:

• While the program is being played back, the STOP

button works as follows.

• Press the STOP button once and then the PLAY

button again, playback will restart from the point

where the STOP button was pressed. (Program

continued)

• Press the STOP button twice and then the PLAY but-

ton again, playback will restart from the track in the

usual way. (Program cleared)

Notes

• Adding programs is not possible during program

playback. You must stop the cm'rent playback before

such operations can be carried out.

• Press the CLEAR button to cancel a program. The

most recently entered program will then be deleted.

• Up to 99 programs can be entered.

• Playback from a desired track and random playback

are not available during program playback.

• Program settings are cleared when the power is

turned off or the disc loading tray is opened.

• Press the MODE button to check the programmed

setting.

41 EN

01All

TD530XA/601XB 36-55 02.8.26 11:48 AM Page 42

IPess _h_e_$10DEIb__to,'_ie s_@9mode

•The program setting menu screen will appear.

2IPres R'_e_d10© Ibut_o,1 again.

3IPr@ss g,e IPILAY Ii'xufl{ms. Ii:::lst',do,_ _haybsck

Note

• Program playback is not available during random

playback.

Images can be enlarged four times on the screen to

your taste.

IPres RIi'_eZOO_dl Ibu[b,s dur tlig 911sybsek

• An image will be enlarged at the center of the

screen.

• Press the ZOOM button again, and the image will be

back to the previous size.

2 Whel °, H"e Sial'Sot (M_/'_ 1_) b_atfOll'l s

plleSsed @Lriil"_f_ ZOOI!_ r' B_Sy f_l@ _al_t _O be

zoo_r,ed moves

• The zooming frame can be moved from the center

.... 4 steps to the right. 4 steps to the left. 4 steps to

the top. 4 steps to the bottom when 2 time zooming.

The frames will move 6 steps when 4 time zooming.

• Current position will be displayed on the right-bot-

tom of the screen. Press the ENTER button, and the

display disappears.

c_o

(5o

Note

*Zooming function does not work while disc menu is

shown.

1irsed atr MP3 fii eqecorded diiso.

•The MP3 menu screen shows up.

• Folders are referred to as

"ALBUMS" and files are

ret_rred to as "TRACKS".

• "+" appears at the beginning

of the album name.

• If all the TRACKS cannot be displayed at once on

the screen, "V" appears to go to the next page. If

there is a previous page, "&" appears on-screen. On

the left of "V", the current page and the total num-

ber of pages are displayed.

*The player can recognize 255 ALBUMS and

TRACKS altogether.

2Usi_¢? _li'_¢eAi_ b._tto_'_ , seles s AII.BLJ/_3or

_11i:::IAOKSto be 9syed

[When TRACKS are selectedl I

The TRACKS will be played

in the order of selection.

[When an ALBUM is selectedl ....

Press the _ button. The TRACK

selection screen shows up. Using

the &/V buttons, select TRACKS

to be played.

•Choose "FIRST PLAY", and the ALBUMS and

TRACKS will be played from the beginning of the

disc.

• Press the TITLE button, and the top hierarchy will

be called back.

• ALBUMS can be played up to the 8th laierarchy.

42 EN

01All

TD530XA/601XB 36-55 02.8.26 11:48 AM Page 43

3IP,e_<¢IbePLAY li'_,utto_

•Playback will start.

4_o stop the pay, press _li'_eStOP but_ot'_

The information on an MP3 disc in play can be

checked.

Pms_ the DISIPLAY buttor_ duri_'_ }'_[a_back_

• The TP, ACK cm'rently in play '_1

will be highlighted.

Notes

• During play, a desired track can be directly searched.

,lust type in the TRACK number with the numerical

buttons.

• If the typed TRACK number is not available, the

"disable" symbol appears and the direct search mode

is cancelled.

•Playback cannot be started from a desired time

count.

Press'_t'_e 1_40DEbflo_ in SI°OP mode.

• The program screen shows up.

2IPlress the D SPLAY buttor_ agaill'_

•The ALBUM name being displayed will be replaced

by the elapsed time of the track.

• [_will be displayed when the repeat play has been

selected.

[_A : Album (folder) repeat

[_T : Track repeat I .......

[_D : Disc repeat TR,_OK11

3IPiless the IDISPLAY buRo_ agai,% and the diiso.

_ay sc eel!sdiisalispeal!s

PM'essthe SEARCH IIV_O©Ebutto_'_ dUll}_'_}pIayo

back.

• The SEARCH menu shows up.

• A track currently in play or under

RESUME ON will be highlight-

ed. In the case of RESUME OFli

the first track of the disc will be

highlighted.

• Press the RETURN button, and

the SEARCH menu disappears.

2US I_ll{_ _e NiW IbZtolr_s_ seect a/,ll'd_clk_O IiX

p ayed.°fbel!S pHess _'_@PLAY b_t_ot'_ to star

_ ay[l!'i@

43

• The programmed track is displayed in the right-hand

screen.

• When the _1 button is pressed, the album stop in the

current left-hand screen will be highlighted.

• If the entire program cannot be displayed at once on

the screen, "_" appears to go to the next page.

_¢e P AZ II'}uttUlF/I

• Programmed play starts.

Notes

• Press the CLEAR button, and the last-programmed

entry will be deleted.

• Press the RETURN button, and the STOP screen

will show up with the program contents in memory.

• The program setting will be cancelled when the

power is turned off or the disc tray is opened.

EN

01All

TD530XA/601XB 36-55 02.8.26 11:48 AM Page 44

li tess the_#?OI!}Ebutto_ twHees STOPmode

• The random setting menu screen will appear.

.... m .... m

2IPres _'_eIP _ Ibu_to,s

• Random play starts.

_'_ Both right and Jeff channels

are active {stereo)

The DVD player has a function which allows you to

select the desired audio language and sound mode.

For DVDs

IPII@SSH'_@AUDliO butto_ dur rio p syback, arid {Ib@rl_

F}ress {hie AU©I!O but{or_ {o snlee_ {he des rnd audiio

v

l_ _-_ Only the left channel is active

v

l ] _,_ Only the right channeHs active

• The audio language can be changed if multiple

languages are recorded on the DVD being played.

v

$

Notes

•Pressing the Audio button may not work on some

DVDs with multiple audio languages (e.g. DVDs

which allow audio language setting on the disc

menu). Operation varies between discs, so retEr to

the manual accompanying the disc.

• Current audio language and sound mode will be dis-

played when you press the AUDIO button at first.

• If a desired language is not shown after pressing the

Audio button several times, the disc does not have

an audio source in that language.

• The audio language resets to the one which has been

selected in the setup mode, every time the power is

turned on or discs are replaced. If that language is

not available on a disc, a language defined by the

disc is selected.

Foraudio CDs •The screen display will disappear alter about 5

Ii%es {b_:_AU©IiO IblLt_orl du ii_g p }@ack seconds.

• Pressing the AUDIO button cycles the sound mode • If you use DIGITAL AUDIO OUT jack, the sound

through STEREO, L-CH and R-CH. mode of audio CDs can not be changed.

44 EN

OIAII

TD530XA/601XB 36-55 02.8.26 11:48 AM Page 45

The DVD player has a function which allows you to

select the desired language for subtitles.

IP,es _'i_J SUBTT bu_ _,_r_durihr_g p _@'£_¢k,

a_'Hd _'llelr_ pliers _'1,@ SL_BTtTIi.E IIs.attO,S _O

S÷HeC_ t_÷ desi,ed subt t ÷ Ha,'_guage.

• The subtitle language can be changed if the subtitles

are recorded in multiple languages on the DVD

being played.

• The subtitle language cannot be changed if the

subtitles are recorded in a single language on the

DVD being played.

• It may take time to display the subtitles in the

selected language.

• The screen display will disappear after about 5

seconds.

• When "SUBTITLE NOT AVAILABLE" appears

onscreen, it means no subtitle is recorded on the

scene.

The DVD player has a function which allows you to

select tile desired camera angle.

Puess_li"eANG I!!!b ttolr_d rn61[_ayHac .

• If the disc contains sequences recorded fi'om differ-

ent camera angles, the angle icon ( _ ) will appear

at the top-right of tile screen. You can change the

camera angle when the icon appears on the screen.

• The camera angle cannot be changed if tile disc does

not contain sequences recorded fi'om different

camera angles.

rud_be s shov_r_ or'_the sc_ee'.

• Pressing the SUBTITLE button cycles the subtitle

language from SUBTITLE 1, SUBTITLE 2 and all

the languages recorded.

• Cm'rent subtitle mode will be displayed when you

press the SUBTITLE button at first.

• Press tile SUBTITLE button, and then press the cur-

sor (_l/l_) button to set it to on or off.

[¢¢ ....

Notes

• Some discs allow subtitle language setting on the

disc menu. (Operation varies between discs, so ret)r

to the manual accompanying the disc.)

• If the desired language is not shown after pressing

the SUBTITLE button several times, the disc does

not have subtitles in that language.

• The subtitle language resets to the one which has

been selected in the setup mode, every time the

power is turned on or discs are replaced. If that

language is not available on a disc, a language

defined by the disc is selected.

45

Angle 1

V

Angle 2

v

v

Angle 8

Note

• The screen display will disappear after about 5

seconds.

• Current camera angle will be displayed when you

press the ANGLE button at first.

EN

01All

TD530XA/601XB 36-55 02.8.26 11:48 AM Page 46

2Pes,s the[XSPLAY _II_O__ _I

You can check the intbrmation about the disc by

pressing the DISPLAY" button on the remote control.

For DVDs

Pes_ th_ [_[SPLAY buttor_ dudg # syback

CH(Chapter):__ T I_T]ME:

Current chapter number Elapsed time of the

/the number of Iolal current chaplet and

chapter remaining lrne of the

current chapter

AIk

Current track number

/the number of total

tracks¸

• Use flae number button to start from a desired track.

3IPII÷S$_h@,II)HSPLAYbLIi//_Ot'lOr _'1_RF UIBN t:_ll_

tor_ to _xt the _ sp ay,

2IP÷ss the :)SPLAY b_,Ho'_ag_{ ra

Tr(Tile):

Current title number

/the number of Iota[

titles¸

• Use the number button to start from a desired chap-

ter.

3

* BiT RATE indicator wll appear

L0_/ .BITRATEshowsthequantityof

lBITRATEIll! _C information which isrecorded in DVD

_.__ •Layer number(')

L0: Layer 0 is playing back

L1 : Layer 1 is playing back

• Current Repeat setting

_C: Chapter repeat

_T: Title repeat

AD B: A B repeat

_) It appears when the layered disc is playing back

4IPess the IiNSPlLAY I1'>,_1%o,_or the R[ 1LH:@,;b_,F

to'n to ext tli'_÷d s[Aay

For audio CDs

TR(Track):--

Currenttrack number

/thenumberoftotal

tracks,

You can set to make the black parts of the picture

brighter.

• The setup screen w appear. ....

Pess _ e NTEII butloh to set fi o_ ot olt

•ON : It makes the dark parts brighte_:(Default :OFF)

OFF : Original picture which is recorded on tbe disc

will be shown.

• Press the RETURN button to exit the display.

You can enjoy stereophonic sound system when you

playback Dolby Digital and PCM 48kHz sound.

Press the MOF}I but nr_ twice d , r_1 p aybaek_

• The setup screen will appear.__} L

2PreIs the £NT£11 btllttur_ to set it or_ or oH,

ON : TruSurround ON.(Default : OFE)

OFF : TruSurround OILY.

• Press the DISPLAY button or the RETURN button

to exit the display.

- 46 EN

(HAll

TD530XA/601XB 36-55 02.8.26 11:48 AM Page 47

_ ._ ._ _ .._i : i_ _ 1 1

......HANGING THE SEgUP FEMS

Puess the SETUJIPbutton ra SSOIPmode

•The setup screen appears.

at'_d H'_e,sUzess the ENTER buttot'L

3IP,ess the A/T b_tto_s to seect _r_i{em,

at',d /Ji'_e,'_press t_',eIENTIERbuttot'L

AUDIO:

(Voice is played back in selected language.)

I I sETup I

I LANGUAGECONTROLSI

1AUDIO ORIGINAL

/)F;

{( : {

SUBTITLE:

(Subtitles are shown in selected language.)

I setup I

LLA.GUA_EOO.TROLS ]

! _[i{) XiTif _

2 SUBTITLE OFF

[i( /

4Press the _/_ b_t_o n to seeet a des_ed

ter_ a_d ther_ plleSs the EN_EI!_ btllt_O_'_

•If "OTHER" is selected on the AUDIO, SUBTITLE

or DfSC MENU setting screen, the Language Code

setting screen will appem: Press the numeric buttons

to enter the desired language code while referring to

the list on page 51.

f

I SETUP I /

ILmGUAe_CO_mOLS I /

I _ISCMENU I /

I LANGUAGECODE I/

[" " ]/

Pl!e{_{_{be S[!!TUIP ll:3L}{{tOll'}l

• The setup mode win be canceledand the ordinary

screen will appear.

Note

• Be sure to press the SETUP button, or the setting

will not work.

• Language Setting for Audio and Subtitle is not avail-

able with some discs. Then use the Audio and

Subtitle button. Details are on pages 44 and 45.

• You can also select the item by pressing the numbers

which displayed with the item.

• When you change the setup items, press the STOP

button if you are in playback mode.

DISC MENU:

(The disc menu appears in selected language.)

I SEtup I

[ LA.GOA_ECO.TROLS I

;)}[7i4

[ I I; ;)F T

3DISC MENU ORIGINAL

47 EN

01All

TD530XA/601XB 36-55 02.8.26 11:48 AM Page 48

IPr÷ss the S1£_IJP Ibut_or_ir_STOP f '_ode.

•The setup screen will appear. [_

2IPr÷ss }'lle _/_ Ibld_Oll'_S_o seliect DI!SPI!._

a_'_d_llselr Usress _ll'_eIEN_IER Ibutto,s.

ISET-O I

K JffE

2.DISPLAY

[

!

3IPess _lb_÷_/_ Ib__to,_s k_ s<; ec_ a£'_i%em_a!_d

_ll_elrpress/,he I!_[I/TIE_Ibu_to,_.

TV MODE (Defauh : 4:3 LETTER BOX)

4:3 LETTER BOX : Wide screen with black bars on top

and bottom

4:3 PAN & SCAN : Full height picture, trimmed both sides

SET UP ]

[ DISPLAY CONTROLS J

1 W MODE 4:3 LETTERBOX

2 J( C1 J

IK ' _1 ;J

fA

ISET UP I /

IDISPLAY c°NTR°LS I /

TV MODE |

ANGLE ICON (Default : ON)

Display or not display the Angle icon on the screen.

AUTO POWER OFF (Default :ON)

Set or not set to turn off aher the screen saver is started and

no keys are pressed for 30 minutes.

i SET ]

I J

i 140£i i r ?O

_I :L4D[

3 AUTOPOWEROFF ON

BACKGROUND COLOR (Default : BLACK)

Select blue orblack.

i SET UP I

IDISPLAY cONTROLs ]

I[:i

4 i _J 4

,;>

4 BACKGROUND BLACK

4Press 'e _/_ bu_o_s /o se_ec_ a desired

item, arid tle_ press'_tie ENTER buttor_

5Press _li'_eSKT!)P bu/ttorL

• The setup mode will be canceled and the ordinary

screen will appear.

Notes

• Be sure to press the SETUP button, or the setting

will not work.

• You can also choose the item by pressing the num-

bers.

SET UP ]

I DISPLAY CONTROLS l

_:¢

2 ANGLE ICON ON

_[Ir H:

, ? ,[ I

48 EN

(HAll

TD530XA/601XB 36-55 02.8.26 11:48 AM Page 49

P,ess _li_eSETSJPbuto _ SlOP _od÷

"1...... I]

• The setup screen will appear. _-- |

/

2IPile<_slhe A/_ b_.iitl¢_n, to eeet Aitdo a,_d

_'_e,_press_h÷ENTER but{ot'_.

..... ] ]

/

3IPir÷ssthe_/WII ii e , :1< <

_'_e,'_p, ess {he I!/TER but{ot'_.

DRC (Default : OFF)

On : DRC

(Dynamic Range Control)

• This function is for controlling the range of sound

volume. By compressing the range of sound volume,

it is possible not only to suppress the output of loud

sound at night and but also to raise the volume of

low sound.

• This function is effective only for the sound record-

ed by Dolby Digital recording.

SETUP ]

[ Au_,ooo_r_ots 1

[ £ELECT__/_'l SET: _]

E×m _RI CANCEURTff_NI!I

DTS (Default : OFF)

On : Output DTS sound

Set to On when the unit is connected to DTS

Decoder.

S£T 0P I

I_,o0o._o_ I

_,_: i_:17¸

2 fX32_r Db_Vr_i

S£L£C_ _/k'_ SE'r:£XIT_ _ CANCEL

Down Sampling (Default : AUTO)

Set the output for the DVD

recorded in PCM 96kHz (96kHz or 48kHz)

• Press the A/Vbuttons to select an item, and then

press the ENTEP, button.

I S£*rOp MENb I

I_0,oo_,o._ I

I SETUP

I AUDIOCOi_ROLS I I

1 At_TO

2 _SV_

3 9(514_r

SELECT_I_/['1 SET: _ I

EXIT_ _CAHC£L I

• .+

When playing a disc with copyright protection

• If you select 96KHz, copyright protection will be

activated and no sound will come out. If you select

AUTO, sound will be down sampled at 48KHz.

4P_ess _lheSETIJP buttom

• The setup mode will be canceled and the ordinary

screen will appear.

Dolby Digital (default : ON)

On : Output by Dolby Digital

Set to On when the unit is connected to Dolby Digital

Decoder.

SE't Up ]

AUDEO CONTROLS ]

by t_IGI_AL Or1

JSEL£CT_ _'_/_ SET_ _J£XIT_ _ CANCEL:

49 EN

01All

TD530XA/601XB 36-55 02.8.26 11:48 AM Page 50

lire_;_theSI£[(dPIbut_o[_

•The setup screen will appear.

SET UP ]

1 LANGbAG£

S£LEChP'%r'l SET m

_XIT m OANCELE

2IPr÷ss _1i_÷_/W IIs_utto,_$to selec_t PAIRII!![NTAII.,

at'_d_llsetrsUsress _llseI£N fl£B Ibut_o,s.

rl sEroP I

':'/

3pr÷ss tiff! Rilln_?[c bu_torli5 Io @[dell' H_@ 4 _

digiit Hsasswo,d alsd thet'_ _ress ilise £N_£_

b[dtot'_,

• When doing this for the first time, enter any 4 digits.

(except for 4737) That number will be used as the

password from the second time onward.

• By entering the password, you can then change the

control level and password settings.

IsETuP I

IP_"_°°_°_ I

IP_s_wo_0 I

4liSt•s÷ _he A/_ buitl'o _s Io select ar_ tom, and

I SET UP l

I PARENTAL CONTROLS l

I PARENTALLEVEL ALL

i

When "PARENTAL LEVEL" is selected

•Press the &/V buttons to select an item from "ALL"

or 8 to 1and then press the ENTER button.

IPARE_TALCO_TROL$ I

IPARENTALL£V£L I

ALL ]

5 •

S£L£C7 [_/1"] SET

_XIT m C_NCEL: !

When "CHANGE" is selected

•Press the numeric buttons to enter the 4 digits pass-

word. Then press the ENTER button.

IgETUP I

I_sswo_ I

Pess the SE_ /JIis bu to_

*The setup mode will be canceled and the ordinary

screen will appear.

('ONT/_'OL LEVI{L5 _

•ALL

All parental lock is cancelled.

•Level 8

DVD software of any grade (adult/general/children)

can be played back.

•Levels 7 to 2

Only DVD software intended for general use and

children can be played back.

•Level 1

Only DVD software intended for chiMren can be

played back, with those intended for adult and

general use prohibited.

Notes

• With some DVDs, it may be difficult to find if they

are compatible with parental lock. Be sure to check

if the parental lock ftmction operates in the way that

you have set.

• Record the password in case you forget it.

IF }OU _'OA'(;E7 ?H/_ PAS,_ °WOA,D

l) Press the 4, 7, 3, 7 at step 3.

• Password will be cleared and parental level will be

set to ALL.

2) Proceed the above steps 3-5 again.

50 EN

OIAII

TD530XA/601XB 36-55 02.8.26 11:48 AM Page 51

.... _ ..... _ _ _ _ ...... _ _ i_

[,AN(, UA(,h ,_,(}[}E [,IS [

No. Language Country code

1 Afar

2 Abkhazian

3 Afrikaans

4 Amharic

5 Arabic

6 Assamese

7 Aymara

8 Azerbaijani

9 Bashkir

10 Byelorussian

11 Bulgarian

12 Bihari

13 Bislama

14 Bengali;Bangla

15 Tibetan

16 Breton

17 Catalan

18 Corsican

19 Czech

20 Welsh

21 Danish [DAN]

22 German [GER]

23 Bhutani

24 Greek [GRE]

25 English [ENG]

26 Esperanto

27 Spanish [SPA]

28 Estonian

29 Basque

30 Persian

31 Finnish [FIN]

32 Fiji

33 Faroese

34 French [FRE]

35 Frisian

36 Irish IRI]

37 Scots Gae c

38 Galician

39 Guarani

40 Gujarati

41 Hausa

42 Hindi

43 Croatian

44 Hungarian [HUN]

45 Armenian

46 Interlingua

47 Interlingue

48 Inupiak

49 Indonesian

50 Icelandic [ICE]

51 Italian [ITA]

52 Hebrew

53 Japanese

54 Yiddish

55 Japanese [JPN]

56 Georgian

57 Kazakh

58 Greenlandic

59 Cambodian

60 Kannada

61 Korean [KOR

62 Kashm n

63 Kurdish

64 Kirghiz

65 Latin

66 Lingala

67 Laothian

68 Lithuanian

4747

4748

4752

4759

4764

4765

4771

4772

4847

4851

4853

4854

4855

4860

4861

4864

4947

4961

4965

4971

5047

5051

5072

5158

5160

5161

5165

5166

5167

5247

5255

5256

5261

5264

5271

5347

5350

5358

5360

5367

5447

5455

5464

5467

5471

5547

5551

5557

5560

5565

5566

5569

5647

5655

5669

5747

5757

5758

5759

5760

5761

5765

5767

5771

5847

5860

5861

5866

No. Language Country code

69 Latvian;Lettish

70 Malagasy

71 Maon

72 Macedonian

73 Malayalam

74 Mongolian

75 Moldavian

76 Marathi

77 Malay

78 Maltese

79 Burmese

80 Nauru

81 Nepali

82 Dutch [DUT]

83 Norwegian [NOR]

84 Occitan

85 (Afan)Oromo

86 Oriya

87 Pan abi

88 Po sh

89 Pashto;Pushto

90 Portuguese [POR]

91 Quechua

92 Rhaeto-Romance

93 Kirundi

94 Romanian [RUM

95 Russ an RUS

96 Kinyarwanda

97 Sanskrit

98 Sindhi

99 Sangho

100 Serbo-Croatian

101 Singhalese

102 SIovak

103 Slovenian

104 Samoan

105 Shona

106 Somali

107 Albanian

108 Serbian

109 Siswat

11 O Sesotho

111 Sundanese

112 Swedish [SWE]

113 Swahili

114 Tamil

115 Telugu

116 Ta ik

117 Tha

118 Tigrinya

119 Turkmen

120 Tagalog

121 Setswana

122 Tonga

123 Turkish [TUR]

124 Tsonga

125 Tatar

126 Twi

127 Ukrainian

128 Urdu

129 Uzbek

130 Vietnamese

131 Volapuk

132 Wolof

133 Xhosa

134 Yoruba

135 Chinese [CHI]

136 Zulu

5868

5953

5955

5957

5958

5960

5961

5964

5965

5966

5971

6047

6051

6058

6061

6149

6159

6164

6247

6258

6265

6266

6367

6459

6460

6461

6467

6469

6547

6550

6553

6554

6555

6557

6558

6559

6560

6561

6563

6564

6565

6566

6567

6568

6569

6647

6651

6653

6654

6655

6657

6658

6660

6661

6664

6665

6666

6669

6757

6764

6772

6855

6861

6961

7054

7161

7254

7267

If you choose a Language that has a _,letter language code, the code will be displayed everytime you change the

Audio or Subtitle language setting on pages 44 and 45. If you choose any other languages, '---' will be displayed

instead. (3 letter language code is written in bracket.)

51 EN

01All

TD530XA/601XB 36-55 02.8.26 11:48 AM Page 52

TROUBI ESHOOTING GUIDE

rv/vcRl

;ometimes a performance problem can be easily solved by checking seemingly apparent but often overlooked

,ossibilities. Before arranging for service, check these items. It could save your time and money:

PROBLEM CORRECTIVE ACTION

No power. • Make sure the AC cord is connected to an AC outlet.

• Make sure the power is turned on.

Remote Control Doesn't Work • Is TV/DVD/VHS plugged in?

• Power at outlet?

• Check batteries in Remote Control.

No picture and sound. • Make sure the AC cord is connected to an AC outlet.

• Check antenna connection.

• Let the TV/DVD/VHS program its tuner memory:

No picture or poor picture on • Adjust direction or replace antenna.

TV/DVD/VHS. • Adjust picture controls.

No sound or poor sound. • Adjust volume control on remote control or main unit.

• Press the MUTE button to restore sound.

Bars On Screen • If outside antenna is being used, check for broken wire.

• Check for local intert)rence.

Picture Distorted or Blurred • Try a new channel, if OK, then possible station trouble.

• If outside antenna is being used, check for broken wire.

Picture Rolls Vertically • Try a new channel, if OK, then possible station trouble.

Lines or Streaks in Picture • If outside antenna is being used, check for broken wire.

•Check for local intert_rence.

No Color • Try a new channel, if OK, then possible station trouble.

• Is antenna connected to terminal on the back of the set?

• If outside antenna is being used, check for broken wire.

• Adjust COLOR control.

Poor Reception on Some Channels • Try a new channel, if OK, then possible station trouble.

Ghosts in Picture • Is antenna connected to terminal on the back of the set?

• If outside antenna is being used, check for broken wire.

• Check for local intert)rence.

Weak Picture • Try a new channel, if OK, then possible station trouble.

• Is antenna connected to terminal on the back of the set?

• If outside antenna is being used, check for broken wire.

• Adjust CONTRAST & BRIGHT control.

Sound OK, Picture Poor • Try a new channel, if OK, then possible station trouble.

• Is antenna connected to terminal on the back of the set?

• If outside antenna is being used, check for broken wire.

•Check for local intert_rence.

• Adjust CONTRAST & BRIGHT control.

Picture OK, Sound Poor • Try a new channel, if OK, then possible station trouble.

• Check for local intert)rence.

Timer recording is not possible. • Make sure the timer recording is set correctly.

•Make sure the power is off.

• Make sure the TV/DVD/VHS clock is set correctly:

Cannot go into Record mode. • Make sure the tape has an erase-prevention tab. If need, cover the

hole with plastic tape.

52 EN

01All

TD530XA/601XB 36-55 02.8.26 11:48 AM Page 53

PROBLEM CORRECTIVE ACTION

Playback picture is partially noisy. "Adjust tracking control for a better picture using the CHANNEL •

or • button on the TV/DVD/VHS.

No picture but the audio is OK in • Head cleaning may be necessary. Refer to "AUTO HEAD

playback. CLEANING" on page 53.

No operation by infrared Remote • Make sure the AC cord is connected to an AC outlet.

Control. • Check batteries in remote control.

Video or color fades in and out • You can not copy a copyrighted video tape. You are experiencing

when making a copy of a video tape. copy guard protection.

CLOSED CAPTION PROBLEM POSSIBLE REMEDY

My TV/DVD/VHS is showing ° You are watching a live broadcast and spelling errors made by the

captions that are misspelled, closed captioning production company may pass through uncorrected.

A prerecorded program will not show any misspelled words because

of the normal time available for editing the captions.

My TV/DVD/VHS will not show ° Captions that are delayed a few seconds behind the actual

the text dialogue are common for live broadcast. Most captioning production

in its entirety or there is a delay of companies can display a dialogue to a maximum of 220 words

what is being said. per minute. If a dialogue exceeds that rate, selective editing is used

to insure that the captions remain up-to-date with the current

TV screen dialogue.

My captions are scrambled with ° lntert)rence caused by building, power lines, thunderstorms, etc.

white boxes on the TV screen, may cause scrambled or incomplete captions to appear.

My program guide listed a TV show ° Broadcasters may at times use a time compression process to speed

as being closed captioned but none up the actual program so that additional advertising time can be

of the captions were displayed, given. Since the decoder cannot read the compressed information,

captions will be lost.

My prerecorded video tape does not ° The video tape was either an illegal copy or the tape duplicating

show any captions. The tape box company accidentally left out the captioning signals during the

mentions it being closed captioned, copying process.

My TV screen shows a black box ° You are in the TEXT mode. Select CAPTION mode to CAPTION

on certain channels. [OFF].

53 EN

01All

TD530XA/601XB 36-55 02.8.26 11:48 AM Page _a

If the TV/DVD does not perform properly when operated as instructed in this Owner's Manual, check the

playm, consulting the following checklist.

Symptom Cause Remedy

No powm: •Loose power plug. •Insert the power plug firmly into the wall out let

The player does not • The remote control is not aimed • Aim the remote control directly at the sensor

respond to the at the sensor on the TV/DVD. on the TV/DVD+

remote control. • Obstacles present between the • Remove the obstacles from the signal path.

remote control and the sensor.

• The remote control is too far • Use the remote control within 7m of

away from the TV/DVD+ the TV/DVD+

•Dead batteries. •Replace the batteries.

No picture • Loose video connection. • Connect the video cables firmly:

• Wrong disc. • Insert a correct video disc that plays on this

TV/DVD+

Disc cannot be • No disc. • Insert a disc.

played • Dirty disc. • Clean the disc.

• Disc is placed upside down. • Place the disc correctly; with the label side up.

• Parental lock is active. • Cancel the parental lock or change the control level.

No sound • Connect the audio cables firmly:

• Turn the power of the audio component on+

•Loose audio connection.

•The power of the connected

audio component is off.

• Wrong attdio output settings.

• Wrong input settings on the

connected audio component.

• DTS audio is being output when

the resume function is oft'.

• DIGITAL AUDIO OUT jack is

not used when outputting the

DTS attdio+

•Correct the audio output settings.

•Correct the input settings on the audio

component

• Press the AUDIO button repeatedly and select

an output mode other tlmn DTS (see page44).

• Use a DIGITAL AUDIO OUT jack when

outputting the DTS audio.

•Copy protection is active. •Connect the player directly to the TV.

• Immediately after playing, • There are some cases where pictures may be

press fast forward or in reverse, slightly distorted, which are not a sign of a

Distorted picture • The 1st layer is switching to the malfunction.

2nd layer, when playing a two • Although pictures may stop for a moment,

layered disc. this is not a malfunction.

Audio or subtitle • The selected language is not • No malfunction.

language does not available for audio or subtitles

match the setup, on the DVD.

The camera angle • The DVD does not contain • No malfunction.

cannot be changed, sequences recorded from

different camera angles.

Audio or subtitle • The DVD does not contain • No malfunction.

language cannot be audio source or subtitles in the

changed, selected language.

"Prohibi/ed icon" • That operation is prohibited by • No malfunction.

appears on the screen, the TV/DVD or disc.

prohibiting an operation.

CD sound dropout • Scratched disc • Replace the disc with unscratched one+

No CD reproduction

DVD picture dropout

DVD picture freeze

DVD picture in mosaic

No DVD reproduction

NOTES:

•Some functions are not available in specific modes, but this is not amalfunction. Read the description in

this Owner's Manual for details on correct operations.

•Playback from adesired track and random playback are not available dining program playback.

54 EN

01All

TD530XA/601XB 36-55 02.8.26 11:48 AM Paqe 55

•Wipe the front panel and other exterior surfaces of

the TV/DVD with a soft cloth immersed in luke-

warm water and wrung dry.

• Never use a solvent or alcohol. Do not spray insec-

ticide liquid near the TV/DVD. Such chemicals

may cause damage and discoloration to the

exposed surfaces.

iU?'O HEAD CLEAN1N(

•Automatically cleans video heads as you insert or

remove a cassette, so you can see a clear picture.

• Playback picture may become blurred of interrupt-

ed while the TV program reception is clear. Dirt

accumulated on the video heads after long periods

of use, or the usage of rental or worn tapes can

cause this problem.

If a streaky or snowy picture appears during play-

back, the video heads in your TVIDVDIVHS may

need to be cleaned.

1. Please visit your local Audio/Video store and pur-

chase a good quality VHS Video Head Cleaner.

2. If a Video Head Cleaner does not solve the prob-

lem, please call our help line at 1-800-968-3429, to

locate an Authorized Service Center.

NOTES:

•Remember to read the instructions included with

the video head cleaner before use.

•Clean video heads only when problems occur.

:;ER _,TCT?dG

• Should your TV/DVD become inoperative, do not

try to correct the problem by yourself. There are no

user-serviceable parts inside. Turn off', unplug the

power cord, and please call our help line at 1-800-

968-3429, to locate an Authorized Service Center.

It' ?HE LASER OP?TCA L PI< KUP UNIT IS DIRT}

•If the player still does not perform properly when it is operated while referring to the relevant sections and to

"TROUBLESHOOTING GUIDE" in this Owner's Manual, the laser optical pickup unit may be dirty: Consult

your dealer or an Authorized Service Center for inspection and cleaning of the laser optical pickup unit.

•Use discs which have the following logos on them.

(Optical audio digital discs.)

V I D E 0OIGH'AI.AUOIO

•Handle the discs so that fingerprints and dust do

not adhere to the surfaces of the discs.

• Always store the disc in its protective case when it

is not used.

• To clean-off, use a soft cloth.

•Do not use a hard cloth since this will mar the disc.

• Wipe the disc in a straight line from center to edge.

• Never wipe with a circular motion.

• Do not use detergent or abrasive cleaning agents.

55 EN

01All

TD530XA/601XB 36-55 02.8.26 11:48 AM Page 56

GENEA_AL ,_qPE_ 7FI< 7_'HONS

[TV/VCR 1

CRT

[23 inch model]:

[27 inch model]:

Television system :

Closed caption system

Video Heads :

Tape width :

Tape speed

SP:

LP :

SLP :

Tuner channel

TV VHF Low :

TV VHF High :

TV UHF :

CATV

VHF :

MID band :

SUPER band :

HYPEP, band :

23 inch in-line gun, 90 °

deflection tube

27 inch in-line gun, 110 °

deflection tube

NTSC-M

:§15A 19/FCC

Rotary four-head

1/2 inch

33A0mm/sec.

16.67mm/sec.

llA2mm/sec.

#2~#6

#7~#13

#14~#69

5A

A5-A1, AM

J-W

W+l~W+84

Product type:

Discs:

Output signal format:

Frequency response

(output jack)

DVD (linear sound):

CD:

Signal-to-noise ratio

DVD Player

DVD video, Audio CD

NTSC color

20 Hz to 22 kHz

(sample rate: 48 kHz)

20 Hz to 44 kHz

(sample rate: 96 kHz)

20 Hz to 20 kHz

(S/N ratio)(output jack)

CD:

Dynamic range

(output jack)

DVD (linear sound):

CD:

Total distortion factor

CD:

Wow and flutter:

100 dB (EtAJ)

85 dB

84 dB (EtAJ)

0.07%(EfAJ)

Below the measurement

limitation (+/-0.001%

W PEAK)(EIAJ)

EIW:C 7?{gCA LSPECT[TCA'HONS

Sound output: 2 speakers, IW, 8 ohm

OTHER SPEETFI<;'A770N,g

Terminals

Antenna input:

Video input:

Audio L/R input:

Headphone:

Coaxial digital

audio output:

Analog audio L/R

output :

Remote control:

Operating

temperature:

Power requirements:

[23 inch model]

Power consumption

(Maximum):

Picture tube:

Dimensions:

Weight:

[27 inch model]

Power consumption

(Maximum):

Picture tube:

Dimensions:

Weight:

VHF/UHHCATV

75 ohm unbalanced (F-type)

RCA connector >( 1

RCA connector × 2

1/8" stereo (3.5 mm)

One pin jack,

500m Vpp (75 ohm)

RCA connector × 2

Digital encoded

infrared light system

5°C to 40°C

(41°F~I04°F)

AC 120V, 60Hz

l15W

23"

H:23-3/4" (594mm)

W:24-112" (612mm)

D:18-15/16" (473mm)

61.6 lbs (28.0kg)

125W

27"

H:25-1/2"(648mm)

W:26-9/16"(675mm)

D:19-11/16"(500mm)

86 lbs (39.0kg)

Accessories: Remote Control Unit with

2"AA"batteries

Owner's Manual

• Designs and specifications are subject to change without notice.

•If there is a discrepancy between languages, the default language will be English.

56 EN

01All

TD530XA/601XB 36-55 02.8.26 11:48 AM Page 57

f

57

J

EN

OIAII

TD530XA/601XB ES 02.8.26 11:46 AM Page 58

•CONTROLES DE OPERACION Y FUNCIONES ..... 58

PANEL FRONTAL DEL tclevisor/DVD/VHS ......... 58

MANDO A DISTANCIA ......................... 58

VISTA POSTERIOR ............................ 58

• PREPARACION PARA LA UTILIZACION .......... 60

CONEXIONES DE ANTENA/TELEVISI(_N

POR CABLE .................................. 60

INSTALACION DE LAS PILAS ................... 60

CONEXI(_N A TOMAS DE ENTRADA EXTERNA .... 60

MODE DE ENTRADA EXTERNA ................. 60

CONEXI(_N A UN SISTEMA ESTI_REO (Para DVD) .. 60

CONEXI(_N A UN AMPLIFICADOR EQUIPADO CON

TOMAS DE ENTRADA DIGITAL PARA, POR EJEMPLO,

PLATINA MD O PLATINA DAT (Para DVD) ......... 60

CONEXI(_N A UN DECODIFICADOR DOLBY DIGITAL,

DECODIFICADOR DTS O DECODIFICADOR MPEG

(Para DVD) ................................... 61

TV SECTION

• PREPARACION PARA LA UTILIZACION ............ 62

SELECCION DE IDIOMA ....................... 62

PREAJUSTE DE CANALES ...................... 62

DVD SECTION

•REPRODUCCION DE UN DISCO ................ 63

REPRODUCCION DE UN DVD DE V(DEO O UN CD DE

AUDIO ...................................... 63

CONTROLES DE

OPERAC(ON Y FUNC(ONES

Consulte la figura 1 de la pfigina 9

Consulte la figura 2 de la pfigina 9

Consulte la figura 3 de la pfigina 10

1. Boton POWER

Pfilselo para conectar y desconectar la alimentaci6n.

2. Botones VOLUME A/V

Pdlselos para controlar el nivel del volumen para

el DVD y el televisor.

3. Botones SKIP (para DVD)

Salta capftulos o pistas hasta un punto deseado.

4. Boton PLAY

Inicia la reproducci6n del contenido del disco o la

cinta.

5. Botch STOP

Detiene la operaci6n del disco o la cinta.

6. Boton OPEN/CLOSE

Pfilselo para insertar discos en la bandeja o

retirarlos de ella.

7. Bandeja de carga del disco

8.1ndicador de DVD

Parpadea durante el modo del DVD.

9. Botch SELECT

Pfilselo para cambiar a un modo de televisor,

modo de entrada externa o modo de DVD.

10. Indicador del televisor/la videograbadora

(TV/VCR)

Parpadea durante el modo del televisor/la

videograbadora

11. Botones CHANNEL A/V

Pfilselo para seleccionm" el canal memorizado.

Pfilselo para cambiar a un modo de televisor

cuando modo de DVD.

12. Indicador de grabacion (RECORD)

Parpadea durante la grabaci6n.

Se enciende en el modo de espera de la grabaci6n con

lemporizador.

Boton de grabacion de un toque (OTR)

Activa la grabaci6n tie un toque. ($61o en el televi-

sor/DVD/VHS)

13. Botch de grabacion (REC)

Ptilselo para iniciar la grabaci6n manual.

14. Botch de rebobinado (REW) (para televisor/

videograbadora)

Ptilselo para rebobinar la cinta, o para vet la imagen en

retroceso rfipido duranle el modo de repmduccidn.

(Btlsqueda con rebobinado)

15. Botch de avance rapido (FWD) (para televisor/

videograbadora)

Ptilselo para avanzar rfipidamente la cinta, o para ver la

imagen en avance rfipido duranle el modo de reproduc-

ci6n. (Btlsqueda con avance rfipido)

16. Boton de parada (STOP)

Ptilselo para detener la cinta.

Boton de expulsion (EJECT)

Ptilselo en el modo tie parada para expulsar la cinta del

lelevisor/videograbadora.

17. Ventanilla del sensor del mando a distancia

18. Toma HEADPHONE

Para conectar auriculares (no suministrados) y

escuchar en privado.

19. Toma de entrada VIDEO

Conecte aquf la toma de salida de vfdeo de una

videocfimara o de una videograbadora.

20. Tomas de entrada AUDIO L!R

Conecte aqui" las tomas de salida de audio de una

videocfimara o de una videograbadora.

21. Compartimiento del videocasete

22. Boton PICTURE

Presione para entrar en el modo de ajuste de ima-

gen.

58 ES

IDI8

TD530XA/601XB ES 02.8.26 11:46 AM Page 59

23. Botones de nt_meros

Modo del televisor:

Pulse dos dfgitos para tenet acceso directamente

al canal deseado.

Recuerde pulsar "0" antes de elegir un canal de un

solo dfgito.

Boton +100

Pfilselo para seleccionar canales de televisi6n por

cable cuyo ndmero sea igual o superior al 100.

Modo DVD:

Pdlselo para introducir el ndmero deseado.

Boton +10

Pfilselo para introducir los m_meros deseados

cuyo ndmero sea igual o superior al 10.

24. Boton PAUSE

Hace una pausa en la operaci6n del disco o la

cinta.

25. Boton de veloeidad de einta (SPEED)

P61selo para elegir la velocidad de grabaci6n deseada:

SP/SLR

26. Boton C-RESET

P61selo para reponer el contador a 0:00:00.

27.Boton DISPLAY

Modo del televisor/la videograbadora:

Pfilselo para visualizar el nfimero del canal en la

pantalla. Si Io pulsa de nuevo, el ndmero del canal

desaparecer£

Modo de DVD:

Visualiza el estado actual en la pantalla del televi-

sor con fines de comprobaci6n.

28.Boton SETUP

Pfilselo para activar o salir del modo de mends de

televisor o preparaci6n de DVD.

29. Boton TITLE

Visualiza el mend de tfiulos.

30. Boton CLEAR

P,epone un ajuste.

31.Boton MODE

Actiwt el modo de reproducci6n programada o el

modo de reproducci6n aleatoria.

32. Boton SEARCH MODE

Pdlselo para localizar un punto deseado.

33.Boton AUDIO

Pfilselo para seleccionar un idioma de audio o un

modo de sonido deseado.

34.Boton SUBTITLE

Pfilselo para seleccionar un idioma de subtfiulos

deseado.

35.Boton REPEAT

Repite la reproducci6n del disco, tftulo, capfiulo o

pista actual.

36.Boton ANGLE

Pfilselo para cambiar el fingulo de la cfimara y

verde, desde un fingulo diferente, la secuencia que

estfi siendo reproducida.

37.Boton A-B REPEAT

Repite la reproducci6n de una seccidn seleccionada.

38. Boton RETURN

Para volver a la operaci6n anterior.

39.Boton ENTER

Pfilselo para establecer un ajuste.

40. Botones de flechas

Modo de televisor:

Pfilselo para seleccionar un modo de ajuste desde

el mend que aparece en la pantalla del televisor:

Pfilselo para seleccionar o ajustar desde un menfi

particular.

Modo de DVD:

Se utiliza cuando se hacen ajustes mientras se

observa la visualizaci6n en una pantalla de televisor,

41. Boton DISC MENU

Visualiza mends de DVD.

42. Boton ZOOM

Amplia parte de una imagen de DVD reproducida.

43.Boton MUTE

Pulse el bot6n MUTE para apagar el sonido de un

programa de TV. La visualizaci6n del nivel del

sonido cambia de ROJO CLARO a AZUL

CLARO.) Pulse de nuevo el bot6n MUTE o el

bot6n VOL • o • para restaurar el sonido.

44. Boton SLEEP

Ajusta el temporizador para dormit_

45. Boton SELECT

Pulse para cambiar entre los modos TV/VCR y

DVD. Podrfi ver el modo (TV/VCR o DVD) en el

indicador del panel delantero.

46. Toma de entrada ANT.

Con4ctela a una antena, sistema de televisi6n pot"

cable o sistema de sat41ite.

47. Cable de alimentacion

Con4ctelo a una toma de CA convencional (120

V/60 Hz).

NOTA: Retire el cable de alimentaci6n del gancho

para evitar romperlo antes de conectarlo a

una toma de CA convencional.

48. Toma de salida de audio digital COAXIAL

Con6ctela a la entrada digital de un amplificador o

decodificador externo.

49. Toma de salida AUDIO L/R

Condctela a la entrada de audio anal6gico de un

amplificador o decodificador externo.

NOTA: Las tomas de entrada de audio (roha y

blanca) en el lado trasero sirven para pro-

ducir no el son televisor ni el son de

entrada externa, sino el son DVD.

59 ES

IDI8

TD530XA/601XB ES 02.8.26 11:46 AM Page 60

PREPARACION PARA LA

Consulte la figura 4 de la p_igina 11

AN'M_NA,%" ,_<k'PAkD_DAS _E VMF/UHF

En algunas fireas serfi necesario utilizar una antena

exterion

Cnnsulte la figura 4 de la p_igina 11

TELEVLSfON POf{' CABLL' ,fIN ( AJA _E

,,>, ) > ): , ) ' ) ><ON>kR?H ORI_ k<O_ H Z(A_ OR

Utilice esta conexi6n si su sistema de televisi6n per

cable se conecta directamente a su

televisor/DVD/VHS sin necesidad de caja de conver-

tide1:

Consulte la figura 4 de la p_igina 11

?7:LE V£57{)N PO_{ ('ABLE CON (27/1JA

DF CONVER2SDOR!DECODHTCADOA'

0CA.IA DE Si 77_7_77_

Si su proveedor de servicios de televisi6n per cable le

suministra una eaja de convertidor o si usted utiliza

un sistema de sat61ite, podrfi utilizar la eonexi6n bfisi-

ca mostrada aqui.

Cnnsulte la figura 4 de la p_igina 11

1) Abra la tapa del compartimiento de las pilas del

mando a distancia presionfindola en el sentido de

la flecha.

2) Inserte 2 pilas tamario "AA" en su compartimiento

colocando las polaridades (+/-) en sus posiciones

correspondientes.

3) Vuelva a poner la tapa.

fuente alas tomas AUDIO L/P, y VIDEO de este tele-

visor/DVD/VHS. Y luego pulse el botdn SELECT

hasta que "VIDEO" aparezca en la pantalla.

NOTA:

• Cuando conecte una videograbadora monoaural

(otra fuente) a este televisor/DVD/VHS, conecte la

toma de salida de audio de la videograbadora

monoaural (otra fuente) a la toma AUDIO L de este

televisor/DVD/VHS. E1 audio saldri igualmente en

los canales L y R.

Consulte la figura 5 de la p_igina 12

Conexiones de antena/televisidn per cable

Continfia en la pfigina siguiente.

Cuando utilice una serial de entrada externa (otra

videograbadora o una videocfimara), conecte los

cables de salida de audio/video del equipo de repro-

ducci6n alas tomas AUDIO IN/VIDEO IN de su

televisor/videograbadora. Y luego pulse el bot6n

CHANNEL • o • hasta que "AUX" aparezca en la

pantalla.

Usted puede programar el temporizador para que

explore redes los canales que puedan recibirse en su

zona.

Consulte la figura 6de la p_igina 13

NOTAS:

•Asegrirese de desconectar la alimentaci6n a todos

los componentes del sistema antes de hacer la

conexi6n a otto comlxmente.

• Consulte el manual del propietario de su sistema

estdreo y de cualquier otro componente que vaya a

conectar al televisor/DVD/VHS.

•Las tomas de entrada de audio (roha y blanca) en el

lade trasero sirven para producir no el son televisor

ni el son de entrada externa, sine el son DVD.

Cuando vea un programa grabado en otra fuente

(videograbadora o videocfimara), utilice las tomas de

entrada de audio/video de la parte delantera del tele-

visor/DVD/VHS.

Conecte las tomas de salida de audio/video de otra

Utilice un cable digital coaxial (de venta en el comer-

cio) para las conexiones de audio.

Consulte la figura 7 de la p_igina 13

60 ES

IDI8

TD530XA/601XB ES 02.8.26 11:46 AM Page 61

NOTAS:

• La fuente de audio de un disco del formato de

sonido ambiental Dolby Digital de 5,1 canales no

puede ser grabada como sonido digital por una

platina MD o DAT.

• Asegfirese de desconectar la alimentaci6n de todos

los componentes del sistema antes de hacer la

conexidn a otto componente.

• Consulte los manuales del propietario de los com-

ponentes que vaya a conectar al

televisor/DVD/VHS.

• Ponga DOLBY DIGITAL y DTS en OFF para la

salida de aadio en el modo de preparaci6n. La

reproducci6n en el televisor/DVD/VHS utilizando

los ajustes incorrectos puede generar distorsi6n de

ruido, y tambi6n puede estropear los altavoces.

• E1 audio se silenciarfi cuando DOLBY DIGITAL se

ponga en OFF y VIRTUAL 3D se ponga en ON

para la salida de audio en el modo de preparaci6n y

usted seleccione la fuente de audio del formato de

sonido ambiental Dolby Digital de 5,1 canales.

•A menos que se haga la conexi6n a un decodifi-

cador Dolby Digital o DTS, ponga DOLBY DIGI-

TAL y DTS en OFF para la salida de audio en el

modo de preparaci6n. La reproducci6n en el televi-

sor/DVD/VHS utilizando los ajustes incorrectos

puede generar distorsi6n de ruido, y tambi6n puede

estropear los altavoces.

• E1 audio se silenciarfi cuando DOLBY DIGITAL se

ponga en OFF y VIRTUAL 3D se ponga en ON

para la salida de audio en el rondo de preparaci6n y

usted seleccione la fuente de audio del formato de

sonido ambiental Dolby Digital de 5,1 canales.

Fabricad0 bajo iicencia de Dolby I

Laboratories. '!Dolby'! y el simbolo de la D

dob!e son marcas de f_brica de Dolby I

Laboratories, Trabajos confidencia!es sin

pub car.

!'DTS" y!!DTS Digital Out" son marc,as de

fabrica de Digital Theater Systems, Inc.

Si se utiliza este televisor/DVD/VHS para reproducir

fuentes del formato de sonido ambiental Dolby

Digital de 5,1 canales o de sonido ambiental DTS, el

televisor/DVD/VHS darfi salida a un flujo de darns

Dolby Digital o DTS desde su toma de salida de

audio digital COAXIAL. Conectando el reproductor a

un decodificador Dolby Digital o DTS, usted podrfi

disfrutar de un ambiente mils convincente y real con

un sonido ambiental potente y de alta calidad de tipo

profesional tal como el que se oye en salas de cine.

Utilice cables digitales coaxiales (de venta en el com-

ercio) para las conexiones de audio.

Consulte Is tights 8 de Is pSgins 14

NOTAS:

• Asegfirese de desconectar la alimentaci6n de todos

los componentes del sistema antes de hacer la

conexidn a otro componente.

• Consulte los manuales del propietario de los com-

ponentes que vaya a conectar al

televisor/DVD/VHS.

• Si conecta un decodificador Dolby Digital, ponga

DOLBY DIGITAL en ON para la salida de audio

en el modo de preparaci6n.

• Si conecta un decodificador DTS, ponga DTS en

ON para la salida de audio en el rondo de

preparaci6n.

61 ES

IDI8

TD530XA/601XB ES 02.8.26 11:46 AM Page 62

PREPARACION PARA LA

Conecte el cable de alimentaci6n a una toma de CA

convencional.

NOTA: Si aparecen algunos dfgitos en la esquina de

la pantalla, pulse el botdn POWER sin des-

enchufar el cable de alimentaci6n.

Pulse el bot6n POWER para encender el

televisor/DVD/VHS.

Seleccione "ESPAI_OL" o "ENGLISH" (ingl6s),

"FRAN(_AIS" (franc6s) utilizando el bot6n de flecba

I_ o _1.

Pulse el bot6n flecha • o •para sefialar "AUTOP-

RESELECCION".

Luego pulse el bot6n flecha I_. E1 sintonizador

exploraril y memorizaril todos los canales activos de

su firea.

NOTAS:

• E1 televisor/videograbadora distingue entre los

canales de televisi6n est:Jndar y los canales de tele-

visor pot cable.

• Si desea reproducir o grabar una cinta ANTES de

preajustar el sintonizador, usted tendril que pulsar

el bot6n SETUP en el mando a distancia. Para

preajustar de nuevo el sintonizador, consulte

"REPETICION DE LA PREPARACION DE

CANALES".

• La unidad de televisor/videograbadora puede

reconocer los canales de TV como ellos de TV pot

cable a causa de los condiciones de recepci6n. En

este caso, pruebe el preajuste automiltico de nuevo

en los condiciones finas de recepci6n.

E1 sintonizador se para en el canal memorizado mils

bajo. Si desea recuperar canales seleccionados, usted

podril seleccionar directamente el canal deseado con

los botones numerados del mando a distancia o con

los botones CHANNEL • o V.

62

Cerei6rese...

• La alimentaci6n del televisor/videograbadora

deberil estar conectada.

En el ejemp!o de abajo, el reloj va a ajustarse asf:

FECHA: 1 de mayo de 2001

HORA: 5:40 PM

Pulse el bot6n SETUP en el mando a distancia.

Pulse el bot6n PLAY/• o STOP/v para indicar

"AJUSTE RELOJ". Luego, pulse el botdn EFWDJI_.

Pulse el bot6n PLAY/• o STOP/v para indicar

"AJUSTE MANUAL RELOJ". Luego, pulse el bot6n

EFWD/I_.

Pulse el bot6n PLAY/• o STOP/v hasta que aparez-

ca el mes deseado. (Ejemplo: Mayo - 05) Luego,

pulse el botdn EFWDJI_.

Pulse el bot6n PLAY/• o STOP/v hasta que aparez-

ca el dfa del mes deseado. (Ejemplo: 1 - 01) Luego,

pulse el bot6n EFWD_.

Pulse el bot6n PLAY/• o STOP/v hasta que aparez-

ca el afio deseado. (Ejemplo: 2001) Luego, pulse el

botdn F.FWDJI_.

Pulse el bot6n PLAY/• o STOP/v hasta que aparez-

ca la hora deseada. (Ejemplo: 5, PM) Luego, pulse el

bot6n EFWDJI_.

Pulse el bot6n PLAY/• o STOP/v hasta que aparez-

ca el minuto deseado. (Ejemplo: 40)

Pulse el bot6n SRTUP en el mando a distancia.

Aunque los segundos no se visualizan, dstos

empiezan a contar desde 00 cuando se pulsa SETUP

en el mando a distancia. Utilice esta funci6n para sin-

cronizar el reloj con la hora correcta.

ES

IDI8

TD530XA/601XB ES 02.8.26 11:46 AM Page 63

p

REPR<)DUCC {}NDE UN

Eig E33i3

Conecte la alimentaci6n del televisor, amplificador y

cualquier otro componente que est6 conectado al

reproductor DVD. (Cambie el sistema de entrada para

adaptarlo al reproductor DVD, y compruebe que el

volumen del sonido sea correcto.)

IPuse e be{@1 IPOWEIF:I

• La alimentaci6n se conectarfi.

2IP_ls@ebo{6r_ OPIEI<_/CLOSH!!

• La bandeja de carga del disco se abrirfi.

3IPor_ga u,'_ disco en {s Iba,'_deia

• Asegdrese de que el disco estd correctamente asen-

tado en el hueco correcto, con el lado de la etiqueta

hacia arriba.

4 IP_ s÷ e boi6_ IPLAY_

• La bandeja se cerrarfi automfiticamente y la repro-

ducci6n empezar5 desde el primer capflulo o pista

del disco. Necesitarfi pulsar el bot6n PLAY s61o

cuando la bandeja haya sido cerrada pulsando el

bot6n OPEN/CLOSE.

• Cuando reproduzca un DVD que tenga grabado un

mend de tflulos, el menfi tal vez aparezca en la pan-

talla. En este caso, consulte "UTILIZACION DEL

MEND DE TITULOS".

63 ES

IDI8

TD530XA/601XB 36-55 02.8.26 11:48 AM Page 64

iiiiiiiiil

iiiiiiiiil

iiiiiiiiil

iiiiiiiiil

iiiiiiiiil

iiiiiiiiil

iiiiiiiiil

iiiiiiiiil

iiiiiiiiil

iiiiiiiiil

iiiiiiiiil

iiiiiiiiil

iiiiiiiiil

iiiiiiiiil

Your Home

For repair- in your home -of all major brand appliances,

lawn and garden equipment, or heating and cooling systems,

no matter who made it, no matter who sold it!

For the replacement parts, accessories and

owner's manuals that you need to do-it-yourself.

For Sears professional installation of home appliances

and items like garage door openers and water heaters.

1-800-4-MY-HOME ® (1-800-469-4663)

Call anytime, day or night (U.S.A. and Canada)

www.sears.com www.sears.ca

Call anytime, day or night (U.S.A. only)

www.sears.com

To purchase a protection agreement on a product serviced by Sears:

1-800-827-6655 (U.S.A.) 1-800-361-6665 (Canada)

iiiiiiiiii

Our Home

For repair of carry-in items like vacuums, lawn equipment,

and electronics, call or go on-line for the location of your nearest

Sears Parts & Repair Center.

1-800-488-1222

Pare pedir servicio de reparaci6n Au Canada pour service en frangais:

a domicilio, y pars ordenar piezas: 1.80O.LE.FOYER_C

l"888"SU'HOGARSM (1-800-533-6937)

(1-888-784-6427) www.sears.ca

® M

Registered Trademark Trademark ,Service Mark o_ Sears, RoebuCk and CO

Marca Registrada /Marca de Fabrica /Marca de Safvicio de Sears¸ Roebuck and Co

cMarque de commerce Marque d_pos_e de Seats¸ Roebuck and Co © Sears¸ ROebuck and CO

FULL 90 DAY WARRANTY

For 90 days from the date of purchase, Sears will repair any defect in material or workmanship in this TV/VCR combination,

free of charge. For one year from the date of purchase, Sears will supply, at no charge, replacement for defective parts.

Two (2) years for Picture Tube. Certain parts are excluded from this warranty.

The above warranty coverage applies only to TV/VCR combination which are used for private household purposes.

TO OBTAIN WARRANTY SERVICE, SIMPLY RETURN THE TV/VCR COMBINATION TO THE NEAREST SEARS SERVICE

CENTER IN THE UNITED STATES.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Sears Roebuck and Co., Dept. 817WA Hoffman Estates, IL 60179

For the location of a Sears Service Center in your area : 1-800-488-1222

Printed in Malaysia 0EMN02041

TD530XA/TD601XB *****
