SYLVANIA DVD Systems Manual L0801086

dv220sl8 L0801086

User Manual: SYLVANIA SYLVANIA DVD Systems Manual SYLVANIA DVD Systems Owner's Manual, SYLVANIA DVD Systems installation guides

Open the PDF directly: View PDF .
Page Count: 28

Owner's Manual

Please read before using this unit.

DVD/CD Player with Video Cassette Recorder

DV220SL8 INSTRUCCION£5 EN

If you need additional operating assistance after

reading this owner's manual, please call

TOLL FREE : 1-800-968-3429

or visit our web site at

htt p://www.SylvaniaConsumerElectronics.com

remote control unit

(NB606UD /_

NB656UD)

batteries

(AA x 2)

RCA audio/video cables

(WPZO102TM015 /

WPZOIO2LTE01 )

owner' manual

(1VMN23384)

PRECAUTIONS

Laser Safety ................................................................................................................. 2

IMPORTANT SAFEGUARDS ...................................................................... 3

Location and Handling ........................................................................................... 4

Avoid the Hazards of Electrical Shock and Fire ............................................. 4

Moisture Condensation Warning ....................................................................... 4

About Copyright ....................................................................................................... 4

Notice for Progressive Scan Outputs ................................................................ 4

Symbols Used in This Manual .............................................................................. 4

Maintenance .............................................................................................................. 4

About Cassette Tapes and Discs ............................................................. 5

Playable Media .......................................................................................................... S

Unplayable Discs ...................................................................................................... 5

SETUP

Connections ............................................................................................. 6

Connection to a TV .................................................................................................. 6

Connection to an Audio System ......................................................................... 7

Connection to a Cable/Satellite Box ................................................................. 7

Preparation for Use ................................................................................. 8

Turning on Unit for the First Time ..................................................................... 8

Clock Setting .............................................................................................................. 8

Function Overview .................................................................................. 9

Front Panel Indicator Lights ................................................................................. 9

Selecting DVD or VCR Operation ........................................................................ 9

Front & Rear Terminals ........................................................................................... 9

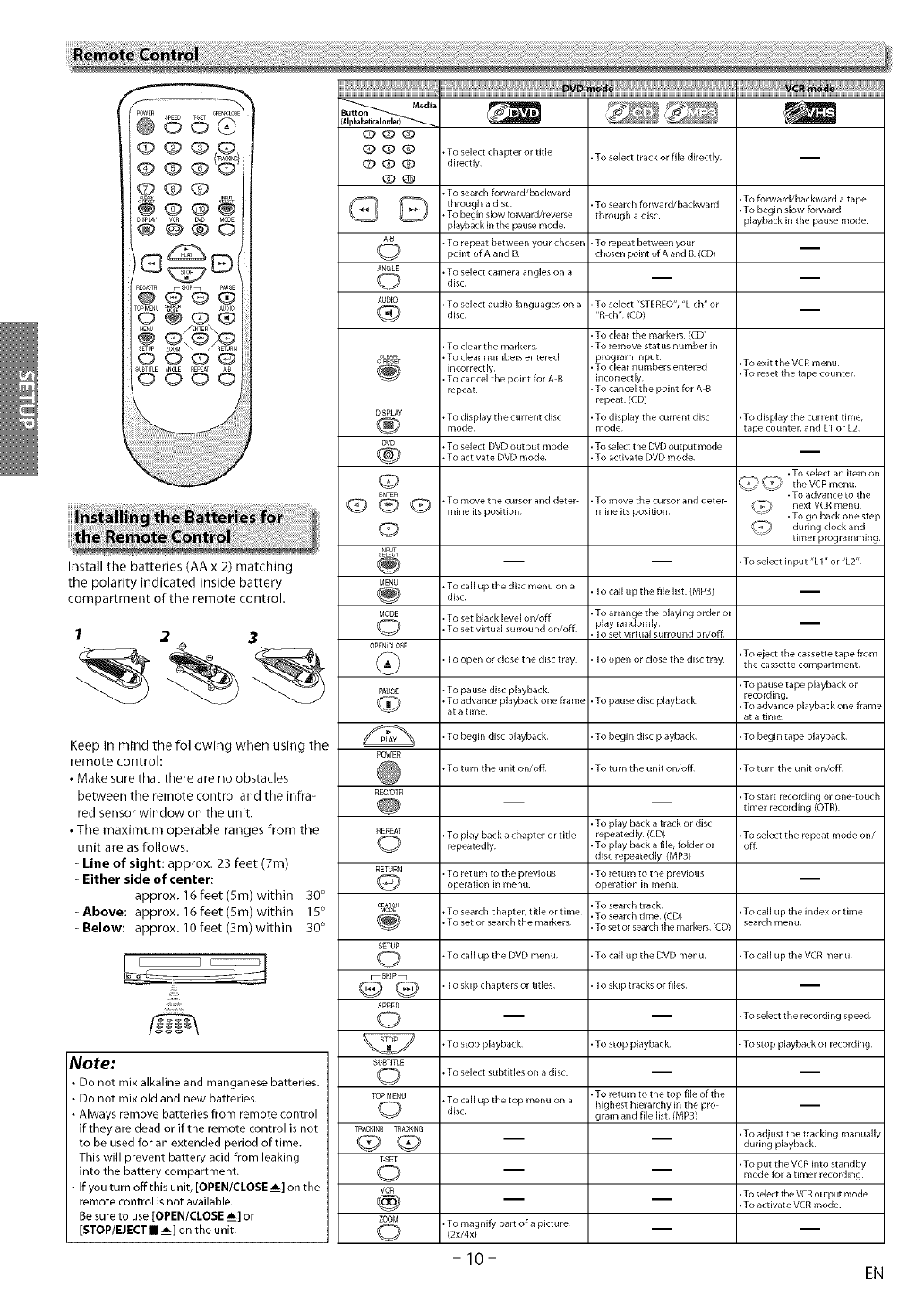

Remote Control ........................................................................................................ I0

Installing the Batteries for the Remote Control ........................................... 10

VCRFUNCTIONS

Playback ................................................................................................. 11

Other Operations .................................................................................... 11

Index Search .............................................................................................................. 11

Time Search ............................................................................................................... 11

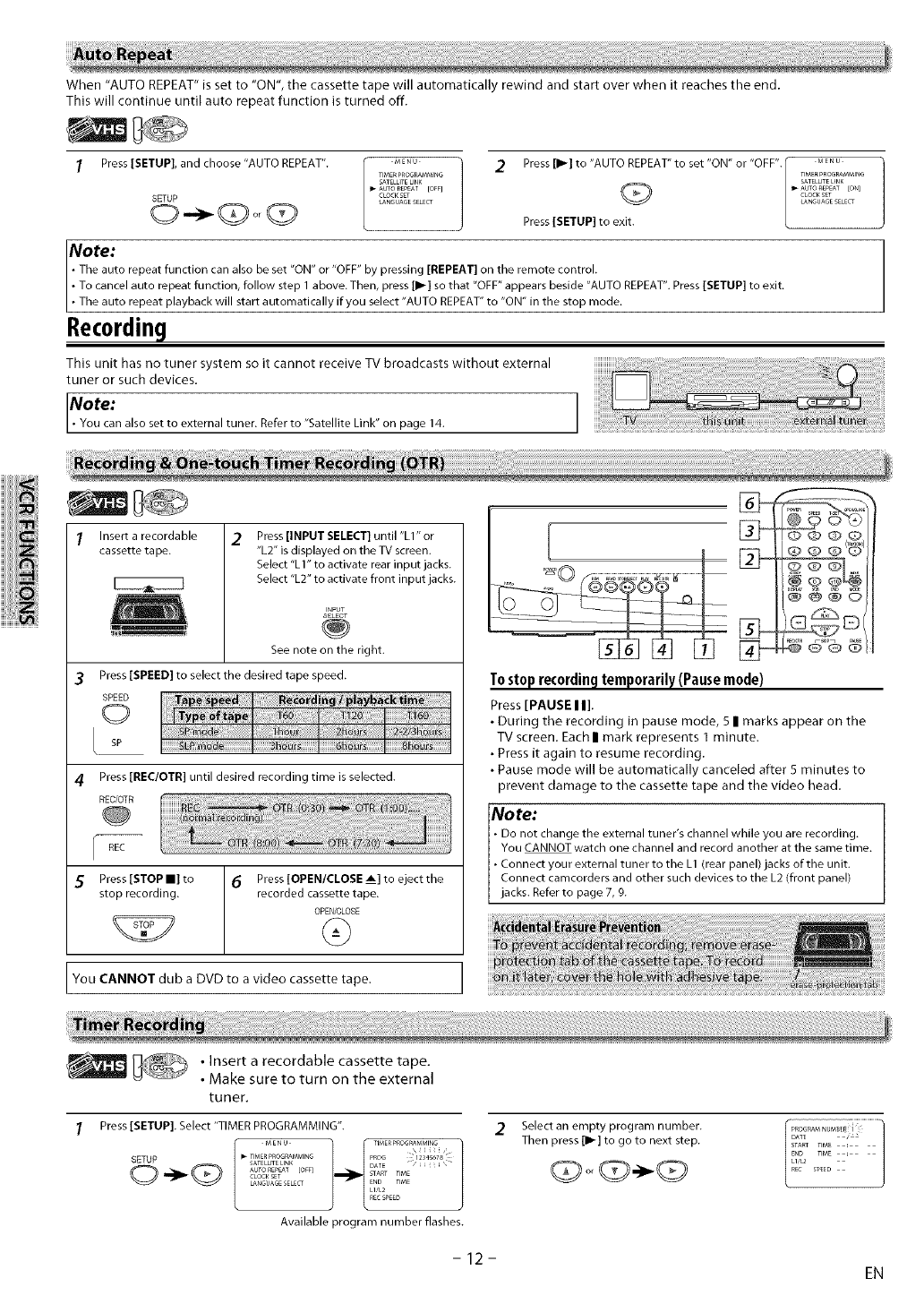

Auto Repeat ............................................................................................................... 12

Recording ................................................................................................ 12

Recording & One-touch Timer Recording (OTR) .......................................... 12

Timer Recording ...................................................................................................... 12

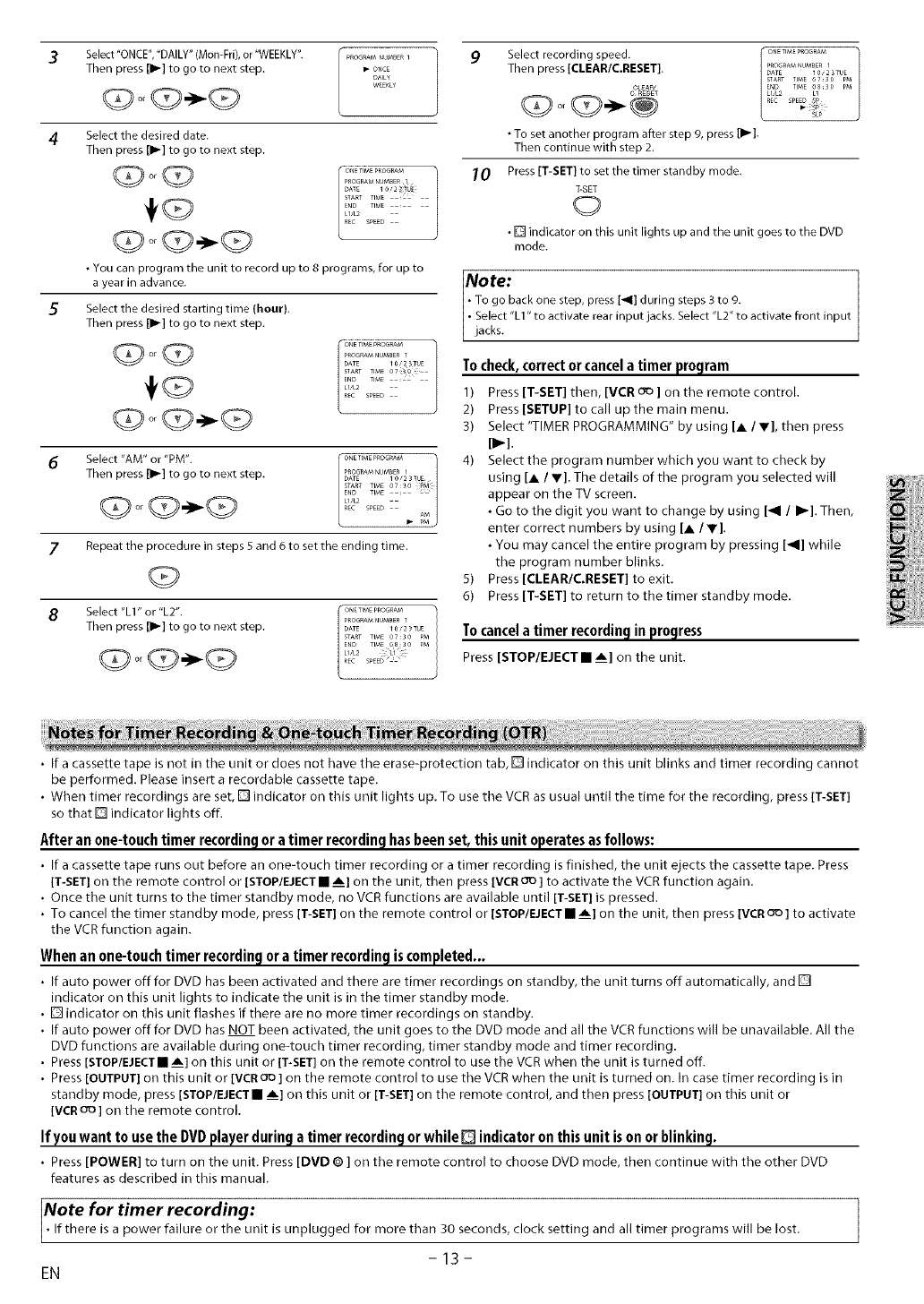

Notes for Timer Recording & One-touch Timer Recording (OTR) ......... 13

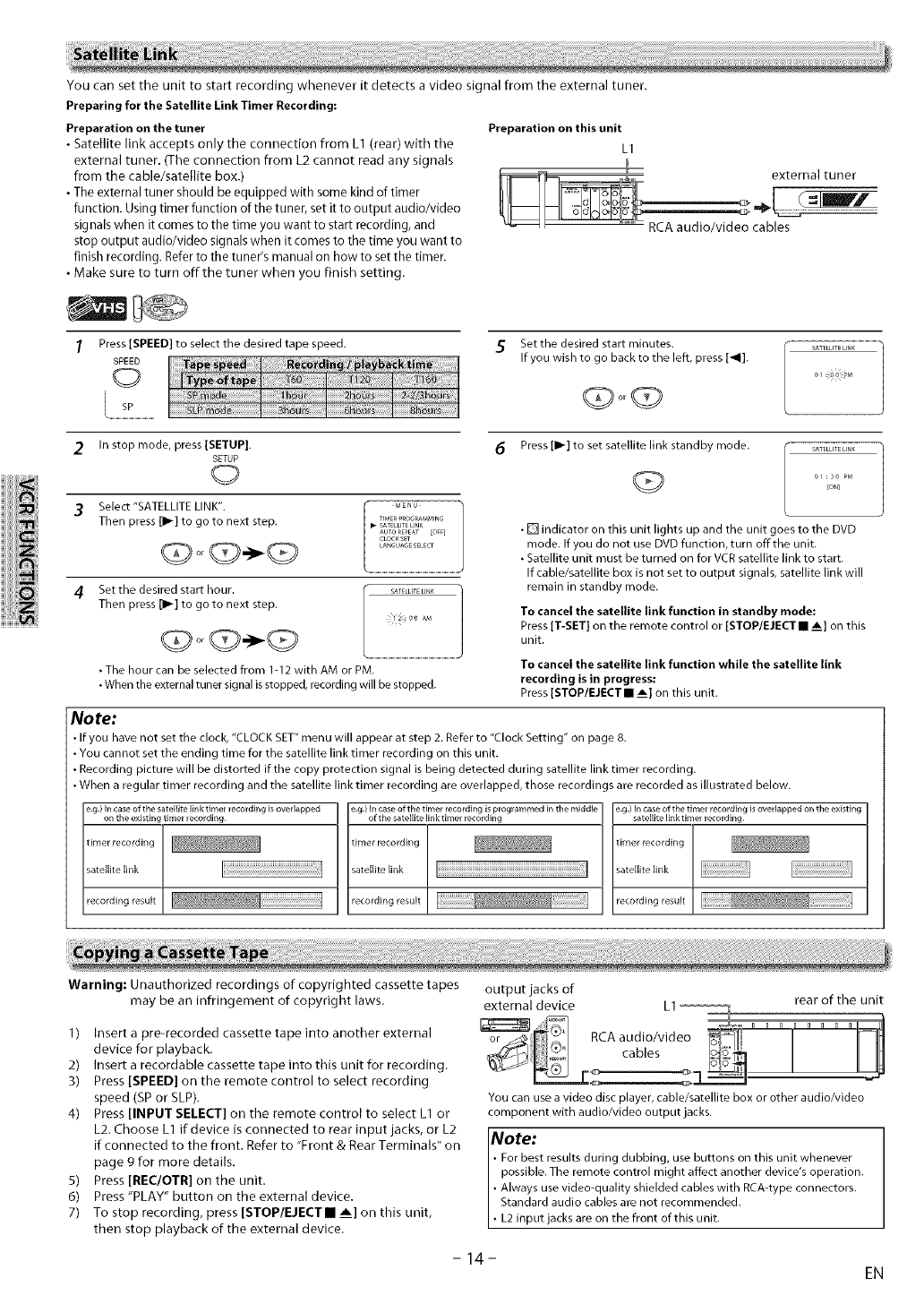

Satellite Link .............................................................................................................. 14

Copying a Cassette Tape ...................................................................................... 14

DVDFUNCTIONS

Playback ................................................................................................. 15

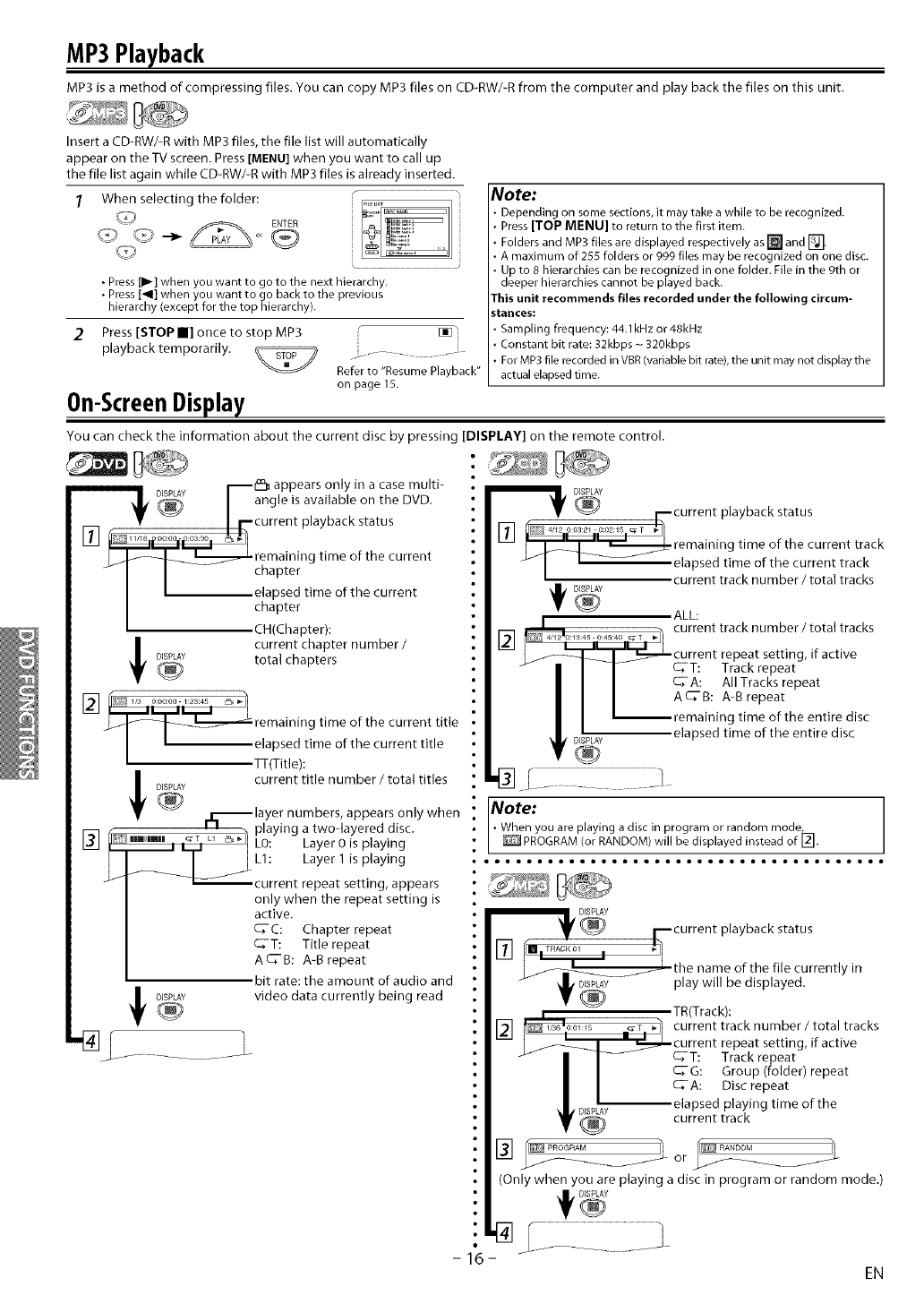

MP3 Playback ......................................................................................... 16

On-Screen Display .................................................................................. 16

Search Functions .................................................................................... 17

Using Track Search .................................................................................................. 17

Using Title /Chapter Search ................................................................................ 17

Using Time Search .................................................................................................. 17

Marker Setting .......................................................................................................... 17

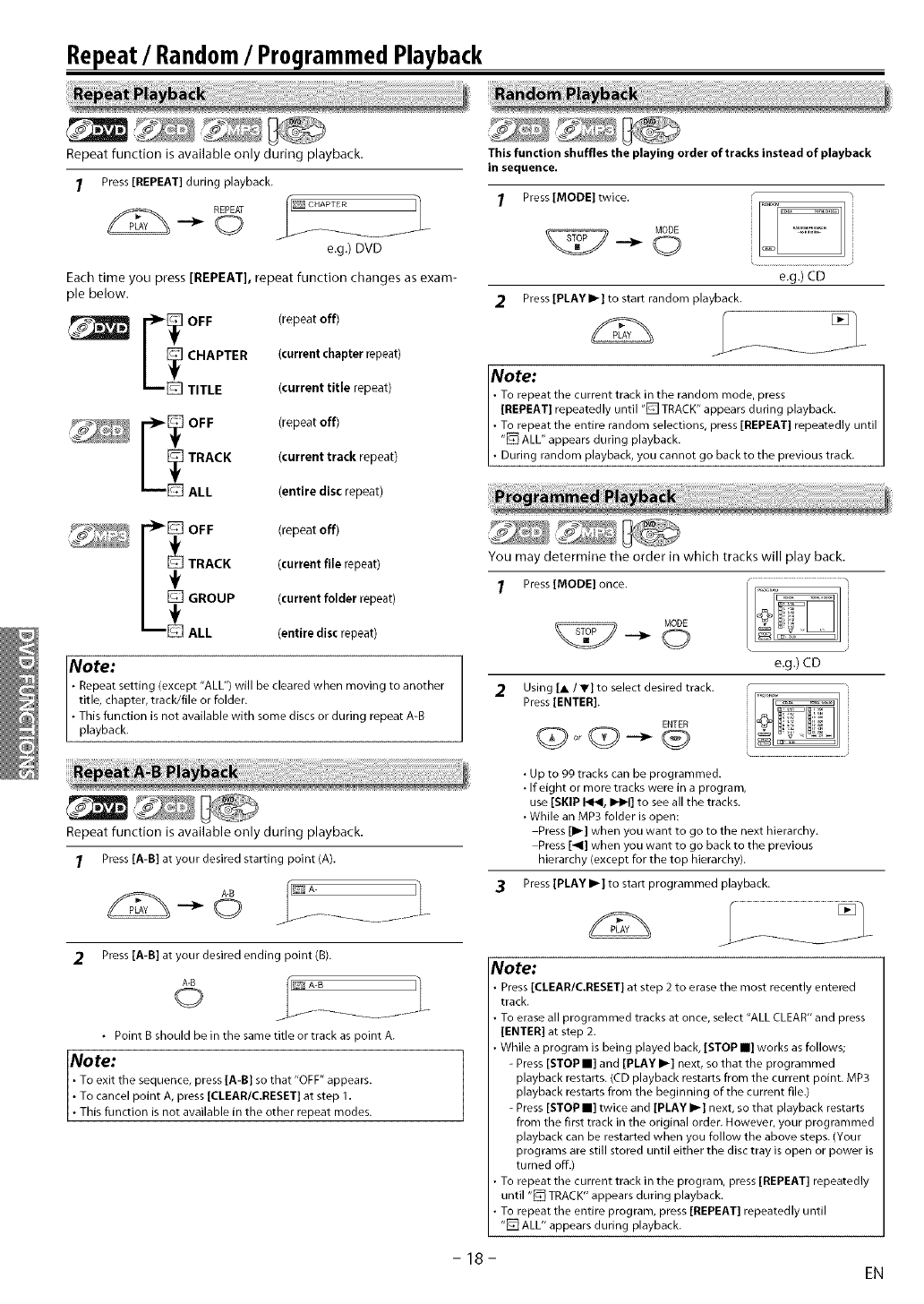

Repeat/Random / Programmed Playback ........................................... 18

Repeat Playback ....................................................................................................... 18

Repeat A-B Playback .............................................................................................. 18

Rand am Playback .................................................................................................... 18

Progra mined Playback .......................................................................................... 18

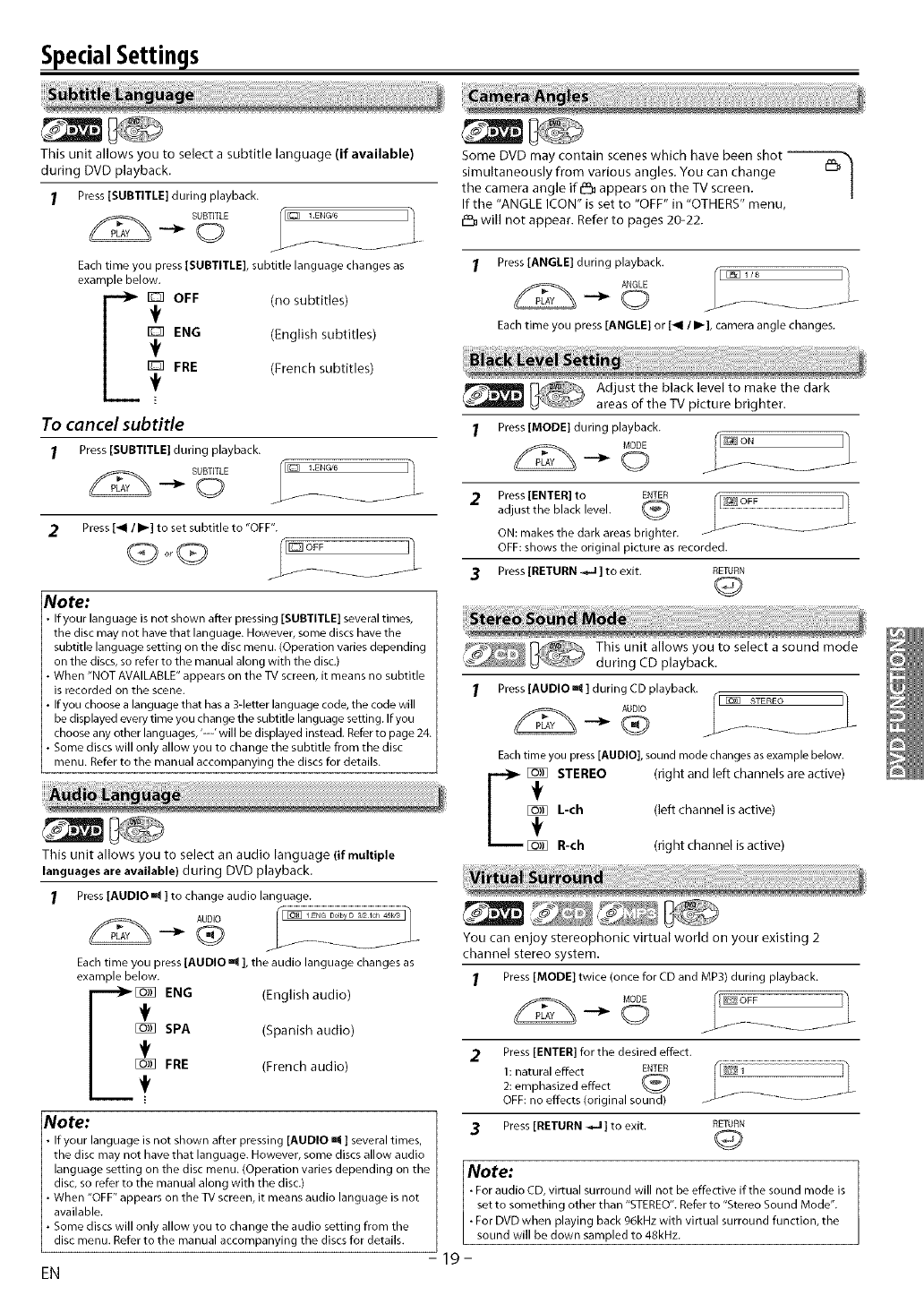

Special Settings ...................................................................................... 19

Subtitle Language ................................................................................................... 19

Audio Language ...................................................................................................... 19

Camera Angles ......................................................................................................... 19

Black Level Setting .................................................................................................. 19

Stereo Sound Mode ................................................................................................ 19

Virtual Surround ....................................................................................................... 19

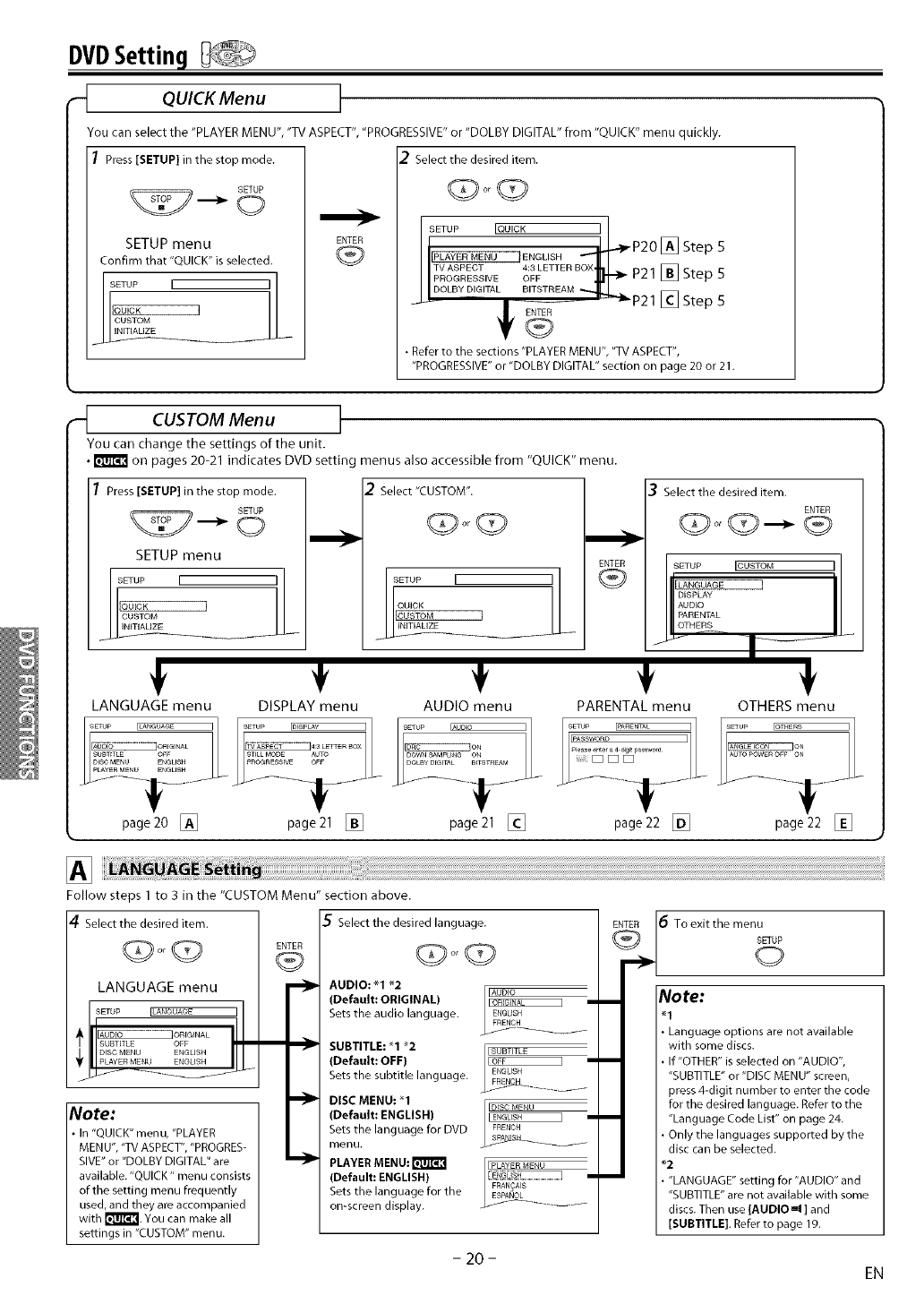

DVD Setting ............................................................................................ 20

LANGUAGE Setting ................................................................................................. 20

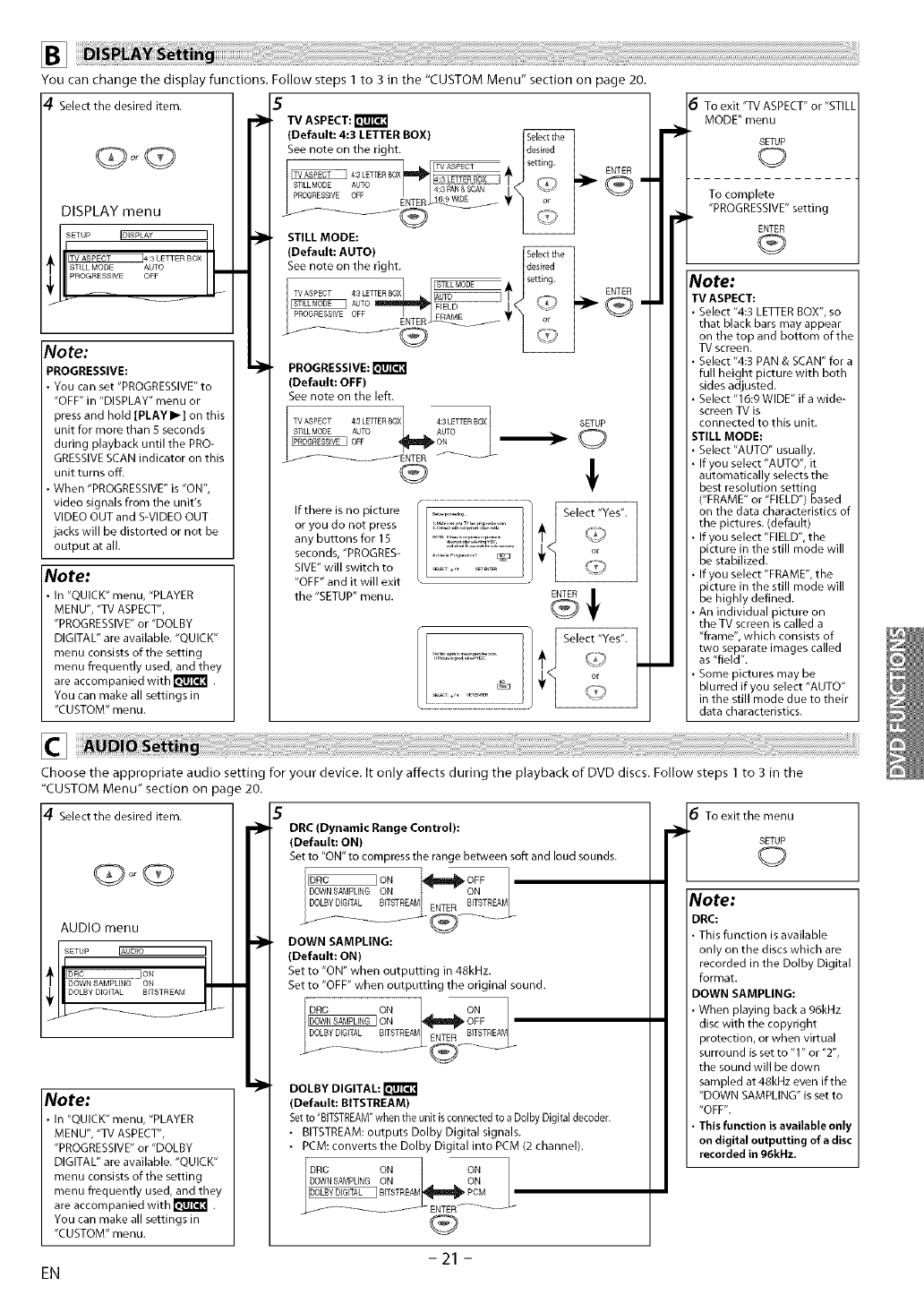

DISPLAY Setting ....................................................................................................... 21

AUDIO Setting .......................................................................................................... 21

PARENTAL Setting ................................................................................................... 22

OTHERS Setting ........................................................................................................ 22

Reset to the Default Setting (Except for PARENTAL Setting) .................. 23

INFORMATION

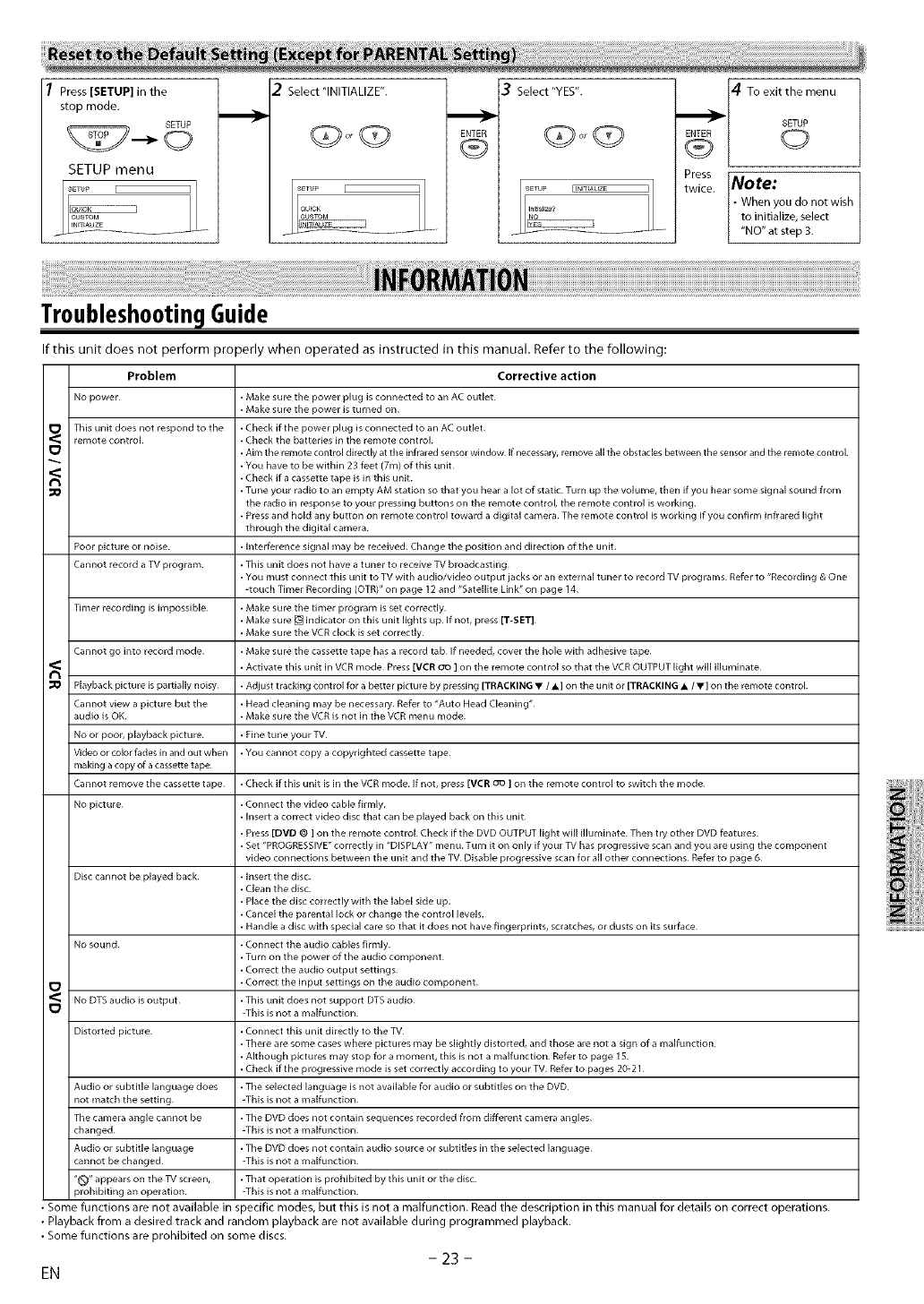

Troubleshooting Guide .......................................................................... 23

Specifications ......................................................................................... 24

Language Code List ................................................................................ 24

LIMITED WARRANTY ............................................................................... 24

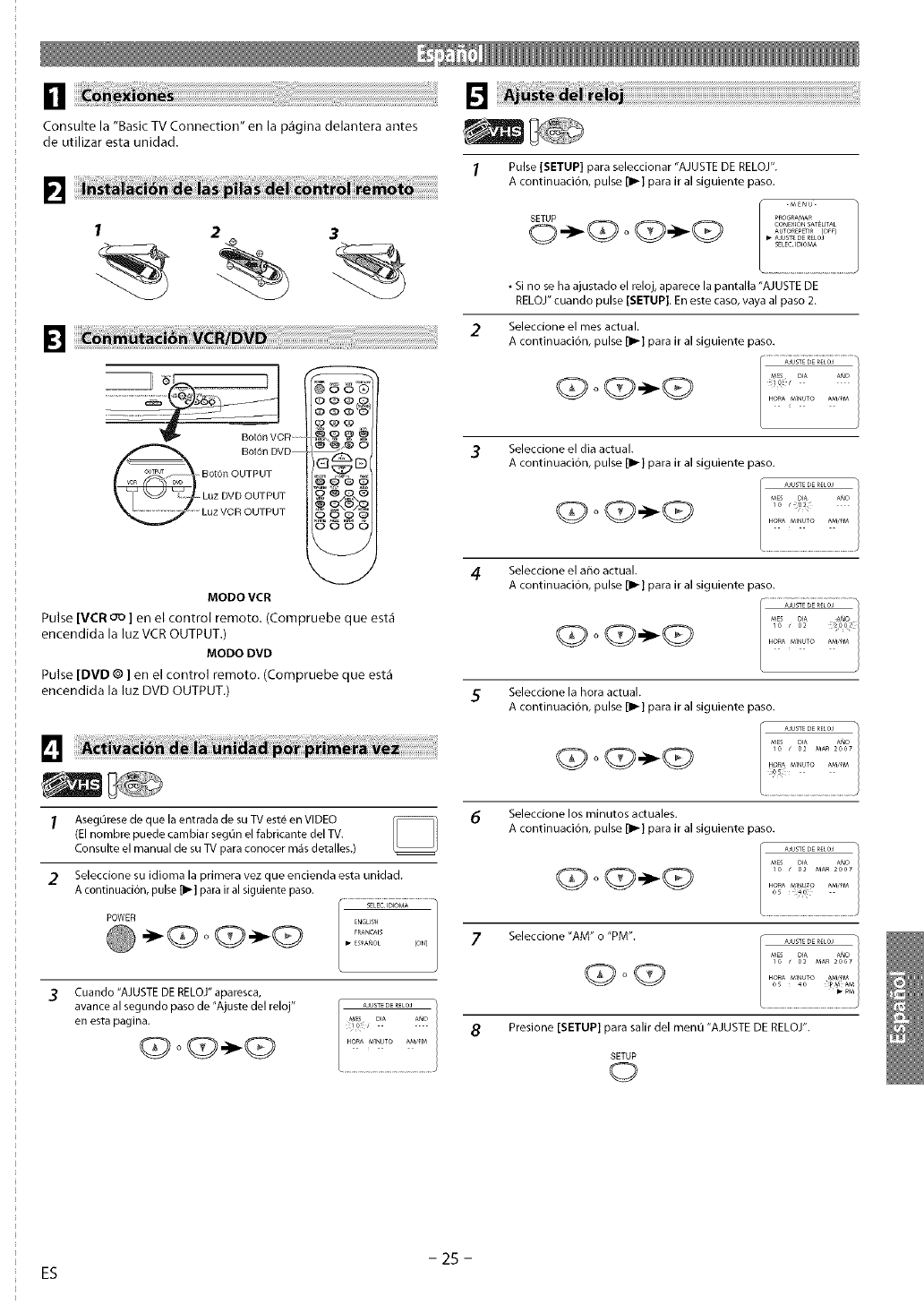

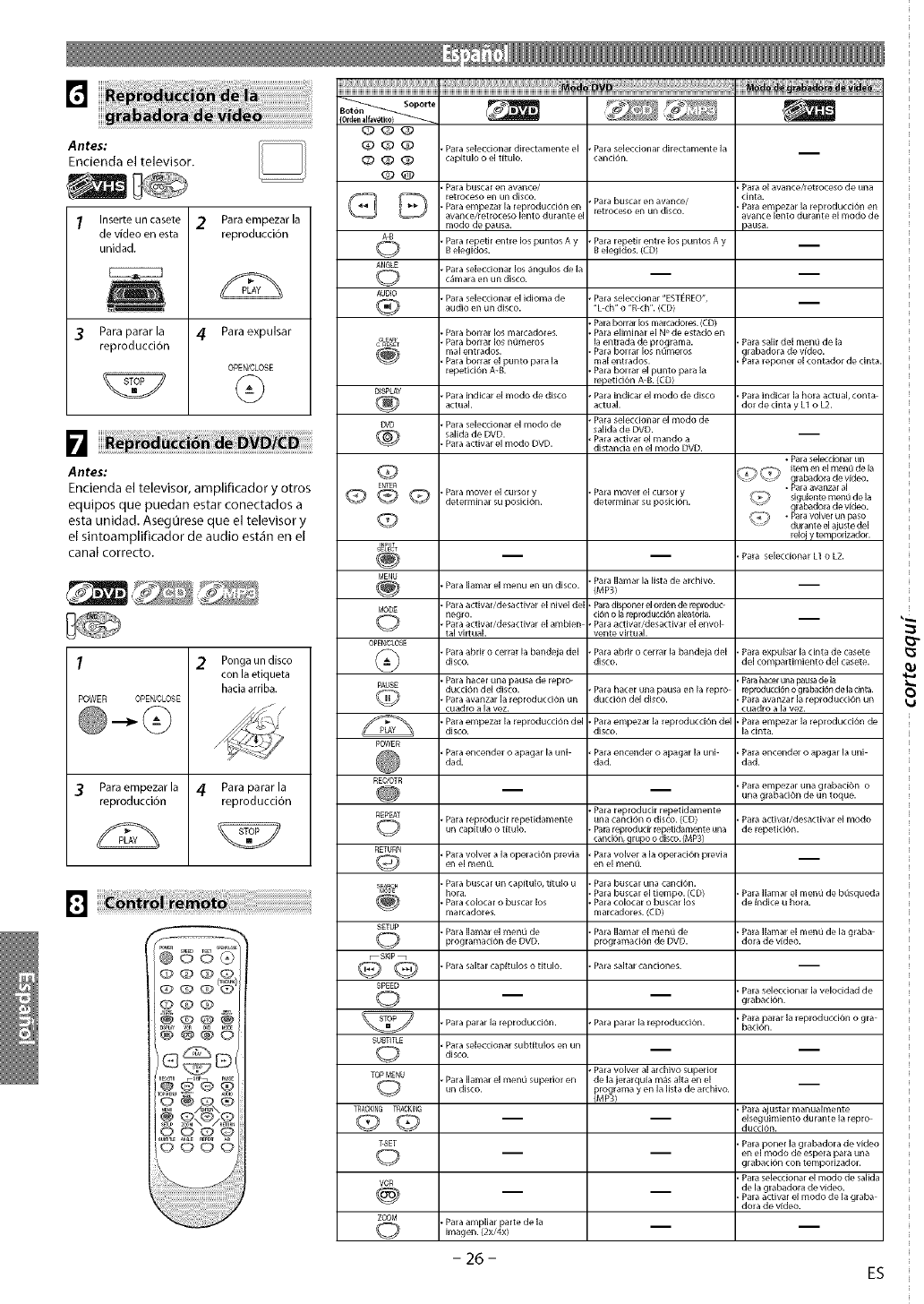

Espa_ol ................................................................................................... 25

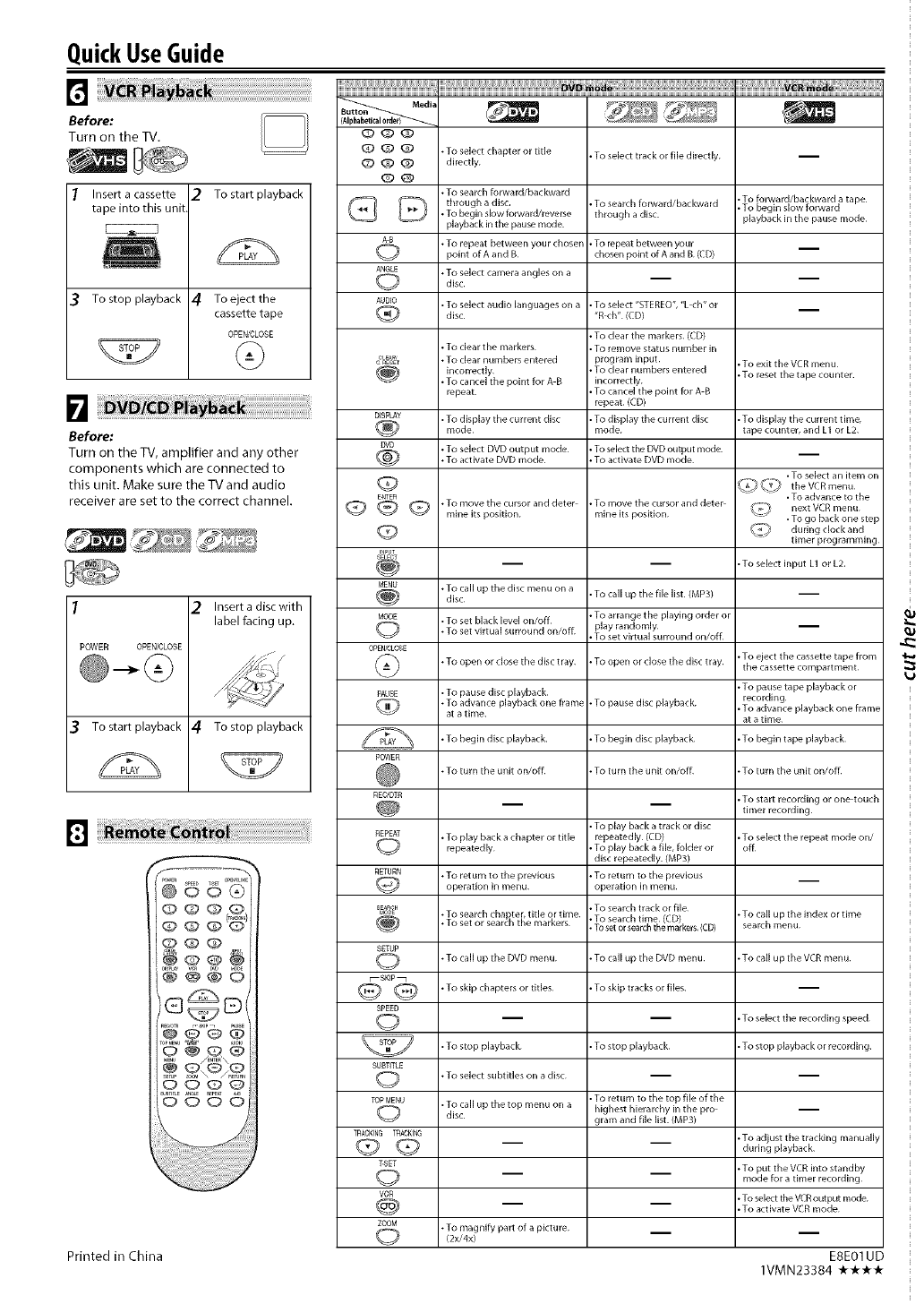

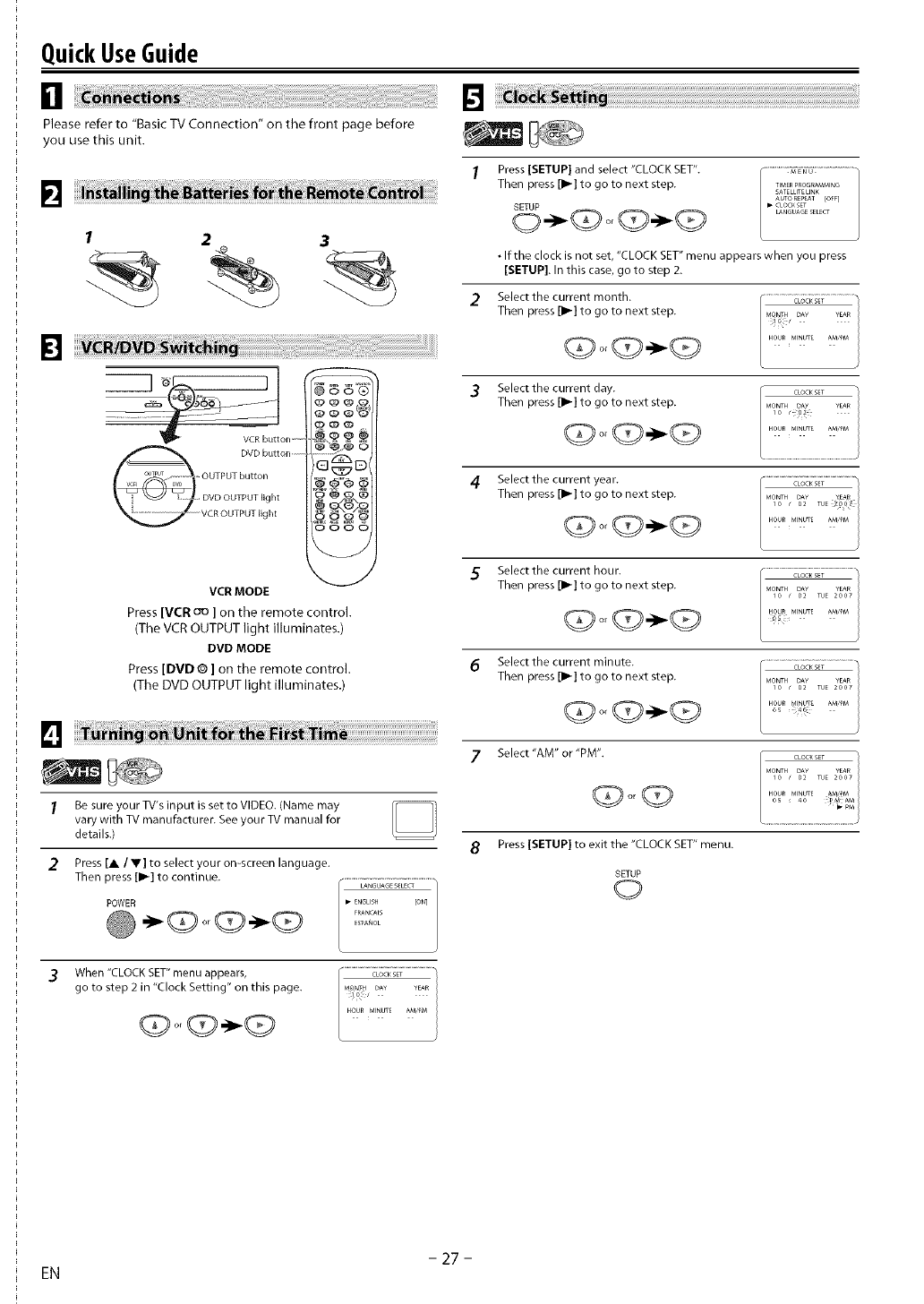

Quick Use Guide ...................................................................................... 27

rear of the unit

connect rear of TV AC 2 plug in

outlets

_ _ _/1" from the unit

_'_/_lf_ from TV

Please refer to"Connections" on page 6,

WARNING: TO REDUCETHE RISKOF FIREOR ELECTRICSHOCK, DO NOT EXPOSETHIS APPLIANCE TO RAIN

OR MOISTURE.

CAUTION

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT

REMOVE COVER (OR BACK). NO USER SERVICEABLE

PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE

PERSONNEL.

The lightning flash with arrowhead symbol, within an

equilateral triangle, is intended to alert the user to the

presence of uninsulated "dangerous voltage" within

the product's enclosure that may be of sufficient mag-

nitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle

is intended to alert the user to the presence of impor-

tant operating and maintenance (servicing) instruc-

tions in the literature accompanying the appliance.

The caution marking is located on the rear of the cabinet.

This unit employs a laser. Only a qualified service person should remove the cover or attempt to service this device, due

to possible eye injury.

CAUTION: USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE

SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

CAUTION: VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCK DEFEATED. DO NOT

STARE INTO BEAM.

LOCATION: INSIDE, NEAR THE DECK MECHANISM.

FCC WARNING -This equipment may generate or use radio frequency energy. Changes or modifications to this equip- I

ment may cause harmful interference unless the modifications are expressly approved in the manual. The user could lose

the authority to operate this equipment if an unauthorized change or modification is made.

RADIO-TV INTERFERENCE

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of tile FCCRules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment

generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment

off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

1) Reorient or relocate the receiving antenna.

2) Increase the separation between the equipment and receiver.

3) Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

4) Consult the dealer or an experienced radio/TV technician for help.

This Class B digital apparatus complies with Canadian ICES-O03.

Cet appareil num_rique de la classe B est conforme _la norme NMB-O03 du Canada.

ICAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

ATTENTION: POUR EVITER LES CHOCS ELECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA

BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU'AU FOND.

A NOTE ABOUT RECYCLING

This product's packaging materials are recyclable and can be reused. Please dispose of any materials in accordance with your local

recycling regulations.

Batteries should never be thrown away or incinerated but disposed of in accordance with your local regulations concerning chemical

wastes.

Make your contribution to the environment!!!

• Used up batteries do not belong in tile dust bin.

• You can dispose of them at a collection point for used up batteries or special wastes.

Contact your council for details.

For Customer Use:

Read carefully the information located at the back of this unit and enter below the Model No. and the Serial No. Retain this information

for future reference.

Model No.

Ser al No.

--2-- EN

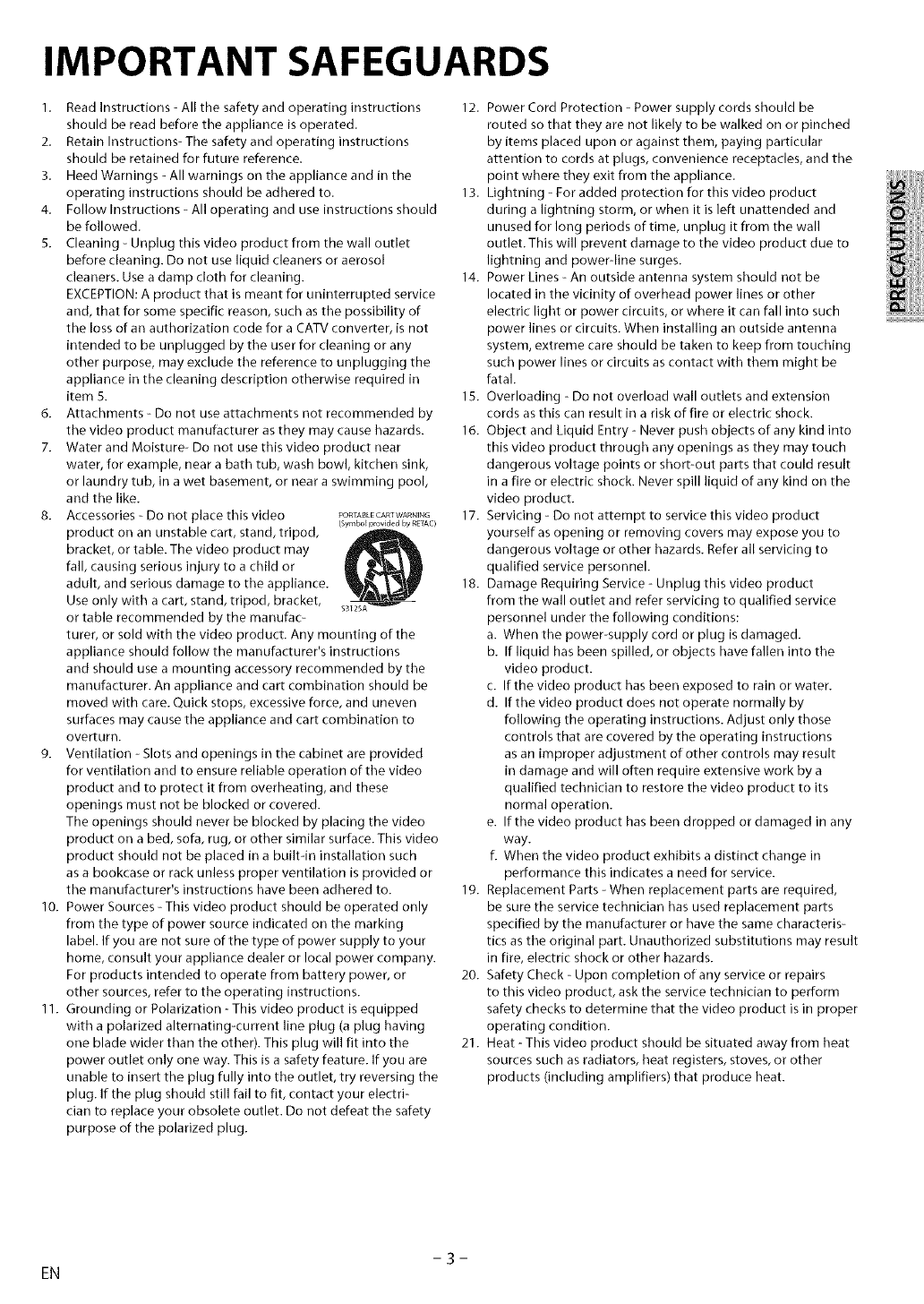

IMPORTANT SAFEGUARDS

1. Read Instructions - All the safety and operating instructions

should be read before the appliance is operated.

2. Retain Instructions- The safety and operating instructions

should be retained for future reference.

3. Heed Warnings - All warnings on the appliance and in the

operating instructions should be adhered to.

4. Follow Instructions - All operating and use instructions should

be followed.

5. Cleaning - Unplug this video product from the wall outlet

before cleaning. Do not use liquid cleaners or aerosol

cleaners. Use a damp cloth for cleaning.

EXCEPTION: A product that is meant for uninterrupted service

and, that for some specific reason, such as the possibility of

the loss of an authorization code for a CATV converter, is not

intended to be unplugged by the user for cleaning or any

other purpose, may exclude the reference to unplugging the

appliance in the cleaning description otherwise required in

item 5.

6. Attachments - Do not use attachments not recommended by

the video product manufacturer as they may cause hazards.

7. Water and Moisture- Do not use this video product near

water, for example, near a bath tub, wash bowl, kitchen sink,

or laundry tub, in a wet basement, or near a swimming pool,

and the like.

8. Accessories - Do not place this video PORTASLECARTWARNING

(Symbol plovided by RETAC)

product on an unstable cart, stand, tripod,

bracket, or table. The video product may

fall, causing serious injury to a child or

adult, and serious damage to the appliance.

Use only with a cart, stand, tripod, bracket,

or table recommended by the manufac-

turer, or sold with the video product. Any mounting of the

appliance should follow the manufacturer's instructions

and should use a mounting accessory recommended by the

manufacturer. An appliance and cart combination should be

moved with care. Quick stops, excessive force, and uneven

surfaces may cause the appliance and cart combination to

overturn.

9. Ventilation - Slots and openings in the cabinet are provided

for ventilation and to ensure reliable operation of the video

product and to protect it from overheating, and these

openings must not be blocked or covered.

The openings should never be blocked by placing the video

product on a bed, sofa, rug, or other similar surface. This video

product should not be placed in a built-in installation such

as a bookcase or rack unless proper ventilation is provided or

the manufacturer's instructions have been adhered to.

10. Power Sources - This video product should be operated only

from the type of power source indicated on the marking

label. If you are not sure of the type of power supply to your

home, consult your appliance dealer or local power company.

For products intended to operate from battery power, or

other sources, refer to the operating instructions.

11. Grounding or Polarization - This video product is equipped

with a polarized alternating-current line plug (a plug having

one blade wider than the other). This plug will fit into the

power outlet only one way. This is a safety feature. If you are

unable to insert the plug fully into the outlet, try reversing the

plug. If the plug should still fail to fit, contact your electri-

cian to replace your obsolete outlet. Do not defeat the safety

purpose of the polarized plug.

12. Power Cord Protection - Power supply cords should be

routed so that they are not likely to be walked on or pinched

by items placed upon or against them, paying particular

attention to cords at plugs, convenience receptacles, and the

point where they exit from the appliance.

13. Lightning - For added protection for this video product

during a lightning storm, or when it is left unattended and

unused for long periods of time, unplug it from the wall

outlet. This will prevent damage to the video product due to

lightning and power-line surges.

14. Power Lines - An outside antenna system should not be

located in the vicinity of overhead power lines or other

electric light or power circuits, or where it can fall into such

power lines or circuits. When installing an outside antenna

system, extreme care should be taken to keep from touching

such power lines or circuits as contact with them might be

fatal.

15. Overloading - Do not overload wall outlets and extension

cords as this can result in a risk of fire or electric shock.

16. Object and Liquid Entry- Never push objects of any kind into

this video product through any openings as they may touch

dangerous voltage points or short-out parts that could result

in a fire or electric shock. Never spill liquid of any kind on the

video product.

17. Servicing - Do not attempt to service this video product

yourself as opening or removing covers may expose you to

dangerous voltage or other hazards. Refer all servicing to

qualified service personnel.

18. Damage Requiring Service - Unplug this video product

from the wall outlet and refer servicing to qualified service

personnel under the following conditions:

a. When the power-supply cord or plug is damaged.

b. If liquid has been spilled, or objects have fallen into the

video product.

c. If the video product has been exposed to rain or water.

d. If the video product does not operate normally by

following the operating instructions. Adjust only those

controls that are covered by the operating instructions

as an improper adjustment of other controls may result

in damage and will often require extensive work by a

qualified technician to restore the video product to its

normal operation.

e. If the video product has been dropped or damaged in any

way.

f. When the video product exhibits a distinct change in

performance this indicates a need for service.

19. Replacement Parts - When replacement parts are required,

be sure the service technician has used replacement parts

specified by the manufacturer or have the same characteris-

tics as the original part. Unauthorized substitutions may result

in fire, electric shock or other hazards.

20. Safety Check - Upon completion of any service or repairs

to this video product, ask the service technician to perform

safety checks to determine that the video product is in proper

operating condition.

21. Heat - This video product should be situated away from heat

sources such as radiators, heat registers, stoves, or other

products (including amplifiers) that produce heat.

i@iliii

• Do not stand this unit up vertically. Install this unit in a

horizontal and stable position. Do not place anything directly on top

of this unit. Do not place this unit directly on top of the TV.

• Depending on the TV, noise or disturbance of the picture and/or

sound may be generated if this unit is placed too close to your TM In

this case, please ensure enough space between your TV and this unit.

• Do not cover or place this unit in enclosed spaces to

prevent excessive temperature build up.

• Do not place this unit in direct sunlight, or near heat sources.

• Depending on the environment, the temperature of this unit may

increase slightly. This is not a malfunction.

• Keep this unit away from strong magnetic objects.

• Do not place any object containing water or other liquids on this

unit. In the event that liquid should enter the cabinet, unplug this

unit immediately and contact the retailer or an authorized service

center immediately.

• Do not remove this unit cabinet. Touching parts inside the cabinet

could result in electric shock and/or damage to this unit. For service

and adjustment inside the cabinet, call a qualified dealer or an

authorized service center.

• Be sure to remove disc and cassette tape and unplug the AC power

cord from the output before carrying this unit.

• Do not handle the power cord with wet hands.

• Do not pull on the power cord when disconnecting it from AC

outlet. Grasp it by the plug.

• If, by accident, water is spilled on this unit, unplug the power cord

immediately and take the unit to our authorized service center for

servicing.

• Do not put your fingers or objects into the unit cassette holder.

Moisture may form inside this unit under the following conditions:

• Immediately after a heater is turned on.

• In a steamy or humid room.

• When this unit is suddenly moved from a cold to warm environment.

If moisture forms inside this unit, it may not operate properly or

damage the cassette tape. In such case, do not use this unit at least for

2 hours until its inside gets dry.

Unauthorized copying, broadcasting, public performance and lending

of discs are prohibited.

This product incorporates copyright protection technology that is

protected by U.S. patents and other intellectual property rights. Use of

this copyright protection technology must be authorized by Macrovi-

sion, and is intended for home and other limited viewing uses only

unless otherwise authorized by Macrovision. Reverse engineering or

disassembly is prohibited.

Consumers should note that not all high definition television sets

are fully compatible with this product and may cause artifacts

to be displayed in the picture. In case of picture problems with

525 progressive scan output, it is recommended that the user

switch the connection to the 'standard definition' output. If

there are questions regarding your TV set compatibility with this

525p DVD player, please contact our customer service center.

The following symbols appear in some headings in this manual.

_: Description refers to video cassette tapes.

_: Description refers to DVD-video.

: Description refers to audio CD.

: Description refers to CD-RW/-R with MP3 files.

Note to CATV system installer:

This reminder is provided to call the CATV system installer's attention to

Article 820-40 of the NECthat provides guidelines for proper grounding

and, in particular, specifies that the cable ground should be connected

to the grounding system of the building, as close to the point of cable

entry as practical.

Servicin9

• Please refer to relevant topics on the "Troubleshooting Guide" on

page 23 before returning the product.

• If this unit becomes inoperative, do not try to correct the problem

by yourself. There are no user-serviceable parts inside. Turn off,

unplug the power plug, and please call our toll free customer

support line found on the cover of this manual to locate an autho-

rized service center.

Cleaningthe Cabinet

• Use a soft cloth slightly moistened with a mild detergent solution.

Do not use a solution containing alcohol, spirits, ammonia or

abrasive.

Cleanin9 Discs

• When a disc becomes dirty, clean it with a cleaning cloth. Wipe the

disc from the center to out. Do not wipe in a

circular motion.

• Do not use solvents such as benzine, thinner, commercially available

cleaners, detergent, abrasive cleaning agents or antistatic spray

intended for analog records.

Cleanin9 the DiscLens

• If this unit continues to perform improperly even after you have

referred to the relevant sections and to the

"Troubleshooting Guide" in this manual, the laser optical pickup unit

may be dirty. Consult your dealer or an authorized service center for

inspection and cleaning of the laser optical pickup unit.

DiscHandlin9

• When you handle a disc, hold it by its edge and try not to touch the

surface of the disc.

• Always store the disc in its protective case when not in use.

AutoHeadCleaninq

• Automatically cleans video heads as you insert or remove a cassette

tape, so you can see a clear picture.

• Playback picture may become blurred or interrupted while the TV

program reception is clear. Dirt accumulated on the video heads

after a long period of use, or the usage of rental or worn cassette

tapes can cause this problem. If a streaky or snowy picture appears

during playback, the video heads in your unit may need to be

cleaned.

1. Please visit your local audio/video store and purchase a good

quality VHS video head cleaner.

2. If a Video head cleaner does not solve the problem, please call our

toll free customer support line found on the cover of this manual to

locate an authorized service center.

Note:

• Remember to read the instructions along with the video head cleaner

before use.

• Clean v deo heads only when problems occur.

_,_2007 Funai Electric Co., Ltd.

transmitted, disseminated, transcribed, downloaded or stored in any

storage medium, in any form or for any purpose without the express pri-

or written consent of Funai. Furthermore, any unauthorized commercial

distribution of this manual or any revision hereto is strictly prohibited.

Information in this document is subject to change without notice.

Funai reserves the right to change the content herein without the

obligation to notify any person or organization of such changes.

F'ul¢ l with the qr_ design is a registered trademark of Funai

Electric Co., Ltd and may not be used in any way without the express

written consent of Funai. All other trademarks used herein remain

the exclusive property of their respective owners. Nothing contained

in this manual should be construed as granting, by implication or

otherwise, any license or right to use any of the trademarks displayed

herein. Misuse of any trademarks or any other content in this manual

is strictly prohibited. Funai shall aggressively enforce its intellectual

property rights to the fullest extent of the law.

-4- EN

AboutCassetteTapesand Discs

Type of Recorded Media size Tape speed and disc types

media signals

cassette tape width SP: 1-5/16 inch/see. (33.40 ram/see.)

tape analog video 1/2 inches SLP: 7/16 inch/sec. (11.12 mm/sec.)

(12.65 mm)

DVD-video

"1,2,3,5,9

DVD-RW

DVD-R

_1, 3,4, 5, 6,

8,9,10

DVD+RW

DVD+R

_1,3,4, s, 7,

8,9,10

audio CD

_3, s,9

CD-RW

CD-R

*3,4,5,8,9

Mark (logo)

VIDEO

Q_w

OIGIY_L_UOm

Region code

@o@

digital video

(MPEG2)

digital audio

MP3

5 inches

(12 cm)

3 inches

(8 cm)

5 inches

(12 cm)

3 inches

(8 cm)

e_g.) title I =1' title 2

is a trademark of DVD Format/Logo Licensing Corporation.

If you cannot play backadiscwhich bearsone of the marksabove,checkthe following,

Xl : This unit conforms to the NTSCcolor system. Discs recorded in other color systems such as PAL cannot be played back.

_2: Certain DVD-video does not operate asdescribed in this manual due to the intentions of the disc's producers.

_3: Scratched or stained discs may not be played back.

x4: Some discs cannot be played back because of incompatible recording conditions, characteristics of the recorder or special prop-

erties of discs.

_5: You can play back discs which bear the marks above. If you use nonstandardized discs, this unit may not play them back. Even if

they are played back, the sound or video quality will be compromised.

"6: You may play back the unfinalized DVD-RW/-R recorded in the video format on our brand's DVD recorder. However, depending

on the recording status of a disc, the disc may not be played back at all or normally (the picture or sound may not be smooth,

etc.). In this case, you need to finalize the disc with the DVD recorder. Referto the manual accompanying the DVD recorder.

"7: Only discs recorded in the video format and finalized can be played back.

Unfinalized discs cannot be played back. Depending on the recording status of a disc, the disc may not be played back at all (the

picture or sound may not be smooth, etc.).

*8: If the recorded portion of the disc is too small (less than 2-3/16 inches (SSmm) across), it may not play back properly.

_9: Do not glue paper or put stickers on to the disc. These may damage the disc, and the unit may not read it correctly.

_I 0: Discs recorded in the VR (video recording) format cannot be played back.

NEVER play the following discs as malfunction may result!

DVD-RAM, DVD-audio, CD-i, photo CD, video CD, DVD with region codes other than 1 or ALL, DTS-CD,DVD-ROM for personal computers,

CD-ROM for personal computers

On the following disc, the sound MAY NOT be heard.

super audio CD

Note: 1

•Only the sound recorded on the normal CD layer can be del vered. The sound recorded on the high density super audio CD layer cannot be delivered. /

Any other discs without compatibility indications

Connections

Please refer to "Basic TV Connection" on the front page before you use this unit.

analog audio standard picture good picture better picture

RCA audio cable RCA video cable S-video cable component video cable

COMPONENT

AUDIO OUT VIDEO OUT S-VIDEO OUT VIDEO OUT

Note:

•Connect this unit directly to your TV. If an RCAaudio/video cables are connected to a VCR,pictures may be distorted due to the copy protection system.

• DIGITAL AUDIO OUT (COAXIAL), DVD AUDIO OUT, S-VIDEO OUT and COMPONENT VIDEO OUT jacks are on y usefu in DVD mode.

If your TV is compatible with 525 (480) progressive scanning, and you want to enjoy that high quality picture for DVD playing;

You must select the connection COMPONENT VIDEO OUT above and progressive scanning mode. To set the mode, set

"PROGRESSIVE" to "ON" in "DISPLAY" menu, so that the PROGRESSIVE SCAN indicator on this unit lights up. Refer to pages 20-21 for

more details.

• When "PROGRESSIVE" is "ON", video signals from the unit's VIDEO OUT and S-VIDEO OUT jacks will be distorted or not be output at

all for DVD playing. The picture will be OK for VCR use from the VIDEO OUT jack.

If your TV is not compatible with progressive scanning;

Use ibis unit in interlace mode and set "PROGRESSIVE" to "OFF" either in "DISPLAY" menu or by pressing and bolding [PLAY I_] on

the front of the unit on the DVD side for more than 5 seconds, so that the PROGRESSIVE SCAN indicator on this unit turns off.

After connecting to your TV:

You will need to switch to video input on your TV. This is usually marked W/VIDEO, INPUT or AUX.

Please refer to your TV's owner's manual for details.

Input modes for common TV brands:

Listed below are inputs for common brand name TV's.

Admiral:

Curtis Mathis:

GE:

Hitachi:

JVC:

Kenwood:

LXI-Series:

Magnavox:

AUX Panasonic: TV/VIDEO

LINE1, LINE2, 00, 90, 91, 92, 93 RCA: INPUT, TV/VCR, 00, 90, 91, 92, 93

INPUT,INPUT'TV/VCR,AuX00, 90, 91, 92, 93 Sanyo:Samsung: VIDEoTV/VlDEO

VIDEO, VIDEO1, VIDEO2, VIDEO3 Sharp: 00

AUX Sony: VIDEO1, VIDEO2, VIDEO3

00 Toshiba: TV/GAME

AUX CHANNEL Zen th: 00

-6- EN

stereo system

RCA audio cable

ana,ogaadio digita,aud1o

input jacks input jack

digital audio coaxial cable I

Dolby Digital decoder,

MD deck or DAT deck

AUDIO OUT DIGITAL AUDIO OUT

Connecting to a Dolby Digital decoder

for Dolby Digital audio output.

Connecting to other device (an MD deck

or DAT deck etc.) without Dolby Digital

decoder.

× To complete these settings, refer to pages 20-21.

Note:

The audio source on a disc in a Dolby Digital multi channel surround

format cannot be recorded asdigital sound by an MD or DAT deck.

By hooking this unit up to a Dolby Digital decoder, you can enjoy

high-quality Dolby Digital multi channel surround sound as heard in the

movie theaters.

Playing back a DVD using incorrect settings may generate noise distor-

tion and may also damage the speakers.

rear of TV rear of the unit

external tuner

(cable/satellite box)

Using the unit with a cable/satellite box

1. Connect an RCA audio and video cables to the audio and

video output jacks of your cable/satellite box and to the audio

and video input jacks at the rear of the unit.

2. Press [INPUT SELECT] on your remote control until %1" is

displayed on your TV.

Note:

• Your cable/satellite box can be accessed only by connecting it to L1

(rear panel jacks) of the unit. Even if the unit is turned off, the signal

from the externa tuner is output to the TV through the unit.

L1 : Rear panel terminals

L2: Front panel terminals

Refer to Front & Rear Term nals on page 9 for more information.

Special note when connected to a cable/satellite box:

•Only the active channel on your cable/satellite box may be

viewed or recorded when connected to this unit.

Do not change channels during a recording. You cannot record

on channel while viewing another.

• Always use the LEFT (white) audio output jack from the external

tuner to ensure that the audio is mixed down correctly to mono

for this unit. If you use the RIGHT (red) jack, you will record the

right audio only.

Preparation for Use

Please note: most instructions in this man-

ual refer to remote control use.

IBe sure your TV's input is set to VIDEO. (Name may

vary with TV manufacturer. See your TV manual for

details.)

2 Select your on-screen language.

Then press [1_] to continue.

POWER

@ O" Q

3When "CLOCK SET" menu appears, "CLOCKSET

go to step 2 in "Clock Setting" on this page. Mo_, PAT YEAR

ToChangethe SelectedOn-screenLanquage

IPress [SETUP] until the main menu appears.

SETUP

Select "LANGUAGE SELECT".

Then press [IP'] to go to next step.

-TIME_ROGRAMMIN6

SATELLITELINK

AUTOREPEAT [OFF1

CLOC_SET

LAN_UA6ESELECT

TIME_ROGRAMMIN6

SATELLITELINK

AUTOREP_AT [OFF1

CLOC_SET

.LAN_UA6ESELECT

3Select "ENGLISH","FRANCAIS"or

"ESPAROL".Then press [CLEAR/C.RESET].

C_EAn/

Note:

•If you accidentally select Spanish or French and need English:

Press [SETUP] and choose "SELEC. IDIOMA" or "SELECTION LANGUE".

Press I_ and select ENGL SH . F nally, press CLEAWC.RESET.

/Press[SETUP] and select "CLOCK SET".

Then press [1_] to go to next step.

SETUP

• If the clock is not set, the "CLOCK SET" menu appears when you

press [SETUP]. In this case, go to step 2.

Select the current month.

Then press [1_] to go to next step.

3Select the current day.

Then press [1_] to go to next step.

4Select the current year.

Then press [1_] to go to next step.

5Select the current hour.

Then press [_] to go to next step.

_ Select the current minute.

Then press [_] to go to next step.

]Select "AM" or "PM".

o,Q>

8Press [SETUP] to exit the "CLOCK SET" menu.

SETUP

Note:

• To go back, press [<1] during steps 2 to 7.

• Clock setting will be lost after a power failure, or this unit has been

unp ugged for more than 30 seconds.

-8- EN

FunctionOverview

Lights up when the progressive scan system is activated.-- _ Lights up when the inserted disc

[ is being played back.

Lights up during a recording or one-touch timer Lights up when this unit [ Blinks when an unplayable disc

recording (OTR). Blinks when a recording is paused, is in the DVD mode. is inserted.

Lights up when the unit is turned on. Lights up when this unit is in the VCR mode.

Lights up when the timer recording or

one-touch timer recording (OTR) has been set.

You must first select either DVD or VCR operation.

VCR MODE

Press [VCR o_ ] on the remote control.

(The VCR OUTPUT light will illuminate.)

DVD MODE

Press [DVD ©] on the remote control.

(The DVD OUTPUT light will illuminate.)

VCR button .........

DVD button--------

OUTPUT button

DVD OUTPUT light

VCR OUTPUT light

qP@@@

@@@

Oq_@

d_56

rear panel front panel

1: DVD AUDIO OUT _ [analog] jacks

Connect an audio cable from here to the audio input jack of your televi-

sion or audio device.

2: DVD/VCR AUDIO OUT jacks

Connect an audio cable from here to the audio input jack of your television

or audio device. Standard connection for DVD/VCR use.

3: VCR AUDIO IN jack

Connect a monaural audio cable from the audio output jack of your

camcorder, VCR, etc. to here. After making the connection, press

[INPUT SELECT] on the remote control. Select "LI" to activate the rear

AUDIO IN jack, or "L2" to activate the front.

4: VCR VIDEO IN jack

Connect a video cable from the video output jack of your camcorder, VCR,

eta to here. After making the connection, press [INPUT SELECT] on the

remote control. Select "L1 "to activate the rear VIDEO IN jack, or "L2" to

activate the front.

5: DVDIVCR VIDEO OUT jack

Connect a video cable from here to the VIDEO input jack of your televi-

sion or audio device. Standard connection for DVD/VCR use.

6: COMPONENT VIDEO OUT _ jacks

Connect component video cables from here to the component video

input jacks of your television.

7: S-VIDEO OUT _ jack

Connect an S-video cable from here to the S-video input jack of your

television.

8: DIGITAL AUDIO OUT COAXIAL _ jack

Connect a digital audio coaxial cable from here to the digital audio input

jack of your digital audio receiver.

For enhanced DVD viewing. DVD/VCR video and audio connection required

to view cassette tapes.

Note:

• Audio and video cables are included for both VCR and DVD viewing.

You can enhance your DVD picture and sound quality with an S-video

cable, component video cables, or a digital audio coaxial cable. Please

purchase the necessary cables at your local store. (Refer to pages

6-7.)

-9-

_SET _E,_t_E

0 0 qP (_)

@ qp qp Q

@@@@

G@D(

REGDTR__ @_ SKIP _ _

TOP MENU N_E" _IDIO

OOQQ

Install the batteries (AA x 2) matching

the polarity indicated inside battery

compartment of the remote control.

1 2 3

Keep in mind the following when using the

remote control:

•Make sure that there are no obstacles

between the remote control and the infra-

red sensor window on the unit.

• The maximum operable ranges from the

unit are as follows.

-Line of sight: approx. 23 feet (7m)

-Either side of center:

approx. 16 feet (5m) within 30 °

-Above: approx. 16feet(5m)within 15 °

-Below: approx. 10 feet (3m) within 30 °

Note:

Do not mix alkaline and manganese batteries.

Do not mix old and new batteries.

Always remove batteries from remote control

if they are dead or if the remote control is not

to be used for an extended period of time.

This will prevent battery acid from leaking

into the battery compartment.

If you turn off this unit, [OPEN/CLOSE A] on the

remote control is not available.

Be sure to use [OPEN/CLOSE A] or

[STOP/EJECTI _] on the unit,

Button Media

@@@

A-B

ANGLE

AUDIO

(g?

TRACKING TRACKING

T-SET

VCR

ZOOM

•To select chapter or title

directly •To select track or file directly

•To search forward/backward

through a disc • To searcl_ forward/backward .To forward/backward a tape

• To begin slow forward/reverse through a disc .To begin slow forward

playback in tile pause mode playback in the pause mode

• To repeat between your chosen • To repeat between your

)oint of A and B chosen point of A and B (CD)

•To select camera angles on a -- --

disc

•To select audio languages on a •To select "STEREO", "L-dP' or

disc "R oh" (CD)

•To clear the markers (CD)

•To clear the markers • To remove status number in

_E_T "To clear numbers entered program input

incorrectly • To clear numbers entered • To exit the VCR menu

• To cancel the point for A B incorrectly •To reset the tape counter

repeat • To cancel the point for A B

repeat (CD)

DISPLAY • To display the current disc • To display the current disc • To display the current time,

mode mode tape counter, and L1 or L2

DVD • To select DVD output mode • To select the DVD output mode

_ • To activate DVD mode • To activate DVD mode

__, • To select an item on

• To advance to theEN_

_ _ _ .T ....... th ........... ddetel .T ....... th ........... ddeter _ ;'h" next VCR menu

mine its position mine its position _:¢ • To go back one step

@ _T_ during dock and

timer programming,

SE_CT

-- -- .To select input "L I" or "L 2"

MENU .To call up the disc menu on a • To call up the file list (MP3)

disc

MODE •To set black level on/off • To arrange the playing order or

play randomly

• To set virtual surround on/off • To set virtual surround on/off

OPENiCLOSE

(_ •To eject the cassette tape from

•To open or close the disc tray •To open or close the disc tray the cassette compartment

PAUSE • To pause disc playback .To pause tape playback or

recording.

• To advance playback one frame • To pause disc playback .To advance playback one frame

at a time at a time

•To begin disc playback •To begin disc playback .To begin tape playback

POWER

• To turn the unit on/off • To turn the unit on/off .To turn the unit on/off

RE02QTR .To start recording or one toudl

timer recording (OTR)

•To play back a track or disc

REPEAT •To play back a chapter or title repeatedly (CD) •To select the repeat mode on/

C_ repeatedly • To play back a file, folder or off

disc repeatedly (MP3)

RETURN •To return to tile previous •To return to tile previous

operation in menu operation in menu

MODE "To search chapter, title or time •To search track

•To search time (CD) •To call up tile index or time

• To set or search the markers •To set or search the markers (CD) seardl menu

SETUP

•To call up the DVD menu •To call up the DVD menu .To call up the VCR menu

_SKiP_

_•To skip chapters or titles •To skip tracks or files

SPEED

-- -- •To select the recording speed

• To stop playback • To stop playback . To stop playback or recording

SU[ITITLE

•To select subtitles on a disc -- --

TOPMENU .To call up the top menu on a .To return to the top file of the

highest hierarchy in the pro

disc gram and file list (MP3)

I I .To adjust the tracking manually

during playback

I I •To put the VCR into standby

mode for a timer recording

i •To select the VCR out pff. mode

•To activate VCR mode

i i

•To magnify part of a picture

(2x/4x)

-10- EN

Playback

Before: Turn on the TV.

IInsert a cassettetape

into this unit.

3To stop playback

2 To start playback

4To eject the cassette tape

0PEN, C_OSE []

@@@_'

®@®0

Note:

When a cassette tape

without a record tab is

inserted, the unit will

start playback automati-

cally.

Tracking will be auto-

matically adjusted upon

playback. To adjust the

tracking manually, press

[TRACKIFIG •/• ]

during playback.

Other Operations

Tocueorreviewpictureduringplayback(picturesearch)

Use [ID4_] or [_] ([ F.FWDID4_] or [REW _] on this unit).

• Press it again and the unit will search in super high speed. (in the

SLP mode only)

Tofreezethe pktureonW screendutin_playback(still mode)

Press [PAUSE I I]. Each time you press the button, the picture will

be forwarded by one frame.

• If the picture begins to vibrate vertically in the still mode,

stabilize the picture by using [TRACKING• IV].

• If the picture is distorted or rolling vertically, adjust the vertical

hold control on your TV if equipped.

To Reset the Cassette Tape Counter (counter reset)

Press [DISPLAY] to display the cassette tape counter on the TV.

Press [CLEAR/C.RESET] to reset the counter to "0:00:00".

Toplaybackin slowmotion(slowmode)

Press [PAUSE I|] during playback,then press[1_1_]([F.FWD I_11_] on this

unit).

• If you want to change speed in slow mode, press [1_,-t_] or [_<_1]

([ F.FWD I_,-t_] or [REW_<_I] on this unit), slow speed will be more

fast and slow mode.

• If the noise bars appear on the TV screen, you can reduce it by using

[TRACKING • /V].

Torewindthe cassettetape automatically(auto rewind)

When a cassette tape reaches its end during playback, fast-

forward or recording (except timer recording and one-touch

timer recording), the cassette tape will automatically rewind to

the beginning. After rewinding finishes, the unit will eject the

cassette tape.

Note:

•To prevent damage to the cassette tape, still or slow mode will auto-

matically stop after 5 minutes.

• To return to playback from the picture search, still or slow mode, press

PLAY I_ .

To search by index mark.The index mark will be made automati-

cally at the beginning of each recording.

•Insert a cassette tape into this unit.

IPress [SEARCH MODE] once. ]

SEARCH INDEXSEARCH

MODE

To select index mark 1

02 01 01 02 03 @"_*"__

3To rewind

Tofastfo ord j

4When index markis reached,

playback automatically begins, r PLAY i_ 1

Note:

• The time gap between index marks should be more than 1 minute for SP

mode, 2 minutes for LP mode and 3 minutes for SLP mode.

To search by length of time.

•Insert a cassette tape into this unit.

IPress [SEARCH MODE] twice.

MODE

2Select the desired length of time

for fast forwarding or rewinding, r 1

_or_ 0:01 _ 9:5g

(1 minute~g hours and 59 minutes)

3To rewind

To fast forward

4When selected length of time is r PLAY i_

reached, playback will start 1

automatically.

Note for Index Search &Time Search:

These functions are not available during recording.

Press [STOP II] to stop the search.

Ira cassette tape ends during a search, your search will be canceled and

the cassette tape will rewind to the beginning.

-11 -

When "AUTO REPEAT" is set to "ON", the cassette tape will automatically rewind and start over when it reaches the end.

This will continue until auto repeat function is turned off.

IPress [SETUP], and choose "AUTO REPEAT". MENO 2Press [I_] to "AUTO REPEAT" to set "ON" or "OFF".

TIMER pROGRAt 4_41NG

SATELLITE LINK

I_ AUTO R£PEAT [OFF] {_SETUP CLOCKSET

LANGUAGE S£LEC r

_ _ or _ Press [SETUP] to exit.

Note:

•The auto repeat function can also be set "ON" or "OFF" by pressing [REPEAT] on the remote control.

• To cancel auto repeat function, follow step 1 above. Then, press [1_] so that "OFF" appears beside "AUTO REPEAT". Press [SETUP] to exit.

• The auto repeat playback w II start automat cally fyou select AUTO REPEAT to ON n the stop mode.

Recording

M ENU

TIMERPROGRAMMING

SATELLITEUNK

_AUTOR£PEAT ION]

CLOCKSET

LAN6UA6ES_LECT

This unit has no tuner system so it cannot receive TV broadcasts without external

tuner or such devices.

Note: ]

L•You can also set to external tuner. Refer to "Satellite Link" on page 14. J ............................................................................................................................................

Insert a recordable

cassette tape.

Press [INPUT SELECT] until "LI" or

"L2" is displayed on the TV screen.

Select "LI" to activate rear input jacks.

Select "L2" to activate front input jacks.

INPUT

SELECT

See note on the right.

Press [SPEED] to select the desired tape speed.

SPEED

4Press [RECIOTR] until desired recording time is selected.

RECiOTR

5 Press [STOPII] to 6Press [OPENICLOSE A] to eject the

stop recording, recorded cassette tape.

OPEN/CLOSE

I You CANNOT dub a DVD to a video cassette tape.

_[_ _"6_"_ ®

Tosteprecerdin9 temporarily (Pausemode)

Press [PAUSE I I].

• During the recording in pause mode, 5 II marks appear on the

TV screen. Each II mark represents I minute.

• Press it again to resume recording.

• Pause mode will be automatically canceled after 5 minutes to

prevent damage to the cassette tape and the video head.

Note:

• Do not change the external tuner's channel while you are recording.

You CANNOT watch one channel and record another at the same time.

• Connect your external tuner to the L1 (rear panel) jacks of the unit.

Connect camcorders and other such devices to the L2 (front panel)

jacks. Refer to page 7, 9.

•Insert a recordable cassette tape.

•Make sure to turn on the external

tuner.

Press [SETUP]. Select "TIMER PROGRAMMING".

SETUP _ TIMERPROGF{AMMIN6 PRO6 1234_g78"

tANG/IAGE SELECt END TIME

LI'L2

RECSPEED

Available program number flashes.

2Select an empty program number.

Then press [1_] to go to next step.

-12- EN

3Select"ONCE","DAILY"(Mon-Fri),or "WEEKLY". P_OGRAMNUMBER

Then press [1_] to go to next step. _*o.c_

DAILY

WEEKLY

Select the desired date.

Then press [1_] to go to next step.

_o_ Fc,___,_;:__;_P_OGRAM.UMBER_....................

DATE

START 10,2 TU_

TIME

L1/L2

REC S_ED

• You can program the unit to record up to 8 programs, for up to

a year in advance.

Select the desired starting time (hour).

Then press [I_] to go to next step.

PROGRAMNUMBER1

DATE 10 / 2 _,UE

START tIME 07,_0 i

END tIME ,==

Ll_L2

R_C SP_ED

Select "AM" or "PM".

Then press [1_] to go to next step.

7Repeat the procedure in steps 5 and 6 to set the ending time.

8Select "LI" or "L2".

Then press [I_] to go to next step.

• ONETIMEP_OG_AM

PROGRAMNUMBERI

DATE I 0,2 3TUE

START TIME O7:3O PM

END TIME O8:3O PM

SPEE_ _ ,:,

Select recording speed.

Then press [CLEARIC.RESET].

CtEA_/

•To set another program after step 9, press [_1.

Then continue with step 2.

I 0 Press [T-SETI to set the timer standby mode.

T-SET

•[] indicator on this unit lights up and the unit goes to the DVD

mode.

Note:

• To go back one step press [_I] during steps 3 to 9.

• Select "LI" to activate rear input jacks. Select "L2" to activate front input

jacks.

Tocheck,correctorcancelatimer program

I) Press [T-SET] then, [VCR o'o ]on the remote control.

2) Press [SETUP] to call up the main menu.

3) Select "TIMER PROGRAMMING" by using [A I V], then press

[I_].

4) Select the program number which you want to check by

using [A I V]. The details of the program you selected will

appear on the TV screen.

• Go to the digit you want to change by using [_I I I_]. Then,

enter correct numbers by using [A IT].

• You may cancel the entire program by pressing [<I] while

the program number blinks.

5) Press [CLEARIC.RESET] to exit.

6) Press [T-SET] to return to the timer standby mode.

Tocancela timer recordingin progress

Press [STOP/EJECT • A] on the unit.

• If a cassette tape is not in the unit or does not have the erase-protection tab, [] indicator on this unit blinks and timer recording cannot

be performed. Please insert a recordable cassette tape.

• When timer recordings are set, [] indicator on this unit lights up. To use the VCR as usual until the time for the recording, press [T-SET]

so that [] indicator lights off.

After an one-touch timer recordingor a timer recordinghas been set, this unit operatesas follows:

• If a cassette tape runs out before an one-touch timer recording or a timer recording is finished, the unit ejects the cassette tape. Press

[T-SET] on the remote control or [STOPIEJECT • A] on the unit, then press [VCR _o] to activate the VCR function again.

•Once the unit turns to the timer standby mode, no VCR functions are available until [T-SET] is pressed.

• To cancel the timer standby mode, press [T-SET] on the remote control or [STOPIEJECT • A.] on the unit, then press [VCR oo] to activate

the VCR function again.

When an one-touch timer recordingor a timer recordingiscompleted...

• If auto power off for DVD has been activated and there are timer recordings on standby, the unit turns off autonqatically, and []

indicator on this unit lights to indicate the unit is in the timer standby mode.

• [] indicator on this unit flashes if there are no more timer recordings on standby.

• If auto power off[or DVD has NOT been activated, the unit goes to the DVD mode and all the VCR functions will be unavailable. All the

DVD functions are available during one-touch timer recording, timer standby mode and timer recording.

• Press [STOPIEJECT • _] on this unit or [T-SET] on the remote control to use the VCR when the unit is turned off.

• Press [OUTPUT] on this unit or [VCR oo ] on the remote control to use the VCR when the unit is turned on. In case timer recording is in

standby mode, press [STOPIEJECT • _] on this unit or [T-SET] on the remote control, and then press [OUTPUT] on this unit or

[VCR oo] on the remote control.

If you want to use the DVD player during a timer recording or while [] indicator on this unit is on or blinking.

• Press [POWER] to turn on the unit, Press [DVD ©]on the remote control to choose DVD mode, then continue with the other DVD

features as described in this manual.

Note for timer recording:

• f there s a power fa lure or the un t is unplugged for more than 30 seconds, clock setting and all tinqer programs will be lost.

-13-

You can set the unit to start recording whenever it detects a video signal from the external tuner.

Preparing for the Satellite Link Timer Recording:

Preparation on the tuner Preparation on this unit

•Satellite link accepts only the connection from L1 (rear) with the L1

external tuner. (The connection from L2 cannot read any signals

from the cable/satellite box.)

• The external tuner should be equipped with some kind of timer

function. Using timer function of the tuner, set it to output audio/video

signals when it comes to the time you want to start recording, and

stop output audio/video signals when it comes to the time you want to

finish recording. Refer to the tuner's manual on how to set the timer.

• Make sure to turn offthe tuner when you finish setting.

external tuner

RCA audio/video cables

Press [SPEED] to select the desired tape speed.

SPEED

5Set the desired start minutes.

If you wish to go back to the left, press [_1].

SATELLITEUNK

01 6d_M

2In stop mode, press [SETUP]. 6Press [I_] to set satellite link standby mode.

SETUP

Select "SATELLITE LINK".

Then press [1_] to go to next step.

Set the desired start hour. SATELUTEUNK

Then press [1_] to go to next step. 00 AM

• The hour can be selected from 1-12 with AM or PM.

• When the external tuner signal is stopped, recording will be stopped.

SATELUTEUNK

OI, 3O PM

[ON]

• [] indicator on this unit lights up and the unit goes to the DVD

mode. If you do not use DVD function, turn off the unit.

• Satellite unit must be turned on for VCR satellite link to start.

If cable/satellite box is not set to output signals, satellite link will

remain in standby mode.

To cancel the satellite link function in standby mode:

Press [T-SET] on the remote control or [STOP/EJECT • __] on this

unit.

To cancel the satellite link function while the satellite link

recording is in progress:

Press [STOP/EJECT • __] on this unit.

Note:

• If you have not set the clock, "CLOCK SET" menu will appear at step 2. Refer to "Clock Setting" on page 8.

• You cannot set the ending time for the satellite link timer recording on this unit.

• Recording picture will be distorted if the copy protection signal is being detected during satellite link timer recording.

• When a regular timer recording and the satellite link timer recording are overlapped, those recordin, ; are recorded as illustrated below.

eg) [n case of the satellite lin k timer recording is overlapped

on the existing timer iecolding

timer recording

satellite link

..... ding result

eg) In caseof the timer recording is programmedin the middle

of the satellite link timel recording

timer recording

satellite link

....._J_ngres01tI I

eg) [n caseof the timer recording isoverlapped on the existing

satellite link timel iecolding

timer recording

satellite [ink

Warning: Unauthorized recordings of copyrighted cassette tapes

may be an infringement of copyright laws.

1) Insert a pre-recorded cassette tape into another external

device for playback.

2) Insert a recordable cassette tape into this unit for recording.

3) Press [SPEED] on the remote control to select recording

speed (SP or SLP).

4) Press [INPUT SELECT] on the remote control to select L1 or

L2. Choose L1 if device is connected to rear input jacks, or L2

if connected to the front. Refer to "Front & Rear Terminals" on

page 9 for more details.

5) Press [REC/OTR] on the unit.

6) Press "PLAY" button on the external device.

7) To stop recording, press [STOP/EJECT • A] on this unit,

then stop playback of the external device.

output jacks of

external device rear of the unit

or CAaudio/video.....

cab,es ,,,

You can use a video disc player, cable/satellite box or other audio/video

component with audio/video output jacks.

Note:

/• For best results during dubbing use buttons on this unit whenever

/ possible. The remote control might affect another device's operation.

/• Always use video-quality shielded cables with RCA-type connectors.

/ Standard audio cables are not recommended.

L•L2 input jacks are on the front of this unit.

-14- EN

Playback

Before:

Turn on the TV, amplifier and any other

components which are connected to this

unit. Make sure the TV and audio receiver

are set to the correct channel.

2 Insert a disc with

label facing up.

POWER OPEfCrCLOS E

To start playback3 4To stop playback

So{#@o

[]

Note:

•When you play a CD-RW/-R with MP3 files, details on page 16.

Lights up when power is on.

•"Q" may appear at the top-right on the TV screen when the operation is prohibited by

the disc or this unit.

• Some DVD may be played from title 2 or B due to specific programs.

• During the playback of a 2dayered disc, pictures may stop for a moment. This happens while the 1st

layer is being switched to the 2nd layer. This is not a malfunction.

• You can change the on-screen language for DVD function in "PLAYER MENU" menu. Refer to page 20.

DiscMenu

Some discs contain menus which allow you to customize DVD

playback. Use [A /•/_11 _1 to select an item, then press

[ENTERI (or [PLAY _1).

Callin9Upa MenuScreendurin9Playback

• Press [MENUI to call up the disc menu.

• Press [TOP MENUI to call up the title menu.

Note:

• Menu operations may vary depending on the disc. Refer to the manual

accompanying the disc for detai s.

ResumePlayback

Press [STOPII] during playback. -- --

Resume message will appear on the

TV screen.

Press [PLAY I_], playback will resume

from the point at which playback was

stopped, e.g.) DVD

Note:

• To cancel resume, press [STOP II] one more time in the stop mode.

• For MP3, playback will resume fromthe beginning ofthetrackatwhich

playback was stopped.

• The resume playback information stays on even when the power is

turned off, as ong as the disc stays in the unit.

PausedandStep-by-StepPlayback

Press [PAUSE I I1 during playback.

To continue playback, press [PLAY I_].

The disc goes forward by one frame each time [PAUSE I I1 is

pressed in the pause mode.

To continue playback, press [PLAY I_].

Note:

• For DVD, set "STILL MODE" to "FIELD" in "DISPLAY" menu if pictures in

the pause mode are burred. Refer to pages 20-21.

Touse[SKIPI<1<1/REV],[l_q SKIP/FWD] onthisunit

Press once to skip chapters, tracks or titles to a desired point.

FastForward/ReverseSearch

Press [l,q_l or ['<_1 repeatedly during playback to

select the required forward or reverse speed.

To use [SKIP _/REV], [1_ SKIP /FWD] on this unit

Pressing and holding [SKIP _ IREV] or If,OHSKIP IFWD] on this unit

will also change forward or reverse playback speed.

To continue playback, press [PLAY I_].

Note:

• For DVD, fast forward or reverse search speed is different depending on the

disc. Approximate speed is 1(2x), 2(8x), 3(20x), 4(50x), 5(100x).

• For aud o CD and MP3, approx mate speed s 1 2x, 2(8x, 3 30x.

SlowForward/ReverseSearch

Press [l,q_l or ['<_1 repeatedly in the pause mode to

select the required forward or reverse speed.

To use [SKIP _/REV], [1_ SKIP /FWD] on this unit

Pressing and holding [SKIP _/REV] or _SKIP /FWD] on this

unit in the pause mode will also change forward or reverse

playback speed.

To continue playback, press [PLAY I_].

Note:

• Slow forward or reverse speed is different depending on the disc. Ap-

proximate speed is 1(1/16x), 2(1/8x), 3(1/2x).

• Set "STILL MODE" to "FIELD" in "DISPLAY" menu if pictures in the slow

p ayback mode are burred. Refer to pages 20-21.

Zoom

1) Press [ZOOM] during playback.

2) Press [ZOOM] repeatedly to select the required zoom factor:

2x, 4x or off.

3) Press [A /•1_11 _1 to slide the zoomed picture across the TV

screen.

4) To exit zoom mode, press [ZOOM] to select OFF.

Note:

• Zoom function does not work while the disc menu is displayed.

• 4x zoom is not available on some discs.

• The picture may be distorted when you press [PAUSE II] or [_1_1]

repeatedly in the zoom mode.

• In the zoom mode, it automatically changes _ 2x (4x) to the zoomed

position guide.

-15-

MP3 Playback

MP3 is a method of compressing files. You can copy MP3 files on CD-RW/-R from the computer and play back the files on this unit.

Insert a CD-RW/-R with MP3 files, the file list will automatically

appear on the TV screen. Press [MENU] when you want to call up

the file list again while CD-RW/-R with MP3 files is already inserted.

IWhen selecting the folder:

'\_-_ ENTER

• Press [_1 when you want to go to the next hierarchy.

• Press [_11 when you want to go back to the previous

hierarchy (except for the top hierarchy).

2 Press [STOP II] once to stop MP3

playback temporarily.

On-ScreenDisplay

Refer to "Resume Playback"

on page 15.

Note:

• Depending on some sections, it may take a while to be recognized.

• Press [TOP MENU] to return to the first item.

• Folders and MP3 files are displayed respectively as[] and r_].

• A maximum of 255 folders or ggg files may be recognized on one disc.

• Up to 8 hierarchies can be recognized in one folder. File in the gth or

deeper hierarchies cannot be played back.

This unit recommends files recorded under the following circum-

stances:

• Sampling frequency: 44.1kHz or 48kHz

• Constant bit rate: 32kbps ~ 320kbps

• For MP3file recorded in VBR(variable bit rate), the unit may not display the

actual elapsed time.

You can check the information about the current disc by pressing [DISPLAY] on the remote control.

DISPLAY I'_ appears only in a case multi-

__ /angle is available on the DVD.

I i--current playback status

_ remaining time of the current

chapter

elapsed time of the current

chapter

CH(Chapter):

current chapter number/

DISPLAY total chapters

[] /l_ 1/3 | ........ |':2345| _1

_ remaining of the title

time current

IIelapsed time of the current title

T[(Title):

o_sPLAY current title number /total titles

_ layer numbers, appears only when

..... i i _ playing a two-layered disc.

[] _ L_ LI _ _ LO: Layer 0 is playing

Layer ,sp,aying

_,current repeat setting, appears

only when the repeat setting is

active.

Q-C: Chapter repeat

GTT: Title repeat

AQ-B: A-B repeat

.bit rate: the amount of audio and

,_ _ video data currently being read

_ D,SPL_¥ r-current playback status

I _J-_ remaining time of the current track

I i -- elapsed time of the current track

current track number /total tracks

ALL:

I , current track number /total tracks

I_] _ 4/_21°:_3:45:P:4s:4°-FT- _11

_Lea l/ _l_l_l_current repeat setting, ifactive

I 1- _-T: Track repeat

I I G-,A: All Tracks repeat

I I AG-B: A-B repeat

I i remaining time of the entire disc

DISPLAY elapsed time of the entire disc

• When you are playing a disc in program or random mode___ • °

I _ PROGRAM (or RANDOM) will be displayed instead of 121.

o11ollOOlOOlOOlOOOOOOOOOOOOOOOOOOOOO

DISPLAY

the name of the file currently in

play will be displayed.

DISPLAY

I TR(Track):

I_] [_3_ o:o_5 _T ,-_ currenttracknumber/totaltracks

[ _current repeat setting, if active

Y- II Iv Q-T: Track repeat

II I CTG: Group (folder) repeat

I I Q-A: Disc repeat

_11__lsP_Y'Y elapsed playing time of the

_' _' current track

[]

(Only when you are playing a disc in program or random mode.)

DISPLAY

[]

-16- _ EN

SearchFunctions

Search function does not work during programmed or random playback.

(

1Press ]SEARCH MODE].

MODE

/_ _ .............. _--

,2 Select track number by using [the Number buttons] within 30 seconds.

QQO

OOO

QQO

• For the disc with less than 10 tracks, press the track number directly.

• For discs with more than 10 but less than gg tracks, to play back single-

digit track, press [0] first, then the track number (e.g., for track 3, press

[0], [3]). To play back a double-digit track, press the track number.

• For discs with more than 100 tracks, to play back a single or a double-

digit track, press [0] first, then the track number (e.g., for track 3, press

[0], [0], [3], and for track 26, press [0], [2], [6]). To play back a triple-digit

track, press the track number.

Using [SKIP I_I, IH_l]

1Press [SKIP II1<, I_1_t] during playback.

Current Track

FSKIP_ ,_, (TR)

Note:

• [+10] carl also bring the track search display, except for the disc with

less than 10 tracks. For such a disc, track search can be performed by

just pressing the track number.

• For audio CD and MP3, track search is not available for programmed

and random p ayback.

1Press [SEARCH MODE] once for the chapter search.

Press [SEARCH MODE] twice for the title search.

2. Select title/chapter number by using [the Number buttons]

within 30 seconds.

000

QQO

QOQ

Using [SKIP I_I, IH_l]

1Press [SKIP 111<, !1,'11_1]during playback.

Current Chapter

_, (CH)

SKiP_ ICH_1_21CHslcH4I

@ @ SKIPm4{4 SKIPFH

Current Title

(TT)

ITTt ITT31_41

SKIP1@4 SKIP_1

(Ifthe disc has no chapters)

Note:

• Depending on the disc being played back, this function can also be

performed by directly entering the desired chapter number with

the Number buttons. Refer to the manual accompany ng the d so.

1Press [SEARCH MODE] repeatedly until the time search display

appears. _ _ _

S_AoRC" .,..,.._:_ _:29:oo I

2Select a desired disc time by using [the Number buttons] within 30

seconds.

.........

O0(g?

Note:

When there is no need to enter a number, "0" appears automatically.

For example, "0:0 :-' appears in the time search display if the total

time of the title or track is less than 10 minutes.

Press [CLEAR/C.RESET] to erase the incorrect input at step 2.

For audio CD, time search is not available for programmed and random

playback.

This function allows you to assign a specific point on a disc to be

called back later.

To set a marker

1Press [SEARCH MODE] repeatedly until the marker display

appears.

2Select a marker.

ENTER _00000[_000[_

To return to the marker later

1Press [SEARCH MODE] repeatedly until the marker display

appears. SMEAOR_

Selectthe marker.

3 Press [ENTER] at the desired marker.

@ENTER _L -

To exit the marker screen

1Press [RETURNed]. RETURN

Note:

The marker display will disappear in about 30 seconds when there is no

output.

To clear a marker, select the marker to be cleared at step 2 in the

section "To set a marker" or "To return to the marker later" and then

press [CLEAR/C.RESET].

Opening the disc tray or turning off the power will erase all markers.

Selecting "AC" at step 2 in the section "To set a marker" or "To return to

the marker later" will also erase all markers.

-17-

Repeat /Random/Programmed Playback

_y £"

Repeat function is available only during playback.

1Press [REPEAT] during playback.

REPEAT

e.g.) DVD

Each time you press [REPEAT], repeat function changes as exam-

ple below.

(repeat off)

(current chapter repeat)

(current title repeat)

._ OFF

_D ALL

(repeat off)

(current track repeat)

(entire disc repeat)

D OFF (repeat off)

_TRACK (current file repeat)

[] GROUP (current folder repeat)

_ALL (entire disc repeat)

Note:

• Repeat setting (except "ALL") will be cleared when moving to another

title, chapter, track/file or folder.

• This function is not available with some discs or during repeat A=B

p ayback.

Repeat function is available only during playback.

1Press [A-B) at your desired starting point (A).

A-£

2Press [A-B) at your desired ending point (B).

A-B

• Point B should be in the same title or track as point A.

Note:

• To exit the sequence, press [A-B] so that "OFF" appears.

• To cancel point A, press [CLEAR/C.RESET] at step 1.

• Th s funct on s not ava lable n the other repeat modes.

This function shuffles the playing order of tracks instead of playback

in sequence.

1Press [MODE] twice.

e.g.) CD

2Press [PLAY _1 to start random playback.

Note:

|• To repeat the current track in the random mode, press

[REPEAT) repeatedly until "[] TRACK" appears during playback.

1• To repeat the entire random selections, press [REPEAT] repeatedly until

/ "El ALL" appears during playback.

[• During random playback, you cannot go back to the previous track.

You may determine the order in which tracks will play back.

Press [MODE] once.

MODE

e.g.)CD

2Using [A /T) to select desired track.

Press[ENTER].

ENTER

• Up to 99 tracks can be programmed.

• If eight or more tracks were in a program,

use [SKIP 111_1,I_IH] to see all the tracks.

• While an MP3 folder is open:

Press [1_] when you want to go to the next hierarchy.

Press [_1] when you want to go back to the previous

hierarchy (except for the top hierarchy).

3Press [PLAY I_] to start programmed playback.

Note:

• Press [CLEAR/C.RESET] at step 2 to erase the most recently entered

track.

• To erase all programmed tracks at once, select "ALL CLEAR" and press

[ENTER] at step 2.

• While a program is being played back, [STOP I] works as follows;

- Press [STOP I] and [PLAY I_] next, so that the programmed

playback restarts. (CD playback restarts from the current point. MP3

playback restarts from the beginning of the current file.)

- Press [STOP I] twice and [PLAY I_] next, so that playback restarts

from the first track in the original order. However, your programmed

playback can be restarted when you follow the above steps. (Your

programs are still stored until either the disc tray is open or power is

turned off.)

• To repeat the current track in the program, press [REPEAT] repeatedly

until "E] TRACK" appears during playback.

• To repeat the entire program, press [REPEAT] repeatedly until

"El ALL" appears during playback.

-18- EN

SpecialSettings

This unit allows you to select a subtitle language (if available)

during DVD playback.

1Press [SUBTITLE] during playback.

SUBTITLE

iiii!i!¸ii!iiiiiiiii!iiiiiiiiiiiii!ii!iii!iiiiiiiiii!!_;iiiiiiIiiiiiiiilllllIl_IlIlIIlIIlIlllIllIIIIIIlliiilIlillIiIlIIIlIIIIIIlllIllIliIIIIIIIIIllIIIIlIIIIlIIIIIIIIIIIiIIIIIIIIIIIIIIIiIllllIIIIIlllllIIIIIlIIIIIlIIIIIIIIIlIIIIIIIl_IliiIIIIlIIIIIiIIIIlIlIlliIlIII_IIIIIIIIIIIi

Some DVD may contain scenes which have been shot _

simultaneously from various angles. You can change [_

the camera angle if[!_ appears on the TV screen. /

If the "ANGLE ICON" is set to "OFF" in "OTHERS" menu,

will not appear. Refer to pages 20-22.

Each time you press [SUBTITLE], subtitle language changes as

example below.

ENG

[_3 FRE

(no subtitles)

(English subtitles)

(French subtitles)

Press [ANGLE] during playback.

ANGLE _ i_

Each time you press [ANGLE] or [<1 /I_], camera angle changes.

To cancel subtitle

1Press [SUBTITLE] during playback.

SUBTITLE

2Press [_1 /I_] to set subtitle to "OFF".

Note:

If your language is not shown after pressing [SUBTITLE] several times,

the disc may not have that language. However, some discs have the

subtitle language setting on the disc menu. (Operation varies depending

on the discs, so refer to the manual along with the disc.)

When "NOT AVAILABLE" appears on the TV screen, it means no subtitle

is recorded on the scene.

If you choose a language that has a 3detter language code, the code will

be displayed every time you change the subtitle language setting. If you

choose any other languages, '--' will be displayed instead. Refer to page 24.

Some discs will only allow you to change the subtitle from the disc

menu. Refer to the manual accompanying the discs for details.

This unit allows you to select an audio language (if multiple

languages are available] during DVD playback.

Adjust the black level to make the dark

areas of the TV picture brig hter.

Press [MODE] during playback.

MODE %__.....

Press [ENTER] to ENTER

the black level.

adjust

ON: makes the dark areas brighter.

OFF: shows the original picture as recorded.

3Press [RETURN _u ] to exit. RETURN

This unit allows you to select a sound mode

during CD playback.

1Press [AUDIO II ]during CD playback.

AUDIO [I _ STEREO I/

Eachtime you press[AUDIO], sound mode changes asexample below.

F_T STEREO (right and left channels are active)

L-oh (left channel is active)

_"""'-- [3_] R-oh (rig ht channel is active)

Press [AUDIO iI ] to change audio language.

AUDIO ____

Each time you press [AUDIO _1 ], the audio language changes as

(English audio)

(Spanish audio)

(French audio)

example below.

SPA

FRE

Note:

If your language is not shown after pressing [AUDIO _11 several times,

the disc may not have that language. However some discs allow audio

language setting on the disc menu. (Operation varies depending on the

disc, so refer to the manual along with the disc.)

When "OFF" appears on the TV screen, it means audio language is not

available.

Some discs will only allow you to change the audio setting from the

disc menu. Refer to the manual accompanying the discs for details.

You can enjoy stereophonic virtual world on your existing 2

channel stereo system.

1Press [MODE] twice (once for CD and MP3) during playback.

MODE

2Press [ENTER] for the desired effect.

1: natural effect ENTER

2: emphasized effect

OFF: no effects (original sound)

3Press [RETURN __1 ] to exit. RETURN

Note:

•For audio CD, virtual surround will not be effective if the sound mode is

set to something other than "STEREO". Refer to "Stereo Sound Mode".

• For DVD when playing back 96kHz with virtual surround function, the

sound wi be down samp ed to 48kHz.

-19-

DVDSetting

QUICK Menu t

You can select the "PLAYER MENU", "TV ASPECT", "PROGRESSIVE" or "DOLBY DIGITAL" from "QUICK" menu quickly.

IPress[SETUP] in the stop mode. Select the desired item.

ENTER

SETUP menu

Confirm that "QUICK" is selected.

SETUP _[ I

: II

_o_

_D SETUP IQUICK II

]ENGLISH "_H ''_P20 [_ Step 5

_OA_F_IVE o_FLETTER ECX_ " P21 [] Step 5

OLBY DIGITAL BITSTREAM

'" P21 [] Step 5

•Refer to the sections "PLAYER MENU", "TV ASPECT",

"PROGRESSIVE" or "DOLBY DIGITAL" section on page 20 or 21.

CUSTOM Menu t

You can change the settings of the unit.

• _ on pages 20-21 indicates DVD setting menus also accessible from "QUICK" menu.

IPress [SETUP] in the stop mode.

SETUP menu

SETUP I I

iIiouioK i Ii

2Select "CUSTOM".

iSETUP_E ]1

INITIALIZE

ENTER

3Select the desired item.

ENTER

SETUP ICUSTOM I

LANGUAGE j

DISPLAY

AUDIO

PARENTAL

OTHERS

LANGUAGE menu t t

AUDIO menu PARENTAL menu OTHERS menu

[]_[]_]]]][_[_ON Plea_ee.ter_4d_gitpassword _ON

DOWN D_MEPUNGON D D D AUTOPOWEROW ON

page 21 [] page21 [] page22 [] page 22 []

DISPLAY menu

page 20 []

Follow steps 1 to 3 in the "CUSTOM Menu" section above.

Note:

Select the desired item.

LANGUAGE menu

[LANGUAGE

OFF

ENGLISH

In "QUICK" menu, "PLAYER

MENU", '_V ASPECT", "PROGRES-

SIVE" or "DOLBY DIGITAL" are

available. "QUICK" menu consists

of the setting menu frequently

used, and they are accompanied

with I'_IIT_. You can make all

settings in "CUSTOM" menu.

15Select the desired language.

AUDIO: "1 *2 EAUDIO

(Default: ORIGINAL) EORiGINAL I

Sets the audio language.

SUBTITLE: "1 *2 [SUBTITLE

(Default: OFF)

Sets the subtitle language. ENGLISH

DISC MENU: "1

(Default: ENGLISH)

Sets the language for DVD

menu.

PLAYER MENU:

(Default: ENGLISH)

Sets the language for the

on=screen display.

6To exit the menu

SETUP

Note:

Language options are not available

with some discs.

If "OTHER" is selected on "AUDIO",

"SUBTITLE" or "DISC MENU" screen,

press 4=digit number to enter the code

for the desired language. Refer to the

"Language Code List" on page 24.

Only the languages supported by the

disc can be selected.

"LANGUAGE" setting for "AUDIO" and

"SUBTITLE" are not available with some

discs. Then use [AUDIO _=ll] and

[SUBTITLE]. Refer to page 19.

- 20 - EN

DISPLAY menu

SETUP ED]SPLA¥

You can change the display functions. Follow steps 1 to 3 in the "CUSTOM Menu" section on page 20.

4Select the desired item. 5

•,_ TVASPECT:rm_

(Default: 4:3 LETTER BOX) _ ___

See note on the right.

4:3L_TT_RBOX_I _

ST_LLMODE AUTO FNTFR '_-4:3PAN......&SCANPROGRESSIVEOFF 9 W_DE

ENTER -_-

Note:

PROGRESSIVE:

You can set "PROGRESSIVE" to

"OFF" in "DISPLAY" menu or

press and hold [PLAYI_] on this

unit for more than 5 seconds

during playback until the PRO-

GRESSIVE SCAN indicator on this

unit turns off.

When "PROGRESSIVE" is "ON",

video signals from the unit's

VIDEO OUT and S-VIDEO OUT

jacks will be distorted or not be

output at all.

STILL MODE:

(Default: AUTO)

See note on the right. Idesi_ed [

TV ASPECT 4:3 LETTER BOX [_ T

PROGRESSIVE:

(Default: OFF)

See note on the left.

SETUP

_f Select "Yes".

Note:

In "QUICK" menu "PLAYER

MENU", "TV ASPECT",

"PROGRESSIVE" or "DOLBY

DIGITAL" are available. "QUICK"

menu consists of the setting

menu frequently used, and they

are accompanied with _ .

You can make all settings in

"CUSTOM" menu.

If there is no picture

or you do not press

any buttons for 15

seconds, "PROGRES-

SIVE" will switch to

"OFF" and it will exit

the "SETUP" menu.

II To exit "TV ASPECT" or "STILL

MODE" menu

SETUP

To complete

"PROGRESSIVE" setting

ENTER

Note:

TVASPECT:

•Select "4:3 LETTER BOX", so

that black bars may appear

on the top and bottom of the

TV screen.

• Select "4:3 PAN & SCAN" for a

full height picture with both

sides adjusted.

• Select "16:9 WIDE" ifa wide-

screen TV is

connected to this unit.

STILL MODE:

• Select "AUTO" usually.

• If you select"AUTO", it

automatically selects the

best resolution setting

("FRAME" or "FIELD") based

on the data characteristics of

the pictures. (default)

• If you select"FIELD", the

picture in the still mode will

be stabilized.

• If you select"FRAME", the

picture in the still mode will

be highly defined.

• An individual picture on

the TV screen is called a

"frame", which consists of

two separate images called

as "field".

• Some pictures may be

blurred if you select "AUTO"

in the still mode due to their

data characteristics.

Choose the appropriate audio setting for your device. It only affects during the playback of DVD discs. Follow steps I to 3 in the

"CUSTOM Menu" section on page 20.

4Select the desired item.

AUDIO menu

SETUP AU_ ]

,l oo II

Note:

In "QUICK" menu "PLAYER

MENU", "TV ASPECT",

"PROGRESSIVE" or "DOLBY

DIGITAL" are available. "QUICK"

menu consists of the setting

menu frequently used, and they

are accompanied with [_ .

You can make all settings in

"CUSTOM" menu.

DRC (Dynamic Range Control):

(Default: ON)

Set to "ON" to compress the range between soft and loud sounds.

ON o__ F I-

DOWNSAMPLINGON ON

DOLBYDIGITAL BTSTREAM ENTER £ffSTREAM

DOWN SAMPLING:

(Default: ON)

Set to "ON" when outputting in 48kHz.

Set to "OFF" when outputting the original sound.

OFP

DOLBY DIGITAL:

(Default: BITSTREAM)

Set to"BITSTREAM" when the unit is connected to a Dolby Digital decoder.

• BITSTREAM: outputs Dolby Digital signals.

• PCM: converts the Dolby Digital into PCM (2 channel).

_f_To exit the menu

Note:

DRC:

• This function is available

only on the discs which are

recorded in the Dolby Digital

format.

DOWN SAMPLING:

• When playing back a g6kHz

disc with the copyright

protection, or when virtual

surround is setto "1" or "2",

the sound will be down

sampled at 48kHz even if the

"DOWN SAMPLING" is set to

"OFF".

•This function is available only

on digital outputting of a disc

recorded in 96kHz.

-21 -

This function prevents unit from playing material inappropriate for children.

Parental Levels

Parental level allows you to set the rating levels of your DVD software. Playback will stop if the ratings exceed the levels you set. Follow

steps 1 to 3 in the "CUSTOM Menu" section on page 20.

Enter your desired 4-digit

password (expect for 4737).

(D@@

@@@

O@@

PARENTAL menu

............. or ................

If you have set a password

already, enter the current 4-digit

password.

I ..... _ 11

I _:: IlL

5Select"PARENTAL

LEVEL".

ENTER

JENTER

Select tile desired level.

EN_7 To exit the menu

CONTROL LEVELS

• ALL: all parental locks are canceled.

• Level 8: DVD software of any grades (adult/general/children[ can be played back.

• Levels 7 to 2: only DVD software intended for general use and children can be played back.

• Level 1: only DVD software intended for children can be played back, with those intend-

ed for adult and general use prohibited.

TIPS FOR LEVELS

8 [ADULT]: DVD software of any grades (adult/general/children) can be played back.

7 [NC-17]: no one under 17 admitted

6 [R]: restricted; under 17 requires accompanying parent or adult guardian

5 [PGR]: parental guidance recommended

4 [PG13]: unsuitable for children under 13

3 [PG]: parental guidance suggested

2 [G]: general audience

1 [KID SAFE]: suitable for children

Note:

• Some DVD-video may not respond to "PARENTAL" setting. Make sure this function works with

your DVD-v deo.

To Change the Password for Parental Controls

You can change your password for parental controls. Follow steps 1 to 3 in the "CUSTOM Menu" section on page 20.

Enter current 4-digit password.

@@@

5Select "PASSWORD

CHANGE".

ENTER

PARENTAL menu

IPASSWORD

Enter your new

4-digit password (except

for 4737[.

@@@

SETUP pARENT_ ] /

[P_SSWORD ]1 L

Please enter a4 digit password

::::: [] [] []

7To exit the menu

@Note:

• Record the password in

case you forget it.

• If you forget the

password press [41,

[7], [3], [7] at step 4,

then enter your new

password. Password will

be cleared and parental

levels will be set to "ALL".

4Select the desired item.

OTHERS menu

..... _ il'-

5ANGLE ICON:

(Default: ON[

Set to "ON" to display _ when multiple camera angles are

available during DVD playback.

AUTO POWER OFF:

(Default: ON[

Set to "ON" to turn this unit off automatically after 30 minutes of

no use.

,_ To exit the menu

- 22 - EN

IPress [SETUP] in the

stop mode.

SETUP menu

TroubleshootingGuide

2Select'INITIALIZE".

ENTER

3Select'YES".

4 To exit the menu

n_ml_ _ SETUP

®1 Q

Press [Note:twice.

l" When you do not wish

/ to initialize, select

"NO" at step 3.

If this unit does not perform properly when operated as instructed in this manual. Refer to the following:

Corrective actionProblem

No power

This unit does not respond to the

remote control

Poor picture or noise

Cannot record a TV program

Timer recording is impossible

Cannot go into record mode

_0 Playback pictureis partially noisy

Cannot view a picture but the

audio is OK

No or poor, playback picture

Video or color facies in and out when •You cannot copy a copyrighted cassette tape

making a copy of a cassette tape

Cannot remove the cassette tape

No picture

•Make sure the power plug is connected to an AC outlet

•Make sure the power is turned on

•Check if the power plug is connected to an AC outlet,

• Check the batteries in the remote control

• Aim the remote control directly at tile infrared sensor window If necessary, remove all the obstacles between the sensor and the remote control

• You have to be within 23 feet (7m) of this unit

•Check if a cassette tape is in this unit

• Tune your radio to an empty AM station so that you hear a lot of static Turn up the volume, then if you hear some signal sound from

the radio in response to your pressing buttons on the remote control, the remote control is working

• Press and hold any button on remote control toward a digital camera The remote control is working if you confirm infrared light

through the digital camera

• Interference signal may be received Change the position and direction of the unit,

• This unit does not have a tuner to receive TV broadcasting

• You must connect this unit to TV with audio/video output jacks or an external tuner to record TV programs Refer to "Recording &. One

-touch Timer Recording (OTR)" on page 12 and "Satellite Link" on page 14

• Make sure the timer program is set correctly

• Make sure [] indicator on this unit lights up If not, press iT-SET]

• Make sure the VCR clock is set correctly

• Make sure the cassette tape has a record tab If needed, cover the hole with adhesive tape

• Activate this unit in VCR mode Press [VCR ¢ro ] on the remote control so that the VCR OUTPUT light will illuminate

• Adjust tracking control for a better picture by pressing [TRACKING • /•] on the unit or [TRACKING • /•] on the remote control

• Head cleaning may be necessary, Refer to "Auto Head Cleaning"

• Make sure the VCR is not in the VCR menu mode

• Fine tune your TV

• Check if this unit is in the VCR mode If not, press [VCR o_ ] on the remote control to switch the mode

• Connect the video cable firmly

• Insert a correct video disc that can be played back on this unit

•Set "PROGRESSIVE" correctly in "DISPLAY" menu Turn it on only if your TV has progressive scan and you are using the component

video connections between the unit and the TV Disable progressive scan for all other connections Refer to page 6

Disc cannot be played back •Insert the disc

•Clean the disc

• Place the disc correctly with the label side up,

• Cancel the parental lock or change the control levels.

• Handle a disc with special care so that it does not have fingerprints, scratches, or dusts on its surface

No sound •Connect the audio cables firmly

• Turn on the power of the audio component

• Correct the audio output settings

•Correct the input settings on the audio component

No DTS audio is output •This unit does not support DTS audio

-This is not a malfunction

Distorted picture •Connect this unit directly to the TV

• There are some cases where pictures may be slightly distorted, and those are not a sign of a malfunction

• Although pictures may stop for a moment, this is not a malfunction Refer to page I 5

• Check if the progressive mode is set correctly according to your TV Refer to pages 20-21

Audio or subtitle language does •The selected language is not available for audio or subtitles on the DVD

not match the setting -This is not a malfunction

The camera angle cannot be • The DVD does not contain sequences recorded from different camera angles

changed -This is not a malfunction

Audio or subtitle language • The DVD does not contain audio source or subtitles in the selected language

cannot be changed -This is not a malfunction

"Q" appears on the TV screen, • That operation is prohibited by this unit or the disc

prohibiting an operation -This is not a malfunction

•Some functions are not available in )ecific modes, but this is not a malfunction. Read the description in this manual for details on correct operations.

• Playback from a desired track and random playback are not available during programmed playback.

• Some functions are prohibited on some discs.

- 23 -

Specifications

Video heads :

4-heads

Output signal format :

NTSCcolor

Power source :

120 V AC +/- 10%, 60 Hz +/- 0.5%

Power consumption :

21W (standby : 3.8W)

Operating temperature :

41°F (5°C) to 104°F (40°C)

Dimensions :

W :173/16" (435mm)

H : 3 3/4" (94mm)

D :93/16" (233mm)

Weight :

Approx 5.81bs (2.6kg)

• Designs and specifications are subject to

change without notice.

• If there is a discrepancy between

languages, the default language will be

English.

LanguageCodeList

Language Code Language Code Language Code Language Code

A-B French [FRE] $264 Macedonian $957 Siswat 6565

Abkhazian 4748 Frisian $271 Malagasy 5953 Sloval< 6557

Afar 4747 Galician 5358 Malay $965 Slovenian [SLO] 6558

Afrikaans 4752 Georgian 5747 Malayalam 5958 Somali 6561

Albanian 6563 German [GEB] 5051 Maltese 5966 Spanish [SPA] 5165

Amharic 4759 Greek [GRE] 5158 Maori 5955 Sundanese 6567

Arabic 4764 Greenlandic 5758 Marathi 5964 Swahili 6569

Armenian 5471 Guarani 5360 Moldavian 5961 Swedish [SWE] 6568

Assamese 4765 Gujarati 5367 Mongolian 5960 T

Aymara 4771 Hausa 5447 Nauru 6047 Tagalog 6658

Azerbaijani 4772 Hebrew 5569 Nepali 6051 Tajik 6653

Bashkir 4847 Hindi 5455 Noiwegian [NOB] 6061 Tamil 6647

Basque 5167 Hungarian [HUN] 5467 O-R Tatar 6666

Bengali;Bangla 4860 I-K Occitan 6149 Telugu 6651

Bhutani 5072 Icelandic lICE] 5565 Oriya 6164 Thai 6654

Bihari 4854 Indonesian 5560 Oromo(Afan) 6159 Tibetan 4861

Bislama 4855 Intedingua 5547 Panjabi 6247 Tigrinya 6655

Breton 4864 Intedingue 5551 Pashto;Pushto 6265 Tonga 6661

Bulgarian [BULl 4853 Inupiak 5557 Persian 5247 Tsonga 6665

Bulmese 5971 Irish [IRI] 5347 Polish [POL] 6258 Turkish [TUR] 6664

Byelorussian 4851 Italian [ITA] 5566 Portuguese [POR] 6266 Turkmen 6657

C-E Japanese [JPN] 5647 Quechua 6367 Twi 6669

Cambodian 5759 Javanese 5669 Rhaeto Romance 6459 U-Z

Catalan 4947 Kannada 5760 Romanian [RUM] 6461 Ukrainian 6757

Chinese [CHI] 7254 Kashmiri 5765 Russian [RUS] 6467 Urdu 6764

Corsican 4961 Kazakh 5757 S Uzbek 6772

Croatian 5464 Kinyarwanda 6469 Samoan 6559 Vietnamese 6855

Czech [CZE] 4965 Kirghiz 5771 Sangho 6553 Volapuk 6861

Danish [DAN] 5047 Kirundi 6460 Sanskrit 6547 Welsh 4971

Dutch [DUT] 6058 Korean [KOR] 5761 Scots Gaelic 5350 Wolof 6961

English [ENG] 5160 Kurdish 5767 Serbian 6564 Xhosa 7054

Esperanto 5161 L-N Serbo Croatian 6554 Yiddish 5655

Estonian 5166 Laothian 5861 Sesotho 6566 Yoruba 7161

F-N Latin 5847 Setswana (,660 Zulu 7267

Faroese 5261 Latvian;Lettish 5868 ShoRn 6560

Fiji 5256 Lingala 5860 Sindhi 6550

Finnish [FIN] 5255 Lithuanian 5866 Singhalese 6555

If you choose a Language that has a 3detter language code, the code will be displayed every time you change the audio or subtitle language setting on page 19. If you choose any

other languages, '--' will be displayed instead. (3-letter language code is written in bracket.)

SVLIIfAI I##IIILIMITEDWARRANTY

- 24 - EN

Consulte la "Basic TV Connection" en la p_gina delantera antes

de utilizar esta unidad,

1 2 3

_ Bot6n OUTPUT

Luz DVD OUTPUT

Luz VCR OUTPUT

MODO VCR

Pulse [VCR o_o ]en el control remoto. (Compruebe que est4

encendida la luz VCR OUTPUT.)

MODO DVD

Pulse [DVD @]en el control remoto. (Compruebe que est_

encendida la luz DVD OUTPUT.)

[]

IAsegOrese de que la entrada de su TV este en VIDEO

(El nombre puede cambiar segOn el fabricante del TV.

Consulte el manual de su TV para conocer m_s detalles.)

2Seleccione su idioma la primera vez que encienda esta unidad.

A continuaci6n, pulse [1_] para ir al siguiente paso.

POWER

Cuando "AJUSTE DE RELOJ" aparesca,

avance al segundo paso de "Ajuste del reloj"

en esta pagina.

Seleccione el dia actual.

A continuaci6n, pulse [1_] para ir al siguiente paso.

AJu_ DER_[OJ

Seleccione el a_o actual.

A continuaci6n, pulse [_1 para ir al siguiente paso.

Seleccione la hora actual.

A continuaci6n, pulse [1_] para ir al siguiente paso.

Seleccione los minutos actuales.

A continuaci6n, pulse [1_] para ir al siguiente paso.

7Seleccione "AM" o "P M".

@o@

8Presione [SETUP] para salir del ment] "AJUSTE DE RELOJ".

SETUP

- 25 -

_lTte$:

Encienda el televisor.

_ Inserte un casete 2

de video en esta

unidad.

3Para parar la 4

reproducci6n

Para empezar la

reproduction

Para expulsar

OPEN'CLOSE

A-B

ANGLE

AUDIO

CLEAR¸

C RE_T

D_SPLAY

DVD

Para seleccionar directamente el

capltulo o el t[tulo.

Para buscar en avanc#/

retroceso en un dBco.

Para empezar [a reproduction en

avance/ret roceso lento durante el

modo de pausa.

Para repetir entre los puntos A y

B elegidos.

Para seleccionar los _ngulos de la

c&mara en un dBco.

Para selecdonar el idioma de

audio en un disco.

Para borrar los marcadores.

Para borrar los nOmeros

mal entrados.

Para borrar el punto para la

repetition A-B.

Para indicar el modo de disco

actual.

Para seleccionar el modo de

[] ® 0,,d0deOVO

Para activar el modo DVD.

_Bte$:

Encienda el televisor, amplificador y otros

equipos que puedan estar conectados a

esta unidad. Aseg0rese que el televisor y

el sintoamplificador de audio estan en el

canal correcto.

Ponga un disco

con la etiqueta

hacia arriba.

Para parar la

reproducci6n

I 2

DDWER OPEN'CLOSE

3Para empezar la 4

repr0duccidn

0 Q Q_

@®0@

q-p

EN_R

MODE

OPENCLOSE

PAUSE

POWER

RE@OTR

REPEAT

RETURN

MOD_

SETUP

_S_P_

SPEED

SUS_TLE

TOP MENU

TRACKING TRACKING

_SET

VCR

ZOOM

Para mover el cursor y

determinar su poskiOn.

Para Ilamar el menu en un disco.

Para activar/desactivar el nivel del

negro.

Para activar/desactivar el ambien

tal virtual.

Para abrir o cer_ar la band_a del

disco.

Para hater una pausa de repro-

duccion del disco.

Para avanzar la reproducdOn un

cuad_o a la vez.

Para empezar la reproducd0n del

disco.

Para encender o apagar la uni

dad.

Para reproducir repetidamente

un cap[tulo o t[tulo.

Para volver a la operad0n previa

en el men&

Para buscar un capitulo, tltulo u

hora.

Para colocar o bu_car los

ma_¢adores.

Para Ilamar el menQ de

programad0n de DVD.

Para saltar cap[tulos o titulo.

Para parar la reproducd0n.

Para selecdonar subt[tulos en un

disco.

Para Ilamar el menQ superior en

un disco.

Para ampliar parte de la

imagen. (2x/4x)

Para selecdonar directamente la

candOn.

Para buscar en avance/

retroceso en un disco.

Para repetir entre los puntos A y

B elegidos. CD

Para seleccionar "ESTEREO",

"L-oh" o "R ch". (CD)

Para borrar lo_ ma_cador_. (CD)

Para eliminar el N° de estado en

la entrada de program&

Para borrar los nQmeros

real entrados.

Para borrar el punic papa la

_petidOn A B. (CD)

Para indicar el modo de disco

actual.

Para seleccionar el modo de

salida de DVD.

Para activar el mando a

distanda en el modo DVD.

Paramover el cursor y

determinar supodciOn.

Para Ilamar la lista de archivo.

(MP3)

Para disponer el orden de reprodu¢-

don o la reprcducdOn aleatoda,

Para activar/desactivar el envoi

vente virtual.

Para abrir o cer_ar la band_a del

disco.

Para hater una pausa en la repro

ducdOn del disco.

Para empezar la reproducci(_n del

disco.

Paraencender o apagar la urd

dad.

Para reprodudr repetidamente

una canci6n odisco. (CD)

Para reprodudr repetidamente una

canci0n, grupo o disco.(MP3)

Para volver a la operation previa

en el men&

Para buscar una candOn.

Para buscar el tiempo. (CD)

Para colocar o buscar los

marcadores. (CD)

Para Ilamar el menu de

programadOn de DVD.

Para saltar canciones.

ParapararlareproducdOn.

Para volver a[ archivo superior

de la jerarqu[a m_s alta en el

programa y en la lista de a[¢hivo.

{MP3)

Para el avance/retroceso de una

dnta.

Para empezar la reproducd0n en

avarice lento durante el modo de

_ausa.

Para salir del menO de la

grabadora de video.

Para reponer el contador de cinta

Para indicar la hora actual, conta

dot de dnta y L1 o L2.

• Para selecdonar un

_)) _%_ item en el mentl de la

.__s _.-J grabadoradevldeo.

• Para avanzar al

_'_ siguiente menQ de la

k_ grabadora de video.

,_'_ , Para volver un paso

_-/ durante el a uste del

re oj y tempodzador.

Para selecdonar L1 o L2.

Para expulsar [a cinta de cas_te

del compartimiento del cas_te.

Parahace_ una pausa de la

reproduction o grabaci_ de b cilia

Para avanzar la reproduction un

cuadro a la vez.

Para empezar la reproducd0n de

la dnta.

Para encender o apagar la urfl

dad.

Para empezar una grabadOn o

una grabadOn de un toque.

ParaactJvar/desactivar el modo

de repetidOn.

Para Ilamar el mend_ de bOsqueda

de indite u hora.

Para Ilamar el mend_ de la graba

dora de video.

Para seleccionar la veloddad de

grabacion.

Para parar la reproduction o gra

badOn.

Para a ustar manualmente

e seguimiento durante a repro

ducdOn.

Para porter la grabadora de video

en el modo de espera para una

grabacion con temponzador.

Para seleccionar el modo de salida

de [a grabadora de video.

Para activar el modo de la graba

dora de video.

- 26 - ES

QuickUseGuide

Please refer to "Basic TV Connection" on the front page before

you use this unit.

1 2 3

IPress [SETUP] and select "CLOCK SET".

Then press [1_] to go to next step.

SETUP

• If the clock is not set, "CLOCK SET" menu appears when you press

[SETUP]. In this case, go to step 2.

2Select the current month.

Then press [1_] to go to next step.

_w . OUTPUTbutton

DVDOUTPUTlight

VCROUTPUT light

VCR MODE

Press [VCR oo ]on the remote control.

(The VCR OUTPUT light illuminates.)

DVD MODE

(The DVD OUTPUT light illuminates.)

3Select the current day.

Then press [1_] to go to next step.

4Select the current year.

Then press [1_] to go to next step.

5Select the current hour.

Then press [1_] to go to next step.

Select the current minute.

Then press [1_] to go to next step.

IBe sure your TV's input is set to VIDEO. (Name may

vary with TV manufacturer. See your TV manual for

details.]

2Press [A /V] to select your on-screen language.

Then press [1_] to continue.

POWER

7Select "AM" or "PM".

8Press [SETUP] to exit the "CLOCK SET" menu.

SETUP

When "CLOCK SET" menu appears,

go to step 2 in "Clock Setting" on this page.

c_ocKs_

_e_ DAY YEAR

HOUR _INU_E A_,_M

- 27 -

QuickUseGuide

[]

Before:

Turn on the TV.

IInsert a cassette

tape into this unit

3To stop playback

2To start playback

4To eject the

cassette tape

OPEN CLOSE

Before:

Turn on the TV, amplifier and any other

components which are connected to

this unit. Make sure the TV and audio

receiver are set to the correct channel.

POWER OPEN'CLOSE

2Insert a disc with

label facing up.

3To start playback 4To stop playback

_ iiiii_!_!i_!_!_!_!_!i_!_i_!i_ii!i_!!_!i_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_!_!_i

f _

QO O,Q

_oo

Button Media

O0_

ANGLE

•To select chapter or title

directly

•To search forward/backward

tbrough a disc,

•To begin slow forward/reverse

playback in the pause mode

•To repeat between your chosen

point of A and B

•To select camera angles on a

disc

. To select track or file directly

,To search forward/backward

through a disc

To forward/backward a tape

To begin slow forward

playback in the pause mode

. To repeat between your

chosen point of A and B (CD)

AUDIO . To select audio languages on a , To select "STEREO", "L oh" or

disc "R oh" (CD) --

,To clear the markers (CD)

•To clear the marke_s . To remove status number in

_EE_ . TO clear numbers entered program input To exit the VCR menu

incorrectly . To clear numbers entered To reset the tape counter

•To cancel the point for A B incorrectly

repeat . To cancel the point for A B

repeat (CD)

DISPLAY . To display the current disc . To display the current disc To display the current time,

mode mode tape counter, and L1 or L2

I)VD . To select DVD output mode . To select the DVD output mode

. To activate DVD mode . To activate DVD mode

• To select an item on

&_.._ \=_ the VCR menu

• To advance to theENTE_

_ _ .T ....... tb ........... ddete, .T ....... tb ........... ddet .... .71

mine its position mine its position k%_ next VCR menu

= .To go back one step

r_h

\_7 during clock and

= timer programming

S_EOT

-- -- To select input L1 or L2,

MENU .To call up the disc menu on a , To call up the file list (MP3)

disc

MODE . To set black level on/off . To arrange the playing order or

. To set virtual surround on/off play randomly

. To set virtual surround on/off

OPENICLOSE

_ . To open or close the disc tray . To open or close the disc tray To eject the cassette tape from

the cassette compartment

To pause tape playback or

PAUSE . To pause disc playback recording

•To advance playback one frame . To pause disc playback To advance playback one frame

at a time at a time

•To begin disc playback . To begin disc playback To begin tape playback

POWER

•To turn the unit on/off , To turn tile unit on/off To turn the unit on/off

RE@OTR To start recording or one touch

timer recording

. To play back a track or disc

REPEAT . To play back a chapter or title repeatedly (CD) To select the repeat mode on/

repeatedly . To play back a file, folder or off

disc repeatedly (MP3)

RETURN . TO return to tile previous . To return to tile previous

operation in menu operation in menu

MODE ' To search chapter, title or time . To search track or file

. To search time (CD) To call up the index or time

•To set or search the markers , To set or search the markers, (CD) search menu

SETUP

_,_ . To call up the DVD menu , To call up the DVD menu To call up the VCR menu

_SK]P_

_ . To skip chapters ol titles . To skip tracks or files

SPEED

-- -- To select tile recording speed

. stop playback . stop playback stop playback or recording

To To To

SU£T]TLE

_ . To select subtitles on a disc -- --

TOPMENU .To call up the top menu on a .To return to the top file of the

highest hierarchy in the pro

disc gram and file list (MR3)

TRACKING TRACKING To adjust t he tracking manually

_._ _ -- -- during playback

T-SE To put tile VCR into standby

-- -- mode for a timer recording

VOR To seleq the VCFI output mode

-- -- To activate VCR mode

ZOOM . To magnify part of a picture

(2x/4x) -- --

Printed in China E8E01 UD

1VMN23384 ****

SYLVANIA DVD Systems Manual L0801086

dv220sl8 L0801086

Navigation menu

Versions of this User Manual:

Views

Navigation
