SYMA MODEL AIRCRAFT GC88752-11 WiFi Camera-2 User Manual

GUANGDONG SYMA MODEL AIRCRAFT INDUSTRIAL CO., LTD WiFi Camera-2

Contents

User manual (statements).pdf

1
User manual
User manualUser manual
User manual：
：：
：
Senor
Senor CMOS,1/5”color
resolution ratio 640*480（300k pixel）
focal length 3.6mm
Lens focal diameter ratio F2.4
viewing angle 60。
minimum illumination 1.0Lux@550nm
video
Image coding format H.264
image resolution; VGA（640x480）/ QVGA（320x240）/QQVGA(160x120)
Maximum transmission rate
of image
25fps
Light frequency 50Hz、60Hz、Indoor and outdoor adaptive
V-REV Vertical and horizontal image flip
AWB SUPPORTING
Wireless
network interface; IEEE802.11b
antenna gain
2.0dB
Working model AP
networking protocol;
networking protocol; TCP/IP，DHCP，SMPT，HTTP，DDNS，UPNP
working temperature
0 - 50C°，20% - 80%
storage temperature
-10°C ~ 60°
，0% - 90%
working voltage
3.3V ~ 5V
working current
200mA ~ 250mA
2

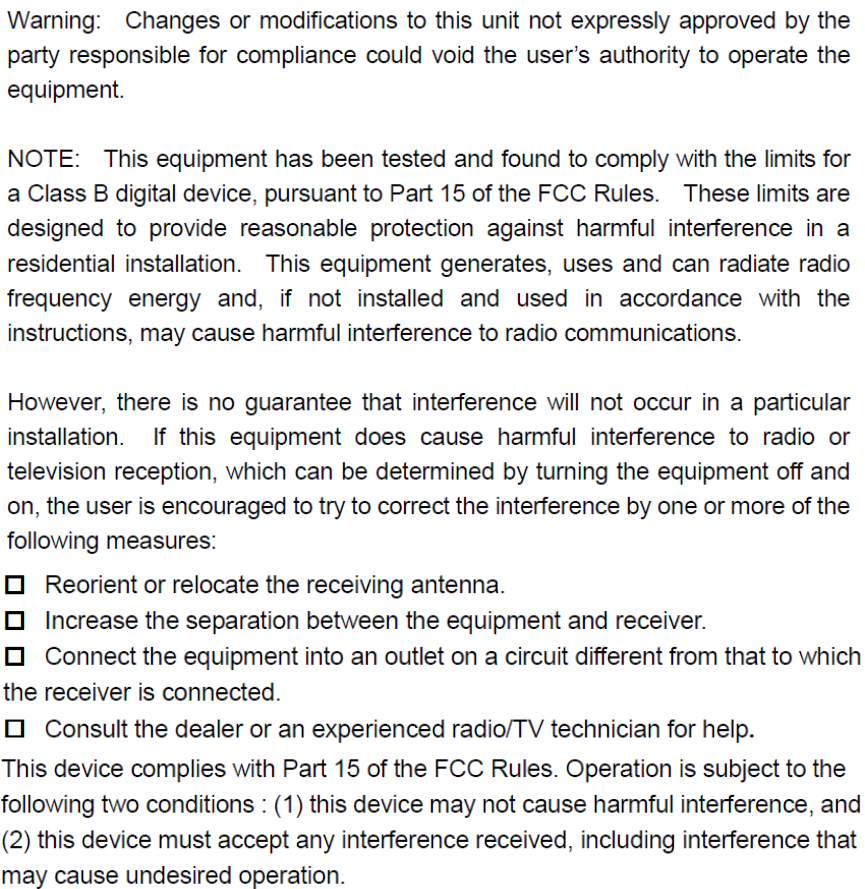

“FCC RF Radiation Exposure Statement Caution: To maintain compliance with the
FCC’s RF exposure guidelines, place the product at least 20cm from nearby persons.”
“The device must not be co-located or operating in conjunction with any other antenna
or transmitter.”
