SYMA MODEL AIRCRAFT LOG1612-JR wifi Camera User Manual DVM
GUANGDONG SYMA MODEL AIRCRAFT INDUSTRIAL CO., LTD wifi Camera DVM
User Manual
1
Use manual
Wi-Fi 2.4G frequency range：2412MHz for 11b/g/n(HT20)
Senor
Senor
CMOS,1/5”color
resolution ratio
640*480（300k pixel）
focal length
3.6mm
Lens focal diameter ratio
F2.4
viewing angle
60。
minimum illumination
1.0Lux@550nm
video
Image coding format
H.264
image resolution;
VGA（640x480）/ QVGA（320x240）/QQVGA(160x120)
Maximum transmission rate of
25fps
Light frequency
50Hz、60Hz、Indoor and outdoor adaptive
V-REV
Vertical and horizontal image flip
AWB
SUPPORTING
Wireless
network interface;
IEEE802.11b/g/n
antenna gain
2.0dB
Working model
AP
networking protocol;
networking protocol;
TCP/IP，DHCP，SMPT，HTTP，DDNS，UPNP
working temperature
0 - 50C°，20% - 80%
storage temperature
-10°C ~ 60°，0% - 90%
working voltage
3.3V ~ 5V
working current
200mA ~ 250mA
OPERATION DISTANCE:
2-3M
2

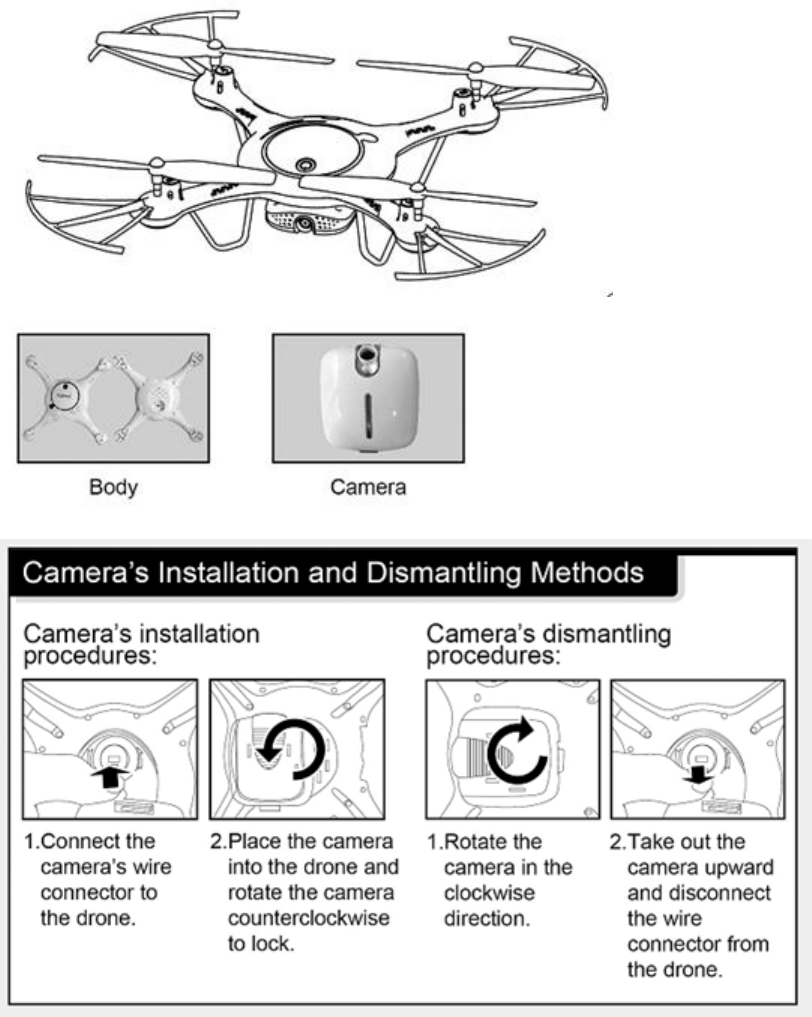

Search and install APP “WIFI GO”, swich No of airplane, the green light will be flashing in 5
seconds, and search to the "FPV_WIFI__XXXX" in mobile phone set, so light keeping
when WIFI is connected,
3
Warning: Changes or modifications to this unit not expressly approved by the
party responsible for compliance could void the user’s authority to operate the
equipment.
NOTE: This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the
following measures:
□Reorient or relocate the receiving antenna.
□Increase the separation between the equipment and receiver.
□Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
□Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions : (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
