SYNERGY DIGITAL N1 Infrared universal remote control User Manual
SYNERGY DIGITAL HONG KONG LTD Infrared universal remote control
User Manual
Current function:
1、 Easy distribution network
2、Remote control by APP;
3、Support air conditioner、TV、STB
4、 infrared learning function can expand more control(38Khz infra-red frequency);
5、 Infrared signal coverage on 360° large scale
6、 Support ALEXA、Google assistant
7、Intelligent Scene
How to use:
Connect wireless network
Default mode:
1、make the indicator light turn to fast blinking state by long press reset button 5s ;
2、make you way to APP,change“IR Control”and follow the prompts to connect wireless
network
AP mode:
1、make the indicator light turn to fast blinking state by long press reset button 5s ;
2、Hold the reset button for 5s again,until the light turn to slowly flashing。
3、make you way to APP,change“IR Control”and press “AP MODE”at top right corner,
Then ollow the prompts to connect wireless network
Add default remote control(first way)
State:Add remote control based on default database like TV 、Air conditioner、Set Top
Box,This way is sample and quick,but it is limited by database,so it can not guarantee
the appliance will be controlled 100%,some appliance maybe is out of the database.
Step1 Step2 Step3
User Manual
1
2

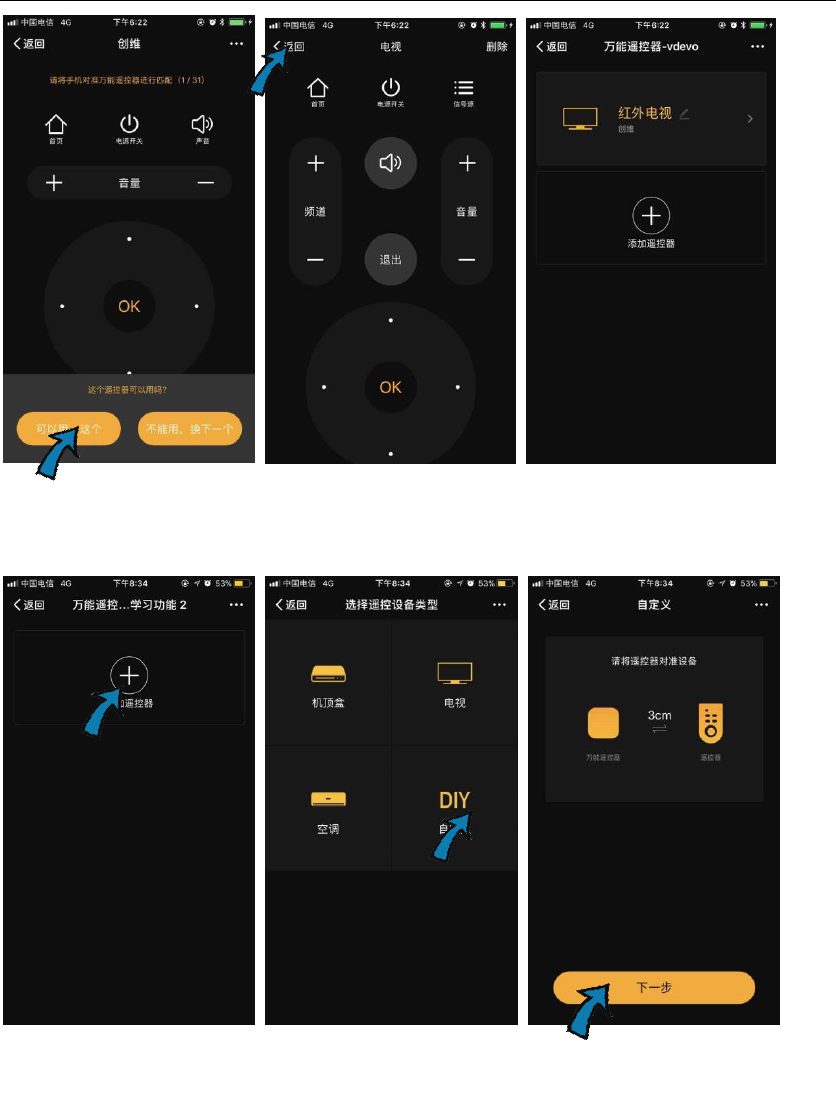

Step4 Step5 Step6
learning function(second way)
State:If you can not control the appliance by last way. you can use the learning function.
Step1 Step2 Step3
3
Step4 Step5 Step6
If you want to rewrite the diy button, you can press the “EDIT”button of remote control
panel
Notice:
1、 It can learn the signal in frequency of 38khz;
2、 To make sure the IR control normal learn the signal,please don’t long press the remote
control of appliance to send signal towards smart IR control, just need to short press the
remote control of appliance
Make the remote control of
the appliance aim at IR
Control, Short press the
button you want to learn,
Then it will come to next
step
Write the name of button
Have connected wireless network: off;
Send signal: flash onece
Turn to learning mode: on;
Received signal: off;
Spec:
Size:
Power:5V/1A
Send distance:Max 18m
Number of IR:7
WiFi :2.4GHZ
Operation Temperature:-10℃~45℃
IR frequency:38KHZ
5
FCC Caution.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
Any Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates
uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-Consult the dealer or an experienced radio/TV technician for help.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator & your body.
