SYRIS Technology SYTAG245-2K RFID Tag User Manual
SYRIS Technology Corp. RFID Tag
User manual
SYRIS Xtive RFID TAG
User Manual
Version 1.4
2007/09/18
SYRIS active RFID TAG Instruction
1
一、Product Specification

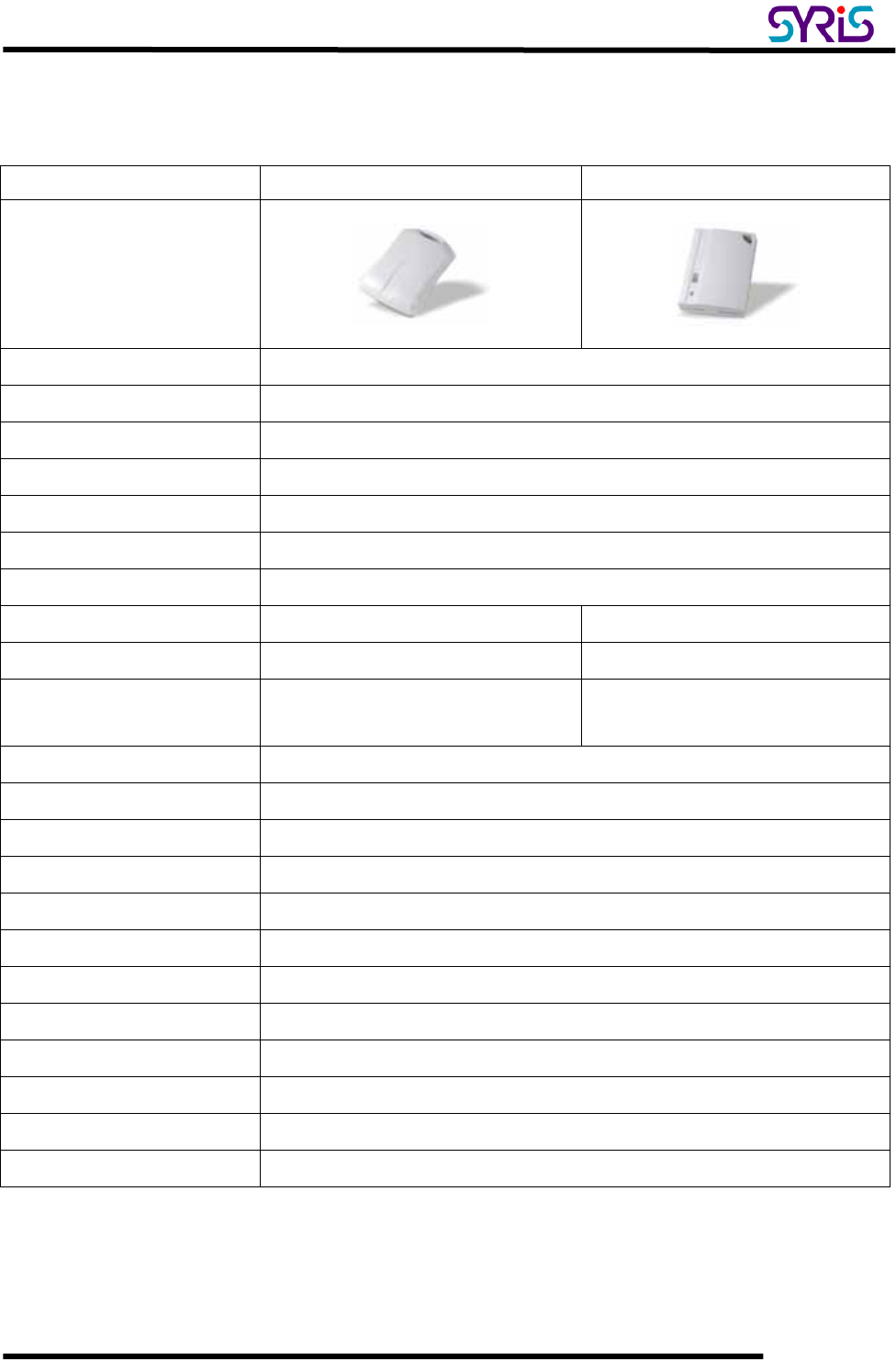

Specification \ Model SYTAG245-2S SYTAG245-2K

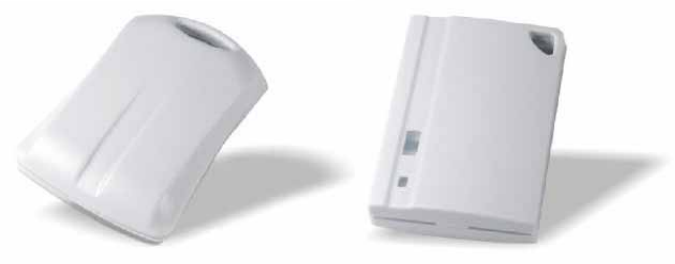

TAG Picture
Communicate 2.45GHz support read and write
Frequency 2.40 ~2.48 GHz
Channel 316
Address 65536
Transmission Range Up to 70m
RSSI 0~255
Parameters Transmission interval programmable / Wireless tag programming
Wake on radio N/A ON / OFF
LED N/A Two-color LED visual indication
Call button capabilities N/A Emergency reporting / Signal
transmission
Built-in motion sensor Vibrate detect (option)
Battery type 3V CR2032 x 1
Battery life 1~2 years
Idle current 3 µA@3VDC
Action current 24 mA@3VDC
Operating temperature -20°C to 60°C, 5 to 95% RH
Storage temperature -20°C to 60°C, 5 to 95% RH
Housing Splash resistant case
Dimensions (mm) 42W x 30H x 10D
SYRIS active RFID TAG Instruction
2
二、SYTAG245-2S TAG

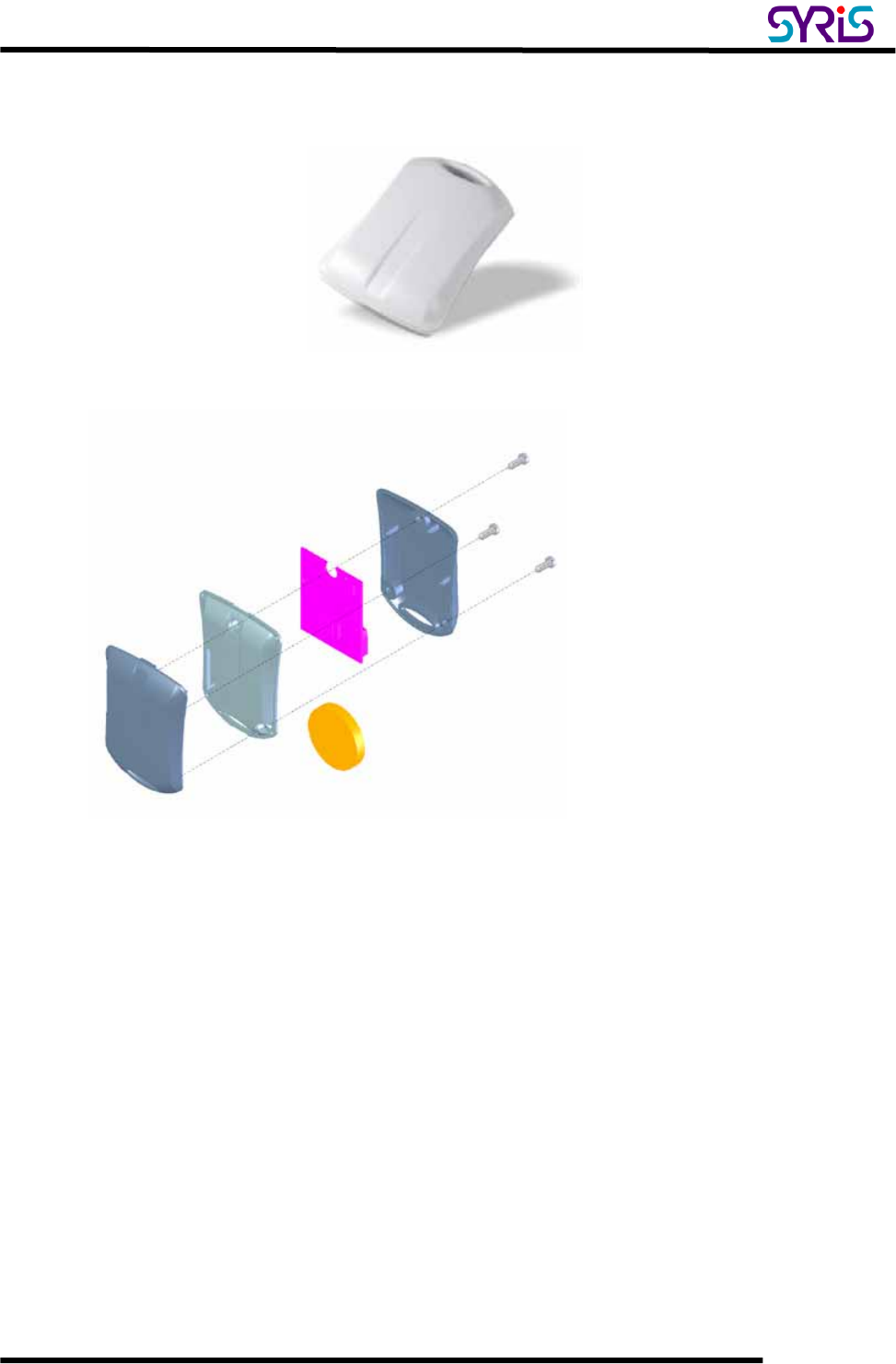

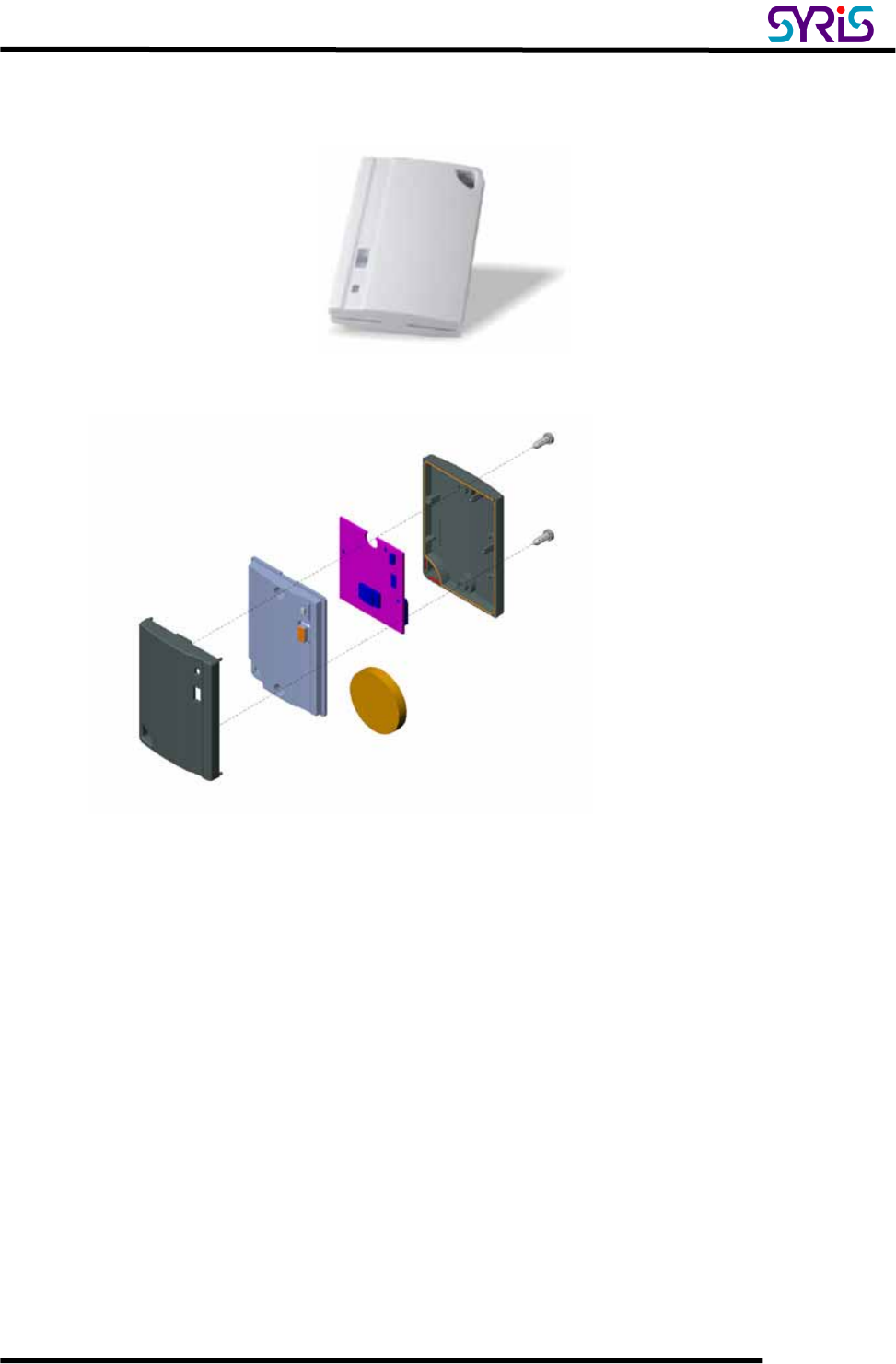

1. Diagram
2. Features:
à Compact size Tag.
à High security, Long range, read/write Tag.
à Wireless tag programming.
SYRIS active RFID TAG Instruction
3

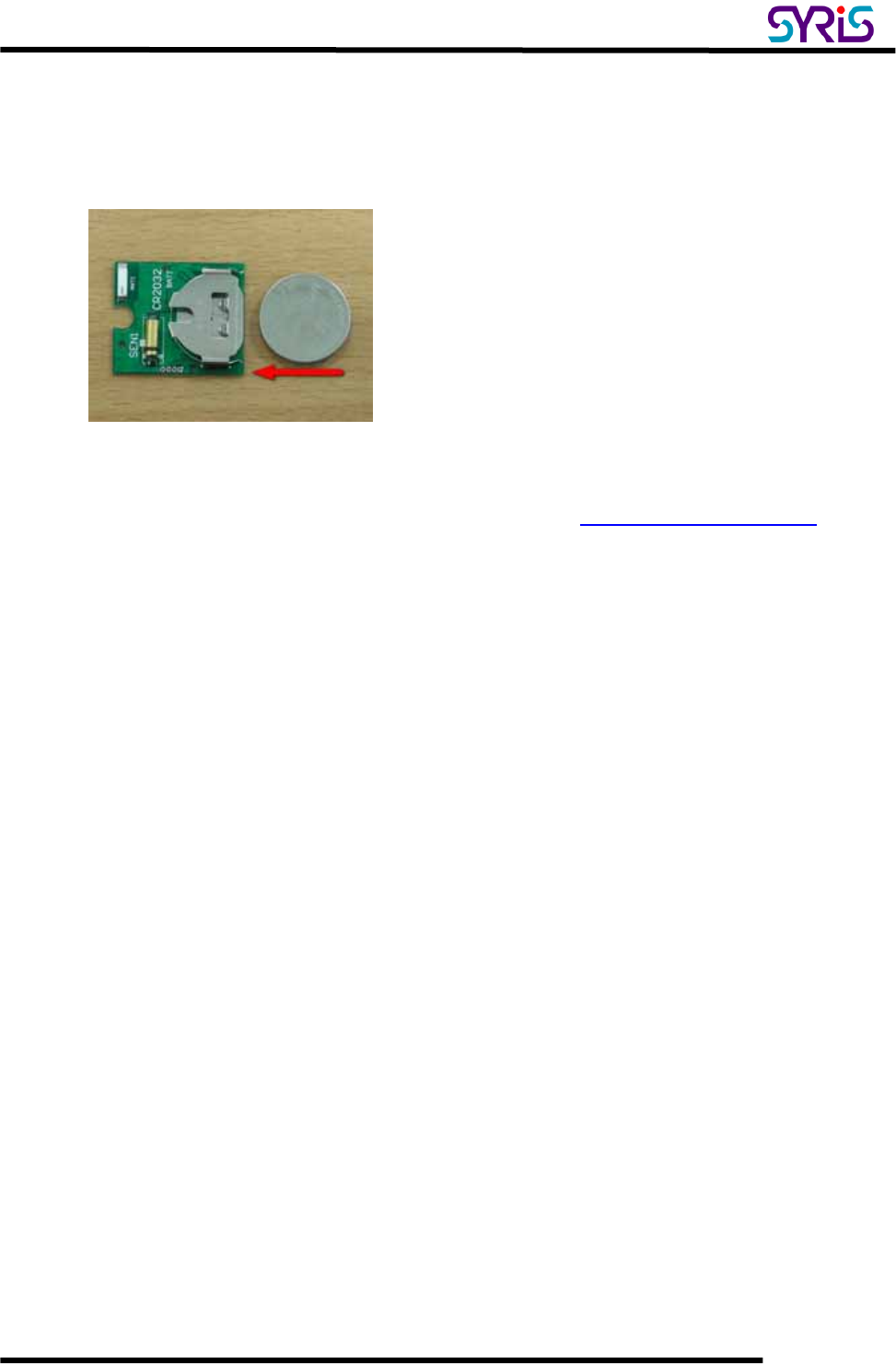

3. How to replace the battery:
First, you need to screw the lid of tag by the proper screwdriver. And than, put the
new battery properly into the battery bracket which is mounted on the main board.
Like as below photo.
4. Set Parameters:
You can set TAG emitting frequency, receive frequency and ON/OFF Tag with
SYRIS Xtive utility. (Please refer to Xtive Utility user manual)
5. Battery Life:
Battery life is affect by TAG emitting frequency and receives frequency. Increasing
emitting/receives frequency will shorten the battery life.
Ex.
Battery life for 3 month setting :
Set TAG active time = 1 x 2.5 sec, Set Tag Receive Count =10
Battery life for 1 year setting :
Set TAG active time = 1 x 20 sec, Set Tag Receive Count =10
SYRIS active RFID TAG Instruction
4
三、SYTAG245-2K TAG
1. Diagram
2. Features:
à Compact size Tag.
à High security, Long range, read/write Tag.
à Remote ON/OFF Tag.
à Wireless tag programming.
à Call button: Emergency reporting / Signal transmission.
à Two colors LED visual indication: Generally, the emitting signal will glitter green
light; when it's low battery, it will glitter red sight.
SYRIS active RFID TAG Instruction
5
3. How to replace the battery:
First, you need to screw the lid off tag by the proper screwdriver. And than, put the
new battery properly into the battery bracket which is mounted on the main board.
Like as below photo.
4. Set Parameters:
You can set TAG emitting frequency, receive frequency, ON/OFF Tag and LED
indication with SYRIS Xtive utility. (Please refer to Xtive Utility user manual)
5. Battery Life:
Battery life is affect by TAG emitting frequency and receives frequency. Increasing
emitting/receives frequency will shorten the battery life.
Ex.
Battery life for 3 month setting :
Set TAG active time = 1 x 2.5 sec, Set Tag Receive Count =10
Battery life for 1 year setting :
Set TAG active time = 1 x 20 sec, Set Tag Receive Count =10
SYRIS active RFID TAG Instruction
6
