SYSBAY TECHNOLOGY M716D Mobile Internet Device User Manual Manual
SYSBAY INTERNATIONAL TECHNOLOGY LTD. Mobile Internet Device Manual
User manual
1
USER’S MANUAL
M716D
Contents
Safety Notices
Getting ready to use the device
What’s inside box

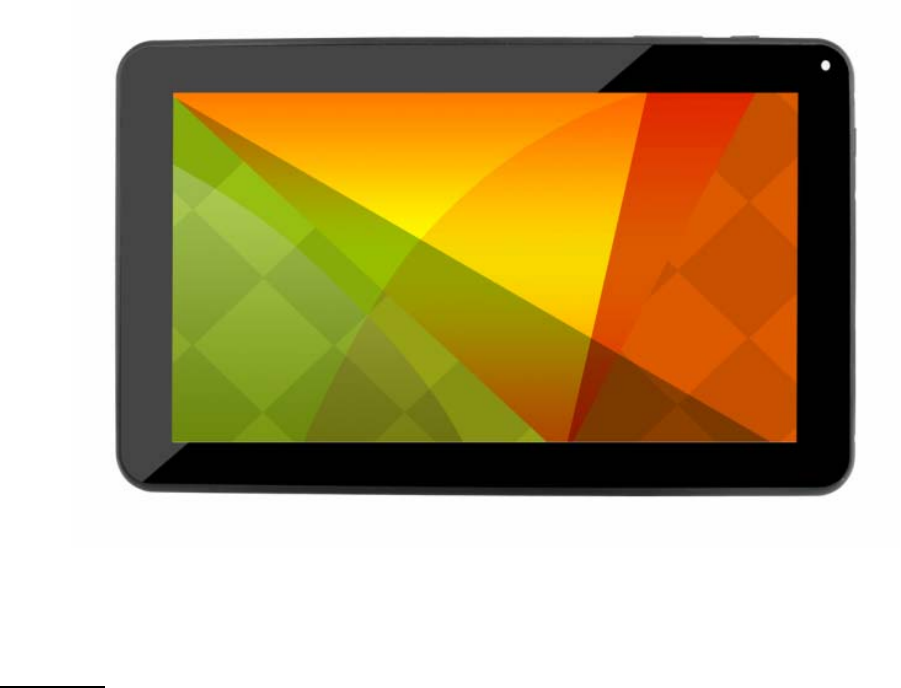

Product Appearance
Control buttons and connections
2
Technical Specifications
Quick Guide
Power on / Power off
Standby and Lock screen
The desktop status bar and shortcut menu and the definition of the icons
Orientation Sensor Setting
Battery management and recharging
WIFI network settings
Mobile network settings
To install an APK file
To uninstall an APK file
Camera
Voice recording
Use the device a multi media player

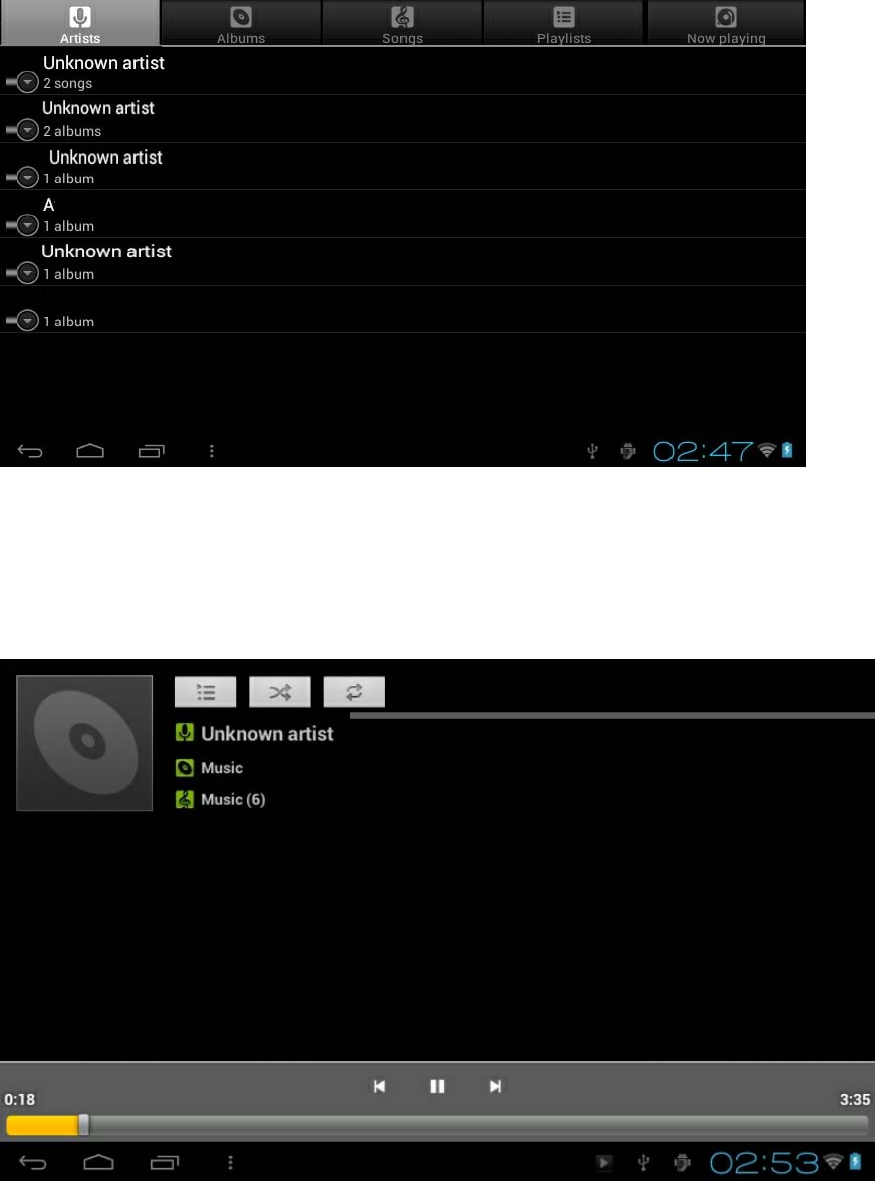

Music playback

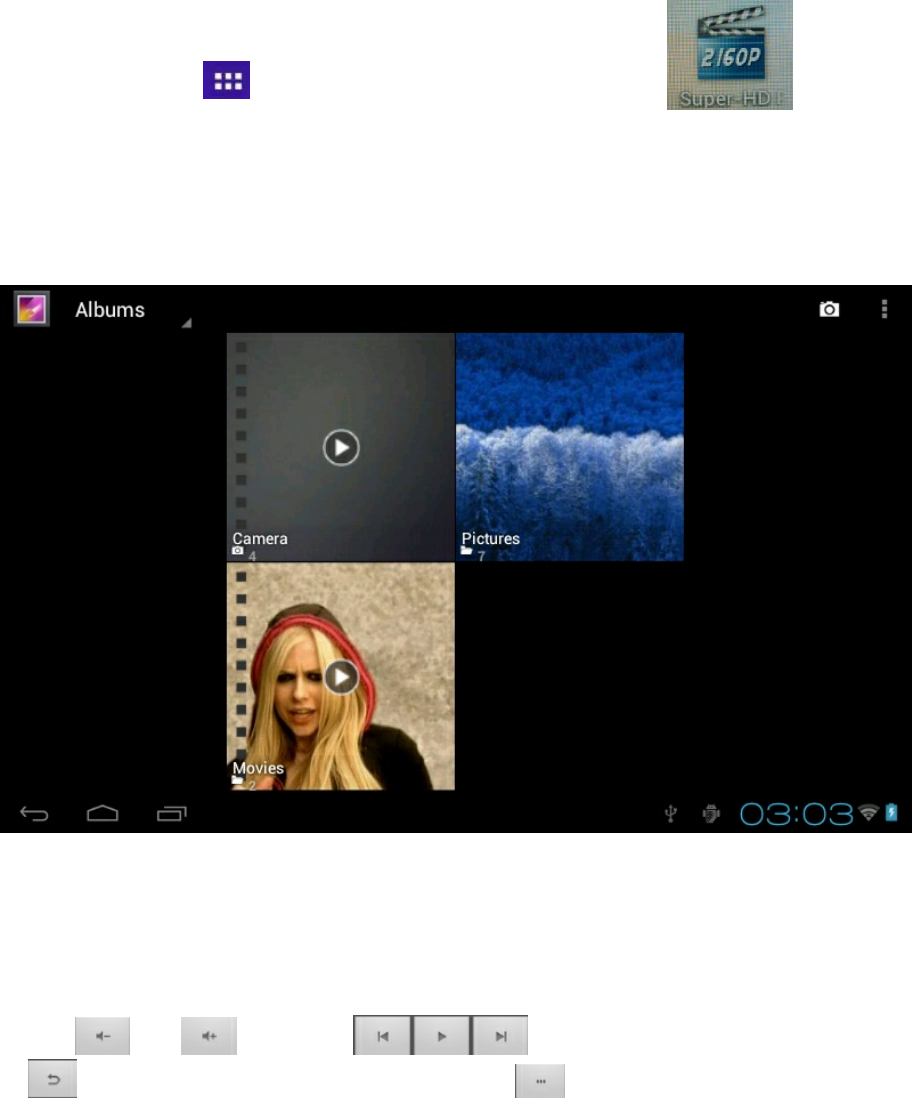

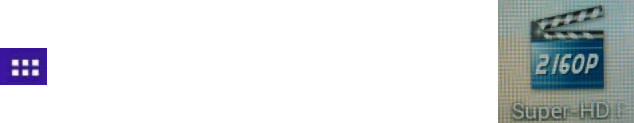

Video playback

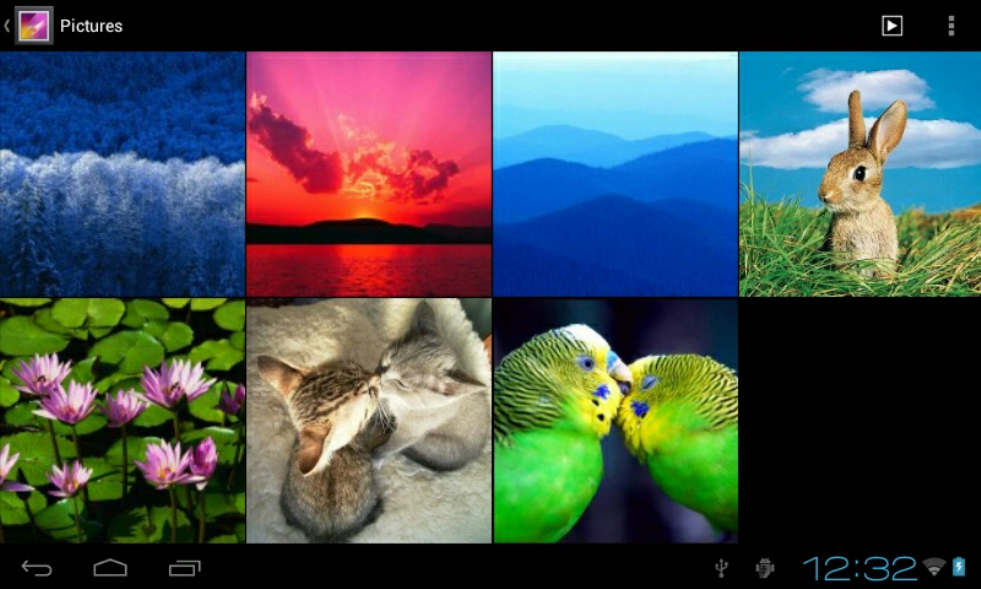

Photo browsing

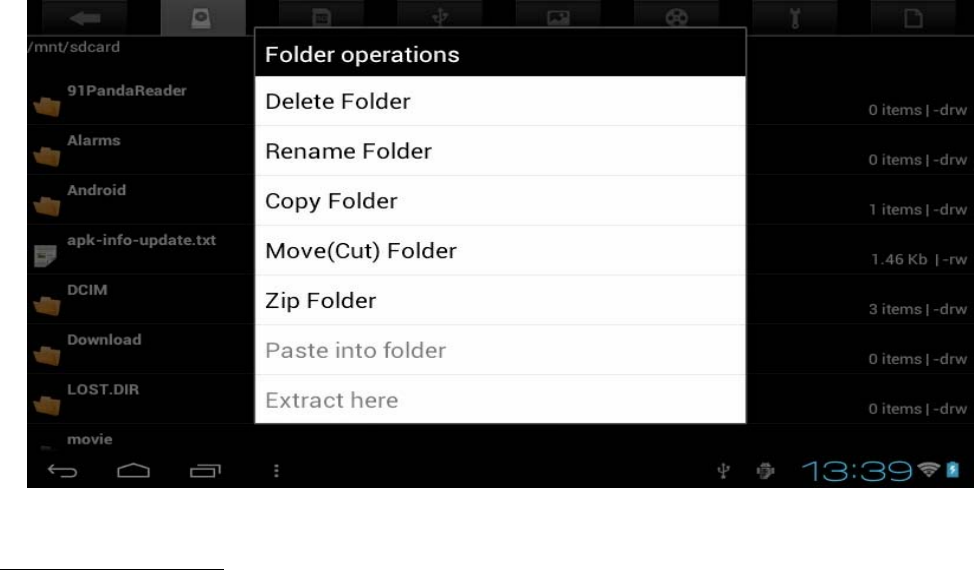

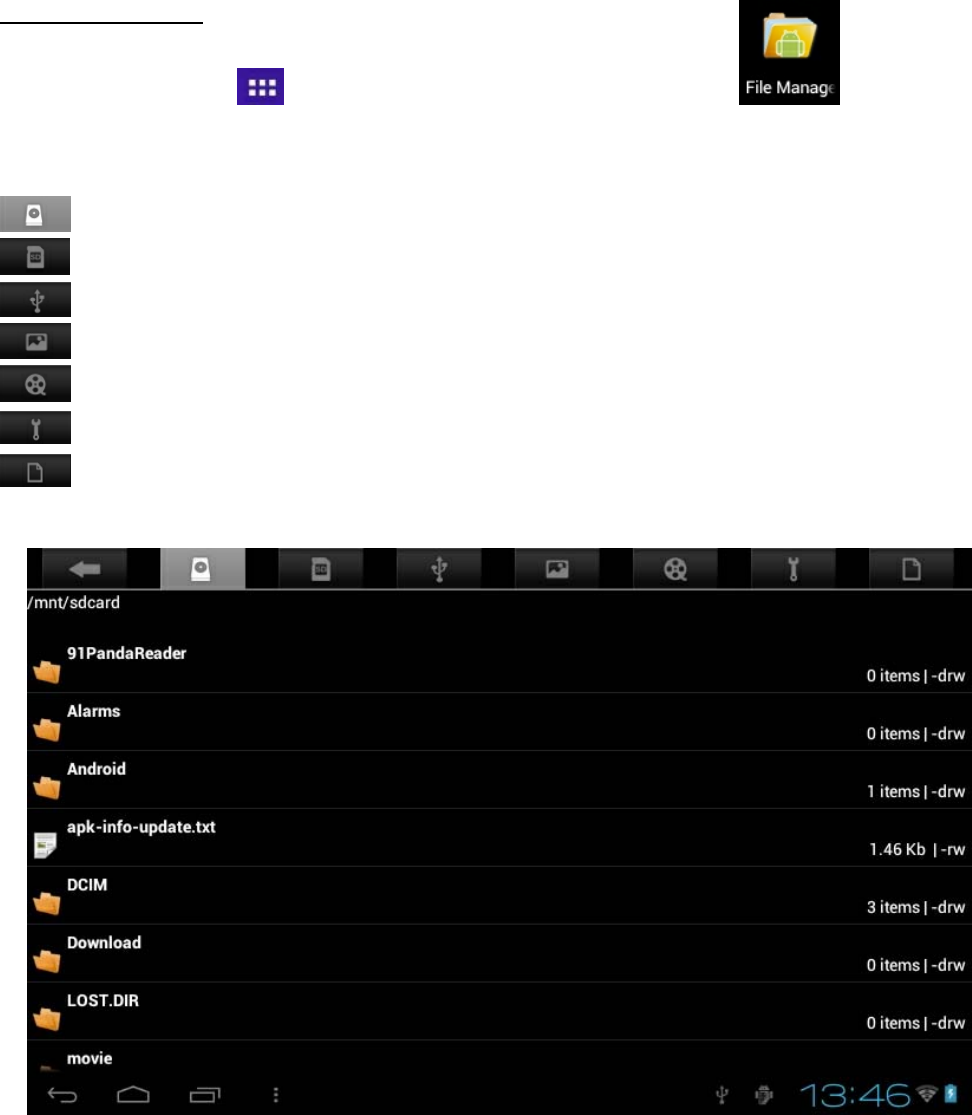

File Management

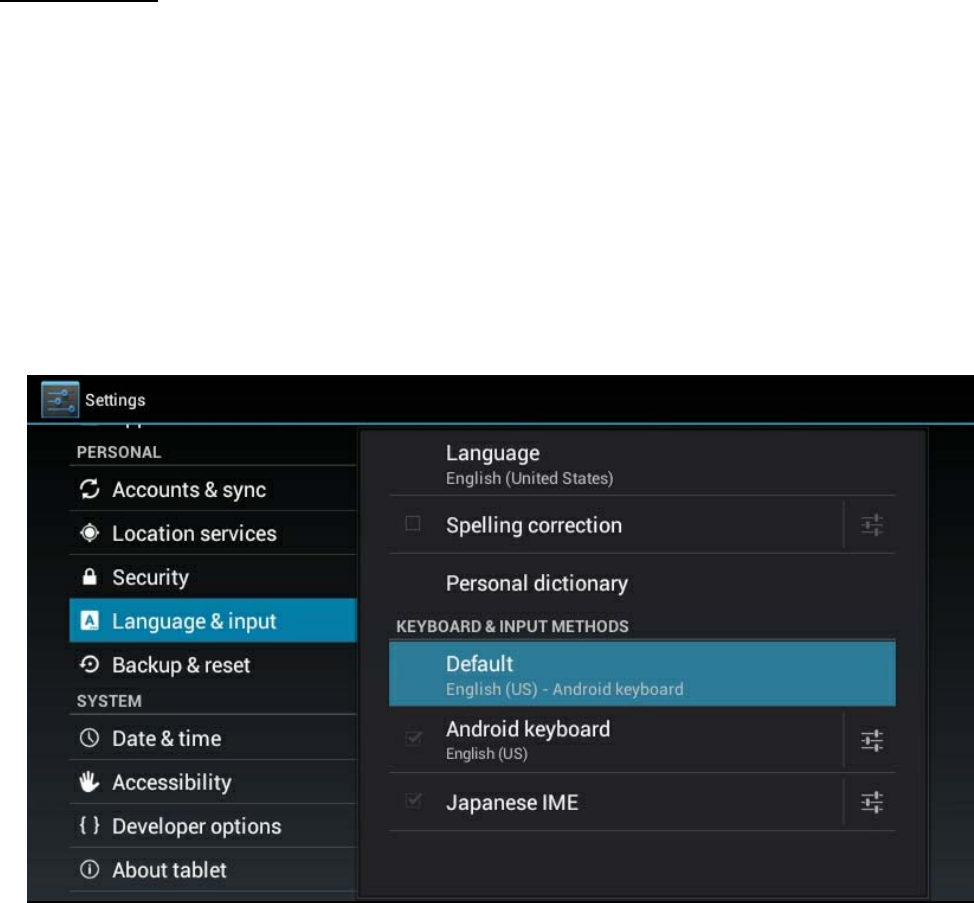

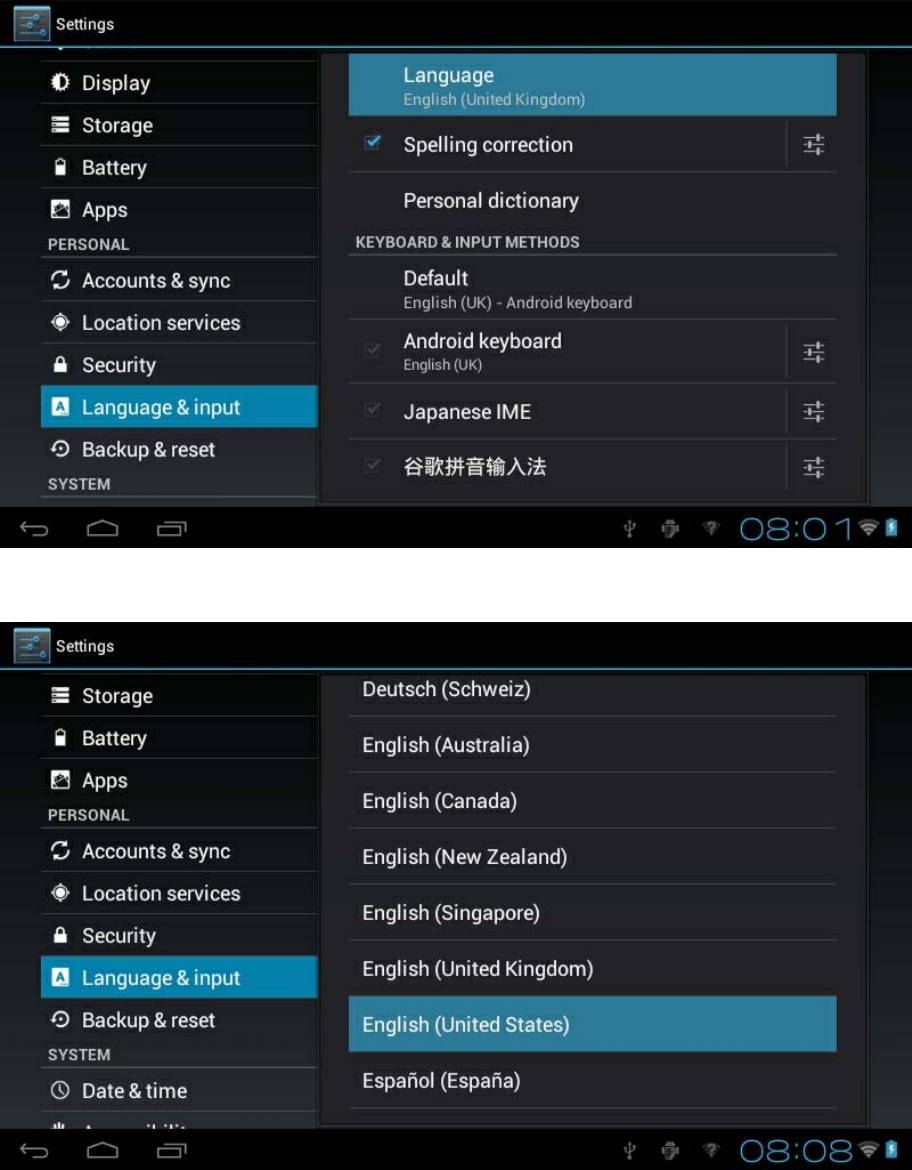

Set OSD Language

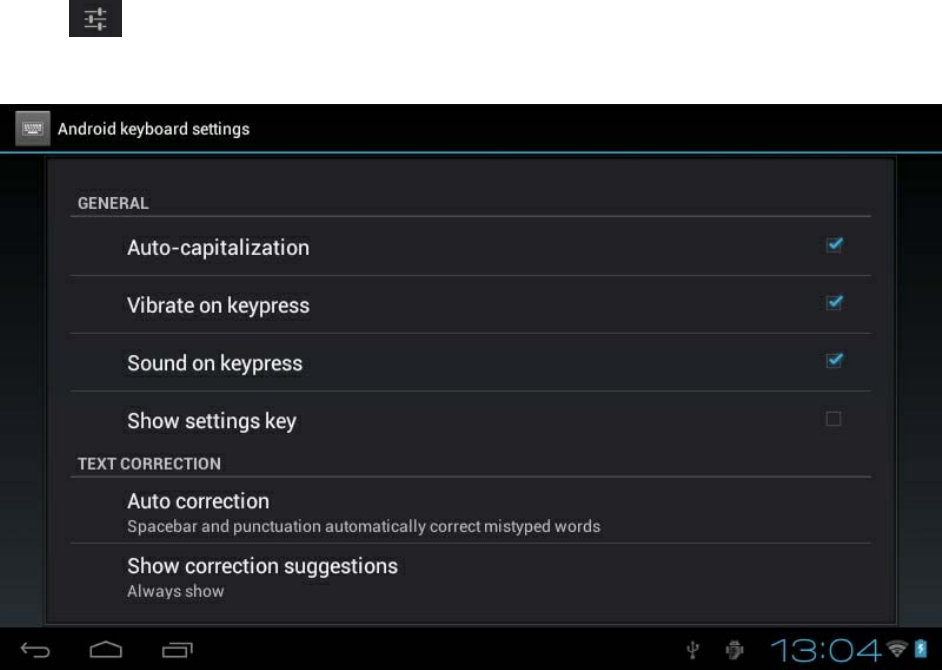

Set Keyboard

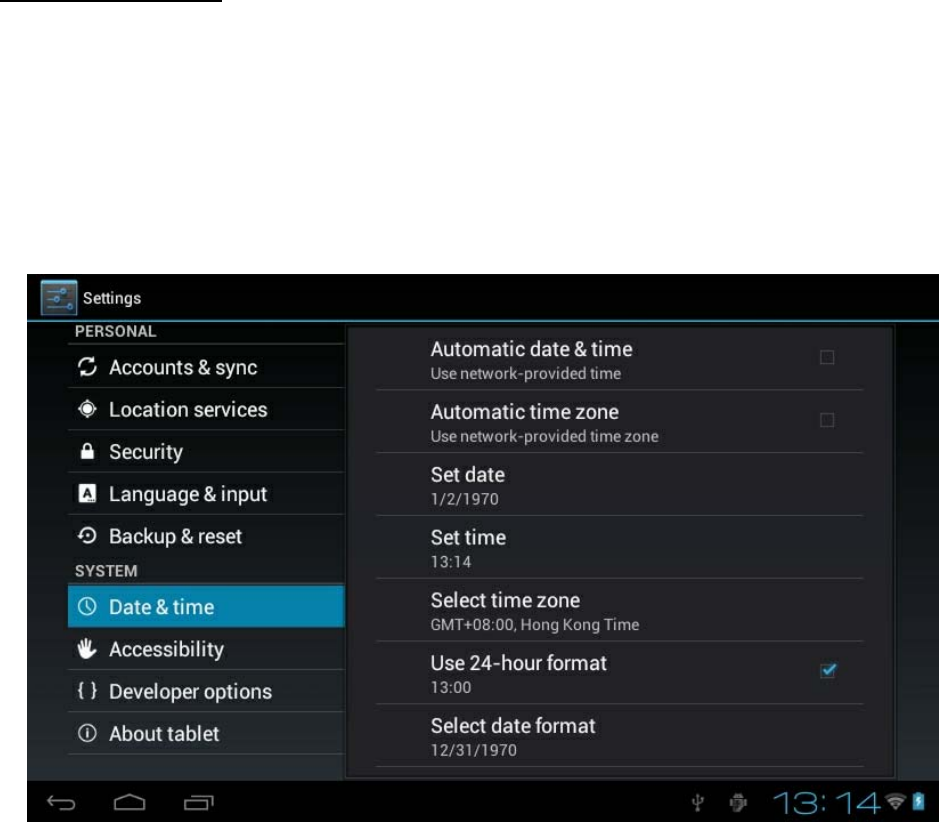

Set Date and time

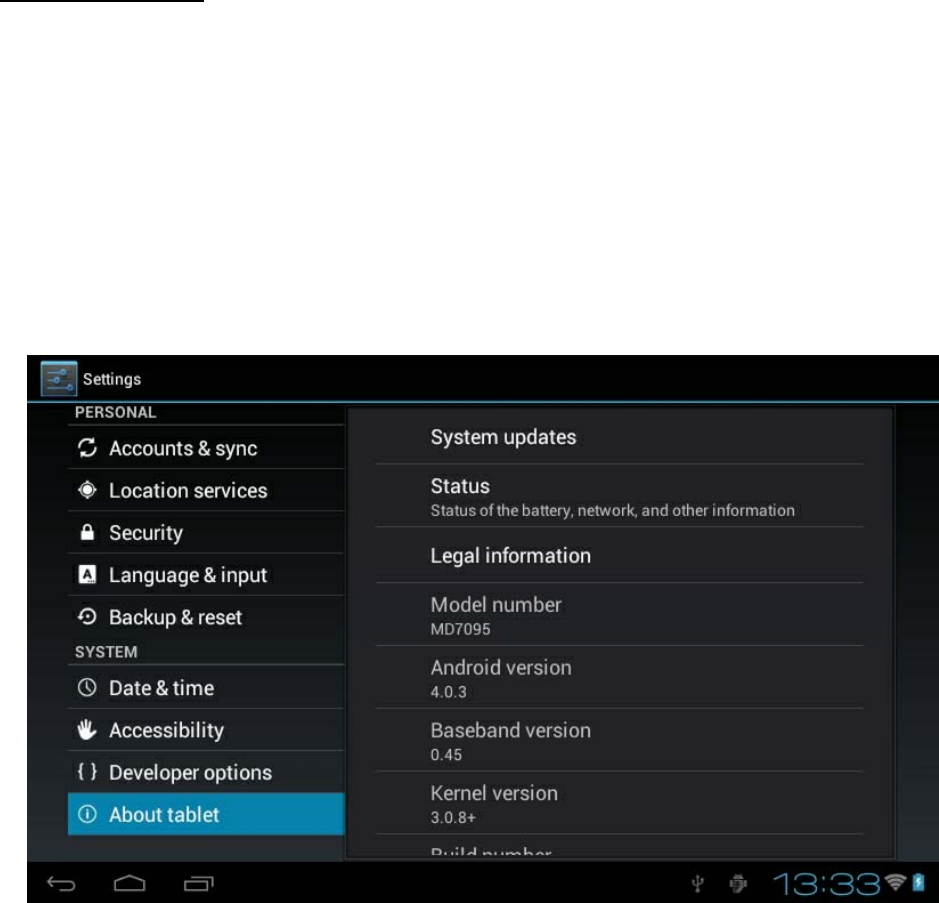

About the Device
Trouble Shootings
Safety notices
1 ) Keep this device away from strong magnetic field to avoid any damages
2 ) Do not rub this device with any hard objects and never clean this device with
any chemicals or detergents or acids or it could cause damages on surfaces.
3 ) Humidity or liquid may enter this device and causes permanent damages to the
hardware inside. Do not place this device in any humid environment or under the
rain.
3
4 ) It is recommended that volume level of the earphones should be adjusted to an
appropriate level to avoid damages to your hearings due to high volume.
5 ) Do not cut off the power abruptly during software update, software download,
or during this device is under any kind of operation or it may cause data lost and
system error.
6 ) Over-voltage, power cable strain, bending or squeezing by heavy objects must
be avoided to prevent this device from overheating or fire disaster.
7 ) To eliminate the risk of electric shock, do not connect the power plug with wet
hands.
8 ) Some movies, music and pictures are under protections of copyrights, any
unauthorized usages are deemed as infringements to the laws of copyrights.
9 ) The performance of the WIFI reception of this device could be influenced by
the wireless equipments and networks in the surrounding areas.
10 ) Any wireless equipment will influence the flight of an airplane, please consult
the airline company if you want to use this device on the airplane.
11 ) Do not use this device anywhere near any blasting operations.
12 ) Only qualified maintenance personnel is allowed to dismantle this device.
13 ) Please comply with any related restrictions and rules when using this device.
14 ) Only use this device with its original accessories and battery.
15 ) Do not use any incompatible accessories on this device.
16 ) This device is not waterproof, please keep it dry all the time.
17 ) For the sake of data safety, please back up the important data anytime on a
timely basis.
18 ) When connecting this device with other equipments, please follow instructions
on this user’s manual.
19 ) Never connect this device with any incompatible equipment.
20 ) Please consult the after-sales service in your area for any technical problems.
4
Getting ready to use the device
What’s inside box
Components Quantity
Tablet PC 1
Power Charger 1
User Manual 1
5
Technical Specifications
Size 9” TFT display
LCD Display Resolution 800*480
Operation System Android 4.2
PC interface High speed USB2.0 HOST for external U-disk,
Mouse, etc
Built-in Flash Flash Memory：8GB
Built-in RAM 1GB DDRIII
Capacity Expansion Support Micro SD Card up to 32GB (not included)
Battery Built-in 3.7V Lithium rechargeable battery
Power Supply Input: AC100V~240V 50/ 60Hz
Output: DC 5V-2A
Format WMA、MP3、OGG、APE、FLAC、
AAC、WAV
Headset max.
output （L）5mW＋（R）5mW（32Ohm）
Bit rate 8Kbps ~ 320Kbps
WMA、WMV、
Bit rate
supported 5Kbps ~ 320 Kbps
Frequency
response 20Hz to 20KHz
SN ratio 90dB
Music Function
Distortion ＜0.05%
Play format MKV、AVI、RM、RMVB、MP4、
MOV、VOB、DAT、FLV、3GP, etc
Max. resolution
supported 2160p
Video Function
Ratio 4:3、wide screen for optional
6
Photo browse JPG、JPEG、BMP、GIF supported
Format Supported TXT、LRC、PDF、Html、
Htm、EPUB, etc
E-book Function Max. capacity 20M
Recording function Format supported 3gpp Format
Spec 802.11b/g/n
Transmission rate Max150Mbps
Transmission Distance Max100m
WI-FI Function
Work Frequency 2.4GHz
HDMI HDMI up to 1080p
3G Support only external 3G USB-DONGLE wireless
network card (3G card and USB-Dongle are not
included)
Auto Screen Rotation Selectable from Setting menu
Loudspeaker Built-in 1W@8ohm*2
Working temperature -10 ~ 45℃
OSD Languages
Default language: English
Other options: Catala, Cestina, Dansk, Deutsch,
Romanian, Espanol, Francais, Hebrew, Hrvatski,
Indonesian, Italiano, Latviesu, Leituviu, Magyar,
Nederlands, Norsk Bokmal, Polski, Portugues,
Romana, Romansh, Slovencina, Suomi, Svenska,
Tagalog, Tieng Viet, Turkce, Russian, Korean,
Chinese, Japanese
Operation systems
supported
Compatible with Windows 98 se / 2000 / XP / Vista /
7, Mac 9.1 or above, Linux 2.4
7
Quick Guide

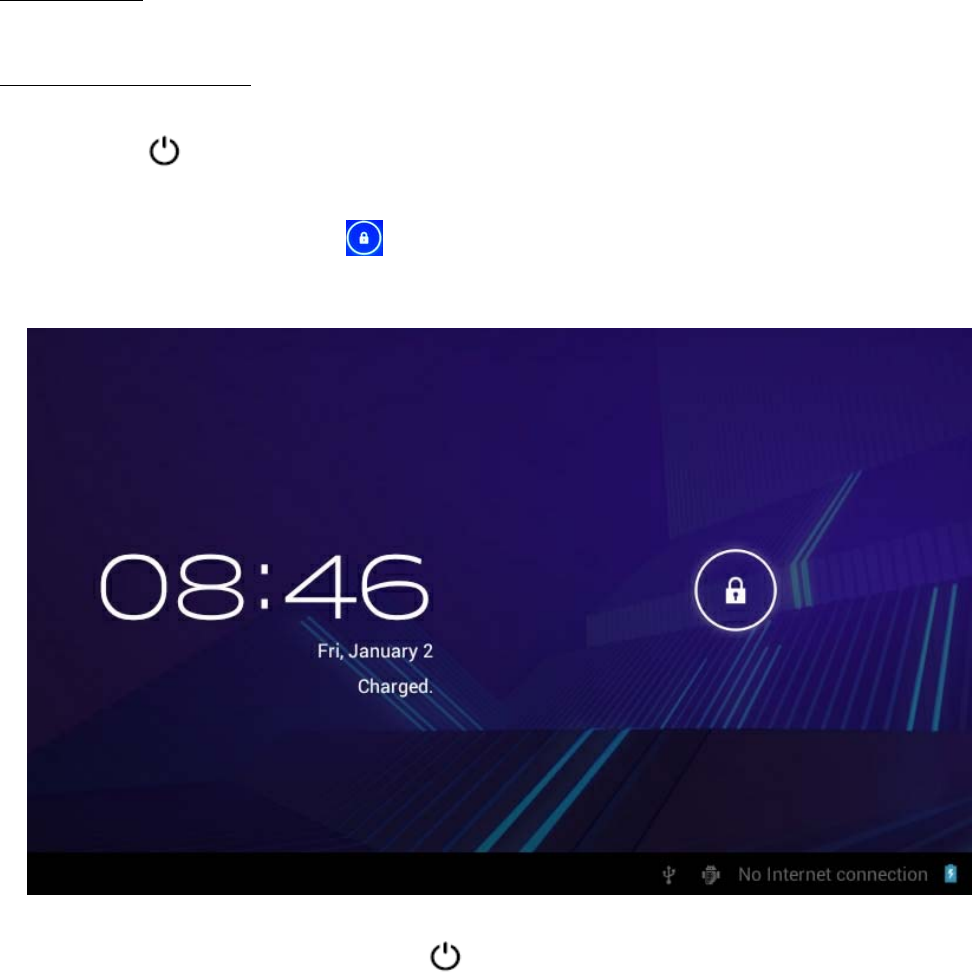

Power on / Power off
Long press button for 3 seconds to power on the device.
It will take about a minute and half to boot the system.
Unlock the screen by sliding to the right.

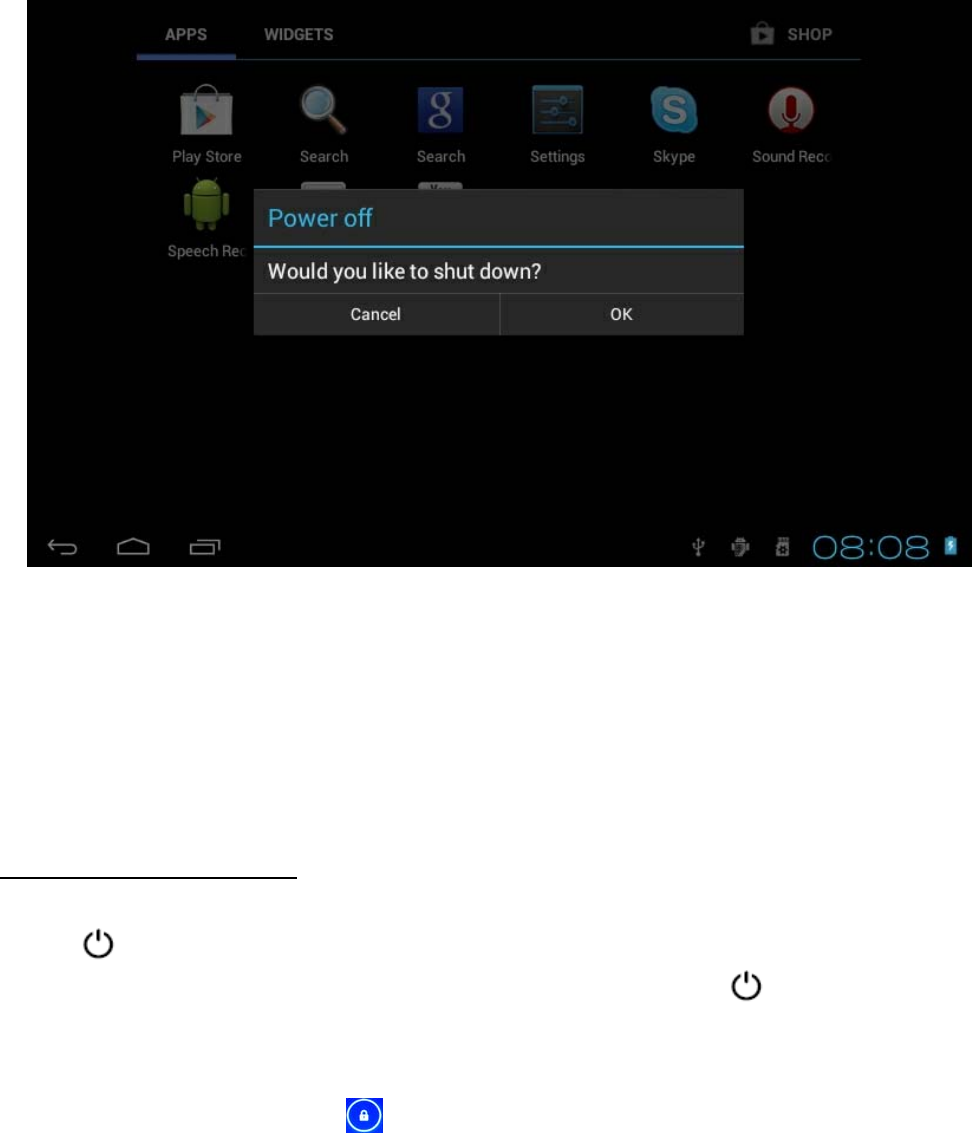

To power off the device, long press button for 3 seconds, the screen will show
the power off options:
Cancel or OK. Tap “OK” to power off the unit or tap “Cancel” to exit to
previous operation.
8
【Note】When the device is low battery, it will alert continuously and will shut down
automatically when battery has completely run out. The device cannot be
powered on if the battery is empty, please recharge the battery at least one minute
before restart the device.
Standby and Lock screen
Press button shortly to turn the device to standby mode. Under standby
mode, the screen is blackout and volume is muted. Press button shortly
again to reactivate the device. The device will then turn to Lock screen while the
primary operation of the device will continue.
Unlock the screen by sliding to the right to resume to status before power
saving.
9
【Note】The primary operation of the device under standby mode will pause and
the primary operation of the device under Lock screen mode will continue, only
the screen is locked.

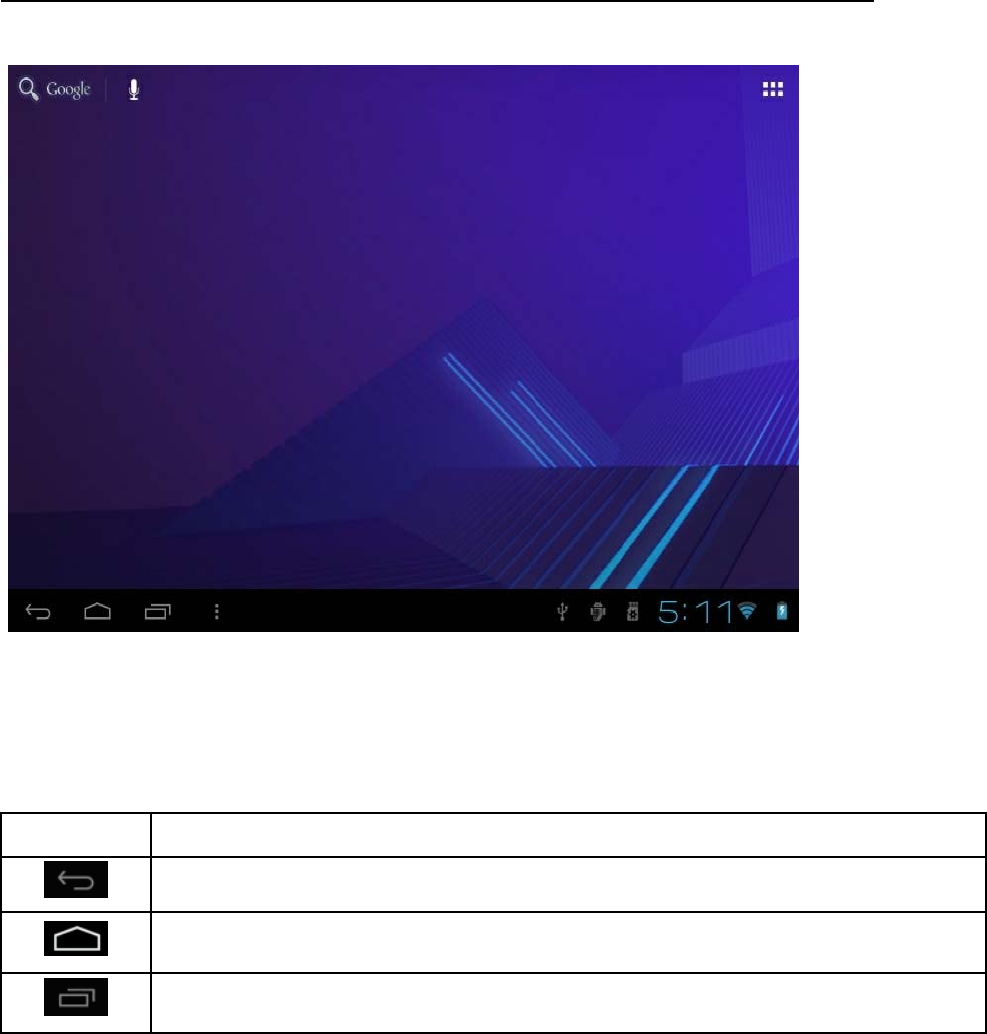

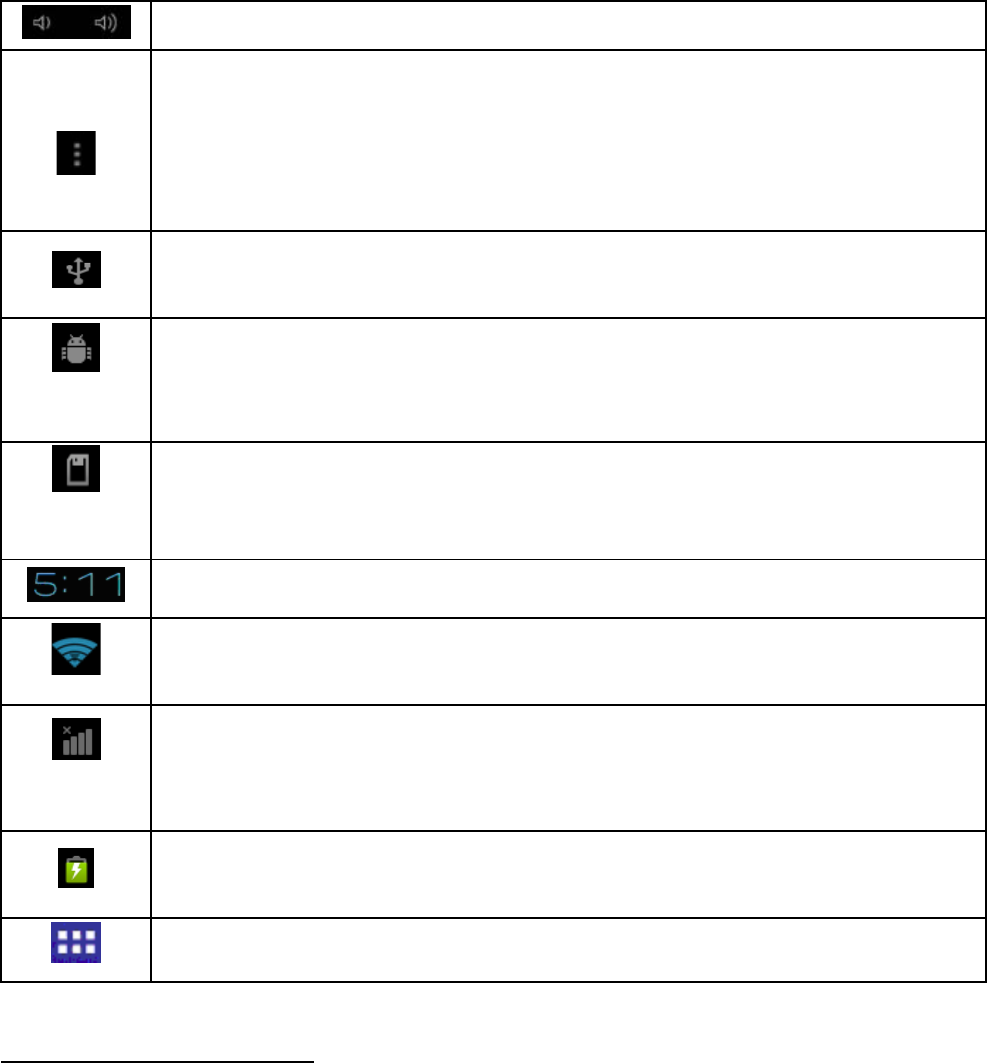

The desktop status bar and shortcut menu and the definition of the icons
Icon Function
Back – Tap it to go to the previous screen
Home page - Tap it to return to the desktop
Tap it to check the latest files that you browsed
10
Tap it to adjust the volume
Tap it to go to a shortcut menu for:
“Wallpaper” - select wallpaper for the home screen.
“Manage apps” - go a list of installed applications.
“System Setting” - go to Setting menu directly.
The USB icon appears only when the device is connected to a USB
device successfully.
The Android logo appears only when the device is connected to a
computer.
The micro SD card icon appears only when a micro SD is inserted
into the device.
The current system time
The WIFI signal indicator appears only when the device is
connected to a WIFI network.
The 3G signal indicator appears only when the device is connected
to an external 3G dongle.
The battery icon shows the remaining battery level or to indicate
battery recharging status.
Applications – Tap it go to Application menu
Orientation Sensor Setting
The device contains a sensor that will automatically change the orientation of
screen by 90 degree as you rotate the tablet. The sensor works the best when
the tablet is rotated perpendicular to the ground (i.e., when the tablet is held
upright and not flat on its back).
11

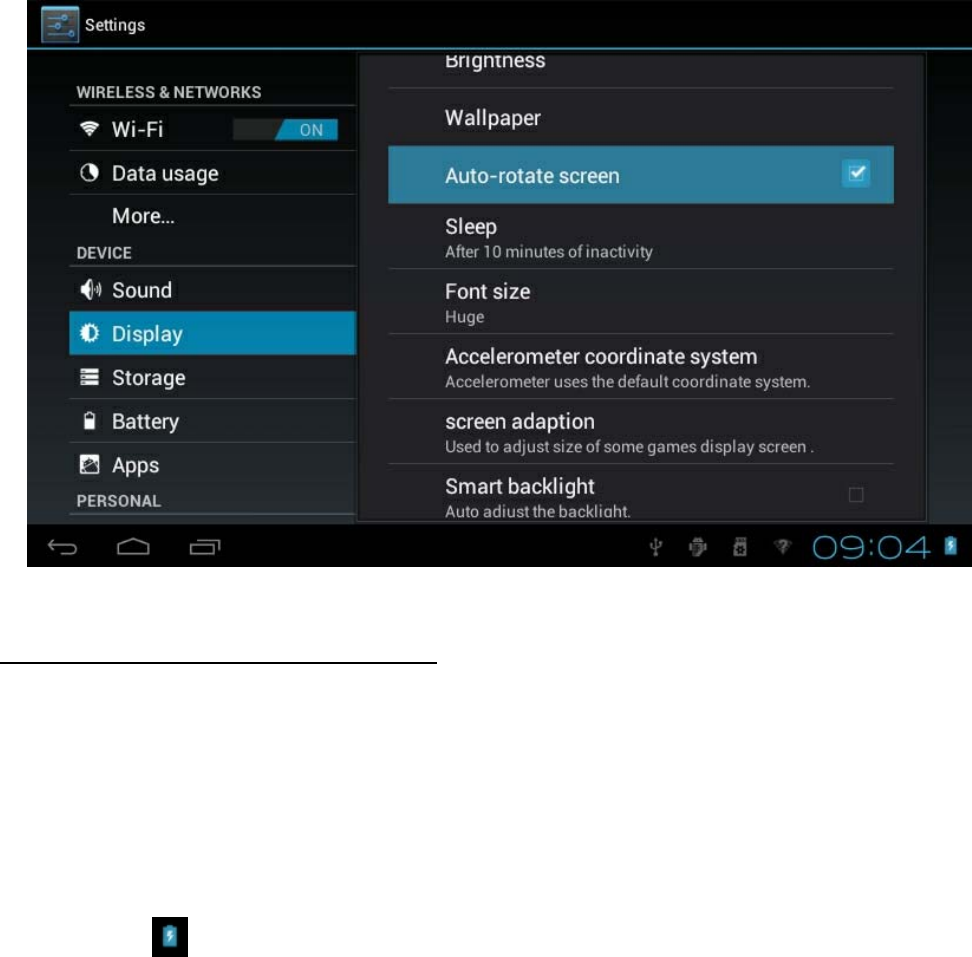

The Orientation sensor can be activated or deactivated in the Setting menu:
Setting Display Auto-rotate screen. Tick the box if you want to activate the
sensor or un-tick the box to deactivate this function.
Battery management and recharging
a. Recharge the battery about 3 to 5 hours to make sure the battery is fully
charged at the first time.
b. Plug in the power charger provided in the accessory pack to the DC-5V slot
located on the lower right side of the device and connect the power charger to a
proper power socket. Once the power is connected, the battery recharging icon
will appear on the status bar which indicating that the device is under
recharging. When the power recharging icon will turn to blue entirely when the
battery is fully recharged and you can disconnect the power charger from the
12
device.
【Note】In order to keep the battery in the best condition, please pay attention to
the below:
Don’t recharge the device under high temperature.
Don’t release the power of the battery, you can charge the battery when there
is still power in the battery. It is not necessary to wait the battery to
completely run out before recharging.
To maintain the battery with a long life span, keep recharging the battery once
every two weeks in the case if you don’t use the device for a long time.

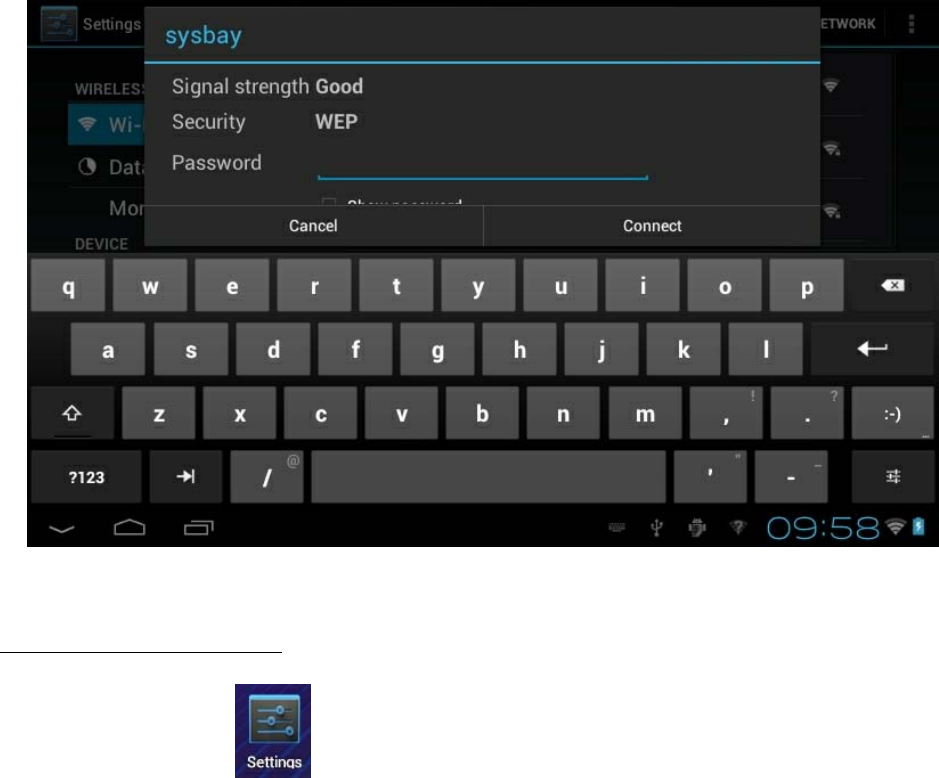

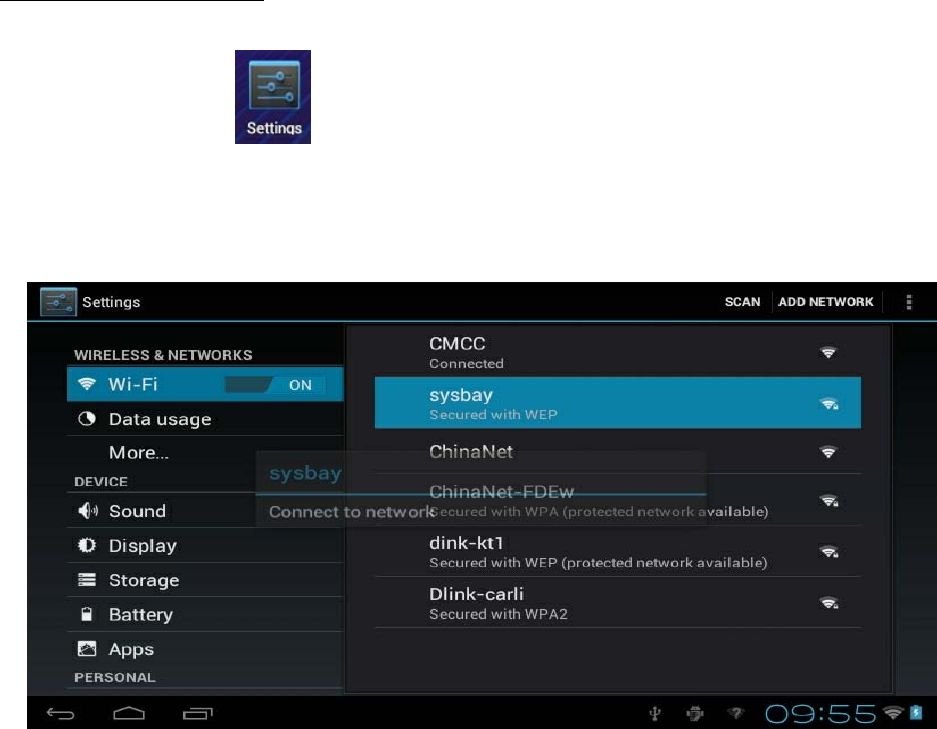

WIFI network settings
From desktop, Tap to enter setting menu and slide WI-FI function to ON
and tap the desired WIFI network and enter the wireless network setting page.
13
Enter the password and tap “Connect” or tap “Cancel” to exit to previous screen.

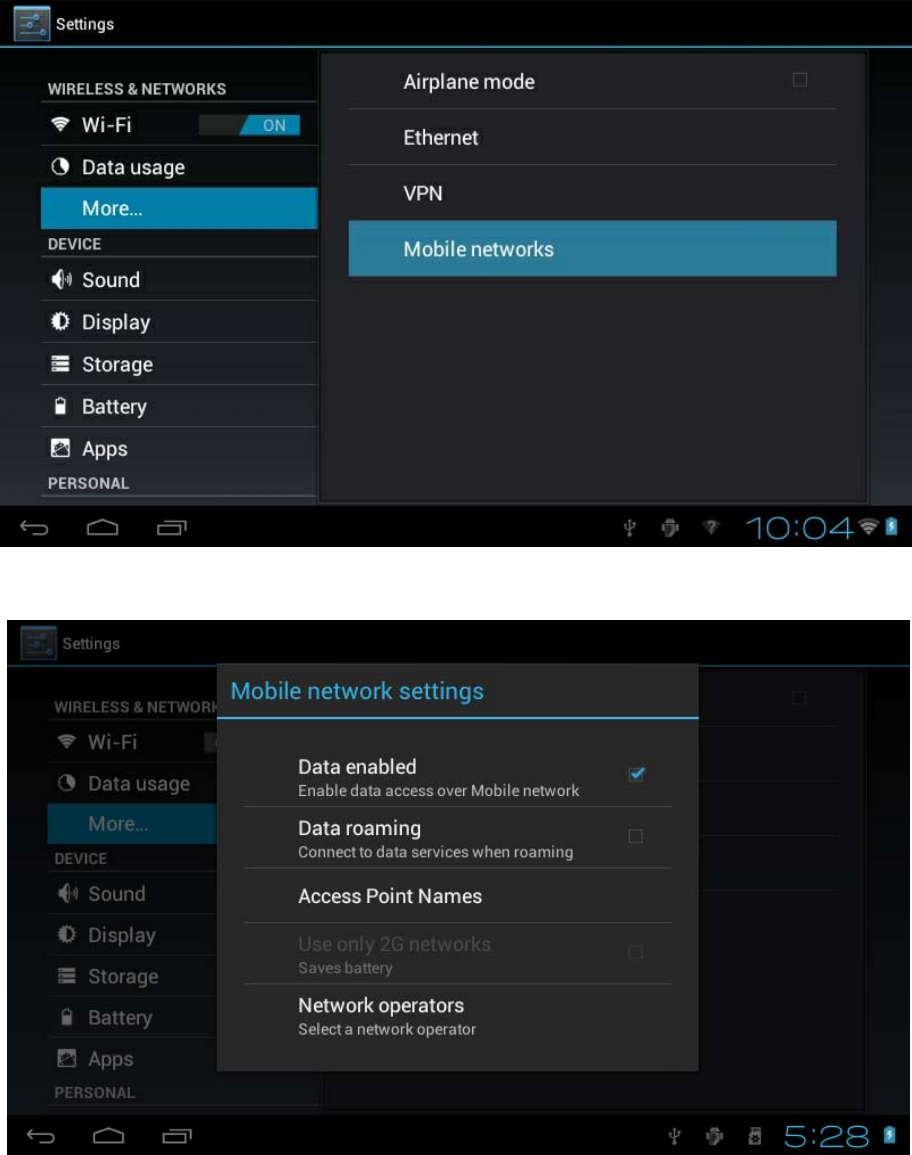

Mobile network settings
From desktop, Tap to enter setting menu and tap “More…” to enter the
sub-menu and tap “Mobile networks” to enter Mobile network setting.
Insert a 3G dongle with 3G network card and follow the instruction to select and
enter the appropriate data required by the 3G network provider.
14
15

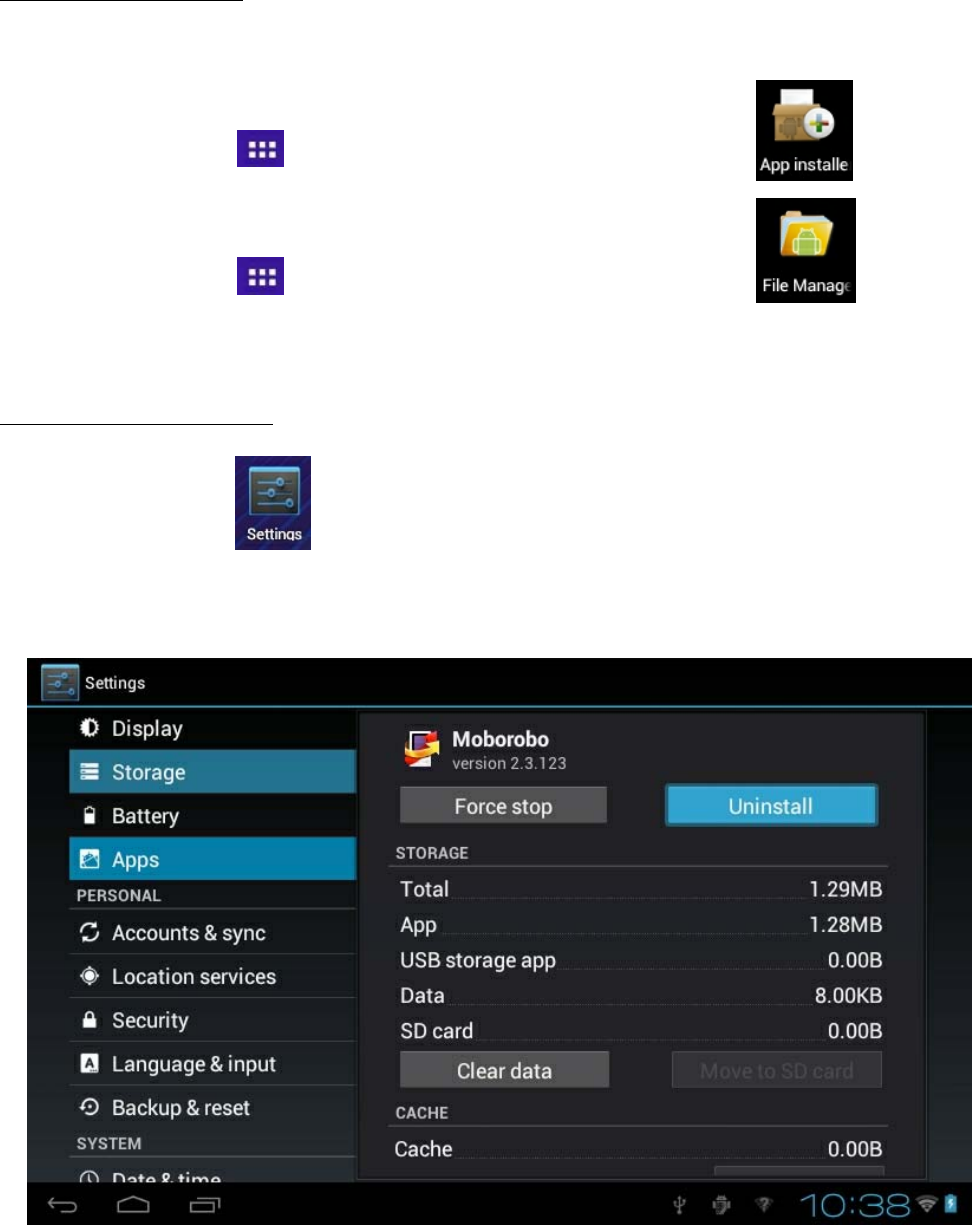

To install an APK file
This device supports third part Application Program .APK files.
From desktop, Tap to enter application menu and tap to
enter APK installer tool or;
From desktop, Tap to enter application menu and tap to
enter a list of file and tap on the desire APK file to install the APK directly.
To uninstall an APK file
From desktop, Tap to enter setting menu and tap “Apps” to enter a list of
installed application. Tap the desired APK file and tap “Uninstall” to confirm.
16

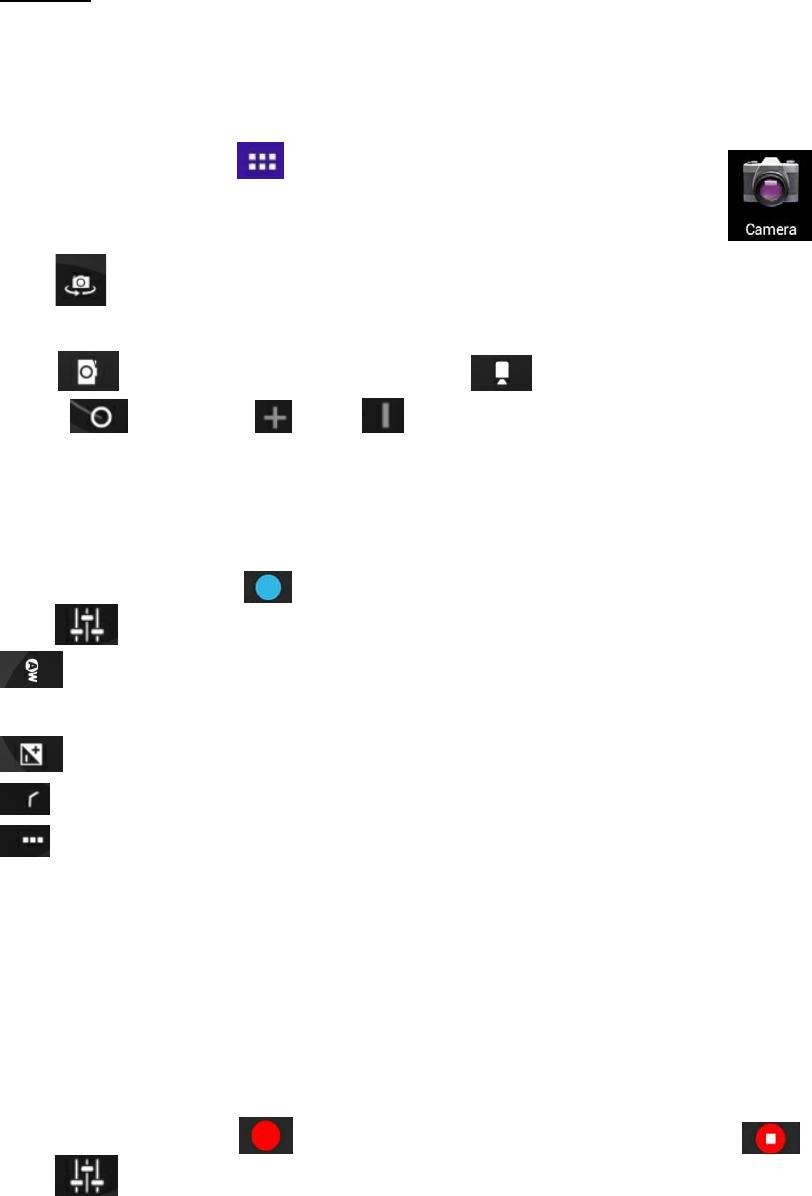

Camera
This device has a built-in 0.3MPIXEL front camera and a built-in 2.0MPIXEL rear
camera for photo, video and web cam.
From desktop, Tap to enter application menu and tap to enter
camera mode.
Tap to switch between front camera and rear camera.
Tap to enter photo mode or tap to enter video mode.
Slide between and to zoom in and out.
Taking a photo:
In photo mode, tap to take a photo.
Tap to enter a sub-menu.
- White balance: select among Auto, Incandescent, Daylight, Fluorescent,
Cloudy
- Exposure: set exposure between +4 to -4
- Exit sub-menu
- Camera settings: set store location, picture size,picture quality and restore
defaults
You can find the photo files from Application menu File Manger DCIM
Camera
Taking a video:
In video mode, tap to start the video recording and tap to stop.
Tap to enter a sub-menu.
17
- White balance: select among Auto, Incandescent, Daylight, Fluorescent,
Cloudy
- Time lapse interval: set time lapse interval between 1 second and 10
seconds or off.
- Exit sub-menu
- Camera settings: Set store location and restore defaults
You can find the video files from Application menu File Manger DCIM
Camera
Here shows the
preview of
previous taken
photo or video.

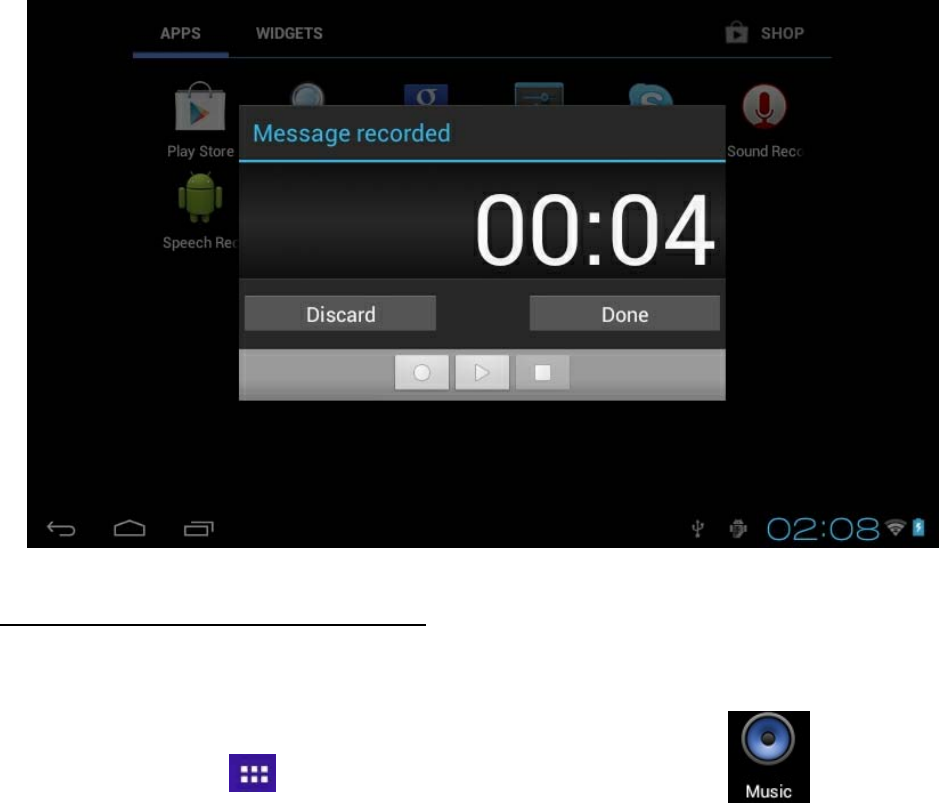

Voice Recording
This device has a built-in microphone for voice recording and web cam.
From desktop, Tap to enter application menu and tap to
enter voice recording mode.
Tap to start recording.
Tap to stop recording.
Tap to review the section just recorded.
To save the recording, tap “DONE” and exit to Application menu or;
Tap “Discard” to erase the recording and exit to Application menu
You can find the saved file from Application menu File Manger.
18
Use the device a multi media player
Audio playback:
From desktop, tap to enter Application menu. Tap to enter
audio playback mode.
Only music files stored in the device will be shown in the file list. You can classify
the music file list by: ARTISTS, ALBUMS, SONGS, PLAYLISTS and NOW PLAYING
by selecting the appropriate option.
19
Tap a song to start playback. On playback interface, you can tap on the function
bar to adjust the playback time, backward/previous, forward/next, play, pause,
shuffle, repeat setting, etc.
20
Video playback:
From desktop, tap to enter Application menu. Tap
to enter video / photo mode.
Only videos files, photo files stored in the device and videos/photos taken from the
built-in camera will be shown in the file list.
Tap on “MOVIES” to enter a list of preview videos. Tap any video file to enter the
playback screen and tap on the play icon to start playback.
You can adjust the playback time by sliding the time bar, or adjust the volume by
tapping or . Tap for previous, play, next.
Tap to go to the previous screen. Tap to enter the sub-menu for
subtitles, audio and screen ratio settings for the videos or movies.
21
Photo browsing:
From desktop, tap to enter Application menu. Tap
to enter video / photo mode.
Only videos files, photo files stored in the device and videos/photos taken from the
built-in camera will be shown in the file list.
Tap on “PICTURES” to enter a thumbnail of photos.
22
Press on the thumbnail of a photo to access a full-sized version.
Get a closer look at a photo by double tapping the screen. Two taps will
magnify the image. Another two taps will return to the original view.
A tap on the screen, a thumbnail of photos will appear and you can tap on
any photo to move from one photo to another.
Enlarge an image by touching the image with two fingers and spreading
them toward the edges of the screen. Pinch the image back to original
size by bringing your index finger and thumb together.
See an image in widescreen perspective by turning the device on its side.
The device automatically rotates a photo as you move the device and
spreads the edges to comply with the view screen's orientation (this
function is only valid after Auto-rotate screen is activated from Setting
Display Auto-rotate screen).
23
File Management
From desktop, Tap to enter application menu and tap to
view a list of files in the device.
Tap on the icon on the top screen: to view a list of folders and files by category:
to view a list of folders and files from device
to view a list of folders and files micro SD card
to view a list of folders and files from external USB storage
to view all photo files
to view all video files
to view a list of installed application
to Paste, Delete, Copy or Move a file
24
You can also delete, rename, copy, move or email a file by pressing on the file for
1 second, a pop up menu will appears:
Set OSD Language
You can set the display language of the device from the list of available language
provided in the device.
Go to desktop Setting Language & Input Language & input
Tap on “Language” to enter a list of OSD language options and tap on the desired
language and it will be set instantly.
25
26
Set Keyboard
You can select a keyboard input method from Setting.
Go to desktop Setting Language & Input Language & input
Select from the list of Keyboard & Input methods.
Any keyboard input method APKS installed in the device can be also find from this
list of Keyboard & Input methods.
27
Tap on to enter Android keyboard settings menu:
From the Android keyboard settings menu, you can setup:
Auto-capitalization
Vibrate on keypress (not available in this device)
Sound on keypress
Show settings key
Auto correction
Show correction suggestions
Advance settings for the above features
28
Set Date and Time
You can set system date and time from Setting.
Go to desktop Setting Date & time
You can setup Automatic date & time, Automatic time zone, Set date, Set time,
Select time zone, Use 24-hour format, and Select date format.
29
About the Device
You can get a quick view on the device status such as firmware version, battery
consumption status, battery level, model no., Android OS version, Network, Signal
strength, etc from:
Setting About tablet
30
Troubleshooting
Can not turn on the device?
You may not be able to turn on the device when the battery is below the
critical level. Recharge the battery for a few minutes and try to turn it on
again.
Check if the power charger is connected properly and firmly.
The battery working time is too short?
The duration of the lithium battery varies with environmental temperature
changes and the service conditions. If the environment temperature is too
low or too high, the duration of the battery will be affected. It is
recommended to use this device at normal temperature.
Battery consumption varies depending on if the brightness and on time of
the screen, the volume level of the loudspeaker as well as the operation
status of the central processor (CPU). To save battery, please refer to
Power saving mode section of this menu.
No sound from earphone?
Check if the volume setting is adjusted to 0.
Check whether the audio file is damaged and try to play other audio files to
confirm. In the case if the audio file is damaged, it may cause severe
noise or staccato.
Can not copy files?
Check if the device is connected to the computer properly.
Check if the USB cable is working.
Check whether the memory capacity available is enough for storage of the
copying files.
FCC Statement:
31
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired
operation.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
32
Specifications are subject to change without prior notice.
No part of this document may be reproduced or transmitted in any form
or by any mean including photocopying and recording or translating to
another languages for any purposes without the prior written consent of
the manufacturer.
All brand names, logos and registered trademarks mentioned are
property of their respective owners.
All rights reserved.
