Introduction

TheMasterWheelscontrollerisanadvancedprofessionalwheelcontrollersystemthatemploys

high‐precisionsensors,advancedcontrolalgorithms,andstate‐of‐the‐artproductdesignto

deliverpreciseandbutter‐smoothremotecameramovementcontrol.Withtheincludedreceiver,

MasterWheelsarecompatiblewiththeRonin2andRonin‐S,andthird‐partygimbalsthroughan

S‐BUSconnection.



MasterWheelsfeatureamodulardesign,sowheelsandcontrolmodulescanbedetachedfrom

thebase.Thewheelandcontrolmodulescanbeoperatedcompletelyseparatedfromthebase

andconnectedviacablesafterbeingdetached,givingusersmorefreedomwhenshootingintight

spaces.Userscanmanuallyadjusttheanglebetweentwocontrolmodulesforamoreergonomic

fit.Theradiotransmissionmodulecanbequicklydetachedandplacedinanopenareatoobtain

astrongersignal.

Eachwheelcontrolmoduleisequippedwithathree‐stoptoggleswitchtocontrolgimbal

directionanddialstocontrolspeed,smoothness,anddamping.Also,variousbuttonsandmenus

onmaincontrolconsoleandthreecustombuttonsallowyoutomonitorequipmentstatusand

adjustsettingsquickly.



MasterWheels’dual‐frequency2.4GHzand5.8GHzwirelesstransmissionsystemsupportsa

maxoperationrangeof3km.Wiredconnectionisalsosupported,keepinglatencyaslowas10

milliseconds.



Themaincontrolconsolecontainsmultiple1/4‐20and3/8‐16tapsformountingmonitors,video

transmissionsystems,andmore.Userscanalsochargemonitorsorwirelesstransmittersviathe

CANBUSport.MasterWheelsalsocomewithaMitchellmountthatisattachabletothebase

plateforconnectingtotripods,cars,andmore,allowinguserstoshootanyscenetheycan

imagine.



MotionControlletscinematographersrecordspecificmovementsandrepeatthemwhen

needed.



MasterWheelsuseTB50batteries,offeringupto18hoursofoperatingtime,andtheir

self‐heatingfunctionalityensuresequipmentworksnormallyattemperaturesaslowas‐20°.



Components



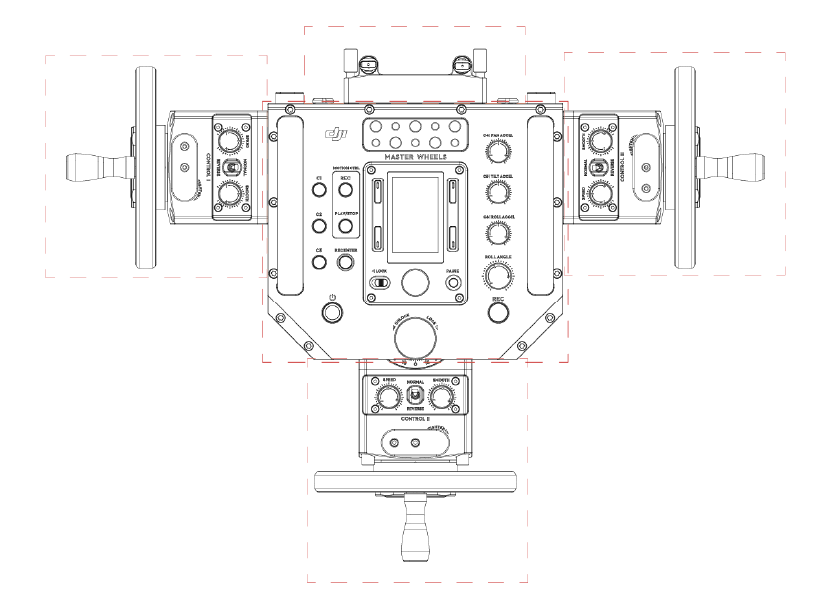

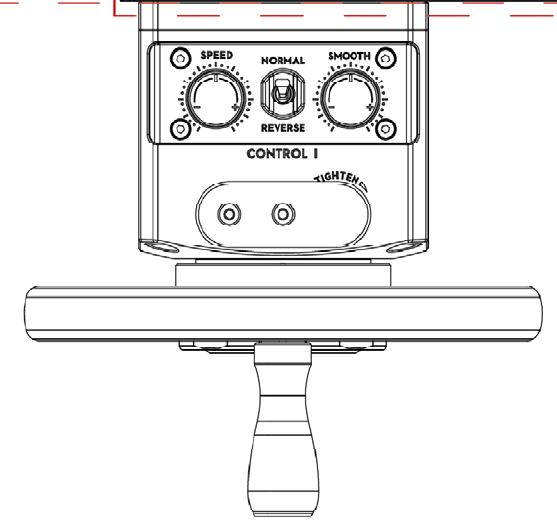

1. WheelandControlModuleI

Thewheelandcontrolmodulecanbeoperatedcompletelyseparatedfromthebaseand

connectedviacablesafterbeingdetached,givingusersmorefreedomwhenshootingintight

spaces.



a. Wheel:Rotatethewheeltocontrolthegimbalaxismovements.

b. DampingAdjustmentKnob:Adjustthedampingofthewheel.

c. SpeedAdjustmentKnob:Adjusttheaxisspeedbyturningtheknob.

d. DirectionAdjustmentKnob:Reversetheaxismovements’direction.

e. SmoothingAdjustmentKnob:AdjusttheSmoothingforgimbalaxis.

2. WheelandControlModuleII

ThesameasWheelandControlModuleI.

3. WheelandControlModuleIII

ThesameasWheelandControlModuleI.

4. RadioTransmissionModule

Thedetachableradiotransmissionmodulecanbeplacedinanopenareatoobtainastronger

signal.

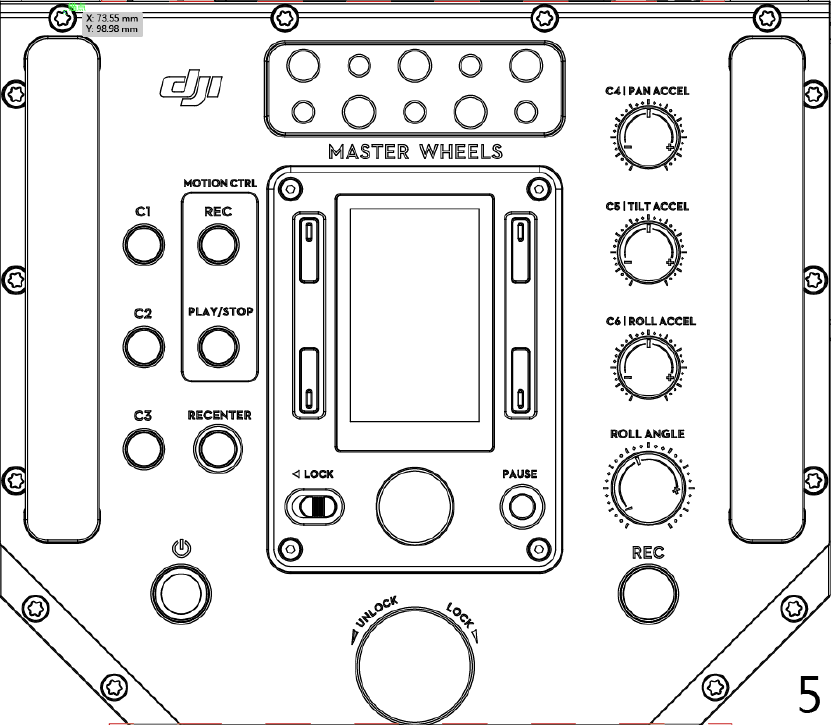

5. MainControlBase



a. 1/4”‐20and3/8”‐16MountingHole

b. Handle

c. C1Button:Customizethefunctionthroughtheon‐boardpanel.

d. C2Button:Customizethefunctionthroughtheon‐boardpanel.

e. C3Button:Customizethefunctionthroughtheon‐boardpanel.

f. PowerButton:Pressandholdtoturnon/offtheMasterWheels.

g. MotionControl:RecordthegimbalmovementsbypresstheRECbutton,repeatthe

recordedgimbalmovementsbypressingthePLAYbutton.

h. RecenterButton:Pressoncetorecenterthegimbal.

i. On‐boardPanel:

MountingModeButton:Presstoselectamountingmodeforthegimbal.

BackButton:Pressoncetogobacktothepreviousmenu.

ToggleButton:Pressoncetotogglebetweenthesubmenus.

FollowModeButton:PresstoselectaFollowmodeforthegimbal.

LockButton:Tog gletolockthePanelduringusagetoavoidunexpectedoperation.

JogWheel/OKButton:Rotatetoselectoptions,andpressoncetoconfirmanoption.

PauseButton:Pressoncetopoweroffthemotorwithoutpoweringonthegimbal.

j. C4PanAxisAccelerationKnob:TurntoadjusttheaccelerationforPanAxisdirectly.

k. C5TiltAxisAccelerationKnob:TurntoadjusttheaccelerationforTiltAxisdirectly.

l. C6RollAxisAccelerationKnob:TurntoadjusttheaccelerationforRollAxisdirectly.

m. RollAxisAngleAdjustmentKnob:Turntoadjusttherollaxisangle.

n. RecordButton:Presstocontrolcamerastart/stoprecordingafterconnectingtoShutter

ControlportontheRonin2’sPowerHub.

o. AngleAdjustmentKnob:Tog gletheknobtotheunlockedpositionandadjusttothe

desiredangleforWheelandControlModuleII,toggletothelockedpositionafter

complete.

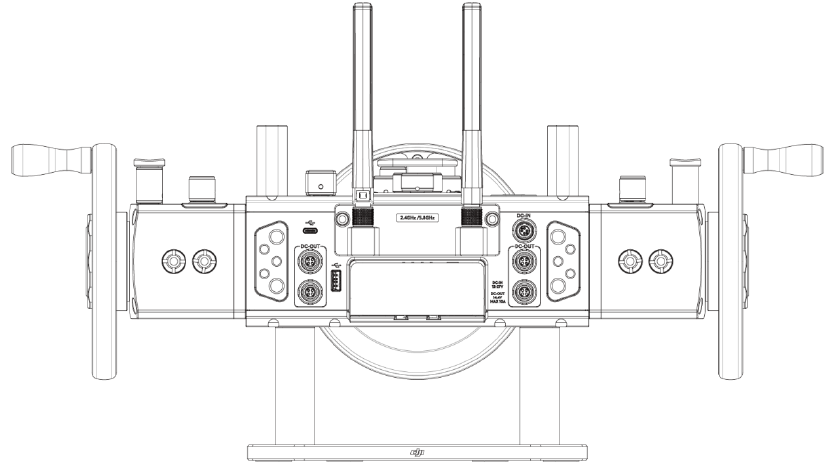

p. MainControlBasePorts



1. USB‐CPort:Forfirmwareupdating.

2. DC‐OUTPort:14.4Vandthemaxcurrentis8A.

3. DC‐INPort:12‐27V,powertheconnecteddevicethroughthisport.

4. PogoPin:Forconnectingtotheradiotransmissionmodule.

5. CANPort.

q. MountingHoles

1/4”‐20or3/8”‐16mountingholes.

Installation

Mounting the Radio Transmission Module

Attachtheradiotransmissionmodulebyconnectingtothepogopinandthentightenthescrews.

ConnecttheradiotransmissionmoduletooneoftheDC‐OUTportontheMasterWheelusing

theprovidedcableifyouneedtoplacethetransmissionmoduleontheotherposition.



Adjust Angle for Wheel and Control Module II



Mounting the Intelligent Battery

InserttheIntelligentBatteryasshown.Pressthelockbuttononthebottomofthebasewhen

removethebattery.



Mounting the Wheel and Control Modules

TheWheelandControlModulesaremountedonthebasebydefault.Ifyouneedtoremove

them,detachthewheelfirstly,andthenloosenthescrewstoremovethecontrolmodules.

ConnectthewheelandcontrolmoduletooneoftheDC‐OUTportontheMasterWheelusing

theprovidedcable.



Mounting the Main Control Base to Other Platforms

Removethebottombaseandmountthemaincontrolbasetootherplatformsuchastripod

throughaMitchellMount.

Settings

ThesesettingsarebasedonusingtheMasterWheelswithRonin2.



MainUIsettings

1. GPSSignalStrength

:ShowsthecurrentGPSsignalstrength.

2. MountingModes

:Handheldmode.

:CarMountmode.

:Aerialmode.

:Tripodmode.

3. FollowMode

:Freemode.

:Followmode.

:FPVmode.

:Recentermode.

4. WorkingBatteryNumberandBatteryLevel

:ShowsthenumberofbatteriescurrentlyinusebyRonin2andthecurrentbatterylevel

ofRonin2.

5. RemoteControllerSignalStrength

Displaystheremotecontrollersignalstrength.

6. MasterWheelsBatteryLevel

DisplaysthecurrentbatteryleveloftheMasterWheels.

7. MaxSpeed

Displaysthemaxspeedofthepan,tiltandrollaxis.

8. Smoothing

Displaysthesmoothingofthepan,tiltandrollaxis.

9. Speed

Displaysthereal‐timespeedofthepan,tiltandrollaxis.



MasterWheelsSettings



Basic

TheDeadband,Smoothing,andEndpointssettingsforthepan,roll,andtiltaxescanbe

independentlyadjusted.Thedefaultendpointsettingsforpanaxisaresetto180°,whichmeans

thereisnoendpointforthepanaxis,allowingittorotate360°continuouly.

More:LanguagescanbeswitchedbetweenEnglishandChinese.DisplaystheSNnumberandthe

firmwareversionoftheMasterWheels.



Custom

CustomizedfunctionsfortheC1,C2andC3buttons,andassignpan,tiltandrollaxistooneofthe

WheelandControlmodule.



Gimbalsettings

Motor

Basic:TheAutotune,Stiffness,Strength,Filter,andControlvaluesforthetilt,roll,andpanaxes

canbesetindependently.RefertotheRonin2usermanualfordetails.

More:Setpower‐onposition,finetunethepanortiltaxis,andtestthebalanceforthreeaxes.



SmoothTrack

Settingsforthepan,roll,andtiltaxescanbesetindependently.



Monitor

Motor:Displaysthepower,angle,andtemperatureofthemotors.

Log:Displaysanyabnormalstatusinformationofthegimbal.



SystemSettings

General:IncludestheCalibrateSystem,Binding,operatingWi‐Fifrequencies,andgimbalworking

modes.

Profile:Custommotorconfigurationscanbesavedorresettodefaultsettings.



CameraPage

Controlcamerarecordingandvariousothersupportedsettingswhenacameracontrolcableis

attached.

Charging

Usetheprovidedcharginghubandadaptertochargethebattery.



FirmwareUpdating

UpdatethefirmwarethroughtheUSB‐CportandDJIAssistant2.



Specifications

Voltage 22.8V

Battery 4280mAh/97.58Wh

OperatingTemperature‐10°to40℃（14°to104℉）

ChargingTem p erat u re‐10°to40℃（14°to104℉）

BatteryLife 18hours

ChargingTime1.5hours

DCIN 12V‐27V

DCOUT 14.4V/8AMax

OperatingFrequency2408MHz~2475.5MHz&5729MHz~5843MHz

TransmitterPower20.60dBmfor2.4G&22.20dBmfor5.8G

ModulationModeGFSK

Max.ofAntennaGain2.18dBifor2.4G&4.5dBifor5.8G


