SZ DJI Osmo Technology RXPRO11805 DJI Pro Wireless Receiver User Manual
SZ DJI Osmo Technology Co.,Ltd. DJI Pro Wireless Receiver
User Manual
The DJI Pro Wireless Receiver
DJI Pro Wireless Receiver User Guide

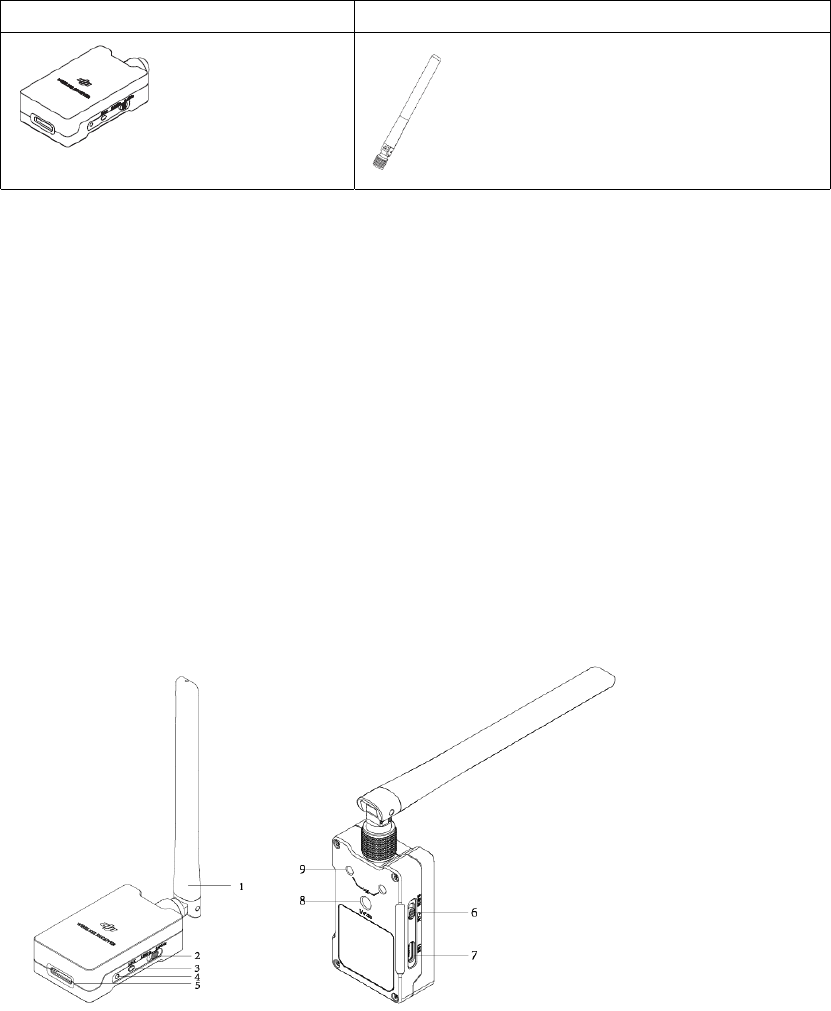

In the Box
DJI Pro Wireless Receiver×1
Antenna×1
Introduction
is designed to be used with the DJI Force Pro, DJI Master Wheels
and other controllers, providing a max operation range of 3 km. It is operating at dual-frequency
2.4 GHz and 5.8 GHz and compatible with the Ronin 2, Ronin-S and a third-party gimbal through
an S-Bus connection.
1. Antenna
Relays control signals. Do not obstruct the antenna.
2. Operating Frequency Switch
The operating frequency can be switch from 2.4GHz and 5.8GHz. Please note that some
regions are not supported 5.8GHz, make sure the switch is toggled to the 2.4GHz.
3. Link Button
Press and hold this button for two seconds to start linking to the controller.
4. Status LED
Indicates the status of system.
5. Power and Communication Port
Connect this port to gimbal using the CAN Bus cable, D-Bus and S-Bus cable.
6. S-Bus/CAN Switch
Toggle the switch to CAN position when using with Ronin 2 and Ronin-S, toggle the switch to S-
Bus position when using with an S-Bus gimbal.
7. USB-C Port
For activation and firmware updating.
8. 1/4”-20 Mounting Hole
For fixing the receiver in place.
9. M4 Mounting Hole
For fixing the receiver in place.
Installation
It is recommended to fix the wireless receiver at a place that without signal interference through
the mounting hole on the receiver or using other tools.
Cable Connections

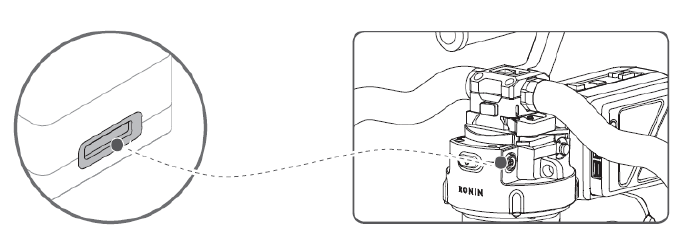

1. Connect to Ronin 2: connect the Power and Communication Port to the Ronin 2 accessory
power ports above the pan motor using the CAN Bus cable.
2. Connect to Ronin-S: connect the Power and Communication Port to the Ronin-S’ CAN port
using a CAN cable (sold separately)
3. Connect to an S-Bus supported gimbal connect the Power and Communication Port to the
gimbal’s S-Bus port.
Keep the Antennas vertical during using, and make sure there is no obstructions and interference
between the devices.
Activation and Linking
Activation is required when use the Wireless Receiver for the first time. To activate, connect the
USB port to the DJI Pro Assistant for Ronin.
Press and hold on the link button for two seconds to link to a controller.
The Status LED indicates the status of system, refer to the table below for details.
Status LED Descriptions
Patterns
Descriptions
Blinks red quickly
The device is not activated.
Solid red
The device is activated and not linked to a controller.
Blinks red slowly
The device is linking.
Solid green
Operating at 2.4 GHz
Blinks green slowly
Operating at 5.8 GHz
Specifications
Dimensions 63×38×19 mm
Operating Environment Temperature -20℃ to 50℃
Operating Frequency 2.4 GHz, 5.8 GHz
Input Voltage
5
V-15
V
Compliance Information
FCC Compliance Notice
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) This device must accept
any interference received, including interference that may cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
—Consult the dealer or an experienced radio/TV technician for help.
RF Exposure Information
This equipment complies with FCC/ISEDC radiation exposure limits set forth for an uncontrolled
environment. In order to avoid the possibility of exceeding the FCC /ISEDC radio frequency exposure limits,
human proximity to the antenna shall not be less than 20cm during normal operation.
-exempt RSS standard (s). Operation is subject
to the following two conditions: (1) this device may not cause interference, and (2) this device must
accept any interference, including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'ISEDC applicables aux appareils radio
exempts de licence.
L'exploitation est autorisée aux deux conditions suivantes:
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d'en compromettre le fonctionnement.
KCC Warning Message
“해당무선설비는
운용
중
전파혼신
가능성이
있으므로
인명안전과
관련된
서비스는
할
수
없습니다.”
“해당
무선설비는
운용
중
전파혼신
가능성이
있음”
NCC Warning Message
RSS Warning
This device complies with ISEDC licence
低功率電波輻射性電機管理辦法
第十二條 經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自
變更頻率、加大功率或變更原設計之特性及功能。
第十四條 低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，
應改善至無干擾時方得繼續使用。前項合法通信，指依電信法規定作業之無線電通信。低功
率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。
Cet équipement est conforme aux limites d'exposition aux radiations FCC / ISEDC
définies pour un environnement non contr?lé. Afin d'éviter la possibilité de dépasser les
limites d'exposition aux radiofréquences FCC / ISEDC, la proximité humaine de
l'antenne ne doit pas être inférieure à 20 cm pendant le fonctionnement normal.
EU Compliance Statement: SZ DJI Osmo Technology
Co., Ltd. hereby declares that this device is in
compliance with the essential requirements and other relevant provisions of the Directive
2014/53/EU.
A copy of the EU Declaration of Conformity is available online at
www.dji.com/euro-compliance
EU contact address: DJI
GmbH,
Industriestrasse.
12,
97618,
Niederlauer,
Germany
Declaración de cumplimiento UE: SZ DJI Osmo Technology
Co., Ltd. por la presente declara que
este dispositivo cumple los requisitos básicos y el resto de provisiones relevantes de la Directiva
2014/53/EU.
Hay disponible online una copia de la Declaración de conformidad UE en
www.dji.com/euro-
compliance
Dirección de contacto de la UE: DJI
GmbH,
Industriestrasse.
12,
97618,
Niederlauer,
Germany
EU-verklaring van overeenstemming: SZ DJI Osmo Technology
Co., Ltd. verklaart hierbij dat dit
apparaat voldoet aan de essentiële vereisten en andere relevante bepalingen van Richtlijn
2014/53/EU.
De EU-verklaring van overeenstemming is online beschikbaar op
www.dji.com/euro-compliance
Contactadres
EU: DJI
GmbH,
Industriestrasse.
12,
97618,
Niederlauer,
Germany
Declaração de conformidade da UE: A SZ DJI Osmo Technology
Co., Ltd. declara, através deste
documento, que este dispositivo está em conformidade com os requisitos essenciais e outras
disposições relevantes da Diretiva 2014/53/EU.
Existe uma cópia da Declaração de conformidade da UE disponível online em
www.dji.com/euro-
compliance
Endereço de contacto na UE: DJI
GmbH,
Industriestrasse.
12,
97618,
Niederlauer,
Germany
Dichiarazione di conformità UE: SZ DJI Osmo Technology
Co., Ltd. dichiara che il presente
dispositivo è conforme ai requisiti essenziali e alle altre disposizioni rilevanti della direttiva
2014/53/EU.
Una copia della dichiarazione di conformità UE è disponibile online all'indirizzo Web
www.dji.com/euro-compliance
Indirizzo di contatto UE: DJI
GmbH,
Industriestrasse.
12,
97618,
Niederlauer,
Germany
Déclaration de conformité UE : Par la présente, SZ DJI Osmo Technology Co., Ltd. déclare que cet
appareil est conforme aux principales exigences et autres clauses pertinentes de la directive
européenne 2014/53/EU.
Une copie de la déclaration de conformité UE est disponible sur le site www.dji.com/euro-
compliance
Adresse de contact pour l'UE : DJI GmbH, Industriestrasse. 12, 97618, Niederlauer, Germany
EU-Compliance: Hiermit erklärt SZ DJI Osmo Technology Co., Ltd., dass dieses Gerät den
wesentlichen Anforderungen und anderen einschlägigen Bestimmungen der EU-Richtlinie
2014/53/EU entspricht.
Eine Kopie der EU-Konformitätserklärung finden Sie online auf www.dji.com/euro-compliance.
Kontaktadresse innerhalb der EU: DJI GmbH, Industriestrasse. 12, 97618, Niederlauer, Germany
CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE
OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS
Environmentally friendly disposal
Old electrical appliances must not be disposed of together with the
residual waste, but have to be disposed of separately. The disposal at the communal
collecting point via private persons is for free. The owner of old appliances is
responsible to bring the appliances to these collecting points or to similar collection
points. With this little personal effort, you contribute to recycle valuable raw materials
and the treatment of toxic substances.
Thailand Warning message
.
Mexico Warning message
“La operación de este equipo está sujeta a las siguientes dos condiciones: (1) es posible que este
equipo o dispositivo no cause interferencia perjudicial y (2) este equipo o dispositivo debe aceptar
cualquier interferencia, incluyendo la que pueda causar su operación no deseada.”
Brazil Warning message
Este equipamento opera em caráter secundário, isto é, não tem direito a proteção contra
interferência
prejudicial, mesmo de estações do mesmo tipo, e não pode causar interferência a
sistemas operando em caráter primário
UAE logo requirements
The characters shall appear in black print against a white background.
No character shall be less than 2mm in height.
The letters “TRA” shall be atleast 3mm in height.
