High-Precision Microwave Radar
User Guide
V1.0 2017.1

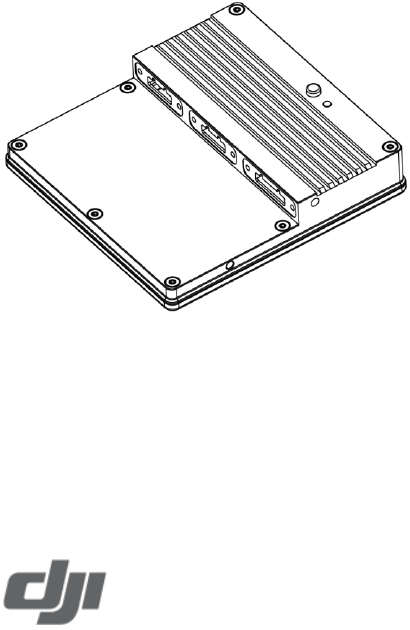

Introduction
High-Precision Microwave Radar can be mounted onto any side of the carrier for
distance and angle measurement.
Warning
1. Ensure that the radar module is working within its detection range.
2. Observe the carrier’s distance from the surface at all times.
3. Operate with extra caution when flying over inclined surfaces.
4. Obey local radio transmission laws and regulations.
Installation
1. Mount the radar module to the carrier using M3 screws.
2. Connect the radar data cable to a control unit which has data processing functions.
Connect the radar power cable to the power supply (direct-current voltage 12 to 20 V).
Mode Switch
The radar should work in a corresponding operating mode when it is mounted onto
different sides of the carrier. The operating mode must be set correctly through the
Mode Switching Button on the module.
Instructions: Ensure that the radar module is powered off. Press the Mode Switching
Button and hold, and then power on the module (the button cannot be released at this
moment). A white light after blinking several seconds from the Radar Status Indicator
means that it is in mode switch process and you can release the button. Press it the
button to switch the operating mode. The operating mode is displayed by the Radar
Status Indicator:

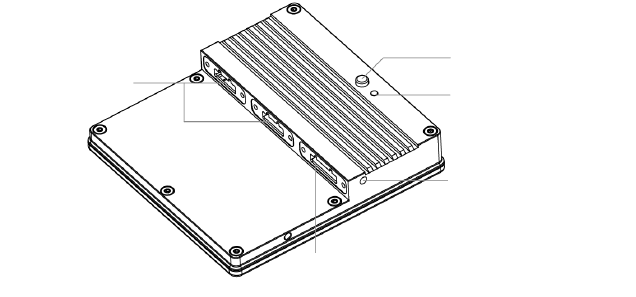

Mode Switching Button
Radar Status Indicator
Mounting Holes (M3)
Data/Power Port
Multifunction Port (Reserved)
Indicator
Operating Mode
Yellow
Downward mode
Blue
Forward mode
Green
Backward mode
After switching to the desired mode, press the Mode Switching Button and hold for at
least 3 seconds until the indicator blinks in a corresponding color, which indicates
operating mode has been switched.
Radar Status Display
The radar status is displayed by the Radar Status Indicator as shown below:
Indicator
Description
Solid
Warming up.
Blinking
Working.
Off
Disconnected.
Specifications
Detection Range
Distance: 1 to 40 m
Angle: -25 to 25
Detection Accuracy
Distance: < 10 cm
Angle: < 0.5
Operating Temperature
-10
to 45 C
Input Voltage
12 - 20 V
Operating Frequency
24.050
GHz
to 24.250 GHz
Signal Bandwidth
200 MHz
Antennas
1T2R
(1 Transmit and 2 Receive)
Ingress Protection Rating
IP45
(IEC standard 60529)
Measurement Principle
Frequency Modulated Continuous Wave
(FMCW)
FCC Compliance Notice
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) This device
must accept any interference received, including interference that may cause
undesired operation.
Any changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of the
following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
KCC Warning Message
“해당무선설비는 운용 중 전파혼신 가능성이 있으므로 인명안전과 관련된 서비스는 할 수 없습니다.”
“해당 무선설비는 운용 중 전파혼신 가능성이 있음”
인증받은자의 상호 : SZ DJI TECHNOLOGY CO., LTD
제품명 / 모델명 : High-Precision Microwave Radar / RD2412F
제조자 및 제조국가 : SZ DJI TECHNOLOGY CO., LTD
제조년월 : 2017.01
인증번호 : MSIP-CRM-dji-RD2412F
해당 무선설비는 전파혼신 가능 성이 있으므로 인명안전과 관련된 서비스는 할 수 없음
EU Compliance Statement: SZ DJI TECHNOLOGY CO., LTD. hereby declares that this
device is in compliance with the essential requirements and other relevant provisions
of the R&TTE Directive.
A copy of the EU Declaration of Conformity is available online at www.dji.com/euro-
compliance
