1 General
1.1 Preface
This manual describes the function and the use of the Fragmentation
hand grenade simulator and the Stun hand grenade simulator. The
simulator has a predefined configuration that sets functional
parameters.
1.2 Attentions general
The attentions included in the manual are divided into the following
groups:
WARNING!
A Warning shows a hazard which can cause injury.
CAUTION!
A Caution shows a danger which can cause damage to the
equipment.
Note!
A Note is a statement with information that makes the
procedure easier.
1.3 Abbreviations
Table 1. Abbreviations
IR Infrared
LED Light Emitting Diode
Mini FBSS Mini Flash Bang Smoke Simulator
PDD Personnel Detection Device
WLN Wireless Local Network
© Saab AB, Training & Simulation
4 General 8875 808-522
HGSII
1
© Saab AB, Training & Simulation
8875 808-522 General 5
HGSII
© Saab AB, Training & Simulation
6 Introduction 8875 808-522
HGSII
2 Introduction
2.1 Overview

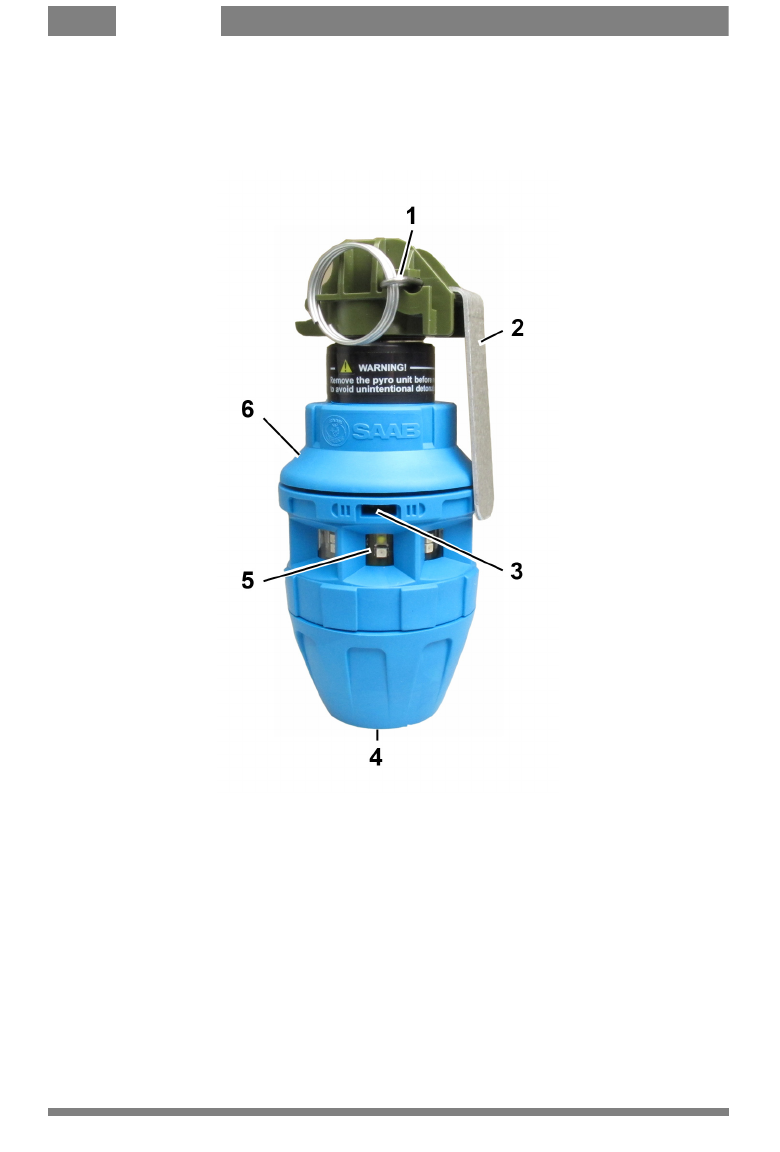

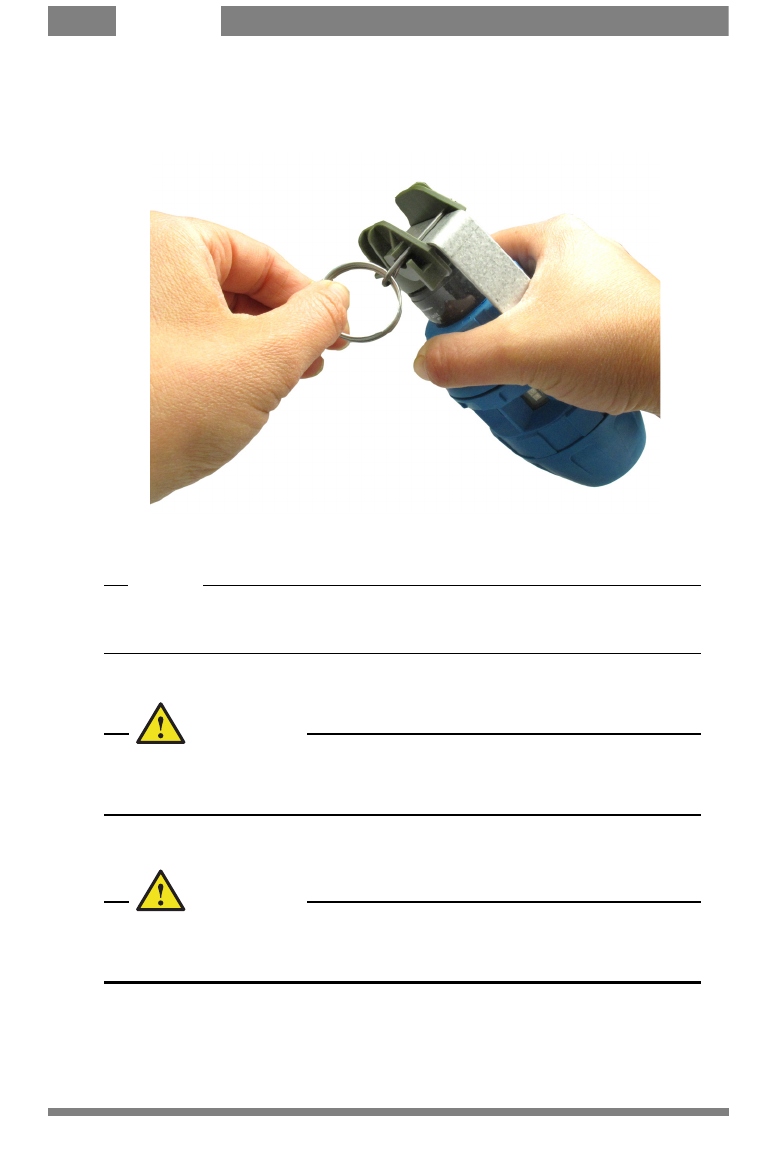

Fig 1. Overview Fragmentation hand grenade simulator
2
© Saab AB, Training & Simulation
8875 808-522 Introduction 7
HGSII

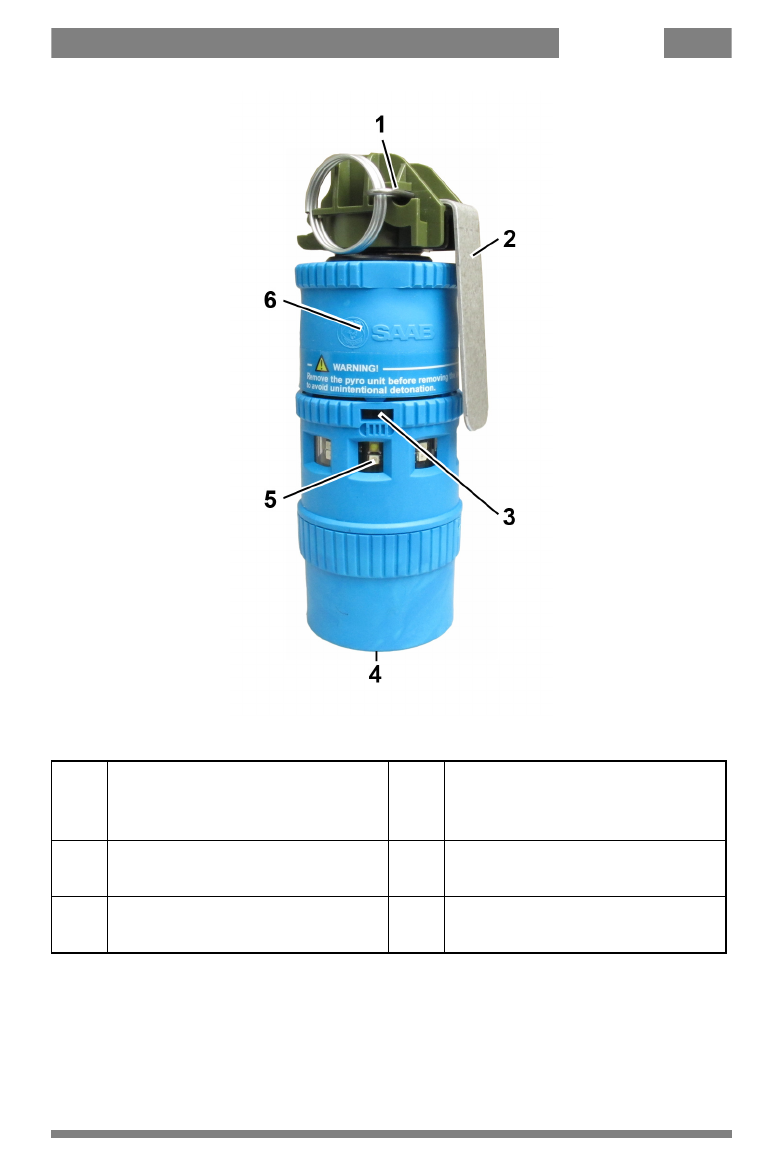

Fig 2. Overview Stun hand grenade simulator
1Safety pin 4Cartridge (Mini FBSS or Mini
FBSS Buzzer (dummy))
(inside)
2Safety lever 5LEDs flash at detonation and
for retrieval
3IR and config/setup interface
+ status LED
6Battery (inside)
© Saab AB, Training & Simulation
8 Introduction 8875 808-522
HGSII
2.2 Description
There are two types of hand grenade simulators: Fragmentation hand
grenade simulator and Stun hand grenade simulator. The simulators
look different and have (via radio transmissions) a different impact on
the target system.
Both simulators contain a lever unit, a top cover, a mid cover and a
pyro unit. The lever unit is equipped with a safety pin and safety lever
for correct handling during training. The mid cover surrounds the
electronic part which e.g. holds the battery unit. The simulator is
powered by a replaceable battery. The simulator communicates via
radio and IR.
2
© Saab AB, Training & Simulation
8875 808-522 Introduction 9
HGSII

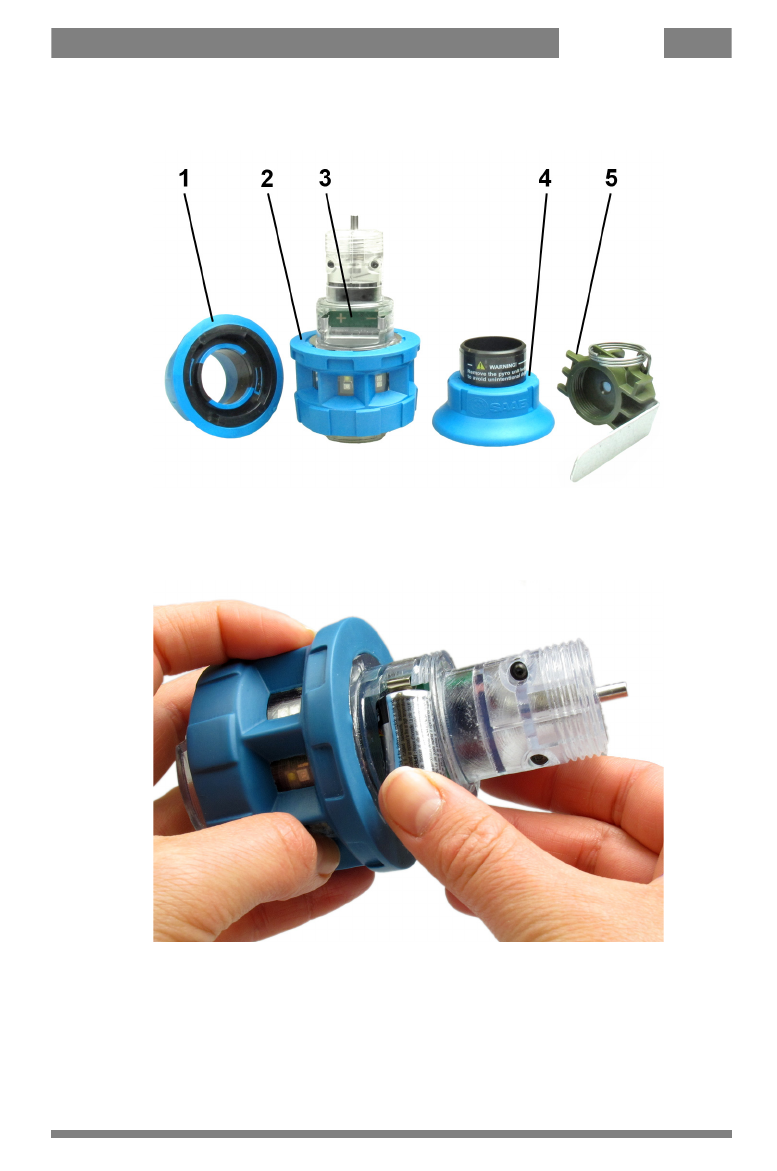

Fig 3. Overview Fragmentation hand grenade simulator parts
Fig 4. Overview Stun hand grenade simulator parts
1Pyro unit 4Top cover with warning label
2Mid cover 5Lever unit
3Battery unit
© Saab AB, Training & Simulation
10 Introduction 8875 808-522
HGSII
There are three labels on the mid cover: the customer label, the SAAB
label, and the test and inspection label.
Fig 5. Labels
1Customer label 3Test and inspection label
2SAAB label
2.2.1 Cartridge information
A cartridge (Mini FBSS Buzzer or Mini FBSS) needs to be installed in
the pyro unit for the simulator to work. Mini FBSS Buzzer is a dummy
cartridge and a detonation is characterized by sound and LED flash.
Mini FBSS is a Flash Bang Smoke Simulator which is loaded with
pyrotechnic compound. By installing a Mini FBSS, the detonation is
characterized by high sound, smoke, flash, and LED flash.
Note!
Since the Mini FBSS is loaded with pyrotechnic compound,
make sure to read the attentions in this manual.
2
© Saab AB, Training & Simulation
8875 808-522 Introduction 11
HGSII
WARNING!
Use helmet, safety glasses and ear protection (in-ear and
normal ear protection) when operating the simulator.
WARNING!
Make sure all participants are wearing helmet, safety
glasses and ear protection (in-ear and normal ear
protection).

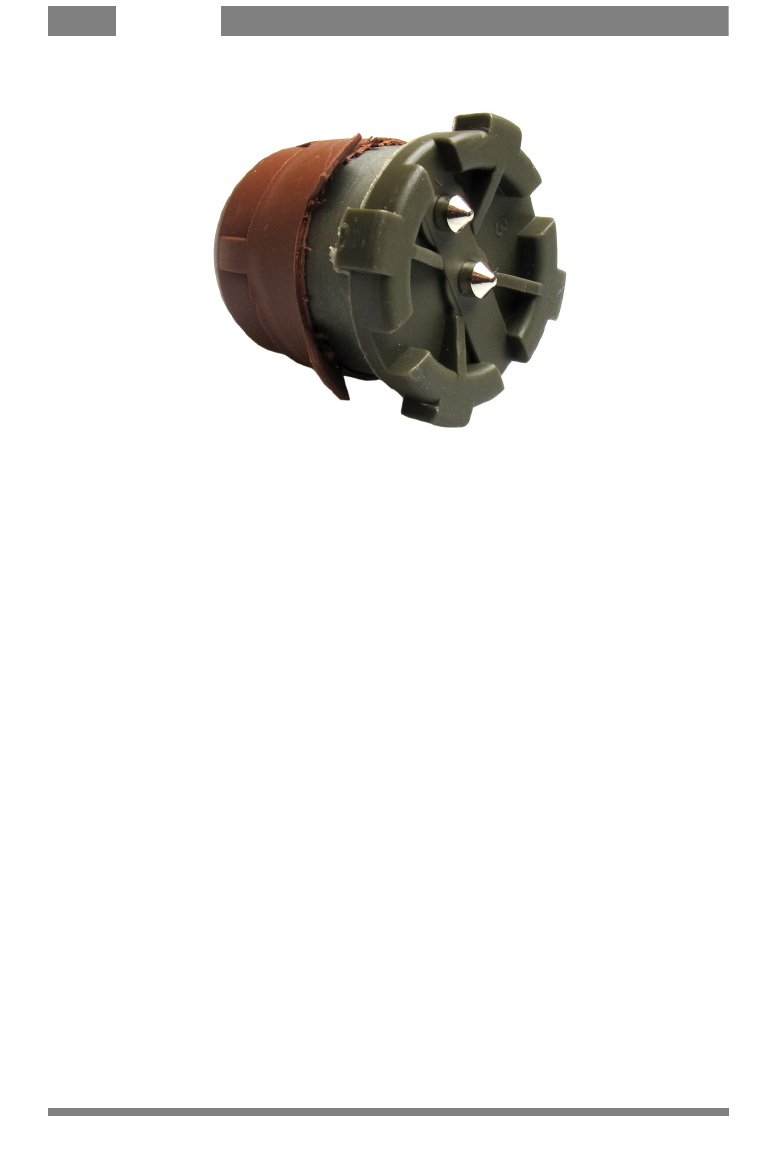

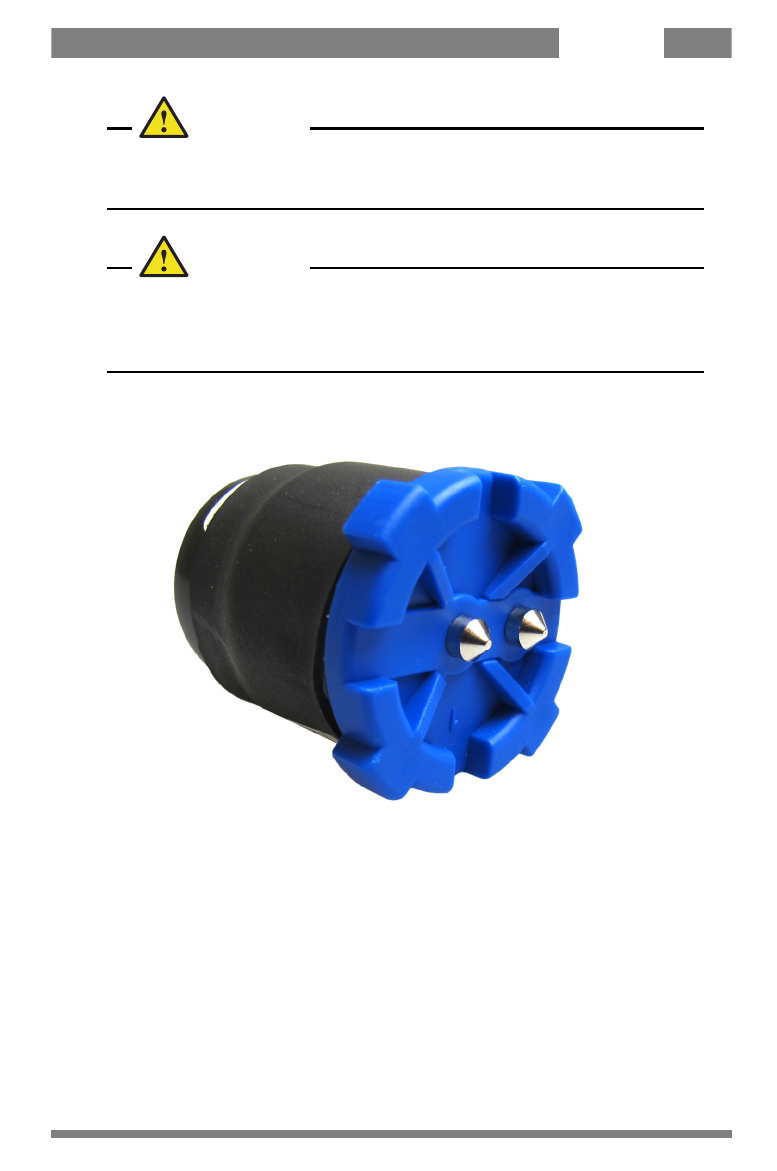

Fig 6. Dummy cartridge
© Saab AB, Training & Simulation
12 Introduction 8875 808-522
HGSII
Fig 7. MiniFBSS cartridge
2.3 Pairing information
The Hand grenade simulator can be paired to a PDD, the function (IR
pairing) is optional (Enable/Disable). When the pairing is performed,
the ID number for the PDD will be set in the Hand grenade simulator.
The ID number will be sent to the affected targets at detonation. In the
After Action Review it is possible to see which PDD threw the Hand
grenade simulator. If the function is disabled, the simulator sends ID
number 0. The Hand grenade simulator has to be paired again after a
battery installation and/or after it has been thrown (after detonation).
2.4 Detonation
The safety pin has to be removed before throwing the Hand grenade
simulator. When the Hand grenade simulator is thrown, the safety
lever will automatically be released which triggers the detonation. The
hand grenade simulator detonates after a predefined detonation delay
time (3-5 sec.). Depending on what cartridge is used, the detonation is
characterized in different ways.
A detonation is also triggered when removing the lever unit. Therefore,
it is important to disassemble the simulator in correct order.
2
© Saab AB, Training & Simulation
8875 808-522 Introduction 13
HGSII
WARNING!
Remove the pyro unit before removing the lever unit to
avoid unintentional detonation.
2.4.1 Effective range
The effective range of the Hand Grenade Simulator is similar to that of
a real grenade. This is achieved through short range radio
transmissions from the simulator to target systems. As an option it is
possible to send laser code messages as a complement to radio.
2.4.2 Ammunition code
At detonation, the Hand grenade simulator sends an ammunition
code. Any target system that receives the message will evaluate and
calculate the effect:
• Targets close to the detonation will evaluate the hit effect according
to a hit probability (high radio signal strength).
• Targets further from the detonation will only get a sound effect
(medium radio signal strength).
• Targets far away from the detonation will not be affected (low radio
signal strength).
2.4.3 PDD status Check
When the safety lever is released, the Hand grenade simulator checks
the status of the paired PDD (i.e. the one throwing the simulator). The
function (PDD status check) is configurable (Enable/Disable). If the
PDD is not OK or killed, the ammunition code transmission is inhibited.
The detonation of the pyro is still performed.
2.5 Retrieval
A location indication on the simulator (LEDS flash white each 5 sec.)
enables retrieval of the simulator. The location indication starts 30 sec.
(configurable) after detonation and stops after a configurable duration
of time (Time location indication).
© Saab AB, Training & Simulation
14 Introduction 8875 808-522
HGSII
2.6 Hit probability
The Hand grenade simulator can kill, wound or shock a target system.
The Hand grenade simulator can be set with a combination of all 3 hit
probabilities. For example the simulator can be set with a 10% chance
of a kill, 20 % of a wound and 40% shock. Totally a 70% chance for the
target system to be affected and a 30 % chance to only achieve a near
miss event.
Each target system receiving a hit will also individually evaluate the
effect of the detonated Hand grenade simulator.
2.7 Configuration (example)
The configuration is set at the factory. Each configuration relates to an
article number which is placed on the Hand grenade simulator. One
article number (one configuration) can recur on several simulators. For
configuration of a specific Hand grenade simulator, see the
configuration table.
Below is an example of a configuration table for a Hand grenade
simulator with article number X.
Table 2. Configuration: X (example)
Parameters Value
P.kill (probability of kill) 10 %
P.wound (Probability
of wound)
20 %
P.shock (probability of
shock)
40 %
Ammo code 1100
RSSI high 100
RSSI low 70
IR effect Disable
T. detonation (Time to
detonation)
3 sec.
Time location
indication
60 min.
2
© Saab AB, Training & Simulation
8875 808-522 Introduction 15
HGSII
IR Pairing Enable
PDD status check Disable
Freq 868 MHz
Parameters Value
© Saab AB, Training & Simulation
16 Introduction 8875 808-522
HGSII
3
© Saab AB, Training & Simulation
8875 808-522 Technical Data 17
HGSII
3 Technical Data
3.1 Weights and dimensions
Table 3. Weights and dimensions
Unit Length
(mm)
Width
(mm)
Height
(mm)
Weight (kg)
Hand grenade
simulator
-ø 68 160 0.28
Mini FBSS
Buzzer
(dummy)
56 ø 28 - 34 -0.05
Mini FBSS
(pyrotechnic
compound)
56 ø 28 - 34 -0.05
3.2 Electrical system
Table 4. Electrical system
Variable Value
Battery type CR2 replaceable (>4 months and
>50 detonations)
© Saab AB, Training & Simulation
18 Technical Data 8875 808-522
HGSII
4
© Saab AB, Training & Simulation
8875 808-522 Installation 19
HGSII
4 Installation
4.1 Battery installation
1. Remove the pyro unit.
Fig 8. Pyro unit removal
WARNING!
Remove the pyro unit before removing the lever unit to
avoid unintentional detonation.
© Saab AB, Training & Simulation
20 Installation 8875 808-522
HGSII

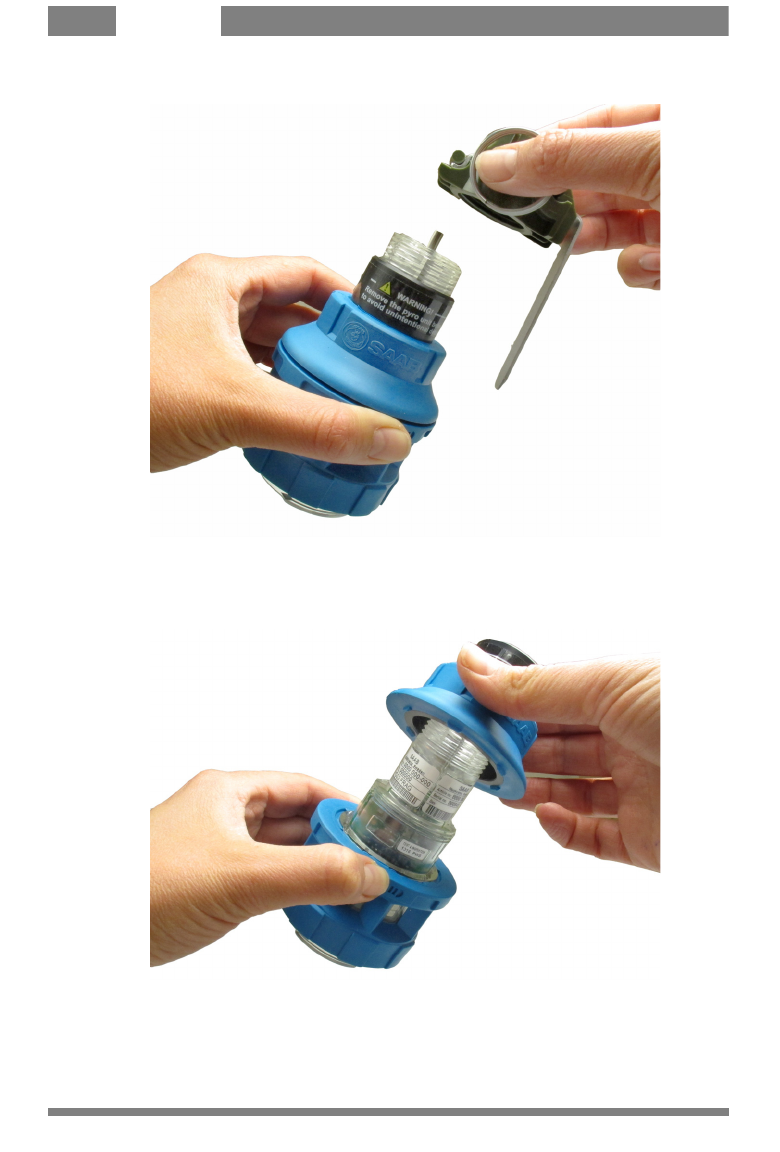

2. Remove the lever unit.
Fig 9. Lever unit removal
3. Remove the top cover.
Fig 10. Top cover removal
4
© Saab AB, Training & Simulation
8875 808-522 Installation 21
HGSII
4. Make sure all parts are clean. To clean the simulator, see chapter
Clean the equipment.
Fig 11. Overview Fragmentation hand grenade simulator parts
5. Install the battery.
Fig 12. Battery installation
6. Reinstall the top cover.
7. Reinstall the lever unit.
8. Reinstall the pyro unit.
© Saab AB, Training & Simulation
22 Installation 8875 808-522
HGSII
5
© Saab AB, Training & Simulation
8875 808-522 Operation 23
HGSII
5 Operation
5.1 LED indications
Table 5. LED indications Hand grenade simulator
LED Indication
Green single flash every 5th sec. Ready mode. Battery OK, pyro
OK, lever unit OK.
Green double flash. Not ready mode. Battery OK.
Lever unit OK. No/used pyro.
Red single flash. Battery warning, change battery
Red double flash.
White flash. Detonation mode.
White flash every 5th sec. Search mode.
No flash. Used mode.
5.2 Cartridge installation
1. Remove the pyro unit.
Fig 13. Pyro unit removal
© Saab AB, Training & Simulation
24 Operation 8875 808-522
HGSII
WARNING!
Remove the pyro unit before removing the lever unit to
avoid unintentional detonation.
2. Install the cartridge (dummy or Mini FBSS) in the pyro unit.
Fig 14. Cartridge installation
3. Reinstall the pyro unit.
5.3 Pair the simulator with a PDD
(optional)
1. Remove the pyro unit. Make sure status LED double flashes green
every 5th sec.
2. Install the pyro unit.
Note!
Whenever the pyro unit is installed, the IR setup interface is
activated for 2 min. to enable pairing.
5
© Saab AB, Training & Simulation
8875 808-522 Operation 25
HGSII
Note!
When re-pairing a loaded simulator, the pyro unit needs to be
un-installed for 5 sec. before reinstallation to activate the IR
setup interface.
3. Aim the Hand grenade simulator IR setup interface towards the IR
interface on the PDD. Hold the IR interfaces about 10 centimeters
from each other.
4. The PDD will generate a sound message when it is paired with the
Hand grenade simulator.
Note!
The Hand grenade simulator has to be paired again after a
battery installation and after detonation.
5.4 Arm and detonate
Safety conditions
WARNING!
Use helmet, safety glasses and ear protection (in-ear and
normal ear protection) when operating the simulator.
WARNING!
Make sure all participants are wearing helmet, safety
glasses and ear protection (in-ear and normal ear
protection).
1. Make sure the status LED flashes green once every 5th second.
© Saab AB, Training & Simulation
26 Operation 8875 808-522
HGSII
2. Hold the safety lever and remove the safety pin. Depending on
safety pin version, the safety pin is removed by "pull" or "twist and
pull" (twist 180).
Fig 15. Safety pin removal
Note!
Always remove the safety pin before the Hand grenade
simulator is thrown.
WARNING!
Never throw the Hand Grenade Simulator directly at
personnel.
WARNING!
Make sure that no-one is closer than 10 cm from the Hand
grenade simulator when detonated.
5
© Saab AB, Training & Simulation
8875 808-522 Operation 27
HGSII
WARNING!
When the Mini FBSS is fired the maximum sound level is
approximately 187 db (C) at 10 cm. High sound level can
cause hearing injury.
WARNING!
The Mini FBSS can cause burn injury if detonated closer
than 10 cm.
WARNING!
Keep at a safe distance to flammable material.
3. Throw the Hand grenade simulator.
Note!
When the Hand grenade simulator is thrown, the safety lever
will automatically be released which triggers the detonation.
The hand grenade simulator detonates after a predefined
detonation delay time (3-5 sec.).
5.5 Retrieval
A location indication on the simulator (LEDS flash white each 5 sec.)
enables retrieval of the simulator. The location indication starts 30 sec.
(configurable) after detonation and stops after a configurable duration
of time (Time location indication).
5.6 Rearm Hand grenade simulator
1. Remove the pyro unit.
© Saab AB, Training & Simulation
28 Operation 8875 808-522
HGSII
WARNING!
Remove the pyro unit before removing the lever unit to
avoid unintentional detonation.
2. Remove the lever unit.
3. Make sure all visual parts are clean. To clean the simulator, see
chapter Clean the equipment.
4. Replace the lever unit, i.e. install a new lever/not damaged unit.
5. Replace the cartridge (dummy or Mini FBSS) in the pyro unit.
6. Reinstall the pyro unit.
7. Optional, pair the simulator with a PDD, see chapter Pair the
simulator with a PDD (optional).
Note!
The Hand grenade simulator has to be paired again after
detonation.
5.7 Disarm Hand grenade simulator
1. Remove the pyro unit.
WARNING!
Remove the pyro unit before removing the lever unit to
avoid unintentional detonation.
2. Remove the cartridge.
3. Reinstall the pyro unit.
6
© Saab AB, Training & Simulation
8875 808-522 Maintenance 29
HGSII
6 Maintenance
6.1 Clean the equipment
1. Remove all loose dust and dirt with a soft brush.
2. Clean all parts with a damp sponge.
3. Clean optical surfaces with a lens cleaning tissue.
4. Dry all equipment with a dry cloth.
5. All carbon deposits must be removed from the simulator.
6. Clean the cartridge contact surface with regular weapon oil.
6.2 Battery replacement
1. See chapter Battery installation.
© Saab AB, Training & Simulation
30 Maintenance 8875 808-522
HGSII
7
© Saab AB, Training & Simulation
8875 808-522 Troubleshooting 31
HGSII
7 Troubleshooting
7.1 Troubleshooting
Table 6. Troubleshooting
Symptom
(LED).
Cause Corrective action
No flash. Battery empty. Replace the battery.
Safety lever not
present.
Place safety lever in correct
position.
No detonation
when simulator
is thrown.
No cartridge. Install the cartridge.
Used cartridge in the
pyro unit.
Replace the cartridge.
Note!
The Hand grenade simulator has no power switch.
© Saab AB, Training & Simulation
32 Troubleshooting 8875 808-522
HGSII
8
© Saab AB, Training & Simulation
8875 808-522 Regulatory Statements 33
HGSII
8 Regulatory Statements
8.1 FCC Certification
The United States Federal Communication Commission (FCC) has
established certain rules governing the use of electronic equipment.
8.2 Part15, Class B
1 This device is FCC Certified FCC ID: R4AHGS2.
2 This device complies with Part 15 of FCC rules. Operation is
subject to the following two conditions:
2.1 This device may not cause harmful interference, and
2.2 This device must accept any interference received, including
interference that may cause undesired operation. This
equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules.
8.3 User Information
CAUTION!
Any changes or modifications not expressly approved by the
party responsible for compliance, namely Saab Defense and
Security USA LLC, Training and Simulation, could void the
user’s authority to operate the Equipment.
© Saab AB, Training & Simulation
34 Regulatory Statements 8875 808-522
HGSII
A
© Saab AB, Training & Simulation
8875 808-522 Appendix A 35
HGSII
AAppendix A
List of Figures
Fig 1. Overview Fragmentation hand grenade simulator . . . . . . 6
Fig 2. Overview Stun hand grenade simulator. . . . . . . . . . . . . . 7
Fig 3. Overview Fragmentation hand grenade simulator parts . 9
Fig 4. Overview Stun hand grenade simulator parts . . . . . . . . . 9
Fig 5. Labels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Fig 6. Dummy cartridge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Fig 7. MiniFBSS cartridge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Fig 8. Pyro unit removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Fig 9. Lever unit removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Fig 10. Top cover removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Fig 11. Overview Fragmentation hand grenade simulator parts 21
Fig 12. Battery installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Fig 13. Pyro unit removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Fig 14. Cartridge installation . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Fig 15. Safety pin removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
List of Tables
Table 1. Abbreviations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Table 2. Configuration: X (example) . . . . . . . . . . . . . . . . . . . . . . 14
Table 3. Weights and dimensions . . . . . . . . . . . . . . . . . . . . . . . . 17
Table 4. Electrical system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Table 5. LED indications Hand grenade simulator . . . . . . . . . . . 23
Table 6. Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
© Saab AB, Training & Simulation
Operator Manual
Hand Grenade Simulator (HGS2)
User Guide Addendum
This Document is intended to supplement the Hand Grenade Simulator Version Final 1. New
Information includes:
Chapter 8.4: IC Certification
IC RSS-GEN, Sec 8.4 Warning Statement (Required for license-exempt devices)
English:
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the
following two conditions: (1) this device may not cause interference, and (2) this device must accept any
interference, including interference that may cause undesired operation of the device.
FRENCH:
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts
de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire
de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si
le brouillage est susceptible d'en compromettre le fonctionnement.
© Saab AB, Training & Simulation
36 Appendix A 8875 808-522
HGSII
I
© Saab AB, Training & Simulation
8875 808-522 Index 37
HGSII
IIndex
A
Abbreviations
1.3 Abbreviations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Arm
5.4 Arm and detonate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Association
2.3 Pairing information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
B
Battery
4.1 Battery installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Battery type
3.2 Electrical system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
C
Cartridge
2.2 Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
5.2 Cartridge installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
5.6 Rearm Hand grenade simulator . . . . . . . . . . . . . . . . . . . 27
5.7 Disarm Hand grenade simulator . . . . . . . . . . . . . . . . . . . 28
Caution
1.2 Attentions general . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Cleaning
6.1 Clean the equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Configuration
2.7 Configuration (example) . . . . . . . . . . . . . . . . . . . . . . . . . 14
D
Description
2.2 Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Detonate
5.4 Arm and detonate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Detonation
5.4 Arm and detonate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Dimension
3.1 Weights and dimensions . . . . . . . . . . . . . . . . . . . . . . . . . 17
© Saab AB, Training & Simulation
38 Index 8875 808-522
HGSII
Dummy
2.2.1 Cartridge information . . . . . . . . . . . . . . . . . . . . . . . . . . 10
E
Effective range
2.4.1 Effective range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
H
Hit probability
2.6 Hit probability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
I
Install battery
4.1 Battery installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Install cartridge
5.2 Cartridge installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
5.6 Rearm Hand grenade simulator. . . . . . . . . . . . . . . . . . . . 27
5.7 Disarm Hand grenade simulator . . . . . . . . . . . . . . . . . . . 28
L
Led indication
5.1 LED indications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
M
Mini fbss
2.2 Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.2.1 Cartridge information . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Mini fbss buzzer
2.2.1 Cartridge information . . . . . . . . . . . . . . . . . . . . . . . . . . 10
N
Note
1.2 Attentions general . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
O
Overview
2.1 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
I
© Saab AB, Training & Simulation
8875 808-522 Index 39
HGSII
P
Pairing
2.3 Pairing information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
5.3 Pair the simulator with a PDD (optional) . . . . . . . . . . . . . 24
Preface
1.1 Preface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Pyrotechnic compound
2.2.1 Cartridge information . . . . . . . . . . . . . . . . . . . . . . . . . . 10
R
Rearm
5.6 Rearm Hand grenade simulator . . . . . . . . . . . . . . . . . . . 27
5.7 Disarm Hand grenade simulator . . . . . . . . . . . . . . . . . . . 28
T
Troubleshooting
7.1 Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
W
Warning
1.2 Attentions general . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Weight
3.1 Weights and dimensions . . . . . . . . . . . . . . . . . . . . . . . . . 17
© Saab AB, Training & Simulation
40 Index 8875 808-522
HGSII
