Sabine Technologies SABINE6100 Wireless Panoramic Microphone User Manual

Sabine Technologies Co.,Ltd. Wireless Panoramic Microphone Users Manual

Users Manual

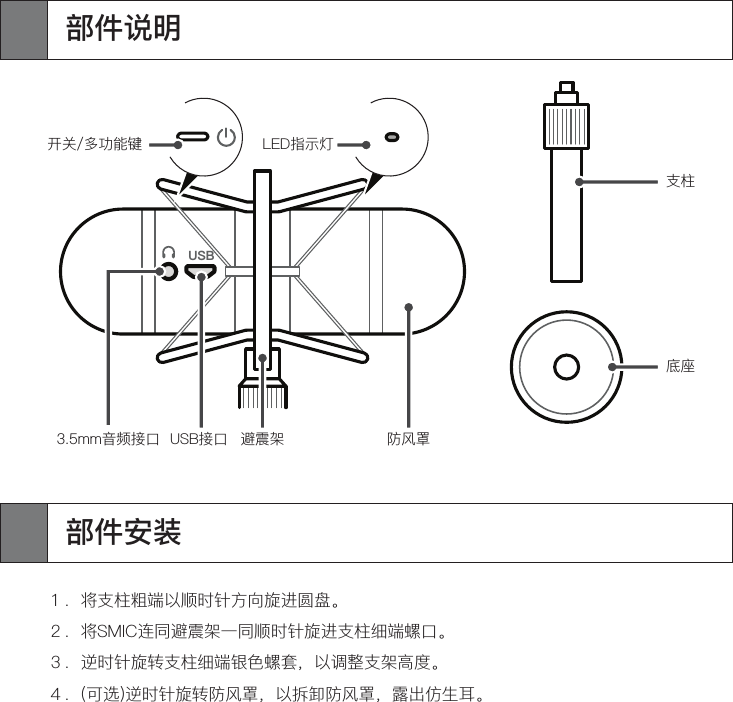

部件安装１．将支柱粗端以顺时针方向旋进圆盘。２．将SMIC连同避震架一同顺时针旋进支柱细端螺口。３．逆时针旋转支柱细端银色螺套，以调整支架高度。４．(可选)逆时针旋转防风罩，以拆卸防风罩，露出仿生耳。部件说明USB防风罩避震架USB接口 3.5mm音频接口开关/多功能键 LED指示灯支柱底座

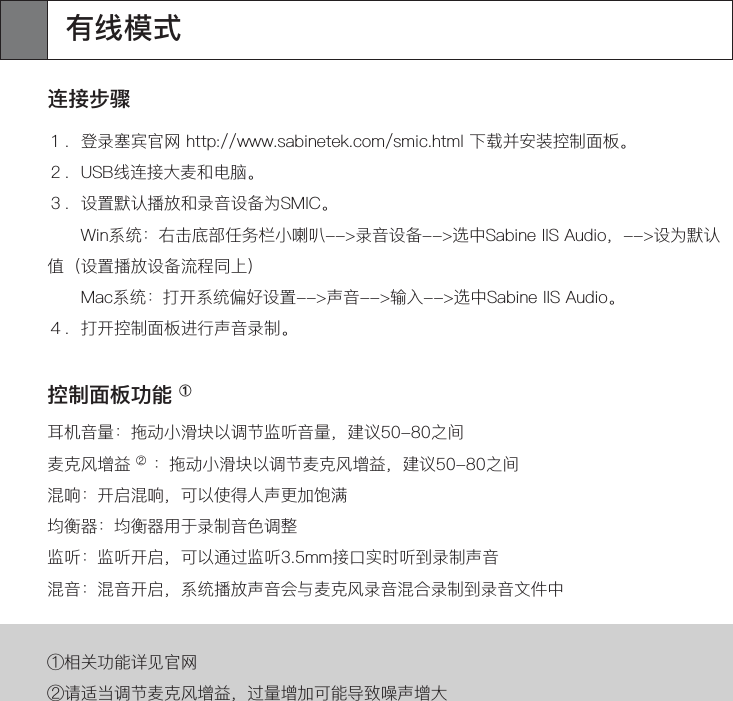

有线模式１．登录塞宾官网 http://www.sabinetek.com/smic.html 下载并安装控制面板。２．USB线连接大麦和电脑。３．设置默认播放和录音设备为SMIC。　　Win系统：右击底部任务栏小喇叭-->录音设备-->选中Sabine IIS Audio，-->设为默认值（设置播放设备流程同上）　　Mac系统：打开系统偏好设置-->声音-->输入-->选中Sabine IIS Audio。４．打开控制面板进行声音录制。耳机音量：拖动小滑块以调节监听音量，建议50-80之间麦克风增益 ② ：拖动小滑块以调节麦克风增益，建议50-80之间混响：开启混响，可以使得人声更加饱满均衡器：均衡器用于录制音色调整监听：监听开启，可以通过监听3.5mm接口实时听到录制声音混音：混音开启，系统播放声音会与麦克风录音混合录制到录音文件中控制面板功能 ①连接步骤①相关功能详见官网②请适当调节麦克风增益，过量增加可能导致噪声增大

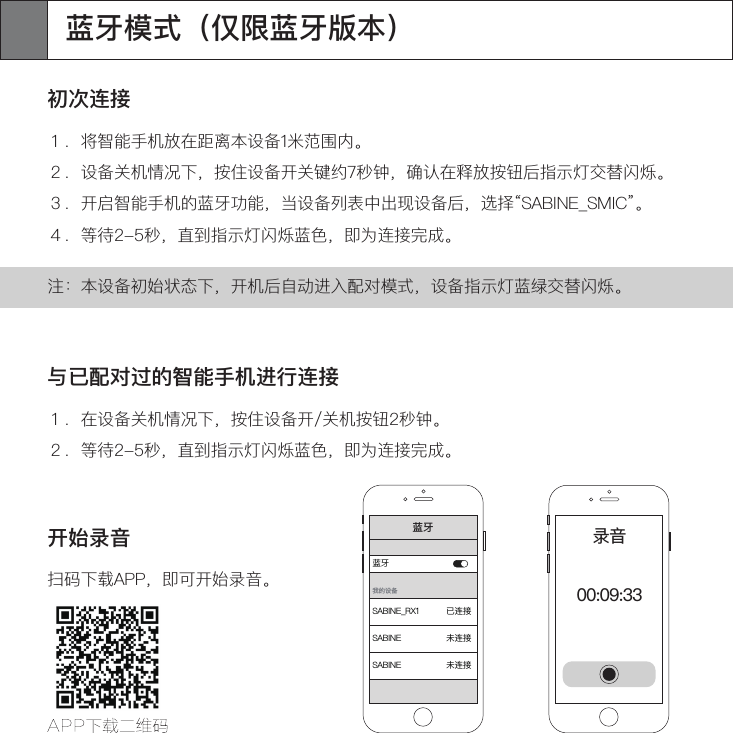

注：本设备初始状态下，开机后自动进入配对模式，设备指示灯蓝绿交替闪烁。蓝牙模式（仅限蓝牙版本）１．将智能手机放在距离本设备1米范围内。２．设备关机情况下，按住设备开关键约7秒钟，确认在释放按钮后指示灯交替闪烁。３．开启智能手机的蓝牙功能，当设备列表中出现设备后，选择“SABINE_SMIC”。４．等待2-5秒，直到指示灯闪烁蓝色，即为连接完成。 初次连接１．在设备关机情况下，按住设备开/关机按钮2秒钟。２．等待2-5秒，直到指示灯闪烁蓝色，即为连接完成。与已配对过的智能手机进行连接蓝牙我的设备已连接未连接未连接蓝牙SABINE_RX1SABINESABINE开始录音扫码下载APP，即可开始录音。录音00:09:33

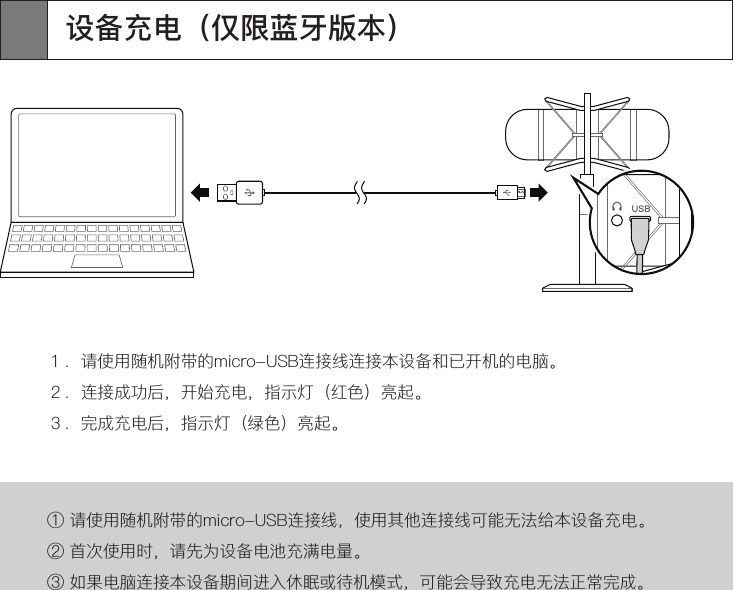

１．请使用随机附带的micro-USB连接线连接本设备和已开机的电脑。２．连接成功后，开始充电，指示灯（红色）亮起。３．完成充电后，指示灯（绿色）亮起。① 请使用随机附带的micro-USB连接线，使用其他连接线可能无法给本设备充电。② 首次使用时，请先为设备电池充满电量。③ 如果电脑连接本设备期间进入休眠或待机模式，可能会导致充电无法正常完成。设备充电（仅限蓝牙版本）

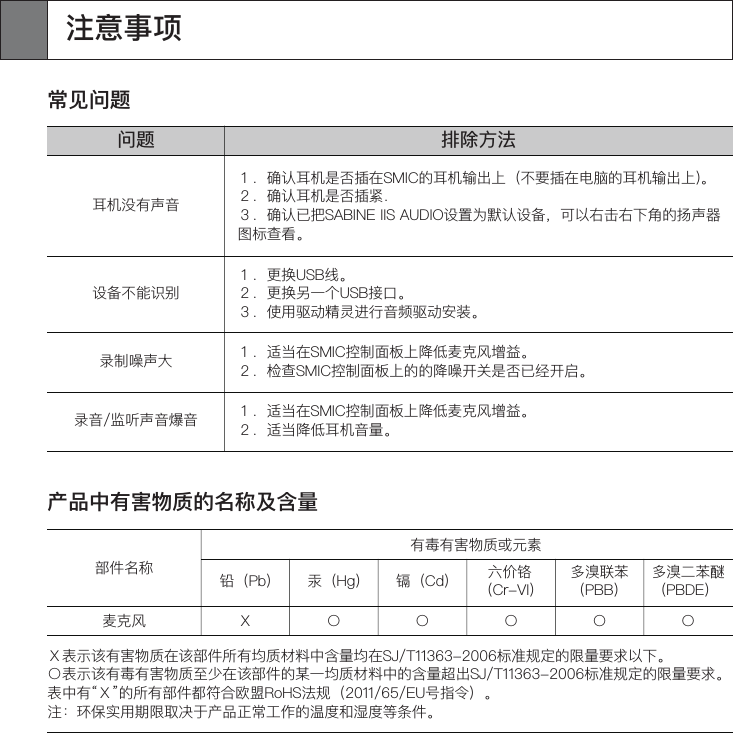

注意事项产品中有害物质的名称及含量常见问题问题 排除方法耳机没有声音设备不能识别录制噪声大录音/监听声音爆音１．更换USB线。２．更换另一个USB接口。３．使用驱动精灵进行音频驱动安装。１．适当在SMIC控制面板上降低麦克风增益。２．适当降低耳机音量。１．适当在SMIC控制面板上降低麦克风增益。２．检查SMIC控制面板上的的降噪开关是否已经开启。１．确认耳机是否插在SMIC的耳机输出上（不要插在电脑的耳机输出上)。２．确认耳机是否插紧．３．确认已把SABINE IIS AUDIO设置为默认设备，可以右击右下角的扬声器图标查看。Ｘ表示该有害物质在该部件所有均质材料中含量均在SJ/T11363-2006标准规定的限量要求以下。○表示该有毒有害物质至少在该部件的某一均质材料中的含量超出SJ/T11363-2006标准规定的限量要求。表中有“Ｘ”的所有部件都符合欧盟RoHS法规（2011/65/EU号指令）。注：环保实用期限取决于产品正常工作的温度和湿度等条件。铅（Pb) 汞（Hg) 镉（Cd) 六价铬(Cr-VI)多溴联苯（PBB)多溴二苯醚（PBDE)部件名称麦克风 Ｘ○○○○○有毒有害物质或元素

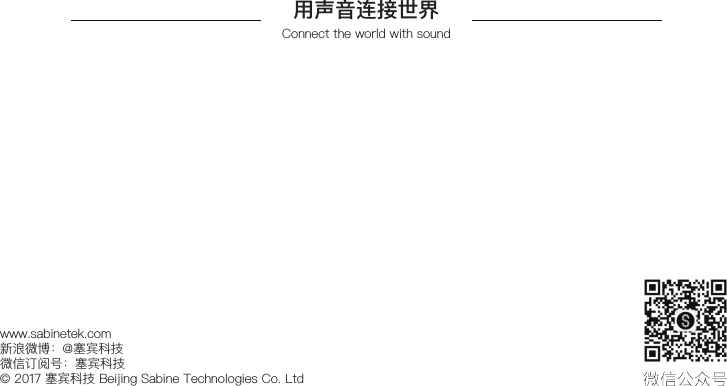

用声音连接世界Connect the world with soundwww.sabinetek.com新浪微博：@塞宾科技微信订阅号：塞宾科技©2017 塞宾科技 Beijing Sabine Technologies Co. Ltd

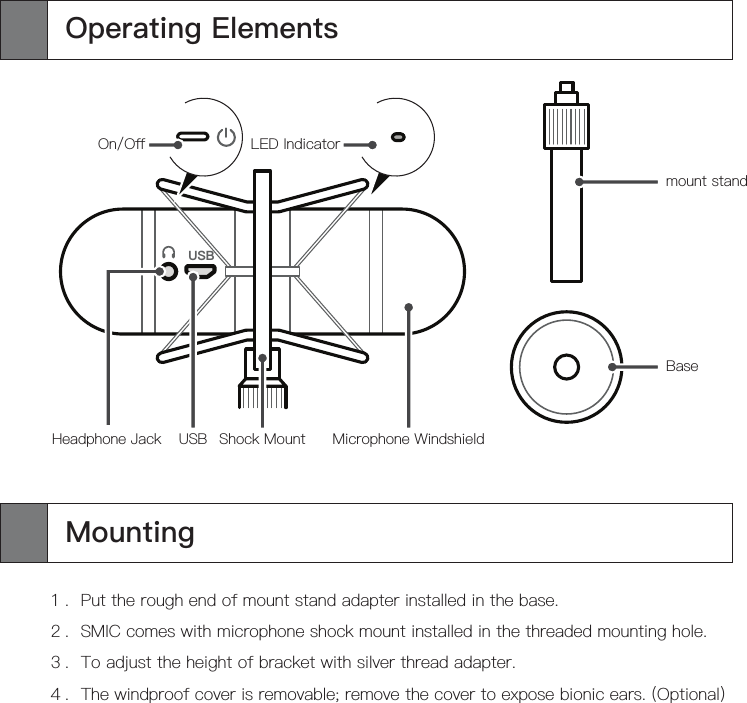

Mounting１．Put the rough end of mount stand adapter installed in the base.２．SMIC comes with microphone shock mount installed in the threaded mounting hole.３．To adjust the height of bracket with silver thread adapter.４．The windproof cover is removable; remove the cover to expose bionic ears. (Optional)Operating ElementsUSBMicrophone WindshieldShock MountUSBHeadphone JackOn/Off LED Indicatormount standBase

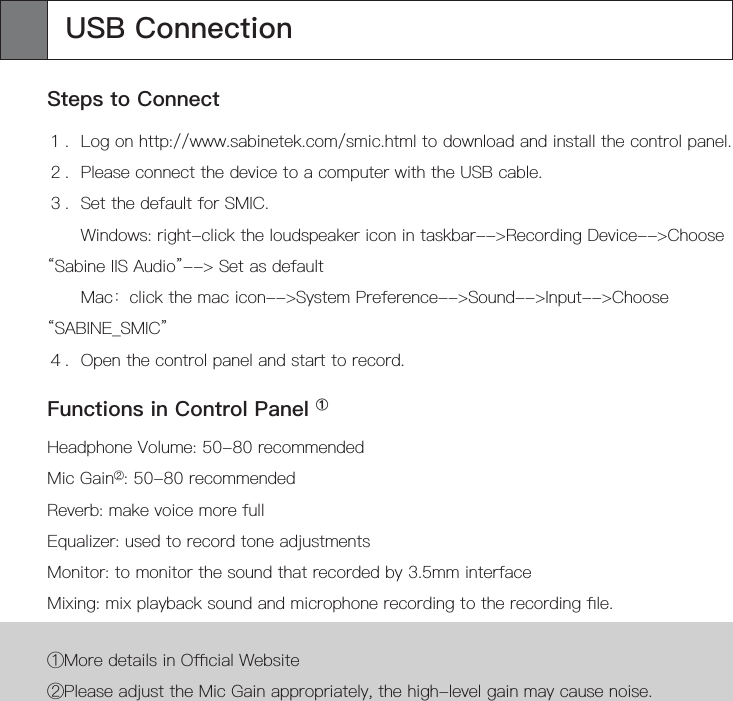

USB Connection１．Log on http://www.sabinetek.com/smic.html to download and install the control panel.２．Please connect the device to a computer with the USB cable.３．Set the default for SMIC.　　Windows: right-click the loudspeaker icon in taskbar-->Recording Device-->Choose “Sabine IIS Audio”--> Set as default　　Mac：click the mac icon-->System Preference-->Sound-->Input-->Choose “SABINE_SMIC”４．Open the control panel and start to record.Headphone Volume: 50-80 recommendedMic Gain②: 50-80 recommendedReverb: make voice more fullEqualizer: used to record tone adjustmentsMonitor: to monitor the sound that recorded by 3.5mm interfaceMixing: mix playback sound and microphone recording to the recording file.Functions in Control Panel ①Steps to Connect①More details in Official Website②Please adjust the Mic Gain appropriately, the high-level gain may cause noise.

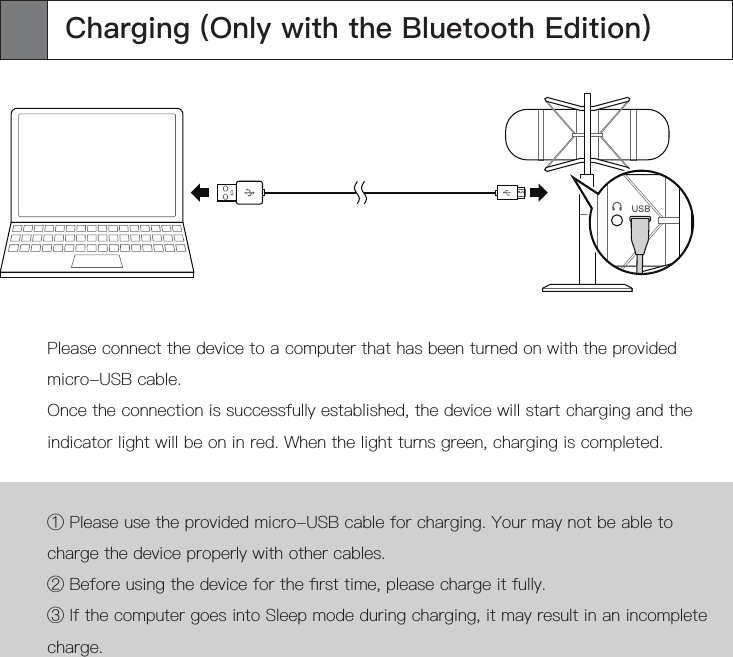

Please connect the device to a computer that has been turned on with the provided micro-USB cable.Once the connection is successfully established, the device will start charging and the indicator light will be on in red. When the light turns green, charging is completed.① Please use the provided micro-USB cable for charging. Your may not be able to charge the device properly with other cables.② Before using the device for the first time, please charge it fully.③ If the computer goes into Sleep mode during charging, it may result in an incomplete charge.Charging (Only with the Bluetooth Edition)

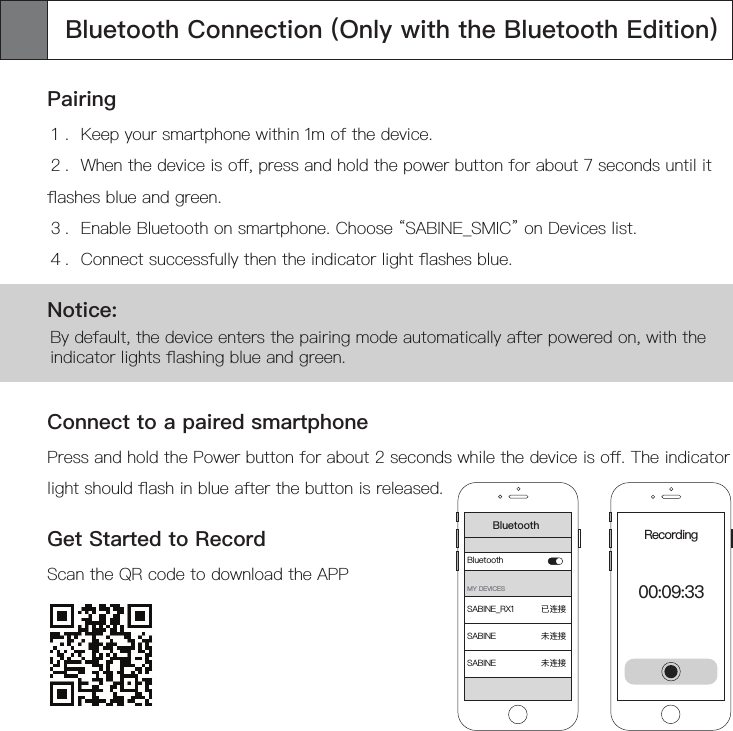

By default, the device enters the pairing mode automatically after powered on, with the indicator lights flashing blue and green.Notice:Bluetooth Connection (Only with the Bluetooth Edition)PairingBluetoothMY DEVICES已连接未连接未连接BluetoothSABINE_RX1SABINESABINEGet Started to RecordScan the QR code to download the APPRecording00:09:33１．Keep your smartphone within 1m of the device.２．When the device is off, press and hold the power button for about 7 seconds until it flashes blue and green.３．Enable Bluetooth on smartphone. Choose “SABINE_SMIC” on Devices list.４．Connect successfully then the indicator light flashes blue. Connect to a paired smartphonePress and hold the Power button for about 2 seconds while the device is off. The indicator light should flash in blue after the button is released.

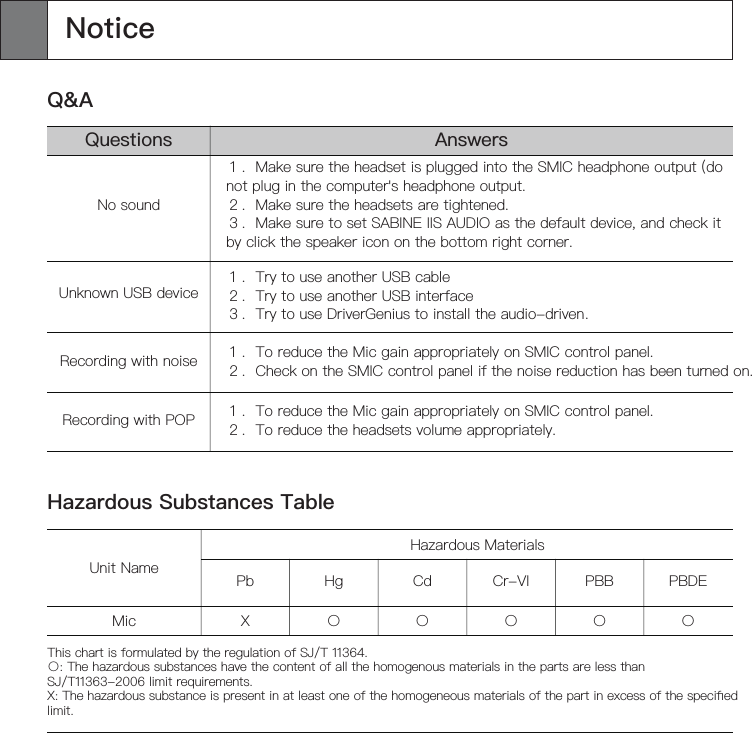

NoticeHazardous Substances TableQ&AQuestions AnswersNo soundUnknown USB deviceRecording with noiseRecording with POP１．Try to use another USB cable２．Try to use another USB interface３．Try to use DriverGenius to install the audio-driven．１．To reduce the Mic gain appropriately on SMIC control panel.２．To reduce the headsets volume appropriately.１．To reduce the Mic gain appropriately on SMIC control panel.２．Check on the SMIC control panel if the noise reduction has been turned on.１．Make sure the headset is plugged into the SMIC headphone output (do not plug in the computer's headphone output.２．Make sure the headsets are tightened.３．Make sure to set SABINE IIS AUDIO as the default device, and check it by click the speaker icon on the bottom right corner.Pb Hg Cd Cr-VI PBB PBDEUnit NameMic Ｘ○○○○○Hazardous MaterialsThis chart is formulated by the regulation of SJ/T 11364.○: The hazardous substances have the content of all the homogenous materials in the parts are less than SJ/T11363-2006 limit requirements.X: The hazardous substance is present in at least one of the homogeneous materials of the part in excess of the specified limit.

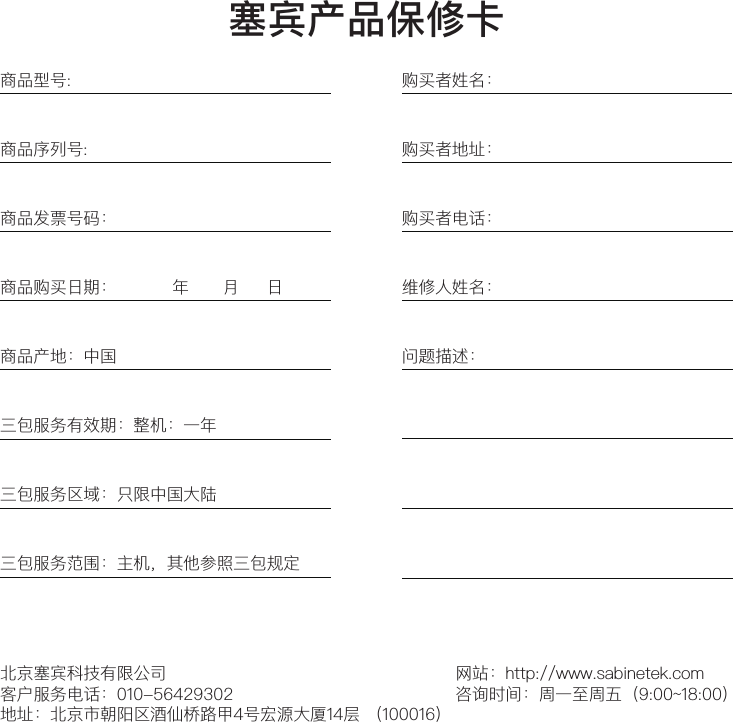

塞宾产品保修卡客户服务电话：010-56429302 咨询时间：周一至周五（9:00~18:00）地址：北京市朝阳区酒仙桥路甲4号宏源大厦14层 （100016) 北京塞宾科技有限公司 网站：http://www.sabinetek.com商品型号:商品序列号:商品发票号码：商品购买日期： 年 月 日商品产地：中国购买者姓名：购买者地址：购买者电话：维修人姓名：问题描述：三包服务有效期：整机：一年三包服务区域：只限中国大陆三包服务范围：主机，其他参照三包规定

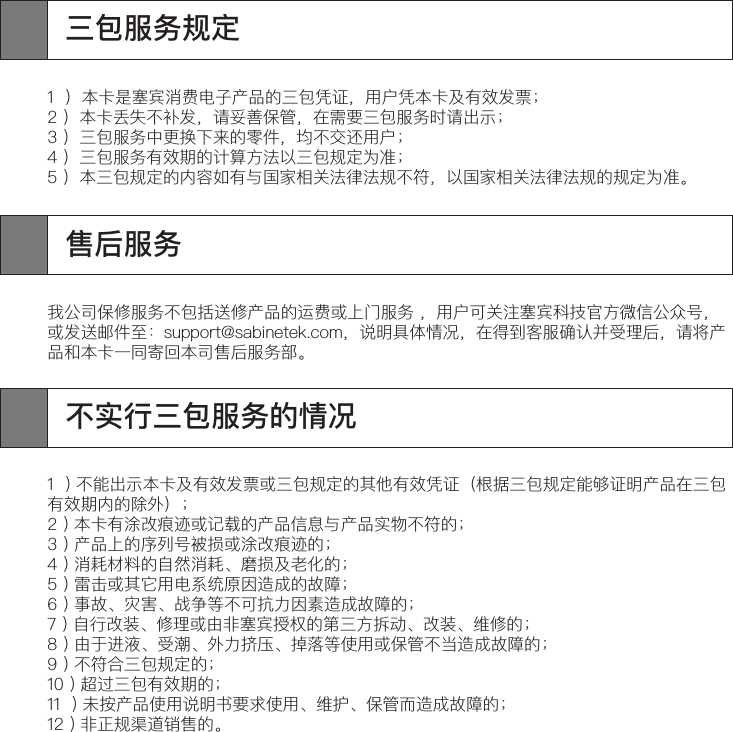

1 ）本卡是塞宾消费电子产品的三包凭证，用户凭本卡及有效发票；2 ）本卡丢失不补发，请妥善保管，在需要三包服务时请出示；3 ）三包服务中更换下来的零件，均不交还用户；4 ）三包服务有效期的计算方法以三包规定为准；5 ）本三包规定的内容如有与国家相关法律法规不符，以国家相关法律法规的规定为准。我公司保修服务不包括送修产品的运费或上门服务 ，用户可关注塞宾科技官方微信公众号，或发送邮件至：support@sabinetek.com，说明具体情况，在得到客服确认并受理后，请将产品和本卡一同寄回本司售后服务部。三包服务规定售后服务不实行三包服务的情况1 ) 不能出示本卡及有效发票或三包规定的其他有效凭证（根据三包规定能够证明产品在三包有效期内的除外）；2 ) 本卡有涂改痕迹或记载的产品信息与产品实物不符的；3 ) 产品上的序列号被损或涂改痕迹的；4 ) 消耗材料的自然消耗、磨损及老化的；5 ) 雷击或其它用电系统原因造成的故障；6 ) 事故、灾害、战争等不可抗力因素造成故障的；7 ) 自行改装、修理或由非塞宾授权的第三方拆动、改装、维修的；8 ) 由于进液、受潮、外力挤压、掉落等使用或保管不当造成故障的；9 ) 不符合三包规定的；10 ) 超过三包有效期的；11 ) 未按产品使用说明书要求使用、维护、保管而造成故障的；12 ) 非正规渠道销售的。
