Safety Technology 34066 Remote Control User Manual
Safety Technology International, Inc. Remote Control
User Manual
INSTALLATION OF STI-6517SW STI STOPPER® STATION SHIELD AND SOUNDER WITH WIRELESS
All specifications and information shown were current as of publication and are subject to change without notice.
6517SW AUG2010
®
Safety Technology International, Inc.
2306 Airport Road • Waterford, Michigan 48327-1209
Phone: 248-673-9898 • Fax: 248-673-1246
Toll Free: 800-888-4784 • E-mail: info@sti-usa.com
Web: www.sti-usa.com
Safety Technology International (Europe) Ltd.
Unit 49G Pipers Road • Park Farm Industrial Estate • Redditch
Worcestershire • B98 0HU • England • Tel: 44 (0) 1527 520 999
Fax: 44 (0) 1527 501 999 • Freephone: 0800 085 1678 (UK only)
E-mail: info@sti-europe.com • Web: www.sti-europe.com

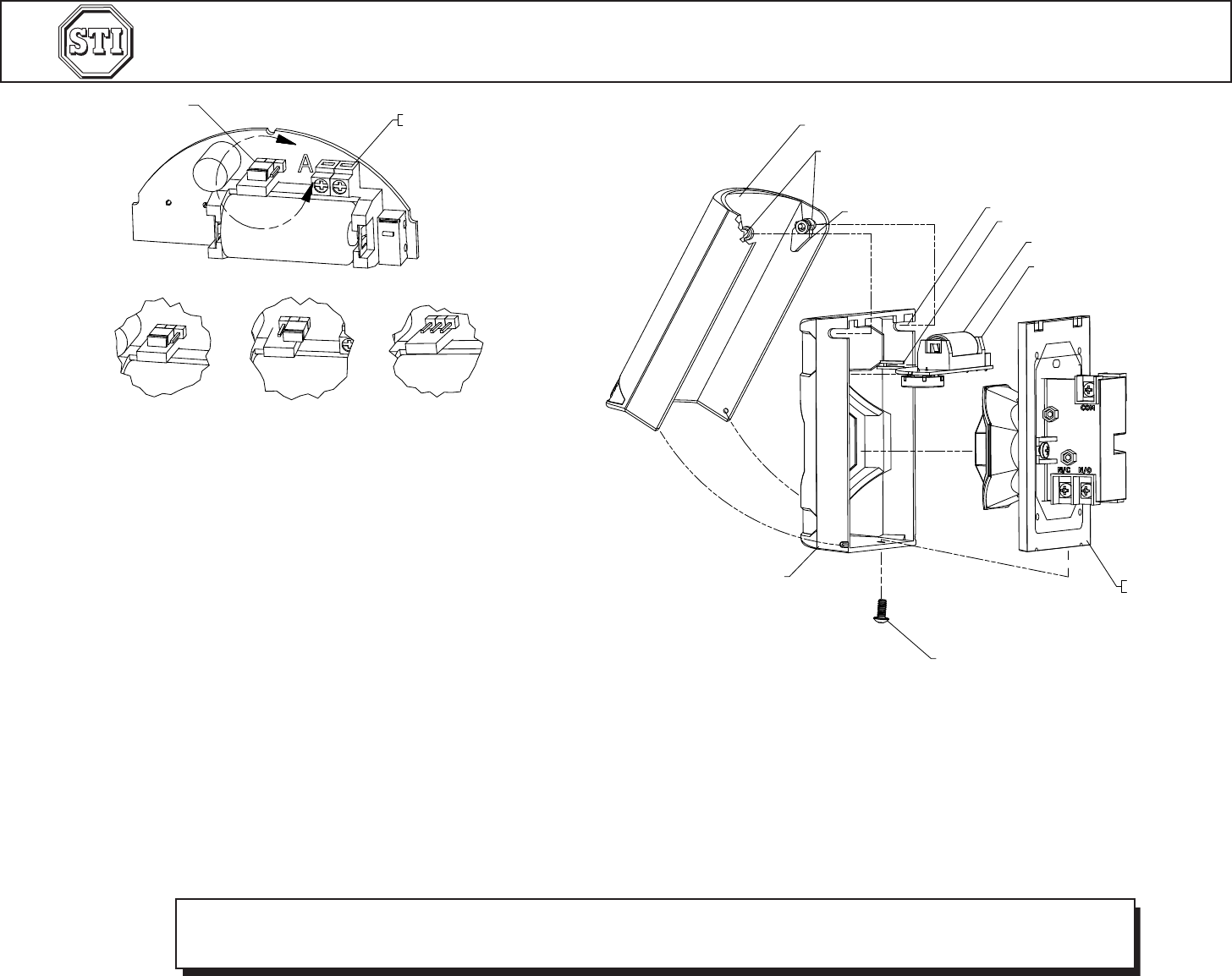

INSTALLATION:
1. Rotate the button lever clockwise to the stop (as shown) so it is pointed toward the inside of the Stopper
Station Shield.
2. With shield rotated to open position (approximately 90° to cover), insert shield pivots into slots on Stopper
Station cover.
3. If desired, insert wires from device switch into PCB terminals and tighten screws.
4. Place the volume jumper for desired sounder volume (see above).
5. Insert PCB fully into PCB guides. Be sure switch wires are not routed over the battery or button.
6. Rotate cover to closed position.
7. Rotate cover to fully open position then back to closed position to ensure the Button Lever is pressed down
onto the button. (If not, remove PCB and repeat steps 5 and 6.)
8. Pull off the plastic battery tab, leaving the battery installed. (Sounder will be active at this point.)
9. Mount cover with shield onto contact assembly.
10. Install bottom screw to hold cover to contact assembly.
WIRELESS OPERATION:
The STI Stopper Station with wireless alert will send two separate wireless signals to an STI Receiver. If both
signals are to be used, each signal must be individually enrolled into the receiver. The first is the Stopper Station
cover signal. This signal is transmitted when the cover is opened and restores the signal to normal when the
cover is closed. The second is the terminal signal. A separate alert signal is sent when the terminals have a short
or closed circuit between them and restores the signal to normal when the short is removed or an open circuit.
To enroll the wireless device signal into the receiver, please see the receiver installation instructions.
A
123
4
4
A
DRAWN
bhodges
CHECKED
QA
MFG
APPROVED
2/23/2010 Safety Technology International, Inc.
2306 Airport Road, Waterford, MI 48327
TITLE
SIZE
C
SCALE
DWG NO
SS Integral Cover Assembly Install
REV
SHEET 1 OF 1
Install:
1. Orient the Button Lever so it is pointed toward the inside of the Stopper Station Shield Assembly.
2. With Shield Rotated to open position (Approximately 90 to Cover), insert Shield Pivots into Stopper Station Cover slots.
3. If desired, insert wires from device switch into PCB terminals and tighten screws.
4. Place the volume jumper for desired sounder volume. (See picture)
5. Insert Stopper Sounder PCB fully into PCB Card Guides. Be sure that switch wires are not routed over the battery or button.
6. Rotate Cover to Closed Position.
7. Rotate Cover to fully open position, back to closed position, and ensure the Button Lever is pressed down onto the button.
(If not, remove PCB and repeat steps 5 and 6.)
8. Pull off the plastic battery tab with the battery remaining installed. (Sounder will be active at this point)
9. Mount total assembly onto Stopper Station Contact Assembly.
10. Install bottom Screw to Hold Cover to Contact Assembly.
SCREW
STOPPER STATION
CONTACT ASSEMBLY
SOUNDER/WIRELESS PCB
123A LITHIUM BATTERY
PCB GUIDE
COVER MOUNTING SLOTS
BUTTON LEVER
SHIELD PIVOT
STOPPER STATION SHEILD
HIGH LOW OFF
VIEW A
SWITCH TERMINALS
(WIRELESS ONLY)
VOLUME JUMPER
STOPPER STATION COVER
A
HIGH LOW OFF
VIEW A
VOLUME JUMPER
A
123
4
4
A
DRAWN
bhodges
CHECKED
QA
MFG
APPROVED
2/23/2010 Safety Technology International, Inc.
2306 Airport Road, Waterford, MI 48327
TITLE
SIZE
C
SCALE
DWG NO
SS Integral Cover Assembly Install
REV
SHEET 1 OF 1
Install:
1. Orient the Button Lever so it is pointed toward the inside of the Stopper Station Shield Assembly.
2. With Shield Rotated to open position (Approximately 90 to Cover), insert Shield Pivots into Stopper Station Cover slots.
3. If desired, insert wires from device switch into PCB terminals and tighten screws.
4. Place the volume jumper for desired sounder volume. (See picture)
5. Insert Stopper Sounder PCB fully into PCB Card Guides. Be sure that switch wires are not routed over the battery or button.
6. Rotate Cover to Closed Position.
7. Rotate Cover to fully open position, back to closed position, and ensure the Button Lever is pressed down onto the button.
(If not, remove PCB and repeat steps 5 and 6.)
8. Pull off the plastic battery tab with the battery remaining installed. (Sounder will be active at this point)
9. Mount total assembly onto Stopper Station Contact Assembly.
10. Install bottom Screw to Hold Cover to Contact Assembly.
SCREW
STOPPER STATION
CONTACT ASSEMBLY
SOUNDER/WIRELESS PCB
123A LITHIUM BATTERY
PCB GUIDE
COVER MOUNTING SLOTS
BUTTON LEVER
SHIELD PIVOT
STOPPER STATION SHEILD
HIGH LOW OFF
VIEW A
SWITCH TERMINALS
(WIRELESS ONLY)
VOLUME JUMPER
STOPPER STATION COVER
A
HIGH LOW OFF
VIEW A
VOLUME JUMPER
IMPORTANT NOTICE:
Changes or modifications not expressly approved by the manufacturer could
void the user’s authority to operate this equipment.
This device complies with Part 15 of the FCC rules. Operation is subject to the
following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference that may be received, including
interference that may cause undesired operation.
Model: 34066
FCC ID: TXL34066
IC: 6335A-34066
This product meets the applicable Industry Canada technical specifications.
Le présent materiel est conforme aux specifications techniques applicables
d’Industrie Canada.
