Installation and Operation Manual
STI Wireless Doorbell Button
Model: STI-34601
For use with STI
Wireless Alert Series Receivers
FEATURES AND SPECIFICATIONS:
• 500’ range
• Commercial and residential applications
• Streamlined design
• ABS UV-stabilized material
• Low battery indicator on STI Alert Receiver
• Coin Cell Battery CR2032
Safety Technology
International, Inc.
“We Protect the Things that Protect You.”
Thank you for purchasing the STI Wireless Doorbell Button. Your satisfaction
is very important to us. Please read this manual carefully to get the most
from your new product.
INSTALLATION INSTRUCTIONS:

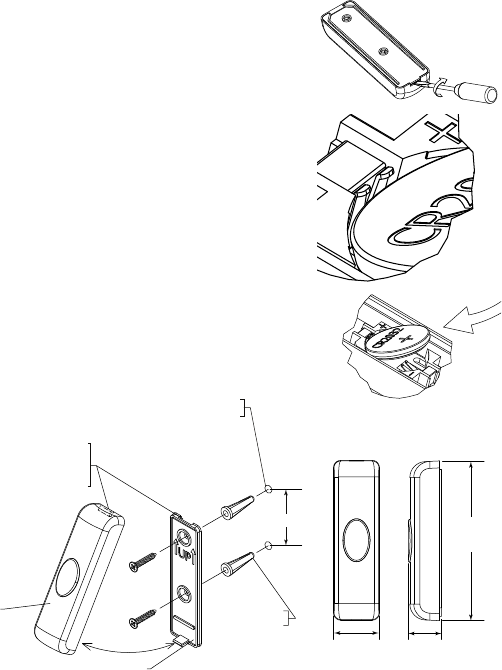

1. To remove cover, insert screwdriver, or other
small device, at bottom of cover and depress
gently. Rotate until tab disengages (Fig. 1).
2. Insert the battery by placing it under the top
claws and then pushing battery into the bottom
cradle (Fig. 2 and 3).
3. Attach backplate onto mounting surface with
two included #6 – 32” screws (Fig. 4).
4. Snap cover back together (Fig. 4).
5. The Wireless Doorbell Button can now be
enrolled into your 433 MHz Wireless Receiver.
(Refer to receiver instructions for enrollment and
programming.)
Fig. 4
Fig. 1
Fig. 3
1.02 in.
(26mm)
.735 in.
(19mm)
3.55 in.
(90mm)
COVER
PLACE TAB INSIDE
COVER INTO SLOT
ON BACKPLATE
AND ROTATE CLOSED
BACKPLATE
WHEN USING ANCHORS, DRILL 3/16 in. DIA HOLES
WHEN USING SCREWS ONLY, DRILL 3/32 in. DIA HOLES
19018 ANCHOR
(2) PROVIDED
1-5/8 in.1-5/8 in.
Fig. 2
IMPORTANT NOTICE:
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions.
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including
interference that may cause undesired operation.
Changes or modifications not expressly approved by Safety Technology
International, Inc. could void the user’s authority to operate the equipment.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables
aux appareils radio exempts de licence. L’exploitation est autorisée aux
deux conditions suivantes:
1. L’Appareil ne doit pas produire de brouillage, et
2. L’utilisateur de l’appareil doit accepter tout brouillage radioélectrique
subi, même si le brouillage est susceptible d’en compromettre le
fonctionnement.
Model: 34601 FCC ID: TXL34601 IC: 6335A-34601
WARRANTY INFORMATION:
Safety Technology International, Inc. warrants to the original
consumer/purchaser that this product shall be free of defects in material and
workmanship under normal use and circumstances for a period of one (1)
year from the original date of purchase.
TECHNICAL SUPPORT:
Contact STI at 800-888-4784
Printed in USA
2306 Airport Road • Waterford • Michigan • 48327-1209
Phone: 248-673-9898 • Toll Free: 800-888-4784 • Fax: 248-673-1246
Email: info@sti-usa.com • Web: www.sti-usa.com
Safety Technology International (Europe) Ltd.
Unit 49G Pipers Road • Park Farm Industrial Estate • Redditch
Worcestershire • B98 0HU • England • Tel: 44 (0) 1527 520 999
Fax: 44 (0) 1527 501 999 • Freephone: 0800 085 1678 (UK only)
E-mail: info@sti-europe.com • Web: www.sti-europe.com
Install 34601, FEB2012
