Safety Technology 34751 Outdoor Motion Detector, 433.92MHz User Manual
Safety Technology International, Inc. Outdoor Motion Detector, 433.92MHz
User Manual
- 1 -
Wireless Outdoor
PIR Motion Detector
Model STI-34751
Safety Technology International, Inc.
“We Protect The Things That Protect You.”
Features:
· ADFIR™ Dual Frequency IR Detection.
- Wind-blown object and air current rejection
- White light and lighting rejection
- Split View™ look-down element
· 44 foot range and 90 degree field of view (45 degrees to each side).
· Mountable on flat-wall or 45 degree corner.
· Cover tamper.
· Strong, reliable RF signal.
· 6-8 year battery life of CR123A battery.
· Low battery indication.
Program
sensor before
installation
- 2 -
Programming Instructions:
1. Remove cover fixing screw from bottom of case – pull apart.
2. Put receiver in program mode (refer to receiver instructions for programming).
3. Remove Mylar tab from battery. Unit should immediately program into receiver, if not
press the tamper switch.
4. Motion sensitivity:
· Normal sensitivity: jumper on BOTH PINS
· High sensitivity: remove jumper
Mounting Instructions:
1. Remove sub-base fixing screw located at the top.
2. Separate sub-base from back by gripping black gasket.
3. Mount case back at 7.5ft (ideal height) with provided screws and optional anchors.
4. Reattach sub-base and cover. Unit immediately goes into 3 minute walk test. To reset
walk test, remove cover and reattach.
Walk Test LED:
1. LED lights for 3 minutes when motion sensed (only during walk test).
2. Wireless transmissions are sent for each detection; so walk test can be used for receiver
test as well.
3. Motion stops (locks out) sensing for 20 seconds after LED flashes.
4. When complete, replace cover fixing screw.
Operation:
1. Motion stops (locks out) transmitting wireless sensor alarms for 3 minutes after
sending an alarm transmission. This is to conserve battery life.
2. Walk Test LED does not activate in normal operating mode, only works during walk test.
3. Tamper: when cover is opened.
4. Supervisory: every hour.
- 3 -
Specifications:
· Mounting Hardware: #6 screw
· Mounting Height: 7.5ft (ideal height)
· Replacement battery: CR123A 1500mAH
· Temperature range: -20°F to 120°F
· White Light Immunity: 25,000 lux
· Housing dimensions: 6.7” X 3.0” X 2.4”
Specifications subject to change without notice.

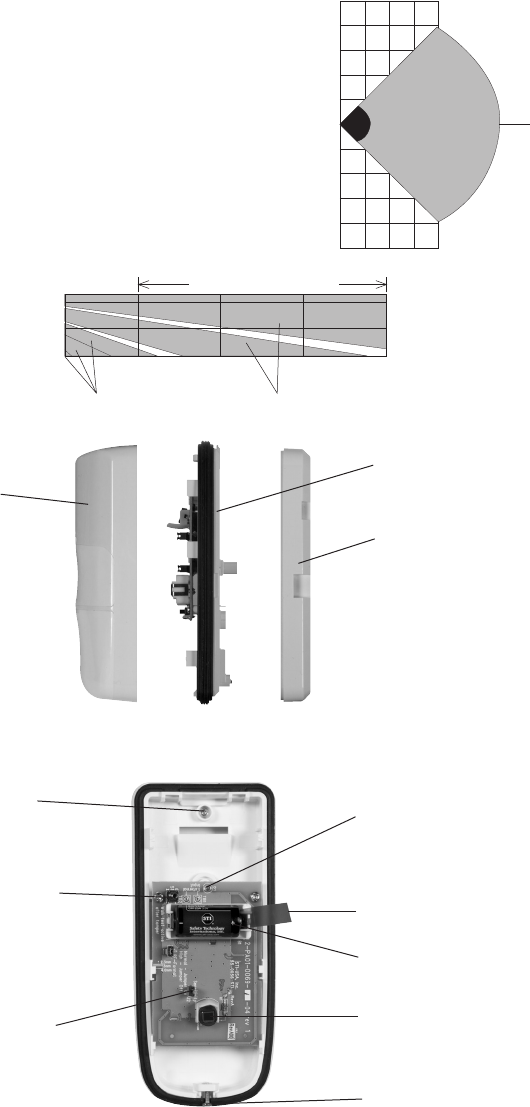

BATTERY
+
MOTION SENSOR
WALK TEST LED
TAMPER AND WALK TEST SWITCH
SENSITIVITY JUMPER
0
44 ft
44 ft
44 ft
Top View
7.5 ft.
18 ft
MIDDLE RANGE
27 ft 36 ft 44 ft
LONG RANGE
Anti-sway processing range
Side View
MYLAR TAB
SUB-BASE FIXING SCREW
COVER FIXING SCREW
COVER
SUB-BASE
CASE BACK
- 4 -
Warranty Information:
Safety Technology International, Inc.
2306 Airport Rd • Waterford, MI 48327
Phone: 248-673-9898 • Fax: 248-673-1246
info@sti-usa.com • www.sti-usa.com
Safety Technology International (Europe) Ltd.
Unit 49G Pipers Road • Park Farm Industrial Estate • Redditch
Worcestershire • B98 0HU • England • Tel: 44 (0) 1527 520 999
Fax: 44 (0) 1527 501 999 • Freephone: 0800 085 1678 (UK only)
E-mail: info@sti-europe.com • Web: www.sti-europe.com
Inst. 34751 JAN2013
Printed in USA
Safety Technology International, Inc. warrants to the original consumer/purchaser what
this product shall be free of defects in material and workmanship under normal use and
circumstances for a period of one (1) year from the original date of purchase.
Important Notice:
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
This device may not cause harmful interference.
This device must accept any interference that may be received, including interference
that may cause undesired operation.
Changes or modifications not expressly approved by STI could void the user’s authority to
operate this equipment.
This product meets the applicable industry Canada Technical specifications.
Le Présent matériel est conforme aux spécifications techniques applicables d’Industrie Canada.
Model: 34751 FCC ID: TXL34751 IC: 6335A-34751
Technical Support:
Contact STI at 800-888-4784 ext. 202
