Safety Vision 4100-HVR Mobile Digital Video Recorder User Manual

Safety Vision, LLC Mobile Digital Video Recorder

Users Manual

Mobile Digital Video Recorder
4100-HVR is a functional Mobile Digital Video Recorder specially designed for vehicle video
surveillance.. It uses high-speed processor and embedded operating system, patented file system 4.0 to
ensure the safety and integration of important data, combining with H. 264 video compression /
decompression technology, network technology and GPS locating technology. It supports not only video
recording in 1080P,720P, WD1, HD1 and CIF formats, but also vehicle travel information recording and
local playback & analysis. With center software it also achieves alarm linkage central monitoring, remote
management and playback analysis. It is powerful with modular design, flexible installation, easy
maintenance and high reliability.
Specification
Function Overview Preview, Recording, Playback, Network, Locating
OS Linux 3.0.8
System Control Mode CP4, Easy Check, Network (WIFI), Mouse
Input 4 channels AHD (1080P)
Output 1 channel
Video/
Total Resource PAL: 4*720P@25FPS (AHD) Or 4*1080P@12FPS (AHD)
NTSC: 4*720P@30FPS (AHD) Or 4*1080P@15FPS (AHD)
Input 4 channels
Audio Output 1 channels
Display Split 1/4/9 Image display
OSD GPS information, alarm, temperature, acceleration, voltage, device information, software
version, MCU version, network status
Display
Operation Interface Semi-transparent GUI
Video: H.264
Video/Audio Compression Audio: ADPCM
Image Resolution
PAL:
1080P, 720P, WD1(928X576), WHD1(928X288), WCIF(464X288), D1(704X576),
HD1(704x288), CIF(352x288);
NTSC:
1080P, 720P, WD1(928X480), WHD1(928X240), WCIF(464X240), D1(704x480),
HD1(704x240), CIF(352x240);
Image Quality 8 Levels adjustable
Recording Mode Manual/schedule/Alarm
Pre-recording 0-60minutes
Recording
Post-recording 0-30 minutes
Playback Channel 1 channel by local playback
Playback Search Mode Date/time, channel, event
Main Features
♦ Supports 4 channels 1080P(AHD)
♦ Revolutionary anti-vibration technology for 360 degree
installation
♦ Supports 1 SSD storage and dual SD card recording
♦ Dual streams for local recording and wireless transmission
♦ Internal GPS for location tracking
♦ Internal WIFI 802.11N supported for all the regular video
files and alarm files download(optional)
4100-HVR
WIFI 802.11b/g/n
Network Ethernet RJ45 x 1 (10/100 M)
Locating GPS Location tracking, speed detection and time sync
SSD 1 SSD
SD Support dual SD card: 256G/128G/64G/32G
Support hot swap
Max writing speed:12Mbps
Storage
Extend storage Support extend fire box
Operating Temperature -40°F~158°F(-40℃~ +70℃)
Environment Operating Relative Humidity 8%-90%（No Condense）
physical
characteristics Dimension (L × W × H)(mm) 262.1x190x71
Vibration Pass the MIL-STD-810 Test
Shock Pass the MIL-STD-810 Test
USB USB2.0 x 2
RS232 RS232 X 2
RS485 RS485 X 2
Sensor 8 inputs, 4 outputs
Serial G-sensor (Internal)
Interface
Interface Touch panel CP4 Optional
Input DC8-36V, ACC
Max Power Consumption 36W
Power
Standby Power Consumption ≈0W

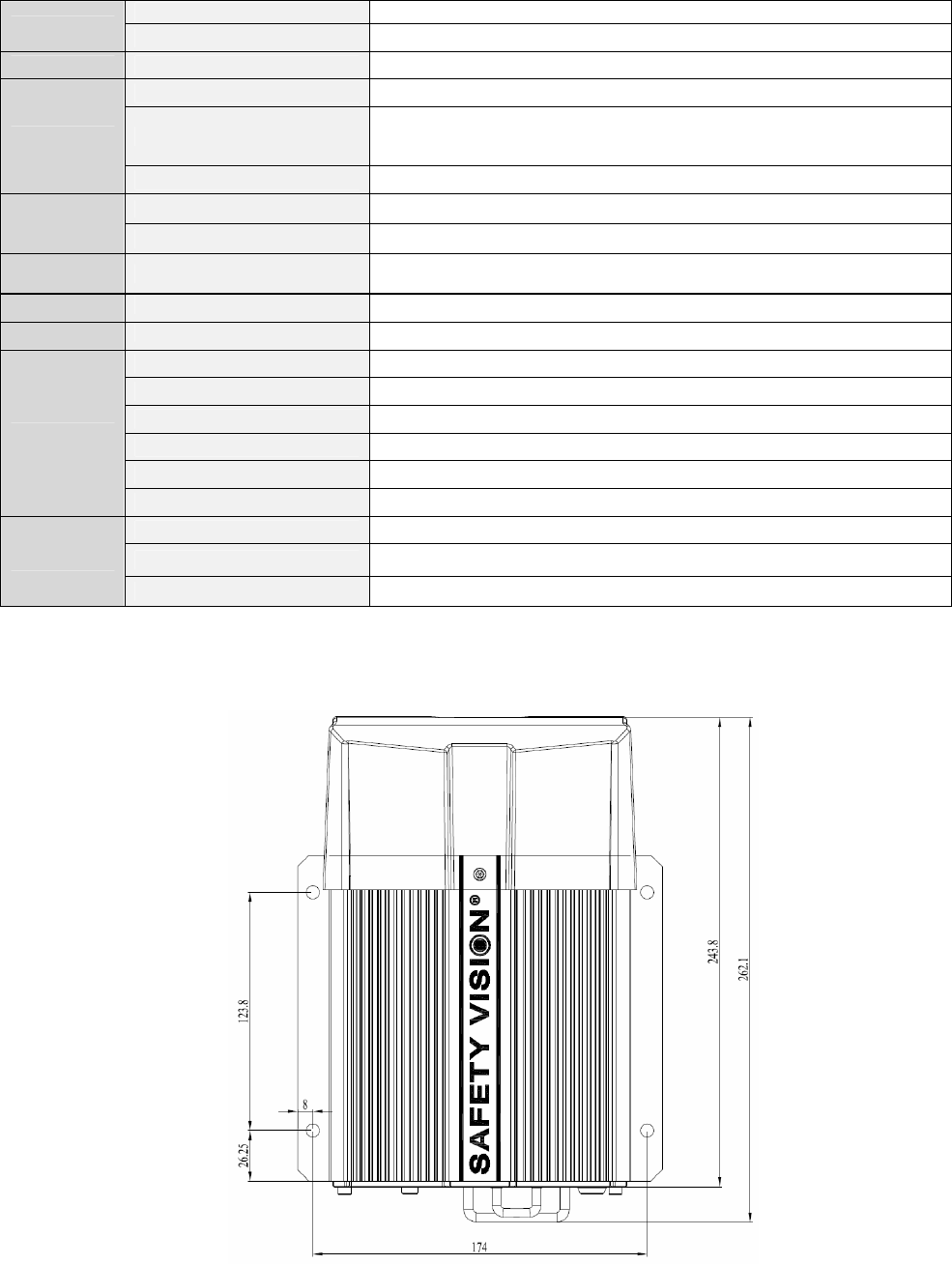

Dimension (L × W × H)(mm)

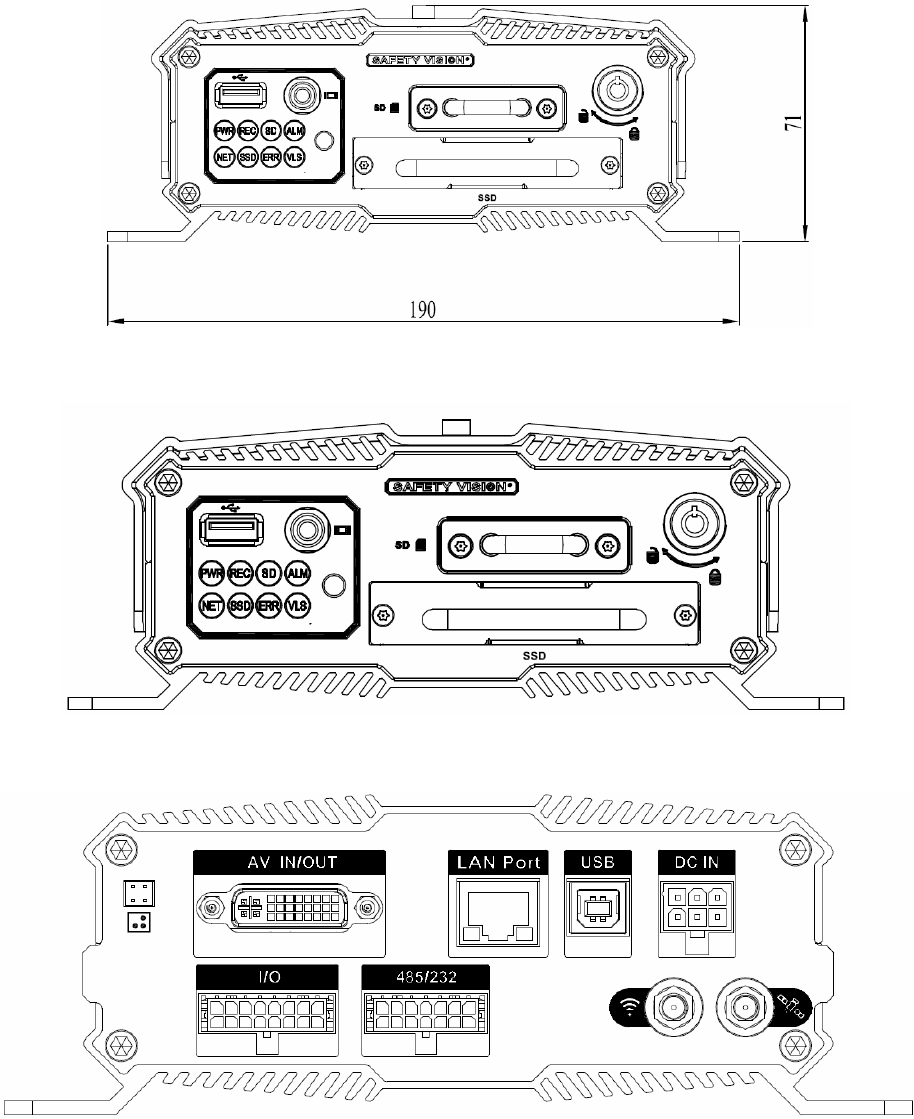

FRONT PANEL
REAR PANEL
Serial
number Print Description
1 DC IN 8-36V Power Input
2 LAN Port 1 RJ45 interface, 10M/100M with light
3 USB USB 2.0 interface
4 A/V IN 1~4 Audio & Video Input 1-4
5 A/V OUT Audio & Video Output 1
6 I/O 8*Sensorin,4*Sensorout+1*pulse
speedtest+1*12Voutput
7 485/232 2*RS232+2*RS485+2*5Voutput+2*12V
output
8 GPS GPS Antenna Interface
9 WIFI WIFI Antenna Interface
FCC Statement
Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
-- Consult the dealer or an experienced radio/TV technician for help
This device complies with part 15 of the FCC rules. Operation is subject to the following two
conditions (1)this device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired
operation.
The distance from the human body is greater than 20 cm.
