Notice
The information in this manual was current when published. The manufacturer reserves the right to
revise and improve its products. All specifications are therefore subject to change without any notice.
The purpose of this manual is to kindly aid the user for the operation for our MDVR. The user should
have a basic understanding of computer operation and basic knowledge of how to connect peripherals
and make some settings.
Guarantee & Warnings
1) Electrical Apparatus Safety
All installation and operation should comply with local electrical safety norms.
2) Transportation
In the process of transportation, storage and installation, please avoid heavy stress, violent vibration,
impact and water splashing.
3) Installation
Install the equipment in accordance with the requirements, handle carefully. Do not heavily press the
equipment before the MDVR installation is finished.
4) Requirements on Engineers & Technicians
All the work of checking and maintenance should be done by qualified technicians and engineers.
We do not undertake any responsibility caused by unauthorized modifications.
5) Requirements on Environment
The equipment should be installed and stored in a cool and dry place, away from direct sunlight,
flammable or explosive substances, etc. Keep gaps not less than 3cm around the device to facilitate
ventilation for cooling.
6) Accessories
Make sure to use accessories from the manufacturer recommended in the attachment.
Insulate circuit ground and metal shell for all the peripherals.
Before installation, please open the package and ensure that all parts are included.
If there are any problems, please contact us as soon as possible.
User Manual for X7-N1600
For more information, please visit our website www.en.streamax.com
3-9
1．Product characteristics
1.1. Overview
ICPPROHVR is a multi-functional extensive device specially designed for mobile video surveillance
system. It adopts high speed processor and built-in operating system, combining with H. 264 video
compression / decompression technology,, GPS locating technology and WIFI technology. It can realize
1080P and 720P high definition. With center software, it also achieves alarm linkage central monitoring,
remote management and playback analysis. It is powerful with strong anti-vibration, anti-electromagnetic
interference, compact size, flexible installation, SSD + SD card backup design, easy maintenance and
high reliability.
1.2. SPECIFICATIONS
Items Technical Index
Product Series ICPPROHVR
Function Overview ID, status display, information print, video preview, video
playback, remote monitor, history search and track record
OS Linux
System Control Mode IR remote control, control panel, network, mouse
Input N：
4 channels 720P@30FPS AHD or 4 channel 1080P@15FPS
P: 4 channels 720P@25FPS AHD or 4 channel 1080P@12FPS
Output 1 channel
Video
Video Signal Standard Electrical level: 1Vpp; Impedance: 75Ω
NTSC/PAL Optional
Input 4 channels
Audio Audio Signal Standard Electrical level: 2Vpp; Input impedance: 9.4KΩ
OSD Date/Time，
Speed，
GPS，
Vehicle plat，
Channel name，
Vehicle
num
Status
Operation Interface Semi-transparent GUI
Video/Audio Compression H.264/ADPCM
Image Quality 1-8 levels adjustable (1 is the best)
Recording Mode Boot up/Schedule/Alarm
Pre-recording 0-60minutes
Post-recording 0-30minutes
Mirror recording Yes
Recording
Search Mode Date/time, channel, event
WIFI 802.11b/g/n
Network RJ45 With Light
User Manual for X7-N1600
For more information, please visit our website www.en.streamax.com
4-9
Locating GPS Support
Sensor G-Sensor Internal, 3-Axis
RTC Support
Hard Disk SSD with USB3.0 Type-A
Storage SD card SDXC*2, support hot swap
Operating Temperature
-40℃~ -20℃ (-40°F~158°F)(Recording normal, LCD without
display)
+60℃~ +70℃(Recording normal, LCD without display)
-20℃~ +60℃ (-4°F~140°F)(Recording normal, LCD display
normal)
Environment
Operating Relative Humidity 8%-90%（No Condense）
Anti-vibration Test Pass ISO-16750-3 Mechanical Load
Free Fall Pass ISO-16750-3
Electric Load 87V1Ω@12V,174V4Ω@24V
Electromagnetic
compatibility
Anti-interference ISO 7637-2, experiment pulse: 1/2a/2b, level: IV; 1/2a
experiment meet class A, 2b experiment meet class C.
USB USB2.0*1
SD SD card slot*2
RS485 RS485*2
RS232 RS232*2
CAN CAN Bus*1
Debug serial 4pin*1
Sensor in Sensor in*6
Interface
Speed 1 channel pulse speed detection
Input DC8-36V
Power Standby Current ≈0W
Fala capacitance To ensure that the minimum system and storage time
of the product is more than 8s, so that the data can
be successfully rescued. The initial charging time of
the capacitor should not be greater than 30s.
UPS Support UPS 3.0
User Manual for X7-N1600
For more information, please visit our website www.en.streamax.com
5-9
1.3. EXTERNAL INTERFACE

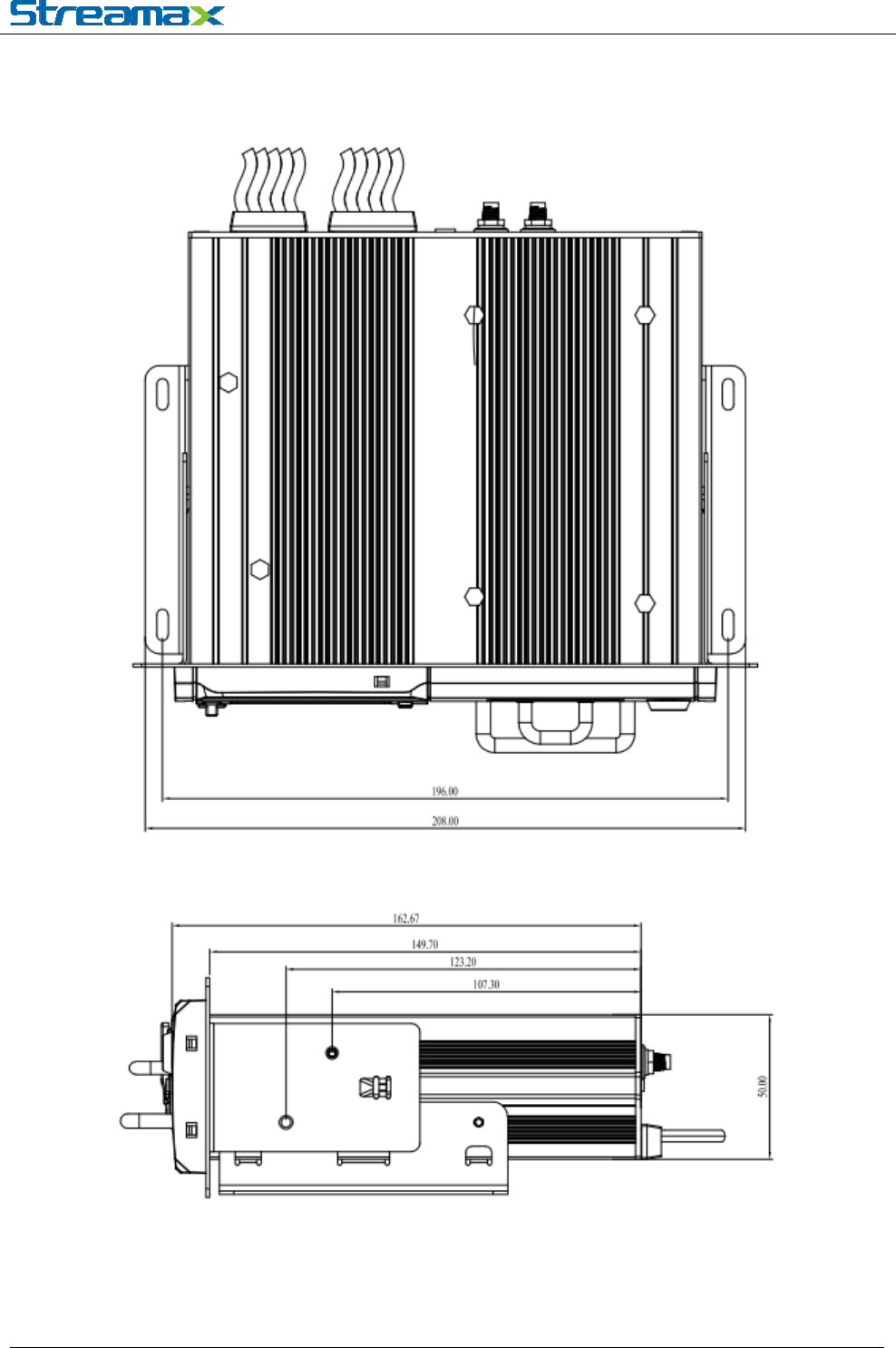

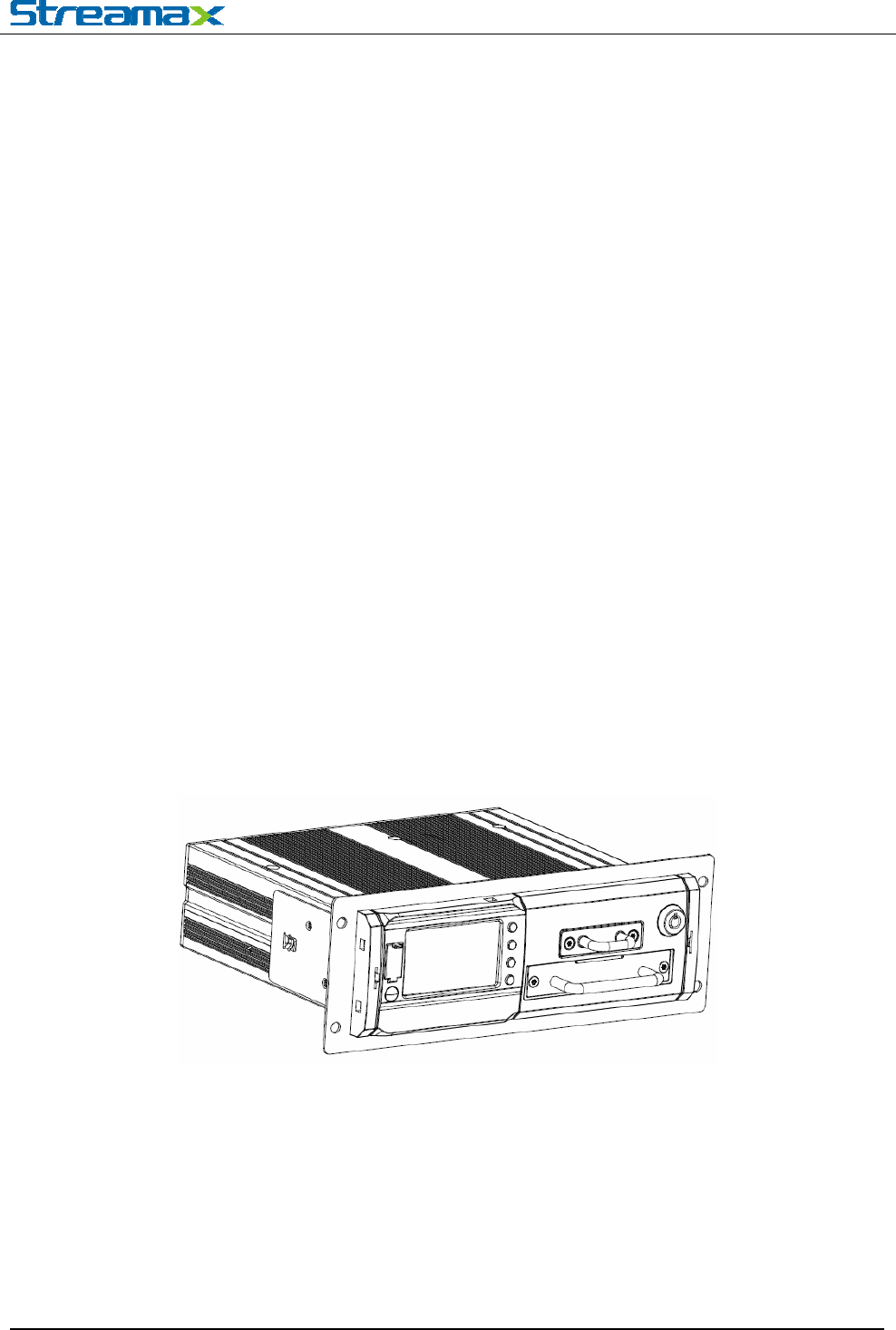

Dimension (Unit: mm)
User Manual for X7-N1600
For more information, please visit our website www.en.streamax.com
6-9

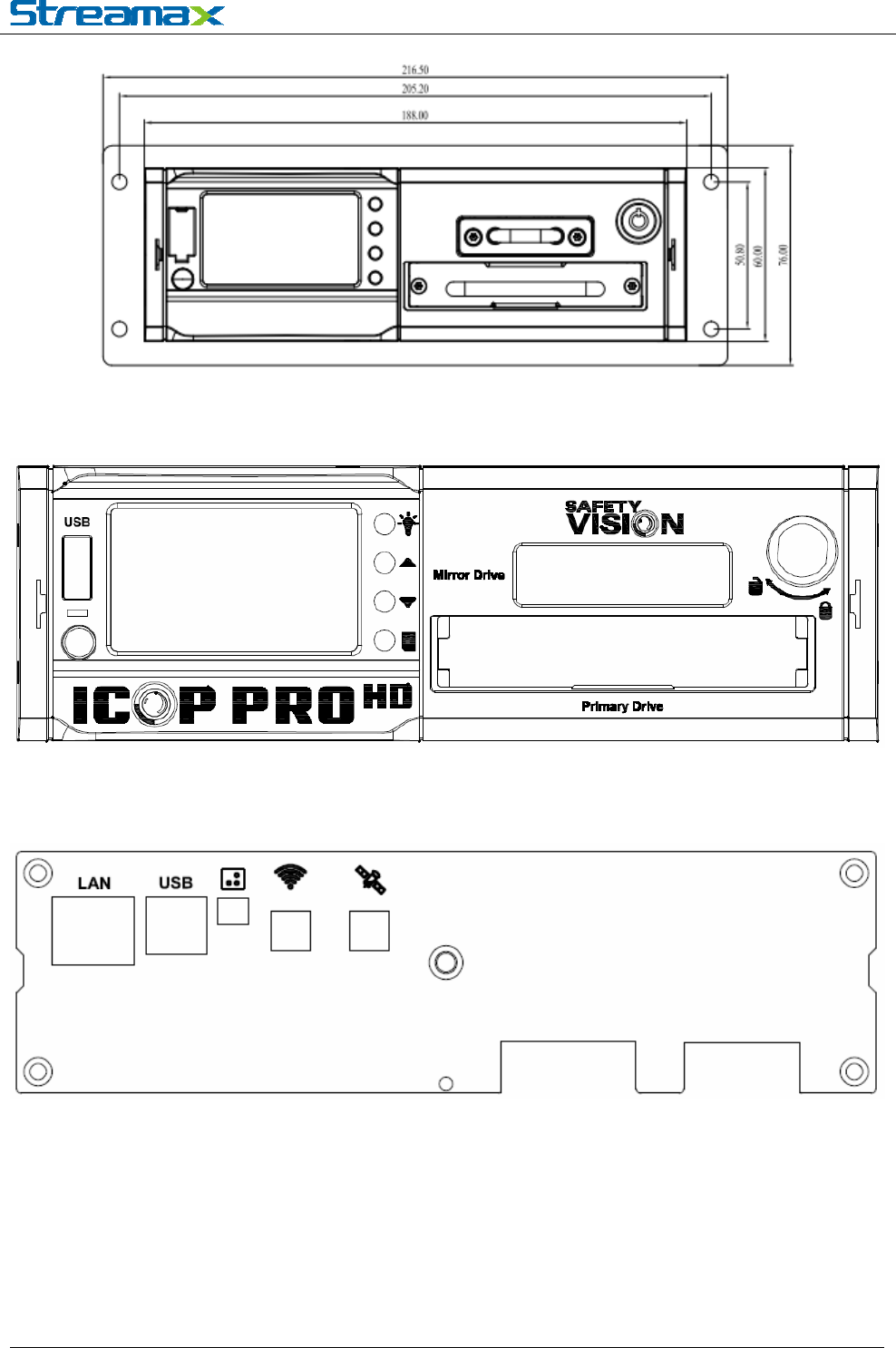

Front Panel
Rear Panel
User Manual for X7-N1600
For more information, please visit our website www.en.streamax.com
7-9
2．FAQ
1) The system can’t start?
Usually this problem results from the incorrect power connection. Please follow below steps to
check the power connection:
1. Check the input power, whether the power wire is connected correctly, whether the ground wire is
connected back to the battery, and whether the fuse on the power wire is in good condition.
2. Check whether the ACC signal wire input to the power is with voltage higher than 7 V.
3. Check whether the device key is closed.
2) The NVR restarts uninterruptedly?
Please follow below steps to check it:
1. Check whether the voltage of NVR is insufficient. If the voltage is less than the start-up voltage of
the device, the device would always restart.
2. The problem in hard disk/SD card may cause the failure to start. Take off the storage part and check
whether it is broken down.
3) The device can’t record?
Usually this problem results from the storage disk or camera. Please follow below steps to check it:
1. Check whether the storage disk is installed, whether it is in good contact, and whether the disk can
be read normally in computer.
2. Check whether the storage disk is formatted. The storage disk should be formatted before normally
storing record files.
3. Check whether there is video signal input into the device from camera, and whether there is
video/image on the screen.
4) There is no voice in record file?
Please follow below steps to check it:
1. Check whether there is an external pickup, or whether the camera features with the function of
audio collection.
2. Access to Video Channel Settings, check if Audio is set on.
3. There must be video input into the channel for recording and it must record normally.
5) The GPS works abnormally?
Please follow below steps to check it:
1. Check whether the GPS antenna is installed correctly. There is a silk print logo on the GPS antenna
holder behind the host device.
2. Check whether the antenna receiver is sheltered. It should not be covered by any stuff, which may
cause it not to receive signals.
3. Environmental influence such as tree shades, being inside tunnel, driving near tall building or
elevated roads, thunderstorms or other weather influence, etc. can also cause signal loss or
receiving wrong signals.
6) The device can’t shutdown in ignition switch mode?
Please follow below steps to check it:
1. Check if the ACC line connection mode is correct; and check whether there is voltage on ACC
yellow line when the key is turned off.
2. If the device has been set with schedule recording, it can’t shutdown if it is still during recording time
User Manual for X7-N1600
For more information, please visit our website www.en.streamax.com
8-9
of the task table.
7) How to install the WIFI antenna?
The antenna must be installed on unobstructed place of the roof, and be fixed with glue.
8) The device cannot be shut down when in ignition ON/OFF mode？
Check if the ACC signal wiring is correct and if there is voltage for ACC signal line after the key is
turned off .
If you have set timing recording, and at the current time it is still in task recording, the device may be
impossible to be shut down.
9) GPS anomaly.
Check if the GPS antenna is properly installed. There is silkscreen GPS identification on the GPS
antenna pedestal on the back of the MDVR device. Check if the antenna connector is blocked and
make sure the antenna connector not be covered by other things.
Trees block, being inside the tunnel, driving near tall buildings or viaduct, thunderstorms and other
environmental effects may also cause to receive no GPS signal or error signal.
10) No voice in video files.
See if there is an external microphone, or if the camera cannot capture audio;
Enter into the video channel settings, then check if the audio is open;
Ensure video input and normal recording, on which the audio recording channels must be based.
11) The device doesn’t record.
Make sure the storage part is installed and of fine contact, the data can be read on PC, and the
storage device is not formatted.
Check if there are video signal input to the main device, and whether there are video images in the
channel pictures.
12) Why has the NVR device always been in a state of restart?
Check whether the NVR device voltage is insufficient. If the device voltage does not reach the
start voltage, the device will restart.
Hard disk or SD card may cause the NVR device unable to start. You need to remove the storage
device and then boot up to verify whether it is caused by the storage device.
13) Why the NVR device cannot start?
Check the device input power to see if the power wiring is correct, if there is ground wire connected
back to the battery, and if the fuse of the power wire is n good condition;
Check whether there is voltage (more than 7V) on power input ACC signal wire;
Check whether the hard disk key is turned off.
14) What is the log in user name and password for new device?
The default user name and password are both “admin”. The device password can be set as empty.
15) In the ON/OFF of basic settings, the low voltage protection is 8V, why?
After testing, when the battery is lower than 8V, the voltage will lower down quickly. Therefore the
lowest voltage is set to be 8V. When it is lower than 8V, the MDVR device will recognize it as
external power-off and then enter into shutdown state.
User Manual for X7-N1600
For more information, please visit our website www.en.streamax.com
9-9
FCC Statement
Changes or modifications not expressly approved by the party responsible for compliance could void the
user's authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions
(1)this device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
