User Manual
(Sagem-SBD501)
Rev 1.0 2 of 4
Features
- Quick connection to Bluetooth™ phone
- Pairable up to 3 Bluetooth™ phone
- Support for the Bluetooth™ Headset profile 1.1
How to install to mobile phone
Just plug-in the dongle to mobile phone
Pairing
First, the dongle should be in "idle" state. If user presses on the button for about 2
seconds, the LED will be turned on. It indicates that the dongle has received a
"LONG BUTTON". Once a "LONG BUTTON" is entered while the dongle is in "idle"
state, it switches to "pincode input" mode. User can now enter a pincode.
A short button will increase a digit by one. A long button will complete a digit.
If a user pushes button shortly for 6 times preceded by a long button, a digit '6' is
entered. If user pushes button for more than or equal to 10 times, then the number
will be calculated by subtracting 10 from the original number. For example, 15
CE Marking information :
User Manual
(Sagem-SBD501)
Rev 1.0 3 of 4
times of short click makes number '5', 10 times makes a number '0' and 11 times
makes '1'.
If the number of entered digits exceeds four, any additional input will be dismissed.
Pincode is made up of 4 digits at most. For instance, inputing '4465435' makes
pincode '4465'.
When input is done, user
should
press the button for more than 6 seconds so that
the dongle stores the new pincode and starts pairing.
Establishing connection between Dongle and a Headset
If you want to establish a connection between the Dongle and the headset, when there is no
connection, you could do the following :
1. Press Dongel's button for less than one second
2. The dongle will try to connect to the paired mobile phone.
Making a call
(When an active call does not exsist)
1, Just call by mobile phone and enjoy call with headset.
Hanging up a call
(When an active call exsists)
1. Press the Call button on headset.
Answering an incomming call
1. Press Call button on the headset.

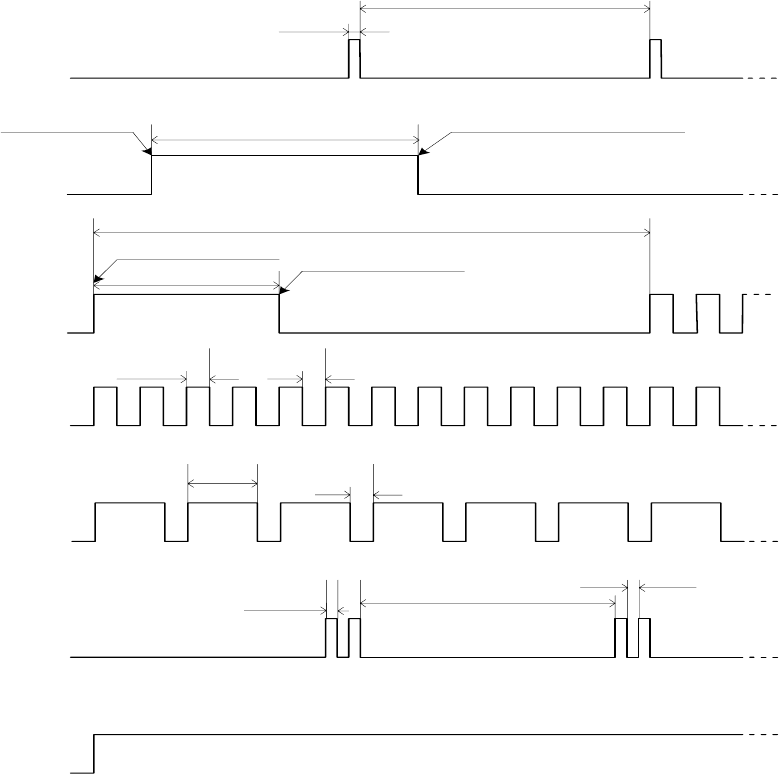

LED Indications
User Manual
(Sagem-SBD501)
Rev 1.0 4 of 4
50m s
5 secs
100m s 100m s
100m s
300m s
2 secs
50 m s
id le
in q u irin g
or pairing
connecting
connected
50 m s
pincode input
case 1
button pressed button released
sco connected
button pressed
about 2 secs
means a LONG BUTTON entered
about 6 secs
less than 2 seconds
pincode input
case 2
