You have just purchased a SAGEM phone, we congratulate you; it is

recommended that you read this handbook carefully in order to use your phone

efficiently and in the best conditions.

Your phone can be used internationally in the various networks (GSM 850 MHz

and PCS 1900 MHz) depending on the roaming arrangements with your

operator.

We remind you that this phone is approved to meet European standards.

WARNING

Depending on the model, network configuration and associated subscription

cards, certain functions may not be available.

Ensure that your SIM card is a 3 V SIM type that is compatible with your phone.

Inserting an incompatible card will be indicated by a message when your phone

is switched on. Contact your operator.

Your phone is identified by its IMEI number. Write this number down, and do not

keep it with your phone, because you may be asked for it in the event of your

phone being stolen, in order to prevent it from being used, even with a different

SIM card. In order to display the IMEI on your phone's screen, type: *#06#.

SAGEM is a trademark of SAGEM SA.

AT is a registered trademark of Hayes Microcomputer Products Inc.

Hayes is a registered trademark of Hayes Microcomputer Products Inc.

T9 is protected by one or more of the following US patents: 5,818,437,

5,953,541, 5,187,480, 5,945,928, 6,011,554 and other patents are being applied for

worldwide.

Java and all Java based trademarks and logos are trademarks or registered

trademarks of Sun Microsystems, Inc. in the U.S. and other countries.

The WAP navigator and some message softwares (i-mode) are under licence

Openwave.

The WAP navigator and the softwares included are the exclusive property of

Openwave. For this reason, it is forbidden to modify, translate, disassemble or even

decompile all or part of these softwares.

Wellphone™ and SmartCom™ are registered trademarks owned by SmartCom

SARL France.

251773922_myX-4a_lu_2e-3ecouv_en.fm Page 1 Jeudi, 4. novembre 2004 10:31 10

Weight: 95 g

Size: 104 x 46.5 x 17.8 mm

Original battery: Lithium ion 780 mAh

Battery life calls/standby: up to 4 h 30 mn/340 h (see page 24 how to increase

the efficiency of your phone)

Multimedia objects supported:

Audio formats: iMelody, Midi, wave

Graphic formats: wbmp, bmp, png, gif, animated gif, jpeg, .3gp

Size of memory available for messages:

100 SMS

Size of memory available for the phonenook and the multimedia objects: 3.7 MB

Maximum size of each message:

SMS < 160 characters

MMS < 100 Kb for outgoing, 100 Kb for incoming messages (depends

on the phone configuration and on the operator reservations)

Using temperature: from - 10°C to + 55°C

251773922_myX-4a_lu_2e-3ecouv_en.fm Page 2 Jeudi, 4. novembre 2004 10:31 10

Conformance Document

SAGEM SA declare under its sole responsibility that the product Dual Band GSM 850/PCS 1900 Type E2004

conforms to the requirements of the following EEC directives:

EEC Directive 1999/5/CE

Safety EN 60950

EMC EN 301 489-1

EN 301 489-7

This phone is marked CE in accordance with RTTE directive with CEM EN301489-7 norme implementation,

suited to the 850/1900 work frequencies. It is not intended to be used in Europe.

Low voltage directive 73/23/CEE

Network 3GPP TS 51.010-1 v 5.4.0

Requirements GT01 v 4.7.0

TBR 19 Edition 5

TBR 20 Edition 3

TBR 31 Edition 2

TBR 32 Edition 2

EN 301 419-1

EN 301511

FCC Conformance Document

FCC Part 24

Network NAPRD03.ver 2.12.2

Health IEEE P1528/D1.2

251773922_myX-4a_lu_en.book Page 1 Jeudi, 4. novembre 2004 10:34 10

Safety Information for Wireless handled phones

Use of your phone is subject to safety rules designed to protect the user

and his or her environment.

Exposure to Radio Frequency Signals

- Your wireless handheld portable phone is a low power radio

transmitter and receiver. When it is ON, it receives and also sends out

frequency (RF) signals.

- In August, 1996, the Federal Communications Commissions (FCC)

adopted RF exposure guidelines with safety levels for handheld

wireless phones. Those guidelines are consistent with the safety

standards previously set by both U.S. and international standards

bodies:

ANSI C95.1 (1992)

(*)

NCPR Report 86 (1986)

(*)

ICNIRP (1996)*.

- Those standards were based on comprehensive and periodic

evaluations of the relevant scientific literature. For example, over

120 scientists, engineers, and physicians from universities,

government health agencies, and industry reviewed the available

body of research to develop the ANSI Standard (C95.1).

- The design of your phone complies with the FCC guidelines (and

those standards).

- For body worn operation, this phone has been tested and meets FCC

RF exposure guidelines when used with an accessory that contains

no metal and that positions the handset a minimum of 1.5 cm from the

body.

Use of other accessories may not ensure compliance with FCC RF

exposure guidelines.

Phone Operation

- Normal position: hold the phone as you would any other phone with

the upper zone (back of the LCD display) pointed up and over your

shoulder.

- Tips on efficient operation: for your phone to operate most efficiently: do

not touch cover unnecessarily the top part of the phone with your hand.

This would cover the integrated antenna and affect call quality and may

cause the phone to operate at a higher power level than otherwise needed.

(*)

American National Standards Institute; National Council on Radiation Protection and Measurements;

International Commission and Non-Ionizing Radiation Protection.

251773922_myX-4a_lu_en.book Page 2 Jeudi, 4. novembre 2004 10:34 10

Safety Information for Wireless handled phones

Driving

- Check the laws and regulations on the use of wireless phones in the

areas where you drive. Always obey them. Also, if using your phone

while driving while driving please:

• Give full attention of driving, driving safely is your first responsibility

• Use hands-free operation, if available

• Pull off the road and park before making or answering a call if driving

conditions so require.

Electronic Devices

- Most modern electronic equipment is shielded from RF signals.

However, certain electronic equipment may not be shielded against

the RF signals from your wireless phone.

- Some phone accessories allow to reduce the radiation interferences

of the phone. Please contact your distributor.

Pacemakers

The Health Industry Manufacturers Association recommends that a

minimum separation of six (6”) inches be maintained between a

handheld wireless phone and a pacemaker to avoid potential

interference with the pacemaker. These recommendations are

consistent with the independent research by and recommendations of

Wireless Technology Research.

Persons with pacemakers:

- Should ALWAYS keep the phone more than six inches from their

pacemaker when the phone is turned ON

- Should not carry the phone in the breast pocket

- Should use the ear opposite to the pacemaker to minimize the

potential for interference

- If you have any reason to suspect that interference is taking place,

turn your phone OFF immediately.

Hearing Aids

Some digital wireless phones may interfere with some hearing aids. In

the event of such interference, you may want to consult your service

provider.

251773922_myX-4a_lu_en.book Page 3 Jeudi, 4. novembre 2004 10:34 10

Safety Information for Wireless handled phones

Other Medical Devices

If you use any other personal medical device, consult the manufacturer

of your device to determine if they are adequately shielded from external

RF energy. Your physician may be able to assist you in obtaining this

information.

Turn your phone OFF in health care facilities when any regulations

posted in these areas instruct you to do so.

Hospitals or health care facilities may be using equipment that could be

sensitive to sensitive external RF energy.

Vehicles

RF signals may affect improperly installed or inadequately shielded

electronic systems in motor vehicles. Check with the manufacturer or its

representative regarding your vehicle. You should also consult the

manufacturer of any equipment that has been added to your vehicle.

Posted Facilities

Turn your phone OFF in any facility where posted notices so require.

Aircraft

FCC regulations prohibit using your phone while in the air. Switch OFF

your phone before boarding an aircraft.

Blasting Areas

To avoid any interfering with blasting operations, turn your phone OFF

when in a “blasting area” or in areas posted: “Turn off two-way radio”.

Obey all signs and instructions.

Potentially Explosive Atmospheres

- Turn your phone OFF when in any area with a potentially explosive

atmosphere and obey all signs and instructions. Sparks in such areas

could cause an explosion or fire resulting in bodily injury or even

death.

- Areas with a potentially explosive atmosphere are often but not

always clearly marked. They include fueling areas such as gasoline

stations; below deck on boats, fuel or chemical transfer or storage

facilities; vehicles using liquefied petroleum gas (such as propane or

butane); areas where the air contains chemicals or particles, such as

grain, dust, or metal powders; and any other area where you would

normally be advised to turn off your vehicle engine.

251773922_myX-4a_lu_en.book Page 4 Jeudi, 4. novembre 2004 10:34 10

Safety Information for Wireless handled phones

For Vehicles equipped with Air Bag

An air bag inflates with great force. DO NOT place objects, including

both installed or portable wireless equipment, in the area over the air

bag or in the air bag deployment area. If in-vehicle wireless equipment

is improperly installed and the air bag inflates, serious injury could result.

Electrical Safety

- Only us the appropriate chargers recommended in the manufacturer’s

catalog. Using another charger may prove dangerous and could

invalidate the warranty of your phone.

- The main power socket should be easily accessible.

- Make sure that the main voltage corresponds to the level marked on

the charger identification plate.

General Precautions

- Do not try to open your phone and repair it yourself. The manufacturer

cannot be held liable for any resulting damage.

- Any work done by an unqualified and unauthorized person will

invalidate your warranty.

- Do not use your phone in humid places (bathroom, swimming pool,

etc.). Protect it from splashing water and other liquids.

- Do not expose your phone to extreme temperatures.

- Keep your phone out of reach of small children. Do not allow them to

play with it, it is not a toy.

- Only use your phone with original accessories. Failure to comply with

these rules will invalidate your warranty.

- Remember to disconnect the charger before removing the battery.

- The physical and chemical processes used in rechargeable batteries

mean that temperature limits must be followed during rapid charging.

Your phone automatically protects the batteries from extreme

temperatures.

- If the phone is disconnected from the battery for an extended period

of time, it will lose the time and the recorded voice messages.

Back Options

WARNING

- The manufacturer cannot

be held liable for any

failure to comply with the

above recommendations

or for any misuse.

- The software program

developed by SAGEM SA

remains the exclusive

property of SAGEM SA. It

is therefore highly

prohibited to modify,

translate, decompile or

disassemble this software

program or any part

thereof.

- SAGEM SA may not be

held responsible for the

contents of messages,

software or objects

downloaded and/or for

any direct or indirect

consequential damage to

the phone itself.

251773922_myX-4a_lu_en.book Page 5 Jeudi, 4. novembre 2004 10:34 10

Safety Information for Wireless handled phones

Emergency Calls

IMPORTANT

- This phone, like any PCS phone, operates using radio signals, PCS and

landline networks, and user-programmed functions. As a consequence a

connection in all conditions cannot be guaranteed. Therefore you should

never rely solely upon any PCS phone for essential communications (e.g.

medical emergencies).

- To make or receive any calls, this phone must be switched on and in

service area with adequate PCS signal strength. Emergency calls may not

be possible on all PCS networks or when certain network services and/or

phone features are in use. Check with local Service Providers.

- When making an emergency call, remember to give all the necessary

information as accurately as possible. Remember that your PCS phone

may be the only means of communication at the scene of an accident - do

not terminate the call until given permission to do so.

- If certain features are in use (such as Keyguard), you may first need to turn

those features off before you can make an emergency call. Consult this

manual and your local PCS Service Provider.

Emergency Calling

- If the phone is not on, press .

- Key in emergency number for your present location (e.g. 911 or other

official emergency number).

-Press .

- If you dial 911 during a call, the phone terminates the current call and

attempts to make a call to the emergency number 911.

FCC/INDUSTRY CANADA NOTICE

Your phone may cause TV or radio interference (e.g. when using phone

in close proximity of receiving equipment). The FCC/INDUSTRY

Canada can require you to stop using your phone if such interference

cannot be eliminated. If you need assistance, contact your local dealer.

This device complies with parts 15 and 68 of the FCC rules. Operation

is subject to the condition that this device does not cause harmful

interferences.

251773922_myX-4a_lu_en.book Page 6 Jeudi, 4. novembre 2004 10:34 10

Menus

Games

WAP

Applications

ToDo

Calculator

Converter

Alarm

Timer

Messages

Compose

Inbox

Outbox

Sentbox

Drafts

Options

Memory

Local info.

Call Voice Mail

Mailing Lists

Organizer

See month

See week

See today

See date

Calendar menu

Help

Multimedia

My Videos

My Pictures

My Sounds

Memory

Help

Personal Touch

Sounds

Display

Shortcuts

Phonebook

Contacts menu

Settings

Languages

Calls

Security

Networks

Date/Time

Contrast

Energy saving

Connectivity

WAP settings

Help

251773922_myX-4a_lu_en.book Page 7 Jeudi, 4. novembre 2004 10:34 10

Contents

Page 7 Menus

Page 13 Your phone package - Accessories

Page 14 Description

Programmable keys and Short cut keys

Page 15 Navigation principles

Page 16 Initial screen

Page 17 Activating your phone

Information on the SIM card

Installing the SIM card and the battery

Changing cover

Necklace attachment

Getting started

PIN number

Setting time and date

Network

First call

Receiving a call

Switching off

Page 24 Using your phone

Freeing the antenna

Increase the efficiency of your phone

Charging the battery

Page 26 Phonebook

Using the phonebook

Storing a new contact

Contacts menu

Options from a saved contact

251773922_myX-4a_lu_en.book Page 8 Jeudi, 4. novembre 2004 10:34 10

Contents

Sending a vCard

Receiving a vCard

Page 31 Messages

Compose SMS

Compose MMS

Receiving messages

Inbox

Outbox

Sentbox

Drafts

Sending options

Memory

Local information

Calling voicemail

Mailing list

Page 41 Multimedia

My videos

My Pictures

My Sounds

Memory

Page 44 WAP

The WAP Menu

Configuring WAP parameters

WAP Logging on

Downloading objects

WAP Logging off

GPRS

Page 48 Games

251773922_myX-4a_lu_en.book Page 9 Jeudi, 4. novembre 2004 10:34 10

Contents

Page 49 Applications

Services

ToDo

ToDo menu

ToDo actions menu

Sending a vCal

Receiving a vCal

Data exchange with a PC

Calculator

Converter

Alarm

Timer

Page 55 Organizer

Calendar menu

Sending a vCal

Receiving a vCal

Page 57 Personal Touch

Sounds

Volume and ring tone

Vibrate

Silent mode

Beeps

Recorder

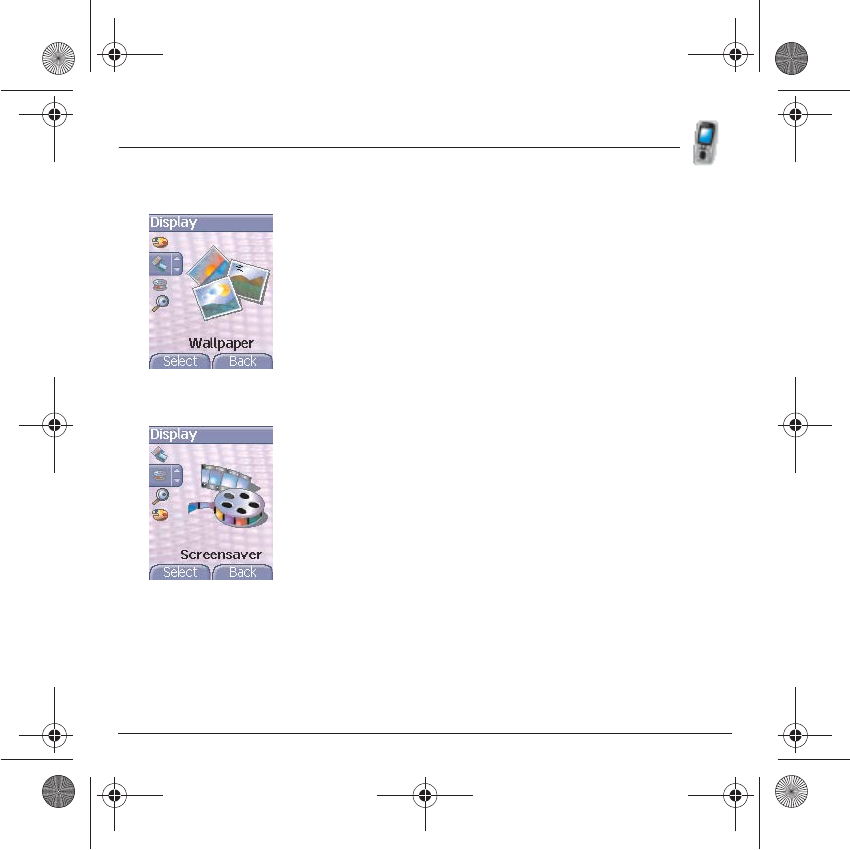

Display

Skins

Wallpaper

Screensaver

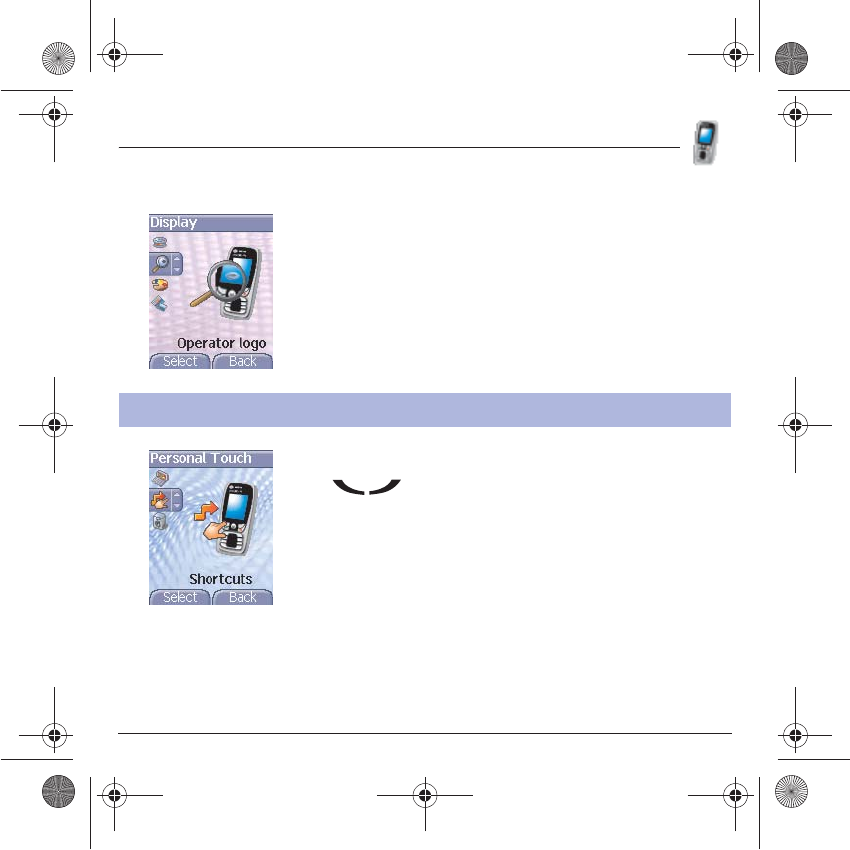

Operator logo

Shortcuts

251773922_myX-4a_lu_en.book Page 10 Jeudi, 4. novembre 2004 10:34 10

Contents

Page 62 Settings

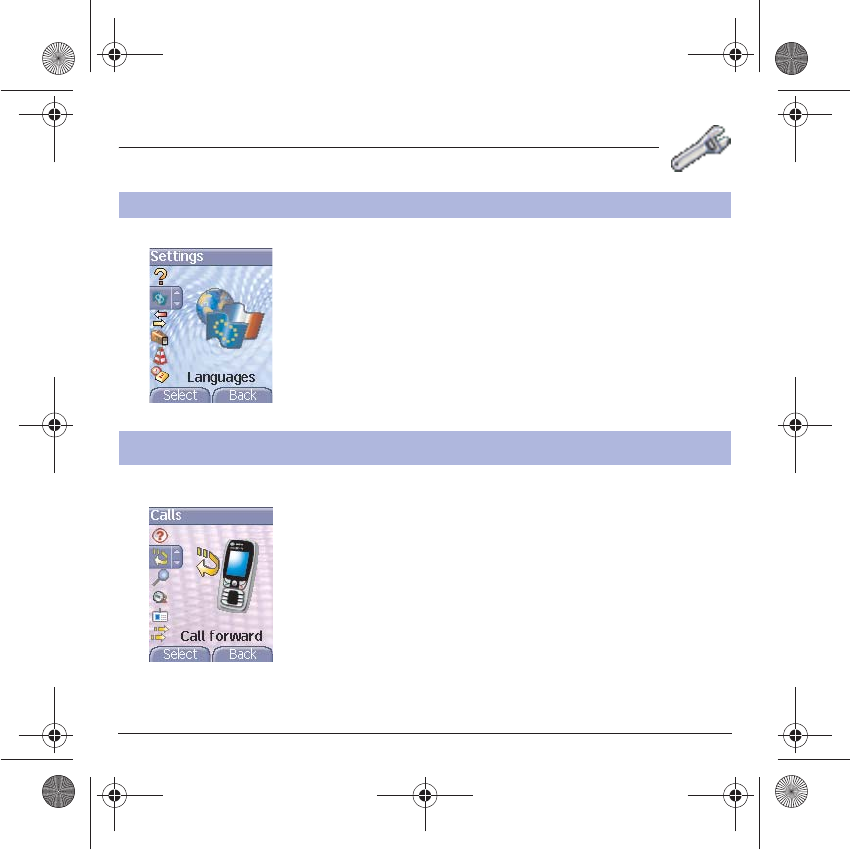

Languages

Calls

Call forward

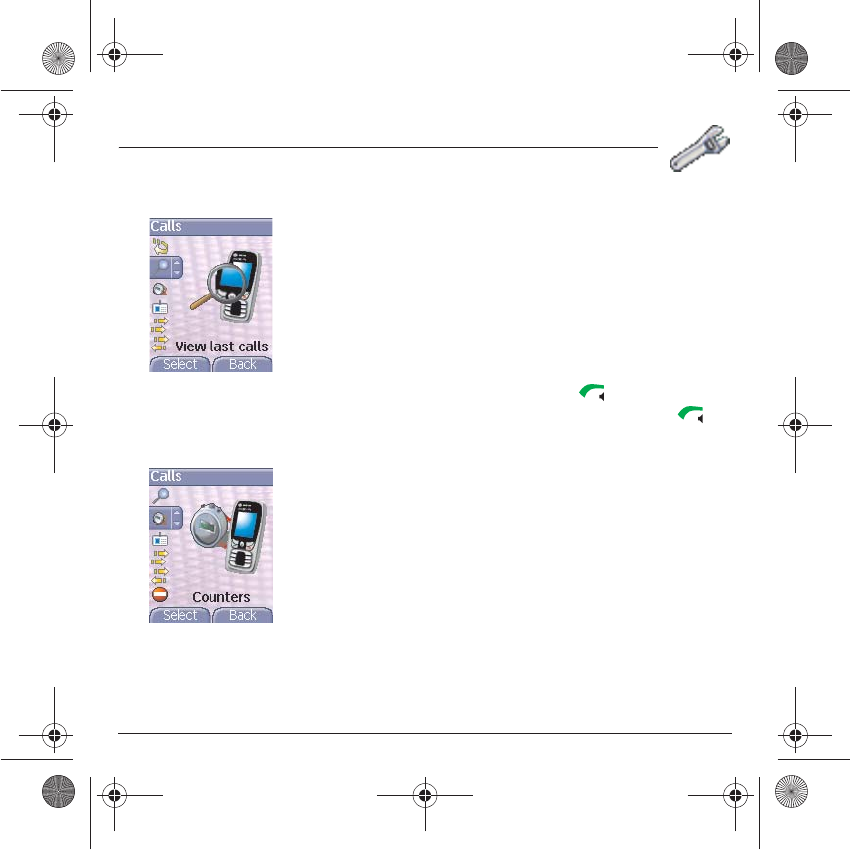

View last calls

Counters

Display number

Call waiting

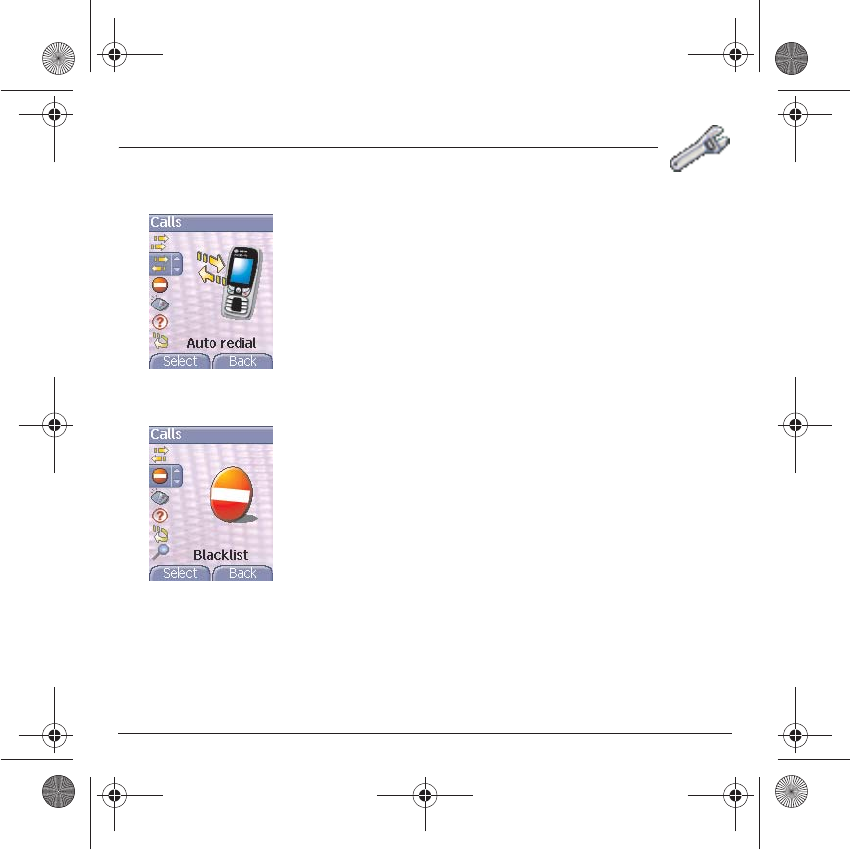

Automatic redial

Blacklist

Voicemail

ALS

Security

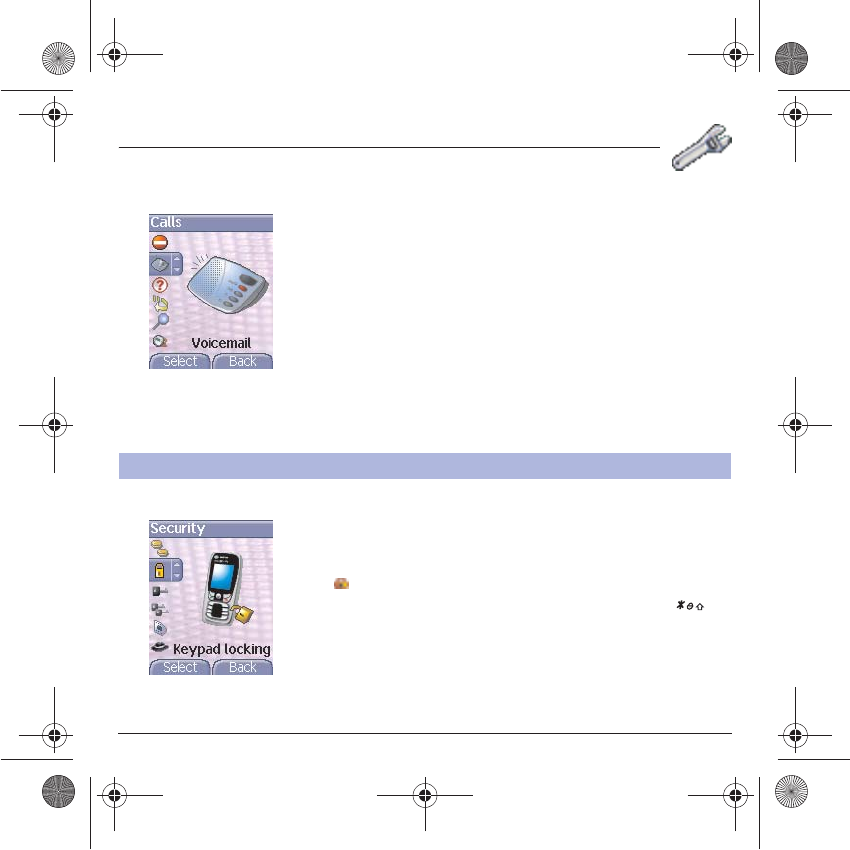

Keypad locking

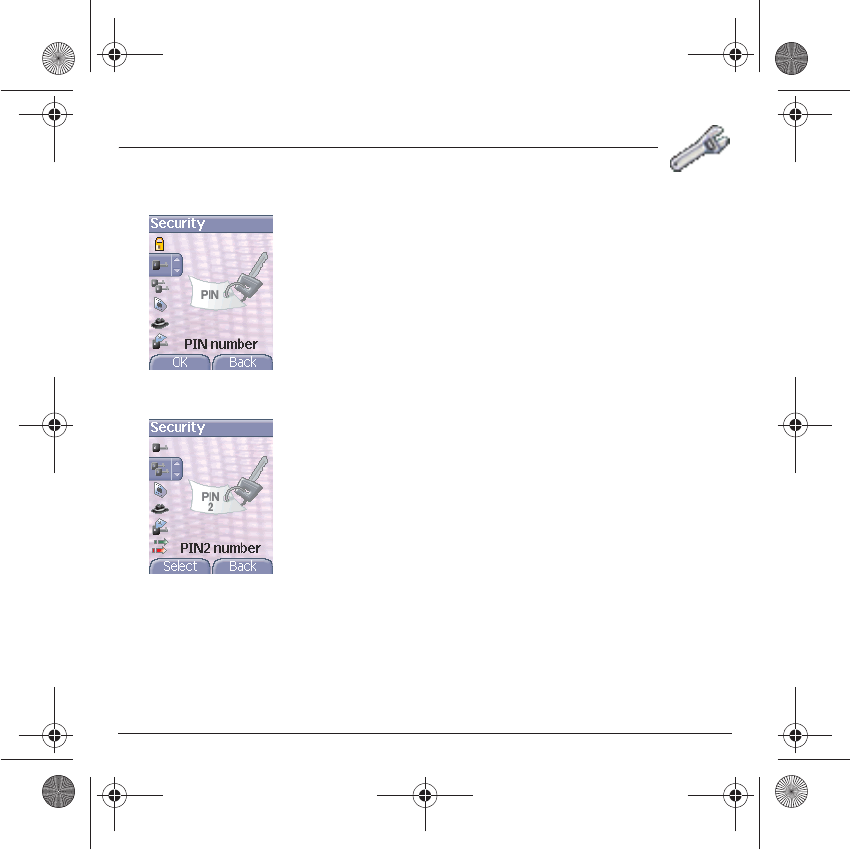

PIN number

PIN2 number

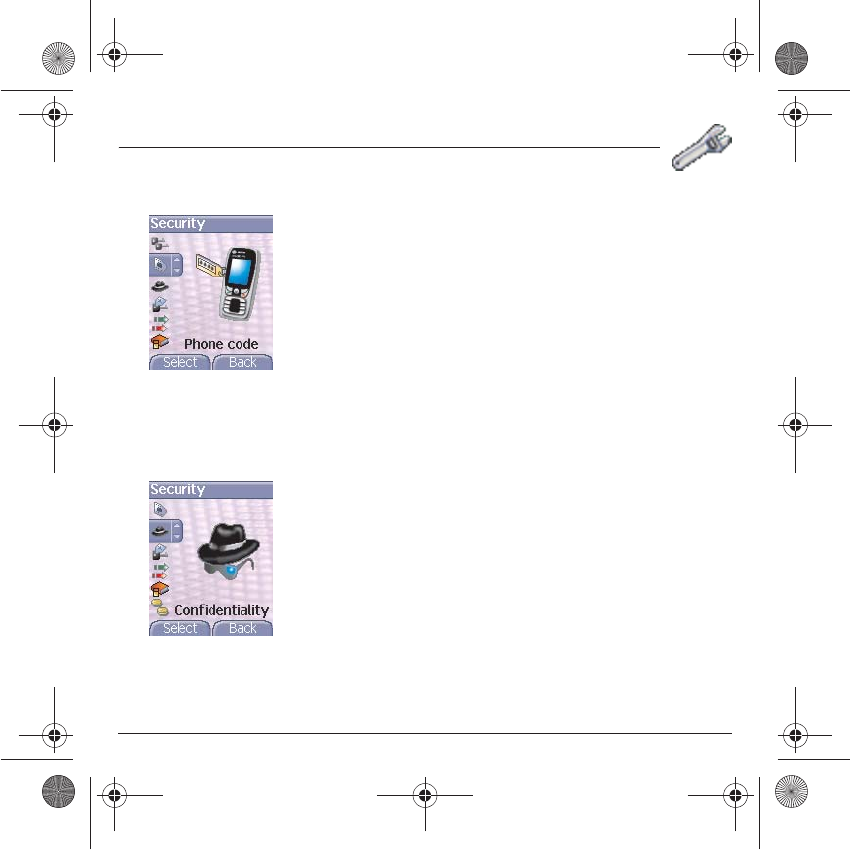

Phone code

Confidentiality

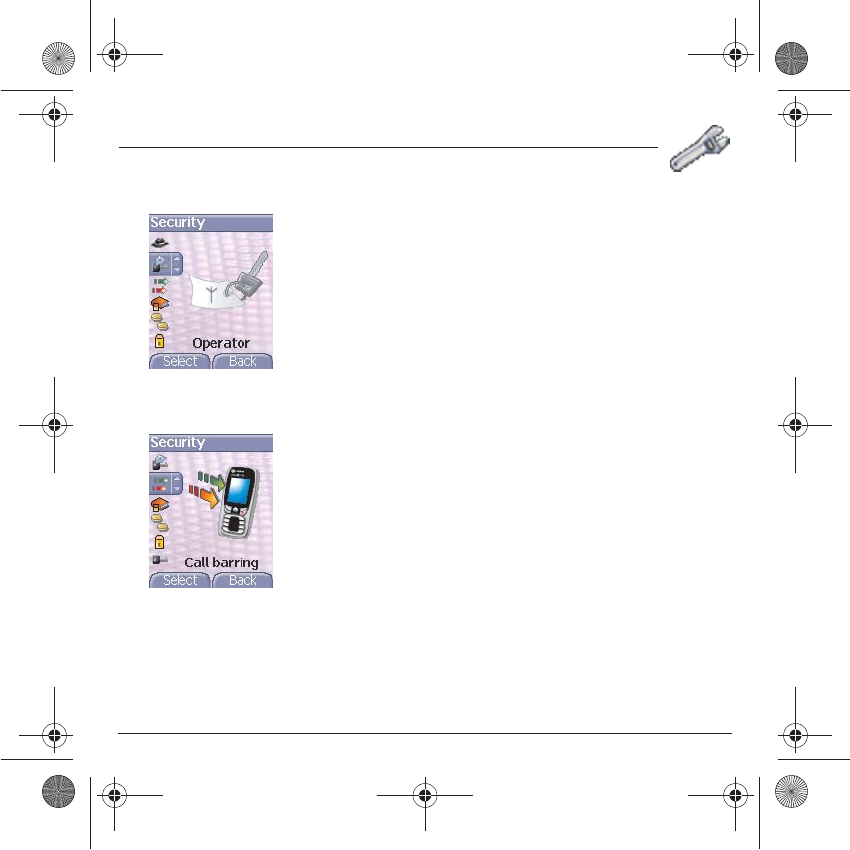

Operator

Call barring

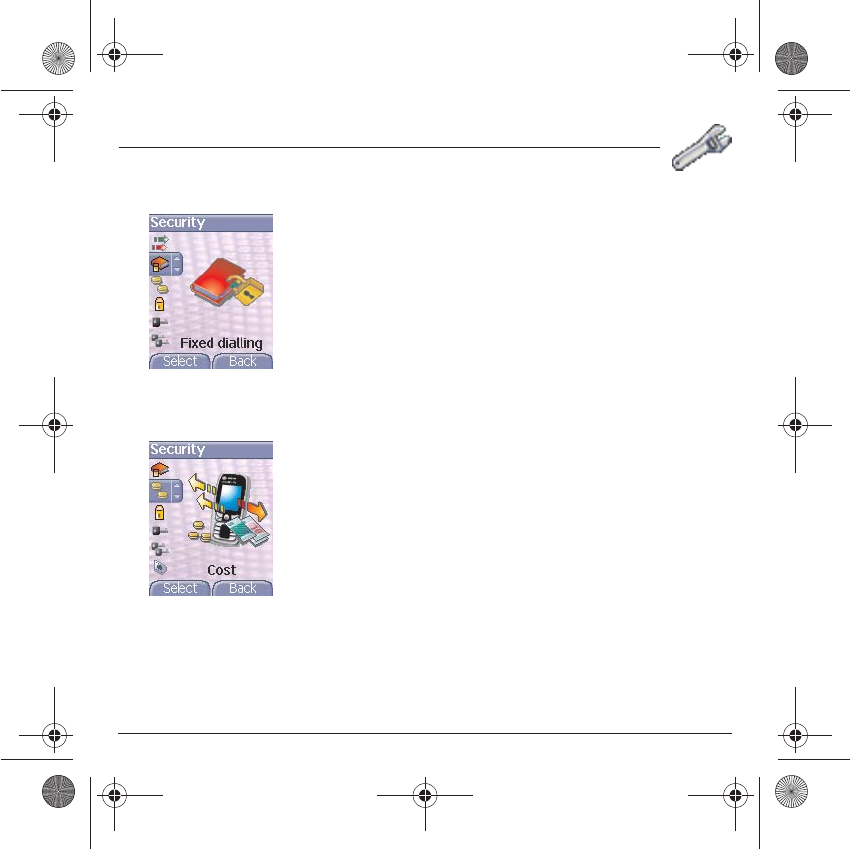

Fixed dialling

Cost

Networks

Date / Time

Set Date/Time

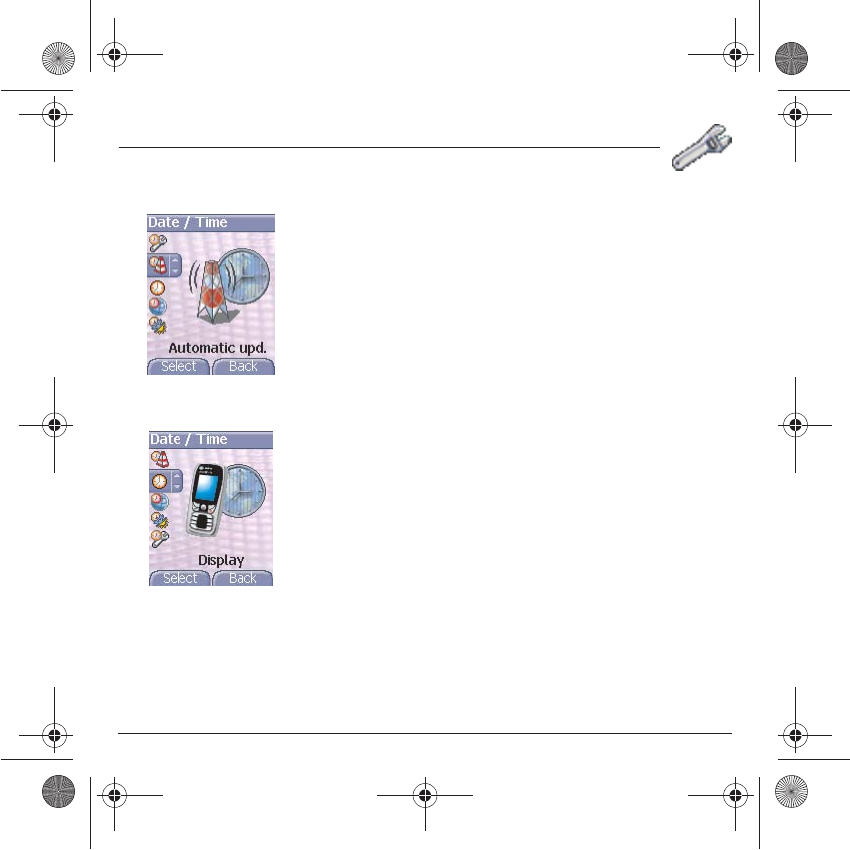

Automatic update

Display

Time zone

Summer time

251773922_myX-4a_lu_en.book Page 11 Jeudi, 4. novembre 2004 10:34 10

Contents

Contrast

Energy saving

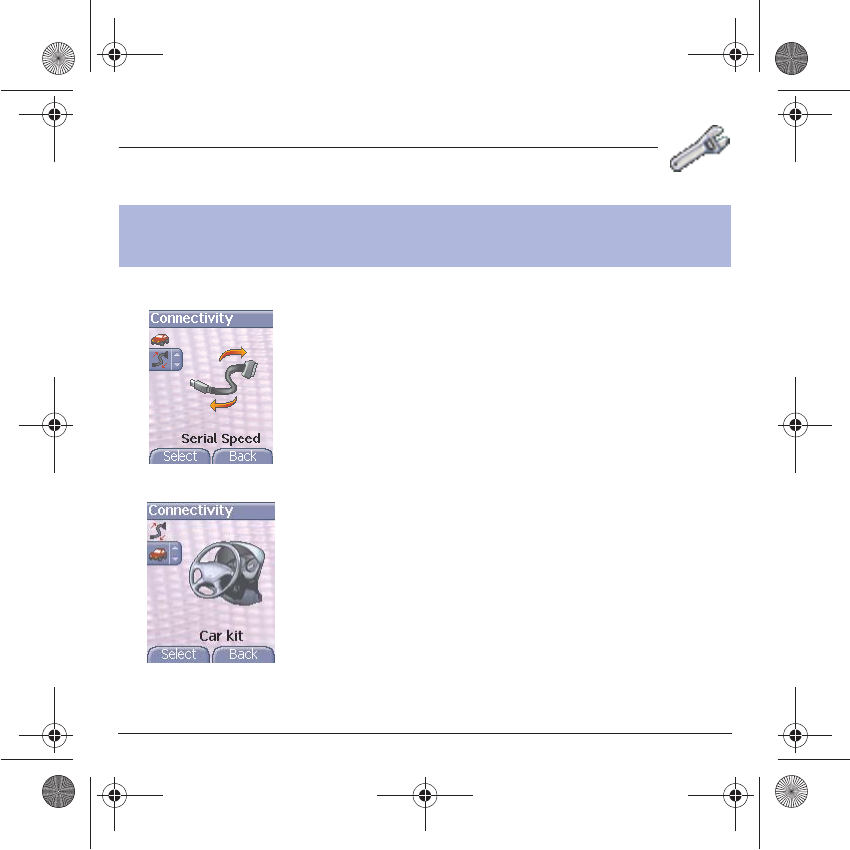

Connectivity

Serial Speed

Car kit

WAP settings

Help

Page 77 Care and safety information

Safety

SAR

Advice for limiting exposure to radiofrequency (RF) fields

Page 79 Warranty

Page 82 End User Licence Agreement (EULA), for the software

Page 86 Java™

Page 90 Troubleshooting

Page 94 Customer Care

Page 95 Index

251773922_myX-4a_lu_en.book Page 12 Jeudi, 4. novembre 2004 10:34 10

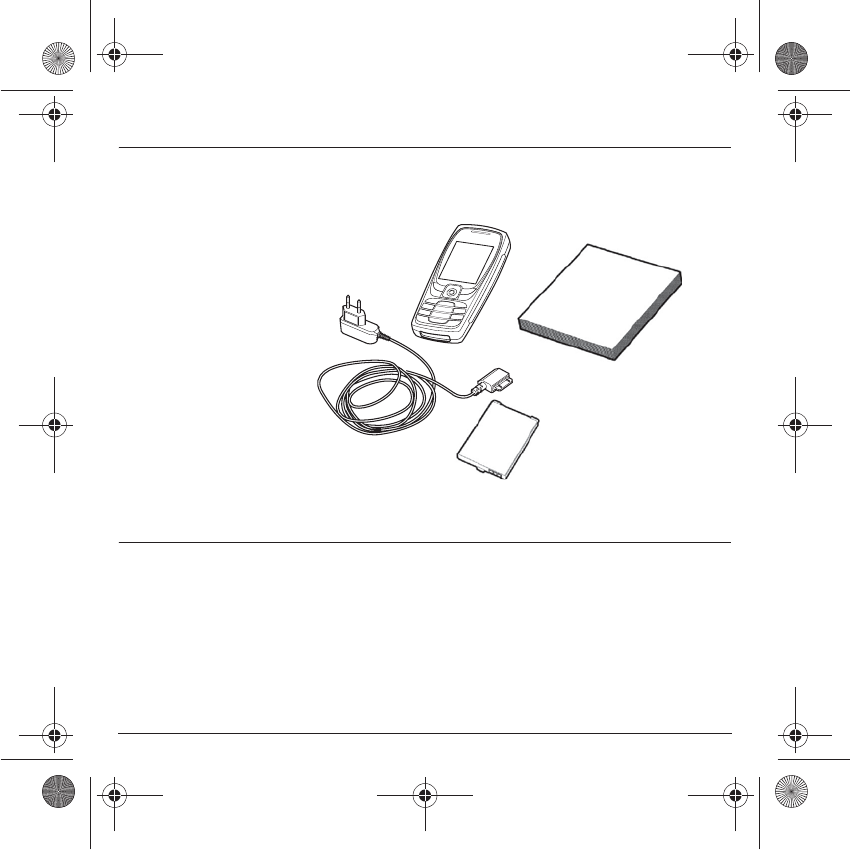

Your phone package

When you open the box, check that all items are present:

1 - Phone

2 - Charger

3 - Battery

4 - User guide

Accessories

You can also find (as an option) or order the following accessories:

Pedestrian kit (*)

Additional battery

Additional charger (*)

USB cable (with associated drivers) and serial cable to connect your phone to a PC

Cigar lighter charger (*)

Colored covers

Wellphone CD

(*) These accessories are identical to the ones provided for the earlier 3000 series and

X-

251773922_myX-4a_lu_en.book Page 13 Jeudi, 4. novembre 2004 10:34 10

Description

Programmable keys

and Short cut keys

Hold down: Switch on/off

In a call context: Reject a call - hang up

In menus: Return to initial screen.

Long press: Activate/Deactivate hands-free mode.

In call context: Call - receiving a call

Right programmable key:

(Function available depending on model)

In initial screen: Access to certain functions (shortcuts)

In menus: Access to the selection shown on screen in the tab (*)

(*) In this manual, when a function is chosen by pressing on this key,

square brackets are used (e.g.: [

Save

]).

Left programmable key:

(Function available depending on model)

In initial screen: Access to certain functions (shortcuts)

In menus: Access to the selection shown on screen in the tab (*)

The four-directional navigation stick allows you to:

- Move the cursor on the screen by pushing the stick toward the

corresponding direction.

- Confirm your selection by pressing the stick.

Note

: when the

icons appear on the screen, the function is

related to the navigation stick.

Press briefly and [

]: activate or deactivate keypad locking

When composing a message:

Short press: switches from one input mode to another (T9, ABC, 123)

Long press: upper case/lower case

Hold down:In initial screen: Silent mode

In call reception mode: Short press stops ring tone

In ring tone setting mode: Activate / deactivate ring tone

Zoom mode (see

Messages

and

WAP

menus)

2 to 9

A long press on the keys

directly displays the phonebook.

NecklaceMicrophone attachment

251773922_myX-4a_lu_en.book Page 14 Jeudi, 4. novembre 2004 10:34 10

Navigation principles

These basic principles bring a great intuitiveness to your phone.

Validate

by pressing the key or the navigation stick.

Cancel

by pressing the key.

The thumbnails at the bottom of the screen refer to the

keys.

In the menus, a title bar reminds you of the previous level.

From the home page, pressing the navigation stick displays the icons of

the main menus.

When pressing the navigation stick followed by a figure, you can display

a menu directly. For instance, pressing the navigation stick then 8

displays the Phonebook.

The key is used to go from a menu to a sub-menu.

The key is used to go from a sub-menu to a menu.

The key (press briefly) is used to go back to the initial screen

(current function is abandoned).

In some menus there is a

Help

menu ( icon) which informs you on

the various functions of the sub-menus.

251773922_myX-4a_lu_en.book Page 15 Jeudi, 4. novembre 2004 10:34 10

Initial screen

The initial screen may contain the following information:

1 - The title bar icons:

Battery

Calls forwarded

Call (establishing the call)

Call (hands free)

Message (reception of a message, message memory full)

FAX communication

DATA communication

Silent mode

Message in answering machine

WAP (@) communication

GPRS

Home zone

Roaming

Only emergency call is possible

Keypad locking

Protected WAP logon

Protected WAP logon icon with certificate

Signal strength level (5 bars).

2 - Date and time, in digital or analog mode

3 - Network provider

4 - Thumbnail centred on bottom line:

The main « Menu » thumbnail shows that the menu can be accessed by

pressing the navigation stick. The following information may also be

displayed: « 1 message received » or « 1 call ».

It can be deleted by pressing key briefly.

Network provider

251773922_myX-4a_lu_en.book Page 16 Jeudi, 4. novembre 2004 10:34 10

Activating your phone

To use your phone, you need a card called SIM card. It contains

personal information that you can modify:

- Secret codes (PIN(s): Personal Identification Numbers), these codes

allow you to protect access to your SIM card and phone

- Phonebook

- Messages

- How special services work.

Your phone is compatible with the SIM 3V cards.

Information on the SIM card

WARNING

This card must be handled and stored with care in order not to be damaged. If you should lose your SIM

card, contact your network provider or your SMC (Services Marketing Company) immediately.

Please keep your SIM card out of reach of young children.

251773922_myX-4a_lu_en.book Page 17 Jeudi, 4. novembre 2004 10:34 10

Activating your phone

The SIM card is inserted under the phone's battery. Ensure that the

phone is switched off and the charger disconnected.

Turn the phone back and push lock button upwards.

Remove the back cover by lifting bottom end first.

Take out battery if already installed.

Slide the SIM card, with cut corner as shown on the phone, into the card

holder with fold face down.

Place the battery by positioning first the top of it, as shown on the

battery.

Replace the back cover, clicking in first the upper part then the lower and

pushing the back catch downwards into the lock position.

Installing the SIM card and the battery

251773922_myX-4a_lu_en.book Page 18 Jeudi, 4. novembre 2004 10:34 10

Activating your phone

Turn the phone back and push lock button upwards.

Remove the back cover by lifting bottom end first.

Lift the front cover in same way as the back cover.

Remove panel (electronic card).

Insert the panel into the front cover.

Do as above to replace the back cover.

Push button back into locked position (downwards).

Insert the necklace into the notch located in the right bottom of the inside

part of the phone.

Changing cover

Necklace attachment

251773922_myX-4a_lu_en.book Page 19 Jeudi, 4. novembre 2004 10:34 10

Activating your phone

Switch on the phone by pressing the key. A short display appears.

When you switch on your phone for the first time, you must configure it

with various settings that will remain by default until you choose to

modify them (depending on model).

After entering your PIN code and the date and time, make your choice

for the following settings: time zone, daylight savings, skin, wallpaper,

screensaver, ring tone, volume, vibrate and voicemail number.

If there are contacts saved in your SIM card, you are invited, if you wish,

to copy them in the phone contacts memory.

If access to the SIM card is protected, the device prompts you to enter

the PIN number:

Enter the code between 4 and 8 digits given to you when the SIM card

was issued. These digits do not appear on the screen for security

reasons.

Press [

] or the navigation stick to validate.

If your phone indicates that the SIM is missing, press the key to

switch off your phone and check that the SIM card is correctly installed.

Getting started

You are now ready to use your phone for the first time.

PIN number

This is your SIM's secret code.

Warning

If a wrong PIN number is entered three times in succession, your SIM card is blocked. You must then:

- Enter « **05* ».

- Enter the PUK (Personal Unblocking Key) code provided by your operator, and validate.

- Enter your PIN number and validate.

- Enter your PIN number again and validate.

After 5 or 10 failed attempts (depending on the type of SIM card), the SIM card is definitely locked. You

must then contact your operator or your SMC to obtain a new card.

251773922_myX-4a_lu_en.book Page 20 Jeudi, 4. novembre 2004 10:34 10

Activating your phone

In due course, when the battery is completely discharged, or if it has

been removed, you will be prompted systematically to confirm date and

time.

Setting the date:

Set the date by entering it directly in numerical form or by using the

navigation stick to increase or decrease the default values.

Use the navigation stick to access the next (or last) data input field.

Once the date is correct, press the key to validate.

Setting the time:

Same procedure as for setting the date.

From now on the phone hunts for a network on which it can make calls.

If it finds one, it displays the name of the network on the screen. You are

then ready to send or receive a call.

Setting time and date

When you use your phone for the first time, you need to set the date and time.

Network

If the network icon appears, calls are possible on your operator's network.

If the letter R and a network name are displayed, calls are possible on the network of a different operator.

If the letter E is displayed without any network name, only the emergency services are accessible

(ambulance, police, fire brigade).

If the network icon flashes, the phone is in permanent search mode. There is no network available. The

signal strength indicator received allows you to display the quality of reception. If it indicates less than

three bars, search for better reception in order to call in good conditions.

Valid date?

Cancel

251773922_myX-4a_lu_en.book Page 21 Jeudi, 4. novembre 2004 10:34 10

Activating your phone

Dial the number of your correspondent.

Press the key.

During the call, the call in progress icon flashes on screen and tones

may indicate the establishment of the call.

Once communication has been established, the call icon stops flashing.

You can adjust the sound level (volume) using the navigation stick.

At the end of the conversation press the key to hang up.

First call

International call

Press 0 (hold down) to display « + », then dial the country code without waiting for the dial tone, then the

number of the called party.

Emergency services

Depending on the operators you can obtain the emergency service with or without SIM card or when the

keypad is locked. It is enough to be in an area served by a network.

To obtain the international emergency service, dial

112

then press the key.

251773922_myX-4a_lu_en.book Page 22 Jeudi, 4. novembre 2004 10:34 10

Activating your phone

When you receive a call, the number of your correspondent is displayed

when it is presented by the network.

Press the key or the key to answer, and speak.

To refuse the call, press the key or the key.

To stop the ring tone or the vibrate, without refusing the call, press the

key.

All the numbers corresponding to incoming and outgoing calls are

logged in the list of recent calls.

When a call is on hand, pressing [

Options

] allows you to have access

to different functions: switching to hands-free mode, holding a call,

switching to mute mode, ending the call, displaying menus.

Pressing [

Mute

] allows you to switch off the sound temporarily when you

do not want that your correspondent listens when you want to speak to

other people.

Press the key (long press).

The end message is displayed. The phone switches off.

Receiving a call

Hands-free mode

During a call, press and hold the key to switch into hands-free

mode.

WARNING:

in this mode do not bring the phone up to your ear.

Switching off

251773922_myX-4a_lu_en.book Page 23 Jeudi, 4. novembre 2004 10:34 10

Using your phone

The antenna is integrated in your phone, under the back cover at the top.

Avoid putting your fingers on this area when the phone is switched ON.

If your fingers obstruct the antenna, the phone may have to operate with

a higher power level than usual; decreasing its efficiency quickly. It could

also affect the quality of your communications.

Non ionising radiation

To obtain maximum satisfaction from your phone, use it in a vertical

position. Your personal safety can only be improved by doing so.

- Don't press the keys when not necessary: each keypress activates

the backlight, and uses much power.

- Don't obstruct the antenna with your fingers.

Freeing the antenna

Increase the efficiency of your phone

251773922_myX-4a_lu_en.book Page 24 Jeudi, 4. novembre 2004 10:34 10

Using your phone

Your phone is powered by a rechargeable battery. A new battery must

be charged for 4 hours at least before being used for the first time. It

reaches its optimum capacity after a few cycles of use.

When your battery has been discharged, the phone displays the state

(empty battery icon flashes). In this case recharge your battery for at

least 15 minutes before making any calls in order not to be cut off in the

middle of a call.

To recharge the battery:

Connect the charger to a socket.

Plug the end of the cable into the bottom connector of the phone.

The phone is then charging up. The battery icon is scrolling up and down

to indicate that it is charging. When the battery is fully charged, the

charging stops on its own. Disconnect the cable.

When charging, the battery may warm up, this phenomenon is normal.

Charging the battery

WARNING

There is danger of explosion if the battery is placed in an incorrectly way or if it is exposed to fire.

Do not short circuit it.

The battery does not have any part that you can change.

Do not try to open the battery casing.

Use only the appropriate chargers and batteries as shown in the phone manufacturer's catalogue.

The use of other types of chargers or batteries may be dangerous or invalidate the warranty.

Used batteries must be disposed of in the appropriate places.

We advise you to take the battery out if you plan not to use the phone for extended periods.

You are strongly advised not to connect your phone to the charger if it doesn’t contain a battery.

The charger is a safety step-down transformer, it is forbidden to modify, alter or replace it by another

component (power supply plug, etc).

251773922_myX-4a_lu_en.book Page 25 Jeudi, 4. novembre 2004 10:34 10

Phonebook

The phonebook allows you to store numbers that you call regularly. These numbers can be stored in the SIM

card or in the phone.

To store a contact in the phone memory, the following fields can be filled:

last name, first name, numbers, email, URL, address, company, comments, ringtone, photo.

The fields coloured with red are mandatory.

To store a contact in the SIM card, only the last name and number fields must be filled.

In the initial screen, press the navigation stick and

to display the

Phonebook

menu.

The list of your correspondents appears. By default, the cursor is

positioned on the first name in alphabetical order.

If you are using your phone and SIM card for the first time, the

phonebook list will be empty, only the

Contacts menu

function will be

available.

Different icons inform you of the position in the phonebook where the

contact is stored:

contact stored in the SIM card

contact stored in the phone

if the Fixed Dialling option is activated, only those contacts may

be called. See

PIN2 number

and

Fixed dialling

Security

Menu for more details about this activation.

Using the phonebook

251773922_myX-4a_lu_en.book Page 26 Jeudi, 4. novembre 2004 10:34 10

Phonebook

In the

Contacts menu

, first select the location where you want to store

a new contact (

Go to phone list

Go to SIM list

Adding a contact in the SIM card memory

- Select the

Contacts menu

and press the navigation stick.

- Select

Add SIM contact

and press the navigation stick.

- Select

SIM card

Fixed directory

and press the navigation stick.

- Enter the last name and press the navigation stick.

- Enter the number and press the navigation stick.

- Press [

Save

] to store it.

Adding a contact in the phone memory

- Select the

Contacts menu

and press the navigation stick.

- Select

Add phone contact

and press the navigation stick.

- Enter the last name and press the navigation stick.

- Enter the number and press the navigation stick.

- Fill in other fields if you want.

- Press [

Save

] to store it.

Storing a new contact

251773922_myX-4a_lu_en.book Page 27 Jeudi, 4. novembre 2004 10:34 10

Phonebook

Mailing lists

A mailing list allows you to send a same message to several recipients

at the same time.

- Select the

Contacts menu

and press the navigation stick.

- Select

Mailing Lists

and press the navigation stick. The phone asks

you to confirm the creation of a new list.

- Select the list type (SMS or MMS) and press the navigation stick.

- Enter a name and press the navigation stick.

- Then, on a list press [

Options

]. Select

Add contact

each time you

want to add a contact in the list.

Memory

Select

Memory

and validate. Select SIM or Phone and validate.

Phone: the screen displays the amount of memory used. The memory

capacity is shared between the phonebook and various other features.

If you lack memory, check if you can free some space from another

feature.

SIM: available memory only for contacts.

My numbers

You can create the entries corresponding to your own numbers in order

to consult them when necessary.

Select

My numbers

and validate. Enter the different details and

validate.

Contacts menu

251773922_myX-4a_lu_en.book Page 28 Jeudi, 4. novembre 2004 10:34 10

Phonebook

Displaying a contact

Select a contact from the list using navigation stick. The name and the

number are displayed.

Note

: By directly pressing one character, the phone will display the first

contact saved in the phonebook, starting with it.

To display the different options, select a contact from the list using the

navigation stick and press [

Options

Modify contact

Modify what you want and validate then select

Save

once the

modifications completed.

Copy to SIM / Copy to phone

This allows you to copy your phonebook entries from one memory to the

other. Only the name and the first phone number will be copied.

Delete

Validate deletion of entry.

Send message

To send a SMS or a MMS to a contact (see chapter

Messages

Send by

To send a contact details by SMS or MMS (see chapter

Messages

My numbers

(See page 28).

Memory

(See page 28).

Mailing lists

(See page 28).

Options from a saved contact

251773922_myX-4a_lu_en.book Page 29 Jeudi, 4. novembre 2004 10:34 10

Phonebook

Calling a contact

Several ways:

- Select a contact. Press the key to start the call.

- Select a contact, press the navigation stick, his number is displayed,

press [

Call

] to start the call.

- Direct call from the initial screen: type the number with which the

contact was saved then (example : 21 ) or the number

then , the number is displayed, confirm.

vCards can be sent to another phone supporting vCard.

On a contact in the phonebook, please select the

Send by

option menu

item (SMS, MMS).

If the vCard is sent successfully, an information message is displayed.

vCards can be sent as an attachment to an SMS or MMS message. See

Compose MMS

on page 34.

When a vCard is received enclosed to an SMS or MMS message, the

message « You have received 1 message » is displayed.

Open the MMS from the inbox. Press [

Options

] and select

Extract

;

select the vCard among the list of objects attached to this MMS, and add

this contact to the phonebook by pressing the navigation stick. A

message is displayed to confirm the action.

Sending a vCard

It is possible to send a vCard from each contact stored in the phonebook

(phone memory only).

Receiving a vCard

251773922_myX-4a_lu_en.book Page 30 Jeudi, 4. novembre 2004 10:34 10

Messages

From this menu, you are able to send SMS and MMS. MMS is a Multimedia Message Service, which allows

you to enclose audio files, images and others rich contents to your messages; these messages can even be

composed of several slides. MMS are differently invoiced than SMS are. Please contact your network provider

to get more information on their cost.

This menu has been compiled in collaboration with magic4™.

On the

Messages

menu, please select the

Compose

menu and

validate. Choose the

SMS

option.

The language used is the one selected on the display of the phone (if

the language selected is not compatible with the Easy Message T9™,

the English language will be automatically selected).

When typing a text, a counter showing the number of characters

deducted is displayed at the top of the screen (depending on model).

This counter is not displayed if an icon or sound is inserted into the SMS.

When the text has been entered, [

Options

] is used to access the

functions offered:

Save

is used to save a draft in memory

Send

is used to send the message by entering the correspondent's

number or selecting it in the phonebook

T9 mode

(see page 32)

ABC mode

(see page 33)

123 mode

(see page 33)

Cancel

is used to delete all text entered and quit

Activate/deactivate zoom

is used to modify size of characters

Activate/deactivate silent

is used to activate or not the keypad beep

when typing the text

Formatting

is used to enrich a text

Insert

to insert an image or sound into your message (see page 34).

Compose SMS

251773922_myX-4a_lu_en.book Page 31 Jeudi, 4. novembre 2004 10:34 10

Messages

The Easy Message T9™ mode helps you to easily write your short messages.

Using T9 Mode

Press once the key corresponding to the letter chosen and compose the

word by continuing to press the keys corresponding to the various letters

without paying attention to the display: the word is highlighted.

If you agree on the word proposed on the screen, press the

key to

validate it (the

key inserts a space), and go on writing the next word.

However, the same sequence of keys pressed can correspond to

several words, existing on the dictionary. If the word that appears is not

the word you expected, press the navigation stick to scroll through the

words corresponding to this key sequence.

Once you agree on the word proposed on the screen, press the

key to

validate it (the

key inserts a space), and go on writing the next word.

If the word you are expected is not proposed, please add characters until

you get the message

Add a word

? Press

Yes

and validate if the word

displayed suits you or modify this word before adding it in the dictionary.

251773922_myX-4a_lu_en.book Page 32 Jeudi, 4. novembre 2004 10:34 10

Messages

Input modes

In the input screen, the key is used to access other input modes.

The mode in which you type the text is displayed at the right top of the

screen. A short press of the key switches from one mode to

another.

The

ABC mode

is used to write words that do not exist in the dictionary.

To get a particular character, please press the corresponding key

several times: the characters will scroll down on your screen.

Mode 123

is used to add numbers.

Insert mode

is used to add symbols, animations, call group icons and

tunes. Images and sounds can be of two types: pre-defined or

customized. Pre-defined images and sounds are smaller, especially

suited to exchanging messages.

Upper case

A long press of the key will display the next letter in upper case

( icon).

Punctuation characters

Punctuation characters are obtained thanks to key

(except in

123

mode), or with the help of

Insert

mode (fast access by briefly

pressing the key).

Accented characters

Accented characters are generated automatically in T9 mode.

In ABC mode accented characters are available by pressing the key

supporting the non-accented character in succession.

When composing a message:

key:

Deletes last letter

key:

Message options

key (long press):

Zoom mode (changes size of

characters)

key (short press):

Access to symbol table

key (long press):

Upper case

251773922_myX-4a_lu_en.book Page 33 Jeudi, 4. novembre 2004 10:34 10

Messages

On the

Messages

menu, please choose the

Compose

menu and

validate. Select the

MMS

option.

When the text has been entered, [

Options

] is used to access the

functions offered:

Insert

to insert multimedia objects such as images, animations, sounds

and videos into your message.

T9 mode

(see page 32)

ABC mode

(see page 33)

123 mode

(see page 33)

Slide

to compose a slideshow of the multimedia objects.

Preview

to see a presentation of the multimedia objects.

Cancel

is used to delete all text entered and quit

Saving the message

Select

Save

. It is saved in the

Drafts

menu.

Sending the message

- Once the text entered, press the navigation stick or press [

Options

]

and select

Send

- Enter the receiver’s number (or take it in your phonebook pressing

[

Contacts

]) and press the navigation stick.

You can enter an e-mail address.

Note:

It is possible that the voice message format (.amr) is not

supported by some PC. See your PC provider.

Warning: some message sendings may fail if the message content is too

big.

Compose MMS

251773922_myX-4a_lu_en.book Page 34 Jeudi, 4. novembre 2004 10:34 10

Messages

In the recipient screen, before typing the recipient’s number, the

following options are available:

Editor

: this option allows you to modify the text before sending the

message.

Contacts

: to access the phonebook.

ABC/123

: to type either letters or figures.

Add mailing list

: this option allows you to select a mailing list to which

the message is sent (see chapter

Phonebook

Once the number typed, other options are available.

When you receive a message, the phone plays the ring tone that you

selected, and the message icon comes on the screen of your phone.

If you do not read the messages, this icon remains displayed on the

screen. When it flashes, the memory is full.

Receiving icons, backgrounds or tunes can take several seconds. An

icon is blinking when the download of your message is in progress.

Note that you have two different possibilities for receiving MMS:

automatically or manually; if « manual mode » is activated, then you will

receive only a notification in your Inbox, meaning that a MMS is available

on the MMS Server; select Retrieve in the options when you want to

retrieve the MMS from the server.

For more details about automatic and retrieval modes, see « Sending

options » on page 38.

Please contact your network provider to get more information on icons,

backgrounds or tunes downloading.

Receiving messages

251773922_myX-4a_lu_en.book Page 35 Jeudi, 4. novembre 2004 10:34 10

Messages

Received messages are stored in the SIM card or in the phone until you choose to delete them.

On the

Messages

menu, please choose the

Inbox

menu and [

Select

Each message shows the presence of any attachments, the time and

date the message was received and its size.

Messages are listed in chronological order, the latest one being

displayed first.

The quantity of Not Read and Not Retrieved messages is shown. Not

Retrieved and Not Read messages are shown in bold.

Select a message and press the navigation stick. Choose one of the

options given.

Enclosures (pictures or sounds), which you receive, can be extracted in

order to be used later on (stored…).

You can consult them in the corresponding menus (WAP bookmarks in

WAP

, ring tones in

Sounds

, wallpapers in

Display

This menu displays the messages that have not been sent. You can

therefore send them again.

Inbox

Outbox

251773922_myX-4a_lu_en.book Page 36 Jeudi, 4. novembre 2004 10:34 10

Messages

The

Sentbox

menu is used to store all your sent messages if you

activated the option

Store sent messages

in the

Options

menu (see

page 38).

Too many messages saved will quickly fill up the available memory and

no further messages will be received.

For each message, its characteristics (shown with an icon) and the time

(or date) of sending are displayed on the screen.

Select a message and press the navigation stick.

Choose one of the options given: Read, Modify, Forward, Delete, Delete

all.

On the

Messages

menu, please choose the

Drafts

menu and press the

navigation stick.

Select a message and press [

Options

]. The options are: Delete, Read,

Modify, Details.

If you select a message and press the navigation stick, you can modify it.

If you want to send it, select

Modify

then press [

Options

] and select

Send

Sentbox

Drafts

When you store a composed message, it is stored among the drafts.

251773922_myX-4a_lu_en.book Page 37 Jeudi, 4. novembre 2004 10:34 10

Messages

On the

Messages

menu, please choose

Options

and [

Select

Choose one of the options given: SMS or MMS.

The SMS sending options are: message centre number, store sent

message, acknowledgment, reply given, period of validity (during that

period, the network provider will try to send the message), message

format.

The MMS options are:

Store sent messages

: (it is highly recommended that you keep this

function deactivated, in order to avoid a full memory),

Retrieval mode

: if you are in a poor coverage area, it may be more

convenient to choose the manual retrieval mode which gives you the

retrieve later option.

Priority

: selection of a priority to send a message.

Request delivery report

: request of a delivery report when sending

a message.

Period af validity

Advanced settings

Send delivery report

: sending a delivery report when receiving a

message.

MMS ignore

: if you want to deactivate the reception of any MMS in your

phone.

MMS server

: to select another MMS provider, or set the parameters of

a new MMS provider.

Sender visibility

: you choose to display or not your phone number on

the receiver’s phone screen, with that message.

Sending options

Several sending options are offered.

251773922_myX-4a_lu_en.book Page 38 Jeudi, 4. novembre 2004 10:34 10

Messages

On the

Messages

menu, please select the

Memory

option and [

Select

Choose one of the options given: SMS or MMS.

The SMS screen displays the memory available either on the SIM card

or on the phone.

The MMS screen displays how much memory is used in Kbytes.

You can choose whether you want to receive this information or not

(please contact your network provider).

On the

Messages

menu, please select the

Local info.

menu and

[

Select

Memory

You may know the memory available for saving messages.

Local information

This menu is used to activate reception of local information broadcast by the

network.

251773922_myX-4a_lu_en.book Page 39 Jeudi, 4. novembre 2004 10:34 10

Messages

On the

Messages

menu, please select the

Call Voice Mail

option and

[

Select

Note:

if your voicemail number has not been entered yet, you must enter

it in the menu

Settings/Calls/Voicemail

This number depends on the operator.

This menu displays the mailing lists created in the phonebook.

To display the different options, press [

Options

Properties

: allows you to see the type of mailing list and the number

of contacts.

Delete

: allows you to delete the mailing list.

Send message

: allows you to compose and send a message to the

contacts of the mailing list.

Add mailing list

: allows you to create a new mailing list.

Modify name

: allows you to modify the mailing list name.

Add contact

: allows you to add a contact to the mailing list.

Calling voicemail

This function allows you to call your voicemail.

Mailing list

251773922_myX-4a_lu_en.book Page 40 Jeudi, 4. novembre 2004 10:34 10

Multimedia

All downloaded objects are stored in the

Multimedia

menu.

From the

Multimedia

menu, please select the

My Videos

menu and

[

Select

The names of the videos stored in memory are displayed on the screen.

Please use the navigation stick to select one of them.

Once you have selected a video, press [

Play

The video is now displayed. After a few seconds an [

Options

] menu

button appears at the bottom of the screen . Press the [

Options

] button.

Select one of the options in the list.

Send by MMS

: to send the video by MMS (see

Messages

chapter).

Thanks to My Pictures And Sounds (MPAS) software available from

www.planetsagem.com, you can import videos (.3gp format) or export

videos (MPAS converts .3gp format into mpeg4 format readable on

PC).

Delete

: to delete the video.

Rename

: to modify the name of the video.

Play

: to display the video again.

Properties

: properties of the video selected.

Video Menu

: allows you to delete all the videos.

PlanetSagem

: to have access to the web site to download videos.

My videos

This menu gives you access to the videos you have downloaded.

251773922_myX-4a_lu_en.book Page 41 Jeudi, 4. novembre 2004 10:34 10

Multimedia

On the

Multimedia

menu, please select the

My Pictures

menu and

[

Select

PlanetSagem

: to have access to the web site to download pictures.

Pictures menu

: allows you to delete all the pictures.

On a picture selected, you can press [

Options

] to have access to these

various options

Use as

: allows you to use the picture as a wallpaper or screen saver.

Delete

: allows you to delete a picture.

Rename

: allows you to rename a picture.

Send by

: makes it possible to transmit a picture (NB: you may not

send any copyrighted picture).

Properties

: properties of the picture selected.

You can import or export pictures to or from a computer using My

Pictures And Sounds (MPAS), available from www.planetsagem.com.

My Pictures

This menu gives you access to the pictures you have downloaded.

251773922_myX-4a_lu_en.book Page 42 Jeudi, 4. novembre 2004 10:34 10

Multimedia

On the

Multimedia

menu, please select the

My Sounds

menu and

[

Select

PlanetSagem

: to have access to the web site to download sounds.

Audio menu

: allows you to delete all the sounds or to record a new

sound.

You can import or export sounds to or from a computer using My

Pictures And Sounds (MPAS), available from www.planetsagem.com.

On the

Multimedia

menu, please select the

Memory

menu and

[

Select

Use the navigation stick to select the different features using memory.

You can see the memory capacity used by each individual feature.

My Sounds

This menu gives you access to the sounds you have downloaded or

recorded.

Memory

This menu indicates the memory size used by the different features of

your phone.

251773922_myX-4a_lu_en.book Page 43 Jeudi, 4. novembre 2004 10:34 10

WAP

WAP (Wireless Application Protocol): a protocol that translates the Internet language into WML and HTML

languages that can be read by a phone. The WAP function allows you to log onto certain Internet sites. You

can log onto sites that allow you to download ringtones, icons, animated screensavers, Java™ applications,

videos to your phone.

The

Services

menu, a dropdown menu, can be accessed at all times

when navigating through WAP pages pressing the key.

It contains the following sub menus:

Welcome

: logs onto the home page, (carries the name of your access

provider)

Bookmarks

: is used to save in a phonebook the names and addresses

of Internet sites in order to make the access easy.

You can receive bookmarks from messages and add them to this list

(see chapter on SMS).

You can also send messages by SMS: select a bookmark, press

[

Options

], then select

Send by message

Go to URL

: this menu allows you to input an Internet address directly.

Inbox

: this menu allows you to check the messages sent by the Internet

site.

Save items

: is used to save a WAP site items.

Snapshots

: takes a snapshot of the currently displayed page.

History

: backward and forward navigation of the pages displayed are

kept in memory.

Reload

: refreshes the current page.

Reset cache

: clears the stored information on previous connections.

The WAP Menu

The WAP navigator is unde

licence:

The WAP navigator and the

softwares included are the

exclusive property of Openwave.

For this reason, it is forbidden to

modify, translate, disassemble o

even decompile all or part o

these softwares.

You can activate the

magnifying glass to increase

the size of the characters by

holding down the key.

251773922_myX-4a_lu_en.book Page 44 Jeudi, 4. novembre 2004 10:34 10

WAP

Advanced…

: choose one of the following advanced settings

- Settings

-Show URL

- Disconnect

- Circuit prompt (if user wants to confirm each logon)

- Security (is used to access information on making WAP connections

secure).

- Delete Cookies

- View Title Region

About…

: information on the browser.

Exit

: returns to the phone's home page.

Select the

Advanced…

menu, then the

Settings

menu.

Profiles

is used to select or modify your access provider's logon

parameters or configure the parameters of other access providers.

The active profile is preceded with a star.

The

is used to add a new profile or to display the memory size

available.

Configuration of GSM and GPRS parameters:

All information to be entered in the parameters are provided by your

operator or access provider.

On a profile in the list, press [

Options

], select

Modify

. The different

parameters are: Provider title, Home page, Preferred connections (see

next page), GSM parameters and GPRS parameters (see next page).

Configuring WAP parameters

251773922_myX-4a_lu_en.book Page 45 Jeudi, 4. novembre 2004 10:34 10

WAP

Preferred connections:

GSM if not GPRS (by default): the logon to WAP services uses the

GPRS as a priority. However, in the event of unavailability of the GPRS

network, the GSM network is used to establish the link.

GPRS: the logon to WAP services uses the GPRS network exclusively.

GSM: the logon to WAP services uses the GSM network exclusively.

GSM parameters

- Login

- Password

- IP address of WAP gateway

- Port type (secure or insecure)

- Dial-up number

- Mode (digital, analog or automatic)

GPRS parameters

- Login

- Password

- IP address of WAP gateway

- Port type (secure or insecure)

- APN: if no APN has been defined, press [

Options

] then the APN

menu. Select or add an APN.

Once all the settings have been entered, you can activate the chosen

access provider. Select him from the list. Validate your choice.

Linger timer

is used to choose the time after which the call is

automatically disconnected if you have forgotten to log off from a

service.

251773922_myX-4a_lu_en.book Page 46 Jeudi, 4. novembre 2004 10:34 10

WAP

Using the

Welcome

menu, you can log onto your access provider's

WAP site by pressing the key.

If you are logging onto the GSM or GPRS network, the @ symbol

flashes, the metering of the cost of the call starts as soon as it stops

flashing.

Some WAP sites allow you to download ringtones, icons, animated

screensavers, games or JAVA

applications. Once downloaded, they

are stored in your phone's memory. You can then save them in your

phone (same operation as used for downloading using messages).

To log off, press the key. The logoff happens automatically after

a few seconds of inactivity if you forget to log off. This period is defined

by the linger time setting.

A flashing icon indicates that the phone is logging onto a GPRS network.

A non-flashing icon indicates that the GPRS network is available; if the

icon is dark, it indicates that the phone is logged onto the GPRS

network: see page 45 for the attachment options.

This icon is not displayed if the GPRS network is not available or if the

SIM card inserted in your phone does not include the GPRS service. It

may also disappear when accessing WAP services if the connection

uses the GSM network instead of the GPRS network.

WAP Logging on

Downloading objects

WAP Logging off

GPRS

The connection to a WAP service

on the GPRS network is not cut i

an incoming call is received. You

can answer the call.

251773922_myX-4a_lu_en.book Page 47 Jeudi, 4. novembre 2004 10:34 10

Games

The games being designed by Java™, many compatible games can be downloaded in your phone.

The

More games

function allows you to download games connecting on

a remote server.

Depending on the operator, the connection URL may not be present. To

add a new URL, go to

Settings/Connection/Menu/Add

Delete all menu:

deletes all the games you have downloaded.

What is Java™?

Java™ is a new technology enabling use of powerful applications in the

mobile phone area. Business applications and games are easily

downloadable by the end-user on a Java™ featured handset.

Your mobile phone is a MIDP 2.0 compliant Java™ platform which

implements WMA (SMS support) and MMAPI (Multimedia support)

options, providing an exciting environment to run highly graphical,

networked and intuitive MIDP applications.

Such applications may be, for example, a wide range of games and

appealing applications like action and logic games, agenda, e-Mail

reader, Web browser…

For more information on Java™, see chapter

Java™

251773922_myX-4a_lu_en.book Page 48 Jeudi, 4. novembre 2004 10:34 10

Applications

The Java™ function allows you to download applications and utilities in your phone.

Downloading is done through the WAP function.

Please go to the

Applications

menu to use the applications already installed or install others.

This item may not be present on your phone’s menu, as it depends on

your SIM.

ToDo menu

This menu allows you to add ToDo’s, access category-based Todo

management and delete all the ToDo’s.

On the

Applications

menu, please select

ToDo

then the

ToDo

and press [

Options

Select one of the actions in the list with the navigation stick and validate.

Add written/vocal ToDo

: allows you to add ToDo of the text or voice

type. Fill in the different items. Save the ToDo.

Memory

: allows you to view the memory used by the different

functions of your ToDo.

Categories

: allows you to see the different event categories, assign

a specific ring tone to each individual category, know the number of

events in each category and see them.

Add written event/Add vocal event

: allows you to add events of the

text or voice type. Fill in the different items. Save the event.

Clean-up

: allows you to schedule the deletion of events that took

place more than one day, week or month ago.

Memory

: allows you to view the memory capacity used by the

different functions of your diary.

Delete all

: allows you to delete all the events from your diary.

The other menus are:

See date

: allows you to access events at a specific date.

See today

: allows you to access the events for the current day and

the actions possible on any event (see, modify, delete and send).

See week

: allows you to access events on a week-by-week basis.

See month

: allows you to access events on a month-by-month basis.

Calendar menu

This menu lets you add events, manage events by category, see the available

memory and delete all the events.

251773922_myX-4a_lu_en.book Page 55 Jeudi, 4. novembre 2004 10:34 10

Organizer

You can send vCals to another phone using MMS.

On the See today list, please select an event and in theTodo event

actions menu list, select Send by MMS.

For MMS deliveries, you should select your contact information (phone

number or Email address) before confirming.

If you receive a call while you are sending a vCal, the call will have

precedence.

By MMS, you receive a message you have to open to extract the vCal.

You cannot add the event to your diary until you have saved it.

You can assign a different beep to each diary event.

You can also assign a different ring tone to each diary event category.

Sending a vCal

An event of your diary can be sent through a vCalendar. Yet, this function is

available only on certain models of phone.

Receiving a vCal

251773922_myX-4a_lu_en.book Page 56 Jeudi, 4. novembre 2004 10:34 10

Personal Touch

Volume and ring tone

This menu allows you to allocate a ring tone to different functions.

On the

Sounds

menu, please select the

Ring tones

menu and [

Select

Select the function on which you want to choose a ring tone.

Select the ring tone from the proposed list and validate.

Note

: in the list, there are the phone default ring tones and also the ring

tones downloaded in

Multimedia/My Sounds

Adjust the volume using the navigation stick and validate.

You can deactivate the sound by pressing the key.

Vibrate

This menu allows you to activate the vibrate mode for calls.

On the

Sounds

menu, please select the

Vibrate

menu and [

Select

Select the vibrate mode from the proposed choices and validate.

Sounds

251773922_myX-4a_lu_en.book Page 57 Jeudi, 4. novembre 2004 10:34 10

Personal Touch

Silent mode

This menu allows you to switch to Silent mode.

On the

Sounds

menu, please select

Silent mode

and [

Select

Activate

deactivate

Silent mode and validate.

Silent mode can also be accessed via the initial screen by holding down

the key.

When the phone is in silent mode, the relevant icon appears on the

initial screen.

In this mode, the ring tone will not function, except for the alarm clock.

Note

: if you have activated the silent mode, it does not remain after

switching off your phone.

Beeps

This menu allows you to activate a beep for the battery, the keypad or

the network.

On the

Sounds

menu, please select the

Beeps

menu and [

Select

Select the type of beep you want to allocate from the proposed choices

and validate. Activate or deactivate the beep and validate.

If you select keypad beeps, different options are given.

251773922_myX-4a_lu_en.book Page 58 Jeudi, 4. novembre 2004 10:34 10

Personal Touch

Recorder

These menu allows you to record you own melody.

On the

Sounds

menu, please select the

Recorder

menu and [

Select

Pressing [

Start

] record your melody or your voice by means of the

microphone then save it.

Give it a name and validate. The new tone is saved in the list of ringtones

and in

Multimedia/My Sounds

If you select the recorder by means of a programmable key, the sound

is saved in the

Applications/ToDo

menu.

Skins

This menu allows you to choose the skin of your phone, i.e. define its

look (text font, colors, default animation, background image…).

On the

Display

menu, please select

Skins

Select the desired skin and validate.

Skins are not downloadable but you can download screensavers and

boot mode animations without changing those included by default with

the skin.

Display

This menu allows you to customize your screen by choosing a different

presentation.

251773922_myX-4a_lu_en.book Page 59 Jeudi, 4. novembre 2004 10:34 10

Personal Touch

Wallpaper

This menu allows you to display the background picture you want on

your phone.

On the

Display

menu, please select the

Wallpaper

menu and [

Select

Select the wallpaper and [

Visualise

]. The picture appears in the

background of the screen.

Note

: there are the phone default wallpapers and also the pictures

downloaded in

Multimedia/My Pictures

Press [

] to validate this choice, or [

Back

] to go back to choice.

Note

: the

Diaporama

option allows you to display a wallpaper scrolling

different pictures in a random way.

Screensaver

This menu allows you to display an animation when the phone is in

standby mode.

On the

Display

menu, please select the

Screensaver

menu and

[

Select

Select one of the screensavers given and [

Visualise

Note

: there are the phone default screensavers and also the pictures

downloaded in

Multimedia/My Pictures

The chosen screensaver appears on the screen, validate it.

251773922_myX-4a_lu_en.book Page 60 Jeudi, 4. novembre 2004 10:34 10

Personal Touch

Operator logo

This menu allows you to display your operator's logo on the initial

screen.

On the

Display

menu, please select the

Operator logo

menu and

[

Select

Activate

Deactivate

and press [

(Function available depending on model)

This menu allows you to allocate functions to the programmable keys:

On the

Settings

menu, please select the

Shortcuts

menu and [

Select

Select the key that you wish to modify and validate.

Choose the function that you want to allocate to this key and validate.

Shortcuts

This menu allows you to customize the settings of your phone to make

it as convenient as possible for you to use.

251773922_myX-4a_lu_en.book Page 61 Jeudi, 4. novembre 2004 10:34 10

Settings

On the

Settings

menu, please select the

Languages

menu and

[

Select

Select your language and validate.

If you select

Automatic

, the language used will be the one relative to

your SIM card.

Call forward

Depending on your subscription, this service allows you to forward

incoming calls to a different number or to the voice mailbox.

On the

Calls

menu, please select the

Call forward

menu and [

Select

Choose the type of forwarding you want from the options available.

Languages

This menu allows you to choose your phone's display language.

Calls

The

Calls

menu allows you to manage all the calls functions (call

forward, displaying numbers, call waiting, voicemail number, etc.).

251773922_myX-4a_lu_en.book Page 62 Jeudi, 4. novembre 2004 10:34 10

Settings

View last calls

This menu allows you to access the list of last numbers used.

On the

Calls

menu, please select the

View last calls

menu and

[

Select

For every phone call are displayed on the screen:

- its characteristics (shown with an icon),

- the time (or date),

- its duration.

Select a call from the list and validate.

Select one of the options given: Call, Store in your phonebook, Send a

message, Delete, Delete all.

You can also make the call by pressing the key.

Fast access to the list of calls from the initial screen: press the key.

Counters

This menu allows you to consult the duration of the up calls.

It can also be used to check the volume of data exchanged in GPRS.

On the

Calls

menu, please select the

Counters

menu and [

Select

Select one of the options given.

251773922_myX-4a_lu_en.book Page 63 Jeudi, 4. novembre 2004 10:34 10

Settings

Display number

This menu allows you to modify the status of the display number

function.

On the

Calls

menu, please select the

Display number

menu and

[Select

Select one of the options given: Anonymous mode, My number, Callers’

number.

Anonymous mode

You have the facility to mask your number on the phone of the person

you are calling.

Preset: network default mode.

No: you choose not to activate anonymous mode and then to display

your number.

Yes: you choose to active anonymous mode and then not to display your

number.

Call waiting

(Operator-dependent service)

During a call, you may be informed that a caller is trying to reach you:

you hear a special tone. The caller's identity is displayed on the screen

(name or number).

On the

Calls

menu, please select the

Call waiting

menu and [

Select

You can

activate, deactivate,

consult the status

of the call waiting

service in order to check if it is active or not.

During a call, if a second caller tries to contact you, the screen displays

the call warning.

251773922_myX-4a_lu_en.book Page 64 Jeudi, 4. novembre 2004 10:34 10

Settings

Automatic redial

This menu allows you to call back a caller you have not managed to

reach.

On the

Calls

menu, please select the

Auto redial

menu and [

Select

You can set the redial function to inactive, on request or systematic.

If you choose

On demand

, your phone will offer to redial your caller

automatically if his number is busy.

Blacklist

The blacklist is used to limit failures on automatic calls (calls generated

by the automatic redial function or by applications: data, fax for

example).

On the

Calls

menu, please select the

Blacklist

menu and [

Select

When several automatic calls failed with a number (number busy or

unknown), this number is put in the blacklist and no automatic call will

be done with this number any more until you delete it from the blacklist.

Note

: this function does not apply to the calls performed manually.

251773922_myX-4a_lu_en.book Page 65 Jeudi, 4. novembre 2004 10:34 10

Settings

Voicemail

This function is used to record your answer phone number.

This number will be used during a call to the voice mailbox using the

programmable keys.

On the

Calls

menu, please select the

Voicemail

menu and [

Select

Enter your answer phone number and validate.

ALS

The ALS (Alternate Line Service) function allows you, depending on

your subscription, to have two phone lines.

The number of the line selected (1 or 2) for the calls appears on the initial

screen.

Keypad locking

This menu allows you to lock the keypad to avoid unwanted key presses.

On the

Security

menu, please select the

Keypad locking

menu and

[

Select

Activate

deactivate

and validate

The lock icon appears on the initial screen.

This function is also available in the initial screen pressing the key

and the navigation stick.

Security

This menu allows you to configure your phone's security settings.

251773922_myX-4a_lu_en.book Page 66 Jeudi, 4. novembre 2004 10:34 10

Settings

PIN number

This menu allows you to activate and modify your phone's PIN.

On the

Security

menu, please select the

PIN number

menu and

[

Select

To modify the PIN, select

Modify

and [

Select

Enter old PIN and validate.

Enter new PIN twice and validate.

To activate or deactivate the PIN, select the

Check PIN

menu and

[Select].

Enter PIN and validate.

Select

Activate

Deactivate

and validate.

PIN2 number

You have a second PIN number to allow you to access certain

functions*.

* These functions may or may not be available depending on your

SIM card.

Proceed as above in order to activate, deactivate or modify PIN

number 2 of your phone.

251773922_myX-4a_lu_en.book Page 67 Jeudi, 4. novembre 2004 10:34 10

Settings

Phone code

The Phone code menu allows you to activate the phone code so that it

is requested and checked whenever the phone is switched on if a

different SIM card is used. This code is automatically linked to the SIM

card installed when the phone is activated, for example to protect the

phone if stolen.

To activate or deactivate the phone code, select the

Phone code

and validate.

Enter 0000 (the factory code, by default) and validate.

Select

Activate

Deactivate

and validate.

To modify the phone code, select

Modify

and validate.

Enter old phone code and validate.

Enter new phone code and validate.

Enter phone code again to confirm it and validate.

Confidentiality

The Confidentiality function is used to delete last call numbers,

messages or organiser events when a new SIM card is inserted into the

phone.

This menu allows the activation of automatic deletion, after power off/on,

for messages and/or calls stored in the phone.

On the

Security

menu, please select the

Confidentiality

menu and

[

Select

Activate

Deactivate

and validate.

251773922_myX-4a_lu_en.book Page 68 Jeudi, 4. novembre 2004 10:34 10

Settings

Operator

This menu allows you to modify the call barring.

On the

Security

menu, please select the

Operator

menu and [

Select

Access to this service depends on your type of subscription.

Call barring

Call barring can be applied to ALL calls (incoming and outgoing), to all

incoming calls when you are away from your home country (if roaming

available).

This menu allows you to block the sending or reception of certain calls.

Before you can use this service, a password will be provided by your

operator when you take out your subscription.

On the

Security

menu, please select the

Call barring

menu and

[

Select

]

Select

Activate

Deactivate

and validate.

Access to this service depends on your subscription type.

251773922_myX-4a_lu_en.book Page 69 Jeudi, 4. novembre 2004 10:34 10

Settings

Fixed dialling

This menu allows you to restrict the outgoing calls.

The availability of this menu depends on your SIM.

On the

Security

menu, please select the

Fixed dialling

menu and

[

Select

Enter PIN2 number and validate.

Select

Activate

Deactivate

and validate.

Proceed as for any other phonebook.

When activating this function, only the numbers stored in the phonebook

can be called.

This phonebook is linked to the SIM card, and its size depends on the

card's capacity.

Cost

This menu allows you to control the cost of your calls (*).

On the

Security

menu, please select the

Cost

menu and validate.

The

Cost

menu (*) lets you check the cost of the last call you made and

of all the calls you made since you last deleted them.

The

Delete costs

menu (*) lets you delete the cost of your last call and

reset the cost counter after entering your PIN 2 code.

(*) WARNING

Depending on how the networks and associated subscription cards are

configured, some functions may be unavailable (these are marked out

with *).

251773922_myX-4a_lu_en.book Page 70 Jeudi, 4. novembre 2004 10:34 10

Settings

On the

Settings

menu, please select the

Networks

menu and [

Select

Choose

Preferred

to view all the pre-registered networks.

Choose

Selection

to activate (automatically or manually) one of the

networks accessible in the area in which your are located.

Choose

GPRS

to select the way you want to be attached on the GPRS

network: always, or only when needed (when launching a data

connection).

Set Date/Time

This menu allows you to set the date and time of your phone.

On the

Date / Time

menu, please select

Set Date/Time

and [

Select

Date:

set the date by entering it directly in digital form or by using the

navigation stick.

Use the navigation stick to access the next (or previous) entry field.

Once the date is correct, validate it.

Time:

same procedure as for setting the date.

Networks

This menu allows you to configure network preferences.

Date / Time

251773922_myX-4a_lu_en.book Page 71 Jeudi, 4. novembre 2004 10:34 10

Settings

Automatic update

This menu allows you to choose manual or automatic updating of date

and time (after switch off of your phone or when going abroad for

instance) (service depending on the operator).

From the

Date / Time

menu, please select

Automatic upd.

and

[

Select

Please select Automatic, Manual or On demand and press [

Select

Display

This menu allows you to select the date and time display type.

On the

Date / Time

menu, please select

Display

and [

Select

In the list that appears, select the desired display type between:

- Analog,

-Digital,

- None,

by using the navigation stick and validate.

251773922_myX-4a_lu_en.book Page 72 Jeudi, 4. novembre 2004 10:34 10

Settings

Time zone

This menu allows you to change time in relation to the GMT time.

On the

Date / Time

menu, please select

Time zone

and [

Select

Choose the time of the country desired by calculating the time from the

GMT time.

Summer time

This menu allows you to set your phone to the summer/winter time.

On the

Date / Time

menu, please select

Daylight savings

and [

Select

Select 1 h, 2 h

Summer time

Winter time

depending on the season,

and validate.

251773922_myX-4a_lu_en.book Page 73 Jeudi, 4. novembre 2004 10:34 10

Settings

On the

Settings

menu, please select the

Contrast

menu and [

Select

Adjust the contrast using the navigation stick.

On the

Settings

menu, please select the

Energy saving

menu and

[

Select

Two options are available to choose from for the backlight:

- Screen only: only the screen is lit up.

- Full backlight: both the screen and the keypad are lit up.

Note

: in any case, after a certain time of inactivity, the backlight will be

automatically turned off to save battery life.

After a longer period of inactivity, the screen will enter an economy mode

where the time is displayed. To quit this sleep mode and resume

backlight, press the key.

Contrast

This menu is used to adjust screen contrast.

Energy saving

251773922_myX-4a_lu_en.book Page 74 Jeudi, 4. novembre 2004 10:34 10

Settings

Serial Speed

On the

Connectivity

menu, please select the

Serial Speed

parameters

menu and validate.

The

Speed

menu enables you to select the speed to be used for data

exchanges via your phone's serial port. Except for specific

requirements, it is advisable to stick to the default setting:

Automatic

Car kit

This menu allows you to configure your phone with a car kit.

On the

Connectivity

menu, please select the

Car kit

menu and

[

Select

Choose one of the options given: Automatic response, Switch off, Kit

volume.

Connectivity

You can also connect your phone to your computer in order to receive data

or fax through GSM or GPRS network (depending on subscription):

configure the connection parameters of your computer using the Wellphone

CD supplied as an accessory.

251773922_myX-4a_lu_en.book Page 75 Jeudi, 4. novembre 2004 10:34 10

Settings

On the

Settings

menu, please select

WAP settings

and [

Select

You can add or modify URL addresses.

This menu allows you to activate or deactivate the display of the help in

the phone.

WAP settings

This menu allows you to set various parameters needed for WAP

connection.

Help

251773922_myX-4a_lu_en.book Page 76 Jeudi, 4. novembre 2004 10:34 10

Care and safety information

Safety

Never attempt to disassemble your phone. You alone are responsible for how you use your phone and any consequences of

its use.

As a general rule, always switch off your phone wherever the use of a phone is prohibited.

Use of your phone is subject to safety measures designed to protect users and their environment.

Do not use your phone in damp areas (bathroom, swimming pool…). Protect it from liquids and other moisture.

Do not expose your phone to extreme temperatures lower than - 10°C an higher than + 55°C.

The physicochemical processes created by chargers impose temperature limits when charging the battery. Your phone

automatically protects the batteries in extreme temperatures.

Do not leave your phone within the reach of small children (certain removable parts may be accidentally ingested).

Electrical safety

Only use the chargers listed in the manufacturer’s catalogue. Using any other charger may be dangerous; it would also

invalidate your warranty. Line voltage must be exactly the one indicated on the charger’s serial plate.

Aircraft safety

When travelling by plane, you will need to switch your phone off when so instructed by the cabin crew or the warning signs.

Using a mobile phone may be dangerous to the operation of the aircraft and may disrupt the phone network.

Its use is illegal and you could be prosecuted or banned from using cellular networks in the future if you do not abide by these

regulations.

Explosive materials

Please comply with warning signs at petrol station asking you to switch your phone off. You will need to comply with radio

equipment usage restrictions in places such as chemical plants, fuel depots and at any location where blasting operations are

under way.

Electronic equipment

To avoid the risk of demagnetisation, do not let electronic devices close to your phone for a long time.

Electronic medical equipment

Your phone is a radio transmitter which may interfere with electronic medical equipment or implants, such as hearing aids,

pacemakers, insulin pumps, etc. It is recommended that a minimum separation of 15 cm be maintained between the phone and

an implant. Your doctor or the manufacturers of such equipment will be able to give you any advice you may need in this area.

Hospitals

Always make sure that your phone is switched off in hospitals when so instructed by warning signs or by medical staff.

Road safety

Do not use your phone when driving. In order to give your full attention to driving, stop and park safely before making a call. You

must comply with any current legislation.

251773922_myX-4a_lu_en.book Page 77 Jeudi, 4. novembre 2004 10:34 10

Care and safety information

SAR

THIS MODEL PHONE MEETS THE GOVERNMENT'S REQUIREMENTS FOR EXPOSURE TO RADIO WAVES.

Your wireless phone is a radio transmitter and receiver. It is designed and manufactured not to exceed the limits for exposure

to radiofrequency (RF) energy set by the Federal Communications Commission of the U.S. Government. These limits are part

of comprehensive guidelines and establish permitted levels of RF energy for the general population. The guidelines are based

on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific

studies. The standards include a substantial safety margin designed to assure the safety of all persons, regardless of age and

health.

The exposure standard for wireless mobile phones employs a unit of measurement known as the Specific Absorption Rate, or

SAR. The SAR limit set by the FCC is 1.6 W/kg (*). Tests for SAR are conducted using standard operating positions accepted

by the FCC with the phone transmitting at its highest certified power level in all tested frequency bands. Although the SAR is

determined at the highest certified power level, the actual SAR level of the phone while operating can be well below the

maximum value. This is because the phone is designed to operate at multiple power levels so as to use only the power required

to reach the network. In general, the closer you are to a wireless base station antenna, the lower the power output.

Before a phone model is available for sale to the public, it must be tested and certified to the FCC that it does not exceed the

limit established by the government-adopted requirement for safe exposure. The tests are performed in positions and locations

(i.e., at the ear and worn on the body) as required by the FCC for each model.

The highest SAR values for this model phone as reported to the FCC when tested for use at the ear and when worn on the body

are given in the following table:

While there may be differences between the SAR levels of various phones and at various positions, they all meet the

government requirement. The FCC has granted an Equipment Authorization for this model phone with all reported SAR levels

evaluated as in compliance with the FCC RF exposure guidelines. SAR information on this model phone is on file with the FCC

and can be found under the Display Grant section of htp://www.fcc.gov/oet/fccid after searching on FCC ID M9H95X4A.

(*) In the United States and Canada, the SAR limit for mobile phones used by the public is 1.6 Watts/kilogram (W/kg)

averaged over one gram of tissue. The standard incorporates a substantial margin of safety to give additional protection

for the public and to account for any variations in measurements.

Highest SAR values GSM 850 MHz PCS 1900 MHz

Head 0.812 W/kg 0.118 W/kg

Body 0.669 W/kg 0.889 W/kg

Safety information.fm Page 78 Lundi, 6. décembre 2004 4:37 16

Warranty

You must always use your phone for the purpose for which it was designed, under normal operating conditions. SAGEM SA

declines all responsibility for any use outside of the scope of its designed purpose and for any consequences of this use.

The software program developed by SAGEM remains the exclusive property of SAGEM SA. It is therefore highly prohibited to

modify, translate, de-compile or disassemble this software program or any part thereof.

Usage precautions

Your phone allows you to download ring tones, icons and animated screensavers. Some of these items may contain data that

may cause malfunctions of your phone or data losses (virus for example).

For this reason, SAGEM SA rejects all responsibility concerning (1) the reception of downloaded data or losses of the said data,

(2) the impact on the operation of the phone and (3) damages resulting from receiving the said downloaded data or loss of said

data. In addition, SAGEM SA states that a failure caused by receiving downloaded data that do not comply with the

specifications set by SAGEM SA is excluded from the warranty. Consequently, the diagnosis and repair of a phone infected by

the said downloaded data will be at the expense of the customer.

Any content that you download to your phone may be protected by copyright belonging to third parties and consequently you

may not have the right to use this content or its use may be restricted. Consequently it is up to you to ensure that you have

permission, such as under the terms of a license agreement, to use any content that you download. Furthermore, SAGEM SA

does not guarantee the accuracy nor the quality of any content that you download. You alone are responsible for the content

that you download to your mobile phone and how you use it. SAGEM SA cannot be held responsible for this content nor for its

use.

It is your responsibility to ensure compliance, at your own expense, with the laws and regulations applicable in the country where

you use your phone.

Warranty conditions

Whenever you wish to make use of the warranty, please contact your vendor and present him with the purchasing paperwork

that he gave you.

If a fault occurs, he will advise you.

The new phone (excluding consumables), including new accessories bundled with the phone, are guaranteed by SAGEM SA,

parts and labour (apart from travel) against any manufacturing fault for a period of twelve (12) months with effect from the sale

of the phone to the customer, on presentation of the paperwork stating the purchase date of the phone.

Phones that have been repaired or replaced as standard during the warranty period stated above are guaranteed (parts and

labour) until the later of these two dates:

Expiry of the guarantee period of twelve (12) months stated above or three (3) months with effect from the date of support

provided by SAGEM SA.

Your legal rights under the terms of applicable national law as well as your rights in relation to your retailer, as set out in the

sales contract, remain applicable and are not in any way affected by this guarantee.

In any disputes, the phone is covered by the legal warranty against the consequences of faults or hidden defects in compliance

with articles 1641 and subsequent of the French civil code.

251773922_myX-4a_lu_en.book Page 79 Jeudi, 4. novembre 2004 10:34 10

Warranty

All faulty phones under warranty will be replaced or repaired free of charge at SAGEM SA's option (with the exclusion of repair

of any other damage), once it has been specified that the work required for the application of the warranty will be done in a

workshop and that the return costs (transport and insurance) of the phone to the address to be indicated to it by the SAGEM SA

after-sales service, whose phone number will appear on the delivery note, will be charged to the customer.

Subject to essential legal provisions, SAGEM SA does not accept any warranty, explicit or implicit, other than the warranty

provided expressly in this chapter, nor shall SAGEM SA accept responsibility for any immaterial and/or indirect damages (such

as loss of orders, loss of profit or any other financial or commercial damage) under the warranty or not.

The acceptance of a phone under warranty demands that a purchase document that is legible and without modi-fication, stating

vendor's name and address, date and place of purchase, type of phone and IMEI, are attached to the warranty, and that the

information on the phone identification label is legible and that this label or any other seal has not been tampered with.

The warranty applies in normal conditions of use.

Prior to sending the phone for repair, it is the customer's responsibility to backup at his expense the customized data stored in

the phone (phonebook, settings, wallpapers). A list of backup facilities can be provided by SAGEM SA on request. The

responsibility of SAGEM SA cannot be invoked if damage occurs to customer files, programs or data. The information or

operating elements and the contents of files will not be re-installed in any case in the event of loss.

SAGEM SA may decide, at its option, to repair the phone with new or reconditioned parts, replace the phone with a new phone

or, in any dispute, a phone in good working condition. During its work SAGEM SA reserves the facility to make, where

necessary, any technical modifications to the phone where these modifications doe not adversely affect its initial purpose.

Faulty parts to be replaced during a repair under warranty will become the property of SAGEM SA.

The phone repair and standstill time during the warranty period may not lead to an extension of the warranty period as stated

in article 1 above, provided no other vital provisions have been agreed.

The application of the warranty is subject to the full payment of the sums due for the phone when the request for support is made.

The following are excluded from the warranty:

Breakdowns or malfunctions due to non-compliance with the installation and use instructions, to an external cause of the phone

(shock, lightning, fire, vandalism, malice, water damage of any type, contact with various liquids or any harmful agent, unsuitable

electric current...), to modifications of the phone made without the written consent of SAGEM SA, to a servicing fault, as described

in the documentation supplied with the phone, to lack of supervision or care, to poor environmental conditions of the phone

(especially temperature and hygrometry, effects of variations in electric voltage, interference from the mains network or earth) or

even due to a repair, a call-out (opening or trying to open the phone) or to servicing done by personnel not approved by SAGEM SA.

Damage resulting from inadequate packaging and/or poor packing of the phone sent back to SAGEM SA.

Normal wear and tear of the phone and accessories.

251773922_myX-4a_lu_en.book Page 80 Jeudi, 4. novembre 2004 10:34 10

Warranty

Communication problems linked with a poor environment, especially:

Problems accessing and/or logging onto the Internet, such as breakdowns of the access network, the failure of the subscriber's

or his correspondent's line, transmission fault (poor geographic coverage by radio transmitters, interference, disturbance, fai-

lure or poor quality of phone lines...), a fault inherent to the local network (cabling, file server, user phone) and/or transmission

network fault (interference, disturbance, failure or poor quality of the network...).

Change of parameters of the cellular network made after the phone was sold.

Supply of new software versions.

Current servicing work: delivery of consumables, installation or replacement of these consumables...

Call-outs for phone or software modified or added without the written consent of SAGEM SA.

Faults or disruptions resulting from the use of products or accessories not compatible with the phone.

Phones returned to SAGEM SA without having complied with the return procedure specific to the phone cove-red by this

warranty.

The opening or closing of a SIM operator key and call-outs resulting in the non-operation of the phone resulting from the opening

or closing of SIM operator key done without the agreement of the original operator.

In the cases of warranty exclusion and of expiry of the warranty period, SAGEM SA shall draw up an estimate to be given to the

customer for acceptance before any call-out. The repair and carriage costs (there and back) given in the accepted estimate will

be charged to the customer.

These provisions are valid unless a special written agreement has been made with the customer. If one of the provisions turns

out to infringe a legally essential rule that consumers could have the benefit of under the national legislation, this provision will

not be applied, but all other provisions will remain valid.

251773922_myX-4a_lu_en.book Page 81 Jeudi, 4. novembre 2004 10:34 10

End User Licence Agreement (EULA), for the

software

CONTEXT AND ACCEPTATION OF THE AGREEMENT

You have acquired a Mobile Phone device ("DEVICE"), manufactured by SAGEM SA (SAGEM), that includes software either

developed by SAGEM itself or licensed third party Software suppliers ("SOFTWARE COMPANIES") to SAGEM with the rights

to sub-license it to the purchaser of the device. Those installed software products whatever their company of origin, and

wherever the name of the company of origin is indicated of not in the DEVICE documentation, as well as associated media,

printed materials, and "online" or electronic documentation ("SOFTWARE") are protected by international intellectual property

IF YOU DO NOT AGREE TO THIS END USER LICENSE AGREEMENT ("EULA"), DO NOT USE THE DEVICE OR COPY THE

SOFTWARE. INSTEAD, PROMPTLY CONTACT SAGEM FOR INSTRUCTIONS ON RETURN OF THE UNUSED DEVICE(S)

FOR A REFUND.

ANY USE OF THE SOFTWARE, INCLUDING BUT NOT LIMITED TO USE ON THE DEVICE, WILL

CONSTITUTE YOUR AGREEMENT TO THIS EULA (OR RATIFICATION OF ANY PREVIOUS CONSENT)

SOFTWARE includes software already installed on the DEVICE ("DEVICE Software") and Software contained on the CD-ROM

disk ("Companion CD"), if any is supplied with the product.

GRANT OF SOFTWARE LICENCE

This EULA grants you the following licence:

DEVICE Software

. You may use the DEVICE Software as installed on the DEVICE. All or certain portions of the DEVICE

Software may be inoperable if you do not have and maintain a service account with an appropriate Mobile Operator, or if the

Mobile Operator's network facilities are not operating or configured to operate with the DEVICE software.

COMPANION CD

. If any is supplied, additional software for your personal computer is included with your DEVICE. You may

install and use the software component(s) contained in the Companion CD only in accordance with the terms of the printed or

online end user license agreement(s) provided with such component(s). In the absence of an end user license agreement for

particular component(s) of the Companion CD, you may install and use only one (1) copy of such component(s) on the DEVICE

or a single computer with which you use the DEVICE.

Security Updates

. The SOFTWARE may include digital rights management technology. If SOFTWARE does contain digital

rights management technology, content providers are using the digital rights management technology ("DRM") contained in the

SOFTWARE to protect the integrity of their content ("Secure Content") so that their intellectual property, including copyright, in

such content is not misappropriated. Owners of such Secure Content ("Secure Content Owners") may, from time to time,

request manufacturers or SOFTWARE SUPPLIERS to provide security related updates to the DRM components of the

SOFTWARE ("Security Updates") that may affect your ability to copy, display and/or play Secure Content through the

SOFTWARE or third party applications that utilise the DRM. You therefore agree that, if you elect to download a licence from

the Internet which enables your use of Secure Content, Suppliers may, in conjunction with such licence, also download onto

your DEVICE such Security Updates that a Secure Content Owner has requested that SOFTWARE SUPPLIERS distribute.

SAGEM and SOFTWARE SUPPLIERS will not retrieve any personally identifiable information, or any other information, from

your DEVICE by downloading such Security Updates.

251773922_myX-4a_lu_en.book Page 82 Jeudi, 4. novembre 2004 10:34 10

End User Licence Agreement (EULA), for the

software

DESCRIPTION OF OTHER RIGHTS AND LIMITATIONS

. All title and intellectual property rights in and to the SOFTWARE (including but not limited to any images,

photographs, animations, video, audio, music, text and "applets," incorporated into the SOFTWARE), the accompanying printed

materials, and any copies of the SOFTWARE, are owned by SAGEM or the SOFTWARE SUPPLIERS. You may not copy the

printed materials accompanying the SOFTWARE. All title and intellectual property rights in and to the content which may be

accessed through use of the SOFTWARE is the property of the respective content owner and may be protected by applicable

copyright or other intellectual property laws and treaties. This EULA grants you no rights to use such content. All rights not

specifically granted under this EULA are reserved by SAGEM and the SOFTWARE SUPPLIERS

Limitations on Reverse Engineering, Decompilation and Disassembly

. You may not reverse engineer, decompile, or

disassemble the SOFTWARE, except and only to the extent that such activity is expressly permitted by applicable law

notwithstanding this limitation.

Single DEVICE

. The DEVICE Software is licensed with the DEVICE as a single integrated product. The DEVICE Software

installed in the memory of the DEVICE may only be used as part of the DEVICE.

Single EULA

. The package for the DEVICE may contain multiple versions of this EULA, such as multiple translations and/or

multiple media versions (e.g., in the user documentation and in the software). Even if you receive multiple versions of the EULA,

you are licensed to use only one (1) copy of the DEVICE Software.

Software Transfer

. You may not permanently transfer any of your rights under this EULA with regard to the DEVICE Software

or Companion CD, except as permitted by the applicable Mobile Operator. In the event that the Mobile Operator permits such

transfer, you may permanently transfer all of your rights under this EULA only as part of a sale or transfer of the DEVICE,

provided you retain no copies, you transfer all of the SOFTWARE (including all component parts, the media and printed

materials, any upgrades , this EULA and, if applicable, the Certificate(s) of Authenticity), and the recipient agrees to the terms

of this EULA. If the SOFTWARE is an upgrade, any transfer must include all prior versions of the SOFTWARE.

Software Rental

. You may not rent or lease the SOFTWARE.

Speech/Handwriting Recognition

. If the SOFTWARE includes speech and/or handwriting recognition component(s), you

should understand that speech and handwriting recognition are inherently statistical processes; that recognition errors are

inherent in the processes; and that errors can occur in the component's recognition of your handwriting or speech, and the final

conversion into text.. Neither SAGEM nor its suppliers shall be liable for any damages arising out of errors in the speech and

handwriting recognition processes.

NOTICE REGARDING THE MPEG-4 VISUAL STANDARD

. The SOFTWARE may include MPEG-4 visual decoding

technology. MPEG LA, L.L.C. requires the following notice:

USE OF THIS SOFTWARE IN ANY MANNER THAT COMPLIES WITH THE MPEG-4 VISUAL STANDARD IS PROHIBITED,

EXCEPT FOR USE DIRECTLY RELATED TO (A) DATA OR INFORMATION (i) GENERATED BY AND OBTAINED WITHOUT

CHARGE FROM A CONSUMER NOT THEREBY ENGAGED IN A BUSINESS ENTERPRISE, AND (ii) FOR PERSONAL USE

ONLY; AND (B) OTHER USES SPECIFICALLY AND SEPARATELY LICENSED BY MPEG LA, L.L.C.

If you have questions regarding this Notice, please contact MPEG LA, L.L.C., 250 Steele Street, Suite 300, Denver, Colorado

80206; Telephone 303 331.1880; FAX 303 331.1879

251773922_myX-4a_lu_en.book Page 83 Jeudi, 4. novembre 2004 10:34 10

End User Licence Agreement (EULA), for the

software

Termination

. Without prejudice to any other rights, SAGEM may terminate this EULA if you fail to comply with the terms and

conditions of this EULA. In such event, you must destroy all copies of the SOFTWARE and all of its component parts.

Consent to Use of Data

. You agree that SOFTWARE SUPPLIERS may collect and use technical information gathered in any

manner as part of product support services related to the SOFTWARE. SOFTWARE SUPPLIERS may use this information

solely to improve their products or to provide customised services or technologies to you. SOFTWARE SUPPLIERS may

disclose this information to others, but not in a form that personally identifies you.

Internet Gaming/Update Features

. If the SOFTWARE provides, and you choose to utilise, the Internet gaming or update

features within the SOFTWARE, it is necessary to use certain computer system, hardware, and software information to

implement the features. By using these features, you explicitly authorise SOFTWARE SUPPLIERS to use this information

solely to improve their products or to provide customised services or technologies to you. SOFTWARE SUPPLIERS may

disclose this information to others, but not in a form that personally identifies you.

Internet-Based Services Components

. The SOFTWARE may contain components that enable and facilitate the use of

certain Internet-based services. You acknowledge and agree that SOFTWARE SUPPLIERS may automatically check the

version of the SOFTWARE and/or its components that you are utilising and may provide upgrades or supplements to the

SOFTWARE that may be automatically downloaded to your Device.

Links to Third Party Sites

. The SOFTWARE may provide you with the ability to link to third party sites through the use of the

SOFTWARE. The third party sites are not under the control of SAGEM. Neither SAGEM nor its affiliates are responsible for (i)

the contents of any third party sites, any links contained in third party sites, or any changes or updates to third party sites, or (ii)

webcasting or any other form of transmission received from any third party sites. If the SOFTWARE provides links to third party

sites, those links are provided to you only as a convenience, and the inclusion of any link does not imply an endorsement of the

third party site by SAGEM or its affiliates.

Additional Software/Services

. The SOFTWARE may permit SAGEM to provide or make available to you SOFTWARE

updates, supplements, add-on components, or Internet-based services components of the SOFTWARE after the date you

obtain your initial copy of the SOFTWARE ("Supplemental Components").

If SAGEM provides or makes available to you Supplemental Components and no other EULA terms are provided along with the

Supplemental Components, then the terms of this EULA shall apply.

SAGEM reserves the right to discontinue any Internet-based services provided to you or made available to you through the use

of the SOFTWARE.

EXPORT RESTRICTIONS

. You acknowledge that SOFTWARE is subject to U.S. export jurisdiction. You agree to comply with

all applicable international and national laws that apply to the SOFTWARE, including the U.S. Export Administration

Regulations, as well as end-user, end-use and destination restrictions issued by U.S. and other governments.

UPGRADES AND RECOVERY MEDIA

DEVICE Software

. If the DEVICE Software is provided by SAGEM separate from the DEVICE on media such as a ROM

chip, CD ROM disk(s) or via web download or other means, and is labelled "For Upgrade Purposes Only", you may install

one copy of such DEVICE Software onto the DEVICE as a replacement copy for the existing DEVICE Software and use it in

accordance with this EULA, including any additional EULA terms accompanying the upgrade DEVICE Software.

251773922_myX-4a_lu_en.book Page 84 Jeudi, 4. novembre 2004 10:34 10

End User Licence Agreement (EULA), for the

software

COMPANION CD

. If any Companion CD component(s) is provided by SAGEM separate from the DEVICE on CD ROM

disk(s) or via web download or other means, and labelled "For Upgrade Purposes Only" , you may (i) install and use one

copy of such component(s) on the computer(s) you use to exchange data with the DEVICE as a replacement copy for the

existing Companion CD component(s).

RESPONSIBILITIES

SUPPORT AND INFORMATION

Should you have any questions concerning this EULA, or if you desire to contact SAGEM ]for

any other reason, please refer to the address provided in the documentation for the DEVICE.

NO LIABILITY FOR CERTAIN DAMAGES

. EXCEPT AS PROHIBITED BY LAW, SAGEM SHALL HAVE NO LIABILITY FOR

ANY INDIRECT, SPECIAL, CONSEQUENTIAL OR INCIDENTAL DAMAGES ARISING FROM OR IN CONNECTION WITH

THE USE OR PERFORMANCE OF THE SOFTWARE. THIS LIMITATION SHALL APPLY EVEN IF ANY REMEDY FAILS OF

ITS ESSENTIAL PURPOSE.

FOR APPLICABLE LIMITED WARRANTIES AND SPECIAL PROVISIONS PERTAINING TO YOUR PARTICULAR

JURISDICTION, PLEASE REFER TO YOUR WARRANTY BOOKLET INCLUDED WITH THIS PACKAGE OR PROVIDED

WITH THE SOFTWARE PRINTED MATERIALS.

251773922_myX-4a_lu_en.book Page 85 Jeudi, 4. novembre 2004 10:34 10

Java™

You are the owner of a SAGEM mobile phone which gives you the ability to download applications and games

to be executed on your phone thanks to the built-in Java™ engine.

However, receiving applications from everywhere implies some basic knowledge of the possible effects of such

download.

Thank you for spending a few minutes reading these pages: this will prevent you from performing action without

measuring the consequences.

Security considerations

Java™ MIDP technology is an efficient way to provide powerful applications in mobile phones. It allows use, by "over the

air" downloaded applications or games, of the great features built-in in a mobile phone (SMS sending and receiving,

multimedia playback and recording, network access…).

All these MIDP 2.0 features cannot be simply exposed to any MIDlet installed in the handset: a careful access control

system is implemented in the device to protect your private data and airtime consumption.

Access controls are gathered in 9 security groups:

• Network access (GPRS/GSM data airtime consumption, HTTP/web connections…)

• Auto invocation (MIDlet can wake up at a given time or when receiving a SMS)

• Phone call (ability to initiate a phone call)

• Local connectivity (IrDA or serial interfaces use by the MIDlet)

• Messaging receive (SMS,SMS-CB interception by a MIDlet)

• Messaging sending (SMS sending by a MIDlet)

• Read User data (Subscriber identity, Phonebook, Agenda read access from a MIDlet)

• Write User data (New phonebook or agenda entry)

• Multimedia recording (ability to control camera or microphone from a MIDlet)

WARNING:

When running a Java™ application, you may be prompted to grant access to protected features. These

features are protected because using them could incur you cost, or involve your personal data. Read the security

popup message carefully, to understand what feature is requested, and decide whether it is legitimate for the

application to perform it. In case of doubt, don't hesitate to refuse access by selecting the "No" button!

The security configuration menu is an expert feature

! You must know exactly what you are doing before

attempting to change security parameters of a MIDlet. Misunderstanding changes may render MIDlet non

functional and/or lead to higher risks for your private data or impact your airtime consumption. Any

changes in the security configuration are done under your responsibility. In no case shall SAGEM SA and/or

your network provider be liable for any damages deriving from or arising out of such changes in the

security configuration.

You must be aware that applications downloaded to your phone could cause the phone to perform actions for which

you will be billed, like making calls and sending SMS. Depending on your operator's billing policy, you may also be

charged to download the application because of airtime consumption.

251773922_myX-4a_lu_en.book Page 86 Jeudi, 4. novembre 2004 10:34 10

Java™

According to the security status of an installed MIDlet (see below), each of these security groups has one among

5 possible authorizations levels (listed from the more restrictive to the more permissive):

• Never

The security group completely prevents access to the protected features.

• Per use

Each time MIDlet tries to use protected feature, user is prompted to grant access.

• Per session

First time a MIDlet uses a protected function, user is prompted to grant access like in "Per use" authorization

but access is granted until the MIDlet terminates.

• Single confirmation

The first time in the whole MIDlet life a MIDlet uses a protected feature, user is prompted to grant access. It

remains valid until the MIDlet is removed from the handset.

•Always

The security group unconditionally grants access to protected features.

A MIDlet has a security status which is either "uncertified", or else "certified".

An "uncertified" status means that the source of the MIDlet could not be verified by the mobile phone at installation time.

As far as the phone knows, the MIDlet could have been written by anyone.

A "certified" status means that the MIDlet was digitally signed by a known party, whose name is displayed by the mobile

phone. This means that the mobile phone successfully authenticated the named party as the source of the MIDlet.

Security permissions are different for "uncertified" or "certified" MIDlets, and may be different for different sorts of named

parties. Usually "uncertified" security permisions are more restrictive than "certified" ones.

Security configuration menu

When a MIDlet is installed in the mobile phone, default security authorizations are applied.

This default security configuration may be altered through the "Settings/Security" menu of an installed MIDlet.

Once in the "Security" menu, the security status of the MIDlet is displayed (see "Security considerations" paragraph

above).

If you do not want to enter the security menu, simply select "Back" button.

You can proceed by selecting "Ok" button.

The menu displayed allows you to increase or decrease permissions currently applied to the current MIDlet for each of

the security groups.

When you set a more permissive authorization to a security group than the current value, mobile phone asks

you to confirm your increased risk exposure.

The maximum risk exposure increase is limited by the security status. Depending of the manufacturing configuration, it

means, for example, that "Net Access" security group authorization cannot be set to a permissive value higher that

"Session" for an "uncertified" MIDlet ("Single confirmation" and "Always" are unavailable in the security configuration

menu) but an operator "certified" MIDlet may have all permission values available without any limitations.

251773922_myX-4a_lu_en.book Page 87 Jeudi, 4. novembre 2004 10:34 10

Java™

What is Java™?

Java™ is a new technology enabling use of powerful applications in the mobile phone area.

Business applications and games are easily downloadable by the end-user on a Java™ featured

handset.

Your mobile phone is a MIDP 2.0 compliant Java™ platform which implements WMA (SMS

support) and MMAPI (Multimedia support) options, providing an exciting environment to run highly

graphical, networked and intuitive MIDP applications.

Such applications may be, for example, a wide range of games and appealing applications like

action and logic games, agenda, e-Mail reader, Web browser…

What is a MIDlet?

A Java™ application or a game designed to run in a mobile phone is named a MIDlet (MIDP

applet).

A MIDlet is usually made of 2 files:

• The JAD file

• The JAR file

JAD file stands for

ava™

pplication

escriptor. It is a small file describing the content of a JAR file (version, vendor

name, size…) and displayed by the mobile phone.

JAD file size is usually less than 2 kilo-bytes large.

JAR file stands for

ava™

rchive. It refers to the application data themselves (program, images, sound).

A JAR file

may be up to 200 kilo-bytes large.

NOTE:

In rare circumstances, MIDlet vendors may provide no JAD file and the MIDlet is the JAR file alone. In such a

case it is your only responsibility to evaluate the risk to download the JAR file without possibility of consulting the JAD file.

Downloading a MIDlet (Java™ game or application)

MIDlets are easily downloaded in the mobile phone through the Games or Applications menus or through the WAP

browser.

In almost all cases, you will first receive a JAD file which will be displayed on the screen.

Much care must be given in examining the content of the file as explained further.

When you select a JAD file, your mobile phone downloads it, displays data contained and prompts you to acknowledge

the JAR file download.

The popup displays information below:

• Name of the MIDlet

• Version

• Size (JAR file size)

• Vendor name

• Security status (

IMPORTANT:

see "Security considerations" paragraph below)

• JAR file URL.

251773922_myX-4a_lu_en.book Page 88 Jeudi, 4. novembre 2004 10:34 10

Java™

If you do not want to download the main data (JAR file), you shall refuse to acknowledge further airtime consumption by

selecting "Cancel" (JAR file is not downloaded).

If you agree on the MIDlet installation, just select "Ok". The MIDlet is installed with security levels set to default values

associated with its security status.

Before downloading an application, such a message may appear: "Your handset cannot identify the application, please

be sure of the source of the application before installing the application".

You shall read carefully the next two paragraphs to fully understand Java™ MIDP security concerns.

Trademarks

Java™ and all other Java-based marks are trademarks or registered trademarks of Sun Microsystems, Inc. in the U.S.

and other countries.

Disclaimer

As explained hereabove, some downloaded items may contain data or may induce actions which may cause

malfunctioning of your mobile phone or loss or corruption of data or abnormal increase of your airtime consumption.

YOU EXPRESSLY ACKNOWLEDGE THAT THE DOWNLOAD OF ANY APPLICATIONS INCLUDING JAVA

APPLICATIONS OR GAMES IS DONE UNDER YOUR EXCLUSIVE RESPONSIBILITY. IN NO EVENT SHALL

SAGEM SA, YOUR NETWORK SERVICE PROVIDER OR THEIR AFFILIATES BE LIABLE FOR ANY LOST PROFITS

OR COSTS OF PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES, LOSS OF PROFITS, INTERRUPTION

OF BUSINESS, LOSS OF DATA OR FOR ANY SPECIAL, INDIRECT, INCIDENTAL, ECONOMIC, OR

CONSEQUENTIAL DAMAGES ARISING UNDER CONTRACT, TORT, NEGLIGENCE, OR OTHER THEORY OF

LIABILITY RELATING TO THE DOWNLOAD OF ANY APPLICATION BY ANY MEANS, INCLUDING JAVA

APPLICATIONS OR GAMES IN SAGEM DEVICES. YOU EXPRESSLY ACKNOWLEDGE THAT ANY APPLICATIONS

INCLUDING JAVA APPLICATIONS OR GAMES ARE PROVIDED STRICTLY "AS IS". SAGEM SA AND/OR YOUR

NETWORK SERVICE PROVIDER EXTEND NO WARRANTY WHATSOEVER THERETO. SAGEM SA AND/OR YOUR

NETWORK SERVICE PROVIDER DISCLAIM ANY EXPRESS, IMPLIED OR STATUTORY WARRANTY OF

MERCHANTABILITY, FITNESS OF ANY APPLICATIONS INCLUDING JAVA APPLICATIONS OR GAMES FOR A

SPECIFIC PURPOSE, SATISFACTORY QUALITY, SECURITY OR OTHERWISE.

251773922_myX-4a_lu_en.book Page 89 Jeudi, 4. novembre 2004 10:34 10

Troubleshooting

ROBLEM

- S

ITUATION

CTIONS

It is impossible to switch

the phone on

Remove and replace the battery.

If you still cannot switch the phone on, charge the battery:

- Put it on charge for at least 15 minutes before switching it back on again.

- Check if the battery icon is scrolling up and down.

- If so, the phone is charging.

- If not, please take the charger out and put it back on again. Please check

that the charging icon is scrolling up and down.

- If you still cannot switch the phone on, please disconnect the charger, put

it back on again and please repeat that manipulation several times.

- If the charging icon is still not scrolling up and down, please contact your

after-sales services.

- When the charging icon has stopped scrolling up and down, the battery is

charged.

Battery status unknown

The phone does not recognize the battery. Please check the position of the

battery.

LOW BATTERY

This message is displayed when the battery becomes too weak. The phone

switches itself off automatically. Put the phone on charge.

SIM not present

Check if the SIM card is present and properly positioned / inserted.

Check the condition of the SIM card. If damaged, please go back to the

operator's shop for advice. Contact your after-sales service if the message

persists.

Incorrect PIN code

An incorrect PIN code has been entered. Be careful! Three incorrect PIN

codes will block the SIM Card.

SIM BLOCKED

You have entered three incorrect PIN codes.

Enter your PUK code to unblock your SIM Card.

You must enter: **05*PUK*PIN*PIN#

You must enter the PUK code (Personal Unblocking Key) given by your

network provider.

10 errors will permanently block your SIM Card. You must then contact your

network provider to get a new one.

251773922_myX-4a_lu_en.book Page 90 Jeudi, 4. novembre 2004 10:34 10

Troubleshooting

SIM LOCKED

On network providers’ request, the handset can only be used with some

types of SIM cards. This message means that the SIM card you are using

does not fit with the phone. Take the SIM card out, and switch it back on. If

the message

SIM not present

appears on the screen, you will need to

check its compatibility next to the place where you bought it. If not, please

contact your after-sales service.

No call connection

Check that the number you have dialled is correct.

If the letter R is displayed on the top right corner of the screen, without any

network name displayed, only emergency services can be called.

Check the status of your credit.

Check that the SIM Card you are using offers the service you are requesting;

check if its validity has not expired.

Check and deactivate the outgoing calls restriction when necessary.

The network could be saturated. Try later.

If the problem persists, please contact your Technical Helpdesk.

No receiving calls

Try to make a call in order to check that the phone and the networks are

operational.

Check and deactivate the permanent call forwarding (permanent call

forwarding icon displayed on the screen).

Check and deactivate the incoming calls restriction when necessary.

If the problem persists, please contact your Technical Helpdesk.

Quality reception when calling

Avoid placing your fingers on the top of the phone, where the aerial is

integrated: the phone will have to use full strength to establish a quality

transmission.

Impossible to send message

Check that the message centre number is correctly entered.

To do so, please select the menu

Messages

, select

Options

, select

MSG

centre n°

and check the number entered. Please contact your network

provider to get this number.

ROBLEM

- S

ITUATION

CTIONS

251773922_myX-4a_lu_en.book Page 91 Jeudi, 4. novembre 2004 10:34 10

Troubleshooting

No answer phonebox

Check that the SIM card does offer this service.

Program the call to be forwarded to answer phone using the information

provided by the operator.

Check that the SIM card used offers this service. Try to make a call to check

that phone and network are operational.

Check if the answer phone number is properly configured. To do so, go to

the

Calls

menu, select

Voicemail

and check the number. Otherwise, enter

your operator’s answer phone centre number.

If answer phone icon flashing

Call the answer phone and listen to the new messages to make it disappear.

In WAP context:

SERVER NOT ANSWERING

message

Switch off and then switch phone back on.

Logon to home page impossible

In the

WAP

menu,

Clear the cache

Operator name does not appear on

screen

Go into the

Settings

menu, select

Networks

, then

Selection

. Wait until the

operator appears, select it and validate.

If the Operator logo is present (depending on model), activate the display

(

Personal Touch/Display/Operator logo

How do I (un)lock the keypad?

Press the key, then the navigation stick.

How do I switch to silent mode?

Hold the key down unless ring tone sounds, when a short touch is

enough.

How do I activate zoom?

Can be activated only in SMS, MMS and WAP screens; hold down the

key.

How do I delete the envelop that

appears on the screen?

If you have received a voice mail, please call your voice mailbox and follow

the instructions given.

How do I delete the answer phone

that appears on the screen?

This answer phone means that you have received a voice mail: please call

your voice mailbox and listen to it. Please follow the instructions given.

How do I remove the written

message in the initial screen

(1 call)?

Press the key to go back to the initial page without messages.

ROBLEM

- S

ITUATION

CTIONS

251773922_myX-4a_lu_en.book Page 92 Jeudi, 4. novembre 2004 10:34 10

Troubleshooting

How do I download ring tones?

Logon to one of the following site via your computer:

www.planetsagem.com. These site offer to send ring tones to your phone in

the form of an SMS. You can also logon to your operator's site. Once the

SMS has been received, all you have to do is save it: validate the option

« Save messages », the tune will then be added to your list. In addition, you

can logon to some sites by phone.

How do I free up memory to

download my objects (sounds,

images)

Go into the

Multimedia

menu, select

My Pictures

My Sounds

then

delete some objects.

How do I free up memory to receive

new messages?

Manage your Outbox carefully. It is recommended not saving them

automatically: too many messages saved will quickly fill up the available

memory and no further messages will be received. To delete them, please

go into the

Messages

menu, select

Outbox

then delete some messages.

Manage your

Inbox

carefully also.

How do I free up memory to store

new contacts in my Phonebook?

It is highly recommended to manage your Phonebook carefully.

If you have received pictures enclosed to a Vcard, please save or delete

them.

How can I increase the efficiency of

my phone?

The most efficient actions are as follows:

Please keep your phone safely in order to avoid pressing the keys

unnecessarily: every time a key is pressed the screen lights up.

You can deactivate the screensaver or select the activation time to be more

than every 300 s (the screensaver uses processing power).

Make sure that you don’t obstruct the antenna with your fingers when using

the phone (see page 24).

ROBLEM

- S

ITUATION

CTIONS

251773922_myX-4a_lu_en.book Page 93 Jeudi, 4. novembre 2004 10:34 10

Customer Care

France

0 892 701 799 (0,34 €/mn)

United Kingdom

0870 24 05 613

Germany

01805 843 850

Spain

91 375 3376

Italy

800 800 485

Poland

0801 801 101

Netherlands

020 65 45 724

Belgium

02 62 77 016

Austria

01 36 02 77 16 64

Switzerland

02 25 67 53 99

Ireland

1 890 924 061

Portugal

21 316 41 35

Sweden

08 519 923 21

Denmark

0 82 33 28 52

Czech Republic

855 555 600

Brazil

0 800 891 6247

Customer Care e-mail address:

support.mobiles@sagem.com

Web sites:

www.sagem.com/mobiles

www.planetsagem.com

www.sagem-online.com

251773922_myX-4a_lu_en.book Page 94 Jeudi, 4. novembre 2004 10:34 10

Index

Accessories p13

Activating your phone p17

Alarm p54

Anonymous mode p64

Battery

Charging the battery p25

Installing the battery p18

Beeps p58

Calculator p52

Calendar p55

Call barring p69

Calls p22

Calls (menu)

Automatic redial p65

Call forward p62

Call waiting p64

Counters p63

Display number p64

View last calls p63

Car kit p75

Charger p13

Confidentiality p68

Contact p27

Add contact p27

Call p30

Delete p29

Display contact p29

Mailing list p28

Modify p29

Contacts p20

Contrast p74

Converter p53

Cost p70

Cover p19

Currencies p53

Customer Care p94

Date / Time p71

Date and time p21

Display p59

Energy saving p74

Fax p75

Fixed dialling p70

Games p48

Garantie p86

Getting started p20

GPRS p45, p46, p47

GSM p46

Hands-free mode p23

Help p15, p76

Icon p16

Initial screen p16

Input modes p33

IP address p46

Java™ p48, p86

Keypad locking p14, p66

Languages p62

Local information p39

251773922_myX-4a_lu_en.book Page 95 Jeudi, 4. novembre 2004 10:34 10

Index

Memory p39, p43

Menus p7

Messages

Compose MMS p34

Compose SMS p31

Drafts p37

Inbox p36

Outbox p36

Receiving messages p35

Sending options p38

Navigation principles p15

Necklace p19

Network p21

Networks p71

Operator p69

Operator logo p61

Phone code p68

Phonebook

Contacts menu p28

Memory p29

New contact p27

Using the phonebook p26

Picture p42

PIN number p67

PIN2 number p67

Programmable keys p14

Recorder p59

Ring tones p57

Safety information p77

Screensaver p60

Security p66

Sending options p38

Sentbox p37

Short cut keys p14

Shortcut keys p61

Silent mode p58

SIM card p17, p18

Skins p59

SMS p31

Sounds p43, p57

T9 p32

Timer p54

ToDo p49

Troubleshooting p90, p91, p92, p93

vCal p50, p56

vCard p30

Vibrate p57

Video p41

Voicemail p66

Volume p57

Wallpaper p60

WAP p44, p47

Configuring WAP parameters p45

Downloading objects p47

Services menu p44

WAP logging off p47

WAP logging on p47

WAP settings p76

Warranty p79

Your phone package p13

251773922 - 10/2004

251773922_myX-4a_lu_en.book Page 96 Jeudi, 4. novembre 2004 10:34 10

Sagem Wireless 95X4A GSM 850/1900 Mobile Phone User Manual 251773922 myX 4a lu en

Sagem Wireless GSM 850/1900 Mobile Phone 251773922 myX 4a lu en

Contents

User Manual

Navigation menu

Namespaces

Views

Navigation
