User Guide
English
COSY Phone
2
You have just purchased a SAGEM WIRELESS phone, we
congratulate you; it is recommended that you read this
handbook carefully in order to use your phone efficiently and
in the best conditions.
Your phone can be used internationally in the various
networks (Either COSY Phone 2G: GSM
850/900/1800/1900MHz, EDGE 850/900/1800/1900MHz, either
COSY Phone 3G: GSM 850/900/1800/1900MHz, EDGE
850/900/1800/1900MHz, UMTS/HSDPA) depending on the
roaming arrangements with your operator.
This phone is approved to meet European standards.
WARNING
Depending on the model, network configuration and
associated subscription cards, certain functions may not be
available.
T9® Text Input is a trademark of ©Tegic Communications Inc.
Java™ and all Java™ based trademarks and logos are
trademarks or registered trademarks of Sun Microsystems,
Inc. in the U.S. and other countries.
The WAP browser and the softwares included are the
exclusive property of Openwave. For this reason, it is
forbidden to modify, translate, disassemble or even
decompile all or part of these softwares.
The Bluetooth® word mark and logos are owned by the
Bluetooth® SIG, Inc. Bluetooth® QDID (Qualified Design ID):
B016837.
microSD™ is a trademark of SD Card Association.
3
Contents
Description ....................................................................6
Idle screen.....................................................................9
Quick start ...................................................................11
Information on the SIM card................................................. 11
Installing the SIM card and the battery............................... 12
Charging the battery ............................................................ 13

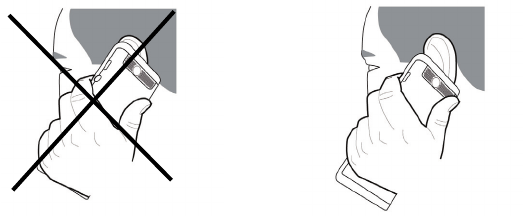

Improving antenna performance........................................ 15
Increase the battery life of your phone .............................. 15
Inserting the memory card ................................................... 16
Removing the memory card ................................................ 16
Getting started....................................................................... 16
Switching ON/OFF.................................................................. 17
Network................................................................................... 17
Calls .............................................................................19
Calling ..................................................................................... 19
Receiving a call ..................................................................... 19
Call history............................................................................... 20
Call Settings ............................................................................ 20
Messaging ...................................................................24
Creating a text message ...................................................... 24
Receiving messages.............................................................. 26
Messaging menu ................................................................... 27
Contacts ......................................................................30
Using the contacts................................................................. 30
Storing a new contact .......................................................... 30
Contact options..................................................................... 30
Camera........................................................................34
Taking a photo ....................................................................... 34
Recording a video................................................................. 35
4
Music player................................................................37
Recently played..................................................................... 37
Music ....................................................................................... 37
More sounds ........................................................................... 38
FM Radio ......................................................................39
Multimedia ..................................................................41
Applications ................................................................42
NFC .......................................................................................... 42
ToDo ........................................................................................ 45
Clock ....................................................................................... 46
Sync. ........................................................................................ 46
Calculator............................................................................... 47
Torch........................................................................................ 47
Local info. ............................................................................... 47
Services ................................................................................... 47
Recorder ................................................................................. 47
Calendar................................................................................. 48
Help ......................................................................................... 49
Entertainment ..............................................................50
Games..................................................................................... 50
Applications............................................................................ 50
Running Applications ............................................................ 50
Settings .................................................................................... 51
Browser ........................................................................52
Logging on ............................................................................. 53
Downloading objects............................................................ 53
Logging off ............................................................................. 53
Connectivity ................................................................54
Bluetooth®.............................................................................. 54
GPS .......................................................................................... 56
USB mode ............................................................................... 57
Sync. settings .......................................................................... 58
Profiles ..................................................................................... 58
5
Networks ................................................................................. 58
NFC .......................................................................................... 58
Settings.........................................................................59
Phone ...................................................................................... 59
Display..................................................................................... 62
Calls ......................................................................................... 63
Connectivity ........................................................................... 63
Technical features ......................................................64

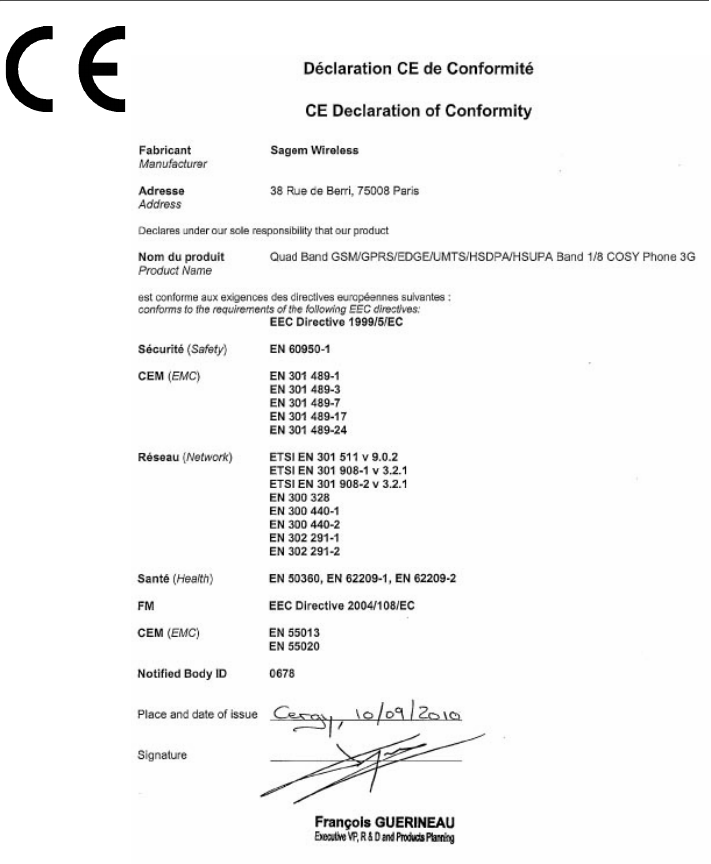

Declaration of conformity..........................................65
Certification and safety information for the united
states and countries using fcc standards.................66
FCC Part 15 statement .......................................................... 66
FCC SAR information ............................................................. 67
Safety Information ................................................................. 69
Distance of operation ........................................................... 71
FDA consumer information on wireless phones ................. 71
Driving safety tips ................................................................... 76
For customers in the United States ............................79
Limited Warranty.................................................................... 80
For customers outside the United States...................85
Warranty ................................................................................. 85
End user licence agreement (EULA) .........................91
Java™..........................................................................99
Troubleshooting.........................................................104
Index ..........................................................................107
6
Description
Description
Loudspeaker
Navigator
-Navigation in menus
-Confirmation of a selection
* key
When composing a message:
-Long press: switches from one input mode to another
(ABC/T9)
-Short press: upper case/lower case/figures
Green key
-Activate/deactivate hands-
free mode (long press).
WARNING: do not use the
phone in hands-free mode
near to your ear, or you may
suffer hearing loss.
-In call context: call - receiving
a call
-In idle screen: displaying the
call log
Left key
-In idle screen: access to the
light menus
-In menus: access to the
selection shown on screen in
the tab
Right key
-In idle screen: access to
NFC
-In menus: access to the
selection shown on screen
in the tab
Red key
-In a call context: reject a
call - hang up
-In menus: Return to idle
screen
# key
-In idle screen: silent mode
(long press)
-In call reception mode:
stops ring tone (short press)
-In ring tone setting mode:
activate/deactivate ring
tone (short press).
-Stops sound in video or
message playing, or in a
game (short press).
Microphone
WARNING: Ensure that
you are not obstructing
the microphone in call
context.
Turn on/off key
-Long press to switch on/off
Description
7
-Launch to camera
preview
-Adjusting the
volume (ringtones,
music)
-In the idle screen:
access to the
Profiles menu (short
press)
-Setting zoom
(photo, video)
-Connector for
charger and
USB cable.
Loudspeaker
Camera lens
-Connector for
hands free kit.
Torch lamp
-Light up
torch lamp.
-light up
keypad and
screen
8
Description
Idle screen
9
Idle screen
The idle screen may contain the following information:
1 - The title bar icons:
Battery (if the icon is , the battery must be
charged immediately)
Silent mode (the ringtone is off)
Only emergency call is possible
Reception level of the network signal
Message received (read your message), if the icon is
, memory is full (delete some messages)
NFC-radio-on (when NFC function is activated)
Bluetooth® (when the mode of Bluetooth® is on)
GPRS connection
EDGE connection
WEB connection
Connection to the 3G network (UMTS, If COSY Phone
is 3G)
Connection to the 3G network (HSDPA, If COSY
Phone is 3G)
10
Idle screen
2 - Date and time, in digital or analog mode
3 - Network provider
4 - Thumbnail centred on bottom line:
The main " Menu " thumbnail shows that the menus can be
accessed by pressing [OK].
Information messages on calls, messages or network
messages received may also be displayed. They can be
read by pressing the left key or [OK] briefly.
Quick start
11
Quick start
Information on the SIM card
To use your phone, you need a card called SIM or
USIM card. It contains personal information that
you can modify:
-Secret codes (PIN(s): Personal Identification
Numbers), these codes allow you to protect
access to your SIM card and phone
-Phonebook
-Messages
-How special services work.
WARNING
This card must be handled and stored with care in order
not to be damaged. If you should lose your SIM card,
contact your network provider immediately.
Please keep your SIM card out of reach of young children.
WARNING
Your phone is identified by its IMEI number. Write this
number down, and do not keep it with your phone,
because you may be asked for it in the event of your
phone being stolen, in order to prevent it from being used,
even with a different SIM card. In order to display the IMEI
on your phone's screen, type the following number on idle
screen: *#06#.
12
Quick start

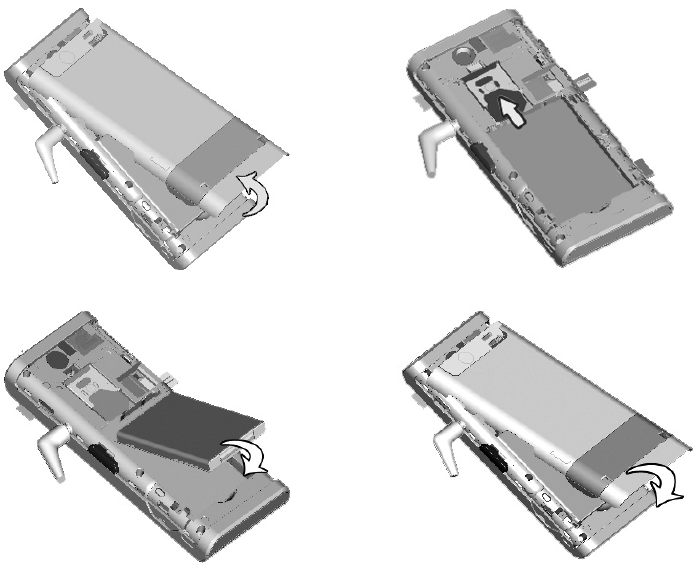

Installing the SIM card and the battery
Ensure that the phone is switched off and the charger
disconnected.
1. Turn the phone back. Use the notch as a lever to lift the
cover.
2. Slide the SIM card, with cut corner as shown on the phone,
into the card holder with gold face down.
3. Place the battery by positioning first the top of it.
4. Place the back cover, clicking in first the upper part then
the lower part.
1.
4.
3.
2.
Quick start
13
Charging the battery
Your phone is powered by a rechargeable battery. A new
battery must be charged for 4 hours at least before being
used for the first time. It reaches its optimum capacity after a
few cycles of use.
When your battery has been discharged, the empty battery
icon flashes. In this case recharge your battery for at least
15 minutes before making any calls in order not to be cut off
quickly.
NOTE: Each phone has a specific charger with the
appropriate connectors for the phone with which it is sold.
Using any other charger or using the charger with any device
other than the phone will lead to an exclusion of warranty.

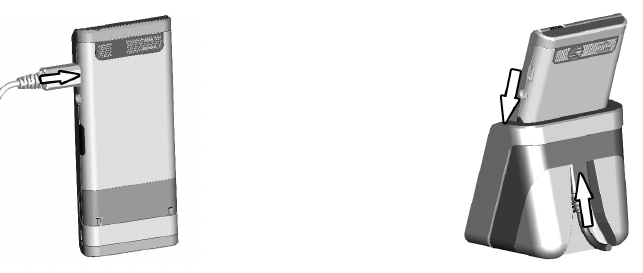

To recharge the battery:
12
-1. By cable:
•Plug the end of the cable on the side connector of the
phone.
•Connect the charger to a socket.

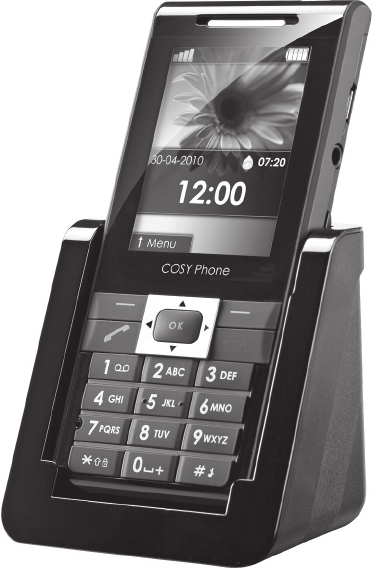

-2. By cradle:
•Put the phone on the cradle.
•Plug the end of the cable on the side connector of the
cradle.
•Connect the charger to a socket.
14
Quick start
Then the phone is charging up. The battery icon scrolls left
and right to indicate that it is charging. When the battery is
fully charged, the charging stops on its own. Disconnect the
cable.
When charging, the battery may warm up, this is normal.
When charging, the socket on which the charger is plugged
must be easily accessible.
WARNING
If the battery has entirely discharged, the phone cannot
start. Plug the phone to the charger. The phone will switch
on after a few minutes of charge. You can use the phone
again when the Start option is displayed on the screen.
WARNING
There is danger of explosion if the battery is placed in an
incorrectly way or if it is exposed to fire.
Do not short circuit it.
The battery does not have any part that you can change.
Do not try to open the battery casing.
Use only the appropriate chargers and batteries as shown
in the phone manufacturer's catalogue.
The use of other types of chargers or batteries may be
dangerous or invalidate the warranty.
Used batteries must be disposed of in the appropriate
places.
We advise you to take the battery out if you plan not to use
the phone for extended periods.
You are strongly advised not to connect your phone to the
charger if it doesn’t contain a battery.
The charger is a safety step-down transformer, it is
forbidden to modify, alter or replace it by another
component (power supply plug, etc).
Quick start
15
Improving antenna performance
The antenna is integrated in your phone, under the back
cover at the bottom.
Avoid putting your fingers on this area when the phone is
switched ON.
If your fingers obstruct the antenna, the phone may have to
operate with a higher power level than usual; decreasing its
efficiency quickly. It could also affect the quality of your
communications.
Increase the battery life of your phone
-Don't press the keys when not necessary: each key press
activates the backlight, and uses much power.
-Don't obstruct the antenna with your fingers.
-Activation of Bluetooth® function reduces the phone
battery life. We advise you to deactivate it when not in use.
-Activation of torch lamp function reduces the phone
battery life. We advise you to deactivate it when not in use.
16
Quick start
Inserting the memory card
-Turn the phone back and remove
the back cover.
-Insert the memory card into the slot,
halfway up as shown on the figure
opposite (with gold face down).
Removing the memory card
-Remove the back cover.
-Slide the memory card to extract it from its location.
-Turn your phone and shake it slightly to drop the memory
card and retrieve it.
Getting started
When you switch on your phone for the first time, follow
instructions displayed on the screen.
If access to the SIM card is protected, the device prompts
you to enter the PIN number:
Enter the code between 4 and 8 digits given to you when the
SIM card was issued. These digits do not appear on the
screen for security reasons.
WARNING
The memory card is very fragile. Take care when you insert
or remove the memory card.
The memory card can be inserted or withdrawn while the
phone is in use. However, it may suffer damage if
withdrawn during a read or write operation. Ensure that no
application accesses the card during its withdrawal.
Quick start
17
After pressing [OK], the phone activates the SIM card settings
and switches on again if necessary (depending on the SIM
card).
If there are contacts saved in your SIM card, you are invited,
if you wish, to copy them in the phone contacts memory.
WARNING
If a wrong PIN number is entered three times in succession,
your SIM card is blocked. You must then:
After 5 or 10 failed attempts (depending on the type of SIM
card), the SIM card is definitely locked. You must then
contact your operator to obtain a new card.
Switching ON/OFF
When your phone is off, a long press on the Turn on/off key
will turn it ON.
When the phone is ON, if you are browsing inside the menus,
a short press on the key will come back to the idle
screen. When you are in the idle screen, a long press on the
Turn on/off key will switch OFF the phone.
Network
Once ON, the phone is searching for a network on which it
can make calls. If it finds one, it displays the name of the
network on the screen.
NOTE: if COSY Phone is 3G and it finds a 3G/UMTS network,
the 3G icon is displayed on the screen. If it finds a 3G/HSDPA
network, the 3G+ icon is displayed on the screen.
-Enter the PUK (Personal Unblocking Key) code provided
by your operator, and validate.
-Enter your PIN number and validate.
-Enter your PIN number again and validate.
18
Quick start
You are then ready to make or receive a call.
If the network’s name appears, calls are possible on your
operator's network.
If the letter R and a network name are displayed, calls are
possible on a roaming network provider.
If the letter E is displayed without any network name, only
the emergency services are accessible (ambulance,
police, fire brigade).
If the network icon flashes, the phone is in permanent
search mode.
If only the icon appears, no network is available.
The icon is a reception level indicator of the network
signal and allows to display the quality of reception.
Calls
19
Calls
Calling
Dial the number you want to ring. Press the key.
You can adjust the sound level (volume) using the navigator
upwards or downwards.
At the end of the conversation press the key to hang
up.
Press 0 (hold down) to display " + ", then dial the country
code without waiting for the dial tone, then the number of
the called party.
Emergency services
Depending on the network you can obtain the emergency
service with or without SIM card or when the keypad is
locked. It is enough to be in an area served by a network.
To obtain the international emergency service, dial 112
then press the key.
Receiving a call
When you receive a call, the number of your caller is
displayed when it is presented by the network.
Press the
key to answer, and speak.
To refuse the call, press the key.
To stop the ring tone or the vibrate, without refusing the call,
press the key.
International call
Hands-free mode
During a call:
WARNING: in this mode do not bring the phone up to your
ear.
20
Calls
When on a call, pressing [Options] allows you to have access
to different functions.
Dial number and select [Options].
-Call: please refer Calling.
-Message: allows you to send a SMS to this number.
-Save to contacts: allows you to add this number into the
contacts.
Call history
From the idle screen, press the key to access the call
history.
It is divided into three lists that you can display by the
navigator: dialled calls, received calls and missed calls.
Various options are proposed: Details, Call, Add to contact,
etc.
You can also make a call to a number by pressing the
key.
Call Settings
Settings/Calls
This menu allows you to manage all the call functions
(response mode, display numbers, call divert, voicemail, call
waiting, etc.).
-Make a long press on the green key and confirm
or
-Press [Options] and select Loudspeaker ON then confirm.
Calls
21
Response mode
Auto response
This menu allows your phone to answer automatically to a
call when it is connected to a car kit.
Any key
This menu allows you to answer to a call pressing any key
except the right key and the red key.
Display numbers
Send my number
You can decide whether or not your phone’s number will be
displayed on the phone of the person you call.
-Yes: your phone’s number will be displayed on the phone
of the person you call.
-No: your phone’s number will not be displayed on the
phone of the person you call.
-Preset: the phone default mode (depending on the
operator subscription type).
My number
-For outgoing calls: status of the Display numbers function.
-For incoming calls: status of the Display numbers function
when you have forwarded the incoming calls to another
number.
Caller's number
-For outgoing calls: status of the Display numbers function
when your call is forwarded to another number.
-For incoming calls: status of the caller’s Display numbers
function.
Call divert
Depending on your subscription, this service allows you to
forward incoming calls to a different number or to the voice
mailbox.
22
Calls
Choose the type of forwarding you want from the options
available.
Voicemail
This function is for storing your voicemail number.
Call waiting
(Network dependent service)
During a call, you may be informed that a caller is trying to
reach you: you hear a special tone. The caller's number is
displayed on the screen.
Auto redial
This menu allows you to call back a caller you have not
managed to reach.
You can set the redial function as Inactive, Systematic or On
Request.
If you choose On request, your phone will offer to redial your
caller automatically if his number is busy.
Call reject list
The numbers entered in this list will automatically be rejected
by the phone.
Call barring
This menu allows you to block the making or receiving of
certain calls.
Before you can use this service, a password will be provided
by your operator when you take out your subscription.
Access to this service depends on your subscription type.
To activate call barring:
-Select incoming or outgoing calls.
-Select the call type on which you want to activate call
barring.
-Select the call origin.
Calls
23
-Select Activation and enter password.
Blacklist
The blacklist is used to limit failures on automatic calls (calls
generated by the automatic redial function or by
applications: data, fax for example).
When several automatic calls failed with a number (number
busy or unknown), this number is put in the blacklist and no
automatic call will be done with this number any more until
you delete it from the backlist.
NOTE: this function does not apply to the calls performed
manually.
24
Messaging
Messaging
The Messaging menu contains the following message type:
text messages (SMS, MMS). MMS is a Multimedia Message
Service, which allows you to enclose photos, audio files, and
others rich contents to your messages; these messages can
even be composed of several slides. An MMS is not charged
at the same rate as an SMS. Please contact your network
provider to get more information on their cost and the
service availability.
Creating a text message
-Select Messaging/New.
There are two input modes. To switch from one mode to
another (ABC mode/T9 mode), make a long press on the
key. To switch into upper case/lower case/figures
make a short press on the key.
Also you can make your choice by selecting [Options]/Input
mode.
-ABC mode: it allows you to type letters: press on one key
several times to make the letter wanted appear (for
example: press twice the 2 key to display B).
•Abc: first letter of the word in upper case.
•abc: lower case text.
•ABC: upper case text.
-123 mode: it allows you to type figures.
Messaging
25
Using T9 Mode
The Easy Message T9® mode helps you to easily
write your messages.
The language used is the one selected on the
display of the phone (if the language selected
is not compatible with the Easy Message T9®,
the English language will be automatically selected).
Press once the key corresponding to the letter chosen and
compose the word by continuing to press the keys
corresponding to the various letters without paying attention
to the display: the word is highlighted.
The same sequence of keys pressed can correspond to
several words, existing on the dictionary. In this case, a list of
choices is displayed. If the first word that appears is not the
word you expected, press the navigator downwards or
upwards to scroll through the words corresponding to this key
sequence.
Once you agree on the word proposed on the screen, press
the navigator rightwards to validate it or on the 0 key (which
validates and inserts a space after the word), and go on
writing the next word.
If the word you are expected is not proposed, please add
characters until you get the message Add a word. Validate if
the word displayed suits you or modify this word before
adding it in the dictionary.
Punctuation characters
Punctuation characters are obtained by pressing the 1 key
(except in 123 mode), or by briefly pressing the key).
Accented characters
Accented characters are generated automatically in T9 mode.
In ABC mode accented characters are available by pressing
the key supporting the non-accented character repeatedly.
26
Messaging
Insert items
there are two methods to insert items:
-Press [Options], then select Insert Item to add the object.
-Press the down navigator to display a line lit icons on
bottom of the screen, then select the needed object.
Saving the message
-Exit the edit directly, the edited message is saved in the
drafts automatically.
-Select Save as/Draft, if you do not want to send the
message immediately or if you want to send it several times.
It is saved in the Drafts menu.
or
-Select Save as/Template to use it again as a template. It is
saved in the Templates menu.
Sending the message
Once the text is entered, press [Options] and select Select
recipient or just press navigator key.
-My contacts: select a number in your phonebook.
-Receiver number: enter a number manually.
-Email address: enter an email address
-Group: select a call group.
-Used numbers: display the numbers of the recipient which
you used before and not stored in the contacts.
Press the navigator key to send the message.
Receiving messages
When you receive a message, the phone plays the ring tone
that you selected in the Settings/Phone/Ringtones menu, a
message icon is displayed on the screen of your phone and
an icon of ‘MESSAGE UNREAD’ will appear on the status bar
at the same time.
Messaging
27
If the new message is ignored, the icon won’t disappear until
the unread message is read.
Receiving icons, wallpapers or ring tones may take several
seconds. The icon and the font are in italics when the
download of your message is in progress.
Messaging menu
Inbox
Messages are listed in chronological order, the latest one
being displayed first.
The quantity of Not Read and Not Retrieved messages is
shown. Not Retrieved and Not Read messages are shown in
bold.
Drafts
In this menu there are the messages created saved as drafts.
When you select a message and press [Options], various
options can be selected.
Sent
The Sent menu is used to store all your sent messages if you
activated the option Store sent msg in the Settings menu.
Outbox
This menu displays the messages that have not been sent.
You can therefore send them again.
Templates
In this menu there are the messages created saved as
templates.
The same options as for the drafts are available for the
templates.
28
Messaging
Archive
This menu is used to archive your messages received. Select
a received message, press [options] and select Save, then
select move to archive.
Voicemail
This function allows you to call your voicemail.
NOTE: if your voicemail number has not been entered yet,
you must enter it in the menu Settings/Calls/Voicemail.
Settings
This menu allows you to select various sending and receiving
options and customization options to create messages.
There are three tabs that you can select by pressing the left
or right navigator.
Settings
-Signature: to insert a text to be used as message's signature.
-Store sent msg: it is highly recommended that you keep this
function deactivated, to avoid saturating the memory.
-Emoticons: it has two items (text, picture), default is picture.
-Font size: it has three items (small, medium, large), default
is large.
SMS setting
-Delivery report: requests a delivery report when sending a
message.
-Expiration: during that period, the network provider will try
to send the message.
-Message center: taps the number of message center.
-Connection type: to set message connection.
MMS setting
-Priority: selection of a priority to send an MMS.
-Expiration: during that period, the network provider will try
to send the MMS.
Messaging
29
-In-network: to set the network connection type.
-MMS roaming: to set if the roaming can be used for MMS
retrieval.
-Message creation: to launch radio button list with Free/
Warm/Restricted.
-Anonymous sender: allows you to reject anonymous or not.
-Read report: to set the read report status.
-Delivery report: requests a delivery report when sending an
MMS.
-Slide duration: to set the time between two slides
automatic display.
-Delayed delivery: to set the delay to deliver the MMS.
-Profiles: to display the list of available MMS profiles.
30
Contacts
Contacts
Using the contacts
Enter the Contacts menu, the contacts list is displayed if you
already get some (otherwise, go to Storing a new contact).
The icon with the contact’s name displays as below to show
in which phonebook the contact is stored.
contact stored in the SIM card
contact stored in the phone
You can search for a contact quickly by typing the first
letters. You can display it by pressing the navigator.
Storing a new contact
Display the Contacts menu, press [Options], select Add then
SIM or Mobile.
-Enter the last name and press the navigator.
-Enter the number and press the navigator.
NOTE: you can fill other fields if you store the contact in the
phone memory (first name, email, address, ringtone, photo,
etc.).
-Press [Options] to Validate or press the navigator.
-Press [Save] to store it.
Contact options
To display the various options, select a contact and press
[Options].
Contacts
31
View
It allows you to display the contact's phone number.
Edit
It allows you to edit and/or modify a contact.
Add
Store a new contact into the SIM card or the phone.
Call
It allows you to call the selected contact.
Message
It allows you to send a message to the selected contact.
Send Card
It allows you to send contact details by message or
Bluetooth®.
Manage
-Delete: it allows you to delete the selected contact. The
synchronisation is performed through Bluetooth® or an USB
connection.
-Copy to mobile: allows you to copy the selected contact
from the SIM card to the phone.
-Move to mobile: it allows you to move the selected contact
stored in the SIM card to the phone memory.
-Copy to SIM: it allows you to copy a contact from the
phone memory to the SIM card. Only the name and the first
phone number will be copied.
-Move to SIM: it allows you to move a contact from the
phone memory to the SIM card.
-Copy all: it allows you to copy all the contacts from one
memory to the other.
-Delete all: it allows you to delete all the contacts.
32
Contacts
Add to group
It allows you to add a contact to a group or to create a new
group. (This menu displays when the selected contact is
stored in the phone.)
View/Sort
-View: it allows you to select the default phonebook list
(Phone, SIM, Both) when the phone switches on.
-Sort by: this menu allows you to select the way to sort
contacts in the phonebook (by last name or first name).
NOTE: this option is available only when the contact is
stored in the phone
.
Advanced
Speed Dial
It allows you to assign a short number to a contact.
Show groups
A call group allows you to group contacts: this group can be
used to send messages easily to all the group contacts.
By default, some groups are already created. To add
contacts, select [Options]/Edit then select Add.
The list of contacts is displayed. Select the contacts you want
and press [Options]/Add.
To create a new group:
-Select [Options]/Add group.
-Enter a name and press the navigator.
-The phone offers to add contacts either immediately (then
select the contacts you want to add by pressing the
navigator) or later (on a group press [
Options
]/
Edit
/
Add
. Select
the contacts you want to add by pressing the navigator).
Memory
It shows the number of contacts stored in each memory and
the available memory space.
Contacts
33
SOS
This menu lists various emergency numbers.
Prompt to save
After an incoming or outgoing call with a number is not stored
in the phonebook, this option allows you to activate or
deactivate a request to store the number into the phonebook.
Allowed numbers
This menu allows you to restrict the outgoing calls. This service
depends on your SIM card.
When activated this function, only the numbers stored in this
phonebook can be called.
This phonebook is linked to the SIM card, and its size depends
on the card's capacity.
-Status: allows you to activate or deactivate this service.
-Manage FDN: allows you to manage the numbers stored in
this phonebook.
Settings as Business Card
The details of a contact stored in the phone memory can be
saved as a business card.
My details
You can enter the details corresponding to your own
number.
Sync. settings
You can directly enter the contacts database settings.
Sync.
You can synchronize your contacts stored in the phone
memory with those of your computer electronic mails.
The synchronization is done by activating Bluetooth® or by
connecting a USB cable between the phone and a
computer and using COSY Phone Suite software (available on
CD-ROM).
34
Camera
Camera
The Camera menu allows you to take photos and use them
for different purposes. For instance, you can send them to
another phone or an Internet address, store them and use
the photos as wallpapers.
Taking a photo
Settings before taking a photo
Pressing the left key, various options can be selected:
-Snap: to take the photo.
-Timer: to take a photo with a 5, 10 or 15 second time delay.
-Mode: to select luminosity.
-Effects: to select an effect or you can press key to
select an effect.
-Settings: to select photo format, quality or click sound.
-Pictures: enter My files to see the taken photos, the photos
stored in Multimedia/Pictures.
Taking a photo
-Select the Camera menu. Look into your phone display and
position your subject. Move your phone to position your
photo.
-Press the navigator, the photo is taken and automatically
saved. It stays on the phone display.
-If you want to send the photo immediately, press the
navigator. The creating message screen is displayed to
type a text if necessary.
Options once the photo taken
Taken a photo, various options can be selected:
-Send by: to send the photo by Message or Bluetooth®.
Camera
35
-Add to contact: to assign the photo to a contact.
-Details: to see the photo name, file size and date.
-Delete: to delete the photo.
-Rename: to modify the name of the photo.
-Wallpaper: to select the photo as a wallpaper.
NOTE: using the camera during a call may disturb the call
quality.
Recording a video
Select the Camera menu and press the navigator rightwards
or leftwards to switch between video mode and camera
mode.
Settings before recording a video
Pressing [Options], various options can be selected:
-Record: to record a new video.
-Settings: to select the video quality, the recording time and
the recording of the sound.
-Videos: enter My files to see the recorded videos, the
videos stored in Multimedia/Videos.
Recording a video
-Press the navigator to record then press [Stop] when you
want to stop recording.
The video is automatically saved and has a number. It is
saved in Multimedia/Videos.
NOTE: the phone automatically stops recording when the
maximum size available is reached.
Options once the video recorded
-Play: to play the video.
-Rename: to modify the name of the video.
-Details: to see the video name, file size and date.
-Delete: to delete the video.
36
Camera
-Full screen: display it with full screen.
-Send by: allows you to send the video by Message or
Bluetooth®.
NOTE: the videos are saved in the phone with a.3gp format.
Music player
37
Music player
This menu allows you to listen to music files in a continuous
way like a portable music player.
You can download music files using WAP or connecting your
phone to a computer.
You can also use a memory card in which music files are
stored.
Adjusting the volume
Change
to the
next
music
track
Change to
the previous
music track
Play/pause
music
Recently played
It allows you to play a music file or several music files selected.
Music
All
It is the directory of all the music files.
To display the different options, press [Options]:
-Play: to play the music file or you can press [OK] key to play.
-Mode: to select the way to play the music files.
-Playlist: to add a music file to a playlist.
NOTE: music files stored in the memory card are
automatically added to the list.
38
Music player
-Send by: to send the music file by Message or Bluetooth®.
-Details: to display properties of the selected music file.
Playlists
New
Type a name and press [Options] to select [Save]. Then a
prompt asks you if you want to insert music files now.
Recently played
The Recently played is an intelligent playlist, which
remembers the tracks you have recently listened to.
List of the playlists
On a list press [Options] to display the different options:
-Select: to display the content of the playlist.
-Play: to play the playlist contents.
-Add: to add a music file to the playlist.
-Delete: to delete the playlist.
-Rename: to rename the playlist.
Artists
It is the directory of the music files sorted by artist.
Albums
It is the directory of the music files sorted by title.
Genres
It is the directory of the music files sorted by style.
More sounds
It allows you to download more sounds by network.
FM Radio
39
FM Radio
IMPORTANT: you must connect the hands free kit to operate
the FM Radio. The radio aerial is contained in the hands free
kit.
Two lists of stations are available for the FM Radio:
-My list: list of stations saved by the user.
-Autoscan list: this list is filled by the automatic search
feature.
Using the FM Radio
-Start the FM Radio application from the main menu.
-To exit the FM Radio application while continuing to listen to
the radio, use the [Back] key.
-To return to the FM Radio application, FM Radio can be
found by pressing 'FM Radio' icon in main menu.
-To switch off the FM Radio, use the Red key.
Main screen
-To navigate through the stations
saved, use the up or down directions of
the navigator.
-To adjust the frequency, do short
presses on the right or left directions of
the navigator.
-To search for a station, do a long press
on the right or left directions of the
navigator.
-To adjust the sound level, use the + and
- side keys.
-To mute or unmute the sound, use the
key or the central part of the
navigator.
40
FM Radio
After connecting the hands free kit, select the FM Radio
application.
[Options] lets you access the different functions of the radio:
-Mute/Unmute: sound on/off.
-Speaker on/off: turn on/off the loud speaker.
-My list/Autoscan list: select wanted channel in two lists.
-Autoscan: scan channels into scan list.
-Save: save the current used channel to my list.
-View lists: view the auto scan list or my list.
-Settings: radio can be set. It allows you to activate/
deactivate RDS, activate/deactivate AF, activate Mono or
activate Stereo.
-Minimize: make FM Radio playing in background.
-Quit: turn off FM Radio and quit the application.
How using the navigator while listening to the FM Radio
-Up and down: next/previous station (short press).
-Left and right: change in steps (short press) - find stations
(long press).
-Pressing central part: mute/unmute.
NOTE: The application is started with the last used mode
(preset, tuner mode, and the last used channel.)
Multimedia
41
Multimedia
The Multimedia menu contains the directories of all the
multimedia objects recorded in your phone and the
downloaded objects (photos, videos, ringtones, etc.).
To display the various options, press [Options] after having
selected an object.
-Browse: displays the list of the objects.
-Rename: modifies the directory name (only the directories
created by the user).
-Delete: deletes the directory, you can select delete current
object or all objects (only the directories created by the
user).
-Format: this option will delete all the internal memory of the
Memory card (this menu only displays when the Memory
card insert).
-Memory: displays the memory used and available for the
multimedia objects.
-Select: this option is used to mark one or all objects to do
delete, do copy or move operation (only the directories
created by the user).
-Quit: Exit Multimedia module.
NOTE: you can create new folder after you enter a folder by
phone.
42
Applications
Applications
NFC
What is NFC?
Near Field Communication or NFC, is a short-range (about a
10 centimeter, around 4 inches) wireless connectivity
technology standard designed for intuitive, simple and safe
communication between electronic devices. Applications of
NFC technology include contactless transactions such as
payment and transit ticketing, simple and fast data transfers
including electronic business cards and access to online
digital content.
How does NFC work?
NFC is based on contactless and Radio Frequency
Identification (RFID) solutions, which consist of a TAG and a
reader. The reader, when activated, emits a short-range
radio signal that powers up a microchip on the TAG, and
allows for reading a small amount of data that can be stored
on the TAG. NFC is different from other contactless or RFID
technologies in that it has a very short operating distance.
When the user shares to the TAG, his/her device reads the
content of the TAG and executes it into action. The user only
accepts the execution, eg opening a web page, calling a
favorite number, or sending an SMS.
TAG features
NFC can support use the following TAG types:
-type1: Topaz® .
-type2: MIFARE® Ultralight, Ultralight-C.
-type3: FeliCa(non-secure).
Applications
43
-type4: MIFARE® Pro, MIFARE® DESFire.
-type5: Picopass.
A TAG can contain a shortcut which can be an SMS-based
service, an URL of an Internet-based service, or a phone
number of a telephone service, etc.
NOTE: before using this function, you need activate NFC
function, the menu Settings/Connectivity/NFC or
Connectivity/NFC must be selected on, the details please
see NFC on page 58.
Share to TAG
Your new COSY Phone has a special feature, known as NFC
(Near Field Communication), which enables you to perform
useful actions just by touching the back of your COSY Phone
over a card known as a “TAG” or “Target”.
You can setup different TAGs or Targets to do different things.
This includes:
-Ringing a number
-Sending a text
-Going directly to a web address
-Setting the phone to silent
-Setting an alarm
Setting Up TAGs
To set up a new TAG all you have to do is touching the back
of the COSY Phone slowly over a blank TAG. You can then
follow the instructions on the screen.
It will take you through the following steps:
-Select type of action you would like the TAG to perform,
-Enter the details for that action,
-Touch the phone over the TAG again to complete the set
up of the TAG.
44
Applications
Using TAGs
To use a TAG, simply touch the back of your COSY Phone
slowly across these symbols:
The COSY Phone will then respond and ask you to confirm the
action that you want to do.
Duplicate TAG
Go in the Application menu then NFC menu, select the
Duplicate option, then simply touch the back of your COSY
Phone slowly across the TAG to duplicate. Once prompt by
the COSY Phone simply touch the back of your COSY Phone
slowly across the TAG to set.
NOTE:
-If the content in the TAG is not a normal NDEF message , it
will display "Unknow TAG data".
-If the TAG is not supported by the NFC, it will display "A card
detected".
-When keypad is locked and back light is off, TAG can not
be read.
WARNING:
-Don’t place TAGs on metal or other conductive surfaces,
as it would not work on this material.
-Don't remove the NFC antenna located inside the back
cover.
Applications
45
ToDo
This menu allows you to add ToDos, access category-based
Todo management and delete one or all the ToDos
.
If there is not any ToDo, you directly access to the options
below.
-Written todo/Vocal todo: to add ToDo of the text or voice
type. Fill in the different items. Save the ToDo.
-Settings: to select various settings for the ToDo.
-Import: to import a ToDo from a Multimedia directory.
-Sync.: you can synchronize a ToDo with data of your
computer. The synchronization is done by activating
Bluetooth® or by connecting a USB cable between the
phone and a computer and using COSY Phone Suite
software (available on CD-ROM).
-Sync. settings: you can directly enter the ToDo’s database
settings.
ToDo actions menu
This menu allows you to do all the actions possible on any
ToDo. To display a ToDo, select it in the list and press the
navigator.
To display the different options, press [Options].
-Done/Undone: mark the ToDo done or undone.
-View: to see the ToDo details information.
-Edit: to modify the ToDo properties.
-Send by : to send the ToDo by Message or Bluetooth®.
-Delete: to delete the ToDo.
-Export: to copy the event to the Multimedia/Others
directory.
46
Applications
Clock
Alarm
This menu allows you to set and activate the alarm.
-Select OK key or
[Edit].
-Enter the time selected for the alarm, setting alarm
recurrence, sound, whether need vibration, alarm text.
-Select [save], it prompt alarm activated.
If there is an activated alarm, press [Options] to display the
options.
-Edit: Enter into alarm settings screen, modify this alarm
properties.
-Off: Turn this alarm off.
-Share: share to TAG.
NOTES:
-The alarm works even when the phone is switched off.
-The alarm icon appears on the idle screen.
Stopwatch
This menu allows you to use the chronometer function and to
store the lap times.
Timer
This menu allows you to use the timer function.
Sync.
This menu allows you to activate the synchronization for the
Contacts, Calendar or ToDo functions.
Applications
47
Calculator
This menu allows you to use your phone as a calculator.
Use the following keys to make calculations:
-S: Add, T: Subtract, W: Multiply, X: Divide.
The following keys are used for:
-Left key: Convert or add to memory.
-Right key: Delete.
- : Decimal point.
Torch
This menu is used to turn on or turn off the torch lamp.
You can assign a shortcut to one of the navigator keys
(Settings/Display/Shortcuts menu).
Local info.
This menu is used to activate reception of local information
broadcast by the network.
You can choose whether you want to receive this
information or not (please contact your network provider).
Services
This item may not be present on your phone’s menu, as its
contents depend on your SIM.
Recorder
This menu allows you to record your voice or a sound.
48
Applications
Calendar
This menu gives you access to your diary and get to a day,
week, month or specific date. It allows you to add events,
access the global actions for all the events and manage
them by event category.
Month
To access events on a month-by-month basis.
Week
To access events on a week-by-week basis.
Today
To access the events for the current day and the actions
possible on any event.
Date
Allows you to access events at a specific date.
Options
-Written event/Vocal event: to add events of the text or
voice type. Fill in the different items. Save the event.
-Delete: to delete events by selection of a date.
-Memory: to view the memory capacity used by the
different functions of your phone (audio, video, picture,
etc.).
-Sync.: you can synchronize your calendar with data of your
computer. The synchronization is done by activating
Bluetooth® or by connecting a USB cable between the
phone and a computer and using COSY Phone Suite
software (available on CD-ROM).
-Sync. settings: you can directly enter the calendar
database settings.
Applications
49
Settings
To select various settings for the events.
Help
This menu allows you to display help pages for the using of
your phone.
First select the language you want.
NOTE: displaying help pages is done with a free WAP
connection.
50
Entertainment
Entertainment
Games
Your phone contains one or several games,
either a complete or demo version according
to the model. You can download more. You
can download applications and games to be
executed on your phone thanks to the built-in
Java™ engine.
However, receiving applications from
anywhere implies some basic knowledge of
the possible effects of such downloading.
We recommend you to download certified
games or applications from your operator sites.
By default, the connection URL of your
operator is configured in your phone.
Press [OK] to run game.
To display the various options, press [Options]:
-Install: to download games, applications and utilities in your
phone. Downloading is done through the browsing
function.
-Local Files: to select local games to install.
-Certificates: display the trust authentications.
Applications
This menu contains your java downloads (applets). Press [OK]
to run applets.
Running Applications
This menu lists all the applications that are running on the
phone.
Entertainment
51
Settings
To display and edit the list of available java profiles and
display about Myriad Jbed information.
52
Browser
Browser
The Browser function allows you to log onto certain Internet
sites. You can log onto sites that allow you to download
ringtones, icons, animated screensavers, Java™
applications, videos to your phone.
The WAP browser is under licence.
-Select: to open the selected link.
-Display mode: to select display mode, normal screen or
wide screen.
-Open: to type an Internet address.
-Bookmarks: to store bookmarks (addresses of internet sites).
A bookmark stored in the list can be modified, sent or
deleted.
You can receive bookmarks and add them to this list.
-More: allows you to more options function.
•Add to bookmarks: add current URL to bookmarks.
•History: backward and forward navigation of the pages
displayed are kept in memory.
•Refresh: again display current URL and display the latest
content.
•Home: logs onto the home page (carries the name of
your access provider).
•Save this page: save current page on Internet sites out
of connection
(WARNING: these pages will not be
updated).
Browser
53
•Save items: save items to your phone.
•Set homepage: set current URL address to home page.
•Details: display Current URL tile, address, mime type and
size.
•Send by: send current URL address by message or
Bluetooth®.
•Privacy: clear history, cache, or cookies etc.
•Settings: various settings for the WAP connection.
•Alert inbox: this menu contains information messages
about sending and receiving (deliveries, failures, etc.).
•About: display browser software name and version.
-Quit: exit the Browser module.
Logging on
The connection to a service on the GPRS/EDGE/UMTS/HSDPA
network is not cut if an incoming call is received. You can
answer the call.
Downloading objects
Some Internet sites allow you to download ringtones, icons,
animated screensavers, games or Java™ applications. Once
downloaded, they are stored in your phone's memory
(Multimedia). You can then save them in your phone (same
operation as used for downloading using messages).
Logging off
To log off, press the red key. The log off happens
automatically after a few seconds of inactivity if you forget to
log off. This period is defined by the linger time setting.
54
Connectivity
Connectivity
You can send files to another mobile or a computer by using
Bluetooth, USB, or Sync. settings, configure network
preferences and set various parameters needed for Brower
connection.
Bluetooth®
Bluetooth® is a technology used to establish a wireless
connection with other Bluetooth® equipped devices: for
example, with a pedestrian kit or a car kit to phone or with a
PC to swap data. The range is about 10 m.
The Bluetooth® menu contains the following entries:
Mode
With this menu you can, on the one hand, activate and
deactivate the Bluetooth® function and, on the other, when
the Bluetooth® function is activated, select whether you
want other Bluetooth® devices to be able to detect your
device.
-Off: the Bluetooth® function is not available.
-On, hide: the Bluetooth® function is activated and your
phone is not visible. It cannot be detected by other
Bluetooth® devices. In this mode, a device can only
connect to your phone using Bluetooth® if you have
already paired it. This mode lets you detect other devices
and pair with them from your phone.
-On, visible for 3 minutes: the Bluetooth® function is
activated and your phone is visible for 3 minutes. After 3
minutes, Bluetooth remains activated but your phone is no
longer visible.
Connectivity
55
-On, visible: the Bluetooth® function is activated and your
phone is visible, it can be detected by the other Bluetooth®
devices as long as this mode is selected.
IMPORTANT:
-The Off option ensures the best battery life for your phone.
-Bluetooth® security is better guarded because your phone
remains invisible to the other devices.
My devices
This menu is used to draw up the list of devices with which the
Bluetooth® connection is secure (by authentication and
encryption).
A device must be added to this list before it can be used in
Bluetooth® with your phone except for exchanging objects.
When you select send by Bluetooth® (photo, Todo task,
contact details, etc.) the phone displays the list of devices.
You do not need to select a device from this list at this time,
you can start a one-off search for a device when you initiate
sending.
See below for the pairing procedure.
Pairing procedure
Select My devices/New Device.
If the Bluetooth® function is not active, the phone prompts
that "You should active your Bluetooth first. Activate it
temporary?" If select Yes, the mode of Bluetooth® would be
On, visible for 3 minutes.
The phone searches for visible Bluetooth® devices and
displays the list. Select the device concerned and validate
your choice. Your phone then prompts you to enter a code
which must be the same as the code entered on the remote
device. Enter and validate this code: Your phone is now
paired with the remote device.
56
Connectivity
[Options] on the name of a device lets you access the
following options:
-Rename: this is used to modify the name of the device.
-Delete: this is used to delete the device. WARNING: using
this function needs starting the pairing over again.
-Mark Trusted/untrusted: this is used to trust/untrusted the
device.
-Delete all: this is used to delete all your devices. WARNING:
using this function needs starting the pairing over again.
NOTES:
-Refer to the user manual of the device with which you are
pairing to find out how to set this device to the mode
allowing this operation.
-The code of the remote device may be predefined by the
device manufacturer. In this case, refer to the user manual
of this device to find out this code.
Bluetooth® name
This is the name used to identify your phone when it is
detected by another Bluetooth® device.
GPS
A-GPS On/Off
Select on/off to activate/deactivate A-GPS function.
Profiles
This menu is used to setting the profile for A-GPS. If the state of
A-GPS On/Off is On, then you should setting the correct
profile for A-GPS.
Connectivity
57
USB mode
This mode allows you to access from a computer, the files
you have saved in the phone memory or on the memory
card.
Memory card access
-You must first install an USB driver on your computer
(available on CD-ROM).
-After connection of the USB cable between the phone and
the PC, if this function is activated, you can use the
Windows file explorer to consult your multimedia files on
your phone and swap data between the phone and
computer, etc.
IMPORTANT NOTE: when the phone is connected to the
computer in USB mode:
-The memory card is not detected by the phone. This means
that if you have configured your phone with a background
or ringtone stored on the memory card, they will not be
used during this connection.
-The camera is also not accessible, either in photo mode or
video mode.
-You cannot access your files from the phone when the USB
cable is connected. In the event of a specific need, select
Off in the Memory card access option so you can just
access your files from the phone. You will not be able to
access them from the computer.
Charge
If this function is activated, the phone can charge when
plugged on USB.
58
Connectivity
Sync. settings
This menu allows you to configure all the synchronization
parameters. You can synchronize your contacts, your
calendars or your ToDos with your archives stored in your
computer. Use the COSY Phone Suite and configure your USB
connection or activate Bluetooth®.
Profiles
This menu allows you to set various parameters needed for all
the network connection.
Networks
This menu allows you to configure network preferences.
-Search: to activate (automatic or manual) one of the
networks accessible in the area in which your are located.
-Preferred Networks: to view all the pre-registered networks.
-Settings: to select your network Automatic, GSM, UMTS.
NFC
Select on/off to activate/deactivate NFC function.
If you want to use NFC function, this option should be
selected On. After you activate this function, the
NFC-radio-on icon would display in the status bar.
Settings
59
Settings
Phone
Profiles
This menu allows you to set profiles containing selections of
different volume to adapt them to various circumstances (for
instance, depending on where you are (at work, at home,
etc.), you will select such or such profile.
NOTES:
-From the idle screen, you can directly access to the profiles
by pressing the +/- side key.
-From the idle screen, you can activate silent mode by a
long press on the
key.
Ringtones
This menu allows you to display and if necessary modify the
ring tones selected for calls and messages.
Date&Time
Set time/Set date
These menus are used to set the various date and time
settings (format, display, time zone, daylight saving, etc).
Keypad lock
This menu allows you to lock the keyboard to avoid
unwanted key presses.
-Automatic: once the time set in eco-mode elapsed
(Settings/Display/Backlight/Eco. mode menu), the keypad
locks.
-Manual: lock the keypad pressing the key and then
press [OK], or making a long press the
key from the
idle screen.
60
Settings
Unlocking the keyboard
To unlock the keyboard, press the
key then the
navigator or [OK].
Languages
This menu allows you to choose your phone's display
language.
Security
This menu allows you to configure your phone's security
settings.
PIN protection
This menu allows you to activate or deactivate the PIN code
when switching on the phone.
PIN modification
This menu allows you to modify your phone's PIN.
To modify the PIN, select PIN modification and [Select].
Enter old PIN and validate.
Enter new PIN twice and validate.
PIN 2 modification
You have a second PIN number to allow you to access
certain functions (*).
Proceed as above in order to modify PIN number 2 of your
phone.
Phone lock
This menu allows you to activate a code which will be
requested when the phone is switched on if a different SIM
card is used. This code is automatically linked to the SIM card
installed when the phone is activated. This code is a secret
code to protect the phone if stolen.
(*) These functions may or may not be available depending
on your SIM card.
Settings
61
To activate or deactivate the code:
-Select Lock mode and [Select].
-Select On or Off .
-Enter 0000 (the factory code, by default) and validate.
To modify the phone code:
-Select Change and [Select].
-Enter the old code and validate.
-Enter the new code and validate.
-Enter the code again to confirm it and validate.
Confidentiality
This menu allows the activation or deactivation of automatic
deletion, after power off/on, of outgoing calls, messages
stored or diary.
Select On or Off and [Save].
Operator
This menu allows you to modify the call barring.
Access to this service depends on your type of subscription.
Camera & Voice
This menu allows you to select the camera, video and voice
recorder settings.
Storage
This menu allows you to select (phone memory or memory
card) where the sounds, pictures, videos or applications
downloaded will be stored.
Memory
This menu displays the memory space used for the various
functions.
62
Settings
HAC
Select on/off to activate/deactivate this function.
HAC is short for Hearing Aid Complicance, to measure the
compatibility of phone working with hearing aids. The target
is to ensure that hearing impaired people can use phone as
ordinary people.
HAC of COSY Phone have two modes, M mode and T mode,
M mode makes phone as little electromagnetic radiation
interference as possible to hearing aids, T mode makes
phone receiver to eradiate magnetic field as strong as
possible, which this two modes improve usability with hearing
devices. After activate this function, the user can select
related mode basis different hearing aid to better to use this
function.
Haptics
Select on/off to activate/deactivate this function.
This menu is used for launching or closing vibration effects
only related to different keys and NFC actions.
Press different kinds of keys will correspond to different
vibration effects. And similar keys will have the same effect
from vibrator.
Display
Wallpaper
Press the navigator. You can select a wallpaper through the
phone default wallpapers and the pictures downloaded
(More files) or no wallpaper (None).
Select [Save] once your choice made.
Backlight
You can choose the backlight level, economic mode and
the way to exit the economic mode (any key or red key).
Settings
63
Startup animation
This menu allows you to display an animation when the
phone is switched on.
Operator logo
This menu allows you to display your operator's logo on the
idle screen (depending on model).
Shortcuts
This menu allows you to allocate functions to the directional
keys of the navigator.
Calls
Please see Call Settings on page 20.
Connectivity
Please see Connectivity on page 54.
64
Technical features
Technical features
Weight: 103 g
Size: 111.9 x 49.9 x 12.9 mm
Original battery: Li-ion 900 mAh
Battery life (*):
-Standby: up to 240 h
-Calls: GSM up to 4 h, WCDMA up to 3.5 h
-Music mode: headset up to 15 h
Camera: 1.3 megapixels
Multimedia objects supported:
-Audio formats: Midi, SP-Midi, WAV, AMR NB, MP3, AAC,
AAC+, eAAC+
-Graphic formats: bmp, jpeg, png, gif, svg Tiny
-Video formats: H.263, H.264, 3GP, MPEG4
Size of memory available for messages, the phonebook and
the multimedia objects: up to 128 Mb
Maximum size of each message:
-SMS: < 640 characters
-MMS: the phone supports MMS sizes up to 300 KB both for
outgoing and incoming messages (depending on the
phone configuration and on the operator reservations)
Memory card type: microSHDC™
Operating temperature: - 10 °C to + 55 °C
(*) These values are theoretical ones and given for
information only.
Declaration of conformity
65
Declaration of conformity
66
Certification and safety information for the united states and countries
Certification and safety
information for the united
states and countries using
fcc standards
FCC Part 15 statement
This device complies with part 15, part 22 and part 24 of the
FCC rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any
interference, including interference that may cause
undesired operation.
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following
measures:
-Reorient or relocate the receiving antenna.
Certification and safety information for the united states and countries
-Increase the separation between the equipment and
receiver.
-Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician
for help.
WARNING
Changes or modifications made to this equipment not
expressly approved by SAGEM Wireless for compliance could
void the user's authority to operate the equipment.
NOTICE:
This device complies with Part 15 of the FCC Rules [and with
RSS-210 of Industry Canada].
Operation is subject to the following two conditions:
1. this device may not cause harmful interference, and
2.
this device must accept any interference received,
including interference that may cause undesired operation.
NOTICE:
Changes or modifications made to this equipment not
expressly approved by (manufacturer name) may void the
FCC authorization to operate this equipment.
FCC SAR information
THIS MODEL PHONE MEETS THE FCC'S REQUIREMENTS FOR
EXPOSURE TO RADIO WAVES
Your wireless phone is a radio transmitter and receiver. It is
designed and manufactured not to exceed the limits for
exposure to radiofrequency (RF) energy set by the United
States Federal Communications Commission (FCC). These
limits are part of comprehensive guidelines and establish
permitted levels of RF energy for the general population. The
guidelines are based on standards that were developed by
68
Certification and safety information for the united states and countries
independent scientific organizations through periodic and
thorough evaluation of scientific studies. The standards
include a substantial safety margin designed to assure the
safety of all persons, regardless of age and health.
The exposure standard for wireless mobile phones employs a
unit of measurement known as the Specific Absorption Rate,
or SAR. The SAR limit set by the FCC and Health Canada is
0.979 W/kg (*). Tests for SAR are conducted using standard
operating positions accepted by the FCC with the phone
transmitting at its highest certified power level in all tested
frequency bands. Although the SAR is determined at the
highest certified power level, the actual SAR level of the
phone while operating can be well below the maximum
value. This is because the phone is designed to operate at
multiple power levels so as to use only the power required to
reach the network. In general, the closer you are to a wireless
base station antenna, the lower the power output.
Before a phone model is available for sale to the public, it
must be tested and certified to the FCC that it does not
exceed the RF limit established by the government-adopted
requirement for safe exposure. The tests are performed in
positions and locations (i.e., at the ear and worn on the
body) as required by the FCC for each model.
The highest SAR value for these model phones as reported to
the FCC when tested for use at the ear and when worn on
the body are (measured at a distance of 0.59 inches (1.5
cm)):
(*) In the United States and Canada, the SAR limit for mobile
phones used by the public is 1.6 watts/kilogram (W/kg)
averaged over one gram of tissue. The standard
incorporates a substantial margin of safety to give
additional protection for the public and to account for
any variations in measurements.
SAR at the ear
(W/kg)
SAR worn of the body
(W/kg)
GSM 850 PCS 1900 GSM 850 PCS 1900
0.976 0.993 0.786 0.333
Certification and safety information for the united states and countries
While there may be differences between the SAR levels of
various phones and at various positions, they all meet the
FCC requirement. The FCC has granted an Equipment
Authorization for this model phone with all reported SAR
levels evaluated as in compliance with the FCC RF exposure
guidelines. SAR information on this model phone is on file with
the FCC and can be found under the Display Grant section
of http://www.fcc.gov/oet/fccid after searching on FCC ID
M9HCOSY2G/M9HCOSY3G (COSY Phone 2G/COSY Phone
3G). Additional Information can be found on the website of
the World Health Organization (http://www.who.int/emf).
Safety Information
Aircraft: Switch off your wireless device whenever you are
instructed to do so by airport or airline staff. If your device
offers a “flight mode” or similar feature, consult airline staff as
to its use in flight.
Driving: Full attention should be given to driving at all times,
and regulations restricting the use of wireless devices while
driving must be observed. For further driving safety tips,
please refer to Driving safety tips at page 70.
Hospitals: Mobile phones should be switched off whenever
you are requested to do so in hospitals, clinics or health care
facilities. These requests are designed to prevent possible
interference with sensitive medical instruments.
Gas stations: Obey all posted signs with respect to the use of
wireless devices or other radio equipment in locations with
flammable material and chemicals. Switch of your wireless
70
Certification and safety information for the united states and countries
device whenever you are instructed to do so by authorized
staff.
Interference with personal medical devices: You should
always consult your physician and review the device
manufacturer's instructions to determine if operation of your
phone may interfere with the operation of your medical
device.
As a general rule:
For pacemakers: Pacemaker manufacturers recommend
that a minimum separation of 6 inches (15 cm) be
maintained between a mobile phone and a pacemaker to
avoid potential interference with the pacemaker. To achieve
this, use the phone on the opposite ear to your pace maker
and do not carry it in a breast pocket.
For hearing aids: Some digital wireless phones may interfere
with some hearing aids. In the event of such interference, you
may want to consult your hearing aid manufacturer to
discuss alternatives.
The ring tone, info tones, and handsfree talking are
reproduced through the loudspeaker. Do not hold the phone
to your ear when it rings or when you have switched on the
handsfree function (at least 3.9 inches (10 cm)).
Use only batteries and charging devices designed for your
phone. Otherwise you risk serious damage to health and
property and may void any warranty.
CAUTION! Small parts like the SIM card could be swallowed
by young children.
Do NOT open the phone. Only the battery and the SIM card
may be removed. Do NOT open the battery.
Keep the battery out of chidren’s reach. Do not allow the
battery to be put into the mouth.
Certification and safety information for the united states and countries
Distance of operation
This phone is designed to comply with the FCC radio
frequency (RF) exposure guidelines when used as follows:
-Against the ear: Place or receive a phone call and hold the
phone as you would a wireline telephone.
-Body worn: When transmitting, place the phone in a
carrying accessory that contains no metal and positions
the phone a minimum of 0.59 inches (1.5 cm) from your
body. Use of other accessories may not ensure compliance
with exposure guidelines. If you do not use a body worn
accessory and are not holding the phone at the ear,
position the phone a minimum of 0.59 inches (1.5 cm) from
your body.
-Data operation: When using a data feature, position the
phone a minimum of 0.59 inches (1.5 cm) from your body
for the whole duration of the data transmission.
FDA consumer information on wireless
phones
The US Food and Drug Administration (FDA) provides
consumer information on wireless phones at:
http://www.fda.gov/cellphones/qa.html.
Following are safety related questions and answers discussed
at this web site:
Do wireless phones pose a health hazard?
The available scientific evidence does not show that any
health problems are associated with using wireless phones.
There is no proof, however, that wireless phones are
absolutely safe. Wireless phones emit low levels of
radiofrequency energy (RF) in the microwave range while
being used. They also emit very low levels of RF when in the
stand-by mode. Whereas high levels of RF can produce
72
Certification and safety information for the united states and countries
health effects (by heating tissue), exposure to low level RF
that does not produce heating effects causes no known
adverse health effects. Many studies of low level RF
exposures have not found any biological effects. Some
studies have suggested that some biological effects may
occur, but such findings have not been confirmed by
additional research. In some cases, other researchers have
had difficulty in reproducing those studies, or in determining
the reasons for inconsistent results.
What is FDA's role concerning the safety of wireless phones?
Under the law, FDA does not review the safety of
radiation-emitting consumer products such as wireless
phones before they can be sold, as it does with new drugs or
medical devices. However, the agency has authority to take
action if wireless phones are shown to emit radiofrequency
energy (RF) at a level that is hazardous to the user. In such a
case, FDA could require the manufacturers of wireless
phones to notify users of the health hazard and to repair,
replace or recall the phones so that the hazard no longer
exists.
Although the existing scientific data do not justify FDA
regulatory actions, FDA has urged the wireless phone industry
to take a number of steps, including the following:
-Support needed research into possible biological effects of
RF of the type emitted by wireless phones;
-Design wireless phones in a way that minimizes any RF
exposure to the user that is not necessary for device
function; and
-Cooperate in providing users of wireless phones with the
best possible information on possible effects of wireless
phone use on human health.
FDA belongs to an interagency working group of the federal
agencies that have responsibility for different aspects of RF
Certification and safety information for the united states and countries
safety to ensure coordinated efforts at the federal level. The
following agencies belong to this working group:
-National Institute for Occupational Safety and Health
-Environmental Protection Agency
-Federal Communications Commission
-Occupational Safety and Health Administration
-National Telecommunications and Information
Administration
The National Institutes of Health participates in some
interagency working group activities, as well.
FDA shares regulatory responsibilities for wireless phones with
the Federal Communications Commission (FCC). All phones
that are sold in the United States must comply with FCC
safety guidelines that limit RF exposure. FCC relies on FDA
and other health agencies for safety questions about wireless
phones.
FCC also regulates the base stations that the wireless phone
networks rely upon. While these base stations operate at
higher power than do the wireless phones themselves, the RF
exposures that people get from these base stations are
typically thousands of times lower than those they can get
from wireless phones. Base stations are thus not the primary
subject of the safety questions discussed in this document.
What is FDA doing to find out more about the possible health
effects of wireless phone RF?
FDA is working with the U.S. National Toxicology Program and
with groups of investigators around the world to ensure that
high priority animal studies are conducted to address
important questions about the effects of exposure to
radiofrequency energy (RF).
FDA has been a leading participant in the World Health
Organization International Electromagnetic Fields (EMF)
Project since its inception in 1996. An influential result of this
74
Certification and safety information for the united states and countries
work has been the development of a detailed agenda of
research needs that has driven the establishment of new
research programs around the world. The Project has also
helped develop a series of public information documents on
EMF issues.
FDA and the Cellular Telecommunications & Internet
Association (CTIA) have a formal Cooperative Research and
Development Agreement (CRADA) to do research on
wireless phone safety. FDA provides the scientific oversight,
obtaining input from experts in government, industry, and
academic organizations. CTIA-funded research is conducted
through contracts to independent investigators. The initial
research will include both laboratory studies and studies of
wireless phone users. The CRADA will also include a broad
assessment of additional research needs in the context of the
latest research developments around the world.
What steps can I take to reduce my exposure to
radiofrequency energy from my wireless phone?
If there is a risk from these products--and at this point we do
not know that there is--it is probably very small. But if you are
concerned about avoiding even potential risks, you can take
a few simple steps to minimize your exposure to
radiofrequency energy (RF). Since time is a key factor in how
much exposure a person receives, reducing the amount of
time spent using a wireless phone will reduce RF exposure.
If you must conduct extended conversations by wireless
phone every day, you could place more distance between
your body and the source of the RF, since the exposure level
drops off dramatically with distance. For example, you could
use a headset and carry the wireless phone away from your
body or use a wireless phone connected to a remote
antenna.
Certification and safety information for the united states and countries
Again, the scientific data do not demonstrate that wireless
phones are harmful. But if you are concerned about the RF
exposure from these products, you can use measures like
those described above to reduce your RF exposure from
wireless phone use.
What about children using wireless phones?
The scientific evidence does not show a danger to users of
wireless phones, including children and teenagers. If you
want to take steps to lower exposure to radiofrequency
energy (RF), the measures described above would apply to
children and teenagers using wireless phones. Reducing the
time of wireless phone use and increasing the distance
between the user and the RF source will reduce RF exposure.
Some groups sponsored by other national governments have
advised that children be discouraged from using wireless
phones at all.
Do hands-free kits for wireless phones reduce risks from
exposure to RF emissions?
Since there are no known risks from exposure to RF emissions
from wireless phones, there is no reason to believe that
handsfree kits reduce risks. Hands-free kits can be used with
wireless phones for convenience and comfort. These systems
reduce the absorption of RF energy in the head because the
phone, which is the source of the RF emissions, will not be
placed against the head. On the other hand, if the phone is
mounted against the waist or other part of the body during
use, then that part of the body will absorb more RF energy.
Wireless phones marketed in the U.S. are required to meet
safety requirements regardless of whether they are used
against the head or against the body. Either configuration
should result in compliance with the safety limit.
76
Certification and safety information for the united states and countries
Do wireless phone accessories that claim to shield the head
from RF radiation work?
Since there are no known risks from exposure to RF emissions
from wireless phones, there is no reason to believe that
accessories that claim to shield the head from those
emissions reduce risks. Some products that claim to shield the
user from RF absorption use special phone cases, while others
involve nothing more than a metallic accessory attached to
the phone. Studies have shown that these products generally
do not work as advertised. Unlike "hand-free" kits, these
so-called "shields" may interfere with proper operation of the
phone. The phone may be forced to boost its power to
compensate, leading to an increase in RF absorption.
Driving safety tips
Wireless phones give people the ability to communicate
almost anywhere, anytime. But an important responsibility
accompanies those benefits, one that every wireless phone
user must uphold. When driving a car, driving is your first
responsibility.
Below are safety tips to follow while driving and using a
wireless phone that should be easy to remember.
Certification and safety information for the united states and countries
Get to know your wireless phone and its features such as
speed dial and redial.
When available, use a hands free device.
Position your wireless phone within easy reach and where
you can grab it without removing your eyes from the road. If
you get an incoming call at an inconvenient time, if possible,
let your voice mail answer it for you.
Let the person you are speaking with know you are driving; if
necessary, suspend the call in heavy traffic or hazardous
weather conditions.
Do not take notes or look up phone numbers while driving.
Dial sensibly and assess the traffic; if possible, place calls
when you are not moving or before pulling into traffic. Try to
plan your calls before you begin your trip. But if you need to
dial while driving, follow this simple tip--dial only a few
numbers, check the road and your mirrors, then continue.
Do not engage in stressful or emotional conversations that
may be distracting.
Use your wireless phone to call for help. Dial 9-1-1 or other
local emergency number in the case of fire, traffic accident,
road hazard or medical emergency.
Use your wireless phone to help others in emergencies. If you
see an auto accident, crime in progress or other serious
emergency where lives are in danger, call 9-1-1 or other local
emergency number.
Call roadside assistance or a special wireless non-emergency
assistance number when necessary. If you see a
broken-down vehicle posing no serious hazard, a broken
traffic signal, a minor traffic accident where no one appears
injured or a vehicle you know to be stolen, call roadside
assistance or other special non-emergency wireless number.
78
Certification and safety information for the united states and countries
CAUTION
RISK OF EXPLOSION IF BATTERY IS REPLACED
BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING
TO THE INSTRUCTIONS
use only the appropriate adaptors and batteries as shown in
the phone manufacturer’s catalogue.
For customers in the United States
79
For customers in the United
States
LIMITED WARRANTY
Brightstar US, Inc. (Brightstar) warrants this product including
any accessories sold for use with the products against
defects in materials or workmanship under normal usage for
the periods outlined in the warranty provided with the
product, as follows:
DEAD ON ARRIVAL / OUT OF BOX FAILURE (DOA):
This product is for standard consumer use only and is
guaranteed to be in proper working order as is determined
upon initial removal from the package and subsequent
power up and test call. If this product is determined to be
defective, Brightstar will repair or replace the product, at its
option, at no charge.
OUT OF WARRANTY REPAIR
Any unit requiring repair not covered by the warranty requires
authorization from your service provider and Brightstar.
Contact your service provider to obtain this authorization.
This warranty is valid only in the United States.
OTHER CONDITIONS
If Brightstar chooses to replace the equipment, Brightstar may
replace it with reconditioned equipment. Parts used in
repairing or replacing the equipment will be warranted for 90
days from the date the equipment is returned to you. This
warranty is not transferable.
LIMITATIONS AND EXCLUSIONS
TO THE EXTENT PERMITTED BY APPLICABLE LAW, BRIGHTSTAR
WILL NOT BE RESPONSIBLE FOR ANY IMPLIED WARRANTIES,
80
For customers in the United States
INCLUDING WITHOUT LIMITATION, THE IMPLIED WARRANTIES OF
MERCHANTIBILITY OR FITNESS FOR A PARTICULAR PURPOSE.
BRIGHTSTAR WILL NOT, IN ANY EVENT, BE LIABLE IN CONTRACT
OR TORT FOR DAMAGES IN EXCESS OF THE PURCHASE PRICE
OF THE PRODUCT OR ACCESSORY, OR FOR ANY INCIDENTAL,
INDIRECT, SPECIAL OR CONSEQUENTIAL DAMAGES OF ANY
KIND, INCLUDING TRAVEL EXPENSE, TELEPHONE CHARGES,
LOSS OF REVENUE, LOSS OF TIME, INCONVENIENCE LOSS OF
USE OF EQUIPMENT, LOSS OF INFORMATION OR DATA, OR
OTHER DAMAGE OR LOSS CAUSED BY OR IN CONNETION
WITH THE PRODUCTS, ACCESSORIES, SOFTWARE OR
EQUIIPMENT FAILING TO FUNCTION PROPERLY. THIS
WARRANTY SETS FORTH ALL OF BRIGHTSTAR’S REPONSIBILITIES
REGARDING THIS PRODUCT AND ITS ACCESSORIES.
Some states and jurisdictions do not allow the exclusion or
limitation of incidental or consequential damages, or allow
limitations on how long an implied warranty lasts, so the
above limitations or exclusions may not apply to you.
Limited Warranty
The mobile phone and software program developed by
SAGEM Wireless (SAGEM) remains the exclusive property of
SAGEM.
YOU ARE STRICTLY PROHIBITED FROM MODIFYING,
TRANSLATING, DE-COMPILING OR DISASSEMBLING THIS
SOFTWARE PROGRAM OR ANY PART THEREOF.
Brightstar US, Inc. (Brightstar) is the exclusive distributor for
SAGEM in the United States and is responsible for all
warranties for SAGEM phones and accessories sold in the
United States. Please DO NOT contact SAGEM directly
regarding any warranty claims; doing so will only delay the
processing of your claim.
For customers in the United States
81
THE LIMITED WARRANTY AND REMEDIES SET FORTH IN THIS
WARRANTY CARD ARE THE EXCLUSIVE WARRANTIES AND
REMEDIES PROVIDED BY BRIGHTSTAR AND ARE IN LIEU OF ALL
OTHER WARRANTIES, TERMS, OR CONDITIONS, EXPRESS OR
IMPLIED, EITHER IN FACT OR BY OPERATION OF LAW.
BRIGHTSTAR OR SAGEM MAKES NO OTHER WARRANTY,
EXPRESS OR IMPLIED, AND EXPRESSLY DISCLAIMS ALL IMPLIED
WARRANTIES, INCLUDING ALL WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
THE REMEDIES SET FORTH HEREIN ARE YOUR EXCLUSIVE
REMEDIES FOR BREACH OF WARRANTY.
Usage precautions
Your phone allows you to download ring tones, icons and
animated screensavers. Some of these items may contain
data that may cause malfunction of your phone or data
losses (a computer virus, for example). For this reason,
Brightstar disclaims all responsibility concerning (1) the
reception of downloaded data or losses of such data, (2)
such data's impact on the operation of the phone, and (3)
damages resulting from receiving any downloaded data or
loss of such data. In addition, any failure caused by receiving
downloaded data that do not comply with the phone's
specifications is excluded from the warranty. The diagnosis
and repair of a phone infected by downloaded data will be
at the expense of the customer.
Warranty conditions
Whenever you wish to make a warranty claim, please
contact Brightstar at the address given below and present
the purchasing paperwork that was given to you.
1. Brightstar warrants that the new phone (excluding
consumablesbut including new accessories bundled with the
phone), is free from defects in materials and workmanship
under normal usage for a period of twelve (12) months
82
For customers in the United States
effective from the date you purchased the phone, to be
evidenced by presentation of the paperwork stating the
purchase date of the phone. Phones that have been
repaired or replaced as standard during the warranty period
stated above are warranted (parts and labor) until the later
of these two dates: Expiry of the original warranty period of
twelve (12) months stated above; or three (3) months from
the repair or replacement under warranty.
2. All faulty phones under warranty will be replaced or
repaired free of charge at Brightstar’s option.
3. You are responsible for sending the phone to the repair
center. In order to repair or replace a phone under warranty,
Brightstar also requires that a legible and unmodified
purchase document, stating vendor's name and address,
date and place of purchase, type of phone and IMEI (to
display the IMEI on your phone's screen, type: *#06#), be
attached to the warranty, and that the information on the
phone identification label be legible and that such label or
any other seal have not been tampered with. The warranty
applies under normal usage for the period outlined above.
Prior to sending the phone for repair, it is your responsibility to
backup at your expense any customized data stored in the
phone (such as phonebook, settings, wallpapers, and
previously downloaded data). BRIGHTSTAR IS NOT
RESPONSIBLE FOR DAMAGE TO CUSTOMER FILES, PROGRAMS
OR DATA. The information or operating elements and the
contents of files will not be re-installed in any case in the
event of loss. Brightstar may decide, at its option, to repair
the phone with new or reconditioned parts, or replace the
phone with a new phone or with a phone in good working
condition. During its repair work Brightstar may make, where
necessary, any technical modifications to the phone where
these modifications do not adversely affect functionality.
For customers in the United States
83
Faulty parts to be replaced during a repair under warranty
become the property of Brightstar. The application of the
warranty is subject to the full payment of the sums due for the
phone when the request for support is made.
4. Breakdowns, damage or malfunctions due to the following
are excluded from the limited warranty: (i) non-compliance
with the installation and use instructions, (ii) an external cause
(such as shock, lightning, fire, vandalism, malice, water
damage of any type, contact with various liquids or any
harmful agent, unsuitable electric current, extreme humidity
or heat, improper storage, etc.), (iii) modifications of the
phone made without the written consent of Brightstar, (iv) a
servicing fault, as described in the documentation supplied
with the phone, (v) lack of supervision or care, (vi) poor
environmental conditions of the phone (including
temperature and hygrometry, effects of variations in electric
voltage, interference from the mains network or earth), (vii)
repair, including opening or trying to open the phone or
servicing done by personnel not approved by Brightstar, (viii)
inadequate packaging and/or poor packing of the phone
that is sent back to Brightstar, (ix) the use of products or
accessories not sold by Brightstar as compatible with the
phone, or (x) the opening or closing of a SIM Lock done
without the agreement of the original operator.
5. In addition, the warranty does not cover: (i) normal wear
and tear of the phone and accessories, (ii) change of
parameters of the cellular network made after the phone
was sold, (iii) supply of new software versions, (iv) delivery of
consumables and installation or replacement of these
consumables, (v) phone or software modified or added
without the written consent of Brightstar, (vi) phones returned
to Brightstar without having complied with the return
procedure specific to the phone covered by this warranty, or
84
For customers in the United States
(vii) communication problems linked with a poor
environment, including problems accessing and/or logging
onto the Internet, breakdowns of the access network, the
failure of the subscriber's or his correspondent's line,
transmission fault (such as poor geographic coverage by
radio transmitters, interference, disturbance, failure or poor
quality of phone lines, etc.), a fault inherent to the local
network (such as cabling, file server, user phone) and/or
transmission network fault (such as interference, disturbance,
failure or poor quality of the network, etc.).
6. In the event a customer submits a product for repair or
replacement and such product is excluded from warranty
coverage or the warranty period has expired, Brightstar will
draw up an estimate to be given to the customer for
acceptance before any repair commences. The repair and
freight costs (to and from the repair center) given in an
estimate accepted by the customer will be charged to the
customer.
7. Any questions or correspondence regarding this limited
warranty should be addressed to:
Brightstar US, Inc.
Attn: SAGEM Warranty & Repair Services
1001 Technology Way
Libertyville, IL 60048
These provisions are valid unless Brightstar has made a
special written agreement with the customer. If one of the
provisions turns out to infringe a requirement under
applicable law that consumers could have the benefit of
under the national legislation, such provision will not be
applied, but all other provisions will remain valid.
For customers outside the United States
85
For customers outside the
United States
Warranty
You must always use your phone for the purpose for which it
was designed, under normal operating conditions. SAGEM
Wireless declines all responsibility for any use outside of the
scope of its designed purpose and for any consequences of
this use.
The software program developed by SAGEM remains the
exclusive property of SAGEM Wireless. It is therefore highly
prohibited to modify, translate, de-compile or disassemble
this software program or any part thereof.
Usage precautions
Your phone allows you to download ring tones, icons and
animated screensavers. Some of these items may contain
data that may cause malfunctions of your phone or data
losses (virus for example).
For this reason, SAGEM Wireless rejects all responsibility
concerning (1) the reception of downloaded data or losses
of the said data, (2) the impact on the operation of the
phone and (3) damages resulting from receiving the said
downloaded data or loss of said data. In addition, SAGEM
Wireless states that a failure caused by receiving
downloaded data that do not comply with the specifications
set by SAGEM Wireless is excluded from the warranty.
Consequently, the diagnosis and repair of a phone infected
by the said downloaded data will be at the expense of the
customer.
86
For customers outside the United States
Any content that you download to your phone may be
protected by copyright belonging to third parties and
consequently you may not have the right to use this content
or its use may be restricted. Consequently it is up to you to
ensure that you have permission, such as under the terms of
a license agreement, to use any content that you download.
Furthermore, SAGEM Wireless does not guarantee the
accuracy nor the quality of any content that you download.
You alone are responsible for the content that you download
to your mobile phone and how you use it. SAGEM Wireless
cannot be held responsible for this content nor for its use.
It is your responsibility to ensure compliance, at your own
expense, with the laws and regulations applicable in the
country where you use your phone.
Warranty conditions
Whenever you wish to make use of the warranty, please
contact your vendor and present him with the purchasing
paperwork that he gave you.
If a fault occurs, he will advise you.
1. The new phone (excluding consumables), excluding
accessories bundled with the phone, are guaranteed by
SAGEM Wireless, parts and labour (apart from travel) against
any manufacturing fault for a period of: twenty four (24)
months for EU members countries and twelve (12) months for
the other countries; and with effect from the sale of the
phone to the customer, on presentation of the paperwork
indicating the purchase date of the phone. The bundled
accessories are guaranteed by SAGEM Wireless for a period
of twelve (12) months worldwide.
NOTE: If the telephone is supplied with a warranty card, the
period of the warranty applicable is the period indicated on
the warranty card.
For customers outside the United States
87
Phones that have been repaired or replaced as standard
during the warranty period stated above are guaranteed
(parts and labour) until the later of these two dates:
Expiry of the guarantee period stated above or three (3)
months with effect from the date of support provided by
SAGEM Wireless.
Your legal rights under the terms of applicable national law
as well as your rights in relation to your retailer, as set out in
the sales contract, remain applicable and are not in any way
affected by this guarantee.
In any disputes, the phone is covered by the legal warranty
against the consequences of faults or hidden defects in
compliance with articles 1641 and subsequent of the French
civil code.
2. All faulty phones under warranty will be replaced or
repaired free of charge at SAGEM Wireless's option (with the
exclusion of repair of any other damage), once it has been
specified that the work required for the application of the
warranty will be done in a workshop and that the return costs
(transport and insurance) of the phone to the address to be
indicated to it by the SAGEM Wireless after-sales service,
whose phone number will appear on the delivery note, will
be charged to the customer.
Subject to essential legal provisions, SAGEM Wireless does not
accept any warranty, explicit or implicit, other than the
warranty provided expressly in this chapter, nor shall SAGEM
Wireless accept responsibility for any immaterial and/or
indirect damages (such as loss of orders, loss of profit or any
other financial or commercial damage) under the warranty
or not
3. The acceptance of a phone under warranty demands
that a purchase document that is legible and without
modi-fication, stating vendor's name and address, date and
88
For customers outside the United States
place of purchase, type of phone and IMEI, are attached to
the warranty, and that the information on the phone
identification label is legible and that this label or any other
seal has not been tampered with.
The warranty applies in normal conditions of use.
Prior to sending the phone for repair, it is the customer's
responsibility to backup at his expense the customized data
stored in the phone (phonebook, settings, wallpapers). A list
of backup facilities can be provided by SAGEM Wireless on
request. The responsibility of SAGEM Wireless cannot be
invoked if damage occurs to customer files, programs or
data. The information or operating elements and the
contents of files will not be re-installed in any case in the
event of loss.
SAGEM Wireless may decide, at its option, to repair the
phone with new or reconditioned parts, replace the phone
with a new phone or, in any dispute, a phone in good
working condition. During its work SAGEM Wireless reserves
the facility to make, where necessary, any technical
modifications to the phone where these modifications doe
not adversely affect its initial purpose.
Faulty parts to be replaced during a repair under warranty
will become the property of SAGEM Wireless.
The phone repair and standstill time during the warranty
period may not lead to an extension of the warranty period
as stated in article 1 above, provided no other vital provisions
have been agreed.
The application of the warranty is subject to the full payment
of the sums due for the phone when the request for support is
made.
4. The following are excluded from the warranty:
Breakdowns or malfunctions due to non-compliance with the
For customers outside the United States
89
installation and use instructions, to an external cause of the
phone (shock, lightning, fire, vandalism, malice, water
damage of any type, contact with various liquids or any
harmful agent, unsuitable electric current...), to modifications
of the phone made without the written consent of SAGEM
Wireless, to a servicing fault, as described in the
documentation supplied with the phone, to lack of
supervision or care, to poor environmental conditions of the
phone (especially temperature and hygrometry, effects of
variations in electric voltage, interference from the mains
network or earth) or even due to a repair, a call-out (opening
or trying to open the phone) or to servicing done by
personnel not approved by SAGEM Wireless.
Damage resulting from inadequate packaging and/or poor
packing of the phone sent back to SAGEM Wireless.
Normal wear and tear of the phone and accessories.
Communication problems linked with a poor environment,
especially:
Problems accessing and/or logging onto the Internet, such as
breakdowns of the access network, the failure of the
subscriber's or his correspondent's line, transmission fault (poor
geographic coverage by radio transmitters, interference,
disturbance, fai-lure or poor quality of phone lines...), a fault
inherent to the local network (cabling, file server, user phone)
and/or transmission network fault (interference, disturbance,
failure or poor quality of the network...).
Change of parameters of the cellular network made after
the phone was sold.
Supply of new software versions.
Current servicing work: delivery of consumables, installation
or replacement of these consumables...
Call-outs for phone or software modified or added without
the written consent of SAGEM Wireless.
90
For customers outside the United States
Faults or disruptions resulting from the use of products or
accessories not compatible with the phone.
Phones returned to SAGEM Wireless without having complied
with the return procedure specific to the phone cove-red by
this warranty.
The opening or closing of a SIM operator key and call-outs
resulting in the non-operation of the phone resulting from the
opening or closing of SIM operator key done without the
agreement of the original operator.
5. In the cases of warranty exclusion and of expiry of the
warranty period, SAGEM Wireless shall draw up an estimate
to be given to the customer for acceptance before any
call-out. The repair and carriage costs (there and back)
given in the accepted estimate will be charged to the
customer.
These provisions are valid unless a special written agreement
has been made with the customer. If one of the provisions
turns out to infringe a legally essential rule that consumers
could have the benefit of under the national legislation, this
provision will not be applied, but all other provisions will
remain valid.
6. Any questions or correspondence regarding this limited
warranty should be addressed to:
http://www.sagemwireless.com.
End user licence agreement (EULA)
91
End user licence agreement
(EULA)
CONTEXT AND ACCEPTANCE OF THE AGREEMENT
You have acquired a Mobile Phone device ("DEVICE"),
manufactured by SAGEM Wireless (MANUFACTURER), that
includes software either developed by the manufacturer
itself or licensed third party Software suppliers ("SOFTWARE
COMPANIES") to the manufacturer with the rights to
sub-license it to the purchaser of the device. These installed
software products, regardless of their company of origin, and
whether the name of the company of origin is indicated or
not in the DEVICE documentation, as well as associated
media, printed materials, and "online" or electronic
documentation ("SOFTWARE") are protected by international
intellectual property laws and treaties. The SOFTWARE is
licensed, not sold. All rights reserved.
IF YOU DO NOT AGREE WITH THIS END USER LICENCE
AGREEMENT ("EULA"), DO NOT USE THE DEVICE OR COPY THE
SOFTWARE. INSTEAD, PROMPTLY CONTACT THE
MANUFACTURER FOR INSTRUCTIONS ON RETURN OF THE
UNUSED DEVICE(S) FOR A REFUND. ANY USE OF THE
SOFTWARE, INCLUDING BUT NOT LIMITED TO USE ON THE
DEVICE, WILL CONSTITUTE YOUR AGREEMENT TO THIS EULA (OR
RATIFICATION OF ANY PREVIOUS CONSENT).
SOFTWARE includes software already installed on the DEVICE
("DEVICE Software") and Software contained on the CD-ROM
disk ("Companion CD"), if any is supplied with the product.
92
End user licence agreement (EULA)
GRANTING OF SOFTWARE LICENCE RIGHTS
This EULA grants you the following licence:
DEVICE Software. You may use the DEVICE Software as
installed on the DEVICE. All or certain portions of the DEVICE
Software may be inoperable if you do not have and
maintain a service account with an appropriate Mobile
Operator, or if the Mobile Operator's network facilities are not
operating or configured to operate with the DEVICE
software.
COMPANION CD. If any is supplied, additional software for
your personal computer is included with your DEVICE. You
may install and use the software component(s) contained in
the Companion CD only in accordance with the terms of the
printed or online end user licence agreement(s) provided
with such component(s). In the absence of an end user
licence agreement for particular component(s) of the
Companion CD, you may install and use only one (1) copy of
such component(s) on the DEVICE or a single computer with
which you use the DEVICE.
Security Updates. The SOFTWARE may include digital rights
management technology. If SOFTWARE does contain digital
rights management technology, content providers are using
the digital rights management technology ("DRM")
contained in the SOFTWARE to protect the integrity of their
content ("Secure Content") so that their intellectual property,
including copyright, in such content is not misappropriated.
Owners of such Secure Content ("Secure Content Owners")
may, from time to time, request manufacturers or SOFTWARE
SUPPLIERS to provide security related updates to the DRM
components of the SOFTWARE ("Security Updates") that may
affect your ability to copy, display and/or play Secure
Content through the SOFTWARE or third party applications
that utilise the DRM.
End user licence agreement (EULA)
93
You therefore agree that, if you elect to download a licence
from the Internet which enables your use of Secure Content,
Suppliers may, in conjunction with such licence, also
download onto your DEVICE such Security Updates that a
Secure Content Owner has requested that SOFTWARE
SUPPLIERS distribute. The manufacturer and SOFTWARE
SUPPLIERS will not retrieve any personally identifiable
information, or any other information, from your DEVICE by
downloading such Security Updates.
DESCRIPTION OF OTHER RIGHTS AND LIMITATIONS
COPYRIGHT
. All title and intellectual property rights in and to the
SOFTWARE (including but not limited to any images,
photographs, animations, video, audio, music, text and
"applets," incorporated into the SOFTWARE), the accompanying
printed materials, and any copies of the SOFTWARE, are owned
by the manufacturer or the SOFTWARE SUPPLIERS. You may not
copy the printed materials accompanying the SOFTWARE. All
title and intellectual property rights in and to the content which
may be accessed through use of the SOFTWARE is the property
of the respective content owner and may be protected by
applicable copyright or other intellectual property laws and
treaties. This EULA grants you no rights to use such content. All
rights not specifically granted under this EULA are reserved by
the manufacturer and the SOFTWARE SUPPLIERS.
Limitations on Reverse Engineering, Decompilation and
Disassembly. You may not reverse engineer, decompile, or
disassemble the SOFTWARE, except and only to the extent
that such activity is expressly permitted by applicable law
notwithstanding this limitation.
Single DEVICE. The DEVICE Software is licensed with the
DEVICE as a single integrated product. The DEVICE Software
installed in the memory of the DEVICE may only be used as
part of the DEVICE.
94
End user licence agreement (EULA)
Single EULA. The package for the DEVICE may contain
multiple versions of this EULA, such as multiple translations
and/or multiple media versions (e.g., in the user
documentation and in the software). Even if you receive
multiple versions of the EULA, you are licensed to use only
one (1) copy of the DEVICE Software.
Software Transfer. You may not permanently transfer any of
your rights under this EULA with regard to the DEVICE
Software or Companion CD, except as permitted by the
applicable Mobile Operator. In the event that the Mobile
Operator permits such transfer, you may permanently
transfer all of your rights under this EULA only as part of a sale
or transfer of the DEVICE, provided you retain no copies, you
transfer all of the SOFTWARE (including all component parts,
the media and printed materials, any upgrades, this EULA
and, if applicable, the Certificate(s) of Authenticity), and the
recipient agrees to the terms of this EULA. If the SOFTWARE is
an upgrade, any transfer must include all prior versions of the
SOFTWARE.
Software Rental. You may not rent or lease the SOFTWARE.
Speech/Handwriting Recognition. If the SOFTWARE includes
speech and/or handwriting recognition component(s), you
should understand that speech and handwriting recognition
are inherently statistical processes; that recognition errors are
inherent in the processes; and that errors can occur in the
component's recognition of your handwriting or speech, and
the final conversion into text. Neither the manufacturer nor its
suppliers shall be liable for any damages arising out of errors
in the speech and handwriting recognition processes.
NOTICE REGARDING THE MPEG-4 VISUAL STANDARD. The
SOFTWARE may include MPEG-4 visual decoding technology.
MPEG LA, L.L.C. requires the following notice:
End user licence agreement (EULA)
95
USE OF THIS SOFTWARE IN ANY MANNER THAT COMPLIES WITH
THE MPEG-4 VISUAL STANDARD IS PROHIBITED, EXCEPT FOR USE
DIRECTLY RELATED TO (A) DATA OR INFORMATION (i)
GENERATED BY AND OBTAINED WITHOUT CHARGE FROM A
CONSUMER NOT THEREBY ENGAGED IN A BUSINESS ENTERPRISE,
AND (ii) FOR PERSONAL USE ONLY; AND (B) OTHER USES
SPECIFICALLY AND SEPARATELY LICENSED BY MPEG LA, L.L.C.
If you have questions regarding this Notice, please contact
MPEG LA, L.L.C., 250 Steele Street, Suite 300, Denver,
Colorado 80206; Telephone 303 331.1880; FAX 303 331.1879
Termination. Without prejudice to any other rights, the
manufacturer may terminate this EULA if you fail to comply
with the terms and conditions of this EULA. In such event, you
must destroy all copies of the SOFTWARE and all of its
component parts.
Consent to Use of Data. You agree that SOFTWARE SUPPLIERS
may collect and use technical information gathered in any
manner as part of product support services related to the
SOFTWARE. SOFTWARE SUPPLIERS may use this information
solely to improve their products or to provide customised
services or technologies to you. SOFTWARE SUPPLIERS may
disclose this information to others, but not in a form that
personally identifies you.
Internet Gaming/Update Features. If the SOFTWARE provides,
and you choose to utilise, the Internet gaming or update
features within the SOFTWARE, it is necessary to use certain
computer system, hardware, and software information to
implement the features. By using these features, you
explicitly authorise SOFTWARE SUPPLIERS to use this
information solely to improve their products or to provide
customised services or technologies to you. SOFTWARE
SUPPLIERS may disclose this information to others, but not in a
form that personally identifies you.
96
End user licence agreement (EULA)
Internet-Based Services Components. The SOFTWARE may
contain components that enable and facilitate the use of
certain Internet-based services. You acknowledge and
agree that SOFTWARE SUPPLIERS may automatically check
the version of the SOFTWARE and/or its components that you
are utilising and may provide upgrades or supplements to the
SOFTWARE that may be automatically downloaded to your
Device.
Links to Third Party Sites. The SOFTWARE may provide you with
the ability to link to third party sites through the use of the
SOFTWARE. The third party sites are not under the control of
the manufacturer. Neither the manufacturer nor its affiliates
are responsible for (i) the contents of any third party sites, any
links contained in third party sites, or any changes or updates
to third party sites, or (ii) webcasting or any other form of
transmission received from any third party sites. If the
SOFTWARE provides links to third party sites, those links are
provided to you only as a convenience, and the inclusion of
any link does not imply an endorsement of the third party site
by the manufacturer or its affiliates.
Additional Software/Services. The SOFTWARE may permit the
manufacturer to provide or make available to you
SOFTWARE updates, supplements, add-on components, or
Internet-based services components of the SOFTWARE after
the date you obtain your initial copy of the SOFTWARE
("Supplemental Components").
If the manufacturer provides or makes available to you
Supplemental Components and no other EULA terms are
provided along with the Supplemental Components, then
the terms of this EULA shall apply.
The manufacturer reserves the right to discontinue any
Internet-based services provided to you or made available
to you through the use of the SOFTWARE.
End user licence agreement (EULA)
97
EXPORT RESTRICTIONS. You acknowledge that SOFTWARE is
subject to U.S. export jurisdiction. You agree to comply with
all applicable international and national laws that apply to
the SOFTWARE, including the U.S. Export Administration
Regulations, as well as end-user, end-use and destination
restrictions issued by U.S. and other governments.
UPGRADES AND RECOVERY MEDIA
-DEVICE Software. If the DEVICE Software is provided by the
manufacturer separate from the DEVICE on media such as
a ROM chip, CD ROM disk(s) or via web download or other
means, and is labelled "For Upgrade Purposes Only", you
may install one copy of such DEVICE Software onto the
DEVICE as a replacement copy for the existing DEVICE
Software and use it in accordance with this EULA, including
any additional EULA terms accompanying the upgrade
DEVICE Software.
-COMPANION CD. If any Companion CD component(s) is
provided by the manufacturer separate from the DEVICE
on CD ROM disk(s) or via web download or other means,
and labelled "For Upgrade Purposes Only" , you may (i)
install and use one copy of such component(s) on the
computer(s) you use to exchange data with the DEVICE as
a replacement copy for the existing Companion CD
component(s).
RESPONSIBILITIES
SUPPORT AND INFORMATION. Should you have any questions
concerning this EULA, or if you desire to contact the
manufacturer for any other reason, please refer to the
address provided in the documentation for the DEVICE.
NO LIABILITY FOR CERTAIN DAMAGES. EXCEPT AS PROHIBITED
BY LAW, THE MANUFACTURER SHALL HAVE NO LIABILITY FOR
ANY INDIRECT, SPECIAL, CONSEQUENTIAL OR INCIDENTAL
DAMAGES ARISING FROM OR IN CONNECTION WITH THE USE
98
End user licence agreement (EULA)
OR PERFORMANCE OF THE SOFTWARE. THIS LIMITATION SHALL
APPLY EVEN IF ANY REMEDY FAILS OF ITS ESSENTIAL PURPOSE.
FOR APPLICABLE LIMITED WARRANTIES AND SPECIAL
PROVISIONS PERTAINING TO YOUR PARTICULAR JURISDICTION,
PLEASE REFER TO YOUR WARRANTY BOOKLET INCLUDED WITH
THIS PACKAGE OR PROVIDED WITH THE SOFTWARE PRINTED
MATERIALS.
Java™
99
Java™
When running a Java™ application, you may be prompted
to grant access to protected features. These features are
protected because using them could incur a cost, or involve
your personal data. In case of doubt, don't hesitate to refuse
access by selecting the "No" button!
The security configuration menu is an expert feature! You
must know exactly what you are doing before attempting to
change the security parameters of a MIDlet.
Misunderstanding changes may render MIDlet non functional
and/or lead to higher risks for your private data or impact
your airtime consumption. Any changes in the security
configuration are done under your responsibility. In no case
shall the manufacturer and/or your network provider be
liable for any damages deriving from or arising out of such
changes in the security configuration.
You must be aware that applications downloaded to your
phone could cause the phone to perform actions for which
you will be billed, such as making calls and sending SMS.
Depending on your operator's billing policy, you may also be
charged to download the application because of airtime
consumption.
Security considerations
Java™ MIDP technology is an efficient way to provide
powerful applications in mobile phones.
All these MIDP 2.0 features cannot be displayed on MIDlet
installed in the handset: an advanced access control system
is implemented in the device to protect your private data
and airtime consumption.
Access controls are collected in 9 security groups:
-Network access
100
Java™
-Auto invocation
-Phone call
-Local connectivity
-Messaging receive
-Messaging sending
-Read User data
-Write User data
-Multimedia recording
Each of these security groups has one of 5 possible
authorizations levels (listed from the more restrictive to the
more permissive):
-Never: The security group completely prevents access to
the protected features.
-Per use: Each time MIDlet tries to use protected feature,
user is prompted to grant access.
-Per session: First time a MIDlet uses a protected function,
user is prompted to grant access like in "Per use"
authorization but access is granted until the MIDlet
terminates.
-Single confirmation: The first time in the whole MIDlet life a
MIDlet uses a protected feature, user is prompted to grant
access. It remains valid until the MIDlet is removed from the
handset.
-Always: The security group unconditionally grants access to
protected features.
A MIDlet has a security status which is either "uncertified", or
else "certified".
An "uncertified" status means that the source of the MIDlet
could not be verified by the mobile phone at installation
time. As far as the phone knows, the MIDlet could have been
written by anyone.
A "certified" status means that the MIDlet was digitally signed
by a known party, whose name is displayed by the mobile
phone.
Java™
101
Security permissions are different for "uncertified" or "certified"
MIDlets.
Security configuration menu
When a MIDlet is installed in the mobile phone, default
security authorizations are applied.
This default security configuration may be altered through
the "Settings/Security" menu of an installed MIDlet.
Once in the "Security" menu, the security status of the MIDlet
is displayed.
If you do not want to enter the security menu, simply select
the "Back" button. You can proceed by selecting
"OK" button.
The menu displayed allows you to increase or decrease the
permissions currently applied to the current MIDlet for each
of the security groups.
When you set a more permissive authorization to a security
group than the current value, the mobile phone asks you to
confirm your increased risk exposure.
The maximum risk exposure increase is limited by the security
status.
What is Java™?
Business applications and games are easily downloadable
by the end-user on a Java™ featured handset.
Your mobile phone is a MIDP 2.0 compliant Java™ platform
which implements WMA (SMS support) and MMAPI
(Multimedia support) options, providing an exciting
environment to run highly graphical, networked and intuitive
MIDP applications.
What is a MIDlet?
A Java™ application or a game designed to run in a mobile
phone is named a MIDlet (MIDP applet).
A MIDlet is usually made up of 2 files:
102
Java™
-The JAD file
-The JAR file
JAD file stands for Java™ Application Descriptor. It is a small
file describing the content of a JAR file.
JAR file stands for Java™ Archive. It refers to the application
data themselves (program, images, sound). A JAR file can
have a size of up to 200 KB.
Note: In rare circumstances, MIDlet vendors may provide no
JAD file and the MIDlet is just the JAR file. In such a case it is
your sole responsibility to assess the risk of downloading the
JAR file without any possibility of consulting the JAD file.
Downloading a MIDlet (Java™ game or application)
MIDlets are easily downloaded to the mobile phone through
the Games or Applications menus or through the WAP
browser. In almost all cases, you will first receive a JAD file
which will be displayed on the screen.
When you select a JAD file, your mobile phone downloads it,
displays the data contained and prompts you to
acknowledge the JAR file download.
The popup displays information below:
-Name of the MIDlet, Version, Size, Name, Security status,
URL.
If you do not want to download the main data (JAR file), you
can refuse to acknowledge further airtime consumption by
selecting "Cancel".
If you agree on the MIDlet installation, just select OK. The
MIDlet is installed with security levels set to the default values
associated with its security status.
Before downloading an application, a message similar to this
one may be displayed: "Your handset cannot identify the
application, please be sure of the source of the application
before installing the application".
Java™
103
Trademarks
Java™ and all other Java-based marks are trademarks or
registered trademarks of Sun Microsystems, Inc. in the U.S.
and other countries.
Disclaimer
Some downloaded items may contain data or may induce
actions which may cause malfunctioning of your mobile
phone or loss or corruption of data or abnormal increase of
your airtime consumption.
You expressly acknowledge that the download of any
applications including Java™ applications or games is done
under your exclusive responsibility. In no event shall the
manufacturer, your network service provider or their affiliates
be liable for any lost profits or costs of procurement of
substitute goods or services, loss of profits, interruptions of
business, loss of data or for any special, indirect, incidental,
economic, or consequential damages arising under
contract, tort, negligence, or other theory of liability relating
to the download of any application by any means, including
Java™ applications or games in SAGEM devices. You
expressly acknowledge that any applications including
Java™ applications or games are provided strictly "as is". The
manufacturer and/or your network service provider extend
no warranty whatsoever thereto. The manufacturer and/or
your network service provider disclaim any express, implied or
statutory warranty of merchantability, fitness of any
applications including Java™ applications or games for a
specific purpose, satisfactory quality, security or otherwise.
104
Troubleshooting
Troubleshooting
The phone won’t start and/or won’t take a charge
The battery has completely lost its charge.
Connect the phone to the charger for between 5 and
30 minutes. The phone will only switch on after it has been
charging for a few minutes.
You may use the phone again when the Start option is
displayed on the screen.
If the phone still won't start after 30 minutes’ charging,
contact customer service.
SIM not present
Check if the SIM card is present and properly
positioned / inserted.
Check the condition of the SIM card. If damaged, please go
back to the operator's shop for advice. Contact your
after-sales service if the message persists.
Incorrect PIN code
An incorrect PIN code has been entered. Be careful! Three
incorrect PIN codes will block the SIM Card.
PIN BLOCKED
If a wrong PIN number is entered three times in succession,
your SIM card is blocked. You must then:
-Enter the PUK (Personal Unblocking Key) code provided by
your operator, and validate.
-Enter your PIN number and validate.
-Enter your PIN number again and validate.
After 5 or 10 failed attempts (depending on the type of SIM
card), the SIM card is definitely locked. You must then
contact your operator to obtain a new card.
Troubleshooting
105
SIM LOCKED
In certain cases, the handset can only be used with some
types of SIM cards. This message means that the SIM card you
are using does not fit with the phone. Take the SIM card out,
and switch it back on. If the message SIM not present
appears on the screen, you will need to check its
compatibility next to the place where you bought it. If not,
please contact your after-sales service.
No call connection
Check that the number you have dialled is correct. Check
the presence of at least one white circle of the network
signal reception level indicator.
If the letter E is displayed on the top right corner of the
screen, without any network name displayed, only
emergency services can be called.
Check the status of your credit.
Check that the SIM Card you are using offers the service you
are requesting; check if its validity has not expired.
Check and deactivate the outgoing calls restriction when
necessary.
The network could be saturated. Try later.
If the problem persists, please contact your Technical
Helpdesk.
No receiving calls
Try to make a call in order to check that the phone and the
network are operational.
Check and deactivate the permanent call forwarding
(permanent call forwarding icon displayed on the screen).
Check and deactivate the incoming calls restriction when
necessary.
If the problem persists, please contact your Technical
Helpdesk.
106
Troubleshooting
Quality reception when calling
Avoid placing your fingers at the bottom of the phone,
where the aerial is integrated: the phone will have to use full
strength to establish a quality transmission.
Cannot send message
Check that the message centre number is correctly entered.
To do so, please select Messaging/Settings then the SMS
settings tab/Message center and check the number
entered. Please contact your network provider to get this
number.
No voicemail
Check that your subscription does offer this service.
Program the call to be forwarded to voicemail using the
information provided by the operator.
Operator name does not appear on screen
Select the Settings menu, then Connectivity/Networks/
Search/Manual. Wait until the operator appears, select it and
validate.
If the Operator logo menu is present (depending on model),
activate the display (Settings/Display/Operator logo).
Index
107
Index
A
Activating your phone
11
Alarm
46
B
Backlight
62
Battery
Charging the battery
13
Installing the battery
12
Bluetooth®
15
,
34
,
36
,
38
,
45
,
48
,
54
Business Card
33
C
Calculator
47
Calendar
48
Calls
Auto redial
22
Auto response
21
Blacklist
23
Call barring
22
Call diver
21
Call history
20
Call reject list
22
Call waiting
22
Receiving a call
19
call Settings
20
calling
19
Camera
Recording a Video
35
Taking a photo
34
Confidentiality
61
Connectivity
54
,
63
Contacts
20
Add
31
Call
31
Call group
32
Copy
31
Edit
31
Memory
32
New contact
30
Send
31
Speed Dial
32
D
Date and Time
59
Display
62
Downloading objects
41
,
53
F
FM Radio
39
G
Getting started
16
H
HAC
62
Hands-free mode
20
Help
49
108
Index
I
Icon
9
Input modes
25
K
Keypad lock
59
L
Languages
60
Local info.
47
M
Memory
61
Messaging
Creating a text message
24
Drafts
27
Inbox
27
Outbox
27
Receiving messages
26
Sent messages
27
Templates
27
Multimedia
41
Multimedia objects
41
Music player
37
N
NFC
42
,
58
Network
17
O
Operator
61
Operator logo
63
P
PIN
60
Phone lock
60
Playlists
38
Profiles
59
R
Recorder
47
Ringtones
59
S
SIM card
11
,
12
SMS
24
Security
60
Shortcuts
63
Stop Watch
46
T
T9
25
Timer
46
ToDo
45
Torch
47
U
USB mode
57
V
Voicemail
28
W
Wallpaper
62
www.sagemwireless.com
Sagem Wireless
38 Rue de Berri, 75008 Paris
Capital 1 590 652, 10 € - 508 671 401 R.C.S Paris
09/2010
a
