Sagem Wireless MC07S1 GSM WCDMA Mobile with BT User Manual

Sagem Wireless GSM WCDMA Mobile with BT

User Manual


Pour agrément_my850V Crystal Vodafone_FCC_en.book Page 1 Mardi, 29. mai 2007 5:33 17
Pour agrément_my850V Crystal Vodafone_FCC_en.book Page 2 Mardi, 29. mai 2007 5:33 17
3
You have just purchased a SAGEM phone, we congratulate you; it is recommended that you read this manual carefully in
order to use your phone efficiently and in the best conditions.
Your phone can be used internationally in the various networks (3G, (GSM 850 MHz and PCS 1900 MHz) or (GSM 900 MHz,
DCS 1800 MHz or PCS 1900 MHz)) depending on the roaming arrangements with your operator.
Some services described in this guide may not be available from the network or when roaming, or may require a specific
subscription.
Remember to back up your data and programs frequently, and before sending the mobile phone for repair.
This phone, like any other wireless phone, operates using radio signals and networks. Connection in all locations and
conditions cannot be guaranteed. Therefore you should never rely solely on any wireless phone for essential communications
(for example, medical emergencies).
In some jurisdictions it may be unlawful to take a picture without notice to or the consent of all participants.
Depending on the model, network configuration and associated subscription cards, certain functions may not be available.
SAGEM™ is a trademark of Sagem Communication SAFRAN Group.
AT® is a registered trademark of Hayes Microcomputer Products Inc.
Hayes® is a registered trademark of Hayes Microcomputer Products Inc.
T9 is protected by one or more of the following US patents: 5,818,437, 5,953,541, 5,187,480, 5,945,928, 6,011,554 and other
patents are being applied for worldwide.
Java™ and all Java™ based trademarks and logos are trademarks or registered trademarks of Sun Microsystems, Inc. in the
U.S. and other countries.
The WAP navigator and some message softwares are under licence Openwave. The WAP navigator and the softwares
included are the exclusive property of Openwave. For this reason, it is forbidden to modify, translate, disassemble or even
decompile all or part of these softwares.
Wellphone™ and SmartCom™ are registered trademarks owned by SmartCom SARL France.
The
®
word mark and logos are owned by the
®
SIG, Inc.
microSD™ is a trademark of SD Card Association.
Pour agrément_my850V Crystal Vodafone_FCC_en.book Page 3 Mardi, 29. mai 2007 5:33 17
4Contents

Idle screen ...................................................... 8
Information on the SIM card ........................... 9
Installing the SIM card and the battery ......... 10
Inserting the memory card (microSD™) ....... 11
Switching ON/OFF........................................ 11
Getting started .............................................. 11
Network......................................................... 12
Improving antenna performance................... 13
Increase the battery life of your phone .........13
Charging the battery ..................................... 14
Calling........................................................... 15
Receiving a call............................................. 15
Video call ...................................................... 16
Call log.......................................................... 16
Using the phonebook.................................... 17
Storing a new contact ................................... 17
Contact options............................................. 17
Call groups.................................................... 19
Creating a text message or an e-mail........... 20
Saving the message without sending it ........21
Sending the message ................................... 21
Receiving messages..................................... 21
Creating and sending a voice message........ 22
live! Postcard................................................ 22
Messaging menu .......................................... 22
My Games - My Internet ............................... 31
Mobile TV ..................................................... 31
My Applications ............................................ 34
Calendar....................................................... 34
Calculator and converter .............................. 35
Synchonisation ............................................. 35
Clock............................................................. 35
ToDo............................................................. 36
Voice recorder .............................................. 36
Services........................................................ 36
Local information .......................................... 36
Modem status............................................... 36
Help .............................................................. 36
Phone ........................................................... 37
Display.......................................................... 39
Calls.............................................................. 40
Connectivity.................................................. 42
Pour agrément_my850V Crystal Vodafone_FCC_en.book Page 4 Mardi, 29. mai 2007 5:33 17
Contents 5
FCC Part 15 statement .................................46
FCC SAR information ...................................47
Safety Information.........................................48
Distance of operation ....................................49
FDA consumer information on wireless
phones ..........................................................49
Driving safety tips..........................................52
CE conformance statement ..........................53
CE SAR information......................................54
Safety information .........................................55
Distance of operation ....................................56
CE Environment............................................56
Limited Warranty...........................................58
Warranty .......................................................61
Pour agrément_my850V Crystal Vodafone_FCC_en.book Page 5 Mardi, 29. mai 2007 5:33 17
6Description

Lens for shooting in video call or photo
and video
-: Access to main menus
(shortcuts)
-: Access to the selection
shown on screen in the tab
-Activate/Deactivate hands-free mode
(long press).
do not use the phone in
hands-free mode near to your ear, or
you may suffer hearing loss.
-: Call - receiving a call
-: displaying the call log.
-Long press: switches from one input
mode to another (ABC/T9)
-Short press: Upper case/lower
case/figures
-: Access to
Vodafone live! (shortcuts)
-: Access to the selection
shown on screen in the tab
-Short press: switch on
-Long press: switch off
-: Reject a call - hang
up
-: Return to idle screen
-Navigation in menus
-Confirmation of a selection
-: Silent mode (long
press)
-: Stops ring tone
(long press)
-:
Activate/deactivate ring tone (short
press). Stops sound in video or
message playing, or in a game (short
press)
Pour agrément_my850V Crystal Vodafone_FCC_en.book Page 6 Mardi, 29. mai 2007 5:33 17
Description 7
Lens for shooting in video
call or photo and video
-To play or pause music.
-To change to the last
piece of music.
-To change to the next
piece of music.
Flap closed:
-Short press: to launch
and stop the music
player mode.
-Long press: to lock
and unlock the flap
keys.
Flap open:
-short press: to play or
pause music
-long press: to quit the
music player mode
-Volume setting (ring
tones, music).
-On the flap screen:
profile selection.
-Stopping the ring tone.
Pour agrément_my850V Crystal Vodafone_FCC_en.book Page 7 Mardi, 29. mai 2007 5:33 17
8Description
The idle screen may contain the following information:
Battery
Silent mode
Only emergency call is possible
Signal strength level (between 0 and 5 bars)
GPRS channel present
Connection to the 3G network
Information messages on calls, messages or network messages received may also be displayed. They can be deleted by
pressing the red key briefly.
Pour agrément_my850V Crystal Vodafone_FCC_en.book Page 8 Mardi, 29. mai 2007 5:33 17
Quick start 9

To use your phone, you need a card called SIM or USIM card. It contains
personal information that you can modify:
-Secret codes (PIN(s): Personal Identification Numbers), these codes allow
you to protect access to your SIM card and phone
-Phonebook
-Messages
-How special services work.
This card must be handled and stored with care in order not to be damaged. If you should lose your SIM card, contact
your network provider immediately.
Please keep your SIM card out of reach of young children.
Your phone is identified by its IMEI number. Write this number down, and do not keep it with your phone, because you
may be asked for it in the event of your phone being stolen, in order to prevent it from being used, even with a different
SIM card. In order to display the IMEI on your phone’s screen, type: *#06#.
Pour agrément_my850V Crystal Vodafone_FCC_en.book Page 9 Mardi, 29. mai 2007 5:33 17

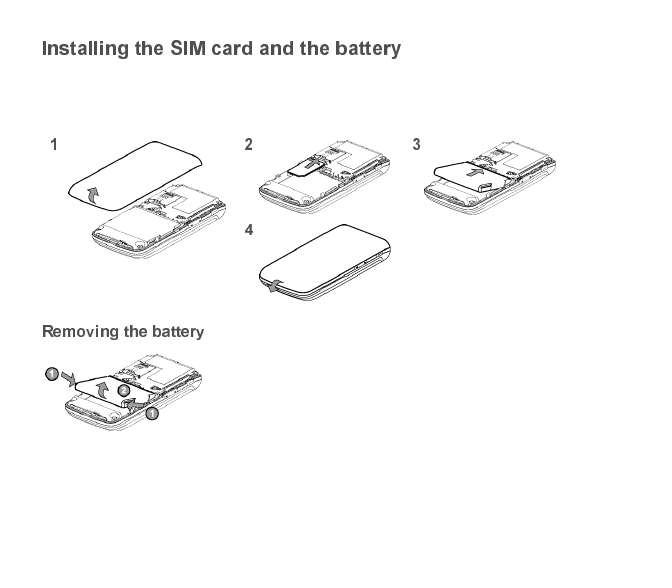

10 Quick start
Ensure that the phone is switched off and the charger disconnected.
1Turn the phone back. Use the notch as a lever to lift the cover.
2Slide the SIM card, with cut corner as shown on the phone, into the card holder with fold face down.
3Place the battery by positioning first the top of it.
4Place the back cover, clicking in first the upper part then the lower part.
Remove the battery as shown on the figure opposite.
Pour agrément_my850V Crystal Vodafone_FCC_en.book Page 10 Mardi, 29. mai 2007 5:33 17
Quick start 11
-Turn the phone back and remove the back cover.
-Insert the memory card pushing it until it clicks into place.
-Place the back cover.
-To remove the card, first make sure that no application is accessing the card,
then slightly push the top edge of the card to release it and pull it out of the slot.
When your phone is off, a short press on will turn it ON.
When the phone is ON, if your are browsing inside the menus, a short press on will come back to the idle screen. When
you are in the idle screen, a long press on will switch OFF the phone.
When you switch on your phone for the first time, follow instructions displayed on the screen.
If access to the SIM card is protected, the device prompts you to enter the PIN number:
Enter the code between 4 and 8 digits given to you when the SIM card was issued. These digits do not appear on the screen
for security reasons.
After pressing [ ], the phone activates the SIM card settings and switches on again if necessary (depending on the SIM
card).
The memory card is very fragile. Take care when you insert or remove the memory card.
The memory card can be inserted or withdrawn while the phone is in use. However, it may suffer damage if withdrawn
during a read or write operation. Ensure that no application accesses the card during its withdrawal.
Some memory cards must be formatted with a PC before first use with the phone.
Pour agrément_my850V Crystal Vodafone_FCC_en.book Page 11 Mardi, 29. mai 2007 5:33 17
12 Quick start
If there are contacts saved in your SIM card, you are invited, if you wish, to copy them in the phone contacts memory.
Once ON, the phone is searching for a network on which it can make calls. If it finds one, it displays the name of the network
on the screen.
: if it finds a 3G network, the 3G icon is displayed on the screen.
You are then ready to send or receive a call.
If a wrong PIN number is entered three times in succession, your SIM card is blocked. You must then:
-Enter the PUK (Personal Unblocking Key) code provided by your network provider, and validate.
-Enter your PIN number and validate.
-Enter your PIN number again and validate.
After 5 or 10 failed attempts (depending on the type of SIM card), the SIM card is definitely locked. You must then
contact your network provider to obtain a new card.
If the network’s name appears, calls are possible.
If the icon and a network name are displayed, calls are possible on a roaming network provider.
If the icon is displayed without any network name, only the emergency services are accessible (ambulance, police,
fire brigade).
If the network icon flashes, the phone is in permanent search mode. There is no network available. The signal strength
indicator received allows you to display the quality of reception. If it indicates less than three bars, search for better
reception in order to call in good conditions.
Pour agrément_my850V Crystal Vodafone_FCC_en.book Page 12 Mardi, 29. mai 2007 5:33 17
Quick start 13
The antenna is integrated in your phone, under the back cover at the bottom.
Avoid putting your fingers on this area when the phone is switched ON.
If your fingers obstruct the antenna, the phone may have to operate with a higher
power level than usual; decreasing its efficiency quickly. It could also affect the
quality of your communication.
-Don’t press the keys when not necessary: each keypress activates the backlight, and uses much power.
-Don’t obstruct the antenna with your fingers.
-Activation of
®
function reduces the phone battery life. We advise you to deactivate it when not in use.
Pour agrément_my850V Crystal Vodafone_FCC_en.book Page 13 Mardi, 29. mai 2007 5:33 17
14 Quick start
Your phone is powered by a rechargeable battery. A new battery must be
charged for 4 hours at least before being used for the first time. It reaches its
optimum capacity after a few cycles of use.
When your battery has been discharged, the empty battery icon flashes. In this
case recharge your battery for at least 15 minutes before making any calls in
order not to be cut off quickly.
Connect the charger to a socket.
Plug the end of the cable into the bottom connector of the phone.
The phone is then charging up. The battery icon scrolls up and down to indicate
that it is charging. When the battery is fully charged, the charging stops on its
own. Disconnect the cable.
When charging, the battery may warm up, this is normal.
If the battery has entirely discharged, the phone cannot start. Plug the phone to the charger. The phone will switch on
after a few minutes of charge. You can use the phone again when the option is displayed on the screen.
There is danger of explosion if the battery is placed in an incorrectly way or if it is exposed to fire.
Do not short circuit it.
The battery does not have any part that you can change.
Do not try to open the battery casing.
Use only the appropriate chargers and batteries as shown in the phone manufacturer’s catalogue.
The use of other types of chargers or batteries may be dangerous or invalidate the warranty.
Used batteries must be disposed of in the appropriate places.
We advise you to take the battery out if you plan not to use the phone for extended periods.
You are strongly advised not to connect your phone to the charger if it doesn’t contain a battery.
The charger is a safety step-down transformer, it is forbidden to modify, alter or replace it by another component (power
supply plug, etc).
Pour agrément_my850V Crystal Vodafone_FCC_en.book Page 14 Mardi, 29. mai 2007 5:33 17
Calls 15

Dial the number you want to ring.
Press .
You can adjust the sound level (volume) using the navigator upwards or downwards.
At the end of the conversation press to hang up.
When you receive a call, the number of your caller is displayed when it is presented by the network.
Press to answer, and speak.
To refuse the call, press .
To stop the ring tone or the vibrate, without refusing the call, press .
When on a call, pressing [ ] allows you to have access to different functions.
Pressing [ ] allows you to switch off the microphone temporarily when you want to prevent your correspondent from
listening.
Press 0 (hold down) to display « + », then dial the country code without waiting for the dial tone, then the number of the
called party without the prefix (0).
Depending on the network you can obtain the emergency service with or without SIM card. It is enough to be in an area
served by a network.
To obtain the international emergency service, dial then press .
During a call:
-make a long press on the green key and confirm
or
-press [Options] and select then confirm.
in this mode do not bring the phone up to your ear.
Pour agrément_my850V Crystal Vodafone_FCC_en.book Page 15 Mardi, 29. mai 2007 5:33 17
16 Calls
-The recipient must also have a phone with this function.
-Video call only operates on the 3G network, check the 3G icon is displayed on the idle screen before making a video call.
If you want to make a video call, dial the number then press the key.
You can also select the number in the phonebook and press the key (or [ ]/ ).
-Press the key.
You can select to activate or not the camera:
-press or to activate the camera
or
-press if you do no want to activate the camera.
A prompt asks you if you want to confirm the activation of the loudspeaker.
The menu allows you to access the call log divided into four lists that you can display by the navigator: all calls, dialled
calls, received calls and missed calls.
Various options are proposed: store a number in your phonebook, call, send a message, etc.
You can also make a call to a number by pressing the key.
Fast access to the list of calls from the idle screen: press the key.
Pour agrément_my850V Crystal Vodafone_FCC_en.book Page 16 Mardi, 29. mai 2007 5:33 17
Contacts 17

Enter the menu, the contacts list is displayed if you already get some (otherwise, go to ).
The icon displayed next to a contact’s name shows in which phonebook the contact is stored.
contact stored in the SIM card
contact stored in the phone
You can search for a contact quiclky by typing the first letters. You can display it by pressing .
-Display , select [ ], then or .
-Enter the first name and press .
-Enter the last name and press .
-Enter the number and press .
you can fill other fields if you store the contact in the phone memory (email, address, ringtone, photo, etc.).
-Press [ ] to store it.
To display the various options, select a contact and press [ ].
It allows you to display the contacts phone number.
It allows you to edit and/or modify a contact.
(see above).
Pour agrément_my850V Crystal Vodafone_FCC_en.book Page 17 Mardi, 29. mai 2007 5:33 17
18 Contacts
It allows you to call the contact selected.
It allows you to make a video call.
It allows you to send a written message or a voice message to the contact selected.
It allows you to send contact details by message or
®
.
It allows you to delete the contact selected.
You can enter the details corresponding to your own number.
The details of a contact stored in the phone memory can be saved in a business card.
-: it allows you to assign a short number to a contact.
-: it allows you to copy the contact selected stored in the SIM card to the phone memory.
-: it allows you to move the contact selected stored in the SIM card to the phone memory.
-: it allows you to copy a contact from the phone memory to the SIM card. Only the name and the first phone
number will be copied.
-: it allows you to move a contact from the phone memory to the SIM card.
-: it allows you to copy contact details to add a new one.
-: it allows you to copy all the contacts from one memory to the other.
-: it allows you to delete all the contacts.
-: it shows the number of contacts stored in each memory and the available memory space.
It allows you to add a contact to a group or to create a new group.
Pour agrément_my850V Crystal Vodafone_FCC_en.book Page 18 Mardi, 29. mai 2007 5:33 17
Contacts 19
-: after an incoming or outgoing call with a number not stored in the phonebook, this option allows you to
activate or deactivate a request to store the number in the phonebook.
-: it allows you to select the default phonebook (SIM, phone, SIM and phone) displayed when the phone
switches on.
-: This menu allows you to select the way to sort contacts in the phonebook (by name or first name).
This menu lists various emergency numbers.
You can synchronize your contacts stored in the phone memory with those of your computer electronic mails.
The synchronization is performed through
®
or a USB connection.
You can directly enter the contacts database settings.
A call group allows you to group contacts: this group can be used to send messages easily to all the group contacts.
-In the phonebook, select the tab by pressing the navigator rightwards.
-Press [ ].
-Select .
-Enter a name and press .
-Then the phone displays the contacts list to make your choice.
Pour agrément_my850V Crystal Vodafone_FCC_en.book Page 19 Mardi, 29. mai 2007 5:33 17
20 Messaging

-Select / .
-Select or .
: The [ ] key allows you to select various options for typing the text.
There are two input modes. To switch from one mode to another (ABC mode/T9 mode), make a long press on
.
To switch
into upper case/lower case/figures make a short press on
.
Also you can make your choice by selecting [ ]/ .
-: it allows you to type letters: press on one key several times to make the letter wanted appear (for example:
press twice the key to display ).
abc: lower case text
ABC: upper case text
Abc: first letter of the word in upper case
-: it allows you to type figures
- (see below for using it)
abc T9: lower case text
ABC T9: upper case text
Abc T9: first letter of the word in upper case
Pour agrément_my850V Crystal Vodafone_FCC_en.book Page 20 Mardi, 29. mai 2007 5:33 17
Messaging 21
The Easy Message T9
®
mode helps you to easily write your messages.
The language used is the one selected on the display of the phone (if the language selected is not compatible
with the Easy Message T9
®
, the English language will be automatically selected).
Press once the key corresponding to the letter chosen and compose the word by continuing to press the keys
corresponding to the various letters without paying attention to the display: the word is highlighted.
The same sequence of keys pressed can correspond to several words, existing on the dictionary. If the word that appears is
not the word you expected, press the navigator downwards to scroll through the words corresponding to this key sequence.
Once you agree on the word proposed on the screen, press the navigator rightwards to validate it or on the key (which
validates and inserts a space after the word), and go on writing the next word.
If the word you are expected is not proposed, please add characters until you get the message . Validate if
the word displayed suits you or modify this word before adding it in the dictionary.
Punctuation characters are obtained by pressing the key (except in mode), or by briefly pressing ).
Accented characters are generated automatically in T9 mode.
In ABC mode accented characters are available by pressing the key supporting the non-accented character repeatedly.
Select then (the message is saved in the folder) or (the message is saved in the
folder).
Once the text entered, press [ ] and select .
When you receive a message, the phone plays the ring tone that you selected, and a message icon comes on the screen of
your phone.
If you do not read the messages, this icon remains displayed on the screen. When it flashes, the memory is full.
Receiving icons, backgrounds or tunes can take several seconds. An icon is flashing when the download of your message is
in progress.
Pour agrément_my850V Crystal Vodafone_FCC_en.book Page 21 Mardi, 29. mai 2007 5:33 17
22 Messaging
Note that you have two different possibilities for receiving MMS: automatically or manually; if « manual mode » is activated,
then you will receive only a notification in your Inbox, meaning that a MMS is available on the MMS Server; select Retrieve
in the options when you want to retrieve the MMS from the network.
Please contact your network provider to get more information on icons, backgrounds or tunes downloading.
Received messages are stored in the SIM card or in the phone until you choose to delete them.
You can record a voice message and enclose it to a MMS to send it to a recipient.
-Select / / .
-Press [ ] to record your voice message.
-Press [ ] once completed.
-Press [ ] and select to join it to a MMS. Then you can send it.
With the MMS postcard option, Vodafone prints on paper a photo you have selected in your phone and Vodafone sends it by
post to the receiver.
Select / / .
Type the message to be printed on the postcard and select the photo you want to send ([ ]/ ). Enter the
receiver´s name, address, Post Code and City and optionally County and Country using to advance.
In some countries or models this service may not be supported (check with your local Vodafone Service provider).
This menu is divided in two lists: the SMS or MMS messages received and the e-mail received.
Your phone is able to get E-Mails from your Email service provider as well as let Vodafone managing your Emails, when
you’re not connected with your PC. For the latter option you don’t have to register a new Email address, but you can register
your current Email address and you will start soon to receive a free notification for new received emails. Thus, you can
download your messages directly on your mobile phone, in the Inbox folder.
If you enter the first time the Email inbox, there will be a setup wizard, which guides you through the setup of the Email
accounts. See below in , what will happen.
Messages are listed in chronological order, the latest one being displayed first.
The quantity of Not Read and Not Retrieved messages is shown. Not Retrieved and Not Read messages are shown in bold.
Pour agrément_my850V Crystal Vodafone_FCC_en.book Page 22 Mardi, 29. mai 2007 5:33 17
Messaging 23
In this menu there are the messages created saved as drafts.
When you select a message and press [ ], various options can be selected.
This menu is used to store all your sent messages if you activated the option in the
menu.
Too many messages saved will quickly fill up the available memory and no further messages will be received.
For each message, its characteristics (shown with an icon) and the time (or date) of sending are displayed on the screen.
This menu displays the messages that have not been sent. You can therefore send them again.
Your phone is able to get E-Mails from your Email service provider as well as let Vodafone managing your Emails, when
you’re not connected with your PC.
To setup your Email service provider account, the first time you enter this folder, an automatic E-Mail Wizard is presented
and you have to enter your Email account details (you may need to contact your Email service provider). Email from those
accounts will be retrieved in folder .
If Vodafone should manage the collection of your Emails, when you’re not connected with your PC, an Email wizard appears:
you don’t have to register a new Email address, but you can register your current Email address and password and you will
start soon to receive a free notification for new received emails.
Thus, you can download your messages directly on your mobile phone, in the folder.
Once the service is set up, you can send and read your Emails in the folder.
In this menu there are the messages created saved as templates.
The same options as for the drafts are available for the templates.
This menu is used to store all your sent messages.
Too many messages saved will quickly fill up the available memory and no further messages will be received.
For each message, its characteristics (shown with an icon) and the time (or date) of sending are displayed on the screen.
Pour agrément_my850V Crystal Vodafone_FCC_en.book Page 23 Mardi, 29. mai 2007 5:33 17
24 Messaging
This function allows you to call your voicemail.
: if your voicemail number has not been entered yet, you must enter it in the menu / / .
This menu allows you to select various sending and receiving options and customization options to create messages.
Pour agrément_my850V Crystal Vodafone_FCC_en.book Page 24 Mardi, 29. mai 2007 5:33 17
Vodafone live! 25

Your phone has been customised to give access to Vodafone live!. Visit
www.vodafone.com for additional information about the services Vodafone live!
offers. To connect to the Vodafone live! service, press the Vodafone live! key on
your handset. If you have any problems connecting to Vodafone live!, please
contact Vodafone.
You can also download pictures, videos, ringtones and games from Vodafone
live! and install them on your phone.
The Vodafone live! service allows you to access WAP pages and WAP-based
applications on your phone. If necessary, please contact Vodafone to configure
your phone.
Your phone may use a 3G network connection, bringing improved quality, sound,
pictures and videos, as well as increased speed when downloading games and
ringtones.
This connection is indicated by an 3G indicator. Alternatively, your phone may
use a high-speed General Packet Radio Service (GPRS) network connection.
This type of connection is identified by an indicator in the home screen that
disappears when you start Vodafone live!. If you see an indicator during a
Vodafone live! session, your phone is using a standard voice connection. The
type of network connection your phone uses depends on your service provider’s
network. Your network connection charges may vary depending on the type of
connection used.
-: opens the Vodafone live! portal.
-: go to a requested page.
-: allows to store bookmarks (addresses of Internet sites).
A bookmark stored in the list can be modified, sent or deleted.
You can receive bookmarks and add them to this list.
-: view a list of recently viewed pages.
-:contains information messages about sending and receiving (deliveries, failures, etc.).
-: allows you to configure various settings.
The browser navigator is unde
r
licence:
The browser navigator and the
softwares included are the exclusive
property of Openwave. For this
reason, it is forbidden to modify,
translate, disassemble or even
decompile all or part of these
softwares.
Pour agrément_my850V Crystal Vodafone_FCC_en.book Page 25 Mardi, 29. mai 2007 5:33 17
26 Vodafone live!
You can download pictures, sounds, or other objects from a WAP page by selecting the link. You can store media objects on
your phone, and use them as wallpaper images, and event alerts.
-The files that you download or receive as attachments might have a copyright lock that keeps you from forwarding them.
-If you receive a call during the download, press the Swap key to answer the call without ending the download.
-To end a download in progress, press .
Pour agrément_my850V Crystal Vodafone_FCC_en.book Page 26 Mardi, 29. mai 2007 5:33 17
My Files 27

The menu contains the directories of all the multimedia objects recorded in your phone and the downloaded objects
(pictures, videos, ringtones, musics, bookmarks, games, etc.).
To display the various options, press [ ] after having selected an object.
Pour agrément_my850V Crystal Vodafone_FCC_en.book Page 27 Mardi, 29. mai 2007 5:33 17
28 Music

This menu allows you to listen to music files in a contiuous way like a portable music player.
If you do not have any music file in memory, use Vodafone live! to download some or connect your phone to a PC.
-The first time you want to listen to music, display the menu (from the menus or directly from the key) to start
listening to a music file. Then you can listen to a music file, stop it or changing it with the flap closed.
-Warning: if you launch a music file from another menu ( for instance), when you close the flap the music stops.
It allows you to play a music file or several music files selected.
It is the directory of all the music files.
To display the different options, press [ ]:
-: to play a music file.
-: to select the way to play the music files.
-: to add a music file to a playlist.
-: to send the music file by message or
®
.
-: properties of the music file selected.
-To play or pause music.
-To change to the last
piece of music.
-To change to the next
piece of music.
Flap closed:
-short press: to launch
and stop the music
player mode.
Flap open:
-short press: to play or
pause music
-long press: to quit the
music player mode
Pour agrément_my850V Crystal Vodafone_FCC_en.book Page 28 Mardi, 29. mai 2007 5:33 17
Music 29
Type a name and press [ ]. Then a prompt asks you if you want to insert music files now.
The is an intelligent playlist, which remembers the tracks you have recently listened to.
On a list press [ ] to display the different options:
-: to display the content of a playlist.
-: to play a playlist contents.
-: to add a music file to a playlist.
-: to delete the playlist.
-: to rename the playlist.
It is the directory of the music files sorted by artist.
It is the directory of the music files sorted by title.
Imagine being able to listen to the radio through your phone, without having to put up with the annoying adverts or the
infuriating DJs.
Vodafone Radio DJ lets you personalise the radio channels so you only have to listen to music you like. New track listings
are still generated (according to your preferences) every time you listen, so you always get to hear new music. But when you
come across a track you like, you can add it to My Wishlist to purchase the song.
Radio DJ requires you to subscribe to the service. Visit www.vodafone.com for additional information about the subscription
services Vodafone offers.
To listen to Radio DJ, select / : your phone connects to the Radio DJ server and you can listen to music.
Then choose the styles you want to hear. In [ ] you can add a song you like to your wishlist, and you can then
download it.
Pour agrément_my850V Crystal Vodafone_FCC_en.book Page 29 Mardi, 29. mai 2007 5:33 17
30 Music
It connects you to the Vodafone live! portal and enables you to download music.
When you select My Wishlist, a web page opens with the list of your songs you have pre-selected. Then select the songs you
wish to purchase.
It enables you to record a sound you just hear and get it verified using that link.
Pour agrément_my850V Crystal Vodafone_FCC_en.book Page 30 Mardi, 29. mai 2007 5:33 17
Entertainment 31
!
You are the owner of a SAGEM mobile phone which gives you the ability to run and download Mobile
Internet Applications from My Internet folder and games from My Games to be executed on your phone
thanks to the built-in Java™ engine. Your phone contains trial games as well as Mobile Internet
applications, like GoogleMAP, eBay and/or mySpace ( : not for all countries). You can download
more.
However, receiving applications from everywhere implies some basic knowledge of the possible effects
of such download.
We advise you to download certified games or applications from Vodafone live!.
A great way to get video news and entertainment, TV clips and sport.
Your phone connects to the Mobile TV server and live pictures are displayed on your phone.
Some Mobile TV channels require you to subscribe to the service.
Visit www.vodafone.com for additional information about the subscription services Vodafone offers.
To watch Mobile TV:
-From the menu, select Mobile TV and then choose the channel of a video that will be streamed to you
directly, so you don’t have to store it.
You can watch in full screen selecting [ ]/ and you can also play or stop whenever you want selecting
[]/ or .
Pour agrément_my850V Crystal Vodafone_FCC_en.book Page 31 Mardi, 29. mai 2007 5:33 17
32 Camera
!
The menu allows you to take photos and use them for different purposes. For instance, you can send them to another
phone or an Internet address, store them, use them as wallpapers or screen savers.
Pressing [ ], various options can be selected:
-: to take the photo.
-: to switch from photo mode to video mode.
-: to change from one lens to another.
-: to take a photo with a 5, 10 or 15 second time delay.
-: to select luminosity.
-: to select an effect.
-: to select storage location, click sound, photo format and quality.
-: to make a video call.
-Select the menu. Look into your phone display and position your subject. Move your phone to position your photo.
-Press , the photo is taken and automatically saved. It stays on the phone display.
-If you want to send the photo immediately, press . The creating message screen is displayed to type a text if necessary.
-:allows you to send the photo by MMS, live! Postcard or
®
.
-: allows you to take a new photo.
-: allows you to delete the photo.
-: allows you to modify the name of a photo.
-: allows you to assign a photo to a contact saved in the phonebook.
-: allows you to select the photo as a wallpaper.
using the camera during a call may disturb the call quality.
Pour agrément_my850V Crystal Vodafone_FCC_en.book Page 32 Mardi, 29. mai 2007 5:33 17
Camera 33
Pressing [ ], various options can be selected:
-: to start recording
-: to switch from video mode to photo mode.
-: to change from one lens to another.
-: to select the video quality, the recording time, the recording of the sound and the storage location.
-: to make a video call.
-Select the menu then
to switch into video mode.
-Press to record then press [ ] when you want to stop recording.
The video is automatically saved and has a number. It is saved in / .
: the phone automatically stops recording when the maximum size available is reached.
allows you to send the video by MMS or
®
: allows you to play the video.
: allows you to take a new video.
: allows you to delete a video.
: allows you to modify the name of a video.
: the videos are saved in the phone with a .3gp format.
Pour agrément_my850V Crystal Vodafone_FCC_en.book Page 33 Mardi, 29. mai 2007 5:33 17
34 Organiser & Tools
"#$
This menu contains the applications you have downloaded.
This menu gives you access to your diary and get to a day, week, month or specific date. It lets you add events, access the
global actions for all the events and manage them by event category.
-: allows you to access events on a month-by-month basis.
-: allows you to access events on a week-by-week basis.
-: allows you to access the events for the current day and the actions possible on any event.
-: allows you to access events at a specific date.
-: allows you to select various settings for the events.
-: allows you to add events of the text or voice type. Fill in the different items. Save the
event.
-: allows you to schedule the deletion of events that took place more than one day, week or month ago.
-: allows you to view the memory capacity used by the different functions of your diary.
-: allows you to display the different event categories and know the number of events in each category.
-: you can synchronize your organizer with your archives stored in Vodafone’s network depending on the
options offered by your subscription with a GSM or GPRS connection from your phone.
You can also synchronize your organizer with your archives stored in your computer. You have only to activate
®
or configure your USB connection in your phone (see chapter ).
-: you can directly enter the calendar database settings.
Pour agrément_my850V Crystal Vodafone_FCC_en.book Page 34 Mardi, 29. mai 2007 5:33 17
Organiser & Tools 35
This menu allows you to use your phone as a calculator.
Use the following keys to make calculations:
-: Add, : Subtract, : Multiply, : Divide
The following keys are used for:
-: Equals, convert or add to memory
-: Delete
-: Decimal point.
You can synchronize your phonebook, your calendar or your To Dos with your archives stored in Vodafone’s network
depending on the options offered by your subscription.
You have only to activate
®
or configure your USB connection in your phone.
This menu allows you to set and activate the alarm,
-Select [ ] or / .
-Enter the time selected for the alarm.
-Select .
-Select [ ] and select the alarm activation recurrence. Press .
The alarm works even when the phone is switched off.
The alarm icon appears on the idle screen.
This menu allows you to use the chronometer function and to store the lap times.
This menu allows you to use the timer function.
Pour agrément_my850V Crystal Vodafone_FCC_en.book Page 35 Mardi, 29. mai 2007 5:33 17
36 Organiser & Tools
This menu allows you to add ToDo’s, access category-based Todo management and delete all the ToDo’s.
If there are not any ToDo, you directly access to the options below.
-/: allows you to add ToDo of the text or voice type. Fill in the different items. Save the
ToDo.
-: allows you to select various settings for the ToDo.
-:allows you to import a ToDo from a directory.
-: You can synchronize your ToDos with your archives stored in Vodafone's network depending on the options
offered by your subscription with a GSM or GPRS connection from your phone.
You can also synchronize your ToDos with your archives stored in your computer. You have only to activate
®
or configure your USB connection in your phone (see chapter ).
-: you can directly enter the ToDo’s database settings.
If there is a ToDo, press [ ] to display the options.
This menu allows you to record your voice or a sound.
This item may not be present on your phone’s menu, as its contents depends on your SIM.
This menu is used to activate reception of local information broadcast by the network.
You can choose whether you want to receive this information or not (please contact your network provider).
This menu allows you to know the modem connection status.
This menu allows you to display help pages for the using of your phone.
First select the language you want.
: displaying help pages is done with a free WAP connection.
Pour agrément_my850V Crystal Vodafone_FCC_en.book Page 36 Mardi, 29. mai 2007 5:33 17
Settings 37
%
This menu allows you to set profiles containing selections of different ringtones, volume to adapt them to various
circumstances (for instance, depending on where you are (at work, at home, etc.) you will select such or such profile.
: At any time, you can put your phone in silent mode by a long long press on the key from the idle screen.
These menus allow you to set the various date and time settings (format, display, time zone, daylight saving,etc).
This menu displays the list of all the settings selected for date and time.
This menu allows you to choose your phone’s display language.
This menu displays the memory space used for the various functions.
This menu allows you to lock the flap keypad to avoid unwanted key presses.
-: after a few seconds, the keypad is locked. To unlock it press the small lateral key (long press).
-: lock the keypad pressing the small lateral key (long press).
Pour agrément_my850V Crystal Vodafone_FCC_en.book Page 37 Mardi, 29. mai 2007 5:33 17
38 Settings
This menu allows you to configure your phone’s security settings.
This menu allows you to activate or deactivate the PIN code when switching on the phone
This menu allows you to activate and modify your phone’s PIN.
To modify the PIN, select and [ ].
Enter old PIN and validate.
Enter new PIN twice and validate.
To activate or deactivate the PIN, select the menu and [ ].
Enter PIN and validate.
Select or and validate.
You have a second PIN number to allow you to access certain functions *.
* These functions may or may not be available depending on your SIM card.
Proceed as above in order to modify PIN number 2 of your phone.
This menu allows you to activate a code which will be requested when the phone is switched on if a different SIM card is used.
This code is automatically linked to the SIM card installed when the phone is activated. This code is a secret code to protect
the phone if stolen.
To activate or deactivate the code:
-Select and [ ].
-Select or and [ ].
-Enter 0000 (the factory code, by default) and validate.
To modify the phone code:
-Select and [ ].
-Enter the old code and validate.
-Enter the new code and validate.
-Enter the code again to confirm it and validate.
This menu allows the activation or deactivation of automatic deletion, after power off/on, of messages, calls or organiser
events.
Select or and validate.
Pour agrément_my850V Crystal Vodafone_FCC_en.book Page 38 Mardi, 29. mai 2007 5:33 17
Settings 39
This menu allows you to modify the call barring.
This menu allows you to restrict the outgoing calls. This service depends on your SIM card.
When activating this function, only the numbers stored in this phonebook can be called.
This phonebook is linked to the SIM card, and its size depends on the card’s capacity.
-: allows you to activate or deactivate this service.
-: allows you to manage the numbers stored in this phonebook.
This menu allows you to select the camera, video and voice recorder settings.
Press the navigator. You can select a wallpaper through the phone default wallpapers and the pictures downloaded (
) or no wallpaper ( ).
Select [ ] once your choice made.
You can select the backlight intensity and the inactivity time after which the phone will automatically switch into economic
mode (screen off).
This menu allows you to display an animation when the phone is switched on.
This menu allows you to display your operator’s logo on the idle screen (depending on model).
This menu allows you to allocate functions to the directional keys of the navigator.
Pour agrément_my850V Crystal Vodafone_FCC_en.book Page 39 Mardi, 29. mai 2007 5:33 17
40 Settings
This menu allows you to manage all the call functions (call forward, displaying numbers, call waiting, voicemail number, etc.).
If you select , calls are answered by opening the flap.
closing the flap always hangs up, whatever the selection made in this menu ( or ).
This menu allows your phone to answer automatically to a call when it is connected to a car kit.
This menu allows you to answer to a call pressing any key.
You can decide whether or not your phone’s number will be displayed on the phone of the person you call.
-: your phone’s number will be displayed on the phone of the person you call.
-: your phone’s number will not be displayed on the phone of the person you call.
-: the phone default mode.
On outgoing calls: status of the Display numbers function.
On incoming calls: status of the Display numbers function when you have forwarded the incoming calls to another number.
On outgoing calls: status of the Display numbers function when your call is forwarded to another number.
On incoming calls: status of the caller’s Display numbers function.
Depending on your subscription, this service allows you to forward incoming calls to a different number or to the voice mailbox.
Choose the type of forwarding you want from the options available.
Pour agrément_my850V Crystal Vodafone_FCC_en.book Page 40 Mardi, 29. mai 2007 5:33 17
Settings 41
This function is for storing your voicemail number.
(Network dependent service)
During a call, you may be informed that a caller is trying to reach you: you hear a special tone. The caller’s number is displayed
on the screen.
This menu allows you to call back a caller you have not managed to reach automatically.
You can set the redial function to inactive, on request or systematic.
If you choose , your phone will offer to redial your caller automatically if his number is busy.
This menu allows you to configure video call parameters.
The numbers entered in this list will automatically be rejected by the phone.
This menu allows you to block the making or receiving of certain calls.
Before you can use this service, a password will be provided by Vodafone when you take out your subscription.
Access to this service depends on your subscription type.
To activate call barring :
-Select incoming or outgoing calls.
-Select the call type on which you want to activate call barring.
-Select the call origin.
-Select Activation and enter password.
Pour agrément_my850V Crystal Vodafone_FCC_en.book Page 41 Mardi, 29. mai 2007 5:33 17
42 Settings
The blacklist is used to limit failures on automatic calls (calls generated by the automatic redial function or by applications:
data, fax for example).
When several automatic calls failed with a number (number busy or unknown), this number is put in the blacklist and no
automatic call will be done with this number any more until you delete it from the blacklist.
: this function does not apply to the calls performed manually.
You can exchange with other devices (PC, mobile phones, personal assistants, printers, etc.) various data: pictures, sounds,
photos, videos, ToDo tasks, organiser events, contacts, etc.
Data exchange can be done through:
-a USB cable,
-a
®
connection.
®
is a technology used to establish a wireless connection with other
®
equipped devices: for example, with
a pedestrian kit or a car kit to phone or with a PC to swap data. The range is about 10 m.
The
®
menu contains the following entries:
This menu lets you draw up the list of devices with which the
®
connection is secure (by authentication and
encryption).
A device must be added to this list before it can be used in
®
with your phone except for exchanging objects. When
you select send by
®
(photo, Todo task, contact details, etc.) the phone displays the list of devices. You do not need
to select a device from this list at this time, you can start a one-off search for a device when you initiate sending.
See below for the pairing procedure.
This is the name used to identify your phone when it is detected by another
®
device.
Pour agrément_my850V Crystal Vodafone_FCC_en.book Page 42 Mardi, 29. mai 2007 5:33 17
Settings 43
With this menu you can, on the one hand, activate and deactivate the
®
function and, on the other, when the
®
function is activated, select whether you want other
®
devices to be able to detect your device.
: the
®
function is not available.
: your phone is not visible. It cannot be detected by other
®
devices. In this mode, a device
can only connect to your phone using
®
if you have already paired it. This mode lets you detect other devices
and pair with them from your phone.
: your phone is visible for a period of 3 minutes. During this period, it can be detected by
the other
®
devices. Select this mode when a pairing with your phone has been initiated from another
®
device.
: your phone is visible and can be detected by the other
®
devices as long as this mode is
selected.
:
-The option ensures the best battery life for your phone.
-
®
security is better guarded because your phone remains invisible to the other devices.
Select .
If the
®
function is not active, the phone prompts you to activate it using one of the 3 modes described above.
The phone searches for visible
®
devices and displays the list. Select the device concerned and validate your
choice. Your phone then prompts you to enter a code which must be the same as the code entered on the remote device.
Enter and validate this code: Your phone is now paired with the remote device.
A connected device is shown in blue in the list.
[] on the name of a device lets you access the following options:
-: this is used to delete the device. WARNING: using this function needs starting the pairing over again.
-: this is used to modify the name of the device.
-: this is used to delete all your devices. WARNING: using this function needs starting the pairing over again.
-: this is used to activate the connection with the device.
-: this is used to deactivate the connection with the device.
:
-Refer to the user manual of the device with which you are pairing to find out how to set this device to the mode allowing
this operation.
-The code of the remote device may be predefined by the device manufacturer. In this case, refer to the user manual of this
device to find out this code.
Pour agrément_my850V Crystal Vodafone_FCC_en.book Page 43 Mardi, 29. mai 2007 5:33 17
44 Settings
1) Data exchange between a memory card inserted in the phone and a PC
First you must select .
After connection of the USB cable between the phone and the PC, the memory card is considered as an additional memory
in the Windows explorer files directory; you can copy/paste.
2) Data exchange between the phone memory and a PC
First you must select .
After connection of the USB cable between the phone and the PC, you must use the MPAS software (My Pictures And Sounds
available on www.planetsagem.com) or the Wellphone software (available on www.wellphone.com).
-The memory card is not detected by the phone. Consequently, if you have configured your phone with a wallpaper or a
ring tone stored in the memory card, those ones will not be used during the connections.
-Camera is not available, neither in photo mode, nor in video mode.
This menu allows you to configure all the synchronization parameters.
This menu allows you to set various parameters needed for Vodafone live! browser connection.
You can add or modify URL addresses.
This menu allows you to configure network preferences.
-: to activate (automatically or manually) one of the networks accessible in the area in which your are located.
-: to view all the pre-registered networks.
-: to select your network: GSM or 3G.
Pour agrément_my850V Crystal Vodafone_FCC_en.book Page 44 Mardi, 29. mai 2007 5:33 17
Technical features 45
$&
Weight: 95 g
Size: 96 x 49 x 16 mm
Original battery: Li-ion 920 mAh
Battery life (*):
-Standby: up to 300 h
-Calls: up to 4 h
Multimedia objects supported:
-Audio formats: Midi, WAV, AMR NB, AMR WB, XMF, MP3, AAC, AAC+, eAAC+
-Graphic formats: bmp, jpeg, png, gif
-Video formats: H.263, H.264, 3GP, MPEG4
Size of memory available for messages, the phonenook and the multimedia objects: up to 64 Mb
Maximum size of each message:
-SMS: < 160 characters
-MMS: the phone supports MMS sizes up to 300 kB both for outgoing and incoming messages (depending on the phone
configuration and on the operator reservations)
Using temperature: from - 10 °C to + 55 °C
Pour agrément_my850V Crystal Vodafone_FCC_en.book Page 45 Mardi, 29. mai 2007 5:33 17
46 Certification and safety information for the United States and countries using FCC standards


This device complies with part 15, part 22 and part 24 of the FCC rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any interference, including interference
that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications made to this equipment not expressly approved by Sagem Communication for compliance could
void the user’s authority to operate the equipment.
Pour agrément_my850V Crystal Vodafone_FCC_en.book Page 46 Mercredi, 30. mai 2007 9:48 09
Certification and safety information for the United States and countries using FCC standards 47
Your wireless phone is a radio transmitter and receiver. It is designed and manufactured not to exceed the limits for exposure
to radiofrequency (RF) energy set by the United States Federal Communications Commission (FCC). These limits are part
of comprehensive guidelines and establish permitted levels of RF energy for the general population. The guidelines are based
on standards that were developed by independent scientific organizations through periodic and thorough evaluation of
scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons, regardless
of age and health.
The exposure standard for wireless mobile phones employs a unit of measurement known as the Specific Absorption Rate,
or SAR. The SAR limit set by the FCC and Health Canada is 1.6 W/kg (*). Tests for SAR are conducted using standard
operating positions accepted by the FCC with the phone transmitting at its highest certified power level in all tested frequency
bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the phone while operating
can be well below the maximum value. This is because the phone is designed to operate at multiple power levels so as to
use only the power required to reach the network. In general, the closer you are to a wireless base station antenna, the lower
the power output.
Before a phone model is available for sale to the public, it must be tested and certified to the FCC that it does not exceed the
RF limit established by the government-adopted requirement for safe exposure. The tests are performed in positions and
locations (i.e., at the ear and worn on the body) as required by the FCC for each model.
The highest SAR value for these model phones as reported to the FCC when tested for use at the ear and when worn on the
body are (measured at a distance of 0.59 inches (1.5 cm)):
0.306 0.278 0.970 0.292
Pour agrément_my850V Crystal Vodafone_FCC_en.book Page 47 Mercredi, 30. mai 2007 9:48 09
48 Certification and safety information for the United States and countries using FCC standards
While there may be differences between the SAR levels of various phones and at various positions, they all meet the FCC
requirement. The FCC has granted an Equipment Authorization for this model phone with all reported SAR levels evaluated
as in compliance with the FCC RF exposure guidelines. SAR information on this model phone is on file with the FCC and can
be found under the Display Grant section of http://www.fcc.gov/oet/fccid after searching on FCC ID M9HMC07S1.
Additional Information can be found on the website of the World Health Organization (http://www.who.int/emf).
Switch off your wireless device whenever you are instructed to do so by airport or airline staff. If your device offers
a “flight mode” or similar feature, consult airline staff as to its use in flight.
Full attention should be given to driving at all times, and regulations restricting the use of wireless devices while
driving must be observed. For further driving safety tips, please refer to at page 52.
Mobile phones should be switched off whenever you are requested to do so in hospitals, clinics or health care
facilities. These requests are designed to prevent possible interference with sensitive medical instruments.
Obey all posted signs with respect to the use of wireless devices or other radio equipment in locations with
flammable material and chemicals. Switch of your wireless device whenever you are instructed to do so by authorized staff.
You should always consult your physician and review the device
manufacturer's instructions to determine if operation of your phone may interfere with the operation of your medical device.
As a general rule:
- Pacemaker manufacturers recommend that a minimum separation of 6 inches (15 cm) be maintained
between a mobile phone and a pacemaker to avoid potential interference with the pacemaker. To achieve this, use the
phone on the opposite ear to your pace maker and do not carry it in a breast pocket.
- Some digital wireless phones may interfere with some hearing aids. In the event of such interference,
you may want to consult your hearing aid manufacturer to discuss alternatives.
The ring tone, info tones, and handsfree talking are reproduced through the loudspeaker. Do not hold the phone to your ear
when it rings or when you have switched on the handsfree function (at least 3.9 inches (10 cm)).
Use only batteries and charging devices designed for your phone. Otherwise you risk serious damage to health and property
and may void any warranty.
Small parts like the SIM card could be swallowed by young children.
Do NOT open the phone. Only the battery and the SIM card may be removed. Do NOT open the battery.
Keep the battery out of chidren’s reach. Do not allow the battery to be put into the mouth.
Pour agrément_my850V Crystal Vodafone_FCC_en.book Page 48 Mercredi, 30. mai 2007 9:48 09
Certification and safety information for the United States and countries using FCC standards 49
This phone is designed to comply with the FCC radio frequency (RF) exposure guidelines when used as follows:
- Place or receive a phone call and hold the phone as you would a wireline telephone.
- When transmitting, place the phone in a carrying accessory that contains no metal and positions the phone
a minimum of 0.59 inches (1.5 cm) from your body. Use of other accessories may not ensure compliance with exposure
guidelines. If you do not use a body worn accessory and are not holding the phone at the ear, position the phone a
minimum of 0.59 inches (1.5 cm) from your body.
- When using a data feature, position the phone a minimum of 0.59 inches (1.5 cm) from your body for the
whole duration of the data transmission.
The US Food and Drug Administration (FDA) provides consumer information on wireless phones
at: http://www.fda.gov/cellphones/qa.html.
Following are safety related questions and answers discussed at this web site:
The available scientific evidence does not show that any health problems are associated with using wireless phones. There
is no proof, however, that wireless phones are absolutely safe. Wireless phones emit low levels of radiofrequency energy
(RF) in the microwave range while being used. They also emit very low levels of RF when in the stand-by mode. Whereas
high levels of RF can produce health effects (by heating tissue), exposure to low level RF that does not produce heating
effects causes no known adverse health effects. Many studies of low level RF exposures have not found any biological
effects. Some studies have suggested that some biological effects may occur, but such findings have not been confirmed by
additional research. In some cases, other researchers have had difficulty in reproducing those studies, or in determining the
reasons for inconsistent results.
Under the law, FDA does not review the safety of radiation-emitting consumer products such as wireless phones before they
can be sold, as it does with new drugs or medical devices. However, the agency has authority to take action if wireless phones
are shown to emit radiofrequency energy (RF) at a level that is hazardous to the user. In such a case, FDA could require the
manufacturers of wireless phones to notify users of the health hazard and to repair, replace or recall the phones so that the
hazard no longer exists.
Pour agrément_my850V Crystal Vodafone_FCC_en.book Page 49 Mercredi, 30. mai 2007 9:48 09
50 Certification and safety information for the United States and countries using FCC standards
Although the existing scientific data do not justify FDA regulatory actions, FDA has urged the wireless phone industry to take
a number of steps, including the following:
-Support needed research into possible biological effects of RF of the type emitted by wireless phones;
-Design wireless phones in a way that minimizes any RF exposure to the user that is not necessary for device function; and
-Cooperate in providing users of wireless phones with the best possible information on possible effects of wireless phone
use on human health.
FDA belongs to an interagency working group of the federal agencies that have responsibility for different aspects of RF safety
to ensure coordinated efforts at the federal level. The following agencies belong to this working group:
-National Institute for Occupational Safety and Health
-Environmental Protection Agency
-Federal Communications Commission
-Occupational Safety and Health Administration
-National Telecommunications and Information Administration
The National Institutes of Health participates in some interagency working group activities, as well.
FDA shares regulatory responsibilities for wireless phones with the Federal Communications Commission (FCC). All phones
that are sold in the United States must comply with FCC safety guidelines that limit RF exposure. FCC relies on FDA and
other health agencies for safety questions about wireless phones.
FCC also regulates the base stations that the wireless phone networks rely upon. While these base stations operate at higher
power than do the wireless phones themselves, the RF exposures that people get from these base stations are typically
thousands of times lower than those they can get from wireless phones. Base stations are thus not the primary subject of the
safety questions discussed in this document.
FDA is working with the U.S. National Toxicology Program and with groups of investigators around the world to ensure that
high priority animal studies are conducted to address important questions about the effects of exposure to radiofrequency
energy (RF).
FDA has been a leading participant in the World Health Organization International Electromagnetic Fields (EMF) Project since
its inception in 1996. An influential result of this work has been the development of a detailed agenda of research needs that
has driven the establishment of new research programs around the world. The Project has also helped develop a series of
public information documents on EMF issues.
Pour agrément_my850V Crystal Vodafone_FCC_en.book Page 50 Mercredi, 30. mai 2007 9:48 09
Certification and safety information for the United States and countries using FCC standards 51
FDA and the Cellular Telecommunications & Internet Association (CTIA) have a formal Cooperative Research and
Development Agreement (CRADA) to do research on wireless phone safety. FDA provides the scientific oversight, obtaining
input from experts in government, industry, and academic organizations. CTIA-funded research is conducted through
contracts to independent investigators. The initial research will include both laboratory studies and studies of wireless phone
users. The CRADA will also include a broad assessment of additional research needs in the context of the latest research
developments around the world.
If there is a risk from these products--and at this point we do not know that there is--it is probably very small. But if you are
concerned about avoiding even potential risks, you can take a few simple steps to minimize your exposure to radiofrequency
energy (RF). Since time is a key factor in how much exposure a person receives, reducing the amount of time spent using a
wireless phone will reduce RF exposure.
If you must conduct extended conversations by wireless phone every day, you could place more distance between your body
and the source of the RF, since the exposure level drops off dramatically with distance. For example, you could use a headset
and carry the wireless phone away from your body or use a wireless phone connected to a remote antenna.
Again, the scientific data demonstrate that wireless phones are harmful. But if you are concerned about the RF
exposure from these products, you can use measures like those described above to reduce your RF exposure from wireless
phone use.
The scientific evidence does not show a danger to users of wireless phones, including children and teenagers. If you want to
take steps to lower exposure to radiofrequency energy (RF), the measures described above would apply to children and
teenagers using wireless phones. Reducing the time of wireless phone use and increasing the distance between the user and
the RF source will reduce RF exposure.
Some groups sponsored by other national governments have advised that children be discouraged from using wireless
phones at all.
Since there are no known risks from exposure to RF emissions from wireless phones, there is no reason to believe that
handsfree kits reduce risks. Hands-free kits can be used with wireless phones for convenience and comfort. These systems
reduce the absorption of RF energy in the head because the phone, which is the source of the RF emissions, will not be placed
against the head. On the other hand, if the phone is mounted against the waist or other part of the body during use, then that
part of the body will absorb more RF energy. Wireless phones marketed in the U.S. are required to meet safety requirements
regardless of whether they are used against the head or against the body. Either configuration should result in compliance
with the safety limit.
Pour agrément_my850V Crystal Vodafone_FCC_en.book Page 51 Mercredi, 30. mai 2007 9:48 09
52 Certification and safety information for the United States and countries using FCC standards
Since there are no known risks from exposure to RF emissions from wireless phones, there is no reason to believe that
accessories that claim to shield the head from those emissions reduce risks. Some products that claim to shield the user from
RF absorption use special phone cases, while others involve nothing more than a metallic accessory attached to the phone.
Studies have shown that these products generally do not work as advertised. Unlike "hand-free" kits, these so-called "shields"
may interfere with proper operation of the phone. The phone may be forced to boost its power to compensate, leading to an
increase in RF absorption.
Wireless phones give people the ability to communicate almost anywhere, anytime. But an important responsibility
accompanies those benefits, one that every wireless phone user must uphold. When driving a car, driving is your first
responsibility.
Below are safety tips to follow while driving and using a wireless phone that should be easy to remember.
Get to know your wireless phone and its features such as speed dial and redial.
When available, use a hands free device.
Position your wireless phone within easy reach and where you can grab it without removing your eyes from the road. If you
get an incoming call at an inconvenient time, if possible, let your voice mail answer it for you.
Let the person you are speaking with know you are driving; if necessary, suspend the call in heavy traffic or hazardous
weather conditions.
Do not take notes or look up phone numbers while driving.
Dial sensibly and assess the traffic; if possible, place calls when you are not moving or before pulling into traffic. Try to plan
your calls before you begin your trip. But if you need to dial while driving, follow this simple tip--dial only a few numbers, check
the road and your mirrors, then continue.
Do not engage in stressful or emotional conversations that may be distracting.
Use your wireless phone to call for help. Dial 9-1-1 or other local emergency number in the case of fire, traffic accident, road
hazard or medical emergency.
Use your wireless phone to help others in emergencies. If you see an auto accident, crime in progress or other serious
emergency where lives are in danger, call 9-1-1 or other local emergency number.
Call roadside assistance or a special wireless non-emergency assistance number when necessary. If you see a broken-down
vehicle posing no serious hazard, a broken traffic signal, a minor traffic accident where no one appears injured or a vehicle
you know to be stolen, call roadside assistance or other special non-emergency wireless number.
Pour agrément_my850V Crystal Vodafone_FCC_en.book Page 52 Mercredi, 30. mai 2007 9:48 09
Certification and safety information for Europe and countries using CE standards 53
! 
 
Pour agrément_my850V Crystal Vodafone_FCC_en.book Page 53 Mardi, 29. mai 2007 5:33 17
54 Certification and safety information for Europe and countries using CE standards
Your mobile device is a radio transmitter and receiver. It is designed not to exceed the limits for exposure to radio waves
recommended by international guidelines. These guidelines were developed by the independent scientific organization
ICNIRP and include safety margins designed to assure the protection of all persons, regardless of age and health.
The guidelines use a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit for mobile devices
is 2 W/kg and the highest SAR value for this device when tested at the ear was X.XX W/kg (*). As mobile devices offer a range
of functions, they can be used in other positions, such as on the body as described in this user guide (**).
As SAR is measured utilizing the devices highest transmitting power the actual SAR of this device while operating is typically
below that indicated above. This is due to automatic changes to the power level of the device to ensure it only uses the
minimum level required to reach the network.
The World Health Organization has stated that present scientific information does not indicate the need for any special
precautions for the use of mobile devices. They note that if you want to reduce your exposure then you can do so by limiting
the length of calls or using a ’hands-free’ device to keep the mobile phone away from the head and body. Additional
Information can be found on the websites of the World Health Organization (http://www.who.int/emf).
For individuals concerned about limiting their exposure to RF fields, the World Health Organization (WHO) provides the
following advice:
Precautionary measures: Present scientific information does not indicate the need for any special precautions for the use of
mobile phones. If individuals are concerned, they might choose to limit their own or their children’s’ RF exposure by limiting
the length of calls, or using "hands-free" devices to keep mobile phones away from the head and body.
Further information on this subject can be obtained from the WHO home page http://www.who.int/peh-emf WHO Fact
sheet 193: June 2000.
Pour agrément_my850V Crystal Vodafone_FCC_en.book Page 54 Mardi, 29. mai 2007 5:33 17
Certification and safety information for Europe and countries using CE standards 55
Never attempt to disassemble your phone. You alone are responsible for how you use your phone and any consequences of
its use.
As a general rule, always switch off your phone wherever the use of a phone is prohibited.
Use of your phone is subject to safety measures designed to protect users and their environment.
Do not use your phone in damp areas (bathroom, swimming pool…). Protect it from liquids and other moisture.
Do not expose your phone to extreme temperatures lower than - 10°C and higher than + 55°C.
The physicochemical processes created by chargers impose temperature limits when charging the battery. Your phone
automatically protects the batteries in extreme temperatures.
Do not leave your phone within the reach of small children (certain removable parts may be accidentally ingested).
Only use the chargers listed in the manufacturer’s catalogue. Using any other charger may be dangerous; it would also
invalidate your warranty. Line voltage must be exactly the one indicated on the charger’s serial plate.
When travelling by plane, you will need to switch your phone off when so instructed by the cabin crew or the warning signs.
Using a mobile phone may be dangerous to the operation of the aircraft and may disrupt the phone network.
Its use is illegal and you could be prosecuted or banned from using cellular networks in the future if you do not abide by these
regulations.
Please comply with warning signs at petrol station asking you to switch your phone off. You will need to comply with radio
equipment usage restrictions in places such as chemical plants, fuel depots and at any location where blasting operations
are under way.
To avoid the risk of demagnetisation, do not let electronic devices close to your phone for a long time.
Your phone is a radio transmitter which may interfere with electronic medical equipment or implants, such as hearing aids,
pacemakers, insulin pumps, etc. It is recommended that a minimum separation of 15 cm be maintained between the phone
and an implant. Your doctor or the manufacturers of such equipment will be able to give you any advice you may need in this
area.
Always make sure that your phone is switched off in hospitals when so instructed by warning signs or by medical staff.
Pour agrément_my850V Crystal Vodafone_FCC_en.book Page 55 Mardi, 29. mai 2007 5:33 17
56 Certification and safety information for Europe and countries using CE standards
Do not use your phone when driving. In order to give your full attention to driving, stop and park safely before making a call.
You must comply with any current legislation.
This phone model has been tested and meets radiofrequency exposure guidelines when used as follows:
-against the ear: place or receive a phone call and hold the phone as you would a wireline telephone,
-body worn: when transmitting, place the phone in a carry accessory that contains no metal and positions the phone a
minimum of 1.25 cm form your body. Use of other accessories may not ensure compliance with radiofrequency exposure
guidelines. If you do not use a body worn accessory and are not holding the phone at the ear, position the phone a
minimum of 1.25 cm from your body,
-data operation: when using a data feature, position the phone a minimum of 1.25 cm from your body for the whole duration
of the data transmission.
To facilitate the recycling of packaging materials, please obey the sorting rules instituted locally for this type of waste.
Spent batteries must be deposited at the designated collection points.
The crossed-out waste bin mark affixed to the product means that it belongs to the family of electrical and electronic
equipment.
To promote the recycling and recovery of waste electrical and electronic equipment (WEEE) and at the same time
safeguard the environment, European regulations require you to obey the sorting rules instituted locally for this type
of waste.
Pour agrément_my850V Crystal Vodafone_FCC_en.book Page 56 Mardi, 29. mai 2007 5:33 17
For Customers in the United States 57
!&%
Brightstar US, Inc. (Brightstar) warrants this product including any accessories sold for use with the products against defects
in materials or workmanship under normal usage for the periods outlined in the warranty provided with the product, as follows:
This product is for standard consumer use only and is guaranteed to be in proper working order as is determined upon initial
removal from the package and subsequent power up and test call. If this product is determined to be defective, Brightstar will
repair or replace the product, at its option, at no charge.
Any unit requiring repair not covered by the warranty requires authorization from your service provider and Brightstar. Contact
your service provider to obtain this authorization.
This warranty is valid only in the United States.
If Brightstar chooses to replace the equipment, Brightstar may replace it with reconditioned equipment. Parts used in repairing
or replacing the equipment will be warranted for 90 days from the date the equipment is returned to you. This warranty is not
transferable.
TO THE EXTENT PERMITTED BY APPLICABLE LAW, BRIGHTSTAR WILL NOT BE RESPONSIBLE FOR ANY IMPLIED
WARRANTIES, INCLUDING WITHOUT LIMITATION, THE IMPLIED WARRANTIES OF MERCHANTIBILITY OR FITNESS
FOR A PARTICULAR PURPOSE. BRIGHTSTAR WILL NOT, IN ANY EVENT, BE LIABLE IN CONTRACT OR TORT FOR
DAMAGES IN EXCESS OF THE PURCHASE PRICE OF THE PRODUCT OR ACCESSORY, OR FOR ANY INCIDENTAL,
INDIRECT, SPECIAL OR CONSEQUENTIAL DAMAGES OF ANY KIND, INCLUDING TRAVEL EXPENSE, TELEPHONE
CHARGES, LOSS OF REVENUE, LOSS OF TIME, INCONVENIENCE LOSS OF USE OF EQUIPMENT, LOSS OF
INFORMATION OR DATA, OR OTHER DAMAGE OR LOSS CAUSED BY OR IN CONNETION WITH THE PRODUCTS,
ACCESSORIES, SOFTWARE OR EQUIIPMENT FAILING TO FUNCTION PROPERLY. THIS WARRANTY SETS FORTH
ALL OF BRIGHTSTAR’S REPONSIBILITIES REGARDING THIS PRODUCT AND ITS ACCESSORIES.
Some states and jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, or allow
limitations on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you.
Pour agrément_my850V Crystal Vodafone_FCC_en.book Page 57 Mardi, 29. mai 2007 5:33 17
58 For Customers in the United States
The mobile phone and software program developed by Sagem Communication (SAGEM) remains the exclusive property of
Sagem. YOU ARE STRICTLY PROHIBITED FROM MODIFYING, TRANSLATING, DE-COMPILING OR DISASSEMBLING
THIS SOFTWARE PROGRAM OR ANY PART THEREOF.
Brightstar US, Inc. (Brightstar) is the exclusive distributor for Sagem in the United States and is responsible for all warranties
for SAGEM phones and accessories sold in the United States. Please DO NOT contact Sagem directly regarding any
warranty claims; doing so will only delay the processing of your claim.
Your phone allows you to download ring tones, icons and animated screensavers. Some of these items may contain data that
may cause malfunction of your phone or data losses (a computer virus, for example). For this reason, Brightstar disclaims all
responsibility concerning (1) the reception of downloaded data or losses of such data, (2) such data’s impact on the operation
of the phone, and (3) damages resulting from receiving any downloaded data or loss of such data. In addition, any failure
caused by receiving downloaded data that do not comply with the phone’s specifications is excluded from the warranty. The
diagnosis and repair of a phone infected by downloaded data will be at the expense of the customer.
Whenever you wish to make a warranty claim, please contact Brightstar at the address given below and present the
purchasing paperwork that was given to you.
Brightstar warrants that the new phone (excluding consumablesbut including new accessories bundled with the phone), is
free from defects in materials and workmanship under normal usage for a period of twelve (12) months effective from the date
you purchased the phone, to be evidenced by presentation of the paperwork stating the purchase date of the phone. Phones
that have been repaired or replaced as standard during the warranty period stated above are warranted (parts and labor) until
the later of these two dates: Expiry of the original warranty period of twelve (12) months stated above; or three (3) months
from the repair or replacement under warranty.
All faulty phones under warranty will be replaced or repaired free of charge at Brightstar’s option.
Pour agrément_my850V Crystal Vodafone_FCC_en.book Page 58 Mardi, 29. mai 2007 5:33 17
For Customers in the United States 59
You are responsible for sending the phone to the repair center. In order to repair or replace a phone under warranty,
Brightstar also requires that a legible and unmodified purchase document, stating vendor’s name and address, date and place
of purchase, type of phone and IMEI (to display the IMEI on your phone’s screen, type: *#06#), be attached to the warranty,
and that the information on the phone identification label be legible and that such label or any other seal have not been
tampered with. The warranty applies under normal usage for the period outlined above. Prior to sending the phone for repair,
it is your responsibility to backup at your expense any customized data stored in the phone (such as phonebook, settings,
wallpapers, and previously downloaded data). BRIGHTSTAR IS NOT RESPONSIBLE FOR DAMAGE TO CUSTOMER
FILES, PROGRAMS OR DATA. The information or operating elements and the contents of files will not be re-installed in any
case in the event of loss. Brightstar may decide, at its option, to repair the phone with new or reconditioned parts, or replace
the phone with a new phone or with a phone in good working condition. During its repair work Brightstar may make, where
necessary, any technical modifications to the phone where these modifications do not adversely affect functionality. Faulty
parts to be replaced during a repair under warranty become the property of Brightstar. The application of the warranty is
subject to the full payment of the sums due for the phone when the request for support is made.
Breakdowns, damage or malfunctions due to the following are excluded from the limited warranty: (i) non-compliance with
the installation and use instructions, (ii) an external cause (such as shock, lightning, fire, vandalism, malice, water damage of
any type, contact with various liquids or any harmful agent, unsuitable electric current, extreme humidity or heat, improper
storage, etc.), (iii) modifications of the phone made without the written consent of Brightstar, (iv) a servicing fault, as described
in the documentation supplied with the phone, (v) lack of supervision or care, (vi) poor environmental conditions of the phone
(including temperature and hygrometry, effects of variations in electric voltage, interference from the mains network or earth),
(vii) repair, including opening or trying to open the phone or servicing done by personnel not approved by Brightstar, (viii)
inadequate packaging and/or poor packing of the phone that is sent back to Brightstar, (ix) the use of products or accessories
not sold by Brightstar as compatible with the phone, or (x) the opening or closing of a SIM Lock done without the agreement
of the original operator.
In addition, the warranty does not cover: (i) normal wear and tear of the phone and accessories, (ii) change of parameters
of the cellular network made after the phone was sold, (iii) supply of new software versions, (iv) delivery of consumables and
installation or replacement of these consumables, (v) phone or software modified or added without the written consent of
Brightstar, (vi) phones returned to Brightstar without having complied with the return procedure specific to the phone covered
by this warranty, or (vii) communication problems linked with a poor environment, including problems accessing and/or
logging onto the Internet, breakdowns of the access network, the failure of the subscriber’s or his correspondent’s line,
transmission fault (such as poor geographic coverage by radio transmitters, interference, disturbance, failure or poor quality
of phone lines, etc.), a fault inherent to the local network (such as cabling, file server, user phone) and/or transmission network
fault (such as interference, disturbance, failure or poor quality of the network, etc.).
Pour agrément_my850V Crystal Vodafone_FCC_en.book Page 59 Mardi, 29. mai 2007 5:33 17
60 For Customers in the United States
In the event a customer submits a product for repair or replacement and such product is excluded from warranty coverage
or the warranty period has expired, Brightstar will draw up an estimate to be given to the customer for acceptance before any
repair commences. The repair and freight costs (to and from the repair center) given in an estimate accepted by the customer
will be charged to the customer.
.Any questions or correspondence regarding this limited warranty should be addressed to:
Brightstar US, Inc.
Attn: SAGEM Warranty & Repair Services
1001 Technology Way
Libertyville, IL 60048
These provisions are valid unless Brightstar has made a special written agreement with the customer. If one of the
provisions turns out to infringe a requirement under applicable law that consumers could have the benefit of under the
national legislation, such provision will not be applied, but all other provisions will remain valid.
Pour agrément_my850V Crystal Vodafone_FCC_en.book Page 60 Mardi, 29. mai 2007 5:33 17
For customers outside the United States 61
!&%
You must always use your phone for the purpose for which it was designed, under normal operating conditions. Sagem
Communication declines all responsibility for any use outside of the scope of its designed purpose and for any consequences
of this use.
The software program developed by SAGEM remains the exclusive property of Sagem Communication. It is therefore highly
prohibited to modify, translate, de-compile or disassemble this software program or any part thereof.
Your phone allows you to download ring tones, icons and animated screensavers. Some of these items may contain data that
may cause malfunctions of your phone or data losses (virus for example).
For this reason, Sagem Communication rejects all responsibility concerning (1) the reception of downloaded data or losses
of the said data, (2) the impact on the operation of the phone and (3) damages resulting from receiving the said downloaded
data or loss of said data. In addition, Sagem Communication states that a failure caused by receiving downloaded data that
do not comply with the specifications set by Sagem Communication is excluded from the warranty. Consequently, the
diagnosis and repair of a phone infected by the said downloaded data will be at the expense of the customer.
Any content that you download to your phone may be protected by copyright belonging to third parties and consequently you
may not have the right to use this content or its use may be restricted. Consequently it is up to you to ensure that you have
permission, such as under the terms of a license agreement, to use any content that you download. Furthermore, Sagem
Communication does not guarantee the accuracy nor the quality of any content that you download. You alone are responsible
for the content that you download to your mobile phone and how you use it. Sagem Communication cannot be held
responsible for this content nor for its use.
It is your responsibility to ensure compliance, at your own expense, with the laws and regulations applicable in the country
where you use your phone.
Whenever you wish to make use of the warranty, please contact your vendor and present him with the purchasing paperwork
that he gave you.
If a fault occurs, he will advise you.
The new phone (excluding consumables), including new accessories bundled with the phone, are guaranteed by Sagem
Communication, parts and labour (apart from travel) against any manufacturing fault for a period of twelve (12) months with
effect from the sale of the phone to the customer, on presentation of the paperwork stating the purchase date of the phone.
Pour agrément_my850V Crystal Vodafone_FCC_en.book Page 61 Mardi, 29. mai 2007 5:33 17
62 For customers outside the United States
Phones that have been repaired or replaced as standard during the warranty period stated above are guaranteed (parts and
labour) until the later of these two dates:
Expiry of the guarantee period of twelve (12) months stated above or three (3) months with effect from the date of support
provided by Sagem Communication.
Your legal rights under the terms of applicable national law as well as your rights in relation to your retailer, as set out in the
sales contract, remain applicable and are not in any way affected by this guarantee.
In any disputes, the phone is covered by the legal warranty against the consequences of faults or hidden defects in
compliance with articles 1641 and subsequent of the French civil code.
All faulty phones under warranty will be replaced or repaired free of charge at Sagem Communication’s option (with the
exclusion of repair of any other damage), once it has been specified that the work required for the application of the warranty
will be done in a workshop and that the return costs (transport and insurance) of the phone to the address to be indicated to
it by the Sagem Communication after-sales service, whose phone number will appear on the delivery note, will be charged
to the customer.
Subject to essential legal provisions, Sagem Communication does not accept any warranty, explicit or implicit, other than the
warranty provided expressly in this chapter, nor shall Sagem Communication accept responsibility for any immaterial and/or
indirect damages (such as loss of orders, loss of profit or any other financial or commercial damage) under the warranty or not
The acceptance of a phone under warranty demands that a purchase document that is legible and without modi-fication,
stating vendor’s name and address, date and place of purchase, type of phone and IMEI, are attached to the warranty, and
that the information on the phone identification label is legible and that this label or any other seal has not been tampered with.
The warranty applies in normal conditions of use.
Prior to sending the phone for repair, it is the customer’s responsibility to backup at his expense the customized data stored
in the phone (phonebook, settings, wallpapers). A list of backup facilities can be provided by Sagem Communication on
request. The responsibility of Sagem Communication cannot be invoked if damage occurs to customer files, programs or
data. The information or operating elements and the contents of files will not be re-installed in any case in the event of loss.
Sagem Communication may decide, at its option, to repair the phone with new or reconditioned parts, replace the phone with
a new phone or, in any dispute, a phone in good working condition. During its work Sagem Communication reserves the
facility to make, where necessary, any technical modifications to the phone where these modifications doe not adversely
affect its initial purpose.
Faulty parts to be replaced during a repair under warranty will become the property of Sagem Communication.
The phone repair and standstill time during the warranty period may not lead to an extension of the warranty period as stated
in article 1 above, provided no other vital provisions have been agreed.
The application of the warranty is subject to the full payment of the sums due for the phone when the request for support is
made.
Pour agrément_my850V Crystal Vodafone_FCC_en.book Page 62 Mardi, 29. mai 2007 5:33 17
For customers outside the United States 63
The following are excluded from the warranty:
Breakdowns or malfunctions due to non-compliance with the installation and use instructions, to an external cause of the
phone (shock, lightning, fire, vandalism, malice, water damage of any type, contact with various liquids or any harmful agent,
unsuitable electric current...), to modifications of the phone made without the written consent of Sagem Communication, to a
servicing fault, as described in the documentation supplied with the phone, to lack of supervision or care, to poor
environmental conditions of the phone (especially temperature and hygrometry, effects of variations in electric voltage,
interference from the mains network or earth) or even due to a repair, a call-out (opening or trying to open the phone) or to
servicing done by personnel not approved by Sagem Communication.
Damage resulting from inadequate packaging and/or poor packing of the phone sent back to Sagem Communication.
Normal wear and tear of the phone and accessories.
Communication problems linked with a poor environment, especially:
Problems accessing and/or logging onto the Internet, such as breakdowns of the access network, the failure of the
subscriber’s or his correspondent’s line, transmission fault (poor geographic coverage by radio transmitters, interference,
disturbance, fai-lure or poor quality of phone lines...), a fault inherent to the local network (cabling, file server, user phone)
and/or transmission network fault (interference, disturbance, failure or poor quality of the network...).
Change of parameters of the cellular network made after the phone was sold.
Supply of new software versions.
Current servicing work: delivery of consumables, installation or replacement of these consumables…
Call-outs for phone or software modified or added without the written consent of Sagem Communication.
Faults or disruptions resulting from the use of products or accessories not compatible with the phone.
Phones returned to Sagem Communication without having complied with the return procedure specific to the phone cove-red
by this warranty.
The opening or closing of a SIM operator key and call-outs resulting in the non-operation of the phone resulting from the
opening or closing of SIM operator key done without the agreement of the original operator.
In the cases of warranty exclusion and of expiry of the warranty period, Sagem Communication shall draw up an estimate
to be given to the customer for acceptance before any call-out. The repair and carriage costs (there and back) given in the
accepted estimate will be charged to the customer.
These provisions are valid unless a special written agreement has been made with the customer. If one of the provisions turns
out to infringe a legally essential rule that consumers could have the benefit of under the national legislation, this provision
will not be applied, but all other provisions will remain valid.
.Any questions or correspondence regarding this limited warranty should be addressed to:
www.planetsagem.com.
Pour agrément_my850V Crystal Vodafone_FCC_en.book Page 63 Mardi, 29. mai 2007 5:33 17
64 End User Licence Agreement (EULA), for the software
'(!) '(*+&
,
You have acquired a Mobile Phone device ("DEVICE"), manufactured by Sagem Communication (SAGEM), that includes
software either developed by SAGEM itself or licensed third party Software suppliers ("SOFTWARE COMPANIES") to
SAGEM with the rights to sub-license it to the purchaser of the device. Those installed software products whatever their
company of origin, and wherever the name of the company of origin is indicated of not in the DEVICE documentation, as well
as associated media, printed materials, and "online" or electronic documentation ("SOFTWARE") are protected by
international intellectual property laws and treaties. The SOFTWARE is licensed, not sold. All rights reserved.
IF YOU DO NOT AGREE TO THIS END USER LICENSE AGREEMENT ("EULA"), DO NOT USE THE DEVICE OR COPY
THE SOFTWARE. INSTEAD, PROMPTLY CONTACT SAGEM FOR INSTRUCTIONS ON RETURN OF THE UNUSED
DEVICE(S) FOR A REFUND.
.
SOFTWARE includes software already installed on the DEVICE ("DEVICE Software") and Software contained on the
CD-ROM disk ("Companion CD"), if any is supplied with the product.
This EULA grants you the following licence:
. You may use the DEVICE Software as installed on the DEVICE. All or certain portions of the DEVICE
Software may be inoperable if you do not have and maintain a service account with an appropriate Mobile Operator, or if the
Mobile Operator’s network facilities are not operating or configured to operate with the DEVICE software.
. If any is supplied, additional software for your personal computer is included with your DEVICE. You may
install and use the software component(s) contained in the Companion CD only in accordance with the terms of the printed
or online end user license agreement(s) provided with such component(s). In the absence of an end user license agreement
for particular component(s) of the Companion CD, you may install and use only one (1) copy of such component(s) on the
DEVICE or a single computer with which you use the DEVICE.
. The SOFTWARE may include digital rights management technology. If SOFTWARE does contain digital
rights management technology, content providers are using the digital rights management technology ("DRM") contained in
the SOFTWARE to protect the integrity of their content ("Secure Content") so that their intellectual property, including
copyright, in such content is not misappropriated. Owners of such Secure Content ("Secure Content Owners") may, from
time to time, request manufacturers or SOFTWARE SUPPLIERS to provide security related updates to the DRM components
of the SOFTWARE ("Security Updates") that may affect your ability to copy, display and/or play Secure Content through the
SOFTWARE or third party applications that utilise the DRM.
Pour agrément_my850V Crystal Vodafone_FCC_en.book Page 64 Mardi, 29. mai 2007 5:33 17
End User Licence Agreement (EULA), for the software 65
You therefore agree that, if you elect to download a licence from the Internet which enables your use of Secure Content,
Suppliers may, in conjunction with such licence, also download onto your DEVICE such Security Updates that a Secure
Content Owner has requested that SOFTWARE SUPPLIERS distribute. SAGEM and SOFTWARE SUPPLIERS will not
retrieve any personally identifiable information, or any other information, from your DEVICE by downloading such Security
Updates.
. All title and intellectual property rights in and to the SOFTWARE (including but not limited to any images,
photographs, animations, video, audio, music, text and "applets," incorporated into the SOFTWARE), the accompanying
printed materials, and any copies of the SOFTWARE, are owned by SAGEM or the SOFTWARE SUPPLIERS. You may not
copy the printed materials accompanying the SOFTWARE. All title and intellectual property rights in and to the content which
may be accessed through use of the SOFTWARE is the property of the respective content owner and may be protected by
applicable copyright or other intellectual property laws and treaties. This EULA grants you no rights to use such content. All
rights not specifically granted under this EULA are reserved by SAGEM and the SOFTWARE SUPPLIERS
. You may not reverse engineer, decompile, or
disassemble the SOFTWARE, except and only to the extent that such activity is expressly permitted by applicable law
notwithstanding this limitation.
. The DEVICE Software is licensed with the DEVICE as a single integrated product. The DEVICE Software
installed in the memory of the DEVICE may only be used as part of the DEVICE.
. The package for the DEVICE may contain multiple versions of this EULA, such as multiple translations and/or
multiple media versions (e.g., in the user documentation and in the software). Even if you receive multiple versions of the
EULA, you are licensed to use only one (1) copy of the DEVICE Software.
. You may not permanently transfer any of your rights under this EULA with regard to the DEVICE
Software or Companion CD, except as permitted by the applicable Mobile Operator. In the event that the Mobile Operator
permits such transfer, you may permanently transfer all of your rights under this EULA only as part of a sale or transfer of the
DEVICE, provided you retain no copies, you transfer all of the SOFTWARE (including all component parts, the media and
printed materials, any upgrades , this EULA and, if applicable, the Certificate(s) of Authenticity), and the recipient agrees to
the terms of this EULA. If the SOFTWARE is an upgrade, any transfer must include all prior versions of the SOFTWARE.
. You may not rent or lease the SOFTWARE.
. If the SOFTWARE includes speech and/or handwriting recognition component(s), you
should understand that speech and handwriting recognition are inherently statistical processes; that recognition errors are
inherent in the processes; and that errors can occur in the component’s recognition of your handwriting or speech, and the
final conversion into text.. Neither SAGEM nor its suppliers shall be liable for any damages arising out of errors in the speech
and handwriting recognition processes.
Pour agrément_my850V Crystal Vodafone_FCC_en.book Page 65 Mardi, 29. mai 2007 5:33 17
66 End User Licence Agreement (EULA), for the software
. The SOFTWARE may include MPEG-4 visual decoding
technology. MPEG LA, L.L.C. requires the following notice:
USE OF THIS SOFTWARE IN ANY MANNER THAT COMPLIES WITH THE MPEG-4 VISUAL STANDARD IS PROHIBITED,
EXCEPT FOR USE DIRECTLY RELATED TO (A) DATA OR INFORMATION (i) GENERATED BY AND OBTAINED
WITHOUT CHARGE FROM A CONSUMER NOT THEREBY ENGAGED IN A BUSINESS ENTERPRISE, AND (ii) FOR
PERSONAL USE ONLY; AND (B) OTHER USES SPECIFICALLY AND SEPARATELY LICENSED BY MPEG LA, L.L.C.
If you have questions regarding this Notice, please contact MPEG LA, L.L.C., 250 Steele Street, Suite 300, Denver, Colorado
80206; Telephone 303 331.1880; FAX 303 331.1879
. Without prejudice to any other rights, SAGEM may terminate this EULA if you fail to comply with the terms and
conditions of this EULA. In such event, you must destroy all copies of the SOFTWARE and all of its component parts.
. You agree that SOFTWARE SUPPLIERS may collect and use technical information gathered in
any manner as part of product support services related to the SOFTWARE. SOFTWARE SUPPLIERS may use this
information solely to improve their products or to provide customised services or technologies to you. SOFTWARE
SUPPLIERS may disclose this information to others, but not in a form that personally identifies you.
. If the SOFTWARE provides, and you choose to utilise, the Internet gaming or update
features within the SOFTWARE, it is necessary to use certain computer system, hardware, and software information to
implement the features. By using these features, you explicitly authorise SOFTWARE SUPPLIERS to use this information
solely to improve their products or to provide customised services or technologies to you. SOFTWARE SUPPLIERS may
disclose this information to others, but not in a form that personally identifies you.
. The SOFTWARE may contain components that enable and facilitate the use of
certain Internet-based services. You acknowledge and agree that SOFTWARE SUPPLIERS may automatically check the
version of the SOFTWARE and/or its components that you are utilising and may provide upgrades or supplements to the
SOFTWARE that may be automatically downloaded to your Device.
. The SOFTWARE may provide you with the ability to link to third party sites through the use of
the SOFTWARE. The third party sites are not under the control of SAGEM. Neither SAGEM nor its affiliates are responsible
for (i) the contents of any third party sites, any links contained in third party sites, or any changes or updates to third party
sites, or (ii) webcasting or any other form of transmission received from any third party sites. If the SOFTWARE provides links
to third party sites, those links are provided to you only as a convenience, and the inclusion of any link does not imply an
endorsement of the third party site by SAGEM or its affiliates.
. The SOFTWARE may permit SAGEM to provide or make available to you SOFTWARE
updates, supplements, add-on components, or Internet-based services components of the SOFTWARE after the date you
obtain your initial copy of the SOFTWARE ("Supplemental Components").
If SAGEM provides or makes available to you Supplemental Components and no other EULA terms are provided along with
the Supplemental Components, then the terms of this EULA shall apply.
SAGEM reserves the right to discontinue any Internet-based services provided to you or made available to you through the
use of the SOFTWARE.
Pour agrément_my850V Crystal Vodafone_FCC_en.book Page 66 Mardi, 29. mai 2007 5:33 17
End User Licence Agreement (EULA), for the software 67
. You acknowledge that SOFTWARE is subject to U.S. export jurisdiction. You agree to comply
with all applicable international and national laws that apply to the SOFTWARE, including the U.S. Export Administration
Regulations, as well as end-user, end-use and destination restrictions issued by U.S. and other governments.
- . If the DEVICE Software is provided by SAGEM separate from the DEVICE on media such as a ROM
chip, CD ROM disk(s) or via web download or other means, and is labelled "For Upgrade Purposes Only", you may install
one copy of such DEVICE Software onto the DEVICE as a replacement copy for the existing DEVICE Software and use it
in accordance with this EULA, including any additional EULA terms accompanying the upgrade DEVICE Software.
-. If any Companion CD component(s) is provided by SAGEM separate from the DEVICE on CD ROM
disk(s) or via web download or other means, and labelled "For Upgrade Purposes Only" , you may (i) install and use one
copy of such component(s) on the computer(s) you use to exchange data with the DEVICE as a replacement copy for the
existing Companion CD component(s).
Should you have any questions concerning this EULA, or if you desire to contact SAGEM
]for any other reason, please refer to the address provided in the documentation for the DEVICE.
. EXCEPT AS PROHIBITED BY LAW, SAGEM SHALL HAVE NO LIABILITY FOR
ANY INDIRECT, SPECIAL, CONSEQUENTIAL OR INCIDENTAL DAMAGES ARISING FROM OR IN CONNECTION WITH
THE USE OR PERFORMANCE OF THE SOFTWARE. THIS LIMITATION SHALL APPLY EVEN IF ANY REMEDY FAILS
OF ITS ESSENTIAL PURPOSE.
FOR APPLICABLE LIMITED WARRANTIES AND SPECIAL PROVISIONS PERTAINING TO YOUR PARTICULAR
JURISDICTION, PLEASE REFER TO YOUR WARRANTY BOOKLET INCLUDED WITH THIS PACKAGE OR PROVIDED
WITH THE SOFTWARE PRINTED MATERIALS.
Pour agrément_my850V Crystal Vodafone_FCC_en.book Page 67 Mardi, 29. mai 2007 5:33 17
68 Java™
-.
When running a Java™ application, you may be prompted to grant access to protected features. These features are protected
because using them could incur you cost, or involve your personal data. In case of doubt, don't hesitate to refuse access by
selecting the "No" button!
The security configuration menu is an expert feature! You must know exactly what you are doing before attempting to change
security parameters of a MIDlet. Misunderstanding changes may render MIDlet non functional and/or lead to higher risks for
your private data or impact your airtime consumption. Any changes in the security configuration are done under your
responsibility. In no case shall Sagem Communication and/or your network provider be liable for any damages deriving from
or arising out of such changes in the security configuration.
You must be aware that applications downloaded to your phone could cause the phone to perform actions for which you will
be billed, like making calls and sending SMS. Depending on your operator's billing policy, you may also be charged to
download the application because of airtime consumption.
Java™ MIDP technology is an efficient way to provide powerful applications in mobile phones.
All these MIDP 2.0 features cannot be simply exposed to any MIDlet installed in the handset: a careful access control system
is implemented in the device to protect your private data and airtime consumption.
Access controls are gathered in 8 security groups:
-Network access
-Auto invocation
-Phone call
-Local connectivity
-Messaging
-Read User data
-Write User data
-Multimedia recording
Each of these security groups has one among 5 possible authorizations levels (listed from the more restrictive to the more
permissive):
-Do not allow: The security group completely prevents access to the protected features.
-Ask always: Each time the MIDlet tries to use the protected feature, user is prompted to grant access.
-Ask first: The first time the MIDlet uses a protected function, user is prompted to grant access like in "Ask always"
authorization but access is granted until the MIDlet terminates.
Pour agrément_my850V Crystal Vodafone_FCC_en.book Page 68 Mardi, 29. mai 2007 5:33 17
Java™ 69
-Ask once: The first time in the whole MIDlet life the MIDlet uses a protected feature, user is prompted to grant access. It
remains valid until the MIDlet is removed from the handset.
-Always: The security group unconditionally grants access to protected features.
A MIDlet has a security status which is either "uncertified", or else "certified".
An "uncertified" status means that the origin of the MIDlet could not be verified by the mobile phone at installation time. As
far as the phone knows, the MIDlet could have been written by anyone.
A "certified" status means that the MIDlet was digitally signed by a known party, whose name is displayed by the mobile
phone.
Security permissions are different for "uncertified" or "certified" MIDlets.
When a MIDlet is installed in the mobile phone, default security authorizations are applied.
This default security configuration may be altered through the "Options/Permissions" menu of an installed MIDlet.
Once in the "Permissions" menu, the security domain of the MIDlet is displayed briefly.
The menu displayed allows you to increase or decrease permissions currently applied to the current MIDlet for each of the
security groups.
However please note that you may not be proposed to choose all of the 5 permissions levels depending on the permission
group, the permissions that the MIDlet requires and the security domain in which the MIDlet was installed.
When you set a more permissive authorization to a security group than the current value, mobile phone asks you to confirm
your increased risk exposure.
Business applications and games are easily downloadable by the end-user on a Java™ featured handset.
Your mobile phone is a MIDP 2.0 compliant Java™ platform which implements WMA (SMS support) and MMAPI (Multimedia
support) options, providing an exciting environment to run highly graphical, networked and intuitive MIDP applications.
A Java™ application or a game designed to run in a mobile phone is named a MIDlet (MIDP applet).
A MIDlet is usually made of 2 files:
-The JAD file
-The JAR file
JAD file stands for ava™ pplication escriptor. It is a small file describing the content of a JAR file.
JAR file stands for ava™ rchive. It refers to the application data themselves (program, images, sound). A JAR file may be
up to 200 kilo-bytes large.
: In rare circumstances, MIDlet vendors may provide no JAD file and the MIDlet is the JAR file alone. In such a case it
is your only responsibility to evaluate the risk to download the JAR file without possibility of consulting the JAD file.
Pour agrément_my850V Crystal Vodafone_FCC_en.book Page 69 Mardi, 29. mai 2007 5:33 17
70 Java™
MIDlets are easily downloaded in the mobile phone through the Games or Applications menus or through the WAP browser.
In almost all cases, you will first receive a JAD file which will be displayed on the screen.
When you select a JAD file, your mobile phone downloads it, displays data contained and prompts you to acknowledge the
JAR file download.
The popup displays information below:
-Name of the MIDlet, Version, Size, Name, Security status, URL.
If you do not want to download the main data (JAR file), you shall refuse to acknowledge further airtime consumption by
selecting "Cancel".
If you agree on the MIDlet installation, just select . The MIDlet is installed with security levels set to default values
associated with its security status.
Before downloading an application, such a message may appear: "Your handset cannot identify the application, please be
sure of the source of the application before installing the application".
Java™ and all other Java-based marks are trademarks or registered trademarks of Sun Microsystems, Inc. in the U.S. and
other countries.
Some downloaded items may contain data or may induce actions which may cause malfunctioning of your mobile phone or
loss or corruption of data or abnormal increase of your airtime consumption.
You expressly acknowledge that the download of any applications including Java
TM
applications or games is done under your
exclusive responsibility. In no event shall Sagem Communication, your network service provider or their affiliates be liable for
any lost profits or costs of procurement of substitute goods or services, loss of profits, interruptions of business, loss of data
or for any special, indirect, incidental, economic, or consequential damages arising under contract, tort, negligence, or other
theory of liability relating to the download of any application by any means, including Java
TM
applications or games in SAGEM
devices. You expressly acknowledge that any applications including Java
TM
applications or games are provided strictly «as
is». Sagem Communication and/or your network service provider extend no warranty whatsoever thereto. Sagem
Communication and/or your network service provider disclaim any express, implied or statutory warranty of merchantability,
fitness of any applications including Java
TM
applications or games for a specific purpose, satisfactory quality, security or
otherwise.
Pour agrément_my850V Crystal Vodafone_FCC_en.book Page 70 Mardi, 29. mai 2007 5:33 17
Troubleshooting 71
$/&
The battery has completely lost its charge.
Connect the phone to the charger for between 5 and 30 minutes. The phone will
only switch on after it has been charging for a few minutes.
You may use the phone again when the Start option is displayed on the screen.
If the phone still won't start after 30 minutes’ charging, contact customer service.
The phone does not recognize the battery. Please check the position of the
battery.
This message is displayed when the battery becomes too weak. The phone
switches itself off automatically. Put the phone on charge.
Check if the SIM card is present and properly positioned / inserted.
Check the condition of the SIM card. If damaged, please go back to the network
shop for advice. Contact your after-sales service if the message persists.
An incorrect PIN code has been entered. Be careful! Three incorrect PIN codes
will block the SIM Card.
If a wrong PIN number is entered three times in succession, your SIM card is
blocked. You must then:
Enter the PUK (Personal Unblocking Key) code provided by Vodafone,
and validate.
Enter your PIN number and validate.
Enter your PIN number again and validate.
After 5 or 10 failed attempts (depending on the type of SIM card), the SIM card
is definitely locked. You must then contact your network provider to obtain a new
card.
In certain cases, the handset can only be used with some types of SIM cards.
This message means that the SIM card you are using does not fit with the phone.
Take the SIM card out, and switch it back on. If the message
appears on the screen, you will need to check its compatibility next to the place
where you bought it. If not, please contact your after-sales service.
Pour agrément_my850V Crystal Vodafone_FCC_en.book Page 71 Mardi, 29. mai 2007 5:33 17
72 Troubleshooting
Check that the number you have dialled is correct.
If the icon is displayed without any network name displayed, only emergency
services can be called.
Check the status of your credit.
Check that the SIM Card you are using offers the service you are requesting;
check if its validity has not expired.
Check and deactivate the outgoing calls restriction when necessary.
The network could be saturated. Try later.
If the problem persists, please contact your Technical Helpdesk.
Try to make a call in order to check that the phone and the network are
operational.
Check and deactivate the permanent call forwarding (permanent call forwarding
icon displayed on the screen).
Check and deactivate the incoming calls restriction when necessary.
If the problem persists, please contact your Technical Helpdesk.
Avoid placing your fingers on the top of the phone, where the aerial is integrated:
the phone will have to use full strength to establish a quality transmission.
Check that your subscription does offer this service.
Program the call to be forwarded to voicemail using the information provided by
Vodafone.
Check that the SIM card used offers this service. Try to make a call to check that
phone and network are operational.
Check if the voicemail number is properly configured. To do so, go to the
/ menu, select and check the number.
Otherwise, enter Vodafone voicemail number.
Call voicemail and listen to the new messages to make it disappear.
The icon means you have received text messages. To delete it, read your
message. If the icon flashes, memory is full, you must delete messages.
This voicemail means that you have received a voice message: please call your
voicemail and listen to it. Please follow the instructions given.
Pour agrément_my850V Crystal Vodafone_FCC_en.book Page 72 Mardi, 29. mai 2007 5:33 17
Troubleshooting 73
Press the key to go back to the idle screen without messages.
Go into the menu and delete some objects.
Manage your Outbox carefully. It is recommended not saving sent messages
automatically: too many messages saved will quickly fill up the available memory
and no further messages will be received. To delete them, please go into the
menu, select then delete some messages. Manage your
carefully also.
It is highly recommended to manage your Phonebook carefully.
If you have received pictures enclosed in a Vcard, please save or delete them.
The most efficient actions are as follows:
Please keep your phone safely in order to avoid pressing the keys
unnecessarily: every time a key is pressed the screen lights up.
You can deactivate the screensaver or select the activation time to be more than
every 300 s (the screensaver uses processing power).
Make sure that you don’t obstruct the antenna with your fingers when using the
phone (see page 13).
Pour agrément_my850V Crystal Vodafone_FCC_en.book Page 73 Mardi, 29. mai 2007 5:33 17
74 Index
01
Backlight 39
Battery
Charging the battery 14
Installing the battery 10
® 13, 28, 32, 33, 34, 36, 42
Browser settings 44
Calculator 35
Calendar 34
Call log 16
Call settings 40
Calls 15
Any key 40
Auto response 40
Automatic Redial 41
Blacklist 42
Call barring 41
Call forward 40
Call reject list 41
Call Waiting 41
Display numbers 40
Flap 40
Voicemail 41
Camera 32
Clock
Alarm 35
Stop Watch 35
Timer 35
Confidentiality 38
Contacts 12, 32, 42
Call group 19
Copy 18
Delete 18
New contact 17
Using the phonebook 17
Converter 35
Date / Time 37
Downloaded objects 27
Email 23
Flap 28
Getting started 11
Hands-free mode 15
Icon 8
Idle screen 8
Input modes 20
Keypad Lock 37
Pour agrément_my850V Crystal Vodafone_FCC_en.book Page 74 Mardi, 29. mai 2007 5:33 17
Index 75
Languages 37
Memory 37
Messaging
Creating a message 20
Drafts 23
Inbox 22
Outbox 23
Receiving messages 21
Sent Messages 23
Templates 23
MMS 20, 32, 33
Mobile TV 31
Modem status 36
Multimedia objects 27
Music 28
Music files 28
My Files 27
Network 12
Networks settings 44
Organiser 42
Phone code 38
Photo 32, 42
Picture 42
PIN code 38
PIN2 code 38
Profiles 37
Radio DJ 29
Safety information 53
Security 38
SIM card 9, 10
SMS 20
Sound 42
Startup animation 39
Synchronization 35
T9 21
ToDo 36, 42
Troubleshooting 71
USB 34, 36
USB cable 42
USB mode 44
vCard 18
Video 33, 42
Video call 16, 41
Vodafone live! 25
Voice recorder 36
Voicemail 24
Wallpaper 39
Warranty 58, 61
Wellphone 44
Pour agrément_my850V Crystal Vodafone_FCC_en.book Page 75 Mardi, 29. mai 2007 5:33 17
Pour agrément_my850V Crystal Vodafone_FCC_en.book Page 76 Mardi, 29. mai 2007 5:33 17
Pour agrément_my850V Crystal Vodafone_FCC_en.book Page 77 Mardi, 29. mai 2007 5:33 17
Pour agrément_my850V Crystal Vodafone_FCC_en.book Page 78 Mardi, 29. mai 2007 5:33 17
PC software, available as an option:
Pictures, Sounds, Video, SMS, MMS, Contacts, Calendar,
Using the 3G, EDGE or GPRS networks according to your mobile phone capacities and
your subscription
For more information or to buy WellPhone
XT
(*) See chapter ”Settings”, page 37 to know the compatible links with your phone.
®
(*)
IRDA (*)
USB (*)
Pour agrément_my850V Crystal Vodafone_FCC_en.book Page 79 Mardi, 29. mai 2007 5:33 17
www.sagem.com/mobiles
Le Ponant de Paris - 27, rue Leblanc - 75512 PARIS CEDEX 15 - FRANCE
Société Anonyme
Capital 300 272 000 - 480 108 158 RCS PARIS
05/2007
Pour agrément_my850V Crystal Vodafone_FCC_en.book Page 80 Mardi, 29. mai 2007 5:33 17

Navigation menu
