Sagem Wireless MC2004A GSM Dual Band Phone User Manual 252580714 myC5 2 version a en

Sagem Wireless GSM Dual Band Phone 252580714 myC5 2 version a en

User Manual

ENGLISH
252580714_myC5-2_version a_en.book Page 1 Lundi, 13. mars 2006 3:18 15
252580714_myC5-2_version a_en.book Page 2 Lundi, 13. mars 2006 3:18 15
3
You have just purchased a SAGEM phone. We congratulate you! In order to use your phone efficiently and safely,
werecommend that you read this handbook carefully.
Your phone can be used internationally in the various networks (GSM 850 MHz and PCS 1900 MHz) depending on
theroaming arrangements with your operator.
This phone is U.S. Federal Communications Commission (FCC) approved.Some services described in this guide may not be
available from the network or when roaming, or may require a specific subscription.
Remember to back up your data and programs frequently, and before sending the mobile phone for repair.
This phone, like any other wireless phone, operates using radio signals and networks. Connection in all locations
andconditions cannot be guaranteed. Therefore you should never rely solely on any wireless phone for essential
communications(for example, medical emergencies).
In some jurisdictions it may be unlawful to take a picture without notice to or the consent of all participants.
WARNING
Depending on the model, network configuration and associated subscription cards, certain functions may not be available.
Ensure that your SIM card is a 3 V SIM type that is compatible with your phone. Inserting an incompatible card will be indicated
by a message when your phone is switched on. Contact your operator.
Your phone is identified by its IMEI number. Write this number down, and do not keep it with your phone, because you may
be asked for it if your phone is stolen, in order to prevent it from being used, even with a different SIM card. In order to display
the IMEI on your phone's screen, type: *#06#.
SAGEM™ is a trademark of Sagem Communication SAFRAN Group.
AT® is a registered trademark of Hayes Microcomputer Products Inc.
Hayes® is a registered trademark of Hayes Microcomputer Products Inc.
T9 is protected by one or more of the following US patents: 5,818,437,
5,953,541, 5,187,480, 5,945,928, 6,011,554 and other patents are being applied for worldwide.
Java™ and all Java™ based trademarks and logos are trademarks or registered trademarks of Sun Microsystems, Inc. in the
U.S. and other countries.
The WAP navigator and some message softwares (i-mode) are under licence Openwave.
The WAP navigator and the softwares included are the exclusive property of Openwave. For this reason, you may not modify,
translate, disassemble or even decompile all or part of these softwares.
© 2003 GAMELOFT® - All rights reserved - GAMELOFT® is a registered trademark of GAMELOFT S.A. - All rights reserved.
Wellphone™ and SmartCom™ are registered trademarks owned by SmartCom SARL France.
252580714_myC5-2_version a_en.book Page 3 Lundi, 13. mars 2006 3:18 15
4Contents
Contents
FCC statement .............................................................................................................................. 8
Safety Information........................................................................................................................ 9
Distance of operation........................................................................................................................... 10
SAR.............................................................................................................................................. 11
Menus .......................................................................................................................................... 12
Your phone package - Accessories.......................................................................................... 13
Activating your phone ............................................................................................................... 14
Information on the SIM card ................................................................................................................ 14

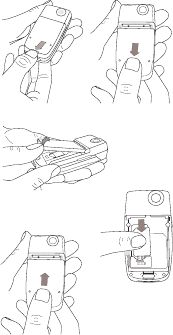

Installing the SIM card and the battery ................................................................................................ 15
Getting started ..................................................................................................................................... 16
PIN number.......................................................................................................................................... 16
Setting time and date........................................................................................................................... 17
Network................................................................................................................................................ 17
First call ............................................................................................................................................... 18
Receiving a call.................................................................................................................................... 19
Switching off ........................................................................................................................................ 19
Description ................................................................................................................................. 20
Initial screen ............................................................................................................................... 22
Navigation principles ................................................................................................................. 23
Using your phone....................................................................................................................... 24

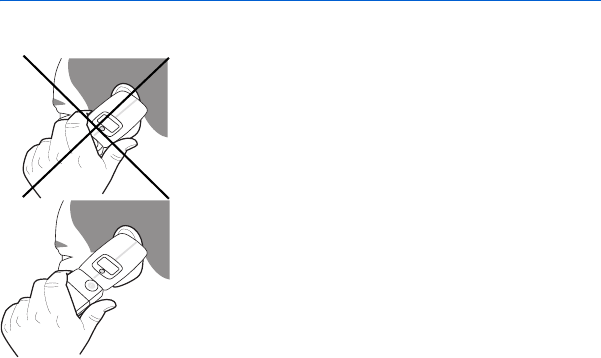

Improving antenna performance.......................................................................................................... 24
Increase the efficiency of your phone .................................................................................................. 24
Charging the battery ............................................................................................................................ 25
Games ......................................................................................................................................... 26
252580714_myC5-2_version a_en.book Page 4 Lundi, 13. mars 2006 3:18 15
Contents 5
WAP............................................................................................................................................. 27
The WAP Menu.................................................................................................................................... 27
Configuring WAP parameters .............................................................................................................. 28
WAP Logging on .................................................................................................................................. 29
Downloading objects............................................................................................................................ 29
WAP Logging off .................................................................................................................................. 29
GPRS................................................................................................................................................... 29
Applications................................................................................................................................ 30
Services ............................................................................................................................................... 30
Calculator............................................................................................................................................. 30
Converter ............................................................................................................................................. 31
Audio player ......................................................................................................................................... 31
Alarm.................................................................................................................................................... 32
Timer.................................................................................................................................................... 32
ToDo .................................................................................................................................................... 32
Sending a vCal..................................................................................................................................... 33
Receiving a vCal .................................................................................................................................. 33
Exchange of data with a PC................................................................................................................. 33
Messages .................................................................................................................................... 34
Compose SMS..................................................................................................................................... 34
Compose MMS .................................................................................................................................... 36
Receiving messages............................................................................................................................ 37
Inbox .................................................................................................................................................... 37
Outbox ................................................................................................................................................. 37
Sentbox................................................................................................................................................ 38
Drafts ................................................................................................................................................... 38
Sending options ................................................................................................................................... 38
Memory ................................................................................................................................................ 39
Local information.................................................................................................................................. 39
Calling voicemail .................................................................................................................................. 39
Mailing list ............................................................................................................................................ 40
252580714_myC5-2_version a_en.book Page 5 Lundi, 13. mars 2006 3:18 15
6Contents
Photo - Video .............................................................................................................................. 41
Take and send a photo ........................................................................................................................ 41
Take a video ........................................................................................................................................ 43
Multimedia .................................................................................................................................. 44
My Videos ............................................................................................................................................ 44
My Pictures .......................................................................................................................................... 44
My Sounds........................................................................................................................................... 45
Memory................................................................................................................................................ 45
Organizer .................................................................................................................................... 46
Calendar menu .................................................................................................................................... 46
Sending a vCal .................................................................................................................................... 47
Receiving a vCal.................................................................................................................................. 47
Phonebook.................................................................................................................................. 48
Using the phonebook........................................................................................................................... 48
Storing a new contact .......................................................................................................................... 49
Phonebook options .............................................................................................................................. 49
Options from a contact saved .............................................................................................................. 50
Sending a vCard .................................................................................................................................. 51
Receiving a vCard ............................................................................................................................... 51
Settings ....................................................................................................................................... 52
Sounds................................................................................................................................................. 52
Display ................................................................................................................................................. 53
Camera ................................................................................................................................................ 55
Languages ........................................................................................................................................... 55
Phonebook........................................................................................................................................... 55
Contacts list ......................................................................................................................................... 55
Calls..................................................................................................................................................... 56
Security................................................................................................................................................ 58
Networks.............................................................................................................................................. 60
Leds ..................................................................................................................................................... 61
Shortcuts.............................................................................................................................................. 61
Date / Time .......................................................................................................................................... 61
252580714_myC5-2_version a_en.book Page 6 Lundi, 13. mars 2006 3:18 15
Contents 7
Active flip.............................................................................................................................................. 62
WAP settings ....................................................................................................................................... 62
Help...................................................................................................................................................... 62
Connectivity ......................................................................................................................................... 63
Technical features...................................................................................................................... 64
Limited Warranty........................................................................................................................ 65
End User Licence Agreement (EULA), for the software ......................................................... 69
Java™.......................................................................................................................................... 73
Troubleshooting ......................................................................................................................... 77
FDA consumer information on wireless phones .................................................................... 81
Driving safety tips ...................................................................................................................... 84
Index............................................................................................................................................ 85
252580714_myC5-2_version a_en.book Page 7 Lundi, 13. mars 2006 3:18 15
8FCC statement
FCC statement
This device complies with part 15, part 22 and part 24 of the FCC rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any interference, including interference
that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
WARNING
Changes or modifications made to this equipment not expressly approved by Sagem Communication for compliance could
void the user's authority to operate the equipment.
252580714_myC5-2_version a_en.book Page 8 Lundi, 13. mars 2006 3:18 15
Safety Information 9
Safety Information
Aircraft:
Switch off your wireless device whenever you are instructed to do so by airport or airline staff. If your device offers
a “flight mode” or similar feature, consult airline staff as to its use in flight.
Driving:
Full attention should be given to driving at all times, and regulations restricting the use of wireless devices while
driving must be observed. For further driving safety tips, please refer to
Driving safety tips
at page 84.
Hospitals:
Mobile phones should be switched off whenever you are requested to do so in hospitals, clinics or health care
facilities. These requests are designed to prevent possible interference with sensitive medical instruments.
Gas stations:
Obey all posted signs with respect to the use of wireless devices or other radio equipment in locations with
flammable material and chemicals. Switch of your wireless device whenever you are instructed to do so by authorized staff.
Interference with personal medical devices:
You should always consult your physician and review the device
manufacturer's instructions to determine if operation of your phone may interfere with the operation of your medical
device.
As a general rule:
-
For pacemakers:
Pacemaker manufacturers recommend that a minimum separation of 6 inches (15 cm) be maintained
between a mobile phone and a pacemaker to avoid potential interference with the pacemaker. To achieve this, use the
phone on the opposite ear to your pace maker and do not carry it in a breast pocket.
-
For hearing aids:
Some digital wireless phones may interfere with some hearing aids. In the event of such interference,
you may want to consult your hearing aid manufacturer to discuss alternatives.
The ring tone, info tones, and handsfree talking are reproduced through the loudspeaker. Do not hold the phone to your ear
when it rings or when you have switched on the handsfree function (at least 3.9 inches (10 cm)).
Use only batteries and charging devices designed for your phone. Otherwise you risk serious damage to health and property
and may void any warranty.
CAUTION!
Small parts like the SIM card could be swallowed by young children.
Do NOT open the phone. Only the battery and the SIM card may be removed. Do NOT open the battery.
Keep the battery out of chidren’s reach. Do not allow the battery to be put into the mouth.
252580714_myC5-2_version a_en.book Page 9 Lundi, 13. mars 2006 3:18 15
10 Safety Information
Distance of operation
This phone is designed to comply with the FCC radio frequency (RF) exposure guidelines when used as follows:
-
Against the ear:
Place or receive a phone call and hold the phone as you would a wireline telephone.
-
Body worn:
When transmitting, place the phone in a carrying accessory that contains no metal and positions the phone
a minimum of 0.59 inches (1.5 cm) from your body. Use of other accessories may not ensure compliance with exposure
guidelines. If you do not use a body worn accessory and are not holding the phone at the ear, position the phone a
minimum of 0.59 inches (1.5 cm) from your body.
-
Data operation:
When using a data feature, position the phone a minimum of 0.59 inches (1.5 cm) from your body for the
whole duration of the data transmission.
252580714_myC5-2_version a_en.book Page 10 Lundi, 13. mars 2006 3:18 15
SAR 11
SAR
THIS MODEL PHONE MEETS THE FCC'S REQUIREMENTS FOR EXPOSURE TO RADIO WAVES
Your wireless phone is a radio transmitter and receiver. It is designed and manufactured not to exceed the limits for exposure
to radiofrequency (RF) energy set by the United States Federal Communications Commission (FCC). These limits are part
of comprehensive guidelines and establish permitted levels of RF energy for the general population. The guidelines are based
on standards that were developed by independent scientific organizations through periodic and thorough evaluation of
scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons, regardless
of age and health.
The exposure standard for wireless mobile phones employs a unit of measurement known as the Specific Absorption Rate,
or SAR. The SAR limit set by the FCC and Health Canada is 1.6 W/kg (*). Tests for SAR are conducted using standard
operating positions accepted by the FCC with the phone transmitting at its highest certified power level in all tested frequency
bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the phone while operating
can be well below the maximum value. This is because the phone is designed to operate at multiple power levels so as to
use only the power required to reach the network. In general, the closer you are to a wireless base station antenna, the lower
the power output.
Before a phone model is available for sale to the public, it must be tested and certified to the FCC that it does not exceed the
RF limit established by the government-adopted requirement for safe exposure. The tests are performed in positions and
locations (i.e., at the ear and worn on the body) as required by the FCC for each model.
The highest SAR value for these model phones as reported to the FCC when tested for use at the ear is 0.792 W/Kg and
when worn on the body as described in this user's guide is 0.814 W/kg, measured at a distance of 0.59 inches (1.5 cm).
While there may be differences between the SAR levels of various phones and at various positions, they all meet the FCC
requirement. The FCC has granted an Equipment Authorization for this model phone with all reported SAR levels evaluated
as in compliance with the FCC RF exposure guidelines. SAR information on this model phone is on file with the FCC and can
be found under the Display Grant section of http://www.fcc.gov/oet/fccid after searching on FCC ID M9HMC2004A.
Additional Information can be found on the website of the World Health Organization (http://www.who.int/emf).
(*) In the United States and Canada, the SAR limit for mobile phones used by the public is 1.6 watts/kilogram (W/kg)
averaged over one gram of tissue. The standard incorporates a substantial margin of safety to give additional protection
for the public and to account for any variations in measurements.
252580714_myC5-2_version a_en.book Page 11 Lundi, 13. mars 2006 3:18 15
12 Menus
Menus
Games
WAP
Applications
ToDo
Calculator
Converter
Audio player
Alarm
Timer
Messages
Compose
Inbox
Outbox
Sentbox
Drafts
Options
Memory
Local info.
Call Voice Mail
Mailing list
Camera
Video
Multimedia
My Videos
My Pictures
My Sounds
Memory
Help
Organizer
See month
See week
See today
See date
Calendar menu
Help
Phonebook
Settings
Sounds
Display
Camera
Languages
Phonebook
Contacts list
Calls
Security
Networks
Leds
Shortcuts
Date / Time
Active flip
WAP settings
Help
Connectivity
252580714_myC5-2_version a_en.book Page 12 Lundi, 13. mars 2006 3:18 15
Your phone package - Accessories 13
Your phone package - Accessories
When you open the box, check that all items are present (some items may vary from the pictures shown below):
1 - Phone
2 - Charger
3 - Battery
4 - User guide
Accessories
We advise you the use of SAGEM brand accessories for an optimal operating of your phone and of your accessories.
You can also find (as an option) or order the following accessories:
-Pedestrian kit
-Additional battery
-Additional charger
-USB cable (with associated drivers) to connect your phone to a PC
For more information: www.planetsagem.com and www.sagem.com/mobiles.
2
13
4
252580714_myC5-2_version a_en.book Page 13 Lundi, 13. mars 2006 3:18 15
14 Activating your phone
Activating your phone
Information on the SIM card
To use your phone, you need a card called SIM card. It contains personal
information that you can modify:
Secret codes (PIN(s): Personal Identification Numbers), these codes allow you
to protect access to your SIM card and phone.
Phonebook,
Messages,
How special services work.
Your phone is compatible with the SIM 3V cards.
WARNING
This card must be handled and stored with care in order not to be damaged. If you should lose your SIM card, contact
your network provider or your SMC (Services Marketing Company) immediately.
Please keep your SIM card out of reach of young children.
252580714_myC5-2_version a_en.book Page 14 Lundi, 13. mars 2006 3:18 15
Activating your phone 15
Installing the SIM card and the battery
The SIM card is inserted under the phone's battery. Ensure that the phone is
switched off and the charger disconnected.
Turn the phone back and press lock button to unblock cover.
Remove the back cover by sliding it downwards.
Take out battery if already installed.
Slide the SIM card, with cut corner as shown on the phone, into the card holder
with fold face down.
Place the battery by positioning first the top of it, as shown on the battery.
Replace the back cover by sliding it then push the lower part into the lock
position.
1
3
4
5
2
1
2
3
4
5
252580714_myC5-2_version a_en.book Page 15 Lundi, 13. mars 2006 3:18 15
16 Activating your phone
Getting started
You are now ready to use your phone for the first time.
Switch on the phone by pressing the key. A short display appears.
When you switch on your phone for the first time, you must configure it with various settings that will remain by default until
you choose to modify them (depending on model).
After entering your PIN code and the date and time, make your choice for the following settings: time zone, daylight savings,
wallpaper, screensaver, ring tone, volume, vibrate and voicemail number.
If there are contacts saved in your SIM card, you are invited, if you wish, to copy them in the phone contacts memory.
PIN number
This is your SIM's secret code.
If access to the SIM card is protected, the device prompts you to enter the PIN number:
Enter the code
between 4 and 8 digits given to you when the SIM card was issued. These digits do not appear on the screen
for security reasons.
Press the
OK
key or the key to validate.
If your phone indicates that the SIM is missing, press the key to switch off your phone and check that the SIM card is
correctly installed.
Warning
If a wrong PIN number is entered three times in succession, your SIM card is blocked. You must then:
-Enter the PUK (Personal Unblocking Key) code provided by your operator, and validate.
-Enter your PIN number and validate.
-Enter your PIN number again and validate.
After 5 or 10 failed attempts (depending on the type of SIM card), the SIM card is definitely locked. You must then contact
your operator or your SMC to obtain a new card.
252580714_myC5-2_version a_en.book Page 16 Lundi, 13. mars 2006 3:18 15
Activating your phone 17
Setting time and date
When you use your phone for the first time, you need to set the date and time.
In due course, when the battery is completely discharged, or if it has been removed, you will be prompted systematically to
confirm date and time.
Setting the date:
Set the date by entering it directly in numerical form or by using the keys to increase or decrease the default values.
Use the key (or key) to access the next (or last) data input field.
Once the date is correct, press the key to validate.
Setting the time:
Same procedure as for setting the date.
Network
From now on the phone hunts for a network on which it can make calls. If it finds one, it displays the name of the network on
the screen. You are then ready to send or receive a call.
If the network icon appears, calls are possible on your operator's network.
If the letter R and a network name are displayed, calls are possible on the network of a different operator.
If the letter R is displayed without any network name, only the emergency services are accessible (ambulance, police,
fire brigade).
If the network icon flashes, the phone is in permanent search mode. There is no network available. The signal strength
indicator received allows you to display the quality of reception. If it indicates less than three bars, search for better
reception in order to call in good conditions.
252580714_myC5-2_version a_en.book Page 17 Lundi, 13. mars 2006 3:18 15
18 Activating your phone
First call
Dial the number of your correspondent.
Press the key.
During the call, the call in progress icon flashes on screen and tones may indicate the establishment of the call.
Once communication has been established, the call icon stops flashing.
You can adjust the sound level (volume) using the keys.
At the end of the conversation press the key to hang up.
International call
Press 0 (hold down) to display « + », then dial the country code without waiting for the dial tone, then the number of the
called party.
Emergency services
Depending on the operators you can obtain the emergency service with or without SIM card or when the keypad is
locked. It is enough to be in an area served by a network.
To obtain the international emergency service, dial
112
then press the key.
252580714_myC5-2_version a_en.book Page 18 Lundi, 13. mars 2006 3:18 15
Activating your phone 19
Receiving a call
When you receive a call, the number of your correspondent is displayed when it is presented by the network.
Press the key or the key to answer, and speak.
To refuse the call, press the key or the key.
To stop the ring tone or the vibrate, without refusing the call, press the key.
All the numbers corresponding to incoming and outgoing calls are logged in the list of recent calls.
When a call is on hand, pressing [
Options
] allows you to have access to different functions: switching to hands-free mode,
holding a call, switching to mute mode, ending the call, displaying menus.
Pressing [
Mute ON
] allows you to switch off the sound temporarily when you do not want that your correspondent listens when
you want to speak to other people.
Switching off
Press the key for one second.
The end message is displayed. The phone switches off.
Hands-free mode
To change to hands-free mode during a call:
-press the key, then press [
Yes
] to confirm activation of the amplified mode,
or
-press [
Options
] then select
Amplified mode ON
and confirm pressing [
Yes
].
WARNING:
in this mode do not bring the phone up to your ear.
252580714_myC5-2_version a_en.book Page 19 Lundi, 13. mars 2006 3:18 15
20 Description
Description
Hold down: Switch on/off
In a call context: Reject a call - hang up
In menus: Return to initial screen
Short press when calling: activate/deactivate hands-free mode
WARNING:
do not use the phone in hands-free mode near to your ear, or you
maysuffer hearing loss (at least 3.9 inches (10 cm))
In call context: Call - receiving a call
In idle screen: Fast access to the list of calls
Right key:
In initial screen: Access to certain functions (shortcuts)
In menus: Access to the selection shown on screen in the tab (*)
Left key:
In initial screen: Access to certain functions (shortcuts)
In menus: Access to the selection shown on screen in the tab (*)
Previous choice/increase value/up
During call: Increase volume
Next choice/reduce value/down
During call: Reduce volume
Previous input field/move left
Next input field/move right
OK
In initial screen: Access to main menu
In the menus: Context-sensitive access to different functions
During a call: Take a call
When composing a message:
Short press: Switches from one input mode to another (T9, ABC, 123)
Long press: Upper case/lower case
Hold down: In initial screen: Silent mode
Short press: When composing a message, access to the symbol table
Zoom mode (see
Messages
and
WAP
menus)
In call reception mode: Short press stops ring tone
In ring tone setting mode: Activate/deactivate ring tone
Microphone
252580714_myC5-2_version a_en.book Page 20 Lundi, 13. mars 2006 3:18 15
Description 21
The sub-LCD displays date and time, battery and network icons and incoming calls.
Lateral key
-Short press on up or down used for volume control during a call
-Short press on up or down used for volume control of key beep when idle
-Short press on down key used to go to silent mode on incoming call
-Long press on down key used to reject an incoming call
(*) In this manual, when a function is chosen by pressing on this key, square brackets are used (e.g.: [Save]).
Mirror
Camera
252580714_myC5-2_version a_en.book Page 21 Lundi, 13. mars 2006 3:18 15
22 Initial screen
Initial screen
The initial screen contains the following information:
1 - The title bar icons:
Battery
Calls forwarded
Call (establishing the call)
Call (hands free)
Message (reception of a message, message memory full)
FAX communication
DATA communication
Silent mode
Message in answering machine
WAP (@) communication
GPRS
Home zone
Roaming
Protected WAP logon
Protected WAP logon icon with certificate
Signal strength level (5 bars).
2 - Date and time, in digital or analog mode
3 - Network provider
4 - Thumbnail centred on bottom line:
The main menu can be accessed by pressing on
OK
The following information may also be displayed:
« 1 message received »; or « 1 call ».
They can be deleted by pressing key briefly.
252580714_myC5-2_version a_en.book Page 22 Lundi, 13. mars 2006 3:18 15
Navigation principles 23
Navigation principles
These basic principles bring a great intuitiveness to your phone.
Validate
by pressing the
key or the
OK
key.
Cancel
by pressing the key.
The thumbnails at the bottom of the screen refer to the
keys.
In the menus, a title bar reminds you of the previous level.
The navigation keys are used to navigate from one menu to another within the same menu structure.
From the home page, pressing the
OK
key displays the icons of the main menus.
The
key
is used to go from a menu to a sub-menu.
The key is used to go from a sub-menu to a menu.
The
key (press briefly) is used to go back to the initial screen (current function is abandoned).
In some menus there is a
Help
menu ( icon) which informs you on the various functions of the sub-menus.
252580714_myC5-2_version a_en.book Page 23 Lundi, 13. mars 2006 3:18 15
24 Using your phone
Using your phone
Improving antenna performance
The antenna is integrated in your phone, under the back cover at the top.
Avoid putting your fingers on this area when the phone is switched ON.
If your fingers obstruct the antenna, the phone may have to operate with a higher
power level than usual; decreasing its efficiency quickly. It could also affect the
quality of your communications.
Increase the efficiency of your phone
-Don't press the keys when not necessary: each keypress activates the backlight, and uses much power.
-Don't obstruct the antenna with your fingers.
252580714_myC5-2_version a_en.book Page 24 Lundi, 13. mars 2006 3:18 15
Using your phone 25
Charging the battery
Your phone is powered by a rechargeable battery. A new battery must be
charged for 4 hours at least before being used for the first time. It reaches its
optimum capacity after a few cycles of use.
When your battery has been discharged, the phone displays the state (empty
battery icon flashes). In this case recharge your battery for at least 15 minutes
before making any calls in order not to be cut off in the middle of a call.
To recharge the battery
Connect the charger to a socket.
Plug the end of the cable into the bottom connector of the phone.
The phone is then charging up. The battery icon is scrolling up and down to
indicate that it is charging. When the battery is fully charged, the charging stops
on its own. Disconnect the cable.
When charging, the battery may warm up, this phenomenon is normal.
WARNING
There is danger of explosion if the battery is placed in an incorrectly way or if it is exposed to fire.
Do not short circuit it.
The battery does not have any part that you can change.
Do not try to open the battery casing.
Use only the appropriate chargers and batteries as shown in the phone manufacturer's catalogue.
The use of other types of chargers or batteries may be dangerous or invalidate the warranty.
Used batteries must be disposed of in the appropriate places.
We advise you to take the battery out if you plan not to use the phone for extended periods.
You are strongly advised not to connect your phone to the charger if it doesn’t contain a battery.
The charger is a safety step-down transformer, it is forbidden to modify, alter or replace it by another component (power
supply plug, etc.).
252580714_myC5-2_version a_en.book Page 25 Lundi, 13. mars 2006 3:18 15
26 Games
Games
The games being designed by Java™, many compatible games can be downloaded in your phone.
Delete all
menu: deletes all the games you have downloaded.
252580714_myC5-2_version a_en.book Page 26 Lundi, 13. mars 2006 3:18 15
WAP 27
WAP
WAP (Wireless Application Protocol): a protocol that translates the Internet language into WML and HTML languages
that can be read by a phone. The WAP function allows you to log onto certain Internet sites. You can log onto sites that allow
you to download ringtones, icons, animated screensavers, JavaTM applications to your phone.
The WAP Menu
The
Services
menu, a dropdown menu, can be accessed at all times when
navigating through WAP pages pressing the key.
It contains the following sub menus:
Welcome:
logs onto the home page, (carries the name of your access provider)
Bookmarks:
is used to save in a phonebook the names and addresses of
Internet sites in order to make the access easy.
You can receive bookmarks from messages and add them to this list (see chapter
on SMS). You can also send messages by SMS: select a bookmark, press
[
Options
], then select
Send by message
.
Go to URL:
this menu allows you to input an Internet address directly.
Inbox:
this menu allows you to check the messages sent by the Internet site.
Save Objects:
is used to save a WAP site items.
Snapshots:
takes a snapshot of the currently displayed page.
History:
backward and forward navigation of the pages displayed are kept in
memory.
Reload:
refreshes the current page.
Reset cache:
clears the stored information on previous connections.
Advanced…:
choose one of the following advanced settings
-Settings
-Show URL
-Disconnect
-Circuit prompt (if user wants to confirm each logon)
-Security (is used to access information on making WAP connections secure).
-Delete Cookies
-View title
The WAP navigator is under licence:
The WAP navigator and the softwares
included are the exclusive property o
f
Openwave. For this reason, it is
forbidden to modify, translate,
disassemble or even decompile all o
r
part of these softwares.
You can activate the magnifying
glass to increase the size of the
characters by holding down the
key.
252580714_myC5-2_version a_en.book Page 27 Lundi, 13. mars 2006 3:18 15
28 WAP
About…:
information on the browser.
Exit:
returns to the phone's home page.
Configuring WAP parameters
Select the
Advanced…
menu, then the
Settings
menu.
Profiles
is used to select or modify your access provider's logon parameters or configure the parameters of other access
providers.
The active profile is preceded with a star.
The
Menu
is used to add a new profile or to display the memory size available.
Configuration of GSM and GPRS parameters:
All information to be entered in the parameters are provided by your operator or access provider.
On a profile in the list, press [
Options
], select
Modify
. The different parameters are: Provider title, Home page, Preferred
connections (see next page), GSM parameters and GPRS parameters (see next page).
Preferred connections:
-GSM if not GPRS (by default): the logon to WAP services uses the GPRS as a priority. However, in the event of
unavailability of the GPRS network, the GSM network is used to establish the link.
-GPRS: the logon to WAP services uses the GPRS network exclusively.
-GSM: the logon to WAP services uses the GSM network exclusively.
GSM parameters:
-Login
-Password
-IP address of WAP gateway
-Port type (secure or insecure)
-Dial-up number
-Mode (digital, analog or automatic)
GPRS parameters:
-Login
-Password
-IP address of WAP gateway
-Port type (secure or insecure)
-APN: if no APN has been defined, press [
Options
] then the APN menu. Select or add an APN.
Once all the settings have been entered, you can activate the chosen access provider. Select him from the list. Validate your
choice.
Linger timer
is used to choose the time after which the call is automatically disconnected if you have forgotten to log off from
a service.
252580714_myC5-2_version a_en.book Page 28 Lundi, 13. mars 2006 3:18 15
WAP 29
WAP Logging on
The connection to a WAP service on the GPRS network is not cut if an incoming call is received. You can answer the call.
Using the
Welcome
menu, you can log onto your access provider's WAP site by pressing the
key.
If you are logging onto the GSM or GPRS network, the @ symbol flashes, the metering of the cost of the call starts as soon
as it stops flashing.
Downloading objects
Some WAP sites allow you to download ringtones, icons, animated screensavers, games or JAVA
TM
applications. Once
downloaded, they are stored in your phone's memory. You can then save them in your phone (same operation as used for
downloading using messages).
WAP Logging off
To log off, press the
key. The logoff happens automatically after a few seconds of inactivity if you forget to log off. This
period is defined by the linger time setting.
GPRS
A flashing icon indicates that the phone is logging onto a GPRS network.
A non-flashing icon indicates that the GPRS network is available; if the icon is dark, it indicates that the phone is logged onto
the GPRS network: see page 28 for the attachment options.
This icon is not displayed if the GPRS network is not available or if the SIM card inserted in your phone does not include the
GPRS service. It may also disappear when accessing WAP services if the connection uses the GSM network instead of the
GPRS network.
252580714_myC5-2_version a_en.book Page 29 Lundi, 13. mars 2006 3:18 15
30 Applications
Applications
The Java™ function allows you to download applications and utilities in your phone.
Downloading is done through the WAP function.
Please go to the
Applications
menu to use the applications already installed or install others.
Services
This item may not be present on your phone’s menu, as it depends on your SIM.
Calculator
This menu allows you to use your phone as a calculator.
On the
Applications
menu, please select the
Calculator
menu and [
OK
].
You can use the calculator thanks to the following keys:
Up key:
Add
Down key:
Subtract
Right key:
Multiply
Left key:
Divide
Left programmable key:
Equals or convert
Right programmable key:
Delete
key or #
: Decimal point.
If no calculations are being run, pressing [
Convert
] allows you to use the value in the
converter
directly.
252580714_myC5-2_version a_en.book Page 30 Lundi, 13. mars 2006 3:18 15
Applications 31
Converter
This menu allows you to convert one currency to another.
On the
Applications
menu, please select the
Converter
menu and [
OK
].
Enter a value and press the key to convert from one currency to another, or the key to convert back.
Pressing [
Options
] allows you to use the following options:
Go to Calculator
This option allows you to use immediately the value converted in the
calculator
.
Rapid exchange
If the Rapid exchange is activated, the converter will work in the initial screen by entering the desired numbers and pressing
the keys to convert.
Exchange rate
Enter the exchange rate corresponding to the chosen currency.
Currency
Enter the two types of currency to be converted.
Audio player
In the
Multimedia
/
My Sounds
menu, select the musics you want to insert in Audio player.
Select each music, press [
Options
] and select
Add to playlist
.
Once your selection completed, in the
Applications
/
Audio player
menu, press [
Options
] and select
Play list
.
Note:
to play only one music, select it and press
OK
.
-
Remove from list
: deletes a music from the Audio player list.
-
Clear list
: deletes all the musics from the Audio player list.
Note:
both options delete the musics from the Audio player list but do not delete them from
Multimedia
/
My Sounds
.
252580714_myC5-2_version a_en.book Page 31 Lundi, 13. mars 2006 3:18 15
32 Applications
Alarm
This menu allows you to set and activate the alarm.
On the
Applications
menu, please select the
Alarm
menu and [
OK
].
Activate
or
Deactivate
the alarm and validate.
Set the wake-up time by entering the numbers directly or using the keys and validate.
The alarm icon appears on the initial screen.
The alarm works even when the phone is switched off.
Timer
This menu is used to set and activate the timer.
On the
Applications
menu, please select the
Timer
menu and [
OK
].
Activate
or
Deactivate
the alarm and validate.
Set the duration (hours/minutes) by entering the numbers directly or using the keys and validate.
The alarm icon appears on the initial screen.
ToDo
This menu allows you to add ToDo’s, access category-based Todo management and delete all the ToDo’s.
On the
Applications
menu, please select
ToDo
and press [
Options
].
Select one of the actions in the list with the keys and validate.
-
Add Written
/
Vocal ToDo
: allows you to add ToDo of the text or voice type. Fill in the different items. Save the ToDo.
-
Categories
: allows you to see the different ToDo categories, assign a specific ring tone to each individual ToDo, know the
number of ToDo’s in each category and see them.
-
Delete all
: allows you to delete all the ToDo’s from your ToDo.
-
Memory
: allows you to view the memory used by the different functions of your ToDo.
252580714_myC5-2_version a_en.book Page 32 Lundi, 13. mars 2006 3:18 15
Applications 33
ToDo actions menu
This menu allows you to do all the actions possible on any ToDo.
On the
Applications
menu, please select
ToDo.
To display a ToDo, select it in the list and press the
OK
key.
To display the different options, press [
Options
].
-
Delete
: allows you to delete the ToDo.
-
Modify ToDo
: allows you to modify the ToDo properties.
-
Send by MMS
: allows you to send the Vcalendar corresponding to the task by MMS.
Sending a vCal
You can send a vCal from each Todo task. Yet, this function is available only on certain models of phone.
You can send vCals to another phone using MMS depending on your phone and the recipient’s phone.
On the task list (Todo main menu), please select
a task
and in the Todo task actions menu list select
Send
.
Then select your contact information (phone number or Email address) before confirming.
If you receive a call while you are sending a vCal, the call will have precedence.
Receiving a vCal
By MMS, you receive a message you have to open to extract the vCal. You cannot add the event to your diary until you have
saved it.
You can assign a different beep to each Todo task.
You can also assign a different ring tone to each Todo task category.
Exchange of data with a PC
Working from a PC, you can save/edit contacts, events and tasks stored in your phone.
To do this, you will need to connect your phone to the PC by means of a suitable data cable (USB).
Working from a PC, you can save/edit photos and ring tones not copyrighted stored in your phone.
To do this, you will need to connect your phone to the PC by means of a suitable data cable (USB).
Next, you will have to install the "My Pictures and Sounds" software (available from www.planetsagem.com site).
Remark:
If a call comes in during an exchange of data with your PC, the link will be interrupted and will have to be manually
re-started.
252580714_myC5-2_version a_en.book Page 33 Lundi, 13. mars 2006 3:18 15
34 Messages
Messages
From this menu, you are able to send SMS and MMS. MMS is a Multimedia Message Service, which allows you to enclose
audio files, images and others rich contents to your messages; these messages can even be composed of several slides.
MMS are differently invoiced than SMS are. Please contact your network provider to get more information on their cost.
This menu has been compiled in collaboration with magic4™.
Compose SMS
On the
Messages
menu, please select the
Compose
menu and validate. Choose the
SMS
option.
The language used is the one selected on the display of the phone (if the language selected is not compatible with the Easy
Message T9™, the English language will be automatically selected).
When typing a text, a counter showing the number of characters deducted is displayed at the top of the screen (depending
on model). This counter is not displayed if an icon or sound is inserted into the SMS.
When the text has been entered, [
Options
] is used to access the functions offered:
-
Send
is used to send the message by entering the correspondent's number or selecting it in the phonebook.
-
ABC Mode
,
123 Mode
(see page 35).
-
T9 options
(see page 35).
-
Save
is used to save a draft in memory.
-
Cancel
is used to delete all text entered and quit.
-
Activate
/
Deactivate Zoom
is used to modify size of characters.
-
Activate
/
De-activate Silent
is used to activate or not the keypad beep when typing the text.
-
Formatting
is used to enrich a text.
-
Insert
to insert various objects (symbols, sounds, etc.) into your message (see page 36).
252580714_myC5-2_version a_en.book Page 34 Lundi, 13. mars 2006 3:18 15
Messages 35
The Easy Message T9™ mode helps you to easily write your short messages.
Using T9 Mode
Press once the key corresponding to the letter chosen and compose the word by continuing to press the
keys corresponding to the various letters without paying attention to the display: the word is highlighted.
If you agree on the word proposed on the screen, press the
0
key to validate it (the
0
key inserts a space),
and go on writing the next word.
However, the same sequence of keys pressed can correspond to several words, existing on the dictionary. If the word that
appears is not the word you expected, press the keys to scroll through the words corresponding to this key sequence.
Once you agree on the word proposed on the screen, press the
0
key to validate it (the
0
key inserts a space), and go on
writing the next word.
If the word you are expected is not proposed, please add characters until you get the message
Add the word
? Press [
Yes
]
and validate if the word displayed suits you or modify this word before adding it in the dictionary.
Input modes
In the input screen, the key is used to access other input options.
The mode in which you type the text is displayed at the right top of the screen. A
short press of the key switches from one mode to another.
The
ABC Mode
is used to write words that do not exist in the dictionary. To get
a particular character, please press the corresponding key several times: the
characters will scroll down on your screen.
123 Mode
is used to add numbers.
Insert
mode is used to add symbols, animations, call group icons and tunes.
Images and sounds can be of two types: pre-defined or customized. Pre-defined
images and sounds are smaller, especially suited to exchanging messages.
Upper/Down case
A long press of the key will display the next letter in upper case.
Two long presses on the key allow you to switch to upper case editing mode
for the whole message. Two short presses again, switches back to lower case.
Punctuation characters
Punctuation characters are obtained thanks to key
1
(except in
123 Mode
), or
with the help of
Insert
mode (fast access by briefly pressing the key).
When composing a message:
The navigation keys assume the
following functions:
-
key:
Last word
-
key:
Next word
-
key:
Previous line
-
key:
Next line
-
key:
Deletes last letter
-
key:
Message options
-
key (long press):
Zoom mode (changes size of
characters)
-
key (short press):
Access to symbol table
252580714_myC5-2_version a_en.book Page 35 Lundi, 13. mars 2006 3:18 15
36 Messages
Accented characters
Accented characters are generated automatically in T9 mode.
In ABC mode accented characters are available by pressing the key supporting the non-accented character in succession.
Compose MMS
On the
Messages
menu, please choose the
Compose
menu and validate. Select the
MMS
option.
When the text has been entered, [
Options
] is used to access the functions offered:
-
Insert
to insert various objects (symbols, sounds, etc.) into your message.
-
ABC Mode
,
123 Mode
(see page 35).
-
T9 Mode
(see page 35).
-
Slide...
to compose a slideshow of the multimedia objects.
-
Preview
to see a presentation of the multimedia objects.
-
Cancel
is used to delete all text entered and quit.
Saving the message
Select
Save
. It is saved in the
Drafts
menu.
Sending the message
-Once the text entered, press the
OK
key or press [
Options
] and select
Send
.
-Enter the receiver’s number (or take it in your phonebook pressing [
Options
]/
Contacts
) and press the
OK
key.
You can enter an e-mail address.
Note:
It is possible that the voice message format (.amr) is not supported by some PC. See your PC provider.
Warning: some message sendings may fail if the message content is too big.
Pressing [
Options
] before sending the message gives access to different options:
-
Send Options
: can be used to indicate the period of validity, activate/deactivate a request delivery report, a priority, a
delivery time, a sender visibility or to defer the sending of the message.
-
Add Recipient
: this option allows you to add another recipient.
-
Editor
: this option allows you to modify the text before sending the message.
-
Add Subject
: this option allows you to add a subject to the message.
252580714_myC5-2_version a_en.book Page 36 Lundi, 13. mars 2006 3:18 15
Messages 37
Receiving messages
When you receive a message, the phone plays the ring tone that you selected, and the message icon comes on the
screen of your phone.
If you do not read the messages, this icon remains displayed on the screen. When it flashes, the memory is full.
Receiving icons, backgrounds or tunes can take several seconds. An icon is blinking when the download of your message is
in progress.
Note that you have two different possibilities for receiving MMS: automatically or manually; if « manual mode » is activated,
then you will receive only a notification in your Inbox, meaning that a MMS is available on the MMS Server; select Retrieve
in the options when you want to retrieve the MMS from the server.
For more details about automatic and retrieval modes, see « Sending options » on page 38.
Please contact your network provider to get more information on icons, backgrounds or tunes downloading.
Received messages are stored in the SIM card or in the phone until you choose to delete them.
Inbox
On the
Messages
menu, please choose the
Inbox
menu and [
Select
].
Each message shows the presence of any attachments, the time and date the message was received and its size.
Messages are listed in chronological order, the latest one being displayed first.
The quantity of Not Read and Not Retrieved messages is shown. Not Retrieved and Not Read messages are shown in bold.
Select a message and press the
OK
key. Choose one of the options given.
Enclosures (pictures or sounds), which you receive, can be extracted in order to be used later on (stored…).
You can consult them in the corresponding menus (WAP bookmarks in
WAP
, ring tones in
Sounds
, wallpapers in
Display
).
Outbox
On the
Messages
menu, please choose the
Outbox
menu and [
Select
].
This menu displays the messages that have not been sent. You can therefore send them again.
252580714_myC5-2_version a_en.book Page 37 Lundi, 13. mars 2006 3:18 15
38 Messages
Sentbox
The
Sentbox
menu is used to store all your sent messages if you activated the option
Store sent msgs
in the
Options
menu
(see page 38).
Too many messages saved will quickly fill up the available memory and no further messages will be received.
For each message, its characteristics (shown with an icon) and the time (or date) of sending are displayed on the screen.
Select a message and press the
OK
key.
Choose one of the options given: Read, Modify, Forward, Delete, Delete all.
Drafts
When you store a composed message, it is stored among the drafts.
On the
Messages
menu, please choose the
Drafts
menu and press the
OK
key.
Select a message and press [
Options
]. The options are: Delete, Read, Modify, Details.
If you select a message and press the
OK
key, you can modify it.
If you want to send it, select
Modify
then press [
Options
] and select
Send
.
Sending options
Several sending options are offered.
On the
Messages
menu, please choose
Options
and [
Select
].
Choose one of the options given: SMS or MMS.
The SMS sending options are: message centre number, store sent message, acknowledgment, period of validity (during that
period, the network provider will try to send the message), message format.
The MMS options are:
-
Store sent msgs
: it is highly recommended that you keep this function deactivated, in order to avoid a full memory.
-
Retrieval mode
: if you are in a poor coverage area, it may be more convenient to choose the manual retrieval mode which
gives you the retrieve later option.
-
Priority
: selection of a priority to send a message.
-
Request delivery report
: request of a delivery report when sending a message.
-
Period of vailidty
: during that period, the network provider will try to send the message.
252580714_myC5-2_version a_en.book Page 38 Lundi, 13. mars 2006 3:18 15
Messages 39
Advanced settings:
-
Maximal Size
: if you want to activate/deactivate the option of maximum size supported for the MMS.
-
Send delivery rep.
: sending a delivery report when receiving a message.
-
MMS ignore
: if you want to deactivate the reception of any MMS in your phone.
-
MMS server
: to select another MMS provider, or set the parameters of a new MMS provider.
-
Display Bcc
: if you want to activate/deactivate this display.
-
Sender visibility
: you choose to display or not your phone number on the receiver’s phone screen, with that message.
Memory
You may know the memory available for saving messages.
On the
Messages
menu, please select the
Memory
option and [
Select
].
Choose one of the options given: SMS or MMS.
The SMS screen displays the memory available either on the SIM card or on the phone.
The MMS screen displays how much memory is used in Kbytes.
Local information
This menu is used to activate reception of local information broadcast by the network.
You can choose whether you want to receive this information or not (please contact your network provider).
On the
Messages
menu, please select the
Local info.
menu and [
Select
].
Calling voicemail
This function allows you to call your voicemail.
On the
Messages
menu, please select the
Call Voice Mail
option and [
Select
].
Note:
if your voicemail number has not been entered yet, you must enter it in the menu
Settings/Calls/Voicemail
.
252580714_myC5-2_version a_en.book Page 39 Lundi, 13. mars 2006 3:18 15
40 Messages
Mailing list
This menu displays the mailing lists created in the phonebook.
To display the different options, press [
Options
].
-
Add mailing list
: allows you to create a new mailing list.
-
Modify name
: allows you to modify the mailing list name.
-
Add contact
: allows you to add a contact to the mailing list.
-
Properties
: allows you to see the type of mailing list and the number of contacts.
-
Delete
: allows you to delete the mailing list.
-
Delete all
: allows you to delete all the mailing lists.
252580714_myC5-2_version a_en.book Page 40 Lundi, 13. mars 2006 3:18 15
Photo - Video 41
Photo - Video
This menu allows you to take photos or videos and use them for different purposes. For instance, you can send them to
another phone or an Internet address, store them, use them as wallpapers or screen savers…
Take and send a photo
You can set the timer, the click sound , the photo quality and the photo format in the
Settings
/
Camera
menu.
Select the
Camera
menu. Select
Photo camera
and validate
The camera is now on.
Before taking a picture, there are various adjustment settings:
-To activate one of the two available zoom levels, use the keys.
-You can set the luminosity using the key:
: in case of neon or halogen lighting, : outdoor, : low luminosity.
-To take a picture with a 5, 10 or 15 second time delay, press [
Timer
].
Taking and/or sending a picture
-Press
OK
, the photo is taken and stays on the phone display.
Warning: if you press [
Back
], you will go back to the previous screen and lose the photo you have just taken.
-Press
OK
if you want to send the photo immediately.
-Press [
Save
] to save your photo and display the different options (see next page).
If there is not enough memory to save the photo, a warning message appears, prompting you to confirm whether you want
to go on.
Once taken, the photo appears on the phone display. The name is made up with a number.
Note:
using the camera during a call may disturb the call quality.
252580714_myC5-2_version a_en.book Page 41 Lundi, 13. mars 2006 3:18 15
42 Photo - Video
The options are:
-
Add to contact
: allows you to assign a picture to a contact saved in the phonebook.
-
Send by MMS
: allows you to send the photo by MMS (see the
Message
menu).
-
New...
: allows you to take a new photo.
-
Editor
: various options to modify a photo:
Sepia: allows you to change colors into sepia.
Zoom: allows you to magnify certain parts of your photo.
Adjustment: allows you to improve contrast.
Emboss: allows you to modify a photo with an embossed grey tint.
Negative: allows you to change a photo into negative.
Grey Scale: allows you to change color into black and white.
Contrast: allows you to increase or decrease the contrast of your photo.
Sharpen: allows you to sharpen a photo.
Blur: allows you to add blur to a photo.
Shape: allows you to shape a photo.
Brigthness: allows you to increase or decrease the brightness of a photo.
Solarize: allows you to increase or decrease the solarize of a photo.
Saturation: allows you to increase or decrease the color saturation.
-
Rename
: allows you to modify the name of a photo.
Select one of the options with the keys and validate.
252580714_myC5-2_version a_en.book Page 42 Lundi, 13. mars 2006 3:18 15
Photo - Video 43
Take a video
Before taking a video, you can set the sound and the video size in the
Settings
/
Camera
menu
Select the
Camera
menu. Choose the
Video
option and press
OK
.
Press the left key [
Record
] to record then press again the left key [
Stop
] when you want to stop recording.
Note:
the phone automatically stops recording when the maximum size available is reached.
Press [
Options
]:
-
Play
:
you can display the video.
-
Save
:
then you can save it. Modify the name if you want and press
OK
.
-
Save and Send
: you can save and send the video by MMS.
Warning:
A message informs you that the storing and the compression of the video are in progress. It will take a few seconds.
During this time, you have two choices:
-either you select [
Cancel
], the compression is interrupted and when you display the video later, the phone will resume the
compression.
-or you select [
Hide
], the compression is not interrupted and you can use your phone but some functions are not available
(taking a video or photo, sending a MMS).
See chapter
Multimedia
/
My Videos
for the options on a video saved.
Note:
the videos are saved in the phone with a 3gp format.
252580714_myC5-2_version a_en.book Page 43 Lundi, 13. mars 2006 3:18 15
44 Multimedia
Multimedia
This menu gives you easy access to your favourite photos, videos, pictures and sounds.
My Videos
This menu gives you access to your videos
From the
Multimedia
menu, please select the
My Videos
menu and the Select label (left key).
The names of the videos stored in memory are displayed on the screen. Please use the keys to select one of them.
Once you have selected a video, press
OK
.
The video is now displayed. After a few seconds an
Options
menu button appears at the bottom of the screen . Press the
[
Options
] button.
Select one of the options in the list with the keys and press
OK
.
-
Send by MMS
: to send the video by MMS (see
Messages
chapter).
Thanks to My Pictures And Sounds (MPAS) software available from www.planetsagem.com, you can import videos
(3gp format) or export videos (MPAS converts 3gp format into mpeg4 format readable on PC).
-
Properties
: properties of the video selected.
-
Delete
: to delete the video.
-
Delete all
: to delete all the videos.
-
Rename
: to modify the name of the video.
-
New video
: allows you to take a new video
My Pictures
This menu gives you access to your pictures.
On the
Multimedia
menu, please select the
My Pictures
menu and [
Select
].
The pictures stored are displayed on the screen. Please, use the keys to select one of them.
Once you have selected a picture, press [
Options
].
Select one of the options in the list with the keys and validate.
-
New photo
: allows you to take a new photo.
-
Send by MMS
: makes it possible to transmit a picture (NB: you may not send any copyrighted picture).
-
Editor
(see chapter
Photo - Video
).
-
Use as
: allows you to use the picture as a wallpaper or screen saver.
-
Rename
: allows you to rename a picture.
252580714_myC5-2_version a_en.book Page 44 Lundi, 13. mars 2006 3:18 15
Multimedia 45
-
Properties
: properties of the picture selected.
-
Delete
: allows you to delete a picture.
-
Delete all
: allows you to delete all pictures.
You can import or export pictures to or from a computer using My Pictures And Sounds (MPAS), available from
www.planetsagem.com.
My Sounds
This menu gives you access to your sounds.
On the
Multimedia
menu, please select the
My Sounds
menu and [
Select
].
The names of the sounds are displayed on the screen. Please use the keys to select one of them.
To display the different options, press [
Options
].
-
New sound
: allows you to record a new sound.
-
Send by MMS
: allows you to send a sound.
You can import or export sounds to or from a computer using My Pictures And Sounds (MPAS), available from
www.planetsagem.com.
-
Use as
: allows you to add a sound to the ring tones list.
-
Rename
: allows you to rename a sound.
-
Add to playlist
: allows you to add a sound to the music list of the Audio player function.
-
Properties
: properties of the sound selected.
-
Delete
: allows you to delete a sound.
-
Delete all
: allows you to delete all the sounds.
Memory
This menu indicates the memory size used by the different features of your phone.
On the
Multimedia
menu, please select the
Memory
menu and [
Select
].
Use the keys to select the different features using memory. You can see the memory capacity used by each individual
feature.
252580714_myC5-2_version a_en.book Page 45 Lundi, 13. mars 2006 3:18 15
46 Organizer
Organizer
This menu gives you access to your diary and get to a day, week, month or specific date. It lets you add events, access the
global actions for all the events and manage them by event category.
Calendar menu
This menu lets you add events, manage events by category, see the available memory and delete all the events.
From the
Organizer
menu, select the
Calendar
menu
.
-
Add Written Event
/
Vocal event
: allows you to add events of the text or voice type. Fill in the different items. Save the
event.
-
Delete
: allows you to schedule the deletion of events that took place more than one day, week or month ago.
-
Memory
: allows you to view the memory capacity used by the different functions of your diary.
-
Delete all
: allows you to delete all the events from your diary.
-
Categories
: allows you to see the different event categories, assign a specific ring tone to each individual category, know
the number of events in each category and see them.
The other menus are:
-
See month
: allows you to access events on a month-by-month basis.
-
See week
: allows you to access events on a week-by-week basis.
-
See today
: allows you to access the events for the current day and the actions possible on any event (see, modify, delete
and send).
-
See date
: allows you to access events at a specific date.
252580714_myC5-2_version a_en.book Page 46 Lundi, 13. mars 2006 3:18 15
Organizer 47
Sending a vCal
You can send a vCal from each diary event. Yet, this function is available only on certain models of phone.
You can send vCals to another phone using MMS depending on your phone and the recipient’s phone.
On the See today list, please select an event and in theTodo event actions menu list, select Send.
Then you should in addition select your contact information (phone number or Email address) before confirming.
If you receive a call while you are sending a vCal, the call will have precedence.
Receiving a vCal
By MMS, you receive a message you have to open to extract the vCal. You cannot add the event to your diary until you have
saved it.
You can assign a different beep to each diary event.
You can also assign a different ring tone to each diary event category.
252580714_myC5-2_version a_en.book Page 47 Lundi, 13. mars 2006 3:18 15
48 Phonebook
Phonebook
The phonebook allows you to store numbers that you call regularly. These numbers can be stored in the SIM card or in the
phone.
To store a contact in the phone memory, the following fields can be filled: last name, first name, numbers, email, URL,
address, company, comments, ringtone, photo.
The fields coloured with red are mandatory.
To store a contact in the SIM card, only the last name and number fields must be filled.
The storage capacity will depend on the SIM card. Please contact your network provider to get that information.
Using the phonebook
Display the
Phonebook
menu.
The list of your contacts appears. By default, the cursor is positioned on the first name in alphabetical order.
If you are using your phone and SIM card for the first time, the phonebook list may be empty, only the Add phone contact
function will be available.
If you are using your phone and SIM card for the first time, the phonebook list will be empty (see
Storing a new contact
, on
page 49).
Different icons inform you of the location where the contact is stored:
contact stored in the SIM card
contact stored in the phone
if the Fixed dialling option is activated, only those contacts may be called. See
PIN2 number
and
Fixed dialling
in
Security
menu for more details about this activation.
252580714_myC5-2_version a_en.book Page 48 Lundi, 13. mars 2006 3:18 15
Phonebook 49
Storing a new contact
In the list of options, first select the location where you want to store a new contact (
Go to SIM list
or
Go to Phone list
).
Adding a contact in the SIM card memory
-From the contact list, select [
Options
].
-Select
Add SIM contact
and press the
OK
key.
-Select
SIM card
or
Fixed directory
and press the
OK
key.
-Enter the last name and press the
OK
key.
-Enter the number and press the
OK
key.
-Press [
Save
] to store it.
Adding a contact in the phone memory
-From the contact list, select [
Options
].
-Select
Add phone contact
and press the
OK
key.
-Enter the last name and press the
OK
key.
-Enter the number and press the
OK
key.
-Fill in other fields if you want.
-Press [
Save
] to store it.
Phonebook options
Mailing lists
A mailing list allows you to send a same message to several recipients at the same time.
-From the contact list, select [
Options
].
-Select
Mailing list
and press the
OK
key. The phone asks you to confirm the creation of a new list.
-Select the list type (SMS or MMS) and press the
OK
key.
-Enter a name and press the
OK
key.
-Then, on a list press [
Options
]. Select
Add contact
each time you want to add a contact in the list.
Memory
Select
Memory
and validate. Select SIM or Phone and validate.
Phone: the screen displays the amount of memory used. The memory capacity is shared between the phonebook and various
other features. If you lack memory, check if you can free some space from another feature.
SIM: available memory only for contacts.
252580714_myC5-2_version a_en.book Page 49 Lundi, 13. mars 2006 3:18 15
50 Phonebook
My numbers
You can create the entries corresponding to your own numbers in order to consult them when necessary.
Select
My numbers
and validate. Enter the different details and validate.
Options from a contact saved
Displaying a contact
Select a contact from the list using the keys and press the
OK
key. The name and the number are displayed.
Note
: By directly pressing one character, the phone will display the first contact saved in the phonebook, starting with it.
To display the different options, select a contact from the list using the keys and press [
Options
].
Modify contact
Modify what you want and validate then select
Save
once the modifications completed.
Copy to SIM/Copy to phone
This allows you to copy your phonebook entries from one memory to the other. Only the name and the first phone number
will be copied.
Delete
Validate deletion of entry.
Send message
To send a SMS or a MMS to a contact (see chapter
Messages
).
Send By
To send a contact details by SMS or MMS (see chapter
Messages
).
252580714_myC5-2_version a_en.book Page 50 Lundi, 13. mars 2006 3:18 15
Phonebook 51
Calling a contact
Several ways:
-Select a contact. Press the
key to start the call.
-Select a contact, press the
OK
key, his number is displayed, press [
Call
] to start the call.
-Direct call from the initial screen (only for the contacts stored in the SIM card memory): type the number with which the
contact was saved then (example : 21 ) or the number then , the number is displayed, confirm.
Sending a vCard
It is possible to send a vCard from each contact stored in the phonebook.
vCards can be sent to another phone supporting vCard.
On a contact in the phonebook, please select the
Send by
option menu item (SMS or MMS).
If the vCard is sent successfully, an information message is displayed.
vCards can be sent as an attachment to an SMS or MMS message. See
Compose MMS
on page 36.
Receiving a vCard
When a vCard is received enclosed to an SMS or MMS message, the message « You have received 1 message » is
displayed.
Open the MMS from the inbox. Press [
Options
] and select
Extract
; select the vCard among the list of objects attached to
this MMS, and add this contact to the phonebook by pressing the
OK
key. A message is displayed to confirm the action.
252580714_myC5-2_version a_en.book Page 51 Lundi, 13. mars 2006 3:18 15
52 Settings
Settings
This menu allows you to set your phone.
Sounds
This menu allows you to customize the ring tones on your phone and to activate beep and vibrate modes.
Volume and ring tone
This menu allows you to allocate a ring tone to different functions.
On the
Sounds
menu, please select the
Ring tones
menu and [
Select
].
Select the function on which you want to choose a ring tone.
Select the
ring tone
from the proposed list and validate.
Adjust the
volume
using the
keys and validate.
You can deactivate the sound by pressing the key.
Vibrate
This menu allows you to activate the vibrate mode for calls.
On the
Sounds
menu, please select the
Vibrate
menu and [
Select
].
Select the vibrate mode from the proposed choices and validate.
Silent mode
This menu allows you to switch to Silent mode.
On the
Sounds
menu, please select
Silent mode
and [
Select
].
Activate
or
deactivate
Silent mode and validate.
Silent mode can also be accessed via the initial screen by holding down the key.
When the phone is in silent mode, the relevant icon appears on the initial screen.
In this mode, the ring tone will not function, except for the alarm clock.
Note:
if you have activated the silent mode, it does not remain after switching off your phone.
252580714_myC5-2_version a_en.book Page 52 Lundi, 13. mars 2006 3:18 15
Settings 53
Beeps
This menu allows you to activate a beep for the battery, the keypad or the network.
On the
Sounds
menu, please select the
Beeps
menu and [
Select
].
Select the type of beep you want to allocate from the proposed choices (Flip beep, Keypad beeps, Network beep, Battery
beep) and validate. Activate or deactivate the beep and validate.
If you select key beeps, different options are given.
Recorder
These menu allows you to record you own melody.
On the
Sounds
menu, please select the
Recorder
menu and [
Select
].
Pressing [
Start
] record your melody or your voice by means of the microphone then save it.
Give it a name and validate. The new tone is saved in the list of ringtones and in
Multimedia
/
My Sounds
.
If you select the recorder by means of a programmable key, the sound is saved in the
Applications
/
ToDo
menu.
Display
Skins
This menu allows you to choose the skin of your phone, i.e. define its look (text font, colors, default animation, background
image…).
On the
Display
menu, please select
Skins
.
Select the desired skin and validate.
Skins are not downloadable but you can download screensavers and boot mode animations without changing those included
by default with the skin.
Wallpaper
This menu allows you to display the background picture you want on your phone.
On the
Display
menu, please select the
Wallpaper
menu and [
Select
].
Select the wallpaper and [
View
]. The picture appears in the background of the screen.
Press [
OK
] to validate this choice, or [
Back
] to go back to choice.
Note:
the
Random
option allows you to display a wallpaper scrolling different pictures in a random way.
252580714_myC5-2_version a_en.book Page 53 Lundi, 13. mars 2006 3:18 15
54 Settings
Screensaver
This menu allows you to display an animation when the phone is in standby mode.
On the
Display
menu, please select the
Screensaver
menu and [
Select
].
Select one of the screensavers given and [
View
].
The chosen screensaver appears on the screen, validate it.
Operator logo
This menu allows you to display your operator's logo on the initial screen.
On the
Display
menu, please select the
Operator logo
menu and [
Select
].
Select
Activate
or
Deactivate
and press
OK
.
Contrast
This menu is used to adjust screen contrast.
On the
Display
menu, please select the
Contrast
menu and [
Select
].
Adjust the contrast usings the or keys.
Energy saving
This function is used to deactivate the screen and the keypad backlight and consequently increase the battery life of your
phone.
On the
Display
menu, please select the
Energy saving
menu and [
Select
].
Two options are available to choose from for the backlight:
-
Screen only
: only the screen is lit up.
-
Full backlight
: both the screen and the keypad are lit up.
Note:
in any case, after a certain time of inactivity, the backlight will be automatically turned off to save battery life.
252580714_myC5-2_version a_en.book Page 54 Lundi, 13. mars 2006 3:18 15
Settings 55
Camera
This menu allows you to set the camera features of your phone.
On the
Settings
menu, please select the
Camera
menu and [
Select
].
-
Timer
: this menu enables you to take a photo with a 5, 10 or 15 second time delay. During preview of the photo, activate
the delayed exposure by pressing [
Timer
]. (NB: if you want to take the photo immediately, then press
OK
).
-
Click sound
:
This menu allows you to select the sound you will hear when taking a photo.
-
Photo format
: This menu allows you to choose the format in which your photo will be saved.
-
Photo quality
: This menu allows you to select the photo quality.
-
Video size restr.
: This menu allows you to choose a video size.
-
Video sound
: This menu allows you to select or not the sound when recording a video.
Languages
This menu allows you to choose your phone's display language.
On the
Settings
menu, please select the
Languages
menu and [
Select
].
Select your language and validate.
If you select
Automatic
, the language used will be the one relative to your SIM card.
Phonebook
From the
Settings
menu, please select the
Phonebook
menu and [
Select
].
This menu allows you to select the way to sort contacts in the phonebook (by name or first name).
Contacts list
From the
Settings
menu, please select the
Contacts list
menu and [
Select
].
This menu allows you to display the list of your contacts recorder either on the SIM card, or the phone, or on the SIM card
and on the phone.
252580714_myC5-2_version a_en.book Page 55 Lundi, 13. mars 2006 3:18 15
56 Settings
Calls
The
Calls
menu allows you to manage all the calls functions (call forward, displaying numbers, call waiting, voicemail number,
etc.).
Call forward
Depending on your subscription, this service allows you to forward incoming calls to a different number or to the voice mailbox.
On the
Calls
menu, please select the
Call forward
menu and [
Select
].
Choose the type of forwarding you want from the options available.
View last calls
This menu allows you to access the list of last numbers used.
On the
Calls
menu, please select the
View last calls
menu and [
Select
].
For every phone call are displayed on the screen:
-its characteristics (shown with an icon),
-the time (or date),
-its duration.
Select a call from the list and validate.
Select one of the options given: Call, Store in your phonebook, Send a message, Delete, Delete all.
You can also make the call by pressing the key.
Fast access to the list of calls from the initial screen: press the key.
Counters
This menu allows you to consult the duration of the up calls.
It can also be used to check the volume of data exchanged in GPRS.
On the
Calls
menu, please select the
Counters
menu and [
Select
].
Select one of the options given.
252580714_myC5-2_version a_en.book Page 56 Lundi, 13. mars 2006 3:18 15
Settings 57
Display number
This menu allows you to modify the status of the display number function.
On the
Calls
menu, please select the
Display number
menu and [
Select
].
Select one of the options given: Anonymous mode, My number, Callers’ number.
Anonymous mode
You have the facility to mask your number on the phone of the person you are calling.
-Preset: network default mode.
-No: you choose not to activate anonymous mode and then to display your number.
-Yes: you choose to active anonymous mode and then not to display your number.
Call waiting
During a call, you may be informed that a caller is trying to reach you: you hear a special tone. The caller's identity is displayed
on the screen (name or number).
(Operator-dependent service)
On the
Calls
menu, please select the
Call waiting
menu and [
Select
].
You can
activate, deactivate,
or
consult the
status
of the call waiting service in order to check if it is active or not.
During a call, if a second caller tries to contact you, the screen displays the call warning.
Automatic redial
This menu allows you to call back a caller you have not managed to reach.
On the
Calls
menu, please select the
Auto redial
menu and [
Select
].
You can set the redial function to inactive, on request or systematic.
If you choose
On request
, your phone will offer to redial your caller automatically if his number is busy.
Blacklist
The blacklist is used to limit failures on automatic calls (calls generated by the automatic redial function or by applications:
data, fax for example).
On the
Calls
menu, please select the
Blacklist
menu and [
Select
].
When several automatic calls failed with a number (number busy or unknown), this number is put in the blacklist and no
automatic call will be done with this number any more until you delete it from the blacklist.
Note:
this function does not apply to the calls performed manually.
252580714_myC5-2_version a_en.book Page 57 Lundi, 13. mars 2006 3:18 15
58 Settings
Voicemail
This function is used to record your answer phone number.
This number will be used during a call to the voice mailbox using the programmable keys.
On the
Calls
menu, please select the
Voicemail
menu and [
Select
].
Enter your answer phone number and validate.
ALS
The ALS (Alternate Line Service) function allows you, depending on your subscription, to have two phone lines.
The number of the line selected (1 or 2) for the calls appears on the initial screen.
Security
This menu allows you to configure your phone's security settings.
PIN number
This menu allows you to activate and modify your phone's PIN.
On the
Security
menu, please select the
PIN number
menu and [
Select
].
To modify the PIN, select
Modify
and [
Select
].
Enter old PIN and validate.
Enter new PIN twice and validate.
To activate or deactivate the PIN, select the
Check PIN
menu and
[Select].
Enter PIN and validate.
Select
Activate
or
Deactivate
and validate.
See page 78 to unblock the SIM card in case of wrong PIN number typed three times in succession.
PIN2 number
You have a second PIN number to allow you to access certain functions*.
* These functions may or may not be available depending on your SIM card.
Proceed as above in order to activate, deactivate or modify PIN number 2 of your phone.
252580714_myC5-2_version a_en.book Page 58 Lundi, 13. mars 2006 3:18 15
Settings 59
Phone code
The Phone code menu allows you to activate the phone code so that it is requested and checked whenever the phone is
switched on if a different SIM card is used. This code is automatically linked to the SIM card installed when the phone is
activated, for example to protect the phone if stolen.
To activate or deactivate the phone code, select the
Phone code
menu and validate.
Enter 0000 (the factory code, by default) and validate.
Select
Activate
or
Deactivate
and validate.
To modify the phone code, select
Modify
and validate.
Enter old phone code and validate.
Enter new phone code and validate.
Enter phone code again to confirm it and validate.
Confidentiality
The Confidentiality function is used to delete numbers stored in View last calls and the SMS stored in the memory when a
new SIM card is inserted into the phone.
This menu allows the activation of automatic deletion, after power off/on, for messages and/or calls stored in the phone.
On the
Security
menu, please select the
Confidentiality
menu and [
Select
].
Choose
Organizer
,
Calls
or
Messages
.
Select
Activate
or
Deactivate
and validate.
Operator
This menu allows you to modify the call barring.
On the
Security
menu, please select the
Operator
menu and [
Select
].
Access to this service depends on your type of subscription.
Call barring
Call barring can be applied to ALL calls (incoming and outgoing), to all incoming calls when you are away from your home
country (if roaming available).
This menu allows you to block the sending or reception of certain calls.
Before you can use this service, a password will be provided by your operator when you take out your subscription.
On the
Security
menu, please select the
Call barring
menu and [
Select
]
.
Select
Activate
or
Deactivate
and validate.
Access to this service depends on your subscription type.
252580714_myC5-2_version a_en.book Page 59 Lundi, 13. mars 2006 3:18 15
60 Settings
Fixed dialling
This menu allows you to restrict the outgoing calls.
The availability of this menu depends on your SIM.
On the
Security
menu, please select the
Fixed dialling
menu and [
Select
].
Enter PIN2 number and validate.
Select
Activate
or
Deactivate
and validate.
Proceed as for any other phonebook.
When activating this function, only the numbers stored in the fixed dialling can be called.
This phonebook is linked to the SIM card, and its size depends on the card's capacity.
Cost
This menu allows you to control the cost of your calls (*).
On the
Security
menu, please select the
Cost
menu and validate.
The
Cost
menu (*) lets you check the cost of the last call you made and of all the calls you made since you last deleted them.
The
Delete costs
menu (*) lets you delete the cost of your last call and reset the cost counter after entering your PIN 2 code.
(*) WARNING
Depending on how the networks and associated subscription cards are configured, some functions may be unavailable (these
are marked out with *).
Networks
This menu allows you to configure network preferences.
On the
Settings
menu, please select the
Networks
menu and [
Select
].
Choose
Preferred
to view all the pre-registered networks.
Choose
Selection
to activate (automatically or manually) one of the networks accessible in the area in which your are located.
Choose
GPRS
to select the way you want to be attached on the GPRS network: always, or only when needed (when
launching a data connection).
252580714_myC5-2_version a_en.book Page 60 Lundi, 13. mars 2006 3:18 15
Settings 61
Leds
This menu allows you to select or not the color of the LED located on the flip.
The color may be selected for different functions.
From the
Settings
menu, please select the
Leds
menu and
OK
.
From the list, select the function where you want to change the color.
Select the color and
OK
.
Shortcuts
This menu allows you to allocate functions to the programmable keys.
(Function available depending on model)
This menu allows you to customize the settings of your phone to make it as convenient as possible for you to use.
On the
Settings
menu, please select the
Shortcuts
menu and [
Select
].
Select the key that you wish to modify and validate.
Choose the function that you want to allocate to this key and validate.
Date / Time
Set Date/Time
This menu allows you to set the date and time of your phone.
On the
Date / Time
menu, please select
Set Date/Time
and [
Select
].
-
Date:
set the date by entering it directly in digital form or by using the keys.
Use the (or ) key to access the next (or previous) entry field.
Once the date is correct, validate it.
-
Time:
same procedure as for setting the date.
Automatic update
This menu allows you to choose manual or automatic updating of date and time (after switch off of your phone or when going
abroad for instance) (service depending on the operator).
From the
Date / Time
menu, please select
Automatic upd.
and [
Select
].
Please select Automatic, Manual or On demand and press
OK
.
252580714_myC5-2_version a_en.book Page 61 Lundi, 13. mars 2006 3:18 15
62 Settings
Display
This menu allows you to select the date and time display type.
On the
Date / Time
menu, please select
Display
and [
Select
].
In the list that appears, select the desired display type between:
Analog, Digital, None, by using the keys and validate.
Time zone
This menu allows you to change time in relation to the GMT time.
On the
Date / Time
menu, please select
Time zone
and [
Select
].
Choose the time of the country desired by calculating the time from the GMT time.
Summer time
This menu allows you to set your phone to the summer/winter time.
On the
Date / Time
menu, please select
Daylight savings
and [
Select
]. Select 1 h, 2 h
Summer time
or
Winter time
depending on the season, and validate.
Active flip
From the
Settings
menu, please select
Active flip
and press [
Select
].
If you select
Activate
, calls are answered by opening the flip.
Note:
closing the flip always hangs up, whatever the selection made in this menu (
Activate
or
Deactivate
).
WAP settings
This menu allows you to set various parameters needed for WAP connection.
On the
Settings
menu, please select
WAP settings
and [
Select
].
You can add or modify URL addresses.
Help
This menu allows you to activate or deactivate the display of the help in the phone.
252580714_myC5-2_version a_en.book Page 62 Lundi, 13. mars 2006 3:18 15
Settings 63
Connectivity
You can also connect it to your computer in order to receive data or fax through GSM or GPRS network (depending on
subscription): configure the connection parameters of your computer using the Wellphone CD supplied as an accessory.
Serial Speed
On the
Connectivity
menu, please select the
Serial Speed
parameters menu and validate.
The
Speed
menu enables you to select the speed to be used for data exchanges via your phone's serial port. Except for
specific requirements, it is advisable to stick to the default setting:
Automatic
.
Car kit
This menu allows you to configure your phone with a car kit.
On the
Connectivity
menu, please select the
Car kit
menu and [
Select
].
Choose one of the options given: Automatic response, Switch off, Kit volume.
Headset
This menu allows you to configure your phone with a car kit.
From the
Connectivity
menu, please select the
Headset
menu and
OK
.
Choose one of the options given: Auto response, Kit volume.
SyncML (depending on model)
Two options:
-
Local synchronisation
: you can synchronize your phonebook, your organizer or your ToDos with your archives stored in
your computer. Use the Wellphone software and configure your USB connection in your phone.
-
OTA synchronisation
: you can synchronize your phonebook, your organizer or your ToDos with your archives stored in
your operator’s network (service available depending on the options offered by your operator).
252580714_myC5-2_version a_en.book Page 63 Lundi, 13. mars 2006 3:18 15
64 Technical features
Technical features
Weight: 85 g
Size: 82.2 x 42.7 x 23 mm
Original battery: Lithium ion 700 mAh
Battery life calls/standby: up to 200 mn/240 h (these values are theoretical ones and given for information only)
Multimedia objects supported:
-Audio formats: iMelody, Midi, wave, amr, MP3, AAC
-Graphic formats: wbmp, bmp, png, gif, animated gif, jpeg
-Video format: 3gp
Functions integrated : Modem/Data/Fax
Size of memory available for messages:
-100 SMS
-300 kB for MMS (inbox, outbox and drafts together; MMS depending on option)
Size of memory available for the phonenook and the multimedia objects: 3 MB
Maximum size of each message:
-SMS < 160 characters
-MMS < 100 kB for outgoing, 100 kB for incoming messages (depends on the phone configuration and on the operator
reservations)
Using temperature: from - 10°C to + 55°C
252580714_myC5-2_version a_en.book Page 64 Lundi, 13. mars 2006 3:18 15
Limited Warranty 65
Limited Warranty
PLEASE READ THIS SECTION CAREFULLY. It contains Sagem Communication's only warranty with respect to your
phone, conditions of that limited warranty, damages not covered by warranty, actions by you that will void the
warranty, and your remedies in the event of a warranty claim.
In the United States all warranty work on Sagem Communication mobile telephones is performed by Brightstar US,
Inc. Please do NOT contact Sagem Communication directly regarding any warranty claims; doing so will only delay
the processing of your claim. Please refer to the warranty card supplied with your mobile telephone for instructions
on whom to contact and where to send your telephone for warranty repair.
You must always use your phone for the purpose for which it was designed and under normal operating conditions.
OTHER
USE IS OUTSIDE ANY WARRANTY AND MAY VOID THE LIMITED WARRANTY THAT SAGEM COMMUNICATION
PROVIDES.
Sagem Communication disclaims all responsibility for any use outside of the scope of its designed purpose and
for any consequences of this use.
The software program developed by Sagem Communication remains the exclusive property of Sagem Communication.
YOU
ARE STRICTLY PROHIBITED FROM MODIFYING, TRANSLATING, DE-COMPILING OR DISASSEMBLING THIS
SOFTWARE PROGRAM OR ANY PART THEREOF.
Usage precautions
Your phone allows you to download ring tones, icons and animated screensavers. Some of these items may contain data that
may cause malfunctions of your phone or data losses (a computer virus, for example).
For this reason, Sagem Communication disclaims all responsibility concerning (1) the reception of downloaded data or losses
of such data, (2) such data's impact on the operation of the phone, and (3) damages resulting from receiving any downloaded
data or loss of such data. In addition, any failure caused by receiving downloaded data that do not comply with the
specifications set by Sagem Communication is excluded from the warranty. The diagnosis and repair of a phone infected by
downloaded data will be at the expense of the customer.
You alone are responsible for the content that you download to your mobile phone and how you use it.
Any content
that you download to your phone may be protected by copyright belonging to third parties and consequently you may not have
the right to use this content or its use may be restricted.
It is up to you to ensure that you have permission, such as under
the terms of a license agreement, to use any content that you download.
Furthermore, Sagem Communication does not
guarantee the accuracy or the quality of any content that you download. Sagem Communication is not responsible for this
content or for its use.
It is your responsibility to ensure compliance, at your own expense, with the laws and regulations applicable in any country
where you use your phone. These may include restrictions on use while operating a motor vehicle.
252580714_myC5-2_version a_en.book Page 65 Lundi, 13. mars 2006 3:18 15
66 Limited Warranty
Warranty conditions
Whenever you wish to make a claim under the limited warranty, please contact your vendor (the entity from which you
purchased the phone) and present it with the purchasing paperwork that he gave you. Your vendor will advise you if any
malfunction is covered by the warranty and will assist you in repairing the phone.
1. Limited Warranty
Sagem Communication makes the following limited warranty:
The new phone (excluding consumables), including new accessories bundled with the phone, is warranted by Sagem
Communication, against defects in manufacture for a period of twelve (12) months from the sale of the phone to the customer,
on presentation of the paperwork stating the purchase date of the phone.
Phones that have been repaired or replaced as standard during the warranty period are similarly warranted until the later of
these two dates:
-Expiry of the original warranty period of twelve (12) months stated above or
-Three (3) months from repair or replacement under warranty.
Your legal rights under the terms of applicable national law as well as your rights in relation to your retailer, as set out in the
sales contract, remain applicable and are not in any way affected by this limited warranty.
This limited warranty is subject to the conditions and exclusions listed below
.
2. Remedies
All faulty phones under warranty will be replaced or repaired free of charge (at Sagem Communication's option), once it has
been determined that the malfunction is covered by Sagem Communication's limited warranty. Sagem Communication will
pay shipping costs to the repair center. You are responsible for return shipping costs. Your vendor will ship the phone to the
repair center or provide the address for your sending it directly.
Repair or replacement as provided above is your sole remedy, and Sagem Communication's sole liability, for breach of
Sagem Communication's limited warranty.
3. Conditions
The acceptance of a phone under warranty is subject to the following:
-You must furnish purchase document that is legible and without modification, stating vendor's name and address, date and
place of purchase, type of phone and IMEI.
-The information on the phone identification label is legible and that this label or any other seal has not been tampered with.
-The warranty applies in normal conditions of use. Damage caused by you, by third parties, or by force of nature (such as
water damage), and ordinary wear and tear are not covered by warranty, as provided in article 4 below.
252580714_myC5-2_version a_en.book Page 66 Lundi, 13. mars 2006 3:18 15
Limited Warranty 67
-Prior to sending the phone for repair, it is your responsibility to back up at your expense any customized data stored in the
phone (such as phonebook, settings, wallpapers, and previously downloaded data). A list of backup facilities can be
provided by Sagem Communication or your vendor on request.
SAGEM COMMUNICATION IS NOT RESPONSIBLE
FOR DAMAGE TO CUSTOMER FILES, PROGRAMS OR DATA.
The information or operating elements and the contents
of files will not be re-installed in any case in the event of loss.
-Sagem Communication may decide, at its option, to repair the phone with new or reconditioned parts, replace the phone
with a new phone or a phone in good working condition. During its warranty work Sagem Communication may make, where
necessary, any technical modifications to the phone where these modifications do not adversely affect its functionality.
-Faulty parts to be replaced during a repair under warranty become the property of Sagem Communication.
-The phone repair and standstill time during the warranty period may not extend the warranty period as stated in article 1
above.
-The application of the warranty is subject to the full payment of the sums due for the phone when the request for support
is made.
4. Exclusions
The following are excluded from Sagem Communication's limited warranty
:
-Breakdowns or malfunctions due to non-compliance with the installation and use instructions, to an external cause of the
phone (such as shock, lightning, fire, vandalism, malice, water damage of any type, contact with various liquids or any
harmful agent, unsuitable electric current), to modifications of the phone made without the written consent of Sagem
Communication, to a servicing fault, as described in the documentation supplied with the phone, to lack of supervision or
care, to poor environmental conditions of the phone (especially temperature and hygrometry, effects of variations in electric
voltage, interference from the mains network or earth) or due to a repair, a call-out (opening or trying to open the phone)
or to servicing done by personnel not approved by Sagem Communication.
-Damage resulting from inadequate packaging and/or poor packing of the phone sent back to Sagem Communication.
-Normal wear and tear of the phone and accessories.
-Communication problems linked with a poor environment, including problems accessing and/or logging onto the Internet,
breakdowns of any access network, the failure of the subscriber's or his correspondent's line, transmission fault (poor
geographic coverage by radio transmitters, interference, disturbance, failure or poor quality of phone lines, a fault inherent
to the local network (such as cabling, file server, user phone) and/or transmission network fault (such as interference,
disturbance, failure or poor quality of the network.
-Change of parameters of the cellular network made after the phone was sold.
-Supply of new software versions.
-Current servicing work: delivery of consumables, installation or replacement of these consumables...
-Call-outs for phone or software modified or added without the written consent of Sagem Communication.
-Faults or disruptions resulting from the use of products or accessories not compatible with the phone.
252580714_myC5-2_version a_en.book Page 67 Lundi, 13. mars 2006 3:18 15
68 Limited Warranty
-Phones returned to Sagem Communication without having complied with the return procedure specific to the phone cove-
red by this warranty.
-The opening or closing of a SIM operator key and call-outs resulting in the non-operation of the phone resulting from the
opening or closing of SIM operator key done without the agreement of the original operator.
If damage or a malfunction is due in part to any of these excluded matters, Sagem Communication's obligation to repair or
replace the phone extends only to the malfunctions covered by the warranty. Repair or replacement of any other damage or
malfunction is subject to a charge, as provided in article 5 below.
5. Out-of-Warranty Repair or Replacement
In the cases of warranty exclusion and of expiry of the warranty period, Sagem Communication shall draw up an estimate to
be given to the customer for acceptance before any repair or replacement. The repair and carriage costs (to and from the
repair center) given in the accepted estimate will be charged to the customer.
6. Exclusion of Other Warranties and Remedies
THE LIMITED WARRANTY AND REMEDIES SET FORTH IN THIS SECTION ARE THE EXCLUSIVE WARRANTIES AND
REMEDIES PROVIDED BY SAGEM COMMUNICATION AND ARE IN LIEU OF ALL OTHER WARRANTIES, TERMS, OR
CONDITIONS, EXPRESS OR IMPLIED, EITHER IN FACT OR BY OPERATION OF LAW. SAGEM COMMUNICATION
MAKES NO OTHER WARRANTY, EXPRESS OR IMPLIED, AND EXPRESSLY DISCLAIMS ALL IMPLIED WARRANTIES,
INCLUDING ALL WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. THE
REMEDIES IN THIS SECTION ARE YOUR EXCLUSIVE REMEDIES FOR BREACH OF WARRANTY.
No person or entity, including your vendor, is authorized to provide any other warranty of Sagem Communication
with respect to your phone. If your vendor has supplied a different warranty (covering a longer warranty period, for
example), your remedies are solely against the vendor.
Some states do not permit certain limitations of warranty or remedies, and provide consumers additional rights. For
applicable limited warranties and special provisions pertaining to your particular jurisdiction, consult your vendor.
252580714_myC5-2_version a_en.book Page 68 Lundi, 13. mars 2006 3:18 15
End User Licence Agreement (EULA), for the software 69
End User Licence Agreement (EULA), for the
software
CONTEXT AND ACCEPTATION OF THE AGREEMENT
You have acquired a Mobile Phone device ("DEVICE"), manufactured by Sagem Communication (SAGEM), that includes
software either developed by SAGEM itself or licensed third party Software suppliers ("SOFTWARE COMPANIES") to
SAGEM with the rights to sub-license it to the purchaser of the device. Those installed software products whatever their
company of origin, and wherever the name of the company of origin is indicated of not in the DEVICE documentation, as well
as associated media, printed materials, and "online" or electronic documentation ("SOFTWARE") are protected by United
States and international intellectual property laws and treaties. The SOFTWARE is licensed, not sold. The owner of the
Software expressly reserves all rights.
IF YOU DO NOT AGREE TO THIS END USER LICENSE AGREEMENT ("EULA"), DO NOT USE THE DEVICE OR COPY
THE SOFTWARE. INSTEAD, PROMPTLY CONTACT SAGEM FOR INSTRUCTIONS ON RETURN OF THE UNUSED
DEVICE(S) FOR A REFUND. ANY USE OF THE SOFTWARE, INCLUDING BUT NOT LIMITED TO USE ON THE DEVICE,
WILL CONSTITUTE YOUR AGREEMENT TO THIS EULA (OR RATIFICATION OF ANY PREVIOUS CONSENT).
SOFTWARE includes software already installed on the DEVICE ("DEVICE Software") and Software contained on the
CDROM disk ("Companion CD"), if any is supplied with the product.
GRANT OF SOFTWARE LICENCE
This EULA grants you the following licence:
DEVICE Software.
You may use the DEVICE Software as installed on the DEVICE. All or certain portions of the DEVICE
Software may be inoperable if you do not have and maintain a service account with an appropriate Mobile Operator, or if the
Mobile Operator's network facilities are not operating or configured to operate with the DEVICE software.
COMPANION CD.
If any is supplied, additional software for your personal computer is included with your DEVICE. You may
install and use the software component(s) contained in the Companion CD only in accordance with the terms of the printed
or online end user license agreement(s) provided with such component(s). In the absence of an end user license agreement
for particular component(s) of the Companion CD, you may install and use only one (1) copy of such component(s) on the
DEVICE or a single computer with which you use the DEVICE.
Security Updates.
The SOFTWARE may include digital rights management technology. If SOFTWARE does contain digital
rights management technology, content providers are using the digital rights management technology ("DRM") contained in
the SOFTWARE to protect the integrity of their content ("Secure Content") so that their intellectual property, including
copyright, in such content is not misappropriated. Owners of such Secure Content ("Secure Content Owners") may, from time
to time, request manufacturers or SOFTWARE SUPPLIERS to provide security related updates to the DRM components of
252580714_myC5-2_version a_en.book Page 69 Lundi, 13. mars 2006 3:18 15
70 End User Licence Agreement (EULA), for the software
the SOFTWARE ("Security Updates") that may affect your ability to copy, display and/or play Secure Content through the
SOFTWARE or third party applications that utilise the DRM.
You therefore agree that, if you elect to download a licence from the Internet that enables your use of Secure Content,
Suppliers may, in conjunction with such licence, also download onto your DEVICE such Security Updates that a Secure
Content Owner has requested that SOFTWARE SUPPLIERS distribute. SAGEM and SOFTWARE SUPPLIERS will NOT
retrieve any personally identifiable information, or any other information, from your DEVICE by downloading such Security
Updates.
DESCRIPTION OF OTHER RIGHTS AND LIMITATIONS COPYRIGHT.
All title and intellectual property rights in and to the SOFTWARE (including but not limited to any images, photographs,
animations, video, audio, music, text and "applets," incorporated into the SOFTWARE), the accompanying printed materials,
and any copies of the SOFTWARE, are owned by SAGEM or the SOFTWARE SUPPLIERS. You may NOT copy the printed
materials accompanying the SOFTWARE. All title and intellectual property rights in and to the content which may be accessed
through use of the SOFTWARE is the property of the respective content owner and may be protected by applicable copyright
or other intellectual property laws and treaties. THIS EULA GRANTS YOU NO RIGHTS TO USE SUCH CONTENT. All rights
not specifically granted under this EULA are reserved by SAGEM and the SOFTWARE SUPPLIERS.
Limitations on Reverse Engineering, Decompilation and Disassembly. You may not reverse engineer, decompile, or
disassemble the SOFTWARE.
Single DEVICE.
The DEVICE Software is licensed with the DEVICE as a single integrated product. The DEVICE Software
installed in the memory of the DEVICE may only be used as part of the DEVICE.
Single EULA.
The package for the DEVICE may contain multiple versions of this EULA, such as multiple translations and/or
multiple media versions (e.g., in the user documentation and in the software). Even if you receive multiple versions of the
EULA, you are licensed to use only one (1) copy of the DEVICE Software.
Software Transfer.
You may NOT transfer any of your rights under this EULA with regard to the DEVICE Software or
Companion CD, except as permitted by the applicable Mobile Operator. In the event that the Mobile Operator permits such
transfer, you may transfer all of your rights under this EULA only as part of a sale or transfer of the DEVICE, provided you
retain no copies, you transfer all of the SOFTWARE (including all component parts, the media and printed materials, any
upgrades , this EULA and, if applicable, the Certificate(s) of Authenticity), and the recipient agrees to the terms of this EULA.
If the SOFTWARE is an upgrade, any transfer must include all prior versions of the SOFTWARE.
Software Rental.
You may not rent or lease the SOFTWARE.
Speech/Handwriting Recognition.
If the SOFTWARE includes speech and/or handwriting recognition component(s), you
should understand that speech and handwriting recognition are inherently statistical processes; that recognition errors are
inherent in the processes; and that errors can occur in the component's recognition of your handwriting or speech, and the
final conversion into text. Neither SAGEM nor its suppliers shall be liable for any damages arising out of errors in the speech
and handwriting recognition processes.
252580714_myC5-2_version a_en.book Page 70 Lundi, 13. mars 2006 3:18 15
End User Licence Agreement (EULA), for the software 71
NOTICE REGARDING THE MPEG-4 VISUAL STANDARD.
The SOFTWARE may include MPEG-4 visual decoding
technology. MPEG LA, L.L.C. requires the following notice:
USE OF THIS SOFTWARE IN ANY MANNER THAT COMPLIES WITH THE MPEG-4 VISUAL STANDARD IS PROHIBITED,
EXCEPT FOR USE DIRECTLY RELATED TO (A) DATA OR INFORMATION (i) GENERATED BY AND OBTAINED
WITHOUT CHARGE FROM A CONSUMER NOT THEREBY ENGAGED IN A BUSINESS ENTERPRISE, AND (ii) FOR
PERSONAL USE ONLY; AND (B) OTHER USES SPECIFICALLY AND SEPARATELY LICENSED BY MPEG LA, L.L.C.
If you have questions regarding this Notice, please contact MPEG LA, L.L.C., 250 Steele Street, Suite 300, Denver,
Colorado 80206; Telephone 303 331.1880; FAX 303 331.1879.
Termination. Without prejudice to any other rights, SAGEM may terminate this EULA if you fail to comply with the terms and
conditions of this EULA. In such event, you must destroy all copies of the SOFTWARE and all of its component parts.
Consent to Use of Data.
You agree that SOFTWARE SUPPLIERS may collect and use technical information gathered in
any manner as part of product support services related to the SOFTWARE. SOFTWARE SUPPLIERS may use this
information solely to improve their products or to provide customised services or technologies to you. SOFTWARE
SUPPLIERS may disclose this information to others, but only in a form that does not personally identifies you.
Internet Gaming/Update Features.
If the SOFTWARE provides, and you choose to utilize, the Internet gaming or update
features within the SOFTWARE, it is necessary to use certain computer system, hardware, and software information to
implement the features. By using these features, you explicitly authorise SOFTWARE SUPPLIERS to use this information
solely to improve their products or to provide customized services or technologies to you. SOFTWARE SUPPLIERS may
disclose this information to others, but only in a form that does not personally identifies you.
Internet-Based Services Components.
The SOFTWARE may contain components that enable and facilitate the use of
certain Internet-based services. You acknowledge and agree that SOFTWARE SUPPLIERS may automatically check the
version of the SOFTWARE and/or its components that you are utilising and may provide upgrades or supplements to the
SOFTWARE that may be automatically downloaded to your Device.
Links to Third Party Sites.
The SOFTWARE may provide you with the ability to link to third party sites through the use of
the SOFTWARE. The third party sites are not under the control of SAGEM. Neither SAGEM nor its affiliates are responsible
for (i) the contents of any third party sites, any links contained in third party sites, or any changes or updates to third party
sites, or (ii) webcasting or any other form of transmission received from any third party sites. If the SOFTWARE provides links
to third party sites, those links are provided to you only as a convenience, and the inclusion of any link does not imply an
endorsement of the third party site by SAGEM or its affiliates.
Additional Software/Services.
The SOFTWARE may permit SAGEM to provide or make available to you SOFTWARE
updates, supplements, add-on components, or Internet-based services components of the SOFTWARE after the date you
obtain your initial copy of the SOFTWARE ("Supplemental Components").
If SAGEM provides or makes available to you Supplemental Components and no other EULA terms are provided along with
the Supplemental Components, then the terms of this EULA shall apply.
252580714_myC5-2_version a_en.book Page 71 Lundi, 13. mars 2006 3:18 15
72 End User Licence Agreement (EULA), for the software
SAGEM reserves the right to discontinue any Internet-based services provided to you or made available to you through the
use of the SOFTWARE.
EXPORT RESTRICTIONS.
You acknowledge that SOFTWARE is subject to U.S. export jurisdiction. You agree to comply
with all applicable international and national laws that apply to the SOFTWARE, including the U.S. Export Administration
Regulations, as well as end-user, end-use and destination restrictions issued by U.S. and other governments.
UPGRADES AND RECOVERY MEDIA
-DEVICE Software. If the DEVICE Software is provided by SAGEM separate from the DEVICE on media such as a ROM
chip, CD ROM disk(s) or via web download or other means, and is labeled "For Upgrade Purposes Only", you may install
one copy of such DEVICE Software onto the DEVICE as a replacement copy for the existing DEVICE Software and use it
in accordance with this EULA, including any additional EULA terms accompanying the upgrade DEVICE Software.
-COMPANION CD. If any Companion CD component(s) is provided by SAGEM separate from the DEVICE on CD ROM
disk(s) or via web download or other means, and labelled "For Upgrade Purposes Only" , you may (i) install and use one
copy of such component(s) on the computer(s) you use to exchange data with the DEVICE as a replacement copy for the
existing Companion CD component(s).
RESPONSIBILITIES
SUPPORT AND INFORMATION Should you have any questions concerning this EULA, or if you desire to contact SAGEM
for any other reason, please refer to the address provided in the documentation for the DEVICE.
SAGEM SHALL HAVE NO LIABILITY FOR ANY INDIRECT, SPECIAL, CONSEQUENTIAL OR INCIDENTAL DAMAGES
ARISING FROM OR IN CONNECTION WITH THE USE OR PERFORMANCE OF THE SOFTWARE. THIS LIMITATION
SHALL APPLY EVEN IF ANY REMEDY FAILS OF ITS ESSENTIAL PURPOSE.
FOR APPLICABLE LIMITED WARRANTIES AND SPECIAL PROVISIONS PERTAINING TO YOUR PARTICULAR
JURISDICTION, PLEASE REFER TO YOUR WARRANTY BOOKLET INCLUDED WITH THIS PACKAGE OR PROVIDED
WITH THE SOFTWARE PRINTED MATERIALS.
252580714_myC5-2_version a_en.book Page 72 Lundi, 13. mars 2006 3:18 15
Java™ 73
Java™
You are the owner of a SAGEM mobile phone that gives you the ability to download applications and games to be
executed on your phone thanks to the built-in Java™ engine.
However, receiving applications from everywhere implies some basic knowledge of the possible effects of such
download.
Thank you for spending a few minutes reading these pages: this will prevent you from doing something that may
cause you unexpected consequences.
Security considerations
Java™ MIDP technology is an efficient way to provide powerful applications in mobile phones. It allows use, by "over the air"
downloaded applications or games, of the great features built-in in a mobile phone (SMS sending and receiving, multimedia
playback and recording, network access…).
All these MIDP 2.0 features cannot be simply exposed to any MIDlet installed in the handset: a careful access control system
is implemented in the device to protect your private data and airtime consumption.
Access controls are gathered in 9 security groups:
-Network access (GPRS/GSM data airtime consumption, HTTP/web connections…)
-Auto invocation (MIDlet can wake up at a given time or when receiving a SMS)
-Phone call (ability to initiate a phone call)
-Local connectivity (IrDA or serial interfaces use by the MIDlet)
WARNING:
When running a Java™ application, you may be prompted to grant access to protected features. These
features are protected because using them could incur you cost, or involve your personal data. Read the security popup
message carefully, to understand what feature is requested, and decide whether it is legitimate for the application to
perform it. In case of doubt, don't hesitate to refuse access by selecting the "No" button! The security configuration menu
is an expert feature! You must know exactly what you are doing before attempting to change security parameters of a
MIDlet. Misunderstanding changes may render MIDlet non functional and/or lead to higher risks for your private data or
impact your airtime consumption. Any changes in the security configuration are done under your responsibility. In no
case shall Sagem Communication and/or your network provider be liable for any damages deriving from or arising out
of such changes in the security configuration.
You must be aware that applications downloaded to your phone could cause the phone to perform actions for which you
will be billed, like making calls and sending SMS. Depending on your operator's billing policy, you may also be charged
to download the application because of airtime consumption.
252580714_myC5-2_version a_en.book Page 73 Lundi, 13. mars 2006 3:18 15
74 Java™
-Messaging receive (SMS,SMS-CB interception by a MIDlet)
-Messaging sending (SMS sending by a MIDlet)
-Read User data (Subscriber identity, Phonebook, Agenda read access from a MIDlet)
-Write User data (New phonebook or agenda entry)
-Multimedia recording (ability to control camera or microphone from a MIDlet)
According to the security status of an installed MIDlet (see below), each of these security groups has one among 5 possible
authorizations levels (listed from the more restrictive to the more permissive):
-Never
The security group completely prevents access to the protected features.
-Per use
Each time MIDlet tries to use protected feature, user is prompted to grant access.
-Per session
First time a MIDlet uses a protected function, user is prompted to grant access like in "Per use" authorization but access
is granted until the MIDlet terminates.
-Single confirmation
The first time in the whole MIDlet life a MIDlet uses a protected feature, user is prompted to grant access. It remains valid
until the MIDlet is removed from the handset.
-Always
The security group unconditionally grants access to protected features.
A MIDlet has a security status which is either "uncertified", or else "certified".
An "uncertified" status means that the source of the MIDlet could not be verified by the mobile phone at installation time. As
far as the phone knows, the MIDlet could have been written by anyone.
A "certified" status means that the MIDlet was digitally signed by a known party, whose name is displayed by the mobile
phone. This means that the mobile phone successfully authenticated the named party as the source of the MIDlet.
Security permissions are different for "uncertified" or "certified" MIDlets, and may be different for different sorts of named
parties. Usually "uncertified" security permisions are more restrictive than "certified" ones.
Security configuration menu
When a MIDlet is installed in the mobile phone, default security authorizations are applied.
This default security configuration may be altered through the "Settings/Security" menu of an installed MIDlet.
Once in the "Security" menu, the security status of the MIDlet is displayed (see "Security considerations" paragraph above).
If you do not want to enter the security menu, simply select "Back" button.
You can proceed by selecting
OK
button.
The menu displayed allows you to increase or decrease permissions currently applied to the current MIDlet for each of the
security groups.
252580714_myC5-2_version a_en.book Page 74 Lundi, 13. mars 2006 3:18 15
Java™ 75
When you set a more permissive authorization to a security group than the current value, mobile phone asks you to
confirm your increased risk exposure.
The maximum risk exposure increase is limited by the security status. Depending of the manufacturing configuration, it
means, for example, that "Net Access" security group authorization cannot be set to a permissive value higher that "Session"
for an "uncertified" MIDlet ("Single confirmation" and "Always" are unavailable in the security configuration menu) but an
operator "certified" MIDlet may have all permission values available without any limitations.
What is Java™?
Java™ is a new technology enabling use of powerful applications in the mobile phone area. Business
applications and games are easily downloadable by the end-user on a Java™ featured handset.
Your mobile phone is a MIDP 2.0 compliant Java™ platform which implements WMA (SMS support)
and MMAPI (Multimedia support) options, providing an exciting environment to run highly graphical,
networked and intuitive MIDP applications.
Such applications may be, for example, a wide range of games and appealing applications like action
and logic games, agenda, e-Mail reader, Web browser…
What is a MIDlet?
A Java™ application or a game designed to run in a mobile phone is named a MIDlet (MIDP applet).
A MIDlet is usually made of 2 files:
-The JAD file
-The JAR file
JAD file stands for
J
ava™
A
pplication
D
escriptor. It is a small file describing the content of a JAR file
(version, vendor name, size…) and displayed by the mobile phone.
JAD file size is usually less than
2 kilo-bytes large.
JAR file stands for Java™ Archive. It refers to the application data themselves (program, images, sound).
A JAR file may be
up to 200 kilo-bytes large.
Note:
In rare circumstances, MIDlet vendors may provide no JAD file and the MIDlet is the JAR file alone. In such a case it
is your only responsibility to evaluate the risk to download the JAR file without possibility of consulting the JAD file.
Downloading a MIDlet (Java™ game or application)
MIDlets are easily downloaded in the mobile phone through the Games or Applications menus or through the WAP browser.
In almost all cases, you will first receive a JAD file which will be displayed on the screen.
Much care must be given in examining the content of the file as explained further.
When you select a JAD file, your mobile phone downloads it, displays data contained and prompts you to acknowledge the
JAR file download.
252580714_myC5-2_version a_en.book Page 75 Lundi, 13. mars 2006 3:18 15
76 Java™
The popup displays information below:
-Name of the MIDlet
-Version
-Size (JAR file size)
-Vendor name
-Security status (
IMPORTANT:
see "Security considerations" paragraph below)
-JAR file URL.
If you do not want to download the main data (JAR file), you shall refuse to acknowledge further airtime consumption by
selecting "Cancel" (JAR file is not downloaded).
If you agree on the MIDlet installation, just select
OK
. The MIDlet is installed with security levels set to default values
associated with its security status.
Before downloading an application, such a message may appear: "Your handset cannot identify the application, please be
sure of the source of the application before installing the application".
You shall read carefully the next two paragraphs to fully understand Java™ MIDP security concerns.
Trademarks
Java™ and all other Java-based marks are trademarks or registered trademarks of Sun Microsystems, Inc. in the U.S. and
other countries.
Disclaimer
As explained above, some downloaded items may contain data or may induce actions which may cause malfunctioning of
your mobile phone or loss or corruption of data or abnormal increase of your airtime consumption.
YOU EXPRESSLY ACKNOWLEDGE THAT THE DOWNLOAD OF ANY APPLICATIONS INCLUDING JAVA
APPLICATIONS OR GAMES IS DONE UNDER YOUR EXCLUSIVE RESPONSIBILITY. IN NO EVENT SHALL SAGEM
COMMUNICATION, YOUR NETWORK SERVICE PROVIDER OR THEIR AFFILIATES BE LIABLE FOR ANY LOST
PROFITS OR COSTS OF PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES, LOSS OF PROFITS,
INTERRUPTION OF BUSINESS, LOSS OF DATA OR FOR ANY SPECIAL, INDIRECT, INCIDENTAL, ECONOMIC, OR
CONSEQUENTIAL DAMAGES ARISING UNDER CONTRACT, TORT, NEGLIGENCE, OR OTHER THEORY OF
LIABILITY RELATING TO THE DOWNLOAD OF ANY APPLICATION BY ANY MEANS, INCLUDING JAVA
APPLICATIONS OR GAMES IN SAGEM COMMUNICATION DEVICES. YOU EXPRESSLY ACKNOWLEDGE THAT ANY
APPLICATIONS INCLUDING JAVA APPLICATIONS OR GAMES ARE PROVIDED STRICTLY "AS IS". SAGEM
COMMUNICATION AND/OR YOUR NETWORK SERVICE PROVIDER EXTEND NO WARRANTY WHATSOEVER
THERETO. SAGEM COMMUNICATION AND/OR YOUR NETWORK SERVICE PROVIDER DISCLAIM ANY EXPRESS,
IMPLIED OR STATUTORY WARRANTY OF MERCHANTABILITY, FITNESS OF ANY APPLICATIONS INCLUDING JAVA
APPLICATIONS OR GAMES FOR A SPECIFIC PURPOSE, SATISFACTORY QUALITY, SECURITY OR OTHERWISE.
252580714_myC5-2_version a_en.book Page 76 Lundi, 13. mars 2006 3:18 15
Troubleshooting 77
Troubleshooting
P
ROBLEM
- S
ITUATION
A
CTIONS
It is impossible to switch
the phone on
Remove and replace the battery.
If you still cannot switch the phone on, charge the battery:
-Put it on charge for at least 15 minutes before switching it back on again.
-Check if the battery icon is scrolling up and down.
-If so, the phone is charging.
-If not, please take the charger out and put it back on again. Please check that
the charging icon is scrolling up and down.
-If you still cannot switch the phone on, please disconnect the charger, put it
back on again and please repeat that manipulation several times.
-If the charging icon is still not scrolling up and down, please contact your
after-sales services.
-When the charging icon has stopped scrolling up and down, the battery is
charged.
Battery status unknown
The phone does not recognize the battery. Please check the position of the
battery.
LOW BATTERY
This message is displayed when the battery becomes too weak. The phone
switches itself off automatically. Put the phone on charge.
SIM not present
Check if the SIM card is present and properly positioned / inserted.
Check the condition of the SIM card. If damaged, please go back to the
operator's shop for advice. Contact your after-sales service if the message
persists.
Incorrect PIN code
An incorrect PIN code has been entered. Be careful! Three incorrect PIN codes
will block the SIM Card.
252580714_myC5-2_version a_en.book Page 77 Lundi, 13. mars 2006 3:18 15
78 Troubleshooting
SIM BLOCKED
If a wrong PIN number is entered three times in succession, your SIM card is
blocked. You must then:
-Enter the PUK (Personal Unblocking Key) code provided by your operator,
and validate.
-Enter your PIN number and validate.
-Enter your PIN number again and validate.
After 5 or 10 failed attempts (depending on the type of SIM card), the SIM card
is definitely locked. You must then contact your operator or your SMC to obtain
a new card.
SIM locked-out
On network providers’ request, the handset can only be used with some types of
SIM cards. This message means that the SIM card you are using does not fit
with the phone. Take the SIM card out, and switch it back on. If the message
SIM not present
appears on the screen, you will need to check its compatibility
next to the place where you bought it. If not, please contact your after-sales
service.
No call connection
Check that the number you have dialled is correct.
If the letter R is displayed on the top right corner of the screen, without any
network name displayed, only emergency services can be called.
Check the status of your credit.
Check that the SIM Card you are using offers the service you are requesting ;
check if its validity has not expired.
Check and deactivate the outgoing calls restriction when necessary.
The network could be saturated. Try later.
If the problem persists, please contact your Technical Helpdesk.
No receiving calls
Try to make a call in order to check that the phone and the networks are
operational.
Check and deactivate the permanent call forwarding (permanent call forwarding
icon displayed on the screen).
Check and deactivate the incoming calls restriction when necessary.
If the problem persists, please contact your Technical Helpdesk.
P
ROBLEM
- S
ITUATION
A
CTIONS
252580714_myC5-2_version a_en.book Page 78 Lundi, 13. mars 2006 3:18 15
Troubleshooting 79
Quality reception when calling
Avoid placing your fingers on the top of the phone, where the aerial is
integrated: the phone will have to use full strength to establish a quality
transmission.
Impossible to send message
Check that the message centre number is correctly entered.
To do so, please select the menu
Messages
, select
Options
, select
MSG
centre n°
and check the number entered. Please contact your network provider
to get this number.
No answer phonebox
Check that the SIM card does offer this service.
Program the call to be forwarded to answer phone using the information
provided by the operator.
Check that the SIM card used offers this service. Try to make a call to check that
phone and network are operational.
Check if the answer phone number is properly configured. To do so, go to the
Calls
menu, select
Voicemail
and check the number. Otherwise, enter your
operator’s answer phone centre number.
If answer phone icon flashing
Call the answer phone and listen to the new messages to make it disappear.
In WAP context:
SERVER NOT ANSWERING message
Switch off and then switch phone back on.
Logon to home page impossible
In the
WAP
menu,
Clear the cache
.
Operator name does not appear on
screen
Go into the
Settings
menu, select
Networks
, then [
Select
]. Wait until the
operator appears, select it and validate.
If the Operator logo is present (depending on model), activate the display
(
Settings
/
Display
/
Operator logo
).
How do I switch to silent mode?
Hold the key down unless ring tone sounds, when a short touch is enough.
How do I activate zoom?
Can be activated only in SMS, MMS and WAP screens; hold down the key.
How do I delete the envelop that
appears on the screen?
If you have received a voice mail, please call your voice mailbox and follow the
instructions given.
How do I delete the answer phone that
appears on the screen?
This answer phone means that you have received a voice mail: please call your
voice mailbox and listen to it. Please follow the instructions given.
P
ROBLEM
- S
ITUATION
A
CTIONS
252580714_myC5-2_version a_en.book Page 79 Lundi, 13. mars 2006 3:18 15
80 Troubleshooting
How do I remove the written message
at the bottom of the home page (1 call)
Press the
key to go back to the initial page without messages.
How do I download ring tones?
Logon to one of the following site via your computer: www.planetsagem.com.
These site offer to send ring tones to your phone in the form of an SMS. You can
also logon to your operator's site. Once the SMS has been received, all you
have to do is save it: validate the option « Save messages », the tune will then
be added to your list. In addition, you can logon to some sites by phone.
How do I free up memory to download
my objects (sounds, images)
Go into the
Multimedia
menu, select
My Pictures
or
My Sounds
then delete
some objects.
How do I free up memory to receive
new messages?
Manage your Outbox carefully. It is recommended not saving them
automatically: too many messages saved will quickly fill up the available
memory and no further messages will be received. To delete them, please go
into the
Messages
menu, select
Outbox
then delete some messages. Manage
your
Inbox
carefully also.
How do I free up memory to store new
contacts in my Phonebook?
It is highly recommended to manage your Phonebook carefully.
If you have received pictures enclosed to a Vcard, please save or delete them.
How can I increase the efficiency of
my phone?
The most efficient actions are as follows:
Please keep your phone safely in order to avoid pressing the keys
unnecessarily: every time a key is pressed the screen lights up.
You can deactivate the screensaver or select the activation time to be more than
every 300 s (the screensaver uses processing power).
Make sure that you don’t obstruct the antenna with your fingers when using the
phone (see page 24).
P
ROBLEM
- S
ITUATION
A
CTIONS
252580714_myC5-2_version a_en.book Page 80 Lundi, 13. mars 2006 3:18 15
FDA consumer information on wireless phones 81
FDA consumer information on wireless phones
FDA consumer information on wireless phones
The US Food and Drug Administration (FDA) provides consumer information on wireless phones
at:http://www.fda.gov/cellphones/qa.html.
Following are safety related questions and answers discussed at this web site:
Do wireless phones pose a health hazard?
The available scientific evidence does not show that any health problems are associated with using wireless phones. There
is no proof, however, that wireless phones are absolutely safe. Wireless phones emit low levels of radiofrequency energy
(RF) in the microwave range while being used. They also emit very low levels of RF when in the stand-by mode. Whereas
high levels of RF can produce health effects (by heating tissue), exposure to low level RF that does not produce heating
effects causes no known adverse health effects. Many studies of low level RF exposures have not found any biological
effects. Some studies have suggested that some biological effects may occur, but such findings have not been confirmed by
additional research. In some cases, other researchers have had difficulty in reproducing those studies, or in determining the
reasons for inconsistent results.
What is FDA's role concerning the safety of wireless phones?
Under the law, FDA does not review the safety of radiation-emitting consumer products such as wireless phones before they
can be sold, as it does with new drugs or medical devices. However, the agency has authority to take action if wireless phones
are shown to emit radiofrequency energy (RF) at a level that is hazardous to the user. In such a case, FDA could require the
manufacturers of wireless phones to notify users of the health hazard and to repair, replace or recall the phones so that the
hazard no longer exists.
Although the existing scientific data do not justify FDA regulatory actions, FDA has urged the wireless phone industry to take
a number of steps, including the following:
-Support needed research into possible biological effects of RF of the type emitted by wireless phones;
-Design wireless phones in a way that minimizes any RF exposure to the user that is not necessary for device function; and
-Cooperate in providing users of wireless phones with the best possible information on possible effects of wireless phone
use on human health.
FDA belongs to an interagency working group of the federal agencies that have responsibility for different aspects of RF safety
to ensure coordinated efforts at the federal level. The following agencies belong to this working group:
-National Institute for Occupational Safety and Health
-Environmental Protection Agency
252580714_myC5-2_version a_en.book Page 81 Lundi, 13. mars 2006 3:18 15
82 FDA consumer information on wireless phones
-Federal Communications Commission
-Occupational Safety and Health Administration
-National Telecommunications and Information Administration
The National Institutes of Health participates in some interagency working group activities, as well.
FDA shares regulatory responsibilities for wireless phones with the Federal Communications Commission (FCC). All phones
that are sold in the United States must comply with FCC safety guidelines that limit RF exposure. FCC relies on FDA and
other health agencies for safety questions about wireless phones.
FCC also regulates the base stations that the wireless phone networks rely upon. While these base stations operate at higher
power than do the wireless phones themselves, the RF exposures that people get from these base stations are typically
thousands of times lower than those they can get from wireless phones. Base stations are thus not the primary subject of the
safety questions discussed in this document.
What is FDA doing to find out more about the possible health effects of wireless phone RF?
FDA is working with the U.S. National Toxicology Program and with groups of investigators around the world to ensure that
high priority animal studies are conducted to address important questions about the effects of exposure to radiofrequency
energy (RF).
FDA has been a leading participant in the World Health Organization International Electromagnetic Fields (EMF) Project since
its inception in 1996. An influential result of this work has been the development of a detailed agenda of research needs that
has driven the establishment of new research programs around the world. The Project has also helped develop a series of
public information documents on EMF issues.
FDA and the Cellular Telecommunications & Internet Association (CTIA) have a formal Cooperative Research and
Development Agreement (CRADA) to do research on wireless phone safety. FDA provides the scientific oversight, obtaining
input from experts in government, industry, and academic organizations. CTIA-funded research is conducted through
contracts to independent investigators. The initial research will include both laboratory studies and studies of wireless phone
users. The CRADA will also include a broad assessment of additional research needs in the context of the latest research
developments around the world.
What steps can I take to reduce my exposure to radiofrequency energy from my wireless phone?
If there is a risk from these products--and at this point we do not know that there is--it is probably very small. But if you are
concerned about avoiding even potential risks, you can take a few simple steps to minimize your exposure to radiofrequency
energy (RF). Since time is a key factor in how much exposure a person receives, reducing the amount of time spent using a
wireless phone will reduce RF exposure.
If you must conduct extended conversations by wireless phone every day, you could place more distance between your body
and the source of the RF, since the exposure level drops off dramatically with distance. For example, you could use a headset
and carry the wireless phone away from your body or use a wireless phone connected to a remote antenna.
252580714_myC5-2_version a_en.book Page 82 Lundi, 13. mars 2006 3:18 15
FDA consumer information on wireless phones 83
Again, the scientific data
do not
demonstrate that wireless phones are harmful. But if you are concerned about the RF
exposure from these products, you can use measures like those described above to reduce your RF exposure from wireless
phone use.
What about children using wireless phones?
The scientific evidence does not show a danger to users of wireless phones, including children and teenagers. If you want to
take steps to lower exposure to radiofrequency energy (RF), the measures described above would apply to children and
teenagers using wireless phones. Reducing the time of wireless phone use and increasing the distance between the user and
the RF source will reduce RF exposure.
Some groups sponsored by other national governments have advised that children be discouraged from using wireless
phones at all.
Do hands-free kits for wireless phones reduce risks from exposure to RF emissions?
Since there are no known risks from exposure to RF emissions from wireless phones, there is no reason to believe that
handsfree kits reduce risks. Hands-free kits can be used with wireless phones for convenience and comfort. These systems
reduce the absorption of RF energy in the head because the phone, which is the source of the RF emissions, will not be placed
against the head. On the other hand, if the phone is mounted against the waist or other part of the body during use, then that
part of the body will absorb more RF energy. Wireless phones marketed in the U.S. are required to meet safety requirements
regardless of whether they are used against the head or against the body. Either configuration should result in compliance
with the safety limit.
Do wireless phone accessories that claim to shield the head from RF radiation work?
Since there are no known risks from exposure to RF emissions from wireless phones, there is no reason to believe that
accessories that claim to shield the head from those emissions reduce risks. Some products that claim to shield the user from
RF absorption use special phone cases, while others involve nothing more than a metallic accessory attached to the phone.
Studies have shown that these products generally do not work as advertised. Unlike "hand-free" kits, these so-called "shields"
may interfere with proper operation of the phone. The phone may be forced to boost its power to compensate, leading to an
increase in RF absorption.
252580714_myC5-2_version a_en.book Page 83 Lundi, 13. mars 2006 3:18 15
84 Driving safety tips
Driving safety tips
Wireless phones give people the ability to communicate almost anywhere, anytime. But an important responsibility
accompanies those benefits, one that every wireless phone user must uphold. When driving a car, driving is your first
responsibility.
Below are safety tips to follow while driving and using a wireless phone that should be easy to remember.
Get to know your wireless phone and its features such as speed dial and redial.
When available, use a hands free device.
Position your wireless phone within easy reach and where you can grab it without removing your eyes from the road. If you
get an incoming call at an inconvenient time, if possible, let your voice mail answer it for you.
Let the person you are speaking with know you are driving; if necessary, suspend the call in heavy traffic or hazardous
weather conditions.
Do not take notes or look up phone numbers while driving.
Dial sensibly and assess the traffic; if possible, place calls when you are not moving or before pulling into traffic. Try to plan
your calls before you begin your trip. But if you need to dial while driving, follow this simple tip--dial only a few numbers, check
the road and your mirrors, then continue.
Do not engage in stressful or emotional conversations that may be distracting.
Use your wireless phone to call for help. Dial 9-1-1 or other local emergency number in the case of fire, traffic accident, road
hazard or medical emergency.
Use your wireless phone to help others in emergencies. If you see an auto accident, crime in progress or other serious
emergency where lives are in danger, call 9-1-1 or other local emergency number.
Call roadside assistance or a special wireless non-emergency assistance number when necessary. If you see a broken-down
vehicle posing no serious hazard, a broken traffic signal, a minor traffic accident where no one appears injured or a vehicle
you know to be stolen, call roadside assistance or other special non-emergency wireless number.
252580714_myC5-2_version a_en.book Page 84 Lundi, 13. mars 2006 3:18 15
Index 85
Index
A
Accessories 13
Activating your phone 14
Alarm 32
Anonymous mode 57
Audio player 31
Audioplayer 45
B
Backlight 54
Battery
Charging the battery 25
Installing the battery 15
Beeps 53
C
Calculator 30
Calendar 46
Call barring 59
Calls (menu)
Automatic redial 57
Call forward 56
Call waiting 57
Counters 56
Display number 57
View last calls 56
Camera 41, 55
Car kit 63
Charger 25
Confidentiality 59
Contact 16, 42, 49
Call 51
Delete 50
Display contact 50
Mailing list 49
Modify 50
Contacts list 55
Contrast 54
Converter 30, 31
Cost 60
Currencies 31
D
Date / Time 17, 61
Display 53
E
Energy saving 54
F
Fax 63
Fixed dialling 48, 60
G
Games 26
GPRS 28, 29, 60
GSM 28, 29
252580714_myC5-2_version a_en.book Page 85 Lundi, 13. mars 2006 3:18 15
86 Index
H
Help 23, 62
I
Icon 22
Initial screen 22
Input modes 35
IP address 28
L
Languages 55
Leds 61
Local information 39
M
Memory 39, 45
Menus 12
Messages
Compose MMS 36
Compose SMS 34
Drafts 38
Inbox 37
Outbox 37
Receiving messages 37
Sending options 38
MMS 50, 51
N
Navigation principles 23
Networks 60
O
Operator 59
Operator logo 54
P
Phone code 59
Phonebook 55
Memory 50
New contact 49
Phonebook options 49
Using the phonebook 48
Photo 41, 42, 55
Picture 44
PIN number 58
PIN2 number 58
Programmable keys 61
R
Recorder 53
Ring tones 52, 79
S
Screensaver 54
Security 58
Sending options 38
Sentbox 38
Serial Speed 63
Short cut keys 61
Silent mode 52
SIM card 14, 15, 39, 48, 59, 60
Skins 53
SMS 34, 50, 51
Sounds 37, 52
T
T9 35
252580714_myC5-2_version a_en.book Page 86 Lundi, 13. mars 2006 3:18 15
Index 87
Timer 32
ToDo 32
Troubleshooting 77, 79, 80
V
vCal 33, 47
vCard 51
Vibrate 52
Video 41, 43
Voicemail 58
Volume 52
W
Wallpaper 53
WAP 27, 28, 29
Configuring WAP parameters 28
Downloading objects 29
Services menu 27
WAP logging off 29
WAP logging on 29
WAP settings 62
Warranty 65
Y
Your phone package 13
252580714_myC5-2_version a_en.book Page 87 Lundi, 13. mars 2006 3:18 15
252580714_myC5-2_version a_en.book Page 88 Lundi, 13. mars 2006 3:18 15
252580714_myC5-2_version a_en.book Page 89 Lundi, 13. mars 2006 3:18 15
252580714_myC5-2_version a_en.book Page 90 Lundi, 13. mars 2006 3:18 15
252580714_myC5-2_version a_en.book Page 91 Lundi, 13. mars 2006 3:18 15
252580714_myC5-2_version a_en.book Page 92 Lundi, 13. mars 2006 3:18 15
252580714_myC5-2_version a_en.book Page 93 Lundi, 13. mars 2006 3:18 15
252580714_myC5-2_version a_en.book Page 94 Lundi, 13. mars 2006 3:18 15
252580714_myC5-2_version a_en.book Page 95 Lundi, 13. mars 2006 3:18 15
Mobile Communication Business Group
www.sagem.com/mobiles
Le Ponant de Paris - 27, rue Leblanc - 75512 PARIS CEDEX 15 - FRANCE
Société Anonyme
Capital 300 272 000 € - 480 108 158 RCS PARIS
02/2006
252580714_myC5-2_version a_en.book Page 96 Lundi, 13. mars 2006 3:18 15

Navigation menu
