Sagem Wireless MU2006V GSM 900/1800/1900 and WCDMA Mobile Phone with BT User Manual 25xxxxxxx my800V Version US DRAFT en
Sagem Wireless GSM 900/1800/1900 and WCDMA Mobile Phone with BT 25xxxxxxx my800V Version US DRAFT en
User Manual
English
User Guide
25xxxxxxx_my800V_Version US_DRAFT_en.book Page 1 Vendredi, 21. juillet 2006 3:10 15
You have just purchased a SAGEM phone, we congratulate you; it is recommended that you read this manual carefully in
order to use your phone efficiently and in the best conditions.
Your phone can be used internationally in the various networks (3G, GSM 900 MHz and DCS 1800 MHz or PCS 1900 MHz)
depending on the roaming agreements with your network provider.
We remind you that this phone is approved to meet European standards.
SAGEM™ is a trademark of Sagem Communication SAFRAN Group.
AT® is a registered trademark of Hayes Microcomputer Products Inc.
Hayes® is a registered trademark of Hayes Microcomputer Products Inc.
T9 is protected by one or more of the following US patents: 5,818,437, 5,953,541, 5,187,480, 5,945,928, 6,011,554 and other
patents are being applied for worldwide.
Java™ and all Java™ based trademarks and logos are trademarks or registered trademarks of Sun Microsystems, Inc. in the
U.S. and other countries.
The WAP navigator and some message softwares are under licence Openwave. The WAP navigator and the softwares
included are the exclusive property of Openwave. For this reason, it is forbidden to modify, translate, disassemble or even
decompile all or part of these softwares.
Wellphone™ and SmartCom™ are registered trademarks owned by SmartCom SARL France.
The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc.
miniSD™ is a trade mark of SD Card Association.
25xxxxxxx_my800V_Version US_DRAFT_en.book Page 2 Vendredi, 21. juillet 2006 3:10 15
Contents 3
Contents
Description ................................................................................................................................... 6
Installing the SIM card and the battery .................................................................................................. 8
Inserting the memory card (miniSDTM) ................................................................................................. 9
Idle screen .................................................................................................................................. 10
Quick start .................................................................................................................................. 11
Information on the SIM card................................................................................................................. 11
Getting started ..................................................................................................................................... 12
Switching ON/OFF ............................................................................................................................... 12
Network................................................................................................................................................ 13
First call................................................................................................................................................ 13
Receiving a call.................................................................................................................................... 14
Video call ............................................................................................................................................. 14
Using your phone....................................................................................................................... 15
Improving antenna performance .......................................................................................................... 15
Increase the battery life of your phone................................................................................................. 15
Charging the battery ............................................................................................................................ 16
Contacts...................................................................................................................................... 17
Using the phonebook ........................................................................................................................... 17
Storing a new contact .......................................................................................................................... 17
Contact options .................................................................................................................................... 17
Call groups........................................................................................................................................... 19
Vodafone live!............................................................................................................................. 20
Messages .................................................................................................................................... 22
Creating a text message or an e-mail .................................................................................................. 22
Saving the message ............................................................................................................................ 23
Sending the message .......................................................................................................................... 23
Receiving messages............................................................................................................................ 23
Messaging menu.................................................................................................................................. 24
25xxxxxxx_my800V_Version US_DRAFT_en.book Page 3 Vendredi, 21. juillet 2006 3:10 15
4Contents
Photo and video ......................................................................................................................... 26
Taking a photo ..................................................................................................................................... 26
Taking a video ..................................................................................................................................... 27
My Files ....................................................................................................................................... 28
Media Player ............................................................................................................................... 29
Games ......................................................................................................................................... 30
Organiser & Tools ...................................................................................................................... 31
Calendar .............................................................................................................................................. 31
ToDo .................................................................................................................................................... 31
Clock.................................................................................................................................................... 32
Calculator and converter...................................................................................................................... 32
Modem status ...................................................................................................................................... 32
Services ............................................................................................................................................... 32
My applications .................................................................................................................................... 32
Connectivity ......................................................................................................................................... 33
Voice recorder ..................................................................................................................................... 34
Help ..................................................................................................................................................... 34
Settings ....................................................................................................................................... 35
Profiles................................................................................................................................................. 35
Display settings.................................................................................................................................... 35
Languages ........................................................................................................................................... 35
Memory card........................................................................................................................................ 35
Video telephony ................................................................................................................................... 36
Browser settings .................................................................................................................................. 36
Networks settings ................................................................................................................................ 36
Call settings ......................................................................................................................................... 36
Security................................................................................................................................................ 38
Date and Time ..................................................................................................................................... 40
Shortcuts.............................................................................................................................................. 40
Camera ................................................................................................................................................ 40
Memory................................................................................................................................................ 40
Technical features...................................................................................................................... 41
25xxxxxxx_my800V_Version US_DRAFT_en.book Page 4 Vendredi, 21. juillet 2006 3:10 15
Contents 5
Certification and safety information for the United States and countries using FCC
standards .................................................................................................................................... 42
FCC Part 15 statement ........................................................................................................................ 42
FCC SAR information .......................................................................................................................... 43
Safety Information................................................................................................................................ 44
Distance of operation ........................................................................................................................... 45
FDA consumer information on wireless phones .................................................................................. 45
Driving safety tips................................................................................................................................. 48
Warranty...................................................................................................................................... 49
End User Licence Agreement (EULA), for the software ......................................................... 52
Java™.......................................................................................................................................... 56
Troubleshooting ......................................................................................................................... 59
Index............................................................................................................................................ 62
25xxxxxxx_my800V_Version US_DRAFT_en.book Page 5 Vendredi, 21. juillet 2006 3:10 15
6Description
Description
Lens for shooting in
videotelephony or photo and
video
Red key
: Switch on (short press). Switchoff (long press).
In a call context: Reject a call - hang up
In menus: Return to idle screen
Green key
: Activate/Deactivate hands-free mode (long press).
(
WARNING:
in this mode do not bring the phone up to your ear (at least 3.9 inches
(10 cm)).
In call context: Call - receiving a call
In idle screen: displaying the call log.
Right key
In idle screen: Access to certain functions (shortcuts)
In menus: Access to the selection shown on screen in the tab (*)
(*)In this manual, when a function is chosen by pressing on this key,
square brackets are used (e.g.: [
Save
]).
Left key
In idle screen: Access to certain functions (shortcuts)
In menus: Access to the selection shown on screen in the tab (*)
The navigator allows you:
-to navigate in the various functions pressing the relevant part (up, down,
right, left)
-to confirm your selection pressing the central part (
OK
)
Note:
in this manual, "press
OK
" means press this key.
In idle screen, pressing the navigator displays the main menus icons
Pressing the navigator followed by one of the numeric keys numbered from 1 to 9,
you can display a menu directly.
∗
When composing a message
:
Long press: switches from one input mode to another (ABC/T9)
Short press: Upper case/lower case/figures
#
In idle screen: Silent mode (long press). In call reception mode: Stops ring tone
(long press). In ring tone setting mode: Activate / deactivate ring tone (short press).
Stops sound in video or message playing, or in a game (short press)
25xxxxxxx_my800V_Version US_DRAFT_en.book Page 6 Vendredi, 21. juillet 2006 3:10 15
Description 7
Lens for shooting
Volume setting
(when calling)
in photo and video
Short press: access to photo viewfinder
A second short press takes the photo
25xxxxxxx_my800V_Version US_DRAFT_en.book Page 7 Vendredi, 21. juillet 2006 3:10 15
8Description
Installing the SIM card and the battery
WARNING
Depending on the model, network configuration and associated subscription cards, certain functions may not be available.
Ensure that your SIM card is a 3 V SIM type that is compatible with your phone. Inserting an incompatible card will be indicated
by a message when your phone is switched on. Contact your network provider.
Your phone is identified by its IMEI number. Write this number down, and do not keep it with your phone, because you may
be asked for it in the event of your phone being stolen, in order to prevent it from being used, even with a different SIM card.
In order to display the IMEI on your phone's screen, type: *#06#.

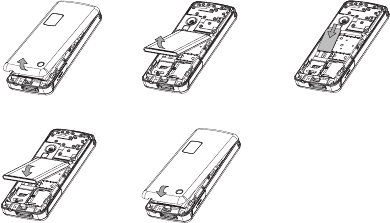

The SIM card is inserted under the phone's battery. Ensure that the phone is switched off and the charger disconnected.
1Turn the phone back. Use the notch as a lever to lift the cover.
2Take out battery if already installed.
3Slide the SIM card, with cut corner as shown on the phone, into the card holder with fold face down.
4Place the battery by positioning first the top of it, as shown on the battery.
5Place the back cover, clicking in first the upper part then the lower part.
2
13
45
25xxxxxxx_my800V_Version US_DRAFT_en.book Page 8 Vendredi, 21. juillet 2006 3:10 15
Description 9
Inserting the memory card (miniSDTM)
-Open the protective cover of the slot located on the side of the phone and insert the memory card pushing it until it clicks
into place.
-To remove the card, first make sure that no application is accessing the card, then slightly push the top edge of the card
to release it and pull it out of the slot.
.
WARNING
The memory card is very fragile. Take care when you insert or remove the memory card.
The memory card may suffer damage if withdrawn during a read or write operation. Ensure that no application accesses
the card during its withdrawal.
Some memory cards must be formatted with a PC before first use with the phone.
25xxxxxxx_my800V_Version US_DRAFT_en.book Page 9 Vendredi, 21. juillet 2006 3:10 15
10 Idle screen
Idle screen
The idle screen may contain the following information:
1 - The title bar icons:
Battery
Silent mode
Only emergency call is possible
Signal strength level (between 0 and 5 bars)
GPRS channel present
Connection to the 3G network
2 - Date and time, in digital or analog mode
3 - Network provider
The following information may also be displayed: « 1 message received » or « 1 call » (incoming call failed).
It can be deleted by pressing briefly.
25xxxxxxx_my800V_Version US_DRAFT_en.book Page 10 Vendredi, 21. juillet 2006 3:10 15
Quick start 11
Quick start
Information on the SIM card
To use your phone, you need a card called SIM or USIM card. It contains
personal information that you can modify:
-Secret codes (PIN(s): Personal Identification Numbers), these codes allow
you to protect access to your SIM card and phone
-Phonebook
-Messages
-How special services work.
Your phone is compatible with the SIM 3V cards.
WARNING
This card must be handled and stored with care in order not to be damaged. If you should lose your SIM card, contact
your network provider immediately.
Please keep your SIM card out of reach of young children.
25xxxxxxx_my800V_Version US_DRAFT_en.book Page 11 Vendredi, 21. juillet 2006 3:10 15
12 Quick start
Getting started
When you switch on your phone for the first time, follow instructions displayed on the screen.
If access to the SIM card is protected, the device prompts you to enter the PIN number:
Enter the code
between 4 and 8 digits given to you when the SIM card was issued. These digits do not appear on the screen
for security reasons.
After pressing [
OK
], the phone activates the SIM card settings and switches on again if necessary (depending on the SIM
card).
If there are contacts saved in your SIM card, you are invited, if you wish, to copy them in the phone contacts memory.
Switching ON/OFF
When your phone is off, a short press on will turn it ON.
When the phone is ON, if your are browsing inside the menus, a short press on will come back to the idle screen. When
you are in the idle screen, a long press on will switch OFF the phone.
Warning
If a wrong PIN number is entered three times in succession, your SIM card is blocked. You must then:
-Enter the PUK (Personal Unblocking Key) code provided by your network provider, and validate.
-Enter your PIN number and validate.
-Enter your PIN number again and validate.
After 5 or 10 failed attempts (depending on the type of SIM card), the SIM card is definitely locked. You must then
contact your network provider to obtain a new card.
25xxxxxxx_my800V_Version US_DRAFT_en.book Page 12 Vendredi, 21. juillet 2006 3:10 15
Quick start 13
Network
Once ON, the phone is searching for a network on which it can make calls. If it finds one, it displays the name of the network
on the screen.
Note
: if it finds a 3G network, the 3G icon is displayed on the screen.
You are then ready to send or receive a call.
First call
Dial the number you want to ring.
Press .
You can adjust the sound level (volume) using the navigator upwards or downwards.
At the end of the conversation press to hang up.
If the network’s name appears, calls are possible.
If the icon and a network name are displayed, calls are possible on a roaming network provider.
If the icon is displayed without any network name, only the emergency services are accessible (ambulance, police,
fire brigade).
If the network icon flashes, the phone is in permanent search mode. There is no network available. The signal strength
indicator received allows you to display the quality of reception. If it indicates less than three bars, search for better
reception in order to call in good conditions.
International call
Press 0 (hold down) to display « + », then dial the country code without waiting for the dial tone, then the number of the
called party without the prefix (0).
Emergency services
Depending on the network you can obtain the emergency service with or without SIM card or when the keypad is
locked. It is enough to be in an area served by a network.
To obtain the international emergency service, dial
112
then press .
25xxxxxxx_my800V_Version US_DRAFT_en.book Page 13 Vendredi, 21. juillet 2006 3:10 15
14 Quick start
Receiving a call
When you receive a call, the number of your caller is displayed when it is presented by the network.
Press to answer, and speak.
To refuse the call, press .
To stop the ring tone or the vibrate, without refusing the call, press
#
.
When on a call, pressing [
Options
] allows you to have access to different functions.
Pressing [
Mute
] allows you to switch off the microphone temporarily when you want to prevent your correspondent from
listening.
Video call
If you want to make a video call, dial the number then select, pressing [
Options
], the
Video call
option. A video call icon is
displayed on the screen.
Notes
-The recipient must also have a phone with this function.
-Videotelephony only operates on the 3G network, check the 3G icon is displayed on the idle screen before making a video
call.
Receiving a video call
To answer a video call, you can select to activate or not the camera:
-press
OK
or
to activate the camera
or
-press if you do no want to activate the camera.
A prompt asks you if you want to confirm the activation of the loudspeaker.
Hands-free mode
During a call, press and hold to switch into hands-free mode.
WARNING:
in this mode do not bring the phone up to your ear.
25xxxxxxx_my800V_Version US_DRAFT_en.book Page 14 Vendredi, 21. juillet 2006 3:10 15
Using your phone 15
Using your phone
Improving antenna performance
The antenna is integrated in your phone, under the back cover at the top.
Avoid putting your fingers on this area when the phone is switched ON.
If your fingers obstruct the antenna, the phone may have to operate with a higher
power level than usual; decreasing its efficiency quickly. It could also affect the
quality of your communication.
Increase the battery life of your phone
-Don't press the keys when not necessary: each keypress activates the backlight, and uses much power.
-Don't obstruct the antenna with your fingers.
-Activation of Bluetooth function reduces the phone battery life. We advise you to deactivate it when not in use.
25xxxxxxx_my800V_Version US_DRAFT_en.book Page 15 Vendredi, 21. juillet 2006 3:10 15
16 Using your phone
Charging the battery
Your phone is powered by a rechargeable battery. A new battery must be
charged for 4 hours at least before being used for the first time. It reaches its
optimum capacity after a few cycles of use.
When your battery has been discharged, the empty battery icon flashes. In this
case recharge your battery for at least 15 minutes before making any calls in
order not to be cut off quickly.
To recharge the battery:
Connect the charger to a socket.
Plug the end of the cable into the bottom connector of the phone.
The phone is then charging up. The battery icon scrolls up and down to indicate
that it is charging. When the battery is fully charged, the charging stops on its
own. Disconnect the cable.
When charging, the battery may warm up, this is normal.
WARNING
If the battery has entirely discharged, the phone cannot start. Plug the phone to the charger. The phone will switch on
after a few minutes of charge. You can use the phone again when the
Start
option is displayed on the screen.
WARNING
There is danger of explosion if the battery is placed in an incorrectly way or if it is exposed to fire.
Do not short circuit it.
The battery does not have any part that you can change.
Do not try to open the battery casing.
Use only the appropriate chargers and batteries as shown in the phone manufacturer's catalogue.
The use of other types of chargers or batteries may be dangerous or invalidate the warranty.
Used batteries must be disposed of in the appropriate places.
We advise you to take the battery out if you plan not to use the phone for extended periods.
You are strongly advised not to connect your phone to the charger if it doesn’t contain a battery.
The charger is a safety step-down transformer, it is forbidden to modify, alter or replace it by another component (power
supply plug, etc).
25xxxxxxx_my800V_Version US_DRAFT_en.book Page 16 Vendredi, 21. juillet 2006 3:10 15
Contacts 17
Contacts
Using the phonebook
Enter the
Contacts
menu, the contacts list is displayed if you already get some (otherwise, go to
Storing a new contact
).
The icon displayed next to a contact’s name shows in which phonebook the contact is stored.
contact stored in the SIM card
contact stored in the phone
You can search for a contact quiclky by typing the first letters. You can display it by pressing OK.
Storing a new contact
-Display
Contacts
, select [
Options
],
Add new contact
then
SIM
or
Phone
.
-Enter the first name and press
OK
.
-Enter the last name and press
OK
.
-Enter the number and press
OK
.
Note:
you can fill other fields if you store the contact in the phone memory (email, address, ringtone, photo, etc.).
-Press [
Save
] to store it.
Contact options
To display the various options, select a contact and press [
Options
].
View contact
It allows you to display the contact’s phone number.
Edit
It allows you to edit and/or modify a contact.
25xxxxxxx_my800V_Version US_DRAFT_en.book Page 17 Vendredi, 21. juillet 2006 3:10 15
18 Contacts
Add new contact
(see above).
Voice call
It allows you to call the contact selected.
Video call
It allows you to make a video call.
Create message
It allows you to send a written or voice message or a postcard to the contact selected.
Send vCard
It allows you to send contact details by message or Bluetooth.
Delete
It allows you to delete the contact selected.
My details
You can enter the details corresponding to your own number.
Settings as business card
The details of a contact stored in the phone memory can be saved in a business card.
Manage
Assign Speed Dial
: it allows you to assign a short number to a contact.
Copy to phone
: it allows you to copy a contact stored in the SIM card to the phone memory.
Move to phone
: it allows you to move the contact selected stored in the SIM card to the phone memory.
Copy one to SIM
: it allows you to copy a contact from the phone memory to the SIM card. Only the name and the first phone
number will be copied.
Move to SIM
: it allows you to move a contact from the phone memory to the SIM card.
Duplicate
: it allows you to copy contact details to add a new one.
Copy all
: it allows you to copy all the contacts from one memory to the other.
Delete all
: it allows you to delete all the contacts.
Memory
: it shows the number of contacts stored in each memory and the available memory space.
25xxxxxxx_my800V_Version US_DRAFT_en.book Page 18 Vendredi, 21. juillet 2006 3:10 15
Contacts 19
Add to group
It allows you to add a contact to a group or to create a new group.
Contact Settings
Prompt to save
: after an incoming or outgoing call with a number not stored in the phonebook, this option allows you to
activate or deactivate a request to store the number in the phonebook.
View contacts
: it allows you to select the default phonebook (SIM, phone, SIM and phone) displayed when the phone
switches on.
Sort contacts by
: This menu allows you to select the way to sort contacts in the phonebook (by name or first name).
Special Numbers
This menu lists various services numbers and emergency numbers.
Call groups
A call group allows you to group contacts: this group can be used to send messages easily to all the group contacts.
-In the phonebook, select the
Call groups
tab.
-Press [
Options
].
-Select
Add group
.
-Enter a name and press
OK
.
-Then the phone displays the contacts list to make your choice.
25xxxxxxx_my800V_Version US_DRAFT_en.book Page 19 Vendredi, 21. juillet 2006 3:10 15
20 Vodafone live!
Vodafone live!
Your phone has been customised to give access to Vodafone live!. Visit
www.vodafone.com for additional information about the services Vodafone live!
offers. To connect to the Vodafone live! service, press the Vodafone live! key on
your handset. If you have any problems connecting to Vodafone live!, please
contact Vodafone.
You can also download pictures, videos, ringtones and games from Vodafone
live! and install them on your phone.
The Vodafone live! service allows you to access WAP pages and WAP-based
applications on your phone. If necessary, please contact Vodafone to configure
your phone.
Your phone may use a 3G network connection, bringing improved quality, sound,
pictures and videos, as well as increased speed when downloading games and
ringtones.
This connection is indicated by an 3G indicator. Alternatively, your phone may
use a high-speed General Packet Radio Service (GPRS) network connection.
This type of connection is identified by an indicator in the home screen that
disappears when you start Vodafone live!. If you see an indicator during a
Vodafone live! session, your phone is using a standard voice connection. The
type of network connection your phone uses depends on your service provider's
network. Your network connection charges may vary depending on the type of
connection used.
Option description
Web
: opens the Vodafone live! portal.
Open page
: go to a requested page.
Favourites
: allows to store bookmarks (addresses of Internet sites).
A bookmark stored in the list can be modified, sent or deleted.
You can receive bookmarks and add them to this list.
History
: view a list of recently viewed pages.
Alert inbox
:
contains information messages about sending and receiving (deliveries, failures, etc.).
Browser Accounts
: preconfigured shortcuts to items such as Ringtones, Pictures, News, Sport and Games.
The browser navigator is unde
r
licence:
The browser navigator and the
softwares included are the exclusive
property of Openwave. For this
reason, it is forbidden to modify,
translate, disassemble or even
decompile all or part of these
softwares.
25xxxxxxx_my800V_Version US_DRAFT_en.book Page 20 Vendredi, 21. juillet 2006 3:10 15
Vodafone live! 21
Downloading Objects From a Web Page
You can download pictures, sounds, or other objects from a WAP page by selecting the link. You can store media objects on
your phone, and use them as wallpaper images, screensaver images, and event alerts.
Note:
-The files that you download or receive as attachments might have a copyright lock that keeps you from forwarding them.
-If you receive a call during the download, press the Swap key to answer the call without ending the download.
-To end a download in progress, press .
25xxxxxxx_my800V_Version US_DRAFT_en.book Page 21 Vendredi, 21. juillet 2006 3:10 15
22 Messages
Messages
The Messaging menu contains the following message types: text messages (SMS, MMS), voice messages and e-mail. MMS
is a Multimedia Message Service, which allows you to enclose photos, audio files, and others rich contents to your messages;
these messages can even be composed of several slides. MMS are differently charged to SMS are. Please contact your
network provider to get more information on their cost and the service availability.
Creating a text message or an e-mail
-Select
Messaging/Create new
.
-Select
Message
or
Email
.
Note
: The [
Options
] key allows you to select various options for typing the text.
There are two input modes. To switch from one mode to another (ABC mode/T9 mode), make a long press on
.
To switch
into upper case/lower case/figures make a short press on
.
Also you can make your choice by selecting [
Options
]/
Input
mode
.
-
ABC mode
: it allows you to type letters: press on one key several times to make the letter wanted appear (for example:
press twice the
2
key to display
B
).
•abc: lower case text
•ABC: upper case text
•Abc: first letter of the word in upper case
-
123 mode
: it allows you to type figures
-
T9 mode
(see below for using it)
•abc T9: lower case text
•ABC T9: upper case text
•Abc T9: first letter of the word in upper case
Using T9 Mode
The Easy Message T9™ mode helps you to easily write your messages.
The language used is the one selected on the display of the phone (if the language selected is not compatible with the Easy
Message T9™, the English language will be automatically selected).
Press once the key corresponding to the letter chosen and compose the word by continuing to press the keys corresponding
to the various letters without paying attention to the display: the word is highlighted.
The same sequence of keys pressed can correspond to several words, existing on the dictionary. If the word that appears is
not the word you expected, press the navigator downwards to scroll through the words corresponding to this key sequence.
25xxxxxxx_my800V_Version US_DRAFT_en.book Page 22 Vendredi, 21. juillet 2006 3:10 15
Messages 23
Once you agree on the word proposed on the screen, press the navigator rightwards to validate it or on the
0
key (which
validates and inserts a space after the word), and go on writing the next word.
If the word you are expected is not proposed, please add characters until you get the message
Add new word
. Validate if
the word displayed suits you or modify this word before adding it in the dictionary.
Punctuation characters
Punctuation characters are obtained by pressing the
1
key (except in
123
mode), or by briefly pressing ).
Accented characters
Accented characters are generated automatically in T9 mode.
In ABC mode accented characters are available by pressing the key supporting the non-accented character repeatedly.
Saving the message
Select
Save as
if you do not want send the message immediately or if you want to send it several times.
Sending the message
Once the text entered, press [
Options
] and select
Send
.
Receiving messages
When you receive a message, the phone plays the ring tone that you selected, and a message icon comes on the screen of
your phone.
If you do not read the messages, this icon remains displayed on the screen. When it flashes, the memory is full.
Receiving icons, backgrounds or tunes can take several seconds. An icon is flashing when the download of your message is
in progress.
Note that you have two different possibilities for receiving MMS: automatically or manually; if « manual mode » is activated,
then you will receive only a notification in your Inbox, meaning that a MMS is available on the MMS Server; select Retrieve
in the options when you want to retrieve the MMS from the network.
Please contact your network provider to get more information on icons, backgrounds or tunes downloading.
Received messages are stored in the SIM card or in the phone until you choose to delete them.
25xxxxxxx_my800V_Version US_DRAFT_en.book Page 23 Vendredi, 21. juillet 2006 3:10 15
24 Messages
Messaging menu
Inbox
This menu is divided in two lists: the SMS or MMS messages received and the e-mail received.
Messages are listed in chronological order, the latest one being displayed first.
The quantity of Not Read and Not Retrieved messages is shown. Not Retrieved and Not Read messages are shown in bold.
Drafts
In this menu there are the messages created saved as drafts.
When you select a message and press [
Options
], various options can be selected.
Sent messages
This menu is used to store all your sent messages if you activated the option
Store send message
in the
Message Settings
menu.
Too many messages saved will quickly fill up the available memory and no further messages will be received.
For each message, its characteristics (shown with an icon) and the time (or date) of sending are displayed on the screen.
Outbox
This menu displays the messages that have not been sent. You can therefore send them again.
Messenger
(Service depending on the operator)
The
Messenger
menu allows you to speak in real time with your contacts having the same connection type, from your phone
or your PC.
At any time, wherever you are, you can send them a message as easily as a SMS.
Note:
This service leads to a cost. For more information, contact your operator.
Creating an identifier
To use Messenger you need to create an identifier (name) and log on to the operator server: help screens guide the user
when logging on for the first time.
After logon, the list of contacts is displayed.
Note:
An icon is displayed on the sleep-mode screen when you are logged on to Messenger.
Adding contacts
To add a contact, go into "
Choice
" and into the "
Add contact
" option, then enter your contact's telephone number or
Messenger identifier.
An icon opposite each contact indicates whether your contact is on line, available, etc.
25xxxxxxx_my800V_Version US_DRAFT_en.book Page 24 Vendredi, 21. juillet 2006 3:10 15
Messages 25
Conversation
To start a conversation with one of your contacts, all you do is select your contact then send a message by going into "
Choice
"
then the "
Write
" option: the text you sent and your contact's reply both appear in the conversation screen.
Vodafone Mail
This menu allows you to connect to your email box.
Templates
In this menu there are the messages created saved as templates.
The same options as for the drafts are available for the templates.
Message Archive
This menu is used to store all your sent messages.
Too many messages saved will quickly fill up the available memory and no further messages will be received.
For each message, its characteristics (shown with an icon) and the time (or date) of sending are displayed on the screen.
Call voicemail
This function allows you to call your voicemail.
Note
: if your voicemail number has not been entered yet, you must enter it in the menu
Settings
/
Call settings
/
Voicemail
.
Message Settings
This menu allows you to select various sending and receiving options and customization options to create messages.
25xxxxxxx_my800V_Version US_DRAFT_en.book Page 25 Vendredi, 21. juillet 2006 3:10 15
26 Photo and video
Photo and video
The
Camera
menu allows you to take photos and use them for different purposes. For instance, you can send them
to another phone or an Internet address, store them, use them as wallpapers or screen savers.
Taking a photo
Settings before taking a photo
Pressing [
Options
], various options can be selected:
•Take picture
: to take the photo.
•
Video mode
: to switch from photo mode to video mode.
•
Change camera
: to change from one lens to another.
•
Timer
: to take a photo with a 5, 10 or 15 second time delay.
•
Camera mode
: to select luminosity.
•
Effects
: to select an effect.
•
Settings
: to select storage location, click sound, photo format and quality.
Taking a photo
-Select the
Camera
menu. Look into your phone display and position your subject. Move your phone to position your photo.
-Press
OK
, the photo is taken and automatically saved. It stays on the phone display.
-If you want to send the photo immediately, press
OK
. The creating message screen is displayed to type a text if necessary.
Options once the photo taken
•
Send:
allows you to send the photo by MMS, infrared or Bluetooth.
•
New
: allows you to take a new photo.
•
Delete
: allows you to delete the photo.
•
Rename
: allows you to modify the name of a photo.
•
Add to contact
: allows you to assign a photo to a contact saved in the phonebook.
•
Set as wallpaper
: allows you to select the photo as a wallpaper.
Note:
using the camera during a call may disturb the call quality.
25xxxxxxx_my800V_Version US_DRAFT_en.book Page 26 Vendredi, 21. juillet 2006 3:10 15
Photo and video 27
Taking a video
Settings before taking a video
Pressing [
Options
], various options can be selected:
•
Record video
: to start recording
•Camera mode
: to switch from video mode to photo mode.
•
Change camera
: to change from one lens to another.
•
Settings
: to select the video quality, the recording time, the recording of the sound and the storage location.
Recording a video
-Select the
Camera
menu then
X
to switch into video mode.
-Press
OK
to record then press [
Stop
] when you want to stop recording.
The video is automatically saved and has a number. It is saved in
My Files
/
Videos
.
Note
: the phone automatically stops recording when the maximum size available is reached.
Options once the video recorded
•
Send video:
allows you to send the video by MMS or Bluetooth
•
Playback
: allows you to play the video.
•
New
: allows you to take a new video.
•
Delete
: allows you to delete a video.
•
Rename
: allows you to modify the name of a video.
Note
: the videos are saved in the phone with a .3gp format.
25xxxxxxx_my800V_Version US_DRAFT_en.book Page 27 Vendredi, 21. juillet 2006 3:10 15
28 My Files
My Files
The
My Files
menu contains the directories of all the multimedia objects recorded in your phone and the downloaded objects
(photos, videos, ringtones, musics, bookmarks, games, etc.).
To display the various options, press [
Options
] after having selected an object.
25xxxxxxx_my800V_Version US_DRAFT_en.book Page 28 Vendredi, 21. juillet 2006 3:10 15
Media Player 29
Media Player
This menu allows you to listen to music files in a contiuous way like a portable music player.
If you do not have any music file in memory, use Vodafone live! to download some or connect your phone to a PC.
Two tabs are displayed :
X
(Player) and (Library)
Library tab
More sounds
It allows you to download music files.
My Playlists - Creating a playlist
When there is not any list created, select
My Playlists
then [
New
]
to create one. Type a name and press [
Save
]. Then a
prompt asks you if you want to insert music files now.
When there is already a playlist, select
My Playlists
then on a playlist [
Options
] and
New playlist
to create one.
Album - Artists
It is the directory of the music files sorted by title or by artist.
My Files
It is the directory of all the sounds stored in the phone (see menu
My Files/Audio
).
Recent - All
It is the directory of the music files already selected in a playlist.
Player tab
It allows you to play a music file or several music files selected.
To display the different options, press [
Options
]:
-
Play
: to play music files of the playlist.
-
Add to playlist
: to add a music file to a playlist.
-
Remove
: to remove the music file selected from the playlist.
-
Play mode
: to select the way to play the music files.
-
Set as ringtone
: allows you to select the music file as a ringtone.
-
Send By
: to send the music file by message, IrDA or Bluetooth.
-
Extend
: to play the music file with headphones.
-
Sort
: to sort the playlist.
-
More sounds
: to download new music files from Vodafone live!
-
Details
: properties of the music file selected.
25xxxxxxx_my800V_Version US_DRAFT_en.book Page 29 Vendredi, 21. juillet 2006 3:10 15
30 Games
Games
Your phone contains a few trial games. You can download more. You are the
owner of a SAGEM mobile phone which gives you the ability to download
applications and games to be executed on your phone thanks to the built-in
Java™ engine.
However, receiving applications from everywhere implies some basic knowledge
of the possible effects of such download.
We advise you to download certified games or applications from Vodafone live!.
25xxxxxxx_my800V_Version US_DRAFT_en.book Page 30 Vendredi, 21. juillet 2006 3:10 15
Organiser & Tools 31
Organiser & Tools
Calendar
This menu gives you access to your diary and get to a day, week, month or specific date. It lets you add events, access the
global actions for all the events and manage them by event category.
-
Monthly view
: allows you to access events on a month-by-month basis.
-
Weekly view
: allows you to access events on a week-by-week basis.
-
Daily view
: allows you to access the events for the current day and the actions possible on any event.
-
Date view
: allows you to access events at a specific date.
-
Settings
: allows you to select various settings for the events.
Calendar/Calendar
-
Add written event/Add Vocal Event
: allows you to add events of the text or voice type. Fill in the different items. Save
the event.
-
Delete
: allows you to schedule the deletion of events that took place more than one day, week or month ago.
-
Memory
: allows you to view the memory capacity used by the different functions of your diary.
-
Categories
: allows you to display the different event categories and know the number of events in each category.
ToDo
This menu allows you to add ToDo’s, access category-based Todo management and delete all the ToDo’s.
If there are not any ToDo, you directly access to the options below.
-
Add written ToDo/Add vocal ToDo
: allows you to add ToDo of the text or voice type. Fill in the different items. Save the
ToDo.
-
Settings
: allows you to select various settings for the ToDo.
-
Import
:allows you to import a ToDo from a
My Files
directory.
If there is a ToDo, press [
Options
] to display the options.
25xxxxxxx_my800V_Version US_DRAFT_en.book Page 31 Vendredi, 21. juillet 2006 3:10 15
32 Organiser & Tools
Clock
Date and time
This menu allows you to display and set the various date and time settings (format, display, time zone, daylight saving, etc).
Alarm - Stop watch - Timer
This menu allows you to set and activate the alarm, the chronometer and the timer.
The alarm works even when the phone is switched off.
The alarm icon appears on the idle screen.
Calculator and converter
This menu allows you to use your phone as a calculator.
Use the following keys to make calculations:
S
: Add
T
: Subtract
X
: Multiply
W
: Divide
The following keys are used for:
: Equals, convert or add to memory
: Delete
∗
#
: Decimal point.
Modem status
This menu allows you to know the modem connection status.
Services
This item may not be present on your phone’s menu, as its contents depends on your SIM.
My applications
This menu contains the applications you have downloaded.
25xxxxxxx_my800V_Version US_DRAFT_en.book Page 32 Vendredi, 21. juillet 2006 3:10 15
Organiser & Tools 33
Connectivity
You can exchange with other devices (PC, mobile phones, personal assistants, printers, etc.) various data: pictures, sounds,
photos, videos, Todo tasks, organiser events, contacts, etc.
Data exchange can be done through:
-a serial or USB cable,
-a bluetooth connection.
If you have inserted a memory card in your phone, it is considered as an additional memory in the Windows explorer files
directory; you can copy/paste.
If you want to exchange objects between the phone memory and a PC, you must install the Wellphone software provided on
CD: select Multimedia to open, from the PC, the phone files explorer.
To save contacts, events or tasks, the Wellphone Multimedia software provided on the CD with your phone (also available
from http:/www.wellphone.com) must be installed on a PC.
Note
: If a call comes in during an exchange of data with your PC, the link will be interrupted and will have to be manually
re-started.
Bluetooth
Your phone can be used with a Bluetooth connection in order to communicate with other devices equipped with Bluetooth:
for example, an audio connection with a pedestrian kit, a car kit or a data connection with a PC.
Bluetooth is a free wireless connection, with a 10 metre maximum range.
Bluetooth
This menu allows you to activate or deactivate Bluetooth connection.
•Off: Bluetooth connection impossible.
•On and hidden: your phone is not detected by the other devices but the phone detects the other devices.
•On and visible for 3 minutes: your phone can be detected by another device.
•On and visible: your phone can be detected by another device and remains detected as soon as the Bluetooth
connection is activated.
My devices
This menu allows you to search for devices which may connect with Bluetooth link with your phone (for instance: headset).
My Bluetooth name
This menu allows you to assign a name to your phone for the Bluetooth connection. This name is displayed on the devices
connected.
25xxxxxxx_my800V_Version US_DRAFT_en.book Page 33 Vendredi, 21. juillet 2006 3:10 15
34 Organiser & Tools
USB Mode
When the phone is connected to a PC with a USB cable, this menu allows you to activate:
-the memory card access,
-the phone charging.
Voice recorder
This menu allows you to record your voice or a sound.
Help
This menu allows you to display help pages for the using of your phone.
First select the language you want.
Note
: displaying help pages is done with a free WAP connection.
25xxxxxxx_my800V_Version US_DRAFT_en.book Page 34 Vendredi, 21. juillet 2006 3:10 15
Settings 35
Settings
Profiles
This menu allows you to set profiles containing selections of different ringtones, volume to adapt them to various
circumstances (for instance, depending on where you are (at work, at home, etc.) you will select such or such profile.
Display settings
This menu allows you to customize your screen by choosing a different presentation.
Wallpaper
This menu allows you to select a background picture for the idle screen.
Note
: you can select wallpapers through the phone default wallpapers, the pictures downloaded in
My Files/Pictures
and
the pictures of your memory card.
Backlight
You can select the backlight intensity and the inactivity time after which the phone will automatically switch into economic
mode (screen off).
Startup/Shutdown animation
These menus allow you to display an animation when the phone is switched on and off.
Languages
This menu allows you to choose your phone's display language.
Memory card
Autorun
: allows you to launch a navigation of a predefined contents in the memory card.
Memory
: allows you to display the available memory space of the memory card.
25xxxxxxx_my800V_Version US_DRAFT_en.book Page 35 Vendredi, 21. juillet 2006 3:10 15
36 Settings
Video telephony
This menu allows you to select the default parameters for the video calls.
Browser settings
This menu allows you to set various parameters needed for Vodafone live! browser connection.
You can add or modify URL addresses.
Networks settings
This menu allows you to configure network preferences.
Search:
to activate (automatically or manually) one of the networks accessible in the area in which your are located.
Preferred networks:
to view all the pre-registered networks.
Settings
: to select your network: GSM or 3G.
Call settings
This menu allows you to manage all the call functions (call forward, displaying numbers, call waiting, voicemail number, etc.).
Call divert
Depending on your subscription, this service allows you to forward incoming calls to a different number or to the voice mailbox.
Choose the type of forwarding you want from the options available.
Any key
This menu allows you to answer to a call pressing any key.
Auto response
This menu allows your phone to answer automatically to a call when it is connected to a car kit.
Blacklist
The blacklist is used to limit failures on automatic calls (calls generated by the automatic redial function or by applications:
data, fax for example).
When several automatic calls failed with a number (number busy or unknown), this number is put in the blacklist and no
automatic call will be done with this number any more until you delete it from the blacklist.
Note
: this function does not apply to the calls performed manually.
25xxxxxxx_my800V_Version US_DRAFT_en.book Page 36 Vendredi, 21. juillet 2006 3:10 15
Settings 37
Display numbers
This menu allows you to modify the status of the display number function.
Select one of the options given: Anonymous mode, My number, Callers’ number.
Call waiting
(Network dependent service)
During a call, you may be informed that a caller is trying to reach you: you hear a special tone. The caller's number is displayed
on the screen.
Auto redial
This menu allows you to call back a caller you have not managed to reach.
You can set the redial function to inactive, on request or systematic.
If you choose
On demand
, your phone will offer to redial your caller automatically if his number is busy.
Call reject list
The numbers entered in this list will automatically be rejected by the phone.
Voicemail
This function is for storing your voicemail number.
Call barring
This menu allows you to block the making or receiving of certain calls.
Before you can use this service, a password will be provided by Vodafone when you take out your subscription.
Access to this service depends on your subscription type.
To activate call barring :
-Select incoming or outgoing calls.
-Select the call type on which you want to activate call barring.
-Select the call origin.
-Select Activation and enter password.
25xxxxxxx_my800V_Version US_DRAFT_en.book Page 37 Vendredi, 21. juillet 2006 3:10 15
38 Settings
Security
This menu allows you to configure your phone's security settings.
Keypad lock
This menu allows you to lock the keypad to avoid unwanted key presses.
Automatic
: after a few seconds, the keypad is locked. To unlock it press the and
OK
keys from the idle screen.
Manual
: lock the keypad pressing the and
OK
keys from the idle screen.
PIN protection
This menu allows you to activate or deactivate the PIN code when switching on the phone
Modify PIN code
This menu allows you to activate and modify your phone's PIN.
To modify the PIN, select
Modify PIN code
and [
Select
].
Enter old PIN and validate.
Enter new PIN twice and validate.
To activate or deactivate the PIN, select the
Control PIN
menu and [
Select
].
Enter PIN and validate.
Select
Activate
or
Deactivate
and validate.
Modify PIN 2 code
You have a second PIN number to allow you to access certain functions*.
* These functions may or may not be available depending on your SIM card.
Proceed as above in order to activate, deactivate or modify PIN number 2 of your phone.
25xxxxxxx_my800V_Version US_DRAFT_en.book Page 38 Vendredi, 21. juillet 2006 3:10 15
Settings 39
Phone lock
This menu allows you to activate a code which will be requested when the phone is switched on if a different SIM card is used.
This code is automatically linked to the SIM card installed when the phone is activated. This code is a secret code to protect
the phone if stolen.
To activate or deactivate the code:
-Select
Lock mode
and [
Select
].
-Select
Enable
or
Disable
and [
Save
].
-Enter 0000 (the factory code, by default) and validate.
To modify the phone code:
-Select
Change lock code
and [
Select
].
-Enter the old code and validate.
-Enter the new code and validate.
-Enter the code again to confirm it and validate.
Confidentiality
This menu allows the activation or deactivation of automatic deletion, after power off/on, of outgoing calls, messages stored
or organiser events.
Select
Activate
or
Deactivate
and validate.
Operator
This menu allows you to modify the call barring.
Access to this service depends on your type of subscription.
Fixed dial number
This menu allows you to restrict the outgoing calls. This service depends on your SIM card.
When activating this function, only the numbers stored in this phonebook can be called.
This phonebook is linked to the SIM card, and its size depends on the card's capacity.
Status
: allows you to activate or deactivate this service.
Manage FDN
: allows you to manage the numbers stored in this phonebook.
25xxxxxxx_my800V_Version US_DRAFT_en.book Page 39 Vendredi, 21. juillet 2006 3:10 15
40 Settings
Cost
Access to this service depends on your type of subscription.
This menu allows you to control the cost of your calls.
The
Cost
menu lets you check the cost of the last call you made and of all the calls you made since you last deleted them.
The
Delete costs
menu lets you delete the cost of your last call and reset the cost counter after entering your PIN 2 code.
Date and Time
Set time/Set date
These menus allow you to set the various date and time settings (format, display, time zone, daylight saving,etc).
Advanced
This menu displays the list of all the settings selected for date and time.
Shortcuts
This menu allows you to allocate functions to the directional keys of the navigator.
Camera
This menu allows you to select the camera, video and dictaphone settings.
Memory
This menu displays the memory space used for the various functions.
25xxxxxxx_my800V_Version US_DRAFT_en.book Page 40 Vendredi, 21. juillet 2006 3:10 15
Technical features 41
Technical features
Weight: 99 g
Size: 110 x 47 x 16 mm
Original battery: Li-ion 1000 mAh
Multimedia objects supported:
Audio formats: iMelody, Midi, wave, MP3, AAC, AMR
Graphic formats: wbmp, bmp, png, gif, animated gif, jpeg, 3gp, mpeg4 depending on model
Size of memory available for messages:
100 SMS
Size of memory available for MMS, the phonenook and the multimedia objects: up to 16 Mb
Maximum size of each message:
SMS: < 160 characters
MMS: the phone supports MMS sizes up to 300 Kb both for outgoing and incoming messages (depending on the phone
configuration and on the operator reservations)
Using temperature: from - 10 °C to + 55 °C
25xxxxxxx_my800V_Version US_DRAFT_en.book Page 41 Vendredi, 21. juillet 2006 3:10 15
42 Certification and safety information for the United States and countries using FCC standards
Certification and safety information for the United
States and countries using FCC standards
FCC Part 15 statement
This device complies with part 15 and part 24 of the FCC rules. Operation is subject to the following two conditions: (1) this
device may not cause harmful interference, and (2) this device must accept any interference, including interference that may
cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
WARNING
Changes or modifications made to this equipment not expressly approved by Sagem Communication for compliance could
void the user's authority to operate the equipment.
25xxxxxxx_my800V_Version US_DRAFT_en.book Page 42 Vendredi, 21. juillet 2006 3:10 15
Certification and safety information for the United States and countries using FCC standards 43
FCC SAR information
THIS MODEL PHONE MEETS THE FCC'S REQUIREMENTS FOR EXPOSURE TO RADIO WAVES
Your wireless phone is a radio transmitter and receiver. It is designed and manufactured not to exceed the limits for exposure
to radiofrequency (RF) energy set by the United States Federal Communications Commission (FCC). These limits are part
of comprehensive guidelines and establish permitted levels of RF energy for the general population. The guidelines are based
on standards that were developed by independent scientific organizations through periodic and thorough evaluation of
scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons, regardless
of age and health.
The exposure standard for wireless mobile phones employs a unit of measurement known as the Specific Absorption Rate,
or SAR. The SAR limit set by the FCC and Health Canada is 1.6 W/kg (*). Tests for SAR are conducted using standard
operating positions accepted by the FCC with the phone transmitting at its highest certified power level in all tested frequency
bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the phone while operating
can be well below the maximum value. This is because the phone is designed to operate at multiple power levels so as to
use only the power required to reach the network. In general, the closer you are to a wireless base station antenna, the lower
the power output.
Before a phone model is available for sale to the public, it must be tested and certified to the FCC that it does not exceed the
RF limit established by the government-adopted requirement for safe exposure. The tests are performed in positions and
locations (i.e., at the ear and worn on the body) as required by the FCC for each model.
The highest SAR value for these model phones as reported to the FCC when tested for use at the ear and when worn on the
body are (measured at a distance of 0.59 inches (1.5 cm)):
(*) In the United States and Canada, the SAR limit for mobile phones used by the public is 1.6 watts/kilogram (W/kg)
averaged over one gram of tissue. The standard incorporates a substantial margin of safety to give additional protection
for the public and to account for any variations in measurements.
SAR at the ear (W/kg) SAR worn of the body (W/kg)
Version PCS 1900 PCS 1900
my800V MU2006V 0.342 0.445
25xxxxxxx_my800V_Version US_DRAFT_en.book Page 43 Vendredi, 21. juillet 2006 3:10 15
44 Certification and safety information for the United States and countries using FCC standards
While there may be differences between the SAR levels of various phones and at various positions, they all meet the FCC
requirement. The FCC has granted an Equipment Authorization for this model phone with all reported SAR levels evaluated
as in compliance with the FCC RF exposure guidelines. SAR information on this model phone is on file with the FCC and can
be found under the Display Grant section of http://www.fcc.gov/oet/fccid after searching on FCC ID M9HMU2006V (my800V).
Additional Information can be found on the website of the World Health Organization (http://www.who.int/emf).
Safety Information
Aircraft:
Switch off your wireless device whenever you are instructed to do so by airport or airline staff. If your device offers
a “flight mode” or similar feature, consult airline staff as to its use in flight.
Driving:
Full attention should be given to driving at all times, and regulations restricting the use of wireless devices while
driving must be observed. For further driving safety tips, please refer to
Driving safety tips
at page 48.
Hospitals:
Mobile phones should be switched off whenever you are requested to do so in hospitals, clinics or health care
facilities. These requests are designed to prevent possible interference with sensitive medical instruments.
Gas stations:
Obey all posted signs with respect to the use of wireless devices or other radio equipment in locations with
flammable material and chemicals. Switch of your wireless device whenever you are instructed to do so by authorized staff.
Interference with personal medical devices:
You should always consult your physician and review the device
manufacturer's instructions to determine if operation of your phone may interfere with the operation of your medical device.
As a general rule:
-
For pacemakers:
Pacemaker manufacturers recommend that a minimum separation of 6 inches (15 cm) be maintained
between a mobile phone and a pacemaker to avoid potential interference with the pacemaker. To achieve this, use the
phone on the opposite ear to your pace maker and do not carry it in a breast pocket.
-
For hearing aids:
Some digital wireless phones may interfere with some hearing aids. In the event of such interference,
you may want to consult your hearing aid manufacturer to discuss alternatives.
The ring tone, info tones, and handsfree talking are reproduced through the loudspeaker. Do not hold the phone to your ear
when it rings or when you have switched on the handsfree function (at least 3.9 inches (10 cm)).
Use only batteries and charging devices designed for your phone. Otherwise you risk serious damage to health and property
and may void any warranty.
CAUTION!
Small parts like the SIM card could be swallowed by young children.
Do NOT open the phone. Only the battery and the SIM card may be removed. Do NOT open the battery.
Keep the battery out of chidren’s reach. Do not allow the battery to be put into the mouth.
25xxxxxxx_my800V_Version US_DRAFT_en.book Page 44 Vendredi, 21. juillet 2006 3:10 15
Certification and safety information for the United States and countries using FCC standards 45
Distance of operation
This phone is designed to comply with the FCC radio frequency (RF) exposure guidelines when used as follows:
-
Against the ear:
Place or receive a phone call and hold the phone as you would a wireline telephone.
-
Body worn:
When transmitting, place the phone in a carrying accessory that contains no metal and positions the phone
a minimum of 0.59 inches (1.5 cm) from your body. Use of other accessories may not ensure compliance with exposure
guidelines. If you do not use a body worn accessory and are not holding the phone at the ear, position the phone a
minimum of 0.59 inches (1.5 cm) from your body.
-
Data operation:
When using a data feature, position the phone a minimum of 0.59 inches (1.5 cm) from your body for the
whole duration of the data transmission.
FDA consumer information on wireless phones
The US Food and Drug Administration (FDA) provides consumer information on wireless phones
at: http://www.fda.gov/cellphones/qa.html.
Following are safety related questions and answers discussed at this web site:
Do wireless phones pose a health hazard?
The available scientific evidence does not show that any health problems are associated with using wireless phones. There
is no proof, however, that wireless phones are absolutely safe. Wireless phones emit low levels of radiofrequency energy
(RF) in the microwave range while being used. They also emit very low levels of RF when in the stand-by mode. Whereas
high levels of RF can produce health effects (by heating tissue), exposure to low level RF that does not produce heating
effects causes no known adverse health effects. Many studies of low level RF exposures have not found any biological
effects. Some studies have suggested that some biological effects may occur, but such findings have not been confirmed by
additional research. In some cases, other researchers have had difficulty in reproducing those studies, or in determining the
reasons for inconsistent results.
What is FDA's role concerning the safety of wireless phones?
Under the law, FDA does not review the safety of radiation-emitting consumer products such as wireless phones before they
can be sold, as it does with new drugs or medical devices. However, the agency has authority to take action if wireless phones
are shown to emit radiofrequency energy (RF) at a level that is hazardous to the user. In such a case, FDA could require the
manufacturers of wireless phones to notify users of the health hazard and to repair, replace or recall the phones so that the
hazard no longer exists.
25xxxxxxx_my800V_Version US_DRAFT_en.book Page 45 Vendredi, 21. juillet 2006 3:10 15
46 Certification and safety information for the United States and countries using FCC standards
Although the existing scientific data do not justify FDA regulatory actions, FDA has urged the wireless phone industry to take
a number of steps, including the following:
-Support needed research into possible biological effects of RF of the type emitted by wireless phones;
-Design wireless phones in a way that minimizes any RF exposure to the user that is not necessary for device function; and
-Cooperate in providing users of wireless phones with the best possible information on possible effects of wireless phone
use on human health.
FDA belongs to an interagency working group of the federal agencies that have responsibility for different aspects of RF safety
to ensure coordinated efforts at the federal level. The following agencies belong to this working group:
-National Institute for Occupational Safety and Health
-Environmental Protection Agency
-Federal Communications Commission
-Occupational Safety and Health Administration
-National Telecommunications and Information Administration
The National Institutes of Health participates in some interagency working group activities, as well.
FDA shares regulatory responsibilities for wireless phones with the Federal Communications Commission (FCC). All phones
that are sold in the United States must comply with FCC safety guidelines that limit RF exposure. FCC relies on FDA and
other health agencies for safety questions about wireless phones.
FCC also regulates the base stations that the wireless phone networks rely upon. While these base stations operate at higher
power than do the wireless phones themselves, the RF exposures that people get from these base stations are typically
thousands of times lower than those they can get from wireless phones. Base stations are thus not the primary subject of the
safety questions discussed in this document.
What is FDA doing to find out more about the possible health effects of wireless phone RF?
FDA is working with the U.S. National Toxicology Program and with groups of investigators around the world to ensure that
high priority animal studies are conducted to address important questions about the effects of exposure to radiofrequency
energy (RF).
FDA has been a leading participant in the World Health Organization International Electromagnetic Fields (EMF) Project since
its inception in 1996. An influential result of this work has been the development of a detailed agenda of research needs that
has driven the establishment of new research programs around the world. The Project has also helped develop a series of
public information documents on EMF issues.
25xxxxxxx_my800V_Version US_DRAFT_en.book Page 46 Vendredi, 21. juillet 2006 3:10 15
Certification and safety information for the United States and countries using FCC standards 47
FDA and the Cellular Telecommunications & Internet Association (CTIA) have a formal Cooperative Research and
Development Agreement (CRADA) to do research on wireless phone safety. FDA provides the scientific oversight, obtaining
input from experts in government, industry, and academic organizations. CTIA-funded research is conducted through
contracts to independent investigators. The initial research will include both laboratory studies and studies of wireless phone
users. The CRADA will also include a broad assessment of additional research needs in the context of the latest research
developments around the world.
What steps can I take to reduce my exposure to radiofrequency energy from my wireless phone?
If there is a risk from these products--and at this point we do not know that there is--it is probably very small. But if you are
concerned about avoiding even potential risks, you can take a few simple steps to minimize your exposure to radiofrequency
energy (RF). Since time is a key factor in how much exposure a person receives, reducing the amount of time spent using a
wireless phone will reduce RF exposure.
If you must conduct extended conversations by wireless phone every day, you could place more distance between your body
and the source of the RF, since the exposure level drops off dramatically with distance. For example, you could use a headset
and carry the wireless phone away from your body or use a wireless phone connected to a remote antenna.
Again, the scientific data
do not
demonstrate that wireless phones are harmful. But if you are concerned about the RF
exposure from these products, you can use measures like those described above to reduce your RF exposure from wireless
phone use.
What about children using wireless phones?
The scientific evidence does not show a danger to users of wireless phones, including children and teenagers. If you want to
take steps to lower exposure to radiofrequency energy (RF), the measures described above would apply to children and
teenagers using wireless phones. Reducing the time of wireless phone use and increasing the distance between the user and
the RF source will reduce RF exposure.
Some groups sponsored by other national governments have advised that children be discouraged from using wireless
phones at all.
Do hands-free kits for wireless phones reduce risks from exposure to RF emissions?
Since there are no known risks from exposure to RF emissions from wireless phones, there is no reason to believe that
handsfree kits reduce risks. Hands-free kits can be used with wireless phones for convenience and comfort. These systems
reduce the absorption of RF energy in the head because the phone, which is the source of the RF emissions, will not be placed
against the head. On the other hand, if the phone is mounted against the waist or other part of the body during use, then that
part of the body will absorb more RF energy. Wireless phones marketed in the U.S. are required to meet safety requirements
regardless of whether they are used against the head or against the body. Either configuration should result in compliance
with the safety limit.
Do wireless phone accessories that claim to shield the head from RF radiation work?
Since there are no known risks from exposure to RF emissions from wireless phones, there is no reason to believe that
25xxxxxxx_my800V_Version US_DRAFT_en.book Page 47 Vendredi, 21. juillet 2006 3:10 15
48 Certification and safety information for the United States and countries using FCC standards
accessories that claim to shield the head from those emissions reduce risks. Some products that claim to shield the user from
RF absorption use special phone cases, while others involve nothing more than a metallic accessory attached to the phone.
Studies have shown that these products generally do not work as advertised. Unlike "hand-free" kits, these so-called "shields"
may interfere with proper operation of the phone. The phone may be forced to boost its power to compensate, leading to an
increase in RF absorption.
Driving safety tips
Wireless phones give people the ability to communicate almost anywhere, anytime. But an important responsibility
accompanies those benefits, one that every wireless phone user must uphold. When driving a car, driving is your first
responsibility.
Below are safety tips to follow while driving and using a wireless phone that should be easy to remember.
Get to know your wireless phone and its features such as speed dial and redial.
When available, use a hands free device.
Position your wireless phone within easy reach and where you can grab it without removing your eyes from the road. If you
get an incoming call at an inconvenient time, if possible, let your voice mail answer it for you.
Let the person you are speaking with know you are driving; if necessary, suspend the call in heavy traffic or hazardous
weather conditions.
Do not take notes or look up phone numbers while driving.
Dial sensibly and assess the traffic; if possible, place calls when you are not moving or before pulling into traffic. Try to plan
your calls before you begin your trip. But if you need to dial while driving, follow this simple tip--dial only a few numbers, check
the road and your mirrors, then continue.
Do not engage in stressful or emotional conversations that may be distracting.
Use your wireless phone to call for help. Dial 9-1-1 or other local emergency number in the case of fire, traffic accident, road
hazard or medical emergency.
Use your wireless phone to help others in emergencies. If you see an auto accident, crime in progress or other serious
emergency where lives are in danger, call 9-1-1 or other local emergency number.
Call roadside assistance or a special wireless non-emergency assistance number when necessary. If you see a broken-down
vehicle posing no serious hazard, a broken traffic signal, a minor traffic accident where no one appears injured or a vehicle
you know to be stolen, call roadside assistance or other special non-emergency wireless number.
25xxxxxxx_my800V_Version US_DRAFT_en.book Page 48 Vendredi, 21. juillet 2006 3:10 15
Warranty 49
Warranty
You must always use your phone for the purpose for which it was designed, under normal operating conditions. Sagem
Communication declines all responsibility for any use outside of the scope of its designed purpose and for any consequences
of this use.
Any software program in the phone is either the exclusive property of Sagem Communication or is licensed to Sagem
Communication by third parties. It is therefore highly prohibited to modify, translate, decompile or disassemble this software
program or any part thereof.
Use precautions
Your phone allows you to download ringtones, icons and animated screen savers. Some of these items may contain data that
may cause malfunctions of your phone or data losses (virus for example).
For this reason, Sagem Communication rejects all responsibility concerning (1) the reception of downloaded data or losses
of the said data, (2) the impact on the operation of the phone and (3) damages resulting from receiving the said downloaded
data or loss of said data. In addition, Sagem Communication states that a failure caused by receiving downloaded data that
do not comply with the specifications set by Sagem Communication is excluded from the warranty.
Consequently, the diagnosis and repair of a phone infected by the said downloaded data will be at the expense of the
customer.
Any content that you download to your phone may be protected by copyright belonging to third parties and consequently you
may not have the right to use this content or its use may be restricted.
Consequently it is up to you to ensure that you have permission, such as under the terms of a license agreement, to use any
content that you download. Furthermore, Sagem Communication does not guarantee the accuracy nor the quality of any
content that you download. You alone are responsible for the content that you download to your mobile phone and how you
use it. Sagem Communication cannot be held responsible for this content nor for its use. It is your responsibility to ensure
compliance, at your own expense, with the laws and regulations applicable in the country where you use your phone.
Warranty conditions
Whenever you wish to make use of the warranty, please contact your vendor and present him/her with the purchasing
paperwork that he/she gave you. If a fault occurs, your vendor will advise you.
1.
The new phone (excluding consumables), including new accessories bundled with the phone, are guaranteed by Sagem
Communication, parts and labour (apart from travel) against any manufacturing fault for a period of twenty four months
(except for batteries for which the period is twelve months) with effect from the sale of the phone to the customer, on
presentation of the paperwork stating the purchase date of the phone.
25xxxxxxx_my800V_Version US_DRAFT_en.book Page 49 Vendredi, 21. juillet 2006 3:10 15
50 Warranty
Phones that have been repaired or replaced as standard during the warranty period stated above are guaranteed (parts and
labour) until the later of these two dates:
Expiry of the guarantee period of twenty four months stated above or three (3) months with effect from the date of support
provided by Sagem Communication.
Your legal rights under the terms of applicable national law as well as your rights in relation to your retailer, as set out in the
sales contract, remain applicable and are not in any way affected by this guarantee.
In any disputes, the phone is covered by the legal warranty against the consequences of faults or hidden defects in
compliance with articles 1641 and subsequent of the French civil code.
2.
All faulty phones under warranty will be replaced or repaired free of charge at Sagem Communication's option (with the
exclusion of repair of any other damage), including transport costs between Sagem Communication authorised repair centre
and the point of sale. Transport costs between the End User and the point of sale will be borne by the End User. Subject to
essential legal provisions, Sagem Communication does not accept any warranty, explicit or implicit, other than the warranty
provided expressly in this chapter, nor shall Sagem Communication accept responsibility for any immaterial and/or indirect
damages (such as loss of orders, loss of profit or any other financial or commercial damage) under the warranty or not.
3.
The acceptance of a phone under warranty demands that a purchase document that is legible and without modification,
stating vendor's name and address, date and place of purchase, type of phone and IMEI, are attached to the warranty, and
that the information on the phone identification label is legible and that this label or any other seal has not been tampered with.
The warranty applies in normal conditions of use. Prior to sending the phone for repair, it is the customer's responsibility to
back up at his expense the customised data stored in the phone (phonebook, settings, wallpapers). A list of backup facilities
can be provided by Sagem Communication on request. The responsibility of Sagem Communication cannot be invoked if
damage occurs to customer files, programs or data. The information or operating elements and the contents of files will not
be re-installed in any case in the event of loss.
Sagem Communication may decide, at its option, to repair the phone with new or reconditioned parts, replace the phone with
a new phone or, in any dispute, a phone in good working condition. During its work Sagem Communication reserves the
facility to make, where necessary, any technical modifications to the phone where these modifications do not adversely affect
its initial purpose. Faulty parts to be replaced during a repair under warranty will become the property of Sagem
Communication. The phone repair and standstill time during the warranty period may not lead to an extension of the warranty
period as stated in article 1, provided no other vital provisions have been agreed.
The application of the warranty is subject to the full payment of the sums due for the phone when the request for support is
made.
25xxxxxxx_my800V_Version US_DRAFT_en.book Page 50 Vendredi, 21. juillet 2006 3:10 15
Warranty 51
4.
The following are excluded from the warranty:
Breakdowns or malfunctions due to non-compliance with the installation and use instructions, to an external cause of the
phone (shock, lightning, fire, vandalism, malice, water damage of any type, contact with various liquids or any harmful agent,
unsuitable electric current… ), to modifications of the phone made without the written consent of Sagem Communication, to
a servicing fault, as described in the documentation supplied with the phone, to lack of supervision or care, to poor
environmental conditions of the phone (especially temperature and humidity, effects of variations in electric voltage,
interference from the mains network or earth) or even due to a repair, a call-out (opening or trying to open the phone) or to
servicing done by personnel not approved by Sagem Communication.
Damage resulting from inadequate packaging and/or poor packing of the phone sent back to Sagem Communication.
Normal wear and tear of the phone and accessories.
Communication problems linked with a poor environment, especially:
Problems accessing and/or logging onto the Internet, such as breakdowns of the access network, the failure of the
subscriber's or his/hers correspondent's line, transmission fault (poor geographic coverage by radio transmitters,
interference, disturbance, failure or poor quality of phone lines...), a fault inherent to the local network (cabling, file server,
user phone) and/or transmission network fault (interference, disturbance, failure or poor quality of the network...).
Change of parameters of the cellular network made after the phone was sold. Current servicing work: delivery of
consumables, installation or replacement of these consumables… Call-outs for phone or software modified or added without
the written consent of Sagem Communication.
Faults or disruptions resulting from the use of products or accessories not compatible with the phone. Phones returned to
Sagem Communication without having complied with the return procedure specific to the phone covered by this warranty.
The opening or closing of a SIM operator key and call-outs resulting in the non-operation of the phone resulting from the
opening or closing of SIM operator key done without the agreement of the original operator.
5.
In the cases of warranty exclusion and of expiry of the warranty period, Sagem Communication shall draw up an estimate
to be given to the customer for acceptance before any call-out. The repair and carriage costs (there and back) given in the
accepted estimate will be charged to the customer. These provisions are valid unless a special written agreement has been
made with the customer. If one of the provisions turns out to infringe a legally essential rule that consumers could have the
benefit of under the national legislation, this provision will not be applied, but all other provisions will remain valid.
25xxxxxxx_my800V_Version US_DRAFT_en.book Page 51 Vendredi, 21. juillet 2006 3:10 15
52 End User Licence Agreement (EULA), for the software
End User Licence Agreement (EULA), for the
software
CONTEXT AND ACCEPTATION OF THE AGREEMENT
You have acquired a Mobile Phone device ("DEVICE"), manufactured by Sagem Communication (SAGEM), that includes
software either developed by SAGEM itself or licensed third party Software suppliers ("SOFTWARE COMPANIES") to
SAGEM with the rights to sub-license it to the purchaser of the device. Those installed software products whatever their
company of origin, and wherever the name of the company of origin is indicated of not in the DEVICE documentation, as well
as associated media, printed materials, and "online" or electronic documentation ("SOFTWARE") are protected by
international intellectual property laws and treaties. The SOFTWARE is licensed, not sold. All rights reserved.
IF YOU DO NOT AGREE TO THIS END USER LICENSE AGREEMENT ("EULA"), DO NOT USE THE DEVICE OR COPY
THE SOFTWARE. INSTEAD, PROMPTLY CONTACT SAGEM FOR INSTRUCTIONS ON RETURN OF THE UNUSED
DEVICE(S) FOR A REFUND.
ANY USE OF THE SOFTWARE, INCLUDING BUT NOT LIMITED TO USE ON THE DEVICE,
WILL CONSTITUTE YOUR AGREEMENT TO THIS EULA (OR RATIFICATION OF ANY PREVIOUS CONSENT)
.
SOFTWARE includes software already installed on the DEVICE ("DEVICE Software") and Software contained on the CD-
ROM disk ("Companion CD"), if any is supplied with the product.
GRANT OF SOFTWARE LICENCE
This EULA grants you the following licence:
DEVICE Software
. You may use the DEVICE Software as installed on the DEVICE. All or certain portions of the DEVICE
Software may be inoperable if you do not have and maintain a service account with an appropriate Mobile Operator, or if the
Mobile Operator's network facilities are not operating or configured to operate with the DEVICE software.
COMPANION CD
. If any is supplied, additional software for your personal computer is included with your DEVICE. You may
install and use the software component(s) contained in the Companion CD only in accordance with the terms of the printed
or online end user license agreement(s) provided with such component(s). In the absence of an end user license agreement
for particular component(s) of the Companion CD, you may install and use only one (1) copy of such component(s) on the
DEVICE or a single computer with which you use the DEVICE.
Security Updates
. The SOFTWARE may include digital rights management technology. If SOFTWARE does contain digital
rights management technology, content providers are using the digital rights management technology ("DRM") contained in
the SOFTWARE to protect the integrity of their content ("Secure Content") so that their intellectual property, including
copyright, in such content is not misappropriated. Owners of such Secure Content ("Secure Content Owners") may, from
time to time, request manufacturers or SOFTWARE SUPPLIERS to provide security related updates to the DRM components
of the SOFTWARE ("Security Updates") that may affect your ability to copy, display and/or play Secure Content through the
SOFTWARE or third party applications that utilise the DRM.
25xxxxxxx_my800V_Version US_DRAFT_en.book Page 52 Vendredi, 21. juillet 2006 3:10 15
End User Licence Agreement (EULA), for the software 53
You therefore agree that, if you elect to download a licence from the Internet which enables your use of Secure Content,
Suppliers may, in conjunction with such licence, also download onto your DEVICE such Security Updates that a Secure
Content Owner has requested that SOFTWARE SUPPLIERS distribute. SAGEM and SOFTWARE SUPPLIERS will not
retrieve any personally identifiable information, or any other information, from your DEVICE by downloading such Security
Updates.
DESCRIPTION OF OTHER RIGHTS AND LIMITATIONS
COPYRIGHT
. All title and intellectual property rights in and to the SOFTWARE (including but not limited to any images,
photographs, animations, video, audio, music, text and "applets," incorporated into the SOFTWARE), the accompanying
printed materials, and any copies of the SOFTWARE, are owned by SAGEM or the SOFTWARE SUPPLIERS. You may not
copy the printed materials accompanying the SOFTWARE. All title and intellectual property rights in and to the content which
may be accessed through use of the SOFTWARE is the property of the respective content owner and may be protected by
applicable copyright or other intellectual property laws and treaties. This EULA grants you no rights to use such content. All
rights not specifically granted under this EULA are reserved by SAGEM and the SOFTWARE SUPPLIERS
Limitations on Reverse Engineering, Decompilation and Disassembly
. You may not reverse engineer, decompile, or
disassemble the SOFTWARE, except and only to the extent that such activity is expressly permitted by applicable law
notwithstanding this limitation.
Single DEVICE
. The DEVICE Software is licensed with the DEVICE as a single integrated product. The DEVICE Software
installed in the memory of the DEVICE may only be used as part of the DEVICE.
Single EULA
. The package for the DEVICE may contain multiple versions of this EULA, such as multiple translations and/or
multiple media versions (e.g., in the user documentation and in the software). Even if you receive multiple versions of the
EULA, you are licensed to use only one (1) copy of the DEVICE Software.
Software Transfer
. You may not permanently transfer any of your rights under this EULA with regard to the DEVICE
Software or Companion CD, except as permitted by the applicable Mobile Operator. In the event that the Mobile Operator
permits such transfer, you may permanently transfer all of your rights under this EULA only as part of a sale or transfer of the
DEVICE, provided you retain no copies, you transfer all of the SOFTWARE (including all component parts, the media and
printed materials, any upgrades , this EULA and, if applicable, the Certificate(s) of Authenticity), and the recipient agrees to
the terms of this EULA. If the SOFTWARE is an upgrade, any transfer must include all prior versions of the SOFTWARE.
Software Rental
. You may not rent or lease the SOFTWARE.
Speech/Handwriting Recognition
. If the SOFTWARE includes speech and/or handwriting recognition component(s), you
should understand that speech and handwriting recognition are inherently statistical processes; that recognition errors are
inherent in the processes; and that errors can occur in the component's recognition of your handwriting or speech, and the
final conversion into text.. Neither SAGEM nor its suppliers shall be liable for any damages arising out of errors in the speech
and handwriting recognition processes.
25xxxxxxx_my800V_Version US_DRAFT_en.book Page 53 Vendredi, 21. juillet 2006 3:10 15
54 End User Licence Agreement (EULA), for the software
NOTICE REGARDING THE MPEG-4 VISUAL STANDARD
. The SOFTWARE may include MPEG-4 visual decoding
technology. MPEG LA, L.L.C. requires the following notice:
USE OF THIS SOFTWARE IN ANY MANNER THAT COMPLIES WITH THE MPEG-4 VISUAL STANDARD IS PROHIBITED,
EXCEPT FOR USE DIRECTLY RELATED TO (A) DATA OR INFORMATION (i) GENERATED BY AND OBTAINED
WITHOUT CHARGE FROM A CONSUMER NOT THEREBY ENGAGED IN A BUSINESS ENTERPRISE, AND (ii) FOR
PERSONAL USE ONLY; AND (B) OTHER USES SPECIFICALLY AND SEPARATELY LICENSED BY MPEG LA, L.L.C.
If you have questions regarding this Notice, please contact MPEG LA, L.L.C., 250 Steele Street, Suite 300, Denver, Colorado
80206; Telephone 303 331.1880; FAX 303 331.1879
Termination
. Without prejudice to any other rights, SAGEM may terminate this EULA if you fail to comply with the terms and
conditions of this EULA. In such event, you must destroy all copies of the SOFTWARE and all of its component parts.
Consent to Use of Data
. You agree that SOFTWARE SUPPLIERS may collect and use technical information gathered in
any manner as part of product support services related to the SOFTWARE. SOFTWARE SUPPLIERS may use this
information solely to improve their products or to provide customised services or technologies to you. SOFTWARE
SUPPLIERS may disclose this information to others, but not in a form that personally identifies you.
Internet Gaming/Update Features
. If the SOFTWARE provides, and you choose to utilise, the Internet gaming or update
features within the SOFTWARE, it is necessary to use certain computer system, hardware, and software information to
implement the features. By using these features, you explicitly authorise SOFTWARE SUPPLIERS to use this information
solely to improve their products or to provide customised services or technologies to you. SOFTWARE SUPPLIERS may
disclose this information to others, but not in a form that personally identifies you.
Internet-Based Services Components
. The SOFTWARE may contain components that enable and facilitate the use of
certain Internet-based services. You acknowledge and agree that SOFTWARE SUPPLIERS may automatically check the
version of the SOFTWARE and/or its components that you are utilising and may provide upgrades or supplements to the
SOFTWARE that may be automatically downloaded to your Device.
Links to Third Party Sites
. The SOFTWARE may provide you with the ability to link to third party sites through the use of
the SOFTWARE. The third party sites are not under the control of SAGEM. Neither SAGEM nor its affiliates are responsible
for (i) the contents of any third party sites, any links contained in third party sites, or any changes or updates to third party
sites, or (ii) webcasting or any other form of transmission received from any third party sites. If the SOFTWARE provides links
to third party sites, those links are provided to you only as a convenience, and the inclusion of any link does not imply an
endorsement of the third party site by SAGEM or its affiliates.
Additional Software/Services
. The SOFTWARE may permit SAGEM to provide or make available to you SOFTWARE
updates, supplements, add-on components, or Internet-based services components of the SOFTWARE after the date you
obtain your initial copy of the SOFTWARE ("Supplemental Components").
If SAGEM provides or makes available to you Supplemental Components and no other EULA terms are provided along with
the Supplemental Components, then the terms of this EULA shall apply.
SAGEM reserves the right to discontinue any Internet-based services provided to you or made available to you through the
use of the SOFTWARE.
25xxxxxxx_my800V_Version US_DRAFT_en.book Page 54 Vendredi, 21. juillet 2006 3:10 15
End User Licence Agreement (EULA), for the software 55
EXPORT RESTRICTIONS
. You acknowledge that SOFTWARE is subject to U.S. export jurisdiction. You agree to comply
with all applicable international and national laws that apply to the SOFTWARE, including the U.S. Export Administration
Regulations, as well as end-user, end-use and destination restrictions issued by U.S. and other governments.
UPGRADES AND RECOVERY MEDIA
-
DEVICE Software
. If the DEVICE Software is provided by SAGEM separate from the DEVICE on media such as a ROM
chip, CD ROM disk(s) or via web download or other means, and is labelled "For Upgrade Purposes Only", you may install
one copy of such DEVICE Software onto the DEVICE as a replacement copy for the existing DEVICE Software and use it
in accordance with this EULA, including any additional EULA terms accompanying the upgrade DEVICE Software.
-
COMPANION CD
. If any Companion CD component(s) is provided by SAGEM separate from the DEVICE on CD ROM
disk(s) or via web download or other means, and labelled "For Upgrade Purposes Only" , you may (i) install and use one
copy of such component(s) on the computer(s) you use to exchange data with the DEVICE as a replacement copy for the
existing Companion CD component(s).
RESPONSIBILITIES
SUPPORT AND INFORMATION
Should you have any questions concerning this EULA, or if you desire to contact SAGEM
]for any other reason, please refer to the address provided in the documentation for the DEVICE.
NO LIABILITY FOR CERTAIN DAMAGES
. EXCEPT AS PROHIBITED BY LAW, SAGEM SHALL HAVE NO LIABILITY FOR
ANY INDIRECT, SPECIAL, CONSEQUENTIAL OR INCIDENTAL DAMAGES ARISING FROM OR IN CONNECTION WITH
THE USE OR PERFORMANCE OF THE SOFTWARE. THIS LIMITATION SHALL APPLY EVEN IF ANY REMEDY FAILS
OF ITS ESSENTIAL PURPOSE.
FOR APPLICABLE LIMITED WARRANTIES AND SPECIAL PROVISIONS PERTAINING TO YOUR PARTICULAR
JURISDICTION, PLEASE REFER TO YOUR WARRANTY BOOKLET INCLUDED WITH THIS PACKAGE OR PROVIDED
WITH THE SOFTWARE PRINTED MATERIALS.
25xxxxxxx_my800V_Version US_DRAFT_en.book Page 55 Vendredi, 21. juillet 2006 3:10 15
56 Java™
Java™
When running a Java™ application, you may be prompted to grant access to protected features. These features are protected
because using them could incur you cost, or involve your personal data. In case of doubt, don't hesitate to refuse access by
selecting the "No" button!
The security configuration menu is an expert feature! You must know exactly what you are doing before attempting to change
security parameters of a MIDlet. Misunderstanding changes may render MIDlet non functional and/or lead to higher risks for
your private data or impact your airtime consumption. Any changes in the security configuration are done under your
responsibility. In no case shall Sagem Communication and/or your network provider be liable for any damages deriving from
or arising out of such changes in the security configuration.
You must be aware that applications downloaded to your phone could cause the phone to perform actions for which you will
be billed, like making calls and sending SMS. Depending on your operator's billing policy, you may also be charged to
download the application because of airtime consumption.
Security considerations
Java™ MIDP technology is an efficient way to provide powerful applications in mobile phones.
All these MIDP 2.0 features cannot be simply exposed to any MIDlet installed in the handset: a careful access control system
is implemented in the device to protect your private data and airtime consumption.
Access controls are gathered in 9 security groups:
-Network access
-Auto invocation
-Phone call
-Local connectivity
-Messaging receive
-Messaging sending
-Read User data
-Write User data
-Multimedia recording
Each of these security groups has one among 5 possible authorizations levels (listed from the more restrictive to the more
permissive):
-Never: The security group completely prevents access to the protected features.
-Per use: Each time MIDlet tries to use protected feature, user is prompted to grant access.
-Per session: First time a MIDlet uses a protected function, user is prompted to grant access like in "Per use" authorization
but access is granted until the MIDlet terminates.
25xxxxxxx_my800V_Version US_DRAFT_en.book Page 56 Vendredi, 21. juillet 2006 3:10 15
Java™ 57
-Single confirmation: The first time in the whole MIDlet life a MIDlet uses a protected feature, user is prompted to grant
access. It remains valid until the MIDlet is removed from the handset.
-Always: The security group unconditionally grants access to protected features.
A MIDlet has a security status which is either "uncertified", or else "certified".
An "uncertified" status means that the source of the MIDlet could not be verified by the mobile phone at installation time. As
far as the phone knows, the MIDlet could have been written by anyone.
A "certified" status means that the MIDlet was digitally signed by a known party, whose name is displayed by the mobile
phone.
Security permissions are different for "uncertified" or "certified" MIDlets.
Security configuration menu
When a MIDlet is installed in the mobile phone, default security authorizations are applied.
This default security configuration may be altered through the "Settings/Security" menu of an installed MIDlet.
Once in the "Security" menu, the security status of the MIDlet is displayed.
If you do not want to enter the security menu, simply select "Back" button. You can proceed by selecting "Ok" button.
The menu displayed allows you to increase or decrease permissions currently applied to the current MIDlet for each of the
security groups.
When you set a more permissive authorization to a security group than the current value, mobile phone asks you to confirm
your increased risk exposure.
The maximum risk exposure increase is limited by the security status.
What is Java™?
Business applications and games are easily downloadable by the end-user on a Java™ featured handset.
Your mobile phone is a MIDP 2.0 compliant Java™ platform which implements WMA (SMS support) and MMAPI (Multimedia
support) options, providing an exciting environment to run highly graphical, networked and intuitive MIDP applications.
What is a MIDlet?
A Java™ application or a game designed to run in a mobile phone is named a MIDlet (MIDP applet).
A MIDlet is usually made of 2 files:
-The JAD file
-The JAR file
JAD file stands for
J
ava™
A
pplication
D
escriptor. It is a small file describing the content of a JAR file.
JAR file stands for
J
ava™
A
rchive. It refers to the application data themselves (program, images, sound). A
JAR file may be
up to 200 kilo-bytes large.
Note
: In rare circumstances, MIDlet vendors may provide no JAD file and the MIDlet is the JAR file alone. In such a case it
is your only responsibility to evaluate the risk to download the JAR file without possibility of consulting the JAD file.
25xxxxxxx_my800V_Version US_DRAFT_en.book Page 57 Vendredi, 21. juillet 2006 3:10 15
58 Java™
Downloading a MIDlet (Java™ game or application)
MIDlets are easily downloaded in the mobile phone through the Games or Applications menus or through the WAP browser.
In almost all cases, you will first receive a JAD file which will be displayed on the screen.
When you select a JAD file, your mobile phone downloads it, displays data contained and prompts you to acknowledge the
JAR file download.
The popup displays information below:
-Name of the MIDlet, Version, Size, Name, Security status, URL.
If you do not want to download the main data (JAR file), you shall refuse to acknowledge further airtime consumption by
selecting "Cancel".
If you agree on the MIDlet installation, just select "Ok". The MIDlet is installed with security levels set to default values
associated with its security status.
Before downloading an application, such a message may appear: "Your handset cannot identify the application, please be
sure of the source of the application before installing the application".
Trademarks
Java™ and all other Java-based marks are trademarks or registered trademarks of Sun Microsystems, Inc. in the U.S. and
other countries.
Disclaimer
Some downloaded items may contain data or may induce actions which may cause malfunctioning of your mobile phone or
loss or corruption of data or abnormal increase of your airtime consumption.
You expressly acknowledge that the download of any applications including Java
TM
applications or games is done under your
exclusive responsibility. In no event shall Sagem Communication, your network service provider or their affiliates be liable for
any lost profits or costs of procurement of substitute goods or services, loss of profits, interruptions of business, loss of data
or for any special, indirect, incidental, economic, or consequential damages arising under contract, tort, negligence, or other
theory of liability relating to the download of any application by any means, including Java
TM
applications or games in SAGEM
devices. You expressly acknowledge that any applications including Java
TM
applications or games are provided strictly «as
is». Sagem Communication and/or your network service provider extend no warranty whatsoever thereto. Sagem
Communication and/or your network service provider disclaim any express, implied or statutory warranty of merchantability,
fitness of any applications including Java
TM
applications or games for a specific purpose, satisfactory quality, security or
otherwise.
25xxxxxxx_my800V_Version US_DRAFT_en.book Page 58 Vendredi, 21. juillet 2006 3:10 15
Troubleshooting 59
Troubleshooting
P
ROBLEM
- S
ITUATION
A
CTIONS
The phone won’t start and/or won’t
take a charge
The battery has completely lost its charge.
Connect the phone to the charger for between 5 and 30 minutes. The phone will
only switch on after it has been charging for a few minutes.
You may use the phone again when the Start option is displayed on the screen.
If the phone still won't start after 30 minutes’ charging, contact customer service.
Battery status unknown
The phone does not recognize the battery. Please check the position of the battery.
LOW BATTERY
This message is displayed when the battery becomes too weak. The phone
switches itself off automatically. Put the phone on charge.
SIM not present
Check if the SIM card is present and properly positioned / inserted.
Check the condition of the SIM card. If damaged, please go back to the network
shop for advice. Contact your after-sales service if the message persists.
Incorrect PIN code
An incorrect PIN code has been entered. Be careful! Three incorrect PIN codes will
block the SIM Card.
PIN BLOCKED
If a wrong PIN number is entered three times in succession, your SIM card is
blocked. You must then:
-Enter the PUK (Personal Unblocking Key) code provided by Vodafone, and
validate.
-Enter your PIN number and validate.
-Enter your PIN number again and validate.
After 5 or 10 failed attempts (depending on the type of SIM card), the SIM card is
definitely locked. You must then contact your network provider to obtain a new
card.
SIM LOCKED
In certain cases, the handset can only be used with some types of SIM cards. This
message means that the SIM card you are using does not fit with the phone. Take
the SIM card out, and switch it back on. If the message
SIM not present
appears
on the screen, you will need to check its compatibility next to the place where you
bought it. If not, please contact your after-sales service.
25xxxxxxx_my800V_Version US_DRAFT_en.book Page 59 Vendredi, 21. juillet 2006 3:10 15
60 Troubleshooting
No call connection
Check that the number you have dialled is correct.
If the icon is displayed without any network name displayed, only emergency
services can be called.
Check the status of your credit.
Check that the SIM Card you are using offers the service you are requesting; check
if its validity has not expired.
Check and deactivate the outgoing calls restriction when necessary.
The network could be saturated. Try later.
If the problem persists, please contact your Technical Helpdesk.
No receiving calls
Try to make a call in order to check that the phone and the network are operational.
Check and deactivate the permanent call forwarding (permanent call forwarding
icon displayed on the screen).
Check and deactivate the incoming calls restriction when necessary.
If the problem persists, please contact your Technical Helpdesk.
Quality reception when calling
Avoid placing your fingers on the top of the phone, where the aerial is integrated:
the phone will have to use full strength to establish a quality transmission.
No voicemail
Check that your subscription does offer this service.
Program the call to be forwarded to voicemail using the information provided by
Vodafone.
Check that the SIM card used offers this service. Try to make a call to check that
phone and network are operational.
Check if the voicemail number is properly configured. To do so, go to the
Settings
/
Call settings
menu, select
Voicemail
and check the number. Otherwise,
enter Vodafone voicemail number.
If voicemail icon flashing
Call voicemail and listen to the new messages to make it disappear.
How do I delete the envelop icon that
appears on the screen?
The icon means you have received text messages. To delete it, read your
message. If the icon flashes, memory is full, you must delete messages.
How do I delete the voicemail icon that
appears on the screen?
This voicemail means that you have received a voice message: please call your
voicemail and listen to it. Please follow the instructions given.
How do I remove the written message in
the idle screen (1 call)?
Press the
key to go back to the idle screen without messages.
How do I free up memory to download
my objects
Go into the
My Files
menu and delete some objects.
P
ROBLEM
- S
ITUATION
A
CTIONS
25xxxxxxx_my800V_Version US_DRAFT_en.book Page 60 Vendredi, 21. juillet 2006 3:10 15
Troubleshooting 61
How do I free up memory to receive new
messages?
Manage your Outbox carefully. It is recommended not saving sent messages
automatically: too many messages saved will quickly fill up the available memory
and no further messages will be received. To delete them, please go into the
Messages
menu, select
Inbox
then delete some messages. Manage your
Messaging menu
carefully also.
How do I free up memory to store new
contacts in my Phonebook?
It is highly recommended to manage your Phonebook carefully.
If you have received pictures enclosed in a Vcard, please save or delete them.
How can I increase the efficiency of my
phone?
The most efficient actions are as follows:
Please keep your phone safely in order to avoid pressing the keys unnecessarily:
every time a key is pressed the screen lights up.
You can deactivate the screensaver or select the activation time to be more than
every 300 s (the screensaver uses processing power).
Make sure that you don’t obstruct the antenna with your fingers when using the
phone (see page 15).
P
ROBLEM
- S
ITUATION
A
CTIONS
25xxxxxxx_my800V_Version US_DRAFT_en.book Page 61 Vendredi, 21. juillet 2006 3:10 15
62 Index
Index
A
Alarm 32
B
Backlight 35
Battery
Charging the battery 16
Installing the battery 8
Bluetooth 33
Browser settings 36
C
Calculator 32
Calendar 31
Call settings 36
Calls 13
Any key 36
Auto response 36
Automatic redial 37
Blacklist 36
Call barring 37
Call divert 36
Call waiting 37
Display numbers 37
Minute minder 37
Camera 26, 40
Chronometer 32
Confidentiality 39
Contact 26
Contacts 12, 33
Call group 19
Copy 18
Delete 18
New contact 17
Using the phonebook 17
Converter 32
Cost 40
D
Date / Time 40
Date and time 32
Downloaded objects 28
Drafts 24
F
Fixed dialling 40
G
Games 30
Getting started 12
H
Hands-free mode 14
I
Icon 10
Idle screen 10
Inbox 24
Input modes 23
K
Keypad lock 38
25xxxxxxx_my800V_Version US_DRAFT_en.book Page 62 Vendredi, 21. juillet 2006 3:10 15
Index 63
L
Languages 35
M
Memory 40
Messages
Compose SMS 22
Outbox 24
Receiving messages 23
MMS 26, 27
Modem status 32
Multimedia objects 28
Music files 29
Music Player 29
My Files 28
N
Navigator 6
Network 13
Networks settings 36
O
Organiser 33
P
Phone code 39
Photo 7, 26, 33
Picture 33
PIN code 38
PIN2 code 38
Profiles 35
S
Security 38
Serial cable 33
Shutdown animation 35
SIM card 8, 11
SMS 22
Sound 33
Startup animation 35
Synchronize 34
T
T9 22
Templates 25
Timer 32
ToDo 31
Todo 33
Troubleshooting 59, 60, 61
U
USB cable 33
USB mode 34
V
vCard 18
Video 27, 33
Video call 14
Videotelephony 36
Vodafone live! 20
Voicemail 25
W
Wallpaper 35
Warranty 49
Wellphone 33
25xxxxxxx_my800V_Version US_DRAFT_en.book Page 63 Vendredi, 21. juillet 2006 3:10 15
Mobile Communication Business Group
www.sagem.com/mobiles
Le Ponant de Paris - 27, rue Leblanc - 75512 PARIS CEDEX 15 - FRANCE
Société Anonyme
Capital 300 272 000 € - 480 108 158 RCS PARIS
07/2006
25xxxxxxx_my800V_Version US_DRAFT_en.book Page 64 Vendredi, 21. juillet 2006 3:10 15
