Sakar Internation V60011BT-ASST Bluetooth Speaker User Manual

Sakar Internation Inc. Bluetooth Speaker Users Manual

Users Manual

ESSENTIALCOLLECTIONBLUETOOTHSPEAKERWIRELESSANSWERCALLSRECHARGEABLEBATTERYVB60011BTUSER’S MANUAL™

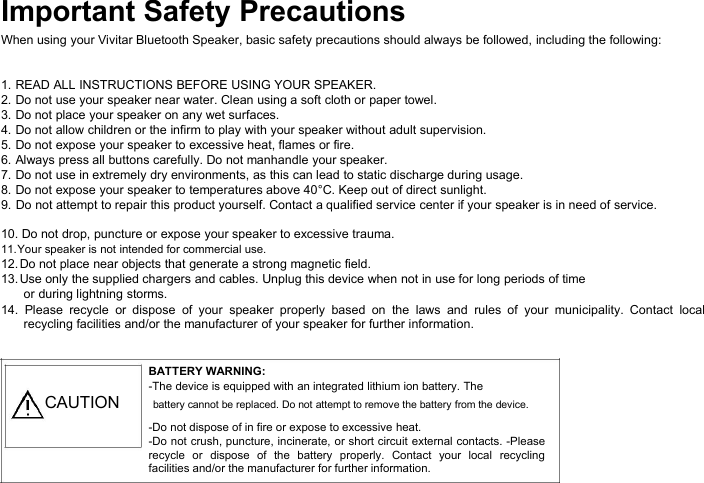

Important Safety PrecautionsWhen using your Vivitar Bluetooth Speaker, basic safety precautions should always be followed, including the following:1. READ ALL INSTRUCTIONS BEFORE USING YOUR SPEAKER.2. Do not use your speaker near water. Clean using a soft cloth or paper towel.3. Do not place your speaker on any wet surfaces.4. Do not allow children or the infirm to play with your speaker without adult supervision.5. Do not expose your speaker to excessive heat, flames or fire.6. Always press all buttons carefully. Do not manhandle your speaker.7. Do not use in extremely dry environments, as this can lead to static discharge during usage.8. Do not expose your speaker to temperatures above 40°C. Keep out of direct sunlight.9. Do not attempt to repair this product yourself. Contact a qualified service center if your speaker is in need of service.10. Do not drop, puncture or expose your speaker to excessive trauma.11.Your speaker is not intended for commercial use.12.Do not place near objects that generate a strong magnetic field.13.Use only the supplied chargers and cables. Unplug this device when not in use for long periods of timeor during lightning storms.14. Please recycle or dispose of your speaker properly based on the laws and rules of your municipality. Contact localrecycling facilities and/or the manufacturer of your speaker for further information.BATTERY WARNING:-The device is equipped with an integrated lithium ion battery. TheCAUTION battery cannot be replaced. Do not attempt to remove the battery from the device.-Do not dispose of in fire or expose to excessive heat.-Do not crush, puncture, incinerate, or short circuit external contacts. -Pleaserecycle or dispose of the battery properly. Contact your local recyclingfacilities and/or the manufacturer for further information.
IntroductionThank you for purchasing your Vivitar Bluetooth Speaker, item VB60011BT. You can use your speaker withiPads, iPhones, iPods and many other types of smartphones and Bluetooth devices to stream music andenjoy hands-free calling. In order to get the best results when using this device, please read this manualfirst before using.Package Contents-Vivitar VB60011BT Bluetooth Speaker-USB Charging Cable-AUX Cable-User’s Manual with Warranty InformationSpecificationsBluetooth Specification: V2.1+EDRBluetooth Range: Up to 33 Feet (10 Meters)Charging Input: DC5V/Battery Type: 3.7V, 2200mAh Lithium-Ion BatteryCharge Time: Approximately 5-8 Hours1A

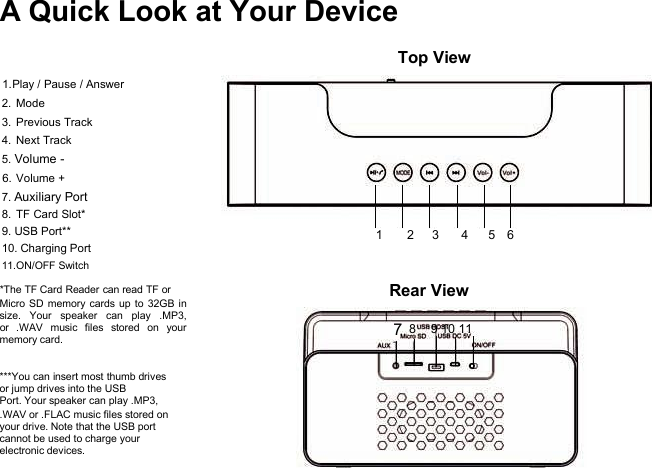

A Quick Look at Your DeviceTop View1.Play / Pause / Answer2. Mode3. Previous Track4. Next Track5. Volume -6. Volume +7. Auxiliary Port8. TF Card Slot*9. USB Port** 1 2 3 4 5 610. Charging Port11.ON/OFF Switch*The TF Card Reader can read TF orMicro SD memory cards up to 32GB insize. Your speaker can play .MP3,or .WAV music files stored on yourmemory card.***You can insert most thumb drivesor jump drives into the USBPort. Your speaker can play .MP3,.WAV or .FLAC music files stored onyour drive. Note that the USB portcannot be used to charge yourelectronic devices.Rear View78 9 10 11

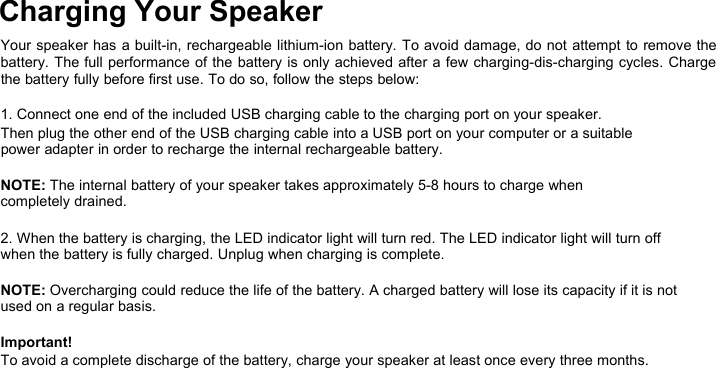

Charging Your SpeakerYour speaker has a built-in, rechargeable lithium-ion battery. To avoid damage, do not attempt to remove thebattery. The full performance of the battery is only achieved after a few charging-dis-charging cycles. Chargethe battery fully before first use. To do so, follow the steps below:1. Connect one end of the included USB charging cable to the charging port on your speaker.Then plug the other end of the USB charging cable into a USB port on your computer or a suitablepower adapter in order to recharge the internal rechargeable battery.NOTE: The internal battery of your speaker takes approximately 5-8 hours to charge whencompletely drained.2. When the battery is charging, the LED indicator light will turn red. The LED indicator light will turn offwhen the battery is fully charged. Unplug when charging is complete.NOTE: Overcharging could reduce the life of the battery. A charged battery will lose its capacity if it is notused on a regular basis.Important!To avoid a complete discharge of the battery, charge your speaker at least once every three months.

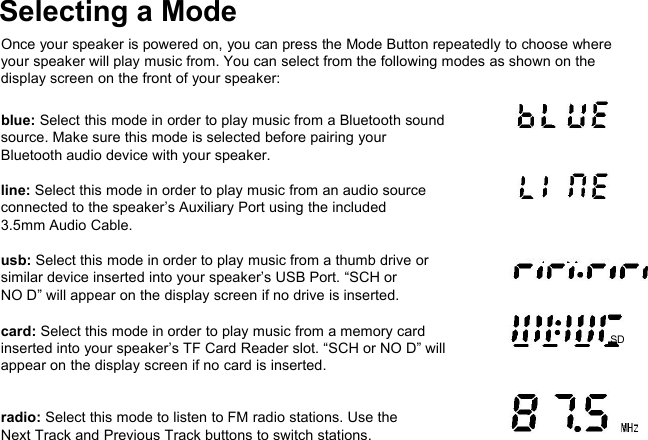

Selecting a ModeOnce your speaker is powered on, you can press the Mode Button repeatedly to choose whereyour speaker will play music from. You can select from the following modes as shown on thedisplay screen on the front of your speaker:blue: Select this mode in order to play music from a Bluetooth soundsource. Make sure this mode is selected before pairing yourBluetooth audio device with your speaker.line: Select this mode in order to play music from an audio sourceconnected to the speaker’s Auxiliary Port using the included3.5mm Audio Cable.usb: Select this mode in order to play music from a thumb drive orsimilar device inserted into your speaker’s USB Port. “SCH orNO D” will appear on the display screen if no drive is inserted.card: Select this mode in order to play music from a memory cardinserted into your speaker’s TF Card Reader slot. “SCH or NO D” willappear on the display screen if no card is inserted.radio: Select this mode to listen to FM radio stations. Use theNext Track and Previous Track buttons to switch stations.USBSD
Pairing Your Speaker with a Bluetooth DeviceYour speaker can be paired with most Bluetooth devices including iPads, iPhones, iPod Touches, and mostsmartphones, laptops and tablets. In order to pair your speaker with a phone, follow the steps below:1.Slide the ON/OFF switch to the ON position to power on your speaker. Make sure that “Blue” appears onyour speaker’s display screen to indicate that you are in Bluetooth mode. If it does not, press the modebutton repeatedly until you are in Bluetooth mode. Once in Bluetooth mode, your speaker will automaticallyget ready to pair.2. Go to the Bluetooth Manager of your Bluetooth device.3. Search Bluetooth devices and select “Vivitar B60011” to start connecting.4. Enter “0000” if your device asks for the PIN code.Note: If a memory card is inserted in the TF Card Reader slot, or a thumb drive is inserted in the USB Port,your speaker will automatically go into the associated mode. Similarly, if an audio source is connectedthrough your speaker’s Auxiliary Port your speaker will automatically go into Auxiliary Input Mode (Line In).Repeatedly press the Mode button to switch between modes.

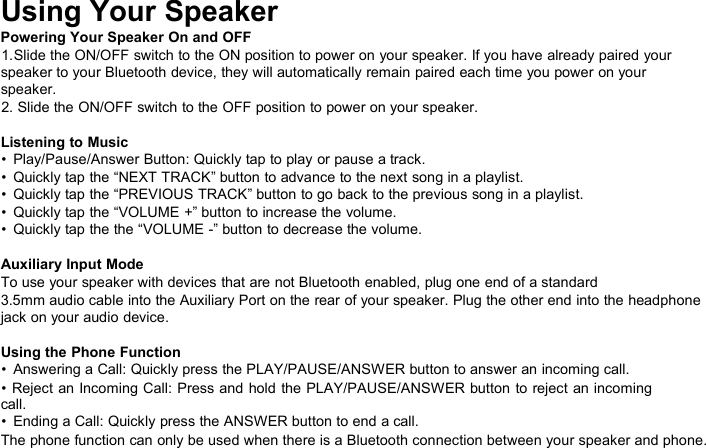

Using Your SpeakerPowering Your Speaker On and OFF1.Slide the ON/OFF switch to the ON position to power on your speaker. If you have already paired yourspeaker to your Bluetooth device, they will automatically remain paired each time you power on yourspeaker.2. Slide the ON/OFF switch to the OFF position to power on your speaker.Listening to Music• Play/Pause/Answer Button: Quickly tap to play or pause a track.• Quickly tap the “NEXT TRACK” button to advance to the next song in a playlist.• Quickly tap the “PREVIOUS TRACK” button to go back to the previous song in a playlist.• Quickly tap the “VOLUME +” button to increase the volume.• Quickly tap the the “VOLUME -” button to decrease the volume.Auxiliary Input ModeTo use your speaker with devices that are not Bluetooth enabled, plug one end of a standard3.5mm audio cable into the Auxiliary Port on the rear of your speaker. Plug the other end into the headphonejack on your audio device.Using the Phone Function• Answering a Call: Quickly press the PLAY/PAUSE/ANSWER button to answer an incoming call.• Reject an Incoming Call: Press and hold the PLAY/PAUSE/ANSWER button to reject an incomingcall.• Ending a Call: Quickly press the ANSWER button to end a call.The phone function can only be used when there is a Bluetooth connection between your speaker and phone.

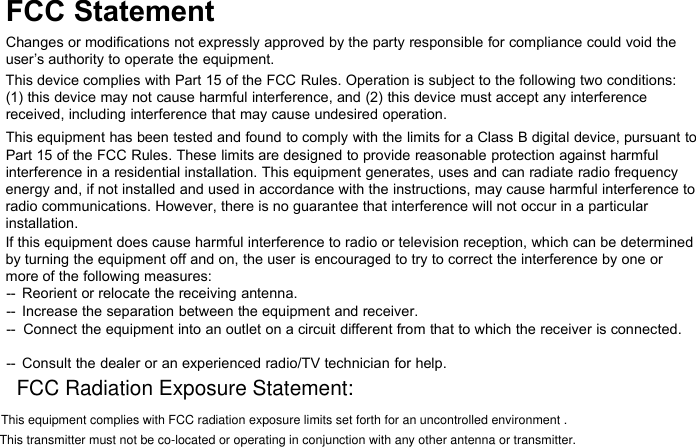

FCC StatementChanges or modifications not expressly approved by the party responsible for compliance could void theuser’s authority to operate the equipment.This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) this device may not cause harmful interference, and (2) this device must accept any interferencereceived, including interference that may cause undesired operation.This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant toPart 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmfulinterference in a residential installation. This equipment generates, uses and can radiate radio frequencyenergy and, if not installed and used in accordance with the instructions, may cause harmful interference toradio communications. However, there is no guarantee that interference will not occur in a particularinstallation.If this equipment does cause harmful interference to radio or television reception, which can be determinedby turning the equipment off and on, the user is encouraged to try to correct the interference by one ormore of the following measures:-- Reorient or relocate the receiving antenna.-- Increase the separation between the equipment and receiver.-- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.-- Consult the dealer or an experienced radio/TV technician for help.FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment .This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

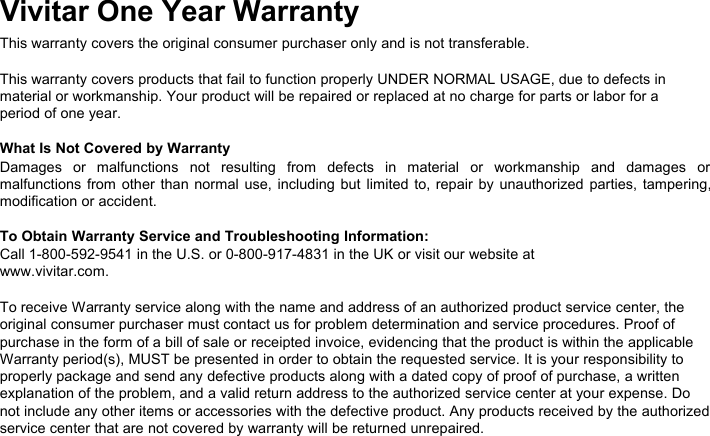

Vivitar One Year WarrantyThis warranty covers the original consumer purchaser only and is not transferable.This warranty covers products that fail to function properly UNDER NORMAL USAGE, due to defects inmaterial or workmanship. Your product will be repaired or replaced at no charge for parts or labor for aperiod of one year.What Is Not Covered by WarrantyDamages or malfunctions not resulting from defects in material or workmanship and damages ormalfunctions from other than normal use, including but limited to, repair by unauthorized parties, tampering,modification or accident.To Obtain Warranty Service and Troubleshooting Information:Call 1-800-592-9541 in the U.S. or 0-800-917-4831 in the UK or visit our website atwww.vivitar.com.To receive Warranty service along with the name and address of an authorized product service center, theoriginal consumer purchaser must contact us for problem determination and service procedures. Proof ofpurchase in the form of a bill of sale or receipted invoice, evidencing that the product is within the applicableWarranty period(s), MUST be presented in order to obtain the requested service. It is your responsibility toproperly package and send any defective products along with a dated copy of proof of purchase, a writtenexplanation of the problem, and a valid return address to the authorized service center at your expense. Donot include any other items or accessories with the defective product. Any products received by the authorizedservice center that are not covered by warranty will be returned unrepaired.

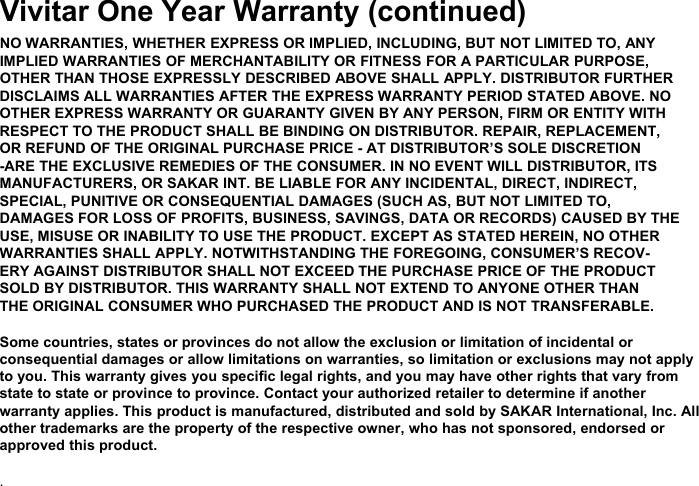

Vivitar One Year Warranty (continued)NO WARRANTIES, WHETHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANYIMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE,OTHER THAN THOSE EXPRESSLY DESCRIBED ABOVE SHALL APPLY. DISTRIBUTOR FURTHERDISCLAIMS ALL WARRANTIES AFTER THE EXPRESS WARRANTY PERIOD STATED ABOVE. NOOTHER EXPRESS WARRANTY OR GUARANTY GIVEN BY ANY PERSON, FIRM OR ENTITY WITHRESPECT TO THE PRODUCT SHALL BE BINDING ON DISTRIBUTOR. REPAIR, REPLACEMENT,OR REFUND OF THE ORIGINAL PURCHASE PRICE - AT DISTRIBUTOR’S SOLE DISCRETION-ARE THE EXCLUSIVE REMEDIES OF THE CONSUMER. IN NO EVENT WILL DISTRIBUTOR, ITSMANUFACTURERS, OR SAKAR INT. BE LIABLE FOR ANY INCIDENTAL, DIRECT, INDIRECT,SPECIAL, PUNITIVE OR CONSEQUENTIAL DAMAGES (SUCH AS, BUT NOT LIMITED TO,DAMAGES FOR LOSS OF PROFITS, BUSINESS, SAVINGS, DATA OR RECORDS) CAUSED BY THEUSE, MISUSE OR INABILITY TO USE THE PRODUCT. EXCEPT AS STATED HEREIN, NO OTHERWARRANTIES SHALL APPLY. NOTWITHSTANDING THE FOREGOING, CONSUMER’S RECOV-ERY AGAINST DISTRIBUTOR SHALL NOT EXCEED THE PURCHASE PRICE OF THE PRODUCTSOLD BY DISTRIBUTOR. THIS WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THANTHE ORIGINAL CONSUMER WHO PURCHASED THE PRODUCT AND IS NOT TRANSFERABLE.Some countries, states or provinces do not allow the exclusion or limitation of incidental orconsequential damages or allow limitations on warranties, so limitation or exclusions may not applyto you. This warranty gives you specific legal rights, and you may have other rights that vary fromstate to state or province to province. Contact your authorized retailer to determine if anotherwarranty applies. This product is manufactured, distributed and sold by SAKAR International, Inc. Allother trademarks are the property of the respective owner, who has not sponsored, endorsed orapproved this product..
™
