User Manual
Installation guide
01082 ED. 2007-03-30
All contents current at time of publication.
SALTO Systems S.L. reserves the right to change availability of any
item in this catalog, its design, construction, and/or materials.
Installation guide Ai6xx...
Guía de instalación
Montageanleitung
Installation guide
Guide d'installation
Guida all'installazione
1/4
www.saltosystems.com
* Required only for doors that exceed
2-3/8" thickness
A i 650 m 00 ff t s h series
A i 656 m 00 ff t s h
A i 658 m dd ff t s h
A i 660 m 00 ff t s h
A i 666 m 00 ff t s h
A i 668 m dd ff t s h
Mortise Lock
not included
Outside
Inside
t*
3-1/8" [80mm.] 6-3/4" [170mm.]
O 9/16"
[O14mm.]
Tubular latch
not included
1
1
22a
33a 4
56
7
8
9*
ONLY FOR PROXIMITY MODELS
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
follow user manual
AT THIS POINT DO NOT
CLOSE THE DOOR
TEST THE LOCK FIRST
O 1"
[O 25mm]
Installation guide
01082 ED. 2007-03-30
All contents current at time of publication.
SALTO Systems S.L. reserves the right to change availability of any
item in this catalog, its design, construction, and/or materials.
2/4
Caution !
Do not disconnect !
PUSH
SELECT
INSERT

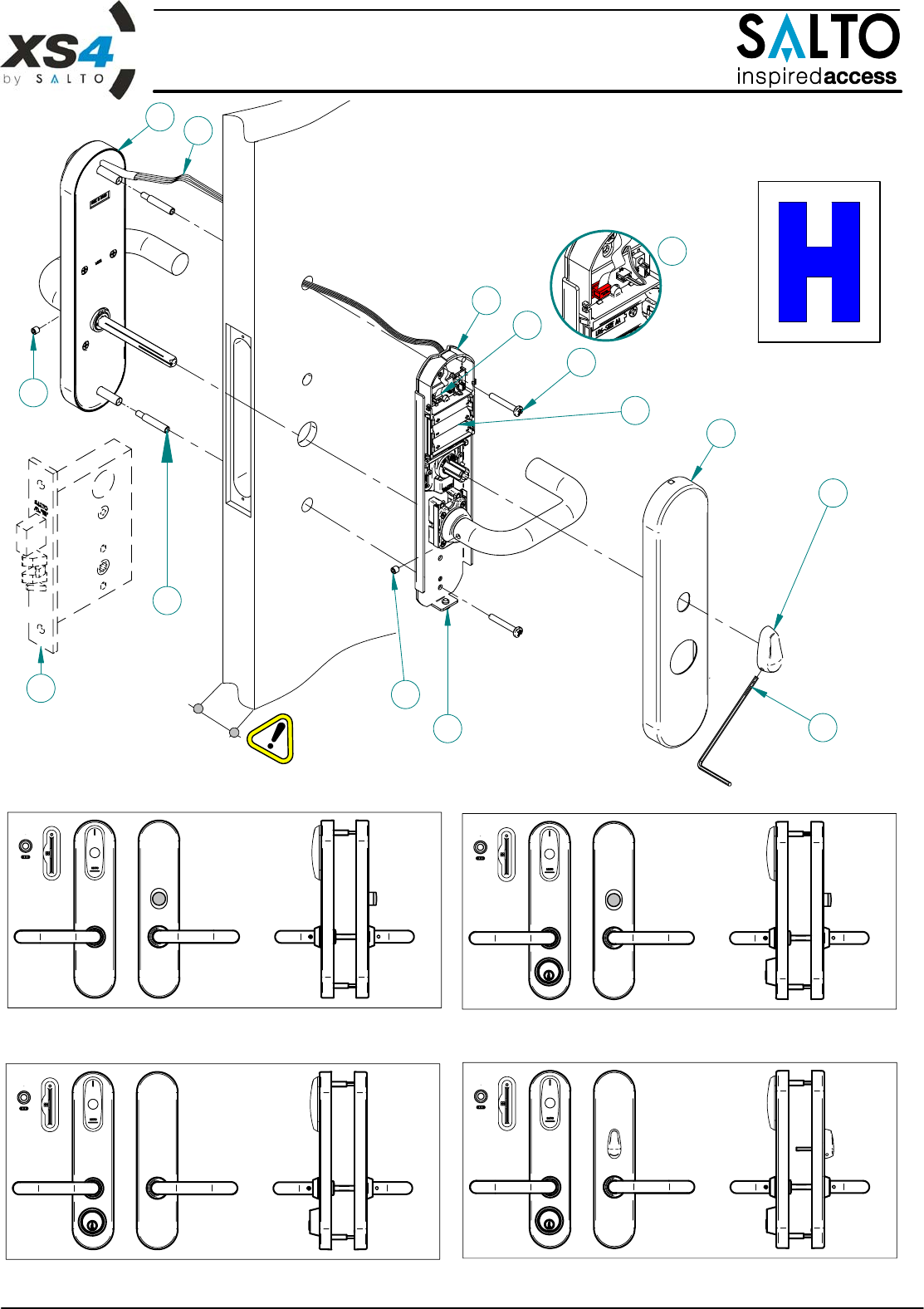

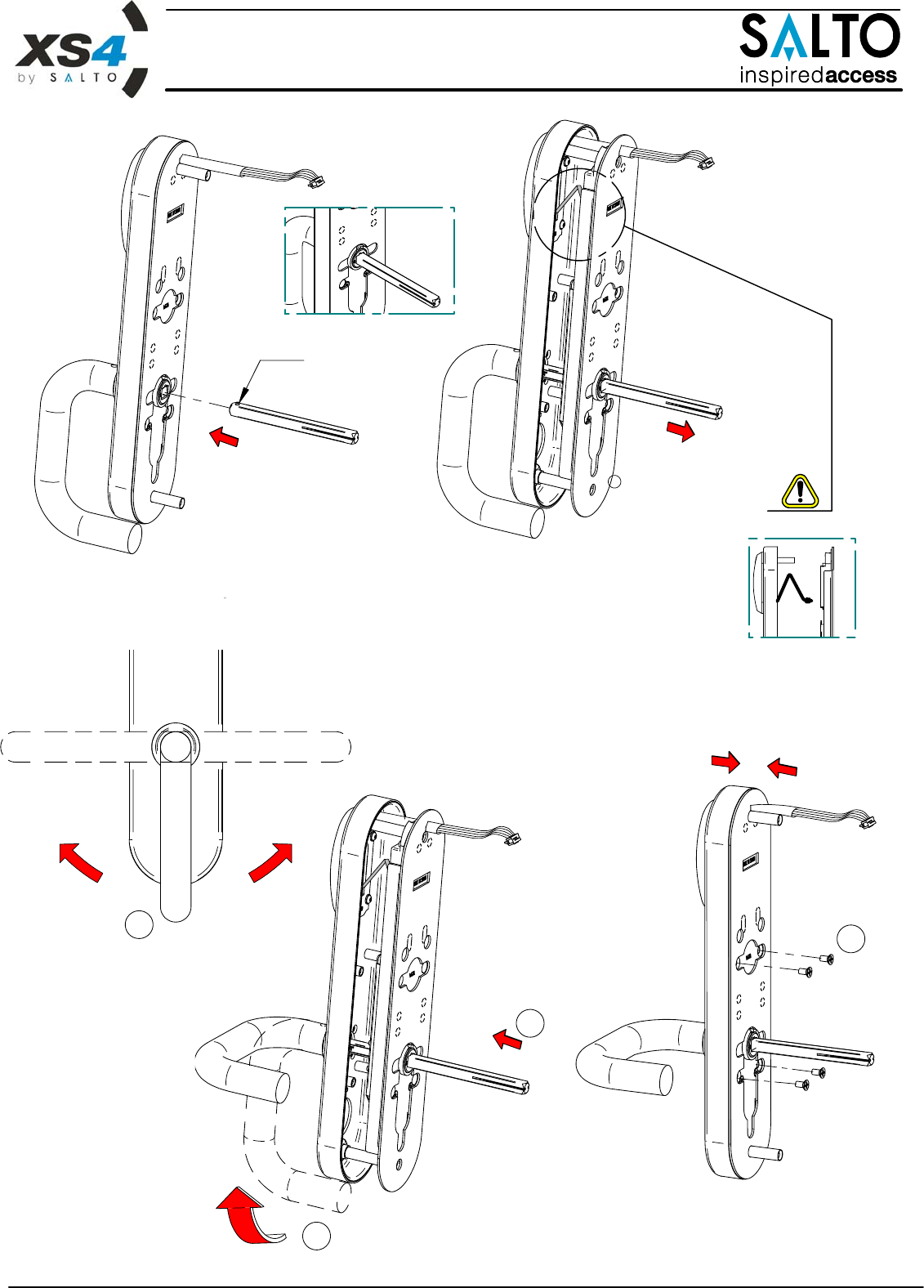

Installation guide Ai6xx... (Selection of Handing)
PULL
1
2
3
1
3/4 Installation guide
01082 ED. 2007-03-30
All contents current at time of publication.
SALTO Systems S.L. reserves the right to change availability of any
item in this catalog, its design, construction, and/or materials.
=
=
b
a
B
A
C
DH
G
F
EI
J
AT THIS POINT DO NOT
CLOSE THE DOOR
TEST THE LOCK FIRST
follow user manual
O9/16"
[O14mm.]
O9/16" mm
[O14mm.]
MIN.O1"
MIN.[O25mm.]
90º
Reverse !
COUNTER-CLOCKWISE
THUMBTURN
MODEL ONLY
O5/8" [O16mm.]
INSIDE ONLY
B2
Installation guide Ai6xx...
Only LR6 Batteries
=
=
NOT OK
Installation guide
01082 ED. 2007-03-30
All contents current at time of publication.
SALTO Systems S.L. reserves the right to change availability of any
item in this catalog, its design, construction, and/or materials.
4/4
HOTEL GUEST ROOM LOCK / KEY OVERRIDE
PUSH
PRIVACY
E
PUSH
PRIVACY
E
Ai660 m 00 ff t s h
Entry lock with key override
Ai658 m dd ff t s h
Ai668 m dd ff t s h
Ai656 m 00 ff t s h
Entry lock with privacy/ lockout funtion
Ai668 m dd ff t s h
Hotel guest room lock with key override
Ai666 m 00 ff t s h
Entry lock with privacy/lockout funtion and key override
*****

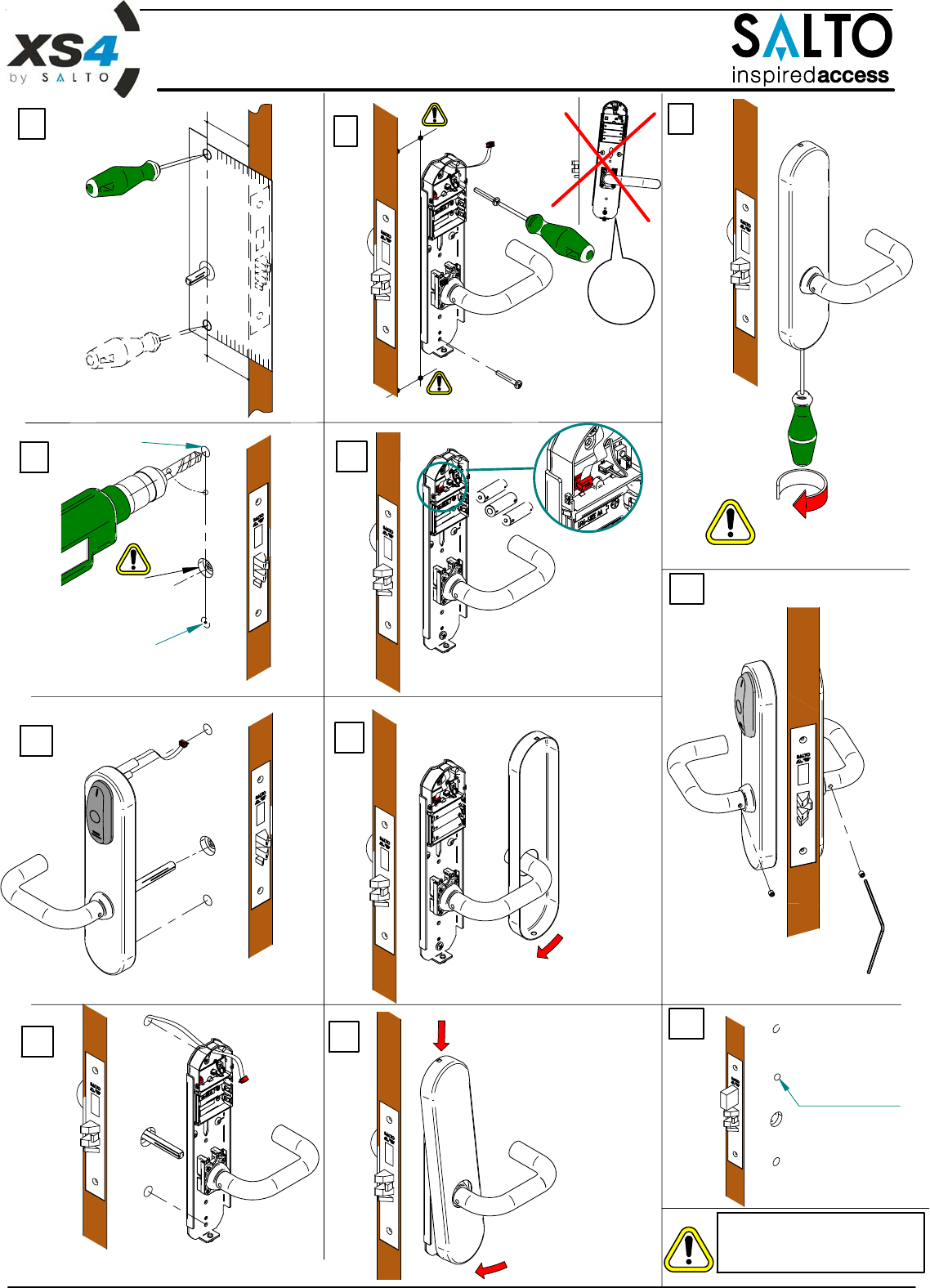

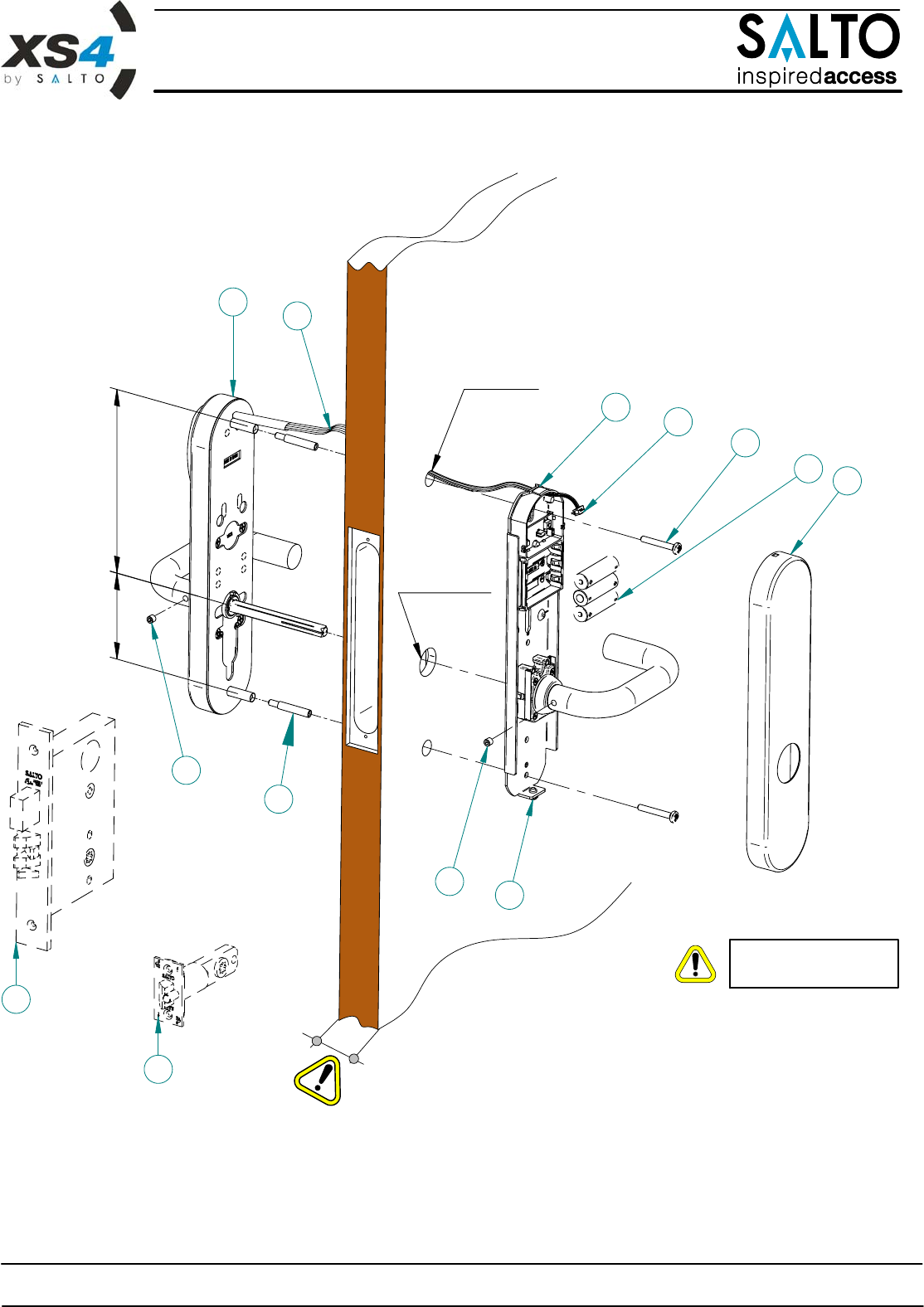

Installation guide Ai6xx...
1
22a
3
3a
4
56
7
10
11
*
3a
9
8
* Required only for doors
that exced 2-3/8" thickness
t*
Mortise Lock
not included
