Sam Ash Music CB88 Belt Pack Transmitter User Manual Manual part 2

Sam Ash Music Corporation Belt Pack Transmitter Manual part 2

Contents

Manual part 2.pdf

15
Concert 88 Wireless System
Quick Start - Single System Setup
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and
(2) this device must accept any
interference received, including
interference that may cause
undesired operation.
FREQ:
542-566MHz
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and
(2) this device must accept any
interference received, including
interference that may cause
undesired operation.
FREQ:
542-566MHz
3. Plug in receiver 4. Turn on receiver 5. Plug receiver into audio system 6. Press Select button to change channel 9. Press and hold SELECT button to IR set 10. Adjust Volume control7. Install batteries 8. Press button on transmitter to turn on
9. Press and hold Select button to IR set7. Install batteries 8. Turn on belt pack transmitter
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and
(2) this device must accept any
interference received, including
interference that may cause
undesired operation.
FREQ:
542-566MHz
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and
(2) this device must accept any
interference received, including
interference that may cause
undesired operation.
FREQ:
542-566MHz
3. Plug in receiver 4. Turn on receiver 5. Plug receiver into audio system 6. Press Select button to change channel 9. Press and hold SELECT button to IR set 10. Adjust Volume control7. Install batteries 8. Press button on transmitter to turn on
9. Press and hold Select button to IR set7. Install batteries 8. Turn on belt pack transmitter

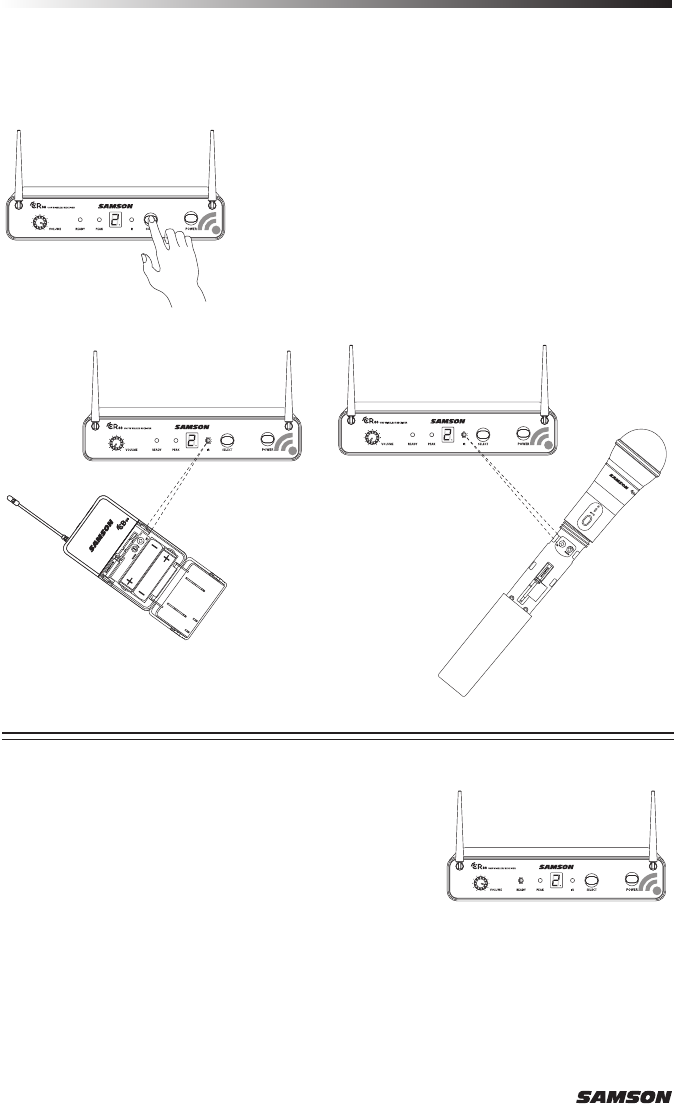

Position the transmitter about 6-12" (15-30 cm) from the front of the CR88 with
the transmitter's IR window facing the IR transmitter on the front panel of the CR88
receiver.
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and
(2) this device must accept any
interference received, including
interference that may cause
undesired operation.
FREQ:
542-566MHz
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and
(2) this device must accept any
interference received, including
interference that may cause
undesired operation.
FREQ:
542-566MHz
3. Plug in receiver 4. Turn on receiver 5. Plug receiver into audio system 6. Press Select button to change channel 9. Press and hold SELECT button to IR set 10. Adjust Volume control7. Install batteries 8. Press button on transmitter to turn on
9. Press and hold Select button to IR set7. Install batteries 8. Turn on belt pack transmitter
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and
(2) this device must accept any
interference received, including
interference that may cause
undesired operation.
FREQ:
542-566MHz
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and
(2) this device must accept any
interference received, including
interference that may cause
undesired operation.
FREQ:
542-566MHz
3. Plug in receiver 4. Turn on receiver 5. Plug receiver into audio system 6. Press Select button to change channel 9. Press and hold SELECT button to IR set 10. Adjust Volume control7. Install batteries 8. Press button on transmitter to turn on
9. Press and hold Select button to IR set7. Install batteries 8. Turn on belt pack transmitter
Press and hold the CR88 SELECT button to set the
transmitter to the same channel as the receiver via
infrared transmission
Press the SELECT button on the front of the CR88
receiver to choose an available channel. The channel
number will increase by one digit, from 0-9 then A-F.
Once the last channel has been reached, the count will
cycle back to 0.
16

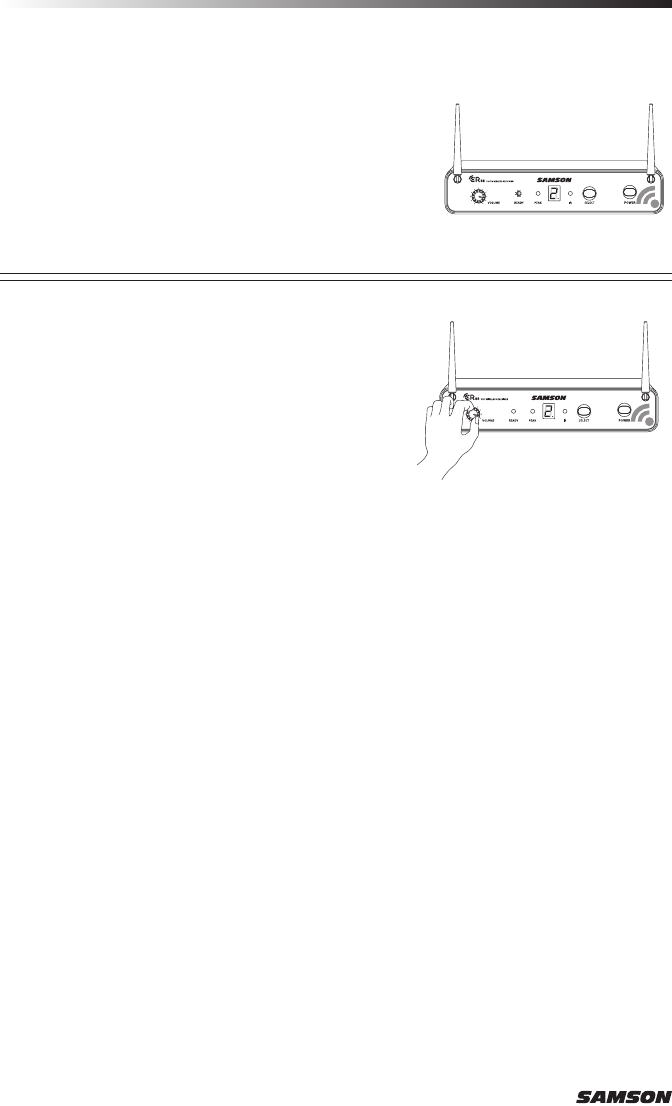

Turn on your connected amplifier or mixer, but keep
the volume all the way down. Set the Volume knob
on the CR88 fully clockwise (to its “10” setting).
This is unity gain.
Speak or sing into the microphone, or if you are using the transmitter with a con-
nected instrument, play the instrument at normal performance level. Slowly raise the
volume of your amplifier or mixer until the desired level is reached.
If you find the system has noticeable dropouts, reduced overall working range, or
unexpected noise bursts, change the operating channel of the system using the steps
above.
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and
(2) this device must accept any
interference received, including
interference that may cause
undesired operation.
FREQ:
542-566MHz
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and
(2) this device must accept any
interference received, including
interference that may cause
undesired operation.
FREQ:
542-566MHz
3. Plug in receiver 4. Turn on receiver 5. Plug receiver into audio system 6. Press Select button to change channel 9. Press and hold SELECT button to IR set 10. Adjust Volume control7. Install batteries 8. Press button on transmitter to turn on
9. Press and hold Select button to IR set7. Install batteries 8. Turn on belt pack transmitter
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and
(2) this device must accept any
interference received, including
interference that may cause
undesired operation.
FREQ:
542-566MHz
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and
(2) this device must accept any
interference received, including
interference that may cause
undesired operation.
FREQ:
542-566MHz
3. Plug in receiver 4. Turn on receiver 5. Plug receiver into audio system 6. Press Select button to change channel 9. Press and hold SELECT button to IR set 10. Adjust Volume control7. Install batteries 8. Press button on transmitter to turn on
9. Press and hold Select button to IR set7. Install batteries 8. Turn on belt pack transmitter
Quick Start - Single System Setup
When the transmission is complete, the CR88 will
receive RF signal and the tone key from the transmit-
ter. The READY indicator will light on the front panel of
the CR88 receiver.
17
Concert 88 Wireless System

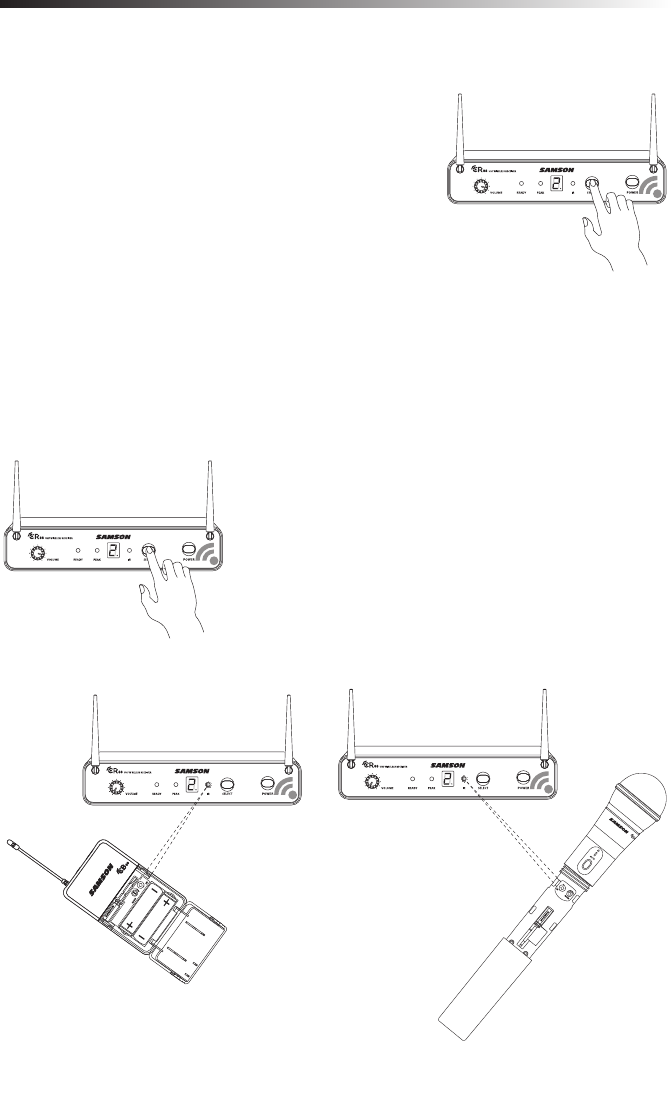

To change the operating channel of a system, press
the SELECT button on the front of the CR88 receiver.
The channel number will increase by one digit, from
0-9 then A-F. Once the last channel has been reached,
the count will cycle back to 0.
Quick Start - Multiple System Setup
When using multiple systems, each system must be set to a different operating channel.
Transmitter and receiver pairs must be on the same channel plan in order to work
together (See "Concert 88 Channel Plans" on page 20).
When setting an additional transmitter, make sure to close all other transmitter bat-
tery compartments to ensure that the IR Lens is covered.
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and
(2) this device must accept any
interference received, including
interference that may cause
undesired operation.
FREQ:
542-566MHz
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and
(2) this device must accept any
interference received, including
interference that may cause
undesired operation.
FREQ:
542-566MHz
3. Plug in receiver 4. Turn on receiver 5. Plug receiver into audio system 6. Press Select button to change channel 9. Press and hold SELECT button to IR set 10. Adjust Volume control7. Install batteries 8. Press button on transmitter to turn on
9. Press and hold Select button to IR set7. Install batteries 8. Turn on belt pack transmitter
Turn on the power to the transmitter by pressing and holding the Power switch; the
indicator LED will light green.
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and
(2) this device must accept any
interference received, including
interference that may cause
undesired operation.
FREQ:
542-566MHz
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and
(2) this device must accept any
interference received, including
interference that may cause
undesired operation.
FREQ:
542-566MHz
3. Plug in receiver 4. Turn on receiver 5. Plug receiver into audio system 6. Press Select button to change channel 9. Press and hold SELECT button to IR set 10. Adjust Volume control7. Install batteries 8. Press button on transmitter to turn on
9. Press and hold Select button to IR set7. Install batteries 8. Turn on belt pack transmitter
18
Position the transmitter about 6-12" (15-30 cm) from the front of the CR88 with the
transmitter's IR window facing the receiver's IR transmitter.
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and
(2) this device must accept any
interference received, including
interference that may cause
undesired operation.
FREQ:
542-566MHz
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and
(2) this device must accept any
interference received, including
interference that may cause
undesired operation.
FREQ:
542-566MHz
3. Plug in receiver 4. Turn on receiver 5. Plug receiver into audio system 6. Press Select button to change channel 9. Press and hold SELECT button to IR set 10. Adjust Volume control7. Install batteries 8. Press button on transmitter to turn on
9. Press and hold Select button to IR set7. Install batteries 8. Turn on belt pack transmitter
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and
(2) this device must accept any
interference received, including
interference that may cause
undesired operation.
FREQ:
542-566MHz
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and
(2) this device must accept any
interference received, including
interference that may cause
undesired operation.
FREQ:
542-566MHz
3. Plug in receiver 4. Turn on receiver 5. Plug receiver into audio system 6. Press Select button to change channel 9. Press and hold SELECT button to IR set 10. Adjust Volume control7. Install batteries 8. Press button on transmitter to turn on
9. Press and hold Select button to IR set7. Install batteries 8. Turn on belt pack transmitter
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and
(2) this device must accept any
interference received, including
interference that may cause
undesired operation.
FREQ:
542-566MHz
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and
(2) this device must accept any
interference received, including
interference that may cause
undesired operation.
FREQ:
542-566MHz
3. Plug in receiver 4. Turn on receiver 5. Plug receiver into audio system 6. Press Select button to change channel 9. Press and hold SELECT button to IR set 10. Adjust Volume control7. Install batteries 8. Press button on transmitter to turn on
9. Press and hold Select button to IR set7. Install batteries 8. Turn on belt pack transmitter
When the transmission is complete, and the CR88 is
receiving RF signal from the transmitter, the READY
indicator will light on the front panel of the CR88
receiver.
If you find the system has noticeable dropouts, reduced overall working range, or
unexpected noise bursts, change the operating channel of the system using the steps
above.
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and
(2) this device must accept any
interference received, including
interference that may cause
undesired operation.
FREQ:
542-566MHz
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and
(2) this device must accept any
interference received, including
interference that may cause
undesired operation.
FREQ:
542-566MHz
3. Plug in receiver 4. Turn on receiver 5. Plug receiver into audio system 6. Press Select button to change channel 9. Press and hold SELECT button to IR set 10. Adjust Volume control7. Install batteries 8. Press button on transmitter to turn on
9. Press and hold Select button to IR set7. Install batteries 8. Turn on belt pack transmitter
Quick Start - Multiple System Setup
Press and hold the CR88 SELECT button to synch
the transmitter to the same channel as the receiver
via infrared transmission.
19
Concert 88 Wireless System

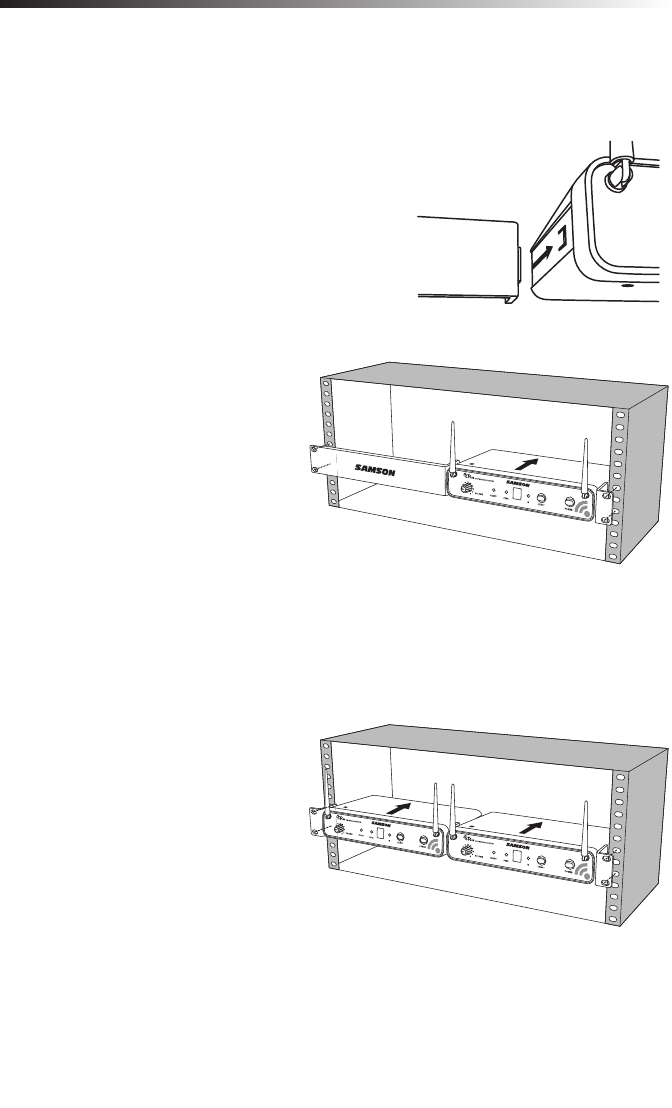

The CR88 receiver can be installed into a standard 19” rack for transport or per-
manent installation using the included rack ears. Follow the simple steps below to
mount the CR88:
Attach the included rack ears by sliding each rack
ear into the groove on either side of the CR88 until
they lock into place, and the receiver flush with the
front panel.
Position the CR88 receiver into an
available rack space and slide in
until the rack ears are touching the
rails of the rack case and are aligned
with the rack rail holes.
Mount the receiver into the rack using the appropriate size rack screws (not includ-
ed). To ensure equal tension and balance when installing the receiver, you should
secure screws in a crisscross pattern of opposite corners: top left -> bottom right ->
top right -> bottom left.
In order to mount two CR88 receiv-
ers in one rack space, the system
includes a center connection piece.
Slide the center connection piece
into the groove of each receiver and
attach the short rack ears to each
receiver. Mount the receivers into
the rack using the crisscross pattern
described above.
Rack Mounting
20
Group C
638-662 MHz
Group D
542-566 MHz
Group F*
863-865 MHz
Group G*
606-630 MHz
Ch Freq Ch Freq Ch Freq Ch Freq
0 638.125 0 542.125 0 863.050 0 606.125
1 639.625 1 543.625 1 863.250 1 607.625
2 641.050 2 545.05 2 863.550 2 609.05
3 642.425 3 546.425 3 863.750 3 610.425
4 642.900 4 546.900 4 864.050 4 610.900
5 645.525 5 549.525 5 864.250 5 613.525
6 647.100 6 551.100 6 864.550 6 615.100
7 648.475 7 552.475 7 864.750 7 616.475
8 650.000 8 554.000 8 864.950 8 618.000
9 652.075 9 556.075 9 620.075
A 654.975 A 558.975 A 622.975
B 655.975 B 559.975 B 623.975
C 657.050 C 561.050 C 625.050
D 658.975 D 562.975 D 626.975
E 660.425 E 564.425 E 628.425
F 661.975 F 565.975 F 629.975
Concert 88 Channel Plans
* Not for use in the USA. For questions regarding available channels in your area
contact your local Samson distributor.
21
Concert 88 Wireless System
Troubleshooting
Issue Solutions
No Audio
Make sure that the transmitter and receiver are both
powered on.
Ensure the transmitter’s batteries are installed correctly.
Check that the transmitter is not muted.
Confirm that the CR88 adaptor is correctly connected and
plugged into an electrical outlet.
Turn on the CR88 receiver.
Make sure the CR88 audio output connections are se-
curely connected.
Ensure that the receiver and transmitter are in line of
sight with one another.
Check the receiver and audio input device level controls.
Ensure that the transmitter and receiver are set to the
same operating channel. If unsure, reset the channel by
performing an IR set.
Distorted Audio
The receiver output level or audio input device level may
be too high.
Check the transmitters batteries, and replace if low.
The input gain on the transmitter (CB88) or audio source
level may be too high.
Audio Dropout
The transmitter may be too far away from the receiver.
Move it closer to the receiver, or reposition the antennas.
Remove any sources that may cause RF interference such
as cell phones, cordless phones, lighting equipment, com-
puters, metal structures, etc.
Receiver will not
power on
Check the adaptor to ensure it is properly connected and
plugged into an outlet providing power.
Transmitter will not
power on (LED lights
RED)
Replace the transmitter batteries.
Unwanted noise or
interference
If using multiple systems, make sure none of the systems
are operating on the same channel. If the problem per-
sists, change one or all of the systems channels.
22
Specifications
System
Working Range 300' (100m) line of sight
Audio Frequency Response 50 Hz - 15 kHz
T.H.D. (Overall) <1% (@AF 1 kHz, RF 46 dBu)
Dynamic Range >100 dB A-weighted
Signal to Noise >90 dB
Operating Temperature –10°C (14°F) to +40°C (+104°F)
CB88 Belt pack Transmitter
Input Connector Mini-XLR (P3)
Input Impedance 1MΩ
Input Gain Range 38 dB
RF Power 10 mW EIRP
Power Requirements Two AA (LR6) alkaline batteries
Battery Life 8 hours
Dimensions (HxLxD) 3.75" x 2.44" x 0.75"
96mm x 62mm x 18.5mm
Weight 0.2 lb / 93 g
CH88 Handhd Transmitter
Microphone Element Q6 Dynamic
Input Gain Range 28 dB
RF Power 10 mW EIRP
Power Requirements Two AA (LR6) alkaline batteries
Battery Life 8 hours
Dimensions (HxØ) 10.23" x 2.1"
260mm x 54mm
Weight 0.48 lb / 218 g
CR88 Receiver
Audio Output Level - Unbalanced +14 dBu
Audio Output Level - Balanced +9 dBu
Audio Output Impedance - Unbalanced 810 Ohms
Audio Output Impedance - Balanced 240 Ohms
Sensitivity -100 dBm / 30 dB sinad
Image Rejection >50 dB
Operating Voltage 15 VDC 200mA
Dimensions (LxWxH) 8.25" x 4.9" x 1.75"
210mm x 125mm x 44mm
Weight 0.85 lb / 388 g
At Samson, we are continually improving our products, therefore specifications and
images are subject to change without notice.
FCC Rules and Regulations
Samson wireless receivers are certified under FCC Rules part 15 and trans-
mitters are certified under FCC Rules part 74.
Licensing of Samson equipment is the user’s responsibility and licensability
depends on the user’s classification, application and frequency selected.
This device complies with RSS-210 of
Industry & Science Canada.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference and (2) this device must
accept any interference received, including interference that may cause
undesired operation.
Hereby, Samson Technologies Corp., declares that this CR88, CH88, CB88 is
in compliance with the essential requirements and other relevant provisions
of Directive 1999/5/EC. The declaration of conformity may be consulted at
http://www.samsontech.com/site_media/support/R&TTE_DOC/CONCERT_88_R&TTE_DOC.pdf
NOTE: This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful interfer-
ence in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communica-
tions. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equip-
ment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
• Reorientorrelocatethereceivingantenna.
• Increasetheseparationbetweentheequipmentandreceiver.
• Connecttheequipmentintoanoutletonacircuitdifferentfromthatto
which the receiver is connected.
• ConsultthedealeroranexperiencedRadio/TVtechnicianforhelp.
WARNING:Changesormodificationsnotexpresslyapprovedbytheparty
responsible for compliance could void the user’s authority to operate the
equipment.
Samson Technologies
45 Gilpin Avenue
Hauppauge, New York 11788-8816
Phone: 1-800-3-SAMSON (1-800-372-6766)
Fax: 631-784-2201
www.samsontech.com

Navigation menu
