Sam Ash Music M1BT3 ACTIVE STUDIO MONITERS WITH BLUETOOTH User Manual

Sam Ash Music Corporation ACTIVE STUDIO MONITERS WITH BLUETOOTH

User manual

OWNER'S MANUAL
Copyright 2013
v1.3
Samson Technologies Corp.
45 Gilpin Avenue
Hauppauge, New York 11788-8816
Phone: 1-800-3-SAMSON (1-800-372-6766)
Fax: 631-784-2201
www.samsontech.com
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth
SIG, Inc. and any use of such marks by Samson Technologies is under license. Other
trademarks and trade names are those of their respective owners.”
Important Safety Information
WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK) AS THERE ARE NO
USER-SERVICEABLE PARTS INSIDE. REFER SERVICING
TO QUALIFIED SERVICE PERSONNEL.
This lightning flash with arrowhead symbol within an equilateral triangle
is intended to alert the user to the presence of non-insulated “dangerous
voltage” within the product’s enclosure that may be of sufficient magni-
tude to constitute a risk of electric shock.
The exclamation point within an equilateral triangle is intended to alert
the user to the presence of important operating and maintenance in-
structions in the literature accompanying the appliance.
If you want to dispose this product, do not mix it with general household waste. There is a
separate collection system for used electronic products in accordance with legislation that
requires proper treatment, recovery and recycling.
Private household in the 25 member states of the EU, in Switzerland and Norway may return their used
electronic products free of charge to designated collection facilities or to a retailer (if you purchase a similar
new one).
For Countries not mentioned above, please contact your local authorities for a correct method of disposal.
By doing so you will ensure that your disposed product undergoes the necessary treatment, recovery and
recycling and thus prevent potential negative effects on the environment and human health.
AVIS
RISQUE DE CHOC ÉLECTRONIQUE -
NE PAS OUVRIR
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings.
Install in accordance with the manufac-
turer’s instructions.
8. Do not install near any heat sources such
as radiators, heat registers, stoves, or
other apparatus (including amplifiers)
that produce heat.
9. Do not defeat the safety purpose of
the polarized or grounding type plug.
A polarized plug has two blades with
one wider than the other. A grounding
type plug has two blades and a third
grounding prong. The wide blade or the
third prong are provided for your safety.
If the provided plug does not fit into your
outlet, consult an electrician for replace-
ment of the obsolete outlet.
10. Protect the power cord from being
walked on or pinched particularly at the
plugs, convenience receptacles, and at
the point where they exit from the ap-
paratus.
11. Only use attachments/accessories speci-
fied by the manufacturer.
12. Use only with the cart,
stand, tripod, bracket,
or table specified by
the manufacturer, or
sold with the apparatus.
When a cart is used, use
caution when moving
the cart/apparatus combination to avoid
injury from tip-over.
13. Unplug the apparatus during lightning
storms or when unused for long periods
of time.
14. Refer all servicing to qualified personnel.
Servicing is required when the apparatus
has been damaged in any way, such as
power supply cord or plug is damaged,
liquid has been spilled or objects have
fallen into the apparatus has been
exposed to rain or moisture, does not
operate normally, or has been dropped.
15. he apparatus shall not be exposed to
dripping or splashing and that objects
filled with liquids, such as vases, shall
not be placed on apparatus.
16. Caution-to prevent electric shock, match
wide blade plug wide slot fully insert.
17. Please keep a good ventilation environ-
ment around the entire unit.
18. WARNING: The mains plug/appliance
coupler is used as disconnect device, the
disconnect device shall remain readily
operable.
19. This equipment is a Class II or
double insulated electrical appliance. It
has been designed in such a way that it
does not require a safety connection to
electrical earth.
20. Correct Disposal of this product.
This marking indicates that this product
should not be disposed with other
household wastes throughout the EU. To
prevent possible harm to the environ-
ment or human health from uncontrolled
waste disposal, recycle it responsibly
to promote the sustainable reuse of
material resources. To return your used
device, please use the return and collec-
tion systems or contact the retailer where
the product was purchased. They can
take this product for environmental safe
recycling.
21. No naked flame sources, such as lighted
candles, should be placed on the ap-
paratus.
Important Safety Information
Important Safety Information
FCC Notice
1. This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference
that may cause undesired operation.
2. Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential instal-
lation.
This equipment generates uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful inter-
ference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
RF Warning Statement
The device has been evaluated to meet general RF exposure requirement. The
device can be used in portable exposure condition without restriction.
This device complies with RSS-310 of Industry Canada. Operation is subject to
the condition that this device does not cause harmful interference.
Table of Contents
Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . 7
MediaOne BT Features. . . . . . . . . . . . . . . . . . . . . . 8
MediaOne BT Layout . . . . . . . . . . . . . . . . . . . . . . 9

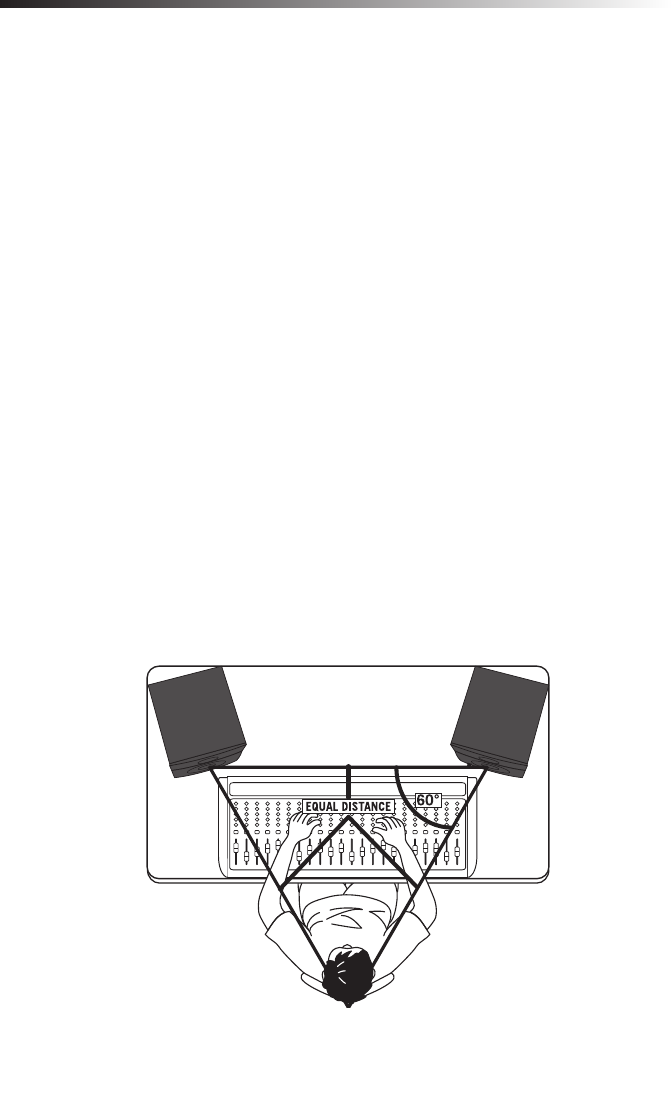

Positioning the Speakers. . . . . . . . . . . . . . . . . . . . .11

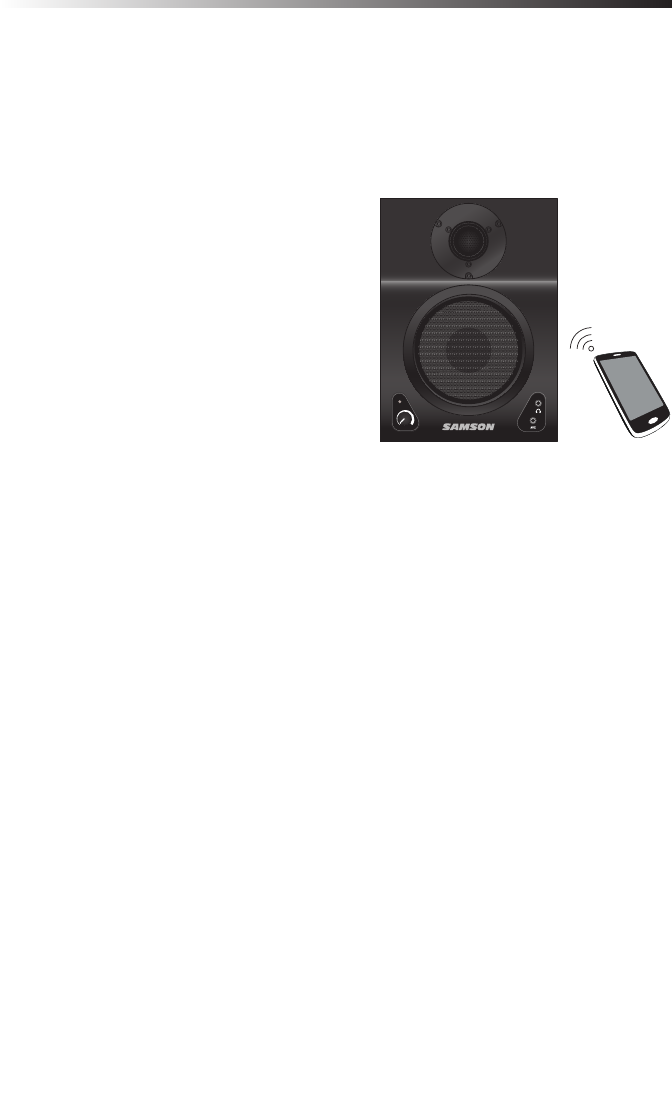

Pairing with a
Bluetooth
® Device . . . . . . . . . . . . . . . .12

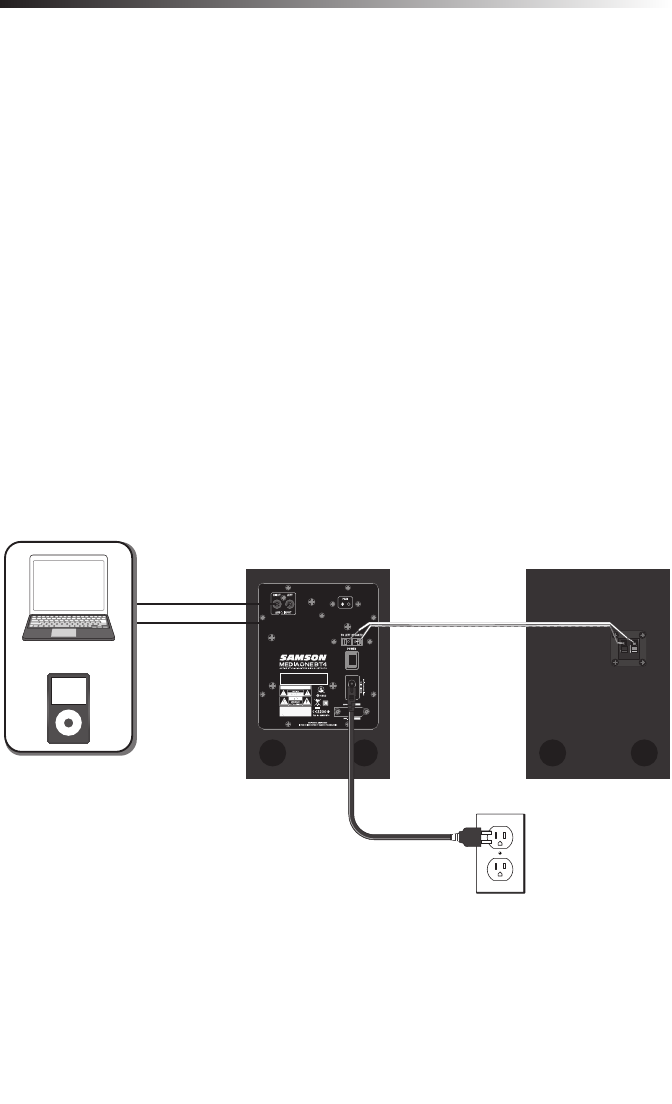

Making Connections . . . . . . . . . . . . . . . . . . . . . . .13

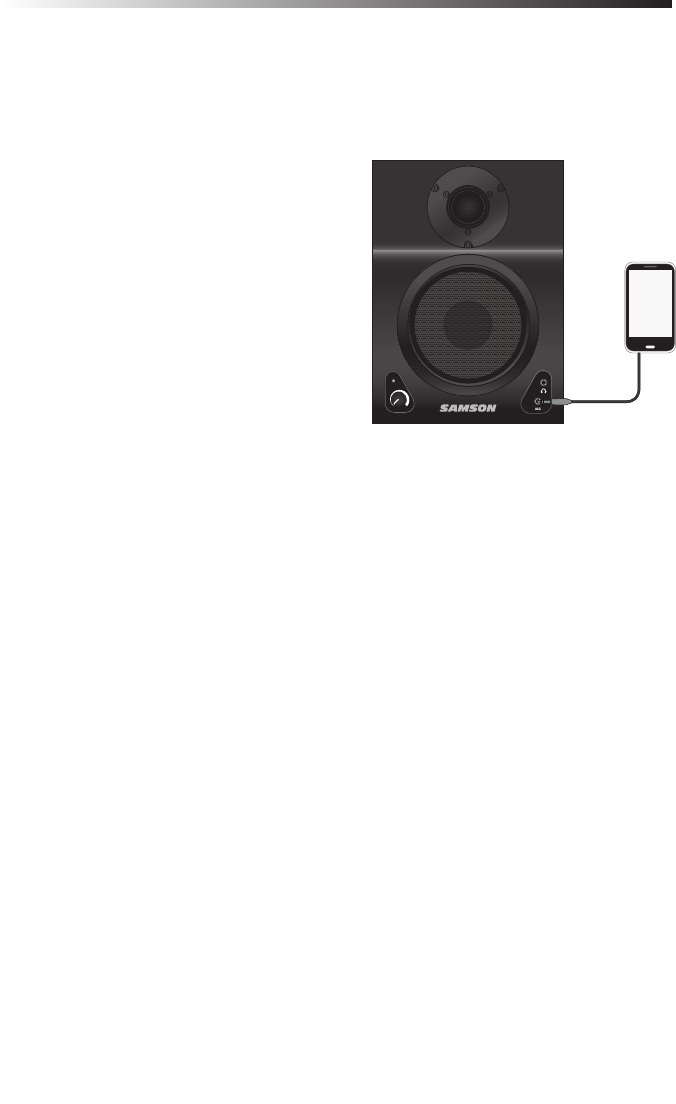

Aux Input . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Specifications. . . . . . . . . . . . . . . . . . . . . . . . . .15
7
Thank you for purchasing the MediaOne BT Studio Reference Monitor with streaming
Bluetooth® audio from Samson Technologies. Whether you are in need of a monitor
system for your digital recording studio, a video production suite, or if you just want
better speakers for gaming and listening to music on your computer, the MediaOne
is the perfect solution. The monitor system produces a powerful, full-range sound
thanks to the internal amplifier, extended range copolymer woofers, and 1" silk dome
tweeters. Plus, the MediaOne system delivers deep bass and extended highs in an
amazingly compact size.
The MediaOne system includes one active monitor for the right-side and a passive
monitor for the left-side. For easy integration into your audio system, the speakers
feature the ability to connect two audio sources through either the rear panel RCA
inputs or the front panel 3.5mm Aux input. For listening privacy, the speakers will
mute when a pair of headphones are connected. Bluetooth connectivity allows you
to stream music from your smartphone, tablet, or computer providing the freedom to
listen to your music without docking or connecting any wires.
In these pages, you’ll find a detailed description of the features of the MediaOne
BT monitors, as well as a guided tour through its control panel, step-by-step
instructions for its setup and use, and full specifications. You’ll also find a warranty
card enclosed—don’t forget to fill it out and mail it in so that you can receive online
technical support and so we can send you updated information about these and
other Samson products in the future. Also, be sure to check out our website
(www.samsontech.com) for complete information about our full product line.
We recommend you keep the following records for reference, as well as a copy of
your sales receipt.
Serial number: ____________________________________________
Date of purchase: __________________________________________
Dealer name: _____________________________________________
With proper care and maintenance, your MediaOne BT monitors will operate trouble-
free for many years. Should your speakers ever require servicing, a Return Authoriza-
tion (RA) number must be obtained before shipping your unit to Samson. Without
this number, the unit will not be accepted. Please call Samson at 1-800-3SAMSON
(1-800-372-6766) for an RA number prior to shipping your unit. Please retain the
original packing materials and, if possible, return the unit in its original carton. If
your Expedition Express was purchased outside of the United States, contact your
local distributor for warranty details and service information.
Introduction
8
MediaOne BT Features
• Two-way, active studio monitors with ported, tuned enclosures providing
extremely accurate monitoring for desktop recording, playback and multi-media
applications.
• Bluetooth® connectivity for streaming music from your smartphone, computer,
or other mobile device
• Copolymer woofers with butyl surrounds deliver tight and controlled bass
response
• 1" silk dome high frequency driver set in a custom-designed wave guide.
Produces smooth and natural high frequency response and a wide listening area
• Front panel volume control allows you to easily adjust level
• Front panel 3.5mm Aux input for connecting a second audio source from an
MP3 player, laptop, or any stereo portable audio device
• Front panel stereo 3.5mm headphone jack automatically turns off the speakers
when headphones are connected
• Rear panel RCA inputs accept standard -10 dBV line level input for connecting
audio from your computer, mixer, and other stereo line level devices
• Magnetically shielded for multimedia applications providing clean operation
near computer monitors
• Solid MDF (Medium Density Fiberboard) construction, provides maximum sound
pressure level
9

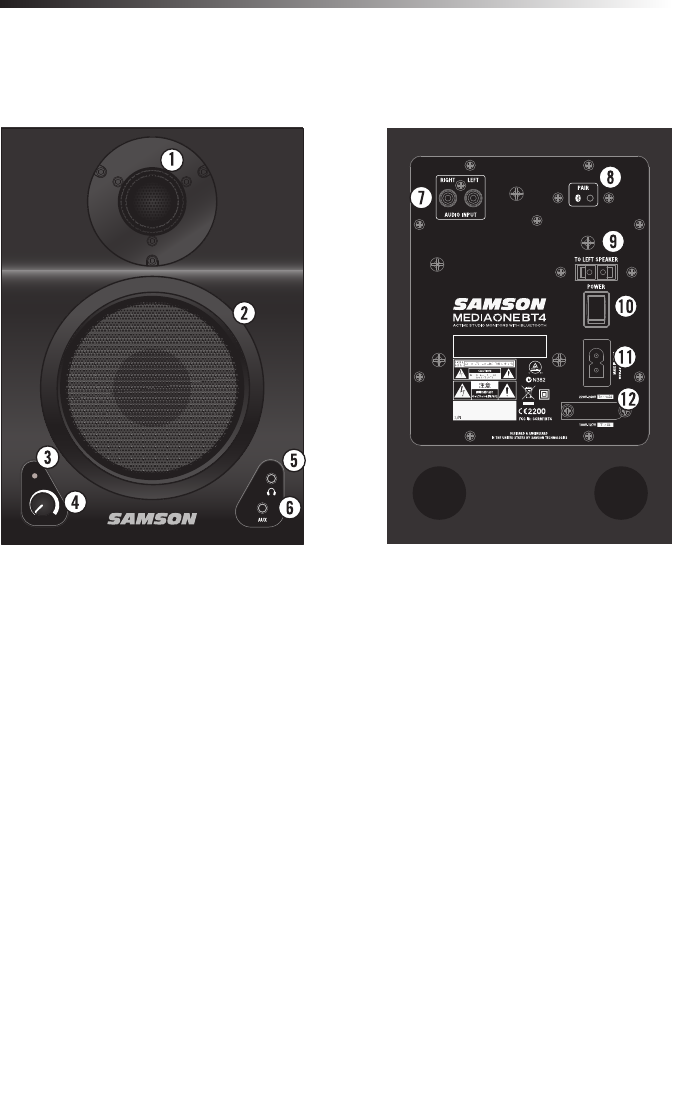

MediaOne BT Layout
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS
SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MUST
NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST
ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT
MAY CAUSE UNDESIRED OPERATION. SUITABLE FOR HOME OR OFFICE USE.
1. Tweeter - 1" silk dome tweeter set in a custom waveguide
2. Low Frequency Driver - Heavy duty woofer with a polypropylene cone and butyl
surround for extend low frequency response
3. Power/Pairing Indicator (active) - Bi-color LED lights green indicating the unit
is powered on, and blue when paired with a Bluetooth® device. Alternatively
flashes green and blue when in pairing mode
4. VOLUME (active) - Controls the overall amount of output level
5. Headphone Jack - 3.5mm stereo output jack for connecting headphones. The
monitors automatically mute when headphones are connected
6. Aux Input - 3.5mm stereo input jack for connecting a second line level audio
source.
7. AUDIO INPUT - Unbalanced, Stereo RCA-type input connectors, for connecting
audio output from consumer level (-10dBV) devices such as a computer, MP3
player, or smartphone. The red connector is the for right input and the white is
for the left input.

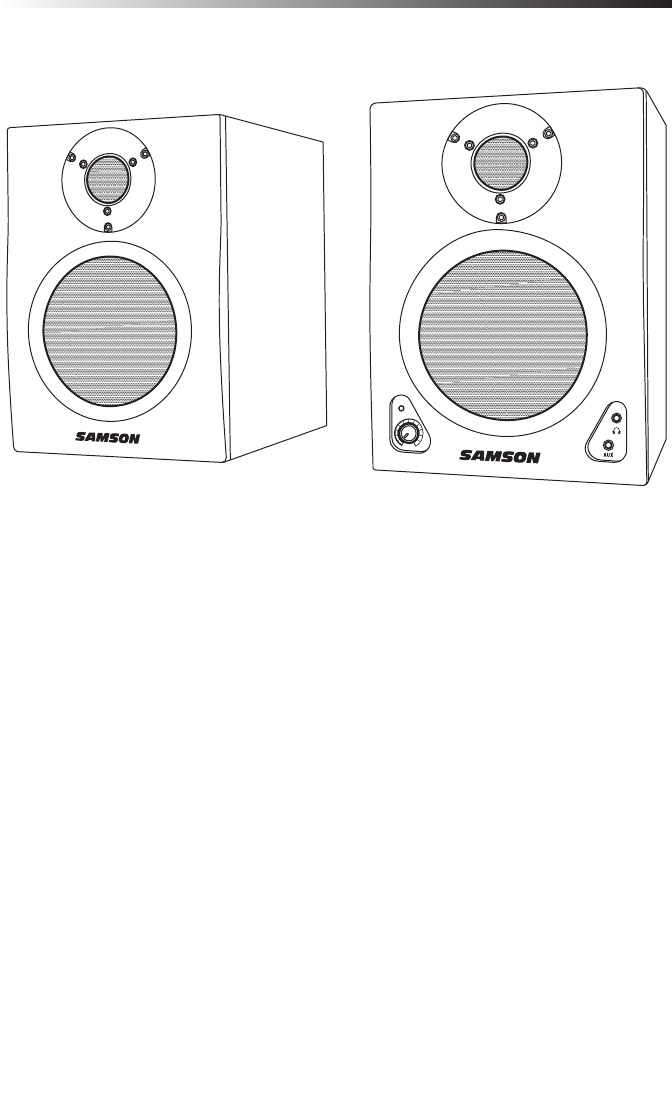

Active Speaker (right speaker)
10
Passive Speaker (left speaker)
8. PAIR Switch - Press this switch to activate discoverable mode to connect and pair
with a Bluetooth® device
9. TO LEFT SPEAKER - Push Terminals for connecting the passive left-side exten-
sion speaker using the included two-conductor speaker cable. Be sure to match
the polarity of the right and left speaker by matching the color of the terminals:
connect the red speaker terminal of the right side speaker to the red speaker ter-
minal for the left side speaker, and the black speaker terminal of the right side
speaker to the black speaker terminal of the left side speaker.
10. POWER Switch - Main power switch
11. AC INLET - Connect the supplied power cable here
12. Voltage Selection Switch - This switch is used to select the amplifiers operating
voltage
NOTE: Before using your speaker, be sure the Voltage Selection Switch is set to
the correct voltage for your country.

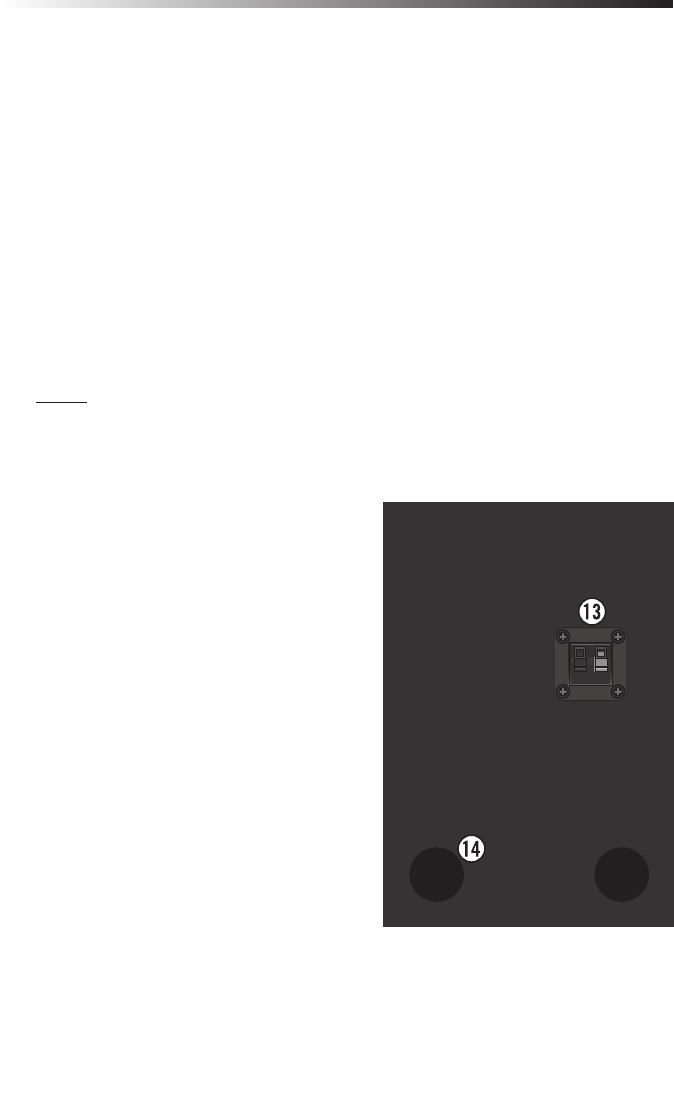

MediaOne BT Layout
13. Speaker Connections - Push Terminals for
connecting the passive left-side extension
speaker using the included two-conductor
speaker cable. Be sure to match the
polarity of the right and left speakers by
matching the color of the terminals: con-
nect the red speaker terminal of the right
side speaker to the red speaker terminal
for the left side speaker, and the black
speaker terminal of the right side speaker
to the black speaker terminal of the left
side speaker.
14. Bass Port - Tuned low frequency bass port
for extending the low end of the speaker
cabinets. Do not block the ports as this
will restrict the overall performance of the
speakers.
11
Positioning the Speakers
A major objective when setting up your studio monitors is to obtain the best possible
stereo image. The MediaOne BT monitors are designed to be used in a vertical posi-
tion, with the tweeter and woofer symmetrically in line. Do not place these speakers
horizontally as this will cause an offset in sound between the woofer and the tweeter,
limiting your ability to find optimal listening positions.
Near field (close to the listener) monitoring has become the choice of many engi-
neers because of the cost and complexities associated with mounting monitors onto
a wall. Positioning your studio monitors correctly is very important. Correct place-
ment not only creates the proper stereo image, but also minimizes the effects of your
room’s reflections. This is especially important in today’s project studios, which are
often multi-use spaces. By taking some time and listening carefully when setting up
your monitors, you can create an optimal listening environment.
The most important consideration when evaluating room acoustics is the presence of
reflective surfaces near the monitoring area. These can include flat tabletops, glass
mirrors or framed pictures, large open walls and even the surface of your mixing con-
sole. Most reflecting sound will eventually reach the listening position, but since it
is slightly delayed from the direct source, the result is random cancellation of some
frequencies, or comb filtering. If possible, remove any and all reflective surfaces.
You may also want to hang some acoustic foam on walls near the monitors.
When positioning the monitors, you’ll want to set up what is commonly referred to
as the “mix triangle” (shown below). In this ideal configuration, the space between
the left and right monitor is equal to the distance from the listener to each monitor,
forming an equilateral triangle.
12
Pairing with a
Bluetooth
® Device
Bluetooth® is a wireless communication technology that allows for connectivity between
a wide range of devices. The MediaOne BT uses Bluetooth to stream high quality audio
from your Bluetooth enabled device without the need for connecting any cables. In order
for your device to work with the MediaOne BT it must first be paired.
1. Turn the front panel volume control coun-
terclockwise to the 0 position.
2. With the MediaOne BT and your Bluetooth
device powered on; press the PAIR button
on the rear panel of the MediaOne BT
speaker to make the speaker discoverable.
The front panel indicator will slowly flash
blue.
3. In the settings of your Bluetooth device,
set it to “discover” available devices.
4. From the Bluetooth device list, select the "Samson BT" device.
5. If your device asks for a passkey, enter digits 0000 (four zeros) and press OK.
Some devices may also ask you to accept the connection.
6. As the MediaOne BT is connecting to your device, the front panel indicator will
turn green for a few seconds then quickly flash blue.
7. The MediaOne BT speaker indicates that pairing is complete when the indicator
turns steady blue. You can now stream audio from your device to the MediaOne
BT speakers.
8. With the volume control on your Bluetooth device turned up, play some music
and slowly raise the MediaOne BT volume control until you have reached the
desired level.
13
Making Connections
The MediaOne BT main input connections can be made via the rear panel RCA
inputs. Follow the simple steps and diagram below for a quick connection using a
standard recording console’s control room outputs.
1. Connect the left and right speakers using the included two-conductor speaker
cable. To guarantee for the best performance and avoid phase cancellation
problems, connect the red speaker terminal of the right side speaker to the red
speaker terminal for the left side speaker, and the black speaker terminal of the
right side speaker to the black speaker terminal of the left side speaker.
2. Connect the audio output from your audio source such as a computer, MP3
player or portable audio device to the RCA inputs of the MediaOne BT right side
speaker.
3. Turn the MediaOne BT volume control completely counter-clockwise to the
minimum setting.
4. Connect the MediaOne BT to an AC power outlet using the included power
cable.
5. Turn the power switch on the MediaOne BT to the ON position.
6. Play music from you audio source and slowly raise the volume of the MediaOne
BT to a comfortable listening level.
Note: Before plugging in and turning on, remember the “last on, first off” rule of
powered speakers. When powering up your system, be sure that all the wires are
connected, turn your mixer and any other outboard gear on, and then last turn on
your MediaOne BT. When powering down, turn your MediaOne BT off first and then
your mixer and outboard gear.
Speaker Wire
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS
SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MUST
NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST
ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT
MAY CAUSE UNDESIRED OPERATION. SUITABLE FOR HOME OR OFFICE USE.
Audio Output
to RCA Inputs
14
Aux Input
Follow these steps to add another audio device, such as a spartphone or MP3 player,
to the Aux Input of the MediaOne BT monitor.
1. Plug an audio cable from the audio
device into the 1/8" AUX input connector
on the front of the MediaOne BT
speaker.
2. Turn the MediaOne BT volume control
completely counter-clockwise to the
minimum setting.
3. Adjust the volume on the connected
audio device to almost the maximum
setting. Play music from you audio
source and slowly raise the volume
of the MediaOne BT to a comfortable
listening level.
15
Low Frequency Speakers
BT3 . . . . . . . . . . . . . . 3" (76.2mm) woofer, polypropylene cone
BT4 . . . . . . . . . . . . . . 4" (101.6) woofer with polypropylene cone
BT5 . . . . . . . . . . . . . . 5" (127mm) woofer polypropylene cone
High Frequency Speaker . . . . . . 1" silkdome tweeter
Frequency response
BT3 . . . . . . . . . . . . . . 95Hz, 27KHz
BT4 . . . . . . . . . . . . . . 54Hz, 27KHz
BT5 . . . . . . . . . . . . . . 47Hz, 27KHz
Amplifier Power Rating
BT3 . . . . . . . . . . . . . . 15 watts per channel
BT4 . . . . . . . . . . . . . . 20 watts per channel
BT5 . . . . . . . . . . . . . . 40 watts per channel
Inputs Connectors . . . . . . . . . RCA (rear panel), 3.5mm (front panel),
-10dBV unbalanced, line level
Headphone . . . . . . . . . . . . 1/8" Stereo Output
Controls . . . . . . . . . . . . . . .Volume Control, Bluetooth Pairing Button
Wireless Audio . . . . . . . . . . Bluetooth (A2DP)
Indicators . . . . . . . . . . . . . . Bi-color - Green (Power), Blue (Bluetooth)
Enclosure . . . . . . . . . . . . MDF with textured vinyl covering
Dimensions (LxWxH)
BT3 . . . . . . . . . . . . . . 5.5" x 6.6" x 7.8" (140mm x 167mm x 199mm)
BT4 . . . . . . . . . . . . . . 6.6" x 7.9" x 9" (169mm x 200mm x 231mm)
BT5 . . . . . . . . . . . . . . 8" x 9" x 11" (205mm x 229mm x 282mm)
Weight
BT3 . . . . . . . . . . . . . . 9.24 lb / 4.2 kg (pair)
BT4 . . . . . . . . . . . . . . 19.36 lb / 8.8 kg (pair)
BT5 . . . . . . . . . . . . . . 22 lb / 10 kg (pair)
Specifications are subject to change without notice.
Specifications
Samson Technologies Corp.
45 Gilpin Avenue
Hauppauge, New York 11788-8816
Phone: 1-800-3-SAMSON (1-800-372-6766)
Fax: 631-784-2201
www.samsontech.com

Navigation menu
