Sam Ash Music TBX PORTABLE PA SYSTEM User Manual
Sam Ash Music Corporation PORTABLE PA SYSTEM
User Manual
UserManual
Product Name: PORTABLE PA SYSTEM
Model: TBX10, TBX8, TBX6
Manufacture: Sam Ash Music Corporation
Safety Precautions
To optimise the performance of this product, please read these operating instructions carefully to familiarise
yourself with the basic operations of this unit. Please retain them for future reference. This unit has been tested
at the factory before being shipped to you.
To prevent or reduce the risk of electrical shock or fire, do not expose the unit to rain or moisture. To prevent a fire
hazard, do not expose the unit to any naked flame sources. Unplug this apparatus during lightning storms or if it
is unlikely to be used for long periods of time. When installing the unit, please ensure you leave enough space
around the unit for ventilation. Slots and openings in the unit are provided for ventilation to ensure reliable
operation of the product and to protect it from overheating. To prevent fire hazard, the openings should never be
blocked or covered.
The unit is powered by electricity, always handle the power cable by the plug. Never pull out the plug by pulling
on the cable. Never touch the power cable when your hands are wet as this could cause an electric shock. Do
not tie a knot in the cable. The power cable should be placed such that it is not likely to be stepped on. A
damaged power cable can cause a fire or give you an electrical shock. Check the power cord periodicaly, if you
ever find that it is damaged, replace it before using the unit again. Contact your retailer for a replacement.
The voltage of the available power supply differs according to country or region. Be sure that the power supply
voltage of the area where this unit is to be used meets the required written on the unit.
Select the installation location of your unit carefully. Avoid placing it in direct sunlight or locations subject to
vibration and excessive dust. Do not use the unit where there are extremes in temperature (below 41ºF / 5ºC or
exceeding 95ºF / 35ºC).
Unpacking and safety Please unpack your new product carefully. Your new product should reach you in
perfect condition. Pleasecheck that no damage has occurred during transit. If any damage is found, do not
operate your unit. Please contact the retailer you purchased it from immediately. If there is any damage to the
mains cable do not use the device. Always disconnect the unit from the mains supply when carrying out any
cleaning of the unit.
Safety and warnings
Do overload the audio as this may result in damage to the speakers. Only connect to an earthed mains supply.
When not in use, unplug the unit from the mains. Always unplug from the mains prior to checking or replacing a
fuse. During a thunder and lightening storm, always unplug the unit from the mains. If the unit has not been
used for a long period of time, condensation can occur inside the housing. Always let unit reach room
temperature prior to use.
When mounting the unit on a stand, observe health and safety advice to ensure that you do not injure yourself or
others.
Please note that when using the unit powered by the built-in battery, the media player screen may flicker if the
battery voltage is low. If this occurs, please turn off the portable PA and charge the battery via the mains.
If you do not use the unit frequently, please charge the unit every three months to keep the battery in good
condition. Always turn the unit off after you have finished charging.
![](/img.php?id=3870244&img=bg3.png)

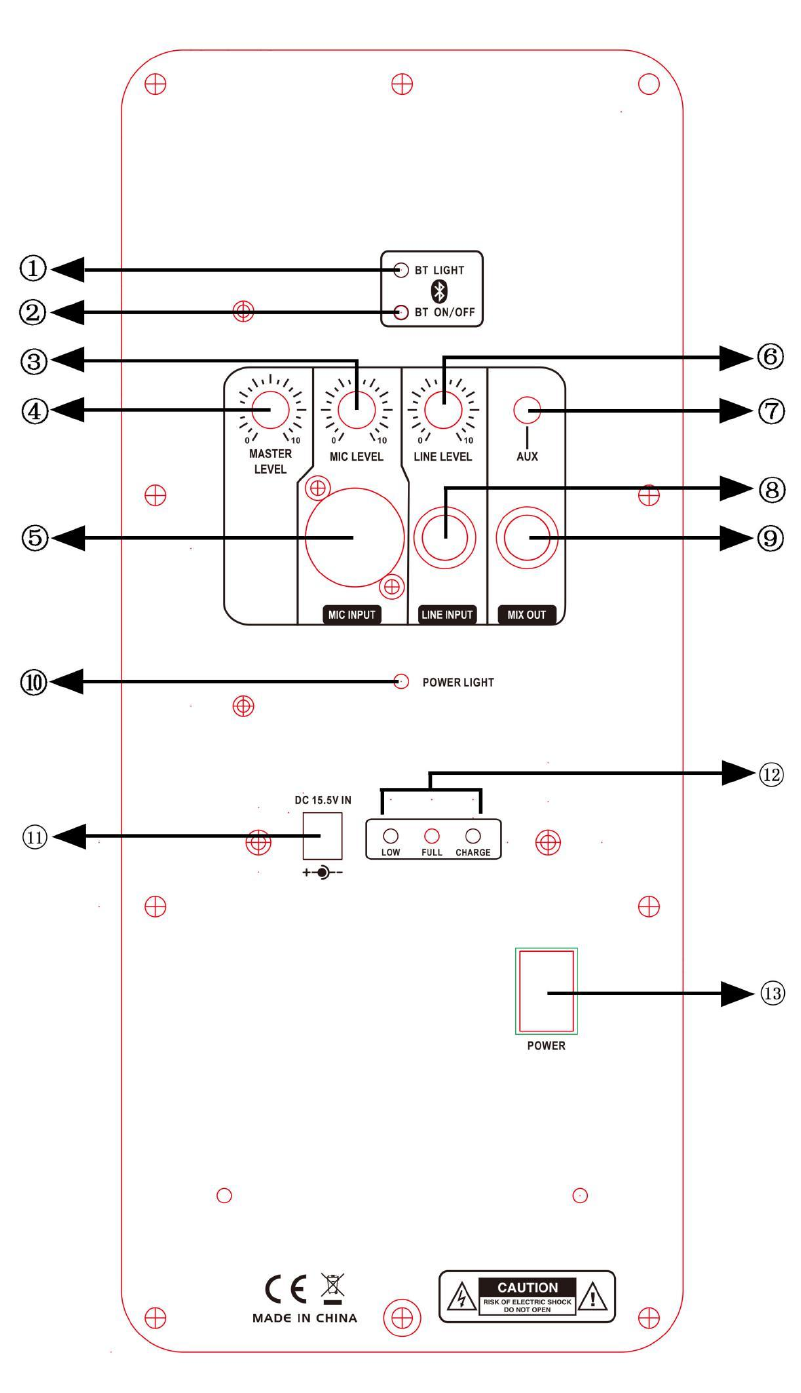

1.BT LIGHT:When the light flashes, can connect to BT.Stop flashing
indicates that it is connected.
2.BT ON/OFF:B/T switch
3.MIC LEVEL:Control the Volume of Microphone input .
4.MASTER LEVEL:Control the master Volume
5.MIC INPUT:Mic 6.35mm jack input
6.LINE LEVEL:Control the Volume of line in
7.AUX:AUX audio input (smart phones, MP3 players, etc)
8.LINE INPUT:Line signal input
9.MIX OUT:Line signal output
10.POWER LIGHT:The light will illuminate when the system is in
operation
11.POWER SOCKET:DC 15.5V input
12.CHARGE LIGHT:Light indicator for remaining power and battery
charge
13.POWER SWITCH :Switch on / off the unit
FCC Caution.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
Any Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates
uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-Consult the dealer or an experienced radio/TV technician for help.
The device has been evaluated to meet general RF exposure requirement. The device can be used
in portable exposure condition without restriction.
