Sam Labs SL001 Bluetooth transceiver for SAM labs family of modules User Manual Manual for SL001Ax

Sam Labs Ltd. Bluetooth transceiver for SAM labs family of modules Manual for SL001Ax

Users Manual

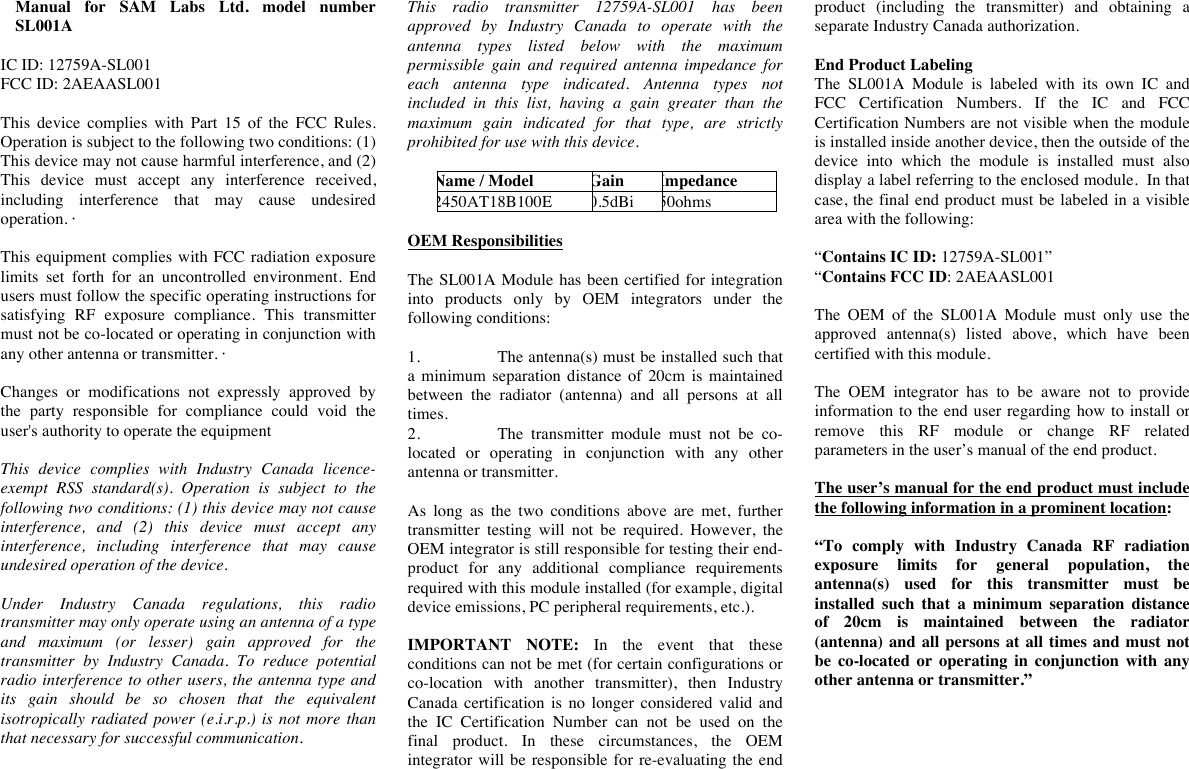

Manual  for  SAM  Labs  Ltd.  model  number SL001A  IC ID: 12759A-SL001 FCC ID: 2AEAASL001  This  device  complies  with  Part  15  of  the  FCC  Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This  device  must  accept  any  interference  received, including  interference  that  may  cause  undesired operation. ·  This equipment complies with FCC radiation exposure limits  set  forth  for  an  uncontrolled  environment.  End users must follow the specific operating instructions for satisfying  RF  exposure  compliance.  This  transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. ·   Changes  or  modifications  not  expressly  approved  by the  party  responsible  for  compliance  could  void  the user's authority to operate the equipment  This  device  complies  with  Industry  Canada  licence-exempt RSS  standard(s).  Operation  is  subject  to  the following two conditions: (1) this device may not cause interference,  and  (2)  this  device  must  accept  any interference,  including  interference  that  may  cause undesired operation of the device.  Under  Industry  Canada  regulations,  this  radio transmitter may only operate using an antenna of a type and  maximum  (or  lesser)  gain  approved  for  the transmitter  by  Industry  Canada.  To  reduce  potential radio interference to other users, the antenna type and its  gain  should  be  so  chosen  that  the  equivalent isotropically  radiated power  (e.i.r.p.)  is  not more than that necessary for successful communication.  This  radio  transmitter  12759A-SL001 has  been approved  by  Industry  Canada  to  operate  with  the antenna  types  listed  below  with  the  maximum permissible  gain  and  required  antenna  impedance  for each  antenna  type  indicated.  Antenna  types  not included  in  this  list,  having  a  gain  greater  than  the maximum  gain  indicated  for  that  type,  are  strictly prohibited for use with this device.  Name / Model Gain Impedance 2450AT18B100E 0.5dBi 50ohms  OEM Responsibilities   The SL001A Module has been certified for integration into  products  only  by  OEM  integrators  under  the following conditions:   1. The antenna(s) must be installed such that a  minimum  separation distance of  20cm is  maintained between  the  radiator  (antenna)  and  all  persons  at  all times. 2. The  transmitter  module  must  not  be  co-located  or  operating  in  conjunction  with  any  other antenna or transmitter.   As  long  as  the  two  conditions  above  are  met,  further transmitter  testing  will  not  be  required.  However,  the OEM integrator is still responsible for testing their end-product  for  any  additional  compliance  requirements required with this module installed (for example, digital device emissions, PC peripheral requirements, etc.).  IMPORTANT  NOTE:  In  the  event  that  these conditions can not be met (for certain configurations or co-location  with  another  transmitter),  then  Industry Canada  certification is  no  longer  considered valid  and the  IC  Certification  Number  can  not  be  used  on  the final  product.  In  these  circumstances,  the  OEM integrator  will be responsible for  re-evaluating the end product  (including  the  transmitter)  and  obtaining  a separate Industry Canada authorization.  End Product Labeling The  SL001A Module  is  labeled  with  its  own  IC and FCC Certification  Numbers.  If  the  IC and  FCC Certification Numbers are not visible when the module is installed inside another device, then the outside of the device  into  which  the  module  is  installed  must  also display a label referring to the enclosed module.  In that case, the final end product must be labeled in a visible area with the following:   “Contains IC ID: 12759A-SL001” “Contains FCC ID: 2AEAASL001  The  OEM  of  the  SL001A Module  must  only  use  the approved  antenna(s)  listed  above,  which  have  been certified with this module.  The  OEM  integrator  has  to  be  aware  not  to  provide information  to  the end user regarding how to  install or remove  this  RF  module  or  change  RF  related parameters in the user’s manual of the end product.  The user’s manual for the end product must include the following information in a prominent location:  “To  comply  with  Industry  Canada  RF  radiation exposure  limits  for  general  population,  the antenna(s)  used  for  this  transmitter  must  be installed  such  that  a  minimum  separation  distance of  20cm  is  maintained  between  the  radiator (antenna) and  all persons at  all times and  must not be  co-located  or  operating  in  conjunction  with  any other antenna or transmitter.”
