Samson Electronics BBX-508 BLUETOOTH SPEAKER User Manual BBX 508
Samson Electronics Inc. BLUETOOTH SPEAKER BBX 508
User manual
USER MANUAL
MODEL: BBX-508
Thank you very much for buying this speaker box, please kindly read
instruction before operating the product.
Product: 8” Amplified Speaker Box With USB，MP3, BT, FM Function
Model: BBX-508
Technical specification:
1. 8” Plastic cabinet speaker
2. With USB, MP3, BT,FM Function
3. Woofer: 8 ” 20oz,25mm
4. Tweeter: Piezo Tweeter
5. Audio Frequency response: 55Hz-18KHz
6. Audio Sensitivity: 94+/_2dB 1W/1M
7. Battery Capacity: 7.4V 1.2Ah, Lithium
8. 1 PC Power Cable
Safety Warning
l Please read the entire attached document carefully before using the device.
l The power supply must match the demand of the device with reliable ground wire.
l All covering signal should be complied with the demand of device.
l The device should be equipped far away high temperature, moisture and powerful electrical
and magnetic field.
l Max operating temperatures 45°.
l No naked flame sources, such as lighted candles, should be placed on the speakers.
l Please don’t use the organic cleaner but dry soft cloth to clear the device.
l When not in use, unplug the unit from the mains.
l Set the unit to the lowest volume prior to switching it on.
l Only use suitable means of transportation if you want to move the speaker box

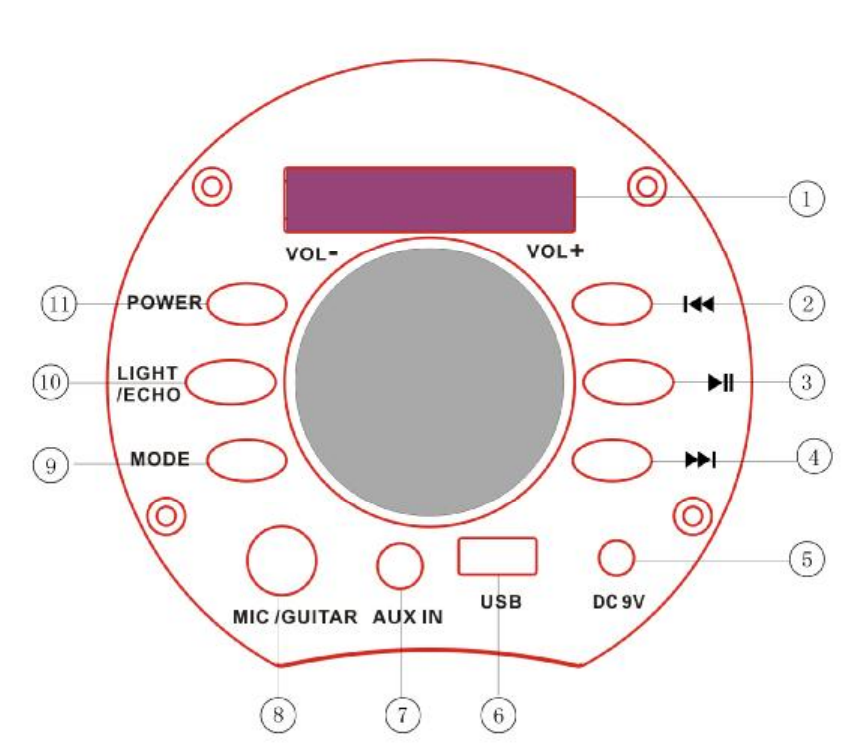

Description and functions
1. Volume Control
2. Short press: Switch Previous Song, Long press Voice DOWN
3. Short press: Play/Pause
4. Short press: Switch next Song, Long press Voice UP
5. DC 9V
6. USB input
7. AUX in for 3.5mm connector input
8. MIC/GUITAR input
9. Press switch between USB/ SD/ FM/BLUETOOTH
10. Light Echo
11. POWER ON/OFF

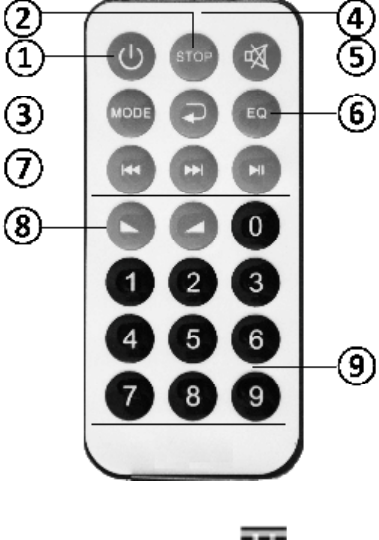

Remote Control
1. Power On/Off
2. Stop
3. Mode: Select USB, FM, Bluetooth, Line in
Function
4. Repeat
5. Mute
6. Select Equalizer
7. Back/forward track song
8. Decrease/increase volume
9. Buttons selection
Control remote: 3 V battery (INCLUDE)
FCC STATEMENT:
This device complies with Part 15 of the FCC rules. Operation is subject to the following two
conditions: 1) this device may not cause harmful interference, and 2) this device must accept
any interference received, including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in particular
installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver.
--Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
--Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
FCC Radiation Exposure Statement
This device complies with FCC RF radiation exposure limits set forth for an uncontrolled
environment. This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
