Samsung Electro Mechanics ST-GM6000 ESL Graphic TAG User Manual 2 of 2

Samsung Electro Mechanics ESL Graphic TAG 2 of 2

Contents

User manual 2 of 2

S-TAG Datasheet(ST-GM6000N)
Preliminary
REV 0.1 Samsung Electro-Mechanics Proprietary and Confidential 1/14
CUSTOMER APPROVAL SHEET
Company Name
MODEL ST-GM6000N
CUSTOMER
APPROVAL
□ APPROVAL FOR SPECIFICATIONS ONLY (Spec. Ver. 0.1 )
□ CUSTOMER REMARK :
Issued By Checked By
Approved By
ES Kim DS Yoon JG Ryu
Samsung Electro-Mechanics
314, Maetan3-Dong, YoungTong-Gu, Suwon, Gyunggi-Do, Korea
Tel : 82-31-210-5114
S-TAG Datasheet(ST-GM6000N)
Preliminary
REV 0.1 Samsung Electro-Mechanics Proprietary and Confidential 2/14
S-TAG Datasheet
S-Label (Electronic Label System)
REV 0.1
Samsung Electro-Mechanics
2015-01-12
Summary
This datasheet presents the general performance and specifications of S-Tag for S-Label ESL (Electronic
Shelf Label) system, which is based on IEEE 802.15.4.
© 2015 Samsung Electro-Mechanics. All rights reserved
The names of actual companies and products mentioned herein
may be the trademarks of their respective owners.
No part of this document may be reproduced, stored in a
retrieval system, or transmitted in any form or by any means
without the express written consent of Samsung Electro-
Mechanics.
This document is subject to change without notice.
S-TAG Datasheet(ST-GM6000N)
Preliminary
REV 0.1 Samsung Electro-Mechanics Proprietary and Confidential 3/14
Table of Contents
1 GENERAL DESCRIPTION ..................................................................................................... 5
1.1 F
EATURES
......................................................................................................................... 6
1.2 T
YPICAL
A
PPLICATIONS
......................................................................................................... 6
1.3 A
PPEARANCE
...................................................................................................................... 6
2 SPECIFICATION .................................................................................................................. 7
2.1 P
RODUCT
S
PECIFICATION
....................................................................................................... 7
2.2 R
ADIO
(RF)
S
PECIFICATION
................................................................................................... 7
2.3 NFC
S
PECIFICATION
............................................................................................................. 8
2.4 M
ECHANICAL
D
RAWING
......................................................................................................... 8
2.5 L
ABELS
............................................................................................................................. 9
3 PACKAGE ........................................................................................................................... 11
4 CAUTIONS FOR TREATMENT............................................................................................. 13
4.1 U
SAGE
E
NVIRONMENT
.......................................................................................................... 13
4.2 S
TORAGE AND
U
SE
.............................................................................................................. 13
S-TAG Datasheet(ST-GM6000N)
Preliminary
REV 0.1 Samsung Electro-Mechanics Proprietary and Confidential 4/14
Document History
Rev. Date Revision history Page
0.1 12 Jan 2015 Initial release -
S-TAG Datasheet(ST-GM6000N)
Preliminary
REV 0.1 Samsung Electro-Mechanics Proprietary and Confidential 5/14

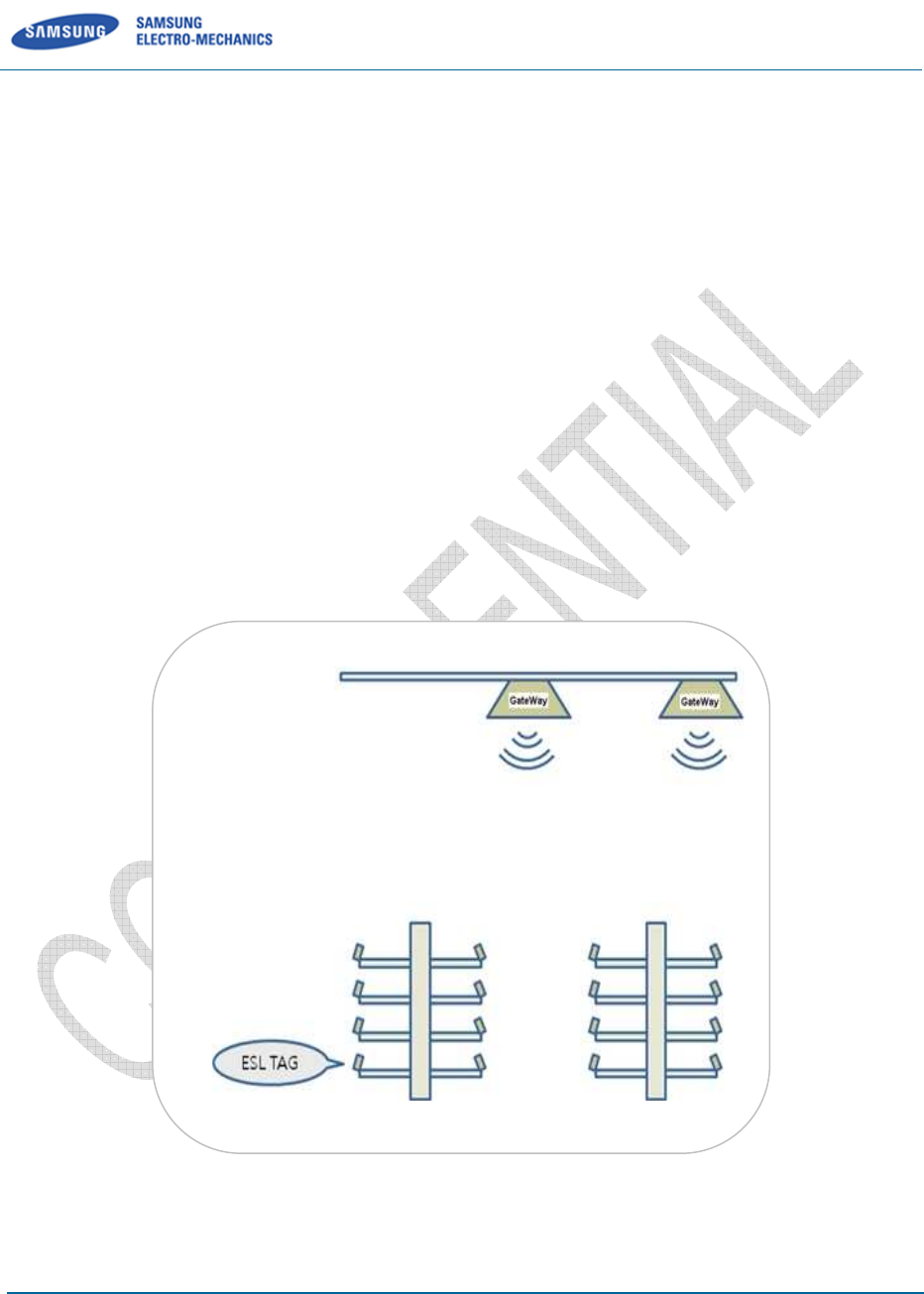

1 General Description
This S-Tag product is a part of Samsung S-Label (Electronic Shelf Label) system as well as S-Label
Gateway (S-Gate), Remote controller (S-RC). S-Label system make up a system that electronically
displays price and other product information on S-Tags, which has been traditionally printed or written on
paper in places like retail markets.
S-Tag receives product price/information updates from S-Gate and updates or changes its display of price
and other information.
S-Tag is the product based on IEEE standard 802.15.4 for low power wireless communication
applications. S-Tag consists of RF transceiver, RF circuitry and 8051-compatible MCU offering IEEE
802.15.4 based network protocol and MAC protocol and other peripheral devices.
S-TAG Datasheet(ST-GM6000N)
Preliminary
REV 0.1 Samsung Electro-Mechanics Proprietary and Confidential 6/14
1.1 Features
-
Display : E-Paper active type Display (6.0 Inch, 212 Dpi, 758 * 1024 Pixel)
-
Communication : Wireless communication based on IEEE 802.15.4
-
Operating on 2.4GHz Unlicensed ISM band for ZigBee
-
Low Power Consumption
-
External Wakeup : Magnetic Wakeup
-
Outline Dimension : 152.80 mm x 107.10 mm x 16.00 mm
-
Working condition: Indoor where wireless communication is available.
-
NFC (13.56MHz)
1.2 Typical Applications
-
Retail industry with electronic displays, platforms, solutions and services.
-
Intelligently communicating, managing, and optimizing price and product informations.

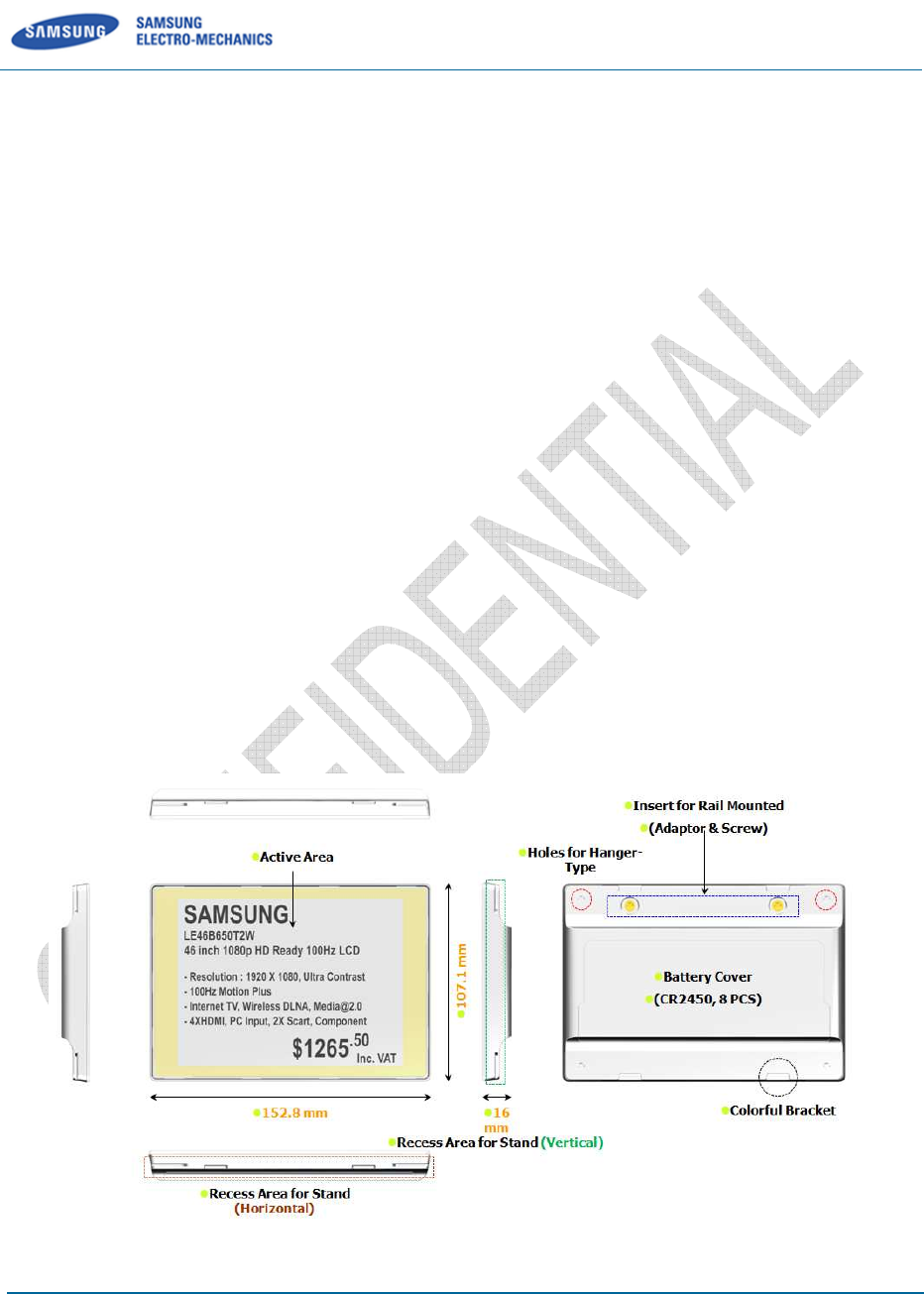

1.3 Appearance
Figure 1 Appearance
S-TAG Datasheet(ST-GM6000N)
Preliminary
REV 0.1 Samsung Electro-Mechanics Proprietary and Confidential 7/14
2 Specification
2.1 Product Specification
Item
Size
152.80 mm x 107.10 mm x 16.00 mm
Battery
CR2450 Lithium Battery
(
3
V,
8PCS
) /
Operating Voltage : 6V
Display
E
-
Paper active type
D
isplay
(122.37 * 90.58 mm, 212 Dpi, 758 * 1024 Pixel)
Housing Color
White
Information display
P
rice, Unit,
Symbol
etc.
Communication
Wireless communication based on IEEE 802.15.4
Communication
Distance
Radius
20m (Line of Sight)
Operation Temp. 5 ~ 40 ℃ (@20~60% RH)
Etc.
No additional anti
-
theft locking structure : Rail Mounted only
NFC (13.56MHz) available
2.2 Radio (RF)
1
Specification
Item
Parameter
SPEC
Unit
Condition
Min
Typ
Max
TX
Transmit Power
-
2
3.5
5
dBm
Error Vector Magnitude
10
30
%
When measured for 100 chips
Tx Current
10
14
35
mA
Total current at max Tx Power
RX
Receiver Sensitivity
-
90
-
-
dBm
PER <
1
%
1
Test Channel : 2480MHz
S-TAG Datasheet(ST-GM6000N)
Preliminary
REV 0.1 Samsung Electro-Mechanics Proprietary and Confidential 8/14
2.3 NFC Specification
Items
Parameter spec. Units
Condition
Min
Typ
Max
NFC Read/Write Distance - 40 - mm PCB status
NFC Read/Write Distance - 30 - mm Final Assy status

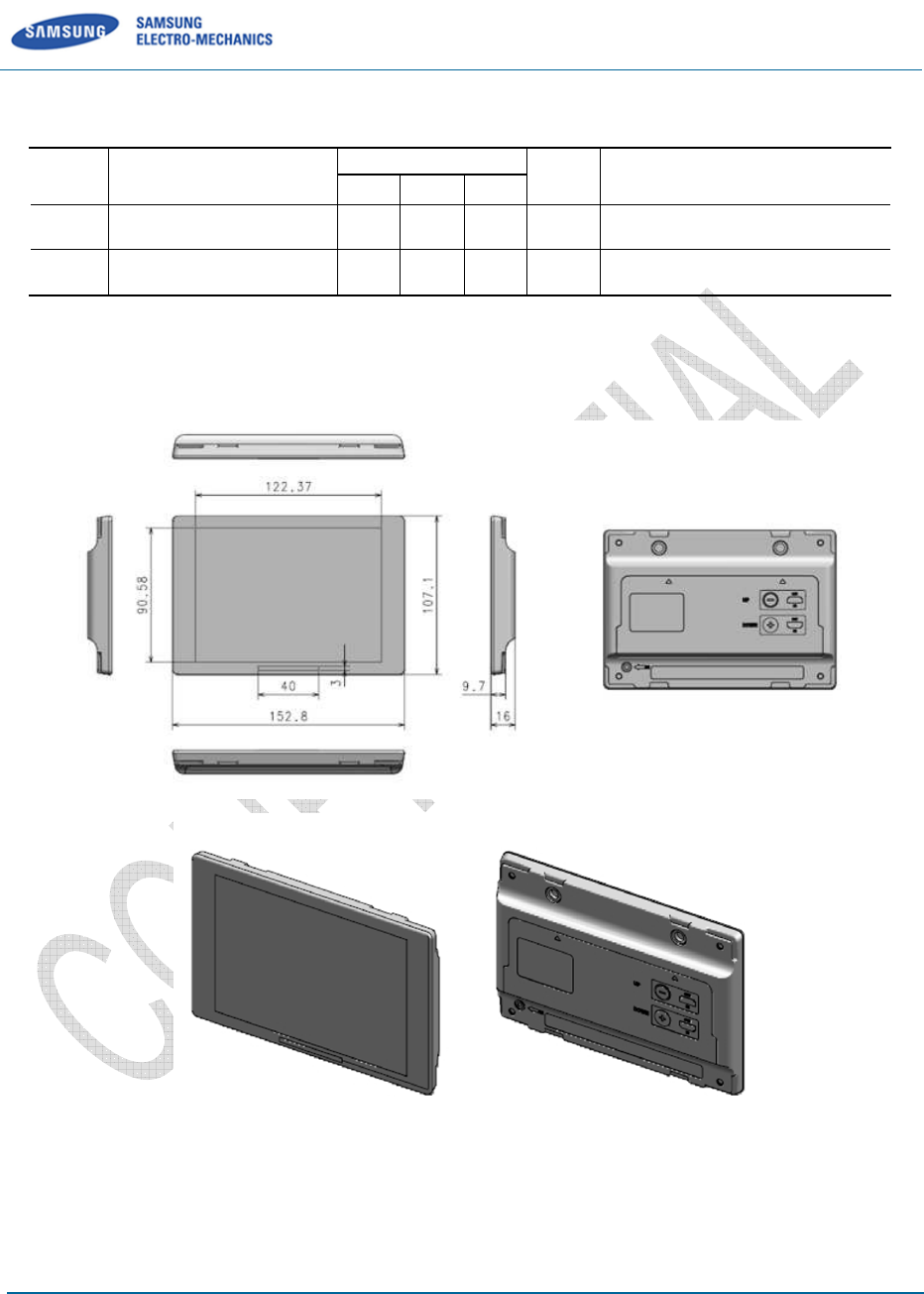

2.4 Mechanical Drawing
Figure 2 Mechanical Dimension
S-TAG Datasheet(ST-GM6000N)
Preliminary
REV 0.1 Samsung Electro-Mechanics Proprietary and Confidential 9/14
2.5 Labels

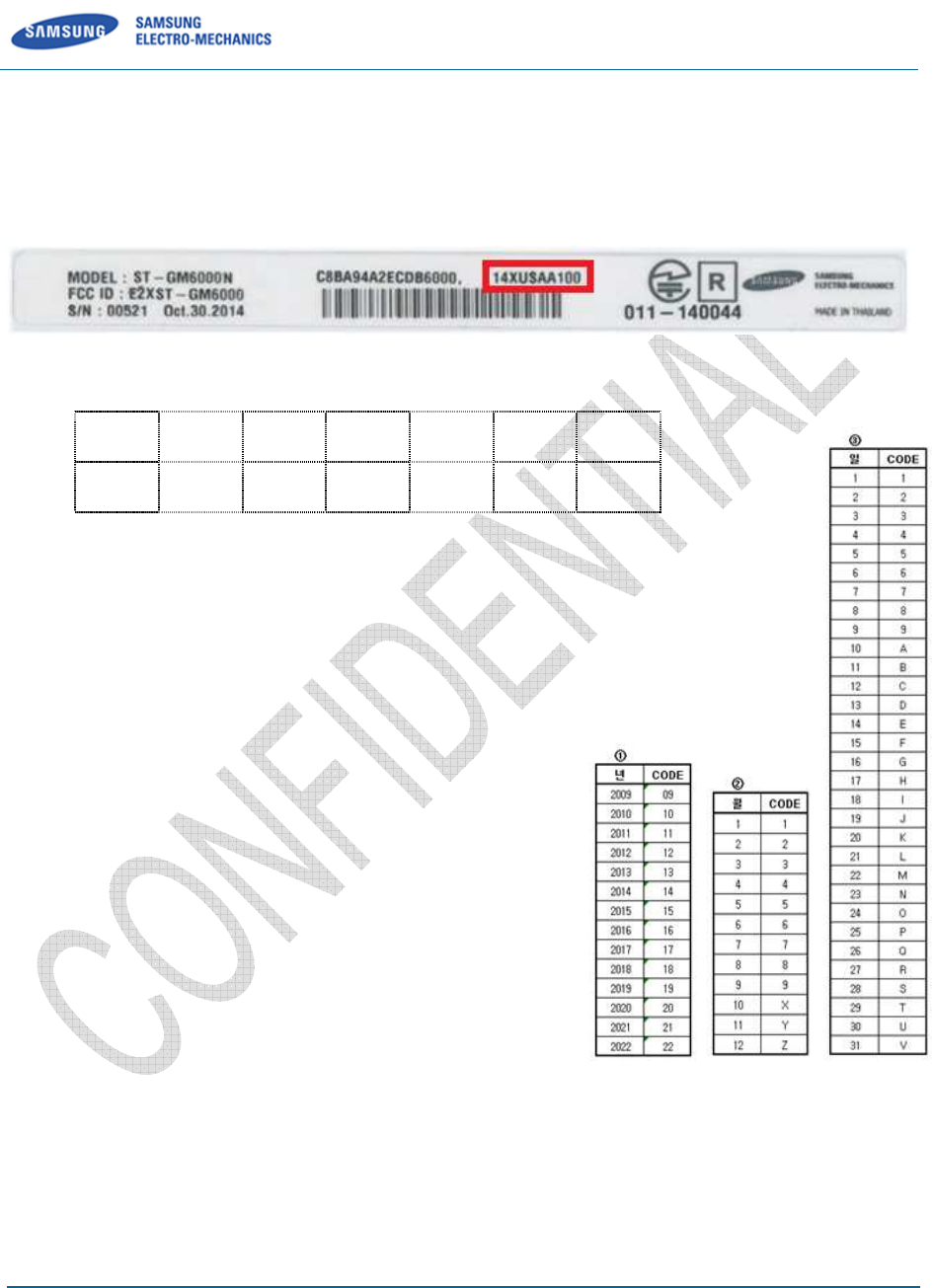

2.5.1 Code Information
Serial 1, 2 Code Value
13 Y 5 S A A 2JW
① ② ③ ④ ⑤ ⑥ ⑦
① Year : Last two digits of manufacturing year.
(00 ~ 99, Example : 2013 is '13')
Month : Manufacturing month②
(1 ~ 9, X(10), Y(11), Z(12))
Date : Manufacturing date③
(1 ~ 9, A(10) ~ V(31))
Vendor : Manufacturing vendor④
(S : SEMTHAI, T : TSEM, etc)
Line number : Manufacturing Line number⑤
('A', 'B', 'C', etc)
Revision : Product revision number⑥
(A : First, B : Second, C : Third, etc.)
ZigBee IC Lot Numbe⑦r : Last 3 characters of Lot Number
(Example : YME06862JW is ‘2JW’)
S-TAG Datasheet(ST-GM6000N)
Preliminary
REV 0.1 Samsung Electro-Mechanics Proprietary and Confidential 10/14

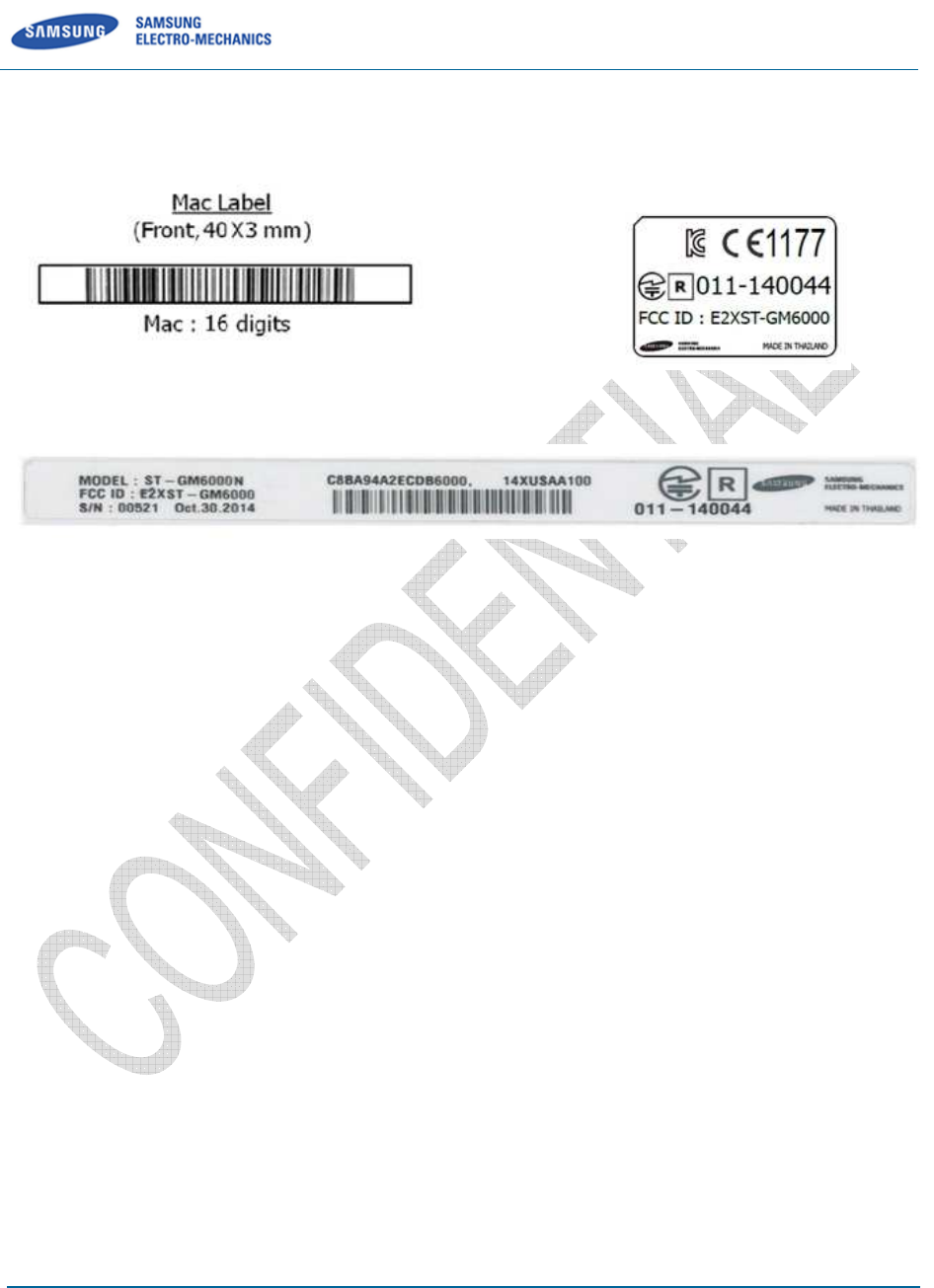

2.5.2 Mac Label Drawings
Certification Mark Label (35 X 25 mm)
(Back, 100 X 8 mm)
Figure 3 Mac Labels
Product information is indicated in a printed sticker label. The information consists of MODEL (model
name), MFD (manufacturing date), S/N (serial number), MAC (MAC address), certification mark, and
Manufacture (SEMCO).
1) Model Name : ST-GM6000N
2) MFD : (Month).(Date).(Year) ex) MAY.16.2013
3) S/N : Numeric & Barcode & Barcode Number (hexadecimal 10 digit)
4) MAC : barcode & barcode number(hexadecimal 16 digit)
- 6 digits (1st ~ 6th) : xxxxxx (Company code)
- 6 digits (7th ~ 12th) : xxxxxx (Increasing number : 000000 ~ FFFFFF)
- 4 digits (13th ~ 16th) : 6000 (Tag type)
S-TAG Datasheet(ST-GM6000N)
Preliminary
REV 0.1 Samsung Electro-Mechanics Proprietary and Confidential 11/14

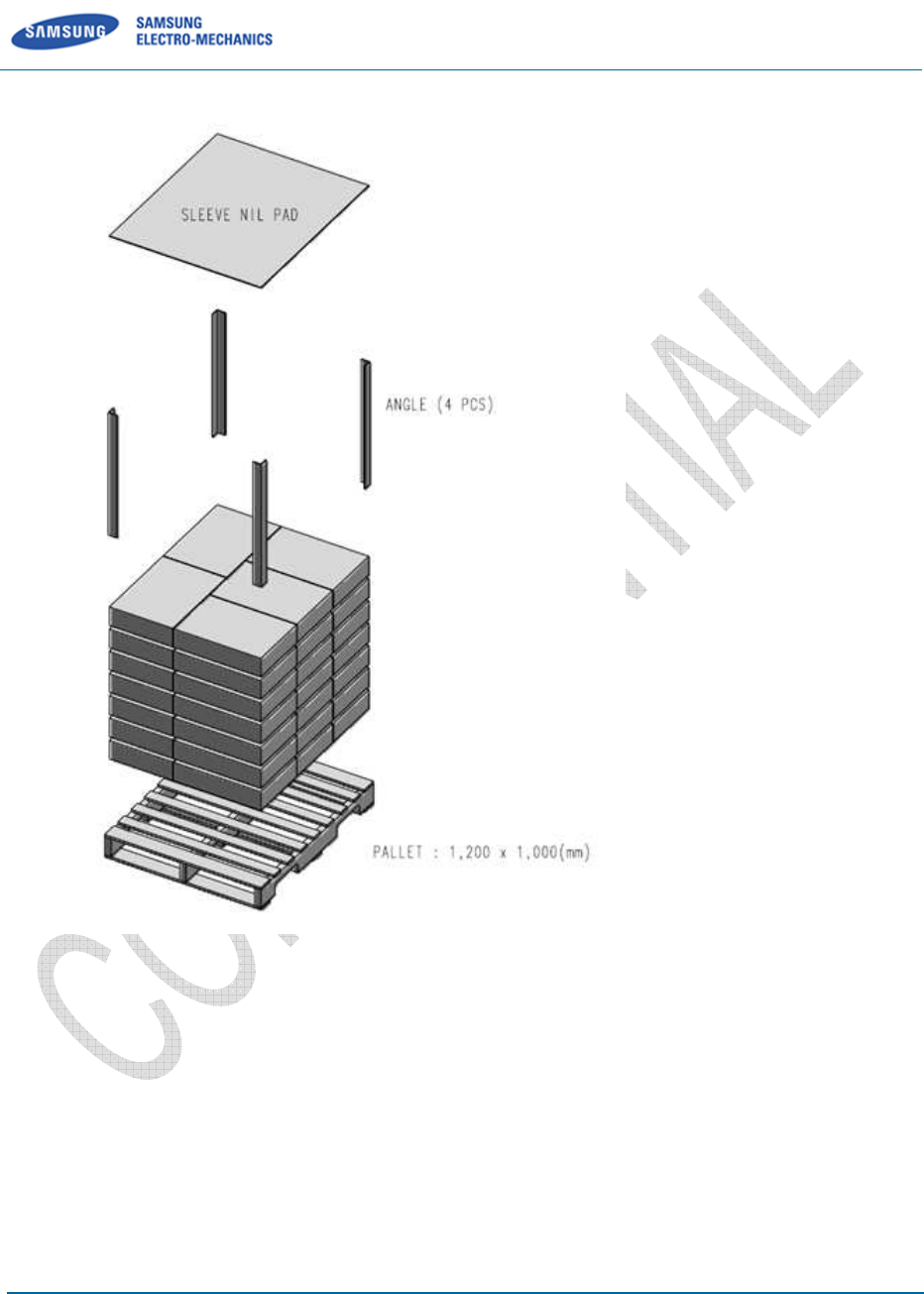

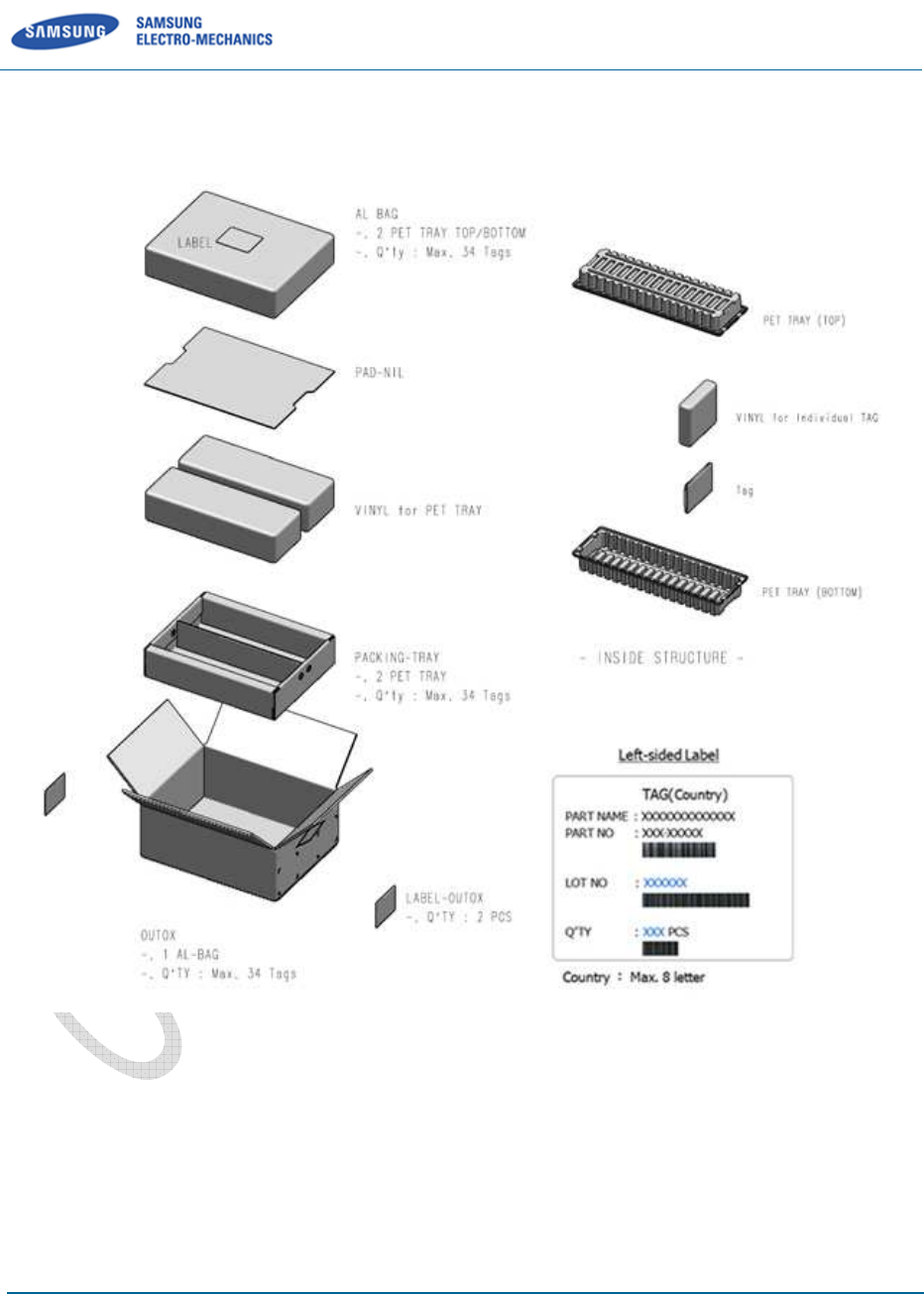

3 Package
S-TAG Datasheet(ST-GM6000N)
Preliminary
REV 0.1 Samsung Electro-Mechanics Proprietary and Confidential 12/14
S-TAG Datasheet(ST-GM6000N)
Preliminary
REV 0.1 Samsung Electro-Mechanics Proprietary and Confidential 13/14
4 Cautions for Treatment
Provisions should be made to protect against any damage to the product caused by improper handling.
It is highly recommended that the product should be installed within 3 months from the date of arrival in
the logistics hub. Recommended storage condition is in 5-40 Celsius degree, 20-60% RH environment.
This RF device operates on the 2.4GHz frequency band and can produce radio interference. The device,
therefore, may not be used for applications where safety of human lives is concerned.
4.1 Usage Environment
Take extra cautions when using this RF device in the vicinity of other electronic devices and appliances.
Most electronic devices and appliances use electromagnetic waves. Electromagnetic waves emitted by this
RF device can affect other electronic devices and appliances.
If using the device in an explosion hazard area, follow all safety regulations, instructions, and signals.
4.2 Storage and Use
Moisture and liquids can damage internal parts and circuit boards if allowed to enter into the device
itself.
Do not place or store the product on a sloped surface. The product may slide and fall off the
surface and damaged.
Use the product in temperatures ranging from +5℃ to +40℃. Parts and circuits may be damaged
if used or stored under temperature extremes.
The display panel needs extra care when handling.
-
Do not apply any impacts on outside since e-Paper display is fragile.
-
Continuous exposure to excessive moisture (over 60% RH) or UV makes display lifetime
shortened.
-
Ghosting image may be appeared in temperature conditions of less than 15 Celsius degree.
Avoid areas with strong magnetism or subject to magnetism. Contact between the device and a
magnetic object can lead to malfunctions.
Do not place the product near heat-producing kitchen appliances like a stove or a microwave or in
S-TAG Datasheet(ST-GM6000N)
Preliminary
REV 0.1 Samsung Electro-Mechanics Proprietary and Confidential 14/14
the vicinity of highly pressurized containers.
External impact to the product, such as from being dropped, can damage the product or battery
casing can be separated.
Twisting and bending the product can damage the exterior casing and the internal components.
If this product operates abnormally in eliminating battery vinyl or replacing battery, you should
discharge it by contacting battery terminal (+) and (-).
This product uses 2.4GHz frequency band for wireless communication network. Radio
communications can be limited or affected by other applications which share same frequency band,
such as Wi-Fi, Bluetooth, ZigBee, etc.
Frequent communications, updates and screen renewals may reduce battery life time.
WARNING : This equipment may generate or use radio frequency energy. Changes or
modifications to this equipment may cause harmful interference unless the modifications are
expressly approved in the instruction manual. The user could lose the authority to operate
this equipment if an unauthorized change or modification is made.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received. Including interference that may cause undesired operation.
NOTE : This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications, However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Caution
This device complies with FCC radiation exposure limits for an uncontrolled environment.
Avoid operating this device at a distance less than 20cm form the user.

Navigation menu
