Samsung Electronics Co 03DELTA Digital Camcorder User Manual

Samsung Electronics Co Ltd Digital Camcorder Users Manual

Users Manual

ENGLISH*Samsung Electronics’ Internet Home Pagehttp://www.samsungusa.com AD68-00616BTHIS CAMCORDER IS MANUFACTURED BY:SERVICE DIVISION400 Valley Road, Suite 201, Mt. Arlington N.J. 07856Tel: 1-800-SAMSUNG(1-800-726-7864)(01~27).quark3.3E 2/8/03 9:25 AM Page 100
ENGLISHDigital Video CamcorderOwner’s Instruction BookBefore operating the unit, please read thisinstruction book thoroughly, and retain it forfuture reference. AF Auto FocusCCD Charge Coupled DeviceLCD Liquid Crystal DisplaySCD23/D24/D29US PATENT 4415844(01~27).quark3.3E 2/8/03 9:37 AM Page 101
FCC Warning Class B Computing Device Information to the User This Equipment has been tested and found to comply with the limits for a class B digital device pursuant to part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help and for additional suggestions. The user may find the following booklet prepared by the Federal Communications Commission helpful: “How to Identify and Resolve Radio-TV Interference Problems.” This Booklet is available from the U.S. Government Printing Office, Washington, D.C. 20402, Stock No. 004-000-00345-4. FCC Warning The user is cautioned that changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment.
ENGLISHContents22Features ...................................................................................................................................................................................................................... 11Accessories Supplied with camcorder ....................................................................................................................................................................... 12Basic Accessories ................................................................................................................................................................................................. 12Front & Left View ........................................................................................................................................................................................................ 13Left side View ............................................................................................................................................................................................................. 14Right & Top View ........................................................................................................................................................................................................ 15Rear & Bottom View ................................................................................................................................................................................................... 16Remote control(SCD24 only) ..................................................................................................................................................................................... 17OSD (On Screen Display in CAMERA and PLAYER modes) .................................................................................................................................. 18OSD (On Screen Display in M.REC and M.PLAY modes) ....................................................................................................................................... 19Turning the OSD on/off (On Screen Display) ...................................................................................................................................................... 19How to use the Remote Control(SCD24 only) .......................................................................................................................................................... 20Battery Installation for the Remote Control .......................................................................................................................................................... 20Self Record using the Remote Control ................................................................................................................................................................ 20Lithium Battery Installation...........................................................................................................................................................................................21Adjusting the Hand Strap .......................................................................................................................................................................................... 22Hand strap ............................................................................................................................................................................................................ 22Shoulder strap.........................................................................................................................................................................................................22Connecting a Power Source ...................................................................................................................................................................................... 23To use the AC Power adapter and DC Cable ..................................................................................................................................................... 23To select the CAMCORDER mode ........................................................................................................................................................................23Using the Lithium Ion Battery Pack .......................................................................................................................................................................... 24Charging the Lithium Ion Battery Pack ................................................................................................................................................................ 24Table of continuous recording time based on model and battery type .............................................................................................................. 25Battery level display .............................................................................................................................................................................................. 26Inserting and Ejecting a Cassette ............................................................................................................................................................................. 27Making your First Recording ...................................................................................................................................................................................... 28Record Search (REC REARCH) ......................................................................................................................................................................... 29Hints for Stable Image Recording .............................................................................................................................................................................. 30Recording with the LCD monitor ......................................................................................................................................................................... 30Recording with the View finder ........................................................................................................................................................................... 30Adjusting the LCD ..................................................................................................................................................................................................... 31Using the VIEWFINDER ........................................................................................................................................................................................... 32Adjusting the Focus .............................................................................................................................................................................................. 32BASIC Recording 28Preparation 20Notes and Safety Instructions 6Getting to Know Your Camcorder 11(01~27).quark3.3E 2/8/03 9:25 AM Page 2
ENGLISHContents33Playing back a tape you have recorded on the LCD ................................................................................................................................................ 33Adjusting the LCD during PLAY ........................................................................................................................................................................... 34Controlling Sound from the Speaker ........................................................................................................................................................................ 34Use of various Functions ........................................................................................................................................................................................... 35Setting menu items ............................................................................................................................................................................................... 35Set the camcorder to CAMERA or PLAYER mode and M.REC or M.PLAY mode ............................................................................................. 35Availability of functions in each mode .................................................................................................................................................................. 36CLOCK SET ........................................................................................................................................................................................................ 37REMOCON(SCD24 only) .................................................................................................................................................................................... 38DEMONSTRATION ............................................................................................................................................................................................. 39PROGRAM AE .................................................................................................................................................................................................... 40Setting the PROGRAM AE ................................................................................................................................................................................... 41WHT. BALANCE (WHITE BALANCE) ................................................................................................................................................................. 42Zooming In and Out with DIGITAL ZOOM ........................................................................................................................................................... 43Zooming In and Out .............................................................................................................................................................................................. 43Digital Zoom ........................................................................................................................................................................................................ 44DIS (Digital Image Stabilizer) ............................................................................................................................................................................... 45DSE (Digital Special Effects) SELECT ................................................................................................................................................................ 46Selecting an effect ................................................................................................................................................................................................ 47REC MODE ......................................................................................................................................................................................................... 48AUDIO MODE ..................................................................................................................................................................................................... 49WIND CUT ........................................................................................................................................................................................................... 50DATE/TIME .......................................................................................................................................................................................................... 51TV DISPLAY ........................................................................................................................................................................................................ 52Using Quick Menu ..................................................................................................................................................................................................... 53Setting the Quick menu ........................................................................................................................................................................................ 54SHUTTER SPEED & EXPOSURE ..................................................................................................................................................................... 55SLOW SHUTTER(Low Shutter Speed) .................................................................................................................................................................... 56EASY Mode (for Beginners) ...................................................................................................................................................................................... 57MF/AF (Manual Focus/Auto Focus) ........................................................................................................................................................................... 58Auto Focusing ....................................................................................................................................................................................................... 58Manual Focusing .................................................................................................................................................................................................. 58BLC (Back Light Compensation) ............................................................................................................................................................................... 59Fade In and Out ......................................................................................................................................................................................................... 60To Start Recording ................................................................................................................................................................................................ 60To Stop Recording (use FADE IN / FADE OUT) ................................................................................................................................................. 60Audio dubbing(SCD24 only) ..................................................................................................................................................................................... 61Dubbing sound....................................................................................................................................................................................................... 61Dubbed Audio Playback ....................................................................................................................................................................................... 62PHOTO Image Recording .......................................................................................................................................................................................... 63Advanced Recording 35(01~27).quark3.3E 2/8/03 9:25 AM Page 3
ENGLISH44Searching for a PHOTO picture ........................................................................................................................................................................... 63NITE PIX (0 lux recording)...........................................................................................................................................................................................64POWER NITE PIX........................................................................................................................................................................................................65Using the VIDEO LIGHT..............................................................................................................................................................................................66Various Recording Techniques .................................................................................................................................................................................. 67Tape Playback ............................................................................................................................................................................................................ 68Playback on the LCD ............................................................................................................................................................................................ 68Playback on a TV monitor .................................................................................................................................................................................... 68Connecting to a TV which has Audio Video input jacks ...................................................................................................................................... 68Connecting to a TV which has no Audio and Video input jacks .......................................................................................................................... 69Playback ............................................................................................................................................................................................................... 69Various Functions while in PLAYER mode ................................................................................................................................................................ 70Playback pause .................................................................................................................................................................................................... 70Picture search (Forward/Reverse) ....................................................................................................................................................................... 70Slow playback (Forward/Reverse)(SCD24 only) ................................................................................................................................................. 70Frame advance (To play back frame by frame)(SCD24 only) ............................................................................................................................. 71X2 Playback (Forward/Reverse )(SCD24 only) ................................................................................................................................................... 71ZERO MEMORY(SCD24 only) ................................................................................................................................................................................. 72PB DSE ..................................................................................................................................................................................................................... 73PB ZOOM .................................................................................................................................................................................................................. 74Transferring IEEE1394 (i.LINK)-DV standard data connections ............................................................................................................................... 75Connecting to a DV device .................................................................................................................................................................................. 75Connecting to a PC .............................................................................................................................................................................................. 75System requirements ............................................................................................................................................................................................ 76Recording with a DV connection cable................................................................................................................................................................. 76Transferring a Digital Image through a USB Connection .......................................................................................................................................... 77System Requirements ................................................................................................................................................................................................ 77Connecting to a PC .................................................................................................................................................................................................... 78MEMORY STICK(SCD24 only) .................................................................................................................................................................................. 79Memory Stick Functions........................................................................................................................................................................................ 79Inserting and ejecting the Memory Stick .............................................................................................................................................................. 80ContentsPlayback 68IEEE 1394 Data Transfer 75USB interface 77Digital Still Camera mode 79(01~27).quark3.3E 2/8/03 9:25 AM Page 4
Structure of folders and files on the Memory Stick .............................................................................................................................................. 81Image Format ....................................................................................................................................................................................................... 81Selecting the CAMCORDER mode ........................................................................................................................................................................... 81Selecting the image quality ........................................................................................................................................................................................ 82Select the image quality ...................................................................................................................................................................................... 82Number of images on the Memory Stick ............................................................................................................................................................. 82Recording Still images to a Memory Stick in M.REC Mode ..................................................................................................................................... 83Recording images to a Memory Stick ...................................................................................................................................................................83Recording an image from a cassette as a still image ........................................................................................................................................ 84Viewing Still images ................................................................................................................................................................................................... 85To view a Single image.......................................................................................................................................................................................... 85To view a slide show.............................................................................................................................................................................................. 85Copying still images from a cassette to Memory Stick .............................................................................................................................................. 86Marking images for printing ....................................................................................................................................................................................... 87Protection from accidental erasure............................................................................................................................................................................. 88Deleting Still images ................................................................................................................................................................................................... 89Formatting the Memory Stick ..................................................................................................................................................................................... 90Attention ................................................................................................................................................................................................................ 90After finishing a recording .......................................................................................................................................................................................... 91Cleaning and Maintaining the Camcorder.................................................................................................................................................................. 92Cleaning the Video Heads ................................................................................................................................................................................... 92Using Your Camcorder Abroad .................................................................................................................................................................................. 93Power sources ...................................................................................................................................................................................................... 93Color system ......................................................................................................................................................................................................... 93Troubleshooting .......................................................................................................................................................................................................... 94Self Diagnosis Display .......................................................................................................................................................................................... 94Moisture Condensation ........................................................................................................................................................................................ 94Self Diagnosis Display in M.REC, M.PLAY mode ............................................................................................................................................... 95ENGLISHContents55Maintenance 91Troubleshooting 94Specifications 97INDEX 98Warranty 99(01~27).quark3.3E 2/8/03 9:25 AM Page 5
ENGLISHNotes and Safety Instructions66Notes regarding the rotation of the LCD screenPlease rotate the LCD screen carefully as illustrated. Over rotation may cause damage to the inside of the hinge that connects the LCD screen to the Camcorder.1. LCD screen closed.2. Standard recording using the LCD screen.3. Recording when looking at the LCD screen from the top.4. Recording when looking at the LCD screen from the front.5. Recording with the LCD screen closed.12345(01~27).quark3.3E 2/8/03 9:25 AM Page 6
Television programs, video tapes, DVD titles, films, and other program materials may be copyrighted. Unauthorized copying of copyrighted material may be against the law.1. A sudden rise in atmospheric temperature may cause condensation to form inside the camcorder.for example:- When you move the camcorder from a cold location to a warm location (e.g. from outside to inside during winter.)- When you move the camcorder from a cool location to a hot location (e.g. from inside to outside during the summer.)2. If the (DEW) protection feature is activated, leave the camcorder for at least two hours in a dry, warm room with thecassette compartment opened and the battery removed.1. Do not leave the camcorder exposed to high temperature (above 60°C or 140°F). For example, in a parked car in the sun or exposed to direct sunlight.2. Do not let the camcorder get wet.Keep the camcorder away from rain, sea water, and any other form of moisture. If the camcorder gets wet, it may getdamaged.Sometimes a malfunction due to exposure to liquids cannot be repaired.ENGLISHNotes and Safety Instructions77Notes regarding CAMCORDERNotices regarding COPYRIGHTNotes regarding moisture condensation(01~27).quark3.3E 2/8/03 9:25 AM Page 7
ENGLISHNotes and Safety Instructions88Notes regarding the battery packNotes regarding the Video Head Cleaning- Make sure that the battery pack is fully charged before starting to record.- To preserve battery power, keep your camcorder turned off when you are notoperating it.- If your camcorder is in CAMERA mode, and it is left in STBY mode without being operated for more than 5 minutes with a tape installed, it will automatically turn itself off to protect against unnecessary battery discharge.- Make sure that the battery pack is fitted firmly into place.Dropping the battery pack may damage it.- A brand new battery pack is not charged.Before using the battery pack, you need to charge it completely.- It is a good idea to use the viewfinder rather than the LCD when making longrecording, because the LCD uses up more battery power.- To ensure normal recording and a clear picture, clean the video heads regularly. If a square block-shape distorts playback, or only a blue screen is displayed, the video heads may be dirty. If this happens, clean the video heads with a dry typecleaning cassette.- Do not use a wet-type cleaning cassette. It may damage the video heads.* When the battery reaches the end of its life, please contact your local dealer.The batteries have to be dealt with as chemical waste. (01~27).quark3.3E 2/8/03 9:25 AM Page 8
ENGLISHNotes and Safety Instructions99- Do not film with the camera lens pointing directly at the sun.Direct sunlight can damage the CCD(Charge Coupled Device).1. Do not position the camcorder such that the viewfinder is pointing towards the sun.Direct sunlight can damage the inside of the viewfinder. Be careful when placing the camcorder under sunlight or near awindow exposed to sunlight.2. Do not pick up the camcorder from the viewfinder.3. Over-rotating of the viewfinder may damage it.1. The LCD display has been manufactured using high precision tech- nology. However, there may be tiny dots (red, blue or green in color)that appear on the LCD display.These dots are normal and do not affect the recorded picture in anyway.2. When you use the LCD display under direct sunlight or outdoors,it maybe difficult to see the picture clearly. If this occurs, we recommend using the viewfinder.3. Direct sunlight can damage the LCD monitor.- To ensure a steady picture during filming, check that the hand strap is properly adjusted.- Do not force your hand into the hand strap as you could damage it.Note regarding the LENSNotes regarding electronic viewfinderNotes regarding ‘Record’ or ‘Playback’ using the LCDNotes regarding the hand strap(01~27).quark3.3E 2/8/03 9:25 AM Page 9
ENGLISHNotes and Safety Instructions1010Precautions regarding the Lithium battery1. The lithium battery maintains the clock function and user settings; even if the battery pack or AC adapter is removed.2. The lithium battery for the camcorder lasts about 6 months under normal operation from time of installation.3. When the lithium battery becomes weak or dead, the date/time indicator will flash for about five seconds when you set thepower switch to CAMERA. In this case, replace the lithium battery with a new one(type CR2025 ).4. Danger of explosion if battery is incorrectly replaced.Replace only with the same or equivalent type.Warning: Keep the LITHIUM BATTERY out of reach of children. Should a battery be swallowed, consult a doctorimmediately.Danger:- The Video Light can become extremely hot. Do not touch it during operation or after turning it off, otherwise serious injurymay result. Take 5 minutes (approx.) for the light to cool down.- Do not place the camcorder into the carrying case immediately after using the video light. The video light will be hot. Pleaseallow time for it to cool down.- Do not use it near flammable or explosive materials.- It is recommended that you consult your nearest SAMSUNG dealer for replacement bulbs.- Not to be handled by children. Emits intense heat and light. Use with caution to reduce the risk of fire or injury to persons.Danger: Do not direct light at persons or materials locating less than four feet during use. Disconnect when not in use.Danger: To prevent possible burn hazard, disconnect the supply cord and allow the lamp to cool down beforereplacing.Notice regarding VIDEO LIGHT(01~27).quark3.3E 2/8/03 9:25 AM Page 10
ENGLISHGetting to Know Your Camcorder1111Features• Digital data transfer function with IEEE1394By incorporating the IEEE 1394 (i.LINK™ : i.LINK is a serial data transfer protocol and interconnectivity system, used totransmit DV data) high speed data transport port, both moving and still images can be transferred to a PC, making it possibleto produce or edit various images.• USB interface for digital image data transfer You can transfer still images to a PC using the USB interface without an add-on card.• PHOTOThe PHOTO function lets you capture an object as a still along with sound, while in Camera mode.• 800x Digital zoomAllows you to magnify an image up to 800 times its original size.• Color TFT LCDA high-resolution color TFT LCD gives you clean, sharp images as well as the ability to review your recordings immediately.• Digital Image Stabilizer (DIS) The DIS compensates for any handshake, reducing unstable images particularly at high magnification.• Various digital effectsThe DSE (Digital Special Effects) allows you to give your films a special look by adding various special effects.• Back Light Compensation (BLC)The BLC function compensates for the bright background behind a subject you're recording.• Program AEThe Program AE enables you to alter the shutter speed and aperture to suit the type of scene/action to be filmed.• NITE PIXThe NITE PIX function enables you to record a subject in a dark place.• Digital Still Camera function■Using Memory Stick™(SCD24 only), you can easily record and play back standard still images.■You can transfer standard still images on the Memory Stick™ to your PC using the USB interface.(01~27).quark3.3E 2/8/03 9:25 AM Page 11
Make sure that the following basic accessories are supplied with your digital video camera.Basic Accessories1. Lithium Ion Battery pack2. AC Power Adapter3. AC Cord 4. AUDIO/VIDEO cable 5. Instruction Book 6. Lithium battery for Remote Control or Clock.(TYPE: CR2025)7. Shoulder strap8. USB cable 9. Software CD10.Remote Control(SCD24 only)11.Memory Stick(SCD24 only)ENGLISHGetting to Know Your Camcorder1212Accessories Supplied with camcorder1. Lithium Ion Battery pack(AD43-00070A)3. AC cord(AD39-00076A)4. AUDIO/VIDEO cable(AD39-00001A)10. Remote Control (AD59-00085A)8. USB cable(AD39-00073A)7. Shoulder strap(AD63-00202A)5. Instruction Book(AD68-00616B)2. AC Power Adapter(AD44-00065A)11. Memory Stick(1109-001221)9. Software CD6. Lithium battery(AD43-10130H)(01~27).quark3.3E 2/8/03 9:25 AM Page 12
ENGLISHGetting to Know Your Camcorder1313Front & Left View1. Internal MIC2. Lens 3. Video Light4. Remote sensor5. Viewfinder (see page 32)6. EASY button (see page 57)7. TFT LCD monitor8. IR(Infrared) Light2. Lens3. Video Light1. Internal MIC 5. Viewfinder7. TFT LCD monitor4. Remote sensor 8. IR Light6. EASY button(01~27).quark3.3E 2/8/03 9:25 AM Page 13
ENGLISHGetting to Know Your Camcorder1414Left Side ViewPLAYER CAMERA M.PLAY- EASY -: (REW) REC SEARCH – REV: (FF) REC SEARCH + FWD: (PLAY/STILL) FADE SLIDE SHOW: (STOP) BLC -2. PB zoom3. Display4. V. light5. Mode switch (TAPE/MEMORY STICK)6. DV jack7. DC jack8. ENTER button9. MENU dial10. Speaker11. MENU button1. Function buttons1. Function buttons2. PB zoom3. Display4. V. light5. Mode switch6. DV jack10. Speaker11. MENU button9. MENU dial8. ENTER button7. DC jack(01~27).quark3.3E 2/8/03 9:25 AM Page 14
ENGLISHGetting to Know Your Camcorder1515Right & Top View1. Zoom lever2. PHOTO button (see page 63)3. START/STOP button4. Power switch (CAMERA or PLAYER)5. Hook for handstrap6. External MIC in7. Audio/Video jack8. S-VIDEO jack9. USB jack 10. NITE PIX switch11. SLOW SHUTTER9. USB jack8. S-VIDEO jack7. Audio/Video jack5. Hook for handstrap10. NITE PIX switch6. External MIC in11. SLOW SHUTTER1. Zoom lever 2. PHOTO button3. START/STOP button4. Power switch(01~27).quark3.3E 2/8/03 9:25 AM Page 15
ENGLISHGetting to Know Your Camcorder1616Rear & Bottom View1. Charging indicator2. Battery Release3. Lithium battery cover4. Hook for shoulder strap 5. TAPE OPEN / EJECT6. Focus adjust knob7. Tripod receptacle8. Memory Stick slot 8. Memory Stick slot 5. TAPE OPEN / EJECT7. Tripod receptacle1. Charging indicator6. Focus adjust konb4. Hook for shoulder strap3. Lithium battery cover2. Battery Release(01~27).quark3.3E 2/8/03 9:25 AM Page 16
ENGLISHGetting to Know Your Camcorder1717Remote control(SCD24 only)1. PHOTO2. START/STOP3. SELF TIMER (see page 20)4. ZERO MEMORY (see page 72)5. PHOTO Search6. A.DUB (see page 61)7. (FF)8. (REW)9. (PLAY)10. Direction ( , )11. F. ADV (see page 71)12. (STOP)13. (STILL) 14. (SLOW)15. DATE/TIME16. X2 (see page 71)17. Zoom18. Display1. PHOTO2. START/STOP3. SELF TIMER4. ZERO MEMORY5. PHOTO SEARCH6. A.DUB7. (FF)8. (REW)9. (PLAY)10. Direction18. DISPLAY17. Zoom16. X215. DATE/TIME14. (SLOW)13. (STILL)11. F. ADV12. (STOP)(01~27).quark3.3E 2/8/03 9:25 AM Page 17
ENGLISHGetting to Know Your Camcorder1818OSD (On Screen Display in CAMERA and PLAYER modes)1. Battery level (see page 26)2. Easy mode (see pages 57)3. DSE (Digital Special Effects) mode (see page 46)4. Program AE (see page 40)5. White Balance mode (see page 42)6. BLC (Back Light Compensation) (see page 59)7. Manual focus (see page 58) 8. Shutter speed and EXPOSURE (see page 55)9. Zoom position (see page 43)10. NITE PIX (see page 64)11. DATE/TIME (see page 51)12. USB 13. REMOCON(SCD24 only)14. WIND CUT (see page 50)15. Audio recording mode (see page 49)16. Zero memory indicator (see page 72)(SCD24 only)17. Remaining Tape (measured in minutes) 18. Tape Counter (see page 68) 19. Operating mode20. Record speed mode21. PHOTO mode22. Self recording and waiting timer (see page 20)(SCD24 only)23. DIS (see page 45)24. Volume control (see page 34)25. Audio playback channel26. DV IN(DV data transfer mode) (see page 75)27. DEW (See page 7)28. Message Line29. PB DSE (See page 73)30. PB zoom/enter (See page 74)31. Video light (see page 66)32. POWER NITE PIX (see page 65)OSD in CAMERA mode1234657932823 31 22 21 20 1918171615141312111028OSD in PLAYER mode25302930282721 20 192624 11(01~27).quark3.3E 2/8/03 9:25 AM Page 18
ENGLISHGetting to Know Your Camcorder1919OSD (On Screen Display in M.REC/M.PLAY modes)A. Folder number-file number (see page 84)B. Image counter- Current still image/Total number of recordable still images.C. CARD (MEMORY STICK) indicatorD. Image recording and loading indicator E. QualityF. ERASE PROTECTION indicator (see page 92)G. Print Mark(see page 91)H. SLIDE SHOWTurning the OSD on/off (On Screen Display)●Turning OSD on/offPress the DISPLAY button on the left side panel.- Each press of the button toggles the OSD function on and off.- When you turn the OSD off, In CAMERA mode: The STBY, REC, EASY.Q modes are always displayed on theOSD, even when the OSD is turned OFF and the key input is displayed for 3 secondsthen turned off. In PLAYER mode: When you press any Function button, the function is displayed on the OSD for 3 seconds before it turns off. ●Turning the DATE/TIME on/off - The DATE/TIME is not affected when the OSD function is switched ON or OFF.- To turn the DATE/TIME on or off, access the menu and change the DATE/TIME mode.(see page 51)- You may also use the Quick Menu to turn the DATE/TIME ON or OFF. (see page 53)(only in CAMERA / M.REC mode)OSD in M.REC modeOSD in M.PLAY modeEBD CFHAG(01~27).quark3.3E 2/8/03 9:25 AM Page 19
ENGLISHPreparation2020How to use the Remote Control(SCD24 only)Battery Installation for the Remote Control✤You need to insert or replace the lithium battery when : - You purchase the camcorder.- The remote control doesn’t work.✤Ensure that you insert the lithium cell correctly, following the + and - markings.✤Be careful not to reverse the polarity of the battery.Self Record using the Remote ControlWhen you use the Self Timer function on the remote control, the recording begins automatically in 10 seconds.1. Set the camcorder to CAMERA mode.2. Press the SELF TIMER button until the appropriate indicator is displayed in the viewfinder.3. Press the START/STOP button to start the timer.- After a 10 second wait, recording starts.- Press START/STOP again when you wish to stop recording.Self Timer(01~27).quark3.3E 2/8/03 9:25 AM Page 20

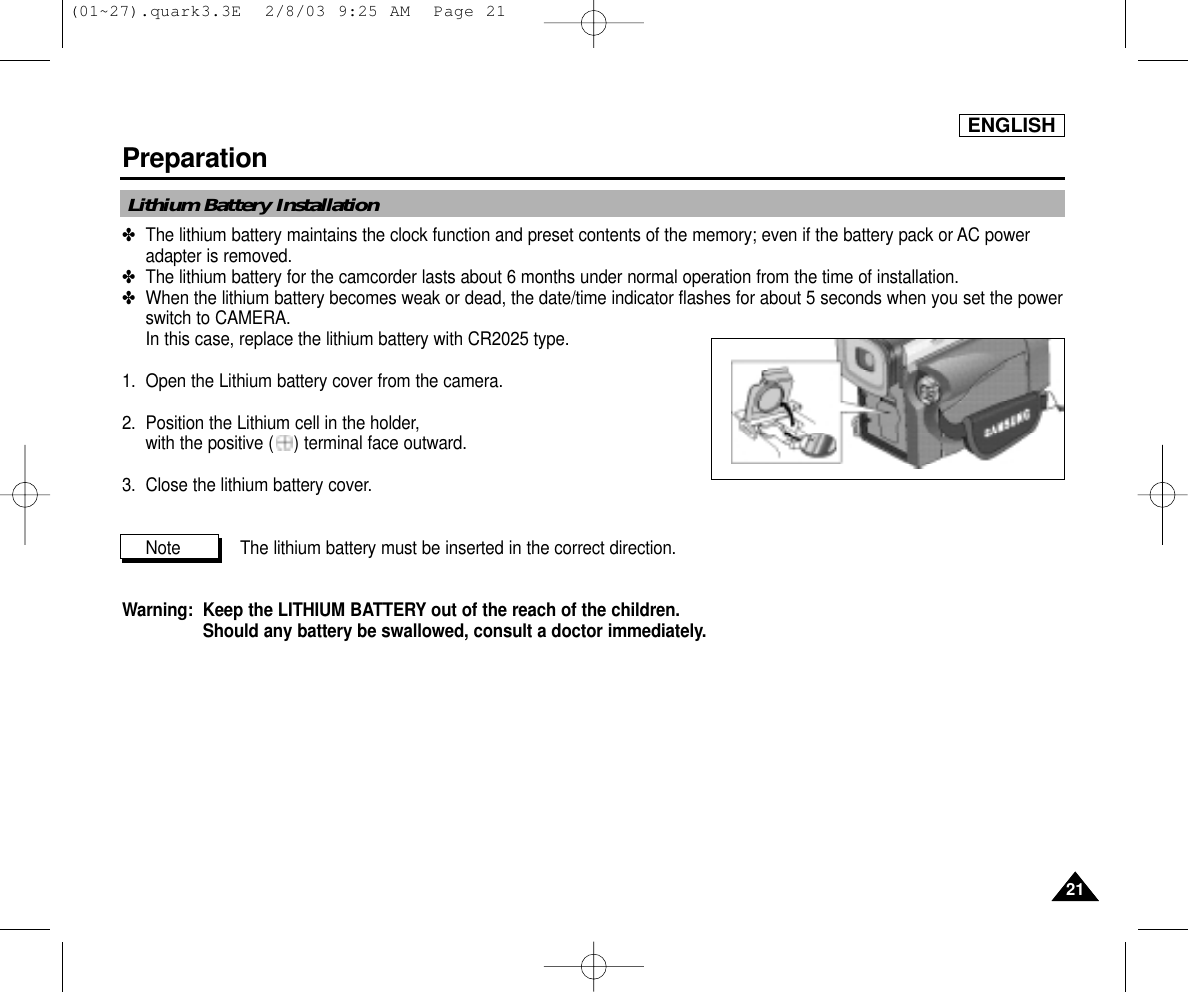

ENGLISHPreparation2121✤The lithium battery maintains the clock function and preset contents of the memory; even if the battery pack or AC poweradapter is removed.✤The lithium battery for the camcorder lasts about 6 months under normal operation from the time of installation.✤When the lithium battery becomes weak or dead, the date/time indicator flashes for about 5 seconds when you set the powerswitch to CAMERA. In this case, replace the lithium battery with CR2025 type.1. Open the Lithium battery cover from the camera.2. Position the Lithium cell in the holder, with the positive ( ) terminal face outward.3. Close the lithium battery cover.Note The lithium battery must be inserted in the correct direction.Warning: Keep the LITHIUM BATTERY out of the reach of the children.Should any battery be swallowed, consult a doctor immediately.Lithium Battery Installation(01~27).quark3.3E 2/8/03 9:25 AM Page 21
ENGLISHPreparation2222Adjusting the Hand StrapIt is very important to ensure that the Hand strap has been correctly adjusted before you begin your recording.The hand strap enables you to :- Hold the camcorder in a stable, comfortable position.- Press the Zoom and START/STOP button without having to change the position of your hand.Hand strapa. Pull open the Hand Strap cover and release the Hand Strap. b. Adjust its length and stick it back onto the Hand Strap cover.c. Close the Hand Strap cover again.Shoulder StrapThe Shoulder Strap enables you to carry your camcorder around in completesafety.1. Insert the end of strap into the Shoulder Strap hook on the camcorder.Insert the other end of strap into ring inside hand strap.2. Thread each end into the buckle, adjust the length of the strap and thenpull it tight in the buckle.12(01~27).quark3.3E 2/8/03 9:25 AM Page 22
ENGLISHPreparation2323Connecting a Power SourceThere are two types of power source that can be connected to your camcorder.- The AC Power Adapter and AC cord : used for indoor recording.- The Battery Pack : used for outdoor recording.To use the AC Power adapter and DC Cable1. Connect the AC Power adapter to the AC cord.2. Connect the AC cord to a wall socket.NoteThe plug and wall socket type may differ according to your resident country.3. Connect the DC cable to the DC jack socket of thecamcorder.4. Set the camcorder to each mode by holding down the tab on the power switch and turning it to the CAMERA orPLAYER mode.To select the CAMCORDER mode ✤If you want to use this unit as a camcorder, set the mode switch to TAPE position.✤If you want to use this unit as a DSC (Digital Still Camera), set the mode switch to MEMORY STICK position.(01~27).quark3.3E 2/8/03 9:26 AM Page 23
ENGLISHPreparation2424Using the Lithium Ion Battery Pack✤The amount of continuous recording time available depends on : - The type and capacity of the battery pack you are using.- How often the Zoom function is used.It is recommended that you have several batteries available.Charging the Lithium Ion Battery Pack1. Attach the battery pack to the camcorder.2. Connect the AC Power adapter to an AC cord and connect the ACcord to a wall socket.3. Connect the DC cable to the DC jack socket on the camcorder.4. Turn the Camera power switch to off, and the charging indicator willstart to flash, showing that the battery is charging.5. When the battery is fully charged, disconnect the battery pack and the AC Power adapter from the camcorder.■Even with the power switched off, the battery pack will still discharge if it is left connected to the camcorder.Notes■The battery pack may be charged a little at the time of purchase.■To prevent reduction in the life and capacity of the battery pack, always remove it from the camcorder after it is fully charged.Blinking time Charging rateOnce per second Less than 50%Twice per second 50% ~ 75% Three times per second 75% ~ 90%Blinking stops and stays on 90 ~ 100%On for a second and Error - Reset the battery pack and theoff for a second DC cable 5(01~27).quark3.3E 2/8/03 9:26 AM Page 24
ENGLISHPreparation2525Using the Lithium Ion Battery PackTable of continuous recording time based on model and battery type.✤If you close the LCD screen, it switches off and the viewfinder switches on automatically.✤The continuous recording times given in the table above are approximations.Actual recording time depends on usage.Notes■The battery pack should be recharged in an environment of between 32°F (0°C) and 104°F (40°C). ■The battery pack should never be charged in a room temperature that is below 32°F (0°C).■The life and capacity of the battery pack will be reduced if it is used in temperatures below 32°F (0°C) or left in temperaturesabove 104°F (40°C) for a long period, even when it is fully recharged.■Do not put the battery pack near any heat source (fire or flames, for example).■Do not disassemble, process, pressure, or heat the Battery Pack.■Do not allow the + and - terminals of the battery pack to be short-circuited.It may cause leakage, heat generation, induce fire and overheating. Battery SB-L110SB-L220ChargingtimeApprox. 2hrApprox. 3hr 30minLCD ON EVF ONContinuous recording timeTimeApprox. 1hr 30min Approx. 3hr 10minApprox. 2hrApprox. 4hr 10min(01~27).quark3.3E 2/8/03 9:26 AM Page 25
ENGLISHPreparation2626Battery level display• The battery level display indicates the amount of power remaining in the battery pack.a. Fully chargedb. 20~40% usedc. 40~80% usedd. 80~95% used e. Completely used (flickers) (The camcorder will turn off soon, change the battery as soon as possible)✤Please refer to the table on page 25 for approximate continuous recording times.✤The recording time is affected by environmental temperature and conditions. The recording time becomes very short in a cold environment. The continuous recordingtimes in the operating instructions are measured using a fully charged battery pack at77°F(25°C). As the environmental temperature and conditions may differ when youactually use the camcorder, the remaining battery time may not be the same as theapproximate continuous recording times given in these instructions.Tips for Battery IdentificationA charge mark is provided on the battery pack to help you remember whether it has beencharged or not.Two colors are provided (red and black)-you may choose which one indicates charged andwhich indicates discharged.abcde(01~27).quark3.3E 2/8/03 9:26 AM Page 26
ENGLISHPreparation2727Inserting and Ejecting a Cassette✤When inserting a tape or closing a cassette holder, do not apply excessive force. This may cause a malfunction. ✤Do not use any tapes other than Mini DV cassettes.1. Connect a power source and slide the tape OPEN/EJECT switch and openthe cassette door.- The cassette holding mechanism rises automatically. 2. Insert a tape into the cassette holder with the tape window facing outward and the protection tab toward the top.3. Press the area labelled PUSH on the cassette holding mechanism until it clicks into place.- The cassette is loaded automatically.4. Close the cassette door.- Close the door completely until you can hear a “click”. NotesWhen you have recorded something that you wish to keep, you can protect it so that it will not be accidentally erased.a. Protecting a tape : Push the safety tab on the cassette so that the hole is uncovered.b. Removing the tape protection : If you no longer wish to keep the recording on the cassette, push the write-protect tabback so that it covers the hole.•How to keep a tape a. Avoid places with magnets or magnetic interference.b. Avoid humidity and dust prone places. c. Keep the tape in an upright position and avoid storing it in direct sunlight.d. Avoid dropping or knocking your tapes.1324a. SAVEpushb. REC(01~27).quark3.3E 2/8/03 9:26 AM Page 27
ENGLISHBasic Recording2828Making your First Recording1. Connect a Power source to the camcorder.(see page 23)(A battery pack or a AC power adapter) ■Insert a cassette. (see page 27)2. Remove the LENS CAP and hook it onto the handstrap.3. Set the power switch to the CAMERA position.■Set the mode switch to TAPE position.■Open the LCD monitor and make sure thatSTBY is displayed. ■If the protection tab of the cassette is open,STOP and PROTECTION! will be displayed.■Make sure the image you want to recordappears in the LCD monitor or viewfinder.■Make sure the battery level indicates that thereis enough remaining power for your expectedrecording time.4. To start recording, press the START/STOP button.■REC is displayed in the LCD.To stop recording, press the START/STOPbutton again.■STBY is displayed in the LCD.43213-1(28~57.quark3.3E 2/8/03 9:27 AM Page 28
ENGLISHBasic Recording2929When a cassette is loaded and the camcorder is left in the STBY mode for more than 5 minutes without being used, it will switch off automatically. To use it again, push the START/STOP button or set the Power switch to OFF and then back to CAMERA. This Auto Power off feature is designed to save battery power.Record Search (REC SEARCH)✤You can view a recording using the REC SEARCH +, -- function in STBY mode. REC SEARCH -- enables you to play the recording backwards and REC SEARCH + enables you to play it forwards, for as long as you keep eachbutton pressed down.✤If you press the REC SEARCH -- button in STBY mode, your camcorder will play in reverse for 3 seconds and return to the original position automatically.NoteMosaic shaped distortion may appear on the screen while in Record Search mode.(28~57.quark3.3E 2/8/03 9:27 AM Page 29

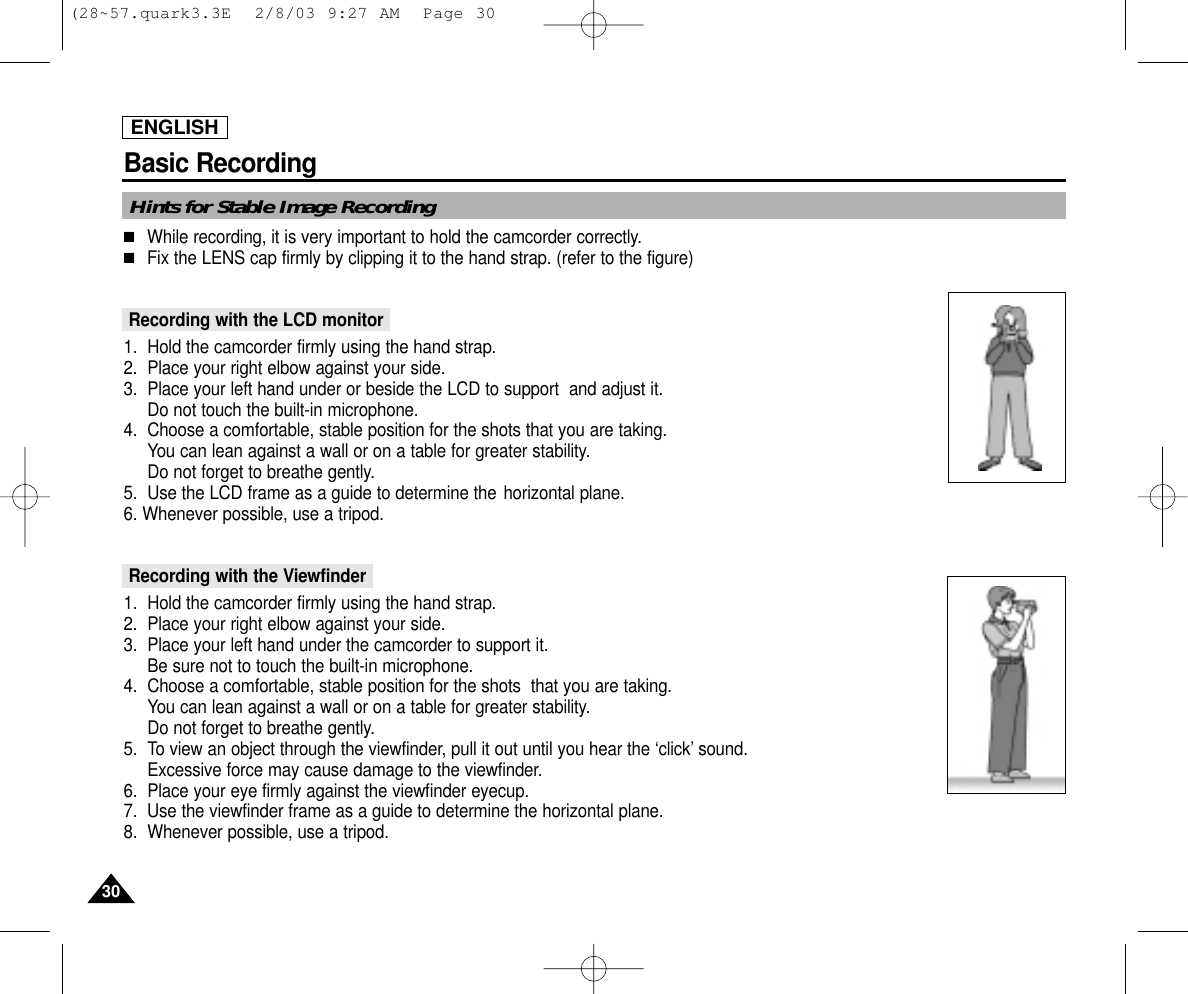

ENGLISHBasic Recording3030■While recording, it is very important to hold the camcorder correctly.■Fix the LENS cap firmly by clipping it to the hand strap. (refer to the figure) Recording with the LCD monitor1. Hold the camcorder firmly using the hand strap. 2. Place your right elbow against your side.3. Place your left hand under or beside the LCD to support and adjust it. Do not touch the built-in microphone.4. Choose a comfortable, stable position for the shots that you are taking. You can lean against a wall or on a table for greater stability. Do not forget to breathe gently.5. Use the LCD frame as a guide to determine the horizontal plane.6. Whenever possible, use a tripod.Recording with the Viewfinder1. Hold the camcorder firmly using the hand strap. 2. Place your right elbow against your side.3. Place your left hand under the camcorder to support it. Be sure not to touch the built-in microphone.4. Choose a comfortable, stable position for the shots that you are taking. You can lean against a wall or on a table for greater stability. Do not forget to breathe gently.5. To view an object through the viewfinder, pull it out until you hear the ‘click’ sound. Excessive force may cause damage to the viewfinder. 6. Place your eye firmly against the viewfinder eyecup.7. Use the viewfinder frame as a guide to determine the horizontal plane.8. Whenever possible, use a tripod.Hints for Stable Image Recording(28~57.quark3.3E 2/8/03 9:27 AM Page 30
ENGLISHBasic Recording3131✤Your camcorder is equipped with a 2.5 inch color Liquid Crystal Display(LCD) screen, which enables youto view what you are recording or playing back directly.✤Depending on the conditions under which you are using the camcorder (indoors or outdoors for example),you can adjust ;■BRIGHT SELECT■BRIGHT ADJUST■COLOR ADJUST1. Set the POWER switch to CAMERA position.■In the PLAYER mode, you may only setup the LCD while the tape is playing. 2. Open the LCD screen, and the LCD switches on.3. Press the MENU button.4. Turn the MENU DIAL so that VIEWER is highlighted and then press the ENTER button. 5. Turn the MENU DIAL so that LCD ADJUST is highlighted.6. Press the ENTER button to enter the sub-menu.7. Turn the MENU DIAL so that it highlights the menu item you want to adjust (BRIGHT SELECT, BRIGHT ADJUST, COLOR ADJUST).Adjusting the LCD(28~57.quark3.3E 2/8/03 9:27 AM Page 31
ENGLISHBasic Recording32328. Press the ENTER button again.■You may select NORMAL or SUPER in the BRIGHT SELECT feature and press the ENTER button to save the setting. ■Use the MENU DIAL to adjust the value of BRIGHT ADJUST and COLOR ADJUST. ■You can set values for BRIGHT ADJUST between 00 ~ 35 and COLOR ADJUST between 00 ~ 35.9. Press the MENU button to finish the setting.✤The VIEWFINDER will not work when the LCD is open.Adjusting the FocusUse the focus adjustment knob of the VIEWFINDER to focus the picture. (refer to figure )Using the VIEWFINDER(28~57.quark3.3E 2/8/03 9:27 AM Page 32
ENGLISHBasic Recording3333✤You can monitor the playback picture on the LCD monitor.✤Make sure that the battery pack is in place.1. Hold down the power switch tab and turn it to the PLAYER position.2. Insert the tape you wish to view. (see page 27)3. Open the LCD screen. Adjust the angle of the LCD screen and set the brightness or color if necessary.4. Press the (REW) button to rewind the tape to the starting point.■To stop rewinding, press the (STOP) button.■The camcorder stops automatically after rewinding is complete.5. Press the (PLAY/STILL) button to start playback.■You can view the picture you recorded on the LCD.■To stop the PLAY operation, press the (STOP) button.Notes■You can also view the picture on a TV screen, after connecting the camcorder to a TV or VCR. (see page 68) ■Various functions are available in playback mode. (see page 70) Playing back a tape you have recorded on the LCD(28~57.quark3.3E 2/8/03 9:27 AM Page 33
Adjusting the LCD during PLAY✤ You can adjust the LCD during playback.✤ The adjustment method is the same procedure as used in CAMERA mode. (see page 31) The Speaker works in PLAYER mode only.■When you use the LCD screen for playback, you can hear the recorded sound from the built-in Speaker.- Follow the instructions below to decrease or mute speaker volume in the PLAYER mode. - Take the following steps to lower the volume or mute the sound while playing a tape on the camcorder.1. Set the power switch to PLAYER mode.2. Press (PLAY/STILL) to play the tape.3. When you hear sounds once the tape is in play, use the MENU DIAL to adjust the volume.■A volume level display will appear on the LCD. Levels may be adjusted from anywhere between 00 to 19 and you will not hear any sound when the volume is set on 00.■If you close the LCD while playing, you will not hear sound from the speaker.Notes■When the cable is connected to the A/V jack, you cannot hear sound from the speaker.■You can hear sound from speaker by removing the connected cable from the A/V jack ENGLISHBasic Recording3434<3-2>Controlling Sound from the Speaker(28~57.quark3.3E 2/8/03 9:27 AM Page 34
ENGLISHAdvanced Recording3535●Setting menu items● Set the camcorder to CAMERA or PLAYER mode and M.REC or M.PLAY mode1. Press the MENU button.The MENU OSD is displayed. The cursor ( HIGHLIGHT ) indicates the feature you are currently adjusting.2. Using the MENU DIAL and press the ENTER button on the left side panel, select and activate the item.3. You can exit the menu mode by pressing the MENU button.Use of various FunctionsSUB MENU Available modeCAMERAPLAYER MemoryREC. MemoryPLAYMENUCLOCK SETWL.REMOTE DEMO (SCD24 only)PROGRAM AEWHT. BALANCED. ZOOMDISDSE SELECTINITIALCAMERAREC MODEPHOTO SEARCHCOPYAUDIO MODEAUDIO SELECTWIND CUTPB DSEA/VPHOTO QUALITYPRINT MARKPROTECTFILE NODELETEFORMATMEMORYLCD ADJUSTDATE/TIMETV DISPLAYVIEWER✔✔✔✔✔✔✔✔✔✔✔✔✔✔✔✔✔✔✔✔✔✔✔✔✔✔✔✔✔✔✔✔✔✔✔✔✔✔✔✔✔✔✔✔✔✔(28~57.quark3.3E 2/8/03 9:27 AM Page 35
ENGLISHAdvanced Recording3636O : The requested mode will work in this operating mode.✕: You can not change the requested mode.: The operating mode will be released and the requested mode will work.*: The operating mode will be released and the requested mode will work.(The data during the operating mode will be backed up)Notes■When a menu item on the LCD is marked with an , that item cannot be activated. ■When you select an item that cannot be changed, an error message will be displayed. ●Availability of functions in each modeDISD.ZOOMPHOTOSLOW SHUTTERDigital Special EffectsNITE PIXDigital functionsRequestedModeOperatingModeDISOO OOOO✕✕ ✕OOOD.ZOOM PHOTODigital special effects NITE PIXOOO*OSLOW SHUTTEROOOO✕✕✕✕OOX(28~57.quark3.3E 2/8/03 9:27 AM Page 36
ENGLISHAdvanced Recording3737●CLOCK SET✤CLOCK setup works in CAMERA, PLAYER, M.REC and M.PLAY modes.✤The DATE/TIME is automatically recorded onto a tape.Before recording, please set the DATE/TIME.1. Press the MENU button.■The menu list will appear.2. Turn the MENU DIAL to highlight INITIAL and press the ENTER button.3. Use the MENU DIAL to select CLOCK SET from the submenu.4. Press the ENTER button to enter SETTING mode.■A blinking item indicates the item to be changed. The year will blink first.5. Using the MENU DIAL, change the year setting.6. Press the ENTER button.■The month will blink.7. Using the MENU DIAL, change the month setting.8. Press the ENTER button.■The day will blink.9. You can set the day, hour and minute following the same procedure for setting the year andmonth.10.Press the ENTER button after setting the minutes.■The word COMPLETE! will appear, and a few seconds later, the menu screen willautomatically return to the sub menu.11.To exit, press the MENU button.(28~57.quark3.3E 2/8/03 9:27 AM Page 37
ENGLISHAdvanced Recording3838●REMOCON(SCD24 only)✤THE REMOCON function works in CAMERA, PLAYER, M.REC and M.PLAY modes.✤The REMOCON option allows you to enable or disable the remote control for use with the camcorder.1. Press the MENU button.■The menu list will appear.2. Turn the MENU DIAL to highlight INITIAL and press the ENTER button.3. Use the MENU DIAL to select WL.REMOTE from the submenu.4. Press the ENTER button to enable or disable the remote control. The setting switches between ON/OFF each time you press the ENTER button. 5. To exit, press the MENU button.■If you set the remote to OFF in the menu and try to use it, the remote icon will the remotecontrol icon will blink for 3 seconds and disappear on the LCD. (28~57.quark3.3E 2/8/03 9:27 AM Page 38
ENGLISHAdvanced Recording3939●DEMONSTRATION✤Demonstration automatically shows you the major functions that are included with your camcorder so that you may usethem more easily.✤The DEMONSTRATION function may only be used in the CAMERA mode without a tape inserted in the camcorder. ✤The demonstration operates repeatedly until the DEMONSTRATION mode switched OFF.1. Set the camcorder to CAMERA mode.2. Press the MENU button.■The menu list will appear.3. Turn the MENU DIAL to highlight INITIAL.4. Select DEMONSTRATION from the submenu and press the ENTER button.5. To activate the DEMONSTRATION, set DEMONSTRATION ON.■Press the menu button to quit the menu.■The demonstration will begin.6. To end the DEMONSTRATION, set the DEMONSTRATION to OFF.Notes■The DEMONSTRATION function only works without a TAPE installed.■The DEMONSTRATION mode is automatically activated when the camcorder is left idle for more than 10 minutes afterswitching to the CAMERA mode (no tape is inserted in the camcorder). ■If you press other buttons (FADE, BLC, PHOTO, EASY) during the DEMONSTRATION mode, the DEMONSTRATION stops temporarily and resumes 10 minutes later if you do not operate any other functions.(28~57.quark3.3E 2/8/03 9:27 AM Page 39

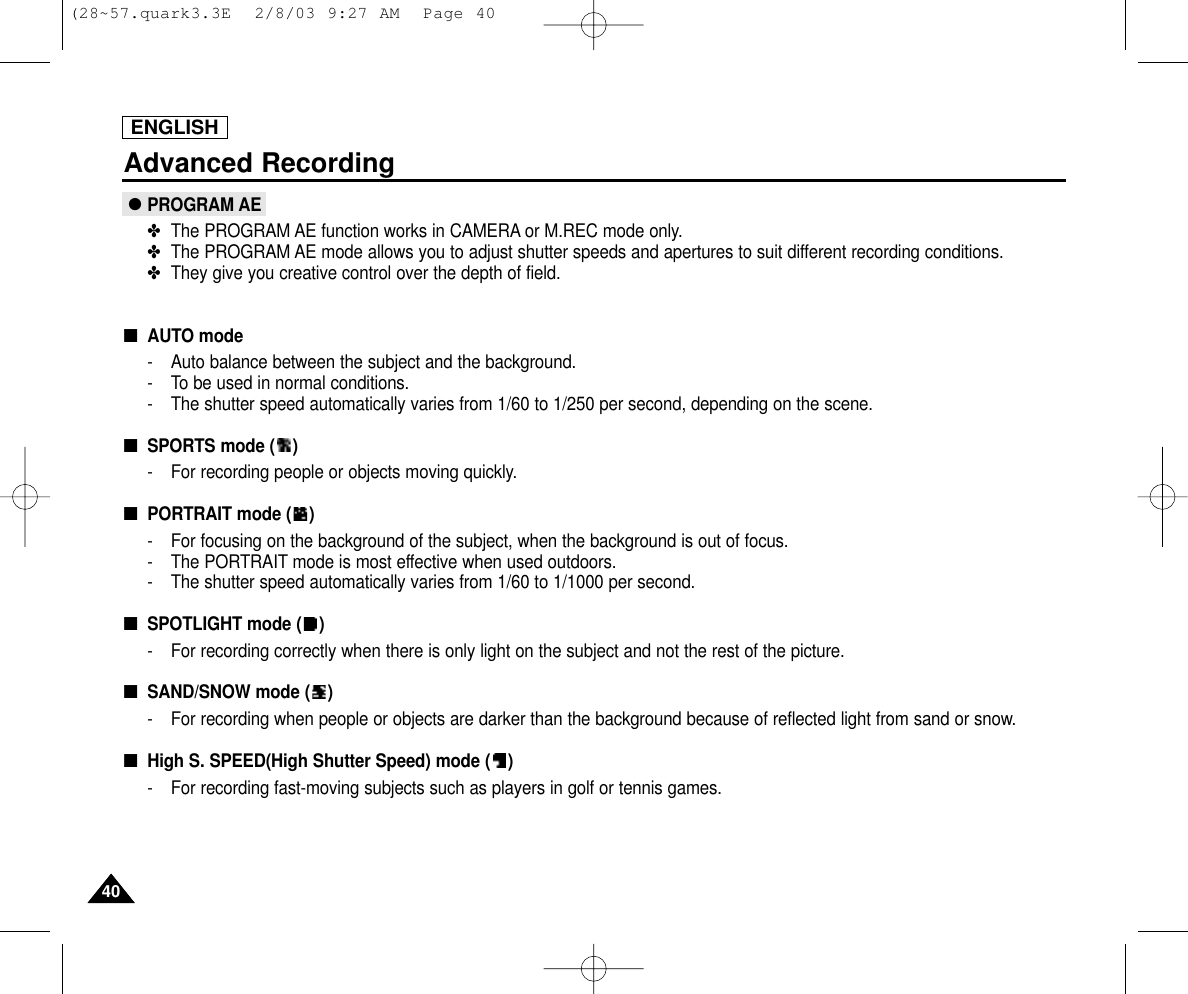

ENGLISHAdvanced Recording4040●PROGRAM AE✤The PROGRAM AE function works in CAMERA or M.REC mode only.✤The PROGRAM AE mode allows you to adjust shutter speeds and apertures to suit different recording conditions.✤They give you creative control over the depth of field.■AUTO mode- Auto balance between the subject and the background.- To be used in normal conditions.- The shutter speed automatically varies from 1/60 to 1/250 per second, depending on the scene.■SPORTS mode ( )- For recording people or objects moving quickly.■PORTRAIT mode ( )- For focusing on the background of the subject, when the background is out of focus.- The PORTRAIT mode is most effective when used outdoors.- The shutter speed automatically varies from 1/60 to 1/1000 per second.■SPOTLIGHT mode ( )- For recording correctly when there is only light on the subject and not the rest of the picture.■SAND/SNOW mode ( )- For recording when people or objects are darker than the background because of reflected light from sand or snow.■High S. SPEED(High Shutter Speed) mode ( )- For recording fast-moving subjects such as players in golf or tennis games.(28~57.quark3.3E 2/8/03 9:27 AM Page 40
ENGLISHAdvanced Recording4141Setting the PROGRAM AE1. Press the MENU button.■The menu list will appear.2. Turn the MENU DIAL to highlight CAMERA and press the ENTER button.3. Select PROGRAM AE from the submenu.4. Press the ENTER button to enter the sub-menu.5. Using the MENU DIAL, select the PROGRAM AE mode.■Press the ENTER button to confirm the PROGRAM AE mode.6. To exit, press the MENU button.(28~57.quark3.3E 2/8/03 9:27 AM Page 41
ENGLISHAdvanced Recording4242●WHT. BALANCE (WHITE BALANCE)✤The WHITE BALANCE function works in CAMERA or M.REC mode only.✤The WHITE BALANCE is a recording function that preserves the unique color of the object in any recording condition.✤You may select the appropriate WHITE BALANCE mode to obtain good quality color of the image.■AUTO ( ) : This mode is generally used to control the WHITE BALANCE automatically.■HOLD ( ) :This fixes the current WHITE BALANCE value.■INDOOR ( ) : This controls the WHITE BALANCE according to the indoor ambience.■OUTDOOR ( ) : This controls the WHITE BALANCE according to the outdoor ambience.1. Set the camcorder to CAMERA mode.2. Press the MENU button.■The menu list will appear.3. Turn the MENU DIAL to highlight CAMERA and press the ENTER button.4. Select WHT.BALANCE from the submenu.5. Press the ENTER button to enter the sub-menu.6. Using the MENU DIAL, select the WHITE BALANCE mode.■Press the ENTER button to confirm the WHITE BALANCE mode.7. To exit, press the MENU button.Notes■While setting the NITE PIX to ON, the WHT.BALANCE function does not work.■The WHT.BALANCE function will not operate in EASY mode.■Turn the digital zoom off (if necessary) to set a more accurate white balance.■If you have set the white balance and lighting conditions changes, reset the white balance.■During normal outdoor recording, setting to AUTO may provide better results.(28~57.quark3.3E 2/8/03 9:27 AM Page 42

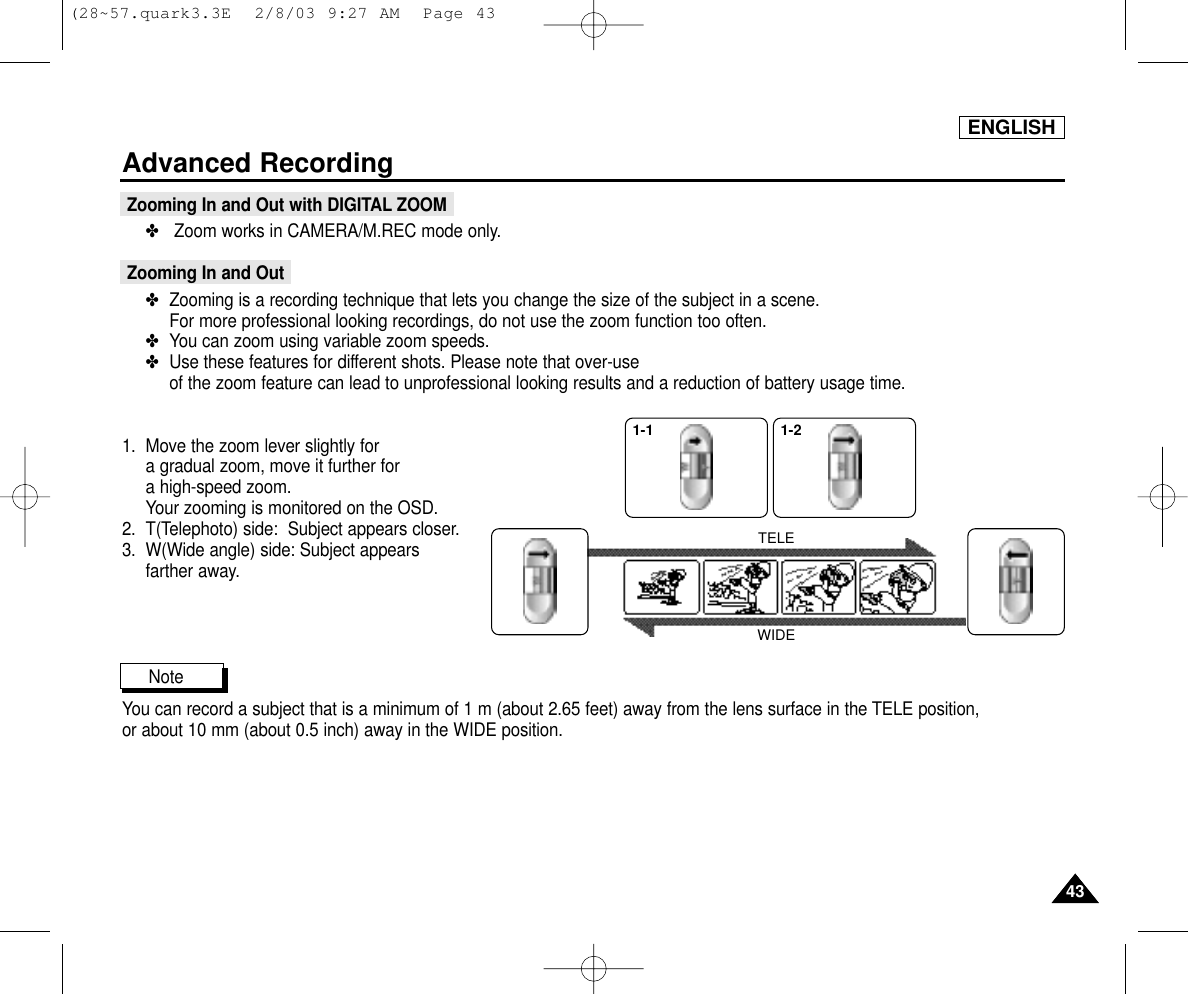

ENGLISHAdvanced Recording4343Zooming In and Out with DIGITAL ZOOM✤Zoom works in CAMERA/M.REC mode only.Zooming In and Out✤Zooming is a recording technique that lets you change the size of the subject in a scene.For more professional looking recordings, do not use the zoom function too often.✤You can zoom using variable zoom speeds.✤Use these features for different shots. Please note that over-use of the zoom feature can lead to unprofessional looking results and a reduction of battery usage time.1. Move the zoom lever slightly for a gradual zoom, move it further for a high-speed zoom. Your zooming is monitored on the OSD.2. T(Telephoto) side: Subject appears closer.3. W(Wide angle) side: Subject appears farther away.NoteYou can record a subject that is a minimum of 1 m (about 2.65 feet) away from the lens surface in the TELE position, or about 10 mm (about 0.5 inch) away in the WIDE position.TELEWIDE1-1 1-2(28~57.quark3.3E 2/8/03 9:27 AM Page 43
ENGLISHAdvanced Recording4444Digital Zoom✤More than 10x zoom is achieved digitally.✤The picture quality may deteriorate depending on how much you zoom in on the subject.✤We recommend that you use the DIS feature with DIGITAL ZOOM for picture stability. (see page 45)1. Set the camcorder to CAMERA or M.REC mode.2. Press the MENU button.■The menu list will appear.3. Turn the MENU DIAL to CAMERA and press the ENTER button.4. Select D.ZOOM from the submenu.5. Press the ENTER button to setup the 100x,200x,400x,800x digital zoom function or to turn thefeature OFF.6. To exit, press the MENU button.(28~57.quark3.3E 2/8/03 9:27 AM Page 44

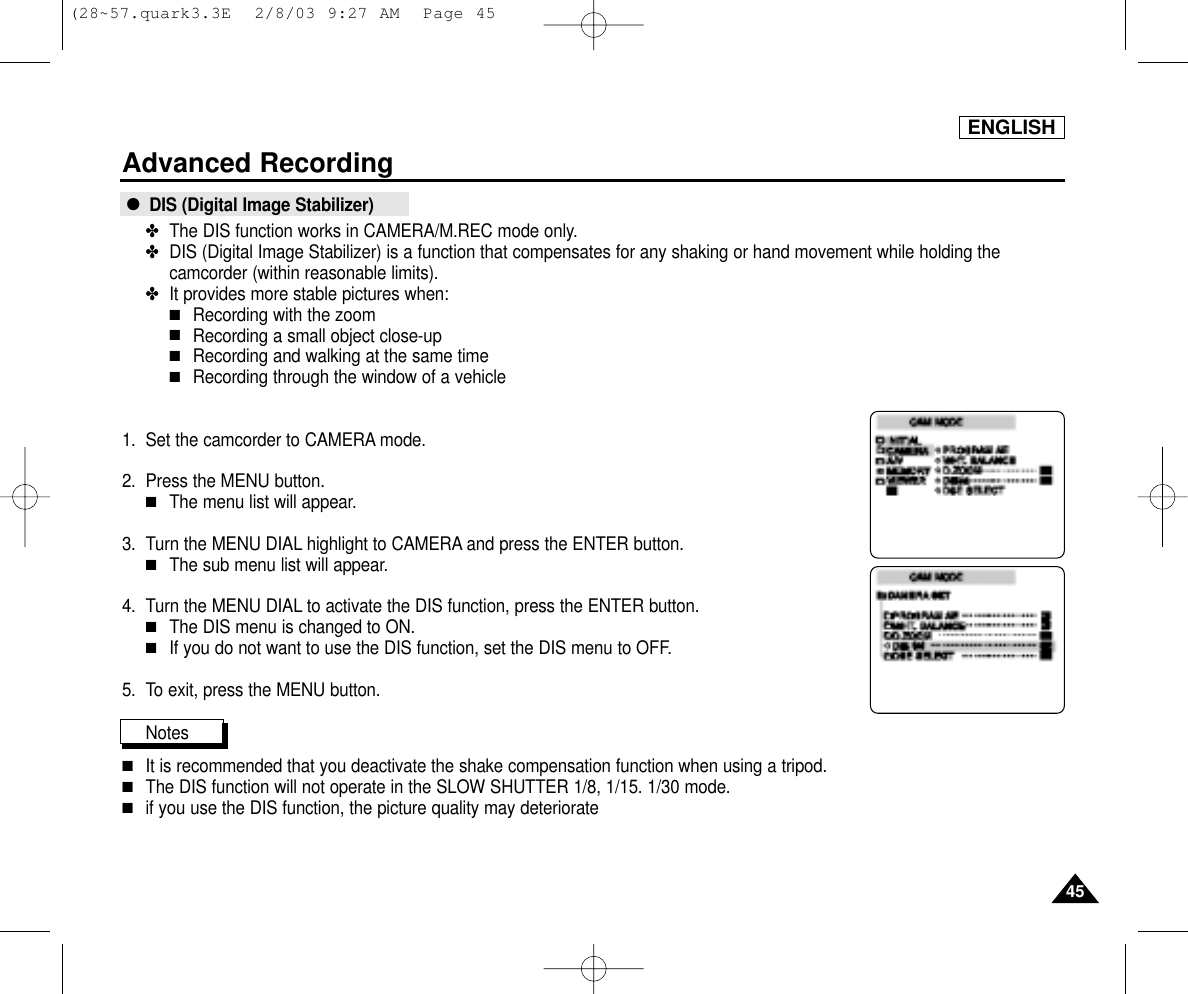

ENGLISHAdvanced Recording4545●DIS (Digital Image Stabilizer)✤The DIS function works in CAMERA/M.REC mode only. ✤DIS (Digital Image Stabilizer) is a function that compensates for any shaking or hand movement while holding thecamcorder (within reasonable limits).✤It provides more stable pictures when:■Recording with the zoom■Recording a small object close-up■Recording and walking at the same time■Recording through the window of a vehicle1. Set the camcorder to CAMERA mode.2. Press the MENU button.■The menu list will appear.3. Turn the MENU DIAL highlight to CAMERA and press the ENTER button.■The sub menu list will appear.4. Turn the MENU DIAL to activate the DIS function, press the ENTER button.■The DIS menu is changed to ON. ■If you do not want to use the DIS function, set the DIS menu to OFF.5. To exit, press the MENU button.Notes■It is recommended that you deactivate the shake compensation function when using a tripod.■The DIS function will not operate in the SLOW SHUTTER 1/8, 1/15. 1/30 mode.■if you use the DIS function, the picture quality may deteriorate(28~57.quark3.3E 2/8/03 9:27 AM Page 45
ENGLISHAdvanced Recording4646●DSE(Digital Special Effects) SELECT✤The DSE function works in CAMERA and M.REC mode only.✤The digital effects enable you to give a creative look to your recording by adding various special effects.✤Select the appropriate digital effect for the type of picture that you wish to record and the effect you wish to create.✤There are 9 DSE modes.a. ART modeThis mode gives the images a coarse effect.b. MOSAIC modeThis mode gives the images a mosaic effect.c. SEPIA modeThis mode gives the images a reddish-brown pigment.d. NEGA mode This mode reverses the colors of the images, creating a negative image.e. MIRROR modeThis mode cuts the picture in half, using a mirror effect.f. BLK & WHT modeThis mode changes the images to black and white.g. EMBOSS modeThis mode creates a 3D effect (embossing).h. CINEMA modeThis mode covers the upper/lower portions of the screen to give a cinematic effect. i. MAKE - UP modeThis mode allows the images to be selected in red, green, blue or yellow colors. bdce fhgia(28~57.quark3.3E 2/8/03 9:27 AM Page 46

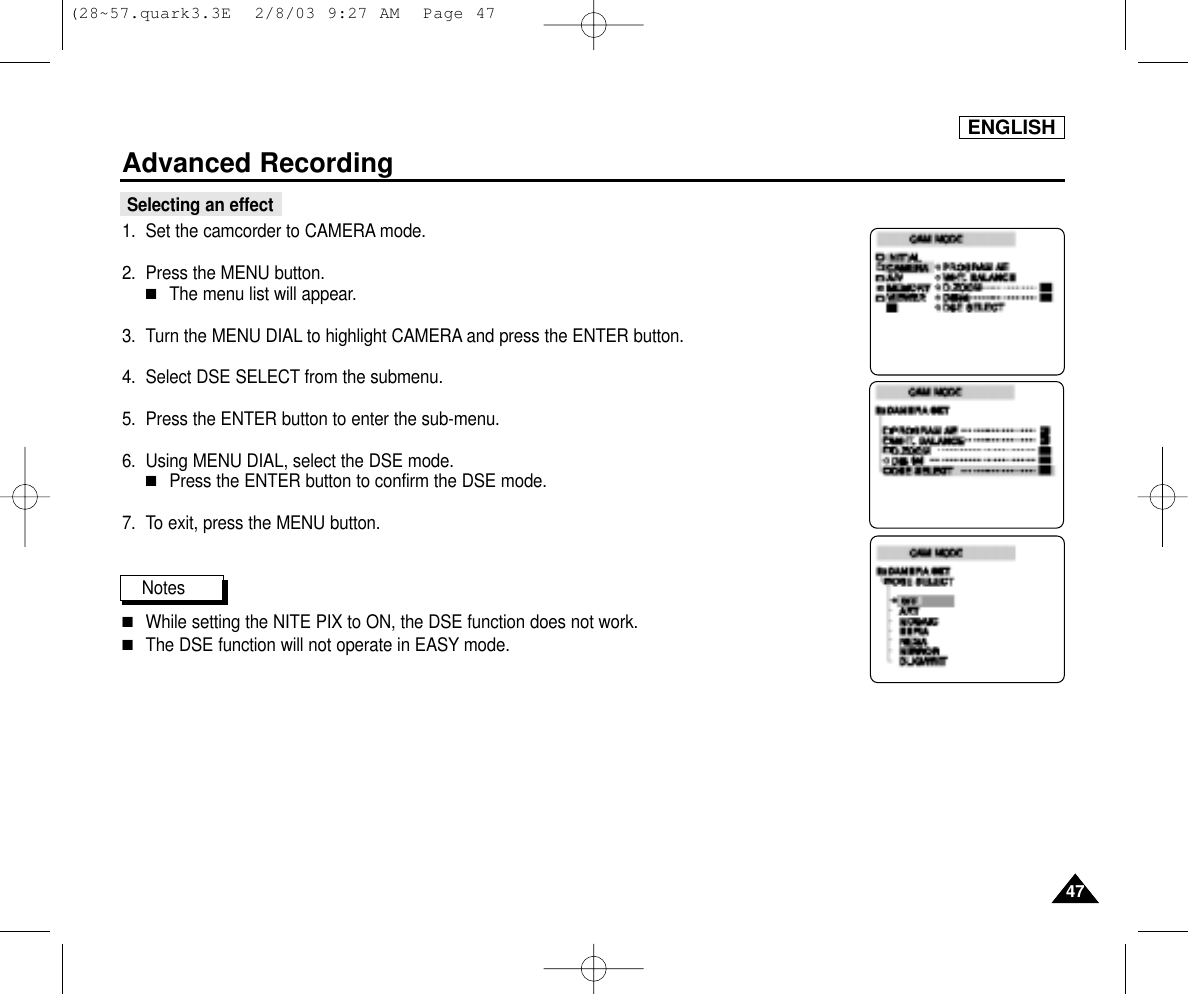

ENGLISHAdvanced Recording4747Selecting an effect1. Set the camcorder to CAMERA mode.2. Press the MENU button.■The menu list will appear.3. Turn the MENU DIAL to highlight CAMERA and press the ENTER button.4. Select DSE SELECT from the submenu.5. Press the ENTER button to enter the sub-menu.6. Using MENU DIAL, select the DSE mode.■Press the ENTER button to confirm the DSE mode.7. To exit, press the MENU button.Notes■While setting the NITE PIX to ON, the DSE function does not work.■The DSE function will not operate in EASY mode.(28~57.quark3.3E 2/8/03 9:27 AM Page 47
ENGLISH4848Advanced Recording●REC MODE✤The REC MODE function works in both CAMERA and PLAYER(DV IN) modes.✤This camcorder records and plays back in SP (standard play) mode and in LP (long play) mode.■SP (standard play): This mode permits 60 minutes of recording time with a DVM60 tape.■LP (long play): This mode permits 90 minutes of recording time with a DVM60 tape.1. Set the camcorder to CAMERA or PLAYER mode.2. Press the MENU button.■The menu list will appear.3. Turn the MENU DIAL to highlight A/V and press the ENTER button.4. Select REC MODE from the submenu and press the ENTER button.■The REC MODE toggles between SP and LP with each press.5. To exit, press the MENU button.Notes■We recommend that you use this camcorder to play back any tapes recorded on this camcorder.Playing back a tape recorded in other equipment may produce mosaic shaped distortion.■When you record a tape in SP and LP modes, or LP mode only, the playback picture may be distorted or the time code may not be written properly between scenes.■Record using SP mode for best picture and sound quality.(28~57.quark3.3E 2/8/03 9:27 AM Page 48
ENGLISH4949Advanced Recording●AUDIO MODE✤The AUDIO MODE function works in CAMERA mode.✤This camcorder records sound in two ways. (12bit, 16bit)■12bit : You can record two 12bit stereo sound tracks.The original stereo sound can be recorded onto the MAIN (SOUND1) track. Additional stereo sound can be dubbed onto the SUB (SOUND2) track.■16bit : You can record one high quality stereo sound using the 16bit recording mode. Audio dubbing is not possible when using this mode.1. Set the camcorder to CAMERA mode.2. Press the MENU button.■The menu list will appear.3. Turn the MENU DIAL to highlight A/V and press the ENTER button.4. Select the AUDIO MODE from the menu and press the ENTER button.■The AUDIO MODE toggles between 12bit-16bit with each push.5. To exit, press the MENU button.(28~57.quark3.3E 2/8/03 9:27 AM Page 49
ENGLISH5050Advanced Recording●WIND CUT✤The WIND CUT function works in CAMERA mode.✤The WIND CUT function minimizes wind noise or other noise while recording.- When the wind cut is on, some low sounds are eliminated along with the sound of the wind.1. Set the camcorder to CAMERA mode.2. Press the MENU button.■The menu list will appear.3. Turn the MENU DIAL to highlight A/V and press the ENTER button.4. Select WIND CUT from submenu.5. This feature toggles ON/OFF each time you press the ENTER button.6. To exit, press the MENU button.Notes■Make sure WIND CUT is set to off when you want the microphone to be as sensitive as possible.■Use the WIND CUT when recording in windy places such as the beach or near buildings.(28~57.quark3.3E 2/8/03 9:27 AM Page 50
ENGLISH5151Advanced Recording●DATE/TIME✤The DATE/TIME function works in CAMERA, PLAYER, M.REC and M.PLAY modes.✤The date and time are automatically recorded on a special data area of the tape.1. Press the MENU button.■The menu list will appear.2. Turn the MENU DIAL to highlight VIEWER and press the ENTER button.3. Turn the MENU DIAL to highlight DATE/TIME.4. Press the ENTER button to select the sub-menu.5. Using the MENU DIAL, select the DATE/TIME mode.■You can choose to display - the OFF, DATE, TIME, DATE/TIME- OFF only- DATE only- TIME only- DATE & TIME■To return to the previous menu, highlight the DATE/TIME in the middle of the and press the ENTER button. 6. To exit, press the MENU button.Notes■The DATE/TIME is not affected by the OSD ON/OFF (DISPLAY) button.■The DATE/TIME will read “- - -” in the following conditions.- During playback of a blank section of a tape.- If the tape was recorded before setting the DATE/TIME in the Camera’s memory.- When the lithium battery becomes weak or dead.■Before you can use the DATE/TIME function, you must set the Clock. See CLOCK SET on page 37.(28~57.quark3.3E 2/8/03 9:27 AM Page 51
ENGLISH5252Advanced Recording●TV DISPLAY✤The TV DISPLAY function works in CAMERA, PLAYER, M.REC and M.PLAY modes.✤You can select the output path of the OSD (On Screen Display).■OFF: The OSD appears in the LCD screen only.■ON: The OSD appears in the LCD screen, EVF and TV.■Use the DISPLAY button located at the left side of the camcorder to turn ON/OFF all of the OSD displayed on theLCD/EVF/TV. 1. Set the camcorder to CAMERA, PLAYER, M.REC and M.PLAY mode.2. Press the MENU button.■The menu list will appear.3. Turn the MENU DIAL to highlight VIEWER and press the ENTER button.4. Select the TV DISPLAY mode in list, press the ENTER button.■The DISPLAY mode switches between ON/OFF with each push.5. To exit, press the MENU button.(28~57.quark3.3E 2/8/03 9:27 AM Page 52
ENGLISH5353Advanced Recording✤Quick menu is available only in CAMERA mode.✤Quick menu is used to adjust camera functions by simply using the MENU SELECTOR button. This feature is useful for when you want to make simple adjustments without having to access the menus and submenus.■DATE/TIME- Each time you select DATE/TIME and press the ENTER button, it will be displayed in the order of DATE - TIME - DATE/TIME - OFF(See page 51).■WL.REMOTE( )(SCD24 only)- Each time you select WL.REMOTE and press the ENTER button, the WL.REMOTE is switched to either enabled ( )or disabled ( ).■DIS( )- Each time you select DIS and press the ENTER button, the DIS icon is displayed or set to OFF.■DSE(Digital Special Effect) (see page 46)- Each time you select DSE and press the ENTER button, the DSE preset values are applied or set to OFF.DSE values will not switch between On and Off if they have not been preset in the menu.■PROGRAM AE (see page 40)- Each time you select PROGRAM AE and press the ENTER button, you can choose between the preset PROGRAM AEvalues and AUTO. You can’t choose between Auto and the PROGRAM AE values if the values have not been preset inthe regular menu.Using Quick Menu(Navigation Menu)(28~57.quark3.3E 2/8/03 9:27 AM Page 53
ENGLISHAdvanced Recording5454■WHT. BALANCE (see page 42)- Each time you select WHT. BALANCE and press the ENTER button, you can choose betweenpreset WHT.BALANCE values and AUTO. As in PROGRAM AE, you can't choose betweenAuto and WHT.BALANCE values it they have not been preset..■FOCUS (Manual Focus/Auto Focus) (see page 58)- Each time you select FOCUS and press the ENTER button, the FOCUS is switched to either Manual Focus (MF) or Auto Focus ( ).■SHUTTER SPEED & EXPOSURE- You can set values for SHUTTER SPEED and EXPOSURE by selecting ( ) icon and pressing the MENU DIAL. For more information, see the next chapter.Setting the Quick menu1. Set the camcorder to CAMERA mode.2. Turn the MENU DIAL to select a function you want and then press the ENTER button to change the values.Notes■Quick menu function will not operate in EASY mode.■If you are using the M.FOCUS(MF) function, you cannot use the Quick menu.If you want to use the Quick menu function, release the M.FOCUS(MF) mode.WL.REMOTE(SCD24 only)DSEPROGRAM AEWHT. BALANCEFOCUSSHUTTTEREXPOSUREDISDATE/TIME(28~57.quark3.3E 2/8/03 9:27 AM Page 54
ENGLISH5555Advanced RecordingSHUTTER SPEED & EXPOSURE✤You can set SHUTTER SPEED and EXPOSURE only in CAMERA mode.✤SHUTTER SPEED and EXPOSURE values can only be set in the Quick Menu.✤SHUTTER SPEED and EXPOSURE are automatically switched and/or deactivated.1. Set the power switch to CAMERA mode.2. Turn the MENU DIAL until you see icon( ) on, and then press the ENTER button.■You see a screen on which you can select SHUTTER SPEED and EXPOSURE.■Turn the MENU DIAL to select the item you want and then press the ENTER button.■SHUTTER SPEED can be set to in 1/60, 1/100, 1/250, 1/500, 1/1000, 1/2000, 1/4000 or 1/10000.■EXPOSURE can be set between 00 and 29.3. To exit from the setting screen, select the icon( ) and press the ENTER button.Notes■If you want to use the selected shutter speed and exposure value, you should begin the recording with the shutter speed and the exposure adjustment screens displayed on the LCD.■If you manually change the shutter speed and the exposure value when Auto-exposure option is selected, manual changes are applied first.(28~57.quark3.3E 2/8/03 9:27 AM Page 55

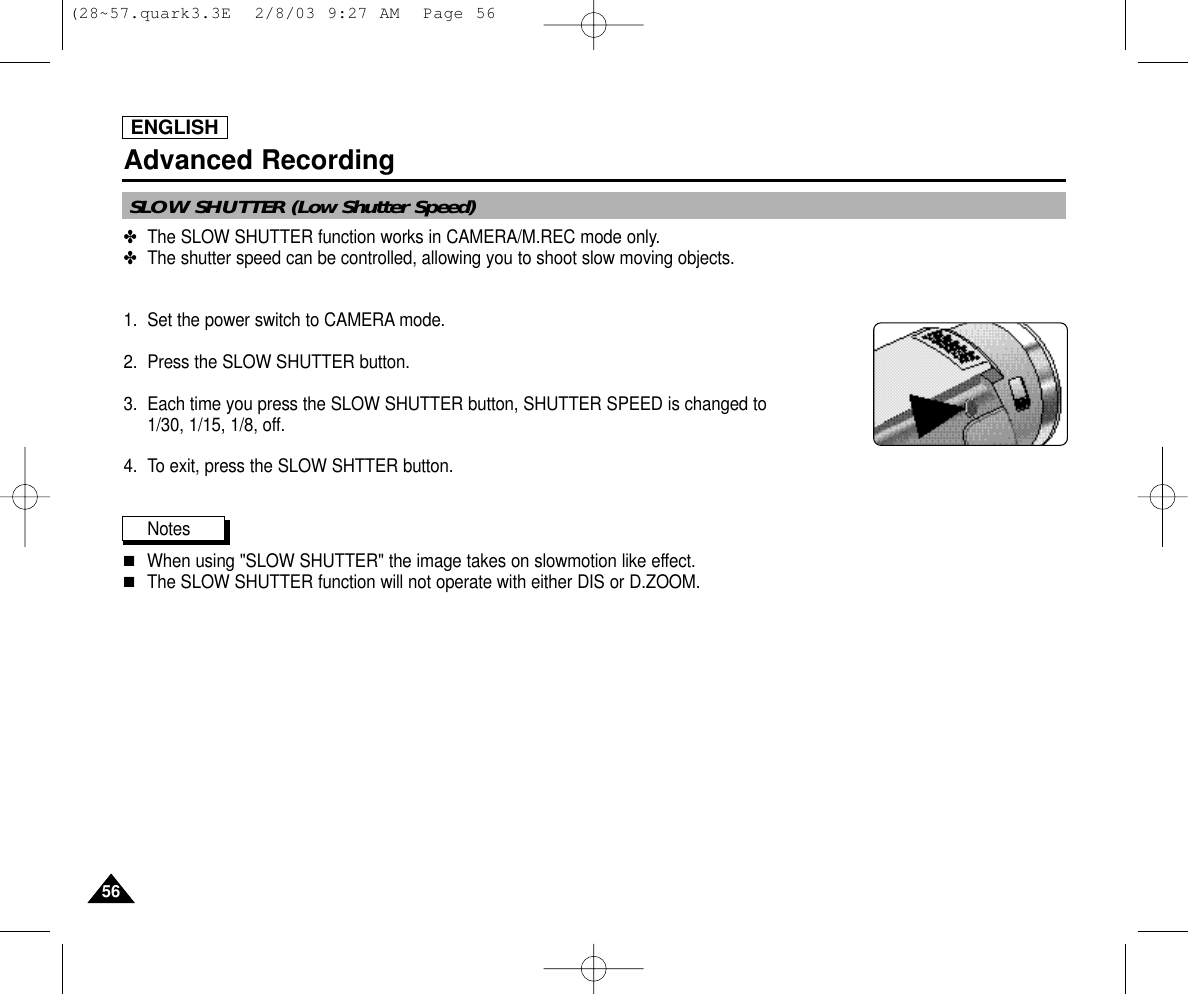

ENGLISH5656Advanced Recording✤The SLOW SHUTTER function works in CAMERA/M.REC mode only.✤The shutter speed can be controlled, allowing you to shoot slow moving objects.1. Set the power switch to CAMERA mode.2. Press the SLOW SHUTTER button.3. Each time you press the SLOW SHUTTER button, SHUTTER SPEED is changed to 1/30, 1/15, 1/8, off.4. To exit, press the SLOW SHTTER button.Notes■When using "SLOW SHUTTER" the image takes on slowmotion like effect. ■The SLOW SHUTTER function will not operate with either DIS or D.ZOOM.SLOW SHUTTER (Low Shutter Speed)(28~57.quark3.3E 2/8/03 9:27 AM Page 56

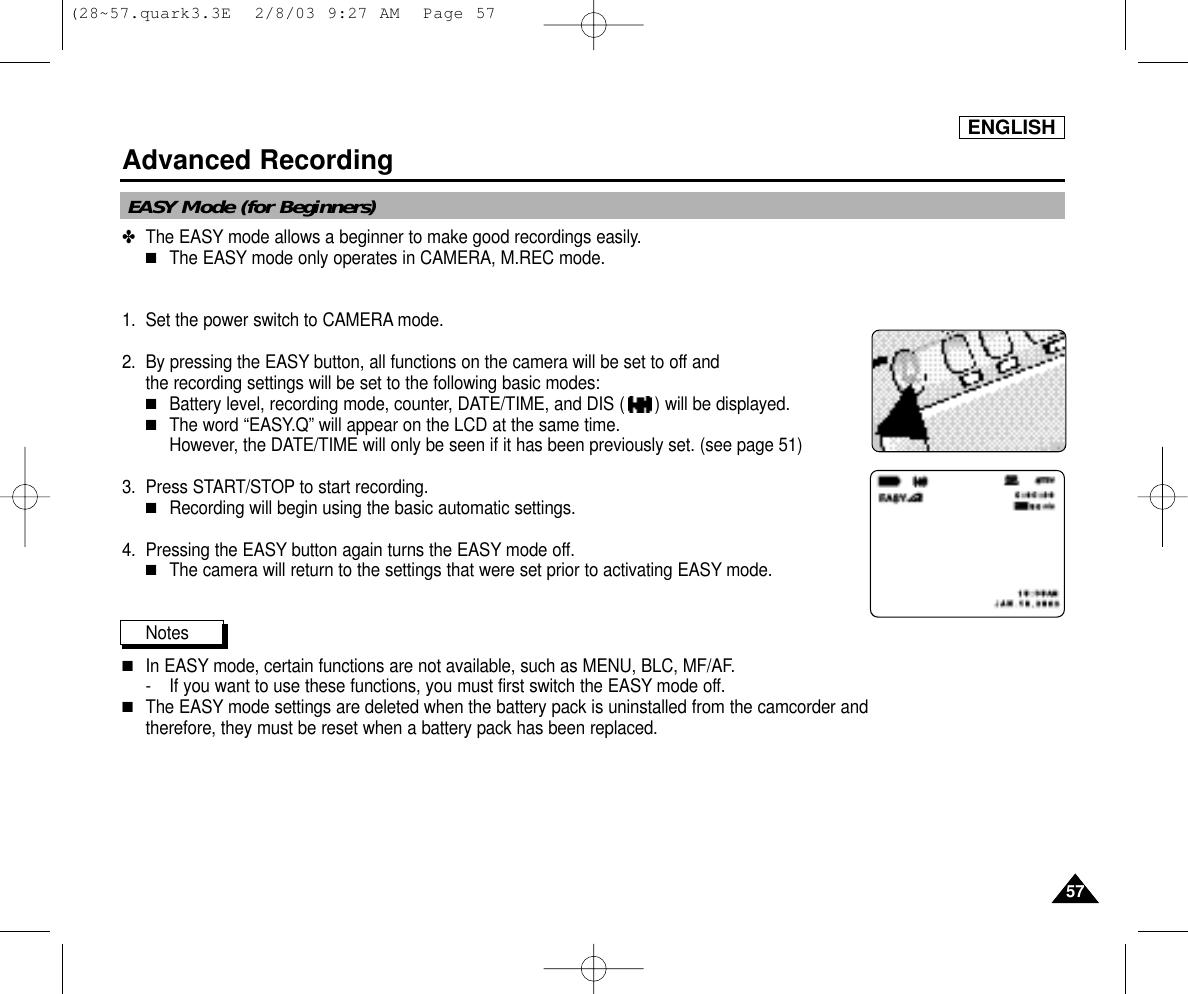

ENGLISHAdvanced Recording5757✤The EASY mode allows a beginner to make good recordings easily.■The EASY mode only operates in CAMERA, M.REC mode.1. Set the power switch to CAMERA mode.2. By pressing the EASY button, all functions on the camera will be set to off and the recording settings will be set to the following basic modes:■Battery level, recording mode, counter, DATE/TIME, and DIS ( ) will be displayed.■The word “EASY.Q” will appear on the LCD at the same time. However, the DATE/TIME will only be seen if it has been previously set. (see page 51)3. Press START/STOP to start recording.■Recording will begin using the basic automatic settings.4. Pressing the EASY button again turns the EASY mode off.■The camera will return to the settings that were set prior to activating EASY mode.Notes■In EASY mode, certain functions are not available, such as MENU, BLC, MF/AF.- If you want to use these functions, you must first switch the EASY mode off.■The EASY mode settings are deleted when the battery pack is uninstalled from the camcorder and therefore, they must be reset when a battery pack has been replaced. EASY Mode (for Beginners)(28~57.quark3.3E 2/8/03 9:27 AM Page 57
✤The MF/AF function works in CAMERA, M.REC mode only.✤In most situations, it is better to use the automatic focus feature, as it enables you to concentrate on the creative side of your recording.✤Manual focusing may be necessary under certain conditions that make automatic focusing difficultand/or unreliable.Auto Focusing✤If you are inexperienced in the use of camcorders, we recommend that you makeuse of Auto Focus.Manual Focusing✤In the following cases you may obtain better results by adjusting the focus manually.a. A picture containing several objects, some close to the camcorder,others further away.b. A person enveloped in fog or surrounded by snow.c. Very shiny or glossy surfaces like a car.d. People or objects moving constantly or quickly like an athlete or a crowd.1. Set the power switch to CAMERA mode.2. Turn the MENU DIAL and select the FOCUS menu.3 Press the ENTER button.4. Turn the MENU DIAL up or down until the object is in focus.■Zoom out a little if focusing is difficult.5. To return to AF(Auto Focus: ), press the ENTER button again.ENGLISHAdvanced Recording5858MF/AF (Manual Focus/Auto Focus)(58~100).quark3.3E 2/8/03 9:30 AM Page 58
ENGLISHAdvanced Recording5959✤BLC works in CAMERA/M.REC mode.✤Back lighting exists when the subject is darker than the background:■The subject is in front of a window.■The person to be recorded is wearing white or shiny clothes and is placed against a bright background; the person’s face is too dark todistinguish his/her features.■The subject is outdoors and the background is overcast.■The light sources are too bright.■The subject is against a snowy background.1. Set the power switch to CAMERA mode.2. Press the BLC button.■Normal - BLC - Normal■BLC enhances the subject.Notes■While setting the NITE PIX to ON, the BLC function does not work.■The BLC function will not operate in EASY mode.* BLC on* BLC offBLC (Back Light Compensation)(58~100).quark3.3E 2/8/03 9:30 AM Page 59
ENGLISHAdvanced Recording6060✤The FADE function works in CAMERA, M.REC mode only.✤You can give your recordings a professional look by usingspecial effects such as fading in at the beginning of asequence or fading out at the end of a sequence.To Start Recording1. Before recording, hold down the FADE button.The picture and sound gradually disappear (fade out).2. Press the START/STOP button and at the same time releasethe FADE button. Recording starts and the picture and sound gradually appear (fade in).To Stop Recording (use FADE IN / FADE OUT)3. When you wish to stop recording, hold down the FADE button. The picture and sound gradually disappear (fade out).4. When the picture has disappeared, press the START/STOP button to stop recording.a. FADE OUT (Approx. 4 seconds)b. FADE IN (Approx. 4 seconds)Fade In and OutGradual appearance b. FADE IN Release the FADE button➔➔REC0:00:15REC0:00:15STBY0:00:20➔➔➔➔STBY0:00:00➔➔Press the FADE button a. FADE OUT Gradual disappearance(58~100).quark3.3E 2/8/03 9:30 AM Page 60
ENGLISHAdvanced Recording6161✤The AUDIO DUBBING function only works in PLAYER Mode. ✤You can add sound to the original sound on a pre-recorded tape, recorded in SP mode with 12bit sound.✤Use the internal and external microphones or other audio equipment.✤The original sound will not be erased.Dubbing sound1. Set the camcorder to PLAYER mode. ■If you want to use an external microphone, connect the microphone tothe external MIC input jack on the camcorder.2. Press the (PLAY/STILL) button and find the timeframe of the scene to be dubbed. 3. Press the (PLAY/STILL) button to pause the scene.4. Press the A.DUB button on the Remote Control.■A.DUB will be displayed on the LCD.■The camcorder is in a ready-to-dub state for dubbing. 5. Press the (PLAY/STILL) button to start dubbing.■Press the (STOP) button to stop the dubbing.Audio dubbing(SCD24 only)(58~100).quark3.3E 2/8/03 9:30 AM Page 61

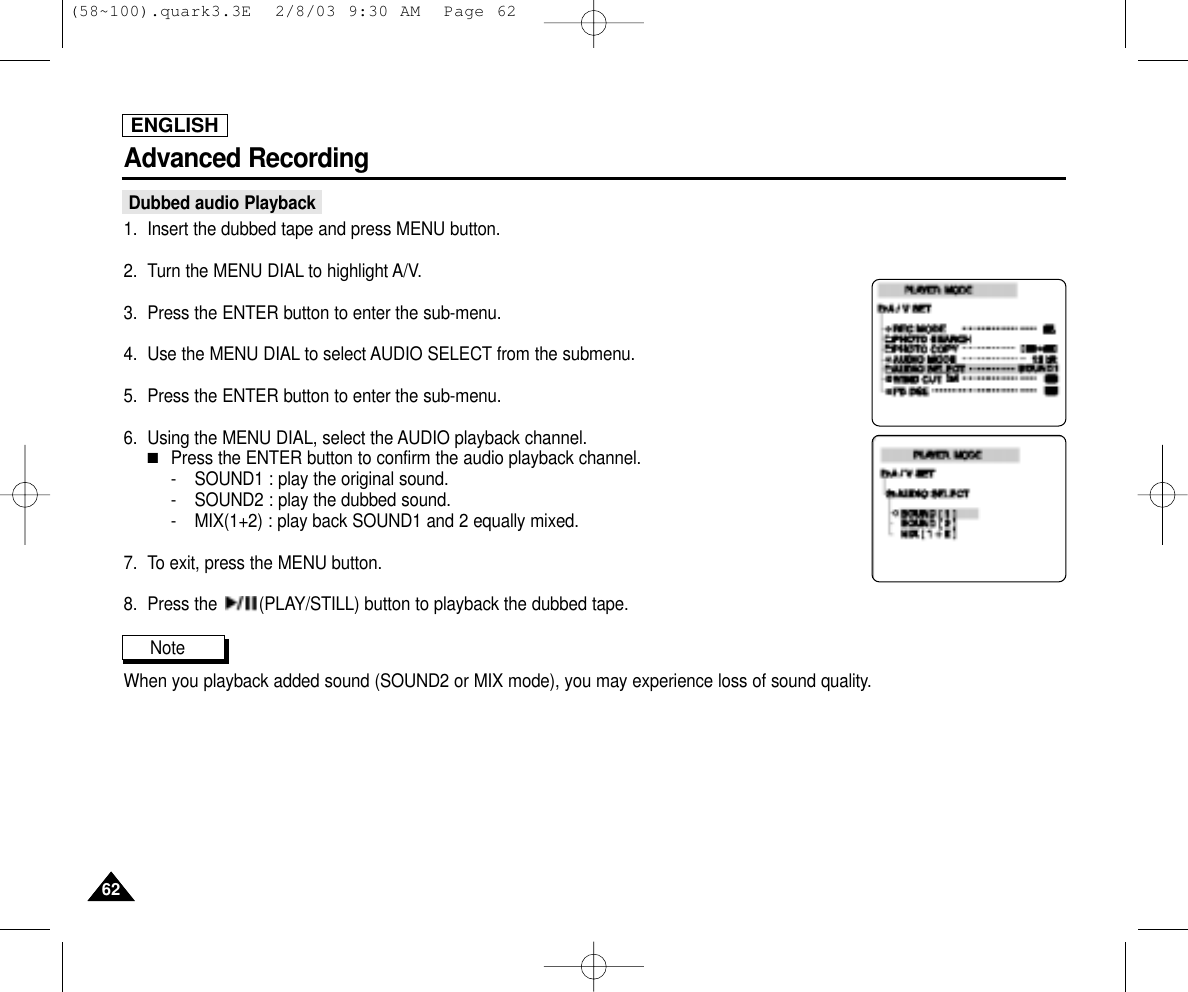

ENGLISHAdvanced Recording6262Dubbed audio Playback1. Insert the dubbed tape and press MENU button.2. Turn the MENU DIAL to highlight A/V.3. Press the ENTER button to enter the sub-menu.4. Use the MENU DIAL to select AUDIO SELECT from the submenu. 5. Press the ENTER button to enter the sub-menu.6. Using the MENU DIAL, select the AUDIO playback channel. ■Press the ENTER button to confirm the audio playback channel.- SOUND1 : play the original sound.- SOUND2 : play the dubbed sound.- MIX(1+2) : play back SOUND1 and 2 equally mixed.7. To exit, press the MENU button.8. Press the (PLAY/STILL) button to playback the dubbed tape.NoteWhen you playback added sound (SOUND2 or MIX mode), you may experience loss of sound quality.(58~100).quark3.3E 2/8/03 9:30 AM Page 62
ENGLISHAdvanced Recording63631. Press the PHOTO button and hold it.■The still picture appears on the LCD monitor.■If you do not wish to record, release the button.2. Release the PHOTO button and press the PHOTO button again in 2 seconds.■The still picture is recorded for about 6~7 seconds. 3. After the PHOTO has been recorded, the camcorder returns to STBY mode.Searching for a PHOTO picture ✤The PHOTO SEARCH works in PLAYER and M.PLAY mode only. 1.■Press the MENU button. (or press the PHOTO SEARCH button on the remote control.)■The MENU list will appear.2. Turn the MENU DIAL to highlight A/V.3. Press the ENTER button to enter the sub-menu.4. Select PHOTO SEARCH from the sub-menu and press the ENTER button.5. Search the PHOTO using the (FF) and (REW) buttons. ■The PHOTO search process appears on the LCD while you are searching. ■After completing the search, the camcorder displays the still image. 6. To exit, press the (STOP) button. PHOTO Image Recording(58~100).quark3.3E 2/8/03 9:30 AM Page 63

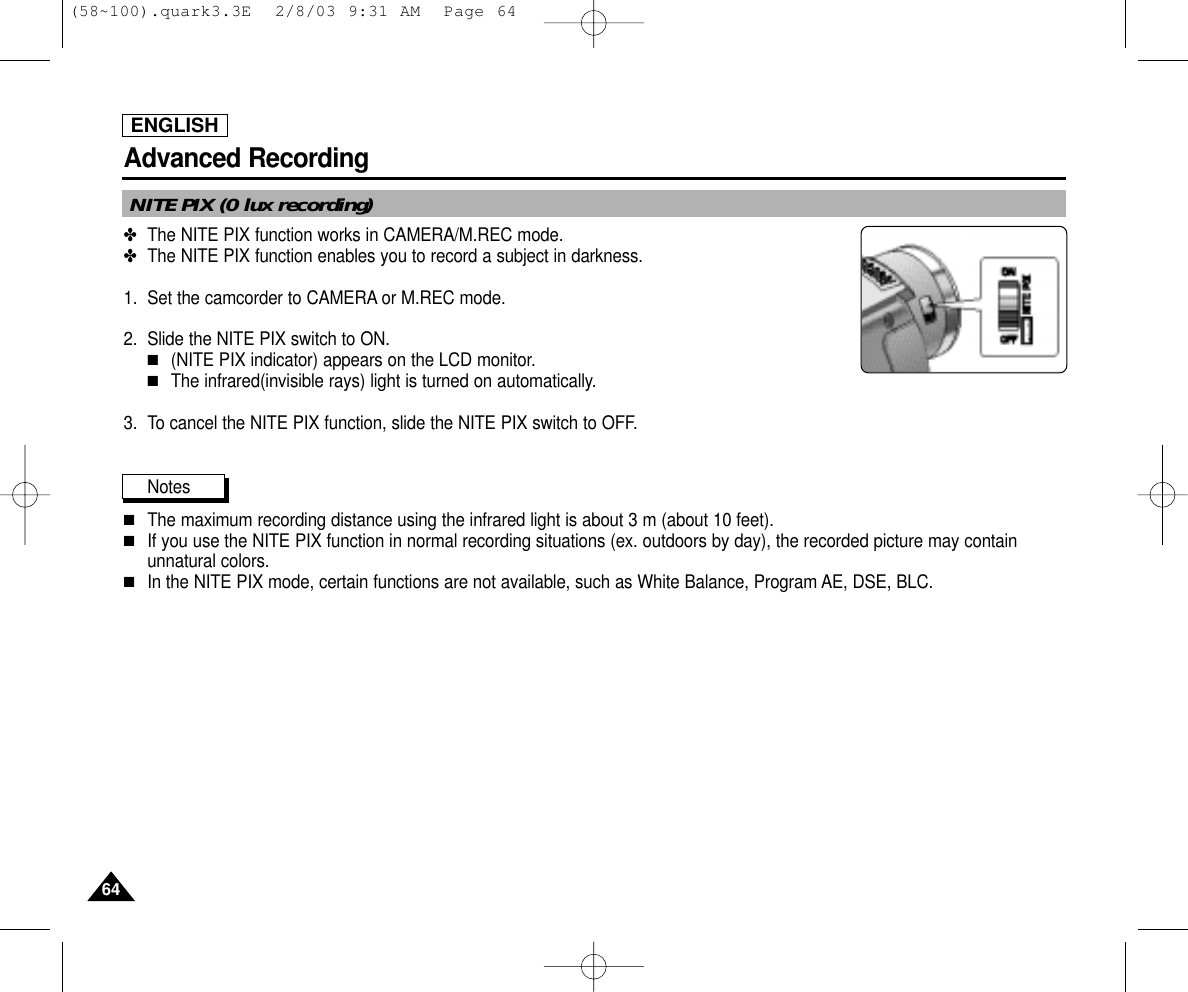

ENGLISHAdvanced Recording6464✤The NITE PIX function works in CAMERA/M.REC mode.✤The NITE PIX function enables you to record a subject in darkness.1. Set the camcorder to CAMERA or M.REC mode. 2. Slide the NITE PIX switch to ON.■(NITE PIX indicator) appears on the LCD monitor.■The infrared(invisible rays) light is turned on automatically.3. To cancel the NITE PIX function, slide the NITE PIX switch to OFF.Notes■The maximum recording distance using the infrared light is about 3 m (about 10 feet).■If you use the NITE PIX function in normal recording situations (ex. outdoors by day), the recorded picture may containunnatural colors.■In the NITE PIX mode, certain functions are not available, such as White Balance, Program AE, DSE, BLC.NITE PIX (0 lux recording)(58~100).quark3.3E 2/8/03 9:31 AM Page 64
ENGLISHAdvanced Recording6565✤The POWER NITE PIX function works in CAMERA/M.REC mode. ✤The POWER NITE PIX function can record a subject more brightly in darkness than the NITE PIX function.✤A POWER NITE PIX is displayed for three seconds by LCD if you press a SLOW SHUTTER button in state that a NITE PIXswitch is turned on.✤When you work in POWER NITE PIX mode, POWER NITE PIX icon appears on the LCD continuously.1. Set the camcorder to CAMERA mode.2. Turn on the NITE PIX switch, and then press the SLOW SHUTTER button.3. Press the SLOW SHUTTER button to set shutter speed. The SLOW SHUTTER function enablesyou to record a subject more brightly.4. When using POWER NITE PIX the image takes on slowmotion like effect.5. To cancel the POWER NITE PIX function, press the SLOW SHUTTER button to set to “ off ” andthen turn off the NITE PIX switch. POWER NITE PIX(58~100).quark3.3E 2/8/03 9:31 AM Page 65
ENGLISHAdvanced Recording6666✤VIDEO LIGHT works in CAMERA or M.REC mode only.✤To brighten the scene when natural lighting is too dim.✤VIDEO LIGHT works in SP mode only.- If you turn on the LIGHT in LP mode, the LIGHT indicator and “LP” will be blinking on the LCD.DANGER■The VIDEO LIGHT can become extremely hot.Do not touch it either while in operation or soon after turning it off, otherwise serious injury may result.■Do not place the camcorder into the carrying case immediately after using the VIDEO LIGHT, since it can remainextremely hot for some time.■Do not use near flammable or explosive materials.■It is recommended that you consult your nearest SAMSUNG for bulb replacement.- The life of the bulb is approximately 50 hours.1. Set the camcorder to the CAMERA mode.2. Press the V.LIGHT button.■The VIDEO LIGHT indicator appear on the LCD and the light is turned on.3. If you want to turn off the VIDEO LIGHT, press the V.LIGHT button again.Notes■The light is turned off automatically during ejecting or inserting.■Even if the battery indicator does not blink when the battery packs charge is low, the camcorder may turn off automaticallywhen you turn on the light, or when you start recording with light turned on.■The built-in light is used as a subsidiary light, it may not be enough for outdoor lighting.■The picture quality may deteriorate if you use the VIDEO LIGHT continuously for more than 20 minutes.■If you turn on the light in 1/8, 1/15, 1/30 SLOW SHUTTER mode, the SLOW SHUTTER mode will be switched off.Using the VIDEO LIGHT(58~100).quark3.3E 2/8/03 9:31 AM Page 66
ENGLISHAdvanced Recording6767✤In some situations different recording techniques may be required for more dramatic results.NotePlease rotate the LCD screen carefully as excessive rotation may cause damage to the inside of the hinge that connects theLCD screen to the Camcorder.1. General recording.2. Downward recording.Making a recording with a top view of the LCD screen.3. Upward recording.Making a recording viewing the LCD screen from below.4. Self recording.Making a recording viewing the LCD screen from the front.5. Recording with the Viewfinder.■In circumstances where it is difficult to use the LCD monitor, the viewfinder can be used as a convenient alternative.1 2354Various Recording Techniques(58~100).quark3.3E 2/8/03 9:31 AM Page 67
ENGLISH6868Playback✤ The playback function works in PLAYER mode only.Playback on the LCD✤ It is practical to view a tape using the LCD in a car or outdoors.Playback on a TV monitor✤ To play back a tape, the television must have a compatible color system. ✤ We recommend that you use the AC Power Adapter as the power source for the camcorder.Connecting to a TV which has Audio/Video input jacks1. Connect the camcorder and TV with the Audio/Video cable.■The yellow plug : Video■The white plug : Audio(L) ■The red plug : Audio(R) - STEREO only- If you connect to a monaural TV or VCR, connect the yellow plug(Video) to the video input of the TV or VCR and the white plug (Audio L)to the audio input of the TV or VCR.2. Set the power switch on the camcorder to PLAYER mode.3. Turn on the TV and set the TV/VIDEO selector on the TV to VIDEO.■Refer to the TV or VCR user’s manual.4. Play the tape back.Notes■You may use the S-VIDEO cable (not supplied) to obtain better quality pictures if you have a S-VIDEO connector on your TV.■Even if you use a S-VIDEO cable, you need to connect an audio cable.■If you connect the cable to the A/V Jack, you will not hear sound from the speakers.CamcorderS-VIDEOA/VVideo input-YellowAudio input(left)-WhiteS-VIDEO input(right)-RedAudio inputTVTape Playback(58~100).quark3.3E 2/8/03 9:31 AM Page 68
ENGLISH6969PlaybackConnecting to a TV which has no Audio and Video input jacks✤You can connect your camcorder to a TV through a VCR.1. Connect the camcorder and VCR with the Audio/Video cable.■The yellow plug : Video■The white plug : Audio(L) ■The red plug : Audio(R) - STEREO only2. Connect a TV to the VCR.3. Set the power switch on the camcorder to PLAYER mode.4. Turn on both the TV and VCR.■Set the input selector on the VCR to LINE.■Select the channel reserved for your VCR on the TV set.5. Play the tape back.Playback✤You can play the recorded tape in PLAYER mode.1. Connect a power source and set the power switch to PLAYER mode.2. Insert the tape you wish to play back.3. Using the (FF) and (REW) buttons, find the first position you wish to play back.4. Press the (PLAY/STILL) button.■The images you recorded will appear on the TV after a few seconds.■If a tape reaches its end while being played back, the tape will rewind automatically.Note■The playback mode (SP/LP) is selected automatically.ANTENNAS-VIDEOS-VIDEOA/VTVVCRCAMCORDERVIDEOAUDIO(L)AUDIO(R)(58~100).quark3.3E 2/8/03 9:31 AM Page 69
ENGLISH7070Playback✤The PLAY/STILL, STOP, FF, REW buttons are located on the camcorder and the Remote Control.✤The F.ADV(Frame advance), X2, SLOW buttons are located on the Remote Control only.(SCD24 only)✤To prevent tape and head-drum wear, your camcorder will automatically stop if it is left in STILL or SLOW modes for morethan 5 minutes.Playback pause✤Press the (PLAY/STILL) button during Playback.✤To resume playback, press the (PLAY/STILL) button.Picture search (Forward/Reverse)✤Press the (FF) or (REW) buttons once during Playback or Still mode.To resume normal playback, press the (PLAY/STILL) button.✤Keep pressing (FF) or (REW) buttons during Playback or Still mode.To resume normal playback, release the button.Slow playback (Forward/Reverse)(SCD24 only)✤Forward Slow Playback■Press the SLOW button on the remote control during Playback.■To resume normal playback, press the (PLAY/STILL) button.✤Reverse Slow Playback■Press the (_) button during Forward Slow Play back. ■To resume forward slow playback, press the (+) button.■To resume normal playback, press the (PLAY/STILL) button.Various Functions while in PLAYER mode(58~100).quark3.3E 2/8/03 9:31 AM Page 70
ENGLISH7171PlaybackFrame advance (To play back frame by frame)(SCD24 only) ●Press the F.ADV button on the Remote Control while in Still mode. The F.ADV function works in still mode only.●To resume normal playback, press the (PLAY/STILL) button.✤Forward frame advance■Press the F.ADV button on the remote control in Still mode.✤Reverse frame advance■Press (_) the button on the remote control to change the direction in F.ADV mode.■Press the F.ADV button on the remote control.X2 Playback (Forward/Reverse )(SCD24 only) ✤Forward X2 Playback■Press the X2 button on the Remote Control during Playback.■To resume normal playback, press the (PLAY/STILL) button.✤Reverse X2 Playback■Press (_) the button during during Forward X2 Playback■To resume normal playback, press the (PLAY/STILL) button.Notes■Mosaic shaped distortion may appear on the screen while in some of the various playback modes.- Mosaic shaped distortion or noise may be experienced when you play back tapes recorded in LP which contain various playback functions.■Sound will only be heard during regular playback.(58~100).quark3.3E 2/8/03 9:31 AM Page 71
ENGLISH7272Playback✤ The MEMORY function works in both CAMERA and PLAYER modes.✤ You can mark a point on a tape that you want to return to following playback.1. Press the ZERO MEMORY button on the remote control during playback or recording at the point you wish to return to. ■The time code is changed to a tape counter that is set to zero memory with the 0:00:00(Zero memory indicator)■If you want to cancel the zero memory function, press the ZERO MEMORY button again.2. Finding the zero position.■When you have finished playback, fast forward or rewind the tape.- The tape stops automatically when it reaches the zero position.■When you have finished recording, press the power switch on the PLAYER and press the (REW) button.- The tape stops automatically when it reaches the zero position.3. The tape counter with the (Zero memory indicator) disappears from the display and the tape counter is changed to the time code.Notes■In the following situations, ZERO MEMORY mode may be canceled automatically:- At the end of the section marked with the ZERO MEMORY function.- When the tape is ejected.- When you remove the battery pack or power supply.■The zero memory may not function correctly where there is a break between recordings on the tape.MMZERO MEMORY(SCD24 only)(58~100).quark3.3E 2/8/03 9:31 AM Page 72
ENGLISHPlayback7373✤The PB DSE function works in PLAYER mode. ✤The PB DSE function enables you to apply Digital Special Effect (DSE) to tape playback image or still image.1. Set the camcorder to the PLAYER mode and then Playback a tape.2. Press the MENU button and turn the MENU DIAL to highlight A/V.3. Press the ENTER button to enter the sub-menu.4. Select PB DSE from the sub-menu and press the ENTER button.5. Press the ENTER button to enter the sub-menu.6. Select PB DSE item (off, mirror, mosaic) from the sub-menu and press the ENTER button.7. To exit, press the MENU button.8. To cancel the PB DSE function, set the PB DSE to off or press the STOP button.Notes■You cannot apply the PB DSE function to the pictures which are being input from the external.■Once you modify an image using the PB DSE function, it cannot be imported to your PC since it is not output to DV terminaland you cannot use the PB ZOOM function with it, too.PB DSE(58~100).quark3.3E 2/8/03 9:31 AM Page 73
ENGLISHPlayback7474✤The PB ZOOM function works in PLAYER mode.✤The PB ZOOM function enables you to magnify playback or still image. The same functions can be applied to the picturessaved on the MEMORY STICK.1. Press the PB ZOOM button in playback mode or in playback still mode2. The image is magnified starting from the center of image and the four arrows which allows you to move the image in the four directions appear.3. You can zoom in from 1.2x to 8.0x moving the zoom lever.4. You can move the image in the arrow directions using the MENU DIAL.5. You can change the arrow direction(vertical, horizontal) to move the image by pressing theENTER button.6. To cancel the PB ZOOM function, press the PB ZOOM or STOP button.Notes■You cannot apply the PB ZOOM function to the pictures which are being input from the external.■The image which the PB ZOOM function is applied to cannot be imported to your PC since it isnot output to DV terminal and you cannot use the PB DSE function with it, too.PB ZOOM(58~100).quark3.3E 2/8/03 9:31 AM Page 74
ENGLISH7575IEEE 1394 Data TransferConnecting to a DV device✤ Connecting with other DV standard products.■A standard DV connection is quite simple. If a product has a DV port, you can transfer data by connecting to the DV port using the correct cable. !!! Please be careful since there are two types of DV ports, (4pin, 6pin). This camcorder has a 4pin terminal.✤ With a digital connection, video and audio signals are transmitted in digital format, allowing high quality images to be transferred.Connecting to a PC✤ If you want to transmit data to a PC, you must install a IEEE 1394 add-on card onto the PC. (not supplied)✤ The frame rate recorded for video capturing is dependent on the capacity of the PC.Notes■When you transmit data from the camcorder to another DV device, some functions may not work. If this occurs, please reconnect the DV cable or turn the power OFF and ON again.Transferring IEEE1394 (i.LINK)-DV standard data connections(58~100).quark3.3E 2/8/03 9:31 AM Page 75

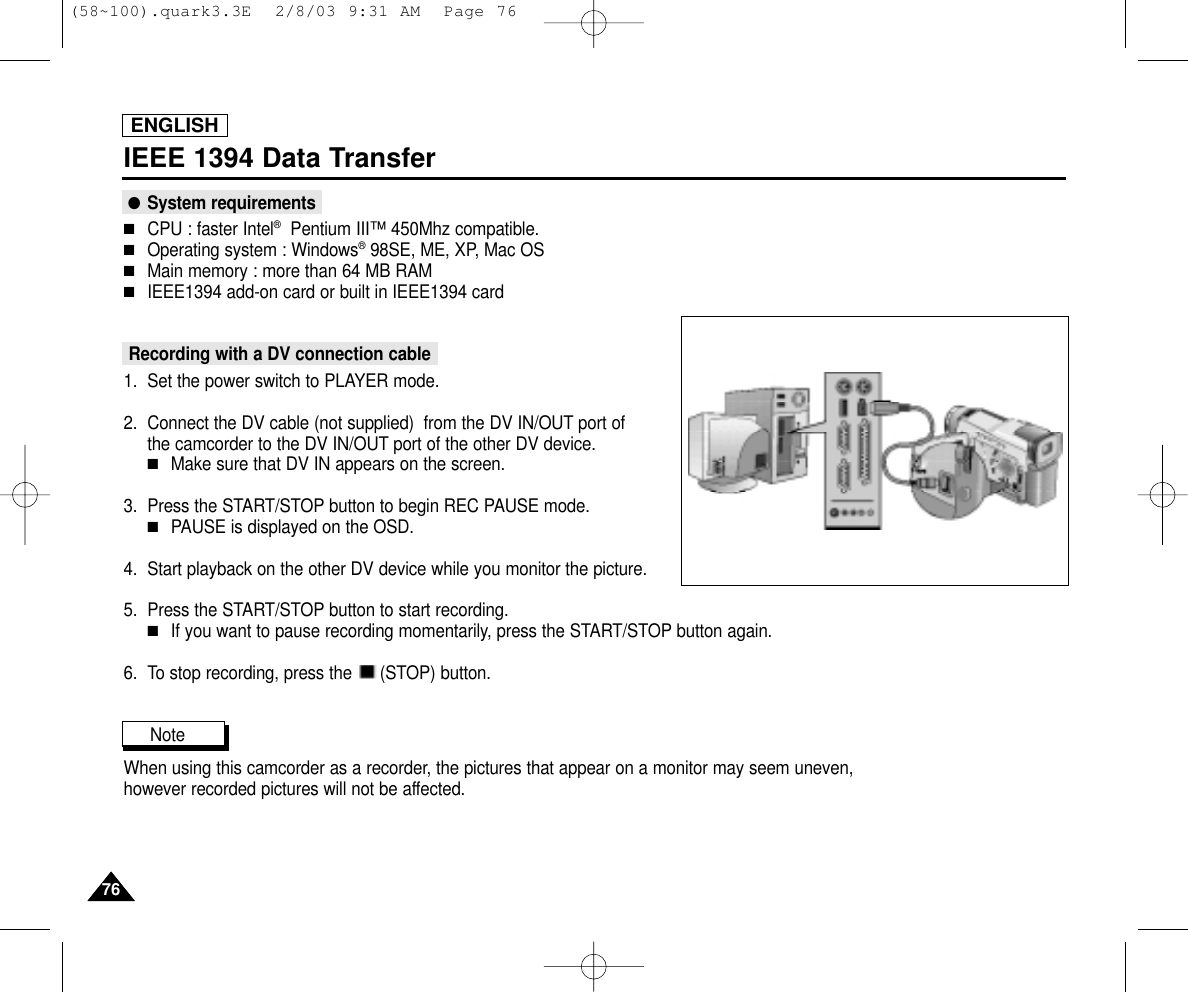

ENGLISH7676IEEE 1394 Data Transfer●System requirements■CPU : faster Intel®Pentium III™ 450Mhz compatible. ■Operating system : Windows®98SE, ME, XP, Mac OS■Main memory : more than 64 MB RAM■IEEE1394 add-on card or built in IEEE1394 cardRecording with a DV connection cable 1. Set the power switch to PLAYER mode.2. Connect the DV cable (not supplied) from the DV IN/OUT port of the camcorder to the DV IN/OUT port of the other DV device. ■Make sure that DV IN appears on the screen.3. Press the START/STOP button to begin REC PAUSE mode.■PAUSE is displayed on the OSD.4. Start playback on the other DV device while you monitor the picture.5. Press the START/STOP button to start recording.■If you want to pause recording momentarily, press the START/STOP button again.6. To stop recording, press the (STOP) button.Note When using this camcorder as a recorder, the pictures that appear on a monitor may seem uneven, however recorded pictures will not be affected.(58~100).quark3.3E 2/8/03 9:31 AM Page 76
ENGLISH7777USB interface●Transferring a Digital Image through a USB Connection✤ You can easily transfer a still image from a MEMORY STICK to a PC without additional add-on cards via a USBconnection.✤ You can transfer an image to a PC via a USB connection.✤ If you transfer data to a PC, you need to install the software (Driver, Editing software) supplied with the camcorder.System Requirements■CPU : Intel®Pentium II™ 400 processor compatible or better■Operating system : Windows®98SE/ME/2000/XP■RAM : 64 MB or more■CD-ROM: 4x CD-ROM drive■VIDEO : 65,000-color or better video display card■Available USB port■Hard Disc : 4GB (8GB recommended)Notes ■Intel®Pentium II™ is a trademark of the Intel Corporation.■Windows®is a registered trademark of the Microsoft®Corporation.■All other brands and names are property of their respective owners.(58~100).quark3.3E 2/8/03 9:31 AM Page 77
USB interfaceConnecting to a PC1. Connect a USB cable to the USB port on the PC.2. Connect the other end of the USB cable into the proper terminal on the camcorder. (USB jack)Notes ■If you disconnect the USB cable from the PC or the camcorder while transferring, the data transmission will stop and thedata may be damaged. ■If you connect the USB cable to a PC via a USB HUB or simultaneously connect the USB cable along with other USBdevices, the camcorder may not work properly.- If this occurs, remove all USB devices from the PC and reconnect the camcorder.USB CableENGLISH7878(58~100).quark3.3E 2/8/03 9:31 AM Page 78
ENGLISH7979Digital Still Camera mode✤ The Memory Stick(SCD24 only) stores and manages still images recorded by the camera.Memory Stick Functions ✤ Recording still images✤ Viewing still images■Single■Slide show✤ Protecting images against accidental erasure✤ Deleting images recorded on a card✤ Print marking still images✤ Formatting a cardNotes■You can use most of the camera’s functions when recording to the Memory Stick.■“ ” appears on the screen while recording to the Memory Stick.■While recording or loading an image, do not eject or insert the Memory Stick.- Inserting or ejecting a Memory Stick while recording or loading an image can cause data damage.■If you want to save all images on the Memory Stick, set the write protect tab on the Memory Stick to LOCK.●“Memory Stick” and are trademarks of Sony Corporation.● All other product names mentioned herein may be the trademarks or registered trademarks of their respective companies.Furthermore, “TM”and “®” are not mentioned in each case in this manual.Terminal(SCD24 only)ProtectiontabMEMORY STICK(SCD24 only)(58~100).quark3.3E 2/8/03 9:31 AM Page 79
ENGLISH8080Digital Still Camera modeInserting and ejecting the Memory Stick ●Inserting the Memory Stick1. Turn the Power switch to OFF.2. Insert the Memory Stick into the CARD slot located beneath the camcorder, in thedirection of the arrow.●Ejecting the Memory Stick1. Turn the Power switch to OFF.2. Push the Memory Stick, then it comes out of the camcorder automatically.3. Pull out the Memory Stick.Notes ■If you turn the power switch to M.PLAY, the last recorded still image appears.- If there are no recorded images on the Memory Stick, NO STORED IMAGE! and will display on the screen.■Do not turn the power off while recording, loading, erasing or formatting.■Please turn the power off before you insert or eject the Memory Stick.You could lose data on the Memory Stick.■Do not allow metal substances to come in contact with the terminals of the Card.■Do not bend the Card.■After pulling the card out from the camcorder, please keep the Memory Stick in a soft case to prevent static shock.■The stored contents may be changed or lost as a result of misuse, static electricity, electric noise or repair. Save important images separately.■Samsung is not responsible for data loss due to misuse.(58~100).quark3.3E 2/8/03 9:31 AM Page 80
ENGLISH8181Digital Still Camera modeStructure of folders and files on the Memory Stick✤ The still images that you recorded are saved in JPEG file format on the card. ✤ Each file has a file number and all files are assigned to a folder.■A file number from DCAM0001 to DCAM9999 is sequentially assigned to eachrecorded image.■Each folder is numbered from 100SSDVC to 999SSDVC and recorded on the CARD.Image Format ✤still Image■Images are compressed in JPEG (Joint Photographic Experts Group) format.■The number of pixels are 640 ✕480 (VGA) in each mode.✤ You can use this camcorder as a Digital Still Camera (DSC).✤ You have to set the mode switch to MEMORY STICK position to use this camcorder as Digital Still Camera.■M.REC mode (Memory RECORD mode)1. Set the mode switch to MEMORY STICK.2. Set the power switch to CAMERA.■M.PLAY mode (Memory PLAYBACK mode)1. Set the mode switch to MEMORY STICK.2. Set the power switch to PLAYER.Selecting the CAMCORDER mode(58~100).quark3.3E 2/8/03 9:31 AM Page 81
ENGLISH8282Digital Still Camera mode✤ You can select the quality of a still image to be recorded.Select the image quality1. Set the mode switch to MEMORY STICK.2. Set the power switch to the CAMERA mode.3. Press the MENU button.■The menu list will appear.4. Turn the MENU DIAL to highlight MEMORY.5. Press the ENTER button to enter the sub-menu.6. Turn the MENU DIAL to highlight QUALITY in the submenu.7. Press the ENTER button.8. Using the MENU DIAL, select the image quality.■Press the ENTER button to confirm the image quality.■If you exit the sub-menu without pressing the ENTER button,the quality mode is not changed.9. To exit, press the MENU button.●Number of images on the Memory Stick- The actual number that you can record varies depending on the image size.QUALITY 8MB 16MBSUPER FINE Approx.60 Approx.120FINE Approx.120 Approx.240NORMAL Approx.240 Approx.480Selecting the image quality(58~100).quark3.3E 2/8/03 9:31 AM Page 82
ENGLISH8383Digital Still Camera mode✤ Audio cannot be recorded with still image onto the Memory Stick.Recording images to a Memory Stick1. Set the mode switch to MEMORY STICK.2. Set the power switch to CAMERA.3. Press the PHOTO button and hold it.■The still picture appears on the LCD monitor.■If you do not wish to record, release the button and wait for more than 2 seconds.4. Release the PHOTO button and press the PHOTO button again in 2 seconds.■The still image is recorded to the Memory Stick.■While the camcorder is recording the still image, “ ” appears on the screen.Recording Still images to a Memory Stick in M.REC Mode.(58~100).quark3.3E 2/8/03 9:31 AM Page 83
ENGLISH8484Digital Still Camera modeRecording an image from a cassette as a still image.✤ You can record still image from a cassette onto a Memory Stick.✤ If you want to recorded multiple still images from a cassette to a Memory Stick, use the COPY function.1. Set the mode switch to TAPE.2. Set the power switch to PLAYER mode.3. Play back the cassette.4. Press the PHOTO button and hold it.■The camcorder is set to playback pause(STILL) mode.■If you do not wish to record, release the button and wait for more than 2 seconds.5. Release the PHOTO button and press the PHOTO button again in 2 seconds.■The still image is recorded to the Memory Stick.■While the camcorder is recording the still image, “ ” appears on the screen.(58~100).quark3.3E 2/8/03 9:31 AM Page 84
ENGLISH8585Digital Still Camera mode✤ You can playback and view still images recorded on the Memory Stick.✤ There are 3 ways to view recorded images.■Single : To view an image frame by frame.■Slide show : To view all images automatically and in consecutive order.To view a Single image1. Set the mode switch to MEMORY STICK.2. Set the power switch to PLAYER mode.■The last recorded image appears.- If there are no recorded images on the Memory Stick, NO STORED IMAGE! and will display on the screen.3. Using the (FWD) and (REV) buttons, search for the desired still image.■To view the next image : press the (FWD) button.■To view the previous image : press the (REV) button.■Pressing (FWD) when you are on the last image will take you to the firstimage and pressing (REV) when you are on the first image will take you to the last image.■Keep pressing (FWD) or (REV) to search for an image quickly.To view a slide show1. Set the mode switch to MEMORY STICK.2. Set the power switch to PLAYER mode.■The last recorded image appears3. Press the (S.SHOW) button.■All images will be played back consecutively for 4~5 seconds each.4. To stop the slide show, press the (S.SHOW) button again.Viewing Still images(58~100).quark3.3E 2/8/03 9:31 AM Page 85
ENGLISH8686Digital Still Camera mode✤ You can copy still images recorded with PHOTO function on a cassette onto a Memory Stick.1. Set the power switch to the PLAYER mode.2. Press the MENU button.3. Turn the MENU DIAL to highlight A/V and press the ENTER button.■The submenu will appear.4. Turn the MENU DIAL to highlight PHOTO COPY and press the ENTER button.■All still images that recorded on a cassette will be copied to a Memory Stick.5. The camcorder automatically performs the photo search to find still images and copying starts.6. Press (STOP) button to stop copying.■Copying stops when the cassette is finished or Memory Stick is full.Copying still images from a cassette to Memory Stick(58~100).quark3.3E 2/8/03 9:31 AM Page 86
ENGLISH8787Digital Still Camera mode✤ This camcorder supports the DPOF (Digital Print Order Format) print format.✤ You can automatically print images recorded on a Memory Stick with a printer supporting DPOF.✤ There are 2 ways to make a PRINT MARK.■THIS FILE : You can set a print mark on the photo image displayed on the LCD.■ALL FILES : To print 1 copy each of all of the stored images. 1. Set the mode switch to MEMORY STICK.2. Set the power switch to PLAYER.■The last recorded image appears.3. Using the (FWD) and (REV) buttons, search for the still image that you want to mark.4. Press the MENU button.5. Turn the MENU DIAL to highlight MEMORY and press the ENTER button.■The MEMORY SET submenu will appear. 6. Turn the MENU DIAL to highlight PRINT MARK, press the ENTER button.7. Use the MENU DIAL to select either THIS FILE or ALL FILES and press the ENTER button.8. Use the MENU DIAL to select the quantity and press the ENTER button.Notes■When you setup the PRINT MARK option to ALL FILES, 999 files from the current file are set to 1. ■The ALL FILES option may require extended operation time depending on the number of stored images. Marking images for printing(58~100).quark3.3E 2/8/03 9:31 AM Page 87
ENGLISH8888Digital Still Camera mode✤ You can protect important images from accidental erasure.■If you execute FORMAT, all images including protected images will be erased.1. Set the mode switch to MEMORY STICK.2. Set the power switch to PLAYER.■The last recorded image appears.■If there are no recorded images on the Memory Stick, NO STORED IMAGE! and will display on the screen.3. Using the (FWD) and (REV) buttons, search for the still image that you want to protect.4. Press the MENU button.5. Turn the MENU DIAL to highlight MEMORY and press the ENTER button.■The submenu of MEMORY SET will appear.6. Turn the MENU DIAL to highlight PROTECT and press the ENTER button.7. Using the MENU DIAL, select the method and press the ENTER button.■THIS FILE : protects the currently selected file from erasure. 8. Using the (FWD) and (REV) buttons, search for the still image that you wish to protect.■Deactivate the image protection for the image following step 6.9. To exit the menu, press the MENU button.Protection from accidental erasure(58~100).quark3.3E 2/8/03 9:31 AM Page 88
ENGLISH8989Digital Still Camera mode✤You can erase the still images recorded on the Memory Stick.✤If you want to delete protected images, you must first deactivate the image protection.✤An image which has been deleted cannot be recovered.1. Set the mode switch to MEMORY STICK.2. Set the power switch to PLAYER.3. Using the (FWD) and (REV) buttons, search for the still image that you want to delete.4. Press the MENU button.5. Turn the MENU DIAL to highlight MEMORY and press the ENTER button.■The MEMORY SET submenu will appear.6. Turn the MENU DIAL to highlight DELETE and press the ENTER button.■Using the MENU DIAL, select either THIS FILE or ALL FILES and press the ENTER button.■THIS FILE : deletes only the file currently selected.■ALL FILES : deletes all files stored in the Memory Stick.7. A box will appear to verify whether you wish to delete the image(s). ■EXECUTE : deletes the selected image(s). ■CANCEL : does not delete the selected image(s) and returns to the previous menu. Note■If you try to delete a protected image, “PROTECT!” appears on the screen.Deleting Still images(58~100).quark3.3E 2/8/03 9:31 AM Page 89
ENGLISH9090Digital Still Camera mode✤You can use the MEMORY FORMAT functions to completely delete all images and options on the Memory Stick, including protected images.✤The format function restores the Memory Stick to its initial states.✤The Memory Stick supplied with this camcorder has been formatted already.Attention✤ If you execute the MEMORY FORMAT function, all images will be erased completely and erased images cannot be recovered.1. Set the mode switch to MEMORY STICK.2. Set the power switch to PLAYER mode.3. Press the MENU button.4. Turn the MENU DIAL to highlight MEMORY and press the ENTER button.■The sub menu will appear.5. Select FORMAT from the list and press the ENTER button.6. “ALL FILES ARE DELETED! FORMAT REALLY?” appears on the screen.7. Using the MENU DIAL, select the item.■NO : To return to previous menu■YES : To start formatting.8. Press the ENTER button.9. To exit the menu, press the MENU button.Note■“Memory stick” formatted on the PC with the USB adaptor (not supplied) Memory Formatter do not have a guaranteedcompatibility with this camcorder.If you want to format the Memory Stick on the PC, use the “Memory Stick formatter” supplied with the software CD.Formatting the Memory Stick(58~100).quark3.3E 2/8/03 9:31 AM Page 90
ENGLISH9191Maintenance✤ At the end of a recording you must remove the power source.✤ When recording with a Lithium Ion Battery Pack, leaving the pack on the camcorder can reduce the life span of the battery.Hence, it should be removed from the camcorder.1. Slide the TAPE OPEN/EJECT switch in the direction of the arrow. ■Opening the cassette door ejects the tape automatically.■Please wait while the tape is completely ejected.2. After removing the tape, close the door and store the camcorder in a dust freeenvironment.■Dust and other foreign materials can cause square-shaped noise or jerky images.3. Set the power switch to the OFF mode.4. Disconnect the power source or remove the Lithium Ion Battery Pack.■Hold down the BATTERY RELEASE button and slide the battery pack in the direction of the arrow.After finishing a recording(58~100).quark3.3E 2/8/03 9:31 AM Page 91
ENGLISH9292MaintenanceCleaning the Video HeadsTo ensure normal recording and clear pictures, clean the video heads when the playback pictures display square block-shaped noise or distortion or if only a blue screen appears during playback, asthe video heads may be dirty.1. Set the power switch to PLAYER mode.2. Insert the cleaning tape.3. Press the (PLAY/STILL) button.4. Press the (STOP) button after 10 seconds.Notes ■Check the quality of the picture using a videocassette. If the picture quality has not improved, repeat the operation.If the problem continues, contact your local authorized service center.■Clean the video heads with a dry type cassette cleaner.Cleaning and Maintaining the Camcorder(58~100).quark3.3E 2/8/03 9:31 AM Page 92
ENGLISH9393Maintenance✤Each country or region has its own electric and color systems.✤Before using your camcorder abroad, check the following items.Power sources■You can use your camcorder in any country or area with the supplied AC Power Adapter within 100V to 240V, 50/60 Hz.■Use a commercially available AC plug Adapter, if necessary, depending on the design of the local wall outlet.Color system■You can view your recording in the viewfinder. However, to view it on a television or copy it to a videocassette recorder, the television or VCR must be NTSC-compatibleand have the appropriate audio/video jacks.Otherwise, you may need to use a transcoder.●PAL-compatible Countries/RegionsAustralia, Austria, Belgium, Bulgaria, China, CIS, Czech Republic, Denmark, Egypt, Finland, France, Germany, Greece,Great Britain, Holland, Hong Kong, Hungary, India, Iran, Iraq, Kuwait, Libya, Malaysia, Mauritius, Norway, Romania, Saudi Arabia, Singapore, Slovak Republic, Spain, Sweden, Switzerland, Syria, Thailand, Tunisia, etc.●NTSC-compatible Countries/RegionsBahamas, Canada, Central America, Japan, Mexico, Philippines, Korea, Taiwan, United States of America, etc.NoteYou can make recordings with your camcorder and view pictures on the LCD from anywhere in the world.Using Your Camcorder Abroad(58~100).quark3.3E 2/8/03 9:31 AM Page 93
ENGLISH9494Troubleshooting✤Before contacting a Samsung authorized service center, perform the following simple checks. They may save you the time and expense of an unnecessary call.Self Diagnosis DisplayMoisture Condensation✤If the camcorder is brought directly from a cold place to a warm place, moisture may condense inside the camcorder, on the surface of the tape, or on the lens. In this condition, the tape may stick to the head drum and be damaged or theunit may not operate correctly.To prevent possible damage under these circumstances, the camcorder is fitted with a moisture sensor.✤If there is moisture inside the camcorder, (DEW) is displayed. If this happens, none of the functions except cassetteejection will work. Open the cassette compartment and remove the battery. Leave the camcorder for at least two hours in a dry warm room.slowslownoslowslowslowslowthe battery pack is almost discharged. Change to a charged one. When the remaining time on the tapeis about 2 minutes Prepare a new one. the tape reached its end. Change to a new one.there is no tape in camcorder. Insert a tape.the tape is record protected. If you want to record, releasethe protection.moisture condensation has formed inthe camcorder. see below.the camcorder has some mechanicalfault. 1. Eject the tape.2. Set to OFF.3. Detach the battery.4. Reattach the battery. * If unresolved contact yourlocal service representative. TAPE END!TAPE END!TAPE!PROTECTION!....DLCRDisplay Blinking Informs that... ActionTroubleshooting(58~100).quark3.3E 2/8/03 9:31 AM Page 94
ENGLISH9595Troubleshootingslow There no Memory stick in thecamcorder. Insert a Memory Stick.MEMORY STICK!slow There is not enough memoryto record. Change to a new MemoryStick erase recorded image.MEMORY FULL!slow There is no images recordedon the Memory Stick. Record new images.NO STOREDIMAGE!slow The Memory Stick is recordprotected. Release the write protect tabon the Memory Stick.WRITEPROTECT!slow When you try to delete toprotected image. Cancel the protect of image.PROTECT!slow The camera can not playback. Format a Memory Stick orinsert Memory Stick recordedon this camcorder.READ ERROR!slow The camera can not record. Format a Memory Stick or change to a new Memory Stick.WRITE ERROR!slow The card or memory needsto format. Format a Memory Stick.NOTFORMATTED!slow When progressing FILEDELETE. Wait until the end of deleting.NOW DELETE...slow When progressing MEMORYFORMAT. Wait until the end of formatting.NOW FORMAT...slow When progressing FILE COPY. Wait until the end of copying.NOW COPY...Display Blinking Informs that... Action(58~100).quark3.3E 2/8/03 9:31 AM Page 95

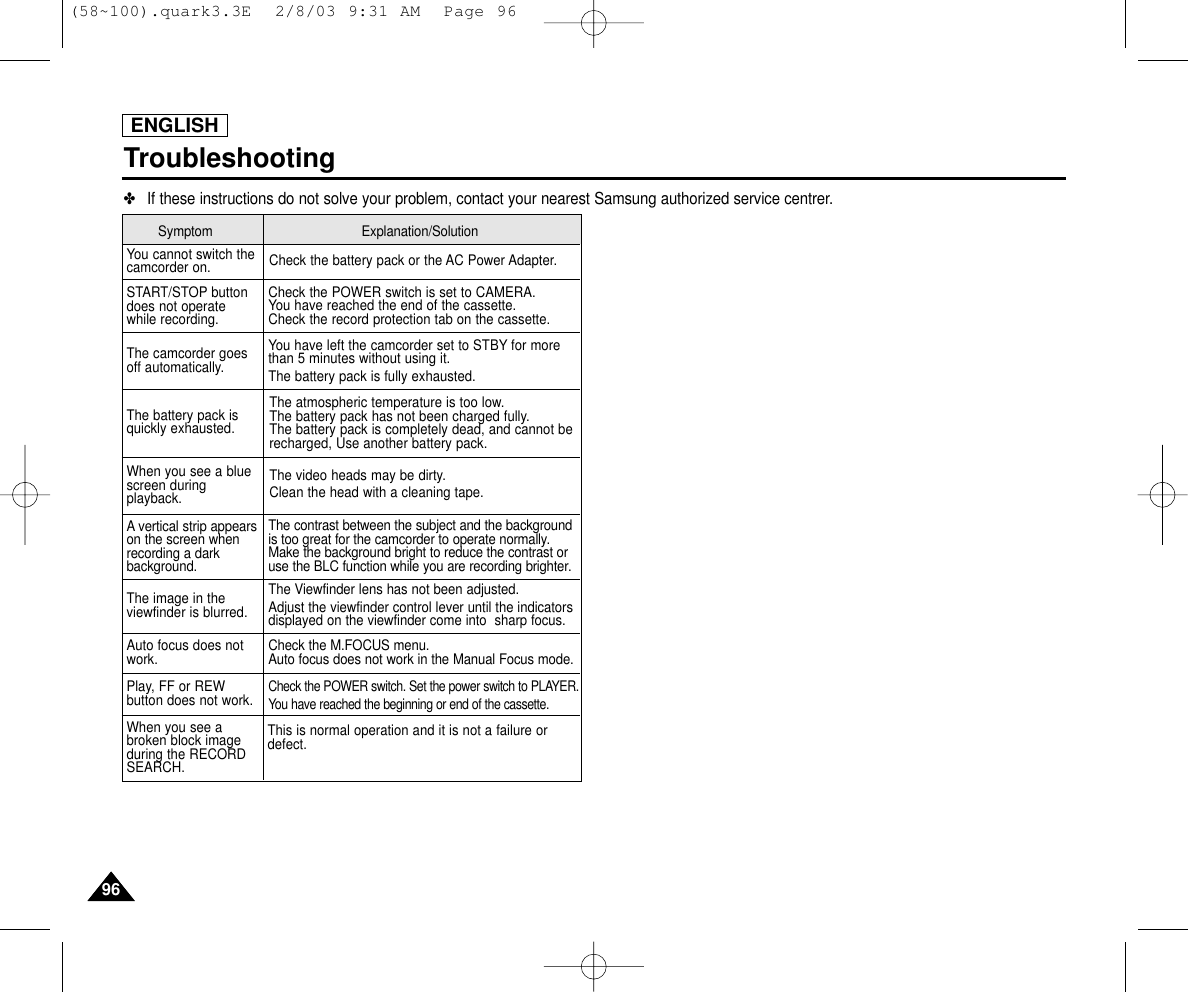

ENGLISH9696Troubleshooting✤If these instructions do not solve your problem, contact your nearest Samsung authorized service centrer.You cannot switch thecamcorder on.START/STOP buttondoes not operatewhile recording.The camcorder goesoff automatically.The battery pack isquickly exhausted.When you see a bluescreen duringplayback.A vertical strip appearson the screen whenrecording a darkbackground.Auto focus does notwork.Play, FF or REWbutton does not work.Check the battery pack or the AC Power Adapter.Check the POWER switch is set to CAMERA.You have reached the end of the cassette.Check the record protection tab on the cassette.You have left the camcorder set to STBY for morethan 5 minutes without using it.The battery pack is fully exhausted.The atmospheric temperature is too low.The battery pack has not been charged fully.The battery pack is completely dead, and cannot berecharged, Use another battery pack.The video heads may be dirty.Clean the head with a cleaning tape.The contrast between the subject and the backgroundis too great for the camcorder to operate normally.Make the background bright to reduce the contrast oruse the BLC function while you are recording brighter.The image in theviewfinder is blurred.The Viewfinder lens has not been adjusted.Adjust the viewfinder control lever until the indicatorsdisplayed on the viewfinder come into sharp focus.Check the M.FOCUS menu.Auto focus does not work in the Manual Focus mode.Check the POWER switch. Set the power switch to PLAYER.You have reached the beginning or end of the cassette.When you see abroken block imageduring the RECORDSEARCH.This is normal operation and it is not a failure ordefect.Explanation/SolutionSymptom(58~100).quark3.3E 2/8/03 9:31 AM Page 96
ENGLISH9797Specifications• These technical specifications and design may be changed without notice.SystemVideo signalVideo recording systemAudio recording systemUsable cassetteTape speedTape recording timeFF/REW timeImage deviceLensFilter diameterLCD monitor/ViewfinderSize/dot numberLCD monitor MethodViewfinderConnectorsVideo outputS-video output Audio output DV input/outputUSB outputExternal micNTSC2 rotary heads, Helical scanning systemRotary heads, PCM systemDigital video tape (6.35mm width): Mini DV cassetteSP: approx. 18.81mm/s LP: approx. 12.56mm/s SP: 60 minutes (when using DVM 60), LP: 90 minutes (when using DVM 60)Approx. 180 sec. (using DVM60 tape)CCD (Charge Coupled Device)F1.4 10x(Optical), 800x(Digital) Electronic zoom lensØ372.5inch (112,000)TFT LCD0.24" B/W LCD1Vp-p (75Ωterminated)Y: 1Vp-p, 75Ω, C: 0. 286Vp-p, 75Ω-7.5dBs (600Ωterminated)4pin special in/out connectorMini-B type connector Ø3.5 stereoGeneralPower sourcePower source typePower consumption(Recording)Operating temperatureStorage temperatureExternal dimensionWeightBuilt-in MIC Remote controlDC 8.4V, Lithium Ion Battery Pack 7.4VLithium Ion Battery Pack, Power supply (100V~240V) 50/60Hz 5.0W(LCD), 3.9W(EVF)0˚~40˚C (32˚F~104˚F) -20˚C ~ 60˚C (-4˚F ~ 140˚F) Length 7inches(156mm), Height 3.54inches(90mm), Width 2.48inches(58mm) 1.21lbs(500g) (Except for Lithium Ion Battery Pack and tape) Omni-directional stereo condenser microphoneIndoors: greater than 49ft(15m) (straight line), Outdoors: greater than 16.4ft(5m) (straight line)Model name: SCD23/D24(58~100).quark3.3E 2/8/03 9:31 AM Page 97
ENGLISH9898INDEXAccessories ............................................................................................... 12Audio dubbing(SCD24 only) ...................................................................... 61AUDIO MODE ........................................................................................... 49Battery Pack .............................................................................................. 24BLC ............................................................................................................ 59Cassette ..................................................................................................... 27Cleaning ..................................................................................................... 92CLOCK SET .............................................................................................. 37Connecting ................................................................................................. 69DATE/TIME ................................................................................................ 51DC Cable ................................................................................................... 23Deleting ...................................................................................................... 89DEMONSTRATION ................................................................................... 39DIS ............................................................................................................ 45DSE ............................................................................................................ 46DV .......................................................................................................75, 76EASY Mode ............................................................................................... 57REC Search ............................................................................................... 29EXPOSURE ............................................................................................... 55Fade ........................................................................................................... 60Formatting .................................................................................................. 90Frame advance(SCD24 only) ................................................................... 71Functions Keys .......................................................................................... 14Hand Strap ................................................................................................. 22IEEE1394 ................................................................................................... 75Image quality ............................................................................................. 82LCD ...................................................................................................... 30, 31Memory Stick(SCD24 only) ................................................................. 79, 83MF/AF ........................................................................................................ 58OSD ..................................................................................................... 18, 19PHOTO SEARCH ...................................................................................... 63PROGRAM AE .......................................................................................... 40Protection ................................................................................................... 88Quick Menu ................................................................................................ 53REC MODE ............................................................................................... 48REMOCON(SCD24 only) .......................................................................... 38Remote control(SCD24 only) .............................................................. 17, 20SHUTTER SPEED .................................................................................... 55Sound ......................................................................................................... 34Speaker ...................................................................................................... 34Still images ................................................................................................ 86TV DISPLAY .............................................................................................. 52USB ............................................................................................................ 77Viewfinder ............................................................................................ 30, 32WHT. BALANCE ........................................................................................ 42WIND CUT ................................................................................................. 50ZERO MEMORY(SCD24 only) ................................................................. 72Zoom .................................................................................................... 43, 44- A - - M -- O -- P -- Q -- R -- S -- T -- U -- V -- W -- Z -- B -- C -- D -- E -- F -- H -- I -- L -(58~100).quark3.3E 2/8/03 9:31 AM Page 98
ENGLISH9999WarrantySAMSUNGLIMITED WARRANTYSAMSUNG Electronics America Inc. (SEA), warrants that this product is free from defective material and workmanship.SEA further warrants that if product fails to operate properly within the specified warranty period and the failure is dueto improper workmanship or defective material, SEA will repair or replace the product at it’s option.All warranty repairs must be performed by a SEA authorized service center. The name and address of the locationnearest you can be obtained by calling toll free: 1-800 SAMSUNG (1-800-726-7864).Labor90 days carry-inParts1 yearOn carry-in models, transportation to and from the service center is the customer’s responsibility.The original dated sales receipt must be retained by the customer and is the only acceptable proof of purchase. It must be presented to the authorized service center.EXCLUSIONS (WHAT IS NOT COVERED)This warranty does not cover damage due to accident, fire, flood and/or other acts of God; misuse, incorrect linevoltage, improper installation, improper or unauthorized repairs, commercial use, or damage that occurs in shipping.Exterior and interior finish, lamps, and glass are not covered under this warranty.Customer adjustments which are explained in the instruction manual are not covered under the terms of this warranty.This warranty will automatically be voided for any unit found with a missing or altered serial number. This warranty isvalid only on products purchased in the United States and Puerto Rico.Some States do not allow the exclusions or limitations of incidental or consequential damages, or allow limitations onhow long an implied warranty lasts, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from State to State.(58~100).quark3.3E 2/8/03 9:31 AM Page 99
