ge.comMicrowave OvenDE68-03215A 49-40514 01-06 JRJES1036JES1136Owner’s ManualSafety Instructions . . . . . . . . . .2–10Operating InstructionsCare and Cleaning . . . . . . . .31, 32Changing the Power Level . . . .16Convenience Features . . . . .23–26Features of YourMicrowave Oven . . . . . . . . . .12–15Microwave Terms . . . . . . . . . . . .30Other Features . . . . . . . . . . .27–29Time Features . . . . . . . . . . . .17–22Troubleshooting Tips . . . . . . .33, 34Things That Are Normal With Your Microwave Oven . . . . .34Consumer SupportConsumer Support . . .Back CoverWarranty . . . . . . . . . . . . . . . . . . .35Write the model and serial numbers here:Model # ________________________Serial # ________________________Find these numbers on a label insidethe oven.49-40514 v03 1/16/06 9:28 AM Page 1

■Read and follow the specificprecautions in the Precautionsto Avoid Possible Exposure toExcessive Microwave Energysection above.■This appliance must begrounded. Connect only to a properly groundedoutlet. See the GroundingInstructions section on page 8.■Install or locate this applianceonly in accordance with the provided InstallationInstructions.■Be certain to place the frontsurface of the door threeinches or more back from the countertop edge to avoidaccidental tipping of theappliance in normal usage.■Do Not Attempt to operate this oven with the door opensince open-door operationcan result in harmfulexposure to microwaveenergy. It is important not to defeat or tamper with the safety interlocks.■Do Not Place any objectbetween the oven front face and the door or allow soil or cleaner residue toaccumulate on sealingsurfaces.■Do Not Operate the oven if it is damaged. It is particularlyimportant that the oven doorclose properly and that thereis no damage to the:door (bent),hinges and latches (broken or loosened),door seals and sealingsurfaces.■The Oven Should Not be adjusted or repaired byanyone except properlyqualified service personnel.321PRECAUTIONS TO AVOID POSSIBLEEXPOSURE TO EXCESSIVEMICROWAVE ENERGYSafety InformationOperating InstructionsTroubleshooting TipsConsumer SupportIMPORTANT SAFETY INFORMATION.READ ALL INSTRUCTIONS BEFORE USING.2For your safety, the information in this manual must befollowed to minimize the risk of fire or explosion, electricshock, or to prevent property damage, personal injury, or loss of life.WARNING! When using electrical appliances basic safetyprecautions should be followed, including the following:SAFETY PRECAUTIONS49-40514 v03 1/16/06 9:28 AM Page 2

3Consumer SupportTroubleshooting TipsOperating InstructionsSafety InformationUse this appliance only for its intended purpose as described in thisOwner’s Manual.■This microwave oven is not approvedor tested for marine use.■Do not mount this appliance over a sink. ■Do not mount the microwave ovenover or near any portion of a heatingor cooking appliance.■Do not store anything directly on topof the microwave oven surface whenthe microwave oven is in operation.■Do not operate this appliance if it hasa damaged power cord or plug, if it isnot working properly, or if it has beendamaged or dropped. ■Do not cover or block any openingson the appliance.■Use this appliance only for itsintended use as described in thismanual. Do not use corrosivechemicals or vapors in this appliance.This microwave oven is specificallydesigned to heat, dry or cook food,and is not intended for laboratory or industrial use.■Do not store this appliance outdoors.Do not use this product near water—for example, in a wet basement, neara swimming pool, near a sink or insimilar locations.■Keep power cord away from heatedsurfaces.■Do not immerse power cord or plug in water.■Do not let power cord hang over edge of table or counter.■To reduce the risk of fire in the oven cavity:— Do not overcook food. Carefullyattend appliance when paper, plasticor other combustible materials areplaced inside the oven while cooking.— Remove wire twist-ties and metalhandles from paper or plasticcontainers before placing them in the oven.— Do not use the oven for storagepurposes. Do not leave paperproducts, cooking utensils or food in the oven when not in use.— If materials inside the oven ignite,keep the oven door closed, turn theoven off and disconnect the powercord, or shut off power at the fuse orcircuit breaker panel. If the door isopened, the fire may spread.■See door surface cleaning instructionsin the Care and cleaning of themicrowave ovensection of this manual.■GE does not support any servicing of the microwave. We stronglyrecommend that you do not attemptto service the microwave yourself.■As with any appliance, closesupervision is necessary when used by children.ge.com49-40514 v03 1/16/06 9:28 AM Page 3

Arcing is the microwave term for sparks in the oven. Arcing is caused by:■Metal or foil touching theside of the oven.■Foil not molded to food(upturned edges act likeantennas).■Metal, such as twist-ties,poultry pins or gold-rimmeddishes, in the microwave.■Recycled paper towelscontaining small metal piecesbeing used in the microwave.■Do not pop popcorn in yourmicrowave oven unless in aspecial microwave popcornaccessory or unless you usepopcorn labeled for use inmicrowave ovens.■Some products such as whole eggs and sealedcontainers—for example,closed jars—are able toexplode and should not beheated in this microwaveoven. Such use of themicrowave oven could result in injury.■Do not boil eggs in amicrowave oven. Pressure will build up inside egg yolkand will cause it to burst,possibly resulting in injury.■Operating the microwave with no food inside for morethan a minute or two maycause damage to the oven and could start a fire. It increases the heat around the magnetron and canshorten the life of the oven.■Foods with unbroken outer“skin” such as potatoes, hotdogs, sausages, tomatoes,apples, chicken livers andother giblets, and egg yolksshould be pierced to allowsteam to escape duringcooking.FOODSSafety InformationOperating InstructionsTroubleshooting TipsConsumer Support4WARNING! If you see arcing, press the CLEAR/OFF pad and correctthe problem.ARCINGIMPORTANT SAFETY INFORMATION.READ ALL INSTRUCTIONS BEFORE USING.49-40514 v03 1/16/06 9:28 AM Page 4

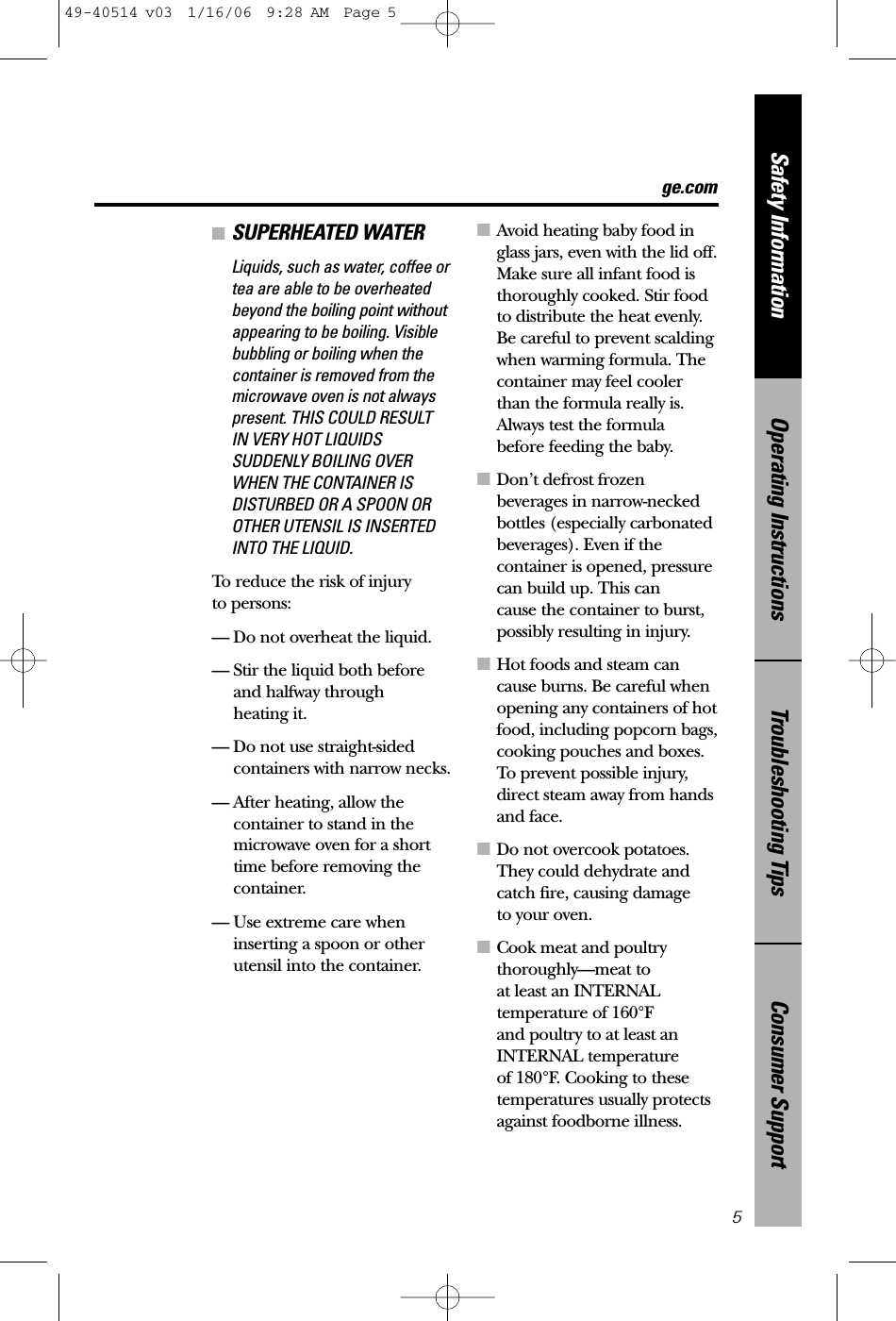

Consumer SupportTroubleshooting TipsOperating InstructionsSafety Information■SUPERHEATED WATERLiquids, such as water, coffee ortea are able to be overheatedbeyond the boiling point withoutappearing to be boiling. Visiblebubbling or boiling when thecontainer is removed from themicrowave oven is not alwayspresent. THIS COULD RESULTIN VERY HOT LIQUIDSSUDDENLY BOILING OVERWHEN THE CONTAINER ISDISTURBED OR A SPOON OROTHER UTENSIL IS INSERTEDINTO THE LIQUID.To reduce the risk of injury to persons:— Do not overheat the liquid.— Stir the liquid both beforeand halfway through heating it.— Do not use straight-sidedcontainers with narrow necks.— After heating, allow thecontainer to stand in themicrowave oven for a shorttime before removing thecontainer.— Use extreme care wheninserting a spoon or otherutensil into the container.■Avoid heating baby food inglass jars, even with the lid off.Make sure all infant food isthoroughly cooked. Stir foodto distribute the heat evenly.Be careful to prevent scaldingwhen warming formula. Thecontainer may feel coolerthan the formula really is.Always test the formula before feeding the baby.■Don’t defrost frozenbeverages in narrow-neckedbottles (especially carbonatedbeverages). Even if thecontainer is opened, pressurecan build up. This can cause the container to burst,possibly resulting in injury.■Hot foods and steam cancause burns. Be careful whenopening any containers of hotfood, including popcorn bags,cooking pouches and boxes.To prevent possible injury,direct steam away from handsand face.■Do not overcook potatoes.They could dehydrate andcatch fire, causing damage to your oven.■Cook meat and poultrythoroughly—meat to at least an INTERNALtemperature of 160°F and poultry to at least anINTERNAL temperature of 180°F. Cooking to thesetemperatures usually protectsagainst foodborne illness.5ge.com49-40514 v03 1/16/06 9:28 AM Page 5

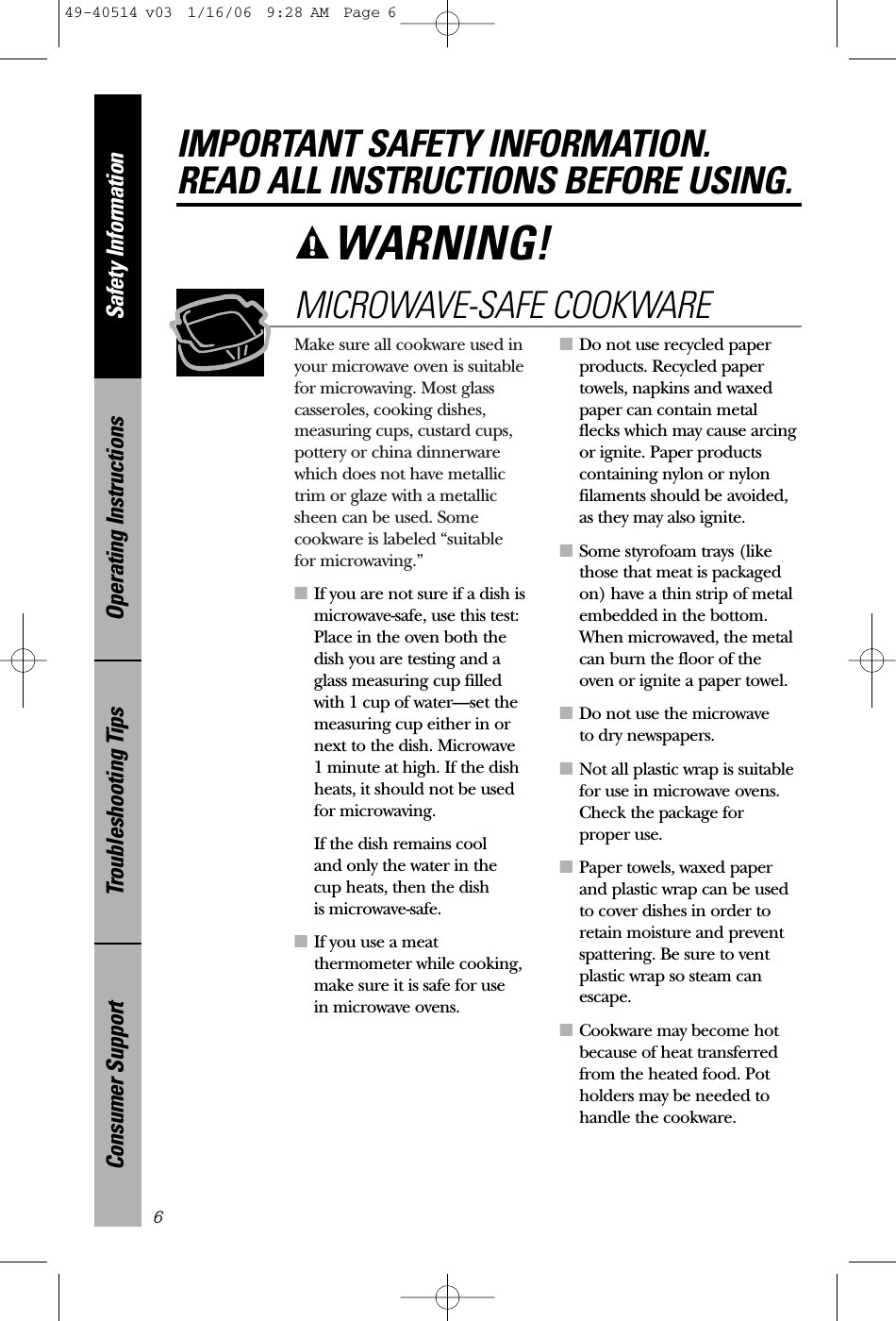

Make sure all cookware used inyour microwave oven is suitablefor microwaving. Most glasscasseroles, cooking dishes,measuring cups, custard cups,pottery or china dinnerwarewhich does not have metallictrim or glaze with a metallicsheen can be used. Somecookware is labeled “suitable for microwaving.”■If you are not sure if a dish ismicrowave-safe, use this test:Place in the oven both thedish you are testing and aglass measuring cup filled with 1 cup of water—set themeasuring cup either in ornext to the dish. Microwave 1 minute at high. If the dishheats, it should not be usedfor microwaving. If the dish remains cool and only the water in the cup heats, then the dish is microwave-safe.■If you use a meatthermometer while cooking,make sure it is safe for use in microwave ovens.■Do not use recycled paperproducts. Recycled papertowels, napkins and waxedpaper can contain metalflecks which may cause arcingor ignite. Paper productscontaining nylon or nylonfilaments should be avoided,as they may also ignite. ■Some styrofoam trays (likethose that meat is packagedon) have a thin strip of metalembedded in the bottom.When microwaved, the metalcan burn the floor of theoven or ignite a paper towel.■Do not use the microwave to dry newspapers.■Not all plastic wrap is suitablefor use in microwave ovens.Check the package for proper use.■Paper towels, waxed paperand plastic wrap can be usedto cover dishes in order toretain moisture and preventspattering. Be sure to ventplastic wrap so steam canescape.■Cookware may become hotbecause of heat transferredfrom the heated food. Potholders may be needed tohandle the cookware.MICROWAVE-SAFE COOKWARESafety InformationOperating InstructionsTroubleshooting TipsConsumer Support6WARNING! IMPORTANT SAFETY INFORMATION.READ ALL INSTRUCTIONS BEFORE USING.49-40514 v03 1/16/06 9:28 AM Page 6

7Consumer SupportTroubleshooting TipsOperating InstructionsSafety Information■“Boilable” cooking pouchesand tightly closed plastic bagsshould be slit, pierced orvented as directed by package.If they are not, plastic couldburst during or immediatelyafter cooking, possiblyresulting in injury. Also,plastic storage containersshould be at least partiallyuncovered because they forma tight seal. When cookingwith containers tightlycovered with plastic wrap,remove covering carefully and direct steam away fromhands and face.■Use foil only as directed inthis guide. TV dinners may bemicrowaved in foil trays lessthan 3/4″high; remove thetop foil cover and return thetray to the box. When usingfoil in the microwave oven,keep the foil at least 1″awayfrom the sides of the oven.■Plastic cookware—Plasticcookware designed formicrowave cooking is veryuseful, but should be usedcarefully. Even microwave-safeplastic may not be as tolerantof overcooking conditions asare glass or ceramic materialsand may soften or char ifsubjected to short periods of overcooking. In longerexposures to overcooking, the food and cookware could ignite. Follow these guidelines: Use microwave-safeplastics only and use them in strictcompliance with thecookware manufacturer’srecommendations. Do not microwave empty containers. Do not permit children to use plastic cookwarewithout completesupervision.321ge.com49-40514 v03 1/16/06 9:28 AM Page 7

This appliance must be grounded. In the event of an electrical shortcircuit, grounding reduces the risk of electric shock by providing anescape wire for the electric current. This appliance is equipped with a power cord having a groundingwire with a grounding plug. The plug must be plugged into an outletthat is properly installed and grounded.Consult a qualified electrician or service technician if the groundinginstructions are not completely understood, or if doubt exists as towhether the appliance is properly grounded.If the outlet is a standard 2-prong wall outlet, it is your personalresponsibility and obligation to have it replaced with a properlygrounded 3-prong wall outlet.Do not under any circumstances cut or remove the third (ground)prong from the power cord.We do not recommend using an extension cord with this appliance. If the power cord is too short, have a qualified electrician or servicetechnician install an outlet near the appliance. (See WARNING—EXTENSION CORDS section.)For best operation, plug this appliance into its own electrical outletto prevent flickering of lights, blowing of fuse or tripping of circuitbreaker.GROUNDING INSTRUCTIONSSafety InformationOperating InstructionsTroubleshooting TipsConsumer Support8Improper use of the grounding plug can result in a risk ofelectric shock.WARNING! IMPORTANT SAFETY INFORMATION.READ ALL INSTRUCTIONS BEFORE USING.49-40514 v03 1/16/06 9:28 AM Page 8

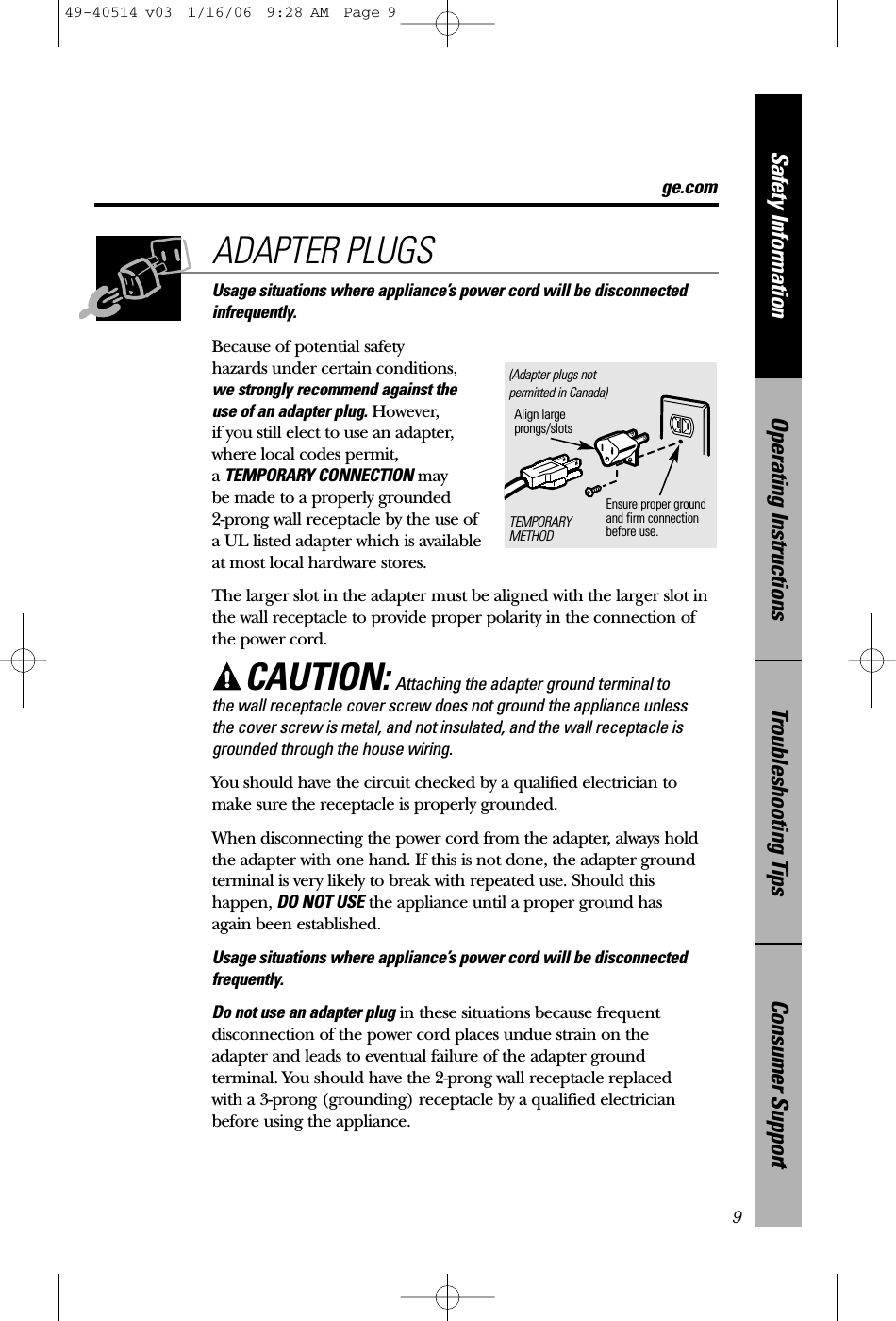

Consumer SupportTroubleshooting TipsOperating InstructionsSafety InformationUsage situations where appliance’s power cord will be disconnectedinfrequently.Because of potential safety hazards under certain conditions,we strongly recommend against the use of an adapter plug. However, if you still elect to use an adapter, where local codes permit, a TEMPORARY CONNECTION may be made to a properly grounded 2-prong wall receptacle by the use of a UL listed adapter which is available at most local hardware stores.The larger slot in the adapter must be aligned with the larger slot inthe wall receptacle to provide proper polarity in the connection ofthe power cord.CAUTION: Attaching the adapter ground terminal to the wall receptacle cover screw does not ground the appliance unless the cover screw is metal, and not insulated, and the wall receptacle isgrounded through the house wiring. You should have the circuit checked by a qualified electrician tomake sure the receptacle is properly grounded.When disconnecting the power cord from the adapter, always holdthe adapter with one hand. If this is not done, the adapter groundterminal is very likely to break with repeated use. Should thishappen, DO NOT USE the appliance until a proper ground has again been established.Usage situations where appliance’s power cord will be disconnectedfrequently.Do not use an adapter plug in these situations because frequentdisconnection of the power cord places undue strain on the adapter and leads to eventual failure of the adapter ground terminal. You should have the 2-prong wall receptacle replaced with a 3-prong (grounding) receptacle by a qualified electricianbefore using the appliance.ADAPTER PLUGS9Ensure proper ground and firm connectionbefore use.TEMPORARYMETHODAlign largeprongs/slots(Adapter plugs notpermitted in Canada)ge.com49-40514 v03 1/16/06 9:28 AM Page 9

Safety InformationOperating InstructionsTroubleshooting TipsConsumer Support10WARNING! A short power supply cord is provided to reduce the risks resultingfrom becoming entangled in or tripping over a longer cord.Extension cords may be used if you are careful in using them.If an extension cord is used—The marked electrical rating of the extension cord should be at least as great as the electrical rating of the appliance;The extension cord must be a grounding-type 3-wire cord and it must be plugged into a 3-slot outlet;The extension cord should be arranged so that it will not drapeover the countertop or tabletop where it can be pulled on bychildren or tripped over unintentionally.If you use an extension cord, the interior light may flicker and theblower sound may vary when the microwave oven is on. Cookingtimes may be longer, too.321EXTENSION CORDSIMPORTANT SAFETY INFORMATION.READ ALL INSTRUCTIONS BEFORE USING.49-40514 v03 1/16/06 9:28 AM Page 10

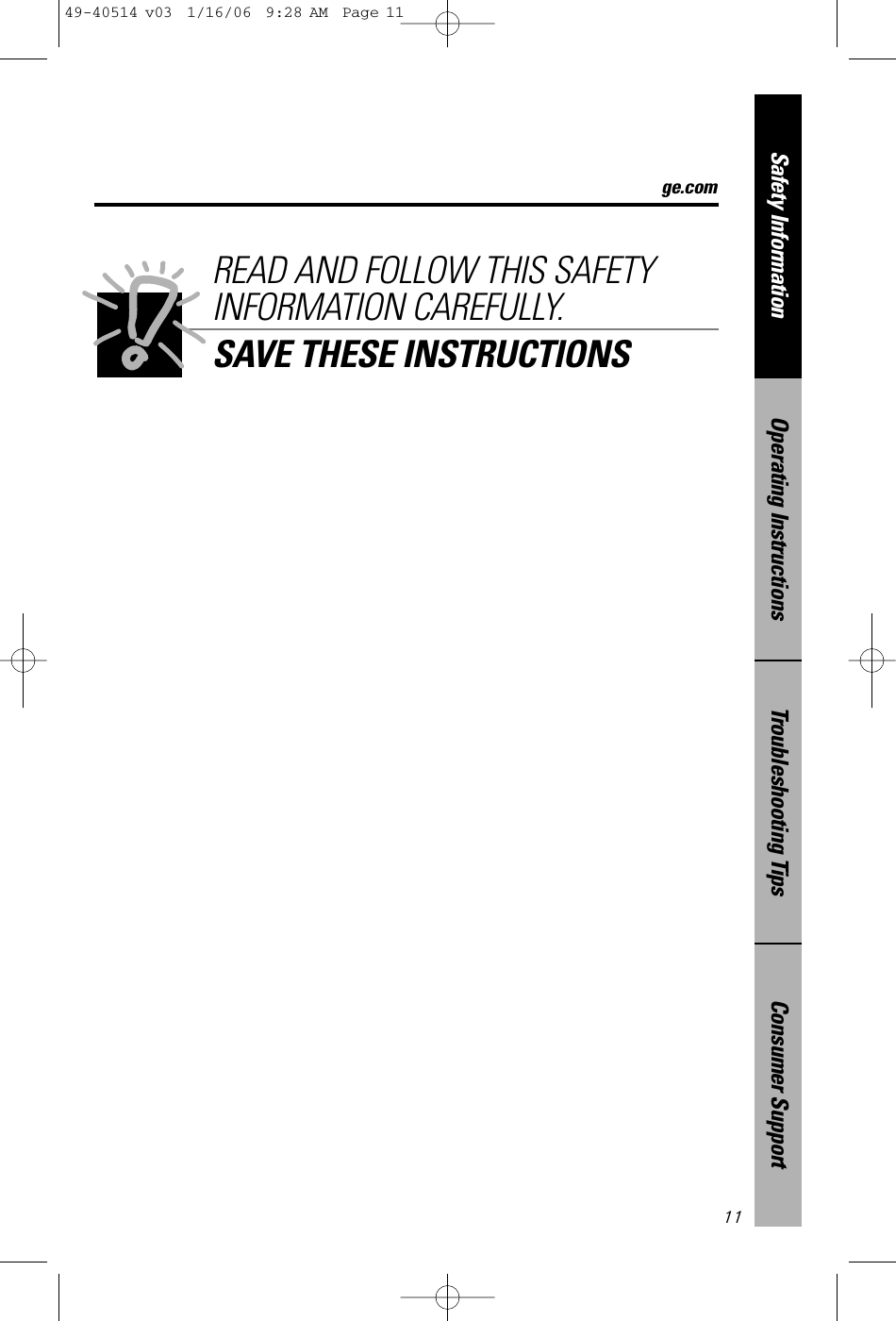

Consumer SupportTroubleshooting TipsOperating InstructionsSafety Information11READ AND FOLLOW THIS SAFETYINFORMATION CAREFULLY.SAVE THESE INSTRUCTIONSge.com49-40514 v03 1/16/06 9:28 AM Page 11

12Safety InformationOperating InstructionsTroubleshooting TipsConsumer SupportAbout the features of your microwave oven.Throughout this manual, features and appearance may vary from your model.1100 Watts49-40514 v03 1/16/06 9:28 AM Page 12

Consumer SupportTroubleshooting TipsOperating InstructionsSafety Information13Features of the OvenDoor Latches.Window with Metal Shield. Screen allows cooking to be viewed while keeping microwaves confined in the oven.Convenience Guide.Touch Control Panel Display.Door Latch Release. Press latch release to open door.Removable Turntable. Turntable and support must be in place when using the oven. The turntable may be removed for cleaning.NOTE: Rating plate, oven vent(s) and oven light are located on the inside walls of the microwave oven.ge.com49-40514 v03 1/16/06 9:28 AM Page 13

You can microwave by time or with the convenience features. Safety InformationOperating InstructionsTroubleshooting TipsConsumer Support14Time Features Convenience FeaturesAbout the features of your microwave oven.Throughout this manual, features and appearance may vary from your model.49-40514 v04 1/17/06 11:02 AM Page 14

Consumer SupportTroubleshooting TipsOperating InstructionsSafety InformationCooking ControlsCheck the Convenience Guide before you begin.Time FeaturesPress EnterTIME COOK Amount of cooking timePress once or twiceTIME DEFROST Amount of defrosting timeADD 30 SEC. Starts immediately!EXPRESS COOK Starts immediately!POWER LEVEL Power level 1–10Convenience FeaturesPress Enter OptionPOPCORN Starts immediately! 3.5 oz., 3 oz.Press once, twice or 1.75 oz.or three times more/less timeBEVERAGEStarts immediately! 4 oz., 8 oz. Press once, twiceor 12 oz.or three timesREHEAT Food type 1–4 Serving sizeCOOKFood type 1–6 + weightAUTO DEFROST Food weight15ge.com49-40514 v03 1/16/06 9:28 AM Page 15

Safety InformationOperating InstructionsTroubleshooting TipsConsumer Support16The power level may be entered or changedimmediately after entering the feature time for Time Cook, Time Defrost or Express Cook. The power level may also be changed during time countdown.Press TIME COOK or TIME DEFROST.Enter cooking or defrosting time.Press POWER LEVEL.Select desired power level 1–10.Press START/PAUSE.Variable power levels add flexibility to microwavecooking. The power levels on the microwave oven can be compared to the surface units on a range. Each power level gives you microwave energy a certainpercent of the time. Power level 7 is microwave energy70% of the time. Power level 3 is energy 30% of thetime. Most cooking will be done on High (power level 10)which gives you 100% power. Power level 10 will cookfaster but food may need more frequent stirring,rotating or turning over. A lower setting will cook more evenly and need less stirring or rotating of thefood. Some foods may have better flavor, texture orappearance if one of the lower settings is used. Use a lower power level when cooking foods that have a tendency to boil over, such as scalloped potatoes.Rest periods (when the microwave energy cycles off)give time for the food to “equalize” or transfer heat tothe inside of the food. An example of this is shown withpower level 3—the defrost cycle. If microwave energydid not cycle off, the outside of the food would cookbefore the inside was defrosted.Here are some examples of uses for various power levels:High 10: Fish, bacon, vegetables, boiling liquids.Med-High 7: Gentle cooking of meat and poultry; baking casseroles and reheating.Medium 5: Slow cooking and tenderizing for stews andless tender cuts of meat.Low 2 or 3: Defrosting; simmering; delicate sauces.Warm 1: Keeping food warm; softening butter.54321About changing the power level.49-40514 v03 1/16/06 9:28 AM Page 16

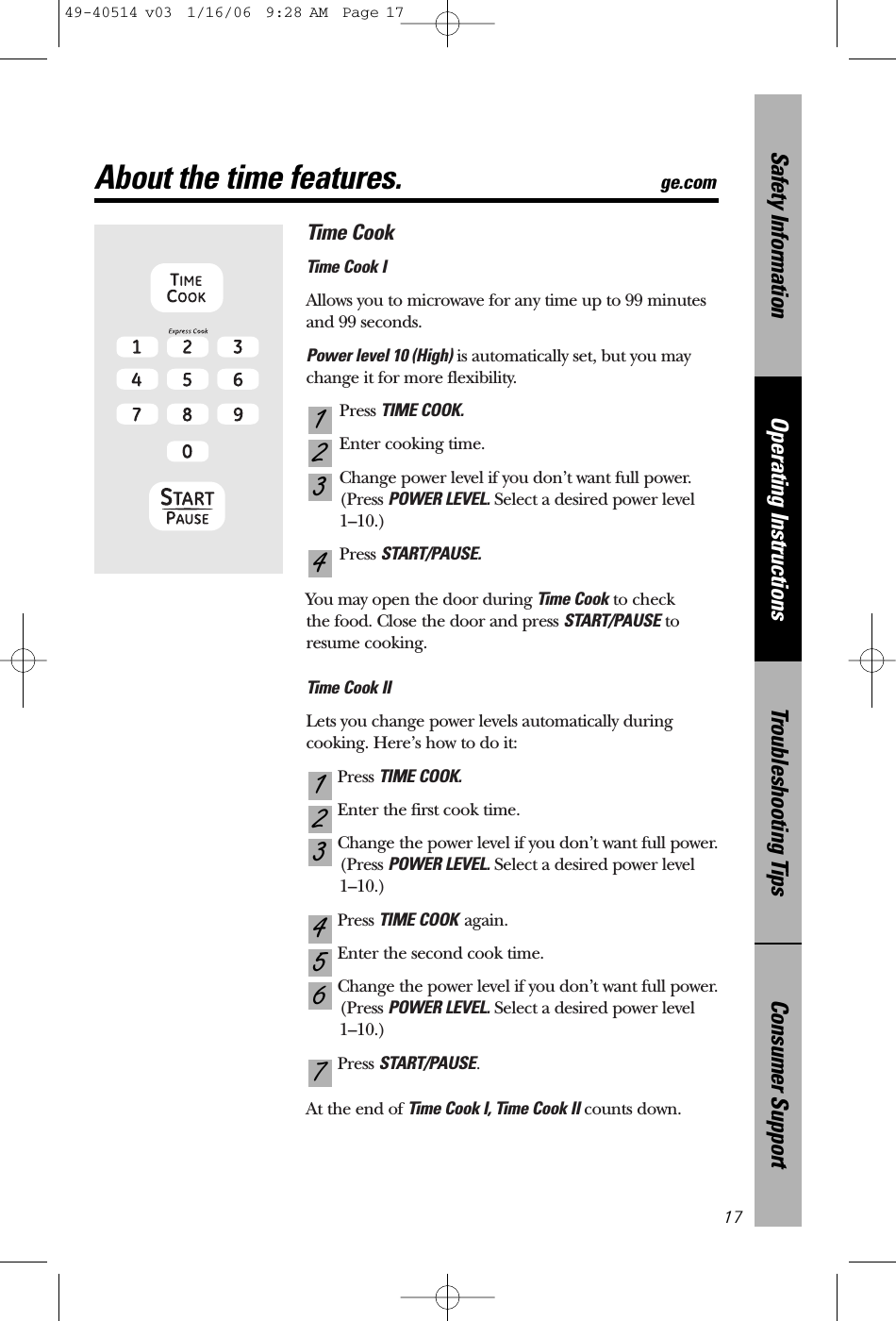

Time CookTime Cook IAllows you to microwave for any time up to 99 minutesand 99 seconds. Power level 10 (High) is automatically set, but you maychange it for more flexibility. Press TIME COOK.Enter cooking time.Change power level if you don’t want full power.(Press POWER LEVEL. Select a desired power level1–10.)Press START/PAUSE.You may open the door during Time Cook to check the food. Close the door and press START/PAUSE toresume cooking.Time Cook IILets you change power levels automatically duringcooking. Here’s how to do it:Press TIME COOK.Enter the first cook time. Change the power level if you don’t want full power.(Press POWER LEVEL. Select a desired power level1–10.)Press TIME COOK again.Enter the second cook time.Change the power level if you don’t want full power.(Press POWER LEVEL. Select a desired power level1–10.)Press START/PAUSE.At the end of Time Cook I, Time Cook II counts down.7654321432117Consumer SupportTroubleshooting TipsOperating InstructionsSafety InformationAbout the time features. ge.com49-40514 v03 1/16/06 9:28 AM Page 17

Safety InformationOperating InstructionsTroubleshooting TipsConsumer SupportCooking Guide for Time Cook NOTE: Use power level High (10) unless otherwise noted.18Vegetable Amount Time CommentsAsparagus(fresh spears) 1 lb. 5 to 8 min., In 11⁄2-qt. oblong glass baking Med-High (7) dish, place 1/4 cup water. (frozen spears) 10-oz. package 4 to 7 min. In 1-qt. casserole.Beans(fresh green) 1 lb. cut in half 10 to 15 min. In 11⁄2-qt. casserole, place 1/2 cup water.(frozen green) 10-oz. package 4 to 8 min. In 1-qt. casserole, place 2 tablespoons water.(frozen lima) 10-oz. package 4 to 8 min. In 1-qt. casserole, place 1/4 cup water.Beets(fresh, whole) 1 bunch 16 to 22 min. In 2-qt. casserole, place 1/2 cup water.Broccoli(fresh cut) 1 bunch 5 to 9 min. In 2-qt. casserole, place (11⁄4to 11⁄2lbs.) 1/2 cup water.(fresh spears) 1 bunch 7 to 11 min. In 2-qt. oblong glass baking dish,(11⁄4to 11⁄2lbs.) place 1/4 cup water.(frozen, 10-oz. package 4 to 7 min. In 1-qt. casserole.chopped)(frozen spears) 10-oz. package 4 to 7 min. In 1-qt. casserole, place 3 tablespoons water.Cabbage(fresh) 1 medium head 6 to 10 min. In 11⁄2- or 2-qt. casserole, place (about 2 lbs.) 1/4 cup water.(wedges) 5 to 9 min. In 2- or 3-qt. casserole, place 1/4 cup water.Carrots(fresh, sliced) 1 lb. 4 to 8 min. In 11⁄2-qt. casserole, place 1/4 cup water.(frozen) 10-oz. package 3 to 7 min. In 1-qt. casserole, place 2 tablespoons water.Cauliflower(flowerets) 1 medium head 7 to 11 min. In 2-qt. casserole, place 1/2 cup water.(fresh, whole) 1 medium head 7 to 15 min. In 2-qt. casserole, place 1/2 cup water.(frozen) 10-oz. package 3 to 7 min. In 1-qt. casserole, place 2 tablespoons water.About the time features.49-40514 v03 1/16/06 9:28 AM Page 18

Consumer SupportTroubleshooting TipsOperating InstructionsSafety Information19Vegetable Amount Time CommentsCorn(frozen kernel) 10-oz. package 2 to 6 min. In 1-qt. casserole, place 2 tablespoons water.Corn on the cob(fresh) 1 to 5 ears 11/4to 4 min. In 2-qt. glass baking dish, place per ear corn. If corn is in husk, use no water; if corn has been husked, add 1/4 cup water. Rearrange after half of time. (frozen) 1 ear 3 to 6 min. Place in 2-qt. oblong glass 2 to 6 ears 2 to 3 min. baking dish. Cover with vented per ear plastic wrap. Rearrange after half of time. Mixed vegetables(frozen) 10-oz. package 2 to 6 min. In 1-qt. casserole, place 3 tablespoons water.Peas(fresh, shelled) 2 lbs. unshelled 7 to 10 min. In 1-qt. casserole, place 1/4 cup water.(frozen) 10-oz. package 2 to 6 min. In 1-qt. casserole, place 2 tablespoons water.Potatoes(fresh, cubed, 4 potatoes 9 to 12 min. Peel and cut into 1-inch cubes. white) (6 to 8 oz. each) Place in 2-qt. casserole with 1/2 cup water. Stir after half of time.(fresh, whole, 1 (6 to 8 oz.) 2 to 4 min. Pierce with cooking fork. Place sweet or white) in center of the oven. Let stand 5 minutes.Spinach(fresh) 10 to 16 oz. 3 to 6 min. In 2-qt. casserole, place washed spinach.(frozen, chopped 10-oz. package 3 to 6 min. In 1-qt. casserole, place and leaf) 3 tablespoons water.Squash(fresh, summer1 lb. sliced 3 to 5 min. In 11⁄2-qt. casserole, place 1/4 and yellow) cup water.(winter, acorn 1 or 2 squash 5 to 9 min. Cut in half and remove fibrous or butternut)(about 1 lb. each)membranes. In 2-qt. oblong glass baking dish, place squash cut-side-down. Turn cut-side-upafter 4 minutes. ge.com49-40514 v03 1/16/06 9:28 AM Page 19

Safety InformationOperating InstructionsTroubleshooting TipsConsumer SupportTime DefrostAllows you to defrost for a selected length of time. See the Defrosting Guide for suggested times. Press TIME DEFROST.Enter defrosting time.Press START/PAUSE. Power level is automatically set at 3, but can be changed.You can defrost small items quickly by raising the powerlevel after entering the time. Power level 7 cuts the totaldefrosting time in about half; power level 10 cuts thetotal time to approximately 1/3. However, food willneed more frequent attention than usual.A dull thumping noise may be heard during defrosting.This is normal when oven is not operating at High power.Defrosting Tips■Foods frozen in paper or plastic can be defrosted inthe package. Closed packages should be slit, piercedor vented AFTER food has partially defrosted. Plasticstorage containers should be partially uncovered.■Family-size, prepackaged frozen dinners can bedefrosted and microwaved. If the food is in a foilcontainer, transfer it to a microwave-safe dish.■Foods that spoil easily should not be allowed to sitout for more than one hour after defrosting. Roomtemperature promotes the growth of harmfulbacteria.■For more even defrosting of larger foods, such asroasts, use Auto Defrost. Be sure large meats arecompletely defrosted before cooking.■When defrosted, food should be cool but softened in all areas. If still slightly icy, return to the microwavevery briefly, or let it stand a few minutes.32120About the time features.49-40514 v03 1/16/06 9:28 AM Page 20

Consumer SupportTroubleshooting TipsOperating InstructionsSafety InformationFood Time CommentsBreads, CakesBread, buns or rolls (1 piece) 1/4 min.Sweet rolls (approx. 12 oz.) 2 to 4 min. Rearrange after half the time.Fish and SeafoodFillets, frozen (1 lb.) 6 to 9 min.Shellfish, small pieces(1 lb.)3 to 7 min. Place block in casserole. Turn over and break up after half the time.FruitPlastic pouch—1 or 2 1 to 5 min.(10-oz. package)Meat Bacon (1 lb.) 2 to 5 min. Place unopened package in oven. Let stand 5 minutes after defrosting. Franks (1 lb.) 2 to 5 min. Place unopened package in oven. Microwave just until franks can be separated. Let stand 5 minutes, if necessary, to complete defrosting.Ground meat (1 lb.) 4 to 6 min. Turn meat over after first half of time.Roast: beef, lamb, veal, pork9 to 13 min.Use power level 1.per lb.Steaks, chops and cutlets 4 to 8 min. Place unwrapped meat in cooking per lb. dish. Turn over after first half of time and shield warm areas with foil. After second half of time, separate pieces with table knife. Let stand to complete defrosting. PoultryChicken, broiler-fryer14 to 20 min.Place wrapped chicken in dish. Unwrapcut up (21⁄2to 3 lbs.)and turn over after first half of time. After second half of time, separate piecesand place in cooking dish. Microwave 2–4 minutes more, if necessary. Let standa few minutes to finish defrosting.Chicken, whole20 to 25 min.Place wrapped chicken in dish. After half (21⁄2to 3 lbs.) the time, unwrap and turn chicken over. Shield warm areas with foil. To complete defrosting, run cold water in the cavity until giblets can be removed.Cornish hen 7 to 13 min. Place unwrapped hen in the oven per lb. breast-side-up. Turn over after first half of time. Run cool water in the cavity until giblets can be removed.Turkey breast (4 to 6 lbs.) 3 to 8 min. Place unwrapped breast in microwave-safeper lb. dish breast-side-down. After half of time, turn breast-side-up and shield warm areas with foil. Defrost for second half of time. Let stand 1–2 hours in refrigerator to complete defrosting.Defrosting Guide21ge.com49-40514 v03 1/16/06 9:28 AM Page 21

Safety InformationOperating InstructionsTroubleshooting TipsConsumer SupportAbout the time features.22Express CookThis is a quick way to set cooking time for 1–6 minutes.Press one of the Express Cook pads (from 1 to 6) for 1–6 minutes of cooking at power level 10. For example,press the 2pad for 2 minutes of cooking time. The power level can be changed as time is countingdown. Press POWER LEVEL and enter 1–10.Add 30 SecondsYou can use this feature two ways:■It will add 30 seconds to the time counting downeach time the pad is pressed.■It can be used as a quick way to set 30 seconds ofcooking time.49-40514 v03 1/16/06 9:28 AM Page 22

Safety InformationOperating InstructionsTroubleshooting TipsConsumer Support24About the convenience features.ReheatThe Reheat feature reheats many previously cooked foods.Press REHEAT.Select food type 1–4 for one serving (see ReheatGuide below).For food types 1–3, press 2or 3to reheat 2 or 3 servings. The oven starts immediately.NOTE: The serving size may be changed or addedimmediately after the oven starts by pressing number pads 1, 2 or 3. Serving size for food type 4 cannot bechanged.3211 Pasta Cover with lid or vented plastic wrap.2 Fruits and vegetables Cover with lid or vented plastic wrap.3 Beverages, 4-6 oz. Use wide-mouth mug.4 Plate of leftovers Cover with vented plastic wrap.(2 to 3 foods, 4 oz. each)Food Type CommentsReheat Guide 49-40514 v03 1/16/06 9:28 AM Page 24

ge.comConsumer SupportTroubleshooting TipsOperating InstructionsSafety InformationCookThe Cook feature automatically sets the cooking timesand power levels for a variety of foods.Press COOK.Select food type 1–6 (see the Cook Guide below).Enter weight in ounces.Press START/PAUSE.Hint: Press and hold the COOK pad during cooking to displaythe food type and remaining cook time.43211 Canned Vegetables 4 to 20 oz. Use microwave-safe casserole or bowl. Cover with lid or vented plastic wrap.2 Frozen Vegetables 4 to 16 oz. Use microwave-safe casserole or bowl. Follow package instructions for adding water. Cover with lid or vented plastic wrap.3 Fresh Vegetables 4 to 16 oz. Use microwave-safe casserole or bowl. Add 2 tablespoons water for eachserving. Cover with lid or vented plastic wrap.4 Potatoes 8 to 40 oz. Pierce skin with fork. Place potatoes on the turntable.5 Bacon 2 to 10 oz. Layer strips on a plate, 4 to a layer.Cover each layer with a paper towel.6 Pizza 4 to 16 oz. Follow package instructions to (frozen, microwaveable) prepare pizza for microwaving.Food Type Weight Comments25Cook Guide 49-40514 v03 1/16/06 9:28 AM Page 25

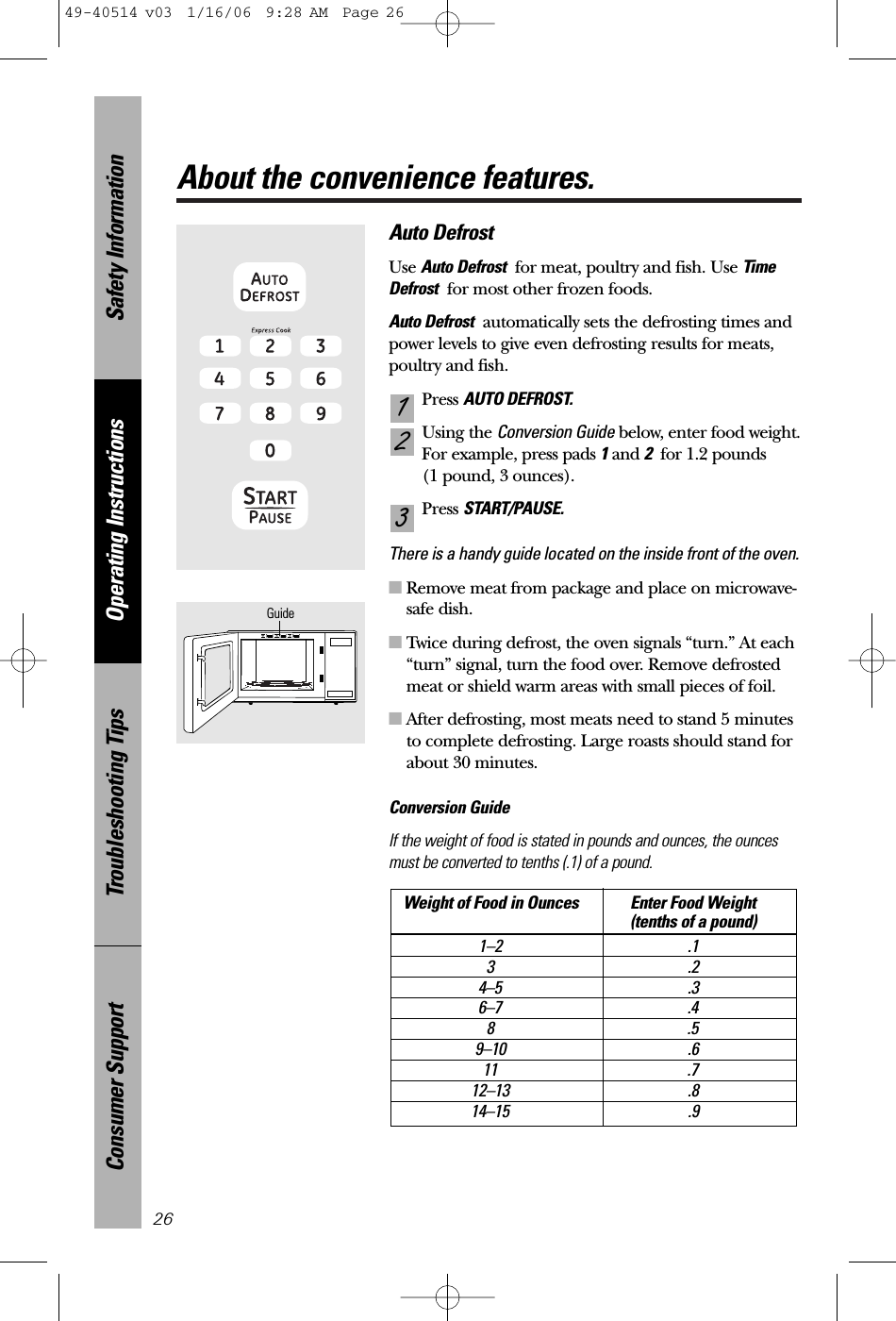

Safety InformationOperating InstructionsTroubleshooting TipsConsumer SupportAbout the convenience features.26Auto DefrostUse Auto Defrost for meat, poultry and fish. Use TimeDefrost for most other frozen foods.Auto Defrost automatically sets the defrosting times andpower levels to give even defrosting results for meats,poultry and fish.Press AUTO DEFROST.Using the Conversion Guide below, enter food weight.For example, press pads 1and 2for 1.2 pounds (1 pound, 3 ounces).Press START/PAUSE.There is a handy guide located on the inside front of the oven. ■Remove meat from package and place on microwave-safe dish.■Twice during defrost, the oven signals “turn.” At each“turn” signal, turn the food over. Remove defrostedmeat or shield warm areas with small pieces of foil.■After defrosting, most meats need to stand 5 minutesto complete defrosting. Large roasts should stand forabout 30 minutes.Conversion GuideIf the weight of food is stated in pounds and ounces, the ouncesmust be converted to tenths (.1) of a pound.Weight of Food in Ounces Enter Food Weight(tenths of a pound)1–2 .13.24–5 .36–7 .48.59–10 .611 .712–13 .814–15 .9321Guide49-40514 v03 1/16/06 9:28 AM Page 26

Consumer SupportTroubleshooting TipsOperating InstructionsSafety InformationClockPress to enter the time of day or to check the time of day while microwaving.Press CLOCK.Enter time of day.Press START/PAUSE or CLOCK.321Delay Start Delay Start allows you to set the microwave to delaycooking up to 12 hours.Press DELAY START.Enter the time you want the oven to start. (Be surethe microwave clock shows the correct time of day.)Select your desired cooking program.Press START/PAUSE.The Delay Start time will be displayed. The oven will automatically start at the delayed time.The time of day may be displayed by pressing CLOCK.432127About the other features. ge.comCooking Complete ReminderTo remind you that you have food in the oven, the ovenwill beep once a minute until you either open the ovendoor or press CLEAR/OFF.49-40514 v03 1/16/06 9:28 AM Page 27

Safety InformationOperating InstructionsTroubleshooting TipsConsumer SupportAbout the other features.28Child Lock-OutYou may lock the control panel to prevent the microwavefrom being accidentally started or used by children.To lock or unlock the controls, press and hold CLEAR/OFFfor about three seconds. When the control panel islocked, LOC will be displayed.START/PAUSEIn addition to starting many functions, START/PAUSEallows you to stop cooking without opening the door or clearing the display.49-40514 v03 1/16/06 9:28 AM Page 28

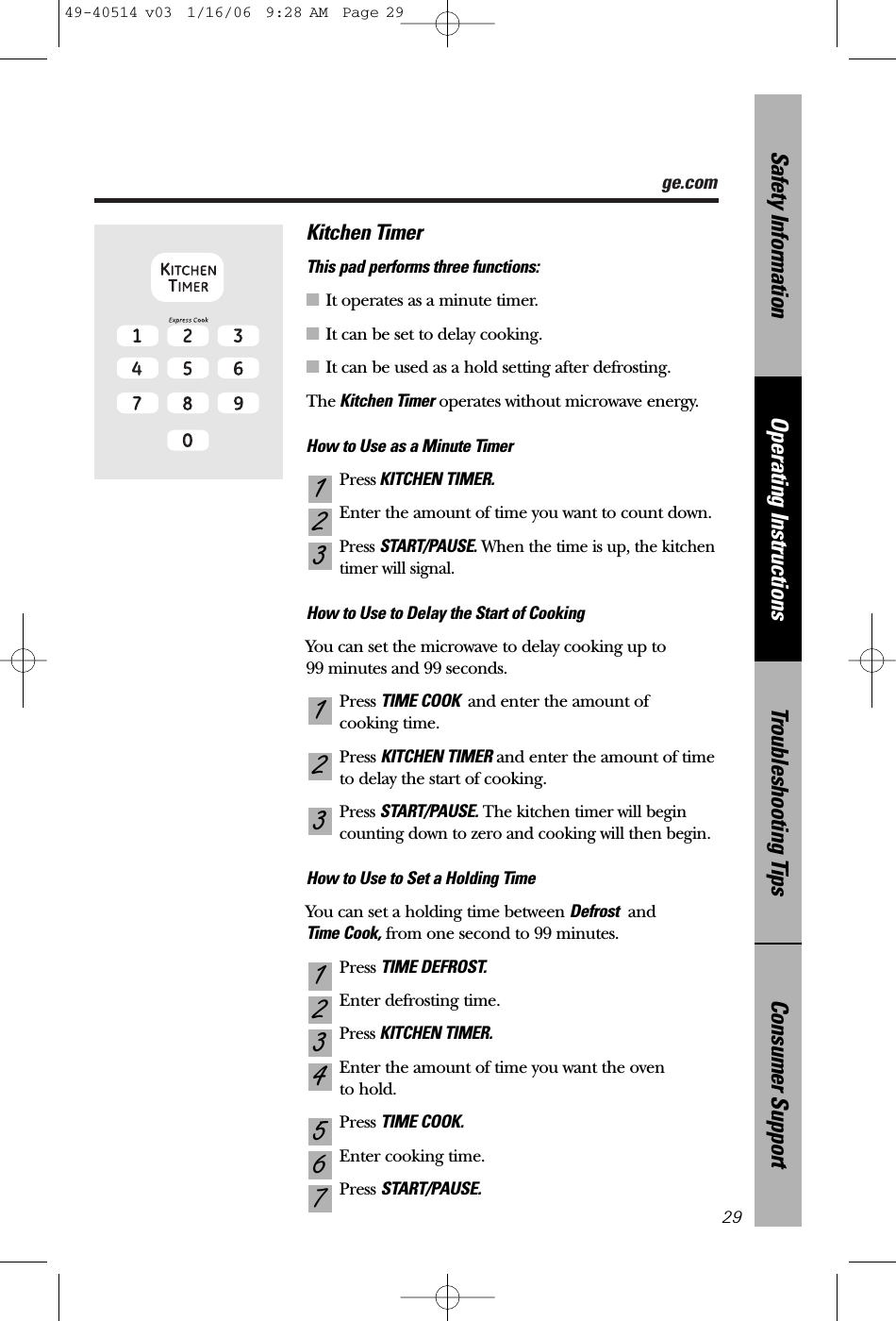

ge.comConsumer SupportTroubleshooting TipsOperating InstructionsSafety InformationKitchen TimerThis pad performs three functions:■It operates as a minute timer.■It can be set to delay cooking.■It can be used as a hold setting after defrosting.The Kitchen Timer operates without microwave energy.How to Use as a Minute TimerPress KITCHEN TIMER.Enter the amount of time you want to count down.Press START/PAUSE. When the time is up, the kitchentimer will signal.How to Use to Delay the Start of CookingYou can set the microwave to delay cooking up to 99 minutes and 99 seconds.Press TIME COOK and enter the amount of cooking time.Press KITCHEN TIMER and enter the amount of timeto delay the start of cooking.Press START/PAUSE. The kitchen timer will begincounting down to zero and cooking will then begin.How to Use to Set a Holding TimeYou can set a holding time between Defrost and Time Cook, from one second to 99 minutes.Press TIME DEFROST.Enter defrosting time.Press KITCHEN TIMER.Enter the amount of time you want the oven to hold.Press TIME COOK.Enter cooking time.Press START/PAUSE.76543213213212949-40514 v03 1/16/06 9:28 AM Page 29

Safety InformationOperating InstructionsTroubleshooting TipsConsumer SupportMicrowave terms.Arcing Arcing is the microwave term for sparks in the oven. Arcing is caused by:■metal or foil touching the side of the oven.■foil that is not molded to food (upturned edges act like antennas).■metal such as twist-ties, poultry pins, gold-rimmed dishes.■recycled paper towels containing small metal pieces.Covering Covers hold in moisture, allow for more even heating and reduce cooking time. Venting plastic wrap or covering with wax paper allows excess steam to escape.Shielding In a regular oven, you shield chicken breasts or baked foods to prevent over-browning. When microwaving, you use small strips of foil to shield thin parts, such as the tips of wings and legs on poultry, which would cook before larger parts.Standing Time When you cook with regular ovens, foods such as roasts or cakes are allowed to stand to finish cooking or to set. Standing time is especially important in microwave cooking. Note that a microwaved cake is not placed on a cooling rack.Venting After covering a dish with plastic wrap, you vent the plastic wrap by turning back one corner so excess steam can escape.Term Definition3049-40514 v03 1/16/06 9:28 AM Page 30

Care and cleaning of the microwave oven. ge.comConsumer SupportTroubleshooting TipsOperating InstructionsSafety Information31Helpful HintsAn occasional thorough wiping with a solution ofbaking soda and water keeps the inside fresh.Unplug the cord before cleaning any part of this oven.How to Clean the InsideWalls, Floor, Inside Window, Metal and Plastic Parts on the DoorSome spatters can be removed with a paper towel, othersmay require a damp cloth. Remove greasy spatters with a sudsy cloth, then rinse with a damp cloth. Do not useabrasive cleaners or sharp utensils on oven walls. To clean the surface of the door and the surface of the oven thatcome together upon closing, use only mild, nonabrasive soaps ordetergents using a sponge or soft cloth. Rinse with a damp clothand dry.Never use a commercial oven cleaner on any part of yourmicrowave.Removable Turntable and Turntable Support To prevent breakage, do not place the turntable intowater just after cooking. Wash it carefully in warm, sudsywater or in the dishwasher. The turntable and supportcan be broken if dropped. Remember, do not operatethe oven without the turntable and support in place.49-40514 v03 1/16/06 9:28 AM Page 31

Safety InformationOperating InstructionsTroubleshooting TipsConsumer SupportCare and cleaning of the microwave oven.32How to Clean the OutsideDo not use cleaners containing ammonia or alcohol on the microwave oven. Ammonia or alcohol can damage the appearance of the microwave.CaseClean the outside of the microwave with a sudsy cloth.Rinse and then dry. Wipe the window clean with a damp cloth. Control Panel and DoorWipe with a damp cloth. Dry thoroughly. Do not usecleaning sprays, large amounts of soap and water,abrasives or sharp objects on the panel—they candamage it. Some paper towels can also scratch thecontrol panel.Door SurfaceIt’s important to keep the area clean where the doorseals against the microwave. Use only mild, non-abrasivedetergents applied with a clean sponge or soft cloth.Rinse well.49-40514 v03 1/16/06 9:28 AM Page 32

Troubleshooting tips. ge.comConsumer SupportTroubleshooting TipsOperating InstructionsSafety Information33Problem Possible Causes What To DoOven will not start A fuse in your home •Replace fuse or reset may be blown or the circuit breaker.circuit breaker tripped.Power surge. •Unplug the microwave oven, then plug it back in.Plug not fully inserted •Make sure the 3-prong into wall outlet. plug on the oven is fully inserted into wall outlet.Door not securely closed. •Open the door and closesecurely.Control panel lighted, Door not securely closed. •Open the door and closeyet oven will not start securely.START/PAUSE pad not •Press START/PAUSE.pressed after entering cooking selection.Another selection entered •Press CLEAR/OFF.already in oven andCLEAR/OFF pad notpressed to cancel it.Cooking time not entered •Make sure you have after pressing TIME COOK. entered cooking timeafter pressing TIME COOK.CLEAR/OFF was pressed •Reset cooking programaccidentally. and press START/PAUSE.Food weight not entered •Make sure you have after pressing AUTO entered food weightDEFROST.after pressing AUTO DEFROST.Food type not entered •Make sure you have after pressing REHEAT entered a food type.or COOK.49-40514 v03 1/16/06 9:28 AM Page 33

Safety InformationOperating InstructionsTroubleshooting TipsConsumer SupportTroubleshooting tips.34Things That Are Normal With Your Microwave Oven■Steam or vapor escaping from around the door.■Light reflection around door or outer case.■Dimming oven light and change in the blower soundat power levels other than high.■Dull thumping sound while oven is operating.■TV/radio interference might be noticed while usingthe microwave. Similar to the interference caused byother small appliances, it does not indicate a problemwith the microwave. Plug the microwave into adifferent electrical circuit, move the radio or TV as far away from the microwave as possible, or check the position and signal of the TV/radio antenna.49-40514 v03 1/16/06 9:28 AM Page 34

Consumer SupportTroubleshooting TipsOperating InstructionsSafety InformationThis warranty is extended to the original purchaser and any succeeding owner for products purchasedfor home use within the USA. Some states do not allow the exclusion or limitation of incidental or consequential damages. Thiswarranty gives you specific legal rights, and you may also have other rights which vary from state tostate. To know what your legal rights are, consult your local or state consumer affairs office or yourstate’s Attorney General.Exclusion of implied warranties: Except where prohibited or restricted by law, there are nowarranties, whether express, oral or statutory which extend beyond the description on the face hereof,including specifically the implied warranties of merchantability or fitness for a particular purpose.Warrantor: General Electric Company. Louisville, KY 40225■Properly pack your unit. We recommend using the originalcarton and packing materials.■Return the product to the retaillocation where it was purchased.■Include in the package a copy of thesales receipt or other evidence of dateof original purchase. Also print yourname and address and a description of the defect.In Order to Make a Warranty Claim:35Staple your receipt here. Proof of the original purchase date is needed to make a warranty claim.GE Microwave Oven One Year Limited Warranty.■Customer instruction. This owner’smanual provides informationregarding operating instructions and user controls.■Improper installation, delivery ormaintenance.■Failure of the product if it is abused,misused, or used for other than the intended purpose or usedcommercially.■Replacement of house fuses orresetting of circuit breakers.■Damage to the product caused byaccident, fire, floods or acts of God.■Incidental or consequential damagecaused by possible defects with thisappliance.■Damage caused after delivery.What GE Will Not Cover:EXCLUSION OF IMPLIED WARRANTIES—Your sole and exclusive remedy isproduct exchange as provided in this Limited Warranty. Any impliedwarranties, including the implied warranties of merchantability or fitness fora particular purpose, are limited to one year or the shortest period allowedFor The Period Of: What GE Will Provide:One Year Replacement unit for any product which fails due to a From the date of the defect in materials or workmanship. The exchange unitoriginal purchase is warranted for the remainder of your product’s originalone-year warranty period.49-40514 v03 1/16/06 9:28 AM Page 35

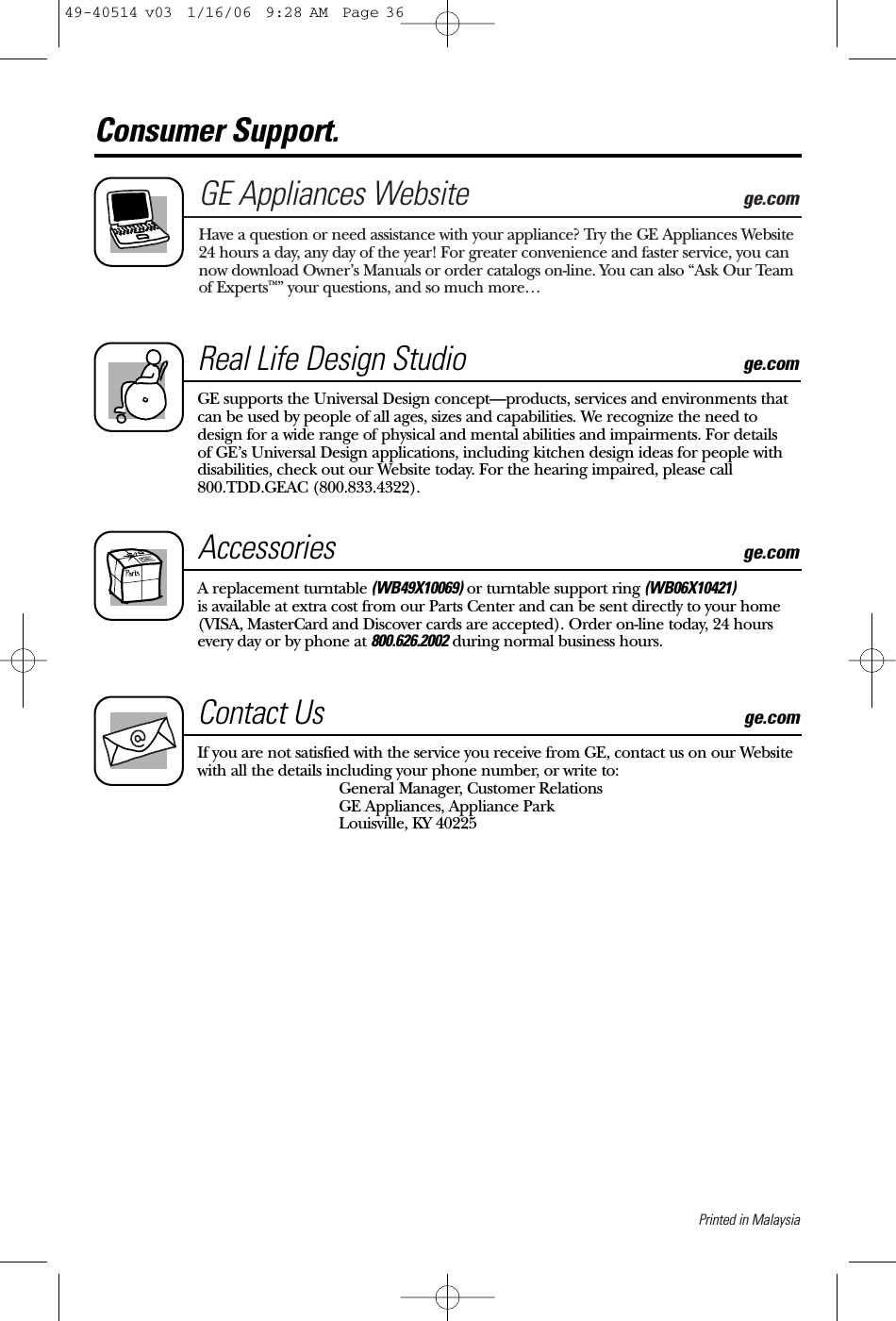

Printed in MalaysiaGE Appliances Website ge.comHave a question or need assistance with your appliance? Try the GE Appliances Website24 hours a day, any day of the year! For greater convenience and faster service, you cannow download Owner’s Manuals or order catalogs on-line. You can also “Ask Our Teamof Experts™” your questions, and so much more…Real Life Design Studio ge.comGE supports the Universal Design concept—products, services and environments thatcan be used by people of all ages, sizes and capabilities. We recognize the need todesign for a wide range of physical and mental abilities and impairments. For details of GE’s Universal Design applications, including kitchen design ideas for people withdisabilities, check out our Website today. For the hearing impaired, please call 800.TDD.GEAC (800.833.4322). Contact Us ge.comIf you are not satisfied with the service you receive from GE, contact us on our Websitewith all the details including your phone number, or write to: General Manager, Customer RelationsGE Appliances, Appliance ParkLouisville, KY 40225Consumer Support.Accessories ge.comA replacement turntable (WB49X10069) or turntable support ring (WB06X10421)is available at extra cost from our Parts Center and can be sent directly to your home(VISA, MasterCard and Discover cards are accepted). Order on-line today, 24 hoursevery day or by phone at 800.626.2002 during normal business hours.49-40514 v03 1/16/06 9:28 AM Page 36
