Samsung Electronics Co 633ANH Intel Centrino Ultimate-N 6300 User Manual Amor ZX310 eng indb

Samsung Electronics Co Ltd Intel Centrino Ultimate-N 6300 Amor ZX310 eng indb

Host user manual

12345 User GuideGetting StartedUsing the ComputerSettings and UpgradeBackup / RestoreAppendixContentsStart
1Chapter 1. Getting StartedContents Chapter 1. Getting Started Product Features Tips Before You Start Safety Precautions Proper Posture During Computer Use Overview Turning the Computer On and O Chapter 2. Using the Computer Keyboard Touchpad External-type CD drive (ODD, To be purchased) Micro SD Card Slot (Optional) Connecting an External Display Device Connecting an External Digital Device Adjusting the Volume Wired Network Wireless Network (Optional) Sharing Content in a Home Network (Easy Content Share) (Optional) Chapter 3. Settings and Upgrade LCD Brightness Control Control Center (Optional) BIOS Setup Setting a Boot Password Changing the Boot Priority Battery Using the Security Lock Port Chapter 4. Backup / Restore Samsung Recovery Solution (Optional) Chapter 5. Appendix Important Safety Information Replacement Parts and Accessories Regulatory Compliance Statements WEEE Symbol Information Product Speci cations Glossary Index
Product Features 3Tips 4Before You Start 5Safety Precautions 8Proper Posture During Computer Use 23Overview 26Turning the Computer On and O 30 Chapter 1. Getting Started
3Chapter 1. Getting StartedProduct FeaturesThis is an environmentally friendly system t designed in accordance with international environmental speci cations regarding the use of environmentally friendly materials and the reduction of hazardous materials.The system ensures minimal noise by verifying t the noise level on the basis of the noise levels of everyday life.Environmentally-Friendly Eco DesignWith no complex con guration necessary, you t can easily share data over the wireless network. (Easy File Share, Optional)When you purchase a new PC, you can easily t and quickly move the data and settings of the previous PC to your new PC. (Easy Migration, Optional)Samsung’s Proprietary SoftwareOptional items may be changed or may not be provided depending on the computer model.The latest processor has been adopted for t quicker work processing and a slimmer design has been implemented for higher portability.With the Super Bright LCD, you can enjoy t bright, clear pictures even when outside exposed to direct sunlight. (Optional)Optimized Performance and UsabilityYou do not need to wait a long time for the t computer to boot up, because it boots up quickly once you press the Power button. (Samsung Fast Start, Optional)Various Interfaces

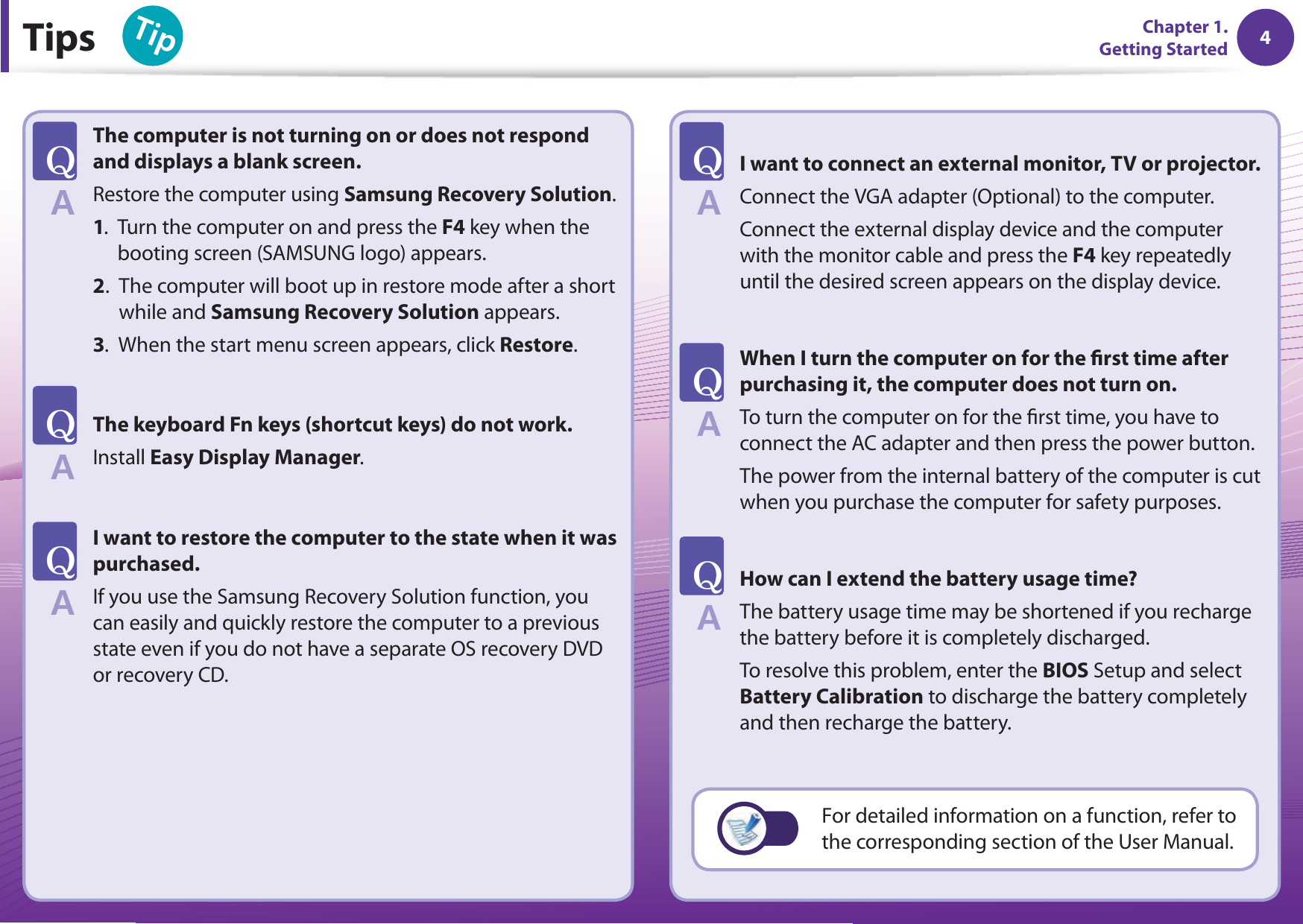

4Chapter 1. Getting Started 4Tips6KRChapter 1. Getting StartedThe computer is not turning on or does not respond and displays a blank screen.Restore the computer using Samsung Recovery Solution.1. Turn the computer on and press the F4 key when the booting screen (SAMSUNG logo) appears.2. The computer will boot up in restore mode after a short while and Samsung Recovery Solution appears.3. When the start menu screen appears, click Restore. The keyboard Fn keys (shortcut keys) do not work.Install Easy Display Manager.I want to restore the computer to the state when it was purchased. If you use the Samsung Recovery Solution function, you can easily and quickly restore the computer to a previous state even if you do not have a separate OS recovery DVD or recovery CD.I want to connect an external monitor, TV or projector. Connect the VGA adapter (Optional) to the computer. Connect the external display device and the computer with the monitor cable and press the F4 key repeatedly until the desired screen appears on the display device.When I turn the computer on for the  rst time after purchasing it, the computer does not turn on.To turn the computer on for the  rst time, you have to connect the AC adapter and then press the power button.The power from the internal battery of the computer is cut when you purchase the computer for safety purposes.How can I extend the battery usage time? The battery usage time may be shortened if you recharge the battery before it is completely discharged.To resolve this problem, enter the BIOS Setup and select Battery Calibration to discharge the battery completely and then recharge the battery.T#T#T#T#T#T#For detailed information on a function, refer to the corresponding section of the User Manual.
5Chapter 1. Getting StartedBefore You StartBefore reading the User Guide,  rst check the following information.Optional items, some devices and software referred to in t the User Guide may not be provided and/or changed by upgrade.Note that the computer environment referred in the User Guide may not be the same as your own environment. The pictures used for the cover and the main body in the t User Manual are those of the representative model of each series and may di er from the actual appearance of the product.This guide decribes procedures for using both the mouse t and the touchpad.This manual has been written for the Windows operating t system. The descriptions and  gures may di er depending on the installed operating system.The User guide supplied with this computer may vary t depending on your model.Using the software The software described in the main text can be launched t using the following menu path. - Start > All Programs- Start > All Programs > SamsungWhen the programs are not installed, select t Samsung Recovery Solution > System Software to install the programs. (Only for models supplied with Samsung Recovery Solution)Safety Precaution NotationsIcon Notation DescriptionWarningFailing to follow instructions marked with this symbol, may cause personal injury and or fatality.CautionFailing to follow instructions marked with this symbol, may cause slight injury to yourself or damage your property.Text NotationsIcon Notation DescriptionCaution Content included in this section includes information required about the function.Note Content included in this section includes helpful information to use the function.
6Chapter 1. Getting StartedBefore You StartCopyright© 2011 Samsung Electronics Co., Ltd.Samsung Electronics Co., Ltd. owns the copyright of this manual.No part of this manual may be reproduced or transmitted in any form or by any means, electronic or mechanical, without the consent of Samsung Electronics Co., Ltd. The information in this document is subject to change without notice due to improving the performance of the product.Samsung Electronics shall not be liable for any data loss. Please take care to avoid losing any important data and backup your data to prevent any such data loss.Precautions for Operating System SupportIf a problem occurs because of the reinstallation of other operating systems(OS) or a previous version of a OS pre-installed on this computer, or a software that does not support the OS, the company will not provide technical support, a replacement or refund, and if our service engineer visits you due to this problem, a service charge will be applied.About the Product Capacity Representation StandardAbout HDD Capacity RepresentationThe capacity of the storage device (HDD, SSD) of the manufacturer is calculated assuming that 1KB=1,000 Bytes.However, the operating system (Windows) calculates the storage device capacity assuming that 1KB=1,024 Bytes, and therefore the capacity representation of the HDD in Windows is smaller than the actual capacity due to the dierence in capacity calculation. (E.g. For a 80GB HDD, Windows represents the capacity as 74.5GB, 80x1,000x1,000x1,000 byte/(1,024x1,024x1,024)byte = 74.505GB)In addition, the capacity representation in Windows may be even smaller because some programs such as Recovery Solution may reside in a hidden area of the HDD.
7Chapter 1. Getting StartedAbout Memory Capacity RepresentationThe memory capacity reported in Windows is less than the actual capacity of memory.This is because BIOS or a video adapter uses a portion of memory or claims it for further use. (E.g. For 1GB(=1,024MB) memory installed, Windows may report the capacity as 1,022MB or less)For more information, refer to the Samsung Recovery Solution section.Before You Start
8Chapter 1. Getting StartedInstallation RelatedDo not install the product in places exposed to humidity such as a bathrooms.There is a danger of electric shock. Use the product within the operating conditions speci ed in the Manufacturers User Guide.Keep the plastic bags out of the reach of children.There is a danger of su ocation. Safety PrecautionsKeep a distance of 15cm or more between the computer and the wall and do not place any objects between them.This may increase the internal temperature of the computer and may cause an injury.Do not install the computer on a slant or a place prone to vibrations, or avoid using the computer in that location for a long time.This increases the risk that a malfunction or damage to the product will occur.Avoid exposing any part of your body to the heat from the computer vent or AC adapter for a long time when the computer is on.Exposing a part of your body close to the heat from the vent or AC adapter for long periods of time may cause a burn.Avoid blocking the vent at the bottom or side of the computer when using it on a bed or cushion.If the vent is blocked, there is a danger of damaging the computer or overheating the inside of the computer.For your security and to prevent damage, please read the following safety instructions carefully.Since this is commonly applied to Samsung Computers, some pictures may di er from actual products. WarningFailing to follow instructions marked with this symbol may cause personal injury and even fatality.139HU
9Chapter 1. Getting StartedGIf the power cord or power outlet makes a noise, disconnect the power cord from the wall outlet and contact a service center.There is a danger of electric shock or  re hazard.Do not use a damaged or loose main plug or power cord or power outlet.There is a danger of electric shock or  re hazard.Plug the power cord  rmly into the power outlet and AC adapter.Failing to do so may cause  re hazard.Do not unplug the power cord by pulling the cable only.If the cord is damaged, it may cause electric shock.Do not bend the power cord excessively or do not place a heavy object over the power cord. It is especially important to keep the power cord out of reach of infants and pets.If the cord is damaged, it may cause electric shock or  re.Power RelatedThe power plug and wall outlet  gures may di er depending on the country speci cations and the product model.Do not touch the main plug or power cord with wet hands.There is a danger of electric shock.Do not exceed the standard capacity (voltage/current) of a multiplug or power outlet extension when using it for the product.There is a danger of electric shock or  re hazard.Safety Precautions WarningFailing to follow instructions marked with this symbol may cause personal injury and even fatality.
10Chapter 1. Getting StartedConnect the power cord to an outlet or multiple power plug (extended cable) with a ground terminal.Failing to do so may result in electric shock.If water or another substance enters the power input jack, AC adapter or the computer, disconnect the power cord and contact the service center.Damage to the device within the computer may cause electric shock or re hazard.Keep the power cord or outlet clean so that they are not covered with dust.Failing to do so may result in re.AC Adapter Usage PrecautionsConnect the power cord to the AC adapter rmly.Otherwise, there is a danger of re due to an incomplete contact.Use only the AC adapter supplied with the product.Using another adapter may cause the screen to icker.Do not place heavy objects or step onto the power cord or AC adapter to avoid damaging the power cord or AC adapter.If the cord is damaged, there is a danger of electric shock or re. WarningFailing to follow instructions marked with this symbol may cause personal injury and even fatality.Safety Precautions
11Chapter 1. Getting StartedBattery Usage RelatedPlease charge the battery fully before using the computer for the rst time.Keep the battery out of the reach of infants and pets, as they could put the battery into their mouths.There is a danger of electric shock or choking.Use an authorized battery and AC adapter only.Please use an authorized battery and adapter approved by Samsung Electronics.Unauthorized batteries and adapters may not meet the proper safety requirements and may cause problems or malfunctions and result in an explosion or re. WarningFailing to follow instructions marked with this symbol may cause personal injury and even fatality.Safety PrecautionsDo not use the computer in a badly ventilated location such as on bedding, on a pillow or cushion, etc, and do not use it in a location such as room with oor heating as it may cause the computer to overheat.Take care that the computer vents (on the side or the bottom) are not blocked especially in these environments. If the vents are blocked, the computer may overheat and it may cause a computer problem, or even an explosion.Do not use the computer in a humid location such as a bathroom or sauna.Please use the computer within the recommended temperature and humidity range (10~32ºC, 20~80% RH).Do not close the LCD panel and put the computer into your bag to move it when it is still turned on.If you put the computer into your bag without turning it o, the computer may overheat and there is a danger of re. Shut the computer down properly before moving it.
12Chapter 1. Getting StartedCutting the power to the internal battery (for corresponding models only.)For products with built-in batteries, customers cannot remove t the battery. In the case of ooding, lightning or explosions, you can cut t the battery power by inserting an object such as a paper clip into the [Emergency Hole] at the bottom of the computer. Disconnect the AC adapter and insert an object such as a t paper clip into the hole at the bottom of the computer to cut the battery power. In the case of ooding, lightning or explosions, cut the battery power, do not reconnect the AC adapter, and immediately contact Samsung Electronics so that the appropriate countermeasures can be taken.Thereafter, if you connect the AC adapter, the battery power t will be supplied again.Do not cut the battery power under normal t conditions.This may result in data loss or a product t malfunction.Never heat the product(or battery) or put the product(or battery) into a re. Do not put or use the product(or battery) in a hot location such as a sauna, inside a vehicle exposed to the heat, and so on.There is a danger of an explosion or re.Take care not to allow metal objects such as a key or clip to touch the battery terminal (metal parts).If a metal object touches the battery terminals, it may cause excessive current ow and it may damage the battery, or result in a re.If liquid leaks out of the product(or battery) or there is a funny smell coming from the product(or battery), remove the the product(or battery) the computer and contact a service center.There is a danger of an explosion or re.To use the computer safely, replace a dead battery with a new, authorized battery.Safety Precautions WarningFailing to follow instructions marked with this symbol may cause personal injury and even fatality.
13Chapter 1. Getting StartedSafety Precautions WarningFailing to follow instructions marked with this symbol may cause personal injury and even fatality.Usage RelatedDisconnect all cables connected to the computer before cleaning it. If your notebook is external & removable battery type, remove the external battery.There is a danger of electric shock or damage to the product.Do not connect a phone line connected to a digital phone to the modem.There is a danger of a electric shock, re or damage to the product.Do not place any container lled with water or chemicals over or near the computer.If water or chemicals enter the computer, this may cause re or electric shock.If the computer is broken or dropped, disconnect the power cord and contact a service center for a safety check.Using a broken computer may cause electric shock or re hazard.Avoid direct sunlight when the computer is in an air-tight location such as inside a vehicle.There is a danger of a re hazard. The computer may overheat and also present opportunity to thieves.Do not use your notebook PC for long periods of time while a part of your body is making direct contact with it. The temperature of the product may increase during normal operation.This may result in harming or burning your skin.
14Chapter 1. Getting StartedShut down the computer and disconnect all cables before disassembling the computer. If there is a modem, disconnect the phone line. If your notebook is external & removable battery type, remove the external battery.Failing to do so, may cause electric shock.Upgrade RelatedNever disassemble the power supply or AC adapter.There is a danger of electric shock.When removing the RTC (Real Time Clock) battery, keep it out of the reach of children as they could touch and/or swallow it.There is a danger of choking. If a child has swallowed it, contact a doctor immediately.Use only authorized parts (multi-plug, battery and memory) and never disassemble parts.There is a danger of damaging the product, electric shock or re hazard.Safety Precautions WarningFailing to follow instructions marked with this symbol may cause personal injury and even fatality.
15Chapter 1. Getting StartedWhen carrying the notebook computer with other items, such as the adapter, mouse, books etc, take care not to press anything against the notebook computer.If a heavy object is pressed against the notebook computer, a white spot or stain may appear on the LCD. Therefore, take care not to apply any pressure to the notebook.In this case, place the notebook computer in a separate compartment away from the other objects.Security and Movement RelatedFollow the instructions for the relevant location (e.g. airplane, hospital, etc.) when using a wireless communication device (wireless LAN, Bluetooth, etc.).Avoid exposing a drive to magnetic elds. Security devices with magnetic elds in-clude airport walk-through devices and se-curity wands.The airport security devices that check car-ry-on luggage, such as conveyor belts, use x-rays instead of magnetism and will not damage a drive.Safety Precautions WarningFailing to follow instructions marked with this symbol may cause personal injury and even fatality.
16Chapter 1. Getting StartedSafety PrecautionsInstallation RelatedDo not block the ports (holes), vents, etc. of the product and do not insert objects.Damage to a component within the computer may cause electric shock or re.When using the computer with it lying on its side, place it so that the vents face upwards.Failing to do so, may cause the internal temperature of the computer to rise and the computer to malfunction or halt.Do not place a heavy object over the product.This may cause a problem with the computer. In addition, the object may fall and cause injury, or damage the computer.Battery Usage RelatedDispose of worn-out batteries properly.There is a danger of re or explosion.t The battery disposal method may dier depending on t your country and region. Dispose of the used battery in an appropriate way.Do not throw or disassemble the battery and do not put it into water.This may cause an injury, re or explosion.Use only a battery authorized by Samsung Electronics.Failing to do so may cause an explosion.Avoid contact with metal objects such as car keys or clips when keeping or carrying a battery.Contact with a metal may cause excessive current and a high temperature and may damage the battery or cause a re.Charge the battery according to the instructions in the manual.Failing to do so, may cause an explosion or re from damage to the product.Do not heat the product(or battery) or expose it to heat (e.g. inside a vehicle during the summer).There is a danger of explosion or re. CautionFailing to follow instructions marked with this symbol may cause slight injury or damage to the product.
17Chapter 1. Getting StartedUsage RelatedDo not place a candle, light cigar, etc. over or on the product.There is a danger of re.Use a wall outlet or multi-plug with a grounding part.Failing to do so may cause electric shock hazard.Make sure to have the product tested by a safety service engineer after repairing the product.Authorized Samsung Repair Centers will carry out safety checks after a repair. Using a repaired product without testing it for safety may cause an electric shock or re.In case of lightning, immediately turn the system o, disconnect the power cord from the wall outlet and phone line from modem. Do not use a modem or phone.There is a danger of electric shock or re.Do not use your computer and AC-Adapter on your lap or soft surfaces.If the computer temperature increases, there is a danger of burning yourself.Connect only permitted devices to the connectors or ports of the computer.Failing to do so, may cause electric shock and re.Close the LCD panel only after checking if the notebook computer is turned o.The temperature may rise and it may cause overheating and deformation of the product.Do not press the Eject Button while the Floppy Disk/CD-ROM drive is in operation.You might lose data and the disk might be suddenly ejected and could cause an injury.Take care not to drop the product while using it.This may cause personal injury or loss of data.Do not touch the antenna with electricity facility such as the power outlet.There is a danger of electric shock.When handling computer parts, follow the instructions on the manual supplied with the parts.Failing to do so, may cause damage to the product.Safety Precautions CautionFailing to follow instructions marked with this symbol may cause slight injury or damage to the product.
18Chapter 1. Getting StartedIf the computer emits smoke, or there is a burning smell, disconnect the power plug from the wall outlet and contact a service center immediately. If your notebook is external & removable battery type, remove the external battery.There is a danger of re.Do not use a damaged or modied CD/Floppy Disk.There is a danger of damaging the product or personal injury.Do not insert your ngers into the PC Card Slot.There is a danger of injury or electric shock.Use recommended computer cleansing solution when cleaning the product and only use the computer when it is completely dried.Failing to do so may cause electric shock or re.Emergency disk eject method using paperclip should not be used while the disk is in motion. Make sure to use the emergency disk eject method only when the Optical Disk Drive has stopped.There is a danger of injury.Do not place your face close to the Optical Disk Drive tray when it is operating.There is a danger of injury due to an abrupt ejection.Check CDs for cracks and damage prior to use.It may damage the disc and cause disorder of device and injury of user.Safety Precautions CautionFailing to follow instructions marked with this symbol may cause slight injury or damage to the product.

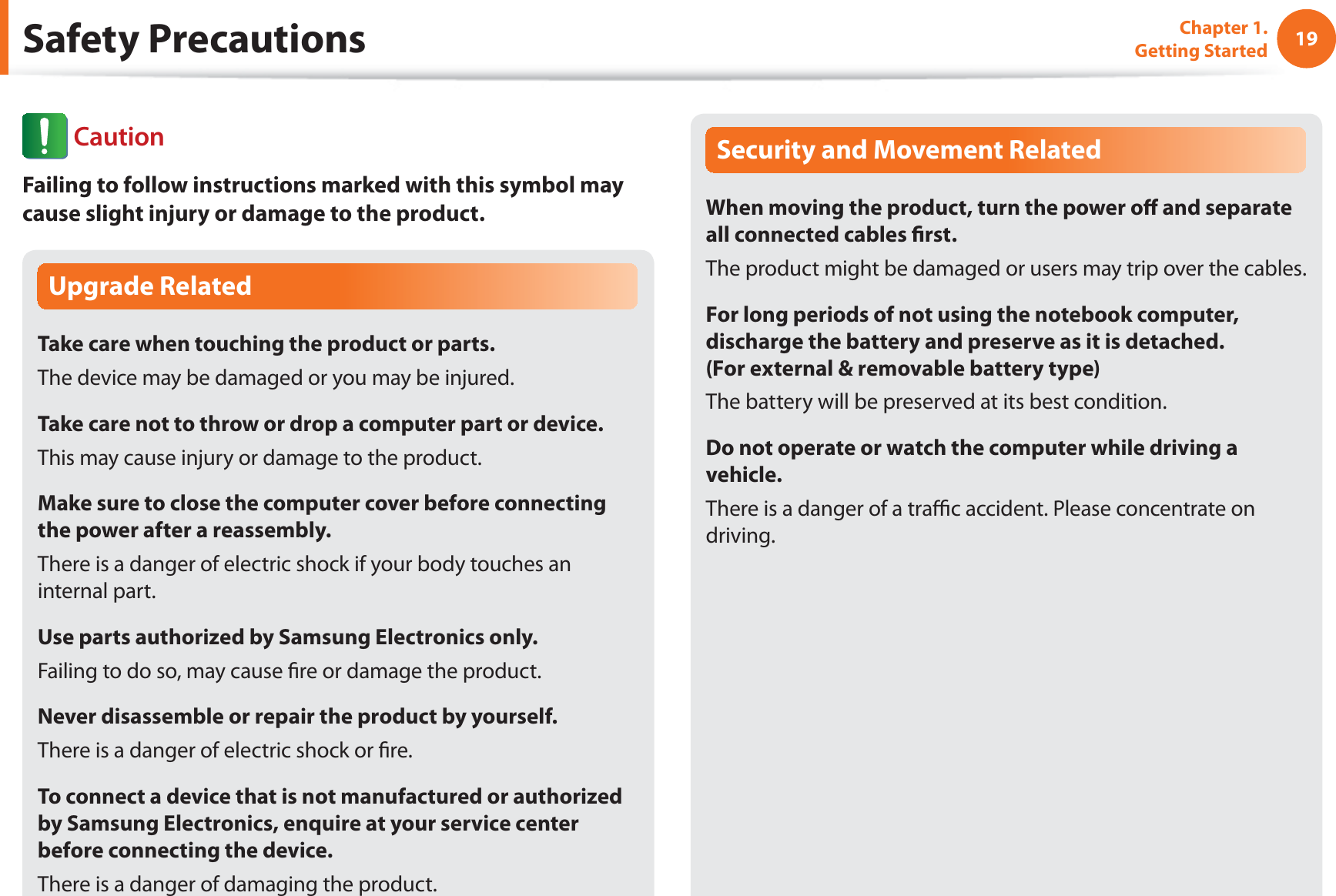

19Chapter 1. Getting StartedUpgrade RelatedTake care when touching the product or parts.The device may be damaged or you may be injured.Take care not to throw or drop a computer part or device.This may cause injury or damage to the product.Make sure to close the computer cover before connecting the power after a reassembly.There is a danger of electric shock if your body touches an internal part.Use parts authorized by Samsung Electronics only.Failing to do so, may cause re or damage the product.Never disassemble or repair the product by yourself.There is a danger of electric shock or re.To connect a device that is not manufactured or authorized by Samsung Electronics, enquire at your service center before connecting the device.There is a danger of damaging the product.Security and Movement RelatedWhen moving the product, turn the power o and separate all connected cables rst.The product might be damaged or users may trip over the cables.For long periods of not using the notebook computer, discharge the battery and preserve as it is detached. (For external & removable battery type)The battery will be preserved at its best condition.Do not operate or watch the computer while driving a vehicle.There is a danger of a trac accident. Please concentrate on driving.Safety Precautions CautionFailing to follow instructions marked with this symbol may cause slight injury or damage to the product.
20Chapter 1. Getting StartedCautions on Preventing Data Loss (Hard Disk Management)Take care not to damage the data on a hard disk drive.A hard disk drive is so sensitive to external impact that an t external impact may cause loss of data on the surface of the disk.Take extra care, because moving the computer or an impact t on the computer when it is turned on may damage the data of the hard disk drive.The company is not liable for any loss of data on the hard disk t drive.Causes that may damage the data of a hard disk drive and the hard disk drive itself.The data may be lost when an external impact is applied to the t disk while disassembling or assembling the computer.The data may be lost when the computer is turned o or reset t by a power failure while the hard disk drive is operating.The data may be lost and irrecoverable due to a computer virus t infection.The data may be lost if the power is turned o while running a t program.Moving or causing an impact to the computer while the hard t disk drive is operating, may cause les to be corrupted or bad sectors on the hard disk.To prevent data loss due to damage to the hard disk drive, please backup your data frequently.Safety Precautions CautionFailing to follow instructions marked with this symbol may cause slight injury or damage to the product.
21Chapter 1. Getting StartedSafety PrecautionsUsing the power supply in an airplaneSince the power outlet type di ers depending on the type of airplane, connect the power appropriately. Since the representative  gures of the power plug and the auto adapter are used, they may di er from the actual parts.When using the AC power plugConnect the power plug pins perpendicular into the center of the power outlet.If the plug pins are not inserted into the center of the holes, the t plug pins are only inserted up to half their length. In this case, reconnect the power plug. You have to insert the power plug into the outlet when the t power indicator (LED) of the power outlet is lit green. If the power is connected properly, the power indicator (LED) remains green. Otherwise, the power indicator (LED) is turned o . In this case, unplug the power, check if the power indicator (LED) is green, and then reconnect the power plug.Wrong Example Good Example 220V Power Plug 110V Power PlugCenter HolesPower Indicator (LED)

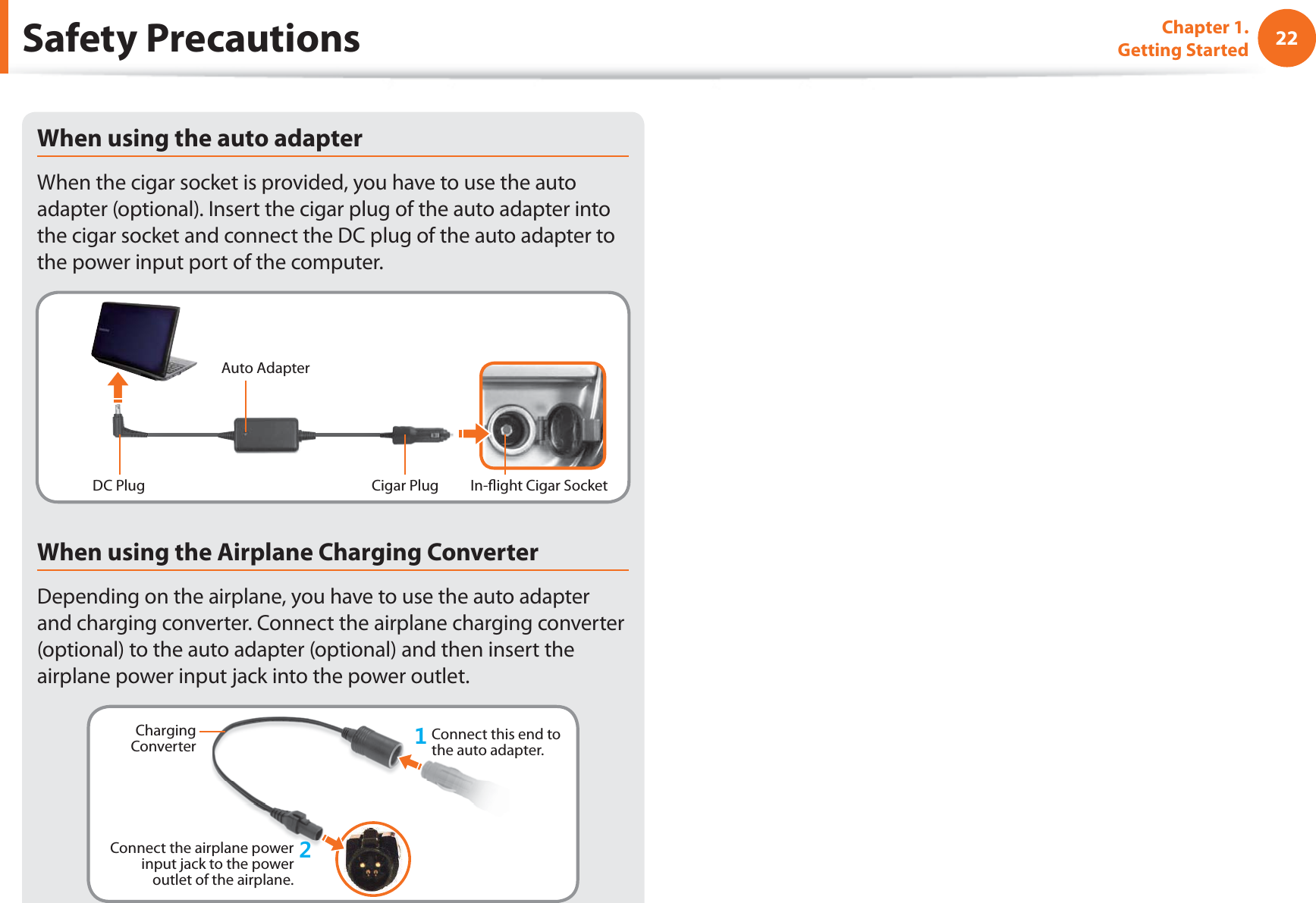

22Chapter 1. Getting StartedSafety PrecautionsWhen using the auto adapterWhen the cigar socket is provided, you have to use the auto adapter (optional). Insert the cigar plug of the auto adapter into the cigar socket and connect the DC plug of the auto adapter to the power input port of the computer.Auto AdapterIn- ight Cigar SocketCigar PlugDC PlugWhen using the Airplane Charging ConverterDepending on the airplane, you have to use the auto adapter and charging converter. Connect the airplane charging converter (optional) to the auto adapter (optional) and then insert the airplane power input jack into the power outlet.Charging Converter Connect this end to the auto adapter.Connect the airplane power input jack to the power outlet of the airplane.

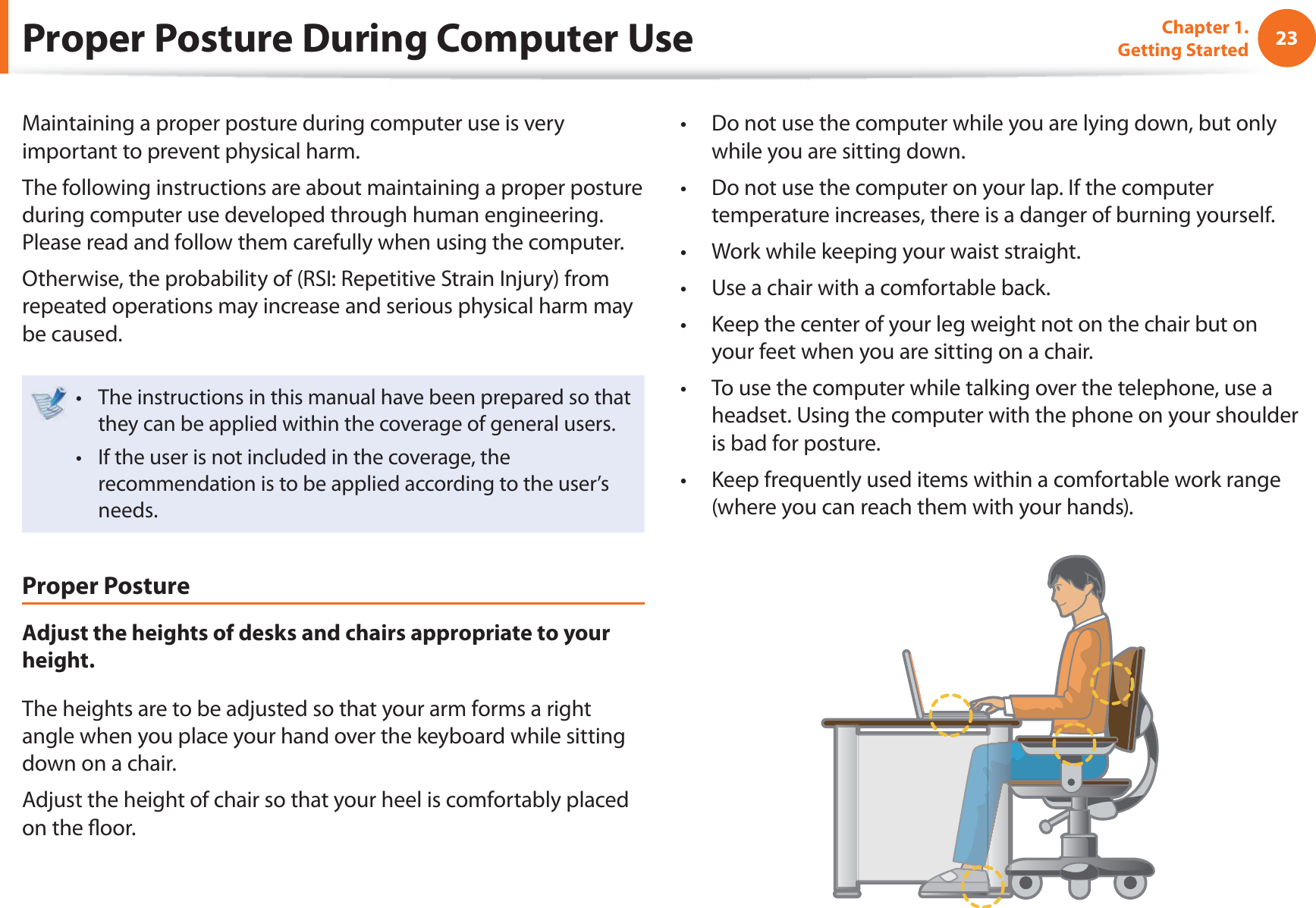

23Chapter 1. Getting StartedProper Posture During Computer UseMaintaining a proper posture during computer use is very important to prevent physical harm.The following instructions are about maintaining a proper posture during computer use developed through human engineering. Please read and follow them carefully when using the computer.Otherwise, the probability of (RSI: Repetitive Strain Injury) from repeated operations may increase and serious physical harm may be caused.The instructions in this manual have been prepared so that t they can be applied within the coverage of general users. If the user is not included in the coverage, the t recommendation is to be applied according to the user’s needs.Proper PostureAdjust the heights of desks and chairs appropriate to your height.The heights are to be adjusted so that your arm forms a right angle when you place your hand over the keyboard while sitting down on a chair.Adjust the height of chair so that your heel is comfortably placed on the  oor.Do not use the computer while you are lying down, but only t while you are sitting down.Do not use the computer on your lap. If the computer t temperature increases, there is a danger of burning yourself.Work while keeping your waist straight.t Use a chair with a comfortable back.t Keep the center of your leg weight not on the chair but on t your feet when you are sitting on a chair.To use the computer while talking over the telephone, use a t headset. Using the computer with the phone on your shoulder is bad for posture.Keep frequently used items within a comfortable work range t (where you can reach them with your hands).

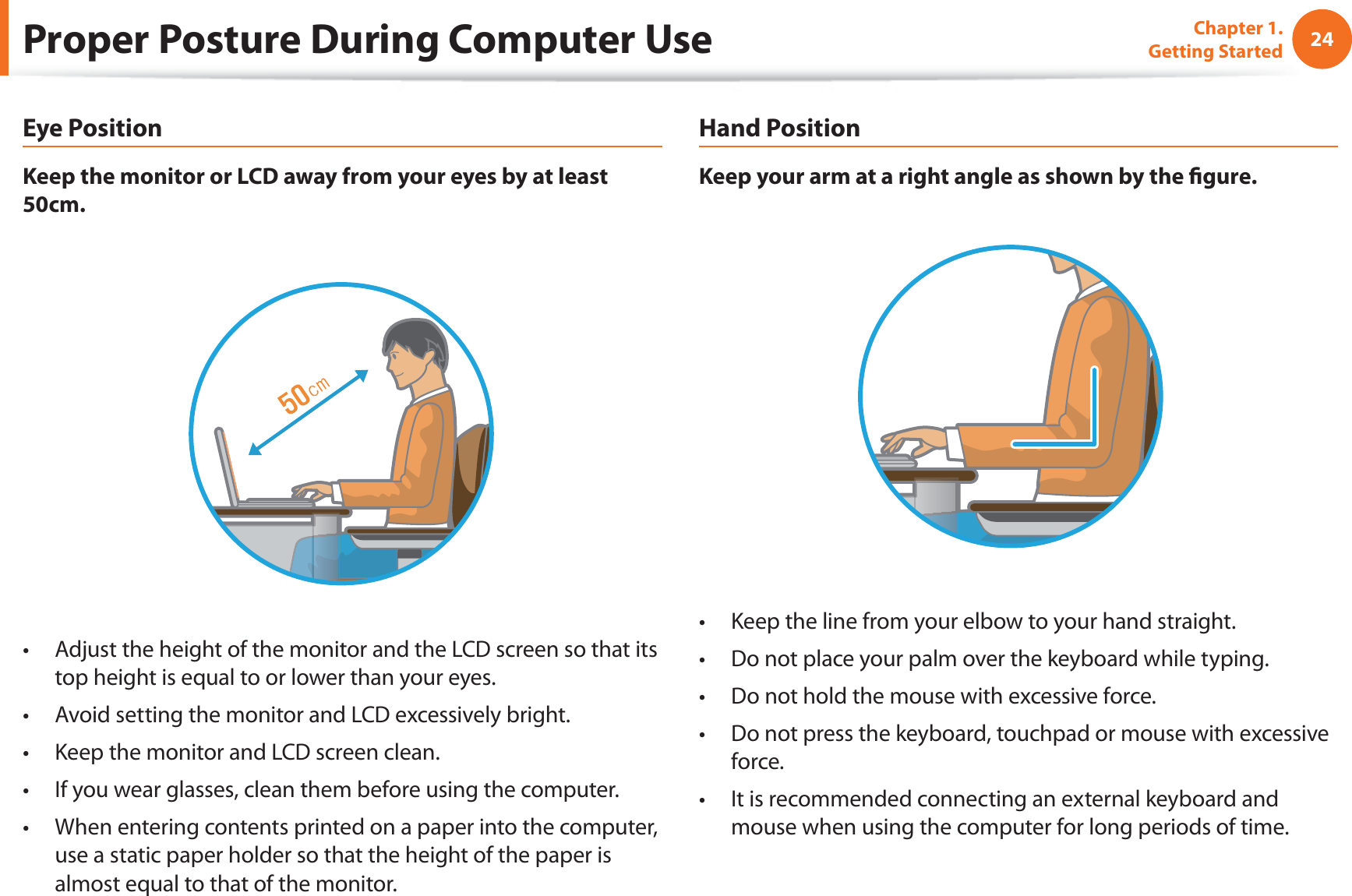

24Chapter 1. Getting StartedProper Posture During Computer UseEye PositionKeep the monitor or LCD away from your eyes by at least 50cm.Adjust the height of the monitor and the LCD screen so that its t top height is equal to or lower than your eyes.Avoid setting the monitor and LCD excessively bright.t Keep the monitor and LCD screen clean.t If you wear glasses, clean them before using the computer.t When entering contents printed on a paper into the computer, t use a static paper holder so that the height of the paper is almost equal to that of the monitor.Hand PositionKeep your arm at a right angle as shown by the  gure.Keep the line from your elbow to your hand straight.t Do not place your palm over the keyboard while typing.t Do not hold the mouse with excessive force.t Do not press the keyboard, touchpad or mouse with excessive t force.It is recommended connecting an external keyboard and t mouse when using the computer for long periods of time.
25Chapter 1. Getting StartedProper Posture During Computer UseVolume Control (Headphones and Speakers)Check your volume  rst to listen to music.Check your volume!Check if the volume is too loud before using headphones.t It is not recommended using headphones for long periods of t time.Any deviation from the equalizer default setting could cause t hearing impairment.The default setting can be changed through software and t driver updates without your intervention. Please check the equalizer default setting before  rst usage.Use Time (Break Time)Take a break for 10 minutes or more after a 50-minute period t when working for more than one hour.IlluminationDo not use the computer in dark locations. The illumination t level for computer use must be as bright so for reading a book.Indirect illumination is recommended. Use a curtain to prevent t re ection on the LCD screen.Operation ConditionDo not use the computer in hot and humid locations.t Use the computer within the allowed temperature and t humidity range speci ed in the User Guide.

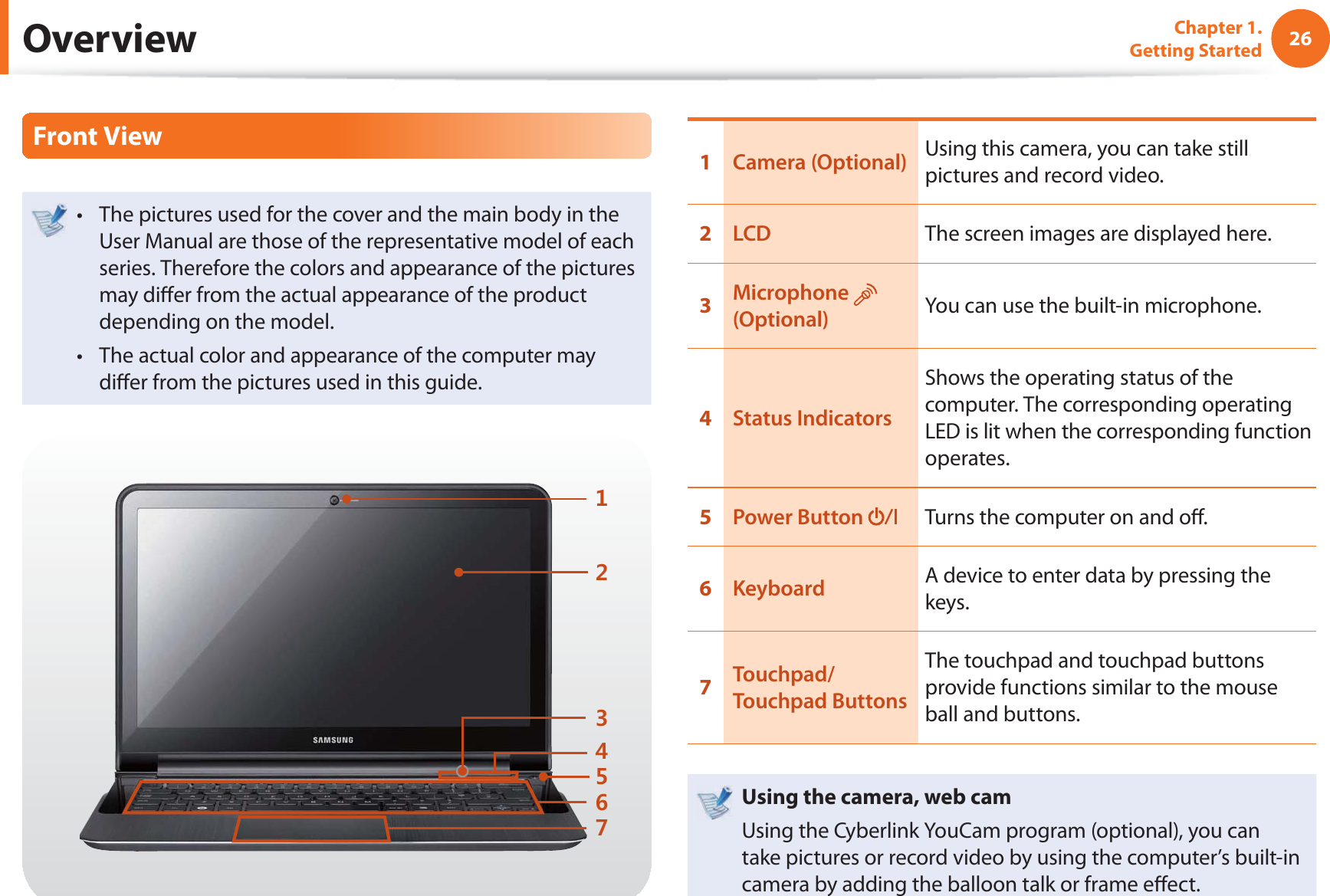

26Chapter 1. Getting StartedOverviewFront ViewThe pictures used for the cover and the main body in the t User Manual are those of the representative model of each series. Therefore the colors and appearance of the pictures may di er from the actual appearance of the product depending on the model.The actual color and appearance of the computer may t di er from the pictures used in this guide.1Camera (Optional) Using this camera, you can take still pictures and record video.2LCD The screen images are displayed here.3Microphone (Optional) You can use the built-in microphone.4Status IndicatorsShows the operating status of the computer. The corresponding operating LED is lit when the corresponding function operates.5Power Button Turns the computer on and o .6Keyboard A device to enter data by pressing the keys.7Touchpad/Touchpad ButtonsThe touchpad and touchpad buttons provide functions similar to the mouse ball and buttons.Using the camera, web camUsing the Cyberlink YouCam program (optional), you can take pictures or record video by using the computer’s built-in camera by adding the balloon talk or frame e ect.
27Chapter 1. Getting Started Overview Status Indicators1Illumination Sensor This sensor detects the ambient illumination of the PC.If the ambient illumination becomes dark, the LCD becomes dimmer and the keyboard backlight is lit.On the contrary, if the ambient illumination becomes brighter, the LCD becomes brighter and the keyboard backlight is turned o .2HDD/ODD This turns on when the hard disk is or ODD being accessed.3Charge Status This shows the power source and the battery charge status. Green: When the battery is fully charged or the battery is not installed. Red: When the battery is being charged. O : When the computer is running on battery power without being connected to AC adapter.4Power This shows the computer operating status.On: When the computer is operating.Blinks: When the computer is in Sleep mode.
28Chapter 1. Getting StartedOverviewRight View1Speaker A device used to generate sound.2/KETQ5&%CTF5NQV (Optional)This slot is for micro SD cards.3Headphones/Microphone Jack (Optional)You can connect the headphones and the microphone here.4USB Port You can connect USB devices to the USB port such as a keyboard/mouse, digital camera, etc.5Security Lock Port You can connect a Kensington lock to the Security Lock Port to prevent the computer from being stolen.
29Chapter 1. Getting StartedOverviewLeft View What is a chargeable USB port?USB device accessing and charging functions are t supported.The USB charging function is supported regardless of t whether the power is turned on or o .Charging a device through a chargeable USB port may take t longer than general charging.Using the Chargeable USB function when the computer is t running on battery power reduces the battery usage time.The user cannot evaluate the charging status of the USB t device from the computer.This may not be supported for some USB devices.t 1DC Jack A jack to connect the AC adapter that supplies power to the computer. 2Wired LAN Port Connect the Ethernet cable to this port. You can use wired LAN by using the LAN adapter (Optional).3Micro Digital Video / Audio Port (Micro HDMI) (Optional)This is the port for the HDMI to micro HDMI cable.You can enjoy digital video and audio by connecting the computer to a TV. You can connect a VGA adapter (optional). If you connect a VGA adapter, you may not be able to use the USB 3.0 or Chargeable USB 3.0 port. In this case, use the right side USB port.4USB 3.0 Port or Chargeable USB 3.0 Port (Optional)USB ports to which you can connect USB devices as well as a chargeable USB port are provided.Using a chargeable USB port, you can access or charge a USB device. The port can be distinguished by the  gure ( or ) printed on the port of the product.5Speaker A device used to generate sound.
30Chapter 1. Getting StartedTurning the Computer On and O 1 Connect the AC adapter.2 Lift the LCD panel up.3 Press the Power button to turn the computer on.4 If the power is turned on, the power LED is lit.About Windows ActivationWhen you turn the computer on for the  rst time, the Windows activation screen appears.Follow the activation procedures according to the instructions on the screen to use the computer.Entering Sleep modeWhen the computer is turned on, press the computer’s power button once brie y.Adjusting the screen brightnessWhen the computer runs on battery power, the LCD brightness is automatically set to low.Press the + key combination to increase the screen brightness.Turning the computer on
31Chapter 1. Getting StartedTurning the computer o Since the procedures to turn the computer o may di er t depending on the installed operating system, please turn the computer o according to the procedures for the purchased operating system.Save all your data before clicking on t Shut down.If t Samsung Fast Start is installed, the system shutdown location may di er.► For Windows 7 Click Start > Shut down mode to shutdown the computer.12► For Windows Vista Click on Start > and then click on Shut Down as shown in the  gure below to shut the computer down.Power Button123Using the Power button in Windows VistaFor Windows Vista, the Power button is set to power saving mode. Therefore, if you click Start > Power button , the computer enters power saving mode.To shut down the computer by clicking this icon, refer to the descriptions for Setting up Start menu power button of the Control Panel.Turning the Computer On and O
32Chapter 1. Getting Started► For Windows XP1 Click the Start button on the taskbar.Click Turn O Computer.1 22 Click Turn O .If the system cannot be shut down due to a system error, turn it o by pressing and holding the Power Button for a minimum of 4 seconds.Please note that turning the computer o by this method may cause a system problem. Thereafter, when turning the computer back on, the disk checking program may launch to check for and correct any disk errors.Turning the Computer On and O
33Chapter 1. Getting StartedTurning the Computer On and O Samsung Fast Start (Optional)These descriptions are for Windows 7 and for supported models only. If you are using the system very often while on the move, use Fast Start to reduce the booting time.When the Samsung Fast Start function is being used, the computer runs in hybrid power-saving mode when the computer enters standby mode or hibernation mode.Using Fast Start1 Press the + key combination to run the Control Center.2 Select Fast Start and check if it is set to ON.If this option is set to ON, the Fast Start function will run.While the Fast Start function is enabledYou cannot change some power options in the Control t Panel. To change these,  rst disable the Fast Start function.The existing power saving mode and maximum power t saving mode functions have been replaced by this function.The LCD may  icker once if the Fast Start function is turned ON or OFF.What is hybrid power-saving mode?In hybrid saving mode, the data you are working on will be saved to memory and the HDD, in the event of a sudden power failure, ensuring the safety of your data.However, as unexpected accidents can always occur, it is recommended backing up any important data beforehand.
Keyboard 35Touchpad 39External-type CD drive (ODD, To be purchased) 46Micro SD Card Slot (Optional) 48Connecting an External Display Device 50Connecting an External Digital Device 55Adjusting the Volume 56Wired Network 59Wireless Network (Optional) 63Sharing Content in a Home Network (Easy Content Share) (Optional) 68 Chapter 2. Using the computer
35Chapter 2. Using the computer KeyboardShortcut key functions and procedures are discussed in the following sections.The keyboard image may di er from the actual keyboard.t The keyboard may di er depending on your country. The following mainly describes the shortcut keys.t Shortcut KeysYou can use the following functions by pressing the keys below with the Fn key.If you press the Fn Lock key and the button LED (Blue Color) is illuminated, you can use the following keys without holding down the Fn key.Fn Name FunctionControl Center The Samsung software control program, the Control Center, is launched.Screen Brightness ControlControls the screen brightness.CRT/LCD Switches the screen output to the LCD or external monitor when an external monitor (or TV) is connected to the computer.
36Chapter 2. Using the computerKeyboardFn Name FunctionTouchpad Turns the Touchpad function on or o.When using an external mouse only, you can turn the Touchpad o.Battery mode To use the battery eciently, you can change the battery mode according to your usage environment.Keyboard Backlight Brightness ControlControls the brightness of the keyboard backlight.Mute Press this button to turn the audio on or o. If the audio is muted, the LED is lit.Volume Control Controls the volume.Wireless networkIn models with a wireless network device, press this key to turn the wireless network device on or o. If the wireless network device is turned on, the button LED is turned on.
37Chapter 2. Using the computerFn Lock keyIf you press the Fn Lock key, you can use hot keys even without pressing the Fn key. If the Fn Lock is turned on, the button LED is lit.LED (Blue Color)Caps Lock keyIf Caps Lock is turned on, the button LED is lit.LED (Blue Color)Home keyThe mouse cursor moves to the beginning of the current row. + End keyThe mouse cursor moves to the end of the current row. + PgUp keyThe mouse cursor moves to the top of the current page. + PgDn keyThe mouse cursor moves to the bottom of the current page. + Other Function KeysPerforms the right-click mouse function (touchpad).If the hot keys do not work properly, you have to install the Easy Display Manager. Keyboard
38Chapter 2. Using the computerKeyboard Backlit Function (Optional)The keyboard Backlight are automatically turned on or o depending on the ambient illumination. Therefore, you can easily type with the keyboard when you are in a dark environment or at night.The representative  gure of the keyboard has been used, but they may di er depending on the country or the model. Keyboard

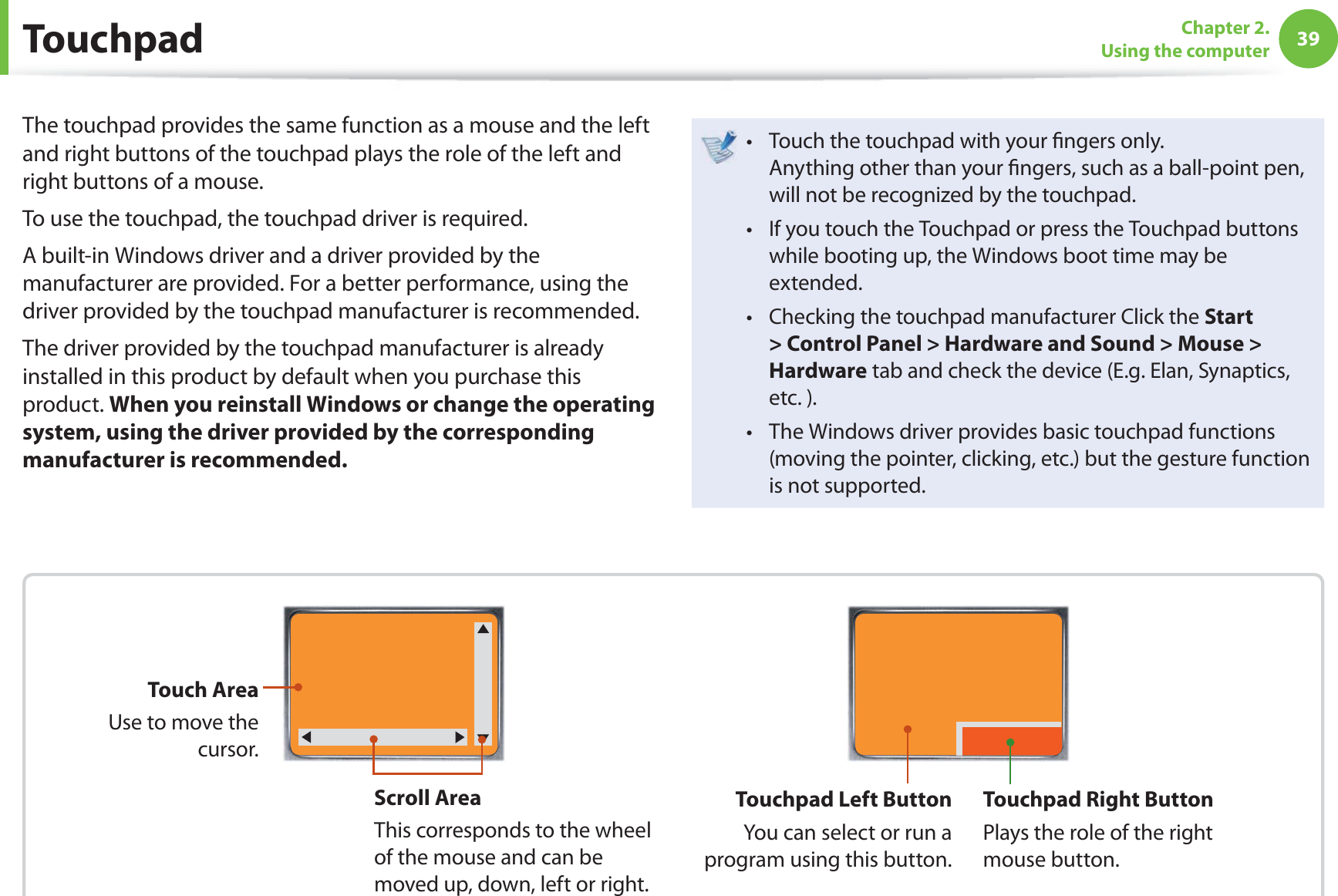

39Chapter 2. Using the computer TouchpadThe touchpad provides the same function as a mouse and the left and right buttons of the touchpad plays the role of the left and right buttons of a mouse.To use the touchpad, the touchpad driver is required.A built-in Windows driver and a driver provided by the manufacturer are provided. For a better performance, using the driver provided by the touchpad manufacturer is recommended.The driver provided by the touchpad manufacturer is already installed in this product by default when you purchase this product. When you reinstall Windows or change the operating system, using the driver provided by the corresponding manufacturer is recommended.Touch the touchpad with your  ngers only. t Anything other than your  ngers, such as a ball-point pen, will not be recognized by the touchpad.If you touch the Touchpad or press the Touchpad buttons t while booting up, the Windows boot time may be extended.Checking the touchpad manufacturer Click the t Start > Control Panel > Hardware and Sound > Mouse > Hardware tab and check the device (E.g. Elan, Synaptics, etc. ).The Windows driver provides basic touchpad functions t (moving the pointer, clicking, etc.) but the gesture function is not supported.Scroll AreaThis corresponds to the wheel of the mouse and can be moved up, down, left or right.Touch AreaUse to move the cursor.Touchpad Left ButtonYou can select or run a program using this button.Touchpad Right ButtonPlays the role of the right mouse button.
40Chapter 2. Using the computerBasic Touchpad FunctionsMoving the cursor on the screenPlace your nger on the touchpad slightly and move your nger.The mouse cursor will move accordingly. Move your nger in the direction you wish to move the cursor.Click FunctionPlace a nger on the touchpad and click on an item once. Alternatively, press the left button once quickly and release it.TapClickorDouble-Click FunctionPut your nger on the touchpad and quickly tap twice with your nger on an item you want.Alternatively, press the left touchpad button twice quickly.ClickClickTapTaporRight Button FunctionThis corresponds to clicking the right mouse button.Press the right touchpad button once. The corresponding pop-up menu appears.ClickTouchpad

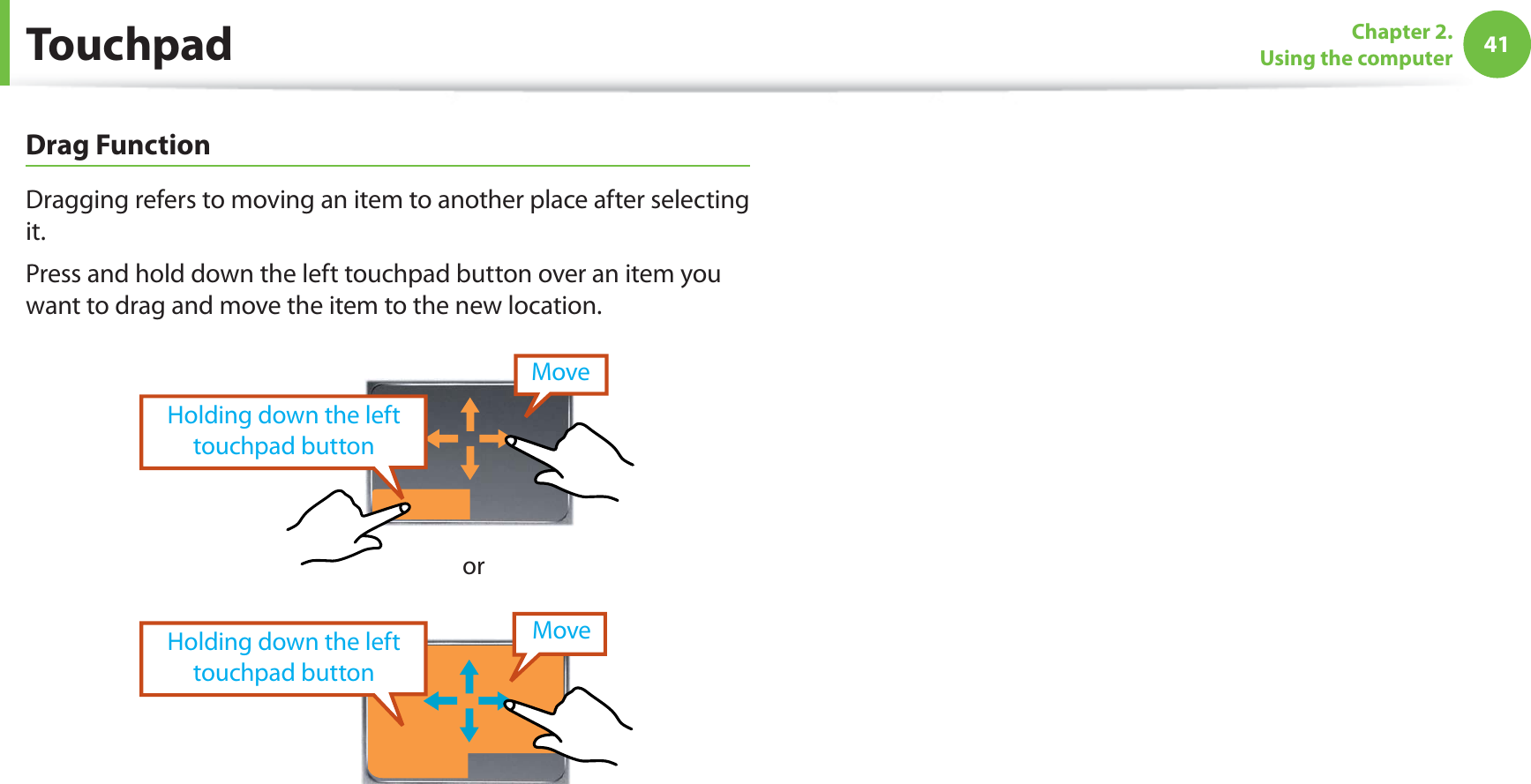

41Chapter 2. Using the computerDrag FunctionDragging refers to moving an item to another place after selecting it.Press and hold down the left touchpad button over an item you want to drag and move the item to the new location.MoveorHolding down the left touchpad buttonHolding down the left touchpad buttonMoveTouchpad
42Chapter 2. Using the computerThe Gesture Function of the Touchpad (Optional)The Touchpad Gesture function may not be provided and t the version of the function may di er depending on the model. Some usage procedures may di er depending on the version.For detailed usage procedures, refer to the description in t the Touchpad Settings window.Since these descriptions are written on the basis of the t latest operating system, Windows 7, some of the content and the  gures of the descriptions may di er depending on the operating system. Since the procedures for other Windows operating systems are similar, use the computer referring to these descriptions.Using the Touchpad, you can use the following additional Gesture functions.Scroll functiont Zoom functionst Rotation function t Page Move Functiont Con guring the Gesture FunctionIf the Gesture function is not activated, you can activate it according to the following procedures.1 ► When using the Elan driver Click the Start > Control Panel > Hardware and Sound > Mouse > ELAN > Options button.► When using the Synaptics driverClick the Start > Control Panel > Hardware and Sound > Mouse > Device Settings tab > Settings button.2 The Touchpad Settings window appears. Click over the corresponding item to select the item in the Select an item and click OK.To cancel the Gesture function, unselect the corresponding t item in the Touchpad Settings window and click OK.Do not use the gesture function after you have already t touched the touchpad with your  nger.The gesture function works well when you use it in the t center of the touch area. Touchpad
43Chapter 2. Using the computerThe Scroll FunctionThis function is the same as the scroll area of the Touchpad.If you place two ngers over the Touchpad and move them up, down, left or right, the screen is scrolled up, down, left or right accordingly.orZoom FunctionsIf you place two ngers over the Touchpad together or apart, the current image or text is zoomed in or out.Zoom-outZoom-inorRotation functionPlace two ngers over the touchpad and move the ngers as follows to rotate the photo or image.orPage Move FunctionYou can move to the previous or next page when you are looking at a photo or surng the Internet.For example, if you lightly brush three ngers to the left while you are looking at a web site, you will return to the previous page.Touchpad
44Chapter 2. Using the computerTouchpadSetting the Touchpad SensitivityIf the touchpad reacts too sensitively or the pointer moves unintentionally, please adjust the touchpad pointer speed and sensitivity.Adjusting the Touchpad Pointer SpeedClick Start > Control Panel > Hardware and Sound > Mouse > Pointer Options and then adjust the pointer speed.Adjusting the Touchpad Palm Detection FunctionThe palm detection function is to avoid malfunctions when the palm touches the touchpad by mistake.This function is provided by the touchpad driver provided by the manufacturer.► When using the Elan driver Click Start > Control Panel > Hardware and Sound > Mouse > ELAN > Options > PalmTracking and then adjust the sensitivity.► When using the Synaptics driver Click Start > Control Panel > Hardware and Sound > Mouse > Device Settings > Settings > SmartSense and then adjust the sensitivity. Minimum MaximumWhen the touchpad pointer moves unintentionally (excessively): Slide the bar appropriately in the direction of Maximum.When the touchpad pointer does not move smoothly: Slide the bar appropriately in the direction of Minimum.
45Chapter 2. Using the computerTouchpad On/O FunctionLocking with shortcut keysIf you want to use the mouse only without using the touchpad, you can turn the touchpad o .To lock the touchpad function, press the + keys.You can set the touchpad and touchpad button settings in the tabs that appear when clicking Start > Control Panel > Hardware and Sound > Mouse.Auto-locking when connecting USB mouse► When using the Elan driver Click Start > Control Panel > Hardware and Sound > Mouse > ELAN, and check the Disable When external USB mouse plug in option. This will turn the touchpad o when a USB mouse is connected.► When using the Synaptics driver Click Start > Control Panel > Hardware and Sound > Mouse > Device Settings, and check the Disable internal pointing device when external USB pointing device is attached in option. This will turn the touchpad o when a USB mouse is connected.In case of some touch-screen model, checking option locks touchpad even though you did not connect a USB mouse.This auto-locking function is not provided for some models.Touchpad
46Chapter 2. Using the computer External-type CD drive (ODD, To be purchased)This computer supports an external USB CD-ROM drive (can be additionally purchased).Check if the interface type of the external CD-ROM drive is a USB type. For detailed speci cations, refer to the catalog.Do not insert a cracked or scratched CD.t Otherwise, the CD may break and damage the optical disk drive when the CD rotates at a high speed.When you clean a CD or DVD title, wipe with a soft cloth t from inside to outside.Do not eject a CD when the CD operating LED is on.t The  gures used for the description are of a representative t model. Therefore the  gures may di er from the real ones.Using a CD that is not in the shape of a circle is not t recommended.Connecting the CD DriveConnect the CD drive to the USB port.USB port
47Chapter 2. Using the computerInserting and Ejecting a CD1 Press the Eject button of the CD drive.Status IndicatorEject ButtonEmergency Hole2 When the CD tray opens, insert a CD or DVD and push the tray in until it clicks.3 Push the CD tray inward until it clicks.The CD drive status indicator is turned on.A CD drive’s reading and writing speed may di er t depending on the condition and type of the media.To eject a CD when the CD drive does not work or the t computer is o , place the end of a paper clip ( ) into the Emergency Hole until the CD tray is ejected.External-type CD drive (ODD, To be purchased)
48Chapter 2. Using the computer Micro SD Card Slot (Optional)You can only use the micro SD card slot for micro SD cards.You can use micro SD cards as removable disks and conveniently exchange data with digital devices such as a digital camera, digital camcorder, MP3, etc.You have to additionally purchase a micro SD card with the t necessary capacity depending on your requirements.You can use a micro SD card just like any data storage t device. A copyright protection function is not supported.Since you can lose a card when moving the computer, t keep the card separately.The  gures used for the description are of a representative t model. Therefore the  gures may di er from the real ones.These descriptions are written based on Windows 7, the t latest operating system. Therefore, some descriptions and  gures may di er from your operating system. But as the usage is similar to other Windows operating systems, you can use these descriptions for reference. Using the card1 Insert the card into the micro SD card slot in the indicated direction.Micro SD Card2 The card drive appears. Click Open folder and view  les.If the window does not appear, click Start > Computer.
49Chapter 2. Using the computerMicro SD Card Slot (Optional)If a window asking to scan and change appears, click Continue Without Scanning. This will proceed to Step 2 above.3 You can save, move and delete data by double-clicking the corresponding drive.You can only use the card after formatting it.The device name of the card drive may di er depending on your computer model.To remove a memory cardTake hold of the end of the card and remove the card.To format a memory cardWhen using the memory card for the  rst time, you must format the card before using it.Formatting a card deletes all data saved on the card. If the card includes data, backup the data before formatting it.1 Click Start > Computer.2 Right-click over a card drive with the touchpad and select Format.3 Click Start to the formatting.To use a card to exchange data with a digital device such t as a digital camera, formatting the data using the digital device is recommended.When you try to use a card, which is formatted in the t computer, in another digital device, you may have to format the card again in the device.If the write-protect tab is in the t Lock position, you cannot format, write or delete data on the card.Take care when you insert or remove a micro SD card. The t micro SD card may be damaged when not treated carefully.
50Chapter 2. Using the computerConnecting an External Display DeviceIf you connect an external display device such as a monitor, TV, projector, etc., you can view the picture on the wider screen of the external device when you give a presentation or watch a video or movie.There is an analog monitor port (RGB) and a micro digital video and audio port (Micro HDMI).Since the visual quality is higher for Micro HDMI than VGA, if more than one port is available, connect the port that provides the higher visual quality.Before you start, check the port and cable of the external t display device and then connect the display device to the computer.Due to restrictions of the operating system the DualView t function is not supported for Windows 7 Starter.About the connection cableUsers should additionally purchase the necessary connection cables.Analog Monitor (RGB) CableHDMI to micro HDMI Cable Connecting to the monitor port (Optional)You can experience a wider screen by connecting the computer to a monitor, TV or projector with a monitor port.You can give better presentations by connecting the computer to a projector.The VGA adapter is optional and may not be provided depending on the model.1 Connect the VGA adapter to the monitor port of the computer.

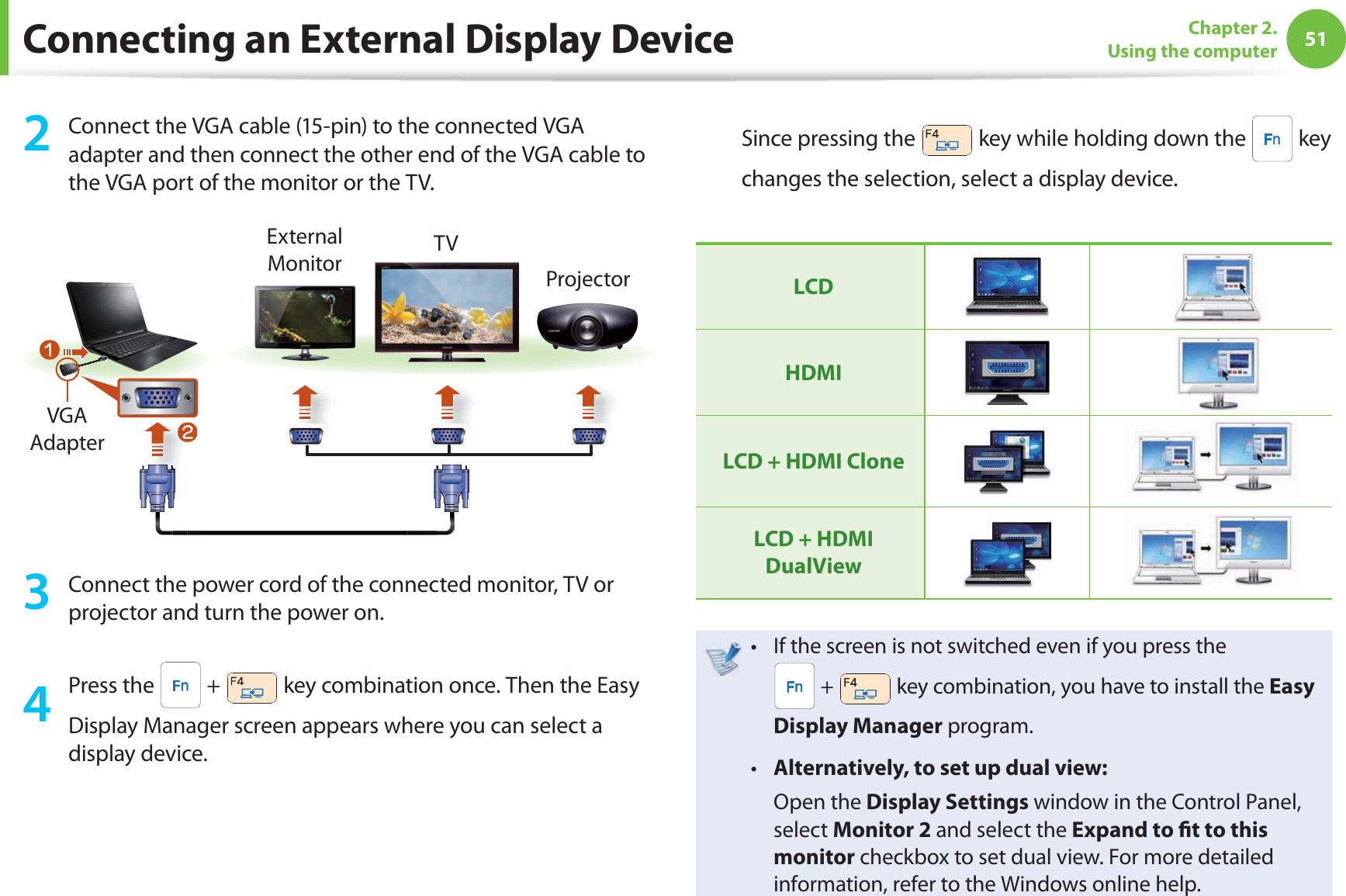

51Chapter 2. Using the computer2 Connect the VGA cable (15-pin) to the connected VGA adapter and then connect the other end of the VGA cable to the VGA port of the monitor or the TV.lExternal Monitor TVProjectornVGA Adapter3 Connect the power cord of the connected monitor, TV or projector and turn the power on.4 Press the + key combination once. Then the Easy Display Manager screen appears where you can select a display device.Since pressing the key while holding down the key changes the selection, select a display device.LCDHDMILCD + HDMI CloneLCD + HDMI DualViewIf the screen is not switched even if you press the t + key combination, you have to install the Easy Display Manager program.Alternatively, to set up dual view:t Open the Display Settings window in the Control Panel, select Monitor 2 and select the Expand to  t to this monitor checkbox to set dual view. For more detailed information, refer to the Windows online help.Connecting an External Display Device
52Chapter 2. Using the computerConnecting through the Micro HDMI port (Optional)By connecting the computer to a TV with a HDMI port, you can enjoy both a high visual quality and a high sound quality.After connecting a TV through Micro HDMI, you have to con gure the screen and sound.You have to additionally purchase the HDMI to micro HDMI cable.1 Connect the HDMI to micro HDMI cable to the HDMI port of the TV.External Monitor TVProjectorHDMI to micro HDMIThis is only supported for models that support a TV output t port (HDMI).When a TV provides more than one HDMI port, connect t the computer to the DVI IN port.When connecting the computer to a TV, switch the t external input mode of the TV to HDMI.2 Press the + key combination once. Then the Easy Display Manager screen appears where you can select a display device.Since pressing the key while holding down the key changes the selection, select a display device.HDMILCD + HDMI CloneLCD + HDMI DualViewConnecting an External Display Device

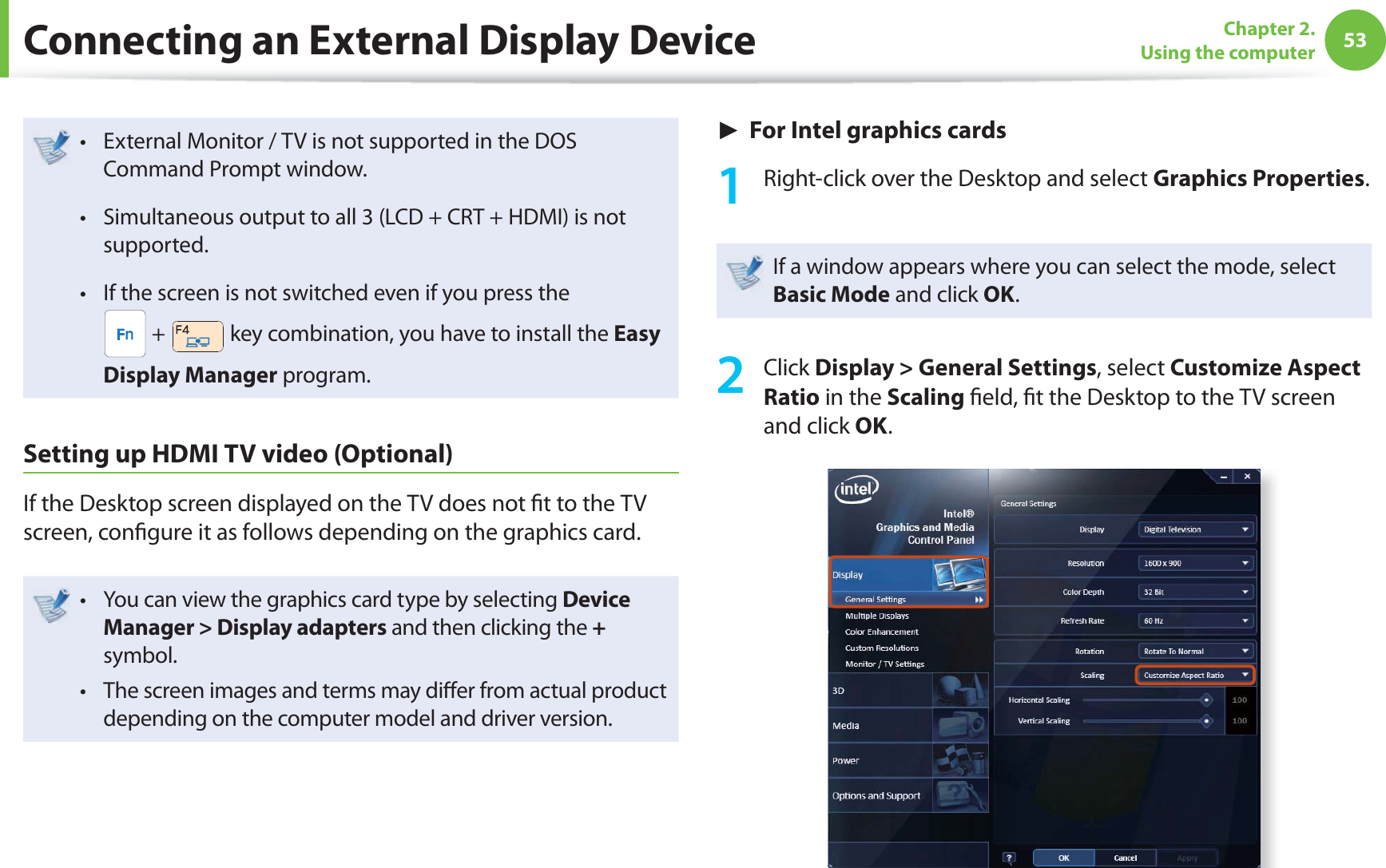

53Chapter 2. Using the computerExternal Monitor / TV is not supported in the DOS t Command Prompt window.Simultaneous output to all 3 (LCD + CRT + HDMI) is not t supported.If the screen is not switched even if you press the t + key combination, you have to install the Easy Display Manager program.Setting up HDMI TV video (Optional)If the Desktop screen displayed on the TV does not  t to the TV screen, con gure it as follows depending on the graphics card.You can view the graphics card type by selecting t Device Manager > Display adapters and then clicking the + symbol.The screen images and terms may di er from actual product t depending on the computer model and driver version.► For Intel graphics cards1 Right-click over the Desktop and select Graphics Properties.If a window appears where you can select the mode, select Basic Mode and click OK.2 Click Display > General Settings, select Customize Aspect Ratio in the Scaling  eld,  t the Desktop to the TV screen and click OK.Connecting an External Display Device
54Chapter 2. Using the computerSetting up HDMI TV audio (Optional)You can con gure the sound of the computer to be played through the HDMI TV. You have to con gure the sound device in the Control Panel whenever you connect the HDMI TV in order to hear sound from the computer on the TV.The screen images and terms may di er from actual product depending on the computer model.1 Right-click over the Volume Control icon in the noti cation area at the bottom right of the Desktop and select Playback Devices.(Alternatively, click the Control Panel > Hardware and Sound > Sound.)2 Change the setting to Digital Audio (HDMI), HDMI Device or Digital Output Device, click Set Default and click OK. HDMI Output Device may not appear on the playback device list depending on the computer model. In this case, turn on the TV, connect the TV to the computer using a HDMI cable and then switch to HDMI or LCD+HDMI Clone or LCD+HDMI DualView mode using the Shortcut Key( + ).To listen to sound on the computer after disconnecting the HDMI TV, you have to set the Playback Device to Speakers.Connecting an External Display Device
55Chapter 2. Using the computerConnecting an External Digital DeviceYou can save a  le stored on a device onto the computer by connecting a digital device such as a camera, camcorder or mobile phone to the computer and using the  le management functions.Connecting and using a camera or camcorderIf a digital device such as a camera or camcorder is connected with the computer, it is recognized as a removable disk so that you can copy or move the  les on the device.1 Connect the USB port of the notebook computer and the USB port of the digital device such as a camera using the USB cable.Both the computer and the digital device must be turned t on.You have to additionally purchase the USB cable necessary t to connect the computer and the device.Camera Camcorder2 The Auto run window appears. Click Open folder and view  les.If the window does not appear, click Start > Computer.3 Double-click the corresponding drive. You can then save, move or delete data.The device name of the card drive may di er depending on the model.
56Chapter 2. Using the computer Adjusting the VolumeYou can adjust the volume using the keyboard and the volume control program.Adjusting the Volume using the Keyboard + or + Alternatively, press the + key combination to turn the volume on or o .Adjusting the Volume using the Volume Adjustment ProgramClick the Volume icon on the taskbar and slide the volume control bar to adjust the volume.MuteWindows XPWindows 7/VistaUsing the Sound RecorderThe procedures to record sound using the Windows Recorder are described below.► For Windows 7/Vista1 Connect a microphone to the microphone jack.You can also use the internal MIC.2 Right-click over the Volume icon on the taskbar and select Recording Device.3 Check if the microphone is set as the default recording device.If this is the case, it is already set as the default device. If not, right-click over the microphone and select Set default.4 Click Start > All Programs > Accessories > Sound Recorder and click Start recording to start a recording.
57Chapter 2. Using the computer► For Windows XP1 Connect a microphone to the microphone jack.You can also use the internal MIC.2 Click Start > Control Panel > Sounds, Speech, and Audio Devices > Sounds and Audio Devices.3 Click Advanced from Volume and then, click Options > Properties.4 Select Realtek HD Audio input from the mixer device to select Recording from Adjust Volume for.5 Select Mic Volume from Show the following volume controls and click OK.6 When Recording Control window appears, check the Select checkbox.Increase the recording volume to increase the recording sensitivity and close the window.7 Click Start > All Programs > Accessories > Entertainment > Sound Recorder.8 Click the Record button to perform recording.The default recording duration of Windows is 60 seconds.Download a dedicated recording program from the Internet to record audio data for a long time.Adjusting the Volume

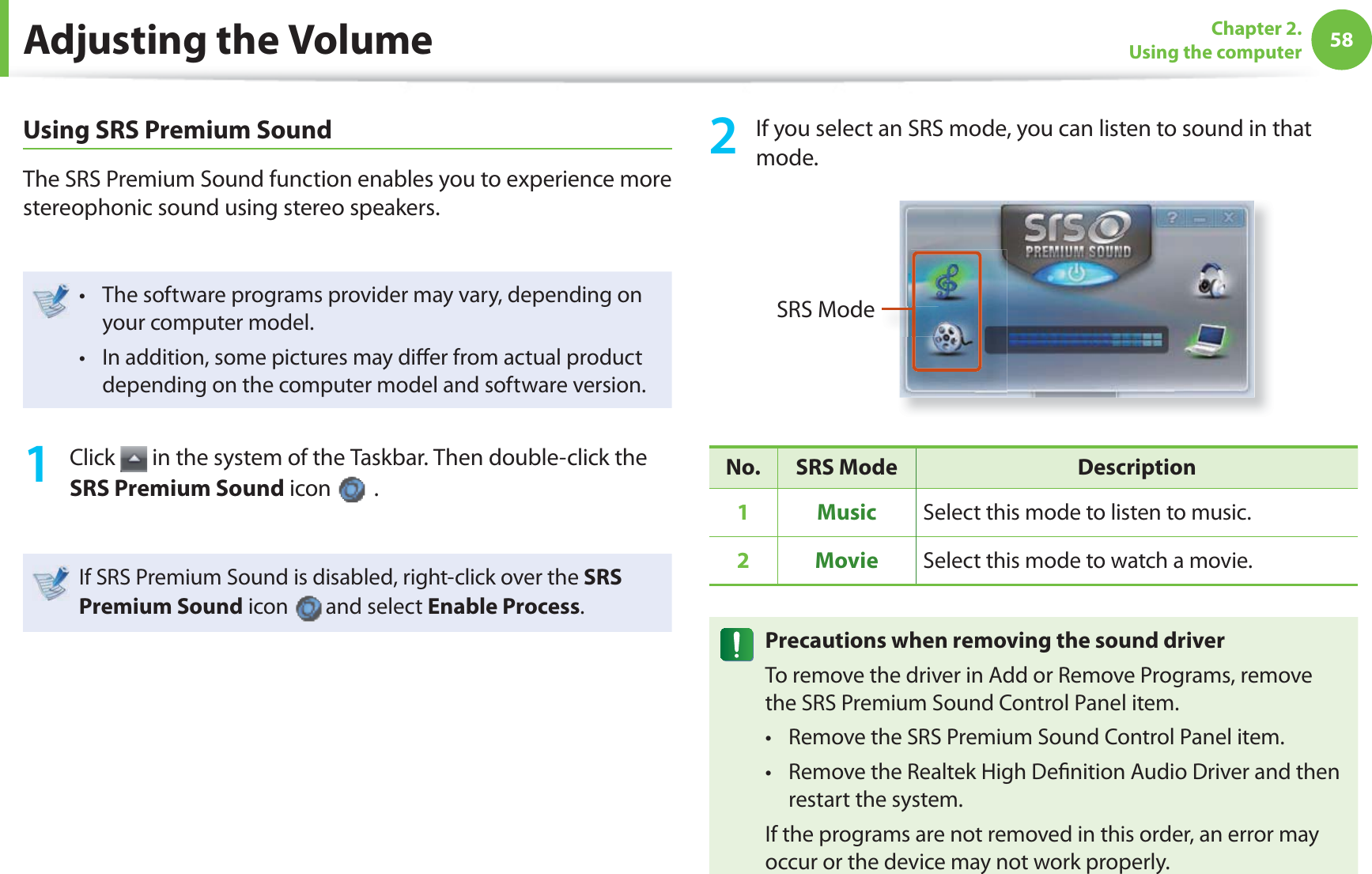

58Chapter 2. Using the computerUsing SRS Premium SoundThe SRS Premium Sound function enables you to experience more stereophonic sound using stereo speakers.The software programs provider may vary, depending on t your computer model.In addition, some pictures may di er from actual product t depending on the computer model and software version.1 Click in the system of the Taskbar. Then double-click the SRS Premium Sound icon .If SRS Premium Sound is disabled, right-click over the SRS Premium Sound icon and select Enable Process.2 If you select an SRS mode, you can listen to sound in that mode.SRS ModeNo. SRS Mode Description1Music Select this mode to listen to music.2Movie Select this mode to watch a movie.Precautions when removing the sound driverTo remove the driver in Add or Remove Programs, remove the SRS Premium Sound Control Panel item.Remove the SRS Premium Sound Control Panel item.t Remove the Realtek High De nition Audio Driver and then t restart the system.If the programs are not removed in this order, an error may occur or the device may not work properly.Adjusting the Volume
59Chapter 2. Using the computer Wired NetworkA wired network is a network environment used for a company network or broadband internet connection at home.You can use wired LAN by using the LAN adapter (Optional).t Since these descriptions are written on the basis of the t latest operating system, Windows 7, some of the content and the  gures of the descriptions may di er depending on the operating system. Since the procedures for other Windows operating systems are similar, use the computer referring to these descriptions.The  gures used for the description are of a representative t model. Therefore the  gures may di er from the real ones.1 Connect the LAN adapter to the wired LAN port.2 Connect the LAN cable to the connected LAN adapter.LAN adapternl3 ► For Windows 7Click Start > Control Panel > Network and Internet > Network and Sharing Center and click on Change adapter settings in the left menu pane.► For Windows VistaClick Start > Control Panel > Network and Internet > Network and Sharing Center and click Manage Network Connections in the left menu pane.► For Windows XPClick Start > Control Panel > Network and Internet Connections > Network Connection.
60Chapter 2. Using the computer4 Select Local Area Connection and click the right button of the touch pad and select Properties.The LAN Device name may di er depending on your computer’s Network Device.5 ► For Windows 7/VistaSelect Internet Protocol Version 4(TCP/IPv4) from the list of Network Components and click Properties.► For Windows XPClick General tab and select a LAN driver from Connect using:. Select Internet Protocol(TCP/IP) and click Properties.The Network Component name may di er depending on t the Operating System Installed.To add a network component, click Install in the screen t shown in the  gure above. You can add clients, services, and protocols.Wired Network
61Chapter 2. Using the computerWired Network6 Con gure the IP settings.When using DHCP, select Obtain an IP address automatically. To use a static IP address, select Use the following IP address, and set the IP address manually.When not using DHCP, ask your network administrator for the IP address.7 When you have completed the settings, click the OK button.The network settings have been completed.Using the WOL (Wake On LAN) function<Wake On LAN> is a function that activates the system from Sleep mode when a signal (such as a ping or magic packet command) arrives over the network (wired LAN).1 ► For Windows 7Click Start > Control Panel > Network and Internet > Network and Sharing Center and click on Change adapter settings in the left menu pane.► For Windows VistaClick Start > Control Panel > Network and Internet > Network and Sharing Center and click Manage Network Connections in the left menu pane.► For Windows XPClick Start > Control Panel > Network and Internet Connections > Network Connection.2 Right-click on the Local Area Connection and select Properties.
62Chapter 2. Using the computerWired Network3 Click Con gure > Power Management tab. Select Allow this device to bring the computer out of standby, then click OK. Restart the system.- If the system wakes up from Sleep mode even though there is no received signal, use the system after disabling the <Wake On LAN> function.- The LAN LED may not be turned o if System is shoutdown without disabling the WOL (Wake on LAN) option.- Connecting a wired LAN while using a wireless LAN may not activate the <Wake On LAN> function. Set the Wireless LAN to Disable to use the <Wake On LAN> function.- <Wake On LAN> feature may not work while using Hybrid power saving feature. For Win7, Wake On LAN is not supported by Ping.When connected to a 100Mbps/1Gbps wired LAN and the computer exits Sleep/hibernation mode, a message appears informing you of a connection to a 10Mbps/100Mbps wired LAN. This happens because when the computer exits standby/hibernate mode, restoring the network takes about 3 seconds. When the network is restored, it operates at 100Mbps/1Gbps.When system is running on battery, some time it takes about 20sec after inserting LAN cable to be able to connect to internet. This symptom happen as a result of power saving feature to reduce battery consumption.When system is running on battery, the Wired LAN speed is decreased automatically to reduce battery consumption. In such case, a 1Gbps /100Mbps LAN would function at 100Mbps/10Mbps speed.
63Chapter 2. Using the computerA wireless network (Wireless LAN) environment is a network environment that enables communicating between multiple computers at home or a small-size o ce through wireless LAN devices.The descriptions below are for computer models with t a Wireless LAN card or device. A Wireless LAN device is optional.The pictures in this manual may di er from the actual product depending on your wireless LAN device model.If the wireless LAN is turned o , press the t + key combination to turn it on.What is an Access Point ( AP)?An AP is a network device that bridges wired and wireless LANs, and corresponds to a wireless hub in a wired network. Connect the computer with the wireless LAN function to the AP to use to the network connection.Connecting to a Wireless LANIf there is an AP, you can connect to the Internet via the AP using the Wireless LAN connection method provided by Windows.► For Windows 71 If you click the Network Connections icon in the system tray, a list of available APs appears. If you select an AP to connect to, the Connect button appears.AP List Wireless Network (Optional)

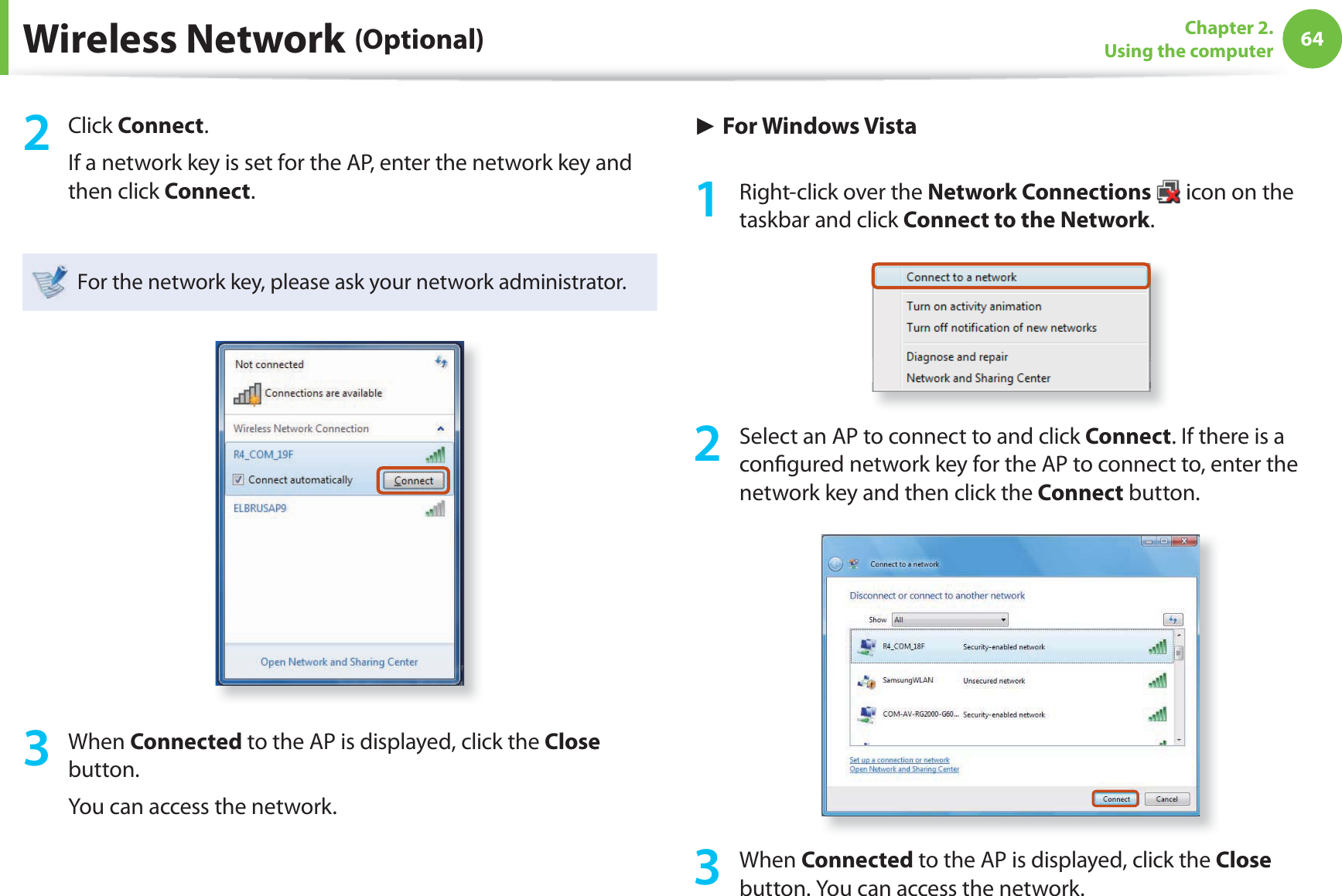

64Chapter 2. Using the computerWireless Network (Optional)2 Click Connect.If a network key is set for the AP, enter the network key and then click Connect.For the network key, please ask your network administrator.3 When Connected to the AP is displayed, click the Close button.You can access the network.► For Windows Vista1 Right-click over the Network Connections icon on the taskbar and click Connect to the Network.2 Select an AP to connect to and click Connect. If there is a con gured network key for the AP to connect to, enter the network key and then click the Connect button.3 When Connected to the AP is displayed, click the Close button. You can access the network.
65Chapter 2. Using the computerWireless Network (Optional)► For Windows XP1 Click the Wireless Network Connection icon from the Taskbar using the right button of the touch pad. Then, click View Available Wireless Networks.2 Select an AP to be connected and click Connect.If a network key is set in the AP, the network key input window will appear. Enter the network key in the input window and click OK.For a network key, contact the network administrator.3 Once Connected to AP is displayed, you can use a wireless network.
66Chapter 2. Using the computerWireless Network (Optional)Connecting to a wireless network through Control Center (Optional) These descriptions are for Windows 7 and for supported t models only. The screen images and terms may di er from actual t product depending on the computer model.You can access a wireless network using Control Center.1 Press the + key combination to run the Control Center.2 Select Wi-Fi and check if it is set to ON.If this option is set to ON, the Wi-Fi function will run.Wi-Fi Connection Status ON Green, OFF GreyAP ListWlnNormal Wireless Network StatusIf the wireless LAN icon is displayed in the system tray of the Taskbar, it indicates that the computer is connected to the Internet properly (see below).[Windows 7] [Windows Vista] [Windows XP]
67Chapter 2. Using the computerWireless Network (Optional)Abnormal Wireless Network StatusWhen the wireless LAN is not connectedIf the wireless LAN icon is displayed with an “X” in the system tray of the Taskbar, it indicates that the wireless LAN device is turned o or that there are no available APs. Or the wireless LAN is disconnected.[Windows 7] [Windows Vista] [Windows XP]If the wireless LAN is turned o , press the + key combination to turn it on.When you are not connected to the InternetThis is indicated by the wireless LAN icon in the system tray of the Taskbar. In this case, you have to check the IP address settings.Please contact your network administrator and recon gure the IP address.[Windows 7] [Vista] [Windows XP]When APs are found but your computer is not connected to the InternetThis is the case when an AP with a weak signal has been set to a high priority. Connect to an AP with a strong signal by clicking it.An AP with a strong signal strengthThe currently connected AP. The signal strength is low.Click[Windows 7][Windows XP]An AP with a strong signal strengthThe currently connected AP. The signal strength is low.Click
68Chapter 2. Using the computerSharing Content in a Home Network (Easy Content Share) (Optional)Easy Content Share is a DLNA application that allows you to play photos, videos and music  les on your TV.These descriptions are for Windows 7 and for supported t models only. The Digital Living Network Alliance (DLNA) aligns industry t leaders in the CE, mobile, and PC industries through digital interoperability, and DLNA-certi ed devices allow users to play videos, photos and music  les stored on a computer on a TV. To play content using DLNA technology, both your t computer and TV must be DLNA certi ed.For information on whether a product supports DLNA, refer to the respective user manuals.To play videos, photos and music  les stored on a computer, con gure the settings in the order as shown below.1. Con guring the network settings for your computer and TV2. Adding shared content on your computer3. Playing content on your TV using your computerCon guring the network settings for your computer and TVTo share content, all shared devices must be connected to the same access point.Con gure the network settings by following the steps below.1 Connect your computer and TV to an access point through a wired or wireless LAN connection, as shown in the  gure below.[Network connection diagram]2 Con gure the IP address settings for your computer and TV.You must check the Obtain an IP address automatically (DHCP) checkbox.
69Chapter 2. Using the computerFor more information on how to con gure the IP address t for your computer, refer to Chapter 2. Using the Computer > Network.For more information on how to con gure the IP address t for your TV, refer to the user manual of your TV.3 To check if the network environment has been con gured, run Easy Content Share.If the connected computer and TV are shown in the program window, the network settings have been con gured successfully.Devices that can share contentIf connected devices are not displayed, refer to the Easy Content Share item in the Troubleshooting Guide.Adding shared content on your computerAdd the videos, photos and music  les that you want to play on your TV as shared items.You can only play shared items on your TV.1 Click Settings at the top right of Easy Content Share.2 Click My computer > Add Folder . The Browse For Folder window appears. Select a folder to share and click OK.Sharing Content in a Home Network (Easy Content Share) (Optional)
70Chapter 2. Using the computer3 The selected folder is added to the shared list.Playing content on your TV using your computerAfter you have set photos, videos and music  les as shared items, you can play them on your TV using your computer.1 In Easy Content Share, select the TV you want to use to play content.PlaylistAdd content to playPlay control panel2 Select the item you want to play in the playlist, and then click Play .3 The selected  le is played on the TV.Using the Play Control panel, you can control the item being played on the TV.4 To stop playing, click Stop .Easy Content Share does not support subtitles due to DLNA constraints. To use the caption function, refer to the Easy Content Share item in the Troubleshooting Guide.Sharing Content in a Home Network (Easy Content Share) (Optional)
71Chapter 2. Using the computerAdding a video, photo or music  le to the playlist1 Click Add Content in the Playlist screen. The shared content list is displayed.2 In the shared content list, check the checkbox in front of the item you want to add to the playlist, and then click Add to playlist .Add the selected item to the playlistShared content listReturn to the playlist screen3 Click Return to playlist screen .In the playlist screen, you can  nd that the selected item has been added to the playlist.Playing the content stored on a computer when Easy Content Share is not installedYou can also play the videos, photos and music  les stored on a computer when Easy Content Share is not installed on your TV by using Windows Media Player.As described in the steps below, con gure the content sharing settings to play content on your TV.The computer containing the shared content (when Easy Content Share is not installed) must be connected to the same access point to which the computer where Easy Content Share is installed and the TV is connected to.► For Windows Media Player 121 Run Windows Media Player.2 Click Stream and check the Automatically allow devices to play my media... menu item.Sharing Content in a Home Network (Easy Content Share) (Optional)
72Chapter 2. Using the computer3 Run Windows Explorer.4 Right-click the folder to share. From the menu displayed, point to Include in library.Click Videos, Photos or Music in the displayed sub menu, according to the type of content contained in the selected folder.If the selected folder contains two or more types of content, you must click each corresponding menu item (Videos, Photos or Music) to register each type of content.► For Windows Media Player 111 Run Windows Media Player.2 Click Library > Media Sharing.The Media Sharing window is displayed. Check the Share my media checkbox and then click OK.Sharing Content in a Home Network (Easy Content Share) (Optional)
73Chapter 2. Using the computer3 In the Media Sharing window, click Settings.... The Media Sharing - Default Settings window is displayed. Check the Allow new devices and computers automatically (not recommended) checkbox.A popup window is displayed. Click Yes. Then click OK in the Media Sharing- Default Settings window and in the Media Sharing window.After the registration has been  nished, you can  nd the added folder is listed in the shared content list of Easy Content Share.For a shared content item, the name of the computer where the item is stored is displayed next to it, allowing you to identify the computer. This is useful when multiple computers are providing content.A folder added as a shared itemThe name of the PC where the content is storedContent sharing is only available with Windows Media Player 11 or later.If your Windows Media Player is earlier than Windows Media Player 11, download and install Windows Media Player 11 or later from the Microsoft website.Sharing Content in a Home Network (Easy Content Share) (Optional)
LCD Brightness Control 75Control Center (Optional) 77BIOS Setup 78Setting a Boot Password 80Changing the Boot Priority 83Battery 84Using the Security Lock Port 89 Chapter 3. Settings and Upgrade
75 Chapter 3.Settings and Upgrade LCD Brightness ControlYou can adjust the LCD brightness in 8 levels.The screen brightness is automatically set to the brightest level (brightness level 8) when AC power is connected and the brightness is automatically set dimmer when the computer runs on battery power to extend the battery use time.Controlling the Brightness Using the KeyboardAdjust the LCD brightness by pressing the + key or the + key.The LCD brightness can change up to 8 levels and the brightness increases by 1 level when pressing the + key once.Maintaining the changed LCD brightness even after t turning the computer on again To maintain the LCD brightness set by using the brightness control keys or through the Power Options, follow the procedures below. ► For Windows 7/Vista 1. Click Control Panel > Hardware and Sound > Power Options. 2. Click Change the settings of the currently con gured mode. 3. Adjust the display brightness adjustment menu bar and click the Save the changes button.Saving battery power consumptiont Decreases the LCD brightness when the computer is running on battery power to save battery power consumption.
76 Chapter 3.Settings and UpgradeLCD Brightness ControlLCD bad pixels principle of laptop computert Samsung observes the speci cations regarding strict quality and reliability of LCD. But in spite of that, it is inevitable that there might be a small number of bad pixels. A large number of bad pixels can cause problems in appearance, but a small number of pixels doesn’t a ect the computer performance. Therefore Samsung observes and manages the following dot principles: - Bright dot : 2 or less- Black dot : 4 or less- Combination of Bright and Dark : 4 or lessInstructions for Cleaning the LCDClean the LCD panel with a soft cloth lightly moistened with computer cleansing detergent moving in one direction. Cleaning the LCD panel with excessive force can damage the LCD.
77 Chapter 3.Settings and UpgradeThe Control Center is the integrated Samsung software control program that allows users to con gure various settings.This description is for models that support this function t running on Windows 7.The screen image and terminology may change depending t on the model.Depending on the program version, some functions may t not be provided or di erent functions may be provided.1 Press the + key combination to launch the Control Center.2 Click on the item you want to use and select ON or OFF to determine whether to use the function or not.You can set this to ON or OFF.ItemslnControl Center (Optional)
78 Chapter 3.Settings and Upgrade BIOS SetupThe BIOS Setup enables you to con gure your computer hardware according to your needs.Use the BIOS setup to de ne a boot password, change the t booting priority, or add a new device.Since incorrect settings may cause your system to t malfunction or crash, take care when con guring the BIOS.The functions of the BIOS setup are subject to change for t product function enhancement purposes.The BIOS Setup menus and items may di er depending on t your computer model.Entering the BIOS Setup1 Turn the computer on.2 When the booting screen (SAMSUNG logo) appears, press the F2 key to enter the BIOS Setup.The screen images in this document may di er from actual product. 3 After a moment, the BIOS setup screen appears. The items in the BIOS setup may di er depending on the product.

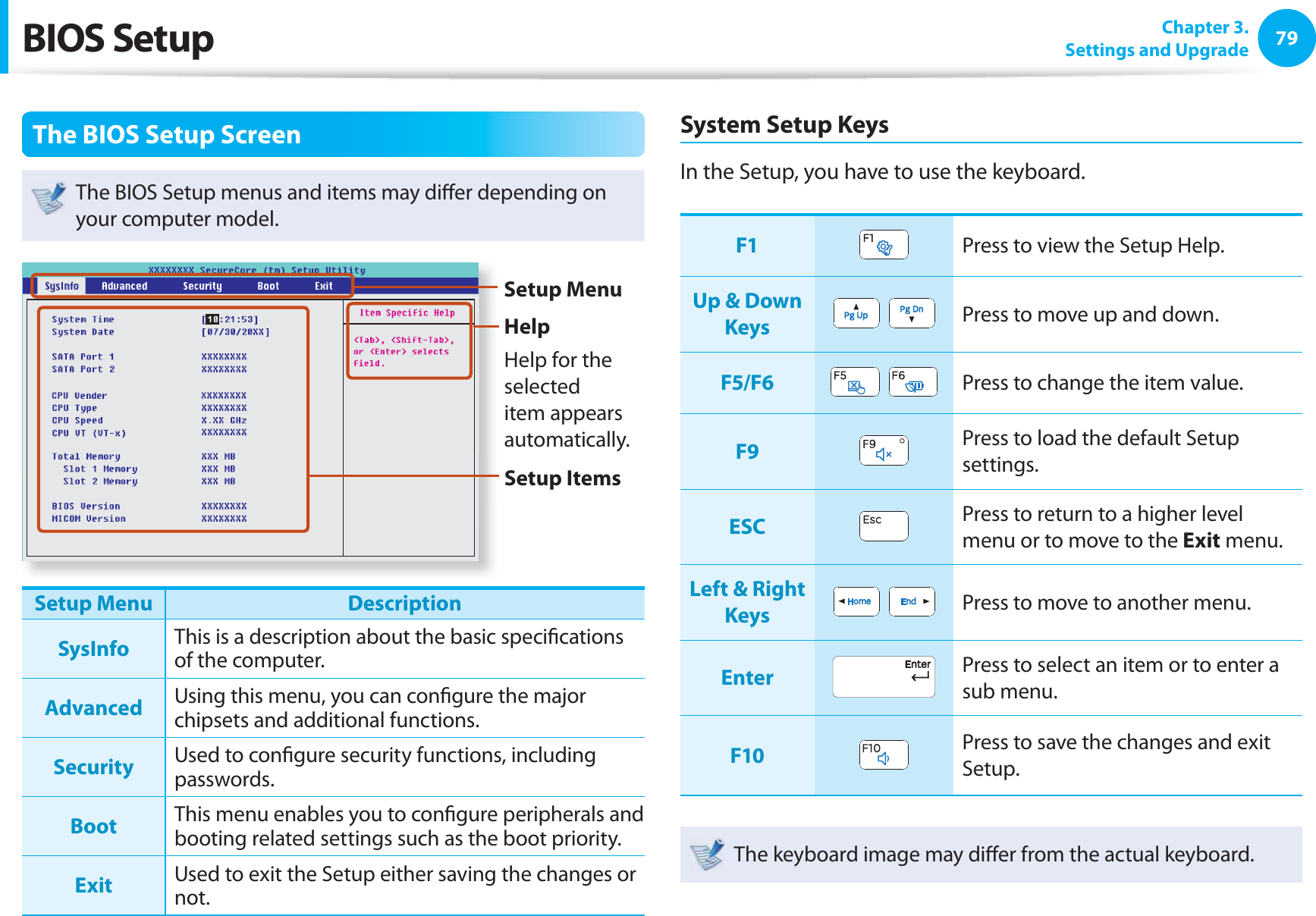

79 Chapter 3.Settings and UpgradeThe BIOS Setup ScreenThe BIOS Setup menus and items may di er depending on your computer model.Setup MenuSetup ItemsHelpHelp for the selected item appears automatically.Setup Menu DescriptionSysInfo This is a description about the basic speci cations of the computer.Advanced Using this menu, you can con gure the major chipsets and additional functions.Security Used to con gure security functions, including passwords.Boot This menu enables you to con gure peripherals and booting related settings such as the boot priority.Exit Used to exit the Setup either saving the changes or not.System Setup KeysIn the Setup, you have to use the keyboard.F1 Press to view the Setup Help.Up & Down KeysPress to move up and down.F5/F6Press to change the item value.F9 Press to load the default Setup settings.ESC Press to return to a higher level menu or to move to the Exit menu.Left & Right KeysPress to move to another menu.Enter Press to select an item or to enter a sub menu.F10 Press to save the changes and exit Setup.The keyboard image may di er from the actual keyboard.BIOS Setup
80 Chapter 3.Settings and UpgradeSetting a Boot PasswordWhen setting a password, you have to enter a password to use the computer or enter the BIOS Setup. By con guring a password, you can restrict system access to authorized users only and protect data and  les saved on the computer.Do not lose or forget your password. t If you have forgotten your password, contact a Samsung t service center. In this case, a service fee will be charged.Setting a Supervisor PasswordA Supervisor Password is required to turn the computer on or to start the System Setup.When setting a Supervisor Password, users other than a supervisor cannot use the computer.1 Select the Security menu in the BIOS Setup.2 In the Set Supervisor Password item, press <Enter>.3 Enter a password, press <Enter>, re-enter the password for con rmation, and press <Enter> again.The password can be up to 8 alphanumeric characters. Special characters are not allowed.4 The supervisor password has been set. The supervisor password is required to turn the computer on or to enter the BIOS Setup.For some models, if the password entered message appears in the Setup Notice window, the settings are not complete until the <Enter> key is pressed.

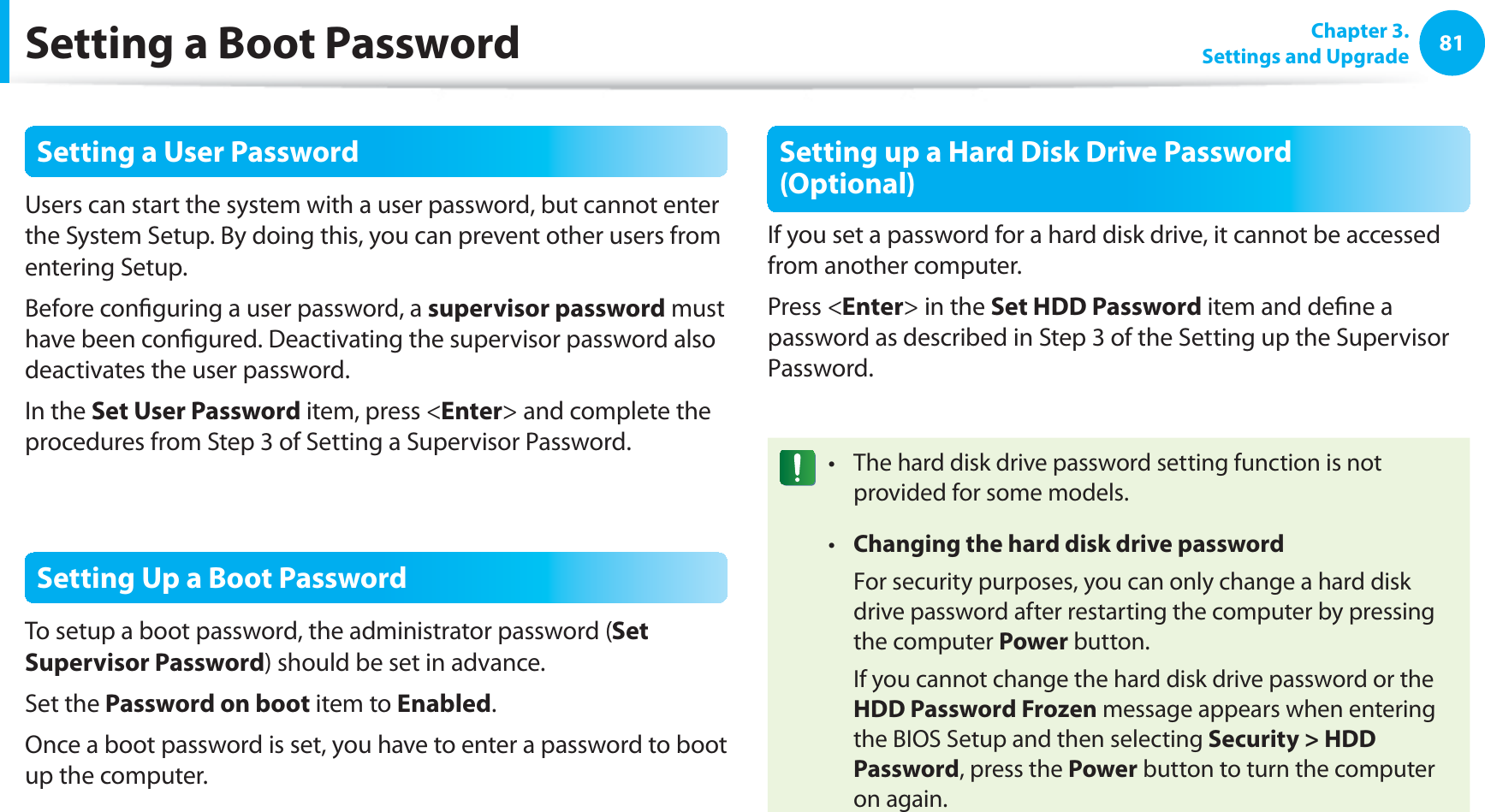

81Chapter 3. Settings and UpgradeSetting a Boot PasswordSetting a User PasswordUsers can start the system with a user password, but cannot enter the System Setup. By doing this, you can prevent other users from entering Setup.Before conguring a user password, a supervisor password must have been congured. Deactivating the supervisor password also deactivates the user password.In the Set User Password item, press <Enter> and complete the procedures from Step 3 of Setting a Supervisor Password.Setting Up a Boot PasswordTo setup a boot password, the administrator password (Set Supervisor Password) should be set in advance.Set the Password on boot item to Enabled. Once a boot password is set, you have to enter a password to boot up the computer.Setting up a Hard Disk Drive Password (Optional)If you set a password for a hard disk drive, it cannot be accessed from another computer.Press <Enter> in the Set HDD Password item and dene a password as described in Step 3 of the Setting up the Supervisor Password.The hard disk drive password setting function is not t provided for some models.Changing the hard disk drive passwordt For security purposes, you can only change a hard disk drive password after restarting the computer by pressing the computer Power button. If you cannot change the hard disk drive password or the HDD Password Frozen message appears when entering the BIOS Setup and then selecting Security > HDD Password, press the Power button to turn the computer on again.
82 Chapter 3.Settings and UpgradeSetting a Boot PasswordDeactivating the Password1 Press <Enter> on the password to be deactivated. For example, to deactivate a supervisor password in the Set Supervisor Password item, press <Enter>.2 In the Enter Current Password item, enter the currently con gured password and press <Enter>.3 Leave the Enter New Password item  eld empty, and press <Enter>.4 Leave the Con rm New Password  eld empty, and press <Enter>.The password is deactivated.For some models the password is only canceled if the <Enter> key is pressed in the Setup Notice window.
83 Chapter 3.Settings and UpgradeChanging the Boot PriorityBy default, the highest boot priority device is set to the CD-ROM/DVD drive. As an example, the procedures to change the highest boot priority device to the hard disk drive are described below.The screen images and terms may di er from actual product depending on the computer model and driver version. 1 Select the Boot menu in the BIOS Setup.2 Press <Enter> on the Boot Device Priority item.3 Press the down key (↓) to move to the AHCI HDD itemand press the F6 key to move up to the top item.Boot Device Priority[Boot priority order]1. AHCI CD : N/A2. AHCI HDD : XXXXXXXX3. USB KEY : N/A4. USB CD : XXXXXXXX5. USB FDD : N/A6. USB HDD : N/A7. PCI BEV : N/A8. - IDE HDD : N/A- IDE CD : N/A- PCI SCSI : N/A- USB ZIP : N/A- USB LS120 : N/A[Excluded from boot order]4 Press the F10 key to save the settings and exit Setup. The highest boot priority device is now set to the Hard Drive.
84 Chapter 3.Settings and Upgrade BatteryPlease refer to the following instructions when running the computer on battery power without connecting the AC power. This computer is equipped with an internal battery. PrecautionsUsers cannot remove or replace the internal battery. t To remove or replace the battery, use an authorized t service center in order to protect the product and users. You will be charged for this service.Use only chargers speci ed in the User Manual.t Never heat the battery pack, put it near or in a  re or use at t a temperature higher than 60°C, as this may cause  re.Please refer to the system operation environment of t this manual and operate and store the battery at room temperature.Before using the computer for the  rst time, make sure to t connect the AC adapter and charge the battery completely.The images used for the illustration are of a representative t model, therefore the images may di er from the the actual product.The location of the internal battery Charging the Battery1 An internal battery is embedded. Connect the AC adapter to the power input jack of the computer. The battery will start charging.2 When charging is complete, the Charge LED turns green.Status Charge LEDCharging RedCharging complete GreenAC adapter not connected O
85 Chapter 3.Settings and UpgradeBatteryMeasuring the Remaining Battery ChargeYou can view the battery charge status by completing the following procedures.Con rming the battery charge in the TaskbarDisconnect the AC adapter and move the mouse cursor over the battery icon in the system tray of the Taskbar to con rm the remaining battery charge.Battery Usage Time InformationA battery is an expendable supply, so when using it over a long time, the capacity/battery life is shortened. If the battery life is reduced to under half of its initial time, we recommend purchasing a new battery.When not using the battery for a long time, store the battery after charging it to 30-40% of its capacity. This extends the battery life time.
86 Chapter 3.Settings and UpgradeBatteryExtending the Battery Usage TimeDecreasing the LCD BrightnessPress the + keys on the keyboard to decrease the LCD brightness to extend the battery usage time.Using the battery mode (optional)Press the + key combination. The battery mode window will appear that helps you to use the battery e ciently. battery modes optimized for the operating environment are supported.These descriptions are for Windows 7 and for supported models only.Using the battery modesTo use the power options of the Easy Display Manager program after reinstalling Windows, you can install the Easy Display Manager program using the system software media.Since the battery mode is optimized to extend the battery use time, programs that require high performance may slow down when the computer is running on battery power.In this case, it is recommended connecting the AC adapter or selecting high-performance mode.► For Windows 7/Vista1 Click Start > Control Panel > Hardware and Sound > Power Options.Alternatively, right-click the power measuring device icon in the noti cation area of the taskbar and select Power Options.2 If the following screen appears, select one of the modes.Samsung OptimizedSamsung OptimizedThis mode is appropriate for normal conditions. It maximizes the system performance when the computer is running on AC power while maximizing the battery usage time when the computer is running on battery power.
87 Chapter 3.Settings and UpgradeBatteryExtending the Battery Life (Optional)The Battery Life Extender is a battery power management program that enables extending the battery life. Users can change the settings depending on their requirements.The Battery Life Extender is optional and may not be t supplied depending on the model.The screen images and terms may di er from actual t product depending on the computer model.1 Press the + key combination to run the Control Center.2 Select Battery Life Extender > ON.Press the F2 key when the Samsung logo appears in the booting sequence to enter the BIOS Setup, select Advanced > Battery Life Cycle Extension, and set it to Enable. Then you can use the battery life cycle extension mode.
88 Chapter 3.Settings and UpgradeBatteryUsing the Battery Calibration FunctionWhen charging/discharging the battery repeatedly for a short time only, the battery usage time may be reduced by the di erence between the actual battery charge and the remaining charge display.In this case, the actual battery charge and the remaining charge display will be the same by discharging the battery completely using the Battery Calibration function, and then recharging it again.The screen images and terms may di er from actual product depending on the computer model and driver version. 1 Disconnect the AC power adapter after turning o the computer.2 Restart your computer and press the F2 button when the Samsung logo appears, to start the BIOS Setup.3 Move to the Boot > Smart Battery Calibration item using the direction keys and press <Enter>.4 Highlight Yes in the Battery Calibration Con rmation window and press <Enter>.The Battery Calibration function is activated and the battery is forcefully discharged. To stop the operation, press the <Esc> button.This operation requires 3~5 hours depending on the battery capacity and the remaining battery charge.
89Chapter 3. Settings and UpgradeUsing the Security Lock PortYou can connect a Kensington lock to the Security Lock port to prevent your computer from being stolen when you have to use the computer in a public place.To use this feature, you have to purchase the Kensington lock additionally. To use the Kensington lock, refer to the product manual.Tie the Kensington lock cable to a xed object and install the other end of the cable to the Security Lock port.
Chapter 4. Backup / RestoreSamsung Recovery Solution (Optional) 91
91Chapter 4. Backup / RestoreSamsung Recovery Solution (Optional)Samsung Recovery Solution is a program that enables restoring or backing up the hard disk drive for when a problem occurs with the computer.If the computer fails to boot up, you can restore the computer by pressing the key in the booting screen.Samsung Recovery Solution may not be provided or the t version may di er depending on the model. In addition, some functions may not be provided or may di er depending on the version. For more information on using Samsung Recovery Solution, please refer to the online help of the program.The screen images in this document may di er from actual t product.If your computer does not have an internal ODD, you need t an external ODD connected to your computer to use the Backup Function or Restore Function using DVDs.The System Software function may not be provided t depending on the program version.Samsung Recovery Solution FunctionsBackup/Restore FunctionsBackup FunctionBacks up drive C or required folders and  les.Complete Backupt Backs up drive C.Data Backupt Backs up important folders and  les.A problem occursVIRUSRestore FunctionRestores major Windows  les, drive C, or folders and  les to the previous state.Basic Restoret Restores only major Windows  les in a short time.Complete Restoret Restores drive C to the previous, normal state.Data Restoret Restores important  les or folders to the previously backed up state.
92Chapter 4. Backup / RestoreSystem Software FunctionsSamsung Recovery Solution provides system software so that you can reinstall or copy the device drivers and system software necessary for normal operations onto a separate storage device.Restore FunctionNot only can you use Samsung Recovery Solution when Windows is running, but also when you are unable to boot up into Windows. Let’s learn how to use Samsung Recovery Solution.Optional functions such as Initial State Image, Initial Status Backup, and Partitioning are only available in some models.Partition Setup & Initial Status BackupIf you turn your computer on for the  rst time, the Initial Status Backup function is performed after registering Windows. This function saves an image of the Initial Status of the C drive to a secure location so that users can restore the computer to the Initial Status using the Complete Restore function. An Initial Status Backup is only performed once immediately after the computer is purchased.1 If you turn the power on for the  rst time, the Register Windows screen appears. If you register Windows according to the instructions on the screen, the computer will be restarted.2 After the computer has been restarted, the Partition Setup screen appears. To resize the C and D drives, adjust the partition size using the slide bar and the click Next.The Partition Setup function is only available when the computer is turned on for the  rst time and will not be available afterwards. Once you have completed the partitioning, it cannot be resized. Partition the disk carefully.3 The Initial Status Backup screen appears. To continue the Initial Status Backup, click Restart Now. The computer will restart.4 The Initial Status Backup is performed to backup the initial status of the C drive to a secure location. This backup image is used for the Complete Restore function that restores your computer to the initial status.5 When the Initial Status Backup is complete, restart Windows.Samsung Recovery Solution (Optional)
93Chapter 4. Backup / RestoreRestoring the computerRestore is a function that enables restoring the computer to a saved point when the computer was purchased or a user-saved point.The Restore function provides the Basic Restore and Complete Restore options.1 – When Windows is running: Click Samsung Recovery Solution.– When Windows does not start: Turn the computer on and press the key when the boot screen (SAMSUNG logo) appears. After a moment, the computer boots up in Restoration mode and the Samsung Recovery Solution screen appears.For computers supporting the touch screen function, the touch screen function does not work during Restore Mode. In this case, please use the touchpad or mouse.2 If the initial menu screen appears, click Restore.If you click Select by Symptom, the Select by Symptom menu appears. If you select a symptom, a recommended restoration option will blink. Click the restoration option to continue.Samsung Recovery Solution (Optional)
94Chapter 4. Backup / Restore3 Select either Basic Restore or Complete Restore from the Restore menu.To restore the computer to the initial state, click Computer Initial State and perform the restoration process according to the instructions that appear on the screen.Run Complete Restore if the computer does not work even after Basic Restore has been completed.In the Advanced menu, you can change the size of the hard drive partitions (e.g. C: and D:).Make sure to backup your data in advance, as all data will t be deleted after the partition size is changed.The t Advanced menu is only activated when the computer boots up in the restoration area. (by pressing the key during the booting sequence.)Since a Complete Restore deletes all user data as well as additionally installed programs, please backup your important data  rst using the Data Backup function, before running Complete Restore.4 The computer boots up into restoration mode and the restoration progress message appears. If you click OK, the restoration begins. The restoration may take some time, please wait for a moment.5 When the ‘Restart the System’ message appears after the restoration is complete, click OK to restart the system.Make sure that the power cord is connected while the restoration is in process. The  rst time the computer boots up after a Complete Restore has been performed, the speed of the boot process may be slowed down due to the system optimization process. At this time, do not shut the computer down by force.Samsung Recovery Solution (Optional)
95Chapter 4. Backup / RestoreComplete Backup/RestoreA Complete Backup saves the complete image of the C drive onto another drive or DVD. A Complete Restore restores the image  le saved by the Complete Backup onto the C drive.Complete BackupIf you run Complete Backup using a DVD, you can restore the computer even when a problem occurs with the hard disk or when the restoration area is removed.1 Click Backup in the start screen of the Samsung Recovery Solution.2 Enter a description of the current status of the computer and click Next.If a writable DVD drive is installed, you can specify the DVD as the Save Path.Select Drive D. Select the DVD drive.3 When the option selection item appears, select an option and click Next.The LiveImaging and System Software Backup functions are supported as options for the Complete Backup operation.LiveImaging:t Performs the Complete Backup operation while Windows is running. The backup operation using LiveImaging may slow down if the hard disk drive is accessed frequently by other applications.System Software Backup: t This function backs up the system software on to the DVD after the completion of the Complete Backup operation.Samsung Recovery Solution (Optional)
96Chapter 4. Backup / Restore4 When the system restarts in Restoration Mode, the Complete Backup operation begins. Continue with the backup by following the instructions.Samsung Recovery Solution supports the DVD+R, DVD-R, t DVD+RW and DVD-RW formats.If the LiveImaging option has been selected, the Complete t Backup operation begins without the computer being restarted. 5 Continue with the Complete Backup operation by following the instructions.6 When the ‘Restart the System’ message appears after the backup is complete, click OK to restart the system.If the LiveImaging option has been selected, the computer is not restarted.Samsung Recovery Solution (Optional)
97Chapter 4. Backup / RestoreComplete Restore1 – When backing up onto DVD Turn the computer on and insert the backup DVD into the DVD drive.If there are multiple backup DVDs, insert the  rst DVD.– When backing up to another drive Proceed to Step 2.2 When the Samsung Recovery Solution start screen appears, click Restore and then click Complete Restore.3 Select a Complete Backup restoration point in the restoration point selection screen and click the Next button. The system is restarted.4 The restoration progress message appears after the computer boots up in restoration mode. If you click OK, the restoration begins.If multiple DVDs have been used for a Complete Backup, whenever burning a DVD is completed, the “Insert the next DVD” message will appear.5 When the ‘Restart the System’ message appears after the restoration is complete, click OK to restart the system. The Complete Restore has been completed.Samsung Recovery Solution (Optional)

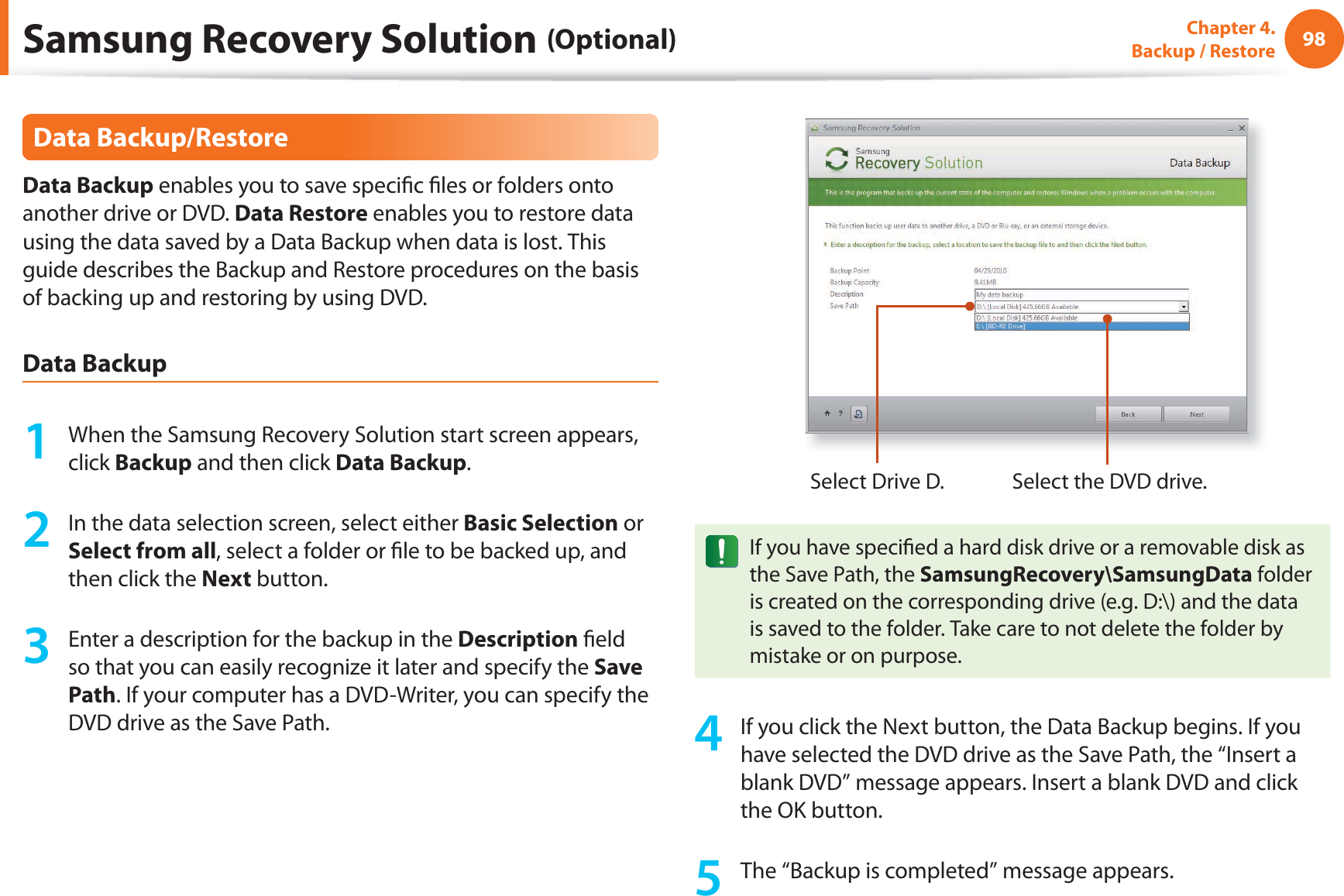

98Chapter 4. Backup / RestoreData Backup/RestoreData Backup enables you to save speci c  les or folders onto another drive or DVD. Data Restore enables you to restore data using the data saved by a Data Backup when data is lost. This guide describes the Backup and Restore procedures on the basis of backing up and restoring by using DVD.Data Backup1 When the Samsung Recovery Solution start screen appears, click Backup and then click Data Backup.2 In the data selection screen, select either Basic Selection or Select from all, select a folder or  le to be backed up, and then click the Next button.3 Enter a description for the backup in the Description  eld so that you can easily recognize it later and specify the Save Path. If your computer has a DVD-Writer, you can specify the DVD drive as the Save Path.Select Drive D. Select the DVD drive.If you have speci ed a hard disk drive or a removable disk as the Save Path, the SamsungRecovery\SamsungData folder is created on the corresponding drive (e.g. D:\) and the data is saved to the folder. Take care to not delete the folder by mistake or on purpose.4 If you click the Next button, the Data Backup begins. If you have selected the DVD drive as the Save Path, the “Insert a blank DVD” message appears. Insert a blank DVD and click the OK button.5 The “Backup is completed” message appears.Samsung Recovery Solution (Optional)
99Chapter 4. Backup / RestoreData Restore1 – When backing up onto DVD Turn the computer on and insert the backup DVD into the DVD drive.– When backing up to another drive Proceed to Step 2.2 When the initial menu screen appears, click Restore and then click Data Restore.3 Select a backup item to be restored in the backup list and click the Next button.4 Select a folder for the restoration and click the Next button. Data Restore begins.5 When Data Restore is completed, check if the data has been restored to the specied folder.Samsung Recovery Solution (Optional)
100Chapter 4. Backup / RestoreSystem Software FunctionThe System Software function is a function that enables you to reinstall device drivers and System Software Programs or back up those programs. The system software function is supported by Samsung Recovery Solution version 4 or later. Therefore, the function may not be supported depending on the version.The System Software Installation Function only works in Microsoft Windows.Installing System Software1 When the initial menu screen appears, click System Software > System Software Installation.2 When the Samsung System Software screen appears, check all the device drivers and application programs you want to install and then click Install Now.3 After the installation is complete, the computer will restart.Samsung Recovery Solution (Optional)
101Chapter 4. Backup / RestoreSamsung Recovery Solution (Optional)System Software Backup1 When the initial menu screen appears, click System Software > System Software Backup.2 Specify the Save Path. If your computer has a DVD-Writer, you can specify the DVD drive as the Save Path.Select Drive D. Select the DVD drive.If you have speci ed a hard disk drive or a removable disk as the Save Path, the SamsungSoftware folder is created on the corresponding drive (e.g. D:\) and the system software programs are saved to that folder. Take care to not delete the folder. 3 If you click the Next button, the Software Backup begins. If you have selected the DVD drive as the Save Path, the “Insert a blank DVD” message appears. Insert a blank DVD and click the OK button.4 After the backup, the System Software Backup is completed message appears.If you want to install the System Software Programs backed t up on the drive, run the SoftwareMediaXX.exe  le in the SystemSoftware folder.When installing System Software Programs from the t backed-up DVD, insert the DVD and follow the System Software Installation directions.To delete Samsung Recovery Solution, refer to the Help t section of the program.
102Chapter 4. Backup / RestoreRecovery Solution Representation (Optional)What is a Recovery Area?Samsung computers have an additional partition to recover t computers or save backup les. (Only for models with the Samsung Recovery Solution.) This partition is called a Recovery Area and it includes a recovery image that comprises of the OS and application programs.You can either double-click the Samsung Recovery Solution t icon on the desktop or press while booting the computer to enter the Recovery Area. Then you can back up the present computer state or recover the computer from backed up images.For deleting the Recovery Area, you need to use an additional t Recovery Area Removal Tool. After deleting the recovery area, you can use the newly created partition for other uses, such as for saving personal data. Be careful that once the recovery area is deleted, the Samsung Recovery Solutions will not work anymore.The capacity representation of the hard disk drive(HDD) in Windows is dierent from the product specications.The capacity of the storage device (HDD) of the manufacturer is t calculated assuming that 1KB=1,000 Bytes. However, the operating system (Windows) calculates the storage device capacity assuming that 1KB=1,024 Bytes, and therefore the capacity representation of the HDD in Windows is smaller than the actual capacity. This is due to the dierence in capacity calculation and does not mean the installed HDD is dierent from the product specications.The capacity representation in Windows may be smaller than the t actual capacity because some programs occupy a certain area of the HDD outside of Windows.For models with Samsung Recovery Solution, the HDD capacity t representation in Windows may be smaller than the actual capacity because Samsung Recovery Solution uses a hidden area of about 5~20GB of the HDD to save the recovery image, and that hidden area is not counted towards the total size available to Windows. The size of Samsung Recovery Solution varies by models because of the dierent size of applied programs.Samsung Recovery Solution (Optional)
Chapter 5. AppendixImportant Safety Information 104Replacement Parts and Accessories 106Regulatory Compliance Statements 108WEEE Symbol Information 122Product Speci cations 123Glossary 125Index 129
104Chapter 5. AppendixSafety InstructionsYour system is designed and tested to meet the latest standards for safety of information technology equipment. However, to ensure safe use of this product, it is important that the safety instructions marked on the product and in the documentation are followed.Always follow these instructions to help guard against personal injury and damage to your system.Setting Up your SystemRead and follow all instructions marked on the product and in t the documentation before you operate your system. Retain all safety and operating instructions for future use.Do not use this product near water or a heat source such as a t radiator.Set up the system on a stable work surface.t The product should be operated only with the type of power t source indicated on the rating label.Ensure that the electrical outlet you are using to power your t equipment is easily accessible in case of re or short circuit.If your computer has a voltage selector switch, make sure that t the switch is in the proper position for your area.Openings in the computer case are provided for ventilation. t Do not block or cover these openings. Make sure you provide adequate space, at least 6 inches (15 cm), around the system for ventilation when you set up your work area. Never insert objects of any kind into the computer ventilation openings.Ensure that the fan vents on the bottom of the casing are clear t at all times. Do not place the computer on a soft surface, doing so will block the bottom vents.If you use an extension cord with this system, make sure that t the total power rating on the products plugged into the extension cord does not exceed the extension cord power rating.For Notebooks with glossy display bezels the user should t consider the placement of the Notebook as the bezel may cause disturbing reections from surrounding light and bright surfaces.Important Safety Information
105Chapter 5. AppendixCare During UseDo not walk on the power cord or allow anything to rest on it.t Do not spill anything on the system. The best way to avoid t spills is to not eat or drink near your system.Some products have a replaceable CMOS battery on the t system board. There is a danger of explosion if the CMOS battery is replaced incorrectly. Replace the battery with the same or equivalent type recommended by the manufacturer. Dispose of batteries according to the manufacturers instructions. If the CMOS battery requires replacement insure that a qualied technician performs the task.When the computer is turned o, a small amount of electrical t current still ows through the computer. To avoid electrical shock, always unplug all power cables, remove the battery and modem cables from the wall outlets before cleaning the system.Unplug the system from the wall outlet and refer servicing to t qualied personnel if: – The power cord or plug is damaged. – Liquid has been spilled into the system. – The system does not operate properly when the operating instructions are followed. – The system was dropped or the casing is damaged. – The system performance changes.The Instruction On Safety Operation of NotePC1.When installing and operating devices please refer to safety requirements in the user guide.2.Devices can be used only with the equipment specied in the technical specications of the devices.3. If any smell of burning or smoke is detected from the computer the unit should be switched o and battery removed. The unit should be checked by a qualied technician before reuse.4.Service and repair of devices should be carried out by authorized service centers.5.Do not allow your portable computer to operate with the base resting directly on exposed skin for extended periods of time. The surface temperature of the base will rise during normal operation (particularly when AC Power is present). Allowing sustained contact with exposed skin can cause discomfort or eventually a burn.Important Safety Information
106Chapter 5. AppendixReplacement Parts and AccessoriesUse only replacement parts and accessories recommended by manufacturer.To reduce the risk of  re, use only No. 26 AWG or larger telecommunications line cord.Do not use this product in areas classi ed as hazardous. Such areas include patient care areas of medical and dental facilities, oxygen rich environments, or industrial areas.Battery DisposalDo not put rechargeable batteries or products powered by non-removable rechargeable batteries in the garbage.Contact the Samsung Helpline for information on how to dispose of batteries that you cannot use or recharge any longer.Follow all local regulations when disposing of old batteries.THERE IS A RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.Laser SafetyAll systems equipped with CD or DVD drives comply with the appropriate safety standards, including IEC 60825-1. The laser devices in these components are classi ed as “Class 1 Laser Products” under a US Department of Health and Human Services (DHHS) Radiation Performance Standard. Should the unit ever need servicing, contact an authorized service location.Laser Safety Note:t Use of controls or adjustments or performance of procedures other than those speci ed in this manual may result in hazardous radiation exposure. To prevent exposure to laser beams, do not try to open the enclosure of a CD or DVD drive.Class 1M laser radiation when operating part is open.t Do not view directly with optical instruments.Class 3B invisible laser radiation when open.t Avoid exposure to the beam.
107Chapter 5. AppendixReplacement Parts and AccessoriesConnect and Disconnect the AC adapterThe socket-outlet shall be installed near the equipment and shall be easily accessible.Do not unplug the power cord by pulling the cable only.Power Cord RequirementsThe power cord set (wall plug, cable and AC adapter plug) you received with your computer meets the requirements for use in the country where you purchased your equipment.Power cord sets for use in other countries must meet the requirements of the country where you use the computer. For more information on power cord set requirements, contact your authorized dealer, reseller, or service provider.General RequirementsThe requirements listed below are applicable to all countries:All power cord sets must be approved by an acceptable t accredited agency responsible for evaluation in the country where the power cord set will be used.The power cord set must have a minimum current capacity t of 7 A and a nominal voltage rating of 125 or 250 volts AC, as required by each country’s power system. (USA ONLY)The appliance coupler must meet the mechanical conguration t of an EN 60 320/IEC 320 Standard Sheet C7 (or C5) connector, for mating with appliance inlet on the computer.
108Chapter 5. AppendixRegulatory Compliance StatementsWireless Guidance(If tted with 2.4G band or 5G band) Low power, Radio LAN type devices (radio frequency (RF) wireless communication devices), operating in the 2.4GHz/5GHz Band, may be present (embedded) in your notebook system. The following section is a general overview of considerations while operating a wireless device.Additional limitations, cautions, and concerns for specic countries are listed in the specic country sections (or country group sections). The wireless devices in your system are only qualied for use in the countries identied by the Radio Approval Marks on the system rating label. If the country you will be using the wireless device in, is not listed, please contact your local Radio Approval agency for requirements. Wireless devices are closely regulated and use may not be allowed.The RF eld strength of the wireless device or devices that may be embedded in your notebook are well below all international RF exposure limits as known at this time. Because the wireless devices (which may be embedded into your notebook) emit less energy than is allowed in radio frequency safety standards and recommendations, manufacturer believes these devices are safe for use. Regardless of the power levels, care should be taken to minimize human contact during normal operation.Some circumstances require restrictions on wireless devices. Examples of common restrictions are listed on the next page:Radio frequency wireless communication can interfere twith equipment on commercial aircraft. Current aviation regulations require wireless devices to be turned o while traveling in an airplane. 802.11ABGN (also known as wireless Ethernet or Wi) and Bluetooth communication devices are examples of devices that provide wireless communication.In environments where the risk of interference to other tdevices or services is harmful or perceived as harmful, the option to use a wireless device may be restricted or eliminated. Airports, Hospitals, and Oxygen or ammable gas laden atmospheres are limited examples where use of wireless devices may be restricted or eliminated. When in environments where you are uncertain of the sanction to use wireless devices, ask the applicable authority for authorization prior to use or turning on the wireless device.Every country has dierent restrictions on the use of twireless devices. Since your system is equipped with a wireless device, when traveling between countries with your system, check with the local Radio Approval authorities prior to any move or trip for any restrictions on the use of a wireless device in the destination country.If your system came equipped with an internal embedded twireless device, do not operate the wireless device unless all covers and shields are in place and the system is fully assembled.
109Chapter 5. AppendixRegulatory Compliance StatementsWireless devices are not user serviceable. Do not modify tthem in any way. Modication to a wireless device will void the authorization to use it. Please contact manufacturer for service.Only use drivers approved for the country in which tthe device will be used. See the manufacturer System Restoration Kit, or contact manufacturer Technical Support for additional information.United States of AmericaUSA and Canada Safety Requirements and NoticesDo not touch or move antenna while the unit is transmitting or receiving.Do not hold any component containing the radio such that the antenna is very close or touching any exposed parts of the body, especially the face or eyes, while transmitting.Do not operate the radio or attempt to transmit data unless the antenna is connected; if not, the radio may be damaged.Use in specic environments:The use of wireless devices in hazardous locations is limited by the constraints posed by the safety directors of such environments.The use of wireless devices on airplanes is governed by the Federal Aviation Administration (FAA).The use of wireless devices in hospitals is restricted to the limits set forth by each hospital.Explosive Device Proximity WarningDo not operate a portable transmitter (such as a wireless network device) near unshielded blasting caps or in an explosive environment unless the device has been modied to be qualied for such use.
110Chapter 5. AppendixUse On Aircraft CautionRegulations of the FCC and FAA prohibit airborne operation of radio-frequency wireless devices because their signals could interfere with critical aircraft instruments.Other Wireless DevicesSafety Notices for Other Devices in the Wireless Network: Refer to the documentation supplied with wireless Ethernet adapters or other devices in the wireless network.The Part 15 radio device operates on a non-interference basis with other devices operating at this frequency. Any changes or modication to said product not expressly approved by Intel could void the user’s authority to operate this device.Unintentional Emitter per FCC Part 15This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy. If not installed and used in accordance with the instructions, it may cause harmful interference. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:Reorient or relocate the receiving antenna.t Increase the separation between the equipment and t receiver.Connect the equipment into an outlet on a circuit dierent t from that to which the receiver is connected.Consult the dealer or an experienced radio/TV technician t for help.Regulatory Compliance Statements
111Chapter 5. AppendixIf necessary, the user should consult the dealer or an experienced radio/television technician for additional suggestions. The user may nd the following booklet helpful: “Something About Interference.”This is available at FCC local regional oces. Our company is not responsible for any radio or television interference caused by unauthorized modications of this equipment or the substitution or attachment of connecting cables and equipment other than those specied by our company. The correction will be the responsibility of the user. Use only shielded data cables with this system.Intentional emitter per FCC Part 15(If tted with 2.4G band or 5G band) Low power, Radio LAN type devices (radio frequency (RF) wireless communication devices), operating in the 2.4GHz/5GHz Band, may be present (embedded) in your notebook system. This section is only applicable if these devices are present. Refer to the system label to verify the presence of wireless devices.Wireless devices that may be in your system are only qualied for use in the United States of America if an FCC ID number is on the system label.This device is restricted to indoor use due to its operation in the 5.15 to 5.25 GHz frequency range. FCC requires this product to be used indoors for the frequency range 5.15 to 5.25 GHz to reduce the potential for harmful interference to co-channel Mobile Satellite systems. High power radars are allocated as primary users of the 5.25 to 5.35 GHz and 5.65 to 5.85 GHz bands. These radar stations can cause interference with and /or damage this device.Operation of this device is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation of the device.This transmitter must not be collocated or operate in conjunction with any other antenna or transmitter except the installed Bluetooth transmitter.Wireless devices are not user serviceable. Do not modify them in any way.Modication to a wireless device will void the authorization to use it. Contact manufacturer for service.FCC Part 68 (If tted with a modem device.)This equipment compiles with part of the FCC rules. On the back of this equipment is a label that contains, among other information, the FCC registration number and ringer equivalence number (REN) for this equipment. If requested, this information must be provided to the telephone company.Regulatory Compliance Statements
112Chapter 5. AppendixThis equipment uses the following USOC jacks : RJ11CAn FCC compliant telephone cord and modular plug is provided with this equipment. This equipment is designed to be connected to the telephone network or promises wiring using a compatible modular jack which is Part 68 compliant. See Installation Instructions for details.The REN is used to determine the quantity of devices which may be connected to telephone line. Excessive RENs on the telephone line may result in the devices not ringing in response to an incoming call. In most, but not all areas, the sum of RENs should not exceed ve (5.0). To be certain of the number of devices that may be connected to a line, as determined by total RENs, contact the local telephone company to determine the maximum REN for the calling area.If the terminal equipment causes harm to the telephone network, the Telephone Company will notify you in advance that temporary discontinuance of service may be required. But if advance notice is not practical, the telephone company will notify the customer as soon as possible. Also, you will be advised of your right to le a complaint with the FCC if you believe it is necessary.The telephone company may make changes in its facilities, equipment, operations, or procedures that could aect the operation of the equipment. If this happens, the telephone company will provide advanced notice in order for you to make necessary modications to maintain uninterrupted service.If trouble is experienced with this equipment (Modem) for repair or warranty information, please contact your local distributor. If the equipment is causing harm to the telephone network, the telephone company may request that you disconnect the equipment until the problem is resolved.The user must use the accessories and cables supplied by the manufacturer to get optimum performance from the product.No repairs may be done by the customer.This equipment cannot be used on public coin phone service provided by the telephone company. Connection to party line service is subject to state taris.The Telephone Consumer Protection Act of 1991 makes it unlawful for any person to use a computer or other electronic device, including fax machines, to send any message unless such message clearly contains in a margin at the top or bottom of each transmitted page or on the rst page of the transmission, the date and time it is sent and an identication of the business or other entity, or other individual sending the message and the telephone number of the sending machine or such business, other entity, or individual. (The telephone number provided may not be any number for which charges exceed local or long-distance transmission charges.)In order to program this information into your fax machine, refer to your communications software user manual.Regulatory Compliance Statements
113Chapter 5. AppendixCanadaUnintentional Emitter per ICES-003This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the radio interference regulations of Industry Canada.Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limitesapplicables aux appareils numériques de Classe B prescrites dans le règlement sur le brouillage radioélectrique édicté par Industrie Canada.Intentional Emitter per RSS 210This device complies with RSS 210 of Industry Canada. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of this device.”L‘ utilisation de ce dispositif est autorisée seulement aux conditions suivantes : (1) il ne doit pas produire de brouillage et (2) l’ utilisateur du dispositif doit étre prêt à accepter tout brouillage radioélectrique reçu, même si ce brouillage est susceptible de compromettre le fonctionnement du dispositif.The term “IC” before the equipment certication number only signies that the Industry Canada technical specications were met. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (EIRP) is not more than that required for successful communication. To prevent radio interference to the licensed service, this device is intended to be operated indoors and away from windows to provide maximum shielding. Equipment (or its transmit antenna) that is installed outdoors is subject to licensing.Pour empecher que cet appareil cause du brouillage au service faisant l’objet d’une licence, il doit etre utilize a l’interieur et devrait etre place loin des fenetres an de Fournier un ecram de blindage maximal. Si le matriel (ou son antenne d’emission) est installe a l’exterieur, il doit faire l’objet d’une licence.Regulatory Compliance Statements
114Chapter 5. Appendix(If tted with 2.4G band or 5G band) Low power, Radio LAN type devices (radio frequency (RF) wireless communication devices), operating in the 2.4GHz/5GHz Band, may be present (embedded) in your notebook system. This section is only applicable if these devices are present. Refer to the system label to verify the presence of wireless devices.Wireless devices that may be in your system are only qualied for use in Canada if an Industry Canada ID number is on the system label.When using IEEE 802.11a wireless LAN, this product is restricted to indoor use due to its operation in the 5.15- to 5.25-GHz frequency range. Industry Canada requires this product to be used indoors for the frequency range of 5.15 GHz to 5.25 GHz to reduce the potential for harmful interference to co-channel mobile satellite systems. High power radar is allocated as the primary user of the 5.25- to 5.35-GHz and 5.65 to 5.85-GHz bands. These radar stations can cause interference with and/or damage to this device.The maximum allowed antenna gain for use with this device is 6dBi in order to comply with the E.I.R.P limit for the 5.25- to 5.35 and 5.725 to 5.85 GHz frequency range in point-to-point operation.The power output of the wireless device (or devices), which may be embedded in your notebook, is well below the RF exposure limits as set by Industry Canada.Operation of this device is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation of the device.To prevent radio interference to licensed service, this device is intended to be operated indoors and away from windows to provide maximum shielding. Equipment (or its transmit antenna) that is installed outdoors is subject to licensing.Wireless devices are not user serviceable. Do not modify them in any way. Modication to a wireless device will void the authorization to use it. Contact manufacturer for service.Regulatory Compliance Statements
115Chapter 5. AppendixTelecommunications per DOC notice (for products tted with an IC-compliant modem)The Industry Canada label identies certied equipment. This certication means that the equipment meets certain telecommunications network protective, operation, and safety requirements. The Department does not guarantee the equipment will operate to the users’ satisfaction.Before installing this equipment, users should make sure that it is permissible to be connected to the facilities of the local telecommunications company. The equipment must also be installed using an acceptable method of connection. In some cases, the inside wiring associated with a single-line individual service may be extended by means of a certied connector assembly. The customer should be aware that compliance with the above conditions may not prevent degradation of service in some situations.Repairs to certied equipment should be made by an authorized Canadian maintenance facility designated by the supplier. Any repairs or alterations made by the user to this equipment, or equipment malfunctions, may give the telecommunications company cause to request the user to disconnect the equipment.Users should make sure, for their own protection, that the electrical ground connections of the power utility, telephone lines, and internal metallic water pipe system, if present, are connected together. This precaution may be particularly important in rural areas.To avoid electrical shock or equipment malfunction do not attempt to make electrical ground connections by yourself. Contact the appropriate inspection authority or an electrician, as appropriate.The Ringer Equivalence Number (REN) assigned to each terminal device provides an indication of the maximum number of terminals allowed to be connected to a telephone interface. The termination on an interface may consist of any combination of devices subject only to the requirement that the sum of the Ringer Equivalence Numbers of all the devices does not exceed 5.Regulatory Compliance Statements
116Chapter 5. AppendixBrazilEste equipamento opera em caráter secundário, isto é, não tem direito a proteção contra interferência prejudicial, mesmo de estações do mesmo tipo, e não pode causar interferência a sistemas operando em caráter primário.European UnionEuropean Union CE Marking and Compliance NoticesProducts intended for sale within the European Union are marked with the Conformité Européene (CE) Marking, which indicates compliance with the applicable Directives and European standards and amendments identied below. This equipment also carries the Class 2 identier.The following information is only applicable to systems labeled with the CE mark .European Directives This Information Technology Equipment has been tested and found to comply with the following European directives:EMC Directive 2004/108/ECt Low Voltage Directive 2006/95/ECt R&TTE Directive 1999/5/ECt Manufacturer InformationSamsung Electronics Co., Ltd.416, Maetan-3Dong, Yeongtong-Gu, Suwon-City, Gyeonggi-Do, 443-742, KoreaSamsung Electronics Suzhou Computer Co., Ltd.No. 198, Fangzhou Road, Suzhou Industrial Park, Jiangsu Province, 215021, ChinaTel: +86-512-6253-8988For the web or the phone number of Samsung Service Centre, see the Warranty or contact the retailer where you purchased your product.Regulatory Compliance Statements
117Chapter 5. AppendixEuropean Radio Approval Information (for products  tted with EU-approved radio devices)This Product is a Notebook computer; low power, Radio LAN type devices (radio frequency (RF) wireless communication devices), operating in the 2.4GHz/5GHz band, may be present (embedded) in your notebook system which is intended for home or o ce use. This section is only applicable if these devices are present. Refer to the system label to verify the presence of wireless devices.Wireless devices that may be in your system are only quali ed for use in the European Union or associated areas if a CE mark with a Noti ed Body Registration Number and the Alert Symbol is on the system label.The power output of the wireless device or devices that may be embedded in you notebook is well below the RF exposure limits as set by the European Commission through the R&TTE directive.The low band 5.15 - 5.35 GHz is for indoor use only.See 802.11b and 802.11g restrictions for speci c countries or regions within countries under the heading “European Economic Area Restrictions” below.EU R&TTE Compliance StatementsČesky[Czech]Samsung tímto prohlašuje, že tento Notebook PC je ve shodě se základními požadavky a dalšími příslušnými ustanoveními směrnice 1999/5/ES.Dansk[Danish]Undertegnede Samsung erklærer herved, at følgende udstyr Notebook PC overholder de væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF.Deutsch[German]Hiermit erklärt Samsung, dass sich das Gerät Notebook PC in Übereinstimmung mit den grundlegenden Anforderungen und den übrigen einschlägigen Bestimmungen der Richtlinie 1999/5/EG be ndet.Eesti[Estonian]Käesolevaga kinnitab Samsung seadme Notebook PC vastavust direktiivi 1999/5/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele teistele asjakohastele sätetele.EnglishHereby, Samsung, declares that this Notebook PC is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.Español[Spanish]Por medio de la presente Samsung declara que el Notebook PC cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE.Regulatory Compliance Statements
118Chapter 5. AppendixΕλληνική[Greek]ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ Samsung ΔΗΛΩΝΕΙ ΟΤΙ Notebook PC ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/ΕΚ.Français[French]Par la présente Samsung déclare que l’appareil Notebook PC est conforme aux exigences essentielles et aux autres dispositions pertinentes de la directive 1999/5/CE.Italiano[Italian]Con la presente Samsung dichiara che questo Notebook PC è conforme ai requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE.Latviski[Latvian]Ar šo Samsung deklarē, ka Notebook PC atbilst Direktīvas 1999/5/EK būtiskajām prasībām un citiem ar to saistītajiem noteikumiem.Lietuvių[Lithuanian]Šiuo Samsung deklaruoja, kad šis Notebook PC atitinka esminius reikalavimus ir kitas 1999/5/EB Direktyvos nuostatas.Nederlands[Dutch]Hierbij verklaart Samsung dat het toestel Notebook PC in overeenstemming is met de essentiële eisen en de andere relevante bepalingen van richtlijn 1999/5/EG.Malti[Maltese]Hawnhekk, Samsung, jiddikjara li dan Notebook PC jikkonforma mal-ħtiāijiet essenzjali u ma provvedimenti oħrajn relevanti li hemm  d-Dirrettiva 1999/5/EC.Magyar[Hungarian]Alulírott, Samsung nyilatkozom, hogy a Notebook PC megfelel a vonatkozó alapvetõ követelményeknek és az 1999/5/EC irányelv egyéb elõírásainak.Polski[Polish]Niniejszym Samsung oświadcza, Ŝe Notebook PC jest zgodny z zasadniczymi wymogami oraz pozostałymi stosownymi postanowieniami Dyrektywy 1999/5/EC.Português[Portuguese]Samsung declara que este Notebook PC está conforme com os requisitos essenciais e outras disposições da Directiva 1999/5/CE.Slovensko[Slovenian]Samsung izjavlja, da je ta Notebook PC v skladu z bistvenimi zahtevami in ostalimi relevantnimi določili direktive 1999/5/ES.Slovensky[Slovak]Samsung týmto vyhlasuje, že Notebook PC spĺňa základné požiadavky a všetky príslušné ustanovenia Smernice 1999/5/ES.Suomi[Finnish]Samsung vakuuttaa täten että Notebook PC tyyppinen laite on direktiivin 1999/5/EY oleellisten vaatimusten ja sitä koskevien direktiivin muiden ehtojen mukainen.Svenska[Swedish]Härmed intygar Samsung att denna Notebook PC står I överensstämmelse med de väsentliga egenskapskrav och övriga relevanta bestämmelser som framgår av direktiv 1999/5/EG.Regulatory Compliance Statements

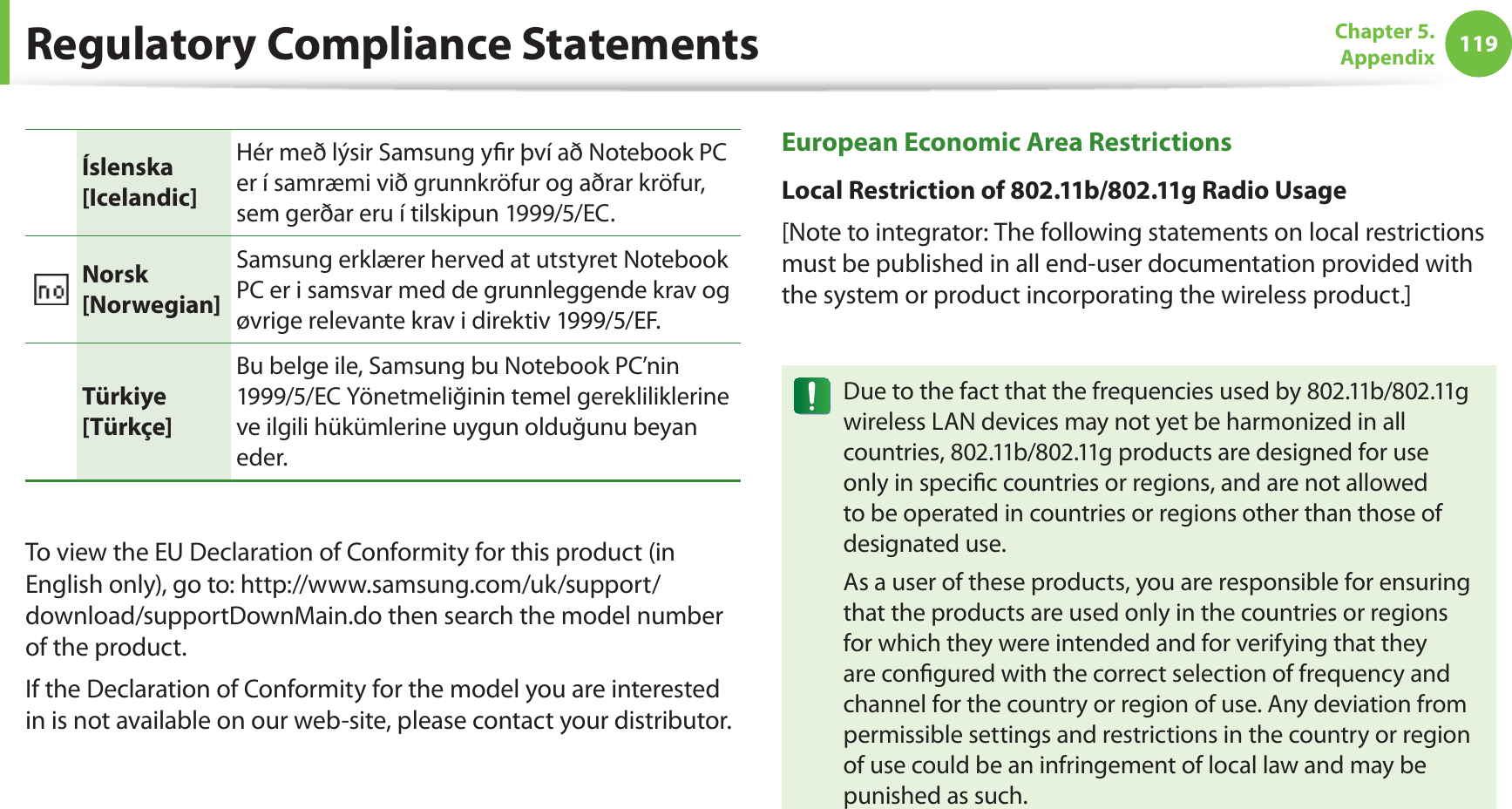

119Chapter 5. AppendixÍslenska[Icelandic]Hér með lýsir Samsung y r því að Notebook PC er í samræmi við grunnkröfur og aðrar kröfur, sem gerðar eru í tilskipun 1999/5/EC.Norsk[Norwegian]Samsung erklærer herved at utstyret Notebook PC er i samsvar med de grunnleggende krav og øvrige relevante krav i direktiv 1999/5/EF.Türkiye[Türkçe]Bu belge ile, Samsung bu Notebook PC’nin 1999/5/EC Yönetmeliğinin temel gerekliliklerine ve ilgili hükümlerine uygun olduğunu beyan eder.To view the EU Declaration of Conformity for this product (in English only), go to: http://www.samsung.com/uk/support/download/supportDownMain.do then search the model number of the product.If the Declaration of Conformity for the model you are interested in is not available on our web-site, please contact your distributor.European Economic Area RestrictionsLocal Restriction of 802.11b/802.11g Radio Usage[Note to integrator: The following statements on local restrictions must be published in all end-user documentation provided with the system or product incorporating the wireless product.]Due to the fact that the frequencies used by 802.11b/802.11g wireless LAN devices may not yet be harmonized in all countries, 802.11b/802.11g products are designed for use only in speci c countries or regions, and are not allowed to be operated in countries or regions other than those of designated use.As a user of these products, you are responsible for ensuring that the products are used only in the countries or regions for which they were intended and for verifying that they are con gured with the correct selection of frequency and channel for the country or region of use. Any deviation from permissible settings and restrictions in the country or region of use could be an infringement of local law and may be punished as such.Regulatory Compliance Statements
120Chapter 5. AppendixThe European variant is intended for use throughout the European Economic Area. However, authorization for use is further restricted in particular countries or regions within countries, as follows: GeneralEuropean standards dictate maximum radiated transmit power of 100 mW eective isotropic radiated power (EIRP) and the frequency range 2400 – 2483.5 MHz.The low band 5.15 - 5.35 GHz is for indoor use only.BelgiumThe product may be used outdoors, but for outdoor transmissions over a distance of 300m or more, a license from the BIPT is required.This restriction should be indicated in the manual as follows:Dans le cas d’une utilisation privée, à l’extérieur d’un bâtiment, au-dessus d’un espace public, aucun enregistrement n’est nécessaire pour une distance de moins de 300m. Pour une distance supérieure à 300m un enregistrement auprès de l’IBPT est requise. Pour une utilisation publique à l’extérieur de bâtiments, une licence de l’IBPT est requise. Pour les enregistrements et licences, veuillez contacter l’IBPT.FranceFor Metropolitan departments:2.400 - 2.4835 GHz for indoor use.2.400 - 2.454 GHz (channels 1 to 7) for outdoor use.For Guadeloupe, Martinique, St Pierre et Miquelon, Mayotte:2.400 - 2.4835 GHz for indoor and outdoor use.For Reunion, Guyane:2.400 - 2.4835 GHz for indoor use.2.420 - 2.4835 GHz for outdoor use (channels 5 to 13)The low band 5.15 - 5.35 GHz is for indoor use only.Regulatory Compliance Statements
121Chapter 5. AppendixEuropean Telecommunication Information (for products tted with EU-approved modems)Marking by the symbol indicates compliance of this equipment to the Radio and Telecom Terminal Equipment Directive 1999/5/EC. Such marking is indicative that this equipment meets or exceeds the following technical standards:CTR 21 - Attachment requirements for pan-European approval for connection to the analogue Public Switched Telephone Networks (PSTNs) of TE (excluding TE supporting voice telephony services) in which network addressing, if provided, is by means of Dual Tone Multi-Frequency (DTMF) signaling.Although this equipment can use either loop disconnect (pulse) or DTMF (tone) signaling, only the performance of the DTMF signaling is subject to regulatory requirements for correct operation.It is therefore strongly recommended that the equipment is set to use DTMF signaling for access to public or private emergency services. DTMF signaling also provides faster call setup.This equipment has been approved to Council Decision 98/482/EEC - “CTR 21” for Pan-European single terminal connection to the Public Switched Telephone Network (PSTN).However, due to dierences between the individual PSTNs provided in dierent countries, the approval does not, of itself, give an unconditional assurance of successful operation on every PSTN termination point. In the event of problems, you should contact manufacturer Technical Support.Regulatory Compliance Statements
122Chapter 5. AppendixWEEE Symbol InformationCorrect disposal of this product (Waste Electrical & Electronic Equipment)(Applicable in the European Union and other European countries with separate collection systems)This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.Household users should contact either the retailer where they purchased this product, or their local government oce, for details of where and how they can take these items for environmentally safe recycling.Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.PbCorrect disposal of batteries in this product(Applicable in the European Union and other European countries with separate battery return systems.)This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66. If batteries are not properly disposed of, these substances can cause harm to human health or the environment.To protect natural resources and to promote material re-use, please separate batteries from other types of waste and recycle them through your local, free battery return system.USA ONLYThis Perchlorate warning applies only to primary CR (Maganese Dioxide) Lithium coin cells in the product sold or distributed ONLY in California USA. “Perchlorate Material- special handling may apply, See www.dtsc.ca.gov/hazardouswaste/perchlorate.”
123Chapter 5. AppendixThe system specications may dier depending on the derived models.For detailed system specications, refer to the product catalogue.CPU (Optional) Intel i3/i5/i7 (Core) ProcessorMain Memory Memory type: DDR3 SODIMMMain Chipset (Optional) Intel HM65Hard Disk Drive (Optional) 5mmH SATA HDD, SSDGraphics Intel HD Graphics 3000 (Internal)Operating EnvironmentTemperature: -5~40°C for storage, 10~32°C when operatingHumidity: 5~90% for storage, 20~80% when operatingOperating Voltage 100 - 240VACFrequency 50 / 60HzOutput Power 40WOutput Voltage 19V 2.1A (40W)Optional components may not be provided or dierent t components may be provided depending on the computer model.The system specications are subject to change without t notice.The hard disk drive capacity of a computer in which t Samsung Recovery Solution is installed, is represented as smaller than the product specication.The amount of memory that Windows can use may be t smaller than the actual amount of memory available.Product Specications

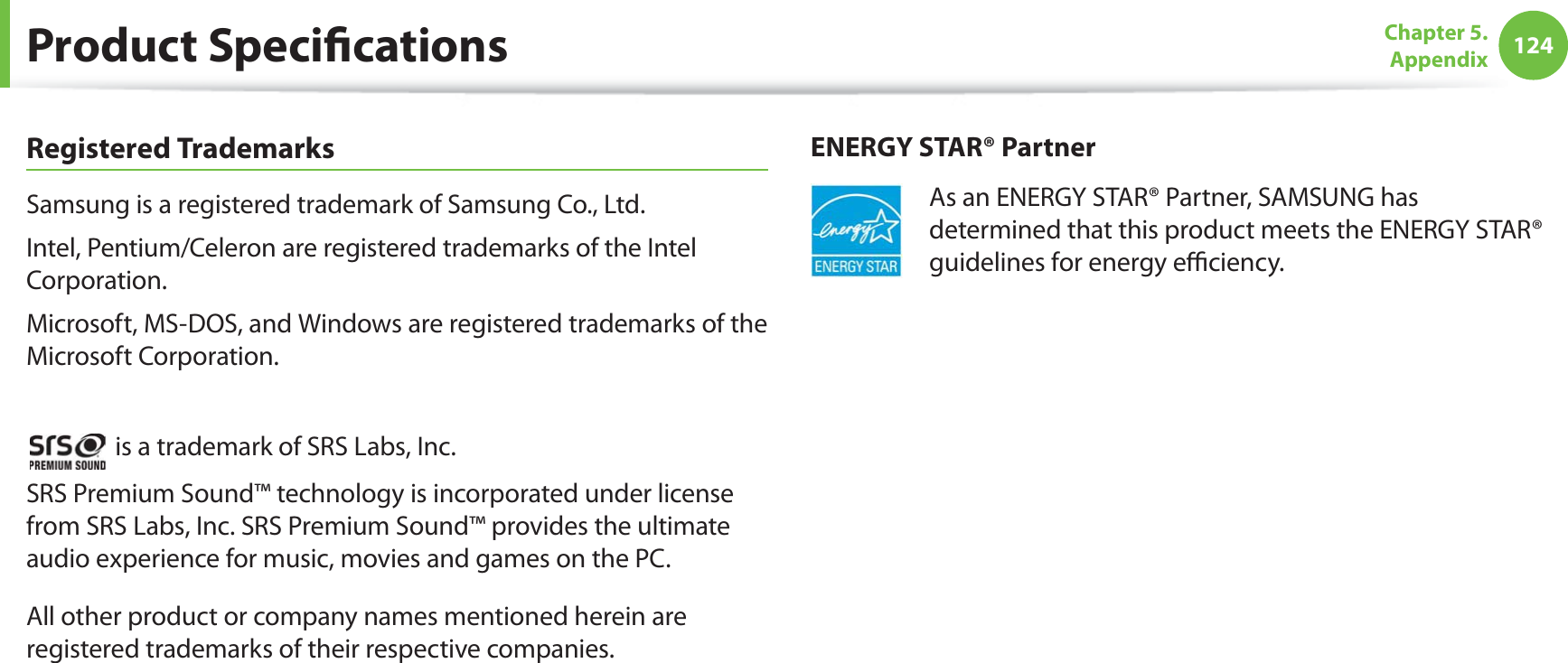

124Chapter 5. AppendixProduct SpecicationsRegistered TrademarksSamsung is a registered trademark of Samsung Co., Ltd.Intel, Pentium/Celeron are registered trademarks of the Intel Corporation.Microsoft, MS-DOS, and Windows are registered trademarks of the Microsoft Corporation. is a trademark of SRS Labs, Inc.SRS Premium Sound™ technology is incorporated under license from SRS Labs, Inc. SRS Premium Sound™ provides the ultimate audio experience for music, movies and games on the PC.All other product or company names mentioned herein are registered trademarks of their respective companies.ENERGY STAR® PartnerAs an ENERGY STAR® Partner, SAMSUNG has determined that this product meets the ENERGY STAR® guidelines for energy eciency.
125Chapter 5. AppendixGlossaryThe Glossary lists the terminologies used in this User Guide. For terminologies other than these, look in Windows Help.BackupA way to save the current data to restore it later if necessary. A backup is a way to restore computer data when the data or computer is damaged.Chargeable USBThis program enables supplying power to a specic USB port when the system is in power saving mode, hibernation mode or o.ClientThis refers to a computer that uses a shared network resource provided by a server.DDR SDRAM (Double Data Rate Synchronous Dynamic Random Access Memory)DRAM is a memory type whose cells consist of a capacitor and transistor manufactured at a low price. SDRAM is a memory type whose performance has been improved by synchronizing the clock with the external CPU clock. DDR SDRAM is a memory type whose performance has been improved by doubling the operating speed of the SDRAM and is widely used nowadays. This computer uses DDR SDRAM.Device ManagerAn administrative tool used to manage computer devices. You can add or remove hardware or update a device driver using the Device Manager.DHCP (Dynamic Host Conguration Protocol)This refers to automatically allocating IP addresses to the users on the network by the network administrators.Direct XAn application interface developed to enable Windows application programs to access hardware devices at a very high speed. Since the operating speed of graphics, memory and sound cards must be very fast to provide high quality video and sound for games, Direct X enables faster control and interaction between applications and hardware devices. By using Direct X, the multimedia performance of Windows has been hugely improved.DriverSoftware that interacts between the hardware and the operating system. An operating system knows the hardware information and controls the hardware. In general, a driver is supplied with the corresponding hardware device.D-sub (D-subminiature)This is the cable connecting a general CRT monitor and the computer. Analog video is output through this cable.
126Chapter 5. AppendixDVD (Digital Versatile Disk)DVD was developed to replace CD (compact disk). Although the shape and size of the disc are the same as that of a CD, the capacity of a DVD is at least 4.7GB while the capacity of a CD is 600MB. DVD video is digital unlike VHS (analog) video and supports MPEG2 compression and digital audio. To play a DVD, a DVD drive is required.FirewallA security system used to protect an internal network or intranet from external networks through an authentication procedure.HDMIThis is a digital video / audio interface specication that transmits video and audio signals over a single cable.Hibernation ModeA power mode that saves all data in memory to the hard disk and turns the CPU and hard disk o. When canceling Hibernation Mode, all application programs that were running are restored to their last state.IconThis refers to a small image that represents a le that users can use.IEEE802.XXThis is a set fo specications developed by the 802 committee of IEEE for the LAN connection method called XX.LAN (Local Area Network)A communications network connecting computers, printers and other devices within a local area such as within a building. A LAN enables all connected devices to interact with other devices on the network. The current LAN uses the Ethernet media access control method developed in the early 1980s. To connect to an Ethernet, a network card called a LAN card, Ethernet card or network interface card is required. To exchange data between computers, a protocol is required besides the hardware equipment. Windows Vista uses TCP/IP as the default protocol.LCD (Liquid Crystal Display)There are Passive Matrix and Active Matrix LCD types. This computer uses the Active Matrix type LCD called a TFT LCD. Since an LCD is implemented by transistors instead of a cathode-ray tube unlike a CRT, its size can be slim. And because it does not blink, it reduces eye strain.Glossary
127Chapter 5. AppendixMMC (MultiMedia Card) cardThis is an external-type ash memory used for mobile devices such as mobile phones or digital cameras.NetworkA group of computers and devices, such as printers and scanners, connected by a communications link. A network can be either small or large and can be connected permanently through cables or temporarily through telephone lines or wireless links. The biggest network is the Internet, a worldwide network.Network AdministratorA user who plans, congures and manages network operations. Sometimes, a network administrator is called a system administrator.Notication AreaThis refers to the right area of the Taskbar including program icons such as the volume control, the power options and the time.PartitionThis refers to the act or practice of dividing the storage space of a hard disk drive into separate data areas known as partitions. If a 100GB hard disk drive is partitioned into 2 x 50GB partitions, the hard disk drive can be used as if there are 2 hard disk drives.PCMCIA( Personal Computer Memory Card International Association) cardThis is an extended card slot specication for mobile computers such as a notebook computer. Not only a memory, device but also most peripherals such as hard disk drives, LAN cards, etc. can be connected to this card slot.ProtocolA protocol is a set of rules used by computers to communicate with each other across a network. A protocol is a convention or standard that controls or enables the connection, communication, and data transfer between computing endpoints. It denes the data transmission procedures and the transmission medium for more ecient network functions.Quick LaunchThis refers to a toolbar that can be congured so that you can launch a program such as Internet Explorer or display the Windows Desktop with one click. You can add any icon to the quick launch area of the Taskbar and launch frequently used program by clicking that icon.SD (Secure Digital) cardAn SD card is a ash (non-volatile) memory card developed for mobile devices by improving on the MMC card. Although an MMC card can be used in an SD card slot, an SD card is not recognized when inserted into an MMC card.Glossary
128Chapter 5. AppendixSDHC (Secure Digital High Capacity) cardThis is the extension of the SD card that supports over 2GB bytes.ServerIn general, a server refers to a computer that provides shared resources for network users.ShareThis refers to setting a resource of a computer such as a folder or printer so that other users can also use it.Shared FolderA folder that can be used by other users on the network.Sleep ModeA power mode that enables computers to save power consumption when they are not being used. When a computer is in Sleep Mode, the data on the computer memory is not saved to the hard disk. If the power is turned o, the data in memory will be lost.System FileSystem Files refer to les that are read and used by the Windows operating system. In general, system les must not be deleted or moved.TCP/IPv4This is a 4 byte (32 bit) address system separated into each byte (8 bits) by a dot and each byte is represented as a decimal number.USB (Universal Serial Bus)This refers to a serial interface standard developed to replace the conventional interface standards such as Serial and PS/2. The data transmission specications are one of the interface standards used to connect a computer to peripheral devices. These specications include USB 1.0, 1.1, 2.0 and 3.0. It is appropriate to support peripheral devices that require high data rates such as an AV device, secondary HDD or CD-RW. The higher the version (e.g. USB 3.0), the higher the data rate provided.Virtual XP ModeThis is a virtual operating system that enables running Windows XP programs on the Windows 7 operating system. Using this mode, you can run programs that do not run on Windows 7.Windows Media PlayerA multimedia program included with Windows. Using this program, you can play a media le, create an audio CD, listen to a radio broadcast, search and manage media les, and copy les to a portable device, etc.Glossary
129Chapter 5. AppendixIndexAAP 63BBattery 84BIOS Setup 78Booting Priority 83CCD Drive 46Charge 84Click 40DDouble-Click 40Drag 41Dual View 51LLCD Brightness 75MMicro SD Card Slot 48Monitor Connection / Output 50OOverview 27PPassword 80Product Specications 123RRecorder 56SSafety Precautions 8Samsung Recovery Solution 91Scroll 43Security Lock Port 89Shortcut Key 35SRS 58Status Indicators 27Supervisor Password 80TTouchpad 39UUser Password 81VVolume Control 56WWired Network 59Wireless Network 63ARXxx_9xx
