Samsung Electronics Co 9513A User Manual T55A
Samsung Electronics Co Ltd T55A
USER MANUAL
These user’s setup instructions cover typical user environments. The on-screen
messages may differ depending on the level of your hardware and software. In some
cases you may need to vary the setup procedures.
For more information, refer to your computer or operating system manuals or consult
your system administrator or dealer.
Ces instructions de configuration d’exploitation s’appliquent aux environnements
d’utilisation types. Les messages affichés à l’écran peuvent varier en fonction du niveau
de votre matériel et de vos logiciels informatiques. Dans certains cas, vous pouvez être
amenés à changer de procédures de configuration.
Pour de plus amples informations à ce sujet, veuillez vous reporter aux manuels de votre
ordinateur et de votre système d’exploitation, ou consultez l’administrateur de votre
système ou votre revendeur.
Diese Anweisungen für die Einstellung durch den Benutzer gelten für typische
Betriebsumgebungen. Die Bildschirmmeldungen können je nach Art der verwendeten
Hardware und Software auch anders lauten. In einigen Fällen müssen die
Einstellungsschritte unter Umständen abgeändert werden.
Weitere Informationen finden Sie im Computer- oder Betriebssystemhandbuch, oder
wenden Sie sich an Ihren Systemadministrator oder Fachhändler.
En estas instrucciones de configuración se describen entornos de usuarios típicos. Los
mensajes en pantalla, pueden diferir según sea el nivel del hardware y del software. En
algunos casos, necesitará seguir otros procedimientos para la configuración.
Para obtener más información, puede consultar los manuales del ordenador o del sistema
operativo o ponerse en contacto con el administrador del sistema o con el distribuidor.
Queste istruzioni di configurazione per l’utente coprono gli ambienti operativi comuni. I
messaggi che appaiono sul video possono differire a seconda dell’hardware e del
software utilizzati. In alcuni casi potrebbe essere necessario variare le procedure di
configurazione.
Per ulteriori informazioni, fare riferimento ai manuali del computer o del sistema
operativo, o consultare il proprio amministratore di sistema o il concessionario.
T55A.book Page 1 Monday, July 20, 1998 7:49 PM
2
T55A.book Page 2 Monday, July 20, 1998 7:49 PM
DANGER
To avoid shock hazard:
•Do not remove the covers.
•Do not operate this product unless the stand is attached.
•Do not connect or disconnect this product during an electrical storm.
•The power cord plug must be connected to a properly wired and grounded power outlet.
•Any equipment to which this product will be attached must also be connected to properly wired
and grounded power outlets.
•To isolate the monitor from the electrical supply, you must remove the plug from the power
outlet. The power outlet should be easily accessible.
Handling:
•Your colour monitor is heavy, so handle it with care. If heavier than 18 Kg, IBM recommends
that the monitor is moved or lifted by two people.
DANGER
Pour éviter les risques d’électrocution :
•Ne retirez pas les capots du moniteur.
•N’utilisez pas ce produit si le socle n’est pas fixé.
•Ne connectez, ni ne déconnectez ce produit pendant un orage.
•Le câble d’alimentation doit être connecté à une prise électrique correctement mise à la terre
et en bon état de marche.
•Tout équipement auquel ce produit est relié doit être également connecté à une prise
correctement mise à la terre et en bon état de marche.
•Pour isoler le moniteur de la source d’alimentation électrique, vous devez le débrancher de la
prise électrique. Cette prise doit être facile d’accès
Manutention :
•Votre moniteur couleurs est lourd et doit donc être manipulé avec soin. Si son poids dépasse
18 kg, IBM vous conseille de le déplacer ou de le porter à deux.
GEFAHRENHINWEIS
Um die Gefahr eines elektrischen Schlags zu vermeiden, folgendes beachten:
•Unter keinen Umständen die Abdeckungen abnehmen.
•Das Produkt nicht in Betrieb nehmen, wenn der Sockel nicht montiert ist.
•Das Gerät nicht während eines Gewitters an eine Steckdose anschließen oder von ihr trennen.
•Das Netzkabel ist an eine ordnungsgemäß verdrahtete und geerdete Steckdose
anzuschließen.
•Jedes Gerät, mit dem dieses Produkt verbunden wird, muß ebenfalls an eine ordnungsgemäß
verdrahtete und geerdete Steckdose angeschlossen werden.
•Um den Monitor von der Stromversorgung zu trennen, muß der Stecker aus der Steckdose
gezogen werden. Die Steckdose sollte leicht zugänglich sein.
Handhabungshinweis:
•Ihr Farbbildschirm ist schwer, gehen Sie vorsichtig damit um. Wenn er schwerer als 18 kg ist,
empfiehlt IBM, daß der Bildschirm von zwei Personen getragen bzw. gehoben wird.
T55A.book Page c Monday, July 20, 1998 7:49 PM
GEVAAR
Ga als volgt te werk om het gevaar van een elektrische schok te voorkomen:
•Verwijder in geen enkel geval de kap.
•Stel dit produkt alleen in werking als de voet is bevestigd.
•Sluit dit apparaat niet aan op, of verbreek de aansluiting van dit apparaat niet van een
contactdoos tijdens onweer.
•Het netsnoer moet worden aangesloten op een geaarde contactdoos met correcte bedrading.
•Ook alle apparatuur waarop dit produkt wordt aangesloten moet zijn aangesloten op een
contactdoos met correcte bedrading.
•Om het beeldscherm te ontkoppelen van de netvoeding, dient u de stekker uit de contactdoos
te trekken. De contactdoos dient goed toegankelijk te zijn.
Verplaatsing:
•De kleurenmonitor is zwaar. Doe dus voorzichtig. Indien de monitor zwaarder is dan 18 kilo,
raadt IBM aan de monitor door twee mensen te laten tillen.
PELIGRO
Para evitar riesgos de descargas eléctricas:
•No retire bajo ningún concepto las cubiertas.
•No maneje el monitor sin antes acoplar el soporte.
•No conecte ni desconecte el equipo de una toma de alimentación durante una tormenta
eléctrica.
•El cable de alimentación debe estar conectado a un enchufe debidamente cableado y con
toma de tierra.
•Cualquier equipo al que se vaya a conectar este producto también debe estar conectado a
tomas de alimentación cableadas y conectadas a tierra correctamente.
•Para aislar el monitor del suministro eléctrico, debe retirar el enchufe de la toma de
alimentación. Esta toma deberá ser de fácil acceso.
Movimentazione del monitor:
•Il monitor a colori è pesante, si consiglia quindi di maneggiarlo con attenzione. Se il monitor
pesa oltre 18 kg, IBM raccomanda che il monitor venga mosso o sollevato da due persone.
PERICOLO
Per evitare il rischio di scariche elettriche:
•Non rimuovere nessuna parte del telaio.
•Non accendere il prodotto se il piedistallo non è stato montato.
•Non collegare o scollegare il prodotto nel corso di un temporale.
•La spina del cavo di alimentazione deve essere collegata ad una presa di corrente con messa
a terra, installata in maniera appropriata.
•Le apparecchiature a cui il prodotto viene attaccato devono essere collegate a prese di
corrente con messa a terra, installate in maniera appropriata.
•Per isolare il monitor dalla corrente elettrica, staccare la spina dalla presa di alimentazione, che
deve essere facilmente accessibile.
T55A.book Page d Monday, July 20, 1998 7:49 PM
Manipulación:
•El monitor de color es pesado, por lo que debe manipularlo con cuidado. Si pesa más de 18
kg, IBM recomienda moverlo con la ayuda de dos personas.
PERIGO
Para evitar o perigo de choques eléctricos:
•Não retire as coberturas.
•Não utilize este produto antes de montar a base.
•Não ligue nem desligue este produto durante uma tempestade eléctrica.
•O cabo de alimentação deve ser ligado a uma tomada eléctrica devidamente ligada à terra.
•Qualquer equipamento ligado a este produto deve estar ligado a tomadas eléctricas
devidamente ligadas à terra.
•Para isolar o monitor da fonte de alimentação, retire a ficha do cabo de alimentação da tomada
eléctrica. A tomada eléctrica deve ser de fácil acesso.
Manuseio:
•Seu monitor colorido é pesado, então manuseie-o com cuidado. Se o peso for superior a 18
(dezoito) Kg., a IBM recomenda que o monitor seja movido ou carregado por duas pessoas.
FARE
Sådan undgår du elektrisk stød:
•Kabinettet må under ingen omstændigheder fjernes.
•Undgå at anvende dette produkt, uden at vippe/drejefoden er monteret.
•Undgå at tilslutte eller frakoble dette produkt i tordenvejr.
•Netledningen skal være tilsluttet en korrekt jordet stikkontakt med korrekt ledningsføring.
•Alt udstyr, som tilsluttes dette produkt, skal også være tilsluttet korrekt jordede stikkontakter
med korrekt ledningsføring.
•For at isolere skærmen fra strømforsyningen, skal stikket tages ud af stikkontakten.
Stikkontakten bør være let tilgængelig.
Håndtering:
•Deres farveskærm er tung, så vær forsigtig, når De løfter den. Hvis skærmen vejer mere end
18 kg, anbefaler IBM, at den flyttes og løftes af to personer.
FARE
Slik unngår du fare for elektrisk støt:
•Ikke ta av dekslene.
•Ikke bruk produktet dersom sokkelen ikke er
montert.
•Ikke koble produktet til eller fra under tordenvær.
•Pluggen på strømledningen må kobles til korrekt montert og jordet strømuttak.
•Utstyr som dette produktet eventuelt blir koblet til, må også kobles til korrekt montert og jordet
strømuttak.
•For å isolere skjermen fra strømkilden må du ta ut pluggen fra strømuttaket. Strømuttaket bør
være lett tilgjengelig.
T55A.book Page e Monday, July 20, 1998 7:49 PM
Käsittely:
•Värinäyttö on painava, joten käsittele sitä varoen. Jos näyttö painaa enemmän kuin 18 kg, IBM
suosittelee, että kaksi henkilöä siirtää tai nostaa sitä.
Varning - livsfara
För att undvika risk för elektriska stötar måste du tänka på följande:
•Ta inte bort några skyddskåpor.
•Använd inte den här produkten innan du har satt fast stativet.
•Anslut inte produkten till ett eluttag under åskväder. Koppla inte heller ur produkten från ett
eluttag under åskväder.
•Strömkabeln måste anslutas till ett felfritt och jordat uttag.
•All utrustning som den här produkten kopplas till måste också anslutas till felfria och jordade
uttag.
•För att bryta strömmen till bildskärmen måste du dra ut kontakten. Vägguttaget bör vara lätt att
komma åt.
Hantering:
•Hantera din färgmonitor med försiktighet, den är tung. Ni bör vara två personer för att lyfta och
flytta monitorn om den är tyngre än 18 kg.
VAARA
Sähköiskun vaaran välttämiseksi:
•Älä avaa laitteen kansia missään tilanteessa.
•Älä käytä laitetta, ellei jalustaa ole kiinnitetty.
•Älä kytke laitetta pistorasiaan tai irrota sitä pistorasiasta ukonilman aikana.
•Virtajohto on kytkettävä asianmukaisesti johdotettuun ja maadoitettuun pistorasiaan.
•Kaikki muutkin laitteet, joihin tämä tuote on liitetty, on kytkettävä asianmukaisesti johdotettuihin
pistorasioihin.
•Kun haluat erottaa näyttimen sähköverkosta, sinun pitää irrottaa sen verkkojohto pistorasiasta.
Pistorasian pitäisi olla mahdollisimman lähellä näytintä ja vaivattomasti käsillä.
Håndtering:
•Fargeskjermen din er tung, og må håndteres med varsomhet. Hvis den veier mer enn 18 kilo,
anbefaler IBM at skjermen flyttes eller løftes av to personer.
T55A.book Page f Monday, July 20, 1998 7:49 PM
Greek
Text is being formatted by an outside vendor. We will give you the file when we get it.
We will have both Greek and Hungarian in time for printing.
Hungarian
Text is being formatted by an outside vendor. We will give you the file when we get it.
We will have both Greek and Hungarian in time for printing.
T55A.book Page g Monday, July 20, 1998 7:49 PM
1
ENGLISH
Contents
Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Hardware Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Workplace Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Working Practices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

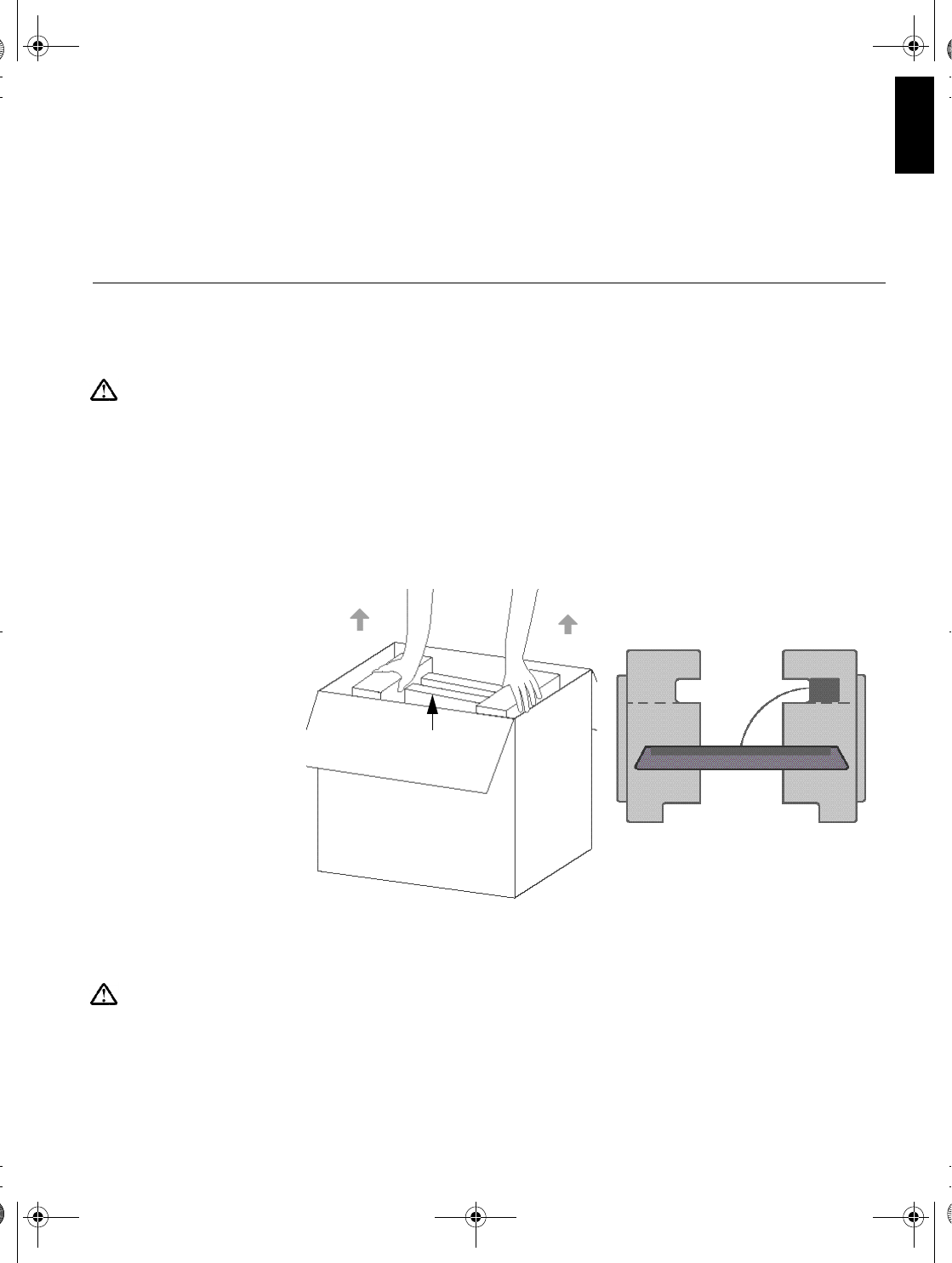

Unpacking the Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

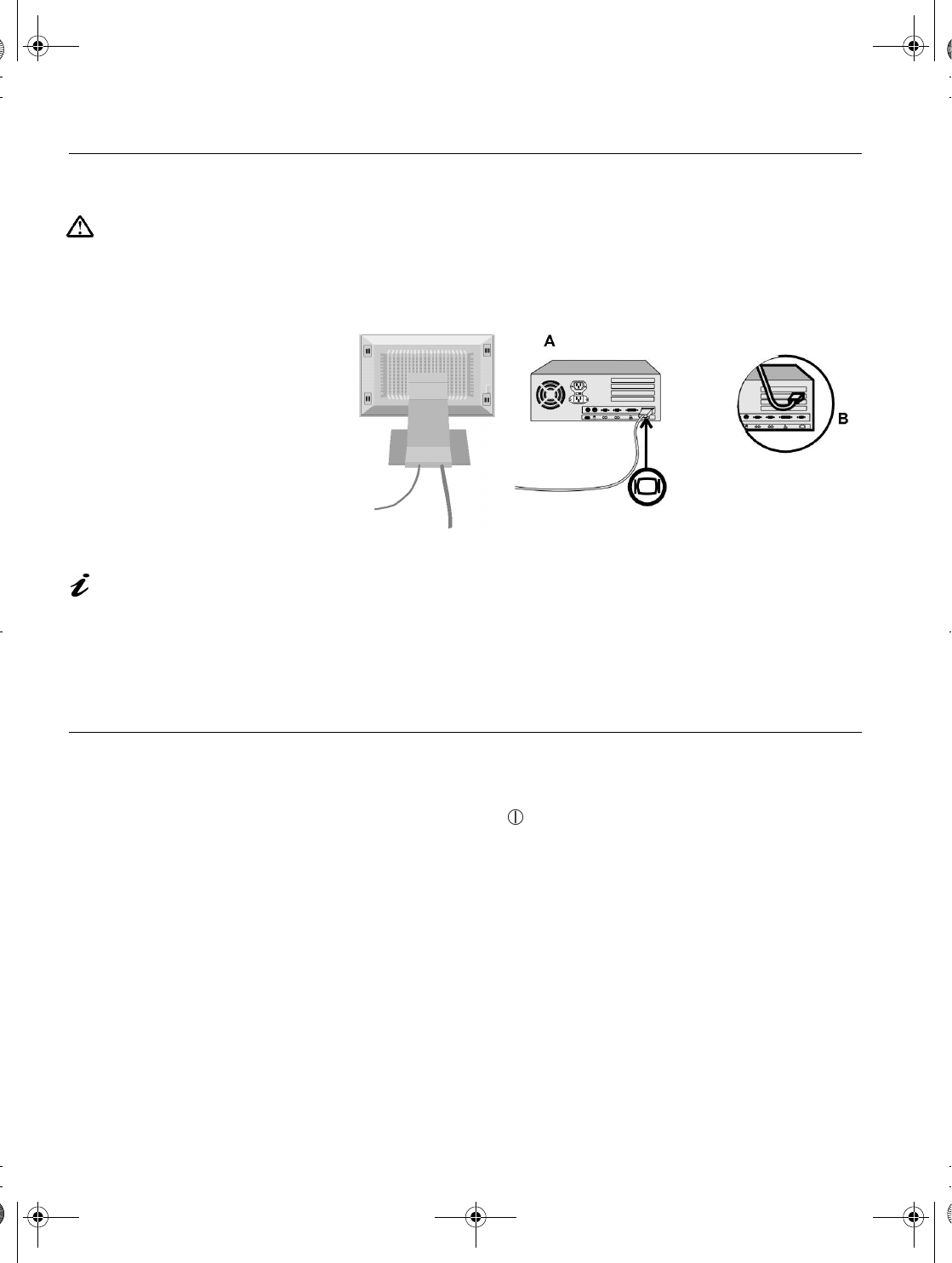

Connecting your Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Switching on your Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

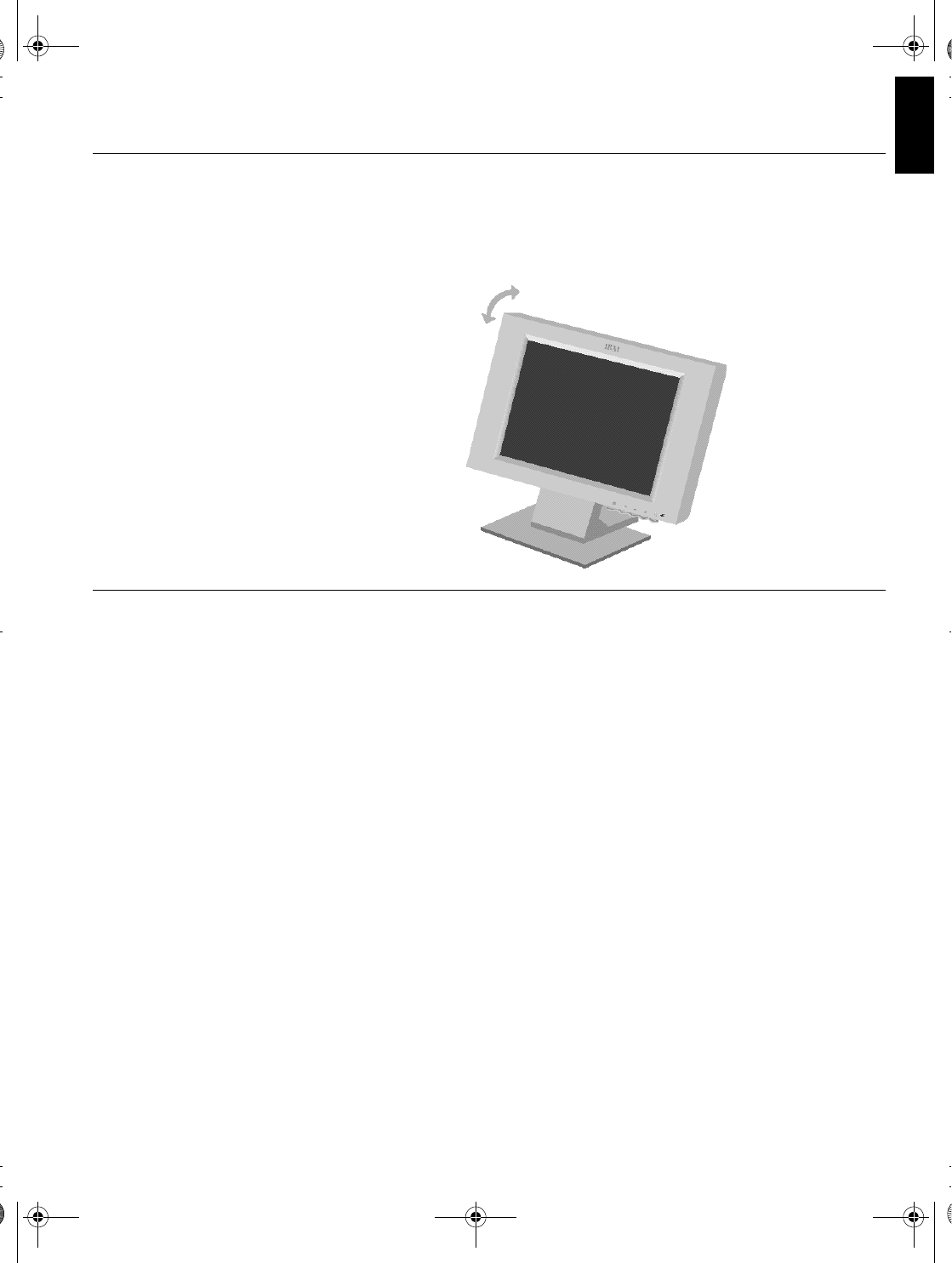

Adjusting the Monitor Position . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Caring for your Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Configuring your Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Automatic Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Setup Diskette for Windows 95 or Windows 98 . . . . . . . . . . . . . . . . . . . . . . . . 6
Auto Setup for the PC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Auto Setup for DOS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Auto Setup for Windows 3.1, Windows 95, Windows 98 or Windows NT . . . . . 9
Auto Setup OS/2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Manual Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Adjusting Your LCD Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
User controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
On-screen display (OSD) controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Further Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Display modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Power Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Further Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
T55A.book Page 1 Monday, July 20, 1998 7:49 PM
2
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Compliances I
Federal Communications Commission (FCC) Statement . . . . . . . . . . . . . . . . . .I
Industry Canada Compliance Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . I
NOM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . I
Power Cords . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . II
Warranty III
Statement of Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . III
T55A.book Page 2 Monday, July 20, 1998 7:49 PM
2
Setup
Hardware Requirements
This monitor requires a computer with a suitable on-board sub-system or
Video Adapter card that can support XGA 1024 × 768 at 60 Hz.
Workplace Preparation
This section gives advice
on what you should
consider before you set up your
monitor.
Height
The monitor should be positioned so that the top of the screen is slightly
below your eye level when you sit at your workstation.
Orientation
Choose a position that gives the least reflection from lights and windows,
usually at a right angle to any windows. The monitor should be positioned
directly in front of you so that you do not have to twist your body to use it. Tilt
the monitor to a comfortable viewing angle.
Working Practices
This section gives
advice on how you can
work comfortably and reduce
fatigue.
Rest
Take regular breaks. Vary your posture, stand up and stretch occasionally as
prolonged use of computer workstations can be tiring.
Back
You should sit back in your chair and use the backrest.
Hands
Use a light touch on the keyboard, keeping your hands and fingers relaxed.
Allow a space in front of the keyboard to rest your wrists when not typing.
Consider using a wristpad.
Eyesight
Working with monitors, in common with any prolonged close work, can be
visually demanding. Look away from the screen periodically and have your
eyesight checked regularly.
T55A.book Page 2 Monday, July 20, 1998 7:49 PM
3
ENGLISH
Screen settings
Set the screen brightness and contrast to a comfortable level. You may have
to adjust this as the lighting changes during the day. Many application
programs let you select color combinations which can help you to view in
comfort.
Unpacking the Monitor
1. Put the box on a flat, solid surface.
Use caution when
removing the foam
cushions from the monitor. The
power adapter block has been
stored in a recess in the LEFT
foam cushion and is connected
to the monitor. Make sure the
cable is not pulled while
removing the foam cushions.
2. Open the carton box and remove the Accessories box.
3. Firmly grasp the two foam cushions and pull the monitor out of the
carton box. (Refer to Fig. 1)
4. Remove the power adapter block which has been stored in the Right
foam cushion.
5. Support the monitor while you carefully remove each foam cushion.
(Refer to Fig. 2).
Do not support the monitor
within the screen area. The
Liquid Crystal Display is glass
and can be damaged by rough
handling or excessive pressure.
6. Remove the polyethelene bag from the monitor.
7. Remove the clear information film from the monitor face and perform
setup.
Accessories box
Fig. 1 Fig. 2
T55A.book Page 3 Monday, July 20, 1998 7:49 PM
4
Connecting your Monitor
Be sure to read the
‘Safety Information’ at
the front of this User Guide
before carrying out this
procedure.
1. Turn off your PC and all attached devices.
2. Connect the signal cable to the video port on the back of your computer.
This port might be directly attached to your computer (figure A), or it
might be part of a video adapter card (figure B).
The AC adapter and signal
cable are connected to
your monitor If you wish to
change these or to fit a different
stand, see Further Help on
page 20.
3. Connect the power cord to the power adapter first, then insert the plug
into a properly grounded electrical outlet.
4. Turn on the monitor and then the computer.
5. Run AUTO SETUP by following the instructions in the Configuring your
Monitor section on page 6.
Switching on your Monitor
Switch on the power source and your computer. To turn on the monitor, push
and release the power switch . To switch it off, push and release the power
switch again.
T55A.book Page 4 Monday, July 20, 1998 7:49 PM
5
ENGLISH
Adjusting the Monitor Position
Viewing Angle
You can tilt the screen backward and forward as shown below.
Caring for your Monitor
Be sure to turn off the power before you perform any maintenance on the
monitor. Clean your monitor as follows:
•Gently wipe the device covers and the screen with a soft cloth.
•Remove finger marks and grease with a damp cloth and mild detergent;
do not use solvents or abrasives.
•Never use flammable cleaning material to clean your IBM monitor or any
other electrical apparatus.
T55A.book Page 5 Monday, July 20, 1998 7:49 PM
6
Configuring your Monitor
Automatic Setup
The Setup Utility included
on the setup diskette is for
displaying dot patterns. They do
not replace or modify the display
driver.
When you first use your monitor you must perform Automatic Setup (AUTO
SETUP). This procedure sets up your monitor to process the video signals from
your computer without image discoloration or smearing. After you perform the
AUTO SETUP, the settings are stored and used each time you turn on the
monitor.
The Automatic Setup
instructions require the
monitor to be warmed up for 15
minutes. This is not required for
normal operation.
Setup Diskette for Windows 95 or Windows 98
This section must be
completed before
continuing with the
Windows 95 or Windows 98
Auto Setup for the PC on
page7.
To use the Plug and Play feature in Windows 95 or Windows 98, files should
be loaded from the IBM Color LCD Monitor Installation diskette as follows:
1. Turn off the computer and all attached devices.
2. Ensure that the IBM monitor that you wish to install is connected
correctly.
3. Turn on the monitor and then the system unit. Allow the system to boot
into Windows 95 or Windows 98.
4. Open the DISPLAY PROPERTIES window by clicking on START, SETTINGS,
CONTROL PANEL and then double clicking on the DISPLAY icon.
5. Click on the SETTINGS tab.
6. Click the CHANGE DISPLAY TYPE button.
7. Click the CHANGE MONITOR TYPE button.
8. Insert the Setup diskette into drive A: and click the HAVE DISK button.
9. Click OK.
10. Choose IBM 9513 monitor and click OK. The files will be copied from the
diskette to your hard drive.
On LCD monitors, unlike
CRTs, a faster refresh rate
does not improve display
quality. IBM recommends using
a refresh rate of 60Hz
non-interlaced.
11. Close all open windows and remove the diskette.
12. Reboot the system.
The system will automatically select the maximum refresh rate and
corresponding Color Matching Profiles.
T55A.book Page 6 Monday, July 20, 1998 7:49 PM
7
ENGLISH
Auto Setup for the PC
Before carrying out
this section, it is very
important that The Setup
Diskette for Windows 95 or
Windows 98 has been run.
(see page6)
Check the operating system installed on your PC and follow the instructions
from the table below.
If your PC does not run
with the setup diskettes
shipped with the monitor, refer
to Manual Setup on page 11
Before you begin AUTO SETUP for your PC:
1. Make a backup copy of the setup diskettes supplied with the monitor.
2. Make sure the PC’s video mode is set in the range of the supported
screen resolution shown in the table on page16.
The AUTO SETUP process
only applies to the current
screen mode. When a new
mode is selected, repeat this
section to reset the monitor
3. Perform AUTO SETUP for each screen mode you use.
Operating System Corresponding Auto Setup procedure
DOS Auto Setup for DOS on page 8
Windows 3.1
Auto Setup for Windows 3.1, Windows 95,
Windows 98 or Windows NT on page 9
Windows 95
Windows 98
Window NT
Operating System/2 (OS/2) Auto Setup OS/2 on page 10
T55A.book Page 7 Monday, July 20, 1998 7:49 PM
8
Auto Setup for DOS
If the monitor is in standby
mode (STANDBY ON), it
may automatically turn off while
you are waiting for it to warm up.
1. Turn on the monitor first; then the PC.
If the message CHECK SIGNAL CABLE is displayed, or if nothing is
displayed check:
•that the video interface cable is connected properly.
•the correct video adapter card is installed.
•the correct supported display mode is selected for your PC.
If you are using PC-DOS/
V, change to U.S. mode by
typing ‘CHEV US’ and pressing
ENTER at the command
prompt.
2. Wait approximately 15 minutes, until the monitor warms up.
3. Insert the diskette labelled ‘Setup Diskette (for DOS / Windows /
Windows NT)’ into the diskette drive.
4. Display the command prompt screen of the DOS full-screen display:
•If Windows is installed, open the DOS prompt from the Program
Manager to display the DOS full-screen.
•If OS/2 is installed, open the DOS full-screen display from the
command prompt of OS/2.
•If only DOS is installed, the command prompt is displayed when the
system is started.
The size and diversity of
the dot pattern varies with
the screen resolution.
5. At the command prompt, type ‘A:’ and press ENTER.
6. Type ‘TESTPATD’ and press ENTER.
7. When the dot pattern appears, press the OSD Enter button at the
bottom of the monitor to display the initial OSD menu.
If the screen flickers,
repeat the setup several
times until the flicker is
minimised, or adjust it manually
by following Manual Setup on
page 11.
8. Use an Arrow button ( or ) to select the IMAGE LOCK icon
then press the OSD Enter button to access the function.
9. Using an Arrow button ( or ), select AUTOMATIC and then select
YES. This activates the AUTO SETUP procedure, which will optimize the
display settings with the provided dot-patterns.
10. When finished, press the Exit button to exit from the OSD.
11. Press any key to exit the test pattern program.
12. Type ‘Exit’ at the command prompt to return to Windows.
Now continue the setup for your operating system:
Auto Setup for Windows 3.1, Windows 95, Windows 98 or Windows NT on page 9
Auto Setup OS/2 on page 10
T55A.book Page 8 Monday, July 20, 1998 7:49 PM
9
ENGLISH
Auto Setup for Windows 3.1, Windows 95, Windows 98 or Windows NT
If the monitor is in standby
mode (STANDBY ON), it
may automatically turn off while
you are waiting for it to warm up.
1. Turn on the monitor first; then the PC.
If the message CHECK SIGNAL CABLE is displayed, or if nothing is
displayed check:
•that the video interface cable is connected properly.
•the correct video adapter card is installed.
•the correct supported display mode is selected for your PC.
2. Wait approximately 15 minutes, until the monitor warms up.
3. Drag the icon bar and tool bar, if they are displayed, to the bottom of the
screen.
4. Insert the diskette labelled ‘Setup Diskette (for DOS / Windows /
Windows NT)’ into the diskette drive.
The size and diversity of
the dot pattern varies with
the screen resolution.
5. Check the operating system installed on your PC and follow the
instructions from the table below.
6. When the dot pattern appears, press the OSD Enter button at the
bottom of the monitor to display the initial OSD menu.
Position the mouse pointer
at the bottom center of the
screen. This allows AUTO
SETUP to run properly
7. Use an Arrow button ( or ) to select the IMAGE LOCK icon
and press the OSD Enter button to access the function.
8. Using an Arrow button ( or ), select AUTOMATIC and then select
YES. This activates the AUTO SETUP procedure, which will optimize the
display settings with the provided dot-patterns.
9. When finished, press the Exit button to exit from the OSD.
10. Press the Esc key to return to Windows.
You have completed the monitor setup.
Operating
System Step1 Step2 Step3 Step4
Windows 3.1 Open
PROGRAM
MANGER
Click on
FILE
Click on
RUN
Type
‘A:\TESTPAT’
Windows NT 3.5
Windows 95
Click on
STARTClick on RUN
Windows 98
Windows NT 4.0
T55A.book Page 9 Monday, July 20, 1998 7:49 PM
10
Auto Setup OS/2
If the monitor is in standby
mode (STANDBY ON), it
may automatically turn off while
you are waiting for it to warm up.
1. Turn on the monitor first; then the PC.
If the message CHECK SIGNAL CABLE is displayed, or if nothing is
displayed check:
•that the video interface cable is connected properly.
•the correct video adapter card is installed.
•the correct supported display mode is selected for your PC.
2. Wait approximately 15 minutes, until the monitor warms up.
3. If the WarpCenter Toolbar is permanently on, click the right mouse
button on the WarpCenter Toolbar, click on PROPERTIES, DISPLAY TAB and
‘SHOW ONLY WHEN MOUSE IN CENTER POSITION’.
4. Insert the diskette labelled ‘Setup Diskette (for OS/2)’ into the diskette
drive.
5. Open the OS/2 full-screen window or an OS/2 window.
6. At the command prompt type A: and press ENTER.
7. Type TESTPATS and press ENTER.
The size and diversity of
the dot pattern varies with
the screen resolution.
8. When the dot pattern appears, press the OSD Enter button along
the bottom of the monitor to display the initial OSD menu.
Position the mouse pointer
at the bottom center of the
screen. This allows AUTO
SETUP to run properly.
9. Use an Arrow button ( or ) to select the IMAGE LOCK icon
and press the OSD Enter button to access the function.
10. Using an Arrow button ( or ), select AUTOMATIC and then select
YES. This activates the AUTO SETUP procedure, which will optimize the
display settings with the provided dot-patterns.
If the screen flickers,
repeat the setup several
times until the flicker is
minimised, or adjust it manually
by following Manual Setup on
page 11.
11. When finished, press the Exit button to exit from the OSD.
12. Press the Esc key to return to the OS/2 Window.
You have completed the monitor setup
T55A.book Page 10 Monday, July 20, 1998 7:49 PM
11
ENGLISH
Manual Setup
Normally, you can complete the setup procedure using AUTO SETUP, however,
if your screen image is still distorted after you perform AUTO SETUP or the
setup diskette does not run on your system, perform MANUAL SETUP.
If the monitor is in standby
mode (STANDBY ON), it
might automatically turn off
while you are waiting for it to
warm up.
1. Have your monitor turned on for about 15 minutes, until the monitor
warms up.
2. Display the image you most frequently use on the screen.
3. Press the OSD Enter button at the bottom of the monitor to display
the initial OSD menu.
If the screen flickers,
repeat the setup several
times until the flicker is
minimised, or adjust it manually
by following Manual Setup on
page 11.
4. Use an Arrow button ( or ) to select the IMAGE LOCK icon
and press the OSD Enter button to access the function.
5. Using an Arrow button ( or ), select MANUAL and then COARSE
(see page14).
6. Use the Arrow buttons to manually adjust to correct (as much as
possible) for noise in the video signal then press to save the
changes.
7. Use an Arrow button to select FINE and press the button.
8. Use the Arrow buttons again to tune the image to your liking.
Position the mouse pointer
at the bottom center of the
screen. This allows AUTO
SETUP to run properly.
9. When finished, press the Exit button to exit from the OSD.
10. Press Esc key to return to Windows.
You have completed the monitor setup.
T55A.book Page 11 Monday, July 20, 1998 7:49 PM
12
Adjusting Your LCD Monitor
User controls
User control features
Operation
The image is already
optimized for many display
modes, however the user
controls can be used to adjust
the image to your liking.
•Press the OSD Enter button to display the initial OSD menu.
•Use the Arrow buttons to move among the icons. Select an icon and press
OSD Enter to access that function. If there is a sub-menu, you can move
between options using the Arrow buttons, then press OSD Enter to select
that function. Use the Arrow buttons to make adjustments.
The settings are saved
when exiting the OSD and
will be effective thereafter.
•Press the Exit button to exit from the OSD.
Icon Control Description
Exit Exits the OSD
Left Arrow Moves the cursor to other icons and
options
Right Arrow
OSD Enter Makes the On-screen Display
(OSD) visible and selects options
Power Switch Switches the monitor on and off
T55A.book Page 12 Monday, July 20, 1998 7:49 PM
13
ENGLISH
On-screen display (OSD) controls
The settings adjustable with the user controls are viewed through the On-
Screen Display (OSD). Press the OSD Enter button () to activate the
OSD.
The LCD monitor needs
time to become thermally
stable the first time you turn it on
each day. Thus, to achieve more
accurate adjustments for
parameters, allow the LCD
monitor to warm up (be On) for
at least 15 minutes before
making any screen adjustments.
Initial appearance of OSD
OSD functions
OSD Icon Function/Sub-menu
Effect of Button
BRIGHTNESS
Adjusts brightness
CONTRAST
Adjusts contrast
BRIGHTNESS
89
T55A.book Page 13 Monday, July 20, 1998 7:49 PM
14

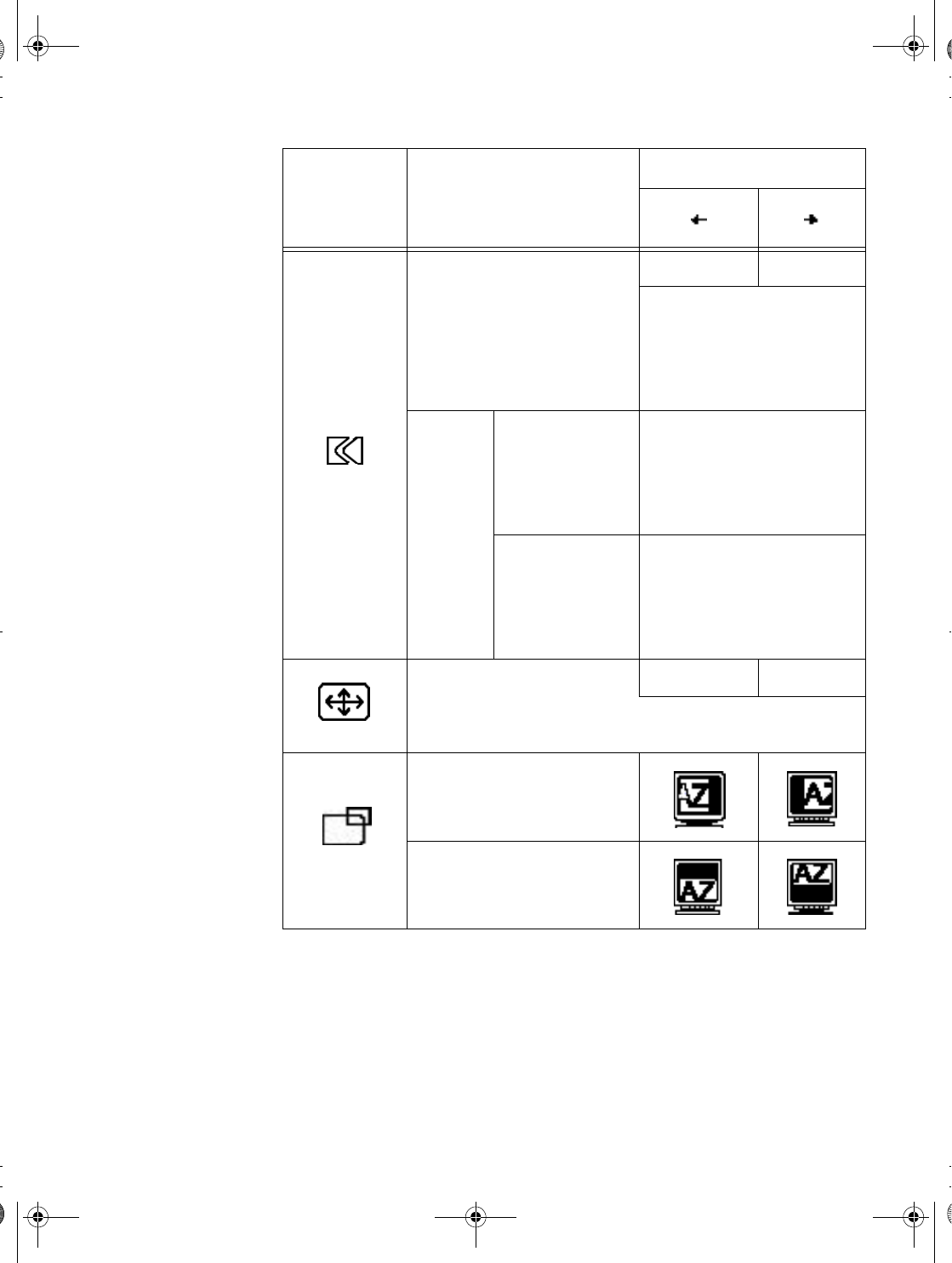

IMAGE LOCK
AUTOMATIC
No Yes
Automatically adjusts to eliminate or
limit noise which causes horizontal
lines or areas on the screen where the
image appears to be unstable and
jitters or shimmers.
Automatically corrects for noise in the
video signal from the computer or
video board.
MANUAL
FINE
Manually adjusts to correct for noise in
the video signal from the computer or
video board. Use the Arrow buttons to
adjust away the interference. If
satisfactory results are not obtained
using the Fine adjustment, get the best
results you can with the Coarse
adjustment and then use Fine again.
COARSE
Manually adjusts to correct for noise in
the video signal from the computer or
video board. Use the Arrow buttons to
adjust away the interference. This
function slightly changes the width of
the display image. Use the H-Position
function on the Image Position menu to
center the display image on the screen.
DISPLAY SIZE
Normal Expanded
If your computer or video board supplies a signal rate and addressability lower than
1024×768, this LCD monitor provides a scaling processor which can expand the
rate up to 1024×768.
POSITION
H-POSITION
V-POSITION
OSD Icon Function/Sub-menu
Effect of Button
T55A.book Page 14 Monday, July 20, 1998 7:49 PM
15
ENGLISH
COLOR
COLOR MODE
Change the color coordinates by
selecting between Mode 1 (Cool
White), Mode 2 (Normal White) and
Mode 3 (Warm White). Select the
mode you find most comfortable and
then fine tune the colors using the User
Color Mode menu.
USER
MODE
RED Increase or decrease redness
GREEN Increase or decrease greenness
BLUE Increase or decrease blueness
RESET
COLOR RESET
No Yes
Resets the Brightness, Contrast and
Color settings.
GEOMETRY RESET No Yes
Resets the Image position settings
INFORMATION
Shows information about the addressability and the horizontal and vertical
frequencies of the images received from the computer or video board.
LANGUAGE
ENGLISH
DEUTSCH
ESPAÑOL
FRANÇAIS
ITALIANO
Select one of the five languages to use
for the OSD. The language chosen
affects only the language that the OSD
displays. It has no effect on any
software running on the computer.
OSD MENU
POSITION
H-POSITION
V-POSITION
OSD LOCK/
UNLOCK
Allows you to secure the current control settings so that they cannot be
inadvertently changed.You can unlock the OSD controls at any time by using the
same procedure.
Push and hold in the button for 10 seconds or more to Lock or to Unlock. When
locked, “LOCKED” message will be displayed next time you activate it.
OSD Icon Function/Sub-menu
Effect of Button
T55A.book Page 15 Monday, July 20, 1998 7:49 PM
16
Further Information
Display modes
The display mode the monitor uses is controlled by the computer. Therefore,
you should refer to your computer documentation for details on how to
change display modes.
The image size, position and shape may change when the display mode
changes. This is normal and the image can be readjusted using AUTO SETUP
and the monitor controls.
Unlike CRT monitors, which require a high refresh rate to minimize flicker,
TFT technology is inherently flicker-free. If possible, configure your computer
for 1024 × 768 addressability at 60Hz vertical refresh rate.
For the display modes listed below, the screen image has been optimized
during manufacture.
Factory Set Display Modes
† Recommended
Addressability Refresh Rate Horizontal
Frequency
640 × 350 70 Hz 31.5 kHz
640 × 480 60 Hz 31.5 kHz
640 × 480 75 Hz 37.5 kHz
720 × 400 70 Hz 31.5 kHz
800 × 600 75 Hz 46.9 kHz
800 × 600 60 Hz 37.9 kHz
832 × 624 75 Hz 49.7 kHz
1024 × 768† 60 Hz 48.4 kHz
1024 × 768 70 Hz 56.5 kHz
1024 × 768 75 Hz 60.0 kHz
T55A.book Page 16 Monday, July 20, 1998 7:49 PM
17
ENGLISH
Power Management
To benefit from power management, the monitor must be used in conjunction
with a computer that implements the Video Electronics Standards
Association (VESA) Display Power Management Signalling (DPMS)
Standard.
The power management feature is invoked when the computer recognizes
that you have not used your mouse or keyboard for a user-definable period.
There are several states as described in the table below.
As an ENERGY STAR® Partner, IBM has determined that this product meets the
ENERGY STAR® guidelines for energy efficiency.
IBM recommends that you switch off your monitor at the end of each working
day, or whenever you expect to leave it unused for long periods during the
day.
‡ There may be a slight delay before the picture reappears.
State Power
Indicator Screen Restoring
Operation Compliance
On Steady green Normal
DPMS
Standby Steady amber Blank Press a key or
move the mouse. ENERGY STAR®
DPMS
Suspend
Flashing
amber
(0.5 sec.
interval)
Blank Press a key or
move the mouse. ‡ ENERGY STAR®
DPMS Off
Flashing
amber
(1 sec.
interval)
Blank Press a key or
move the mouse. ‡ ENERGY STAR®
and NUTEK
T55A.book Page 17 Monday, July 20, 1998 7:49 PM
18
Troubleshooting
If you have a problem setting up or using your monitor, you may be able to
solve it yourself. Before calling your retailer or IBM, try the suggested actions
that are appropriate to your problem.
Problem Possible
Cause Suggested Action Reference
Screen is blank
and power
indicator is off
No power to
monitor
Ensure that the electrical
outlet and the monitor are
both switched on.
Check that the power cord
is firmly plugged into the
electrical outlet and the
power supply unit.
If the power cord plug has
a removable fuse, replace
it.
Try another power cord.
Try another electrical
outlet.
Connecting
your Monitor
section on
page 4
Screen is blank
and power
indicator is
steady green
Brightness
and Contrast
may be too
low
Adjust brightness and
contrast.
User
controls
section on
page 12
Screen is blank
and power
indicator is
steady amber
The monitor is
in the Power
Management
Standby state
Press any key on the
keyboard or move the
mouse to restore
operation.
Check the Power
Management software on
your computer
Power
Management
section on
page 17
T55A.book Page 18 Monday, July 20, 1998 7:49 PM
19
ENGLISH
Screen is blank
and power
indicator is
Flashing green
every 0.5
second
Display mode
of the
computer is
outside the
range of the
monitor
Reconfigure the computer
to use a supported display
mode.
Further
Information
section on
page 16
The monitor is
not receiving
a video signal
Check that the signal cable
is firmly connected to the
computer.
Check that no pins are
bent in the signal cable
connector.
Connecting
your Monitor
section on
page 4
Screen is blank
and power
indicator is
flashing amber
every 0.5 or 1
second
The monitor is
in the Power
Management
Suspend or
Off state
Press any key on the
keyboard or move the
mouse to restore
operation.
Check the Power
Management software on
your computer.
Power
Management
section on
page 17
Image appears
to be smeared
There are
noises in the
video signal
Select IMAGE LOCK menu
in the OSD. Then select
MANUAL to adjust FINE/
COARSE settings.
User
controls
section on
page 12
Image appears
to be
discolored
The Color
setting may
be incorrect Adjust the Color settings.
User
controls
section on
page 12
A few dots are
missing,
discolored, or
inappropriately
lighted.
The LCD contains over 2,300,000 thin-film
transistors (TFTs). A small number of
missing, discolored, or lighted dots may be
present on the screen, which is an intrinsic
characteristic of the TFT LCD technology
and is not an LCD defect.
Problem Possible
Cause Suggested Action Reference
For image problems, you
may want to run AUTO
SETUP again before consulting to
this section. In most cases, AUTO
SETUP can fix the problems. See
Auto Setup for the PC on page 7
for details.
T55A.book Page 19 Monday, July 20, 1998 7:49 PM
20
Further Help
If you are unable to correct the problem yourself, you may seek further help
as follows:
Call the IBM HELPCENTER.
In the US call 1-800-772-2227
In Canada call 1-800-565-3344
In other countries contact your dealer, retailer, or other IBM authorized
Servicer.
If possible, stay by your
computer. Your Technical
Support Representative may
wish to go through the problem
with you during the call.
Before calling, please have available as much of the following information as
possible:
1. Model and serial number from the label on your monitor.
2. Purchase receipt.
3. Description of problem.
4. Computer type and model.
5. System configuration (hardware fitted, etc.).
6. System BIOS version number.
7. Operating System and version number.
8. Display driver version number.
9. Video Adapter Type.
Obtaining and installing alternate cables
This product is shipped with the signal cable and the power cord attached to
the monitor. If you want to use other cables for reasons such as having the
monitor wall-mounted, follow the instructions below:
1. Flip open all three covers at the back of the monitor stand.
2. Remove the signal cable and the power cord from the monitor by
disconnecting the corresponding adapters.
3. Connect the new signal cable and the power cord.
4. Put the covers back on.
To obtain the correct cables and/or to get further instructions on installing
them, call the IBM HELPCENTER at the above numbers or contact your
dealer, retailer, or other IBM authorized Servicer.
T55A.book Page 20 Monday, July 20, 1998 7:49 PM
21
ENGLISH
Specifications
This color monitor (Type-model 9513-Axx) uses a 15-inch TFT LCD.
Dimensions Width:
Depth:
Height:
413 mm
204 mm
381 mm
Weight 14.3 lb. (6.5 Kg)
Tilt Forward Tilt:
Backward tilt: – 4°
+ 41°
Image Viewable Image Size
Maximum Height:
Maximum Width:
Pixel Pitch:
15.0” (381 mm)
228 mm
304 mm
0.297 mm (H) × 0.297 mm
(V)
Power Input Supply Voltage:
Max Supply Current:
90 - 260 Vac
60/50 ± 3 Hz
1.5 A at 120 Vac
Power
Consumption Normal Operation:
DPMS Stand-by:
DPMS Suspend:
DPMS off:
< 40 W
< 5 W
< 5 W
< 5 W
Video Input Input Signal:
Horiz. Addressability:
Vert. Addressability:
Clock Frequency:
Analog Direct Drive
75 ohm 0.7 V
1024 pixels (max)
768 lines (max)
80 MHz
Communications VESA DDC: 2 B
Synchronization
Range Horiz. Frequency:
Vert. Frequency: 30 kHz - 61 kHz
50 Hz - 75 Hz
Power consumption figures
are for the monitor and the
power supply combined.
T55A.book Page 21 Monday, July 20, 1998 7:49 PM
22
Environment Temperature:
Operating
Storage
Shipping
Humidity:
Operating
Storage
Shipping
10 to 35° C
- 20 to 60° C
- 20 to 60° C
10 to 80%
5 to 95%
5 to 95%
T55A.book Page 22 Monday, July 20, 1998 7:49 PM
I
ENGLISHFRANÇAISESPAÑOLPORTUGUESECOMPL & WARR
Compliances
Federal Communications Commission (FCC) Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
•Consult an IBM authorized dealer or service representative for help.
Properly shielded and grounded cables and connectors must be used in order to meet FCC emission limits. Proper
cables and connectors are available from IBM authorized dealers. IBM is not responsible for any radio or television
interference caused by using other than recommended cables and connectors or by unauthorized changes or
modifications to this equipment. Unauthorized changes or modifications could void the user’s authority to operate the
equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device
may not cause harmful interference, and (2) this device must accept any interference received, including interference that
may cause undesired operation.
Industry Canada Compliance Statement
This Class B digital apparatus meets the requirements of the Canadian Interference-Causing Equipment Regulations.
Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada.
NOM
IBM de México, S.A.
IBM MM75 Monitor de Color (M/T 2128)
Planta de Manufactura
416, Maetan-3Dong, Paldal-Gu
Suwon City, Kyungki-Do, Korea
442-742
Hecho en Korea
NOM - 018
Consumo de Corriente1.5 A
Frecuencia de Operacion50/60 Hz
Rension de Alimentacion100-240 V
T55A.book Page I Monday, July 20, 1998 7:49 PM
II
Power Cords
For your safety, IBM provides a power cord with a grounded attachment plug to use with this IBM product. To avoid
electrical shock, always use the power cord and plug with a properly grounded power outlet.
IBM power cords used in the United States and Canada are listed by the Underwriters Laboratories (UL) and certified by
the Canadian Standards Association (CSA).
For units intended to be operated at 115 volts: Use a UL listed and CSA certified cord set consisting of a minimum 18
AWG, type SVT or SJT, three conductor cord, a maximum of 4.5 meters (15 feet) in length and a parallel blade,
grounding type attachment plug rated 15 amperes, 125 volts.
For units intended to be operated at 230 volts (U.S. use): Use a UL listed and CSA certified cord set consisting of a
minimum 18 AWG, type SVT or SJT, three conductor cord, a maximum of 4.5 meters (15 feet) in length and a tandem
blade, grounding type attachment plug rated 15 amperes 250 volts.
For units intended to be operated at 230 volts (outside the U.S.): Use a cord set with a grounding type attachment plug
rated 13 amperes (minimum), 250 volts. The cord set should be marked <HAR> and have the appropriate safety
approvals for the country in which the equipment will be installed.
T55A.book Page II Monday, July 20, 1998 7:49 PM
III
ENGLISHFRANÇAISESPAÑOLPORTUGUESECOMPL & WARR
Warranty
Statement of Limited Warranty
The warranties provided by IBM in this Statement of Limited Warranty apply only to Machines you originally purchase for
your use, and not for resale, from IBM or your reseller. The term “Machine” means an IBM machine, its features,
conversions, upgrades, elements, or accessories, or any combination of them. Unless IBM specifies otherwise, the
following warranties apply only in the country where you acquire the Machine. If you have any questions, contact IBM or
your reseller.
Production Status
Each Machine is manufactured from new parts, or new and serviceable used parts (which perform like new parts). In
some cases, the Machine may not be new and may have been previously installed. Regardless of the Machine’s
production status, IBM’s warranty terms apply.
The IBM Warranty for Machines
IBM warrants that each Machine 1) is free from defects in materials and workmanship and 2) conforms to IBM’s Official
Published Specifications. The warranty period for a Machine is a specified, fixed period commencing on its Date of
Installation. The date on your receipt is the Date of Installation, unless IBM or your reseller informs you otherwise.
During the warranty period IBM or your reseller, if authorized by IBM, will provide warranty service under the type of
service designated for the Machine and will manage and install engineering changes that apply to the Machine.
For IBM or your reseller to provide warranty service for a feature, conversion, or upgrade, IBM or your reseller may
require that the Machine on which it is installed be 1) for certain Machines, the designated, serial-numbered Machine and
2) at an engineering-change level compatible with the feature, conversion, or upgrade. Many of these transactions
involve the removal of parts and their return to IBM. You represent that all removed parts are genuine and unaltered. A
part that replaces a removed part will assume the warranty service status of the replaced part.
If a Machine does not function as warranted during the warranty period, IBM or your reseller will repair it or replace it with
one that is at least functionally equivalent, without charge. The replacement may not be new, but will be in good working
order. If IBM or your reseller is unable to repair or replace the Machine, you may return it to your place of purchase and
your money will be refunded.
If you transfer a Machine to another user, warranty service is available to that user for the remainder of the warranty
period. You should give your proof of purchase and this Statement to that user. However, for Machines which have a life-
time warranty, this warranty is not transferable.
Warranty Service
To obtain warranty service for the Machine, you should contact your reseller or call IBM. In the United States, call IBM at
1-800-772-2227. In Canada, call IBM at 1-800-565-3344. You may be required to present proof of purchase.
IBM or your reseller will provide certain types of repair and exchange service, either at your location or at IBM’s or your
reseller’s service center, to restore a Machine to good working order.
Machine: IBM 9513 LCD Color Monitors
Warranty Period*: years
•Elements and accessories are warranted for
Contact your place of purchase for warranty service information
T55A.book Page III Monday, July 20, 1998 7:49 PM
IV
When a type of service involves the exchange of a Machine or part, the item IBM or your reseller replaces becomes its
property and the replacement becomes yours. You represent that all removed items are genuine and unaltered. The
replacement may not be new, but will be in good working order and at least functionally equivalent to the item replaced.
The replacement assumes the warranty service status of the replaced item. Before IBM or your reseller exchanges a
Machine or part, you agree to remove all features, parts, options, alterations, and attachments not under warranty
service. You also agree to ensure that the Machine is free of any legal obligations or restrictions that prevent its
exchange.
You agree to:
5obtain authorization from the owner to have IBM or your reseller service a Machine that you do not own; and
6where applicable, before service is provided -
afollow the problem determination, problem analysis, and service request procedures that IBM or your reseller
provide,
bsecure all programs, data, and funds contained in a Machine, and
cinform IBM or your reseller of changes in a Machine’s location.
IBM is responsible for loss of, or damage to, your Machine while it is 1) in IBM’s possession or 2) in transit in those cases
where IBM is responsible for the transportation charges.
Extent of Warranty
IBM does not warrant uninterrupted or error-free operation of a Machine.
Misuse, accident, modification, unsuitable physical or operating environment, improper maintenance by you, or failure
caused by a product for which IBM is not responsible may void the warranties.
THESE WARRANTIES REPLACE ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING, BUT NOT
LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
HOWEVER, SOME LAWS DO NOT ALLOW THE EXCLUSION OF IMPLIED WARRANTIES. iF THESE LAWS APPLY,
THEN ALL EXPRESS AND IMPLIED WARRANTIES ARE LIMITED IN DURATION TO THE WARRANTY PERIOD. NO
WARRANTIES APPLY AFTER THAT PERIOD.
In Canada, warranties include both warranties and conditions.
Some jurisdictions do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to
you.
For European warranty terms and conditions refer to enclosed IBM warranty statement Part Number 72H9623.
Référez-vous à la garantie IBM N° de référence 72H9623 pour les condtions de garantie européennes.
Die europäischen Garantiebedingungen finden Sie in der beigefügten IBM-Gewährleistungserklärung, Teilenummer
72H9623.
Los términos y condiciones de las garantías en Europa se recogen en la declaración de garantía adjunta del número de
pieza IBM 72H9623.
Per le condizioni e i termini de garanzia relativi ai paesi europei, consultare l’apposita dichiarazione IBM (numero di
matricola 72H9623).
