These user’s setup instructions cover typical user environments. The on-screen messages may differ depending on the level of your hardware and software. In some cases you may need to vary the setup procedures.For more information, refer to your computer or operating system manuals or consult your system administrator or dealer.Ces instructions de configuration d’exploitation s’appliquent aux environnements d’utilisation types. Les messages affichés à l’écran peuvent varier en fonction du niveau de votre matériel et de vos logiciels informatiques. Dans certains cas, vous pouvez être amenés à changer de procédures de configuration.Pour de plus amples informations à ce sujet, veuillez vous reporter aux manuels de votre ordinateur et de votre système d’exploitation, ou consultez l’administrateur de votre système ou votre revendeur.Diese Anweisungen für die Einstellung durch den Benutzer gelten für typische Betriebsumgebungen. Die Bildschirmmeldungen können je nach Art der verwendeten Hardware und Software auch anders lauten. In einigen Fällen müssen die Einstellungsschritte unter Umständen abgeändert werden.Weitere Informationen finden Sie im Computer- oder Betriebssystemhandbuch, oder wenden Sie sich an Ihren Systemadministrator oder Fachhändler.En estas instrucciones de configuración se describen entornos de usuarios típicos. Los mensajes en pantalla, pueden diferir según sea el nivel del hardware y del software. En algunos casos, necesitará seguir otros procedimientos para la configuración.Para obtener más información, puede consultar los manuales del ordenador o del sistema operativo o ponerse en contacto con el administrador del sistema o con el distribuidor.Queste istruzioni di configurazione per l’utente coprono gli ambienti operativi comuni. I messaggi che appaiono sul video possono differire a seconda dell’hardware e del software utilizzati. In alcuni casi potrebbe essere necessario variare le procedure di configurazione.Per ulteriori informazioni, fare riferimento ai manuali del computer o del sistema operativo, o consultare il proprio amministratore di sistema o il concessionario.T55D.book Page 1 Wednesday, July 29, 1998 11:40 PM
2T55D.book Page 2 Wednesday, July 29, 1998 11:40 PM

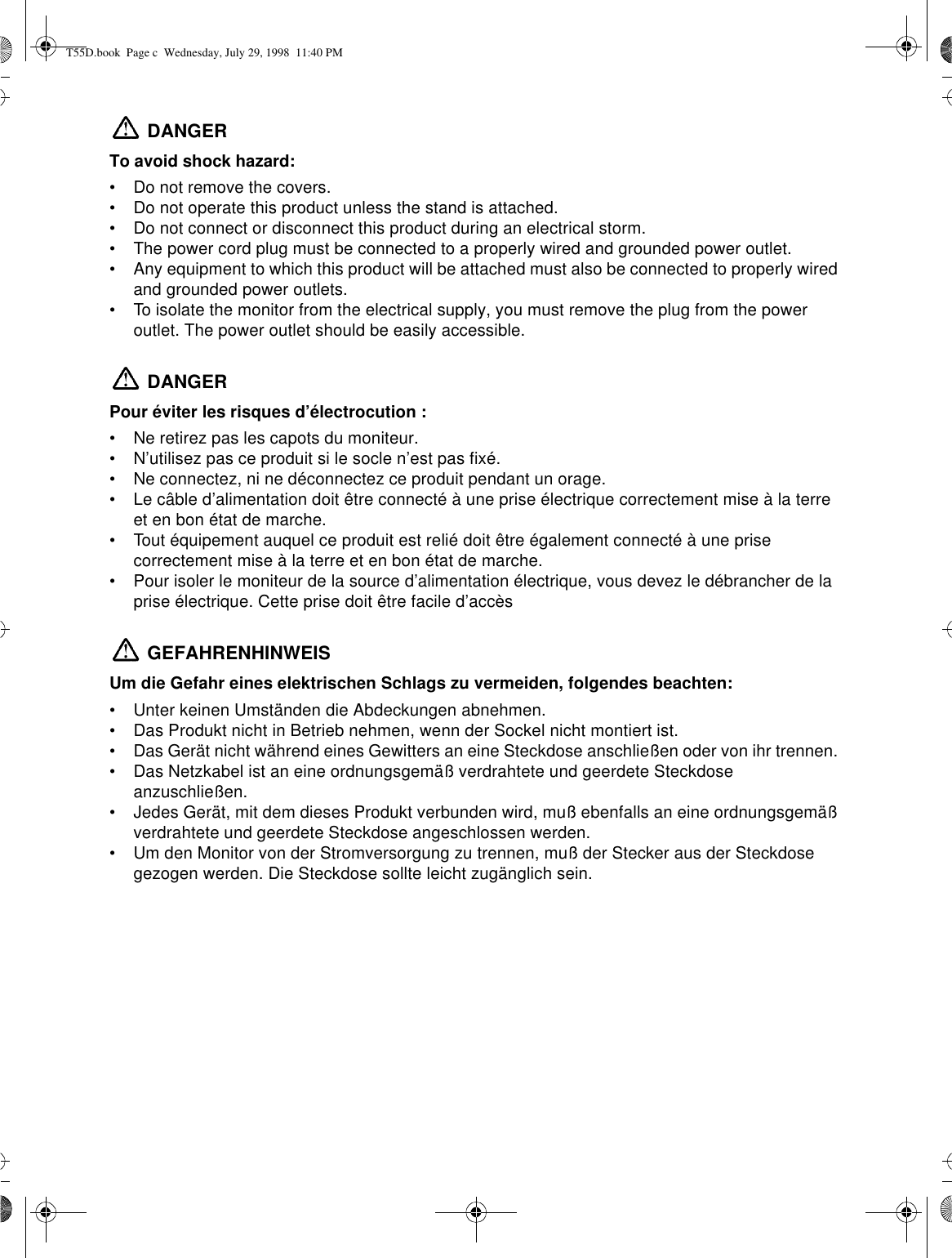

DANGERTo avoid shock hazard:•Do not remove the covers.•Do not operate this product unless the stand is attached.•Do not connect or disconnect this product during an electrical storm.•The power cord plug must be connected to a properly wired and grounded power outlet.•Any equipment to which this product will be attached must also be connected to properly wired and grounded power outlets.•To isolate the monitor from the electrical supply, you must remove the plug from the power outlet. The power outlet should be easily accessible. DANGERPour éviter les risques d’électrocution :•Ne retirez pas les capots du moniteur.•N’utilisez pas ce produit si le socle n’est pas fixé.•Ne connectez, ni ne déconnectez ce produit pendant un orage.•Le câble d’alimentation doit être connecté à une prise électrique correctement mise à la terre et en bon état de marche.•Tout équipement auquel ce produit est relié doit être également connecté à une prise correctement mise à la terre et en bon état de marche.•Pour isoler le moniteur de la source d’alimentation électrique, vous devez le débrancher de la prise électrique. Cette prise doit être facile d’accès GEFAHRENHINWEISUm die Gefahr eines elektrischen Schlags zu vermeiden, folgendes beachten:•Unter keinen Umständen die Abdeckungen abnehmen.•Das Produkt nicht in Betrieb nehmen, wenn der Sockel nicht montiert ist. •Das Gerät nicht während eines Gewitters an eine Steckdose anschließen oder von ihr trennen. •Das Netzkabel ist an eine ordnungsgemäß verdrahtete und geerdete Steckdose anzuschließen.•Jedes Gerät, mit dem dieses Produkt verbunden wird, muß ebenfalls an eine ordnungsgemäß verdrahtete und geerdete Steckdose angeschlossen werden.•Um den Monitor von der Stromversorgung zu trennen, muß der Stecker aus der Steckdose gezogen werden. Die Steckdose sollte leicht zugänglich sein.T55D.book Page c Wednesday, July 29, 1998 11:40 PM

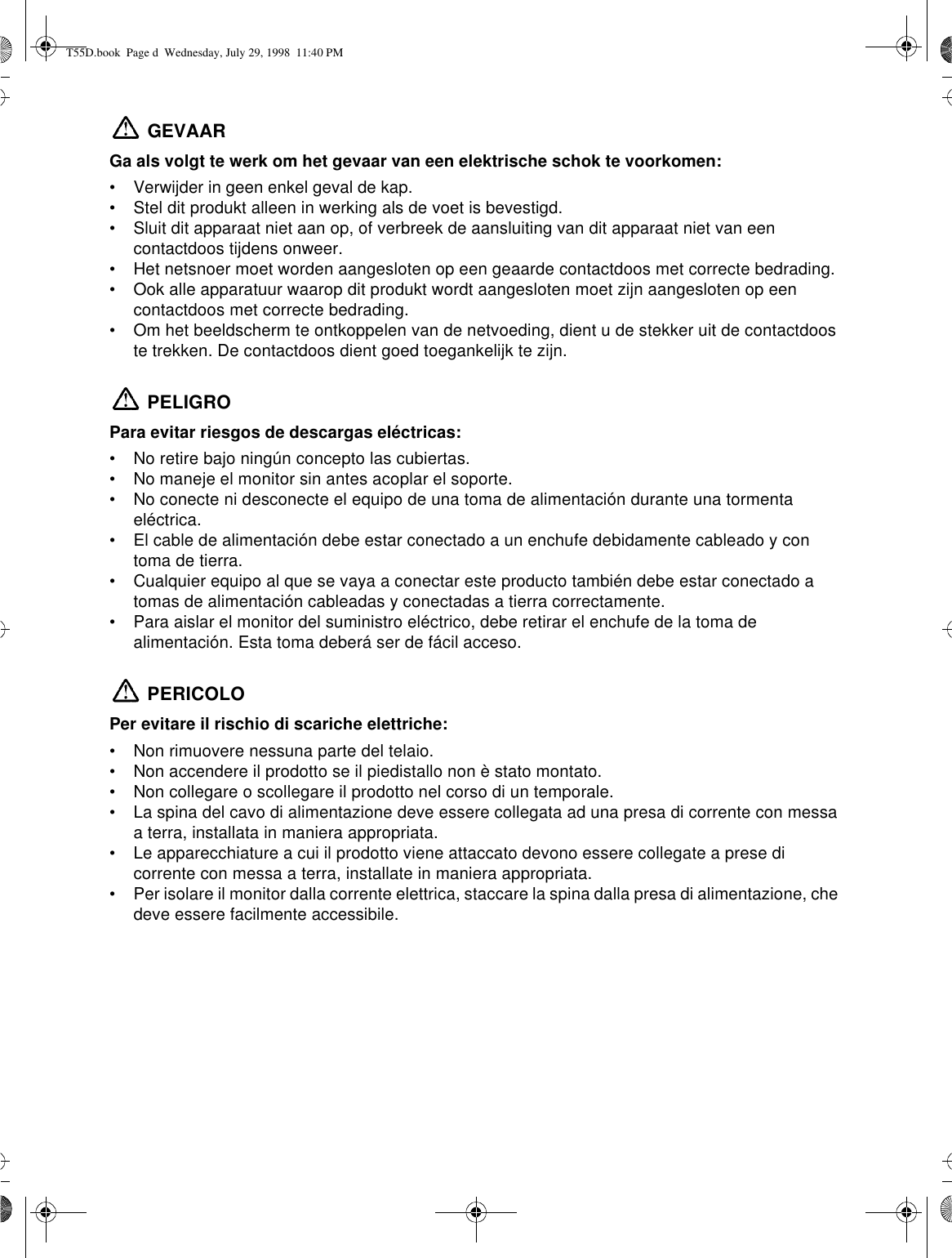

GEVAARGa als volgt te werk om het gevaar van een elektrische schok te voorkomen:•Verwijder in geen enkel geval de kap.•Stel dit produkt alleen in werking als de voet is bevestigd.•Sluit dit apparaat niet aan op, of verbreek de aansluiting van dit apparaat niet van een contactdoos tijdens onweer.•Het netsnoer moet worden aangesloten op een geaarde contactdoos met correcte bedrading.•Ook alle apparatuur waarop dit produkt wordt aangesloten moet zijn aangesloten op een contactdoos met correcte bedrading.•Om het beeldscherm te ontkoppelen van de netvoeding, dient u de stekker uit de contactdoos te trekken. De contactdoos dient goed toegankelijk te zijn. PELIGROPara evitar riesgos de descargas eléctricas:•No retire bajo ningún concepto las cubiertas.•No maneje el monitor sin antes acoplar el soporte.•No conecte ni desconecte el equipo de una toma de alimentación durante una tormenta eléctrica.•El cable de alimentación debe estar conectado a un enchufe debidamente cableado y con toma de tierra.•Cualquier equipo al que se vaya a conectar este producto también debe estar conectado a tomas de alimentación cableadas y conectadas a tierra correctamente.•Para aislar el monitor del suministro eléctrico, debe retirar el enchufe de la toma de alimentación. Esta toma deberá ser de fácil acceso. PERICOLOPer evitare il rischio di scariche elettriche:•Non rimuovere nessuna parte del telaio.•Non accendere il prodotto se il piedistallo non è stato montato.•Non collegare o scollegare il prodotto nel corso di un temporale.•La spina del cavo di alimentazione deve essere collegata ad una presa di corrente con messa a terra, installata in maniera appropriata.•Le apparecchiature a cui il prodotto viene attaccato devono essere collegate a prese di corrente con messa a terra, installate in maniera appropriata.•Per isolare il monitor dalla corrente elettrica, staccare la spina dalla presa di alimentazione, che deve essere facilmente accessibile.T55D.book Page d Wednesday, July 29, 1998 11:40 PM
PERIGOPara evitar o perigo de choques eléctricos:•Não retire as coberturas.•Não utilize este produto antes de montar a base.•Não ligue nem desligue este produto durante uma tempestade eléctrica.•O cabo de alimentação deve ser ligado a uma tomada eléctrica devidamente ligada à terra.•Qualquer equipamento ligado a este produto deve estar ligado a tomadas eléctricas devidamente ligadas à terra.•Para isolar o monitor da fonte de alimentação, retire a ficha do cabo de alimentação da tomada eléctrica. A tomada eléctrica deve ser de fácil acesso. FARESådan undgår du elektrisk stød:•Kabinettet må under ingen omstændigheder fjernes.•Undgå at anvende dette produkt, uden at vippe/drejefoden er monteret.•Undgå at tilslutte eller frakoble dette produkt i tordenvejr.•Netledningen skal være tilsluttet en korrekt jordet stikkontakt med korrekt ledningsføring.•Alt udstyr, som tilsluttes dette produkt, skal også være tilsluttet korrekt jordede stikkontakter med korrekt ledningsføring.•For at isolere skærmen fra strømforsyningen, skal stikket tages ud af stikkontakten. Stikkontakten bør være let tilgængelig. FARESlik unngår du fare for elektrisk støt:•Ikke ta av dekslene.•Ikke bruk produktet dersom sokkelen ikke er montert.•Ikke koble produktet til eller fra under tordenvær.•Pluggen på strømledningen må kobles til korrekt montert og jordet strømuttak.•Utstyr som dette produktet eventuelt blir koblet til, må også kobles til korrekt montert og jordet strømuttak.•For å isolere skjermen fra strømkilden må du ta ut pluggen fra strømuttaket. Strømuttaket bør være lett tilgjengelig.T55D.book Page e Wednesday, July 29, 1998 11:40 PM

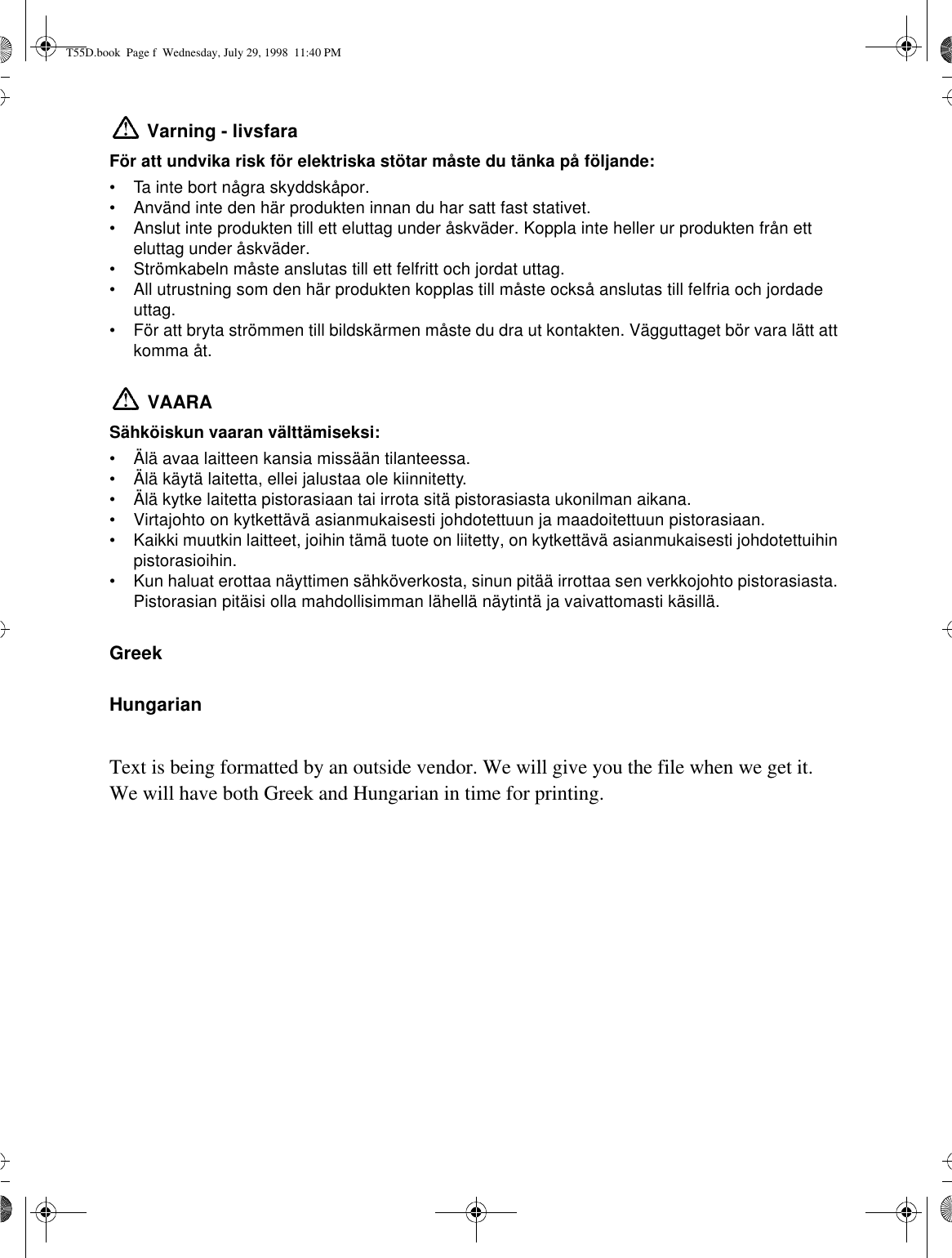

Varning - livsfaraFör att undvika risk för elektriska stötar måste du tänka på följande:•Ta inte bort några skyddskåpor.•Använd inte den här produkten innan du har satt fast stativet.•Anslut inte produkten till ett eluttag under åskväder. Koppla inte heller ur produkten från ett eluttag under åskväder.•Strömkabeln måste anslutas till ett felfritt och jordat uttag.•All utrustning som den här produkten kopplas till måste också anslutas till felfria och jordade uttag.•För att bryta strömmen till bildskärmen måste du dra ut kontakten. Vägguttaget bör vara lätt att komma åt. VAARASähköiskun vaaran välttämiseksi:•Älä avaa laitteen kansia missään tilanteessa.•Älä käytä laitetta, ellei jalustaa ole kiinnitetty.•Älä kytke laitetta pistorasiaan tai irrota sitä pistorasiasta ukonilman aikana.•Virtajohto on kytkettävä asianmukaisesti johdotettuun ja maadoitettuun pistorasiaan.•Kaikki muutkin laitteet, joihin tämä tuote on liitetty, on kytkettävä asianmukaisesti johdotettuihin pistorasioihin.•Kun haluat erottaa näyttimen sähköverkosta, sinun pitää irrottaa sen verkkojohto pistorasiasta. Pistorasian pitäisi olla mahdollisimman lähellä näytintä ja vaivattomasti käsillä.GreekHungarianText is being formatted by an outside vendor. We will give you the file when we get it.We will have both Greek and Hungarian in time for printing.T55D.book Page f Wednesday, July 29, 1998 11:40 PM
1ENGLISHContentsSetup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2Your IBM Digital TFT Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2Workplace Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2Working Practices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2Unpacking the Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3Connecting your Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4Switching on your Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4Adjusting the Monitor Position . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5Caring for your Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5Graphics Card Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6Hardware Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7Software Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9Software Setup - DOS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10Software Setup - Windows 95/98 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12Software Setup - Windows NT 4.0 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14Software Setup - OS/2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16Adjusting Your LCD Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18User controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18Further Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19Power Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20Further Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23Compliances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . IT55D.book Page 1 Wednesday, July 29, 1998 11:40 PM
2Federal Communications Commission (FCC) Statement . . . . . . . . . . . . . . . . . . IIndustry Canada Compliance Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . INOM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . IPower Cords . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . IIWarranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .IIIStatement of Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . IIIT55D.book Page 2 Wednesday, July 29, 1998 11:40 PM
2SetupYour IBM Digital TFT MonitorTo provide the best performance your Digital TFT Monitor uses a digital video card which was shipped in the monitor package Accessories box. You may also use your own digital video card.Workplace PreparationThis section gives advice on what you should consider before you set up your monitor.Height The monitor should be positioned so that the top of the screen is slightly below your eye level when you sit at your workstation.Orientation Choose a position that gives the least reflection from lights and windows, usually at a right angle to any windows. The monitor should be positioned directly in front of you so that you do not have to twist your body to use it. Tilt the monitor to a comfortable viewing angle.Working PracticesThis section gives advice on how you can work comfortably and reduce fatigue.RestTake regular breaks. Vary your posture, stand up and stretch occasionally as prolonged use of computer workstations can be tiring.BackYou should sit back in your chair and use the backrest.HandsUse a light touch on the keyboard, keeping your hands and fingers relaxed. Allow a space in front of the keyboard to rest your wrists when not typing. Consider using a wristpad.EyesightWorking with monitors, in common with any prolonged close work, can be visually demanding. Look away from the screen periodically and have your eyesight checked regularly.T55D.book Page 2 Wednesday, July 29, 1998 11:40 PM
3ENGLISHScreen settingsSet the screen brightness and contrast to a comfortable level. You may have to adjust this as the lighting changes during the day. Many application programs let you select color combinations which can help you to view in comfort.Unpacking the Monitor1. Put the box on a flat, solid surface.Use caution when removing the foam cushions from the monitor. The power adapter block has been stored in a recess in the RIGHT foam cushion and is connected to the monitor. Make sure the cable is not pulled while removing the foam cushions.2. Open the carton box and remove the Accessories boxes.3. Firmly grasp the two foam cushions and pull the monitor out of the carton box. (Refer to Fig. 1)4. Remove the power adapter block which has been stored in the Right foam cushion.5. Support the monitor while you carefully remove each foam cushion. (Refer to Fig. 2)The Accessories box contains the graphics card among others. For installation, see Graphics Card Installation on page 6..Do not support the monitor within the screen area. The Liquid Crystal Display is glass and can be damaged by rough handling or excessive pressure.6. Remove the polyethelene bag from the monitor.7. Remove the clear information film from the monitor face and perform setup.Accessories boxesPower AdapterFig. 1 Fig. 2T55D.book Page 3 Wednesday, July 29, 1998 11:40 PM
4Connecting your MonitorBe sure to read the ‘Safety Information’ at the front of this User Guide before carrying out this procedure.1. Turn off your PC and all attached devices.2. Connect the P&D adapter at the end of the signal cable to the P&D port located on the back of the video card.You must install the video card into the computer before connecting the signal cable to it. See Hardware Installation on page 7 for installation.The AC adapter and P&D signal cable are connected to your monitor If you wish to change these or to fit a different stand, see Further Help on page 22.3. Connect the power cord to the power adapter first, then insert the plug into a properly grounded electrical outlet.4. Turn on the monitor and then the computer.5. Install the video card software by following the instructions in the Software Installation section on page 9.Switching on your MonitorSwitch on the power source and your computer. To turn on the monitor, push and release the power switch . To switch it off, push and release the power switch again.T55D.book Page 4 Wednesday, July 29, 1998 11:40 PM
5ENGLISHAdjusting the Monitor PositionViewing AngleYou can tilt the screen backward and forward as shown below.Caring for your MonitorBe sure to turn off the power before you perform any maintenance on the monitor. Clean your monitor as follows:•Gently wipe the device covers and the screen with a soft cloth.•Remove finger marks and grease with a damp cloth and mild detergent; do not use solvents or abrasives. •Never use flammable cleaning material to clean your IBM monitor or any other electrical apparatus.T55D.book Page 5 Wednesday, July 29, 1998 11:40 PM

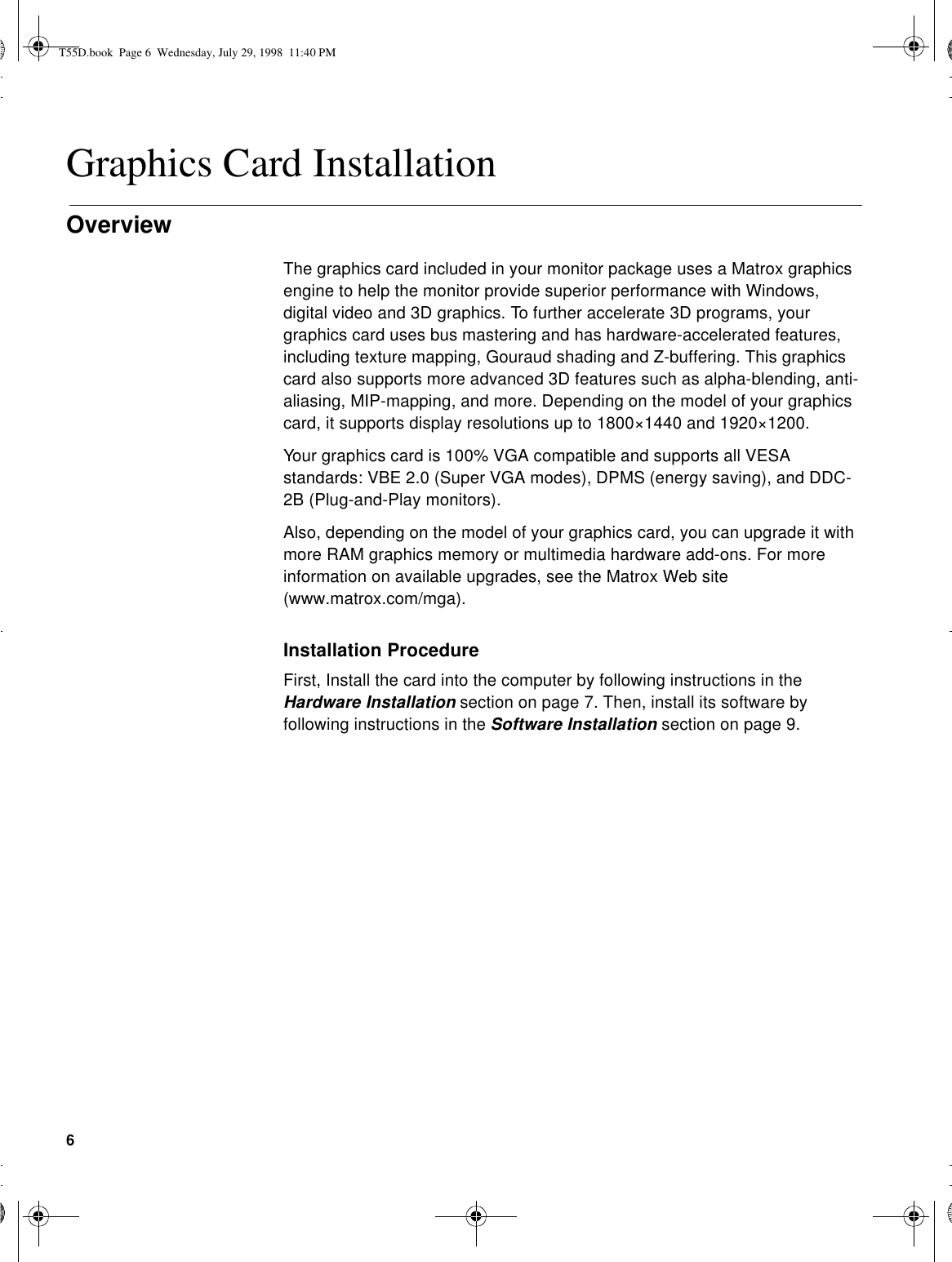

6Graphics Card InstallationOverviewThe graphics card included in your monitor package uses a Matrox graphics engine to help the monitor provide superior performance with Windows, digital video and 3D graphics. To further accelerate 3D programs, your graphics card uses bus mastering and has hardware-accelerated features, including texture mapping, Gouraud shading and Z-buffering. This graphics card also supports more advanced 3D features such as alpha-blending, anti-aliasing, MIP-mapping, and more. Depending on the model of your graphics card, it supports display resolutions up to 1800×1440 and 1920×1200.Your graphics card is 100% VGA compatible and supports all VESA standards: VBE 2.0 (Super VGA modes), DPMS (energy saving), and DDC-2B (Plug-and-Play monitors).Also, depending on the model of your graphics card, you can upgrade it with more RAM graphics memory or multimedia hardware add-ons. For more information on available upgrades, see the Matrox Web site (www.matrox.com/mga).Installation ProcedureFirst, Install the card into the computer by following instructions in the Hardware Installation section on page 7. Then, install its software by following instructions in the Software Installation section on page 9.T55D.book Page 6 Wednesday, July 29, 1998 11:40 PM
7ENGLISHHardware Installation1. Switch to the standard VGA display driverIf you're running Windows 95/98 on your computer, this step isn't necessary. If you're using another operating system (for example, Windows NT 4.0), see its documentation for how to switch to VGA mode.2. Open your computer and remove your existing graphics cardTurn off your computer and all peripherals such as your monitor or printer. Open the computer and remove your existing graphics card. (If you have a display adapter built into your computer's motherboard, it should automatically disable itself after your graphics card is installed.)3. Choose an expansion slot Most computers have different types of expansion slots. Choose an AGP or PCI slot, depending on the type of Matrox graphics card you have. Your system manual should identify the location of each type of expansion slot in your computer.Inserting your Matrox card into the wrong type of slot could damage your card, your computer, or both.If you have an AGP card, don't insert the plastic tab next to the connector pins (see picture) into the slot.4. Insert your graphics cardRemove the cover for the slot you intend to use. Save the screw for the mounting bracket. Position your graphics card over the expansion slot you've chosen. Push the card in firmly and evenly until it's fully seated in the slot. Replace the screw to secure the bracket of your Matrox card to the computer frame.AGP slotPCI slotISA slot(Back of computer)AGP cardPCI cardPlastic tabExpansion slotGraphics cardMotherboardBracket screwStatic electricity can severely damage electronic parts. Take these precautions:•Before touching any electronic parts, drain the static electricity from your body. You can do this by touching the metal frame of your computer.•Don't remove a card from the anti-static container it was shipped in until you're ready to install it. When you remove a card from your computer, place it back in its container.•When handling a card, hold it by its edges, and avoid touching its circuitry.T55D.book Page 7 Wednesday, July 29, 1998 11:40 PM
8The smaller port next to the P&D port is used for analog monitors.5. Connect the monitorSimply plug your P&D signal cable into P&D port on your graphics card. For details on connecting the monitor, see Connecting your Monitor on page 46. Restart your computerIf you're using Windows 95/98, it detects new hardware when you restart. If Matrox display drivers haven't been previously installed, Windows 95 reports finding a PCI adapter (even if you have an AGP card).•If you see the New Hardware Found dialog box, click “Do not install a driver”, then OK.•If you see the Update Device Driver Wizard dialog box, click Next, then Finish.•If you see the Add New Hardware Wizard dialog box, click Next à Next à Next à Next à Finish, then Yes to restart your computer.At this point, Windows is using a display driver that doesn't fully support your graphics card. To install Matrox display drivers and other software, see Software Installation on page 9.P&D Signal Cablegraphics cardT55D.book Page 8 Wednesday, July 29, 1998 11:40 PM
9ENGLISHSoftware InstallationThis section describes how to install Matrox software for various platforms.There are 7 installation diskettes in the package. Check if you have them all and make sure to insert the diskette for the correct platform when installing.1. Insert the diskette labelled “Matrox Installation diskette 1” into drive A: and then run MGASETUP.EXE.2. When prompted, select the language you want to use, then click NEXT.3. If this is a first-time installation, the setup program lists the software that needs to be installed to take advantage of your Matrox hardware. To begin the software installation, click INSTALL.4. When prompted, choose an installation type:•To install the complete MGA Matrox PowerDesk (recommended), click TYPICAL.•To customize the PowerDesk installation, click CUSTOM.If you click CUSTOM, the setup program prompts you for a destination folder and the PowerDesk options you want to install.After you choose, the setup program automatically installs Matrox software and drivers.5. Change the diskette according to the message and continue with installation. 6. After setup, remove the diskette in your drive A:, then click OK to restart your computer and for all changes to take effect.7. If this is a first-time installation, your display is using a 640 × 480 resolution with 256 colors. To adjust software monitor settings:•for DOS, see Software Setup - DOS on page 10.•for Windows 95/98, see Software Setup - Windows 95/98 on page 12•for Windows NT 4.0, see Software Setup - Windows NT 4.0 on page 14.•for OS/2, see Software Setup - OS/2 on page 16T55D.book Page 9 Wednesday, July 29, 1998 11:40 PM
10Software Setup - DOSTo access Matrox PowerDesk programs and online documentation, type MGA.EXE in the DOS prompt and press Enter.Monitor setupTo check your monitor settings:1. Click the MATROX DISPLAY PROPERTIES menu item and then click the MONITOR tab.2. Click the Matrox monitor button, select T55D in the list below this button, then click OK to let the MGA Matrox display driver automatically use the correct settings for your monitor.Display setupAfter checking your monitor's software settings, you can change your display resolution, color palette and other MGA Matrox PowerDesk settings. To access Matrox display property sheets, 1. Click the MATROX DISPLAY PROPERTIES menu item and then click the SETTINGS tab. For more information on changing your display settings, see the online MGA Matrox PowerDesk guide.Software overviewMGA Matrox PowerDesk for DOS includes;•MGA Matrox display driver with:•DirectDraw and Direct3D support for direct access to Matrox hardware.•Plug-and-Play (DDC-2B) and ENERGY STAR® (DPMS) support.•Settings property sheet to change your display settings. Use this sheet to access Matrox PowerDesk features such as:•Display schemes to easily switch to a pre-defined display setting.•Performance property sheet to change Matrox display driver performance settings.•Utilities property sheet to configure Matrox PowerDesk options.•Monitor property sheet to inform the MGA Matrox display driver of your monitor's capabilities.•Color property sheet to change your display's color balance.T55D.book Page 10 Wednesday, July 29, 1998 11:40 PM
11ENGLISH•Hot Key property sheet to define keyboard shortcuts for:•PanEND to move your display area to the right or bottom of your virtual desktop.•PanHOME to move your display area to the left or top of your virtual desktop.•PanLOCK to enable or disable panning.•PixelTOUCH to magnify part of your desktop area.•Your favorite display schemes.•Information property sheet for information on your display hardware and software.T55D.book Page 11 Wednesday, July 29, 1998 11:40 PM
12Software Setup - Windows 95/98The Matrox display driver for Windows 95/98 supports multiple displays with Windows 98. However, Matrox PowerDesk features are disabled in multi-display mode. To change your display settings while in multi-display mode, use Windows controls. For more information on multi-display mode, see Windows 98 online Help under "Multiple Display support".To access Matrox PowerDesk programs and online documentation, click àPROGRAMS à MGA MATROX POWERDESK. You can access commonly used PowerDesk features by right-clicking the Windows desktop background, then clicking MATROX DISPLAY PROPERTIES. You can also access PowerDesk features by clicking the Matrox QuickDesk icon on the Windows taskbar.Monitor setupTo check your monitor settings1. Click à PROGRAMS à MATROX POWERDESK à MATROX DISPLAY PROPERTIES à MONITOR.Many Plug-and-Play monitors don't automatically report if they're capable of 1152 × 864, or 1600 × 1200 and higher display resolutions. To use these resolutions, or higher refresh rates than those reported by the monitor, you can use the MGA Matrox monitor selection method.2. If you have a Plug-and-Play monitor:Make sure the Windows 95 monitor button is selected and T55D appears immediately under it. The MGA Matrox display driver automatically uses the correct settings for your monitor.Display setupAfter checking your monitor's software settings, you can change your display resolution, color palette and other MGA Matrox PowerDesk settings. To access MGA Matrox display property sheets, click à PROGRAMS à MGA MATROX POWERDESK à MATROX DISPLAY PROPERTIES. To change your display resolution or color palette, click the Settings tab. For more information on changing your display settings, see the online MGA Matrox PowerDesk guide.Software overviewMGA Matrox PowerDesk for Windows 95/98 includes:•MGA Matrox display driver with:•DirectDraw and Direct3D support for direct access to Matrox hardware.•Plug-and-Play (DDC-2B) and Energy Star (DPMS) support.•Settings property sheet to change your display settings. Use this sheet to access Matrox PowerDesk features such as:•Desktop mode buttons to set up a proportional, horizontal or vertical virtual desktop•Display schemes to easily switch to a pre-defined display settings.T55D.book Page 12 Wednesday, July 29, 1998 11:40 PM

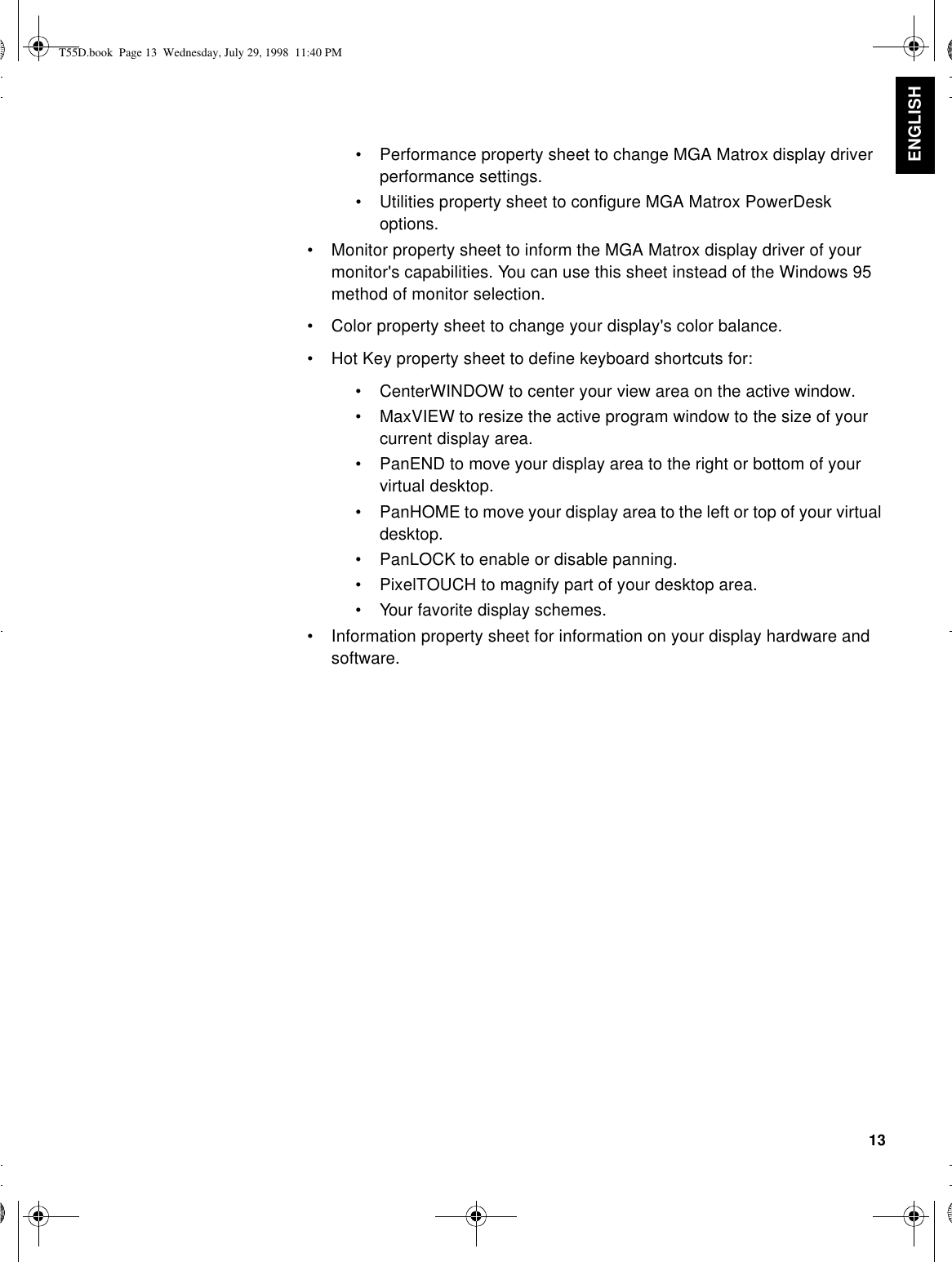

13ENGLISH•Performance property sheet to change MGA Matrox display driver performance settings.•Utilities property sheet to configure MGA Matrox PowerDesk options.•Monitor property sheet to inform the MGA Matrox display driver of your monitor's capabilities. You can use this sheet instead of the Windows 95 method of monitor selection.•Color property sheet to change your display's color balance.•Hot Key property sheet to define keyboard shortcuts for:•CenterWINDOW to center your view area on the active window.•MaxVIEW to resize the active program window to the size of your current display area.•PanEND to move your display area to the right or bottom of your virtual desktop.•PanHOME to move your display area to the left or top of your virtual desktop.•PanLOCK to enable or disable panning.•PixelTOUCH to magnify part of your desktop area.•Your favorite display schemes.•Information property sheet for information on your display hardware and software.T55D.book Page 13 Wednesday, July 29, 1998 11:40 PM
14Software Setup - Windows NT 4.0To access PowerDesk programs and online documentation, click à PROGRAMS à MATROX POWERDESK NT or click Matrox QuickDesk icon on the Windows taskbar.Monitor setupMany Plug-and-Play monitors don't automatically report if they're capable of 1152 × 864 or 1600 × 1200 and higher display resolutions. To use these resolutions, or higher refresh rates than those reported by the monitor, you can use the MGA Matrox monitor selection method.To check your monitor settings1. Click à PROGRAMS à MATROX POWERDESK NT à MATROX DISPLAY PROPERTIES à MONITOR.2. If you have a Plug-and-Play monitor:Make sure the Plug-and-Play (DDC) monitor button is selected. If so, the MGA Matrox display driver automatically uses the correct settings for your monitor. If not, click this button, then click APPLY.Display setupAfter checking your monitor's software settings, you can change your display resolution, color palette and other MGA Matrox PowerDesk settings. To access MGA Matrox display property sheets, click à PROGRAMS à MATROX POWERDESK NT à MATROX DISPLAY PROPERTIES. To change your display resolution or color palette, click the SETTINGS tab. For more information on changing your display settings, see the MGA Matrox PowerDesk online guide.Software overviewMGA Matrox PowerDesk for Windows NT 4.0 includes:•MGA Matrox display driver with:•Multi-display support to use up to 5 monitors at a time (one monitor for each Matrox card - of the same type - in your computer)•Accelerated DirectDraw and OpenGL support for direct access to Matrox hardware.•Plug-and-Play (DDC-2B) monitor support.•Settings property sheet to change your display settings. This sheet provides access to Matrox PowerDesk features such as:•Desktop mode buttons to set up a proportional, horizontal or vertical virtual desktop.•Display schemes to easily switch to a pre-defined display setting.T55D.book Page 14 Wednesday, July 29, 1998 11:40 PM
15ENGLISH•Monitor property sheet to inform the MGA Matrox display driver of your monitor's capabilities.•Information property sheet to display hardware and software version numbers and capabilities.•Performance property sheet to configure advanced driver performance settings.•PowerDesk property sheet with settings for:•PixelTOUCH to zoom in and pan on your viewing area.•CenterWINDOW to center opened windows in your viewing area.•MaxVIEW to maximize windows in your viewing area instead of your desktop.•CenterPOPUP to have new windows pop up in the center of your current viewing area.T55D.book Page 15 Wednesday, July 29, 1998 11:40 PM
16Software Setup - OS/2To access PowerDesk programs and online documentation, right-click on the PM desktop background and choose MATROX POWERDESK. You can also access PowerDesk features by clicking the Matrox QuickDesk icon.Monitor setupMany Plug-and-Play monitors don't automatically report if they're capable of 1152 × 864 or 1600 × 1200 and higher display resolutions. To use these resolutions, or higher refresh rates than those reported by the monitor, you can use the MGA Matrox monitor selection method.To check your monitor settings1. Right-click the PM desktop background, then click the MATROX POWERDESK à MATROX DISPLAY PROPERTIES à MONITOR.2. For the T55D monitor:Make sure the Plug-and-Play (DDC) monitor button is selected. If so, the MGA Matrox display driver automatically uses the correct settings for the T55D. Display setupAfter checking your monitor's software settings, you can change your display resolution, color palette and other MGA Matrox PowerDesk settings. To access MGA Matrox display property sheets, right-click the PM desktop background, then click MATROX POWERDESK à MATROX DISPLAY PROPERTIES. To change your display resolution or color palette, click the SETTINGS tab. For more information on changing your display settings, see the MGA Matrox PowerDesk online guide.Software overviewMGA Matrox PowerDesk for OS/2 includes•MGA Matrox display driver with:•Multi-display support to use up to 5 monitors at a time (one monitor for each Matrox card - of the same type - in your computer)•Accelerated DirectDraw and OpenGL support for direct access to Matrox hardware.•Plug-and-Play (DDC-2B) monitor support.•Settings property sheet to change your display settings. This sheet provides access to Matrox PowerDesk features such as:•Desktop mode buttons to set up a proportional, horizontal or vertical virtual desktop.•Display schemes to easily switch to a pre-defined display setting.T55D.book Page 16 Wednesday, July 29, 1998 11:40 PM
17ENGLISH•Monitor property sheet to inform the MGA Matrox display driver of your monitor's capabilities.•Information property sheet to display hardware and software version numbers and capabilities.•Performance property sheet to configure advanced driver performance settings.•PowerDesk property sheet with settings for:•PixelTOUCH to zoom in and pan on your viewing area.•CenterWINDOW to center opened windows in your viewing area.•MaxVIEW to maximize windows in your viewing area instead of your desktop.•CenterPOPUP to have new windows pop up in the center of your current viewing area.T55D.book Page 17 Wednesday, July 29, 1998 11:40 PM
18Adjusting Your LCD MonitorUser controls User control featuresBrightnessThe brightness is already optimized for normal office settings. However, you can adjust the monitor to your liking or for specific environments such as for bright daylight operation or night operation.Unlike analog monitors, your digital TFT monitor needs no picture adjustment except the brightness level. To adjust the brightness of the image;•Press the Min or Max buttons to set the brightness to its minimum or maximum value.The brightness setting is remembered next time the monitor is turned on.•Press Decrease or Increase to make small adjustments to the brightness to suit your liking.Icon Control DescriptionMin Minimize the brightnessDecreaseFine-adjust the brightnessIncreaseMax Maximize the brightnessPower Switch Switch the monitor on and offT55D.book Page 18 Wednesday, July 29, 1998 11:40 PM
19ENGLISHFurther InformationPower ManagementTo benefit from power management, the monitor must be used in conjunction with a computer that implements the Video Electronics Standards Association (VESA) Display Power Management Signalling (DPMS) Standard.The power management feature is invoked when the computer recognizes that you have not used your mouse or keyboard for a user-definable period. There are several states as described in the table below.As an ENERGY STAR® Partner, IBM has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.IBM recommends that you switch off your monitor at the end of each working day, or whenever you expect to leave it unused for long periods during the day. ‡ There may be a slight delay before the picture reappears.State Power Indicator Screen Restoring Operation ComplianceOn Steady green NormalDPMS Standby Steady amber Blank Press a key or move the mouse. ENERGY STAR®DPMS SuspendFlashing amber (0.5 sec. interval)Blank Press a key or move the mouse. ‡ ENERGY STAR®DPMS OffFlashing amber(1 sec. interval)Blank Press a key or move the mouse. ‡ ENERGY STAR® and NUTEK T55D.book Page 19 Wednesday, July 29, 1998 11:40 PM
20TroubleshootingIf you have a problem setting up or using your monitor, you may be able to solve it yourself. Before calling your retailer or IBM, try the suggested actions that are appropriate to your problem.Problem Possible Cause Suggested Action ReferenceComputer doesn’t boot after the graphics card is installedThere is another graphics adapter in the computerRemove the other graphics card plugged into one of the expansion slot.If the card is built-in to the motherboard, check your system manual for instructions on how to disable the built-in adapter.See Graphics Card Installation section on page 6The screen image is garbled or unusable (rolling screen images, overlapping screen images or a blank screen)The display driver is trying to use a setting your monitor doesn’t supportSelect the correct monitor again.See Graphics Card Installation section on page 6Screen is blank and power indicator is offNo power to monitorEnsure that the electrical outlet and the monitor are both switched on.Check that the power cord is firmly plugged into the electrical outlet and the power supply unit.If the power cord plug has a removable fuse, replace it.Try another power cord.Try another electrical outlet.Connecting your Monitor section on page 4T55D.book Page 20 Wednesday, July 29, 1998 11:40 PM
21ENGLISHScreen is blank and power indicator is steady greenBrightness may be too lowAdjust brightness.User controls section on page 18Screen is blank and power indicator is steady amberThe monitor is in the Power Management Standby statePress any key on the keyboard or move the mouse to restore operation.Check the Power Management software on your computer.Power Management section on page 19Screen is blank and power indicator is Flashing green every 0.5 secondDisplay mode of the computer is outside the range of the monitorReconfigure the computer to use a supported display mode.Software Installation section on page 9The monitor is not receiving a video signalCheck that the signal cable is firmly connected to the computer.Check that no pins are bent in the signal cable connector.Connecting your Monitor section on page 4Screen is blank and power indicator is flashing amber every 0.5 or 1 secondThe monitor is in the Power Management Suspend or Off statePress any key on the keyboard or move the mouse to restore operation.Check the Power Management software on your computer.Power Management section on page 19A few dots are missing, discolored, or inappropriately lighted.The LCD contains over 2,300,000 thin-film transistors (TFTs). A small number of missing, discolored, or lighted dots may be present on the screen, which is an intrinsic characteristic of the TFT LCD technology and is not an LCD defect.Problem Possible Cause Suggested Action ReferenceT55D.book Page 21 Wednesday, July 29, 1998 11:40 PM

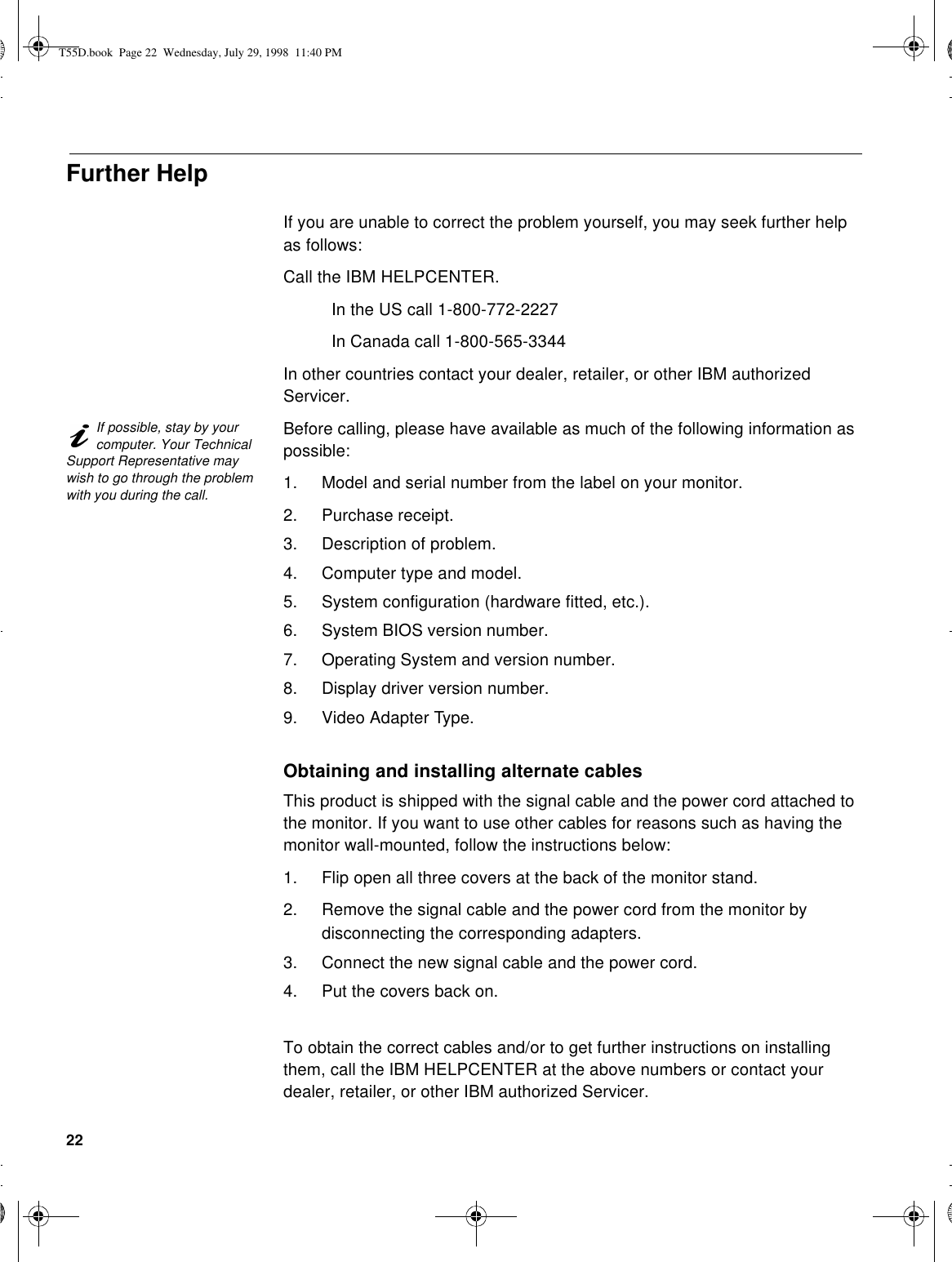

22Further HelpIf you are unable to correct the problem yourself, you may seek further help as follows:Call the IBM HELPCENTER.In the US call 1-800-772-2227In Canada call 1-800-565-3344In other countries contact your dealer, retailer, or other IBM authorized Servicer.If possible, stay by your computer. Your Technical Support Representative may wish to go through the problem with you during the call.Before calling, please have available as much of the following information as possible:1. Model and serial number from the label on your monitor.2. Purchase receipt.3. Description of problem.4. Computer type and model.5. System configuration (hardware fitted, etc.).6. System BIOS version number.7. Operating System and version number.8. Display driver version number.9. Video Adapter Type.Obtaining and installing alternate cablesThis product is shipped with the signal cable and the power cord attached to the monitor. If you want to use other cables for reasons such as having the monitor wall-mounted, follow the instructions below:1. Flip open all three covers at the back of the monitor stand.2. Remove the signal cable and the power cord from the monitor by disconnecting the corresponding adapters.3. Connect the new signal cable and the power cord.4. Put the covers back on.To obtain the correct cables and/or to get further instructions on installing them, call the IBM HELPCENTER at the above numbers or contact your dealer, retailer, or other IBM authorized Servicer.T55D.book Page 22 Wednesday, July 29, 1998 11:40 PM
23ENGLISHSpecificationsThis color monitor (Type-model 9513-Dxx) uses a 15-inch digital TFT LCD. Dimensions Width:Depth:Height:413 mm204 mm381 mmWeight 14.3 lb. (6.5 Kg)Tilt Forward Tilt:Backward tilt: – 4°+ 41°Image Viewable Image Size:Maximum Height:Maximum Width:Pixel Pitch:15.0” (381 mm)228 mm304 mm0.297 mm (H) × 0.297 mm (V)Power Input Supply Voltage:Max Supply Current:90 - 260 Vac60/50 ± 3 Hz1.5 A at 120 VacPower Consumption Normal Operation:DPMS Stand-by:DPMS Suspend:DPMS off: < 40 W < 5 W < 5 W < 5 WVideo Input Input Signal:Horiz. Addressability:Vert. Addressability:Clock Frequency:VESA TMDS (Panel-Link)1024 pixels (max)768 lines (max)65 MHzCommunications VESA DDC: 2 BSynchronization Range Horiz. Frequency:Vert. Frequency: 31.5 kHz - 60 kHz60 Hz - 75 Hz(These values depend on your video card)Environment Temperature:Operating:Storage:Shipping:Humidity:Operating:Storage:Shipping: 10 to 35° C- 20 to 60° C- 20 to 60° C 10 to 80% 5 to 95% 5 to 95%Power consumption figures are for the monitor and the power supply combined.T55D.book Page 23 Wednesday, July 29, 1998 11:40 PM
IENGLISHFRANÇAISESPAÑOLPORTUGUESECOMPL & WARRCompliancesFederal Communications Commission (FCC) StatementThis equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:•Reorient or relocate the receiving antenna.•Increase the separation between the equipment and receiver.•Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.•Consult an IBM authorized dealer or service representative for help.Properly shielded and grounded cables and connectors must be used in order to meet FCC emission limits. Proper cables and connectors are available from IBM authorized dealers. IBM is not responsible for any radio or television interference caused by using other than recommended cables and connectors or by unauthorized changes or modifications to this equipment. Unauthorized changes or modifications could void the user’s authority to operate the equipment.This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.Industry Canada Compliance StatementThis Class B digital apparatus meets the requirements of the Canadian Interference-Causing Equipment Regulations.Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada.NOMIBM de México, S.A.IBM MM75 Monitor de Color (M/T 2128)Planta de Manufactura416, Maetan-3Dong, Paldal-GuSuwon City, Kyungki-Do, Korea442-742Hecho en KoreaNOM - 018Consumo de Corriente1.5 AFrecuencia de Operacion50/60 HzRension de Alimentacion100-240 VT55D.book Page I Wednesday, July 29, 1998 11:40 PM
IIPower CordsFor your safety, IBM provides a power cord with a grounded attachment plug to use with this IBM product. To avoid electrical shock, always use the power cord and plug with a properly grounded power outlet.IBM power cords used in the United States and Canada are listed by the Underwriters Laboratories (UL) and certified by the Canadian Standards Association (CSA).For units intended to be operated at 115 volts: Use a UL listed and CSA certified cord set consisting of a minimum 18 AWG, type SVT or SJT, three conductor cord, a maximum of 4.5 meters (15 feet) in length and a parallel blade, grounding type attachment plug rated 15 amperes, 125 volts.For units intended to be operated at 230 volts (U.S. use): Use a UL listed and CSA certified cord set consisting of a minimum 18 AWG, type SVT or SJT, three conductor cord, a maximum of 4.5 meters (15 feet) in length and a tandem blade, grounding type attachment plug rated 15 amperes 250 volts.For units intended to be operated at 230 volts (outside the U.S.): Use a cord set with a grounding type attachment plug rated 13 amperes (minimum), 250 volts. The cord set should be marked <HAR> and have the appropriate safety approvals for the country in which the equipment will be installed.T55D.book Page II Wednesday, July 29, 1998 11:40 PM
IIIENGLISHFRANÇAISESPAÑOLPORTUGUESECOMPL & WARRWarrantyStatement of Limited WarrantyThe warranties provided by IBM in this Statement of Limited Warranty apply only to Machines you originally purchase for your use, and not for resale, from IBM or your reseller. The term “Machine” means an IBM machine, its features, conversions, upgrades, elements, or accessories, or any combination of them. Unless IBM specifies otherwise, the following warranties apply only in the country where you acquire the Machine. If you have any questions, contact IBM or your reseller.Production StatusEach Machine is manufactured from new parts, or new and serviceable used parts (which perform like new parts). In some cases, the Machine may not be new and may have been previously installed. Regardless of the Machine’s production status, IBM’s warranty terms apply.The IBM Warranty for MachinesIBM warrants that each Machine 1) is free from defects in materials and workmanship and 2) conforms to IBM’s Official Published Specifications. The warranty period for a Machine is a specified, fixed period commencing on its Date of Installation. The date on your receipt is the Date of Installation, unless IBM or your reseller informs you otherwise.During the warranty period IBM or your reseller, if authorized by IBM, will provide warranty service under the type of service designated for the Machine and will manage and install engineering changes that apply to the Machine.For IBM or your reseller to provide warranty service for a feature, conversion, or upgrade, IBM or your reseller may require that the Machine on which it is installed be 1) for certain Machines, the designated, serial-numbered Machine and 2) at an engineering-change level compatible with the feature, conversion, or upgrade. Many of these transactions involve the removal of parts and their return to IBM. You represent that all removed parts are genuine and unaltered. A part that replaces a removed part will assume the warranty service status of the replaced part.If a Machine does not function as warranted during the warranty period, IBM or your reseller will repair it or replace it with one that is at least functionally equivalent, without charge. The replacement may not be new, but will be in good working order. If IBM or your reseller is unable to repair or replace the Machine, you may return it to your place of purchase and your money will be refunded.If you transfer a Machine to another user, warranty service is available to that user for the remainder of the warranty period. You should give your proof of purchase and this Statement to that user. However, for Machines which have a life-time warranty, this warranty is not transferable.Warranty ServiceTo obtain warranty service for the Machine, you should contact your reseller or call IBM. In the United States, call IBM at 1-800-772-2227. In Canada, call IBM at 1-800-565-3344. You may be required to present proof of purchase.IBM or your reseller will provide certain types of repair and exchange service, either at your location or at IBM’s or your reseller’s service center, to restore a Machine to good working order.Machine: IBM 9513 LCD Color MonitorsWarranty Period*: years•Elements and accessories are warranted for Contact your place of purchase for warranty service informationT55D.book Page III Wednesday, July 29, 1998 11:40 PM
IVWhen a type of service involves the exchange of a Machine or part, the item IBM or your reseller replaces becomes its property and the replacement becomes yours. You represent that all removed items are genuine and unaltered. The replacement may not be new, but will be in good working order and at least functionally equivalent to the item replaced. The replacement assumes the warranty service status of the replaced item. Before IBM or your reseller exchanges a Machine or part, you agree to remove all features, parts, options, alterations, and attachments not under warranty service. You also agree to ensure that the Machine is free of any legal obligations or restrictions that prevent its exchange.You agree to:5obtain authorization from the owner to have IBM or your reseller service a Machine that you do not own; and6where applicable, before service is provided -afollow the problem determination, problem analysis, and service request procedures that IBM or your reseller provide, bsecure all programs, data, and funds contained in a Machine, and cinform IBM or your reseller of changes in a Machine’s location.IBM is responsible for loss of, or damage to, your Machine while it is 1) in IBM’s possession or 2) in transit in those cases where IBM is responsible for the transportation charges.Extent of WarrantyIBM does not warrant uninterrupted or error-free operation of a Machine.Misuse, accident, modification, unsuitable physical or operating environment, improper maintenance by you, or failure caused by a product for which IBM is not responsible may void the warranties.THESE WARRANTIES REPLACE ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. HOWEVER, SOME LAWS DO NOT ALLOW THE EXCLUSION OF IMPLIED WARRANTIES. iF THESE LAWS APPLY, THEN ALL EXPRESS AND IMPLIED WARRANTIES ARE LIMITED IN DURATION TO THE WARRANTY PERIOD. NO WARRANTIES APPLY AFTER THAT PERIOD.In Canada, warranties include both warranties and conditions.Some jurisdictions do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.For European warranty terms and conditions refer to enclosed IBM warranty statement Part Number 72H9623.Référez-vous à la garantie IBM N° de référence 72H9623 pour les condtions de garantie européennes.Die europäischen Garantiebedingungen finden Sie in der beigefügten IBM-Gewährleistungserklärung, Teilenummer 72H9623.Los términos y condiciones de las garantías en Europa se recogen en la declaración de garantía adjunta del número de pieza IBM 72H9623.Per le condizioni e i termini de garanzia relativi ai paesi europei, consultare l’apposita dichiarazione IBM (numero di matricola 72H9623).T55D.book Page IV Wednesday, July 29, 1998 11:40 PM
