USERS MANUAL

These user’s setup instructions cover typical user environments. The on-screen messages may differ depending on the level of your hardware and software. In some cases you may need to vary the setup procedures.For more information, refer to your computer or operating system manuals or consult your system administrator or dealer.Ces instructions de configuration d’exploitation s’appliquent aux environnements d’utilisation types. Les messages affichés à l’écran peuvent varier en fonction du niveau de votre matériel et de vos logiciels informatiques. Dans certains cas, vous pouvez être amenés à changer de procédures de configuration.Pour de plus amples informations à ce sujet, veuillez vous reporter aux manuels de votre ordinateur et de votre système d’exploitation, ou consultez l’administrateur de votre système ou votre revendeur.Diese Einstellungsanweisungen durch den Benutzer gelten für typische Betriebsumgebungen. Die Bildschirmmeldungen können je nach Art der verwendeten Hardware und Software auch anders lauten. In einigen Fällen müssen die Einstellungsschritte unter Umständen abgeändert werden.Weitere Informationen finden Sie im Computer- oder Betriebssystemhandbuch, oder wenden Sie sich an Ihren Systemadministrator oder Fachhändler.En estas instrucciones de configuración se describen entornos de usuarios típicos. Los mensajes en pantalla, pueden diferir según sea el nivel del hardware y del software. En algunos casos, necesitará seguir otros procedimientos para la configuración.Para obtener más información, puede consultar los manuales del ordenador o del sistema operativo o ponerse en contacto con el administrador del sistema o con el distribuidor.Queste istruzioni di configurazione per l’utente coprono gli ambienti operativi comuni. I messaggi che appaiono sul video possono differire a seconda dell’hardware e del software utilizzati. In alcuni casi potrebbe essere necessario variare le procedure di configurazione.Per ulteriori informazioni, fare riferimento ai manuali del computer o del sistema operativo, o consultare il proprio amministratore di sistema o il concessionario.T85A.book Page 1 Wednesday, October 28, 1998 8:10 PM
DANGERTo avoid shock hazard:•Do not remove the covers.•Do not operate this product unless the stand is attached.•Do not connect or disconnect this product during an electrical storm.•The power cord plug must be connected to a properly wired and grounded power outlet.•Any equipment to which this product will be attached must also be connected to properly wired and grounded power outlets.•To isolate the monitor from the electrical supply, you must remove the plug from the power outlet. The power outlet should be easily accessible. DANGERPour éviter les risques d’électrocution :•Ne retirez pas les capots du moniteur.•N’utilisez pas ce produit si le socle n’est pas fixé.•Ne connectez, ni ne déconnectez ce produit pendant un orage.•Le câble d’alimentation doit être connecté à une prise électrique correctement mise à la terre et en bon état de marche.•Tout équipement auquel ce produit est relié doit être également connecté à une prise correctement mise à la terre et en bon état de marche.•Pour isoler le moniteur de la source d’alimentation électrique, vous devez le débrancher de la prise électrique. Cette prise doit être facile d’accès GEFAHRENHINWEISUm die Gefahr eines elektrischen Schlags zu vermeiden, folgendes beachten:•Unter keinen Umständen die Abdeckungen abnehmen.•Das Produkt nicht in Betrieb nehmen, wenn der Sockel nicht montiert ist. •Das Gerät nicht während eines Gewitters an eine Steckdose anschließen oder von ihr trennen. •Das Netzkabel ist an eine ordnungsgemäß verdrahtete und geerdete Steckdose anzuschließen.•Jedes Gerät, mit dem dieses Produkt verbunden wird, muß ebenfalls an eine ordnungsgemäß verdrahtete und geerdete Steckdose angeschlossen werden.•Um den Monitor von der Stromversorgung zu trennen, muß der Stecker aus der Steckdose gezogen werden. Die Steckdose sollte leicht zugänglich sein.T85A.book Page c Wednesday, October 28, 1998 8:10 PM
GEVAARGa als volgt te werk om het gevaar van een elektrische schok te voorkomen:•Verwijder in geen enkel geval de kap.•Stel dit produkt alleen in werking als de voet is bevestigd.•Sluit dit apparaat niet aan op, of verbreek de aansluiting van dit apparaat niet van een contactdoos tijdens onweer.•Het netsnoer moet worden aangesloten op een geaarde contactdoos met correcte bedrading.•Ook alle apparatuur waarop dit produkt wordt aangesloten moet zijn aangesloten op een contactdoos met correcte bedrading.•Om het beeldscherm te ontkoppelen van de netvoeding, dient u de stekker uit de contactdoos te trekken. De contactdoos dient goed toegankelijk te zijn. PELIGROPara evitar riesgos de descargas eléctricas:•No retire bajo ningún concepto las cubiertas.•No maneje el monitor sin antes acoplar el soporte.•No conecte ni desconecte el equipo de una toma de alimentación durante una tormenta eléctrica.•El cable de alimentación debe estar conectado a un enchufe debidamente cableado y con toma de tierra.•Cualquier equipo al que se vaya a conectar este producto también debe estar conectado a tomas de alimentación cableadas y conectadas a tierra correctamente.•Para aislar el monitor del suministro eléctrico, debe retirar el enchufe de la toma de alimentación. Esta toma deberá ser de fácil acceso. PERICOLOPer evitare il rischio di scariche elettriche:•Non rimuovere nessuna parte del telaio.•Non accendere il prodotto se il piedistallo non è stato montato.•Non collegare o scollegare il prodotto nel corso di un temporale.•La spina del cavo di alimentazione deve essere collegata ad una presa di corrente con messa a terra, installata in maniera appropriata.•Le apparecchiature a cui il prodotto viene attaccato devono essere collegate a prese di corrente con messa a terra, installate in maniera appropriata.•Per isolare il monitor dalla corrente elettrica, staccare la spina dalla presa di alimentazione, che deve essere facilmente accessibile.T85A.book Page d Wednesday, October 28, 1998 8:10 PM

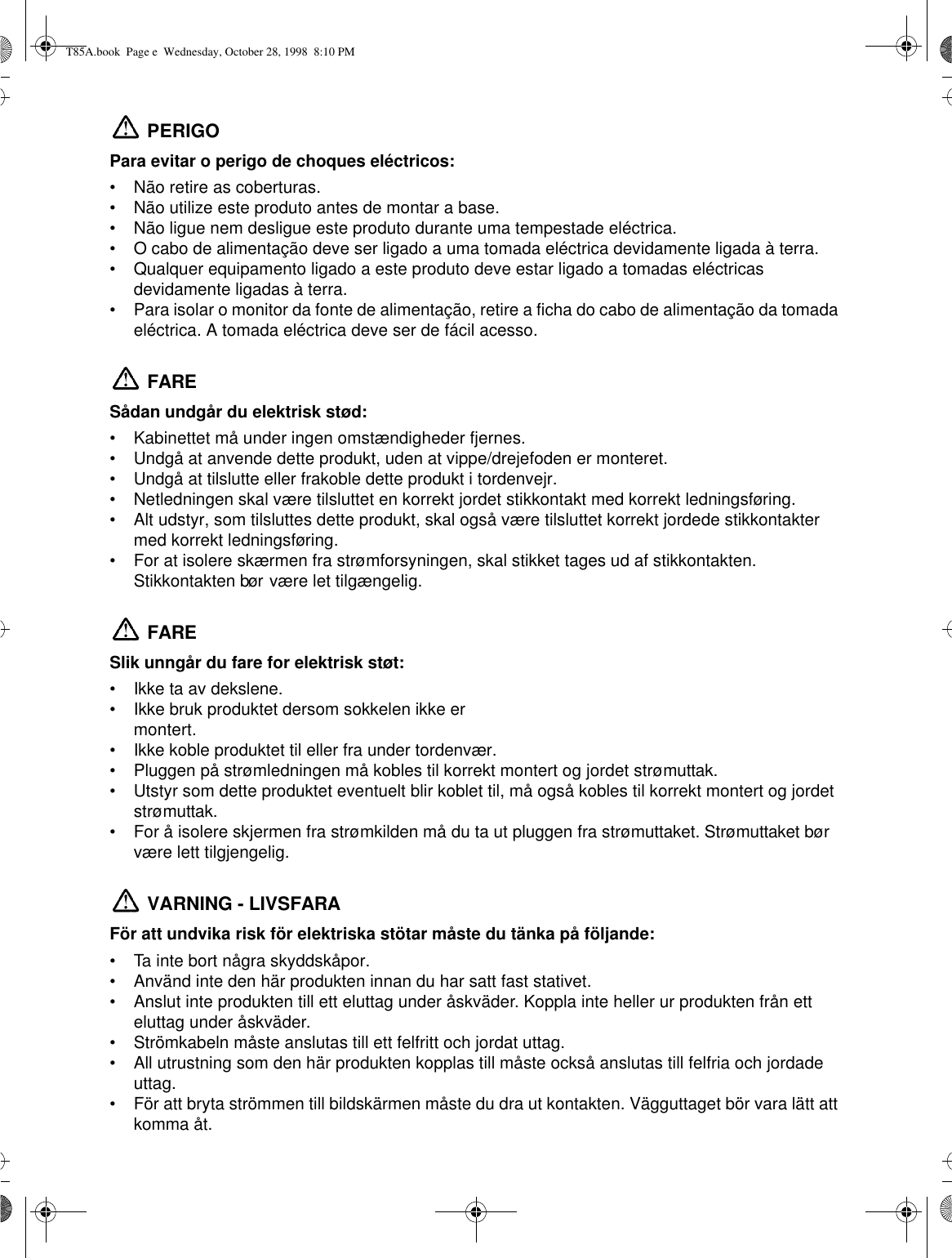

PERIGOPara evitar o perigo de choques eléctricos:•Não retire as coberturas.•Não utilize este produto antes de montar a base.•Não ligue nem desligue este produto durante uma tempestade eléctrica.•O cabo de alimentação deve ser ligado a uma tomada eléctrica devidamente ligada à terra.•Qualquer equipamento ligado a este produto deve estar ligado a tomadas eléctricas devidamente ligadas à terra.•Para isolar o monitor da fonte de alimentação, retire a ficha do cabo de alimentação da tomada eléctrica. A tomada eléctrica deve ser de fácil acesso. FARESådan undgår du elektrisk stød:•Kabinettet må under ingen omstændigheder fjernes.•Undgå at anvende dette produkt, uden at vippe/drejefoden er monteret.•Undgå at tilslutte eller frakoble dette produkt i tordenvejr.•Netledningen skal være tilsluttet en korrekt jordet stikkontakt med korrekt ledningsføring.•Alt udstyr, som tilsluttes dette produkt, skal også være tilsluttet korrekt jordede stikkontakter med korrekt ledningsføring.•For at isolere skærmen fra strømforsyningen, skal stikket tages ud af stikkontakten. Stikkontakten bør være let tilgængelig. FARESlik unngår du fare for elektrisk støt:•Ikke ta av dekslene.•Ikke bruk produktet dersom sokkelen ikke er montert.•Ikke koble produktet til eller fra under tordenvær.•Pluggen på strømledningen må kobles til korrekt montert og jordet strømuttak.•Utstyr som dette produktet eventuelt blir koblet til, må også kobles til korrekt montert og jordet strømuttak.•For å isolere skjermen fra strømkilden må du ta ut pluggen fra strømuttaket. Strømuttaket bør være lett tilgjengelig. VARNING - LIVSFARAFör att undvika risk för elektriska stötar måste du tänka på följande:•Ta inte bort några skyddskåpor.•Använd inte den här produkten innan du har satt fast stativet.•Anslut inte produkten till ett eluttag under åskväder. Koppla inte heller ur produkten från ett eluttag under åskväder.•Strömkabeln måste anslutas till ett felfritt och jordat uttag.•All utrustning som den här produkten kopplas till måste också anslutas till felfria och jordade uttag.•För att bryta strömmen till bildskärmen måste du dra ut kontakten. Vägguttaget bör vara lätt att komma åt.T85A.book Page e Wednesday, October 28, 1998 8:10 PM
VAARASähköiskun vaaran välttämiseksi:•Älä avaa laitteen kansia missään tilanteessa.•Älä käytä laitetta, ellei jalustaa ole kiinnitetty.•Älä kytke laitetta pistorasiaan tai irrota sitä pistorasiasta ukonilman aikana.•Virtajohto on kytkettävä asianmukaisesti johdotettuun ja maadoitettuun pistorasiaan.•Kaikki muutkin laitteet, joihin tämä tuote on liitetty, on kytkettävä asianmukaisesti johdotettuihin pistorasioihin.•Kun haluat erottaa näyttimen sähköverkosta, sinun pitää irrottaa sen verkkojohto pistorasiasta. Pistorasian pitäisi olla mahdollisimman lähellä näytintä ja vaivattomasti käsillä.KIN∆∆YNOΣΣÃéá ôçí áðïöõãÞ êéíäýíïõ çëåêôñïðëçîßáò:•Ìçí áöáéñåßôå ôá êáëýììáôá.•Ìç èÝôåôå ôï ðñïúüí áõôü óå ëåéôïõñãßá ÷ùñßò íá åßíáé óôåñåùìÝíç ç âÜóç ôïõ.•Ìç óõíäÝåôå Þ áðïóõíäÝåôå ôï ðñïúüí áõôü êáôÜ ôç äéÜñêåéá çëåêôñïèýåëëáò.•Ôï öéò ôïõ êáëùäßïõ ñåõìáôïëÞðôç ðñÝðåé íá óõíäåèåß óå ìéá ðñßæá ìå óùóôÞ êáëùäßùóç êáé ãåßùóç.•ÊÜèå óõóêåõÞ óôçí ïðïßá óõíäåèåß áõôü ôï ðñïúüí ðñÝðåé åðßóçò íá óõíäåèåß óå ðñßæá ìå óùóôÞ êáëùäßùóç êáé ãåßùóç.•Ãéá íá áðïìïíþóåôå ôçí ïèüíç áðü ôçí ðáñï÷Þ ñåýìáôïò, ðñÝðåé íá áöáéñÝóåôå ôï öéò áðü ôçí ðñßæá. Ç ðñßæá ðñÝðåé íá åßíáé óå óçìåßï åýêïëá ðñïóâÜóéìï.TEHLIKEElektrik çarpmasý tehlikesinden kaçýnmak için:•Kapaklarý çýkarmayýnýz.•Bu cihazý kaidesine takýlý durumda deðilken çalýþtýrmayýnýz.•Bu cihazý elektriksel fýrtýna sýrasýnda prize takmayýnýz veya prizden çýkarmayýnýz.•Elektrik kablosunun fiþi, elektrik ve toprak baðlantýlarý usulüne uygun olarak yapýlmýþ bir prize takýlmalýdýr.•Bu cihazýn baðlanacaðý diðer tüm cihazlar da elektrik ve toprak baðlantýlarý usulüne uygun olarak yapýlmýþ prize takýlmýþ olmalýdýr.•Monitörün elektrikle baðlantýsýný kesmek için fiþini prizden çekmeniz gereklidir. Priz, kolayca eriþilebilecek bir yerde olmalýdýr.T85A.book Page f Wednesday, October 28, 1998 8:10 PM
DEUTSCH ENGLISHFRANÇAISESPAÑOLITALIANOJAPANESECOMPL & WARREnglishT85A.book Page 1 Wednesday, October 28, 1998 8:10 PM

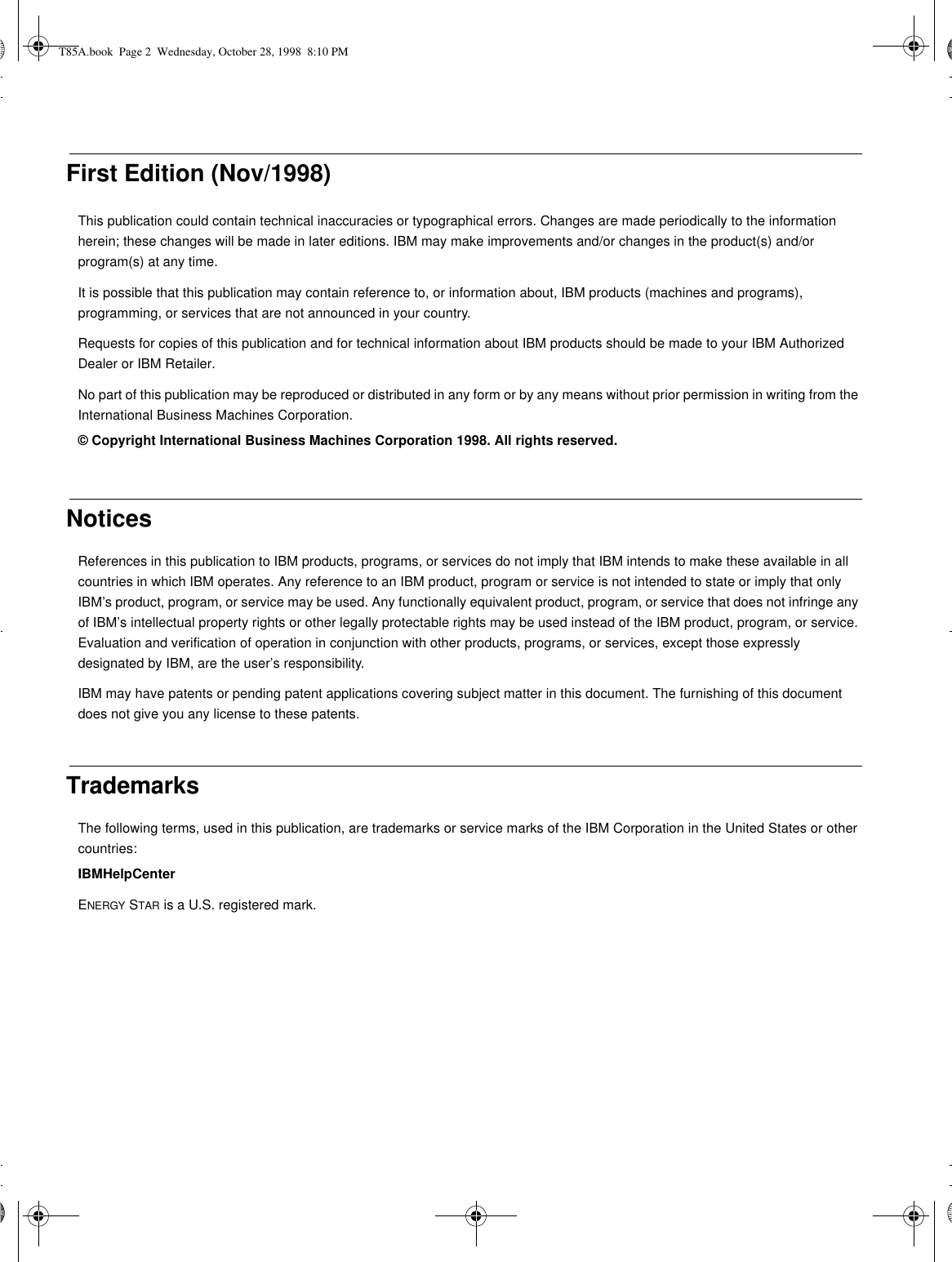

First Edition (Nov/1998)This publication could contain technical inaccuracies or typographical errors. Changes are made periodically to the information herein; these changes will be made in later editions. IBM may make improvements and/or changes in the product(s) and/or program(s) at any time.It is possible that this publication may contain reference to, or information about, IBM products (machines and programs), programming, or services that are not announced in your country. Requests for copies of this publication and for technical information about IBM products should be made to your IBM Authorized Dealer or IBM Retailer.No part of this publication may be reproduced or distributed in any form or by any means without prior permission in writing from the International Business Machines Corporation.© Copyright International Business Machines Corporation 1998. All rights reserved.NoticesReferences in this publication to IBM products, programs, or services do not imply that IBM intends to make these available in all countries in which IBM operates. Any reference to an IBM product, program or service is not intended to state or imply that only IBM’s product, program, or service may be used. Any functionally equivalent product, program, or service that does not infringe any of IBM’s intellectual property rights or other legally protectable rights may be used instead of the IBM product, program, or service. Evaluation and verification of operation in conjunction with other products, programs, or services, except those expressly designated by IBM, are the user’s responsibility.IBM may have patents or pending patent applications covering subject matter in this document. The furnishing of this document does not give you any license to these patents. TrademarksThe following terms, used in this publication, are trademarks or service marks of the IBM Corporation in the United States or other countries:IBMHelpCenterENERGY STAR is a U.S. registered mark.T85A.book Page 2 Wednesday, October 28, 1998 8:10 PM
1DEUTSCH ENGLISHFRANÇAISESPAÑOLITALIANOJAPANESECOMPL & WARRContentsSetup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2Hardware Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2Handling Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2Workplace Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2Working Practices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3Connecting your Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4Switching on your Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5Adjusting the Monitor Position . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5Caring for your Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5Configuring your Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6Automatic Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6Setup Diskette for Windows 95 or Windows 98 . . . . . . . . . . . . . . . . . . . . . . . . 6Auto Setup for the PC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7Auto Setup for DOS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8Auto Setup for Windows 3.1, Windows 95, Windows 98 or Windows NT . . . . . 9Auto Setup OS/2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11Manual Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13Adjusting Your LCD Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14User controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14On-screen display (OSD) controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16Further Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19Display modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19Power Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22Further Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27Compliances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . IWarranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .IVT85A.book Page 1 Wednesday, October 28, 1998 8:10 PM
2SetupHardware RequirementsThis monitor requires a computer with a suitable on-board video sub-system or Video Adapter card that can support SXGA 1280 x 1024, XGA 1024 × 768, SVGA 800 x 600, or VGA 640 x 480 at 60Hz.Handling InstructionsDo not support the monitor within the screen area. The Liquid Crystal Display is glass and can be damaged by rough handling or excessive pressure.1. Lift the monitor by placing both hands under the lower part of the cover.2. Before using your monitor for the first time, remove the clear protective film from the front of the screen.Workplace PreparationThis section gives advice on what you should consider before you set up your monitor.Height The monitor should be positioned so that the top of the screen is slightly below your eye level when you sit at your workstation.T85A.book Page 2 Wednesday, October 28, 1998 8:10 PM
3DEUTSCH ENGLISHFRANÇAISESPAÑOLITALIANOJAPANESECOMPL & WARROrientation Choose a position that gives the least reflection from lights and windows, usually at a right angle to any windows. The monitor should be positioned directly in front of you so that you do not have to twist your body to use it. Tilt the monitor to a comfortable viewing angle.Working PracticesThis section gives advice on how you can work comfortably and reduce fatigue.RestTake regular breaks. Vary your posture, stand up and stretch occasionally as prolonged use of computer workstations can be tiring.BackAdjust the height and angle of the chairback to support your lower back. Sit well back in your chair.Adjust the seat height so that your forearms are approximately horizontal and your wrists are straight when using the keyboard. Your upper arms should be relaxed with your elbows near your body.HandsUse a light touch on the keyboard, keeping your hands and fingers relaxed. Allow a space in front of the keyboard to rest your wrists when not typing. Consider using a wristpad.T85A.book Page 3 Wednesday, October 28, 1998 8:10 PM
4EyesightWorking with monitors, in common with any prolonged close work, can be visually demanding. Look away from the screen periodically and have your eyesight checked regularly.Screen settingsSet the screen brightness and contrast to a comfortable level. You may have to adjust this as the lighting changes during the day. Many application programs let you select color combinations which can help you to view in comfort. See the User controls section starting on page 14 for more information.Connecting your MonitorBe sure to read the ‘Safety Information’ at the front of this User Guide before carrying out this procedure.1. Turn off your PC and all attached devices.2. Connect the signal cable (D-SUB type) to the video port on the back of your computer. This port might be directly attached to your computer (figure A), or it might be part of a video adapter card (figure B). The video port on your computer or video adapter card may be colored blue to match the blue connector on your monitor’s video cable.The AC adapter and D-SUB signal cable are connected to your monitor. If you wish to change these or to fit a different stand, see Further Help on page 24. If you are using a workstation, you may need to use a 13W3 cable. Refer to Installing a 13W3 Cable on page 26 for instructions.3. Connect the power cord to the power adapter first, then insert the plug into a properly grounded electrical outlet.T85A.book Page 4 Wednesday, October 28, 1998 8:10 PM
5DEUTSCH ENGLISHFRANÇAISESPAÑOLITALIANOJAPANESECOMPL & WARRSwitching on your Monitor1. Switch on the power source and your computer. 2. Switch on your monitor by pushing and releasing the power switch marked . (To switch off your monitor, push and release the power switch again.)3. If you are using your monitor with a workstation, use the monitor’s OSD to choose the 13W3 input source. (See INPUT SELECTION on page 18.)4. Run AUTO SETUP by following the instructions in the Configuring your Monitor section on page 6.Adjusting the Monitor PositionViewing AngleYou can tilt the screen backward and forward as shown below.Caring for your MonitorBe sure to turn off the power before you perform any maintenance on the monitor. Clean your monitor as follows:•Gently wipe the covers and the screen with a soft cloth.•Remove finger marks and grease with a damp cloth and mild detergent; do not use solvents or abrasives. •Never use flammable cleaning material to clean your IBM monitor or any other electrical apparatus.T85A.book Page 5 Wednesday, October 28, 1998 8:10 PM
6Configuring your MonitorAutomatic SetupThe Setup Utility included on the setup diskette is for displaying dot patterns. They do not replace or modify the display driver.When you first use your monitor you must perform Automatic Setup (AUTO SETUP). This procedure sets up your monitor to process the video signals from your computer without image discoloration or smearing. After you perform AUTO SETUP, the settings are stored and used each time you turn on the monitor.The Automatic Setup instructions require the monitor to be warmed up for 15 minutes. This is not required for normal operation.Setup Diskette for Windows 95 or Windows 98This section must be completed before continuing with the Windows 95 or Windows 98 Auto Setup for the PC on page7.To use the Plug and Play feature in Windows 95 or Windows 98, files should be loaded from the IBM Color LCD Monitor Installation diskette as follows:1. Turn off the computer and all attached devices.2. Ensure that the monitor is connected correctly.3. Turn on the monitor and then the system unit. Allow the system to boot into Windows 95 or Windows 98. Your computer’s Plug and Play code may warn you that your system hardware has changed. This probably means that it has detected your new monitor for the first time.4. Open the DISPLAY PROPERTIES window by clicking on START, SETTINGS, CONTROL PANEL and then double clicking on the DISPLAY icon.5. Select the SETTINGS tab.6. Select the CHANGE DISPLAY TYPE button.7. Select the CHANGE MONITOR TYPE button.8. Insert the Setup diskette into drive A: and select the HAVE DISK button.On LCD monitors, unlike CRTs, a faster refresh rate does not improve display quality. IBM recommends using either 1280 x 1024 at a refresh rate of 60Hz or 640 x 480 at a refresh rate of 60Hz.9. Select OK.10. Choose IBM T85A monitor and select OK. The files will be copied from the diskette to your hard drive.11. Close all open windows and remove the diskette.12. Reboot the system.The system will automatically select the maximum refresh rate and corresponding Color Matching Profiles.T85A.book Page 6 Wednesday, October 28, 1998 8:10 PM
7DEUTSCH ENGLISHFRANÇAISESPAÑOLITALIANOJAPANESECOMPL & WARRAuto Setup for the PCBefore carrying out this section, it is very important that The Setup Diskette for Windows 95 or Windows 98 has been run. (see page6)Locate the operating system installed on your PC in the table below and follow the appropriate instructions. You may choose to run AUTO SETUP for each operating system that you use. This means that if you sometimes use your monitor while running any version of Windows and sometimes also use it from within DOS (not a DOS window), you must run AUTO SETUP for both Windows and DOS. You may run versions of AUTO SETUP in any order. If your PC does not run with the setup diskettes shipped with the monitor, refer to Manual Setup on page 13Before you begin AUTO SETUP for your PC:1. Make a backup copy of the setup diskettes supplied with the monitor.2. Make sure the PC’s video mode is set in the range of the supported screen resolution shown in the table on page19.The AUTO SETUP process only applies to the current screen mode. When a new mode is selected, repeat this section to reset the monitorYou should perform AUTO SETUP for each screen mode you use.Operating System Corresponding Auto Setup procedureDOS Auto Setup for DOS on page 8Windows 3.1Auto Setup for Windows 3.1, Windows 95, Windows 98 or Windows NT on page 9Windows 95Windows 98Window NTOperating System/2 (OS/2) Auto Setup OS/2 on page 11T85A.book Page 7 Wednesday, October 28, 1998 8:10 PM
8Auto Setup for DOSIf the monitor is in standby mode (STANDBY ON), it may automatically turn off while you are waiting for it to warm up. If this happens, switch off the monitor and switch it on again after a few seconds. If your system goes into standby mode again, reboot your system and change the system Bios Setup Utility to DISABLE Power Saving. Refer to your system manual. 1. Turn on the monitor first; then the PC.If the message CHECK SIGNAL CABLE is displayed, or if nothing is displayed check:•that the video interface cable is connected properly•the correct video adapter card is installed•the correct supported display mode is selected for your PC.2. Wait approximately 15 minutes, until the monitor warms up.3. Insert the diskette labelled ‘IBM Monitor Installation Disk’ into the diskette drive.4. Display the command prompt screen of the DOS full-screen display.If you are using PC-DOS/V, change to U.S. mode by typing ‘CHEV US’ and pressing ENTER at the command prompt.5. At the command prompt, type ‘A:’ and press ENTER.6. Type ‘TESTPATD’ and press ENTER. 7. Select from the screen the number for the color or text mode you want to setup. You must use DOS or OS.2 DOS Full Screen (not under Windows or OS/2 DOS window, OS/2 window, or OS/2 full screen) when you run DOS Auto Setup.8. Select from the screen the number for the video mode you want to setup.You may repeat this process for as many of the color and video modes as you need.9. When the dot pattern appears, press the OSD Enter button at the bottom of the monitor to display the initial OSD menu.The size and diversity of the dot pattern varies with the screen resolution.10. Use an Arrow button ( or ) to select the IMAGE LOCK icon then press the OSD Enter button to access the function. If the screen flickers, repeat the setup several times until the flicker is minimised, or adjust it manually by following Manual Setup on page 13.11. Using an Arrow button ( or ), select AUTOMATIC and press the OSD Enter button . This activates the AUTO SETUP procedure, which will optimize the display settings with the provided dot-patterns.The screen will dim, blink on and off several times and you may notice small changes to the test pattern.12. When finished, the OSD main menu returns. Press the Exit button to exit from the OSD.13. Press the ESCAPE key to exit the test pattern program.14. Type ‘Exit’ at the command prompt to return to Windows.If you use other operating systems, perform the appropriate AUTO SETUP for those systems, also: see Auto Setup for Windows 3.1, Windows 95, Win-dows 98 or Windows NT on page 9 and Auto Setup OS/2 on page 11.T85A.book Page 8 Wednesday, October 28, 1998 8:10 PM
9DEUTSCH ENGLISHFRANÇAISESPAÑOLITALIANOJAPANESECOMPL & WARRAuto Setup for Windows 3.1, Windows 95, Windows 98 or Windows NTIf the monitor is in standby mode (STANDBY ON), it may automatically turn off while you are waiting for it to warm up. You can disable the Windows energy saving feature by clicking on the START button and selecting SETTINGS, CONTROL PANEL, DISPLAY, SCREEN SAVER. Make sure that the ENERGY SAVING FEATURES OF MONITOR check boxes are either empty, or that the features are set to at least 20 minutes.Your system may also have its Power Saving utility enabled through the Bios Setup Utility. Refer to your system manual for directions on disabling that bios option.1. Turn on the monitor first; then the PC.If the message CHECK SIGNAL CABLE is displayed, or if nothing is displayed check:•that the video interface cable is connected properly.•the correct video adapter card is installed.•the correct supported display mode is selected for your PC.2. Wait approximately 15 minutes, until the monitor warms up.3. Drag the icon bar and tool bar, if they are displayed, to the bottom of the screen.4. Insert the diskette labelled ‘IBM Monitor Installation Disk’ into the diskette drive.5. Check the operating system installed on your PC and follow the instructions from the table below. The size and diversity of the dot pattern varies with the screen resolution.6. When the test pattern appears, press the OSD Enter button at the bottom of the monitor to display the initial OSD menu.Position the mouse pointer at the bottom center of the screen. This allows AUTO SETUP to run properly7. Use an Arrow button ( or ) to select the IMAGE LOCK icon and press the OSD Enter button to access the function.8. Using an Arrow button ( or ), select AUTOMATIC and press the OSD Enter button . This activates the AUTO SETUP procedure, which will optimize the display settings with the provided test pattern.The screen will dim, blink on and off several times, and you may notice small changes to the test pattern. (To abort the AUTO SETUP function, press the ESC key.)9. When finished, the OSD main menu returns. Press the Exit button once to exit from the OSD.Operating System Step1 Step2 Step3 Step4Windows 3.1 Open PROGRAM MANGERSelectFILESelectRUN Type ‘A:\TESTPAT’ and press ENTERWindows NT 3.5Windows 95Select STARTSelect RUNWindows 98Windows NT 4.0T85A.book Page 9 Wednesday, October 28, 1998 8:10 PM
1010. Press the ESC key to return to Windows.You have completed the monitor setup for Windows. If you use other operat-ing systems, perform the appropriate AUTO SETUP for those systems, also: seeAuto Setup OS/2 on page 11 and Auto Setup for DOS on page 8.T85A.book Page 10 Wednesday, October 28, 1998 8:10 PM
11DEUTSCH ENGLISHFRANÇAISESPAÑOLITALIANOJAPANESECOMPL & WARRAuto Setup OS/2If the monitor is in standby mode (STANDBY ON), it may automatically turn off while you are waiting for it to warm up.1. Turn on the monitor first; then the PC.If the message CHECK SIGNAL CABLE is displayed, or if nothing is displayed check:•that the video interface cable is connected properly.•the correct video adapter card is installed.•the correct supported display mode is selected for your PC.2. Wait approximately 15 minutes, until the monitor warms up.3. Insert the diskette labelled ‘IBM Monitor Installation Disk’ into the diskette drive.4. Select OS/2 SYSTEM, SYSTEMS SETUP, SYSTEM. Select SCREEN RESOLUTION 1280 X 1024 X 256.5. Select SCREEN REFRESH of 60HZ.6. Close SYSTEMS and restart your system.7. At the OS/2 command prompt, select the OS/2 FULL SCREEN command.8. Press mouse button 2 and select SETTINGS or PROPERTIES (depending on your OS/2 version).9. Select SESSION and then choose WIN-OS/2 FULL SCREEN.10. Open the OS/2 full-screen window.11. At the command prompt type A: and press ENTER.12. Type TESTPATS and press ENTER.The size and diversity of the dot pattern varies with the screen resolution.13. When the dot pattern appears, press the OSD Enter button to display the initial OSD menu.Position the mouse pointer at the bottom center of the screen. This allows AUTO SETUP to run properly.14. Use an Arrow button ( or ) to select the IMAGE LOCK icon and press the OSD Enter button to access the function.15. Using an Arrow button ( or ), select AUTOMATIC and press the OSD Enter button . This activates the AUTO SETUP procedure, which will optimize the display settings with the provided test pattern.The screen will dim, blink on and off several times, and you may notice small changes to the test pattern. (To abort the AUTO SETUP function, press the ESCAPE key.)T85A.book Page 11 Wednesday, October 28, 1998 8:10 PM
12 If the screen flickers, repeat the setup several times until the flicker is minimised, or adjust it manually by following Manual Setup on page 13.16. When finished, the OSD main menu returns. Press the Exit button to exit from the OSD.17. Press the ESCAPE key to return to the OS/2 Window.You have completed the monitor setup for OS/2. If you use other operating systems, perform the appropriate AUTO SETUP for those systems, also: seeAuto Setup for Windows 3.1, Windows 95, Windows 98 or Windows NT on page 9 and Auto Setup for DOS on page 8.T85A.book Page 12 Wednesday, October 28, 1998 8:10 PM
13DEUTSCH ENGLISHFRANÇAISESPAÑOLITALIANOJAPANESECOMPL & WARRManual SetupNormally, you can complete the setup procedure using AUTO SETUP, however, if your screen image is still distorted after you perform AUTO SETUP or the setup diskette does not run on your system, perform MANUAL SETUP.If the monitor is in standby mode (STANDBY ON), it might automatically turn off while you are waiting for it to warm up.To disable the Windows energy saving feature by clicking on the START button and selecting SETTINGS, CONTROL PANEL, DISPLAY, SCREEN SAVER. Make sure that the ENERGY SAVING FEATURES OF MONITOR check boxes are either empty, or that the features are set to at least 20 minutes.Your system may also have its Power Saving utility enabled through the Bios Setup Utility. Refer to your system manual for directions on disabling that bios option.1. Have your computer and monitor turned on for at least 15 minutes until the monitor and video adapter have warmed up.2. You may wish to start the program you most often use so that you can adjust for a “typical” screen.3. Press the OSD Enter button at the bottom of the monitor to display the initial OSD menu.4. Use an Arrow button ( or ) to select the IMAGE LOCK icon and press the OSD Enter button to access the function.5. Using an Arrow button ( or ), select MANUAL, press and then press once to select COARSE. Left and right arrow adjustment indicators become illuminated (see page17). 6. Use the Arrow buttons to correct (as much as possible) for noise in the video signal then press to save the changes.7. Use an Arrow button to select FINE and press the button.8. Use the Arrow buttons again to tune the image to your liking.9. When finished, press the Exit button four times to exit from the OSD.You have completed the monitor setup.T85A.book Page 13 Wednesday, October 28, 1998 8:10 PM
14Adjusting Your LCD MonitorUser controls User control featuresOperationThe image is already optimized for many display modes, however the user controls can be used to adjust the image to your liking.•Press any of the OSD control buttons to display the main OSD menu.•Use the Arrow buttons to move among the icons. Select an icon and press OSD Enter to access that function. If there is a sub-menu, you can move between options using the Arrow buttons, then press OSD Enter to select that function. Use the Arrow buttons to make adjustments.The settings are saved after adjustment and when exiting the OSD and will be effective thereafter.•Press the Exit button to move backwards through the sub-menus and exit from the OSD.Note: After making adjustments, the Power indicator LED will briefly turn amber to indicate that the new value has been saved.Icon Control DescriptionExit Displays the OSD main menuExits from menus and sub-menusExits the OSDLeft Arrow Displays the OSD main menuMoves the cursor to highlight icons and other optionsRight Arrow Displays the OSD main menuMoves the cursor to highlight icons and other optionsOSD Enter Displays the OSD main menuEnters menus and sub-menus and selects the highlighted optionPower Switch Switches the monitor on and offT85A.book Page 14 Wednesday, October 28, 1998 8:10 PM

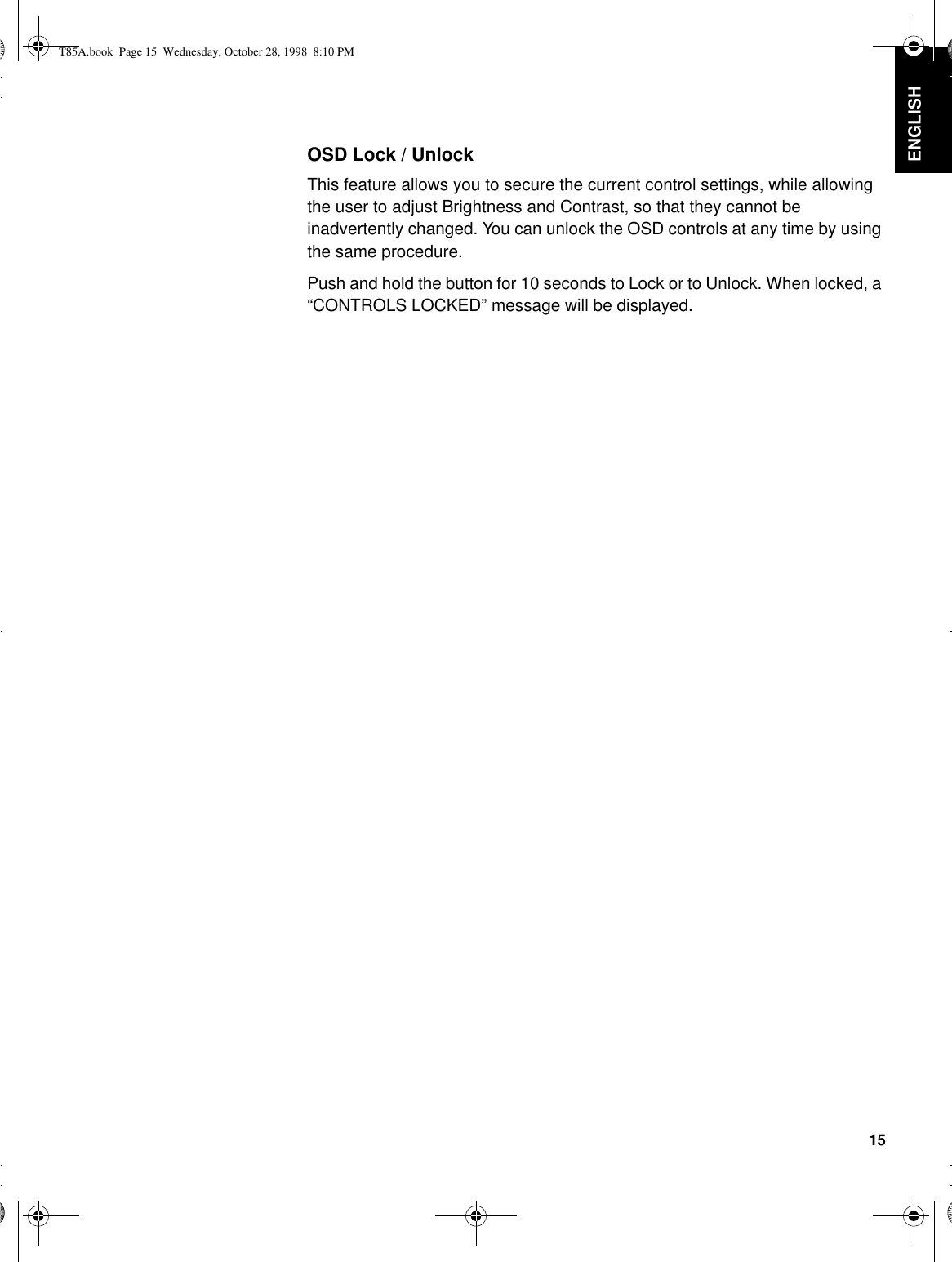

15DEUTSCH ENGLISHFRANÇAISESPAÑOLITALIANOJAPANESECOMPL & WARROSD Lock / UnlockThis feature allows you to secure the current control settings, while allowing the user to adjust Brightness and Contrast, so that they cannot be inadvertently changed. You can unlock the OSD controls at any time by using the same procedure. Push and hold the button for 10 seconds to Lock or to Unlock. When locked, a “CONTROLS LOCKED” message will be displayed. T85A.book Page 15 Wednesday, October 28, 1998 8:10 PM

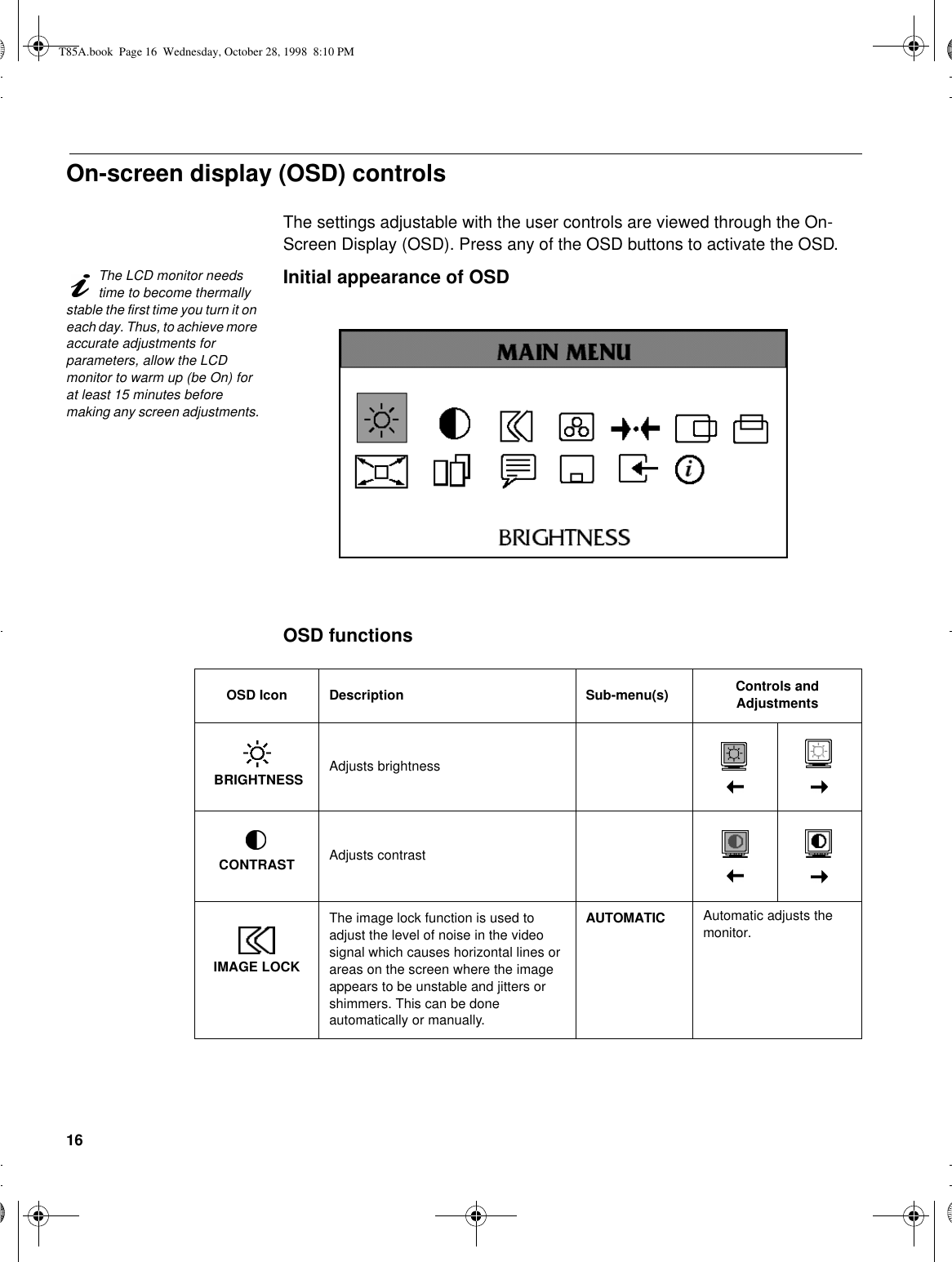

16On-screen display (OSD) controlsThe settings adjustable with the user controls are viewed through the On-Screen Display (OSD). Press any of the OSD buttons to activate the OSD.The LCD monitor needs time to become thermally stable the first time you turn it on each day. Thus, to achieve more accurate adjustments for parameters, allow the LCD monitor to warm up (be On) for at least 15 minutes before making any screen adjustments.Initial appearance of OSDOSD functionsOSD Icon Description Sub-menu(s) Controls and Adjustments BRIGHTNESS Adjusts brightnessCONTRAST Adjusts contrastIMAGE LOCKThe image lock function is used to adjust the level of noise in the video signal which causes horizontal lines or areas on the screen where the image appears to be unstable and jitters or shimmers. This can be done automatically or manually.AUTOMATIC Automatic adjusts the monitor.T85A.book Page 16 Wednesday, October 28, 1998 8:10 PM
17DEUTSCH ENGLISHFRANÇAISESPAÑOLITALIANOJAPANESECOMPL & WARRIMAGE LOCK(continued)MANUAL - •Fine•CoarseUse the Arrow buttons to adjust away the interference. If satisfactory results are not obtained using the Fine adjustment, use the Coarse adjustment and then use Fine again. This function may change the width of the display image. Use the H-Position function on the Image Position menu to center the display image on the screen.COLORSelect the preset Color mode you find most comfortable and then fine tune the colors using the User submenu, if necessary.PRESET 1 - (Cool White)2 - (Normal White)3 - (Warm White)USER •Red•Green•BlueIncreases or decreases rednessIncreases or decreases greennessIncreases or decreases bluenessRESETResets the Brightness, Contrast, Image Lock Fine and Coarse, Color, H-Position, V-Position, and Display Size settings.NO - Does not make the adjustmentYES - Resets the settingsH-POSITIONMoves the screen left and right.V-POSITIONMoves the screen down and up.OSD Icon Description Sub-menu(s) Controls and AdjustmentsT85A.book Page 17 Wednesday, October 28, 1998 8:10 PM
18DISPLAYSIZEIf your computer or video board supplies a signal rate and addressability lower than 1280 x 1024, this LCD monitor provides a scaling processor that can expand the addressability up to 1280 x 1024. EXPANDED 1 - Image enlarged to fill the entire screen.2 - Image enlarged to fill the width of the screen only.NORMAL - Image at normal size.IMAGE EFFECTSelect this icon to optimize the display for the type of software you are using. Scaling smooths an image which may help the eye to see more detail. Filtering sharpens text by adding a fine, contrasting line around each character so that it is easier to recognize.SCALING ON - Turns Scaling on. OFF - Turns Scaling off.FILTER ON - Turns Filtering on.NO - Turns Filtering off.LANGUAGEThe language chosen affects only the language of the OSD. It has no effect on any software running on the computer.Select one of the five languages to use for the OSD. OSD MENU POSITIONChanges the position of the OSD on the screen. H-POSITIONV-POSITIONINPUT SELECTIONThis monitor can accept video signals through two different connectors.Most desktop computers use a D-SUB connector. Most workstations use a 13W3 connector.1 - selects D-SUB2 - selects 13W3INFORMATIONShows information about the addressability and the horizontal and vertical frequencies available. The current setting for the images received from the computer or video board is displayed along the bottom of both submenus.USER MODES Lists all modes which you have defined by making changes using the OSD controlsPRESET MODESLists all modes that have been defined during manufactureOSD Icon Description Sub-menu(s) Controls and AdjustmentsT85A.book Page 18 Wednesday, October 28, 1998 8:10 PM
19DEUTSCH ENGLISHFRANÇAISESPAÑOLITALIANOJAPANESECOMPL & WARRFurther InformationDisplay modesThe display mode the monitor uses is controlled by the computer. Therefore, you should refer to your computer documentation for details on how to change display modes.The image size, position and shape may change when the display mode changes. This is normal and the image can be readjusted using AUTO SETUP and the monitor controls.Unlike CRT monitors, which require a high refresh rate to minimize flicker, TFT technology is inherently flicker-free. If possible, configure your computer for 1280 x 1024 addressability at 60Hz vertical refresh rate.For the display modes listed below, the screen image has been optimized during manufacture.T85A.book Page 19 Wednesday, October 28, 1998 8:10 PM
20Factory Set Display Modes† RecommendedAddressability Refresh Rate Horizontal Frequency640 × 350 70 Hz 31.5 kHz640 × 480 75 Hz 37.5 kHz640 × 480 72 Hz 37.8 kHz640 × 480 66 Hz 35.0 kHz640 × 480 60 Hz 31.5 kHz720 × 400 70 Hz 31.4 kHz800 × 600 56 Hz 35.1 kHz800 × 600 60 Hz 37.8 kHz800 × 600 72 Hz 48.0 kHz800 × 600 75 Hz 46.8 kHz832 × 624 75 Hz 49.7 kHz1024 × 768 60 Hz 48.8 kHz1024 × 768 70 Hz 56.5 kHz1024 × 768 75 Hz 60.0 kHz1152 × 870 75 Hz 68.7 kHz1280 × 1024 75 Hz 79.9 kHz1280 × 1024† 60 Hz 63.9 kHz1280 × 1024 72 Hz 78.1 kHz1280 × 1024 76 Hz 81.1 kHzIf your computer has previously been used with a CRT monitor and is currently configured to a display mode outside the range that the Flat Panel monitor can display, you may need to re-attach the CRT monitor temporarily until you have re-configured the computer, preferably to 1280 x 1024 at 60Hz.T85A.book Page 20 Wednesday, October 28, 1998 8:10 PM

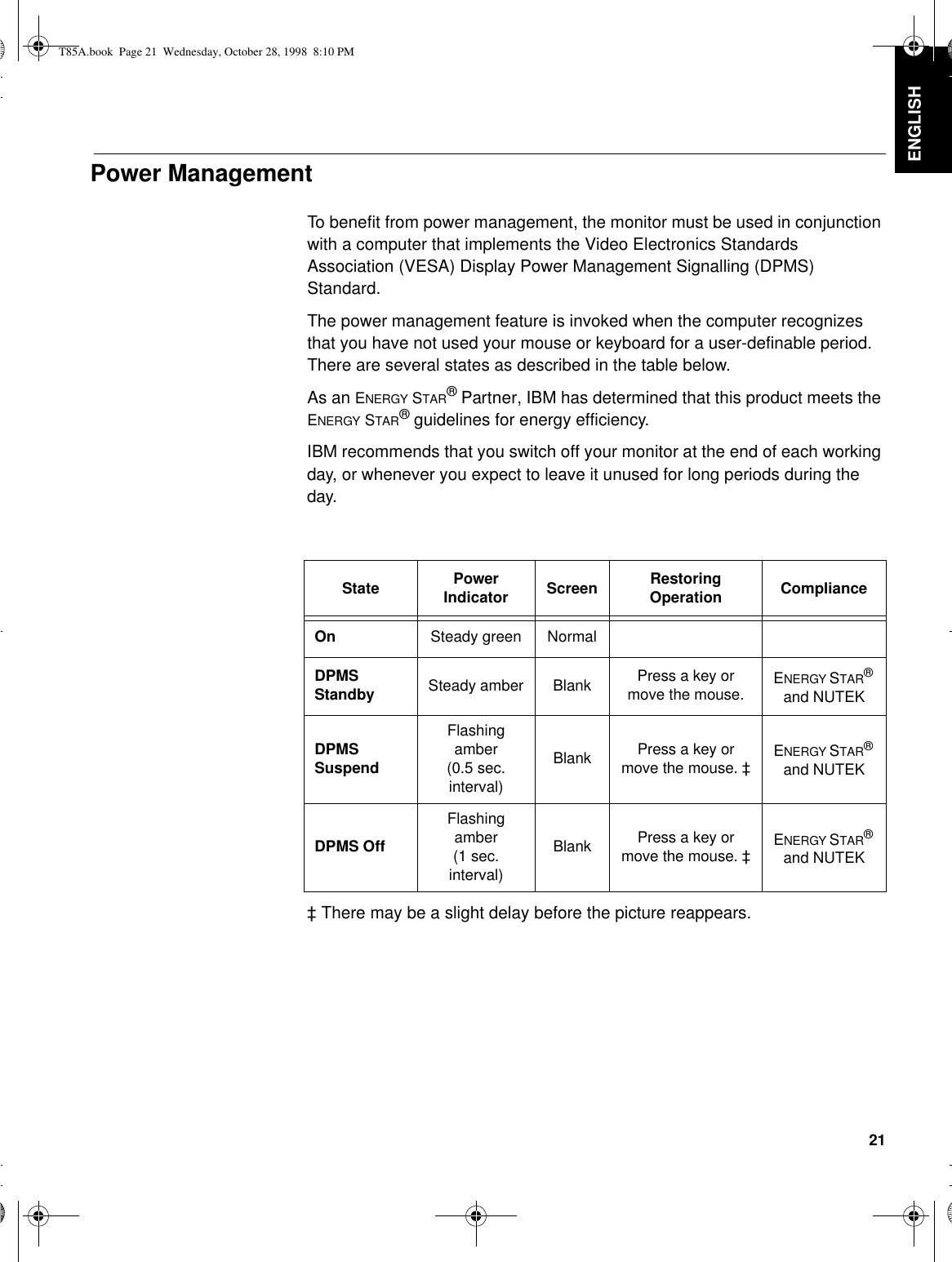

21DEUTSCH ENGLISHFRANÇAISESPAÑOLITALIANOJAPANESECOMPL & WARRPower ManagementTo benefit from power management, the monitor must be used in conjunction with a computer that implements the Video Electronics Standards Association (VESA) Display Power Management Signalling (DPMS) Standard.The power management feature is invoked when the computer recognizes that you have not used your mouse or keyboard for a user-definable period. There are several states as described in the table below.As an ENERGY STAR® Partner, IBM has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.IBM recommends that you switch off your monitor at the end of each working day, or whenever you expect to leave it unused for long periods during the day. ‡ There may be a slight delay before the picture reappears.State Power Indicator Screen Restoring Operation ComplianceOn Steady green NormalDPMS Standby Steady amber Blank Press a key or move the mouse. ENERGY STAR® and NUTEK DPMS SuspendFlashing amber (0.5 sec. interval)Blank Press a key or move the mouse. ‡ ENERGY STAR® and NUTEK DPMS OffFlashing amber(1 sec. interval)Blank Press a key or move the mouse. ‡ ENERGY STAR® and NUTEK T85A.book Page 21 Wednesday, October 28, 1998 8:10 PM
22TroubleshootingIf you have a problem setting up or using your monitor, you may be able to solve it yourself. Before calling your retailer or IBM, try the suggested actions that are appropriate to your problem.Problem Possible Cause Suggested Action ReferenceScreen is blank and power indicator is offNo power to monitorEnsure that the electrical outlet and the monitor are both switched on.Check that the power cord is firmly plugged into the electrical outlet and the power supply unit.If the power cord plug has a removable fuse, replace it.Try another power cord.Try another electrical outlet.Connecting your Monitor section on page 4Screen is blank and power indicator is steady greenBrightness and Contrast may be too lowAdjust brightness and contrast.User controls section on page 14Screen is blank and power indicator is steady amberThe monitor is in the Power Management Standby statePress any key on the keyboard or move the mouse to restore operation.Check the Power Management software on your computerPower Management section on page 21For image problems, you may want to run AUTO SETUP again before consulting to this section. In most cases, AUTO SETUP can fix the problems. See Auto Setup for the PC on page 7 for details.T85A.book Page 22 Wednesday, October 28, 1998 8:10 PM
23DEUTSCH ENGLISHFRANÇAISESPAÑOLITALIANOJAPANESECOMPL & WARRScreen is blank and power indicator is Flashing green every 0.5 secondThe monitor is not receiving a video signalCheck that the signal cable is firmly connected to the computer.Check that no pins are bent in the signal cable connector.Connecting your Monitor section on page 4Display mode of the computer is outside the range of the monitorReconfigure the computer to use a supported display mode.Further Information section on page 19Screen is blank and power indicator is flashing amber every 0.5 or 1 secondThe monitor is in the Power Management Suspend or Off statePress any key on the keyboard or move the mouse to restore operation.Check the Power Management software on your computer.Power Management section on page 21Image appears to be smearedThere are noises in the video signalSelect IMAGE LOCK menu in the OSD. Then select MANUAL to adjust FINE/COARSE settings.User controls section on page 14Image appears to be discoloredThe Color setting may be incorrect Adjust the Color settings.User controls section on page 14A few dots are missing, discolored, or inappropriately lighted.The LCD contains over 2,300,000 thin-film transistors (TFTs). A small number of missing, discolored, or lighted dots may be present on the screen, which is an intrinsic characteristic of the TFT LCD technology and is not an LCD defect.Problem Possible Cause Suggested Action ReferenceT85A.book Page 23 Wednesday, October 28, 1998 8:10 PM
24Further HelpIf you are unable to correct the problem yourself, you may seek further help as follows:Call the IBM HELPCENTER.In the US call 1-800-772-2227In Canada call 1-800-565-3344In other countries contact your dealer, retailer, or other IBM authorized Servicer.If possible, stay by your computer. Your Technical Support Representative may wish to go through the problem with you during the call.Before calling, please have available as much of the following information as possible:1. Model and serial number from the label on your monitor.2. Purchase receipt.3. Description of problem.4. Computer type and model.5. System configuration (hardware fitted, etc.).6. System BIOS version number.7. Operating System and version number.8. Display driver version number.9. Video Adapter Type.More help, late-breaking news and details of the latest accessories for these products may be found on the worldwide web at:http://www.pc.ibm.com/us/accessoriesInformation about the Video Electronics Standards Association can be found on the worldwide web at:http://www.vesa.orgRemoving the stand and cablesAlternative stands for your IBM Flat Panel Monitor may be available from specialist suppliers.This product is equipped with mounting facilities that conform to the VESA Flat Panel Monitor Physical Mounting Interface Standard (FPMPMI).This product is shipped with the signal cable and the power cord attached to the monitor. If you want to use other cables for reasons such as having the monitor wall-mounted, follow the instructions below:1. Disconnect the power cord from the wall outlet.T85A.book Page 24 Wednesday, October 28, 1998 8:10 PM
25DEUTSCH ENGLISHFRANÇAISESPAÑOLITALIANOJAPANESECOMPL & WARR2. Carefully insert the head of a flathead (–) screwdriver into the slot visible along either side of the cable cover (a) and pry it off.3. Squeeze the sides of the hinge cover (b) and pull it off.4. Gently lift the stand cover (c) along the top and then slide it backwards and off the stand.5. Remove the signal cable and the power cord from the monitor by disconnecting the corresponding adapters. Carefully cut the plastic tie to free the power cord and remove the screw holding the power cord clamp. 6. Lay the monitor facedown on a cushion and remove the six screws holding the hinge mechanism on the monitor. Lift off the hinge and base assembly.7. Insert the head of a flathead (–) screwdriver in the slot of one of the two VESA caps (d) and pry the cap off. Repeat the procedure on the other VESA cap.8. If you are installing an arm or wall-mounting device, follow the directions included with the device. If you are just changing your cables, continue with Step 9.9. Connect the signal cable and the power cord, then refit the power cord clamp in its original screwpost.10. Slide the stand cover back on the stand.abcdT85A.book Page 25 Wednesday, October 28, 1998 8:10 PM
2611. Put the hinge cover back on, making sure that the straight side is at the top.12. Insert the three tabs at the top of the cable cover into the slots in the back of the monitor and push the cover into place.To obtain the correct cables and/or to get further instructions on installing them, call the IBM HELPCENTER at the above numbers or contact your dealer, retailer, or other IBM authorized Servicer.Installing a 13W3 Cable13W3 cables are most often used with workstations. To install a 13W3 cable follows steps 1 through 4 starting on page24 then continue with the steps below:5. Remove the D-SUB signal cable, if you will not be using it.6. Connect the 13W3 signal cable to the 13W3 connector on the back of the monitor.7. Slide the stand cover back on the stand.8. Put the hinge cover back on, making sure that the straight side is at the top.9. Insert the three tabs at the top of the cable cover into the slots in the back of the monitor and push the cover into place.T85A.book Page 26 Wednesday, October 28, 1998 8:10 PM
27DEUTSCH ENGLISHFRANÇAISESPAÑOLITALIANOJAPANESECOMPL & WARRSpecificationsThis color monitor (Type-model 9519-Axx) uses a 18.1-inch TFT LCD.Dimensions Width:Depth:Height:462 mm224 mm459 mmWeight Unpackaged 19.8 lb. (9.0 Kg)Tilt / Swivel Tilt:Swivel:– 4° / + 41°– 230° / + 90°Image Viewable Image Size:Maximum Height:Maximum Width:Pixel Pitch:18.1” (459.7 mm)287 mm359 mm0.281 mm (H) × 0.281 mm (V)Power Input Supply Voltage:Max Supply Current:90 - 260 Vac60/50 ± 3 Hz1.5 A at 120 VacPower Consumption Normal Operation:DPMS Stand-by:DPMS Suspend:DPMS off: < 48 W < 5 W < 5 W < 5 WVideo Input Input Signal:Horiz. Addressability:Vert. Addressability:Clock Frequency:Analog Direct Drive75 ohm 0.7 V1280 pixels (max)1024 lines (max)135 MHzCommunications VESA DDC: 2 BSupported Display ModesVESA Standard modes betweenHoriz. Frequency:Vert. Frequency:(see page20)30 kHz - 82 kHz56 Hz - 75 HzEnvironment Temperature:Operating:Storage:Shipping:Humidity:Operating:Storage:Shipping: 10 to 35° C- 20 to 60° C- 20 to 60° C 10 to 80% 5 to 95% 5 to 95%Power consumption figures are for the monitor and the power supply combined.T85A.book Page 27 Wednesday, October 28, 1998 8:10 PM
28T85A.book Page 28 Wednesday, October 28, 1998 8:10 PM

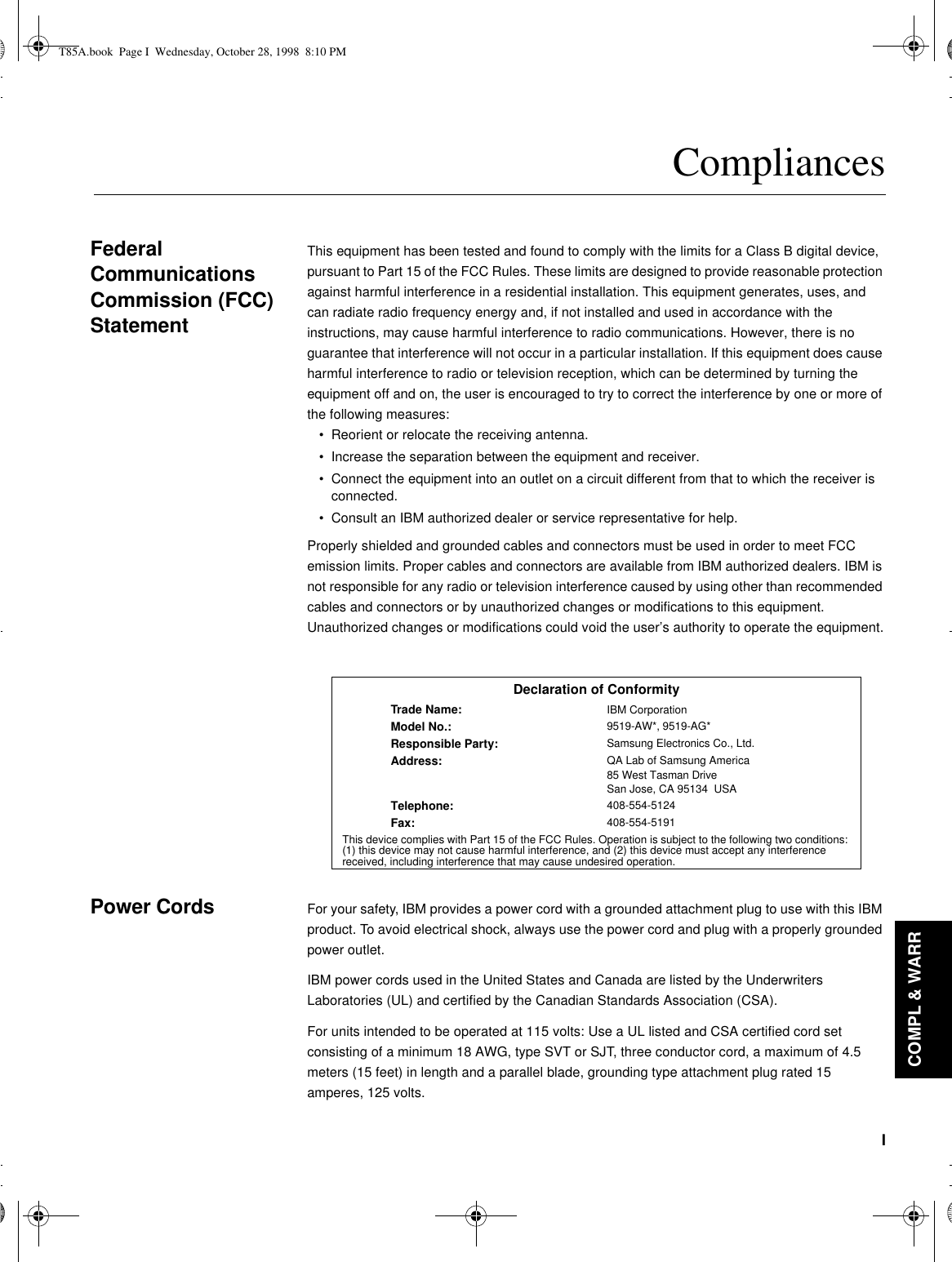

IDEUTSCH ENGLISHFRANÇAISESPAÑOLITALIANOJAPANESECOMPL & WARRCompliancesFederal Communications Commission (FCC) StatementThis equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:•Reorient or relocate the receiving antenna.•Increase the separation between the equipment and receiver.•Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.•Consult an IBM authorized dealer or service representative for help.Properly shielded and grounded cables and connectors must be used in order to meet FCC emission limits. Proper cables and connectors are available from IBM authorized dealers. IBM is not responsible for any radio or television interference caused by using other than recommended cables and connectors or by unauthorized changes or modifications to this equipment. Unauthorized changes or modifications could void the user’s authority to operate the equipment.Power Cords For your safety, IBM provides a power cord with a grounded attachment plug to use with this IBM product. To avoid electrical shock, always use the power cord and plug with a properly grounded power outlet.IBM power cords used in the United States and Canada are listed by the Underwriters Laboratories (UL) and certified by the Canadian Standards Association (CSA).For units intended to be operated at 115 volts: Use a UL listed and CSA certified cord set consisting of a minimum 18 AWG, type SVT or SJT, three conductor cord, a maximum of 4.5 meters (15 feet) in length and a parallel blade, grounding type attachment plug rated 15 amperes, 125 volts.Declaration of ConformityTrade Name: IBM CorporationModel No.: 9519-AW*, 9519-AG*Responsible Party: Samsung Electronics Co., Ltd.Address: QA Lab of Samsung America85 West Tasman DriveSan Jose, CA 95134 USATelephone: 408-554-5124Fax: 408-554-5191This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.T85A.book Page I Wednesday, October 28, 1998 8:10 PM
IIFor units intended to be operated at 230 volts (U.S. use): Use a UL listed and CSA certified cord set consisting of a minimum 18 AWG, type SVT or SJT, three conductor cord, a maximum of 4.5 meters (15 feet) in length and a tandem blade, grounding type attachment plug rated 15 amperes 250 volts.For units intended to be operated at 230 volts (outside the U.S.): Use a cord set with a grounding type attachment plug rated 13 amperes (minimum), 250 volts. The cord set should be marked <HAR> and have the appropriate safety approvals for the country in which the equipment will be installed.As an ENERGY STAR® Partner, IBM Corporation has determined that this product meets the ENERGY STAR guidelines for energy efficiency.This monitor complies with TCO’95 guidelines.MPRII This product complies with Swedish National Council for Metrology (MPR) standards issued in December 1990 (MPRII) for very low frequency (VLF) and extremely low frequency (ELF).Hinweise Gemäß der Amtsblätter des BMPT Nm. 61/1991 und 6/1992 wird der Betreiber darauf aufmerksam gemächt, daß die von ihm mit diesem Gerät zusammengestellte Anlage auch den technicschen Bestimmungen dieser Amtsblätter genügen muß.Aus ergonomischen Gründen wird empfohlen, die Grundfarbe Blau nicht auf dunklem Untergrund zu verwenden (schlechte Erkennbarkeit,Augenbelastung bei zu geringem Zeichenkontrast).Aus ergonomischen Gründen sollten nur Darstellungen auf dunklem Hintergrund bei Vertikalfrequenzen ab 60 Hz (ohne Zeilensprung) benutzt werden.Die Konvergenz des Bildes kann sich auf Grund des Magnetfeldes am Ort der Aufstellung aus der krrekten Grundeinstellung verändern. Zur Korrektur empfiehlt es sich deshalb, die Regler an der Frontseite für H STAT und V STAT so einzustellun, daß die getrennt sichbaren Farblinien für Rot. Grün und Blau bei z.B. der Darstellung eines Buchstabens zur Deckung (Konvergenz) gelangen. Siehe hierzu auch die Erklärungen zu H STAT und V STAT.Industry Canada Compliance StatementThis Class B digital apparatus meets the requirements of the Canadian Interference-Causing Equipment Regulations.Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada.T85A.book Page II Wednesday, October 28, 1998 8:10 PM
IIIDEUTSCH ENGLISHFRANÇAISESPAÑOLITALIANOJAPANESECOMPL & WARRNOM IBM de México, S.A.IBM 9513-Axx TFT LCD Color Monitorr Planta de Manufactura416, Maetan-3Dong, Paldal-GuSuwon City, Kyungki-Do, Korea442-742Hecho en KoreaNOM - 018Consumo de Corriente1.5 AFrecuencia de Operacion50/60 HzRension de Alimentacion100-240 VEuropean Union (EU) StatementThis product has been tested and found to comply with the limits for Class B Information Technology Equipment according to CISPR 22 / European Standard EN 55022. The limits for Class B equipment were derived for typical residential environments to provide reasonable protection against interference with licensed communication devices.Properly shielded and grounded cables and connectors must be used in order to reduce the potential for causing interference to radio and TV communications and to other electrical or electronic equipment. Such cables and connectors are available from IBM authorised dealers.In accordance with EN 50082-1 1992, Performance Criterion A:, it should be noted that in the presence of certain electromagnetic fields, some screen jitter may be observed.T85A.book Page III Wednesday, October 28, 1998 8:10 PM
IVWarrantyFor European warranty terms and conditions, refer to the enclosed IBM Warranty statement, Part Number 72H9623.Statement of Limited WarrantyThe warranties provided by IBM in this Statement of Limited Warranty apply only to Machines you originally purchase for your use, and not for resale, from IBM or your reseller. The term “Machine” means an IBM machine, its features, conversions, upgrades, elements, or accessories, or any combination of them. Unless IBM specifies otherwise, the following warranties apply only in the country where you acquire the Machine. If you have any questions, contact IBM or your reseller.Production StatusEach Machine is manufactured from new parts, or new and serviceable used parts (which perform like new parts). In some cases, the Machine may not be new and may have been previously installed. Regardless of the Machine’s production status, IBM’s warranty terms apply.The IBM WarrantyIBM warrants that each Machine 1) is free from defects in materials and workmanship and 2) conforms to IBM’s Official Published Specifications. The warranty period for a Machine is a specified, fixed period commencing on its Date of Installation. The date on your receipt is the Date of Installation, unless IBM or your reseller informs you otherwise.During the warranty period IBM or your reseller, if authorized by IBM, will provide warranty service under the type of service designated for the Machine and will manage and install engineering changes that apply to the Machine.For IBM or your reseller to provide warranty service for a feature, conversion, or upgrade, IBM or your reseller may require that the Machine on which it is installed be 1) for certain Machines, the designated, serial-numbered Machine and 2) at an engineering-change level compatible with the feature, conversion, or upgrade. Many of these transactions involve the removal of parts and their return to IBM. You represent that all removed parts are genuine and unaltered. A part that replaces a removed part will assume the warranty service status of the replaced part.If a Machine does not function as warranted during the warranty period, IBM or your reseller will repair it or replace it with one that is at least functionally equivalent, without charge. The replacement may not be new, but will be in good working order. If IBM or your reseller is unable to repair or replace the Machine, you may return it to your place of purchase and your money will be refunded.Machine: IBM 9519 LCD Color MonitorsWarranty Period*: 3 years, including backlight•Contact your place of purchase for warranty service informationT85A.book Page IV Wednesday, October 28, 1998 8:10 PM
VDEUTSCH ENGLISHFRANÇAISESPAÑOLITALIANOJAPANESECOMPL & WARRIf you transfer a Machine to another user, warranty service is available to that user for the remainder of the warranty period. You should give your proof of purchase and this Statement to that user. However, for Machines which have a life-time warranty, this warranty is not transferable.Warranty ServiceTo obtain warranty service for the Machine, you should contact your reseller or call IBM. In the United States, call IBM at 1-800-772-2227. In Canada, call IBM at 1-800-565-3344. You may be required to present proof of purchase.IBM or your reseller will provide certain types of repair and exchange service, either at your location or at IBM’s or your reseller’s service center, to restore a Machine to good working order.When a type of service involves the exchange of a Machine or part, the item IBM or your reseller replaces becomes its property and the replacement becomes yours. You represent that all removed items are genuine and unaltered. The replacement may not be new, but will be in good working order and at least functionally equivalent to the item replaced. The replacement assumes the warranty service status of the replaced item. Before IBM or your reseller exchanges a Machine or part, you agree to remove all features, parts, options, alterations, and attachments not under warranty service. You also agree to ensure that the Machine is free of any legal obligations or restrictions that prevent its exchange.You agree to:•obtain authorization from the owner to have IBM or your reseller service a Machine that you do not own; and where applicable, before service is provided :•follow the problem determination, problem analysis, and service request procedures that IBM or your reseller provide, •secure all programs, data, and funds contained in a Machine, and •inform IBM or your reseller of changes in a Machine’s location.IBM is responsible for loss of, or damage to, your Machine while it is 1) in IBM’s possession or 2) in transit in those cases where IBM is responsible for the transportation charges.Extent of WarrantyIBM does not warrant uninterrupted or error-free operation of a Machine.Misuse, accident, modification, unsuitable physical or operating environment, improper maintenance by you, or failure caused by a product for which IBM is not responsible may void the warranties.THESE WARRANTIES REPLACE ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. HOWEVER, SOME LAWS DO NOT ALLOW THE EXCLUSION OF IMPLIED WARRANTIES. iF THESE LAWS APPLY, THEN ALL EXPRESS AND IMPLIED WARRANTIES ARE LIMITED IN DURATION TO THE WARRANTY PERIOD. NO WARRANTIES APPLY AFTER THAT PERIOD.In Canada, warranties include both warranties and conditions.Some jurisdictions do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.T85A.book Page V Wednesday, October 28, 1998 8:10 PM
VIFor European warranty terms and conditions refer to enclosed IBM warranty statement Part Number 72H9623.Référez-vous à la garantie IBM N° de référence 72H9623 pour les condtions de garantie européennes.Die europäischen Garantiebedingungen finden Sie in der beigefügten IBM-Gewährleistungserklärung, Teilenummer 72H9623.Los términos y condiciones de las garantías en Europa se recogen en la declaración de garantía adjunta del número de pieza IBM 72H9623.Per le condizioni e i termini de garanzia relativi ai paesi europei, consultare l’apposita dichiarazione IBM (numero di matricola 72H9623).T85A.book Page VI Wednesday, October 28, 1998 8:10 PM
