Wireless LAN Samsung Electronic Co., LTD BCM94306MP Mini-PCI Adapter User's Manual Mar. 20, 2003 (Draft 1.0) User manual Wireless LAN 11 Mbps 1

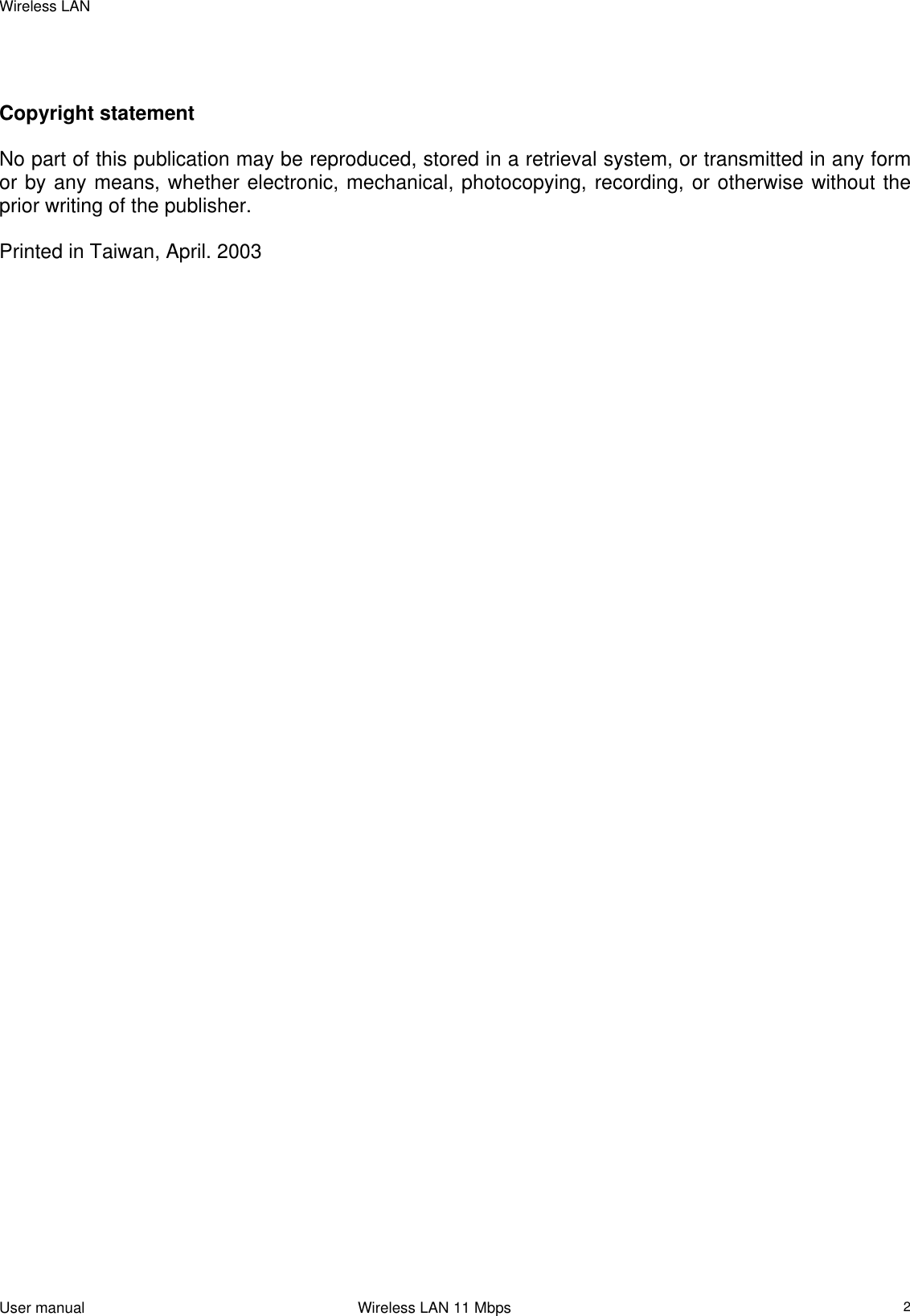

Wireless LAN Copyright statement No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, whether electronic, mechanical, photocopying, recording, or otherwise without the prior writing of the publisher. Printed in Taiwan, April. 2003 User manual Wireless LAN 11 Mbps 2

Wireless LAN 1. Introduction Thank you for purchasing your Wireless LAN, Wireless LAN mini-PCI Adapter. This manual will assist you with the installation procedure. The package you have received should contain the following items: • User manual • CD containing Wireless LAN Management utility and drivers Note: if anything is missing, please contact your vendor The CD contains drivers and Configuration Utility program that is used for managing the Wireless LAN Card and establishing the wireless connection with your Local Area Network. User manual Wireless LAN 11 Mbps 4

Wireless LAN 2. Wireless LAN Basics Wireless LAN (Local Area Networks) systems offer a great number of advantages over a traditional, wired system. Wireless LANs (WLANs) are more flexible, easier to setup and manage and often more cost effective than their wired equivalence. Using radio frequency (RF) technology, WLANs transmit and receive data over the air, minimizing the need for wired connections. Thus, WLANs combine data connectivity with user mobility, and, through simplified configuration, enable movable LANs. With wireless LANs, users can access shared information without looking for a place to plug in and network managers can set up or augment networks without installing or moving wires. Wireless LANs offer the following productivity, convenience and cost advantages over traditional wired networks: • Mobility - Wireless LAN systems can provide LAN users with access to real-time information anywhere in their organization. This mobility supports productivity and service opportunities not possible with wired networks. • Installation Speed and Simplicity - Installing a wireless LAN system can be fast and easy and can eliminate the need to pull cable through walls and ceilings. • Installation Flexibility - Wireless technology allows the network to go where wires cannot go. • Reduced Cost-of-Ownership - While the initial investment required for wireless LAN hardware might be higher than the cost of wired LAN hardware, overall installation expenses and life-cycle costs will be significantly lower. Long-term cost benefits are greatest in dynamic environments requiring frequent moves, adds, and changes. • Scalability - Wireless LAN systems can be configured in a variety of topologies to meet the needs of specific applications and installations. Configurations are easily changed and range from peer-to-peer to full infrastructure networks, also allow roaming over a broad area. User manual Wireless LAN 11 Mbps 5

Wireless LAN 3. Installation for Windows platform The following section will assist you to in installing wireless LAN Adapter successfully. You will first install software (Utility) and then set the network properties to accommodate resource sharing and select the type of wireless network that you wish to install. User manual Wireless LAN 11 Mbps 6

Wireless LAN 3.1. Installation Overview Here are some steps you will perform in establishing your wireless network connection:  Install the Access Point at first. AP is needed in case of Infrastructure network mode.  Install the software using the Install CD.  Install the network protocol(s) required to communicate on your network. Most likely you will need the TCP/IP protocol. User manual Wireless LAN 11 Mbps 7

Wireless LAN 3.2. Install Procedure for Windows XP 1. Insert the given Installation CD in the CD-ROM and then click on the Setup. Follow the instruction to finish the installation. Select “Install the software automatically (Recommended) ”, and then click Next to continue. Once your system detected the driver, Microsoft will show a warning message as below. User manual Wireless LAN 11 Mbps 8Click “ Continue Anyway ” for next step.

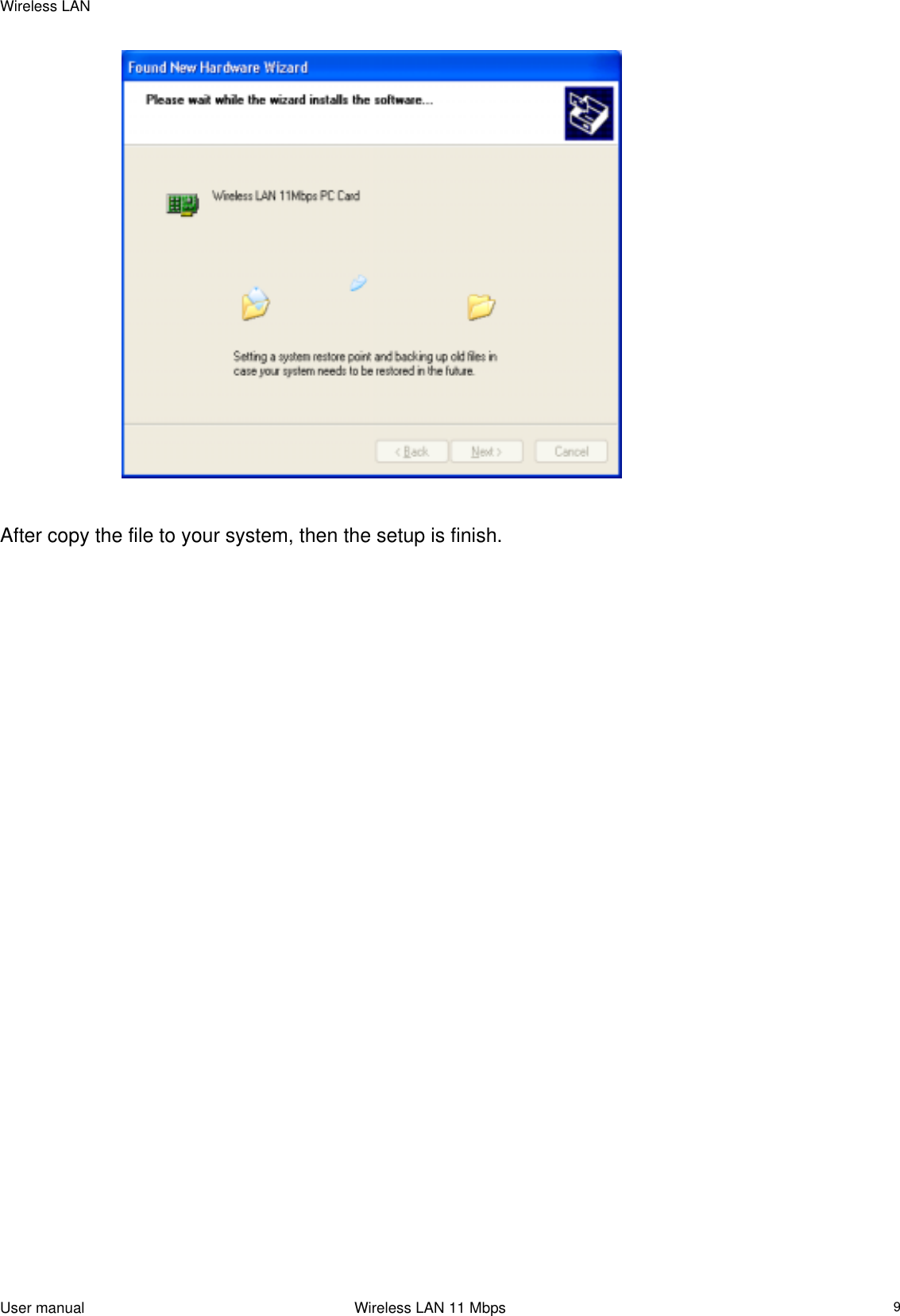

Wireless LAN After copy the file to your system, then the setup is finish. User manual Wireless LAN 11 Mbps 9

Wireless LAN 3.3. Install Procedure for Windows 98/ME/2000 Please follow the following steps one by one in order to install the software successfully. 1. Power on your computer and allow Windows 98/ME/2000 to load fully. 2. Insert the given Installation CD in the CD-ROM and then click on the Setup. At the “ Welcome” window, click Next. 3. Accept the license agreement. User manual Wireless LAN 11 Mbps 10

Wireless LAN Accept the license agreement. Click Yes to accept. Click Yes to finish the setup. Windows will recognize the WLAN adapter and auto detect the driver, if the system did not find the driver automatically, please install the driver manually. User manual Wireless LAN 11 Mbps 11

Wireless LAN . Click Yes to finish the installation. 4. Click the right button of mouse on My Computer  Properties  Device Manager. Check whether it has WLAN adapter in one of the sockets or not. If you find Wireless LAN 11Mbps Adapter in one of the sockets, it means the card is detected properly. User manual Wireless LAN 11 Mbps 12

Wireless LAN 5. Click right button of mouse on the Network Neighborhood . 6. Select Properties from the pop up menu. The network box appears and you see three main tables: Configuration, Identification, and Access Control. User manual Wireless LAN 11 Mbps 13

Wireless LAN 7. Click on the Configuration tab and then click on the Add button. Select Network Component Type box appears. Click on the Protocol the click the Add button. 8. Select Network Protocols box appears. From the list of manufactures, click on Microsoft. From the list of network protocols list, select NetBEUI, then click OK. User manual Wireless LAN 11 Mbps 14

Wireless LAN 9. The NetBEUI protocol is now installed. After clicking on OK return back to Network Component Type box. 10. Repeat the step 15 and 16 to add IPX/SPX protocol. 11. Repeat the step 15 and 16 to add TCP/IP protocol. 12. Click on the TCP/IP option for setting the IP address for your computer. You can select either Static or DHCP setting. If you use the static IP setup then enter the IP value, Subnet masking, DNS, Domain/ Workgroup name, and Gateway Address values. After setting these parameters appropriately, click OK to return to Network Component Type and you can select the File and Printer Sharing options as well as the Access to your computer like other users connected to that network by setting the computer sharing options. Click on OK. 13. Screen message do want to restart your Computer will pop up. Select Yes. It will shut down your computer and restart. Important: Restart your computer to make the changes effective before you reinstall thedriver. User manual Wireless LAN 11 Mbps 15

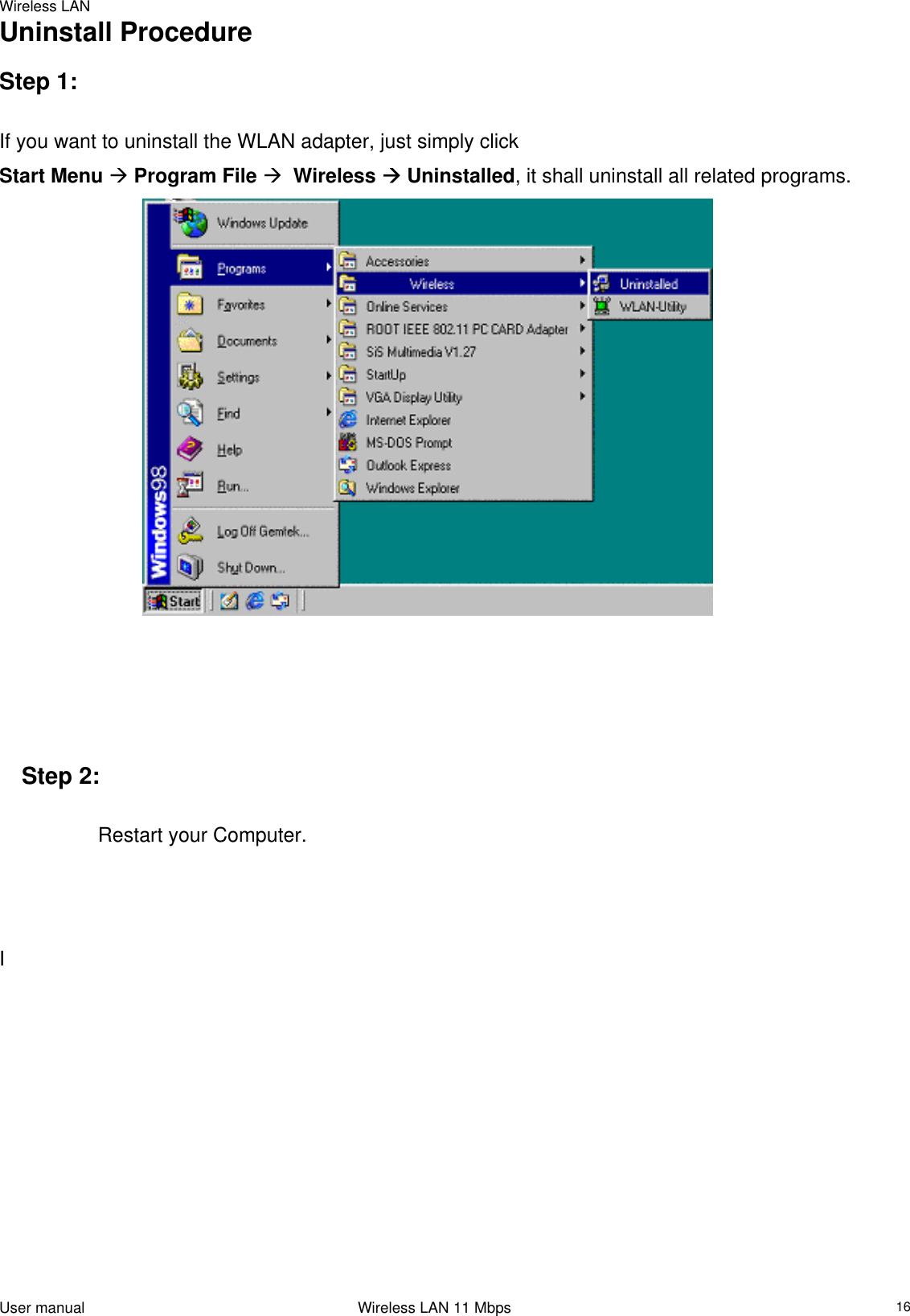

Wireless LAN Uninstall Procedure Step 1: If you want to uninstall the WLAN adapter, just simply click Start Menu  Program File  Wireless  Uninstalled, it shall uninstall all related programs. Step 2: Restart your Computer. I User manual Wireless LAN 11 Mbps 16

Wireless LAN 4. Configuration Utility Wireless LAN 11 Mbps Wireless LAN adapter uses its own management software. All functions controlled by user are provided by this application. Usually this application starts automatically, or click icon from Start Menu to start the Utility application. A new icon - should appear in your Icon tray. If the icon is in red, it means that Wireless LAN 11 Mbps NIC configuration is invalid or incomplete. Sometimes icon can be colored in red. This may happen when communication is defined poor connection or incorrectly. Figure 1 Icon tray with a new icon User can navigate through “sheets”, by clicking tabs. “X” button will minimize window. Below description explains the use and meanings of the various screen messages. User manual Wireless LAN 11 Mbps 17

Wireless LAN 4.1 Link Status - Status This field is used to display the current status of connection. When the state shows “Connected to SSID“means normal flow of operation in Infrastructure mode. The PC is connected to access point. Networking is available. A state of “Scanning” means that the node is searching for available access point and unable detects the SSID for an available access point within range. This field will also display an error message for some reason if the driver failed to initialize. Network Type Infrastructure Mode - The driver will scan all available channels continuously until it finds one or more Access Points that matches its SSID. At that point it will try and authenticate and associate with the Access Point. Ad Hoc Mode - The driver will scan for 5 seconds looking for an existing Ad Hoc network using the same SSID. - Current Channel and Transmit Rate Shows the channel of the radio and transmit rate are being currently used for an active connection. This value has no meaning when the radio is “Scanning” - Link Quality The Link Quality bar graph is only active when the node is in Infrastructure Mode. The bar graph displays the quality of the link between the node and Access Point. It summarizes the quality of the link over the bar graph, which can take on one of the following values: “Poor” “Fair” “Good” “Very Good” “Excellent” - Signal Strength The Signal Strength bar graph is only active when the node is in Infrastructure Mode. The bar graph displays normalized signal strength as reported by the radio, averaged over all frames over 100 bytes long that are received from the Access Point. User manual Wireless LAN 11 Mbps 18

Wireless LAN - Network Type This field allows you to select from a list of supported Network “Modes”. The modes displayed will have two values: “Ad Hoc” and “Infrastructure”. Ad Hoc - This is the 802.11 peer-to-peer mode of operation. In 802.11Ad Hoc only one wireless “cell” is supported for each different SSID. All communication is done from Client to Client without the use of an Access Point. 802.11 Ad Hoc networking uses the same SSID for establishing the wireless connection. Infrastructure - This mode of operation requires the presence of an 802.11 Access Point. All communication is done via the Access Point, which relays packets to other wireless Clients in the BSS as well as to nodes on a wired network such as Ethernet. Transmit Rate – The transmission rate at which client of AP transmits the data packets. You may set this to fixed 1Mbps, fixed 2 Mbps, fixed 5.5 Mbps or 11 Mbps. Encryption (WEP) - You may desire an additional measure of security on your wireless network, which can be achieved by using WEP (Wired Equivalent Privacy) encryption. When an encrypted frame is received it will only be accepted if it decrypts correctly. This will only happen if the receiver has the WEP Key used by the transmitter. This panel allows to entry for 64/128-bit encryption according to WEP function select. To be written to the driver and registry, such as Hexadecimal format, each key must consist of hex digits, which means that only digit 0-9 and letters A-F are valid entries. If entered incorrectly program will not write keys to a driver. . User manual Wireless LAN 11 Mbps 21

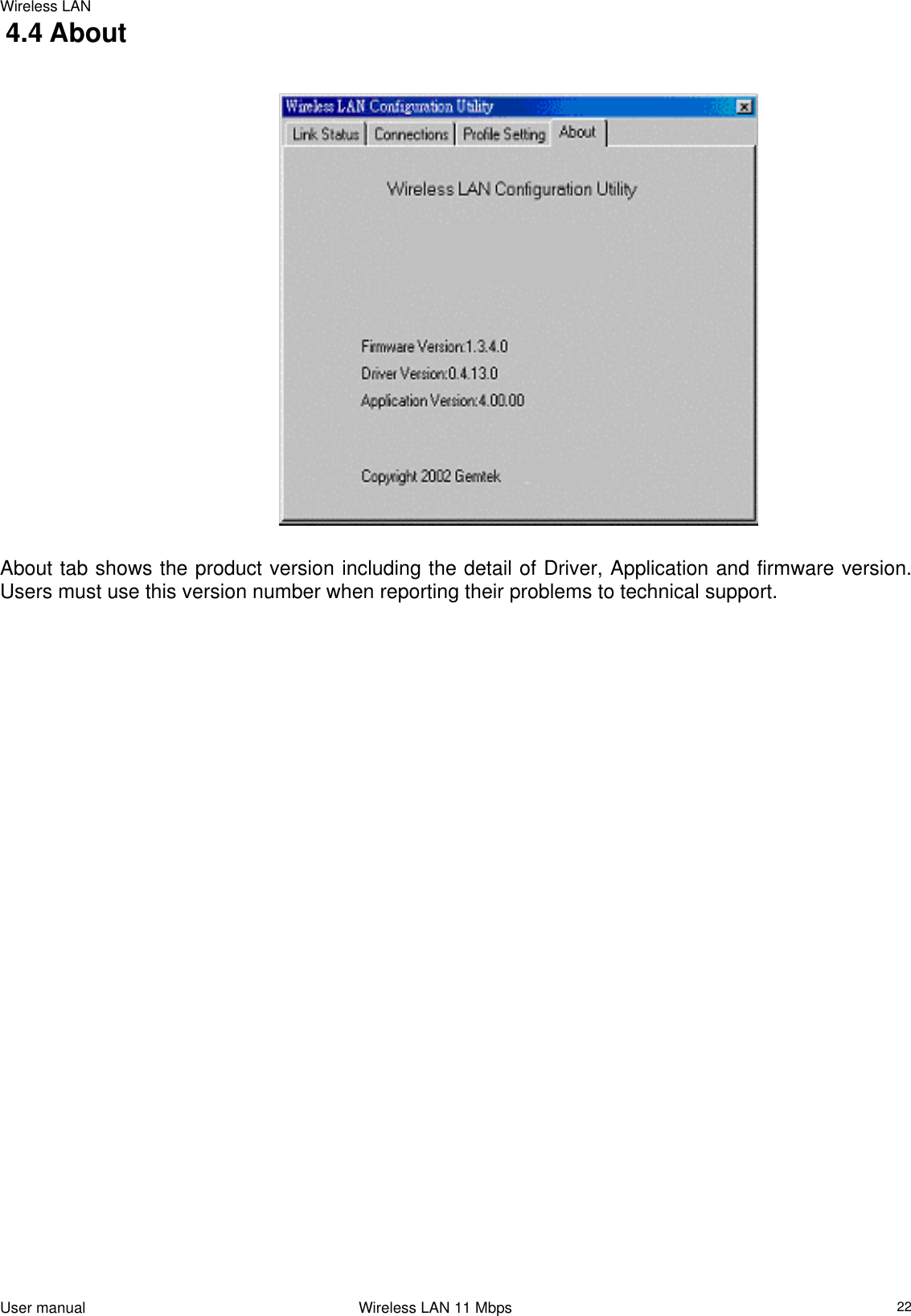

Wireless LAN 4.4 About About tab shows the product version including the detail of Driver, Application and firmware version. Users must use this version number when reporting their problems to technical support. User manual Wireless LAN 11 Mbps 22

Wireless LAN 4.5 Windows XP Zero Configuration Microsoft provides Windows XP Zero Configuration, which means user doesn’t need to use software provided by the manufacturer. Instead, Windows XP recognizes the adapter and provides the necessary driver and configuration software. If your station is within range of a WLAN, Windows XP announces that one or more wireless networks are available and suggests that you click the Network icon to see a list of available networks. Configuring Automatic Network Connections To configure one or more wireless networks for auto connection, follow these steps: 1. Right-click a Network icon in the notification area at the bottom of the screen to display a pop-up menu. Click the Open Network Connections option. 2. Right-click the Wireless Network Connection icon and click Properties in the Pop-up menu. Windows XP displays the Wireless Network Connection Properties dialog. 3. Click the Wireless Networks tab, shown as below. Notice that the wireless network that was present when you first inserted the wireless NIC is already listed. User manual Wireless LAN 11 Mbps 23

Wireless LAN 4. To add another network to the list, click the Add button on the Wireless Networks tab to display the Wireless Network Properties dialog. 5. Type a network name ( SSID) in the Network name test box. 6. If you have implemented a system automatically providing users with network keys and /or WEP keys, click OK to save this network SSID and move on to the next network that you want to configure. 7. If you are setting up an ad hoc mode wireless connection, click the last check box in the dialog. Otherwise, if you are configuring a connection to an AP, leave the check box uncheck and click OK. Windows XP adds the network to the list of preferred networks in the Wireless Network Connection Properties dialog box. 8. When you finish adding all wireless networks to which you expect this computer to need access, click OK. Note: XP includes support for IEEE 802.1X standard for port –level authentication of stations in the network. User manual Wireless LAN 11 Mbps 24

Wireless LAN 5. Hardware Installation The BCM94306MP mini-PCI also can be installed in Access Point or Router as an RF module. ( p.s. this is only for OEM vendor, not for public end users ) 1. Insert the mini-PCI module into the socket of AP/Router platform. User manual Wireless LAN 11 Mbps 25

Wireless LAN User manual Wireless LAN 11 Mbps 26

Wireless LAN 6. Troubleshooting If you encounter any problems during the installation, or to confirm that the WLAN 11Mbps device is installed properly, please read the following troubleshooting section. In Windows 98: To check that the WLAN 11Mbps device is installed properly, please do the following: 1. Go to START>SETTINGS>CONTROL PANEL>NETWORK. Choose the Configuration Tab. If you find the WLAN 11Mbps Adapter, it means the card is installed properly. If you see the Yellow Question-mark (?) means the resources are conflicting. (Please read further in this section for solutions.) -or- 2. Right click on My Computer and select Properties. Select the Device Manager and click on the Network Adapter. You will find the WLAN 11Mbps Adapter if it is installed successfully. If you see the Yellow sign, the resources are conflicting. Click on the PCMCIA Card and then on the PCMCIA Card Service, you can see the status of the PC card. If there is a yellow sign either on the adapter or the PC card, please check the following. 1. Check to see if your computer supports 3.3V Card. 2. Check to see if your computer has a free IRQ. If not, make an IRQ free by assigning the same IRQ to some devices, for example COM 1; COM 2 can be assigned the same IRQ values. 3. Check that you have inserted the right card and have installed the proper driver. User manual Wireless LAN 11 Mbps 27

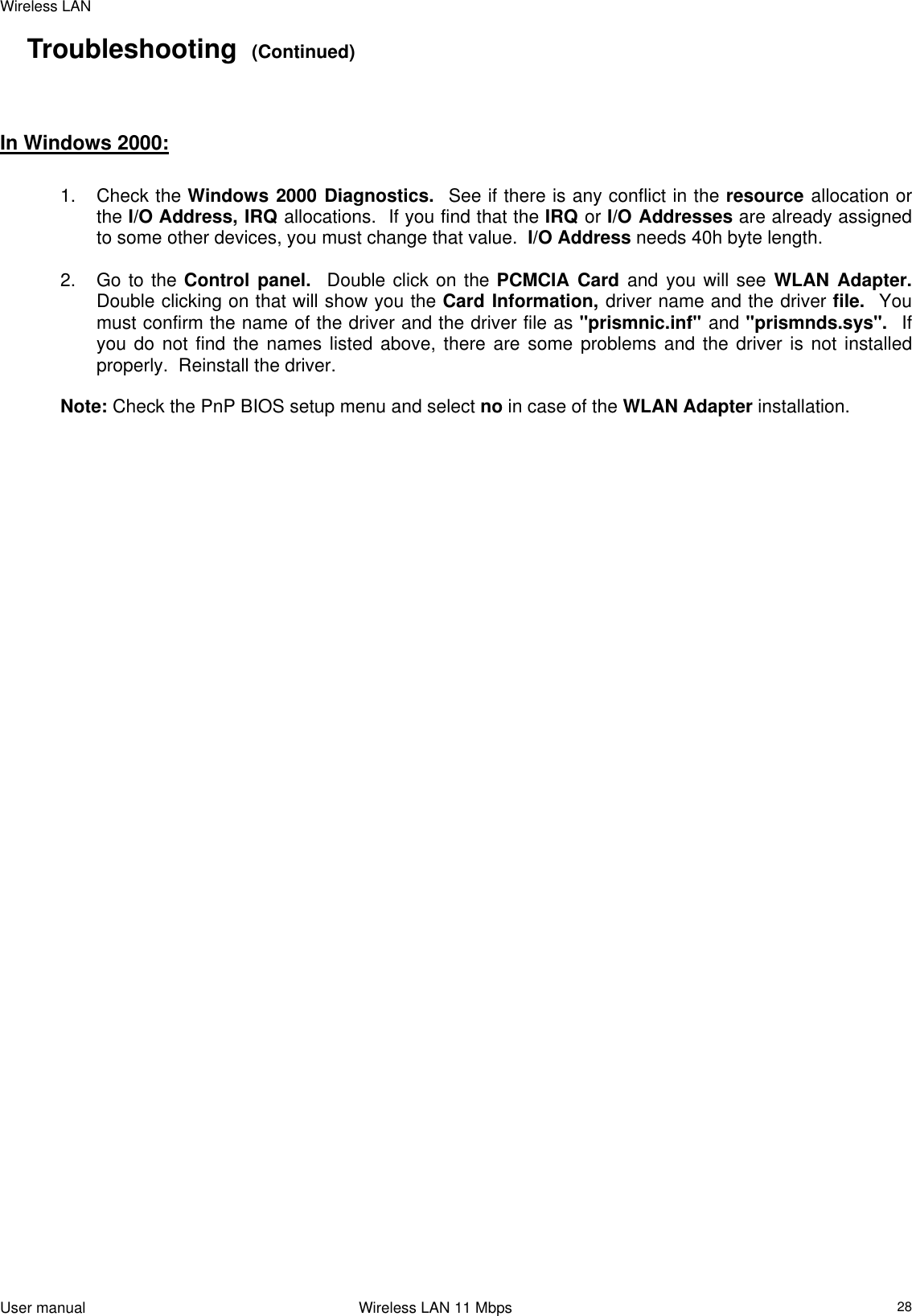

Wireless LAN Troubleshooting (Continued) In Windows 2000: 1. Check the Windows 2000 Diagnostics. See if there is any conflict in the resource allocation or the I/O Address, IRQ allocations. If you find that the IRQ or I/O Addresses are already assigned to some other devices, you must change that value. I/O Address needs 40h byte length. 2. Go to the Control panel. Double click on the PCMCIA Card and you will see WLAN Adapter. Double clicking on that will show you the Card Information, driver name and the driver file. You must confirm the name of the driver and the driver file as "prismnic.inf" and "prismnds.sys". If you do not find the names listed above, there are some problems and the driver is not installed properly. Reinstall the driver. Note: Check the PnP BIOS setup menu and select no in case of the WLAN Adapter installation. User manual Wireless LAN 11 Mbps 28

Wireless LAN 7. Technical specifications of Wireless LAN Driver support - Windows XP − Windows 98 − Windows 2000 − Windows ME - Win CE (Strong ARM platform) Standards supported − IEEE 802.11 standard for Wireless LAN − All major networking standards (including TCP/IP, IPX) Environmental Operating temperature (ambient): − -10°C to 50°C (Operating),-20 to 70°C (Storing) − Max. Humidity: 95% Non-condensing Power specifications − Nominal Temp Range: 17 dBm − Extended Temp Range: 14 dBm min. − Transmit Power, 2.7v to 3v: 14 dBm min. Radio specifications Range: − per cell indoors approx. 35-100 meters or more − per cell outdoors up to 100-300 meters Frequency range: − 2.4-2.4835 GHz, direct sequence spread spectrum Number of Channels: − Europe: 13 (1-13 ) − US: 11 (1-11 ) − France: 4 (10-13 ) − Japan: 14 (1-14 ) Antenna system: − Internal patch antenna supporting diversity. Mobility: − Seamless roaming across cell boundaries with handover User manual Wireless LAN 11 Mbps 29

Wireless LAN Specific features Supported bit rates: − 11 Mbps − 5.5 Mbps − 2 Mbps − 1 Mbps Data encryption: − 64 /128 bit WEP Encryption Utility Software: − Management utility software User manual Wireless LAN 11 Mbps 30

Wireless LAN Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: To assure continued compliance, (example - use only shielded interface cables when connecting to computer or peripheral devices). Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IMPORTANT NOTE: FCC RF Radiation Exposure Statement: This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. User manual Wireless LAN 11 Mbps 31

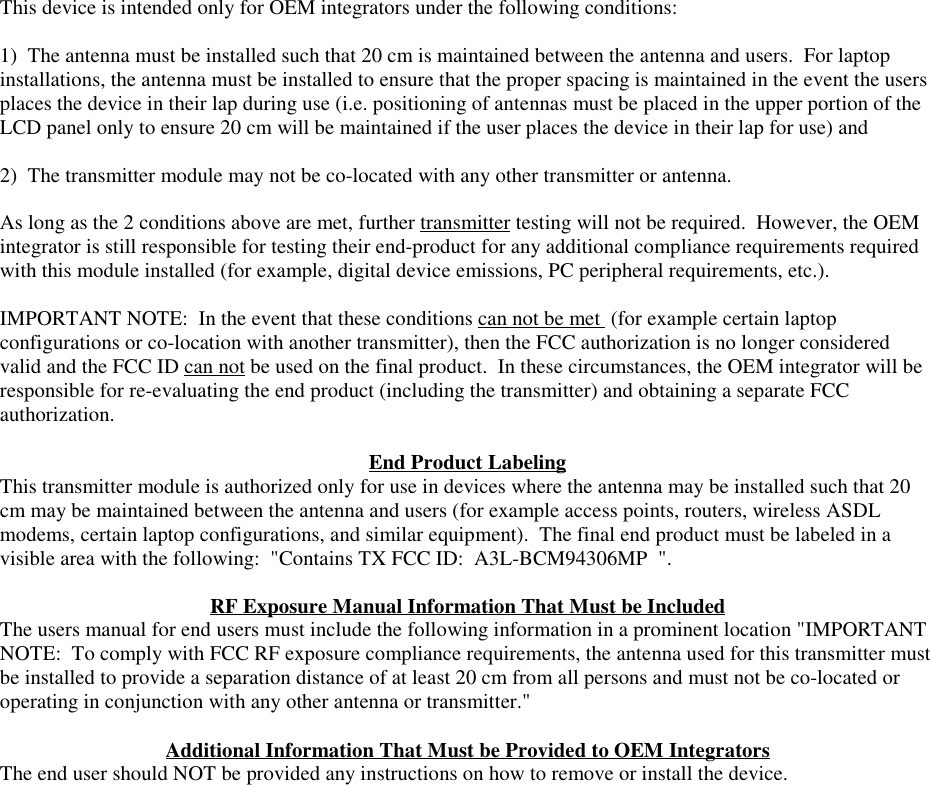

This device is intended only for OEM integrators under the following conditions:1) The antenna must be installed such that 20 cm is maintained between the antenna and users. For laptopinstallations, the antenna must be installed to ensure that the proper spacing is maintained in the event the usersplaces the device in their lap during use (i.e. positioning of antennas must be placed in the upper portion of theLCD panel only to ensure 20 cm will be maintained if the user places the device in their lap for use) and2) The transmitter module may not be co-located with any other transmitter or antenna.As long as the 2 conditions above are met, further transmitter testing will not be required. However, the OEMintegrator is still responsible for testing their end-product for any additional compliance requirements requiredwith this module installed (for example, digital device emissions, PC peripheral requirements, etc.).IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptopconfigurations or co-location with another transmitter), then the FCC authorization is no longer consideredvalid and the FCC ID can not be used on the final product. In these circumstances, the OEM integrator will beresponsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCCauthorization.End Product LabelingThis transmitter module is authorized only for use in devices where the antenna may be installed such that 20cm may be maintained between the antenna and users (for example access points, routers, wireless ASDLmodems, certain laptop configurations, and similar equipment). The final end product must be labeled in avisible area with the following: "Contains TX FCC ID: A3L-BCM94306MP ".RF Exposure Manual Information That Must be IncludedThe users manual for end users must include the following information in a prominent location "IMPORTANTNOTE: To comply with FCC RF exposure compliance requirements, the antenna used for this transmitter mustbe installed to provide a separation distance of at least 20 cm from all persons and must not be co-located oroperating in conjunction with any other antenna or transmitter."Additional Information That Must be Provided to OEM IntegratorsThe end user should NOT be provided any instructions on how to remove or install the device.

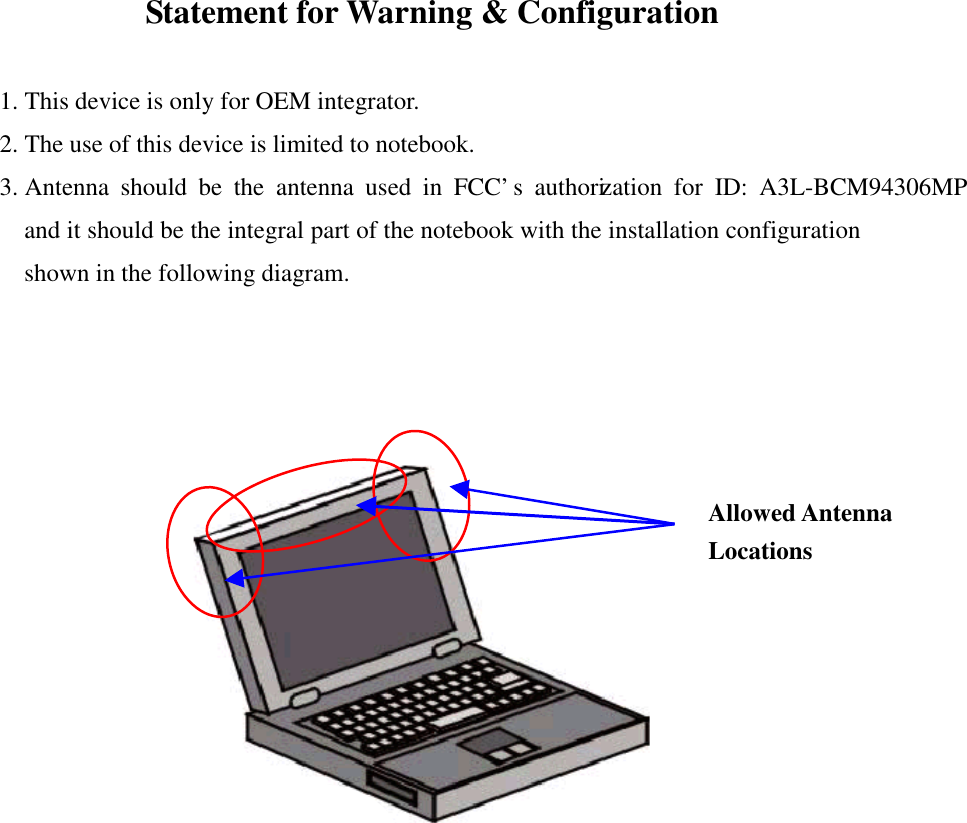

Statement for Warning & Configuration1. This device is only for OEM integrator.2. The use of this device is limited to notebook.3. Antenna should be the antenna used in FCC’s authorization for ID: A3L-BCM94306MP and it should be the integral part of the notebook with the installation configurationshown in the following diagram.Allowed AntennaLocations

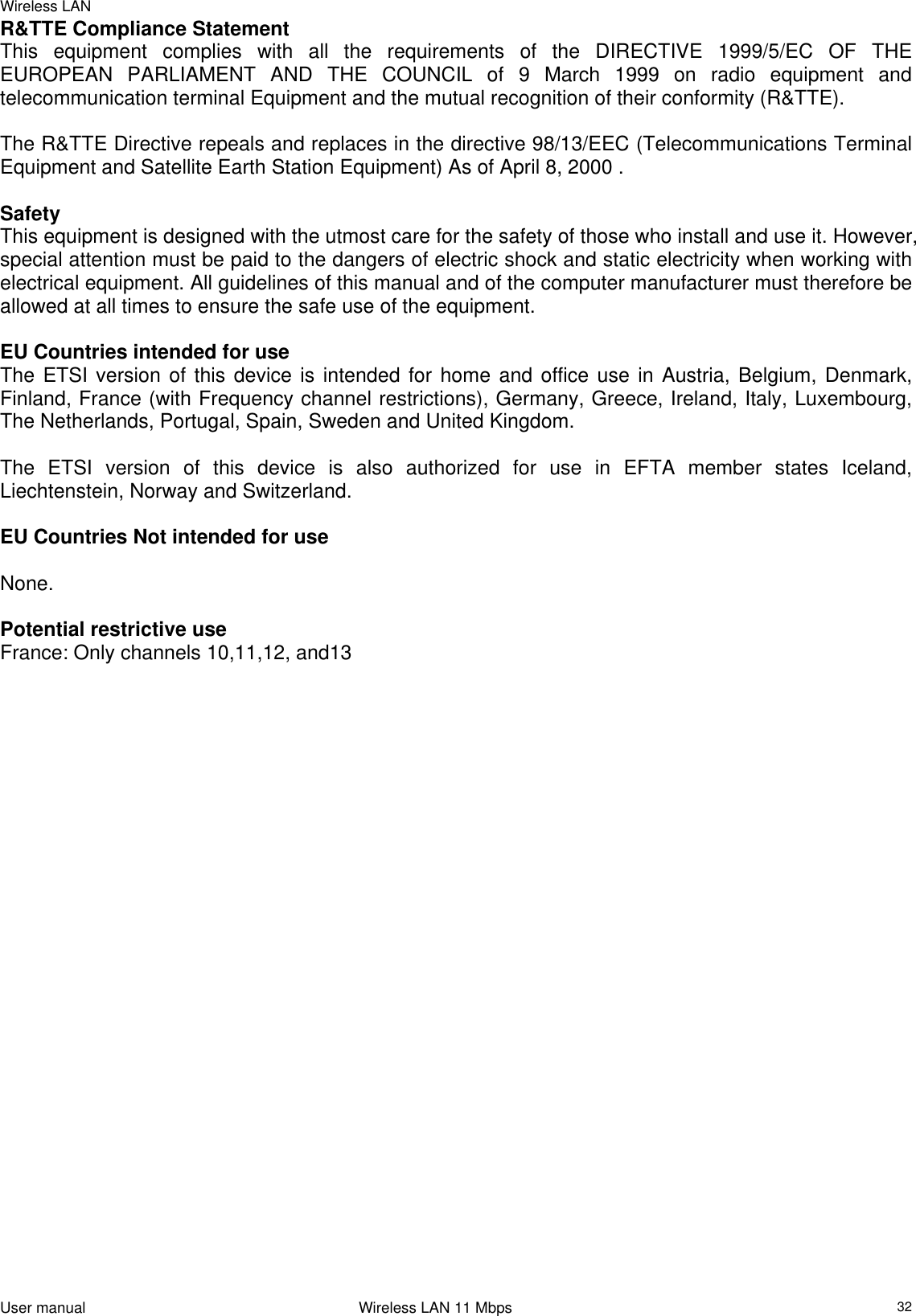

Wireless LAN R&TTE Compliance Statement This equipment complies with all the requirements of the DIRECTIVE 1999/5/EC OF THE EUROPEAN PARLIAMENT AND THE COUNCIL of 9 March 1999 on radio equipment and telecommunication terminal Equipment and the mutual recognition of their conformity (R&TTE). The R&TTE Directive repeals and replaces in the directive 98/13/EEC (Telecommunications Terminal Equipment and Satellite Earth Station Equipment) As of April 8, 2000 . Safety This equipment is designed with the utmost care for the safety of those who install and use it. However, special attention must be paid to the dangers of electric shock and static electricity when working with electrical equipment. All guidelines of this manual and of the computer manufacturer must therefore be allowed at all times to ensure the safe use of the equipment. EU Countries intended for use The ETSI version of this device is intended for home and office use in Austria, Belgium, Denmark, Finland, France (with Frequency channel restrictions), Germany, Greece, Ireland, Italy, Luxembourg, The Netherlands, Portugal, Spain, Sweden and United Kingdom. The ETSI version of this device is also authorized for use in EFTA member states Iceland, Liechtenstein, Norway and Switzerland. EU Countries Not intended for use None. Potential restrictive use France: Only channels 10,11,12, and13 User manual Wireless LAN 11 Mbps 32
