Samsung Electronics Co BKB-A Bluetooth KEY BOARD User Manual

Samsung Electronics Co Ltd Bluetooth KEY BOARD

User Manual

www.samsung.com Type E. 12/2011. Draft01
English .................................................................1
1EnglishContentsGetting startedYour keyboard overview ........................................................................................................... 4Charging the keyboard ............................................................................................................. 5Using your keyboardTurning the keyboard on or off .............................................................................................. 8Pairing and connecting the keyboard ................................................................................. 8Key functions .............................................................................................................................11AppendixSpecifications ..............................................................................................................................14Correct disposal of this product ...........................................................................................15Correct disposal of batteries in this product ...................................................................16English
2Please read all Safety precautions before using your device to ensure safe and proper use.Safety precautionsDo not touch your device with wet hands. •Avoid exposing your device to very cold or very hot temperatures. Extreme temperatures can cause the •deformation of the device and reduce the life of your device.Keep your device dry. Humidity and all types of liquids may damage device parts or electronic circuits. When •wet, dry your device with a towel and take it to a service centre.Do not use or store your device in dusty, dirty areas. Dust can cause your device to malfunction.•Do not drop or cause an impact to your device. If bent or deformed, your device may be damaged or parts •may malfunction.Do not disassemble, modify, or repair your device. Any changes or modifications to your device can void your •manufacturer’s warranty. For service, take your device to a Samsung Service Centre.Do not paint or put stickers on your device. Paint and stickers can clog moving parts and prevent proper •operation. If you are allergic to paint or metal parts of the product, you may experience itching, eczema, or swelling of the skin. When this happens, stop using the product and consult your physician.When cleaning your device : Wipe your device with a towel or an eraser.•Do not use chemicals or detergents.•
3EnglishDo not use the device for anything other than its intended use.•Do not allow children to use it as they could hurt themselves and others, damage the device.•CopyrightCopyright © 2011 Samsung ElectronicsThis manual is protected under international copyright laws.No part of this manual may be reproduced, distributed, translated, or transmitted in any form or by any means, electronic or mechanical, including photocopying, recording, or storing in any information storage and retrieval system, without the prior written permission of Samsung Electronics.TrademarksSAMSUNG, and the SAMSUNG logo are registered trademarks of Samsung Electronics.•Bluetooth® is a registered trademark of the Bluetooth SIG, Inc. worldwide. More information about Bluetooth •is available at www.bluetooth.comAll other trademarks and copyrights are the property of their respective owners.•Instructional iconsWarning & Caution Note
4Getting startedYour keyboard overviewMake sure you have the following items: Bluetooth keyboard, travel adapter and user manual. The supplied items may vary. keysCaps lock status indicatorPower switchPairing ButtonBluetooth indicatorCharging socket
5EnglishCharging the keyboardThis keyboard has a rechargeable internal battery which is non-removable. Make sure the keyboard is fully charged before using it for the first time. Use only Samsung-approved chargers. Unauthorised or Non-Samsung chargers could cause damage to the device or in extreme circumstances an explosion, it could also invalidate any warranty on the product.Connect the 1. travel adapter to the charging socket on the keyboard.Plug the 2. travel adapter in to the wall outlet. During charging, the Power indicator will turn red. If charging does not begin, unplug the travel adapter and plug it in again.When the keyboard is fully charged, the power indicator 3. light changes to blue. Unplug the charger from the wall outlet and the keyboard.
6Repeatedly charging and discharging of the keyboard, over time will cause the battery •performance to diminish. This is normal for all rechargeable batteries.To save energy, unplug the travel adapter when not in use. The travel adapter does not •have a power switch, so you must unplug it from the outlet when not in use to avoid wasting power. The travel adapter should remain close to the socket when in use.Checking the battery levelTo check the battery level, press and hold the [Ctrl] key (located on the left corner) for 3 seconds. Depending on the battery level, the indicator flashes 5 times in one of the following colours:Battery level Power indicator colourAbove 80% Blue80 ~20% VioletBelow 20% Red
7EnglishUsing your keyboardThis section explains how to turn the keyboard on or off, pair and connect the keyboard to the other bluetooth devices, and use various functions.Some devices, especially those that are not tested or approved by the Bluetooth Special •Interest Group (SIG), may be incompatible with your keyboard.Keep the distance between your keyboard and device as small as possible and avoid •placing your body or other objects in the signals path.

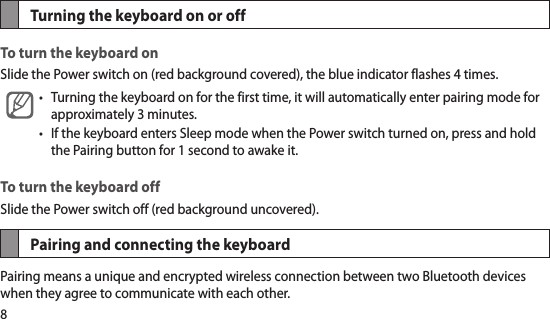

8Turning the keyboard on or offTo turn the keyboard onSlide the Power switch on (red background covered), the blue indicator flashes 4 times. Turning the keyboard on for the first time, it will automatically enter pairing mode for •approximately 3 minutes. If the keyboard enters Sleep mode when the Power switch turned on, press and hold •the Pairing button for 1 second to awake it. To turn the keyboard offSlide the Power switch off (red background uncovered).Pairing and connecting the keyboardPairing means a unique and encrypted wireless connection between two Bluetooth devices when they agree to communicate with each other.
9EnglishIn Pairing mode, two devices should be placed close enough.Pairing and connecting the keyboard with a phone or tabletEnter Pairing mode. (1. The blue indicator stays lit and stays for 3 minutes.)With the keyboard turned on, press and hold the Pairing button for 3 seconds.•Activate the Bluetooth feature on your phone or tablet and search for the keyboard in order to 2. pair with each other (see your phone or tablet’s user manual).Select the keyboard (Samsung Bluetooth Keyboard BKB-A) from the list of devices found by 3. your phone or tablet.Type in the PIN at your keyboard (*it will not show on your screen) and then press [Enter]. 4. If they are connected successfully, the LED light will flash in every six seconds of interval after 5. rapidly flashing three times. You can also check pairing states in Bluetooth settings of your phone or tablet. Once pairing is completed, the keyboard will attempt to reconnect to the last device for 10 seconds each time you turn it on.
10The power indicator will go into sleep mode after one minute of no disturbance. •However, it will resume flashing once a key is pressed.Without charger connected, the keyboard will be turned off when bluetooth •connection is not made for 3 minutes to save energy.Reconnecting the keyboard If the connection is lost while in use: Use the Bluetooth settings on your phone or tablet.•Press any key on the keyboard or turn the power off and on again.•Disconnecting the keyboardTurn off the keyboard or use the Bluetooth settings on your phone or tablet .
11EnglishKey functions Before using the keyboard, you should set the language to be used. For details how to set a language, refer to your phone or tablet’s user manual.1 2 6 743 8 910   11 5AC D E F G HBThe functionality of some keys will depend on the software version installed on your •phone or tablet. To upgrade the software on your device, please refer to its manual.[Alt Gr/Ctrl] key may differ depending on the regions.•
121Return to the previous screen.2Return to the idle screen.3Open the list of recent applications.4Launch the Web browser.5Launch the Mail account.6Turn the screen on or off.7 Set the brightness of the display.8  Adjust the device’s volume.9While playing media files, Pause or resume a video, music files, or slideshows.Move to the previous/next file.10 Display android applications. 11 Show android menu.
13EnglishBHide/show the keypad on the screen.CLaunch the Google Search; Open the search input window from any applications.DLaunch the Voice Search.ESelect a display language. This feature is available only when you have selected more than two languages in your devices language settings.FHide/show Time, Date and Application indicator.A / G / Enter the character entities imprinted on the keyboard. (The characters shown may differ depending on the regions.) It can be used with shift key.H Move cursor or system caret;[AltGr / Ctrl] + [▲] = Page Up [AltGr / Ctrl] + [▼] = Page Down [AltGr / Ctrl] + [◄] = Home [AltGr / Ctrl] + [►] = End❖[Alt Gr/Ctrl] key may differ depending on the regions.

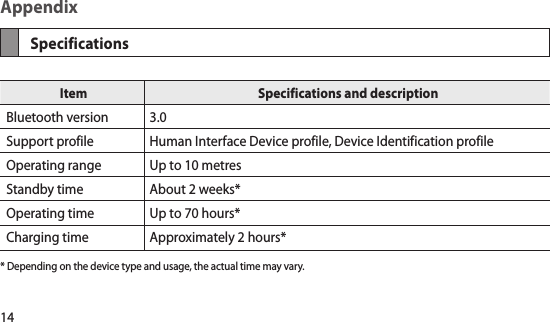

14AppendixSpecificationsItem Specifications and descriptionBluetooth version 3.0Support profile Human Interface Device profile, Device Identification profileOperating range Up to 10 metresStandby time About 2 weeks*Operating time Up to 70 hours*Charging time Approximately 2 hours** Depending on the device type and usage, the actual time may vary.
15EnglishCorrect disposal of this product(Waste Electrical & Electronic Equipment)(Applicable in the European Union and other European countries with separate collection systems)This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling.Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.

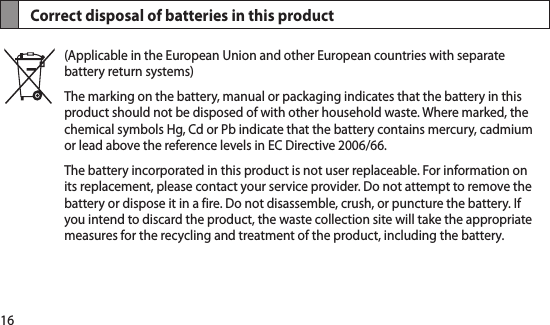

16Correct disposal of batteries in this product(Applicable in the European Union and other European countries with separate battery return systems)The marking on the battery, manual or packaging indicates that the battery in this product should not be disposed of with other household waste. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66. The battery incorporated in this product is not user replaceable. For information on its replacement, please contact your service provider. Do not attempt to remove the battery or dispose it in a fire. Do not disassemble, crush, or puncture the battery. If you intend to discard the product, the waste collection site will take the appropriate measures for the recycling and treatment of the product, including the battery.
