Samsung Electronics Co BN8109990A Magic Presenter Dongle User Manual
Samsung Electronics Co Ltd Magic Presenter Dongle
User manual
Magic Presenter is a digital pointer used with LFDs. Magic Presenter allows you to do presentations free
from space limitations or obstacles that may get in the way when using laser pointers.
Components
Check to make sure that no component is missing from the package. Provided components are:
xMagic Presenter_Pointer, Magic Presenter_Dongle, batteries and a user guide
xIn this quick guide, the pointer refers to Magic Presenter_Pointer and the dongle refers to Magic
Presenter_Dongle.
xThe dongle comes with a user guide in PDF and an executable program for Magic Presenter.
xThe product warranty is valid for one year. Refer to the user guide that came with the dongle for
details on warranty conditions.

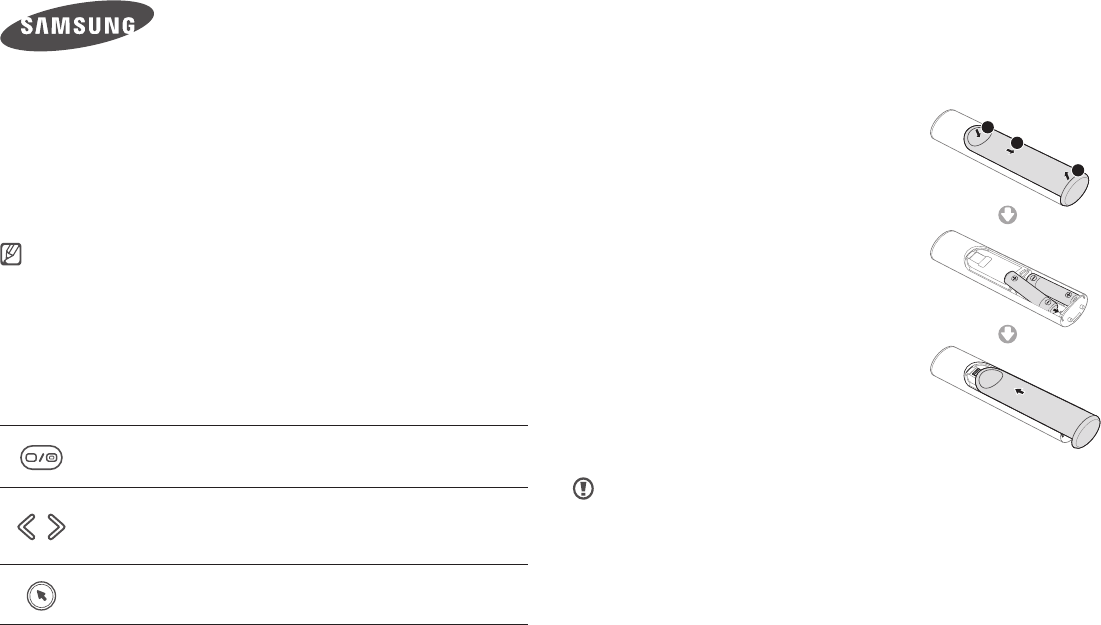

Pointer buttons
Press either button to start or finish a slideshow in a Power Point document.
These buttons perform the same functions as the F5/Esc keys on the keyboard.
Press either button to go to a specific desired page in a Power Point document.
These buttons perform the same functions as the Page Up/Page Down keys on the
keyboard.
Press the button to show the pointer dot on the LFD.
Replacing the batteries
1
Push the back on the pointer, as shown in the image, to
uncover the battery chamber.
2
Insert new (AAA) batteries in the chamber. Make sure the
positive and negative ends
(+, –) are oriented correctly.
3
Push the cover into the battery chamber until a click is heard.
xMake sure the positive and negative ends (+, –) of the batteries are oriented correctly.
Incorrectly oriented batteries may break or leak, damaging the product or causing fire or
personal injury.
xMake sure to use the specified batteries. Do not use a new battery and old batteries together.
Using an old battery with new batteries does not change the fact that the old batteries are not
new. The old battery may damage the product or lead to fire or personal injury.
xSeparate disused batteries and battery chargers from other waste so that they can be collected
for recycling. Disused batteries can be discarded in your local recycling center or the nearest
dealer that deals with waste batteries and battery chargers.
xKeep batteries out of reach of children. Take extra care to ensure that children do not swallow
batteries. If your child has swallowed a battery, see a doctor immediately.
Magic Presenter
1
2
3

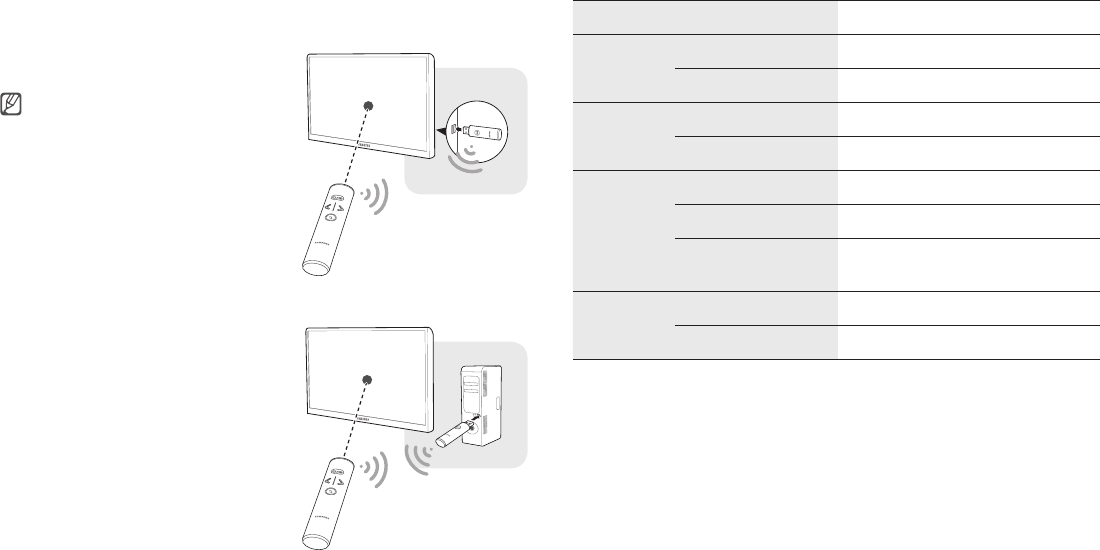

How to use the pointer
Connecting the dongle to an LFD
If the LFD has an internal PIM, insert the dongle into
a USB port on the LFD and then use the pointer.
PIM(Plug In Module) refers to a small
computer device which is installed on
an LFD to process data.
Connecting the dongle to a PC
If the LFD is connected to a PC, insert the dongle into
a USB port on the PC and then use the pointer.
Product specifications
Recommended distance from a display Within 10 m (32.8 ft)
Weight
Magic Presenter_ Pointer 33.8 g (with the batteries: 56.8 ± 0.5 g)
Magic Presenter_Dongle 9.4 g
Power
Magic Presenter_ Pointer Internal 1.5 V alkaline AAA batteries
Magic Presenter_Dongle 5V 500 mA (USB power)
Power
consumption
Magic Presenter_ Pointer 50 mA
Magic Presenter_Dongle 200 mA
Batteries Type: 800 mAh 3V(AAA X2)
Maximum hours of continuous use: 40 hours
Operating
conditions
Operating temperature 10 °C~40 °C (50 °F~104 °F)
Storage temperature –20 °C~45 °C (-4 °F~113 °F)
Notice
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one of the following measures:
xReorient or relocate the receiving antenna.
xIncrease the separation between the equipment and receiver.
xConnect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
xConsult the dealer or an experienced radio/TV technician for help.
FCC Caution:
Any changes or modifications not expressly approved by the party responsible for compliance could void
the user’s authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired
operation.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
This device and its antenna(s) must not be co-located or operation in conjunction with any other
antenna or transmitter.
IC Statement
This Class B digital apparatus complies with Canadian ICES-003.
Cetappareilnumeriquede la classeBestconformea la normeNMB-003 du Canada.
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the
following two conditions: (1) this device may not cause interference, and (2) this device must accept any
interference, including interference that may cause undesired operation of the device.
This device and its antenna(s) must not be co-located or operation in conjunction with any other
antenna or transmitter.
Declaration of Conformity
For the following
Product : Magic Presenter_Pointer / Magic Presenter_Dongle
Model(s) : BN81-09939A / BN81-09990A
Where * can be any alphanumeric character.
Year of Affixing CE Marking : 2014
We hereby declare under our sole responsibility that the electrical product above is in compliance
with the essential requirements of R&TTE Directive (1999/5/EC),the Low
Voltage Directive
(2006/95/EC) and Electromagnetic Compatibility Directive (2004/108/EC) by application of
EN 60950-1: 2006+A11:2009+A1:2010+A12:2011 EN 300 328 V1.8.1
EN 301 489-1 V1.9.2 EN 62311 :2008
EN 301 489-17 V2.2.1
and the Directive (2011/65/EU) on the restriction of the use of certain hazardous substances
in electrical and electronic equipment by application of EN 50581:2012.
The Technical documentation is kept at the below Manufacturer’s address.
Manufacturer
Samsung Electronics Co., Ltd.
129, Samsung-ro, Yeongtong-gu
Suwon-si, Gyeonggi-do, 443-742
Korea, Republic of
28 02 2014 Chang Seub Eum / Manager
(Place and date of issue)
(Name and signature of authorized person)
Representative in the EU:
Samsung Electronics Euro QA Lab.
Blackbushe Business Park
Saxony Way, Yateley, Hampshire
GU46 6GG, UK
28 02 2014 Joong Hoon Choi / Lab. Manager
(Place and date of issue) (Name and signature of authorized person)
Note : It is not the address of Samsung Service Centre. For the address or the phone number of Samsung
Service Centre, see the warranty card or contact the retailer where you purchased your product.
This equipment may be operated in all EU countries.
