Samsung Electronics Co BTM740B Bluetooth Module User Manual
Samsung Electronics Co Ltd Bluetooth Module
User Manual
Version 1.0 Samsung Electronics page 1 of 3
User Manual for BTM740B (for AIP PC)
1. Introduction
BTM740B BT Module containing Bluetooth 3.0 / Mac compatible Bluetooth Module/ Baseband
optimized Radio with UART interface.
2. Hardware Configuration
2.1 Main Chipset Information
Item IC Vendor Part Number
Bluetooth 3.0
MAC/Baseband/Radio CSR CSR8670
2.2 Block Diagram
Block Diagram of BT Module is as Figure.1.

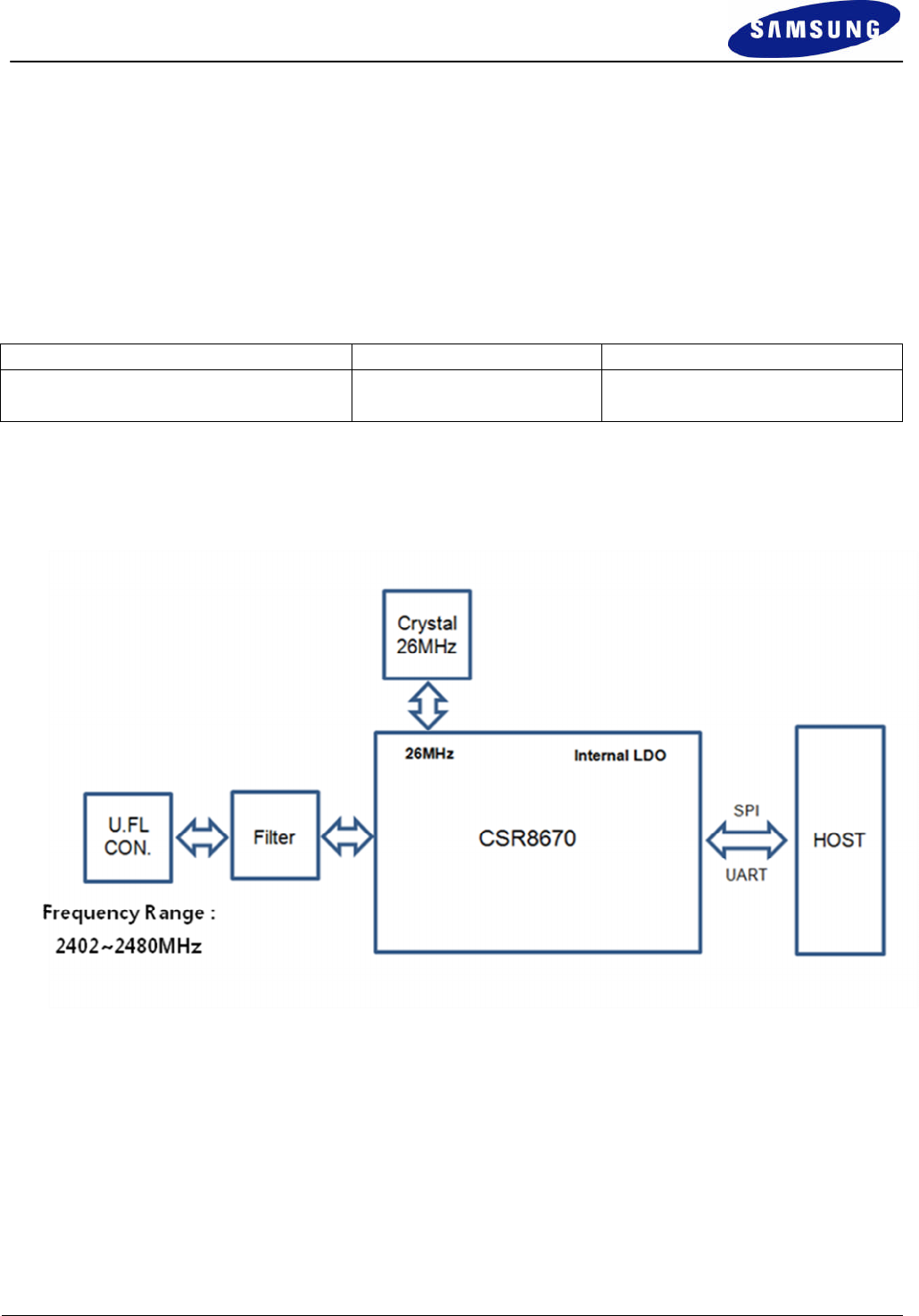

Figure.1 BTM740B Block Diagram
Version 1.0 Samsung Electronics page 2 of 3
3. Pin Description
Pin descriptions are as Table.3.

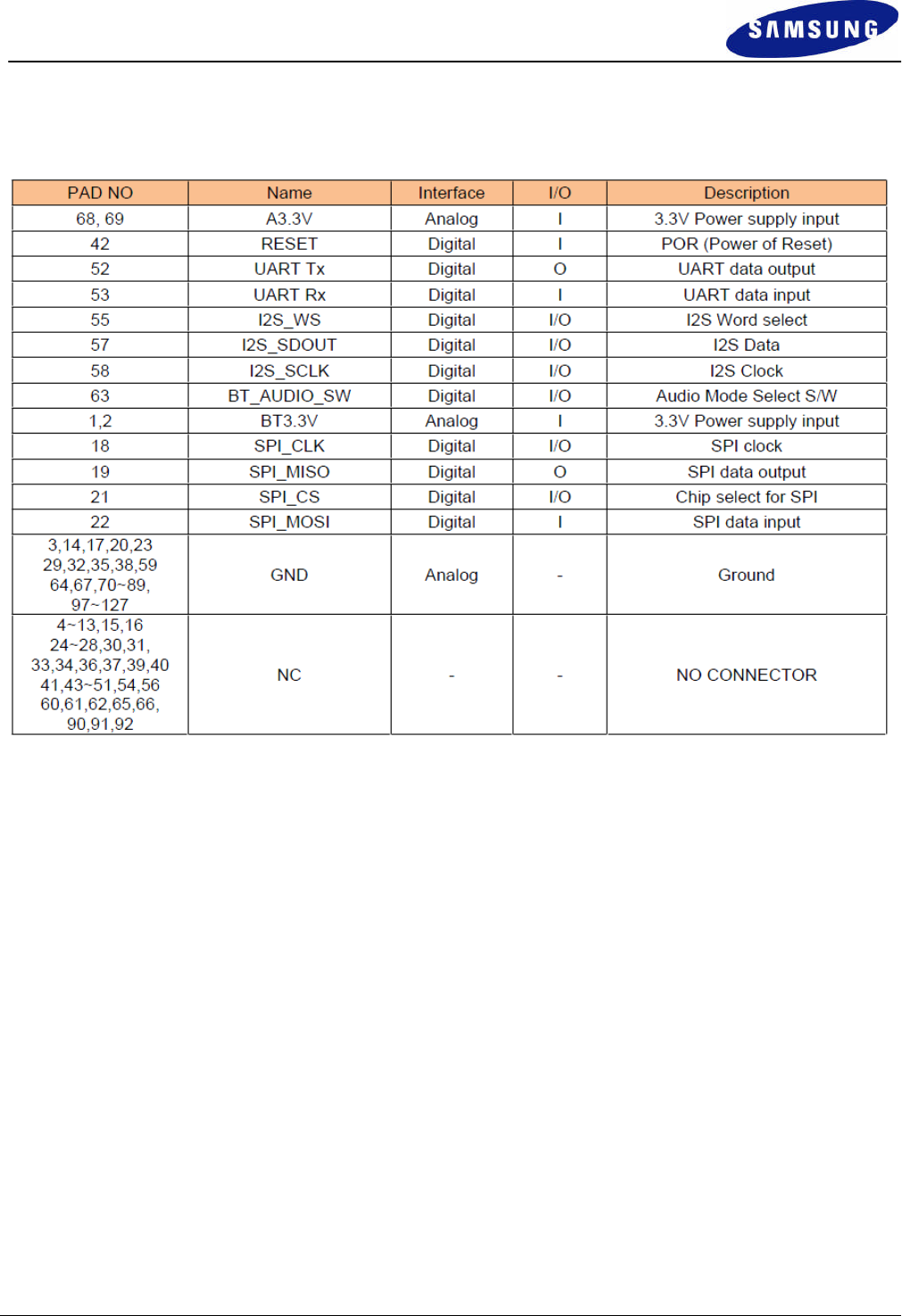

Table.3 Pin Description
Version 1.0 Samsung Electronics page 3 of 3
4. Detail Specifications
- Frequency : 2402~2480 MHz
- Number of Channel : 79ch
- Oscillation : VCO
- Operating Voltage : TYP. DC 3.3 V
- Current Consumption : Max.100mA
- Dimension : 22 mm X 26 mm X 2.5 mm
- Weight : 2.5g
- Operating Temperature : -10℃ ~ +50℃
- Communication : Semi-Duplex Operation
- Modulation : 2FSK, pi/4 DQPSK, 8DPSK
*This wireless device may cause propagation interferences so can’t available for life-saving services.
Version 1.0 Samsung Electronics page 7 of 8
6. Notice
l.
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one of the following
measures:
●Reorient or relocate the receiving antenna.
●Increase the separation between the equipment and receiver.
●Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
●Consult the dealer or an experienced radio/TV technician for help.
FCC Caution:
Any changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment.
USERS MANUAL OF THE END PRODUCT:
The end user has to be informed that the FCC radio-frequency exposure guidelines for an
uncontrolled environment can be satisfied. The end user has to also be informed that any
changes or modifications not expressly approved by the manufacturer could void the user's
authority to operate this equipment. If the size of the end product is smaller than 8x10cm, then
additional FCC part 15.19 statement is required to be available in the users manual: This device
complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1) this
Version 1.0 Samsung Electronics page 8 of 8
device may not cause harmful interference and (2) this device must accept any interference
received, including interference that may cause undesired operation.
LABEL OF THE END PRODUCT:
The final end product must be labeled in a visible area with the following " Contains FCC ID:
A3LBTM740B ". If the size of the end product is larger than 8x10cm, then the following FCC part
15.19 statement has to also be available on the label: This device complies with Part 15 of FCC
rules. Operation is subject to the following two conditions: (1) this device may not cause harmful
interference and (2) this device must accept any interference received, including interference that
may cause undesired operation.
IC Radiation Exposure Statement:
This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled
environment
This device and its antenna(s) must not be co-located or operation in conjunction with any other
antenna or transmitter.
IMPORTANT NOTE:
This module is intended for OEM integrator. The OEM integrator is still responsible for the IC
compliance requirement of the end product, which integrates this module.
Under such configuration, the IC RSS-102 radiation exposure limits set forth for an
population/uncontrolled environment can be satisfied.
Any changes or modifications not expressly approved by the manufacturer could void the user's
authority to operate this equipment.
LABEL OF THE END PRODUCT: The final end product must be labeled in a visible area with
the following " Contains IC : 649E-BTM740B ".
IC Statement
RSS-Gen 7.1.2
Under Industry Canada regulations, this radio transmitter may only operate using an antenna
of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To
reduce potential radio interference to other users, the antenna type and its gain should be so
chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that
necessary for successful communication.
This radio transmitter (identify the device by certification number, or model number if
Category II) has been approved by Industry Canada to operate with the antenna types listed
below with the maximum permissible gain and required antenna impedance for each antenna
type indicated. Antenna types not included in this list, having a gain greater than the
maximum
gain indicated for that type, are strictly prohibited for use with this device.
RSS-GEN statment. :
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is
subject to the following two conditions: (1) this device may not cause interference, and (2) this
device must accept any interference, including interference that may cause undesired
operation of the device.
Le present appareil est conforme aux CNR d'Industrie Canada applicables aux appareils
radio exempts de licence. L'exploitation est autorisee aux deux conditions suivantes : (1)
l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout
brouillage radioelectrique subi, meme si le brouillage est susceptible d'en compromettre le
fonctionnement.
