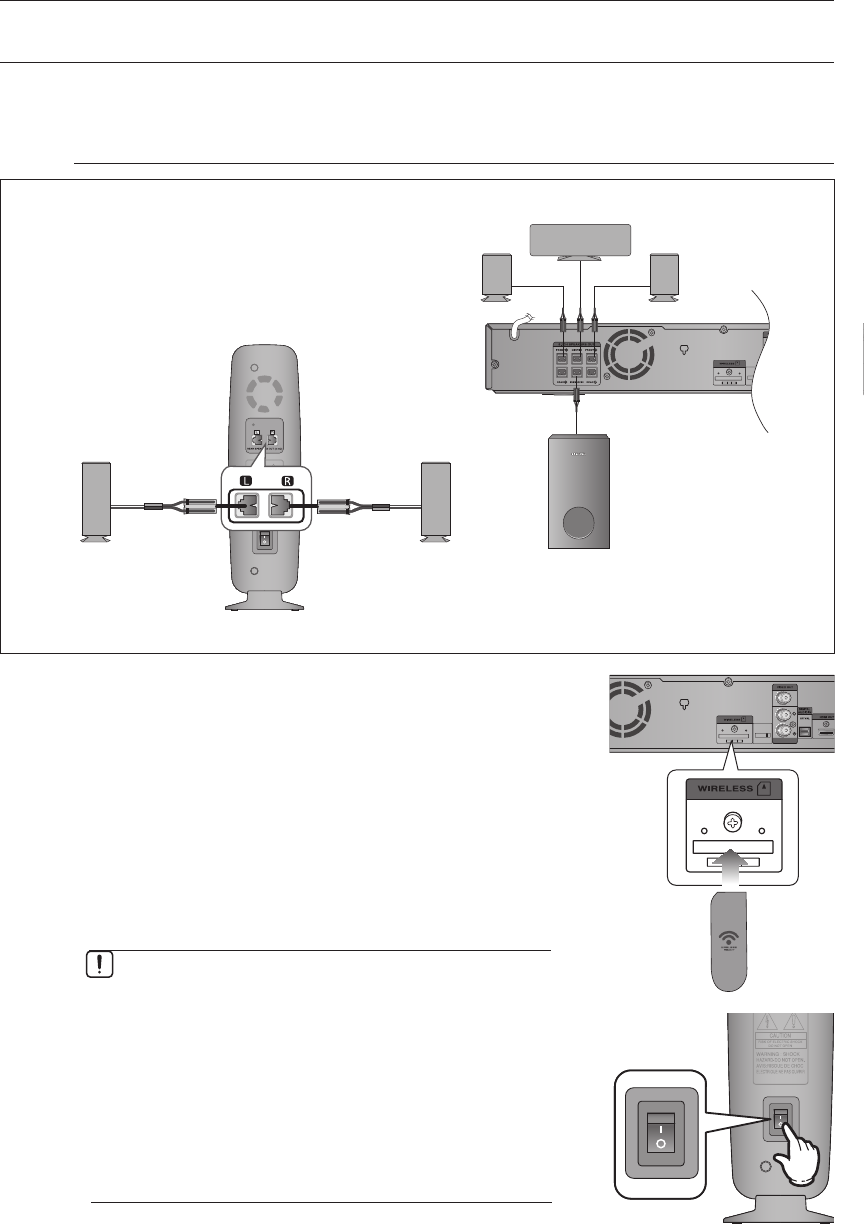

CONNECTING THE OPTIONAL WIRELESS RECEIVING AMPLIFIER
To connect the rear speakers wirelessly, you have to purchase the wireless receiving module and TX card from your
Samsung retailer.
When you have Purchased the Wireless Receiving Module (SWA-4000)
Connect the front, center and Subwoofer speakers to the
DVD Player, reffering to pages 19.
With the DVD Player turned off, insert the TX card into the
TX Card Connection(WIRELESS) on the back of the main unit.
Hold the TX card so that the slanted side faces downward
and insert the card into the port.
The TX card enables communication between the main
unit and the wireless receiver.
Connect the left and right rear speakers to the wireless
receiving module.
Plug the power cord of the wireless receiving module
in the wall outlet and switch the power switch ON.
1.
2.
~
~
3.
4.
Do not insert any other card except the TX card
dedicated to the product.
The product might be damaged or the card
may not be removed easily.
Do not insert the TX card upside down or in the
reverse direction.
Insert the TX card when the DVD Player is
turned off. Inserting the card when it is turned
on may cause a problem.
If the TX Card is inserted, sound is not output
from the Rear Speaker connectors on the main unit.
`
`
`
`
ipod
AUX IN 2
RESET
RESET
ipod
AUX IN 2
This product is compatible with the wireless receiver
module SWA-3000.
M`
21
ENG ● CONNECTIONS
Resetting the Wireless Receiving Module
Reset the system if a communication failure occurs, or if the Link indicator (blue LED) on the wireless
receiver does not light up and the "REAR CHECK" message blinks on the main unit's display.
Reset the system while the main unit and the wireless receiver module (SWA-4000) is in Power Standby
mode.
With the main unit turned off, press and hold the remote
control's REMAIN button for 5 seconds.
The STANDBY LED on the front panel of the wireless
receiver module blinks.

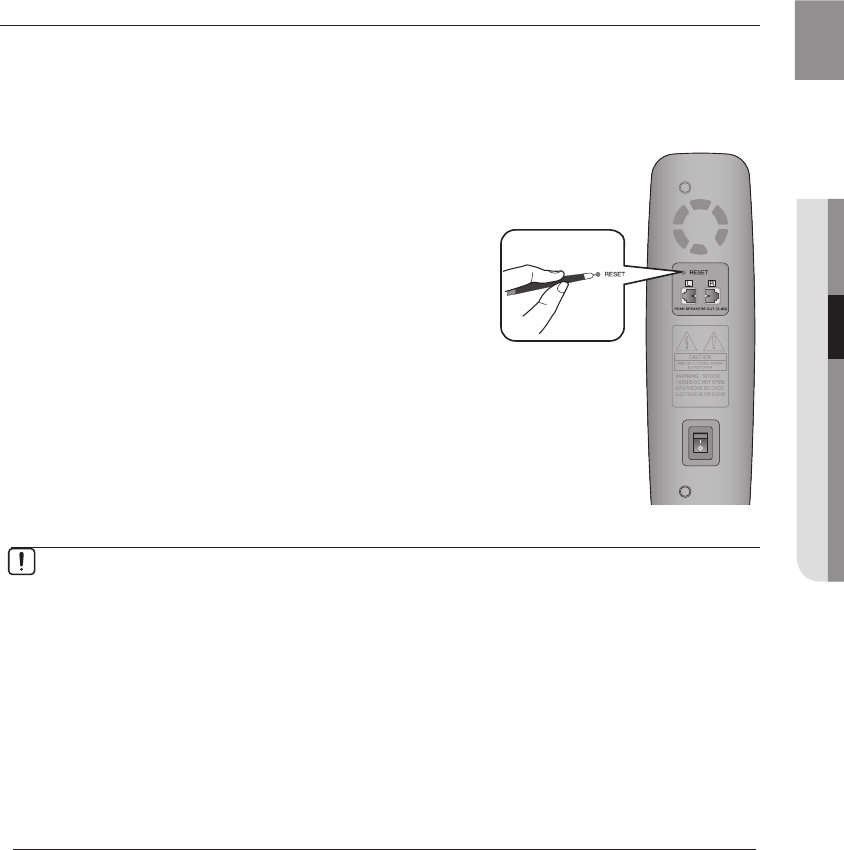

With the wireless receiver module turned on, use a ball
point pen or a pair of toothpick to press the RESET
button on the back of the unit.
The STANDBY LED on the front panel of the wireless
receiver module blinks several times.
Turn on the main unit.
The LINK LED of the wireless receiver module is lit and
the Reset is completed.
If Power Standby mode continues, repeat Steps 1 to 3
above.
1.
~
2.
~
3.
~
~
When the wireless receiving module setting is complete, no sound is output from the Rear
Speaker Output Connectors on the back of the main unit.
The wireless receiving antenna is built into the wireless receiver module. Keep the unit
away from water and moisture.
For optimal listening performance, make sure that the area around the wireless receiver
module location is clear of any obstructions.
Sound will be heard from the wireless rear speakers in DVD 5.1-CH or Dolby Pro
Logic II mode only.
In 2-CH mode, no sound will be heard from the wireless rear speakers.
`
`
`
`
`
Place the wireless receiver module at the rear of the listening position. If the wireless
receiver module is too close to the main unit, some sound interruption may be heard due
to interference.
If you use a device such as a microwave oven, wireless LAN Card, Bluetooth equipment,
or any other device that uses the same frequency (5.8GHz) near the system, some sound
interruption may be heard due to interference.
The transmission distance of a radio wave is about 10m, but may vary depending on your
operating environment. If a steel-concrete wall or metallic wall is between the main unit and
the wireless receiver module, the system may not operate at all, because the radio wave
cannot penetrate metal.
