Color MonitorOwner’sInstructions510/710-E 7/21/98 3:22 PM Page i

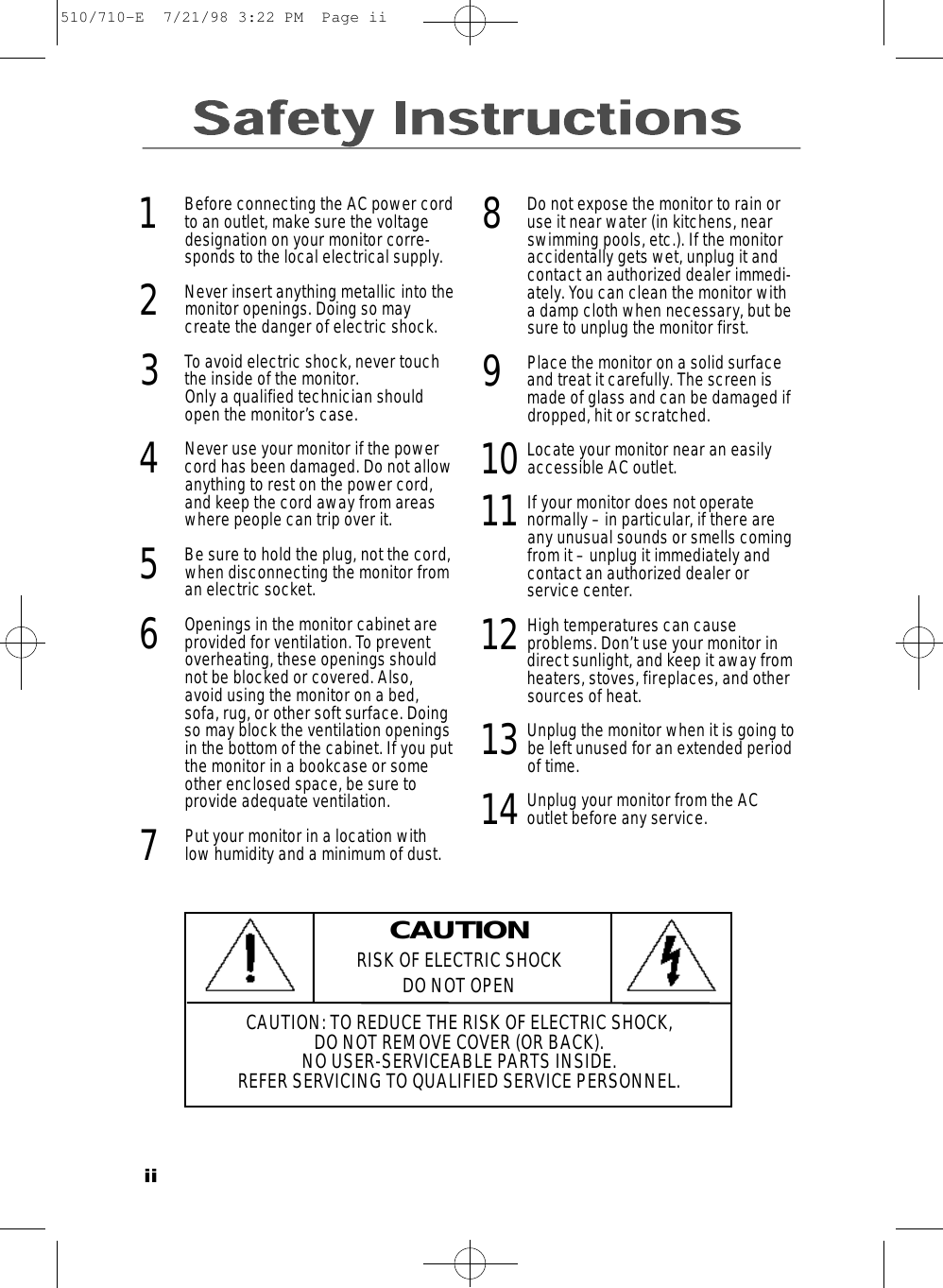

ii3A1Before connecting the AC power cordto an outlet, make sure the voltagedesignation on your monitor corre-sponds to the local electrical supply.2Never insert anything metallic into themonitor openings. Doing so may create the danger of electric shock.3To avoid electric shock, never touchthe inside of the monitor. Only a qualified technician shouldopen the monitor’s case.4Never use your monitor if the powercord has been damaged. Do not allowanything to rest on the power cord,and keep the cord away from areaswhere people can trip over it.5Be sure to hold the plug, not the cord,when disconnecting the monitor froman electric socket.6Openings in the monitor cabinet areprovided for ventilation. To preventoverheating, these openings shouldnot be blocked or covered. Also,avoid using the monitor on a bed,sofa, rug, or other soft surface. Doingso may block the ventilation openingsin the bottom of the cabinet. If you putthe monitor in a bookcase or someother enclosed space, be sure to provide adequate ventilation.7Put your monitor in a location withlow humidity and a minimum of dust. 8Do not expose the monitor to rain oruse it near water (in kitchens, nearswimming pools, etc.). If the monitoraccidentally gets wet, unplug it andcontact an authorized dealer immedi-ately. You can clean the monitor witha damp cloth when necessary, but besure to unplug the monitor first.9Place the monitor on a solid surfaceand treat it carefully. The screen ismade of glass and can be damaged ifdropped, hit or scratched. 10 Locate your monitor near an easilyaccessible AC outlet.11 If your monitor does not operate normally – in particular, if there areany unusual sounds or smells comingfrom it – unplug it immediately andcontact an authorized dealer or service center.12 High temperatures can cause problems. Don’t use your monitor indirect sunlight, and keep it away fromheaters, stoves, fireplaces, and othersources of heat.13 Unplug the monitor when it is going tobe left unused for an extended periodof time.14 Unplug your monitor from the AC outlet before any service.C A U T I O NRISK OF ELECTRIC SHOCKDO NOT OPENCAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,DO NOT REMOVE COVER (OR BACK).NO USER-SERVICEABLE PARTS INSIDE.REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.510/710-E 7/21/98 3:22 PM Page ii
1Safety Instructions.................................................................................................................iiYour New Monitor..................................................................................................................2Connecting Your Monitor................................................................................................................2Front Panel........................................................................................................................................3Direct Access Buttons....................................................................................................................3Operation.................................................................................................................................4On-screen Menu System................................................................................................................4Monitor Function Control................................................................................................................5Brightness ..........................................................................................................................5Contrast ..............................................................................................................................5Horizontal Position ...........................................................................................................5Vertical Position ................................................................................................................5Horizontal Size...................................................................................................................5Vertical Size........................................................................................................................5Pincushion..........................................................................................................................5Display Timing....................................................................................................................5Advanced Features...........................................................................................................6Color Temperature......................................................................................................6Language.....................................................................................................................6Half tone.......................................................................................................................6Moire...................................................................................................................................6Degauss..............................................................................................................................6Recall...................................................................................................................................6Geometry.............................................................................................................................6Pinbalance...................................................................................................................6Parallelogram..............................................................................................................6Rotation........................................................................................................................6V-linearity.....................................................................................................................6Trapezoid.............................................................................................................................6Troubleshooting......................................................................................................................7PowerSaver.............................................................................................................................7Specifications.........................................................................................................................8Display Modes........................................................................................................................8Index.........................................................................................................................................9Regulation Information.........................................................................................................iii510/710-E 7/21/98 3:22 PM Page 1
234531Turn off your computer and unplugthe power cord.2Video portConnect the signal cable (with anadapter if necessary) to the video porton the back of your computer, videoboard, video card, or graphics card.3Signal cableConnect the end of the signal cable toyour computer’s video port. If you areusing a Macintosh computer, connectthe cable to a Macintosh adapter, andset the pins on your adapter (adapternot included). An IBM-compatiblecomputer does not need an adapter.4Power portConnect the power cord for yourmonitor to the power port on the backof the monitor.5Power cordsPlug the power cord for the monitorand the power cord for your computerinto a nearby outlet.6Turn on your computer and monitor. If your monitor displays an image,installation is complete.To install the monitor driver on your PC:1. Insert the provided diskette into the A drive.2. Double click the “install.exe” file. Connecting Your MonitorPlease make sure the following items are included with your monitor. If any items are missing, contact your dealer.This manualPower cordMonitor & stand Warranty card(not available in all locations)Driver installation diskette2510/710-E 7/21/98 3:23 PM Page 2
Direct Access ButtonsMost of the adjustments you make to your monitor will be accessed through the on-screenmenu described in the next section. The Contrast and Brightness features can also beaccessed with the touch of a button on the front of your monitor. 1 With the menu off, press the or button on the front of your monitor. The button accesses the Brightness feature. The button accesses the Contrast feature. 2 Push the button to increase or the button to decrease the value of a selection. 3 Press the menu button twice to exit the on-screen menu.321341Menu buttonOpens and closes the on-scre e m e n u .Also used to move between menuswhen using the on-screen menu system. 2The –/+buttonsThese buttons allow you to select andadjust items using the on-screemenu.When adjusting an item using the o n - s c reen menu, the ( _) button lowersthe value of the selected function.The ( + ) button raises the value of theselected function. These buttons are alsod i r ect access buttons for the Contrastand Brightness feature controls. (Seethe section on Direct Access Buttons). 3The buttonThis button is used with the on-screenmenu system to select a highlightedfunction for adjustment. Also used tomove between menus when using theon-screen menu system. 4Power buttonTurns the monitor on and off. The power indicator light glows greenduring normal operation. Front Panel510/710-E 7/21/98 3:23 PM Page 3
On-screen Menu SystemYour monitor has an on-screen menu system, accessed by the buttons on the front of yourmonitor, that allows you to adjust characteristics of the screen image. Display changes areindicated by on-screen adjustment icons. Some functions have sub-menus. 1 Push the menu button to display the main menu. Function icons are arranged across the top of the on-screen menu.2 Push the or button to move through the icons. The name of the active function will appear below the rows of function icons. 3 To select a function or open a sub-menu, push the button. The screen will display the options for adjustment. If there is a sub-menu, use the or button tohighlight the feature you want to adjust, then push the button to select it. 4 Use the and buttons to make adjustments. The increases values, thedecreases values. On-screen calibration numbers show the effect of your adjustment.If you are in a sub-menu, use the menu button to return to the previous menu. 5Push the menu button to exit and save your changes. Function iconsAdjustment iconsActive function Function selection and Menu navigation4B r i g h t n e s s:Access Function:Exit Menu510/710-E 7/21/98 3:23 PM Page 4
BrightnessBackground brightness of screen.-decreases brightness +increases brightness ContrastContrast of screen image.-decreases contrast +increases contrast Horizontal Position Horizontal screen position.- moves the screen left + moves screen rightVertical Position Vertical screen position.-moves screen down +moves screen upHorizontal Size Horizontal screen size.-decreases size +increases size Vertical Size Vertical screen size.-decreases size +increases size Pincushion Straightness of vertical edges. -curves image inward + curves image outwardDisplay TimingMonitor display settings. -factory timing+ user timingIcon Monitor Function Control O n - s c r een Adjustment5Brightness:Access FunctionContrast:Access FunctionHorizontal Position:Access FunctionVeritical Position:Access FunctionHorizontal Size:Access FunctionVeritical Size:Access FunctionPincushion:Access FunctionDisplay Timing:Used Mode510/710-E 7/21/98 3:23 PM Page 5
Advanced Features Color temperature -9300k more blue +6500k more redLanguage - , + scroll through on-screen language options.Half tone -off +onMoireCorrect for on-screen moire pattern.-horizontal moire +vertical moire Degauss Removes color distortion caused by magnetic fields. Do not use more than once in 30 minutes. Recall Returns monitor to original settings.- no+ yesGeometry Pinbalance -curves vertical lines to left +curves vertical lines to rightParallelogram -skews screen image left +skews screen image rightRotation -rotates entire screen right+rotates entire screen left V-linearity -compresses image at top of screen +compresses image at bottom of screenTrapezoidWidth of top and bottom of screen. -widens top of screen + widens bottom of screen61.2.Icon Monitor Function Control O n - s c r een Adjustment 1.2.Advanced Features:Access Function:Exit FunctioinMoire:Access FunctionDegauss:Access FunctionRecall:Access FunctionGeometry:Access Function:Exit FunctioinPinbalance+ - :Select Funtion:Previous MuneTrapezoid:Access FunctionColor Temperature+ - :Select Funtion:Previous Mune510/710-E 7/21/98 3:23 PM Page 6
7Before calling for service, check the information in this section to see if you can solve theproblem yourself. If you do need assistance, please call the phone number on the warrantycard, the phone number on the back cover of this manual, or contact your dealer.There is no screen image.• Check to see that both the monitor and the computer are plugged in and turned on.“Check Signal Cable” appears.• Check the signal cable connection between the computer and the monitor.The screen image is too light or too dark.• Adjust the brightness or contrast settings.The screen image is too large or too small.• Adjust the size settings.The colors are distorted with dark or shadowed areas.• Activate the degauss feature.• Adjust the color temperature.The power indicator light is blinking green.• The monitor is using its power management system. You need the monitor driver software.• You can download the driver from the internet at http : //www.samsungelectronics.com.This monitor has a built-in power management system called PowerSaver. This systemsaves energy by switching your monitor into a low-power mode when it has not been usedfor a certain amount of time. The monitor automatically returns to normal operation whenyou move the computer's mouse or press a key on the keyboard. For energy conservation,turn your monitor OFF when it is not needed, or when leaving it unattended for long periods.The PowerSaver system operates with a VESA DPMS compliant video card installed in yourcomputer. Use a software utility installed on your computer to set up this feature. Power Saving function mode EPA/NUTEKState Normal Standby mode Suspend mode Power-off ModeOperation Position A1 Position A2Power Green Green Blinking Green Blinking Green BlinkingIndicator (0.5 sec interval) (0.5 sec interval) (1 sec interval)Power 510b: 80W (maximum) 50W (nominal) Less than 15W Less than 5WConsumption 70W (nominal)710s: 90W (maximum)80W (nominal)NOTE: This monitor is EPA ENERGY STAR®compliant and NUTEKcompliant when used with a computer equipped with VESA DPMS functionality.510/710-E 7/21/98 3:23 PM Page 7
Models: Sync Master 510b & 710s •510b: 15” (38 cm) Full square type (35 cm viewable)•710s: 17” (43 cm) Full square type (40 cm viewable)•90° deflection •0.28mm dot pitch•Silica Coated with anti-electrostatic properties(TCO : Multi Layer coating)•Medium-short persistence phosphor•Horizontal: 30kHz to 70 kHz •Vertical: 50 Hz to 160 Hz •Unlimited•1280 dots • 1024 lines•Horizontal: 510b:267 ± 4mm 710s: 306 ± 4mm•Vertical: 510b:200 ± 4mm 710s:230 ± 4mm•Analog: .7Vpp positive at 75 ohms•Separate Sync: TTL level, positive or negative•110 MHz •AC 100-240 Volt ± 10%, 60 Hz/50 Hz ± 3 Hz •510b:80 watt maximum 710s:90 watt maximum•U n i t : 510b: 362 x 390 x 377mm/12.7 kg 7 1 0 s :420 x 425 x 421 mm /16.5 kg•Carton: 5 1 0 b :454 x 497 x 445mm/14.5 kg 7 1 0 s :534 x 552 x 541 mm /19.0 kg•Operating temperature: 32°F to 104°F (0°C to 40°C)•Humidity: 10% to 80%•Storage temperature: -4°F to 113°F (-20°Cto 45°C)Display Mode Horizontal Vertical Pixel Sync Frequency Frequency Clock Polarity(kHz) (Hz) (MHz) (H/V)IBM, VGA2, 720 x 400 31.469 70.087 28.322 – / +IBM, VGA3, 640 x 480 31.469 59.940 25.175 – / –VESA, 640 x 480 37.500 75.000 31.500 – / –VESA, 640 x 480 43.269 85.008 36.000 – / –VESA, 800 x 600 46.875 75.000 49.500 + / +VESA, 800 x 600 53.674 85.061 56.250 + / +VESA, 1024 x 768 60.023 75.029 78.750 + / +VESA, 1024 x 768 68.677 84.997 94.500 + / +83Specifications Picture Tube Synchronization Display Color Maximum Resolution Active DisplayInput Signal, TerminatedMaximum Pixel Clock Power Supply Power Consumption Dimensions/Weight (WxDxH)Environmental ConsiderationsDesign and specifications are subject to change without notice.510/710-E 7/21/98 3:23 PM Page 8
AAdapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2Advanced features . . . . . . . . . . . . . . . . . . . . .6BBrightness . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5Button, . . . . . . . . . . . . . . . . . . . . . . . . . . . .3Buttons, + / – . . . . . . . . . . . . . . . . . . . . . . . . . .3CColor temperature . . . . . . . . . . . . . . . . . . . . .6Connecting your monitor . . . . . . . . . . . . . . . .2Contrast . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5DDegauss . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6Direct access buttons . . . . . . . . . . . . . . . . . .3Display modes . . . . . . . . . . . . . . . . . . . . . . . . .8Display timing . . . . . . . . . . . . . . . . . . . . . . . . . .5Driver diskette . . . . . . . . . . . . . . . . . . . . . . . . .2Driver installation . . . . . . . . . . . . . . . . . . . . . .2FFCC information . . . . . . . . . . . . . . . . . . . . . . . .i i iFront panel . . . . . . . . . . . . . . . . . . . . . . . . . . . .3GGeometry . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6HHalf tone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6Horizontal position . . . . . . . . . . . . . . . . . . . . .5Horizontal size . . . . . . . . . . . . . . . . . . . . . . . . .5IIC compliance notice . . . . . . . . . . . . . . . . . . .i i iI n s t a l l a t i o n . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2LLanguage . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6MMacintosh . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2Menu button . . . . . . . . . . . . . . . . . . . . . . . . . . .3Moire . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6Monitor function control . . . . . . . . . . . . . .5, 6MPR II compliance . . . . . . . . . . . . . . . . . . . . .i i iNNotice de conformité IC . . . . . . . . . . . . . . . . . . . .i i iOOperation . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4On-screen menu system . . . . . . . . . . . . . . . .4PParallelogram . . . . . . . . . . . . . . . . . . . . . . . . . .6Pinbalance . . . . . . . . . . . . . . . . . . . . . . . . . . . .6Pincushion . . . . . . . . . . . . . . . . . . . . . . . . . . . .5Power button . . . . . . . . . . . . . . . . . . . . . . . . . .3Power cords . . . . . . . . . . . . . . . . . . . . . . . . . . 2Power indicator . . . . . . . . . . . . . . . . . . . . . . . .3Power port . . . . . . . . . . . . . . . . . . . . . . . . . . . .2PowerSaver . . . . . . . . . . . . . . . . . . . . . . . . . . .7RRecall . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6Rotation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6Regulation information . . . . . . . . . . . . . . . . .i i iSSafety instructions . . . . . . . . . . . . . . . . . . . . .iiSignal cable . . . . . . . . . . . . . . . . . . . . . . . . . . .2Specifications . . . . . . . . . . . . . . . . . . . . . . . . .8Sub-menus . . . . . . . . . . . . . . . . . . . . . . . . . .3, 4TTable of contents . . . . . . . . . . . . . . . . . . . . . . .1Trapezoid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6Troubleshooting . . . . . . . . . . . . . . . . . . . . . . .7VVertical position . . . . . . . . . . . . . . . . . . . . . . . .5Vertical size . . . . . . . . . . . . . . . . . . . . . . . . . . .5Video port . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2V-linearity . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6WWarranty card . . . . . . . . . . . . . . . . . . . . . . . . .2YYour new monitor . . . . . . . . . . . . . . . . . . . . . . .29510/710-E 7/21/98 3:23 PM Page 9
3FCC InformationUser InstructionsThe Federal Communications Commission RadioFrequency Interference Statement includes the followingwarning:NOTE: This equipment has been tested and found to complywith the limits for a Class B digital device, pursuant to Part 15of the FCCRules. These limits are designed to provide re a s o n-able protection against harmful interf e rence in a re s i d e n t i a linstallation. This equipment generates, uses, and can radiateradio frequency energy and, if not installed and used in accor-dance with the instructions, may cause harmful interf e re n c eto radio communications. However, there is no guarantee thati n t e rf e rence will not occur in a particular installation.If this equipment does cause harmful interf e rence to radio ortelevision receptions, which can be determined by turning theequipment off and on, the user is encouraged to try to corre c tthe interf e rence by one or more of the following measure s :• Reorient or relocate the receiving antenna.• Increase the separation between the equipment andreceiver.• Connect the equipment into an outlet on a circuit dif-ferent from that to which the receiver is connected.• Consult the dealer or an experienced radio/TV techni-cian for help.User InformationChanges or modifications not expressly approved by thep a rty responsible for compliance could void the user’sauthority to operate the equipment.If necessary, consult your dealer or an experiencedradio/television technician for additional suggestions. Yo umay find the booklet called How to Identify and ResolveRadio/TV Interf e rence Pro b l e m s helpful. This booklet wasp re p a red by the Federal Communications Commission. Itis available from the U.S. Government Printing Off i c e ,Washington, DC 20402, Stock Number 004-000-00345-4.WarningUser must use shielded signal interface cables to main-tain FCC compliance for the product.Declaration of conformity for prod-ucts Marked with FCC LogoThis device complies with Part 15 of the FCC Rules.Operation is subject to the following two conditions: (1)this device may not cause harmful interf e rence, and (2)this device must accept any interf e rence received, includ-ing interference that may cause undesired operation.The party responsible for product compliance:SAMSUNG ELECTRONICS CO., LTDQA Lab of Samsung America85 West Tasman Drive San Jose, CA 95134 USATel) 408-544-5124Fax) 408-544-5191Provided with this monitor is a detachable power supplycord with IEC320 style terminations. It may be suitable forconnection to any UL Listed personal computer with simi-lar configuration. Before making the connection, makesure the voltage rating of the computer convenience out-let is the same as the monitor and that the ampere ratingof the computer convenience outlet is equal to orexceeds the monitor voltage rating. For 120 Volt applications, use only UL Listed detachablepower cord with NEMA configuration 5-15P type (parallelblades) plug cap. For 240 Volt applications use only ULListed Detachable power supply cord with NEMA config-uration 6015P type (tandem blades) plug cap.IC Compliance NoticeThis Class B digital apparatus meets all requirements ofthe Canadian Interference-Causing EquipmentRegulations of ICES-003.Cet appareil numérique de classe B respecte toutes lesexigences du Règlement ICES-003 sur les équipementsproduisant des interférences au Canada.MPR II ComplianceThismonitor complies with SWEDAC (MPR II) re c o m m e n d a-tions for reduced electric and magnetic fields.European NoticeProducts with the CE Marking comply with both the EMCDirective (89/336/EEC), (92/31/EEC), (93/68/EEC) and theLow Voltage Directive (73/23/EEC) issued by theCommission of the European Community.Compliance with these directives implies conformity tothe following European Norms:• EN55022 (CISPR 22) – Radio Frequency Interference• EN50082-1 : 1992 – Electromagnetic Immunity• EN60555-2 (IEC555-2) – Power Line Harmonics• EN60555-3 (IEC555-3) – Voltage Fluctuations• EN60950 (IEC950) – Product Safety.Regulation Information510/710-E 7/21/98 3:23 PM Page 10
U.S.A. :Samsung Electronics America (SEA)One Samsung Place Ledgewood, NJ 07852Tel. : 1-800-SAMSUNG (1-800-726-7864)Fax-on-Demand for product information : 1-800-229-2239CANADA : Samsung Electronics Canada Inc.7037 Financial Drive Mississauga, Ontario L5N 6R3Tel. : 1-800-SAMSUNG (1-800-726-7864)Fax. : (905) 542-1199GERMANY :Samsung Electronics GmbH Samsung-HausAm Kronberger Hang 6/65824 Schwalbach/Ts.Tel. : 06196-66-1134Fax. : 06196-66-1133AUSTRALIA :Samsung Electronics Australia Pty Ltd.Unit G, 10-16 South Street, Rydalmere, N.S.W. 2116P.O. BOX 368Tel. : (02) 638 5200ITALIA :Samsung Electronics Italia SpAVia C. Donat Cattin, 5-20063 Cernusco sul Naviglio (Mi)Tel. : 167-010740PANAMA :Servicios Samsung (Zona Libre), S.A.50 and 61 Streets Sta, Cecilia Bdl. Don Camilo, Panama CityTel. : (507) 264-0195 or 269-5571Fax : (507) 269-5568MEXICO : Samsung Electronics Mexico, S.A. DE C. V. Mina No. 200, Esq. GavilanCol. Guadalupe Del Moral Iztapalapa,Mexico, D.F. C.P. 09300Tel.: (525) 686-0800Fax : (525) 686-5094ESPAÑA :Samsung Electrónics Comercial Ibérica, S.A.Ciencies, 55-65 (Polígono Pedrosa) 08908Hospitalet de Llobregat (Barcelona)Tel. : (93) 261 67 00 Fax. : (93) 261 67 50UK :Samsung Electronics (UK) Ltd.Samsung House, 225 Hook Rise South Surbiton, Surrey KT6 7LDTel. : (0181) 391 0168Fax. : (0181) 397 9949<European Service Center & National Service>Stafford Park 12 Telford, Shropshire, TF3 3BJTel. : (01952) 292 262Fax. : (01952) 292 033THAILAND :Samsung Service Center729-729/1 JSP Tower Rachadapisek RD.,Bangpongpang, Yannawa, Bangkok 10120Tel : (662) 2954508-14Fax : (662) 2954267SOUTH AFRICA :Samsung Electronics South AfricaSomerset Office Park 5 Libertas RoadBryanston, South AfricaTel : (27)-11-463-5678Fax : (27)-11-463-5215BRASIL :Samsung Eletrônica da Amazonia Ltda.R. Prof. Manoelito de Ornellas, 303-2ºAndarChácara Sto. Antônio • cep : 04719-040São Paulo • SPTel. : (011) 541-8500Fax : (011) 523-3995, 522-0726Printed on recyclable paperCODE NO. : BH68-61102A ( Rev. 0.2 )510/710-E 7/21/98 3:23 PM Page 11
