User manual

QUICK START GUIDEEI-YP322Gamepad for Gear VRPrinted in KoreaGH68-46341A Rev.1.0E Type 04/2016Draft
2abcdefghA21Copyright © 2016 Samsung ElectronicsBluetooth® is a registered trademark of Bluetooth SIG, Inc. worldwide.•Please read this guide before using the device to ensure safe and proper use.

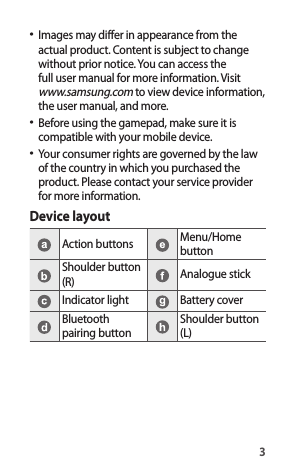

3•Images may differ in appearance from the actual product. Content is subject to change without prior notice. You can access the full user manual for more information. Visit www.samsung.com to view device information, the user manual, and more.•Before using the gamepad, make sure it is compatible with your mobile device.•Your consumer rights are governed by the law of the country in which you purchased the product. Please contact your service provider for more information.Device layoutAction buttons Menu/Home buttonShoulder button (R) Analogue stickIndicator light Battery coverBluetooth pairing buttonShoulder button (L)
4Replacing the batteriesWhen the indicator light flashes red, replace the batteries.Do not recharge the provided batteries.1. Remove the battery cover from the back of the gamepad.Be careful not to damage your fingernails when you remove the battery cover.Do not bend or twist the battery cover excessively. Doing so may damage the cover.2. Remove the batteries and insert new AAA batteries with the positive and negative terminals properly aligned with the + and - symbols on the gamepad.3. Reattach the battery cover to the back of the gamepad.Place the cover on the back of the gamepad and press the edges together to reassemble the gamepad.
5Connecting devices via Bluetooth1. Press the Bluetooth pairing button to enterBluetooth pairing mode.The indicator light will flash red, green, and blue.2. On your other mobile device, activate theBluetooth feature and tap Gamepad forGear VR (0000) from the list of availabledevices.Keep the gamepad attached to the Gear VR when you are not using it. ( )
6Safety informationRead all safety information before using the device to ensure safe and proper use. To view the full safety information, refer to the Samsung website.Use manufacturer-approved batteries, chargers, accessories, and suppliesDo not touch the device with wet handsDo not drop or cause an impact to the charger or the deviceThe device can be used in locations with an ambient temperature of 0°C to 35°C. You can store the device at an ambient temperature of -20°C to 50°C. Using or storing the device outside of the recommended temperature ranges may damage the device or reduce the battery’s lifespanDo not allow children or animals to chew or suck the deviceDo not disassemble, modify, or repair your device
7Correct disposalThis marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste.This product is RoHS compliant. This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste.For information on Samsung’s environmental commitments and product-specific regulatory obligations, e.g. REACH, WEEE, Batteries, visit samsung.com/uk/aboutsamsung/ samsungelectronics/corporatecitizenship/ data_corner.html
FCC StatementThis device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.Caution: Any changes or modifications not expressly approved by Samsung Electronics Co., Ltd. could void the user's authority to operate the equipment.FCC Radiation Exposure StatementThis equipment complies with FCC Radiation exposure limits set forth for an uncontrolled environment. This equipment must not be co-located or operating in conjunction with any other antenna or transmitter.8
Industry Canada StatementThis device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.IC Radiation Exposure StatementThis equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment must not be co-located or operating in conjunction with any other antenna or transmitter.Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. 'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.Déclaration d'Industrie Canada sur l'exposition aux radiations Cet équipement est conforme aux limites établies par Industrie Canada en matière d'exposition aux radiations dans un environnement non contrôlé. Cet équipement ne doivent pas être colocalisés ou fonctionner en conjonction avec tout autre antenne ou émetteur.9
Declaration of ConformityProduct detailsFor the followingProduct : Gamepad for Gear VRModel(s) : EI-YP322Declaration & Applicable standardsWe hereby declare, that the product above is in compliance with the essential requirements of the Electromagnetic Compatibility Directive (2004/108/EC) by application of:EN 55022 : 2010 EN 55024 : 2010and the Directive (2011/65/EU) on the restriction of the use of certain hazardous substances in electrical and electronic equipment by application of EN 50581:2012.Representative in the EUSamsung Electronics Euro QA Lab. Blackbushe Business Park, Saxony Way, Yateley, Hampshire, GU46 6GG, UK2016.XX.XX Stephen Colclough / EU Representative(Place and date of issue) (Name and signature of authorised person)* This is not the address of Samsung Service Centre. For the address or the phone number of Samsung Service Centre, seethe warranty card or contact the retailer where you purchased your product.Draft
