User Manual_ET-YO324

QUICK
START
GUIDE
ET-YO324
Gear VR Controller
Printed in Korea
GH68-47658B Rev.1.0
EU/ASIA Type 02/2017
2
a
b
c
d
e
f
g
h
k
j
i
3
A
2
1
Copyright © 2017 Samsung Electronics
Bluetooth
®
is a registered trademark of
Bluetooth SIG, Inc. worldwide.
•
Please read this guide before using the device
to ensure safe and proper use.
•
Images may differ in appearance from the
actual product. Content is subject to change
without prior notice. You can access the
full user manual for more information. Visit
www.samsung.com
to view device information,
the user manual, and more.
•
Before using the controller, make sure it is
compatible with your device.
•
To view the open source licence for the
controller, refer to
opensource.samsung.com
.
•
Your consumer rights are governed by the law
of the country in which you purchased the
product. Please contact your service provider
for more information.
4

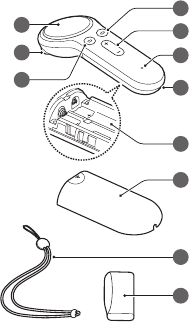

Device layout
Touchpad Wrist strap
connection hole
Trigger Battery
compartment
Back key Battery cover
Home key Wrist strap
Volume key Controller holder
Indicator light
Indicator light
Colour Status
Flashes red, green,
and blue
The controller is in
Bluetooth pairing mode.
Flashes blue three
times Bluetooth is connected.
Flashes blue one
time
Sleep mode is
deactivated.
5
About the Gear VR controller
You can connect the controller to a mobile device
connected with a Gear VR via Bluetooth. Control
various Gear VR features with the controller keys
and touchpad.
Connecting the wrist strap
When you connect the wrist strap to your
controller, you can use the controller safely
without dropping it.
1. While pressing on the backside of the
controller, slide the battery cover towards the
top of the triangle to open it.
Do not bend or twist the battery cover
excessively. Doing so may damage the
battery cover.
2. Insert the wrist strap loop into the wrist strap
connection hole and attach it to the hook to
secure it. ( )
6
Installing the batteries
1. Insert batteries with the positive and negative
terminals properly aligned with the + and -
symbols on the controller.
2. Place the battery cover on the controller and
slide the battery cover back until it clicks back
into place.
•
If the indicator light flashes red while
using the controller, replace the
batteries.
•
Do not recharge the provided batteries
(AAA batteries).
Using the controller
1. Controller Press and hold the Home key to
enter Bluetooth pairing mode.
The indicator light will flash red, green, and
blue.
2. Mobile device After activating
the Bluetooth feature, tap Gear VR
Controller(0000) on the list of available
devices to complete Bluetooth pairing.
The indicator light will flash blue three times.
7
3. Connect your mobile device to the Gear VR
and control the Gear VR with the controller’s
keys and touchpad.
•
The PIN for the controller is the four-
digit number in parenthesis displayed
on the other device’s Bluetooth settings
screen. The number differs depending
on the controller.
•
You can take photos and record videos
with your controller after connecting it
to the Gear 360 via Bluetooth.
Storing the controller
If you use the controller with the Gear VR, attach
the controller holder to the Gear VR and put your
controller in it for storage.
Insert the controller into the controller
holder properly. If it is not securely
inserted, the controller may accidentally
separate from the controller and become
damaged.
If you do not use the controller for an
extended period, store the controller
after removing the batteries.
8
Safety information
Read all safety information before using the
device to ensure safe and proper use. To view
the full safety information, refer to the Samsung
website.
Use manufacturer-approved batteries,
accessories, and supplies
Do not touch the device with wet hands
Do not drop or cause an impact to the device
Do not bend or twist the device excessively
The device can be used in locations with an
ambient temperature of 0 °C to 35 °C. You can
store the device at an ambient temperature
of -20 °C to 50 °C. Using or storing the device
outside of the recommended temperature
ranges may damage the device or reduce the
battery’s lifespan
Use the device only for their intended
purposes
Do not allow children or animals to chew or
suck the device
Do not disassemble, modify, or repair your
device
9
Correct disposal
This marking on the product,
accessories or literature
indicates that the product and
its electronic accessories (e.g.
charger, headset, USB cable)
should not be disposed of with
other household waste.
This product is RoHS compliant.
This marking on the battery,
manual or packaging indicates
that the batteries in this product
should not be disposed of with
other household waste.
For information on Samsung’s environmental
commitments and product-specific regulatory
obligations, e.g. REACH, WEEE, Batteries, visit
samsung.com/uk/aboutsamsung/
samsungelectronics/corporatecitizenship/
data_corner.html
Declaration of Conformity
Product details
For the following
Product :
Model(s) :
Declaration & Applicable standards
We hereby declare, that the product above is in compliance with
the essential requirements of the R&TTE Directive (1999/5/EC) by
application of:
SAFETY
SAR
EMC
RADIO
and the Directive (2011/65/EU) on the restriction of the use of certain
hazardous substances in electrical and electronic equipment by
application of EN 50581:2012.
Representative in the EU
Samsung Electronics Euro QA Lab.
Blackbushe Business Park
Saxony Way, Yateley, Hampshire
GU46 6GG, UK *
2017.XX.XX Stephen Colclough / EU Representative
(Place and date of issue) (Name and signature of authorised person)
* This is not the address of Samsung Service Centre. For the address or
the phone number of Samsung Service Centre, see the warranty card or
contact the retailer where you purchased your product.
FCC Statement
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) this
device must accept any interference received, including
interference that may cause undesired operation.
Caution: Any changes or modifications (including the
antennas) made to this device that are not expressly
approved by the manufacturer may void the user's authority
to operate the equipment.
FCC Radiation Exposure Statement
This equipment complies with FCC Radiation exposure
limits set forth for an uncontrolled environment. This
equipment must not be co-located or operating in
conjunction with any other antenna or transmitter.
7
Industry Canada Statement
This device complies with Industry Canada licence-exempt RSS
standard(s). Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this device must
accept any interference, including interference that may cause
undesired operation of the device.
IC Radiation Exposure Statement
This equipment complies with IC radiation exposure limits set forth
for an uncontrolled environment. This equipment must not be co-
located or operating in conjunction with any other antenna or
transmitter.
Le présent appareil est conforme aux CNR d'Industrie Canada
applicables aux appareils radio exempts de licence. 'exploitation
est autorisée aux deux conditions suivantes : (1) l'appareil ne doit
pas produire de brouillage, et (2) l'utilisateur de l'appareil doit
accepter tout brouillage radioélectrique subi, même si le brouillage
est susceptible d'en compromettre le fonctionnement.
Déclaration d'Industrie Canada sur l'exposition aux radiations
Cet équipement est conforme aux limites établies par Industrie
Canada en matière d'exposition aux radiations dans un
environnement non contrôlé. Cet équipement ne doivent pas être
colocalisés ou fonctionner en conjonction avec tout autre
antenne ou émetteur.
8
9
Samsung Electronics (UK) Ltd, Euro QA
Lab. Blackbushe Business Park. Saxony
Way, Yateley, Hampshire, GU46 6GG,
United Kingdom
