![3Contens (CD-ROM)Before You Start . . . . . . . . . . . . . . . . . . . . . . . . . 5Charging with the Cradle . . . . . . . . . . . . . . . . . . . . . . . . 5Charging without the Cradle . . . . . . . . . . . . . . . . . . . . . . 6Connecting to External Equipment Using the Cradle . . . 7Connecting GADGET and External Equipment . . . . . . . 9Time Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10Identifying the Parts (the main unit) . . . . . . . . . . . . . . . 12Inserting Memory Stick/Operating Delete-Protection switch . . . . . . . . . . . . 14Identifying the Parts (Cradle and Remote Control) . . . . 16Selecting a Mode [Play] . . . . . . . . . . . . . . . . . . . . . . . . 18Setting Menu Items . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19Quick Access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20LCD Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23Basic Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . 25Reference Recordable Hours and Photo Count . . . . . . 25Recording Movies (MPEG4 Video Recording) . . . . . . . 27Playing Back Movies (MPEG4 Video Playback) . . . . . . 28Recording Still Images . . . . . . . . . . . . . . . . . . . . . . . . . 29Playing Back Still Images . . . . . . . . . . . . . . . . . . . . . . . 29Recording from a TV or VCR . . . . . . . . . . . . . . . . . . . . . 30Viewing on TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31Recording Sounds . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32Listening to Sounds in an Audio File . . . . . . . . . . . . . . . 33Listening to MP3 Music . . . . . . . . . . . . . . . . . . . . . . . . . 34Connecting to a PC . . . . . . . . . . . . . . . . . . . . .36USB's Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36PC Camera Function . . . . . . . . . . . . . . . . . . . . . . . . . . 36Removable Disk Function . . . . . . . . . . . . . . . . . . . . . . . 43Connecting to a Printer . . . . . . . . . . . . . . . . . . . . . . . . . 44Enjoy Variety of Usages . . . . . . . . . . . . . . . . . .45Different Menu Settings . . . . . . . . . . . . . . . . . . . . . . . . 45Precautions for Use . . . . . . . . . . . . . . . . . . . . .51Precautions for Handling the Internal Hard Disk . . . . . 51Precautions on Handling the Camera . . . . . . . . . . . . . 51Precautions for Use - Concerning the Operating Environment of the Supplied Software . . . . . . . . . . 52Precautions for Cleaning the Unit and Handling the Internal Lithium Cell . . . . . . . . . . . . . . . . . . . . . 53Precaution for Using “Memory Stick”/“Memory Stick Pro” . . . . . . . . . . . . . . . . . . . . . . . . 54Precautions for Handling the Lens and the LCD Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . 56Precautions for Charging and Handling the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57Using GADGET Overseas . . . . . . . . . . . . . . . . . . . . . . 59Inst_Manu_US.book Page 3 Tuesday, August 12, 2003 6:22 PM](https://usermanual.wiki/Samsung-Electronics-Co/GADGET/User-Guide-376545-Page-2.png)
![6■Charging without the CradleYou can charge the battery pack installed in the GADGET unit as it is.1Connect the AC Adaptor to the GADGET unit and then connect it to a wall outlet.2Turn off the power.•Charging starts.•When completed, the charge lamp goes off.Notes•At the time of purchase, the battery packs are not charged. Charge them before you start using this device.•Batteries cannot be charged when the GADGET unit is powered on. When charging, turn the Power switch to [OFF].1Push the upper section of both sides of the battery cover and slide the cover down to remove it.2Install a battery pack and reattach the cover in place.Wall outletDC IN jackCharge lamp (orange)AC AdaptorInstalling a Battery PackPushPushInst_Manu_US.book Page 6 Tuesday, August 12, 2003 6:22 PM](https://usermanual.wiki/Samsung-Electronics-Co/GADGET/User-Guide-376545-Page-5.png)

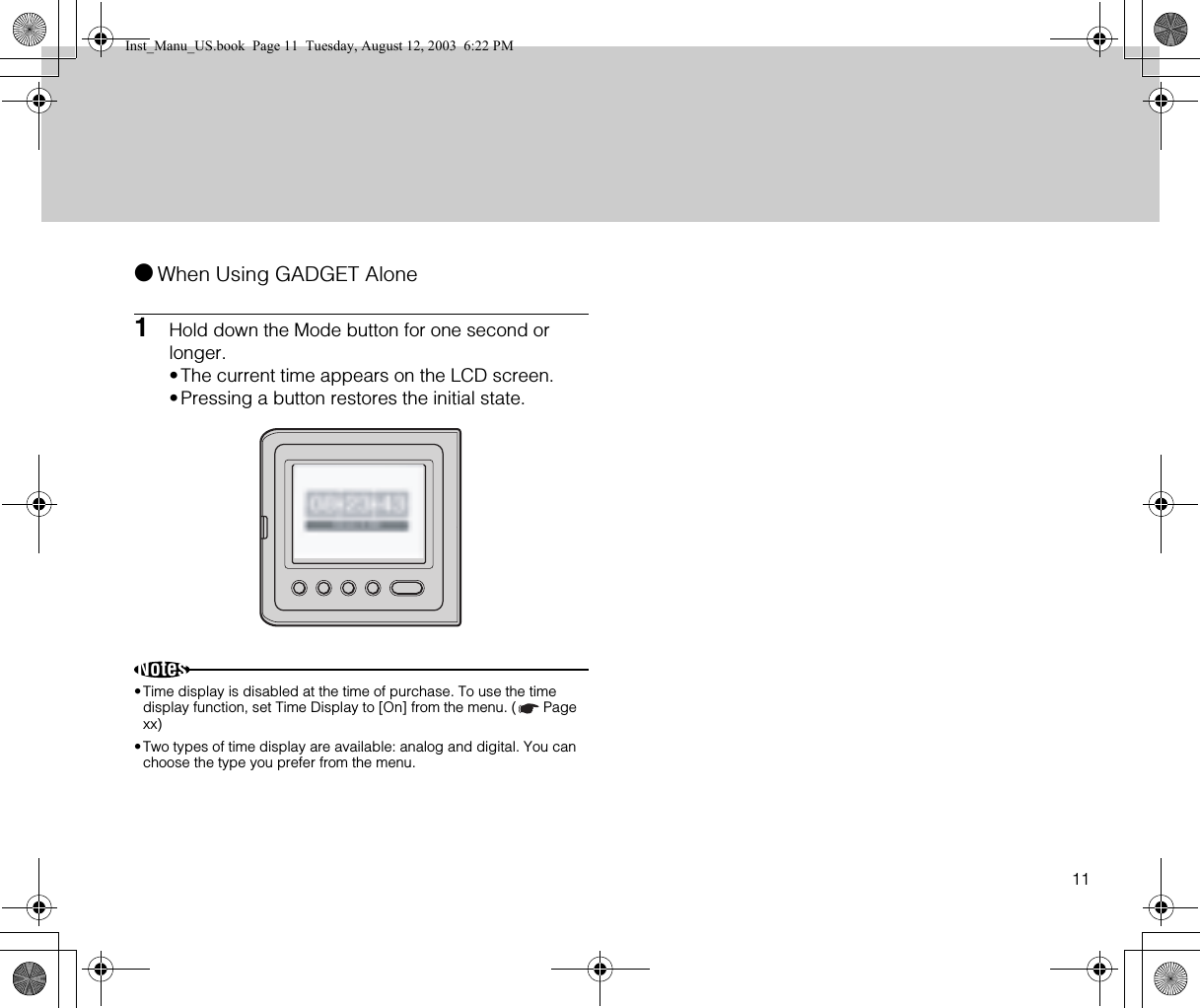

![11●When Using GADGET Alone1Hold down the Mode button for one second or longer.•The current time appears on the LCD screen.•Pressing a button restores the initial state.Notes•Time display is disabled at the time of purchase. To use the time display function, set Time Display to [On] from the menu. ( Page xx)•Two types of time display are available: analog and digital. You can choose the type you prefer from the menu.Inst_Manu_US.book Page 11 Tuesday, August 12, 2003 6:22 PM](https://usermanual.wiki/Samsung-Electronics-Co/GADGET/User-Guide-376545-Page-10.png)
![12■Identifying the Parts (the main unit)Identifying the Parts - Main UnitMicrophoneZoom buttonStart/Stop buttonPower switch(From left to right: [CAM][PLAY][OFF])Menu buttonMemory Stick slotConnecter for CradleTripod Adaptor receptaclePower lamp (red)Charge lampWhile charging: orangeWhen charging is completed: blueLCD screenStop button ( / BLC)Mode buttonRew button ( / LOCK)FF button ( / MF/AF)Play button ( / FADE)Inst_Manu_US.book Page 12 Tuesday, August 12, 2003 6:22 PM](https://usermanual.wiki/Samsung-Electronics-Co/GADGET/User-Guide-376545-Page-11.png)
![14■Inserting Memory Stick/Operating Delete-Protection switchWhen handling the “Memory Stick”/“Memory Stick Pro”, be sure to turn the Power switch to [OFF].●Inserting1Check the inserting direction indicated by the mark, and insert the Memory Stick as far as possible.Notes•Check the direction carefully. An attempt to insert the stick up-side-down or by placing it in the opposite orientation may damage the “Memory Stick”/“Memory Stick Pro” or the unit body.●Removing1Press down the “Memory Stick”/“Memory Stick Pro” softly and release it.•The “Memory Stick”/“Memory Stick Pro” is pushed out.•Do not attempt to pull it out without pressing it down.2Hold the “Memory Stick”/“Memory Stick Pro” by its tip and pull it out.[014-i1](The lower section of the main unit's rear panel. Near the slot for the Memory Stick. The Memory Stick is being inserted. The arrow indicates the inserting direction.)[014-i2](The same figure as the above. However, the arrow points to the opposite direction.)Inst_Manu_US.book Page 14 Tuesday, August 12, 2003 6:22 PM](https://usermanual.wiki/Samsung-Electronics-Co/GADGET/User-Guide-376545-Page-13.png)
- Delete-Protection switchInst_Manu_US.book Page 15 Tuesday, August 12, 2003 6:22 PM](https://usermanual.wiki/Samsung-Electronics-Co/GADGET/User-Guide-376545-Page-14.png)
![18■Selecting a Mode [Play]●When Connected to the Cradle (only for the Play Mode):Select an operating mode with the GADGET unit connected to the cradle.1Turn on the power and press the Mode button.•The operating mode selection screen appears.[Video]: Plays back movie files.[Still Image]: Plays back still images.[MP3]: Plays back music (in the MP3 format).[Audio]: Plays back sounds recorded (in the WAV format) via the internal microphone.[Line-In]: Records images from connected external equipment.[Settings]: Sets the functions common to all modes.[File Browser]: Checks the contents of the internal hard disk drive/“Memory Stick”/“Memory Stick Pro”.2Select an operating mode with the Rew button or the FF button on the LCD screen and finalize the selection with the Play button.●When Using GADGET Alone1Set the Power switch to [CAM] or [PLAY], and press the Mode button.•The operation selection screen appears.◆In recording mode:[Camera]: Records movies or still images.[Line-In]: Records images from connected external equipment.[Audio]: Records sounds via the via the internal microphone (in the WAV format).[Settings]: Sets the functions common to all modes.[File Browser]: Checks the contents of the internal hard disk drive/“Memory Stick”/“Memory Stick Pro”.Inst_Manu_US.book Page 18 Tuesday, August 12, 2003 6:22 PM](https://usermanual.wiki/Samsung-Electronics-Co/GADGET/User-Guide-376545-Page-17.png)
![19◆In playback mode:[Video]: Plays back movie files.[Still Image]: Plays back still images.[MP3]: Plays back music (in the MP3 format).[Audio]: Plays back sounds recorded (in the WAV format) via the internal microphone.[Settings]: Sets the functions common to all modes.[File Browser]: Checks the contents of the internal hard disk drive/“Memory Stick”/“Memory Stick Pro”.2Finalize the selection with the Menu selector.■Setting Menu ItemsSet menu items as follows:First, switch the operating mode and then display the Menu screen.1Set the Power switch to [CAM] or [PLAY].•When the unit is connected to the cradle, press the Power button.2Using the Mode button, switch the operating mode and then press the Menu button.•Menus that can be set up appear.- Setting example for the [CAM] - [Camera] mode:Inst_Manu_US.book Page 19 Tuesday, August 12, 2003 6:22 PM](https://usermanual.wiki/Samsung-Electronics-Co/GADGET/User-Guide-376545-Page-18.png)
![203On the LCD screen, using the Rew button, FF button or Play button, finalize the selection (with the Menu selector when using GADGET's main unit alone). ([Example] [Still Photo Quality])■Quick AccessYou can change the white balance or exposure through one-touch operation during image/video recording.1 Set up for recording movies or still images. ( Page xx)•Camera images appear on the LCD screen.2Press the Menu selector.•The quick access menu items appear.Inst_Manu_US.book Page 20 Tuesday, August 12, 2003 6:22 PM](https://usermanual.wiki/Samsung-Electronics-Co/GADGET/User-Guide-376545-Page-19.png)

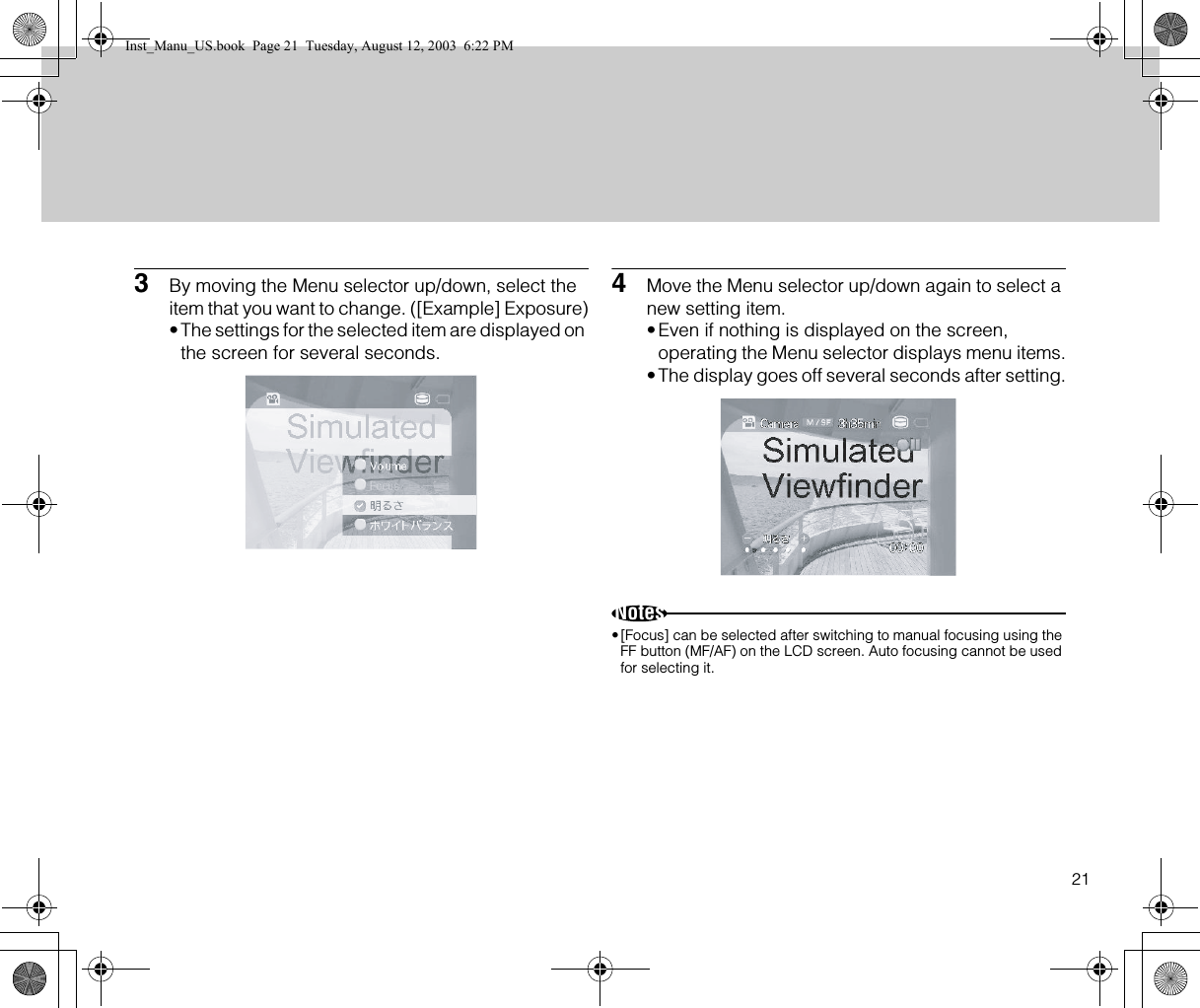

![213By moving the Menu selector up/down, select the item that you want to change. ([Example] Exposure)•The settings for the selected item are displayed on the screen for several seconds.4Move the Menu selector up/down again to select a new setting item.•Even if nothing is displayed on the screen, operating the Menu selector displays menu items.•The display goes off several seconds after setting.Notes•[Focus] can be selected after switching to manual focusing using the FF button (MF/AF) on the LCD screen. Auto focusing cannot be used for selecting it.Inst_Manu_US.book Page 21 Tuesday, August 12, 2003 6:22 PM](https://usermanual.wiki/Samsung-Electronics-Co/GADGET/User-Guide-376545-Page-20.png)
![22• [Volume]: Adjusts the earphone volume during recording.• [Focus]: Enables focus to be adjusted manually. (You need to switch to manual focusing.)• [Exposure]: Adjusts exposure.• [White Balance]: Adjusts the color shade. Selecting [HOLD] for the set value displays a [ ] mark in the middle of the screen, enabling the color shade to be fixed to the current value. In this state, move the Menu selector downward to fix the color shade to whatever is displayed in the [ ] at that moment.Items Available for Quick AccessInst_Manu_US.book Page 22 Tuesday, August 12, 2003 6:22 PM](https://usermanual.wiki/Samsung-Electronics-Co/GADGET/User-Guide-376545-Page-21.png)

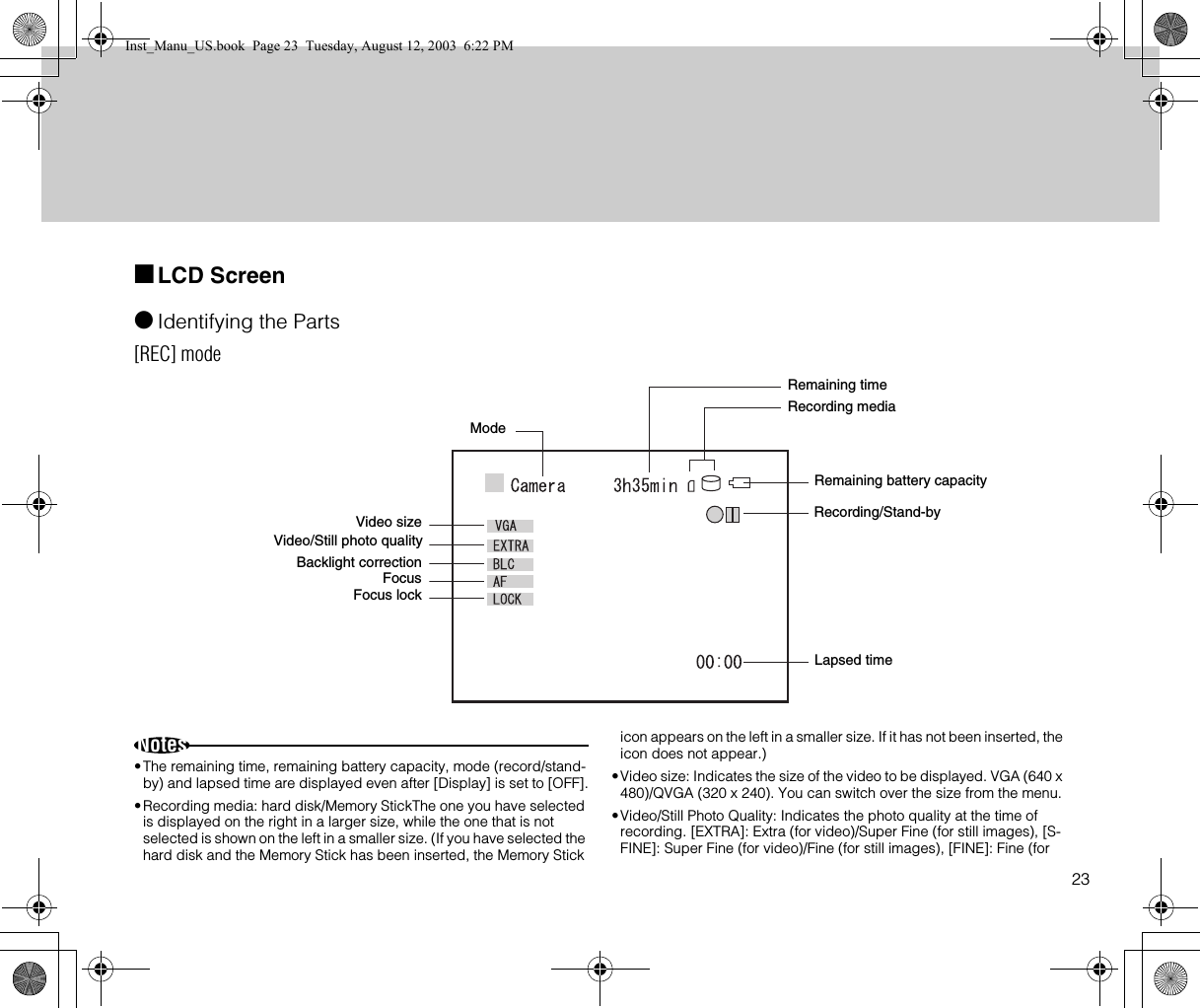

![23■LCD Screen●Identifying the Parts[REC] modeNotes•The remaining time, remaining battery capacity, mode (record/stand-by) and lapsed time are displayed even after [Display] is set to [OFF].•Recording media: hard disk/Memory StickThe one you have selected is displayed on the right in a larger size, while the one that is not selected is shown on the left in a smaller size. (If you have selected the hard disk and the Memory Stick has been inserted, the Memory Stick icon appears on the left in a smaller size. If it has not been inserted, the icon does not appear.)•Video size: Indicates the size of the video to be displayed. VGA (640 x 480)/QVGA (320 x 240). You can switch over the size from the menu. •Video/Still Photo Quality: Indicates the photo quality at the time of recording. [EXTRA]: Extra (for video)/Super Fine (for still images), [S-FINE]: Super Fine (for video)/Fine (for still images), [FINE]: Fine (for ModeVideo sizeVideo/Still photo qualityBacklight correctionFocusFocus lockRemaining battery capacityRecording/Stand-byLapsed timeRemaining timeRecording mediaInst_Manu_US.book Page 23 Tuesday, August 12, 2003 6:22 PM](https://usermanual.wiki/Samsung-Electronics-Co/GADGET/User-Guide-376545-Page-22.png)
![24video)/- (not applicable to still images). Use the menu to switch over the setting.•Backlight Correction: BLC (enabled)/blank (disabled). You can switch over the setting with the Stop button on the LCD screen.•Focus: AF (auto focus)/MF (manual focus). You can switch the setting with the FF button on the LCD screen.•Focus Lock: LOCK (enabled)/blank (disabled). You can switch over the setting with the Rew button on the LCD screen.[PLAY] modeNotes•These are displayed even after [Display] is set to [OFF]. ModeFile No. Recording mediaRemaining battery capacityInst_Manu_US.book Page 24 Tuesday, August 12, 2003 6:22 PM](https://usermanual.wiki/Samsung-Electronics-Co/GADGET/User-Guide-376545-Page-23.png)
![27■Recording Movies (MPEG4 Video Recording)You can record movies in the MPEG4 format.1Turn the Power switch to [CAM] and press the Mode button to select [Camera].•Camera images appear on the LCD screen.2Press the Start/Stop button.•Video recording starts.•To stop recording, press the Start/Stop button again.Notes•Image recording is disabled when GADGET is set in the cradle. Remove the main unit from the cradle before image recording.•Recording movies again after you stop recording them once causes them to be saved in a new file.•Press the Menu button to set the picture quality and other items.•You can set the volume, focus, exposure, and white balance via the Quick Access function.Inst_Manu_US.book Page 27 Tuesday, August 12, 2003 6:22 PM](https://usermanual.wiki/Samsung-Electronics-Co/GADGET/User-Guide-376545-Page-26.png)
![28■Playing Back Movies (MPEG4 Video Playback)Play back MPEG4 video files in which you have recorded movies.1Turn the Power switch to [PLAY] and press the Mode button to select [Video].•A file list screen appears.2Move the Menu selector up or down to select the file you want to play back.3Press .: Playback/pause: Stop (returns to the file list)/ : Fast-rewind/fast-forwardWhile stopping, press the Menu button and set [Play Mode] under [Options] to either [Single Video], [Play to End], [Repeat] or [Repeat All].Notes•To play back audio files, connect earphones.•You can adjust the volume with the Menu selector.OperationsTo Play to End/Repeat:Inst_Manu_US.book Page 28 Tuesday, August 12, 2003 6:22 PM](https://usermanual.wiki/Samsung-Electronics-Co/GADGET/User-Guide-376545-Page-27.png)
![29■Recording Still ImagesYou can record still images.1Turn the Power switch to [CAM] and press the Mode button to select [Camera].•A camera image appears on the LCD screen.2Press the Photo button.•This records a still image.Notes•Image recording is disabled when GADGET is set in the cradle. Remove the main unit from the cradle before image recording.•Press the Menu button to set picture quality and other items.•You can set the focus, exposure and white balance via the Quick Access function.•Sounds are not recorded.■Playing Back Still ImagesPlay back still images you have recorded.1Turn the Power switch to [PLAY] and press the Mode button to select [Still Image].•A file list screen appears.2Move the Menu selector up or down to select the file you want to play back.3Press .•The selected still image is displayed.Inst_Manu_US.book Page 29 Tuesday, August 12, 2003 6:22 PM](https://usermanual.wiki/Samsung-Electronics-Co/GADGET/User-Guide-376545-Page-28.png)
![30While stopping, press the Menu button to select [Slide Show] under [Options]. You can change the switching time ( Page xx).: Play/pause: Stop (Return to the file list)/ : Previous/next image■Recording from a TV or VCRRecord images from external equipment in GADGET.1Connect the GADGET unit to the cradle. Alternatively, connect the GADGET unit to external equipment with Multi-AV cables.•When connecting to the cradle, turn the Power switch of the GADGET unit to [OFF].2Turn on the power and press the Mode button to select [Line-In].•The external equipment's image appears on the LCD screen.Playing Back All Still Images in Sequence (Slide Show)OperationsInst_Manu_US.book Page 30 Tuesday, August 12, 2003 6:22 PM](https://usermanual.wiki/Samsung-Electronics-Co/GADGET/User-Guide-376545-Page-29.png)
![313Press the Start/Stop button on the Remote Control.•Recording starts.•To stop recording, press the Start/Stop button again.Notes•Videos that contain a copyright signal (copy guard) cannot be recorded.This function enables automatic video recording when timer recording is set.In the state 3, if the external equipment is deactivated, the GADGET unit enters Recording Standby state. At the time set with the timer function, recording starts au-tomatically as a video signal is received. When the vid-eo signal is lost, recording ends automatically.Notes•Do not turn off the power in Standby state.•Since recording starts on GADGET after receiving a video signal from external equipment, the first part of the video cannot be recorded for several seconds.■Viewing on TVYou can enjoy videos and still images on TV.1Connect the GADGET unit to the cradle. Alternatively, connect the GADGET unit to external equipment with Multi-AV cables.•When connecting to the cradle, turn the Power switch of the GADGET unit to [OFF].2Turn on the power and press the Mode button to select a desired playback mode.•A file list screen appears.3Press [Cursor Up]/[Cursor Down] on the Remote Control to select the file you want to play back.Automatic Recording- When Selecting Video Mode:Inst_Manu_US.book Page 31 Tuesday, August 12, 2003 6:22 PM](https://usermanual.wiki/Samsung-Electronics-Co/GADGET/User-Guide-376545-Page-30.png)
![324Press .•Video playback starts.■Recording SoundsUse the internal microphone to record sounds. You can also record still images while recording sounds.1Turn the Power switch to [CAM] and press the Mode button to select [Audio].2Press the Start/Stop button.•Audio recording starts.•To stop recording, press the Start/Stop button again.•If still image recording is enabled, pressing the Photo button enables you to record still images.Inst_Manu_US.book Page 32 Tuesday, August 12, 2003 6:22 PM](https://usermanual.wiki/Samsung-Electronics-Co/GADGET/User-Guide-376545-Page-31.png)
![33Notes•Audio recording is disabled when GADGET is set in the cradle. Remove the main unit from the cradle before audio recording.•Recording sounds again after you stop recording them once causes them to be saved in a new file.•By setting the menu, you can record still images while recording sounds ( Page xx).•Audio input from external equipment is disabled.■Listening to Sounds in an Audio FileYou can play back audio files in which you have recorded sounds using GADGET.1Connect the earphones.2Turn the Power switch to [PLAY] and press the Mode button to select [Audio].•An audio file list appears.3Move the Menu selector up or down to select the file you want to play back.4Press .•Audio playback starts.Inst_Manu_US.book Page 33 Tuesday, August 12, 2003 6:22 PM](https://usermanual.wiki/Samsung-Electronics-Co/GADGET/User-Guide-376545-Page-32.png)

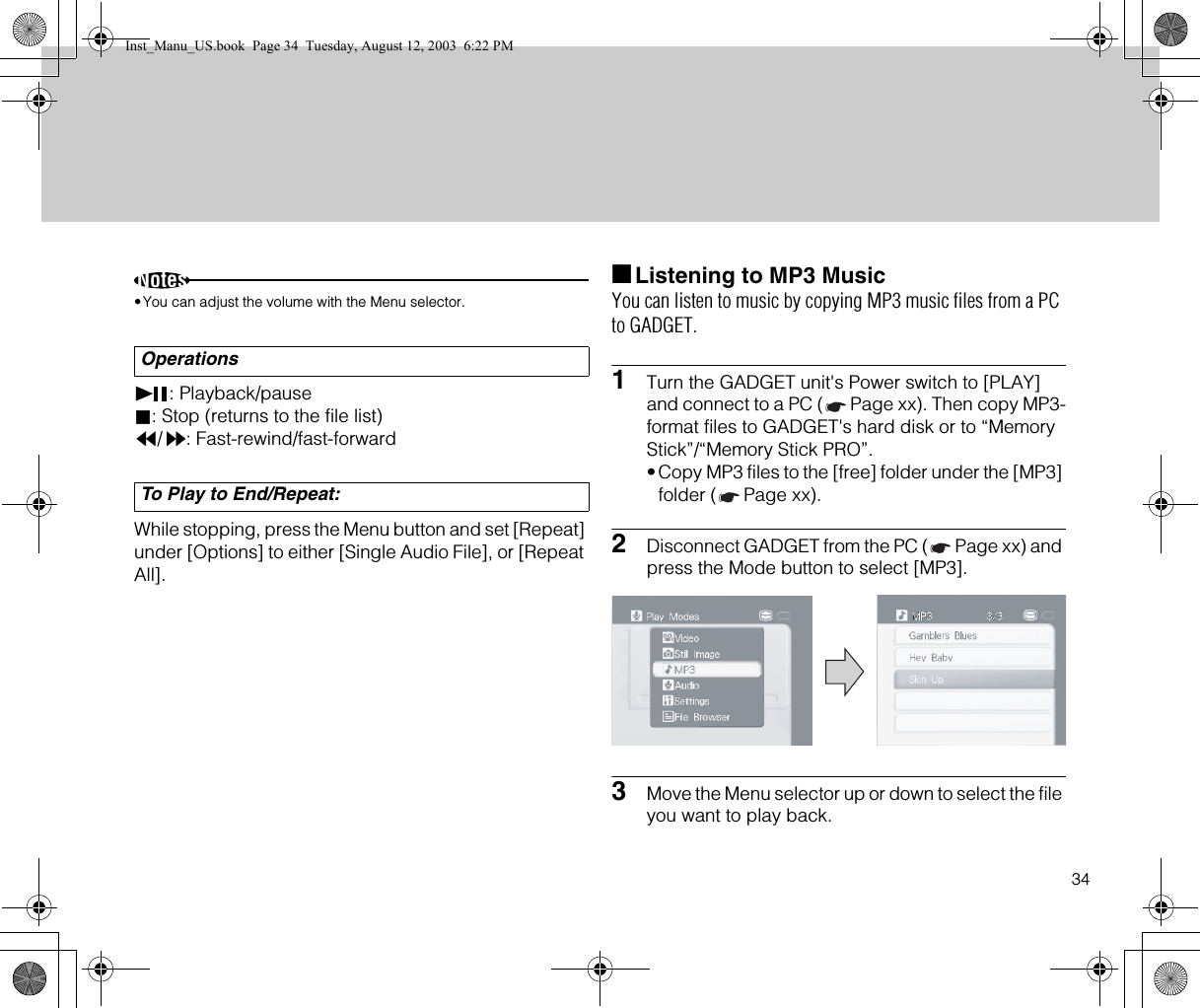

![34Notes•You can adjust the volume with the Menu selector.: Playback/pause: Stop (returns to the file list)/ : Fast-rewind/fast-forwardWhile stopping, press the Menu button and set [Repeat] under [Options] to either [Single Audio File], or [Repeat All].■Listening to MP3 MusicYou can listen to music by copying MP3 music files from a PC to GADGET.1Turn the GADGET unit's Power switch to [PLAY] and connect to a PC ( Page xx). Then copy MP3-format files to GADGET's hard disk or to “Memory Stick”/“Memory Stick PRO”.•Copy MP3 files to the [free] folder under the [MP3] folder ( Page xx).2Disconnect GADGET from the PC ( Page xx) and press the Mode button to select [MP3].3Move the Menu selector up or down to select the file you want to play back.OperationsTo Play to End/Repeat:Inst_Manu_US.book Page 34 Tuesday, August 12, 2003 6:22 PM](https://usermanual.wiki/Samsung-Electronics-Co/GADGET/User-Guide-376545-Page-33.png)
![354Press .•Music playback starts.•GADGET supports MP3 ID3 tags. During playback, the song title, album title, and artist name listed in the ID3 tag appear on the screen.: Playback/pause: Stop (returns to the file list)/ : Previous/next fileYou can change the display to still image display (Slide Show). After selecting [MP3] with the Mode button, set display from the [Options] menu.Notes•Song title information may be incorrectly displayed in part.•You can create up to three folders under the MP3 folder.•Example: Naming a folder[MP3] - [Genre] - [Artist] - [Album] - 01 - Song title .mp3[MP3] - [Artist] - [Album] - 01 - Song title .mp3OperationsChanging DisplayInst_Manu_US.book Page 35 Tuesday, August 12, 2003 6:22 PM](https://usermanual.wiki/Samsung-Electronics-Co/GADGET/User-Guide-376545-Page-34.png)
![36Connecting to a PCGADGET can be connected to a PC or a printer that has direct printing capability via the USB interface.■USB's FunctionsThe USB interface provides the following three functions:●PC camera functionWhen connected to a PC with its Power switch set to [CAM], GADGET functions as a PC camera. This function enables transmission of current videos to a communications application such as Windows Messenger (which requires a specified USB driver, Image Mixer and DviX to be installed). ●Removable disk functionWhen connected to a PC with its Power switch set to [PLAY], GADGET can function as an external hard disk for a PC, reading and writing data.●USB direct printing functionWhen connected to a to a printer that has a USB direct print function with its Power switch set to [PLAY], GADGET can print still images selected on it without a PC.■PC Camera FunctionWhen connected to a PC, GADGET can function as external storage or a PC camera. This function requires the specified USB driver and software to be installed.Notes•For the power supply, be sure to use the AC adaptor.●Installing the USB driver [Windows]Install the USB driver onto a PC to prepare for connecting the GADGET unit to the PC.1Terminate other applications and insert the supplied CD-ROM.•Do not connect the USB cable before installing the USB driver.2Select [Install USB driver] from [Software Installation].3Complete the installation, following the instructions on the screen.•Restart the machine to enable the USB driver.Inst_Manu_US.book Page 36 Tuesday, August 12, 2003 6:22 PM](https://usermanual.wiki/Samsung-Electronics-Co/GADGET/User-Guide-376545-Page-35.png)
![37Notes•In the following cases, uninstall ( Page xx) the USB driver, and then reinstall it.–You have connected the USB cable before completing the installation.–You have canceled the installation before its completion.●Installing the USB driver [Macintosh]Install the USB driver onto Macintosh to prepare for connecting the GADGET unit to the Macintosh.1Terminate other applications and insert the supplied CD-ROM into the CD slot.•Do not connect the USB cable before installing the USB driver.2From [Software Installation], click on [Installing USB Driver ] and install the USB driver to the Macintosh [System Folder] by the drag-and-drop technique. •Restart the machine to enable the USB driver.Notes•In the following cases, uninstall ( Page xx) the USB driver, and then reinstall it.–You have connected the USB cable before completing the installation.–You have canceled the installation before its completion.●Uninstalling the USB DriverWhen the USB driver cannot be installed normally, uninstall the driver, and then reinstall it.●Windows1Power on the PC and start Windows.2Connect the AC adaptor to GADGET and turn the Power switch to [CAM] or [PLAY].3Connect GADGET's USB jack to the PC's USB jack with the supplied USB cable.4Open the PC's [Device Manager].◆For Windows 2000 Professional:Open [My Computer] → [Control Panel] → [System] → [Hardware], in this order, and click on [Device Manager].◆For other Windows OS'sOpen [My Computer] → [Control Panel] → [System], in this order, and click on [Device Manager].Inst_Manu_US.book Page 37 Tuesday, August 12, 2003 6:22 PM](https://usermanual.wiki/Samsung-Electronics-Co/GADGET/User-Guide-376545-Page-36.png)
![385Delete devices marked “?” from the entries under [Other Devices].6Power off GADGET and remove the USB cable.7Restart the PC.8Reinstall the USB driver ( Page xx).●Macintosh1From the Extensions folder inside the System folder, select the two files installed on Page xx and put them into the Trash.2Restart your Macintosh.3Reinstall the USB driver ( Page xx).●Installing DivX [Windows]The DivX software enables GADGET to function as a PC camera, displaying images on the screen of the PC.1Terminate other applications.2Insert the supplied CD-ROM into the PC's CD slot. •The installation screen appears. If the installation screen does not appear, open the CD-ROM drive icon under [My Computer], and double-click on [DivX Installation].Inst_Manu_US.book Page 38 Tuesday, August 12, 2003 6:22 PM](https://usermanual.wiki/Samsung-Electronics-Co/GADGET/User-Guide-376545-Page-37.png)
![393Click on [DivX Installation].4Follow the instructions on the screen to proceed with the installation procedure.5Click on [Finish].6Restart the PC.•DivX is enabled after restarting the PC.Notes•To uninstall DivX, use [Adding/Removing Programs (Applications)] from the [Control Panel].•For details on how to use DivX, see the online help.●Installing DivX [Macintosh]1Terminate other applications.2Insert the supplied CD-ROM into the Macintosh CD slot.•The installation screen appears. If it does not appear, open the CD-ROM icon and double-click on the installation menu icon to go to the installation screen.3Click on [DivX Installation].4Double-click the installer icon.[037-s1][038-s1]Inst_Manu_US.book Page 39 Tuesday, August 12, 2003 6:22 PM](https://usermanual.wiki/Samsung-Electronics-Co/GADGET/User-Guide-376545-Page-38.png)
![405Follow the instructions on the screen to proceed with the installation procedure.6Restart your Macintosh after completing the installation.•DivX is enabled after restarting the Macintosh.Notes•To uninstall DivX, put the folder containing the installed DivX into the Trash.•For details on how to use DivX, see the online help.●Installing PIXELA ImageMixer [Windows]The PIXELA ImageMixer software is used to edit video or audio files.1Terminate other applications.2Insert the supplied CD-ROM into the PC's CD slot.•The installation screen appears. If the installation screen does not appear, open the CD-ROM drive icon under [My Computer], and double-click on [PIXELA ImageMixer Installation].3Click on [PIXELA ImageMixer Installation].4Select the language to be used from the list.5Follow the instructions on the screen to proceed with the installation procedure.6Click on [Finish].Notes•To uninstall PIXELA ImageMixer, use [Adding/Removing Programs (Applications)] from the [Control Panel].•For details on how to use PIXELA ImageMixer, see the online help.[040-s1]Inst_Manu_US.book Page 40 Tuesday, August 12, 2003 6:22 PM](https://usermanual.wiki/Samsung-Electronics-Co/GADGET/User-Guide-376545-Page-39.png)
![41●Installing PIXELA ImageMixer [Macintosh]1Terminate other applications.2Insert the supplied CD-ROM into the Macintosh CD slot.•The installation screen appears. If it does not appear, open the CD-ROM icon and double-click on the installation menu icon to go to the installation screen.3Click on [PIXELA ImageMixer Installation].4Double-click the installer icon for the language to be used.5Follow the instructions on the screen to proceed with the installation procedure.6Restart your Macintosh after completing the installation.•PIXELA ImageMixer is enabled after restarting the Macintosh.Notes•To uninstall PIXELA ImageMixer, put the folder containing the installed PIXELA ImageMixer into the Trash.•For details on how to use PIXELA ImageMixer, see the online help.●Using as a PC Camera1Start the PC.2Turn the Power switch to [CAM].[038-s1]Inst_Manu_US.book Page 41 Tuesday, August 12, 2003 6:22 PM](https://usermanual.wiki/Samsung-Electronics-Co/GADGET/User-Guide-376545-Page-40.png)

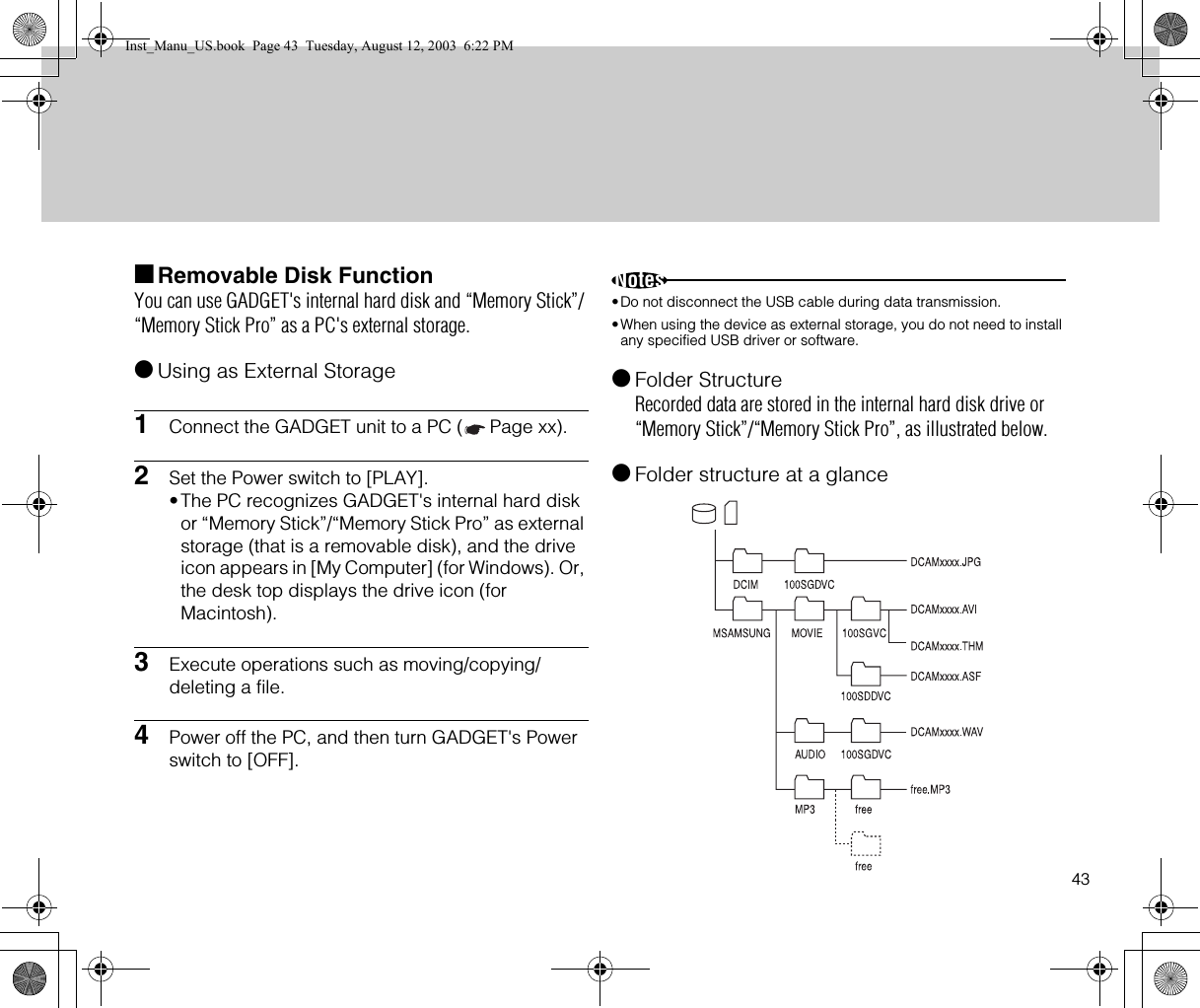

![43■Removable Disk FunctionYou can use GADGET's internal hard disk and “Memory Stick”/“Memory Stick Pro” as a PC's external storage.●Using as External Storage1Connect the GADGET unit to a PC ( Page xx).2Set the Power switch to [PLAY].•The PC recognizes GADGET's internal hard disk or “Memory Stick”/“Memory Stick Pro” as external storage (that is a removable disk), and the drive icon appears in [My Computer] (for Windows). Or, the desk top displays the drive icon (for Macintosh).3Execute operations such as moving/copying/deleting a file.4Power off the PC, and then turn GADGET's Power switch to [OFF].Notes•Do not disconnect the USB cable during data transmission.•When using the device as external storage, you do not need to install any specified USB driver or software.●Folder StructureRecorded data are stored in the internal hard disk drive or “Memory Stick”/“Memory Stick Pro”, as illustrated below.●Folder structure at a glanceInst_Manu_US.book Page 43 Tuesday, August 12, 2003 6:22 PM](https://usermanual.wiki/Samsung-Electronics-Co/GADGET/User-Guide-376545-Page-42.png)
![44Notes•DCAMxxxx. JPG: still images, DCAMxxxx. AVI: movies, DCAMxxxx. THM: thumbnails, DCAMxxxx. ASF: video files created on Samsung or other models, DCAMxxxx. WAV: audio files.•The xxxx portion represents an assigned number.•Except for the [free] folder, do not rename or delete any folders. GADGET's normal operation might fail if you do.•You can assign any desired name to [free].•One folder can contain up to 100 files or folders.■Connecting to a PrinterConnecting to a printer that has a USB direct printing function enables printing of still images selected on your GADGET unit to be printed without a PC.1Connect GADGET to a printer with a USB cable and turn GADGET's Power switch to [PLAY].2Press the Mode button and select a still image.3Using the Menu button, select [Print].Notes•To use the device while it is being connected to the cradle, power on the cradle in step 1.Inst_Manu_US.book Page 44 Tuesday, August 12, 2003 6:22 PM](https://usermanual.wiki/Samsung-Electronics-Co/GADGET/User-Guide-376545-Page-43.png)

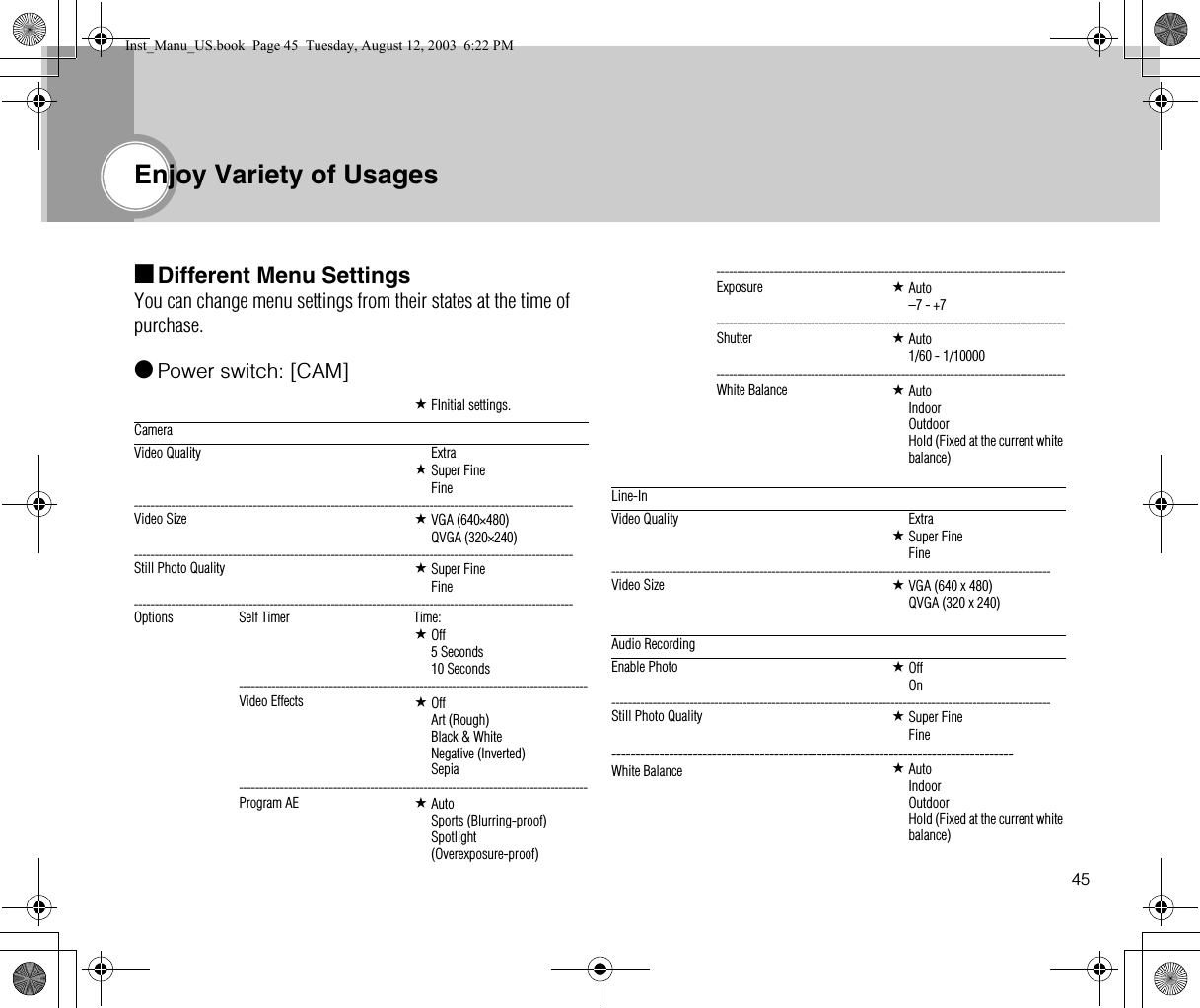

![45Enjoy Variety of Usages■Different Menu SettingsYou can change menu settings from their states at the time of purchase.●Power switch: [CAM]FInitial settings.CameraVideo Quality ExtraSuper FineFine-----------------------------------------------------------------------------------------------------------Video Size VGA (640×480)QVGA (320×240)-----------------------------------------------------------------------------------------------------------Still Photo Quality Super FineFine-----------------------------------------------------------------------------------------------------------Options Self Timer Time:Off5 Seconds10 Seconds-------------------------------------------------------------------------------------Video Effects OffArt (Rough)Black & WhiteNegative (Inverted)Sepia-------------------------------------------------------------------------------------Program AE AutoSports (Blurring-proof)Spotlight(Overexposure-proof)-------------------------------------------------------------------------------------Exposure Auto–7 - +7-------------------------------------------------------------------------------------Shutter Auto1/60 - 1/10000-------------------------------------------------------------------------------------White Balance AutoIndoorOutdoorHold (Fixed at the current white balance)Line-InVideo Quality ExtraSuper FineFine-----------------------------------------------------------------------------------------------------------Video Size VGA (640 x 480)QVGA (320 x 240)Audio RecordingEnable Photo OffOn-----------------------------------------------------------------------------------------------------------Still Photo Quality Super FineFine------------------------------------------------------------------------------------White Balance AutoIndoorOutdoorHold (Fixed at the current white balance)Inst_Manu_US.book Page 45 Tuesday, August 12, 2003 6:22 PM](https://usermanual.wiki/Samsung-Electronics-Co/GADGET/User-Guide-376545-Page-44.png)
![46Settings (Menu items are common to [CAM] and [PLAY].)Select Storage Hard DiskMemory Stick-----------------------------------------------------------------------------------------------------------Display Display OffOnAuto Off-------------------------------------------------------------------------------------Back Light OffOnAuto Off-------------------------------------------------------------------------------------LCD Brightness –(0)+-------------------------------------------------------------------------------------LCD Color –(0)+-------------------------------------------------------------------------------------Display Mode AutoLCD (Large-size characters)TV (Small-size characters)-------------------------------------------------------------------------------------Color Scheme OrangeBlueGreenPink-------------------------------------------------------------------------------------Time Display OffOn-------------------------------------------------------------------------------------Boot Screen OffDefaultSelect Photo-----------------------------------------------------------------------------------------------------------Setup Set Date/Time Internal clock settings-------------------------------------------------------------------------------------Date Format YY/MM/DDDD/MM/YYMM/DD/YY-------------------------------------------------------------------------------------Auto Shutoff Off (Auto Shutoff disabled)30 Seconds1 Minute5 Minutes* Auto Shutoff is enabled when running on the internal battery. When running on an external battery, the power cannot be turned off automatically.-------------------------------------------------------------------------------------Remote Control Off (Disabled)On (Enabled)-------------------------------------------------------------------------------------Language EnglishKoreanJapanese-------------------------------------------------------------------------------------Video System NTSC (Japan, Korea, USA, etc.)PAL (Europe, China, Africa, etc.)-------------------------------------------------------------------------------------Version Info GADGET versionInst_Manu_US.book Page 46 Tuesday, August 12, 2003 6:22 PM](https://usermanual.wiki/Samsung-Electronics-Co/GADGET/User-Guide-376545-Page-45.png)
![47●Power switch: [PLAY]-----------------------------------------------------------------------------------------------------------Format Hard DiskMemory Stick* Formatting deletes all files including protected ones, and they can never be restored. Consider carefully before formatting.* While formatting, do not change the Power switch position, operate GADGET, or remove the Memory Stick.* “Memory Stick”/“Memory Stick Pro” can not be used if it has been formatted on a PC. Reformat it on GADGET.* Formatting cannot be performed when the Delete-Protection switch on the Memory Stick is set to [LOCK]. -----------------------------------------------------------------------------------------------------------Demo Mode OffOnStart NowFile Browser (Check the data stored on the hard disk or Memory Stick.)AudioDCIMMovieMP3FInitial settings.VideoOptions Play Mode Single VideoPlay to EndRepeatRepeat All-------------------------------------------------------------------------------------Play Multiple Display Multiple Movie Files-------------------------------------------------------------------------------------Display Screen Size Actual SizeFull Screen-----------------------------------------------------------------------------------------------------------Delete Delete This VideoDelete All Video FilesFile Number Reset (Reassigns by starting with 0001.)NoYesSelect Multiple-----------------------------------------------------------------------------------------------------------Protect Protect This Video (Cancels protection if it is protected.)Protect All Video FilesCancel Protection of All Video FilesSelect MultipleInst_Manu_US.book Page 47 Tuesday, August 12, 2003 6:22 PM](https://usermanual.wiki/Samsung-Electronics-Co/GADGET/User-Guide-376545-Page-46.png)
![48* When listed in a table, protected files appear with a key icon. When checked in File Browser, they are marked “Protected.”* Setting the Delete-Protection switch on Memory Stick to [LOCK] causes all files on the Memory Stick to be protected.* When the Delete-Protection switch on the Memory Stick is set to [LOCK], no key icon appears.-----------------------------------------------------------------------------------------------------------Copy to Memory Stick(Or Copy to Hard Disk)Copy This VideoCopy All Video FilesSelect MultipleCopy All FilesStill ImagesSelect Storage Hard DiskMemory Stick--------------------------------------------------------------------------------------------------------------Options Slide Show OnOff-------------------------------------------------------------------------------------Play Multiple Display Still Image-------------------------------------------------------------------------------------Repeat OnOff-------------------------------------------------------------------------------------Slide ShowSwitching Time3 Seconds5 Seconds10 Seconds* It takes longer than the set time for large-size still images recorded on other digital cameras to be displayed. (Reference: It takes about 10 seconds to display an image of about 3 mega (million) pixels.)* The still image display function supports images ranging from QQVGA (162 x 120 dots) up to 5 mega pixels.--------------------------------------------------------------------------------------------------------------Delete Still image files to be deleted:Delete This ImageDelete All ImagesFile Number Reset (Reassigns by starting with 0001.)NoYesSelect Multiple--------------------------------------------------------------------------------------------------------------Protect Protect This Still PhotoProtect All Still PhotosCancel Protection of All Still PhotosSelect Multiple* Setting the Delete-Protection switch on Memory Stick to [LOCK] causes all files on the Memory Stick to be protected.--------------------------------------------------------------------------------------------------------------PrintPrint This Still PhotoEnter the number of copies to print out.↓When the unit is connected to a USB direct printing-enabled printer:Select “Save to DPOF file” or “Start Print.”When the unit is not connected to a USB direct printing-enabled printer:The number of copies to be printed out is saved in the DPOF file.Inst_Manu_US.book Page 48 Tuesday, August 12, 2003 6:22 PM](https://usermanual.wiki/Samsung-Electronics-Co/GADGET/User-Guide-376545-Page-47.png)
![50--------------------------------------------------------------------------------------------------------------Protect Protect This MP3 FileProtect All MP3 FilesCancel Protection of All MP3 FilesSelect Multiple* Setting the Delete-Protection switch on Memory Stick to [LOCK] causes all files on the Memory Stick to be protected.--------------------------------------------------------------------------------------------------------------Copy to Memory Stick(Or Copy to Hard Disk)Copy This MP3 FileCopy All MP3 FilesSelect MultipleCopy All FilesAudioOptions Play Multiple Play Multiple Audio Files-------------------------------------------------------------------------------------Repeat OffAudio FileRepeat All Audio Files--------------------------------------------------------------------------------------------------------------Delete Delete This Audio FileDelete All Audio FilesFile Number Reset (Reassigns by starting with 0001.)NoYes--------------------------------------------------------------------------------------------------------------Protect Protect This Audio FileProtect All Audio FilesCancel Protection of All Audio FilesSelect Multiple* Setting the Delete-Protection switch on Memory Stick to [LOCK] causes all files on the Memory Stick to be protected.--------------------------------------------------------------------------------------------------------------Copy to Memory Stick(Or Copy to Hard Disk)Copy This Audio FileCopy All Audio FilesSelect MultipleCopy All FilesSettingsThe menu items are the same as those when the Power switch is set to [CAM].File Browser (Check the data stored in the hard disk or Memory Stick.)AudioDCIMMovieMP3Inst_Manu_US.book Page 50 Tuesday, August 12, 2003 6:22 PM](https://usermanual.wiki/Samsung-Electronics-Co/GADGET/User-Guide-376545-Page-49.png)
![52• Do not allow the device to come in contact with seawater or any water. If that ever happens, wipe the device body with a wet cloth after fully wringing it out. Then wipe it with a dry cloth.• When carrying the GADGET unit, take care not to drop or hit it against any object. High impact may damage the outer jacket, leading to failure.• Do not use the device for business purposes such as monitoring. GADGET is not designed to serve such business purposes. Using it at length may cause heat to accumulate inside the device, resulting in failure.●When GADGET is not used for long periods:When GADGET is not used for a long time, follow the in-structions below for storing it.• Set the Power switch to [OFF].• Remove the power source such as the battery or the AC adaptor.• Avoid storing it in such places as follows:–Places that are exposed to dust or sand–Places that are affected by magnetism, radio waves or static electricity–Places that are exposed to high temperature, high humidity or direct sunlight■Precautions for Use - Concerning the Operating Environment of the Supplied Software●Windows environment•CPU: Pentium xx, xx MHz or above.•OS: Windows 98SE/ME/2000/XP. (PC/AT compatible computer with the Japanese version preinstalled.)• Memory: xx MB or more• Free space on the hard disk: xx MB or more (Space of xx MB or more is recommended.)• Display resolution: 800 x 600 dots or higher• Provided with a USB port.• With Windows Media Player xx or later installed• With DirectX xx or later installed●Macintosh environment• OS: MacOS 9.1 - 9.22 (Macintosh with one of these versions preinstalled)• Memory: xx MB or more• Free space on the hard disk: xx MB or more (Space of xx MB or more is recommended.)• Display resolution: 800 x 600 dots or higher• Provided with a USB portInst_Manu_US.book Page 52 Tuesday, August 12, 2003 6:22 PM](https://usermanual.wiki/Samsung-Electronics-Co/GADGET/User-Guide-376545-Page-51.png)
![53Notes•Not all PCs configured with the above environment are subject to guarantee of proper operation.•PCs used via a USB hub or with a USB card are out of the scope of guarantee.•If your OS is Windows 2000/XP, log in as the [Administrator (administrator of the PC)] (or a user with the equivalent privileges) to install the OS.■Precautions for Cleaning the Unit and Handling the Internal Lithium Cell●Cleaning• Wipe dust off the main unit using a soft, dry cloth. Do not use a solvent such as benzine or thinner. Such solvents may deteriorate the outer jacket or cause paint to peel off. If the jacket is heavily soiled, soak a wipe in thinned kitchen detergent, wring it out well, and wipe the jacket with it. Then, finish with a dry cloth.• When using a chemically treated wipe, follow the accompanying instructions.• If fingerprints are left on the lens or if you used GADGET in a highly humid place or in a place that may be affected by salt, such as a seashore, be sure to wipe the lens surface with a soft wipe.• If the LCD screen is soiled with fingerprints or dirt, wipe it with the supplied wiper (for ITCAM-9 only) or with a dry, soft wipe.Inst_Manu_US.book Page 53 Tuesday, August 12, 2003 6:22 PM](https://usermanual.wiki/Samsung-Electronics-Co/GADGET/User-Guide-376545-Page-52.png)
![54●Internal Rechargeable Lithium CellGADGET incorporates a rechargeable lithium cell that stores the date and other settings even when the AC adaptor and the battery are removed.The rechargeable lithium cell is automatically recharged when GADGET is used. If the device is not used at all, the cell runs down in a week, and the time is displayed like this: .“- - -.” In this case, connect the AC adaptor to GADGET or install a battery into it, then turn the Power switch to [PLAY] or [CAM]. Then leave it for xx hours or longer. After that, set the date again ( Page xx).Note, however, that GADGET operates normally even when the lithium cell has drained if you do not need date recording.Notes•If date setting fails even after the internal rechargeable lithium cell is fully charged, contact our service agent available to you ( Page xx).•Recycling of lithium cells is encouraged since they contain precious resources of which only small deposits have been identified. As for disposal of GADGET after you have finished using it, bring it to our recycling agent.■Precaution for Using “Memory Stick”/“Memory Stick Pro”●Using and Storing• Do not make contact with the jacks or allow any metal to make contact with them.• Do not affix any item other than the prepared labels.• Do not cause high impact to it, bend it, or drop it.• Do not disassemble or alter it.• Keep it off water.• Avoid using or storing it in places as described below:–In a heated car, under the blazing sun, or in any place exposed to high temperature–Under direct sunlight–In a place exposed to high humidity or corrosive effect–When carrying or storing GADGET, keep it in the case supplied with your “Memory Stick”/“Memory Stick Pro”.• Data may be destroyed if GADGET is used in any of the following ways:–If the “Memory Stick” or “Memory Stick Pro” is removed or the unit's power is shut off while writing or reading data.–If the unit is used under the influence of static electricity or electrical noise.Inst_Manu_US.book Page 54 Tuesday, August 12, 2003 6:22 PM](https://usermanual.wiki/Samsung-Electronics-Co/GADGET/User-Guide-376545-Page-53.png)
![57■Precautions for Charging and Handling the Battery●Charging• Before starting, be sure to charge the battery ( Page xx).• Keep charging until the CHARGE lamp goes off at an ambient temperature between 0 and 40 degrees centigrade. Outside this temperature range, charging may be more time-consuming.• After charging is finished, remove the AC adaptor from the unit's DC IN jack or disconnect the battery from the GADGET unit.●Using the Battery Efficiently• Use the battery at an ambient temperature between 0 and 40 degrees centigrade. Under 0 degrees centigrade, the operating hours may be reduced. Under such conditions, you can extend the operating hours by warming the battery beforehand in your pocket.• The battery keeps going down even in the standby state or when playing is paused. Turning off the power whenever possible helps extend the operating hours.• The battery is not waterproof. Take care to keep it away from water.●Storing Battery• Leaving the battery installed in your GADGET slowly leads to battery drain even when the Power switch is set to [OFF]. Be sure to disconnect the battery from the main unit after charging or when you will not use the device for hours. This procedure enables you to prevent battery drain and reduction in battery life.• Store the battery in a cool place with low humidity, at a fixed temperature if possible. An excessively low or high ambient temperature may reduce the battery life.• When you are storing the battery at length, we recommend that you charge the battery at least once a year and put it back in storage after completely letting it discharge.Inst_Manu_US.book Page 57 Tuesday, August 12, 2003 6:22 PM](https://usermanual.wiki/Samsung-Electronics-Co/GADGET/User-Guide-376545-Page-56.png)
![61· Myanmar· MexicoMajor countries and regions using the PAL system[PAL]· UK· Italy· Australia· Austria· The Netherlands· Kuwait· Singapore· Switzerland· Sweden· Spain· Slovakia· Thailand· Czech· China· Denmark· Germany· New Zealand· Norway· Hungary· Finland· Belgium· Hong Kong· Poland· Portugal· Malaysia[PAL-M]· Brazil[PAL-N]· Argentina· Uruguay· ParaguayMajor countries and regions using the SECAM system· Iraq· Iran· Ukraine· Guyana· France· Bulgaria· Monaco· RussiaNotes•Prepare a TV set that has video/audio jacks.Inst_Manu_US.book Page 61 Tuesday, August 12, 2003 6:22 PM](https://usermanual.wiki/Samsung-Electronics-Co/GADGET/User-Guide-376545-Page-60.png)
![62Troubleshooting■Troubleshooting[Symptom]Recording is disabled.[Cause]The hard disk, or “Memory Stick”/“Memory Stick Pro” does not have enough free space.[Action]Delete unnecessary data.[Symptom]The recordable time/photo count for movies or still im-ages significantly differs from the value stated in this document.[Cause]The recordable time/photo count varies depending on the subject images. This is not a failure.[Action]-[Cause]The recordable time and photo count become less than the stated values when movies, still images, and audio/music files are used in a single “Memory Stick”/“Memo-ry Stick Pro”.[Action]-[Symptom]Movies and/or sounds are not played normally.[Cause]Data may have been destroyed because of static elec-tricity or radio waves.[Action]Create backup copies of important data on a PC or oth-er media.[Symptom]Sounds are not heard through earphones while display-ing still images.[Cause]While displaying still images, it is normal that sounds are not heard.[Action]-[Symptom]The LCD screen displays movies in a small size.While RecordingWhile PlayingInst_Manu_US.book Page 62 Tuesday, August 12, 2003 6:22 PM](https://usermanual.wiki/Samsung-Electronics-Co/GADGET/User-Guide-376545-Page-61.png)
![63[Cause]The movies were recorded in QVGA (320 x 240) mode and played with [Display Screen Size] set to [Actual Size].[Action]From the menu, set [Display Screen Size] to [Full Screen].[Symptom]While recording fast motions, sometimes mosaic type noise occurs.[Cause]The phenomenon occurs from the inherent nature of MPEG4 movies. This is not an abnormality.[Action]Record in [Extra] mode.[Symptom]Files recorded on other devices or using third-party software cannot be played.[Cause]GADGET cannot always play files recorded on other de-vices or using third-party software. This is not an abnor-mality.[Action]-[Symptom]Files recorded on GADGET cannot be played on anoth-er device or images in the files cannot be displayed in the correct size.[Cause]Other devices cannot always play files recorded on GADGET or cannot always play images in such files in the correct size. This is not an abnormality.[Action]-[Symptom]Data recorded on a PC cannot be read on GADGET.[Cause]GADGET cannot read data that are incompatible with GADGET.[Action]-[Symptom]MPEG4 movies recorded on GADGET cannot be played on a PC.[Cause]A PC without movie-playing software installed cannot play movies recorded on GADGET.Inst_Manu_US.book Page 63 Tuesday, August 12, 2003 6:22 PM](https://usermanual.wiki/Samsung-Electronics-Co/GADGET/User-Guide-376545-Page-62.png)
![64[Action]Install the supplied software.[Symptom]Black boarders appear at the top and bottom of the screen while playing movies on a PC.[Cause]If top and bottom black boarders were included in the original video/broadcasting screen, they are naturally included in movies, recorded or played on GADGET. When playing such movies on a PC, those black board-ers appear as well. This is not an abnormality.[Action]-[Symptom]MP3 files cannot be played on GADGET.[Cause]1. An MP3 file cannot be played if its folder/file name includes characters other than Japanese or English characters. (When Japanese has been selected from the “Display Language” menu item)2. An MP3 file cannot be played if its encoding format is not compatible.3. An MP3 folder cannot be played if it has more than 100 folders and files in all.4. An MP3 folder cannot be played if it has a hierarchical structure with more than three or more sub-folder layers.[Action]1. Use Japanese or English characters for the name.2. An incompatible file cannot be played by design.3. Delete unnecessary folders and files to reduce the total number to 100 or less.4. Restructure the sub-folders under the MP3 folder into a hierarchy with three layers or fewer.[Symptom]The title/artist name does not appear for the MP3 file be-ing played.[Cause]Although GADGET supports the MP3 ID tags, they may not always be displayed in the following cases:• The folder/file name includes characters other than Japanese or English characters. (When Japanese has been selected from the [Display Language] menu item)• The ID tag includes characters other than Japanese or English characters.(When Japanese has been selected from the “Display Language” menu item)[Action]-Inst_Manu_US.book Page 64 Tuesday, August 12, 2003 6:22 PM](https://usermanual.wiki/Samsung-Electronics-Co/GADGET/User-Guide-376545-Page-63.png)
![65[Symptom]Data cannot be written, deleted, or formatted to/from/on the “Memory Stick”/“Memory Stick Pro”.[Cause]The Delete-Protection switch has been locked.[Action]Unlock the Delete-Protection switch.[Symptom]“Memory Stick”/“Memory Stick Pro” formatted on a de-vice other than GADGET is not useable.[Cause]“Memory Stick”/“Memory Stick Pro” formatted on a de-vice other than GADGET cannot be used.[Action]Reformat it on GADGET.[Symptom]“Memory Stick”/“Memory Stick Pro” formatted on GAD-GET is not useable on other devices.[Cause]-[Action]Format it on the device it will be used with.[Symptom]“Memory Stick”/“Memory Stick Pro” cannot be read on GADGET.[Cause]A certain folder has been deleted from the “Memory Stick”/“Memory Stick Pro” on the PC that is running it.[Action]Do not delete any folder from “Memory Stick”/“Memory Stick Pro”.[Symptom]“Memory Stick”/“Memory Stick Pro” formatted in the NTFS format cannot be detected on GADGET.[Cause]GADGET does not support NTFS-formatted “Memory Stick”/“Memory Stick Pro”.[Action]Use GADGET to format any “Memory Stick”/“Memory Stick Pro” to be used on GADGET.[Symptom]GADGET-formatted “Memory Stick”/“Memory Stick Pro” is not useable.[Cause]GADGET or the “Memory Stick”/“Memory Stick Pro” may be faulty.While Operating “Memory Stick”Inst_Manu_US.book Page 65 Tuesday, August 12, 2003 6:22 PM](https://usermanual.wiki/Samsung-Electronics-Co/GADGET/User-Guide-376545-Page-64.png)
![66[Action]Contact our service center ( Page xx).[Symptom]No images or sounds are generated after connecting to a TV set.[Cause]Connection may be faulty.[Action]Re-connect using the supplied cable.[Cause]The Power switch may not be set to [PLAY], disabling image and sound playback.[Action]Set the Power switch to [PLAY].[Symptom]Connecting to external equipment using the cradle dis-turbs the display.[Cause]Connecting GADGET to both video/audio input and out-put jacks of a single external device may disturb the dis-play.[Action]Connect GADGET to either the video/audio input or out-put jack, not to both.[Symptom]Part of the display characters do not appear.[Cause]Part of the display characters may be suppressed de-pending on the TV type. This is not a failure.[Action]-[Symptom]Panoramic images (16.9) cannot be recorded normally.[Cause]GADGET does not support panoramic images.[Action]-[Symptom]Automatic recording fails to record the top portion.[Cause]GADGET's automatic recording function starts after de-tecting video signal input. Thus , it may not record the portion immediately after the start of automatic record-ing.Connecting to a TV Set or VCRInst_Manu_US.book Page 66 Tuesday, August 12, 2003 6:22 PM](https://usermanual.wiki/Samsung-Electronics-Co/GADGET/User-Guide-376545-Page-65.png)
![67[Action]Give a one-minute allowance or so for timer setting on the external equipment.[Symptom]After connecting the USB cable, a green [?] mark ap-pears for [USB High-Volume Storage Device] in [Device Manager] on Windows.[Cause]Depending on the OS, [?] may appear if the cable was connected without installing the supplied USB driver.[Action]Disconnect the USB cable from GADGET and install the USB driver.[Symptom]While using Windows Me, [Warning on device removal] appeared after the USB cable was disconnected.[Cause]This warning appears if the cable was connected with-out installing the supplied USB driver.[Action]Install the USB driver.[Symptom]The PC that has been recovered from suspension does not detect GADGET.[Cause]-[Action]Restart the PC.[Symptom]GADGET cannot be powered on.[Cause]GADGET cannot be powered on unless the battery and/or AC adaptor is/are connected correctly.[Action]Check the connections.[Cause]The battery is run down.[Action]Charge the battery, or replace the battery with a fully charged one.Connecting to a PCOther TroubleInst_Manu_US.book Page 67 Tuesday, August 12, 2003 6:22 PM](https://usermanual.wiki/Samsung-Electronics-Co/GADGET/User-Guide-376545-Page-66.png)
![68[Symptom]The power is suspended immediately after it is turned on.[Cause]The remaining battery capacity is not sufficient.[Action]Charge the battery, or replace the battery with a fully charged one.[Symptom]Recording/playing failed, followed by screen freeze.[Cause]-[Action]Press the reset switch inside the battery case. After pressing the reset switch, check any desired settings.[Symptom]Red, blue, green, or white dots appeared on the screen.[Cause]At a ratio of less than 0.01%, LCD screens are subject to pixel loss or dots that are permanently lit, which is not a failure.[Action]-[Symptom]GADGET does not detect DPOF information that has been set on another device.[Cause]GADGET may not detect DPOF information that has been set on another device. This is not a failure.[Action]Re-enter the information on GADGET.[Symptom]DPOF setting/resetting is time-consuming.[Cause]Setting/resetting is naturally time-consuming if there are numerous files to be set or reset. This is not an abnor-mality.[Action]-[Symptom]DPOF information that has been set on another device is deleted.[Cause]Deleting a file on GADGET may delete DPOF informa-tion set on an another device. This is not a failure.[Action]-Inst_Manu_US.book Page 68 Tuesday, August 12, 2003 6:22 PM](https://usermanual.wiki/Samsung-Electronics-Co/GADGET/User-Guide-376545-Page-67.png)
