Samsung Electronics Co GTB7620 Cellular/PCS GSM/EDGE/WCDMA Phone with WLAN and Bluetooth User Manual B7620

Samsung Electronics Co Ltd Cellular/PCS GSM/EDGE/WCDMA Phone with WLAN and Bluetooth B7620

Users Manual

Some of the contents in this manual may differ from your device depending on the software of the device or your service provider.World Wide Webhttp://www.samsungmobile.comPrinted in KoreaCode No.:GH68-XXXXXAEnglish (EU). 05/2009. Rev. 1.0
GT-B7620user manualDraft 022009. 05. 25SW version: PDA/Phone: B7620XXIE2, CSC: B7620XXIE3CS

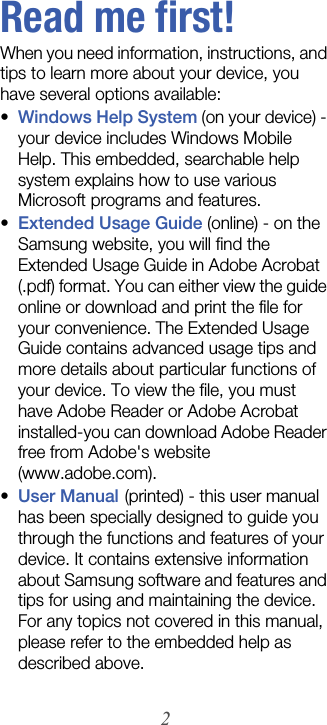

2Read me first!When you need information, instructions, and tips to learn more about your device, you have several options available:•Windows Help System (on your device) - your device includes Windows Mobile Help. This embedded, searchable help system explains how to use various Microsoft programs and features.•Extended Usage Guide (online) - on the Samsung website, you will find the Extended Usage Guide in Adobe Acrobat (.pdf) format. You can either view the guide online or download and print the file for your convenience. The Extended Usage Guide contains advanced usage tips and more details about particular functions of your device. To view the file, you must have Adobe Reader or Adobe Acrobat installed-you can download Adobe Reader free from Adobe's website (www.adobe.com).•User Manual (printed) - this user manual has been specially designed to guide you through the functions and features of your device. It contains extensive information about Samsung software and features and tips for using and maintaining the device. For any topics not covered in this manual, please refer to the embedded help as described above.
3Instructional iconsBefore you start, familiarise yourself with the icons you will see in this manual:Warning – situations that could cause injury to yourself or othersCaution – situations that could cause damage to your device or other equipmentNote – notes, usage tips, or additional informationXRefer to – pages with related information; for example: X p. 12 (represents "see page 12")>Followed by – the order of options or menus you must select to perform a step; for example: Tap Start > Settings (represents Start, followed by Settings)[]Square brackets – device keys; for example: [ ] (represents the End/Power key)
4Copyrights and trademarksRights to all technologies and products that comprise this device are the property of their respective owners:• This product includes software licensed from MS, an affiliate of the Microsoft Corporation. Microsoft and software bearing the Microsoft name are registered trademarks of the Microsoft Corporation. • Java™‚ is a trademark of Sun Microsystems, Inc.•Bluetooth® is a registered trademark of the Bluetooth SIG, Inc. worldwide. Bluetooth QD ID: B0xxxxx•Wi-Fi®, the Wi-Fi CERTIFIED logo, and the Wi-Fi logo are registered trademarks of the Wi-Fi Alliance.• DivX® is a registered trademark of DivX, Inc., and is used under license.• and are trademarks of SRS Labs, Inc. CS Headphone and WOW HD technologies are incorporated under licence from SRS Labs, Inc.
5ABOUT DIVX VIDEODivX® is a digital video format created by DivX, Inc. This is an official DivX Certified device that plays DivX video. ABOUT DIVX VIDEO-ON-DEMANDThis DivX® Certified device must be registered with DivX in order to play DivX Video-on-Demand (VOD) content. First generate the DivX VOD registration code for your device and submit it during the registration process. [Important: DivX VOD content is protected by a DivX DRM (Digital Rights Management) system that restricts playback to registered DivX Certified devices. If you try to play DivX VOD content not authorised for your device, the message "Authorization Error" will be displayed and your content will not play.] Learn more at www.divx.com.
6ContentsIntroducing your device ............................ 8Unpack ........................................................ 8Get to know your device .............................. 9Assemble and prepare your device ............ 14Turn on your device for first time ................ 18Customise your device ............................... 21Use Widgets ............................................... 24Work with applications ............................... 26Enter text .................................................... 30Communication ...................................... 36Work with contacts .................................... 36Calling ........................................................ 40Messaging .................................................. 43Multimedia ............................................. 47Camera ...................................................... 47Touch Player .............................................. 55Photo Album .............................................. 58Digital Frame .............................................. 59FM Radio ................................................... 60Video Editor ................................................ 62Games ....................................................... 66Java ........................................................... 66Personal productivity ............................. 67ActiveSync ................................................. 67Clock .......................................................... 71Touch Calendar .......................................... 73Notes ......................................................... 75
7Smart Memo .............................................. 76Audio Note ................................................. 77Tasks ......................................................... 78Calculator ................................................... 79Smart Converter ......................................... 80Smart Reader ............................................. 81Smart Search ............................................. 84Web applications .................................... 86Web browsing with Opera .......................... 86Streaming Player ........................................ 88RSS Reader ............................................... 89Podcast ...................................................... 91Communities .............................................. 93Connectivity ........................................... 96Connect to the internet or your network ..... 96Bluetooth ................................................ 100Wi-Fi ........................................................ 104Connected Home .................................... 106Troubleshooting ................................... 110Safety and usage information .............. 115Index .................................................... 128
8Introducing your deviceUnpackYour package contains the following items:• Handset• Battery• Travel adapter (charger)•CD-ROM*• Stereo headset• PC data cable• User manual* The CD-ROM contains Microsoft ActiveSync software, add-on software, and other applications.The items supplied with your device and available accessories may be different depending on your region or service provider.
9Get to know your deviceFront view1Earpiece2Proximity sensor3Front camera lens4Touch screen5Menu key6End/Power key7Mouthpiece8Talk/speakerphone key9QWERTY keyboard10Volume key11Memory card slot1191012346785
10Rear view1Speaker2Rear camera lens3Flashbulb4Battery cover5Internal antenna6Reset button7Camera/Photo album key8Multifunction jack9Hold key10Mode switch key14593210876
11KeysKey FunctionOpen the dialling screen; Make or answer a call; Activate the speakerphone during a call (press and hold)Access Main menu; Open the Task Switcher screen (press and hold)Turn the device on or off (press and hold); End a call; Return to the Today screenAdjust the volume; During a call, adjust the voice volume; During an incoming call, mute the call ringerSwitch between the Work mode screen and the Life mode screen (press and hold)Activate or deactivate Sleep mode; Lock or unlock the external keys and the touch screen (press and hold)Launch Photo Album; Activate the camera (press and hold); In Camera mode, take a photo or record a video
12IconsIcon FunctionUMTS network availableUMTS network connectedHSDPA network availableHSDPA network connectedActiveSync in progressBattery levelLow batteryBattery chargingNo batteryAttempt to access via Bluetooth or Bluetooth activatedBluetooth visibility activatedReceiving data via BluetoothBluetooth stereo headset connectedBluetooth hands-free connectedCall on holdCall forwarding activatedConnected to a computerData call in progressEDGE network available
13EDGE network connectedGPRS network availableGPRS network connectedSearching for a signalMissed callMore status icons available (tap the icon to see them)New text messageNew email messageNew multimedia messageNew voice mail messageNo signalNo SIM or USIM cardPending alarmRadio offRinger onRinger set to vibrateRoaming (outside of normal service area)Signal strengthSynchronisation errorIcon Function
14Assemble and prepare your deviceBefore you can use your device, you must install the SIM or USIM card, install the battery, and charge the battery. Installing a SIM or USIM card is optional, but may be required to fully utilise some applications and store media files.Insert the SIM or USIM card and battery1Remove the battery cover.Urgent notification (tap the icon to see the message)Voice call in progressWi-Fi activatedWi-Fi data call in progressIcon Function
152Insert the SIM or USIM card.3Insert the battery.4Replace the battery cover.Insert the SIM or USIM card with the gold-coloured contacts facing the device.
16Charge battery1Open the cover to the multifunction jack on the right of the device.2Plug the small end of the travel adapter into the device.3Plug the large end of the travel adapter into a power outlet.4When charging is finished, unplug the travel adapter from the power outlet.5Remove the travel adapter from the device.Although a charger cable is connected,• The battery may not charge in some situations to protect the device.• The battery level may remain low if the device is using a large amount of power.
17Insert a memory card (optional)By inserting a memory card, you can store multimedia files and messages or back up your important information. Your device accepts microSD™ or microSDHC™ memory cards up to 32 GB (depending on memory card manufacturer and type).1Open the cover to the memory card slot on the left of the device.2Insert a memory card with the label side facing up.3Push the memory card in the memory card slot until it locks in place.
18Turn on your device for first time1Press and hold [ ] to turn on your device. 2Follow the on-screen instructions. Your device will automatically connect to the cellular network.Activate Sleep modeYou can activate Sleep mode to save power when you do not use your device.To activate Sleep mode, press [HOLD]. Your device will turn off the screen. To deactivate Sleep mode, press [HOLD] again.Lock external keys and touch screenYou can lock the external keys and the touch screen to prevent any unwanted device operations from accidentally pressing any of the keys and the screen.To lock the keys and the screen, press and hold [HOLD]. To unlock, press and hold [HOLD] again.
19Use the touch screenYou can perform the following actions on your device's touch screen:• Tap: Touch the screen once to select commands or launch applications.• Tap-and-hold: Tap and hold an item to see a list of available actions. Tap the action you want to perform on the pop-up menu.• Drag: Tap-and-hold a scroll bar or text and then drag it to move the bar or select text.For optimal use of the touch screen, remove the screen protection film before using your device.If your device does not respond accurately to your screen taps, realign your touch screen. To realign the screen, tap Start > Settings > Basic Settings tab > General Settings > Align Screen > Align Screen.
20Disable wireless functions1Tap Start > Settings.2On the Basic Settings tab, tap General Settings > Wireless Manager.3Tap next to Phone.• Your device will show on the Today screen. To enable wireless functions, repeat steps 1-3 above.Reset the deviceIf your device freezes or hangs, you may need to close programs or reset the device to regain functionality. If your device is still responsive but a program is frozen, close the program via Task Switcher. X p. 28If your device is frozen and unresponsive, slide open the device and use a small object, such as a toothpick, to press the reset button.
21Customise your deviceLearn to change themes and background images, add or remove items, and adjust the system volume from the Today screen.Change your theme or background image1Tap Start > Settings.2On the Basic Settings tab, tap Display and Light.3Tap Theme or Wallpaper and select the desired option to customise the display.4Tap Yes (if necessary).5When you are finished, tap OK or Done.Add or remove items on the Today screen1Tap Start > Settings.2On the Basic Settings tab, tap Display and Light.3Tap Items on Today.4Tap Menu > Edit.
225Tap the check boxes next to each item to add or remove items.6Tap Done.7Tap Option next to each item to set the options you want (if necessary).8When you are finished, tap OK.Use Work mode and Life modeYou can use a different theme and background image for Work mode and Life mode. To change settings for each mode,1Tap Start > Others > Mode manager.2Change the name for a mode (if necessary).3Tap Settings under the mode you want.4Change the theme, background image, ring type, items on the Today screen, and wireless manager settings.5Tap Done.Some items are not compatible with Samsung widgets. If you choose to add Samsung WidgetPlus, the only other items that will work simultaneously are Windows Live and Windows Live Search.
23Press and hold the Mode switch key to switch between two mode.Adjust the system volumeTo adjust the system volume, press the Volume key up or down. To set the device to vibrate, press [ ] and tap and hold . To deactivate the vibrate feature, tap and hold again.Activate Etiquette pauseYou can temporarily pause the music player or mute event alarms by placing the device face down when Etiquette pause is activated. To activate Etiquette pause,1Tap Start > Settings.2On the Basic Settings tab, tap Motion Settings > Etiquette.3Tap next to Enable etiquette pause.4Tap Done.
24Use WidgetsUse widgets on the Today screen. Widgets are user friendly shortcuts to commonly used applications allowing you to customise the Today screen.Open the toolbarTap the arrow at the bottom left of the Today screen to open the toolbar. You can rearrange widgets on the toolbar or drag them to the Today screen.Depending on your region or service provider, available widgets may vary.Widget FunctionView the current timeView the calendarBrowse your photos and set a photo as the wallpaperListen to music via the mini playerListen to the FM radioChange the current sound profileView a new message or missed calls
25Drag the widgets to the Today screen1Open the toolbar.2Drag a widget from the toolbar to the Today screen. You can position the widget anywhere on the screen.View the network connection statusMonitor your wireless connectionsGet the latest weather updates from AccuWeather*Get news updates from CNN*Get updates from Yahoo! Finance*Search the web with Yahoo!*Search the web with Google*Add application shortcuts to the Today screen* These widgets require a connection to the internet, which may result in additional charges.Widget Function
26Customise widgets1Open the toolbar.2Tap at the top of the toolbar.3Tap the check boxes next to items that you want to appear on the toolbar.4When you are finished, tap Done.Work with applicationsLearn to open applications or folders and switch between open applications.Open applications or folders1Tap Start or press the Menu key. 2To open an application, tap the application icon.• Scroll left or right to move to one of Menu mode screens.•Tap Others to view more applications.3To open a folder, tap File Manager and navigate to the desired folder.
27Organise applications1Tap Start >Edit.2Organise applications according to your needs and preferences.• Tap to move an application to Others.• Tap to move an application from Others.• Tap and hold an application icon and move it to the location you want.• Tap the screen name field to edit the screen name.3Tap Save.Switch applicationsYour device allows you to multi-task by running multiple applications at the same time. To switch from one active application to another,1Press and hold the Menu key.• Task Switcher shows thumbnail images of all open programs.2Tap a thumbnail to switch to the corresponding application.
28Close applicationsTo send the current application to the background, tap X or ok.To close an application,1Press and hold the Menu key.2Tap End.3Tap .Search for files or folders1Tap Start > Others>Search.2Use the input panel to enter a keyword.3Tap Search.Use the Composer screen1Right slide open the device.• Some applications you can use with the QWERTY keyboard appear.2Tap an application.3Use the application and enter text using the QWERTY keyboard.
29Access the Windows Mobile Help systemTo access the help system of your device, deactivate Samsung TouchWiz UI. To deactivate Samsung TouchWiz UI,1Tap Start > Settings.2On the Basic Settings tab, tap General Settings > Samsung TouchWiz UI.3Tap next to Enable Samsung Tou ch Wi z U I.4Tap Done.5Open an application and tap Start > Help.• The embedded Windows Mobile Help system appears.
30Enter textWhen you need to enter text, tap the default input panel icon ( ) at the bottom of the screen. Tap the arrow next to the icon and select one of the following input methods for entering text:• Block Recognizer• Keyboard• Letter Recognizer• Samsung Keypad• TranscriberYou can tap the input panel icon at any time to show or hide the input panel.To use the QWERTY keyboard while entering text, slide open the device.Enter text with Block RecognizerWrite individual letters and numbers in the writing area in the Palm Graffiti style.1Tap the input panel icon.2Tap the arrow next to the input panel icon and select Block Recognizer.
313Write each character in the writing area at the bottom of the screen:• Write letters on the left side of the writing area.• Write numbers on the right side of the writing area.• Drag your finger upward to change the case (ABC, Abc, or abc). • Tap once on the screen to enter symbols (123 or abc will change to the icon). • Drag your finger leftward to delete a character.• To view demonstrations of how to enter characters, refer to the embedded help system.
32Enter text with the keyboard1Tap the input panel icon.2Tap the arrow next to the input panel icon and select Keyboard.3Tap characters to enter your text:• To switch to numbers and symbols, tap . • To access special characters, tap .Enter text with Letter RecognizerWrite individual letters and numbers on the touch screen.1Tap the input panel icon.2Tap the arrow next to the input panel icon and select Letter Recognizer.3Write each character in the writing area at the bottom of the screen:• Write upper-case letters in the ABC column on the left side of the writing area.
33• Write lower-case letters in the abc column in the middle of the writing area.• Write numbers and symbols in the 123 column on the right side of the writing area.Enter text with Samsung Keypad1Tap the input panel icon.2Tap the arrow next to the input panel icon and select Samsung Keypad.To view demonstrations of how to write characters, refer to the embedded help system.
343Tap characters to enter your text:• To enter the text in T9 mode, tap MODE to turn on xt9. Tap the appropriate keys to enter an entire word.• To enter the text in ABC mode, tap MODE to turn off xt9. Tap the appropriate key to enter a character.• To enter symbols, tap SYM.• To enter numbers, tap 123.Enter text with TranscriberWith Transcriber, you can write anywhere on the screen. Unlike Letter Recognizer or Block Recognizer, you can use cursive (joined-up) handwriting to write complete words.1Tap the input panel icon.2Tap the arrow next to the input panel icon and select Transcriber.3Tap ok to close the intro screen.4Write legibly anywhere on the screen.
355Pause and allow Transcriber to convert your writing to text.You can access the following tools from the Transcriber toolbar:Tap ToChange Transcriber optionsView demonstrations of how to write charactersOpen the list of punctuation marks, symbols, and numbersChange the input mode to A, a, or 123Insert a spaceStart a new lineMove the cursor to the leftMove the cursor to the rightClear your inputOpen the embedded help
36CommunicationWork with contactsLearn to use contact cards and groups to store personal information, such as names, phone numbers, and addresses.Create a new Outlook or SIM contact card1Tap Start.2On the Productivity screen, tap Phonebook.3Tap New > Save to outlook or Save to SIM.4Enter contact information.5When you are finished entering information, tap Done to save the contact card.Search for a contact card1Tap Start.2On the Productivity screen, tap Phonebook.
373Tap .4Tap a few letters of the contact's name.• As you enter letters, the screen will show contacts that match your input.• You can also drag to select the first letter of the name.5Tap a contact to open it.Copy or move contact cardsTo copy or move contact cards from your device's memory to a SIM or USIM card and vice versa,1Tap Start.2On the Productivity screen, tap Phonebook.3To copy contacts, tap Menu > Copy > a copy option. Refer to step 4.4To move contacts, tap Menu > Move > a move option.5Tap the check boxes next to the contacts that you want to copy or move.6Tap Done.
38Organise your contacts into categories1Tap Start.2On the Productivity screen, tap Phonebook.3Tap a contact in the device’s memory.4Tap Edit.5Scroll down and tap the category field.6Tap the check boxes next to the desired categories.7Tap Done.8Tap Done to save the contact card.Assign a speed dial number to a contact cardTo assign a speed dial number to one of your contacts,1Tap Start.2On the Productivity screen, tap Phonebook.3Tap .4Tap New and select a contact.
395Select the contact's phone number to use for speed dialling.6Select a speed dial location.Assign a photo to a contact card1Tap Start.2On the Productivity screen, tap Phonebook.3Tap a contact in the device’s memory.4Tap Edit.5Tap the photo icon at the top left of the contact card.6Take a new photo or select a photo.7Tap Done to save the contact card.Assign a ringtone to a contact card1Tap Start.2On the Productivity screen, tap Phonebook.3Tap a contact in the device’s memory.4Tap Edit.
405Scroll down and tap Add field.6Scroll down and tap the ringtone field.7Select a ringtone.8Tap Done.9Tap Done to save the contact card.CallingLearn to make and receive calls, reject calls, and adjust the call volume.Make a call1Press [].2Enter an area code and phone number.3Tap or press [ ].• For a video call, tap Menu > Video Call.4To end the call, press [ ].Make a call from Phonebook1Tap Start.2On the Productivity screen, tap Phonebook.
413Tap a contact.4Tap a number.Answer a call1Press [].2For a video call, tap Show me to allow the caller to see you via the front camera lens.3To end the call, press [ ].Reject a callPress [ ]. When you reject a call, the caller will hear a busy tone.Adjust the call volumeTo adjust the call volume, press the Volume key up or down during a call.Call an international number1Press [].2Tap Keypad (if necessary).
423Tap and hold to insert the + character (this replaces the international access code).4Tap the number keys to enter the complete number you want to dial (country code, area code, and phone number), and then tap or press [ ] to dial.5To end the call, press [ ].Access the call log1Tap Start > Others>Call Log.2Select one of the following filters for your call log results:3Scroll through the call log.• To make a call, tap next to the number you want to dial.• To check the call time, tap Menu > Call Timer. Tap to reset the call time.Icon FunctionAll callsIncoming callsOutgoing callsMissed calls
43MessagingLearn to use messaging functions. Send a text message1Tap Start.2On the Internet screen, tap SMS-MMS.3Tap Menu > New.4Tap + Tap to add recipients to enter a contact. 5Tap the message field and enter your message text.6Tap Send to send the message.Send a multimedia message1Tap Start.2On the Internet screen, tap SMS-MMS.3Tap Menu > New.4Tap + Tap to add recipients to enter a contact. 5Tap the message field and enter your message text.6Tap Menu > Toolbar (if necessary).
447Tap one of the following icons:8Tap Yes and add an attachment.9Tap Menu > Attach > an option to attach other types of files (if necessary).10Tap Send to send the message.Send an email message1Tap Start.2On the Internet screen, tap E-mail.3Tap the name of an email account.4Tap Menu > New.5Tap the subject field and enter a message subject.6Tap the To field and enter the recipient’s address.Icon FunctionAttach a photoAttach a music fileAttach a videoCapture and attach a photoRecord and attach a voice memoRecord and attach a video
457Tap the message field and enter your message text.8Tap Menu > Toolbar (if necessary).9Tap one of the following icons to add an attachment:10Tap Menu > Attach > an option to attach other types of files (if necessary).11Tap Send to send the message.View messagesYou can access message folders for all your messaging accounts.To view messages,1Tap Start.Icon FunctionAttach a photoAttach a music fileAttach a videoCapture and attach a photoRecord and attach a voice memoRecord and attach a video

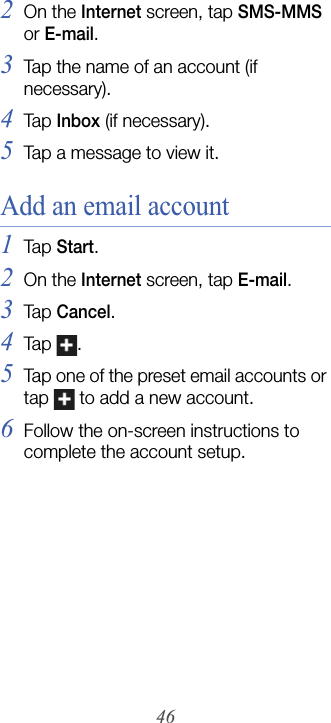

462On the Internet screen, tap SMS-MMS or E-mail.3Tap the name of an account (if necessary).4Tap Inbox (if necessary).5Tap a message to view it.Add an email account1Tap Start.2On the Internet screen, tap E-mail.3Tap Cancel.4Tap .5Tap one of the preset email accounts or tap to add a new account.6Follow the on-screen instructions to complete the account setup.
47MultimediaLearn to capture photos and videos, listen to music, and take advantage of your device's multimedia features. CameraYour device allows you to take digital photos (jpg format) or record videos (3gp format).Capture a photo1Press and hold the Camera key.2Rotate the device anti-clockwise to the landscape orientation.The camera interface appears only in the landscape orientation.
483Aim the lens at the subject and make any adjustments. X p. 48• Press the Volume key to zoom in or out.4Press the Camera key to capture the photo.View a photo1From the viewfinder, tap .2Scroll to the photo you want.Adjust Camera settingsFrom the viewfinder, tap an icon and then tap a mode or setting.Icon FunctionSwitch to camcorderChange the shooting mode:• : Single• : Continuous• : Smile• : Mosaic•: Panorama• : Action

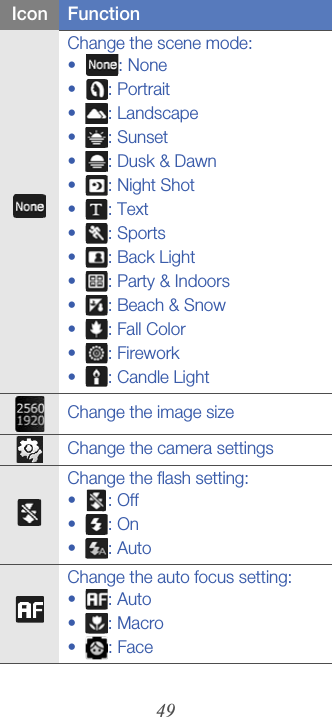

49Change the scene mode:•: None• : Portrait•: Landscape• : Sunset• : Dusk & Dawn• : Night Shot•: Text•: Sports• : Back Light• : Party & Indoors• : Beach & Snow• : Fall Color• : Firework• : Candle LightChange the image sizeChange the camera settingsChange the flash setting:•: Off•: On•: AutoChange the auto focus setting:•: Auto•: Macro•: FaceIcon Function
50Record a video1Press and hold the Camera key.2Rotate the device anti-clockwise to the landscape orientation.3Tap to launch the camcorder.4Aim the lens at the subject and make any adjustments. X p. 51• Press the Volume key to zoom in or out.5Press the Camera key to begin recording.6When you are finished, tap or press the Camera key to stop recording.Adjust the brightnessAccess quick viewThe camera interface appears only in the landscape orientation.Icon Function
51Play a video1From the viewfinder, tap .2Scroll to the video you want.3Tap to play the video.Adjust Camcorder settingsFrom the viewfinder, tap an icon and then tap a setting.Icon FunctionSwitch to cameraChange the recording mode: • : Normal• : MMS •: SlowChange the video resolutionChange the camcorder settingsChange the flash setting:•: Off•: On•: AutoChange the auto focus setting:•: Auto•: Macro
52Capture photos in Smile shot mode1Press and hold the Camera key.2Rotate the device anti-clockwise to the landscape orientation.3Tap > .4Aim the camera lens at your subject and press the Camera key. • The device recognises faces in an image and detects when your subjects smile. When all your subjects are smiling, the camera will automatically capture the photo. Adjust the brightnessAccess quick viewIn some cases, you may have to disable smile shot to capture a photo of your subject, even if he or she is smiling.Icon Function
53Capture panoramic photos1Press and hold the Camera key.2Rotate the device anti-clockwise to the landscape orientation.3Tap > . 4Aim the camera lens at your subject and press the Camera key to capture the first shot.5Slowly move the device to a direction. The device captures the next photo automatically.6Repeat step 5 to capture the rest of the shots. When you have captured all the shots necessary for the panoramic photo, the camera will automatically combine them into one panoramic photo.
54Create a photo mosaic1Press and hold the Camera key.2Rotate the device anti-clockwise to the landscape orientation.3Tap > .4Select a mosaic type.5Aim the camera lens at your subject and press the Camera key to capture the first shot.6Repeat step 5 to capture the rest of the shots. When you have captured all the shots necessary for the mosaic, the camera will automatically combine them into one photo.
55Touch PlayerYour device is equipped with Touch Player, as well as Windows Media Player. The procedures that follow explain how to use Touch Player. For information about Windows Media Player, refer to embedded help system.Add music files to your deviceUse any of the following methods to add music files to your device:• Copy files to a memory card and insert the card into the device X p. 17• Download files from the wireless web (refer to the embedded help system)• Receive via Bluetooth X p. 103• Synchronise with ActiveSync® X p. 68Update the library1Tap Start.2On the Multimedia screen, tap Tou ch Player.3Tap Search to locate and add new files to the Touch Player library.4When the library is updated, tap Done.
56Play music or video files1Tap Start.2On the Multimedia screen, tap Tou ch Player.3Tap Player (if necessary).4Tap to open the currently playing list.5Tap .6Select files you want to play and tap Done.7Tap a f i l e . 8During playback, use the following controls:Icon FunctionAdjust the volumeSkip to the previous file; Scan backward in a file (tap and hold)Pause playbackResume playbackSkip to the next file; Scan forward in a file (tap and hold)
57Create a playlist1Tap Start.2On the Multimedia screen, tap Tou ch Player.3Tap Library to view the library.4Tap .5Tap Menu > New Playlist.6Enter a title for your new playlist.7Tap the photo field and select a photo for your playlist (if necessary).8Tap Done.Add files to a playlist1From the library, select a playlist.2Tap .• : Select a surround sound system• : Change the sound effect• : Change the shuffle or repeat option• : Specify a section to repeatIcon Function
583Select files you want to add and tap Done.Photo AlbumLearn to view photos and slideshows.View a photo1Tap Start.2On the Multimedia screen, tap Photo Album.3Tap a folder or tap All to view thumbnails. 4Tap a thumbnail to view a photo.Start a slideshow1Tap Start.2On the Multimedia screen, tap Photo Album.3Tap a folder or tap All to view thumbnails. 4Tap Menu > Slide show.5Tap the screen and to select a background music.
596To end the slideshow, tap the screen and tap .Digital FrameWith Digital Frame, you can view slideshows with background music.View slideshows with background music1Tap Start.2On the Multimedia screen, tap Digital Frame.3Rotate the device anti-clockwise to the landscape orientation.4Tap .5Select a folder of photos to view and set transition effects and time.6Tap next to Enable Background Sound.7Tap the sound field.8Tap the check boxes next to music files.9Tap Select > Done.10To begin the slideshow, tap .
6011During playback, use the following controls:• Press the Volume key to adjust the volume of the background music.FM RadioYou can listen to your favourite stations with FM radio.Listen to the FM radio1Plug a headset into the multifunction jack.2Tap Start. Icon FunctionChange the layout of the displaySkip to the previous photoEnd the slideshowSkip to the next photoChange the style of the date and time on the screenChange the slideshow settingsClose Digital Frame
613On the Multimedia screen, tap FM Radio.4Tap OK to start the automatic tuning.5Tap ok when the tuning is done.6Tap a station you want.7Tap Done.8Tap or to scan through available radio stations.• To tune a radio station, tap or .• To adjust the volume, tap . • To change the sound output, tap .Save radio stations by automatic tuning1From the radio screen, tap Scan.2Tap Yes.3When the scan is complete, tap ok.Save radio stations manually1From the radio screen, scroll to the a radio station you want to save.2Tap one of the symbols near the bottom of the screen.
62Select a station1From the radio screen, tap FM1 or FM2.2Tap the station you want from the area near the bottom of the screen.Record the FM radio1From the radio screen, tap Menu > Record to record the current station.2When you are finished, tap Stop. The recorded file is saved in My Storage > FM Radio.Video EditorWith Video Editor, you can edit or make videos by combining photos or videos.
63Auto-crop a video1Tap Start.2On the Multimedia screen, tap Video Editor.3Rotate the device anti-clockwise to the landscape orientation.4Select Auto cut.5Select a style and tap .6Tap the check boxes on videos to add and tap .7Tap to preview the video.8Tap to save the video.9Tap .Add pre-recorded audio to a video1Tap Start.2On the Multimedia screen, tap Video Editor.3Rotate the device anti-clockwise to the landscape orientation.4Select Music movie.

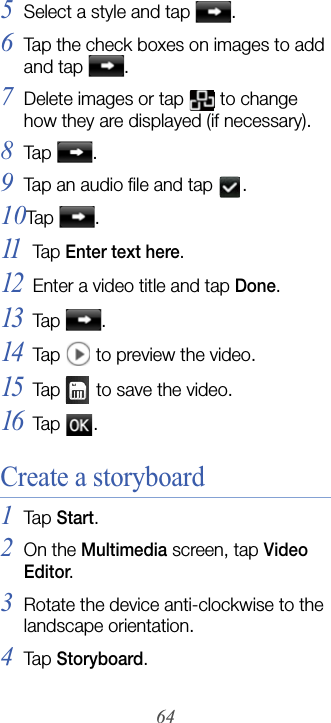

645Select a style and tap .6Tap the check boxes on images to add and tap .7Delete images or tap to change how they are displayed (if necessary).8Tap .9Tap an audio file and tap .10Tap .11Tap Enter text here.12Enter a video title and tap Done.13Tap .14Tap to preview the video.15Tap to save the video.16Tap .Create a storyboard1Tap Start.2On the Multimedia screen, tap Video Editor.3Rotate the device anti-clockwise to the landscape orientation.4Tap Storyboard.
655Tap the check boxes on each thumbnail image (videos or images) you want to add to the storyboard. To select all, tap (to deselect all, tap ).6Tap .7Customise the storyboard as desired by tapping the following icons (refer to the Extended Usage Guide for more information about customising storyboards):• : add audio files• : delete clips• : add clips• : create a text slide• To edit viewable duration, dub clips (record audio), add subtitles, edit transitions, and add effects, tap a thumbnail image and an appropriate icon.8Tap .9Tap to preview the video.10Tap to save the video.11Tap .

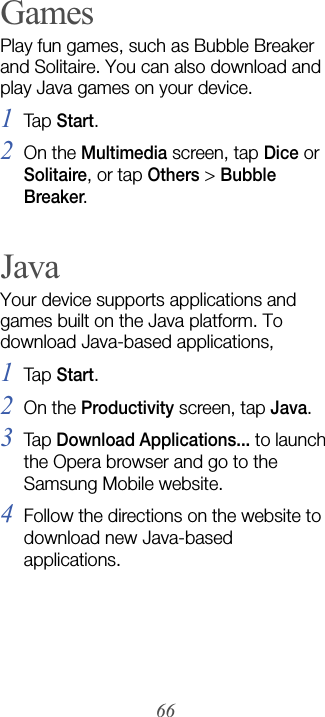

66GamesPlay fun games, such as Bubble Breaker and Solitaire. You can also download and play Java games on your device. 1Tap Start.2On the Multimedia screen, tap Dice or Solitaire, or tap Others > Bubble Breaker.JavaYour device supports applications and games built on the Java platform. To download Java-based applications,1Tap Start.2On the Productivity screen, tap Java.3Tap Download Applications... to launch the Opera browser and go to the Samsung Mobile website.4Follow the directions on the website to download new Java-based applications.
67Personal productivityActiveSyncWith ActiveSync, you can synchronise your device with a computer and back up and restore your data.Install ActiveSync on your computerBefore you can synchronise your data, you must install ActiveSync, either from the supplied CD-ROM or the Microsoft website (http://www.microsoft.com). To install ActiveSync from the supplied CD-ROM,1Insert the CD-ROM into your computer.2Follow the on-screen instructions to complete the setup.3When installation is complete, follow the on-screen instructions in the Synchronisation Setup Wizard to connect your device to the computer and create a data sharing partnership.
68Connect your device to a computer1Tap Start > Settings.2On the Basic Settings tab, tap General Settings > USB Connection > Active Sync.3Tap Done.4Connect one end (mini-USB) of the PC data cable to the multifunction jack on your device and the other end to the USB port on your computer.Synchronise your dataWhen you connect your device to a computer, ActiveSync should begin synchronising your data automatically. You can begin the synchronisation manually by tapping Sync. To stop a synchronisation in progress, tap Stop.
69You can also manually find and copy files from your device to a computer and vice versa. From the Microsoft ActiveSync window, tap Explore. For more information on synchronising your data, refer to the embedded help system.Add an Exchange server1Tap Start.2On the Office screen, tap ActiveSync.3Tap Menu > Add Server Source...4Enter an email address.5Tap Next.6Enter your Exchange user name, password, and domain name.7Tap Next.If you format the My Storage folder by using a connected computer, the writing speed to the My Storage folder may be reduced. Format the My Storage folder only from the device to avoid this situation.
708Enter a server address. To establish a secure connection, tap the check box that reads This server requires an encrypted (SSL) connection.9Tap Next.10Select the types of data to synchronise.11When you are finished, tap Finish.Change the synchronisation scheduleIf you routinely synchronise your data via an Exchange server, you can configure settings for both peak and off-peak schedules. To change the synchronisation schedules,1Tap Start.2On the Office screen, tap ActiveSync.3Tap Menu > Schedule...4Set the following options:•Peak times: set the frequency of synchronisations during peak hours•Off-peak times: set the frequency of synchronisations during off-peak hours
71•Use above settings when roaming: set to use the synchronisation schedules even when roaming•Send/receive when I click Send: set to synchronise when you tap Send in Messaging5When you are finished, tap ok.ClockLearn to set and control alarms, reminders, and world clocks. You can also use the stopwatch.Set an alarm1Tap Start.2On the Productivity screen, tap Clock.3On the Alarm tab, tap New.4Set the alarm options.5When you are finished, tap Done.
72Stop an alarmWhen an alarm without snooze sounds, tap Dismiss. When an alarm with snooze sounds, tap Dismiss to stop it or Snooze to delay the alarm for the length of time you specified. Alarms with snooze will repeat according to the number of times you specified in the settings or until you tap Dismiss.Schedule an anniversary1Tap Start.2On the Productivity screen, tap Clock.3On the Anniversary tab, tap New.4Set the anniversary options.5When you are finished, tap Done.Create a world clock1Tap Start.2On the Productivity screen, tap Clock.3On the World Clock tab, tap New.4Tap to open a list of cities.Tap Name or Time to sort the list by name or timezone.
735Tap a city.6Tap Done.7Tap Set as Home clock to change the clock settings (if necessary).8Tap Done > Yes.Use the stopwatch1Tap Start.2On the Productivity screen, tap Clock.3On the Stop watch tab, tap Start.4Tap Lap to record lap times.5When you are finished, tap Stop.6Tap Reset to clear the recorded times.Touch CalendarUse Touch Calendar to keep track of appointments, birthdays, or other events.Create a calendar event1Tap Start.2On the Productivity screen, tap Touch Calendar.
743Tap New.4Complete the fields and adjust the settings for your event.5When you are finished, tap Done.Change the calendar view1Tap Start.2On the Productivity screen, tap Touch Calendar.3Tap a tab to change the calendar view:• : a full month in one view• : hourly blocks for the days in one full week (Sunday to Saturday)• : hourly blocks for one full day• : a list of scheduled appointmentsStop an event reminderWhen the reminder alarm sounds for a calender event, tap Dismiss.In the month view, a small triangle will appear under dates with scheduled appointments.
75NotesUse Notes to create memos, sketches, and recordings.Create a note1Tap Start.2On the Productivity screen, tap Notes.3Tap New to create a new note (if necessary).4Enter your note with the input panel. • To create sketches. X p. 75 • To create recordings, tap Menu > View Recording Toolbar.5When you are finished, tap ok.Create a sketch1Tap Start.2On the Productivity screen, tap Notes.3Tap New.
764Make your sketch with strokes.5To edit the sketch, tap Menu > Draw.Tap and hold the sketch until the selection handles appear. You can then use the handles to drag or resize the sketch or tap Menu to access other options.Smart MemoUse Smart Memo to create memos that combine text and freehand drawing. To create a smart memo:1Tap Start.2On the Productivity screen, tap Smart Memo.3Tap New.4Create your memo with the drawing tools and input panel.5When you are finished, tap Save.6Tap OK.
77Audio NoteUse Audio Notes to record, listen to, and send voice memos. Record a voice memo1Tap Start.2On the Productivity screen, tap Audio Note.3Tap Record.4Set recording volume and tap to begin the recording.5Record your voice memo.6When you are finished, tap .7Tap OK.Listen to a voice memo1Tap Start.2On the Productivity screen, tap Audio Note.3Tap a memo. Playback will begin automatically.
784During playback, use the following controls:TasksUse Tasks to create to-do lists and reminders.Create a task1Tap Start.2On the Productivity screen, tap Tasks.3Tap Menu > New Task.4Enter details for the task.Icon FunctionAdjust the volumeSkip to the previous file; Scan backward in a file (tap and hold)Pause playbackResume playbackSkip to the next file; Scan forward in a file (tap and hold)To set a reminder for the task, tap the due field and set a due date. Next, tap the reminder field, select Remind me, and then specify the time and date of the reminder.
795When you are finished, tap ok.Mark a task as completedAfter completing a task, tap Start > Tasks and tap the check box next to the task name. Once you have marked a task complete, you will no longer receive any scheduled reminders for that task.CalculatorUse the calculator to perform basic mathematical calculations. To perform a calculation,1Tap Start.2On the Productivity screen, tap Calculator.3Enter the first number using the calculator buttons on the screen. • To clear the displayed numbers, tap . • To clear the last digit entered in a multi-digit entry, tap .4Tap the appropriate math function.5Enter the second number.6To view the result, tap .
80You can use the following buttons while performing calculations:• : clear the number you entered• : clear any value that is stored in the calculator's memory• : recall the stored value from memory and inserts it into the current calculation• : add the current number to the value stored in the calculator's memoryTo use a scientific calculator,1Tap Start.2On the Productivity screen, tap Calculator.3Tap Scientific.4Rotate the device anti-clockwise to the landscape location.5Perform a calculation by using the buttons on the screen.Smart ConverterUse Smart Converter to convert one unit of measure to another. To perform a conversion,1Tap Start.2On the Productivity screen, tap Smart Converter.
813Select a type of measurement from the tabs at the top of the screen:• : Tip Calculator• : Length• : Weight• : Area• : Volume• : Temperature• : Currency4Select the unit of measure to convert.5Enter the base amount. The device displays the conversion result.Smart ReaderUse Smart Reader to capture information from a business card or a document, and translate text.Capture images of business cards or documents1Tap Start.2On the Office screen, tap Smart Reader.For the currency conversion, tap Edit Rate to set the basic rate first.
823Rotate the device anti-clockwise to the landscape orientation.4Tap BizCard or Document.5Align the business card or document in the screen.• For business cards, you must align the corners of the card with the corners of the frame (the frame will turn green when aligned).6Press the Camera key to capture the image.7Tap Save.8Tap OK.Translate text1Tap Start.2On the Office screen, tap Smart Reader.3Rotate the device anti-clockwise to the landscape orientation.• If you have activated the BizCard automatic capture setting, the device will automatically capture the image once the card is aligned in the frame.• For best results, place business cards or documents on a flat, level surface and ensure adequate lighting.
834Tap Translation.5Tap to select a translation type.6Align the text in the screen.7Press the Camera key to capture the image.8Draw a rectangle over the area you want to translate.9Tap .• To check the translated word, tap .• To draw a new rectangle, tap .View captured images1Tap Start.2On the Office screen, tap Smart Reader.3Rotate the device anti-clockwise to the landscape orientation.4Tap Image.5Tap the following tabs to sort captured images:Icon FunctionsView all captured imagesView captured images of business cards
846Scroll left or right to an image.Smart SearchUse Smart Search to search for any specific data stored in your device (including contacts, call logs, media files, schedules, messages, or programs) or on the web.Search inside the device1Tap Start.2On the Productivity screen, tap Smart Search.3Tap th e My Phone tab (if necessary).4Tap the All drop-down menu and select a category.5Tap the text input field.6Enter a letter or a word of the data to search and tap .View captured images of documentsView captured images of translationsIcon Functions
857Any data including the letter or word you have entered will be listed.8Tap the data you want to access.Search on the web1Tap Start.2On the Productivity screen, tap Smart Search.3Tap th e Web tab (if necessary).4Tap Google and select Google and Windows Live.5Tap the text input field.6Enter a letter or a word of the data to search on the web and tap .• Any data including the letter or word you have entered will be listed.7Tap the data you want to access.You can get the data from Google services (Mail, YouTube, Maps) or Windows Live services (MSN Today, Mail, Messenger).
86Web applicationsWeb browsing with OperaLearn to access and bookmark your favourite web pages with the Opera Mobile browser.Browse the web1Tap Start.2On the Internet screen, tap Opera Browser.3Navigate web pages by tapping the following controls:• You may incur additional charges for accessing the web and downloading media.• Available icons may vary depending on your region or service provider.Icon FunctionsReturn to the previous pageOpen a favourite web pageOpen a new tab or page, or page you have previously accessed
87To search the web, tap the address bar at the top of the screen, tap the lower field and enter a keyword, and tap .To change the default browser from Opera to Internet Explorer, tap > Settings > Advanced. Clear the check box next to Set Opera as default browser.Bookmark your favourite pagesTo add a web page to your list of favourites,1Tap Start.2On the Internet screen, tap Opera Browser.3Tap > .4Enter a name for the web page, the web address, and select a folder (you can add a new folder by tapping Add new folder in the drop-down menu).5When you are finished, tap .Open the homepageOpen the browser menuIcon Functions
88Streaming PlayerUse Streaming Player to watch videos or listen to audio files directly from the internet.Stream media from the internet1Tap Start.2On the Multimedia screen, tap Streaming Player.3Tap .4Enter the URL of a streaming media file.5Tap Connect.6During playback, use the following controls:Icon FunctionAdjust the volumePause playbackResume playbackStop playbackZoom in or out
89RSS ReaderLearn to use RSS reader to get the latest news and information from your favourite websites.Subscribe to RSS feedsTo subscribe to RSS feeds by entering an address,1Tap Start.2On the Internet screen, tap RSS Reader.3Tap a feed category.4Tap Add Feed.5Tap Add RSS/ATOM URL.6Enter the address of an RSS feed and tap Done.7Enter the name of the RSS feed and tap a feed category.8Tap Add.To subscribe to RSS feeds by searching,1Tap Start.2On the Internet screen, tap RSS Reader.
903Tap a feed category.4Tap Add Feed.5Tap Search for Feeds.6Enter a keyword and tap . 7Tap a feed.8Tap Add.Update and read RSS feeds1Tap Start.2On the Internet screen, tap RSS Reader.3Tap a feed category > a category.4Tap Update.• Your device will attempt to connect to the internet. If necessary, activate your internet connection.5Tap Done.6Tap a feed and a link.
91PodcastUse Podcast to search for, download, and listen to podcasts.Subscribe to PodcastsTo subscribe to Podcasts by entering an address,1Tap Start.2On the Internet screen, tap Podcast.3Tap Menu > Add Podcast URL.4Enter the address of a podcast and tap Add.To subscribe to Podcasts by searching,1Tap Start.2On the Internet screen, tap Podcast.3Tap Menu > Search Podcast.4Enter a keyword and tap . Your device searches for related podcasts and displays the results.5Tap the podcast you want to subscribe to and tap Add > ok.
92Download and play podcasts1Tap Start.2On the Internet screen, tap Podcast.3Tap a podcast.4Tap Menu > Download.5Tap episodes you want to download.6Tap Done to download the episodes.7When you are finished, tap ok.Update your podcast libraryOnce you have subscribed to podcasts (X p. 91), you can easily update your library to listen to the latest episodes. To update your podcast library,1Tap Start.2On the Internet screen, tap Podcast.3Tap Update.4Tap podcasts you want to update.5Tap Done > Done.
93CommunitiesCommunities is a convenient feature that allows you to post your photos to websites and blogs.Upload photosUse Communities to upload photos directly to your website or blog. To upload photos,1Tap Start.2On the Internet screen, tap Communities.3Tap Accept (if necessary).4Tap a blog or website.5Tap Upload.6Enter your user name and password and tap Done (if necessary).7Enter a title for your image and tap Tap to Add.8Navigate to an image and tap the file name.9Select other options (if necessary).
9410Tap Done.• The image will be uploaded to the website or blog.11When the upload is complete, you can go to the website, view the upload details, or return to the list of sites by tapping the appropriate button.Upload photos at a later time (Upload reservation)With the Upload reservation feature of Communities, you can set a specific date and time to upload your photos to a website or blog. To create an upload reservation,1Tap Start.2On the Internet screen, tap Communities.3Tap Menu > Options > Upload reservation.4Tap New.5Tap a website or blog.6Enter a title for your image and tap Tap to Add.
957Navigate to an image and tap Tap to Add.8Select other options (if necessary).9Tap th e Date drop-down menu and select a date for the upload reservation.10Tap th e Time drop-down menu and set a time for the upload reservation.11Tap Done.
96ConnectivityConnect to the internet or your networkYou can connect to your Internet Service Provider (ISP) and use the connection to send and receive email messages and to browse the internet. You can also connect to any private network, such as a corporate network you use at work.Connect to the internet1Obtain the following information from your internet service provider: phone number for your ISP server, user name, and password.2Tap Start > Settings.3On the Advanced Settings tab, tap Connection > Connections.4In My Internet, tap Add a new modem connection.
975Create a modem connection. To view detailed information for any screen while changing the settings, tap the icon.6When the connection is successfully configured, run Opera Browser or Internet Explorer to begin browsing the internet. Your device will automatically attempt to connect.Connect to work1Obtain the following information from your network administrator: server phone number, user name, and password.2Tap Start > Settings.3On the Advanced Settings tab, tap Connection > Connections.4In My Work Network, set up a modem, VPN server connection, or proxy server. To view detailed information for any screen while changing the settings, tap the icon.To set up a network card or wireless network connection to your ISP, add a new connection under My Work Network.
985When the connection is successfully configured, run Opera Browser or Internet Explorer to begin browsing the internet. Your device will automatically attempt to connect.End a connectionTo disconnect,• When connected via dial-up, VPN, or ISP, tap your status bar and tap the active network connection icon (, , , , or ). The wireless manager screen appears. Tap All Data Connection and Disconnect.• When connected via a cable, detach your device from the computer by disconnecting the cable.• When connected via a modem or a network (Ethernet) card, remove the card from your device.To set options to end a network connection,1Tap Start > Settings.You can select an authentication method for GPRS connections by using GPRS Authentications.
992On the Basic Settings tab, tap General Settings > Wireless Manager.3Tap Menu > Data con. Settings.4Tap the check box next to an option.•End key (Short Press): When you press the End key, the network connection is disconnected.•Sleep: When Sleep mode activates, the network connection is disconnected.•No packet for: When the data packet is not transferred for the specific time interval, the network connection is disconnected.Find the active network connectionThe icons at the top of the display will show active connections. Tap any connectivity icon to view the active connection. A small window will display the connection information.Wi-Fi and data connections can be active at the same time. When both connections are active, the device will use Wi-Fi as the default internet connection.
100Use Internet SharingSet your device to be used as a wireless modem for other devices.1Connect your device to another device or computer via the USB port or Bluetooth.2Tap Start > Others > Internet Sharing.3Select the PC connection and network connection types.4Tap Connect to activate the internet connect.BluetoothYou can connect with other Bluetooth-enabled wireless devices within a range. Walls or other obstacles between devices may block or impair the wireless connection.Turn on the Bluetooth wireless feature1Tap Start > Settings.2On the Basic Settings tab, tap Network Settings > Bluetooth.
1013Tap the device icon in the middle of the screen.4To allow other devices to find and connect to your device, tap Device Info, and tap next to Enable visibility to other devices.5Tap Done.Change Bluetooth device namesYou can alter the name that your device will display to other Bluetooth-enabled devices. To change the device name,1Tap Start > Settings.2On the Basic Settings tab, tap Network Settings > Bluetooth>Menu > Device Info.3Tap the name input field.4Enter a device name.5Tap Done.
102Search for and pair with a Bluetooth-enabled device1Tap Start > Settings.2On the Basic Settings tab, tap Network Settings > Bluetooth.3Tap Search.• Your device will search for and display the icons of Bluetooth-enabled devices.• To select a search option, tap Menu > Options and select a device type.4Drag a device icon to your device icon in the middle of the screen.5Enter the 1- to 16-digit Bluetooth PIN for the device you are trying to connect to and tap Next.6Select services and tap Done.To pair with another Bluetooth-enabled device, both devices must use the same passcode. Headsets or hands-free car kits may use a fixed passcode, such as 0000.
103Send data via the Bluetooth wireless feature1Open File Manager or an application that your data has been saved in.2Tap and hold a file to send or tap Menu.3Select an option for sending via Bluetooth.4Tap a target device from the searched device list.Receive data via the Bluetooth wireless feature1Enter the PIN for the Bluetooth wireless feature (if necessary).2After receiving data, tap Yes to save it to your device.To receive all incoming beams,1Tap Start > Settings.2On the Basic Settings tab, tap Network Settings > Bluetooth>Menu > Device Service.3Tap Options next to Object Push.
1044Check next to Enable to receive all Incoming beams.5Tap Done.Wi-FiYour device features wireless networking capabilities that allow you to connect to wireless local area networks (WLANs).Activate and connect to a WLAN1Tap Start > Settings.2On the Basic Settings tab, tap Network Settings > Wi-Fi.3Tap the device icon in the middle of the screen.4Tap Search.• The device will display available WLAN connections.
1055Drag a network icon to the device icon in the middle of the screen.• The device will attempt to connect to the WLAN.6Select a network profile, enter a password, and tap Finish (if necessary).Create a new Wi-Fi connection1Tap Start > Settings.2On the Basic Settings tab, tap Network Settings > Wi-Fi.3Tap Menu > Add New.4Enter a network name and configure connection settings.5When you are finished, tap Next.6Enter network authentication settings and tap Next.
1067Set the IEEE 802.1x access option and the extensible authentication protocol (EAP) type (if necessary).8Tap Finish.• The new Wi-Fi network will appear on the Wi-Fi screen. To connect to the network, drag the network icon to the device icon in the middle of the screen.Connected HomeThe connected home application allows you to share media files between devices in your home. You can access and play files from devices that support the Digital Living Network Alliance (DLNA) standard.Play your files on another device1Search for and connect to a network using the WLAN. Xp. 1042Tap Start.3On the Multimedia screen, tap Connected Home.4Tap SELECT CONTENTS.
1075Tap the icon in the middle of the screen to select your device.6Tap Menu > Settings.7Tap Sharing Folders... under My media Sharing.8Tap Add.. to share a folder (maximum of three folders).9Navigate to and tap a folder name.10Tap Select to share the folder.11Tap Done twice.12Tap the circle in the middle of the screen to select your device.13Select a folder and locate files.14Tap to return to the now playing list.15Tap SELECT PLAYER.16Select a player—the one that will play the media files.• The media files of the selected folder appear or start playback on the selected player. You can control playback using icons of your device.You can change a shared folder by tapping Change... and locating a new folder. You can remove a folder from the list of shared folders by tapping Delete.
108Play files from one device to the other device1Search for and connect to a network using the WLAN. Xp. 1042Tap Start.3On the Multimedia screen, tap Connected Home.4Select SELECT CONTENTS.5Select a device—the one that contains media files.6Select a folder and locate files.7Tap to return to the now playing list.8Select SELECT PLAYER.9Select a player—the one that will play the media files.• The selected media files appear or start playback on the selected player. You can control playback using icons of your device.Download files to your device1Search for and connect to a network using the WLAN. Xp. 1042Tap Start.
1093On the Multimedia screen, tap Connected Home.4Select SELECT CONTENTS.5Select Menu > Settings.6Tap Download location.7Select a folder and tap Select.8Tap Done.9Select a device—the one that contains media files.10Select a folder and locate files.11Tap Menu > Download.12Select files and tap Download.• The files will be downloaded to your device.Delete filesYou can delete files from the now playing list to prevent them from being played on your device. This will not delete the file from the server.
110TroubleshootingIf you have trouble with your device, try these procedures before you contact a service professional.When you turn on your device, the following messages may appear:Message Try this to solve the problem:The SIM card is missing.Ensure that the SIM or USIM card is installed correctly.Enter PIN.When using the device for the first time or when the PIN requirement feature is enabled, you must enter the PIN supplied with the SIM or USIM card. To disable the PIN requirement feature, tap Start > Settings > Basic Settings tab > Security > SIM PIN, and then tap next to Require PIN when phone is used.SIM card blocked.Your SIM or USIM card is blocked, usually as a result of entering your PIN incorrectly several times. You must enter the PUK supplied by your service provider.
111Your device does not show a signal (no bars next to the network icon)• If you just turned on the device, wait about 2 minutes for your device to find the network and receive a signal.• You may not be able to receive a signal in tunnels or elevators. Move to an open area.• You may be between service areas. You should receive a signal when you enter a service area.You forgot a security code, PIN, or PUKIf you forget or lose this or another code, contact the seller or your service provider.Your display shows white linesThe display may show white lines if you have turned the device on after a long period of disuse or if you removed the battery without first turning off the device. The display should correct itself in a short time.You enter a number, but the call is not dialled• Ensure that you have pressed [ ].• Ensure that you have accessed the right cellular network.• Ensure that you have not set call barring for the phone number.
112You select a contact to call, but the call is not dialled• Ensure that the correct number is stored in the contact information.• Re-enter and save the number (if necessary).Another caller cannot hear you speaking• Ensure that you are not blocking the built-in microphone.• Move the built-in microphone closer to your mouth.• If using a headset, ensure that it is properly connected.The sound quality of a call is poor• Ensure that you are not blocking the internal antenna and the Bluetooth antenna. The internal antenna and the Bluetooth antenna are located at the bottom of the device.• When you are in areas with weak signals, you may lose reception. Move to another area and try again.
113The battery does not charge properly or sometimes your device turns itself off while charging• Disconnect the device from the charger, remove and reinstall the battery, and try charging again.• The battery terminals may be dirty. Wipe both gold-coloured contacts with a clean and soft cloth and try charging the battery again.• If the battery no longer charges completely, dispose of the old battery properly and replace it with a new battery.Your device is hot to the touchWhen you use several applications at once, your device requires more power and may heat up. This is normal and should not affect your device’s lifespan or performance.Your device cannot connect to the internet• Ensure that you have entered valid settings for your internet service provider.• Ensure that you have activated the wireless connection to your mobile service provider and that the signal is not obstructed.• Ensure that you have entered the correct user name and password.
114You cannot find a Bluetooth-enabled device• Ensure that both devices have activated the Bluetooth wireless feature.• Ensure that the distance between the devices is not more than 10 metres and that they are not separated by walls or other obstacles.• Ensure that the settings for each device allow them to be visible to other devices.• Ensure that both devices are compatible with Bluetooth wireless technology.• Ensure that the correct PIN has been entered on both devices.You cannot listen to music on a remote Bluetooth headset• Ensure that your device is connected to the headset.• Ensure that the music format you are trying to listen to is supported by the headset.• Ensure that the distance between the headset and device is not more than 10 metres and that they are not separated by walls or other obstacles.
115Safety and usage informationComply with the following precautions to avoid dangerous or illegal situations and ensure peak performance of your device.Safety warningsKeep your device away from small children and petsKeep your device and all accessories out of the reach of small children or animals. Small parts may cause choking or serious injury if swallowed.Protect your hearingListening to a headset at high volumes can damage your hearing. Use only the minimum volume setting necessary to hear your conversation or music.
116Install mobile devices and equipment with cautionEnsure that any mobile devices or related equipment installed in your vehicle are securely mounted. Avoid placing your device and accessories near or in an air bag deployment area. Improperly installed wireless equipment can cause serious injury when air bags inflate rapidly.Handle and dispose of batteries and chargers with care• Use only Samsung-approved batteries and chargers specifically designed for your device. Incompatible batteries and chargers can cause serious injuries or damage to your device.• Never dispose of batteries or devices in a fire. Follow all local regulations when disposing of used batteries or devices.• Never place batteries or devices on or in heating devices, such as microwave ovens, stoves, or radiators. Batteries may explode when overheated.• Never crush or puncture the battery. Avoid exposing the battery to high external pressure, which can lead to an internal short circuit and overheating.
117Avoid interference with pacemakersMaintain a minimum of 15 cm (6 inches) between mobile devices and pacemakers to avoid potential interference, as recommended by manufacturers and the independent research group, Wireless Technology Research. If you have any reason to suspect that your device is interfering with a pacemaker or other medical device, turn off the device immediately and contact the manufacturer of the pacemaker or medical device for guidance.Turn off the device in potentially explosive environmentsDo not use your device at refuelling points (service stations) or near fuels or chemicals. Turn off your device whenever directed by warning signs or instructions. Your device could cause explosions or fire in and around fuel or chemical storage and transfer areas or blasting areas. Do not store or carry flammable liquids, gases, or explosive materials in the same compartment as the device, its parts, or accessories.
118Reduce the risk of repetitive motion injuriesWhile using your device, hold the device with a relaxed grip, press the keys lightly, use special features that reduce the number of keys you have to press (such as templates and predictive text), and take frequent breaks.Safety precautionsDrive safely at all timesAvoid using your device while driving and obey all regulations that restrict the use of mobile devices while driving. Use hands-free accessories to increase your safety when possible.Follow all safety warnings and regulationsComply with any regulations that restrict the use of a mobile device in a certain area.Use only Samsung-approved accessoriesUsing incompatible accessories may damage your device or cause injury.
119Turn off the device near medical equipmentYour device can interfere with medical equipment in hospitals or health care facilities. Follow all regulations, posted warnings, and directions from medical personnel.Turn off the device or disable the wireless functions when in an aircraftYour device can cause interference with aircraft equipment. Follow all airline regulations and turn off your device or switch to a mode that disables the wireless functions when directed by airline personnel.Protect batteries and chargers from damage• Avoid exposing batteries to very cold or very hot temperatures (below 0° C/32° F or above 45° C/113° F). Extreme temperatures can reduce the charging capacity and life of your batteries.• Prevent batteries from contacting metal objects, as this can create a connection between the + and - terminals of your batteries and lead to temporary or permanent battery damage.• Never use a damaged charger or battery.• Risk of explosion if a battery is replaced by an incorrect type. Dispose of used batteries according to the instructions.
120Handle your device carefully and sensibly• Do not allow your device to get wet—liquids can cause serious damage. Do not handle your device with wet hands. Water damage to your device can void your manufacturer’s warranty.• Avoid using or storing your device in dusty, dirty areas to prevent damage to moving parts.• Your device is a complex electronic device—protect it from impacts and rough handling to avoid serious damage.• Do not paint your device, as paint can clog moving parts and prevent proper operation.• If your device has a camera flash or light, avoid using it close to the eyes of children or animals.• Your device may be damaged by exposure to magnetic fields. Do not use carrying cases or accessories with magnetic closures or allow your device to come in contact with magnetic fields for extended periods of time.
121Avoid interference with other electronic devicesYour device emits radio frequency (RF) signals that may interfere with unshielded or improperly shielded electronic equipment, such as pacemakers, hearing aids, medical devices, and other electronic devices in homes or vehicles. Consult the manufacturers of your electronic devices to solve any interference problems you experience.Do not use the device if the screen is cracked or brokenBroken glass could cause injury to your hand and face. Bring the device to Samsung service centre to replace the glass.Important usage informationUse your device in the normal positionAvoid contact with your device’s internal antenna.Allow only qualified personnel to service your deviceAllowing unqualified personnel to service your device may result in damage to your device and will void your warranty.
122Ensure maximum battery and charger life• Avoid charging batteries for more than a week, as overcharging may shorten battery life.• Over time, unused batteries will discharge and must be recharged before use.• Disconnect chargers from power sources when not in use.• Use batteries only for their intended purpose.Handle SIM cards and memory cards with care• Do not remove a card while the device is transferring or accessing information, as this could result in loss of data and/or damage to the card or device.• Protect cards from strong shocks, static electricity, and electrical noise from other devices.• Frequent writing and erasing will shorten the life span of memory cards.• Do not touch gold-coloured contacts or terminals with your fingers or metal objects. If dirty, wipe the card with a soft cloth.
Safety and usage information10Ensure access to emergency servicesEmergency calls from your device may not be possible in some areas or circumstances. Before travelling in remote or undeveloped areas, plan an alternate method of contacting emergency services personnel.Specific Absorption Rate (SAR) certification informationYour wireless phone is a radio transmitter and receiver. It is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission (FCC) of the U.S. government. These FCC exposure limits are derived from the recommendations of two expert organizations, the National Counsel on Radiation Protection and Measurement (NCRP) and the Institute of Electrical and Electronics Engineers (IEEE). In both cases, the recommendations were developed by scientific and engineering experts drawn from industry, government, and academia after extensive reviews of the scientific literature related to the biological effects of RF energy.The exposure limit set by the FCC for wireless mobile phones employs a unit of measurement known as the Specific Absorption Rate (SAR). The SAR is a measure of the rate of absorption of RF energy by the human body expressed in units of watts per kilogram (W/kg). The FCC requires wireless phones to comply with a safety limit of 1.6 watts per kilogram (1.6 W/kg). The FCC exposure limit incorporates a substantial margin of safety to give additional protection to the public and to account for any variations in measurements.
11Safety and usage informationSAR tests are conducted using standard operating positions accepted by the FCC with the phone transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the phone while operating can be well below the maximum value. This is because the phone is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a wireless base station antenna, the lower the power output.Before a new model phone is available for sale to the public, it must be tested and certified to the FCC that it does not exceed the exposure limit established by the FCC. Tests for each model phone are performed in positions and locations (e.g. at the ear and worn on the body) as required by the FCC.The highest SAR values for this model phone as reported to the FCC are [GSM850] Head : 0.246 W/Kg, Body-worn: 0.613W/Kg ,[GSM1900] Head: 0.222 W/kg,Body-worn: 0.407 W/Kg , [WCDMA 1900]Head: 0.457 W/kg, Body worn: 0.533 W/kg.For body worn operation, this model phone has been tested and meets the FCC RF exposure guidelines when used with a Samsung accessory designated for this product or when used with an accessory that contains no metal and that positions the handset a minimum of 1.5 cm from the body. Non-compliance with the above restrictions may result in violation of FCC exposure guidelines.
Safety and usage information12The FCC has granted an Equipment Authorization for this mobile phone with all reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines.The FCC has granted an Equipment Authorization for this model phone with all reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines. SAR information on this model phone is on file with the FCC and can be found under the Display Grant section of http://www.fcc.gov/oet/fccid after searching on FCC ID A3LGTB7620.FCC Notice and CautionsFCC Notice• This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.• This equipment has been tested and found to comply with the limits for a Class B digital device, pursusant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. Howerver, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
13Safety and usage informationinterference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:- Reorient or relocate the receiving antenna.- Increase the separation between the equipment and receiver.- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.- Consult the dealer or an experienced radio/TV technician for help.The phone may cause TV or radio interference if used in close proximity to receiving equipment. The FCC can require you to stop using the phone if such interference cannot be eliminated.Vehicles using liquefied petroleum gas (such as propane or butane) must comply with the National Fire Protection Standard (NFPA-58). For a copy of this standard, contact the National Fire Protection Association, One Battery march Park, Quincy, MA 02269, Attn: Publication Sales Division.
Safety and usage information14CautionsChanges or modifications made in the radio phone, not expressly approved by Samsung, will void the user’s authority to operate the equipment.Only use approved batteries, antennas and chargers. The use of any unauthorized accessories may be dangerous and void the phone warranty if said accessories cause damage or a defect to the phone.Although your phone is quite sturdy, it is a complex piece of equipment and can be broken. Avoid dropping, hitting, bending or sitting on it.

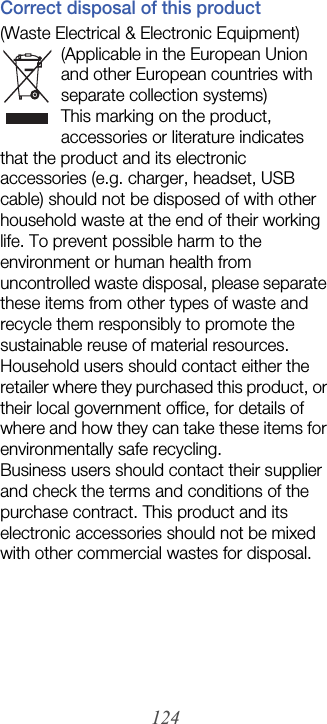

124Correct disposal of this product(Waste Electrical & Electronic Equipment)(Applicable in the European Union and other European countries with separate collection systems)This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling.Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.
125Correct disposal of batteries in this product(Applicable in the European Union and other European countries with separate battery return systems)This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66. If batteries are not properly disposed of, these substances can cause harm to human health or the environment.To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle them through your local, free battery return system.This EEE is compliant with RoHS.
126DisclaimerSome content and services accessible through this device belong to third parties and are protected by copyright, patent, trademark and/or other intellectual property laws. Such content and services are provided solely for your personal noncommercial use. You may not use any content or services in a manner that has not been authorised by the content owner or service provider. Without limiting the foregoing, unless expressly authorised by the applicable content owner or service provider, you may not modify, copy, republish, upload, post, transmit, translate, sell, create derivative works, exploit, or distribute in any manner or medium any content or services displayed through this device.“THIRD PARTY CONTENT AND SERVICES ARE PROVIDED "AS IS." SAMSUNG DOES NOT WARRANT CONTENT OR SERVICES SO PROVIDED, EITHER EXPRESSLY OR IMPLIEDLY, FOR ANY PURPOSE. SAMSUNG EXPRESSLY DISCLAIMS ANY IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO, WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. SAMSUNG DOES NOT GUARANTEE THE ACCURACY, VALIDITY, TIMELINESS, LEGALITY, OR COMPLETENESS OF ANY CONTENT OR SERVICE MADE AVAILABLE THROUGH
127THIS DEVICE AND UNDER NO CIRCUMSTANCES, INCLUDING NEGLIGENCE, SHALL SAMSUNG BE LIABLE, WHETHER IN CONTRACT OR TORT, FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES, ATTORNEY FEES, EXPENSES, OR ANY OTHER DAMAGES ARISING OUT OF, OR IN CONNECTION WITH, ANY INFORMATION CONTAINED IN, OR AS A RESULT OF THE USE OF ANY CONTENT OR SERVICE BY YOU OR ANY THIRD PARTY, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES." Third party services may be terminated or interrupted at any time, and Samsung makes no representation or warranty that any content or service will remain available for any period of time. Content and services are transmitted by third parties by means of networks and transmission facilities over which Samsung has no control. Without limiting the generality of this disclaimer, Samsung expressly disclaims any responsibility or liability for any interruption or suspension of any content or service made available through this device.Samsung is neither responsible nor liable for customer service related to the content and services. Any question or request for service relating to the content or services should be made directly to the respective content and service providers.
128IndexActiveSyncExchange server, 69installing, 67schedule, 70synchronise, 68alarmsetting, 71stopping, 72Audio Note 77background imagesee Today Screenbatterycharging, 16installing, 14Bluetoothactivating, 100connecting to other devices, 102receiving data, 103sending data, 103browsersee Operacalculator 79
129calendarsee Touch Calendarcallsanswering, 41from Call Log, 42from Phonebook, 40international number, 41making, 40rejecting, 41camera 47Communities 93Connected Home 106contactsassigning photos, 39assigning ringtones, 39assigning speed dial numbers, 38copying and moving contact cards, 37creating contacts, 36organising, 38searching for contacts, 36convertersee Smart ConverterDigital Frame 59Etiquette pause 23
130Exchange Serversee ActiveSyncFM radiolistening, 60recording songs, 62saving stations, 61games 66help system 29internetsee OperaInternet Sharing 100Java 66lock 18memory card 17Messagingadding email accounts, 46sending email, 44sending multimedia, 43sending text, 43viewing, 45notesaudio, see Audio Notecreating, 75sketches, 75
131Operaadding bookmarks, 87browsing, 86Photo Albumstarting slideshows, 58viewing photos, 58photosbasic capturing, 47capturing in Smile shot mode, 52capturing panoramic photos, 53mosaic, 54viewing, 48Podcast 91radiosee FM radioreset 20RSS Reader 89SIM card 14sketches 75Smart Converter 80Smart Memo 76
132Smart Readercapturing images, 81translating text, 82viewing captured images, 83Smart Search 84stopwatch 73Streaming Player 88Taskscreating, 78marking as completed, 79text inputBlock Recognizer, 30keyboard, 32Letter Recognizer, 32Samsung Keypad, 33Transcriber, 34themessee Today ScreenToday screenadding or removing items, 21changing themes or background images, 21
133Touch Calendarchanging views, 74creating events, 73stopping event alarms, 74Touch Playercreating a playlist, 57playing files, 56updating the library, 55USIM card 14Video Editor 62videosplaying, 51recording, 50volumecall volume, 41system volume, 23Widgetscustomising widgets, 26dragging to the Today screen, 25opening the toolbar, 24Wi-Fi 104world clock 72
Declaration of Conformity (R&TTE)We, Samsung Electronicsdeclare under our sole responsibility that the productGSM Mobile Phone : GT-B7620to which this declaration relates, is in conformity with the following standards and/or other normative documents.SAFETY EN EMC EN EN EN EN SAR EN EN RADIO EN EN EN EN We hereby declare that [all essential radio test suites have been carried out and that] the above named product is in conformity to all the essential requirements of Directive 1999/5/EC.The conformity assessment procedure referred to in Article 10 and detailed in Annex[IV] of Directive 1999/5/EC has been followed with the involvement of the following Notified Body(ies):BABT, Balfour House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD, UK*Identification mark: 0168The technical documentation kept at :Samsung Electronics QA Lab.which will be made available upon request.(Representative in the EU)Samsung Electronics Euro QA Lab. Blackbushe Business Park, Saxony Way, Yateley, Hampshire, GU46 6GG, UK*Yong-Sang Park / S. Manager(place and date of issue) (name and signature of authorised person)* It is not the address of Samsung Service Centre. For the address or the phone number of Samsung Service Centre, see the warranty card or contact the retailer where you purchased your phone.
