Samsung Electronics Co GTS5600L Cellular/PCS WCDMA/GSM/EDGE Phone with Bluetooth User Manual S5600

Samsung Electronics Co Ltd Cellular/PCS WCDMA/GSM/EDGE Phone with Bluetooth S5600

Users Manual

GT-S5600L user manualS5600.book Page ii Friday, April 17, 2009 2:23 PM
iiusing thismanualThis user manual has been specially designed toguide you through the functions and features of yourmobile phone. To get started quickly,refer to “introducing your mobile phone,”“assembling and preparing your mobile phone,”and “using basic functions.”Instructional iconsBefore you start, familiarise yourself with the icons you will see in this manual: Warning—situations that could cause injury to yourself or othersCaution—situations that could cause damage to your phone or other equipmentNote—notes, usage tips, or additional information XRefer to—pages with related information; for example: X p. 12 (represents “see page 12”)S5600.book Page ii Friday, April 17, 2009 2:23 PM

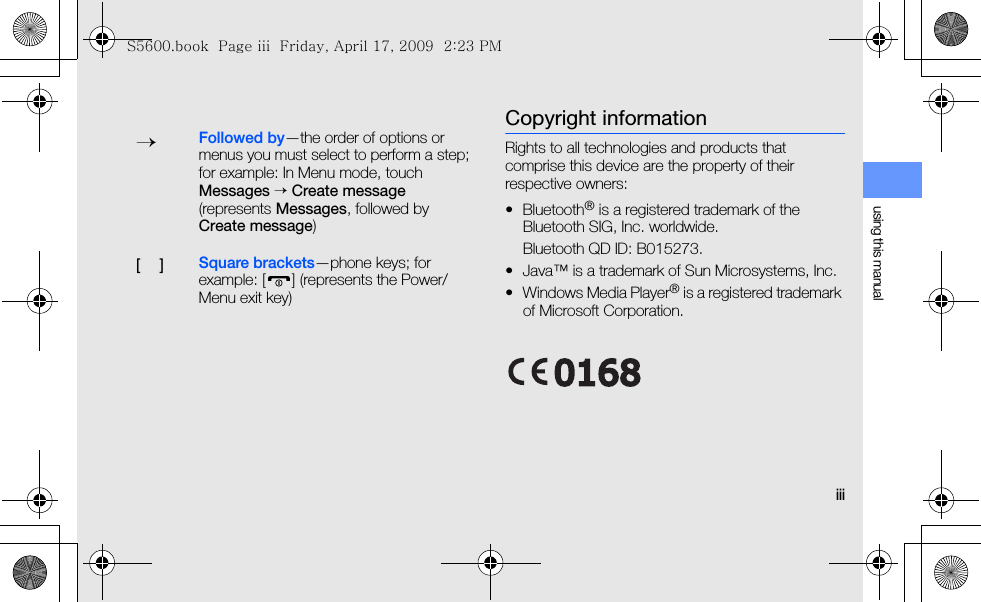

using this manualiiiCopyright informationRights to all technologies and products that comprise this device are the property of their respective owners:• Bluetooth® is a registered trademark of the Bluetooth SIG, Inc. worldwide.Bluetooth QD ID: B015273.• Java™ is a trademark of Sun Microsystems, Inc.• Windows Media Player® is a registered trademark of Microsoft Corporation.→Followed by—the order of options or menus you must select to perform a step; for example: In Menu mode, touch Messages → Create message (represents Messages, followed by Create message)[]Square brackets—phone keys; for example: [ ] (represents the Power/ Menu exit key)S5600.book Page iii Friday, April 17, 2009 2:23 PM
ivcontentssafety and usage information .................. 2Safety warnings ........................................... 2Safety precautions ....................................... 4Important usage information ........................ 7introducing your mobile phone .............12Unpack ..................................................... 12Phone layout ............................................. 13Keys .......................................................... 14Display ...................................................... 15Icons ......................................................... 15assembling and preparing your mobile phone ...................................................... 17Install the SIM or USIM card and battery .... 17Charge the battery .................................... 19Insert a memory card (optional) ................. 20using basic functions ............................. 22Turn your phone on and off ....................... 22Use the touch screen ................................ 23S5600.book Page iv Friday, April 17, 2009 2:23 PM
contentsvAccess menus ........................................... 24Switch applications .................................... 24Use widgets .............................................. 25Access help information ............................. 26Customise your phone ............................... 26Use basic call functions ............................. 28Send and view messages .......................... 29Add and find contacts ............................... 31Use basic camera functions ....................... 32Listen to music .......................................... 33Browse the web ........................................ 34using advanced functions ..................... 36Use advanced call functions ...................... 36Use advanced phonebook functions .......... 38Use advanced messaging functions .......... 39Use advanced music functions .................. 40using tools and applications ................. 44Use the Bluetooth wireless feature ............. 44Activate and send an SOS message .......... 46Activate the mobile tracker ........................ 46Make fake calls ..........................................47Record and play voice memos ...................48Edit images ................................................48Print images ...............................................51Upload photos and videos to the web ........52Use Java-powered games and applications 53Synchronise data .......................................53Use RSS reader .........................................54View world clocks ......................................55Set and use alarms ....................................55Use the calculator ......................................56Convert currencies or measurements .........56Set a countdown timer ...............................57Use the stopwatch .....................................57Create a new task ......................................57Create a text memo ...................................57Manage your calendar ................................58troubleshooting ........................................ aindex ......................................................... dS5600.book Page v Friday, April 17, 2009 2:23 PM
2safety andusageinformationComply with the following precautions to avoiddangerous or illegal situations and ensure peakperformance of your mobile phone.Keep your phone away from small children and petsKeep your phone and all accessories out of the reach of small children or animals. Small parts may cause choking or serious injury if swallowed.Protect your hearingSafety warningsListening to a headset at high volumes can damage your hearing. Use only the minimum volume setting necessary to hear your conversation or music.S5600.book Page 2 Friday, April 17, 2009 2:23 PM
safety and usage information3Install mobile phones and equipment with cautionEnsure that any mobile phones or related equipment installed in your vehicle are securely mounted. Avoid placing your phone and accessories near or in an air bag deployment area. Improperly installed wireless equipment can cause serious injury when air bags inflate rapidly.Handle and dispose of batteries and chargers with care• Use only Samsung-approved batteries and chargers specifically designed for your phone. Incompatible batteries and chargers can cause serious injuries or damage to your phone.• Never dispose of batteries or phones in a fire. Follow all local regulations when disposing used batteries or phones.• Never place batteries or phones on or in heating devices, such as microwave ovens, stoves, or radiators. Batteries may explode when overheated.• Never crush or puncture the battery. Avoid exposing the battery to high external pressure, which can lead to an internal short circuit and overheating.Avoid interference with pacemakersMaintain a minimum of 15 cm (6 inches) between mobile phones and pacemakers to avoid potential interference, as recommended by manufacturers and the independent research group, Wireless Technology Research. If you have any reason to suspect that your phone is interfering with a pacemaker or other medical device, turn off the phone immediately and contact the manufacturer of the pacemaker or medical device for guidance.S5600.book Page 3 Friday, April 17, 2009 2:23 PM
4safety and usage informationTurn off the phone in potentially explosive environmentsDo not use your phone at refuelling points (service stations) or near fuels or chemicals. Turn off your phone whenever directed by warning signs or instructions. Your phone could cause explosions or fire in and around fuel or chemical storage and transfer areas or blasting areas. Do not store or carry flammable liquids, gases, or explosive materials in the same compartment as the phone, its parts, or accessories.Reduce the risk of repetitive motion injuriesWhile using your phone, hold the phone with a relaxed grip, press the keys lightly, use special features that reduce the number of keys you have to press (such as templates and predictive text), and take frequent breaks.Drive safely at all timesAvoid using your phone while driving and obey all regulations that restrict the use of mobile phones while driving. Use hands-free accessories to increase your safety when possible.Follow all safety warnings and regulationsComply with any regulations that restrict the use of a mobile phone in a certain area.Use only Samsung-approved accessoriesUsing incompatible accessories may damage your phone or cause injury.Safety precautionsS5600.book Page 4 Friday, April 17, 2009 2:23 PM
safety and usage information5Turn off the phone near medical equipmentYour phone can interfere with medical equipment in hospitals or health care facilities. Follow all regulations, posted warnings, and directions from medical personnel.Turn off the phone or disable the wireless functions when in an aircraftYour phone can cause interference with aircraft equipment. Follow all airline regulations and turn off your phone or switch to a mode that disables the wireless functions when directed by airline personnel.Protect batteries and chargers from damage• Avoid exposing batteries to very cold or very hot temperatures (below 0° C/32° F or above 45° C/113° F). Extreme temperatures can reduce the charging capacity and life of your batteries.• Prevent batteries from contacting metal objects, as this can create a connection between the + and - terminals of your batteries and lead to temporary or permanent battery damage.• Never use a damaged charger or battery.Handle your phone carefully and sensibly• Do not allow your phone to get wet—liquids can cause serious damage. Do not handle your phone with wet hands. Water damage to your phone can void your manufacturer’s warranty.S5600.book Page 5 Friday, April 17, 2009 2:23 PM
6safety and usage information• Avoid using or storing your phone in dusty, dirty areas to prevent damage to moving parts.• Your phone is a complex electronic device—protect it from impacts and rough handling to avoid serious damage.• Do not paint your phone, as paint can clog moving parts and prevent proper operation.• If your phone has a camera or light, avoid using it close to the eyes of children or animals.• Your phone may be damaged by exposure to magnetic fields. Do not use carrying cases or accessories with magnetic closures or allow your phone to come in contact with magnetic fields for extended periods of time.Avoid interference with other electronic devicesYour phone emits radio frequency (RF) signals that may interfere with unshielded or improperly shielded electronic equipment, such as pacemakers, hearing aids, medical devices, and other electronic devices in homes or vehicles. Consult the manufacturers of your electronic devices to solve any interference problems you experience.S5600.book Page 6 Friday, April 17, 2009 2:23 PM
safety and usage information7Use your phone in the normal positionAvoid contact with your phone’s internal antenna.Allow only qualified personnel to service your phoneAllowing unqualified personnel to service your phone may result in damage to your phone and will void your warranty.Ensure maximum battery and charger life• Avoid charging batteries for more than a week, as overcharging may shorten battery life.• Over time, unused batteries will discharge and must be recharged before use.• Disconnect chargers from power sources when not in use.• Use batteries only for their intended purpose.Handle SIM cards and memory cards with care• Do not remove a card while the phone is transferring or accessing information, as this could result in loss of data and/or damage to the card or phone.• Protect cards from strong shocks, static electricity, and electrical noise from other devices.• Frequent writing and erasing will shorten the life span of memory cards.• Do not touch gold-coloured contacts or terminals with your fingers or metal objects. If dirty, wipe the card with a soft cloth.Important usage informationS5600.book Page 7 Friday, April 17, 2009 2:23 PM
8safety and usage informationEnsure access to emergency servicesEmergency calls from your phone may not be possible in some areas or circumstances. Before travelling in remote or undeveloped areas, plan an alternate method of contacting emergency services personnel.During testing, the maximum SAR recorded for this model was 0.758 watts per kilogram. In normal use, the actual SAR is likely to be much lower, as the phone has been designed to emit only the RF energy necessary to transmit a signal to the nearest base station. By automatically emitting lower leveS5600.book Page 8 Friday, April 17, 2009 2:23 PM
safety and usage information9Correct disposal of this product(Waste Electrical & Electronic Equipment)(Applicable in the European Union and other European countries with separate collection systems)This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal. S5600.book Page 9 Friday, April 17, 2009 2:23 PM
10safety and usage informationCorrect disposal of batteries in this product(Applicable in the European Union and other European countries with separate battery return systems)This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66. If batteries are not properly disposed of, these substances can cause harm to human health or the environment.To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle them through your local, free battery return system.DisclaimerSome contents and services accessible through this device belong to third parties and are protected by copyright, patent, trademark and/or other intellectual property laws. Such content and services are provided solely for your personal noncommercial use. You may not use any content or services in a manner that has not been authorized by the content owner or service provider. Without limiting the foregoing, unless expressly authorized by the applicable content owner or service provider, you may not modify, copy, republish, upload, post, transmit, translate, sell, create derivative works, exploit, or distribute in any manner or medium any content or services displayed through this device.THIRD PARTY CONTENT AND SERVICES ARE PROVIDED "AS IS." SAMSUNG DOES NOT WARRANT CONTENT OR SERVICES SO PROVIDED, EITHER EXPRESSLY OR IMPLIEDLY, S5600.book Page 10 Friday, April 17, 2009 2:23 PM
safety and usage information11FOR ANY PURPOSE. SAMSUNG EXPRESSLY DISCLAIMS ANY IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO, WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. SAMSUNG DOES NOT GUARANTEE THE ACCURACY, VALIDITY, TIMELINESS, LEGALITY, OR COMPLETENESS OF ANY CONTENT OR SERVICE MADE AVAILABLE THROUGH THIS DEVICE AND UNDER NO CIRCUMSTANCES, INCLUDING NEGLIGENCE, SHALL SAMSUNG BE LIABLE, WHETHER IN CONTRACT OR TORT, FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES, ATTORNEY FEES, EXPENSES, OR ANY OTHER DAMAGES ARISING OUT OF, OR IN CONNECTION WITH, ANY INFORMATION CONTAINED IN, OR AS A RESULT OF THE USE OF ANY CONTENT OR SERVICE BY YOU OR ANY THIRD PARTY, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES." Third party services may be terminated or interrupted at any time, and Samsung makes no representation or warranty that any content or service will remain available for any period of time. Content and services are transmitted by third parties by means of networks and transmission facilities over which Samsung has no control. Without limiting the generality of this disclaimer, Samsung expressly disclaims any responsibility or liability for any interruption or suspension of any content or service made available through this device. Samsung is neither responsible nor liable for customer service related to the content and services. Any question or request for service relating to the content or services should be made directly to the respective content and service providers.S5600.book Page 11 Friday, April 17, 2009 2:23 PM
12introducing yourmobile phone In this section, learn about your mobile phone’slayout, keys, display, and icons.UnpackCheck your product box for the following items:• Mobile phone• Battery• Travel adapter (charger)•User manual The items supplied with your phone may vary depending on the software and accessories available in your region or offered by your service provider. You can obtain additional accessories from your local Samsung dealer.S5600.book Page 12 Friday, April 17, 2009 2:23 PM
introducing your mobile phone13Phone layoutThe front of your phone includes the following keys and features:The rear of your phone includes the following keys and features:Power/Menu exit keyFront camera lens for video callsTouch screenVolume keyDial keyBack keyMouthpiecefor video callsandspeakerphoneMouthpiecefor voice callsEarpieceYou can lock the touch screen and keys to prevent any unwanted phone operations. To lock, press the Hold key.Battery coverInternal antennaMultifunction jackCamera keyRear cameralensFlashbulbHold keySpeakerS5600.book Page 13 Friday, April 17, 2009 2:23 PM

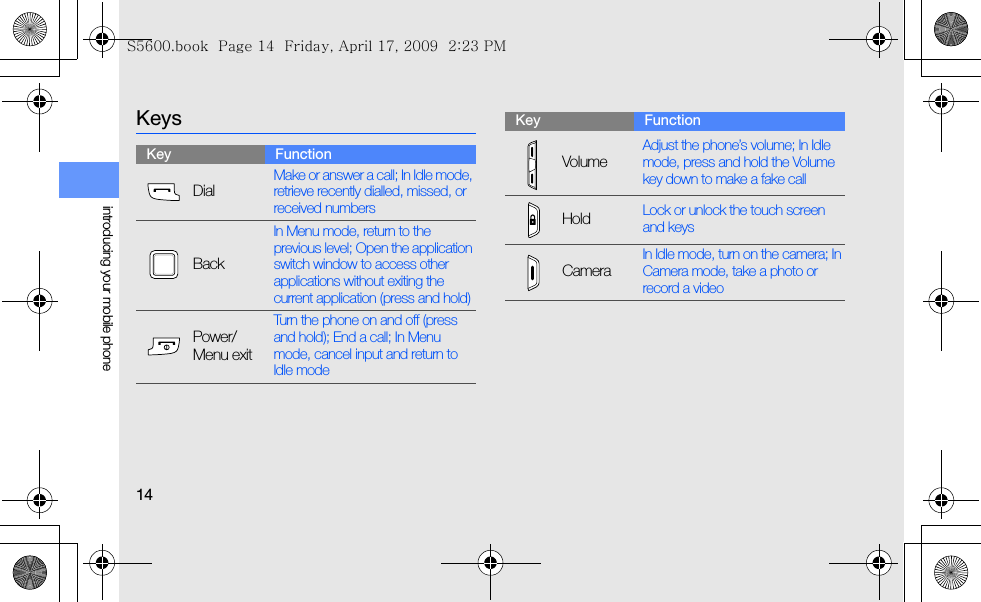

14introducing your mobile phoneKeysKey FunctionDialMake or answer a call; In Idle mode, retrieve recently dialled, missed, or received numbersBackIn Menu mode, return to the previous level; Open the application switch window to access other applications without exiting the current application (press and hold)Power/Menu exitTurn the phone on and off (press and hold); End a call; In Menu mode, cancel input and return to Idle modeVolumeAdjust the phone’s volume; In Idle mode, press and hold the Volume key down to make a fake callHold Lock or unlock the touch screen and keysCameraIn Idle mode, turn on the camera; In Camera mode, take a photo or record a videoKey FunctionS5600.book Page 14 Friday, April 17, 2009 2:23 PM
introducing your mobile phone15DisplayYour phone’s display consists of three areas:IconsLearn about the icons that appear on your display.Icon lineDisplays various iconsText and graphic areaDisplays messages, instructions, and information you enterIcon DefinitionSignal strengthSOS message feature activatedGPRS network connectedEDGE network connectedUMTS network connectedHSDPA network connectedVoice call in progressVideo call in progressBrowsing the webS5600.book Page 15 Friday, April 17, 2009 2:23 PM

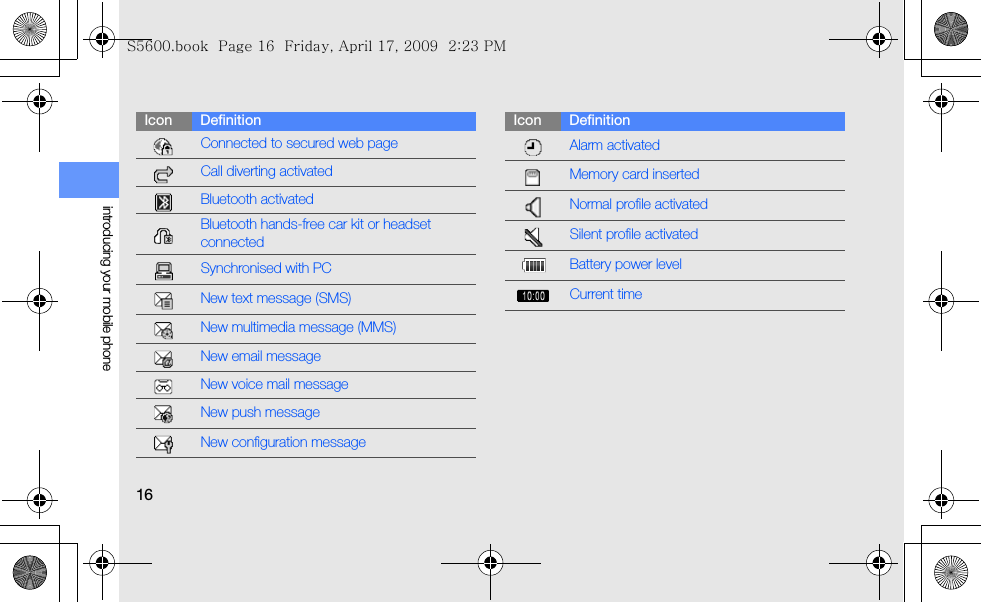

16introducing your mobile phoneConnected to secured web pageCall diverting activatedBluetooth activatedBluetooth hands-free car kit or headset connectedSynchronised with PCNew text message (SMS)New multimedia message (MMS)New email messageNew voice mail messageNew push messageNew configuration messageIcon DefinitionAlarm activatedMemory card insertedNormal profile activatedSilent profile activatedBattery power levelCurrent timeIcon DefinitionS5600.book Page 16 Friday, April 17, 2009 2:23 PM

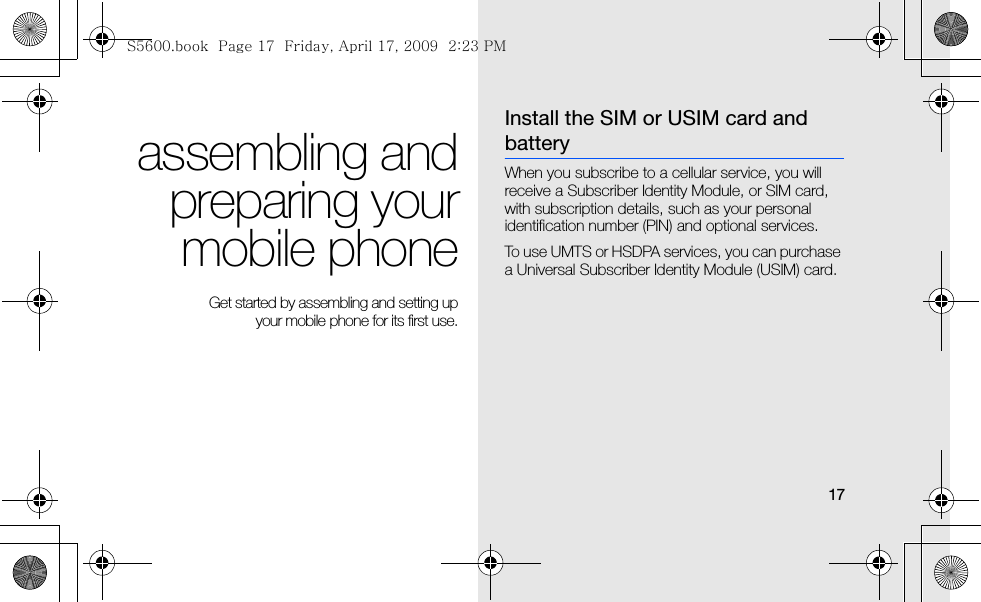

17assembling andpreparing yourmobile phone Get started by assembling and setting up your mobile phone for its first use.Install the SIM or USIM card and batteryWhen you subscribe to a cellular service, you will receive a Subscriber Identity Module, or SIM card, with subscription details, such as your personal identification number (PIN) and optional services.To use UMTS or HSDPA services, you can purchase a Universal Subscriber Identity Module (USIM) card.S5600.book Page 17 Friday, April 17, 2009 2:23 PM
18assembling and preparing your mobile phoneTo install the SIM or USIM card and battery,1. Remove the battery cover.2. Insert the SIM or USIM card.If the phone is on, press and hold [ ] to turn it off.Place the SIM or USIM card in the phone with the gold-coloured contacts facing down.Without inserting a SIM or USIM card, you can use your phone’s non-network services and some menus.S5600.book Page 18 Friday, April 17, 2009 2:23 PM

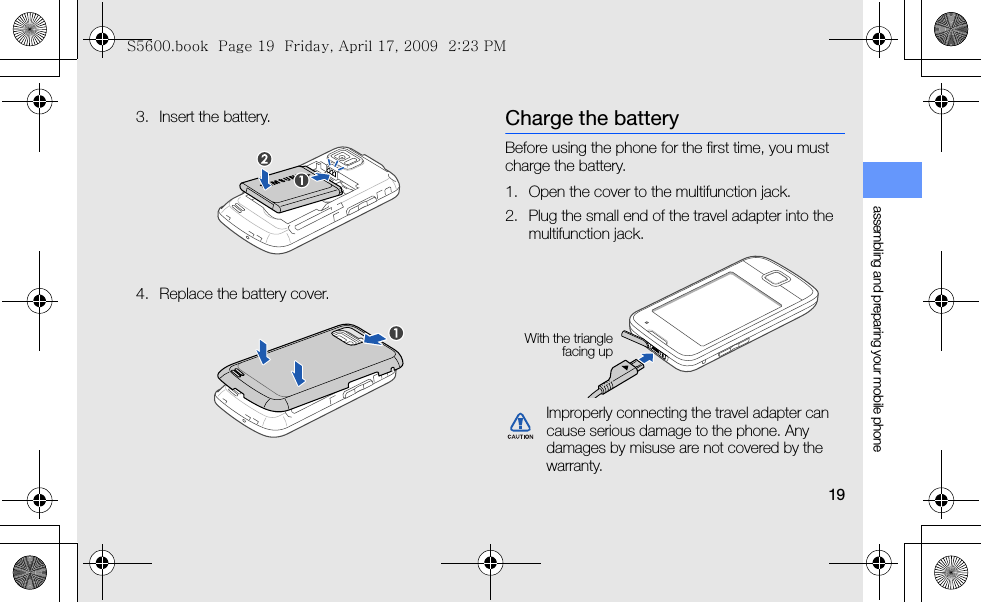

assembling and preparing your mobile phone193. Insert the battery.4. Replace the battery cover.Charge the batteryBefore using the phone for the first time, you must charge the battery.1. Open the cover to the multifunction jack.2. Plug the small end of the travel adapter into the multifunction jack.Improperly connecting the travel adapter can cause serious damage to the phone. Any damages by misuse are not covered by the warranty.With the trianglefacing upS5600.book Page 19 Friday, April 17, 2009 2:23 PM
20assembling and preparing your mobile phone3. Plug the large end of the travel adapter into a power outlet.4. When the battery is fully charged (the icon is no longer moving), unplug the travel adapter from the power outlet.5. Unplug the travel adapter from the phone.6. Close the cover to the multifunction jack.Insert a memory card (optional)To store additional multimedia files, you must insert a memory card. Your phone accepts microSDHC™ memory cards up to 16 GB (depending on memory card manufacturer and type).1. Remove the battery cover and the battery.2. Unlock the memory card cover.About the low battery indicatorWhen your battery is low, the phone will emit a warning tone and a low battery message. The battery icon will also be empty and blinking. If the battery level becomes too low, the phone will automatically power off. Recharge your battery to continue using your phone.S5600.book Page 20 Friday, April 17, 2009 2:23 PM
assembling and preparing your mobile phone213. Lift the memory card cover and insert a memory card with the label side facing up.4. Close and lock the memory card cover.5. Insert the battery.6. Replace the battery cover.To remove the memory card, open the memory card cover and remove the memory card.S5600.book Page 21 Friday, April 17, 2009 2:23 PM

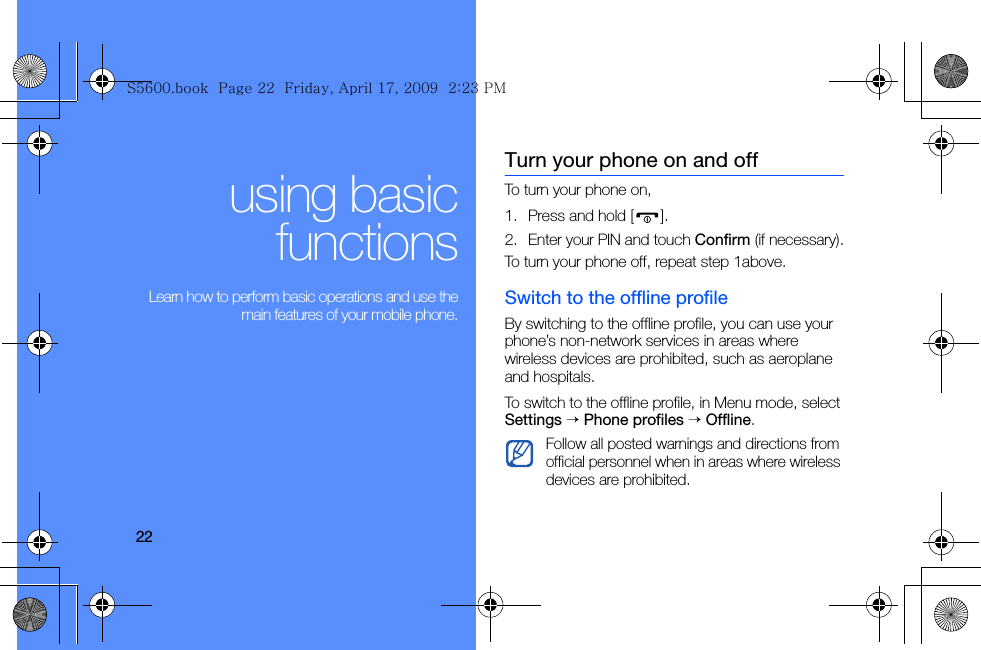

22using basicfunctions Learn how to perform basic operations and use themain features of your mobile phone.Turn your phone on and offTo turn your phone on,1. Press and hold [ ].2. Enter your PIN and touch Confirm (if necessary).To turn your phone off, repeat step 1above.Switch to the offline profileBy switching to the offline profile, you can use your phone’s non-network services in areas where wireless devices are prohibited, such as aeroplane and hospitals.To switch to the offline profile, in Menu mode, select Settings → Phone profiles → Offline.Follow all posted warnings and directions from official personnel when in areas where wireless devices are prohibited.S5600.book Page 22 Friday, April 17, 2009 2:23 PM

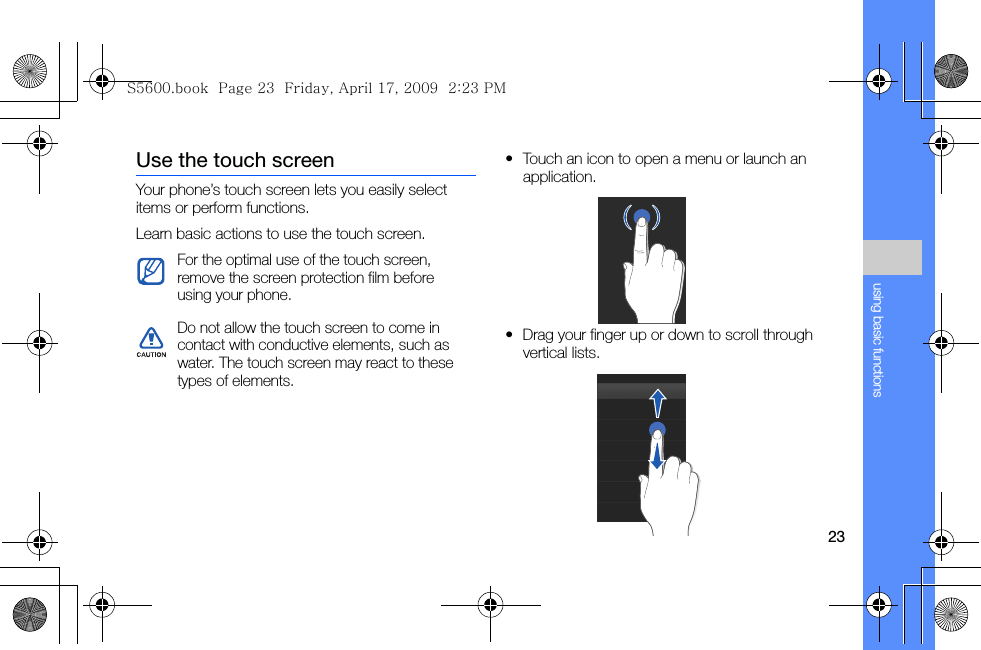

23using basic functionsUse the touch screenYour phone’s touch screen lets you easily select items or perform functions.Learn basic actions to use the touch screen. • Touch an icon to open a menu or launch an application.• Drag your finger up or down to scroll through vertical lists.For the optimal use of the touch screen, remove the screen protection film before using your phone.Do not allow the touch screen to come in contact with conductive elements, such as water. The touch screen may react to these types of elements.S5600.book Page 23 Friday, April 17, 2009 2:23 PM
24using basic functions• Drag your finger left or right to scroll through horizontal lists. Access menusTo access your phone’s menus,1. In Idle mode, touch Menu to access Menu mode.2. Touch a menu icon → a menu or option.3. Press the Back key to move up one level; Press [ ] to return to Idle mode.Switch applicationsLearn to switch to other applications from a menu, without closing the menu screen you are using.To switch applications,1. While using a menu, press and hold the Back key.S5600.book Page 24 Friday, April 17, 2009 2:23 PM
25using basic functionsThe following applications are available:•Call: open the dialing screen•Music player: launch the music player•Messages: access the Messages menu•Browser: launch the web browser•Main menu: access the main menu screen2. Select an application.Use widgetsLearn to use widgets on the toolbar.Open the toolbarIn Idle mode, touch the arrow at the bottom left of the screen to open the toolbar. You can rearrange widgets on the toolbar or move them to the idle screen. Move the widgets to the idle screen1. Open the toolbar.2. Drag a widget from the toolbar to the idle screen. You can position the widget anywhere on the screen.• Some of your widgets connect to web services. Selecting a web-based widget may incur additional charges.• Available widgets may vary depending on your region or service provider.Depending on your region or service provider, available widgets may vary.S5600.book Page 25 Friday, April 17, 2009 2:23 PM
26using basic functionsChange the widgets1. In Menu mode, touch Settings → Display and light → Widget.2. Select the widgets you want to include to the toolbar and touch Save.Access help informationLearn to access helpful information about your phone.1. Open the toolbar.2. Touch from the toolbar.3. Rotate the phone anti-clockwise to landscape view.4. Select a help topic to learn about an application or feature.5. Drag your finger to the right or left to get more information. To return to the previous level, touch .Customise your phoneGet more from your phone by customising it to match your preferences.Adjust the volume of the key tonesIn Idle mode, press the Volume key up or down and adjust the key tone volume.Switch to or from the silent profileIn Idle mode, touch Keypad and touch and hold to silence or unsilence your phone.S5600.book Page 26 Friday, April 17, 2009 2:23 PM
27using basic functionsChange your ringtone1. In Menu mode, touch Settings → Phone profiles.2. Touch next to a profile you want.3. Touch Voice call ringtone or Video call ringtone.4. Select a ringtone from the list and touch Save.5. Touch Save.To switch to another profile, select it from the list.Select a wallpaper (Idle mode)1. In Menu mode, touch Settings → Display and light → Wallpaper.2. Scroll left or right to an image.3. Touch Set.Lock your phone1. In Menu mode, touch Settings → Security.2. Touch On under Phone lock.3. Enter a new 4- to 8-digit password and touch Confirm.4. Enter the new password again and touch Confirm.• The first time you access a menu that requires a password, you will be prompted to create and confirm a password.• Samsung is not responsible for any loss of passwords or private information or other damages caused by illegal software.S5600.book Page 27 Friday, April 17, 2009 2:23 PM

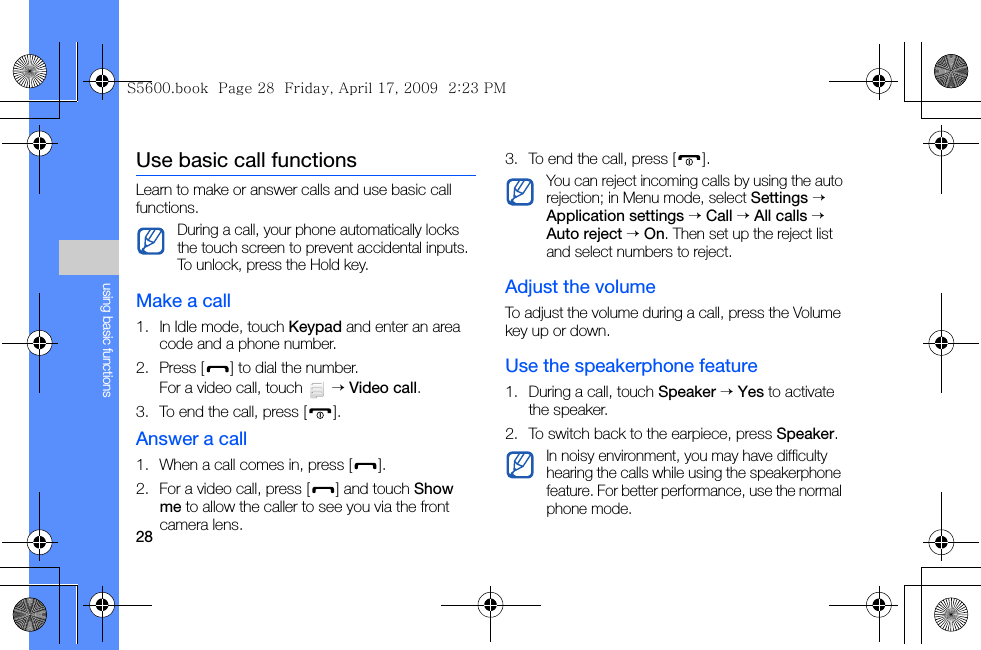

28using basic functionsUse basic call functionsLearn to make or answer calls and use basic call functions.Make a call1. In Idle mode, touch Keypad and enter an area code and a phone number.2. Press [ ] to dial the number.For a video call, touch → Video call.3. To end the call, press [ ]. Answer a call1. When a call comes in, press [ ].2. For a video call, press [ ] and touch Show me to allow the caller to see you via the front camera lens.3. To end the call, press [ ].Adjust the volumeTo adjust the volume during a call, press the Volume key up or down.Use the speakerphone feature1. During a call, touch Speaker → Yes to activate the speaker.2. To switch back to the earpiece, press Speaker.During a call, your phone automatically locks the touch screen to prevent accidental inputs. To unlock, press the Hold key.You can reject incoming calls by using the auto rejection; in Menu mode, select Settings → Application settings → Call → All calls → Auto reject → On. Then set up the reject list and select numbers to reject.In noisy environment, you may have difficulty hearing the calls while using the speakerphone feature. For better performance, use the normal phone mode.S5600.book Page 28 Friday, April 17, 2009 2:23 PM
29using basic functionsUse the headsetBy plugging the supplied headset into the phone, you can make and answer calls:• To redial the last call, press the headset button, and then press again and hold.• To answer a call, press the headset button.• To end a call, press the headset button.Send and view messagesLearn to send or view text (SMS), multimedia (MMS), or email messages.Send a text or multimedia message1. In Menu mode, touch Messages → Create message → Message.2. Touch Tap to add recipient → Enter manually.3. Enter a destination number and touch Done.4. Touch Tap to add text.5. Enter your message text and touch Done. X Enter textFor sending as a text message, skip to step 7.For attaching multimedia, continue with step 6.6. Touch Add media → an item type → an item.7. Touch Send to send the message.Send an email1. In Menu mode, touch Messages → Create message → Email.2. Touch Tap to add recipient → Enter manually.3. Enter an email address and touch Done.4. Touch Tap to add subject.5. Enter a subject and touch Done.6. Touch Tap to add text.7. Enter your email text and touch Done.S5600.book Page 29 Friday, April 17, 2009 2:23 PM

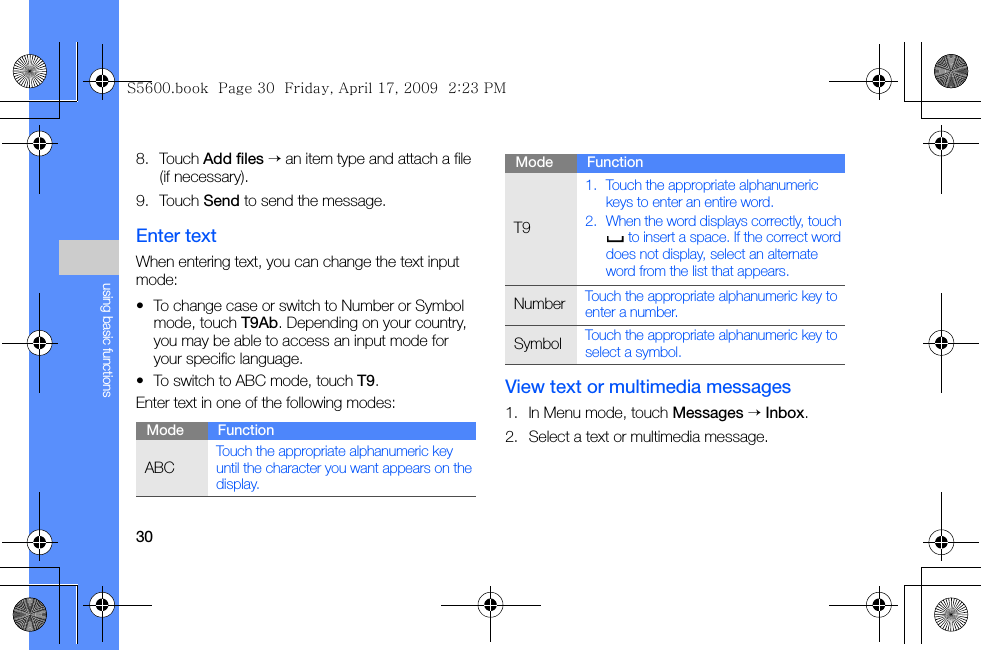

30using basic functions8. Touch Add files → an item type and attach a file (if necessary).9. Touch Send to send the message.Enter textWhen entering text, you can change the text input mode:• To change case or switch to Number or Symbol mode, touch T9Ab. Depending on your country, you may be able to access an input mode for your specific language.• To switch to ABC mode, touch T9.Enter text in one of the following modes: View text or multimedia messages1. In Menu mode, touch Messages → Inbox.2. Select a text or multimedia message.Mode FunctionABCTouch the appropriate alphanumeric key until the character you want appears on the display.T91. Touch the appropriate alphanumeric keys to enter an entire word.2. When the word displays correctly, touch to insert a space. If the correct word does not display, select an alternate word from the list that appears.NumberTouch the appropriate alphanumeric key to enter a number.SymbolTouch the appropriate alphanumeric key to select a symbol.Mode FunctionS5600.book Page 30 Friday, April 17, 2009 2:23 PM
31using basic functionsView an email1. In Menu mode, touch Messages → Email inbox.2. Select an account.3. Touch Download.4. Select an email or a header.5. If you selected a header, touch Retrieve to view the body of the email.Add and find contactsLearn the basics of using the phonebook feature.Add a new contact1. In Idle mode, touch Keypad and enter a phone number.2. Touch → Add to phonebook → New.3. Touch Phone or SIM.4. Enter contact information.5. Touch Save to add the contact to memory.Find a contact1. In Menu mode, touch Phonebook.2. Touch Tap to search.3. Enter the name you want to find and touch Done.4. Select the contact’s name from the search list.Once you have found a contact, you can:• call the contact by touching or pressing [] • edit the contact information by touching EditS5600.book Page 31 Friday, April 17, 2009 2:23 PM
32using basic functionsUse basic camera functionsLearn the basics to capture and view photos and videos.Capture photos1. In Idle mode, press the Camera key to turn on the camera.2. Rotate the phone anti-clockwise to landscape view.3. Aim the lens at the subject and make any adjustments.4. Press the Camera key to take a photo. The photo is saved automatically.View photosIn Menu mode, touch My files → Images → My photos → a photo file.To categorise and view photos in a wide view, 1. In Menu mode, touch Photo browser.2. Rotate the phone anti-clockwise to landscape view.3. Scroll left or right to view photos.Capture videos1. In Idle mode, press the Camera key to turn on the camera.2. Touch to switch to Recording mode.3. Rotate the phone anti-clockwise to landscape view.4. Aim the lens at the subject and make any adjustments.5. Press the Camera key to start recording.6. Press the Camera key to stop recording. The video is saved automatically.S5600.book Page 32 Friday, April 17, 2009 2:23 PM
33using basic functionsView videosIn Menu mode, touch My files → Videos → My video clips → a video file.Listen to musicLearn how to listen to music via the music player or FM radio.Listen to the FM radio1. Plug the supplied headset into the phone’s multifunction jack.2. In Menu mode, touch Applications → FM radio.3. Touch Yes to start automatic tuning.The radio scans and saves available stations automatically.4. Touch or to select a radio station.5. If you want to get information about the song you hear, touch More → Find music. X p. 436. To turn off the FM radio, touch .Listen to music filesStart by transferring files to your phone or memory card:• Download from the wireless web. X p. 34• Download from a PC with the optional Samsung PC Studio. X p. 40• Receive via Bluetooth. X p. 45• Copy to your memory card. X p. 41• Synchronise with Windows Media Player 11. X p. 41The first time you access the FM radio, you will be prompted to start automatic tuning.S5600.book Page 33 Friday, April 17, 2009 2:23 PM
34using basic functionsAfter transferring music files to your phone or memory card,1. In Menu mode, touch Music → Music player.2. Select a music category → a music file.3. Control playback using the following icons:To adjust the volume, press the Volume key.Browse the webLearn to access and bookmark your favourite web pages.Browse web pages1. In Menu mode, touch Browser → Home to launch your service provider’s homepage.2. Navigate web pages using the following icons:Icon FunctionPause playbackPlay playbackSkip backward; Scan backward in a file (touch and hold)Skip forward; Scan forward in a file (touch and hold)• You may incur additional charges for accessing the web and downloading media.• The browser menu may be labelled differently depending on your service provider.• Available icons may vary depending on your region or service provider.Icon Function Move backward or forward on a web pageS5600.book Page 34 Friday, April 17, 2009 2:23 PM
35using basic functionsBookmark your favourite web pages1. In Menu mode, touch Browser → Bookmarks.2. Touch Add.3. Enter a page title and a web address (URL).4. Touch Save.Refresh the current web pageReturn to the homepageOpen a list of saved bookmarksChange the view modeAccess a list of browser optionsIcon FunctionS5600.book Page 35 Friday, April 17, 2009 2:23 PM
36using advancedfunctions Learn how to perform advanced operations and useadditional features of your mobile phone.Use advanced call functionsLearn about your phone’s additional calling capabilities. View and dial missed callsYour phone will display calls you have missed on the display. To dial the number of a missed call,1. Touch the missed call you want to dial from the event alert widget.2. Press [ ] to dial.Call a recently dialled number1. In Idle mode, press [ ] to display a list of recent numbers.2. Scroll to the number you want and press [ ] to dial.S5600.book Page 36 Friday, April 17, 2009 2:23 PM
37using advanced functionsHold a call or retrieve a held callTouch Hold to place a call on hold or touch Retrieve to retrieve a held call.Dial a second callIf your network supports this function, you can dial another number during a call:1. Touch Hold to place the first call on hold.2. Enter the second number to dial and press [].3. Touch Swap to switch between the two calls.4. To end the call on hold, touch On hold and press [ ].5. To end the current call, press [ ].Answer a second callIf your network supports this function, you can answer a second incoming call:1. Press [ ] to answer the second call.The first call is automatically placed on hold.2. Touch Swap to switch between the calls.Make a multiparty call (conference call)1. Call the first party you want to add to the multiparty call.2. While connected to the first party, call the second party.The first party is automatically placed on hold.3. When connected to the second party, touch Join.S5600.book Page 37 Friday, April 17, 2009 2:23 PM
38using advanced functions4. Repeat steps 2 and 3 to add more parties (if necessary).5. To end the multiparty call, press [ ].Call an international number1. In Idle mode, touch Keypad and touch and hold 0 to insert the + character.2. Enter the complete number you want to dial (country code, area code, and phone number), and then press [ ] to dial. Call a contact from the phonebookYou can call numbers directly from the phonebook using stored contacts. X p. 311. In Menu mode, touch Phonebook.2. Scroll to the number you want to dial and touch or press [ ] to dial. Use advanced phonebook functionsLearn to create namecards, set speed dial numbers, and create groups of contacts.Create a namecard1. In Menu mode, touch Phonebook.2. Touch More → My namecard.3. Enter your personal details and touch Save.Add contacts to Favourites1. In Menu mode, touch Phonebook.2. Touch the Contacts drop-down menu and select Favourites.3. Touch Add.You can send your namecard by attaching it to a message or email or transferring it via the Bluetooth wireless feature.S5600.book Page 38 Friday, April 17, 2009 2:23 PM
39using advanced functions4. Select a contact.Create a group of contactsBy creating groups of contacts, you can assign ringtones and caller ID photos to each group or send messages or emails to an entire group. Start by creating a group:1. In Menu mode, touch Phonebook.2. Touch the Contacts drop-down menu and select Groups.3. Touch Create group.4. Set a group name, the caller ID photo, a group ringtone, and vibration type.5. Touch Save.Make calls or send messages from photos1. In Menu mode, touch Photo contacts to access photo contact screen.2. Scroll up or down to a photo.The face tag appears with the name.3. Touch the face tag → Voice call, Video call, or Send message.Use advanced messaging functionsLearn to create templates and use templates to create new messages.Create a text template1. In Menu mode, touch Messages → Templates → Text templates.2. Touch Create to open a new template window.3. Touch the screen.The first five speed dial numbers will be assigned to the favourite contacts () on the widget toolbar.S5600.book Page 39 Friday, April 17, 2009 2:23 PM
40using advanced functions4. Enter your text and touch Done.5. Touch Save.Create a multimedia template1. In Menu mode, touch Messages → Templates → Multimedia templates.2. Touch Create to open a new template window.3. Create a multimedia message, with a subject and desired attachments, to use as your template. X p. 29 4. Touch Save.Insert text templates in new messages1. To start a new message, in Menu mode, select Messages → Create message → a message type.2. In the text field, touch More → Insert → Text template → a template.Create a message from a multimedia template1. In Menu mode, touch Messages → Templates → Multimedia templates.2. Scroll to the template you want and touch .Your template opens as a new multimedia message.Use advanced music functionsLearn to prepare music files, create playlists, and store radio stations.Copy music files via Samsung PC Studio1. In Menu mode, touch Settings → Phone settings → PC connections → Samsung PC studio.2. Using an optional PC data cable, connect the multifunction jack on your phone to a PC.S5600.book Page 40 Friday, April 17, 2009 2:23 PM
41using advanced functions3. Run Samsung PC Studio and copy files from the PC to the phone.Refer to the Samsung PC Studio help for more information.Copy music files to a memory card1. Insert a memory card.2. In Menu mode, touch Settings → Phone settings → PC connections → Mass storage.3. Using an optional PC data cable, connect the multifunction jack on your phone to a PC.When connected, a pop-up window will appear on the PC.4. Open a folder to view files.5. Copy files from the PC to the memory card.Synchronise your phone with Windows Media Player1. In Menu mode, touch Settings → Phone settings → PC connections → Media player.2. Using an optional PC data cable, connect the multifunction jack on your phone to a PC with Windows Media Player installed.When connected, a pop-up window will appear on the PC.3. Open Windows Media Player to synchronise music files.4. Edit or enter your phone’s name in the pop-up window (if necessary).5. Select and drag the music files you want to the sync list.6. Start synchronisation.S5600.book Page 41 Friday, April 17, 2009 2:23 PM

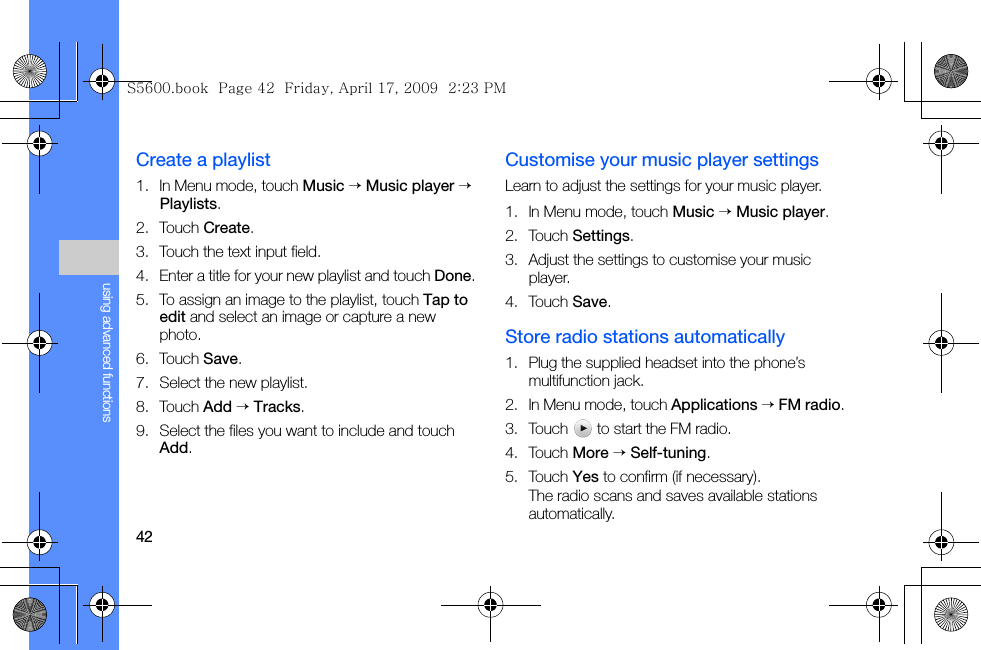

42using advanced functionsCreate a playlist1. In Menu mode, touch Music → Music player → Playlists.2. Touch Create.3. Touch the text input field.4. Enter a title for your new playlist and touch Done.5. To assign an image to the playlist, touch Tap to edit and select an image or capture a new photo.6. Touch Save.7. Select the new playlist.8. Touch Add → Tracks.9. Select the files you want to include and touch Add.Customise your music player settingsLearn to adjust the settings for your music player.1. In Menu mode, touch Music → Music player.2. Touch Settings.3. Adjust the settings to customise your music player.4. Touch Save.Store radio stations automatically1. Plug the supplied headset into the phone’s multifunction jack.2. In Menu mode, touch Applications → FM radio.3. Touch to start the FM radio.4. Touch More → Self-tuning.5. Touch Yes to confirm (if necessary).The radio scans and saves available stations automatically.S5600.book Page 42 Friday, April 17, 2009 2:23 PM
43using advanced functionsFind information of musicLearn to access an online music service and get information about the songs you hear while on the move.1. In Menu mode, touch Music → Find music → Find music.Your phone connects to the server.2. When the phone is successfully registered, touch to record a part of music you want to find.Some service providers may not support this service and the database may not have information for all songs.S5600.book Page 43 Friday, April 17, 2009 2:23 PM

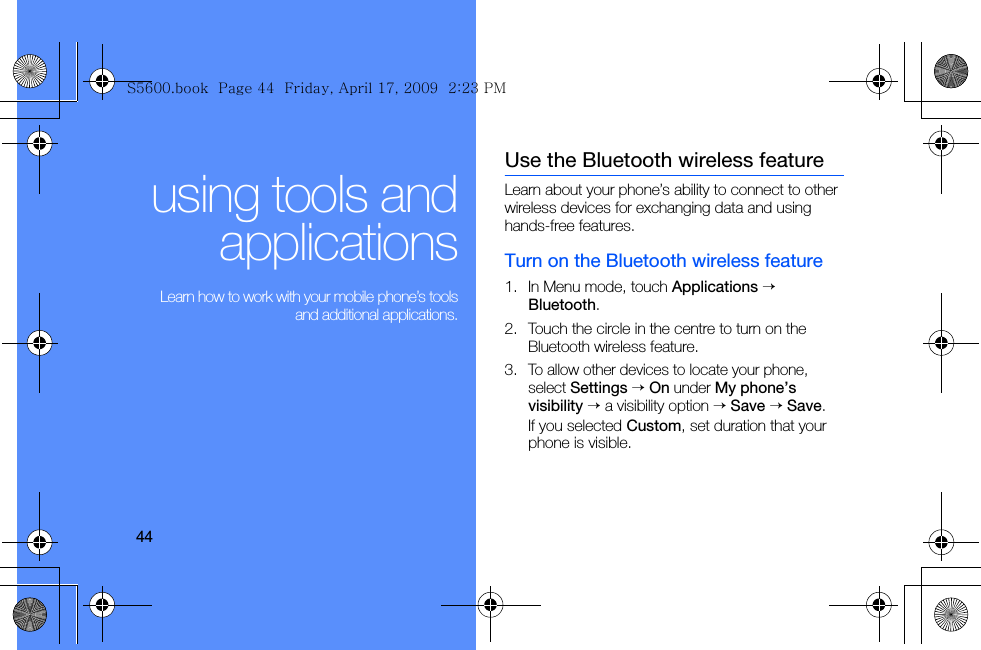

44using tools andapplications Learn how to work with your mobile phone’s toolsand additional applications.Use the Bluetooth wireless featureLearn about your phone’s ability to connect to other wireless devices for exchanging data and using hands-free features.Turn on the Bluetooth wireless feature1. In Menu mode, touch Applications → Bluetooth.2. Touch the circle in the centre to turn on the Bluetooth wireless feature. 3.To allow other devices to locate your phone, select Settings → On under My phone’s visibility → a visibility option → Save → Save.If you selected Custom, set duration that your phone is visible. S5600.book Page 44 Friday, April 17, 2009 2:23 PM
45using tools and applicationsFind and pair with other Bluetooth-enabled devices1. In Menu mode, touch Applications → Bluetooth → Search.2. Select and drag a device icon into the centre.3. Enter a PIN for the Bluetooth wireless feature or the other device’s Bluetooth PIN, if it has one, and touch Done.When the owner of the other device enters the same code or accepts the connection, pairing is complete.Send data using the Bluetooth wireless feature1. Select the file or item from one of your phone’s applications that you want to send.2. Touch Send via → Bluetooth.Receive data using the Bluetooth wireless feature1. Enter the PIN for the Bluetooth wireless feature and touch OK (if necessary).2. Touch Yes to confirm that you are willing to receive data from the device (if necessary).Use Remote SIM modeIn Remote SIM mode, you can make or answer calls only with a connected Bluetooth hands-free car kit via the SIM or USIM card on your phone.To activate Remote SIM mode,1. In Menu mode, touch Applications → Bluetooth → Settings.2. Touch Remote SIM mode → On.3. Touch Save.S5600.book Page 45 Friday, April 17, 2009 2:23 PM
46using tools and applicationsTo use Remote SIM mode, start the Bluetooth connection from a Bluetooth hands-free car kit.Activate and send an SOS messageWhen you have an emergency, you can send an SOS message asking for help.1. In Menu mode, touch Messages → SOS messages → Sending options.2. Touch On to turn on the SOS messaging feature.3. Touch Recipients to open the recipient list.4. Touch to open your contact list.5. Select the contacts you want and touch Add.6. Select a phone number (if necessary).7. Touch OK to save the recipients.8. Touch Repeat and set the number of times to repeat the SOS message.9. Touch Save → Yes.To send an SOS message, the keys must be locked. Press the Volume key four times.Activate the mobile trackerWhen someone inserts a new SIM or USIM card in your phone, the mobile tracker feature will automatically send the contact number to two recipients to help you locate and recover your phone. The Bluetooth hands-free car kit must be authorised. To authorise, touch the device and select Authorise device.This feature may not be available depending on your region or service provider.Once you send an SOS message, all phone functions will be suspended until you press the Hold key. If you press [], phone functions will be available, but the keys will remain locked.S5600.book Page 46 Friday, April 17, 2009 2:23 PM
47using tools and applicationsTo activate the mobile tracker,1. In Menu mode, touch Settings → Security → Mobile tracker.2. Enter your password and touch Confirm.3. Touch On to turn on the mobile tracker.4. Touch Recipients to open the recipient list.5. Touch the recipient field.6. Enter a phone number and touch Done.7. Touch OK to save the recipients.8. Touch Sender. 9. Enter the sender’s name and touch Done.10. Touch Save → Accept.Make fake callsYou can simulate fake incoming calls when you want to get out of meetings or unwanted conversations. You can also make it appear as if you are talking on the phone by playing back a recorded voice.Record a voice1. In Menu mode, touch Settings → Application settings → Call → Fake call.2. Touch On under Fake call voice.3. Touch Voice recorder.4. Touch to start recording.5. Speak into the microphone.6. When you are finished speaking, touch .Make a fake callTo make a fake call, press and hold the Volume key down in Idle mode.S5600.book Page 47 Friday, April 17, 2009 2:23 PM
48using tools and applicationsRecord and play voice memosLearn to operate your phone’s voice recorder.Record a voice memo1. In Menu mode, touch Applications → Voice recorder.2. Touch to start recording.3. Speak your memo into the microphone.4. When you are finished speaking, touch .Your memo is saved automatically.Play a voice memo1. From the voice recorder screen, touch → Voice clips.2. Select a file.3. Control the playback using the following icons:Edit imagesLearn to edit images and apply fun effects.Apply effects to images1. In Menu mode, touch My files → Images → My photos → a photo file.2. Touch .3. Touch Edit → Effects → an effect option.Icon FunctionPause playbackPlay playbackScan backwardScan forwardS5600.book Page 48 Friday, April 17, 2009 2:23 PM

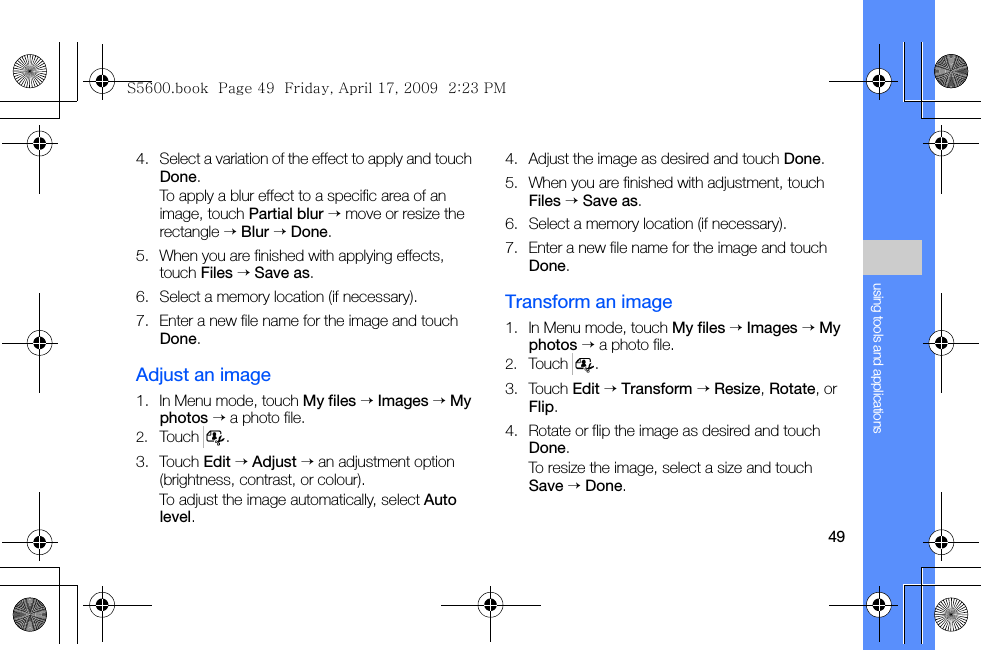

49using tools and applications4. Select a variation of the effect to apply and touch Done.To apply a blur effect to a specific area of an image, touch Partial blur → move or resize the rectangle → Blur → Done.5. When you are finished with applying effects, touch Files → Save as.6. Select a memory location (if necessary).7. Enter a new file name for the image and touch Done.Adjust an image1. In Menu mode, touch My files → Images → My photos → a photo file.2. Touch .3. Touch Edit → Adjust → an adjustment option (brightness, contrast, or colour).To adjust the image automatically, select Auto level.4. Adjust the image as desired and touch Done.5. When you are finished with adjustment, touch Files → Save as.6. Select a memory location (if necessary).7. Enter a new file name for the image and touch Done.Transform an image1. In Menu mode, touch My files → Images → My photos → a photo file.2. Touch .3. Touch Edit → Transform → Resize, Rotate, or Flip.4. Rotate or flip the image as desired and touch Done.To resize the image, select a size and touch Save → Done.S5600.book Page 49 Friday, April 17, 2009 2:23 PM
50using tools and applications5. When you are finished with transforming options, touch Files → Save as.6. Select a memory location (if necessary).7. Enter a new file name for the image and touch Done.Crop an image1. In Menu mode, touch My files → Images → My photos → a photo file.2. Touch .3. Touch Edit → Crop.4. Move the rectangle over the area you want to crop and touch Crop → Done.5. When you are finished cropping, touch Files → Save as.6. Select a memory location (if necessary).7. Enter a new file name for the image and touch Done.Insert a visual feature1. In Menu mode, touch My files → Images → My photos → a photo file.2. Touch .3. Touch Edit → Insert → a visual feature (frame, image, clip art, emoticon, or text).4. Select a visual feature or enter text.5. Touch Done.6. When you are finished adding visual features, touch Files → Save as.7. Select a memory location (if necessary).8. Enter a new file name for the image and touch Done.S5600.book Page 50 Friday, April 17, 2009 2:23 PM
51using tools and applicationsAdd a memo1. In Menu mode, touch My files → Images → My photos → a photo file.2. Touch .3. Touch Edit → Memo on screen.4. Select a colour and enter a memo on the screen.5. Touch Done.6. When you are finished, touch Files → Save as.7. Select a memory location (if necessary).8. Enter a new file name for the image and touch Done.Print imagesLearn to print your image with an optional PC data cable or the Bluetooth wireless feature.To print an image using an optional PC data cable,1. Connect the multifunction jack on your phone to a compatible printer.2. In Menu mode, touch My files → Images → My photos.3. Touch More → Print via → USB.4. Set print options and print the image.To print an image using the Bluetooth wireless feature,1. In Menu mode, touch My files → Images → My photos.2. Touch More → Print via → Bluetooth.3. Select a Bluetooth-enabled printer and pair with the printer. X p. 454. Set print options and print the image.S5600.book Page 51 Friday, April 17, 2009 2:23 PM
52using tools and applicationsUpload photos and videos to the webLearn to post your photos and videos to photo sharing websites and blogs.Set your favourite destination list1. In Menu mode, touch Applications → Communities.2. Touch Yes to set the favourite destination list.3. Touch Accept to confirm that you agree to the general disclaimer.4. Select the destinations you want to add and touch Save.If you select Update lists, new destination sites are added to the list automatically.Upload a fileTo upload photos and videos, you must have accounts of photo sharing websites and blogs.1. In Menu mode, touch Applications → Communities → Upload to web.2. Select a destination you want to post to.3. Touch Tap to add and select a media file.4. Enter the title and information.5. Touch Upload.6. Enter the user ID and password of the destination (if necessary).Depending on your region or service provider, Communities may not be available.To edit the favourite destination list or update the lists, from the communities screen, touch Settings → Preferred lists → Edit.S5600.book Page 52 Friday, April 17, 2009 2:23 PM

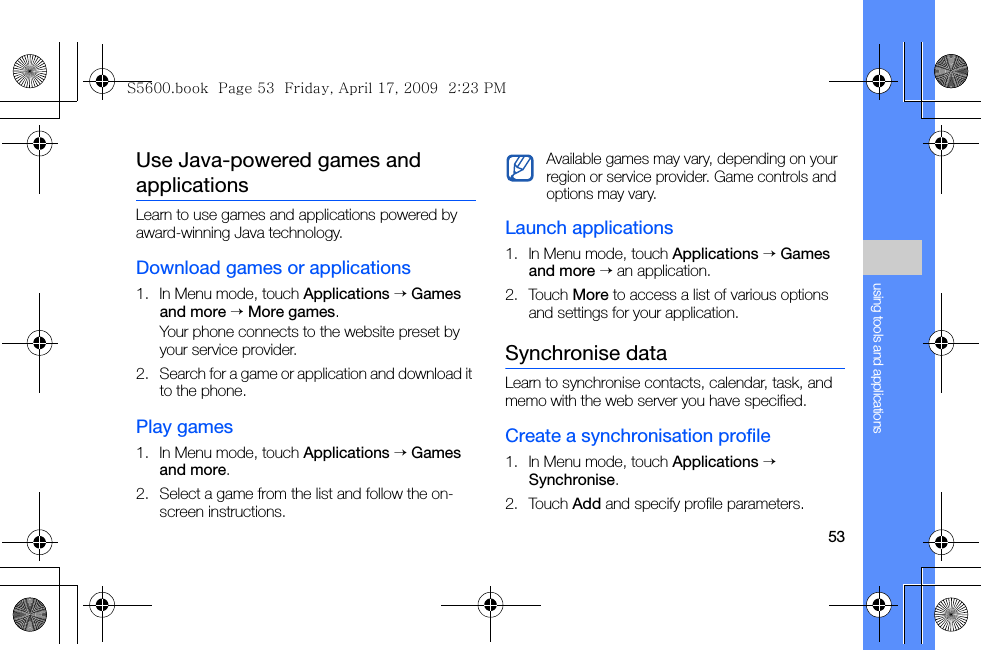

53using tools and applicationsUse Java-powered games and applicationsLearn to use games and applications powered by award-winning Java technology.Download games or applications1. In Menu mode, touch Applications → Games and more → More games.Your phone connects to the website preset by your service provider.2. Search for a game or application and download it to the phone.Play games1. In Menu mode, touch Applications → Games and more.2. Select a game from the list and follow the on-screen instructions.Launch applications1. In Menu mode, touch Applications → Games and more → an application.2. Touch More to access a list of various options and settings for your application.Synchronise dataLearn to synchronise contacts, calendar, task, and memo with the web server you have specified.Create a synchronisation profile1. In Menu mode, touch Applications → Synchronise.2. Touch Add and specify profile parameters.Available games may vary, depending on your region or service provider. Game controls and options may vary.S5600.book Page 53 Friday, April 17, 2009 2:23 PM
54using tools and applications3. When you are finished, touch Save.Start synchronisation1. In Menu mode, touch Applications → Synchronise.2. Select a synchronisation profile.3. Touch Start Sync → Continue to start synchronisation with the web server you have specified.Use RSS readerLearn to use RSS reader to get the latest news and information from your favourite websites.Create feeds1. In Menu mode, touch Applications → RSS reader.2. Touch Add.3. Touch the URL input field.4. Enter the address of an RSS feed and touch Done.5. Touch OK.Read RSS feeds1. In Menu mode, touch Applications → RSS reader.2. Touch Update to get the latest contents.3. Select a feed category → an updated feed.Customise RSS reader settings1. In Menu mode, touch Applications → RSS reader.2. Touch More → Settings → Network settings.S5600.book Page 54 Friday, April 17, 2009 2:23 PM
55using tools and applicationsView world clocksLearn to view the time in another city and set world clocks to appear on your display.Create a world clock1. In Menu mode, touch Organiser → World clock.2. Touch → Add.3. Scroll left or right to a time zone.4. Touch OK to create your world clock.Add a world clock to your displayYou can view clocks with two different time zones on your display.After you have created world clocks,1. In Menu mode, touch Organiser → World clock.2. Touch → Set as 2nd clock.3. Select the world clock you want to add.4. Touch Set.Set and use alarmsLearn to set and control alarms for important events.Set a new alarm1. In Menu mode, touch Alarms.2. Touch Create alarm.3. Set alarm details.4. Touch Save.The auto power-up feature sets the phone to automatically turn on and sound the alarm at the designated time if the phone is turned off.S5600.book Page 55 Friday, April 17, 2009 2:23 PM
56using tools and applicationsStop an alarmWhen the alarm sounds,• Drag the slider to Stop to stop an alarm without snooze.• Drag the slider to Stop to stop an alarm with snooze or drag the slider to Snooze to silence the alarm for the snooze period.Deactivate an alarm1. In Menu mode, touch Alarms.2. Touch Off next to the alarm you want to deactivate.Use the calculator1. In Menu mode, touch Organiser → Calculator.2. Use the keys that correspond to the calculator display to perform basic mathematical operations.Convert currencies or measurements1. In Menu mode, touch Organiser → Convertor → a conversion type.2. Enter the currencies or measurements and units in the appropriate fields.S5600.book Page 56 Friday, April 17, 2009 2:23 PM
57using tools and applicationsSet a countdown timer1. In Menu mode, touch Applications → Timer.2. Enter the length of time to count down.3. Touch Start to begin the countdown.4. When the timer expires, drag the slider to Stop to stop the alerts.Use the stopwatch1. In Menu mode, touch Applications → Stopwatch.2. Touch Start to begin the stopwatch.3. Touch Lap to record lap times. 4. When you are finished, touch Stop.5. Touch Reset to clear recorded times.Create a new task1. In Menu mode, touch Organiser → Task.2. Touch Create task.3. Enter the details of the task.4. Touch Save.Create a text memo1. In Menu mode, touch Organiser → Memo.2. Touch Create memo.3. Enter your memo text.4. Touch Done.S5600.book Page 57 Friday, April 17, 2009 2:23 PM

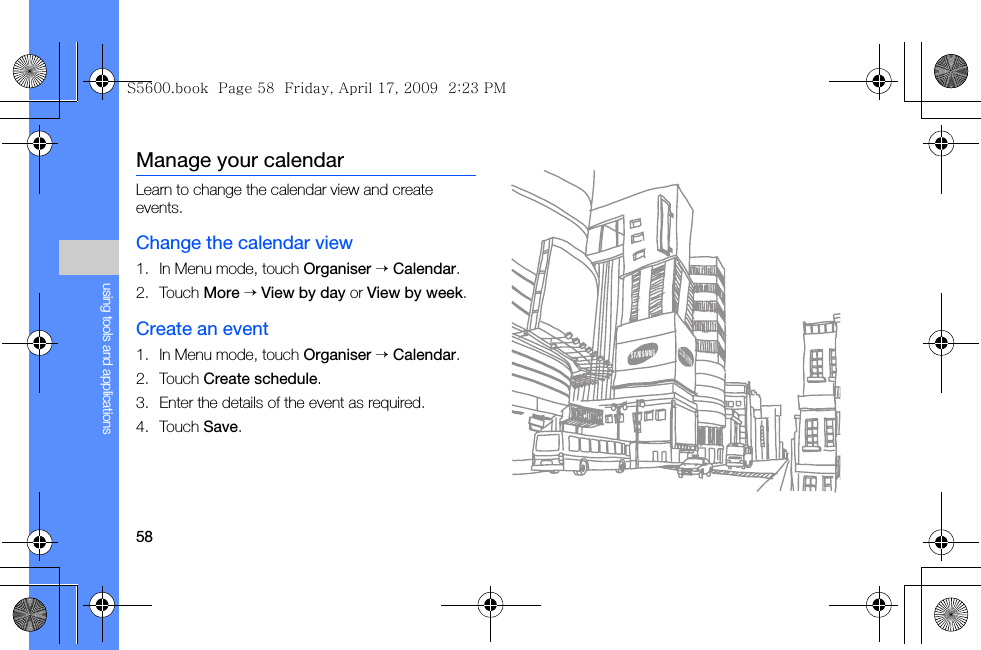

58using tools and applicationsManage your calendarLearn to change the calendar view and create events.Change the calendar view1. In Menu mode, touch Organiser → Calendar.2. Touch More → View by day or View by week.Create an event1. In Menu mode, touch Organiser → Calendar.2. Touch Create schedule.3. Enter the details of the event as required.4. Touch Save.S5600.book Page 58 Friday, April 17, 2009 2:23 PM
atroubleshootingIf you are having trouble with your mobile phone, try these troubleshooting procedures before contacting a service professional.While using your phone, the following messages may appear:Message Try this to solve the problem:Insert SIM card to access network servicesEnsure that the SIM or USIM card is installed correctly.Phone lockWhen the phone lock feature is enabled, you must enter the password you set for the phone.PIN codeWhen using the phone for the first time or when the PIN requirement is enabled, you must enter the PIN supplied with the SIM or USIM card. You can disable this feature by using the PIN lock menu.PUK codeYour SIM or USIM card is blocked, usually as a result of entering your PIN incorrectly several times. You must enter the PUK supplied by your service provider. Message Try this to solve the problem:S5600.book Page a Friday, April 17, 2009 2:23 PM

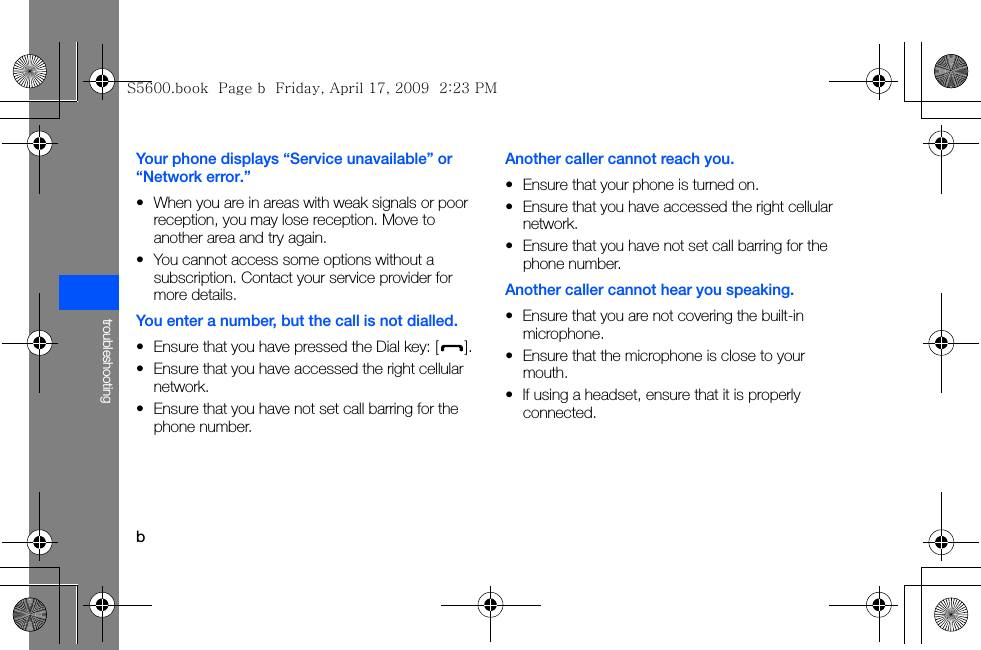

btroubleshootingYour phone displays “Service unavailable” or “Network error.”• When you are in areas with weak signals or poor reception, you may lose reception. Move to another area and try again.• You cannot access some options without a subscription. Contact your service provider for more details.You enter a number, but the call is not dialled.• Ensure that you have pressed the Dial key: [ ].• Ensure that you have accessed the right cellular network.• Ensure that you have not set call barring for the phone number.Another caller cannot reach you.• Ensure that your phone is turned on.• Ensure that you have accessed the right cellular network.• Ensure that you have not set call barring for the phone number.Another caller cannot hear you speaking.• Ensure that you are not covering the built-in microphone.• Ensure that the microphone is close to your mouth.• If using a headset, ensure that it is properly connected.S5600.book Page b Friday, April 17, 2009 2:23 PM
ctroubleshootingThe phone beeps and the battery icon flashes.Your battery is low. Recharge or replace the battery to continue using the phone.The audio quality of the call is poor.• Ensure that you are not blocking the phone’s internal antenna.• When you are in areas with weak signals or poor reception, you may lose reception. Move to another area and try again.You select a contact to call, but the call is not dialled.• Ensure that the correct number is stored in the contact list.• Re-enter and save the number, if necessary.The battery does not charge properly or sometimes the phone turns itself off.• The battery terminals may be dirty. Wipe both gold-coloured contacts with a clean, soft cloth and try charging the battery again.• If the battery will no longer charge completely, dispose of the old battery properly and replace it with a new battery.Your phone is hot to the touch.When you use several applications at once, your phone requires more power and may heat up.This is normal and should not affect your phone’s lifespan or performance.S5600.book Page c Friday, April 17, 2009 2:23 PM
dindexalarmscreating, 55deactivating, 56stopping, 56batterycharging, 19installing, 17low battery indicator, 20Bluetoothactivating, 44receiving data, 45remote SIM mode, 45sending data, 45browsersee web browsersee web or photo browsercalculatorsee tools, calculatorcalendarsee tools, calendarcallsadvanced functions, 36answering additional calls, 37answering, 28basic functions, 28dialling additional calls, 37dialling missed calls, 36from the phonebook, 38international numbers, 38making fake calls, 47making, 28multiparty, 37placing on hold, 37recently dialled, 36retrieving held calls, 37viewing missed, 36communitiessee tool, mobile blogconference callssee calls, multipartycontactsadding, 31creating groups, 39finding, 31S5600.book Page d Friday, April 17, 2009 2:23 PM
eindexconvertorsee tools, convertorcountdown timersee tools, countdown timerfake callssee calls, making fake callsFM radiolistening to, 33storing stations, 42headset 29imagesadjusting, 49applying effects, 48cropping, 50inserting visual features, 50transforming, 49internetsee web browserJavaaccessing applications, 53launching games, 53key tones 26locksee phone lockmemosee text or voice memosmemory card 20messagessending email, 29sending multimedia, 29sending text, 29viewing email, 31viewing multimedia, 30viewing text, 30mobile tracker 46multimediasee messagesmusic playercreating playlists, 42customising, 42listening to music, 33namecards 38offline profile 22phone lock 27photo browser 32photo contacts 39photosS5600.book Page e Friday, April 17, 2009 2:23 PM

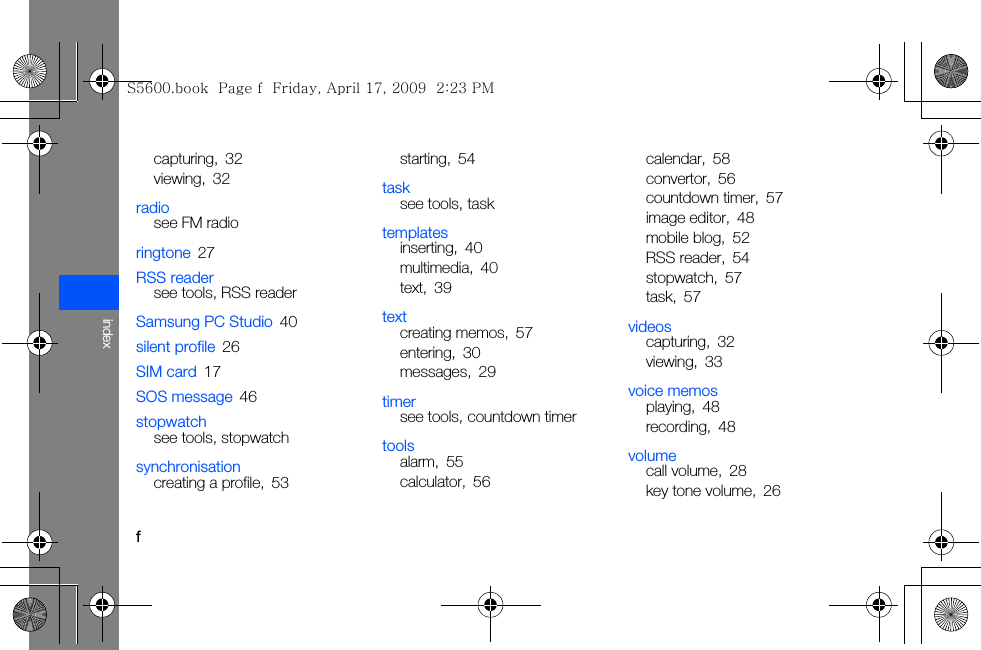

findexcapturing, 32viewing, 32radiosee FM radioringtone 27RSS readersee tools, RSS readerSamsung PC Studio 40silent profile 26SIM card 17SOS message 46stopwatchsee tools, stopwatchsynchronisationcreating a profile, 53starting, 54tasksee tools, tasktemplatesinserting, 40multimedia, 40text, 39textcreating memos, 57entering, 30messages, 29timersee tools, countdown timertoolsalarm, 55calculator, 56calendar, 58convertor, 56countdown timer, 57image editor, 48mobile blog, 52RSS reader, 54stopwatch, 57task, 57videoscapturing, 32viewing, 33voice memosplaying, 48recording, 48volumecall volume, 28key tone volume, 26S5600.book Page f Friday, April 17, 2009 2:23 PM

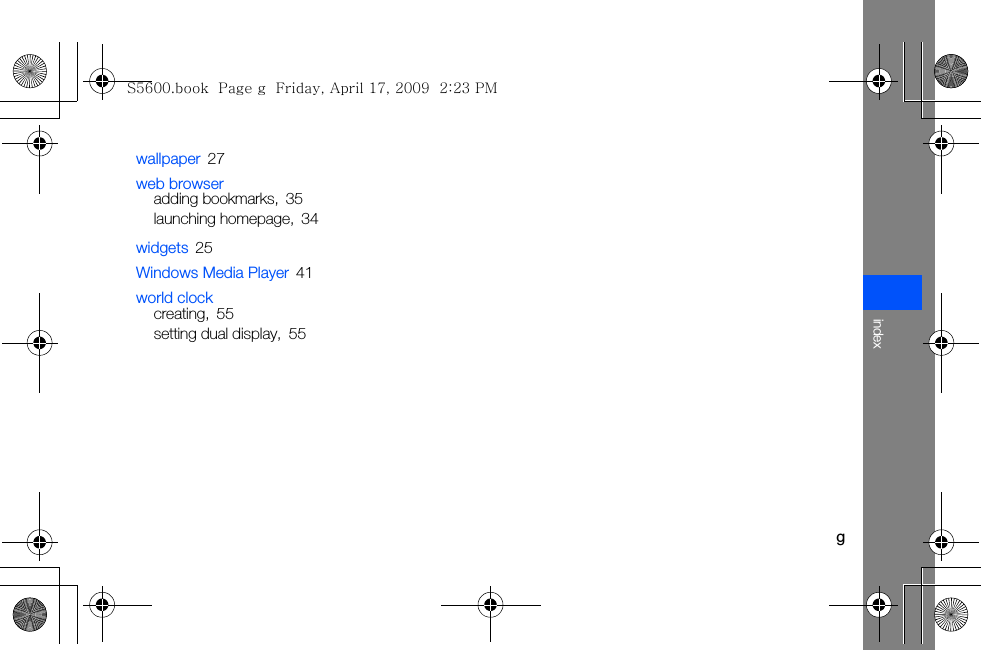

gindexwallpaper 27web browseradding bookmarks, 35launching homepage, 34widgets 25Windows Media Player 41world clockcreating, 55setting dual display, 55S5600.book Page g Friday, April 17, 2009 2:23 PM
S5600.book Page h Friday, April 17, 2009 2:23 PM
Health and safety informationExposure to Radio Frequency (RF) SignalsYour wireless phone is a radio transmitter and receiver. It is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission (FCC) of the U.S. Government. These limits are part of comprehensive guidelines and establish permitted levels of RF energy for the general population. The guidelines are based on the safety standards that were developed by independent scientific organizations through periodic and through evaluation of scientific studies.The standards include a substantial safety margin designed to assure the safety of all persons, regardless of age and health.The exposure standard for wireless phones employs a unit of measurement known as Specific Absorption Rate (SAR). The SAR limit recommended by the FCC is 1.6W/kg.*R400.book Page 16 Friday, January 11, 2008 9:45 AM

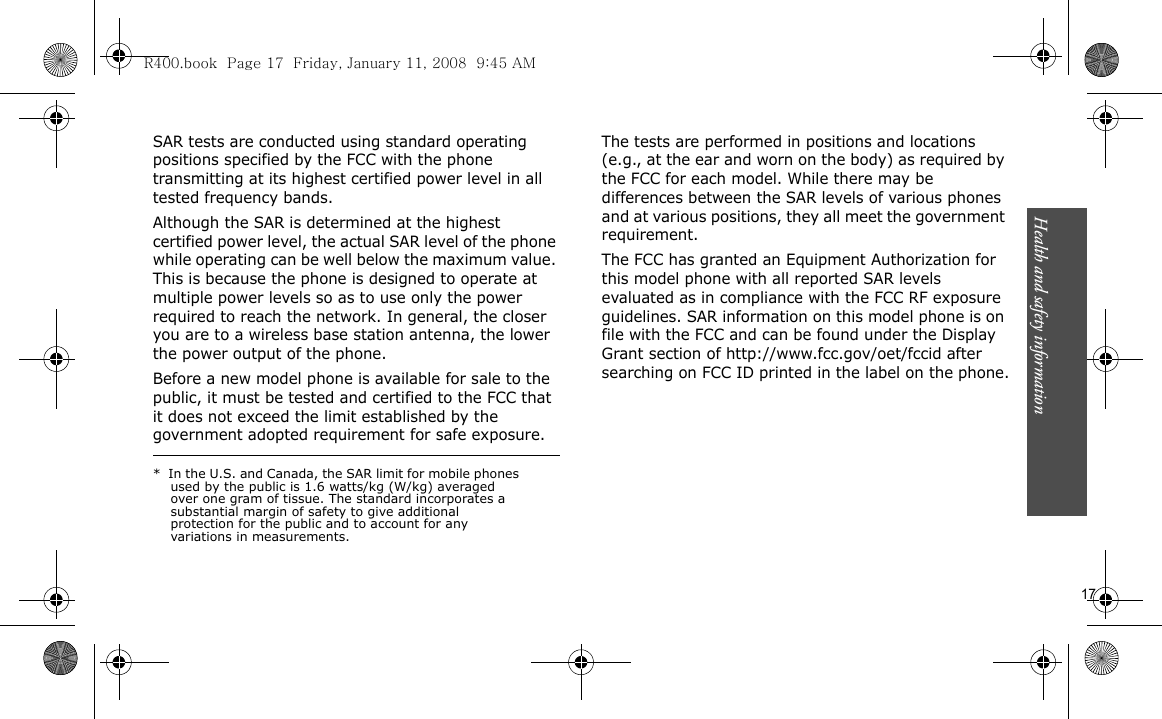

Health and safety information 17SAR tests are conducted using standard operating positions specified by the FCC with the phone transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the phone while operating can be well below the maximum value. This is because the phone is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a wireless base station antenna, the lower the power output of the phone.Before a new model phone is available for sale to the public, it must be tested and certified to the FCC that it does not exceed the limit established by the government adopted requirement for safe exposure. The tests are performed in positions and locations (e.g., at the ear and worn on the body) as required by the FCC for each model. While there may be differences between the SAR levels of various phones and at various positions, they all meet the government requirement.The FCC has granted an Equipment Authorization for this model phone with all reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines. SAR information on this model phone is on file with the FCC and can be found under the Display Grant section of http://www.fcc.gov/oet/fccid after searching on FCC ID printed in the label on the phone.* In the U.S. and Canada, the SAR limit for mobile phones used by the public is 1.6 watts/kg (W/kg) averaged over one gram of tissue. The standard incorporates a substantial margin of safety to give additional protection for the public and to account for any variations in measurements.R400.book Page 17 Friday, January 11, 2008 9:45 AM

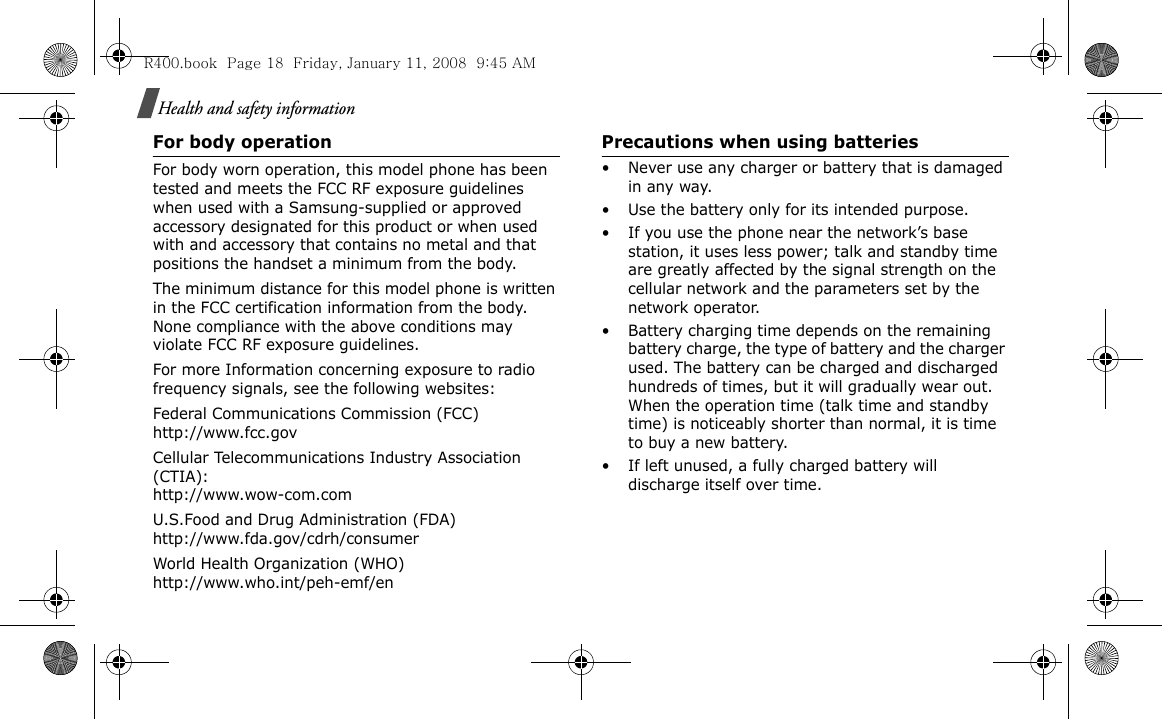

Health and safety informationFor body operationFor body worn operation, this model phone has been tested and meets the FCC RF exposure guidelines when used with a Samsung-supplied or approved accessory designated for this product or when used with and accessory that contains no metal and that positions the handset a minimum from the body.The minimum distance for this model phone is written in the FCC certification information from the body. None compliance with the above conditions may violate FCC RF exposure guidelines.For more Information concerning exposure to radio frequency signals, see the following websites:Federal Communications Commission (FCC)http://www.fcc.govCellular Telecommunications Industry Association (CTIA):http://www.wow-com.comU.S.Food and Drug Administration (FDA)http://www.fda.gov/cdrh/consumerWorld Health Organization (WHO)http://www.who.int/peh-emf/enPrecautions when using batteries• Never use any charger or battery that is damaged in any way.• Use the battery only for its intended purpose.• If you use the phone near the network’s base station, it uses less power; talk and standby time are greatly affected by the signal strength on the cellular network and the parameters set by the network operator. • Battery charging time depends on the remaining battery charge, the type of battery and the charger used. The battery can be charged and discharged hundreds of times, but it will gradually wear out. When the operation time (talk time and standby time) is noticeably shorter than normal, it is time to buy a new battery.• If left unused, a fully charged battery will discharge itself over time.R400.book Page 18 Friday, January 11, 2008 9:45 AM
Health and safety information 19• Use only Samsung-approved batteries and recharge your battery only with Samsung-approved chargers. When a charger is not in use, disconnect it from the power source. Do not leave the battery connected to a charger for more than a week, since overcharging may shorten its life.• Extreme temperatures will affect the charging capacity of your battery: it may require cooling or warming first.• Do not leave the battery in hot or cold places, such as in a car in summer or winter conditions, as you will reduce the capacity and lifetime of the battery. Always try to keep the battery at room temperature. A phone with a hot or cold battery may temporarily not work, even when the battery is fully charged. Li-ion batteries are particularly affected by temperatures below 0 °C (32 °F).• Do not short-circuit the battery. Accidental short-circuiting can occur when a metallic object (coin, clip or pen) causes a direct connection between the + and – terminals of the battery (metal strips on the battery), for example when you carry a spare battery in a pocket or bag. Short-circuiting the terminals may damage the battery or the object causing the short-circuiting.• Dispose used batteries in accordance with local regulations. Always recycle. Do not dispose batteries in a fire.Road safetyYour wireless phone gives you the powerful ability to communicate by voice, almost anywhere, anytime. But an important responsibility accompanies the benefits of wireless phones, one that every user must uphold.When driving a car, driving is your first responsibility. When using your wireless phone behind the wheel of a car, practice good common sense and remember the following tips:• Get to know your wireless phone and its features, such as speed dial and redial. If available, these features help you to place your call without taking your attention off the road.• When available, use a hands-free device. If possible, add an extra layer of convenience and R400.book Page 19 Friday, January 11, 2008 9:45 AM
Health and safety informationsafety to your wireless phone with one of the many hands-free accessories available today.• Position your wireless phone within easy reach. Be able to access your wireless phone without removing your eyes from the road. If you get an incoming call at an inconvenient time, let your voice mail answer it for you.• Let the person you are speaking with know you are driving; if necessary, suspend the call in heavy traffic or hazardous weather conditions. Rain, sleet, snow, ice, and even heavy traffic can be hazardous.• Do not take notes or look up phone numbers while driving. Jotting down a To Do list or flipping through your Address Book takes your attention away from your primary responsibility, driving safely.• Dial sensibly and assess the traffic; if possible, place calls when you are not moving or before pulling into traffic. Try to plan calls when your car will be stationary. If you need to make a call while moving, dial only a few numbers, check the road and your mirrors, then continue.• Do not engage in stressful or emotional conversations that may be distracting. Make the people with whom you are talking aware that you are driving and suspend conversations that have the potential to divert your attention from the road.• Use your wireless phone to call for help. Dial the emergency number in the case of fire, traffic accident or medical emergencies. Remember, it is a free call on your wireless phone!• Use your wireless phone to help others in emergencies. If you see a car accident, crime in progress or other serious emergency where lives are in danger, call the emergency number, as you would want others to do for you.R400.book Page 20 Friday, January 11, 2008 9:45 AM
Health and safety information 21• If you see a broken-down vehicle posing no serious hazard, a broken traffic signal, a minor traffic accident where no one appears injured, or a vehicle you know to be stolen, call roadside assistance or any other special non-emergency wireless number.Operating environmentRemember to follow any special regulations in force in any area and always switch off your phone whenever it is forbidden to use it, or when it may cause interference or danger.When connecting the phone or any accessory to another device, read its user’s guide for detailed safety instructions. Do not connect incompatible products.As with other mobile radio transmitting equipment, users are advised that for the satisfactory operation of the equipment and for the safety of personnel, it is recommended that the equipment should only be used in the normal operating position (held to your ear with the antenna pointing over your shoulder).Electronic devicesMost modern electronic equipment is shielded from radio frequency (RF) signals. However, certain electronic equipment may not be shielded against the RF signals from your wireless phone. Consult the manufacturer to discuss alternatives.PacemakersPacemaker manufacturers recommend that a minimum distance of 15 cm (6 inches) be maintained between a wireless phone and a pacemaker to avoid potential interference with the pacemaker. These recommendations are consistent with the independent research and recommendations of Wireless Technology Research.Persons with pacemakers:• should always keep the phone more than 15 cm (6 inches) from their pacemaker when the phone is switched on.• should not carry the phone in a breast pocket.• should use the ear opposite the pacemaker to minimize potential interference.R400.book Page 21 Friday, January 11, 2008 9:45 AM
Health and safety informationIf you have any reason to suspect that interference is taking place, switch off your phone immediately.Hearing aidsSome digital wireless phones may interfere with some hearing aids. In the event of such interference, you may wish to consult your hearing aid manufacturer to discuss alternatives.Other medical devicesIf you use any other personal medical devices, consult the manufacturer of your device to determine if it is adequately shielded from external RF energy. Your physician may be able to assist you in obtaining this information. Switch off your phone in health care facilities when any regulations posted in these areas instruct you to do so. Hospitals or health care facilities may be using equipment that could be sensitive to external RF energy.VehiclesRF signals may affect improperly installed or inadequately shielded electronic systems in motor vehicles. Check with the manufacturer or its representative regarding your vehicle. You should also consult the manufacturer of any equipment that has been added to your vehicle. You should also consult the manufacturer of any equipment that has been added to your vehicle.Posted facilitiesSwitch off your phone in any facility where posted notices require you to do so.R400.book Page 22 Friday, January 11, 2008 9:45 AM
Health and safety information 23Potentially explosive environmentsSwitch off your phone when in any area with a potentially explosive atmosphere and obey all signs and instructions. Sparks in such areas could cause an explosion or fire resulting in bodily injury or even death.Users are advised to switch off the phone while at a refueling point (service station). Users are reminded of the need to observe restrictions on the use of radio equipment in fuel depots (fuel storage and distribution areas), chemical plants or where blasting operations are in progress.Areas with a potentially explosive atmosphere are often but not always clearly marked. They include the areas below deck on boats, chemical transfer or storage facilities, vehicles using liquefied petroleum gas (such as propane or butane), areas where the air contains chemicals or particles, such as grain, dust or metal powders, and any other area where you would normally be advised to turn off your vehicle engine.Emergency callsThis phone, like any wireless phone, operates using radio signals, wireless and landline networks as well as user-programmed functions, which cannot guarantee connection in all conditions. Therefore, you should never rely solely on any wireless phone for essential communications (medical emergencies, for example).Remember, to make or receive any calls the phone must be switched on and in a service area with adequate signal strength. Emergency calls may not be possible on all wireless phone networks or when certain network services and/or phone features are in use. Check with local service providers.To make an emergency call:If the phone is not on, switch it on.1.Key in the emergency number for your present location (for example, 911 or other official emergency number). Emergency numbers vary by location.2.Press [ ].R400.book Page 23 Friday, January 11, 2008 9:45 AM
Health and safety informationIf certain features are in use (call barring, for example), you may first need to deactivate those features before you can make an emergency call. Consult this document and your local cellular service provider.When making an emergency call, remember to give all the necessary information as accurately as possible. Remember that your phone may be the only means of communication at the scene of an accident; do not end the call until given permission to do so.Other important safety information• Only qualified personnel should service the phone or install the phone in a vehicle. Faulty installation or service may be dangerous and may invalidate any warranty applicable to the device.• Check regularly that all wireless phone equipment in your vehicle is mounted and operating properly.• Do not store or carry flammable liquids, gases, or explosive materials in the same compartment as the phone, its parts or accessories.• For vehicles equipped with an air bag, remember that an air bag inflates with great force. Do not place objects, including both installed or portable wireless equipment in the area over the air bag or in the air bag deployment area. If wireless equipment is improperly installed and the air bag inflates, serious injury could result.• Switch off your phone before boarding an aircraft. The use of wireless phones in aircraft is illegal and may be dangerous to the aircraft’s operation.• Failure to observe these instructions may lead to the suspension or denial of telephone services to the offender, or legal action, or both.Care and maintenanceYour phone is a product of superior design and craftsmanship and should be treated with care. The suggestions below will help you fulfill any warranty obligations and allow you to enjoy this product for many years:R400.book Page 24 Friday, January 11, 2008 9:45 AM
Health and safety information 25• Keep the phone and all its parts and accessories out of the reach of small children’s.• Keep the phone dry. Precipitation, humidity and liquids contain minerals that will corrode electronic circuits.• Do not use the phone with a wet hand. Doing so may cause an electric shock to you or damage to the phone.• Do not use or store the phone in dusty, dirty areas, as its moving parts may be damaged.• Do not store the phone in hot areas. High temperatures can shorten the life of electronic devices, damage batteries, and warp or melt certain plastics.• Do not store the phone in cold areas. When the phone warms up to its normal operating temperature, moisture can form inside the phone, which may damage the phone’s electronic circuit boards.• Do not drop, knock or shake the phone. Rough handling can break internal circuit boards.• Do not use harsh chemicals, cleaning solvents or strong detergents to clean the phone. Wipe it with a soft cloth slightly dampened in a mild soap-and-water solution.• Do not paint the phone. Paint can clog the device’s moving parts and prevent proper operation.• Do not put the phone in or on heating devices, such as a microwave oven, a stove or a radiator. The phone may explode when overheated.• Use only the supplied or an approved replacement antenna. Unauthorized antennas or modified accessories may damage the phone and violate regulations governing radio devices.• If the phone, battery, charger or any accessory is not working properly, take it to your nearest qualified service facility. The personnel there will assist you, and if necessary, arrange for service.R400.book Page 25 Friday, January 11, 2008 9:45 AM
Health and safety informationAcknowledging Special Precautions and the FCC and Industry Canada NoticeFCC Notice• This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2)This device must accept any interference received,including interference that may cause undesired operation.• This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/ TV technician for help.The phone may cause TV or radio interference if used in close proximity to receiving equipment. The FCC can require you to stop using the phone if such interference cannot be eliminated. Vehicles using liquefied petroleum gas (such as propane or butane) must comply with the National Fire Protection Standard (NFPA-58). For a copy of this standard, contact the National Fire Protection Association, One Battery march Park, Quincy, MA 02269, Attn: Publication Sales Division.R400.book Page 26 Friday, January 11, 2008 9:45 AM
Health and safety information 27CautionsChanges or modifications made in the radio phone, not expressly approved by Samsung, will void the user’s authority to operate the equipment.Only use approved batteries, antennas and chargers. The use of any unauthorized accessories may be dangerous and void the phone warranty if said accessories cause damage or a defect to the phone.Although your phone is quite sturdy, it is a complex piece of equipment and can be broken. Avoid dropping, hitting, bending or sitting on it.Appendix A: CERTIFICATION INFORMATION (SAR)THIS MODEL PHONE MEETS THE GOVERNMENT’S REQUIREMENTS FOR EXPOSURE TO RADIO WAVES.Your wireless phone is a radio transmitter and receiver. It is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the U.S. Government. These limits are part of comprehensive guidelines and establish permitted levels of RF energy for the general population. The guidelines are based on safety standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons, regardless of age and health.The exposure standard for wireless mobile phones employs a unit of measurement known as the Specific Absorption Rate (SAR). The SAR limit set by the FCC is 1.6 W/kg. SAR Tests are conducted using standard R400.book Page 27 Friday, January 11, 2008 9:45 AM
Health and safety informationoperating positions accepted by the FCC with the phone transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the phone while operating can be well below the maximum value. This is because the phone is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a wireless base station antenna, the lower the power output.Before a new model phone is available for sale to the public, it must be tested and certified to the FCC that it does not exceed the limit established by the government adopted requirement for safe exposure. The tests are performed in positions and locations(e.g., at the ear and worn on the body) as required by the FCC for each model.The highest SAR values of this model phone as reported to FCC are, [GSM850] Head Max:0.701 W/Kg,Body Max:0.903 W/Kg, [GSM1900] Head Max:0.631 W/Kg,Body Max:0.509 W/Kg,[WCDMA850] Head Max:0.32 W/Kg,Body Max:0.447 W/Kg,[WCDMA1900] Head Max:0.358 W/Kg,Body Max:0.352 W/Kg Body-worn operations are restricted to Samsung-supplied, approved or none Samsung designated accessories that have no metal and must provide at least 1.5cm separation between the device, including its antenna whether extended or retracted, and the user’s body. None compliance to the above restrictions may violate FCC RF exposure guidelines.The FCC has granted an Equipment Authorization for this model phone with all reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines. SAR information on this model phone is on file with the FCC and can be found under the Display Grant section of http://www.fcc.gov/oet/fccid after searching on FCC ID A3LGTS5600L.* *In the United States and Canada, the SAR limit for mobilephones used by the public is 1.6 watts/kilogram (W/kg) aver-aged over one gram of tissue. The standard incorporates a sub-stantial ma gin of safety togive additional protection for thepublic and to account for any variations in measurements.R400.book Page 28 Friday, January 11, 2008 9:45 AM

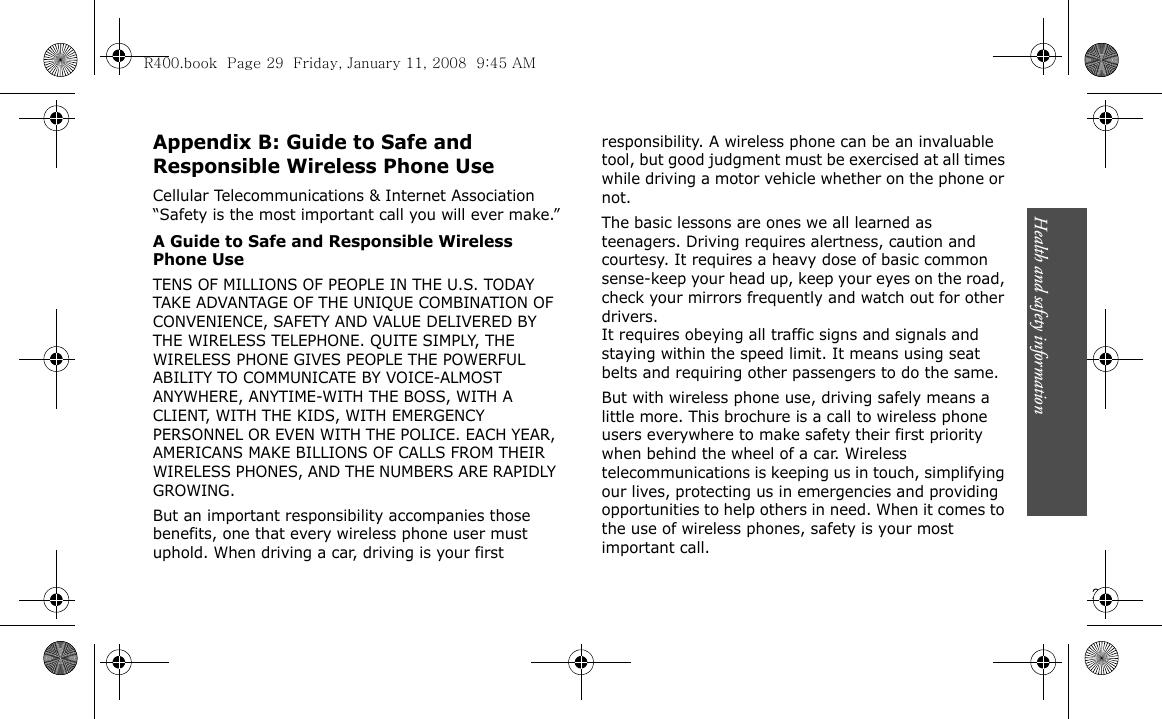

Health and safety information 29Appendix B: Guide to Safe and Responsible Wireless Phone UseCellular Telecommunications & Internet Association “Safety is the most important call you will ever make.”A Guide to Safe and Responsible Wireless Phone UseTENS OF MILLIONS OF PEOPLE IN THE U.S. TODAY TAKE ADVANTAGE OF THE UNIQUE COMBINATION OF CONVENIENCE, SAFETY AND VALUE DELIVERED BY THE WIRELESS TELEPHONE. QUITE SIMPLY, THE WIRELESS PHONE GIVES PEOPLE THE POWERFUL ABILITY TO COMMUNICATE BY VOICE-ALMOST ANYWHERE, ANYTIME-WITH THE BOSS, WITH A CLIENT, WITH THE KIDS, WITH EMERGENCY PERSONNEL OR EVEN WITH THE POLICE. EACH YEAR, AMERICANS MAKE BILLIONS OF CALLS FROM THEIR WIRELESS PHONES, AND THE NUMBERS ARE RAPIDLY GROWING.But an important responsibility accompanies those benefits, one that every wireless phone user must uphold. When driving a car, driving is your first responsibility. A wireless phone can be an invaluable tool, but good judgment must be exercised at all times while driving a motor vehicle whether on the phone or not.The basic lessons are ones we all learned as teenagers. Driving requires alertness, caution and courtesy. It requires a heavy dose of basic common sense-keep your head up, keep your eyes on the road, check your mirrors frequently and watch out for other drivers. It requires obeying all traffic signs and signals and staying within the speed limit. It means using seat belts and requiring other passengers to do the same. But with wireless phone use, driving safely means a little more. This brochure is a call to wireless phone users everywhere to make safety their first priority when behind the wheel of a car. Wireless telecommunications is keeping us in touch, simplifying our lives, protecting us in emergencies and providing opportunities to help others in need. When it comes to the use of wireless phones, safety is your most important call.R400.book Page 29 Friday, January 11, 2008 9:45 AM
Health and safety informationWireless Phone “Safety Tips”Below are safety tips to follow while driving and using a wireless phone which should be easy to remember:1.Get to know your wireless phone and its features such as speed dial and redial. Carefully read your instruction manual and learn to take advantage of valuable features most phones offer, including automatic redial and memory. Also, work to memorize the phone keypad so you can use the speed dial function without taking your attention off the road.2.When available, use a hands free device. A number of hands free wireless phone accessories are readily available today. Whether you choose an installed mounted device for your wireless phone or a speaker phone accessory, take advantage of these devices if available to you.3.Position your wireless phone within easy reach. Make sure you place your wireless phone within easy reach and where you can grab it without removing your eyes from the road. If you get an incoming call at an inconvenient time, if possible, let your voice mail answer it for you.4.Suspend conversations during hazardous driving conditions or situations. Let the person you are speaking with know you are driving; if necessary, suspend the call in heavy traffic or hazardous weather conditions. Rain, sleet, snow and ice can be hazardous, but so is heavy traffic. As a driver, your first responsibility is to pay attention to the road.5.Do not take notes or look up phone numbers while driving. If you are reading an address book or business card, or writing a “to do” list while driving a car, you are not watching where you are going. It’s common sense. Don’t get caught in a dangerous situation because you are reading or writing and not paying attention to the road or nearby vehicles.R400.book Page 30 Friday, January 11, 2008 9:45 AM
Health and safety information 316.Dial sensibly and assess the traffic; if possible, place calls when you are not moving or before pulling into traffic. Try to plan your calls before you begin your trip or attempt to coincide your calls with times you may be stopped at a stop sign, red light or otherwise stationary. But if you need to dial while driving, follow this simple tip-dial only a few numbers, check the road and your mirrors, then continue.7.Do not engage in stressful or emotional conversations that may be distracting. Stressful or emotional conversations and driving do not mix-they are distracting and even dangerous when you are behind the wheel of a car. Make people you are talking with aware you are driving and if necessary, suspend conversations which have the potential to divert your attention from the road.8.Use your wireless phone to call for help. Your wireless phone is one of the greatest tools you can own to protect yourself and your family in dangerous situations-with your phone at your side, help is only three numbers away. Dial 9-1-1 or other local emergency number in the case of fire, traffic accident, road hazard or medical emergency. Remember, it is a free call on your wireless phone!9.Use your wireless phone to help others in emergencies. Your wireless phone provides you a perfect opportunity to be a “Good Samaritan” in your community. If you see an auto accident, crime in progress or other serious emergency where lives are in danger, call 9-1-1 or other local emergency number, as you would want others to do for you.10. Call roadside assistance or a special wireless non emergency assistance number when necessary. Certain situations you encounter while driving may require attention, but are not urgent enough to merit a call for emergency services. But you still can use your wireless phone to lend a hand. If you see a broken-down vehicle posing no serious hazard, a broken traffic signal, a minor traffic accident where no one appears injured or a vehicle R400.book Page 31 Friday, January 11, 2008 9:45 AM
Health and safety informationyou know to be stolen, call roadside assistance or other special non-emergency wireless number.Careless, distracted individuals and people driving irresponsibly represent a hazard to everyone on the road. Since 1984, the Cellular Telecommunications Industry Association and the wireless industry have conducted educational outreach to inform wireless phone users of their responsibilities as safe drivers and good citizens. As we approach a new century, more and more of us will take advantage of the benefits of wireless telephones. And, as we take to the roads, we all have a responsibility to drive safely.“The wireless industry reminds you to use your phone safely when driving.”Cellular Telecommunications & Internet Association For more information, please call 1-888-901-SAFE. For updates: http://www.wow-com.com/consumer/issues/driving/articles.cfm?ID =85Appendix C: Consumer Update on Wireless PhonesU.S. Food and Drug Administration1.What kinds of phones are the subject of this update?The term wireless phone refers here to hand-held wireless phones with built-in antennas, often called cell, mobile, or PCS phones. These types of wireless phones can expose the user to measurable radio frequency energy (RF) because of the short distance between the phone and the user s head. These RF exposures are limited by Federal Communications Commission safety guidelines that were developed with the advice of FDA and other federal health and safety agencies. When the phone is located at greater distances from the user, the exposure to RF is drastically lower because a person’s RF exposure decreases rapidly with increasing distance from the source. The so-called “cordless phones,” which have a base unit connected to the telephone wiring in a house, typically operate at far lower power levels, and R400.book Page 32 Friday, January 11, 2008 9:45 AM
Health and safety information 33thus produce RF exposures well within the FCC’s compliance limits.2.Do wireless phones pose a health hazard?The available scientific evidence does not show that any health problems are associated with using wireless phones. There is no proof, however, that wireless phones are absolutely safe. Wireless phones emit low levels of radio frequency energy (RF) in the microwave range while being used. They also emit very low levels of RF when in the stand-by mode. Whereas high levels of RF can produce health effects (by heating tissue), exposure to low level RF that does not produce heating effects causes no known adverse health effects. Many studies of low level RF exposures have not found any biological effects. Some studies have suggested that some biological effects may occur, but such findings have not been confirmed by additional research. In some cases, other researchers have had difficulty in reproducing those studies, or in determining the reasons for inconsistent results.3.What is FDA’s role concerning the safety of wireless phones?Under the law, FDA does not review the safety of radiation emitting consumer products such as wireless phones before they can be sold, as it does with new drugs or medical devices. However, the agency has authority to take action if wireless phones are shown to emit radio frequency energy (RF) at a level that is hazardous to the user. In such a case, FDA could require the manufacturers of wireless phones to notify users of the health hazard and to repair, replace or recall the phones so that the hazard no longer exists.Although the existing scientific data do not justify FDA regulatory actions, FDA has urged the wireless phone industry to take a number of steps, including the following:• Support needed research into possible biological effects of RF of the type emitted by wireless phones;R400.book Page 33 Friday, January 11, 2008 9:45 AM
Health and safety information• Design wireless phones in a way that minimizes any RF exposure to the user that is not necessary for device function; and• Cooperate in providing users of wireless phones with the best possible information on possible effects of wireless phone use on human healthFDA belongs to an interagency working group of the federal agencies that have responsibility for different aspects of RF safety to ensure coordinated efforts at the federal level. The following agencies belong to this working group:• National Institute for Occupational Safety and Health• Environmental Protection Agency Federal Communications Commission• Occupational Safety and Health Administration• National Telecommunications and Information Administration• The National Institutes of Health participates in some interagency working group activities, as well. FDA shares regulatory responsibilities for wireless phones with the Federal Communications Commission (FCC). All phones that are sold in the United States must comply with FCC safety guidelines that limit RF exposure. FCC relies on FDA and other health agencies for safety questions about wireless phones.FCC also regulates the base stations that the wireless phone networks rely upon. While these base stations operate at higher power than do the wireless phones themselves, the RF exposures that people get from these base stations are typically thousands of times lower than those they can get from wireless phones. Base stations are thus not the primary subject of the safety questions discussed in this document.4.What is FDA doing to find out more about the possible health effects of wireless phone RF?FDA is working with the U.S. National Toxicology Program and with groups of investigators around the world to ensure that high priority animal studies are conducted to address important questions about the effects of exposure to radio frequency energy (RF).R400.book Page 34 Friday, January 11, 2008 9:45 AM

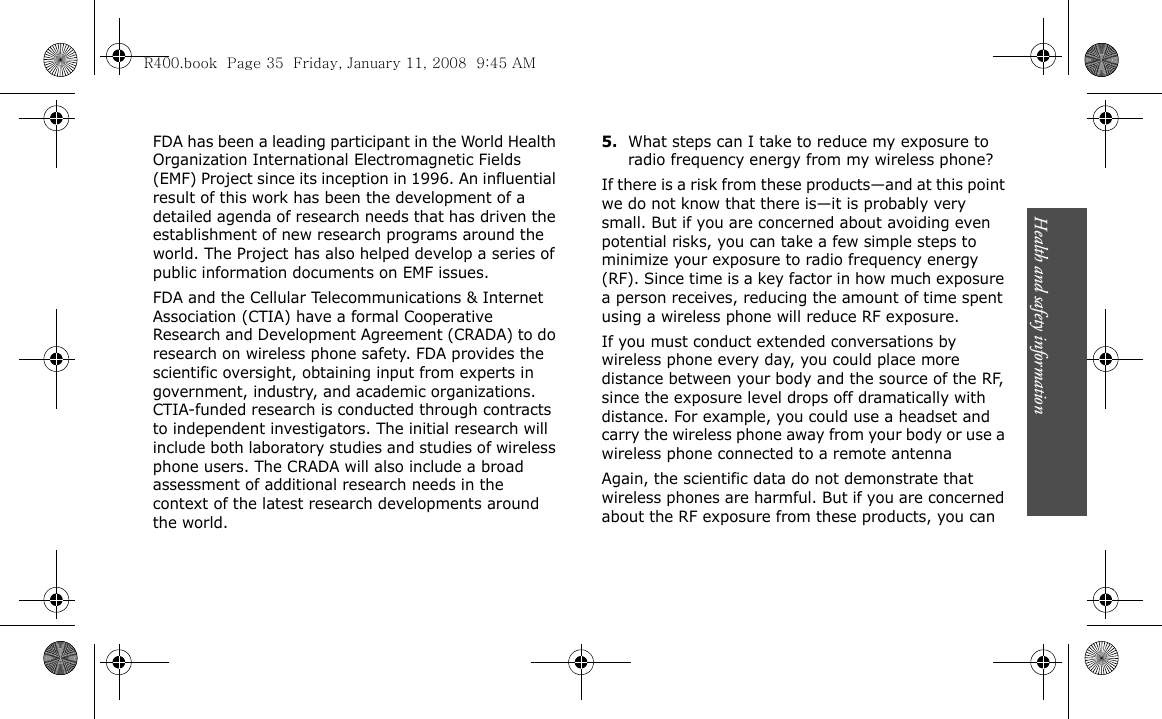

Health and safety information 35FDA has been a leading participant in the World Health Organization International Electromagnetic Fields (EMF) Project since its inception in 1996. An influential result of this work has been the development of a detailed agenda of research needs that has driven the establishment of new research programs around the world. The Project has also helped develop a series of public information documents on EMF issues.FDA and the Cellular Telecommunications & Internet Association (CTIA) have a formal Cooperative Research and Development Agreement (CRADA) to do research on wireless phone safety. FDA provides the scientific oversight, obtaining input from experts in government, industry, and academic organizations. CTIA-funded research is conducted through contracts to independent investigators. The initial research will include both laboratory studies and studies of wireless phone users. The CRADA will also include a broad assessment of additional research needs in the context of the latest research developments around the world.5.What steps can I take to reduce my exposure to radio frequency energy from my wireless phone?If there is a risk from these products—and at this point we do not know that there is—it is probably very small. But if you are concerned about avoiding even potential risks, you can take a few simple steps to minimize your exposure to radio frequency energy (RF). Since time is a key factor in how much exposure a person receives, reducing the amount of time spent using a wireless phone will reduce RF exposure.If you must conduct extended conversations by wireless phone every day, you could place more distance between your body and the source of the RF, since the exposure level drops off dramatically with distance. For example, you could use a headset and carry the wireless phone away from your body or use a wireless phone connected to a remote antennaAgain, the scientific data do not demonstrate that wireless phones are harmful. But if you are concerned about the RF exposure from these products, you can R400.book Page 35 Friday, January 11, 2008 9:45 AM
Health and safety informationuse measures like those described above to reduce your RF exposure from wireless phone use.6.What about children using wireless phones?The scientific evidence does not show a danger to users of wireless phones, including children and teenagers. If you want to take steps to lower exposure to radio frequency energy (RF), the measures described above would apply to children and teenagers using wireless phones. Reducing the time of wireless phone use and increasing the distance between the user and the RF source will reduce RF exposure.Some groups sponsored by other national governments have advised that children be discouraged from using wireless phones at all. For example, the government in the United Kingdom distributed leaflets containing such a recommendation in December 2000. They noted that no evidence exists that using a wireless phone causes brain tumors or other ill effects. Their recommendation to limit wireless phone use by children was strictly precautionary; it was not based on scientific evidence that any health hazard exists.7.Do hands-free kits for wireless phones reduce risks from exposure to RF emissions?Since there are no known risks from exposure to RF emissions from wireless phones, there is no reason to believe that hands-free kits reduce risks. Hands-free kits can be used with wireless phones for convenience and comfort. These systems reduce the absorption of RF energy in the head because the phone, which is the source of the RF emissions, will not be placed against the head. On the other hand, if the phone is mounted against the waist or other part of the body during use, then that part of the body will absorb more RF energy. Wireless phones marketed in the U.S. are required to meet safety requirements regardless of whether they are used against the head or against the body. Either configuration should result in compliance with the safety limit.R400.book Page 36 Friday, January 11, 2008 9:45 AM
Health and safety information 378.Do wireless phone accessories that claim to shield the head from RF radiation work?Since there are no known risks from exposure to RF emissions from wireless phones, there is no reason to believe that accessories that claim to shield the head from those emissions reduce risks. Some products that claim to shield the user from RF absorption use special phone cases, while others involve nothing more than a metallic accessory attached to the phone. Studies have shown that these products generally do not work as advertised. Unlike “hand-free” kits, these so-called “shields” may interfere with proper operation of the phone. The phone may be forced to boost its power to compensate, leading to an increase in RF absorption. In February 2002, the Federal trade Commission (FTC) charged two companies that sold devices that claimed to protect wireless phone users from radiation with making false and unsubstantiated claims. According to FTC, these defendants lacked a reasonable basis to substantiate their claim.9. What about wireless phone interference with medical equipment?Radio frequency energy (RF) from wireless phones can interact with some electronic devices. For this reason, FDA helped develop a detailed test method to measure electromagnetic interference (EMI) of implanted cardiac pacemakers and defibrillators from wireless telephones. This test method is now part of a standard sponsored by the Association for the Advancement of Medical instrumentation (AAMI). The final draft, a joint effort by FDA, medical device manufacturers, and many other groups, was completed in late 2000. This standard will allow manufacturers to ensure that cardiac pacemakers and defibrillators are safe from wireless phone EMI.FDA has tested hearing aids for interference from handheld wireless phones and helped develop a voluntary standard sponsored by the Institute of Electrical and Electronic Engineers (IEEE). This standard specifies test methods and performance requirements for hearing aids and wireless phones so that no interference occurs when a person uses a compatible phone and a compatible hearing aid at the R400.book Page 37 Friday, January 11, 2008 9:45 AM
Health and safety informationsame time. This standard was approved by the IEEE in 2000.FDA continues to monitor the use of wireless phones for possible interactions with other medical devices. Should harmful interference be found to occur, FDA will conduct testing to assess the interference and work to resolve the problem.10.What are the results of the research done already?The research done thus far has produced conflicting results, and many studies have suffered from flaws in their research methods. Animal experiments investigating the effects of radio frequency energy (RF) exposures characteristic of wireless phones have yielded conflicting results that often cannot be repeated in other laboratories. A few animal studies, however, have suggested that low levels of RF could accelerate the development of cancer in laboratory animals. However, many of the studies that showed increased tumor development used animals that had been genetically engineered or treated with cancer causing chemicals so as to be pre-disposed to develop cancer in the absence of RF exposure. Other studies exposed the animals to RF for up to 22 hours per day. These conditions are not similar to the conditions under which people use wireless phones, so we don’t know with certainty what the results of such studies mean for human health.Three large epidemiology studies have been published since December 2000. Between them, the studies investigated any possible association between the use of wireless phones and primary brain cancer, gioma, meningioma, or acoustic neuroma, tumors of the brain or salivary gland, leukemia, or other cancers. None of the studies demonstrated the existence of any harmful health effects from wireless phone RF exposures. However, none of the studies can answer questions about long-term exposures, since the average period of phone use in these studies was around three years.11. What research is needed to decide whether RF exposure from wireless phones poses a health risk?A combination of laboratory studies and epidemiological studies of people actually using wireless phones would provide some of the data that R400.book Page 38 Friday, January 11, 2008 9:45 AM

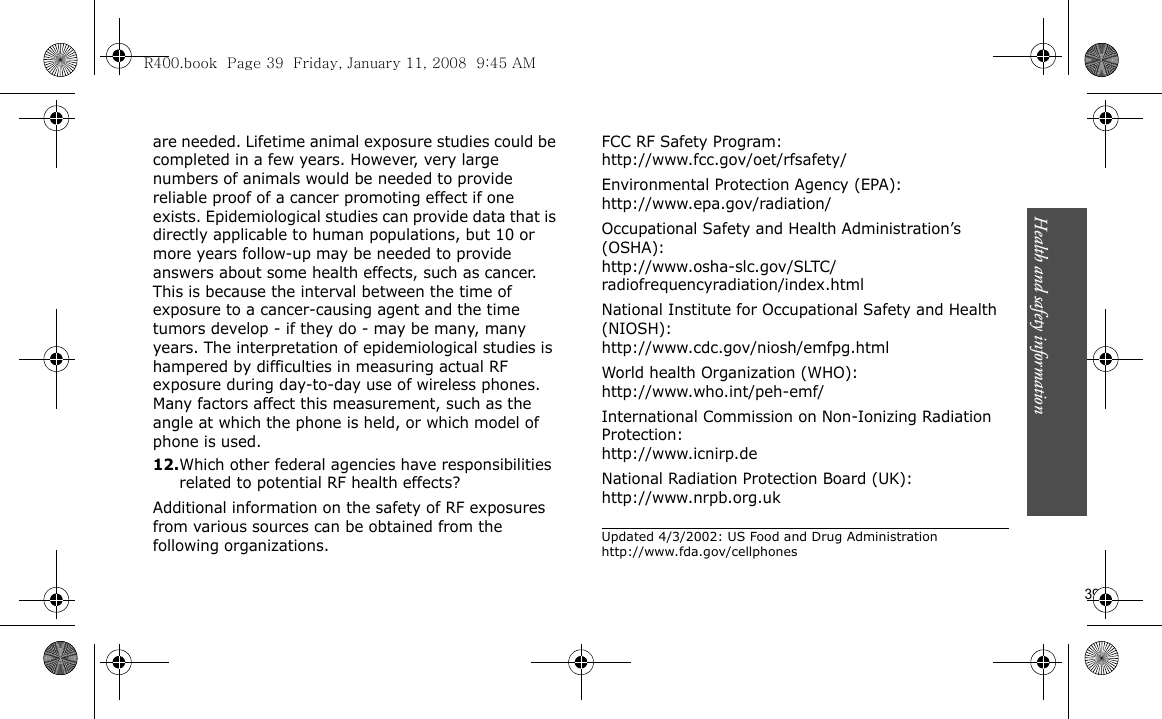

Health and safety information 39are needed. Lifetime animal exposure studies could be completed in a few years. However, very large numbers of animals would be needed to provide reliable proof of a cancer promoting effect if one exists. Epidemiological studies can provide data that is directly applicable to human populations, but 10 or more years follow-up may be needed to provide answers about some health effects, such as cancer. This is because the interval between the time of exposure to a cancer-causing agent and the time tumors develop - if they do - may be many, many years. The interpretation of epidemiological studies is hampered by difficulties in measuring actual RF exposure during day-to-day use of wireless phones. Many factors affect this measurement, such as the angle at which the phone is held, or which model of phone is used.12.Which other federal agencies have responsibilities related to potential RF health effects?Additional information on the safety of RF exposures from various sources can be obtained from the following organizations.FCC RF Safety Program:http://www.fcc.gov/oet/rfsafety/Environmental Protection Agency (EPA):http://www.epa.gov/radiation/Occupational Safety and Health Administration’s (OSHA):http://www.osha-slc.gov/SLTC/radiofrequencyradiation/index.htmlNational Institute for Occupational Safety and Health (NIOSH):http://www.cdc.gov/niosh/emfpg.htmlWorld health Organization (WHO):http://www.who.int/peh-emf/International Commission on Non-Ionizing Radiation Protection:http://www.icnirp.deNational Radiation Protection Board (UK):http://www.nrpb.org.ukUpdated 4/3/2002: US Food and Drug Administration http://www.fda.gov/cellphonesR400.book Page 39 Friday, January 11, 2008 9:45 AM
Some of the contents in this manual may differ from your phone depending on the software of the phone or your service provider.World Wide Webhttp://www.samsungmobile.comPrinted in KoreaCode No.:GH68-XXXXXA English . 04/2009. Rev. 1.0S5600.book Page i Friday, April 17, 2009 2:23 PM
